Lecture 7
Continuous time dynamic models
Ivan Rudik
AEM 7130
Roadmap
- The theory behind continuous time models
- Numerical methods for solving continuous time model
Model setup
Consider a problem where each period an agent obtains flow utility J(x(t),u(t)),
where x is our state and u is our control
Model setup
Consider a problem where each period an agent obtains flow utility J(x(t),u(t)),
where x is our state and u is our control
Suppose there is a finite horizon with a terminal time T
Model setup
Consider a problem where each period an agent obtains flow utility J(x(t),u(t)),
where x is our state and u is our control
Suppose there is a finite horizon with a terminal time T
The agent's objective is to maximize the total payoff, subject to the transitions of the states max
This is an open-loop solution so we optimize our entire policy trajectory from time t=0
Hamiltonians
In a dynamic optimization problem, we will have an auxiliary function that yields the first-order conditions
Hamiltonians
In a dynamic optimization problem, we will have an auxiliary function that yields the first-order conditions
This function is called the Hamiltonian H(x(t),u(t),\lambda(t)) \equiv J(x(t),u(t)) + \lambda(t)g(x(t),u(t))
Hamiltonians
Pontryagin's Maximum Principle states that the following conditions are necessary for an optimal solution, \begin{align} \frac{\partial H(x(t),u(t),\lambda(t))}{\partial u} &= 0 \,\, \forall t \in [0,T] \tag{Maximality} \\ \frac{\partial H(x(t),u(t),\lambda(t))}{\partial x} &= -\dot{\lambda}(t) \tag{Co-state} \\ \frac{\partial H(x(t),u(t),\lambda(t))}{\partial \lambda} &= \dot{x}(t) \tag{State transitions} \\ x(0) &= x_0 \tag{Initial condition} \\ \lambda(T) &= 0 \tag{Transversality} \end{align}
What do these conditions mean?
Necessary conditions
First, what is the Hamiltonian?
Necessary conditions
First, what is the Hamiltonian?
The contribution of that instant t to overall utility via the change in flow utility and the change in the state (which affects future flow utilities)
Necessary conditions
First, what is the Hamiltonian?
The contribution of that instant t to overall utility via the change in flow utility and the change in the state (which affects future flow utilities)
The decisionmaker can use her control to increase the contemporaneous flow utility and reap immediate rewards, or to alter the state variable to increase future rewards
Necessary conditions
The maximality condition: in every instant, we select the control so that we can no longer increase our total payoff
Necessary conditions
The maximality condition: in every instant, we select the control so that we can no longer increase our total payoff
It effectively sets the net marginal benefits of the control to zero
Necessary conditions
The maximality condition: in every instant, we select the control so that we can no longer increase our total payoff
It effectively sets the net marginal benefits of the control to zero
The state transition expression is just a definition
Necessary conditions
The maximality condition: in every instant, we select the control so that we can no longer increase our total payoff
It effectively sets the net marginal benefits of the control to zero
The state transition expression is just a definition
Taking the derivative of the Hamiltonian with respect to the shadow value, just like a Lagrangian, yields this constraint back
Necessary conditions
The maximality condition: in every instant, we select the control so that we can no longer increase our total payoff
It effectively sets the net marginal benefits of the control to zero
The state transition expression is just a definition
Taking the derivative of the Hamiltonian with respect to the shadow value, just like a Lagrangian, yields this constraint back
This leaves the co-state condition
Necessary conditions
The maximality condition: in every instant, we select the control so that we can no longer increase our total payoff
It effectively sets the net marginal benefits of the control to zero
The state transition expression is just a definition
Taking the derivative of the Hamiltonian with respect to the shadow value, just like a Lagrangian, yields this constraint back
This leaves the co-state condition
It defines how the shadow value of our state transition, called the co-state variable, evolves over time
Necessary conditions
What is the co-state?
Necessary conditions
What is the co-state?
The additional future value of having one more unit of our state variable
Necessary conditions
What is the co-state?
The additional future value of having one more unit of our state variable
Suppose we increase today's stock of x by one unit and this increases the instantaneous change in our value (H)
Necessary conditions
What is the co-state?
The additional future value of having one more unit of our state variable
Suppose we increase today's stock of x by one unit and this increases the instantaneous change in our value (H)
Then the shadow value of that stock (\lambda) must decrease along an optimal trajectory
Necessary conditions
What is the co-state?
The additional future value of having one more unit of our state variable
Suppose we increase today's stock of x by one unit and this increases the instantaneous change in our value (H)
Then the shadow value of that stock (\lambda) must decrease along an optimal trajectory
Why?
Necessary conditions
If it didn't, we could increase value by accumulating more of the stock variable
\rightarrow what we were doing cannot be optimal
We can re-write the co-state equation as \frac{\partial J}{\partial x} + \lambda(t) \frac{\partial g}{\partial x} + \dot{\lambda}(t) = 0
Necessary conditions
If it didn't, we could increase value by accumulating more of the stock variable
\rightarrow what we were doing cannot be optimal
We can re-write the co-state equation as \frac{\partial J}{\partial x} + \lambda(t) \frac{\partial g}{\partial x} + \dot{\lambda}(t) = 0
We must have that the a unit of the stock's value must change (third term), so that is exactly offsets the change in value from increasing the stock in the immediate instant of time
Necessary conditions
If it didn't, we could increase value by accumulating more of the stock variable
\rightarrow what we were doing cannot be optimal
We can re-write the co-state equation as \frac{\partial J}{\partial x} + \lambda(t) \frac{\partial g}{\partial x} + \dot{\lambda}(t) = 0
We must have that the a unit of the stock's value must change (third term), so that is exactly offsets the change in value from increasing the stock in the immediate instant of time
The immediate value is made up of the actual utility payoff (first term),
and the future utility payoff payoff from how increasing the stock today affects the stock in the future (second term)
Necessary conditions
These necessary conditions give us the shape of the optimal path but they do not tell us what the optimal path actually is
Necessary conditions
These necessary conditions give us the shape of the optimal path but they do not tell us what the optimal path actually is
Many different paths are consistent with these differential equations, depends on the constant of integration
Necessary conditions
These necessary conditions give us the shape of the optimal path but they do not tell us what the optimal path actually is
Many different paths are consistent with these differential equations, depends on the constant of integration
We need additional optimality conditions to use as constraints to impose the optimal path
Pinning down the optimal path
We have effectively two ODEs, one for \dot{\lambda}(t) and one for \dot{x}(t)
Pinning down the optimal path
We have effectively two ODEs, one for \dot{\lambda}(t) and one for \dot{x}(t)
We need two constraints
Pinning down the optimal path
We have effectively two ODEs, one for \dot{\lambda}(t) and one for \dot{x}(t)
We need two constraints
Constraint 1: Initial condition on the state
Pinning down the optimal path
We have effectively two ODEs, one for \dot{\lambda}(t) and one for \dot{x}(t)
We need two constraints
Constraint 1: Initial condition on the state
This directly pins down where the state path starts
Pinning down the optimal path
We have effectively two ODEs, one for \dot{\lambda}(t) and one for \dot{x}(t)
We need two constraints
Constraint 1: Initial condition on the state
This directly pins down where the state path starts
We need to pin down the co-state path
Pinning down the optimal path
We have effectively two ODEs, one for \dot{\lambda}(t) and one for \dot{x}(t)
We need two constraints
Constraint 1: Initial condition on the state
This directly pins down where the state path starts
We need to pin down the co-state path
We do this using transverality conditions
Pinning down the optimal path
In general there are four types of transversality conditions
Pinning down the optimal path
In general there are four types of transversality conditions
The first two are for free initial or terminal time problems,
these are problems where the agent can select when the problem starts or ends
Pinning down the optimal path
In general there are four types of transversality conditions
The first two are for free initial or terminal time problems,
these are problems where the agent can select when the problem starts or ends
The second two are for pinning down the initial and terminal state variables if they're free
Pinning down the optimal path
In general there are four types of transversality conditions
The first two are for free initial or terminal time problems,
these are problems where the agent can select when the problem starts or ends
The second two are for pinning down the initial and terminal state variables if they're free
Usually terminal conditions free and initial conditions are not
Pinning down the optimal path
If the agent can select the time T when the problem ends, what do we know about the Hamiltonian at time T?
Pinning down the optimal path
If the agent can select the time T when the problem ends, what do we know about the Hamiltonian at time T?
It must be zero, why?
Pinning down the optimal path
If the agent can select the time T when the problem ends, what do we know about the Hamiltonian at time T?
It must be zero, why?
The Hamiltonian tells us how the value of the problem is changing
Pinning down the optimal path
If the agent can select the time T when the problem ends, what do we know about the Hamiltonian at time T?
It must be zero, why?
The Hamiltonian tells us how the value of the problem is changing
If H were positive, the value is increasing and the agent can do better by delaying ending the problem
Pinning down the optimal path
If the agent can select the time T when the problem ends, what do we know about the Hamiltonian at time T?
It must be zero, why?
The Hamiltonian tells us how the value of the problem is changing
If H were positive, the value is increasing and the agent can do better by delaying ending the problem
If H were negative, the value is decreasing and the agent can do better by ending the problem earlier
Pinning down the optimal path
If the terminal state is free, the transversality condition is that its shadow value must be zero
Pinning down the optimal path
If the terminal state is free, the transversality condition is that its shadow value must be zero
Why?
Pinning down the optimal path
If the terminal state is free, the transversality condition is that its shadow value must be zero
Why?
If it were positive the policymaker could profitably deviate by altering the level of the stock. Finally, these are all necessary conditions of the problem.
Discounting
We discount the future using exponential discounting \rightarrow now time can directly affect value
Discounting
We discount the future using exponential discounting \rightarrow now time can directly affect value
Assume that time does not directly affect instantaneous payoffs or the transitions equations
Discounting
We discount the future using exponential discounting \rightarrow now time can directly affect value
Assume that time does not directly affect instantaneous payoffs or the transitions equations
Then our value is J(x(t),u(t),t) = e^{-rt}\,V(x(t),u(t))
Discounting
We discount the future using exponential discounting \rightarrow now time can directly affect value
Assume that time does not directly affect instantaneous payoffs or the transitions equations
Then our value is J(x(t),u(t),t) = e^{-rt}\,V(x(t),u(t))
J yields the present, time 0 value of the change in value at time t
Discounting
We discount the future using exponential discounting \rightarrow now time can directly affect value
Assume that time does not directly affect instantaneous payoffs or the transitions equations
Then our value is J(x(t),u(t),t) = e^{-rt}\,V(x(t),u(t))
J yields the present, time 0 value of the change in value at time t
J is the present value and V is the current value
Discounting
We discount the future using exponential discounting \rightarrow now time can directly affect value
Assume that time does not directly affect instantaneous payoffs or the transitions equations
Then our value is J(x(t),u(t),t) = e^{-rt}\,V(x(t),u(t))
J yields the present, time 0 value of the change in value at time t
J is the present value and V is the current value
Present value refers to the value with respect to a specific period that we call the present
Current value terms
Our previous necessary conditions apply to present value Hamiltonians,
but let us analyze a current value Hamiltonian to avoid including time terms,
H^{cv}(x(t),u(t),\mu(t)) \equiv e^{rt} H(x(t),u(t),\lambda(t),t) = e^{rt} J(x(t),u(t),t) + e^{rt}\lambda(t)g(x(t),u(t))
\mu(t) is the shadow value \lambda brought into current value terms: \mu(t) = e^{rt} \lambda(t)
Current value terms
Our previous necessary conditions apply to present value Hamiltonians,
but let us analyze a current value Hamiltonian to avoid including time terms,
H^{cv}(x(t),u(t),\mu(t)) \equiv e^{rt} H(x(t),u(t),\lambda(t),t) = e^{rt} J(x(t),u(t),t) + e^{rt}\lambda(t)g(x(t),u(t))
\mu(t) is the shadow value \lambda brought into current value terms: \mu(t) = e^{rt} \lambda(t)
We can then re-write our necessary conditions in current value by substituting in for the shadow value (which implies that \dot{\lambda}(t) = -re^{-rt}\mu(t) + e^{-rt}\dot{\mu}(t)), and for \partial H / \partial x = e^{-rt}\,\partial H^{cv}/\partial x into our co-state condition e^{-rt}\frac{\partial H^{cv}(x(t),u(t),\mu(t))}{\partial x} = e^{-rt}\left[r\mu(t) - \dot{\mu}(t)\right]
Current value
e^{-rt}\frac{\partial H^{cv}(x(t),u(t),\mu(t))}{\partial x} = e^{-rt}\left[r\mu(t) - \dot{\mu}(t)\right]
Current value
e^{-rt}\frac{\partial H^{cv}(x(t),u(t),\mu(t))}{\partial x} = e^{-rt}\left[r\mu(t) - \dot{\mu}(t)\right]
Before, the present value form of the co-state condition required the change in the present shadow value precisely equal the effect of the state variable on instantaneous value
Current value
e^{-rt}\frac{\partial H^{cv}(x(t),u(t),\mu(t))}{\partial x} = e^{-rt}\left[r\mu(t) - \dot{\mu}(t)\right]
Before, the present value form of the co-state condition required the change in the present shadow value precisely equal the effect of the state variable on instantaneous value
In current value form, the co-state condition recognizes that the change in the present shadow value is comprised of two parts:
- The change in the current shadow value
- The reduction in present value purely from the passage of time
Current value
e^{-rt}\frac{\partial H^{cv}(x(t),u(t),\mu(t))}{\partial x} = e^{-rt}\left[r\mu(t) - \dot{\mu}(t)\right]
Before, the present value form of the co-state condition required the change in the present shadow value precisely equal the effect of the state variable on instantaneous value
In current value form, the co-state condition recognizes that the change in the present shadow value is comprised of two parts:
- The change in the current shadow value
- The reduction in present value purely from the passage of time
If discounting is high (large r), then the current shadow value must change quicker in order to compensate the policymaker for leaving stock for the future
Numerical methods for continuous time models
Continuous time models are systems of ODEs
Numerical methods for continuous time models
Continuous time models are systems of ODEs
A first-order ordinary differential equation has the form \begin{align} dy/dt = f(y,t) \notag \end{align}
Numerical methods for continuous time models
Continuous time models are systems of ODEs
A first-order ordinary differential equation has the form \begin{align} dy/dt = f(y,t) \notag \end{align}
Where f:\mathbb{R}^{n+1}\rightarrow\mathbb{R}^n
Numerical methods for continuous time models
Continuous time models are systems of ODEs
A first-order ordinary differential equation has the form \begin{align} dy/dt = f(y,t) \notag \end{align}
Where f:\mathbb{R}^{n+1}\rightarrow\mathbb{R}^n
The unknown is the function y(t):[t_0,T] \rightarrow \mathbb{R}^n
Numerical methods for continuous time models
Continuous time models are systems of ODEs
A first-order ordinary differential equation has the form \begin{align} dy/dt = f(y,t) \notag \end{align}
Where f:\mathbb{R}^{n+1}\rightarrow\mathbb{R}^n
The unknown is the function y(t):[t_0,T] \rightarrow \mathbb{R}^n
n determines the number of differential equations that we have
Numerical methods for continuous time models
The differential equation will give us the shape of the path that is the solution, but not where that path lies in our state space
Numerical methods for continuous time models
The differential equation will give us the shape of the path that is the solution, but not where that path lies in our state space
We need additional conditions to pin down y(t), how we pin down y(t) is what defines the different types of problems we have
Numerical methods for continuous time models
The differential equation will give us the shape of the path that is the solution, but not where that path lies in our state space
We need additional conditions to pin down y(t), how we pin down y(t) is what defines the different types of problems we have
If we pin down y(t_0) = y_0 or y(T) = y_T we have an initial value problem
Numerical methods for continuous time models
The differential equation will give us the shape of the path that is the solution, but not where that path lies in our state space
We need additional conditions to pin down y(t), how we pin down y(t) is what defines the different types of problems we have
If we pin down y(t_0) = y_0 or y(T) = y_T we have an initial value problem
IVPs are defined by the function being pinned down at one end or the other
Numerical methods for continuous time models
In one dimension we must pin down the function with either an initial or terminal condition so they are all IVPs by default
Numerical methods for continuous time models
In one dimension we must pin down the function with either an initial or terminal condition so they are all IVPs by default
If n>1 then we can have a boundary value problem where we impose n conditions on y \begin{align} g_i(y(t_0)) = 0, \,\,\,\,\, i=1,...,.n', \notag \\ g_i(y(T)) = 0, \,\,\,\,\, i=n'+1,...,n \notag \end{align} where g:\mathbb{R}^n\rightarrow\mathbb{R}^n
Numerical methods for continuous time models
In general we have that \begin{align} g_i(y(t_i)) = 0 \notag \end{align}
for some set of points t_i, t_0 \leq t_i \leq T, 1 \leq i \leq n
Numerical methods for continuous time models
In general we have that \begin{align} g_i(y(t_i)) = 0 \notag \end{align}
for some set of points t_i, t_0 \leq t_i \leq T, 1 \leq i \leq n
Often we set T = \infty so we will need some condition in the limit: \lim_{t\rightarrow\infty}y(t)
Numerical methods for continuous time models
Note two more things:
- We are implicitly assuming that these n conditions are independent, otherwise we will not have a unique solution
- IVPs and BVP are fundamentally different: IVPs are problems where the auxiliary conditions that pin down the solution are all at one point, in BVPs they can be at different points, this has significant implications for how we can solve the problems
Numerical methods for continuous time models
If we have higher-order ODEs we can use a simple change of variables \begin{align} d^2y/dx^2 = g(dy/dx,y,x) \notag \end{align} for x,y\in\mathbb{R}
Numerical methods for continuous time models
If we have higher-order ODEs we can use a simple change of variables \begin{align} d^2y/dx^2 = g(dy/dx,y,x) \notag \end{align} for x,y\in\mathbb{R}
Define z=dy/dx and then we can study the alternative system \begin{align} dy/dx = z \qquad dz/dx = g(z,y,x) \notag \end{align} of two first-order ODEs
Numerical methods for continuous time models
If we have higher-order ODEs we can use a simple change of variables \begin{align} d^2y/dx^2 = g(dy/dx,y,x) \notag \end{align} for x,y\in\mathbb{R}
Define z=dy/dx and then we can study the alternative system \begin{align} dy/dx = z \qquad dz/dx = g(z,y,x) \notag \end{align} of two first-order ODEs
In general you can always transform a nth-order ODE into n first-order ODEs
Finite difference methods for IVPs
We solve IVPs using finite-difference methods
Finite difference methods for IVPs
We solve IVPs using finite-difference methods
Consider the following IVP y'=f(t,y), \qquad y(t_0) = y_0
Finite difference methods for IVPs
We solve IVPs using finite-difference methods
Consider the following IVP y'=f(t,y), \qquad y(t_0) = y_0
A finite-difference method solves this IVP by first specifying a grid/mesh over t: t_0 < t_1 < ... < t_i < ...
Finite difference methods for IVPs
We solve IVPs using finite-difference methods
Consider the following IVP y'=f(t,y), \qquad y(t_0) = y_0
A finite-difference method solves this IVP by first specifying a grid/mesh over t: t_0 < t_1 < ... < t_i < ...
Assume the grid is uniformly spaced: t_i = t_0 + ih, \, i=0,1,...,N where h is the mesh size
Finite difference methods for IVPs
We solve IVPs using finite-difference methods
Consider the following IVP y'=f(t,y), \qquad y(t_0) = y_0
A finite-difference method solves this IVP by first specifying a grid/mesh over t: t_0 < t_1 < ... < t_i < ...
Assume the grid is uniformly spaced: t_i = t_0 + ih, \, i=0,1,...,N where h is the mesh size
Our goal is to find for each t_i, a value Y_i that closely approximates y(t_i)
Finite difference methods for IVPs
To do this, we replace our differential equation with a difference system on the grid
Finite difference methods for IVPs
To do this, we replace our differential equation with a difference system on the grid
For example we might have Y_{i+1} = F(Y_i, Y_{i-1},...,t_{i+1},t_i,...)
Finite difference methods for IVPs
To do this, we replace our differential equation with a difference system on the grid
For example we might have Y_{i+1} = F(Y_i, Y_{i-1},...,t_{i+1},t_i,...)
We then solve the difference equation for the Y's in sequence where the initial Y_0 is fixed by the initial condition Y_0 = y_0
Finite difference methods for IVPs
To do this, we replace our differential equation with a difference system on the grid
For example we might have Y_{i+1} = F(Y_i, Y_{i-1},...,t_{i+1},t_i,...)
We then solve the difference equation for the Y's in sequence where the initial Y_0 is fixed by the initial condition Y_0 = y_0
This approximates the solution only at the grid points, but then we can interpolate using standard procedures to get the approximate solution off the grid points
Euler's method
The workhorse finite-difference method is Euler's method
Euler's method
The workhorse finite-difference method is Euler's method
Euler's method is the difference equation Y_{i+1} = Y_i + hf(t_i,Y_i) where Y_0 is given by the initial condition
Euler's method

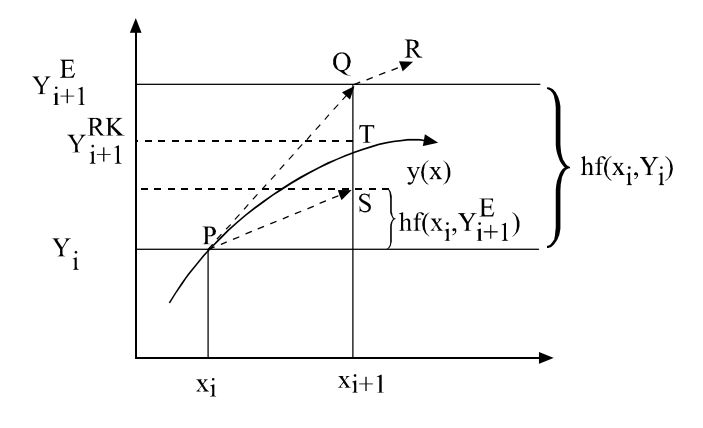

Suppose the current iterate is P=(t_i,Y_i) and y(t) is the true solution
Euler's method
Suppose the current iterate is P=(t_i,Y_i) and y(t) is the true solution
At P, y'(t_i) is the tangent vector \vec{PQ}
Euler's method
Suppose the current iterate is P=(t_i,Y_i) and y(t) is the true solution
At P, y'(t_i) is the tangent vector \vec{PQ}
Euler's method follows that direction until t=t_{i+1} at Q
Euler's method
Suppose the current iterate is P=(t_i,Y_i) and y(t) is the true solution
At P, y'(t_i) is the tangent vector \vec{PQ}
Euler's method follows that direction until t=t_{i+1} at Q
The Euler estimate of y(t_{i+1}) is then Y^E_{i+1}
Euler's method
This sounds very similar to Newton's method, because it is
Euler's method
This sounds very similar to Newton's method, because it is
Euler's method can be motivated by a similar Taylor approximation argument
Euler's method
This sounds very similar to Newton's method, because it is
Euler's method can be motivated by a similar Taylor approximation argument
If y(t) is the true solution, the second order Taylor expansion around t_i is y(t_{i+1}) = y(t_i) + hy'(t_i) + \frac{h^2}{2}y''(\xi) for some \xi \in [t_i,t_{i+1}]
Euler's method
This sounds very similar to Newton's method, because it is
Euler's method can be motivated by a similar Taylor approximation argument
If y(t) is the true solution, the second order Taylor expansion around t_i is y(t_{i+1}) = y(t_i) + hy'(t_i) + \frac{h^2}{2}y''(\xi) for some \xi \in [t_i,t_{i+1}]
If we drop the second order term and assume f(t_i,Y_i) = y'(t_i) and Y_i = y(t_i) we have exactly Euler's formula
Euler's method
This sounds very similar to Newton's method, because it is
Euler's method can be motivated by a similar Taylor approximation argument
If y(t) is the true solution, the second order Taylor expansion around t_i is y(t_{i+1}) = y(t_i) + hy'(t_i) + \frac{h^2}{2}y''(\xi) for some \xi \in [t_i,t_{i+1}]
If we drop the second order term and assume f(t_i,Y_i) = y'(t_i) and Y_i = y(t_i) we have exactly Euler's formula
For small h, y(x) should be a close approximation to the solution of the truncated Taylor expansion,so Y_i should be a good approximation to y(t_i)
Euler's method
This approach approximated y(t) with a linear function with slope f(t_i,Y_i) on the interval [t_i,t_{i+1}]
Euler's method
This approach approximated y(t) with a linear function with slope f(t_i,Y_i) on the interval [t_i,t_{i+1}]
We can motivate Euler's method with an integration argument instead of a Taylor expansion argument
Euler's method
This approach approximated y(t) with a linear function with slope f(t_i,Y_i) on the interval [t_i,t_{i+1}]
We can motivate Euler's method with an integration argument instead of a Taylor expansion argument
The fundamental theorem of calculus tells us that y(t_{i+1}) = y(t_i) + \int_{t_i}^{t_{i+1}} f(s,y(s)) ds
Euler's method
y(t_{i+1}) = y(t_i) + \int_{t_i}^{t_{i+1}} f(s,y(s)) ds
If we approximate the integral with hf(t_i,y(t_i)), a box of width h and height f(t_i,y(t_i)), then y(t_{i+1}) = y(t_i) + hf(t_i,y(t_i)) which implies the Euler method difference equation above if Y_i = y(t_i)
Euler's method
y(t_{i+1}) = y(t_i) + \int_{t_i}^{t_{i+1}} f(s,y(s)) ds
If we approximate the integral with hf(t_i,y(t_i)), a box of width h and height f(t_i,y(t_i)), then y(t_{i+1}) = y(t_i) + hf(t_i,y(t_i)) which implies the Euler method difference equation above if Y_i = y(t_i)
Thus this also approximate y(t) with a linear function over each subinterval with slope f(t_i,Y_i)
Euler's method
y(t_{i+1}) = y(t_i) + \int_{t_i}^{t_{i+1}} f(s,y(s)) ds
If we approximate the integral with hf(t_i,y(t_i)), a box of width h and height f(t_i,y(t_i)), then y(t_{i+1}) = y(t_i) + hf(t_i,y(t_i)) which implies the Euler method difference equation above if Y_i = y(t_i)
Thus this also approximate y(t) with a linear function over each subinterval with slope f(t_i,Y_i)
As h decreases, we would expect the solutions to become more accurate
Euler's method
y(t_{i+1}) = y(t_i) + \int_{t_i}^{t_{i+1}} f(s,y(s)) ds
If we approximate the integral with hf(t_i,y(t_i)), a box of width h and height f(t_i,y(t_i)), then y(t_{i+1}) = y(t_i) + hf(t_i,y(t_i)) which implies the Euler method difference equation above if Y_i = y(t_i)
Thus this also approximate y(t) with a linear function over each subinterval with slope f(t_i,Y_i)
As h decreases, we would expect the solutions to become more accurate
As h\rightarrow0, we are back in the ODE world
Euler's method errors
Consider a system, y'(t) = y(t), y(0) = 1
Euler's method errors
Consider a system, y'(t) = y(t), y(0) = 1
The solution to this is simply y(t) = e^t
Euler's method errors
Consider a system, y'(t) = y(t), y(0) = 1
The solution to this is simply y(t) = e^t
The Euler method gives us a difference equation of Y_{i+1} = Y_i + hY_i = (1+h)Y_i
Euler's method errors
Consider a system, y'(t) = y(t), y(0) = 1
The solution to this is simply y(t) = e^t
The Euler method gives us a difference equation of Y_{i+1} = Y_i + hY_i = (1+h)Y_i
This difference equation has solution Y_i = (1+h)^i and implies the approximation is Y(t) = (1+h)^{t/h}
Euler's method errors
Thus the relative error between the two is log(|Y(t)/y(t)|) = \frac{t}{h}log(1+h) - t = \frac{t}{h}(h-h^2+...)-t = -th + ... where excluded terms have order higher than h
Euler's method errors
Thus the relative error between the two is log(|Y(t)/y(t)|) = \frac{t}{h}log(1+h) - t = \frac{t}{h}(h-h^2+...)-t = -th + ... where excluded terms have order higher than h
Thus the relative error in the Euler approximation has order h and as h goes to zero so does the approximation error
Euler's method errors
Thus the relative error between the two is log(|Y(t)/y(t)|) = \frac{t}{h}log(1+h) - t = \frac{t}{h}(h-h^2+...)-t = -th + ... where excluded terms have order higher than h
Thus the relative error in the Euler approximation has order h and as h goes to zero so does the approximation error
In general we can show that Euler's method has linear convergence
Suppose the solution to y'(t) = f(t,y(t)), y(t_0) = y_0 is C^3 on [t_0,T], that f is C^2 , and that f_y and f_{yy} are bounded for all y and t_0\leq t \leq T. Then the error of the Euler scheme with step size h is O(h)
Implicit Euler method
We expanded y around t_i, but we could always expand around t_{i+1} so that we have y(t_i) = y(t_{i+1}) - hy'(t_{i+1}) = y(t_{i+1}) - hf(t_{i+1},y(t_{i+1}))
Implicit Euler method
We expanded y around t_i, but we could always expand around t_{i+1} so that we have y(t_i) = y(t_{i+1}) - hy'(t_{i+1}) = y(t_{i+1}) - hf(t_{i+1},y(t_{i+1}))
This yields the implicit Euler method Y_{i+1} = Y_i + hf(t_{i+1},Y_{i+1})
Implicit Euler method
We expanded y around t_i, but we could always expand around t_{i+1} so that we have y(t_i) = y(t_{i+1}) - hy'(t_{i+1}) = y(t_{i+1}) - hf(t_{i+1},y(t_{i+1}))
This yields the implicit Euler method Y_{i+1} = Y_i + hf(t_{i+1},Y_{i+1})
Notice that now Y_{i+1} is only implicitly defined in terms of t_i and Y_i so we will need to solve a non-linear equation in Y_{i+1}
Implicit Euler method
This seems not great, before we simply computed Y_{i+1} from values known at i but now we have to perform a rootfinding problem
Implicit Euler method
This seems not great, before we simply computed Y_{i+1} from values known at i but now we have to perform a rootfinding problem
However, Y_{i+1} does not simply depend on only Y_i and t_{i+1} but also f at t_{i+1}
Implicit Euler method
This seems not great, before we simply computed Y_{i+1} from values known at i but now we have to perform a rootfinding problem
However, Y_{i+1} does not simply depend on only Y_i and t_{i+1} but also f at t_{i+1}
Thus the implicit Euler method will get us better approximation properties, often times much better
Implicit Euler method
This seems not great, before we simply computed Y_{i+1} from values known at i but now we have to perform a rootfinding problem
However, Y_{i+1} does not simply depend on only Y_i and t_{i+1} but also f at t_{i+1}
Thus the implicit Euler method will get us better approximation properties, often times much better
Because of this we can typically use larger h's with the implicit Euler method
Runge-Kutta methods
Runge-Kutta methods take Euler methods but adapts f
Runge-Kutta methods
Runge-Kutta methods take Euler methods but adapts f
In the standard Euler approach we implicitly assume that the slope at (t_{i+1},Y^E_{i+1}) is the same as the slope at (t_{i},Y^E_{i}) which is a bad assumption unless y is linear
Runge-Kutta methods
Runge-Kutta methods take Euler methods but adapts f
In the standard Euler approach we implicitly assume that the slope at (t_{i+1},Y^E_{i+1}) is the same as the slope at (t_{i},Y^E_{i}) which is a bad assumption unless y is linear
For example if y is concave we will overshoot the true value
Runge-Kutta methods
Runge-Kutta methods take Euler methods but adapts f
In the standard Euler approach we implicitly assume that the slope at (t_{i+1},Y^E_{i+1}) is the same as the slope at (t_{i},Y^E_{i}) which is a bad assumption unless y is linear
For example if y is concave we will overshoot the true value
We could instead use the slope at (t_{i+1},Y^E_{i+1}) but this will give the same problem but in the opposite direction, we will undershoot
Runge-Kutta methods
Runge-Kutta methods recognizes these two facts
Runge-Kutta methods
Runge-Kutta methods recognizes these two facts
A first-order Runge-Kutta method will take the average of these two slopes to arrive at the formula Y_{i+1} = Y_i + \frac{h}{2}\left[f(t_i,Y_i) + f(t_{i+1},Y_{i+1}) \right]
Runge-Kutta methods
Runge-Kutta methods recognizes these two facts
A first-order Runge-Kutta method will take the average of these two slopes to arrive at the formula Y_{i+1} = Y_i + \frac{h}{2}\left[f(t_i,Y_i) + f(t_{i+1},Y_{i+1}) \right]
This converges quadratically to the true solution in h, but now uses two evaluations per step
Runge-Kutta methods
Runge-Kutta methods recognizes these two facts
A first-order Runge-Kutta method will take the average of these two slopes to arrive at the formula Y_{i+1} = Y_i + \frac{h}{2}\left[f(t_i,Y_i) + f(t_{i+1},Y_{i+1}) \right]
This converges quadratically to the true solution in h, but now uses two evaluations per step
This has the same flavor as forward vs central finite differences
Runge-Kutta methods
Runge-Kutta methods recognizes these two facts
A first-order Runge-Kutta method will take the average of these two slopes to arrive at the formula Y_{i+1} = Y_i + \frac{h}{2}\left[f(t_i,Y_i) + f(t_{i+1},Y_{i+1}) \right]
This converges quadratically to the true solution in h, but now uses two evaluations per step
This has the same flavor as forward vs central finite differences
There are higher order Runge-Kutta rules that have even more desirable properties outlined in Judd (1998)
Boundary Value Problems
IVPs are easy to solve because the solution depends only on local conditions so we can use local solution algorithms which are convenient
Boundary Value Problems
IVPs are easy to solve because the solution depends only on local conditions so we can use local solution algorithms which are convenient
BVPs have auxiliary conditions that are imposed at different points in time so we lose the local nature of the problem and our solutions must now be global in nature
Boundary Value Problems
Consider the following BVP \begin{align} \dot{x} = f(x,y,t) \notag\\ \dot{y} = g(x,y,t) \notag\\ x(t_0) = x_0, \,\,\,\, y(T) = y_T \notag \end{align}
where x\in\mathbb{R}^n,y\in\mathbb{R}^m
Boundary Value Problems
Consider the following BVP \begin{align} \dot{x} = f(x,y,t) \notag\\ \dot{y} = g(x,y,t) \notag\\ x(t_0) = x_0, \,\,\,\, y(T) = y_T \notag \end{align}
where x\in\mathbb{R}^n,y\in\mathbb{R}^m
We cannot use standard IVP approaches because at t_0 or T we only know the value of either x or y but not both
Boundary Value Problems
Consider the following BVP \begin{align} \dot{x} = f(x,y,t) \notag\\ \dot{y} = g(x,y,t) \notag\\ x(t_0) = x_0, \,\,\,\, y(T) = y_T \notag \end{align}
where x\in\mathbb{R}^n,y\in\mathbb{R}^m
We cannot use standard IVP approaches because at t_0 or T we only know the value of either x or y but not both
Thus we cannot find the next value of both of them using only local information: we need alternative approaches
Boundary Value Problems: Shooting
The core method for solving BVPs is called shooting
Boundary Value Problems: Shooting
The core method for solving BVPs is called shooting
The idea behind shooting is that we guess the value of y(t_0), and use an IVP method to see what that means about y(T)
Boundary Value Problems: Shooting
The core method for solving BVPs is called shooting
The idea behind shooting is that we guess the value of y(t_0), and use an IVP method to see what that means about y(T)
For any given guess, we generally won't hit the terminal condition exactly and might not even be that close
Boundary Value Problems: Shooting
The core method for solving BVPs is called shooting
The idea behind shooting is that we guess the value of y(t_0), and use an IVP method to see what that means about y(T)
For any given guess, we generally won't hit the terminal condition exactly and might not even be that close
But we do get some information from where we end up at y(T) and can use that information to update our guesses for y(t_0) until we are sufficiently close to y_T
Boundary Value Problems: Shooting
The core method for solving BVPs is called shooting
The idea behind shooting is that we guess the value of y(t_0), and use an IVP method to see what that means about y(T)
For any given guess, we generally won't hit the terminal condition exactly and might not even be that close
But we do get some information from where we end up at y(T) and can use that information to update our guesses for y(t_0) until we are sufficiently close to y_T
There are two components to a shooting method
Shooting
First we guess some y(0) = y_0 and then solve the IVP problem with methods we've already used \begin{align} \dot{x} = f(x,y,t) \notag\\ \dot{y} = g(x,y,t) \notag\\ x(t_0) = x_0, \,\,\,\, y(0) = y_0 \notag \end{align} to find some y(T) which we call Y(T,y_0) since it depends on our initial guess y_0
Shooting
First we guess some y(0) = y_0 and then solve the IVP problem with methods we've already used \begin{align} \dot{x} = f(x,y,t) \notag\\ \dot{y} = g(x,y,t) \notag\\ x(t_0) = x_0, \,\,\,\, y(0) = y_0 \notag \end{align} to find some y(T) which we call Y(T,y_0) since it depends on our initial guess y_0
Second we need to find the right y_0
Shooting
First we guess some y(0) = y_0 and then solve the IVP problem with methods we've already used \begin{align} \dot{x} = f(x,y,t) \notag\\ \dot{y} = g(x,y,t) \notag\\ x(t_0) = x_0, \,\,\,\, y(0) = y_0 \notag \end{align} to find some y(T) which we call Y(T,y_0) since it depends on our initial guess y_0
Second we need to find the right y_0
We want to find a y_0 such that y_T = Y(T,y_0)
Shooting
First we guess some y(0) = y_0 and then solve the IVP problem with methods we've already used \begin{align} \dot{x} = f(x,y,t) \notag\\ \dot{y} = g(x,y,t) \notag\\ x(t_0) = x_0, \,\,\,\, y(0) = y_0 \notag \end{align} to find some y(T) which we call Y(T,y_0) since it depends on our initial guess y_0
Second we need to find the right y_0
We want to find a y_0 such that y_T = Y(T,y_0)
This is a nonlinear equation in y_0 so we need to solve nonlinear equations
Shooting
We can write the algorithm as
- Initialize: Guess y_0^i. Choose a stopping criterion \epsilon > 0
- Solve the IVP for x(T), y(T) given the initial condition y_0 = y_0^i
- If ||y(T) - y_T|| < \epsilon, STOP. Else choose y_0^{i+1} based on the previous values of y and go back to step 1
Shooting
This is an example of a two layer algorithm
Shooting
This is an example of a two layer algorithm
The inner layer (step 1) uses an IVP method that solves Y(T,y_0) for any y_0
Shooting
This is an example of a two layer algorithm
The inner layer (step 1) uses an IVP method that solves Y(T,y_0) for any y_0
This can be Euler, Runge-Kutta or anything else
Shooting
This is an example of a two layer algorithm
The inner layer (step 1) uses an IVP method that solves Y(T,y_0) for any y_0
This can be Euler, Runge-Kutta or anything else
In the outer layer (step 2) we solve the nonlinear equation Y(T,y_0) = y_T
Shooting
This is an example of a two layer algorithm
The inner layer (step 1) uses an IVP method that solves Y(T,y_0) for any y_0
This can be Euler, Runge-Kutta or anything else
In the outer layer (step 2) we solve the nonlinear equation Y(T,y_0) = y_T
We can use any nonlinear solver here, typically we do this by defining a subroutine that computes Y(T,y_0)-y_T as a function of y_0 and then sends that subroutine to a rootfinding program
Example: Lifecycle model
A simple lifecycle model is given by \begin{align} \max_{c(t)} \int_0^T e^{-rt} u(c(t)) dt \notag\\ s.t. \,\,\,\, \dot{A}(t) = f(A(t)) + w(t) - c(t) \notag \\ A(0) = A(T) = 0. \notag \end{align} u(c(t)) is utility from consumption, w(t) is the wage rate, A(t) are assets and f(A(t)) is the return on invested assets
Example: Lifecycle model
A simple lifecycle model is given by \begin{align} \max_{c(t)} \int_0^T e^{-rt} u(c(t)) dt \notag\\ s.t. \,\,\,\, \dot{A}(t) = f(A(t)) + w(t) - c(t) \notag \\ A(0) = A(T) = 0. \notag \end{align} u(c(t)) is utility from consumption, w(t) is the wage rate, A(t) are assets and f(A(t)) is the return on invested assets
We assume that assets are initially and terminally zero where the latter would come about naturally from a transversality condition
Example: Lifecycle model
The Hamiltonian is H = u(c(t)) + \lambda(t)\left[ f(A(t)) + w(t) - c(t) \right]
Example: Lifecycle model
The Hamiltonian is H = u(c(t)) + \lambda(t)\left[ f(A(t)) + w(t) - c(t) \right]
and the co-state condition is given by \dot{\lambda}(t) = r\lambda(t) - \lambda(t) f'(A(t))
Example: Lifecycle model
The Hamiltonian is H = u(c(t)) + \lambda(t)\left[ f(A(t)) + w(t) - c(t) \right]
and the co-state condition is given by \dot{\lambda}(t) = r\lambda(t) - \lambda(t) f'(A(t)) The maximum principle implies that u'(c(t)) = \lambda(t)
Example: Lifecycle model
This gives us a two equation system of differential equations (1 for the A transition, 1 for the costate condition) and the boundary conditions on A are what pin down the problem
Example: Lifecycle model
This gives us a two equation system of differential equations (1 for the A transition, 1 for the costate condition) and the boundary conditions on A are what pin down the problem
The issue here is that we never know A and \lambda at either t=0 or t=T
Example: Lifecycle model
This gives us a two equation system of differential equations (1 for the A transition, 1 for the costate condition) and the boundary conditions on A are what pin down the problem
The issue here is that we never know A and \lambda at either t=0 or t=T
We can use the maximum principle to convert the costate condition into a condition on consumption \dot{c}(t) = -\frac{u'(c(t))}{u''(c(t))}\left[f'(A(t)) - r\right]
Example: Lifecycle model
The Figure shows the phase diagram assuming that f'(A) > r for all A
If A(T) < 0 when we guess c(0) = c_H, but A(T) > 0 when we guess c(0) = c_L, we know the correct guess lies in between and we can solve for it using the bisection method
Reverse shooting for \infty horizon problems
The standard infinite horizon optimal control problem is \begin{align} \max_{u(t)} \int_{0}^\infty e^{-rt} \pi(x(t),u(t)) dt \notag\\ s.t. \,\,\,\, \dot{x}(t) = f(x(t),u(t)) \notag\\ x(0) = x_0. \notag \end{align}
Reverse shooting for \infty horizon problems
The standard infinite horizon optimal control problem is \begin{align} \max_{u(t)} \int_{0}^\infty e^{-rt} \pi(x(t),u(t)) dt \notag\\ s.t. \,\,\,\, \dot{x}(t) = f(x(t),u(t)) \notag\\ x(0) = x_0. \notag \end{align}
We still have x(0) = x_0 as before, but we no longer have the terminal condition
Reverse shooting for \infty horizon problems
The standard infinite horizon optimal control problem is \begin{align} \max_{u(t)} \int_{0}^\infty e^{-rt} \pi(x(t),u(t)) dt \notag\\ s.t. \,\,\,\, \dot{x}(t) = f(x(t),u(t)) \notag\\ x(0) = x_0. \notag \end{align}
We still have x(0) = x_0 as before, but we no longer have the terminal condition
We replace it with a transversality condition that \lim_{t\rightarrow\infty} e^{-rt} |\lambda(t)^Tx(t)| \leq \infty
Reverse shooting for \infty horizon problems
Shooting methods do not really work for infinite horizon problems since we need to integrate the problem over a very long time horizon and so x(T) will be particularly sensitive to \lambda(0) when T is large
Reverse shooting for \infty horizon problems
Shooting methods do not really work for infinite horizon problems since we need to integrate the problem over a very long time horizon and so x(T) will be particularly sensitive to \lambda(0) when T is large
The primary issue is that the terminal state, because of the long time horizon, is very sensitive to the initial guess
Reverse shooting for \infty horizon problems
Shooting methods do not really work for infinite horizon problems since we need to integrate the problem over a very long time horizon and so x(T) will be particularly sensitive to \lambda(0) when T is large
The primary issue is that the terminal state, because of the long time horizon, is very sensitive to the initial guess
But this implies something very convenient: that the initial state corresponding to any terminal state is not very sensitive to the value of the terminal state
Reverse shooting for \infty horizon problems
Shooting methods do not really work for infinite horizon problems since we need to integrate the problem over a very long time horizon and so x(T) will be particularly sensitive to \lambda(0) when T is large
The primary issue is that the terminal state, because of the long time horizon, is very sensitive to the initial guess
But this implies something very convenient: that the initial state corresponding to any terminal state is not very sensitive to the value of the terminal state
Thus what we will do is not guess the value of the initial condition and integrate forward, we will guess the terminal condition and integrate backward
Example: Reverse shooting for \infty horizon problems
Consider the simplest growth model \begin{align} \max_{c(t)} \int_0^\infty e^{-rt} u(c(t)) dt \notag\\ \dot{k}(t) = f(k(t)) - c(t) \notag\\ s.t. \,\,\,\, k(0) = k_0, \notag \end{align} where c is consumption, k is the capital stock, and f is production
Example: Reverse shooting for \infty horizon problems
We can use Pontryagin's necessary conditions to get that consumption and capital are governed by the following differential equations \begin{align} \dot{c}(t) = -\frac{u'(c(t))}{u''(c(t))}(f'(k) - r) \notag\\ \dot{k}(t) = f(k(t)) -c(t), \notag \end{align} with boundary conditions, \begin{align} k(0) = k_0, \,\,\,\, 0 < \lim_{t\rightarrow\infty}|k(t)| \leq \infty \notag \end{align}
Example: Reverse shooting for \infty horizon problems

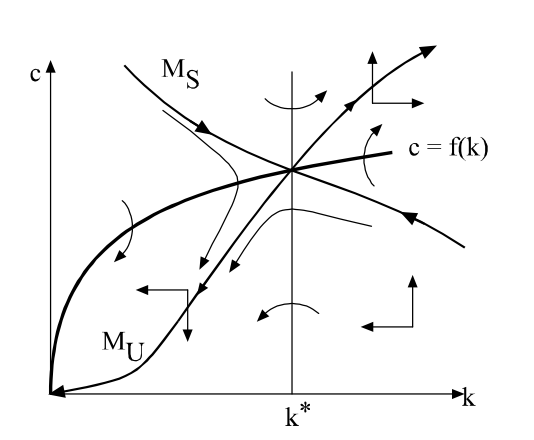

Assume u and f are concave, the Figure shows the phase diagram for the problem
We have a steady state at k=k^*, this occurs when f'(k(t)) = r and c^* = f(k^*)
Example: Reverse shooting for \infty horizon problems
For this problem there exists a stable manifold M_S and an unstable manifold M_U
so that the steady state is saddle point stable
Example: Reverse shooting for \infty horizon problems
For this problem there exists a stable manifold M_S and an unstable manifold M_U
so that the steady state is saddle point stable
Both are invariant manifolds because any system that starts on either of these manifolds will continue to move along the manifold
Example: Reverse shooting for \infty horizon problems
For this problem there exists a stable manifold M_S and an unstable manifold M_U
so that the steady state is saddle point stable
Both are invariant manifolds because any system that starts on either of these manifolds will continue to move along the manifold
However M_S is stable because it will converge to the steady state while M_U diverges away from the steady state
Example: Reverse shooting for \infty horizon problems
Lets first use standard shooting to try to compute the stable manifold
Example: Reverse shooting for \infty horizon problems
Lets first use standard shooting to try to compute the stable manifold
We want k and c to equal their steady state values at t=\infty, but we can't quite do that so we search for a c(0) so that (c(t),k(t)) has a path that is close to the steady state
Example: Reverse shooting for \infty horizon problems
Lets first use standard shooting to try to compute the stable manifold
We want k and c to equal their steady state values at t=\infty, but we can't quite do that so we search for a c(0) so that (c(t),k(t)) has a path that is close to the steady state
Suppose we start with k_0 < k^*, if we guess c(0) too big we will cross the k isoquant and have a falling capital stock, but if we guess c(0) too small we will get a path that crosses the c isoquant and results in a falling consumption level
Example: Reverse shooting for \infty horizon problems
This gives us our algorithm
- Initialize: set c_H = f(k_0) and set c_L = 0, choose a stopping criterion \epsilon > 0
- Set c_0 = \frac{1}{2}(c_L + c_H)
- Solve the IVP with initial conditions c(0) = c_0, k(0) = k_0. Stop the IVP at the first t when \dot{c}(t) < 0 or \dot{k}(t) < 0, denote this T
- If |c(T) - c^*| < \epsilon, STOP. If \dot{c}(t) < 0, set c_L = c_0, else set c_H = c_0. Go to step 2.
Example: Reverse shooting for \infty horizon problems

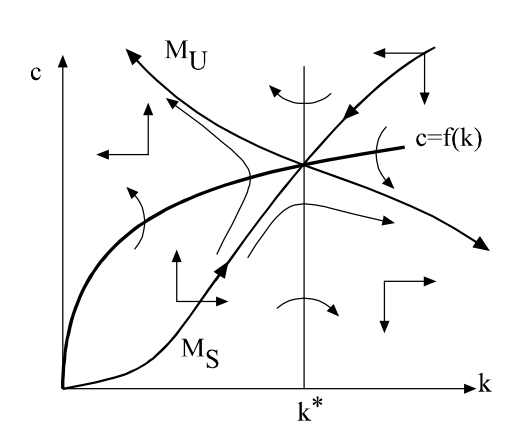

This algorithm makes sense but the phase diagram shows why it will have trouble finding the stable manifold
Example: Reverse shooting for \infty horizon problems
This algorithm makes sense but the phase diagram shows why it will have trouble finding the stable manifold
Any small deviation from M_S is magnified and results in a path that increasingly gets far away from M_S
Example: Reverse shooting for \infty horizon problems
This algorithm makes sense but the phase diagram shows why it will have trouble finding the stable manifold
Any small deviation from M_S is magnified and results in a path that increasingly gets far away from M_S
Unless we happen to pick a point precisely on the stable manifold we will move away from it, so it is hard to search for the solution since changes in our guesses will lead to wild changes in terminal values
Example: Reverse shooting for \infty horizon problems
Now suppose we wanted to find a path on M_U, notice that the flow pushes points toward M_U so the deviations are smushed together
Example: Reverse shooting for \infty horizon problems
Now suppose we wanted to find a path on M_U, notice that the flow pushes points toward M_U so the deviations are smushed together
If we wanted to compute a path that lies near the unstable manifold, we could simply pick a point near the steady state as the initial condition and integrate the system
Example: Reverse shooting for \infty horizon problems
Now suppose we wanted to find a path on M_U, notice that the flow pushes points toward M_U so the deviations are smushed together
If we wanted to compute a path that lies near the unstable manifold, we could simply pick a point near the steady state as the initial condition and integrate the system
We don't actually want to solve for a path on M_U but this gives us some insight
Example: Reverse shooting for \infty horizon problems
We want to change the system so that the stable manifold becomes the unstable manifold
Example: Reverse shooting for \infty horizon problems
We want to change the system so that the stable manifold becomes the unstable manifold
We can do this easily by reversing time \begin{align} \dot{c}(t) = \frac{u'(c(t))}{u''(c(t))}(f'(k) - r) \notag\\ \dot{k}(t) = -(f(k(t)) -c(t)) \notag \end{align}
Example: Reverse shooting for \infty horizon problems
We want to change the system so that the stable manifold becomes the unstable manifold
We can do this easily by reversing time \begin{align} \dot{c}(t) = \frac{u'(c(t))}{u''(c(t))}(f'(k) - r) \notag\\ \dot{k}(t) = -(f(k(t)) -c(t)) \notag \end{align}
This yields the same phase diagram but with the arrows turned 180^\circ so the stable manifold forward in time is now the unstable manifold reverse in time
Example: Reverse shooting for \infty horizon problems
We want to change the system so that the stable manifold becomes the unstable manifold
We can do this easily by reversing time \begin{align} \dot{c}(t) = \frac{u'(c(t))}{u''(c(t))}(f'(k) - r) \notag\\ \dot{k}(t) = -(f(k(t)) -c(t)) \notag \end{align}
This yields the same phase diagram but with the arrows turned 180^\circ so the stable manifold forward in time is now the unstable manifold reverse in time
This allows us to exploit how paths tend to converge toward the stable manifold while going away from the steady state
Reverse shooting for \infty horizon problems
Stable manifold interpretation
The stable manifold of the original system has an important interpretation
Stable manifold interpretation
The stable manifold of the original system has an important interpretation
This is an autonomous problem so time plays no direct role besides through discounting
Stable manifold interpretation
The stable manifold of the original system has an important interpretation
This is an autonomous problem so time plays no direct role besides through discounting
Thus the optimal consumption at some time t depends only on the capital stock
Stable manifold interpretation
The stable manifold of the original system has an important interpretation
This is an autonomous problem so time plays no direct role besides through discounting
Thus the optimal consumption at some time t depends only on the capital stock
We can express this as a policy function C(k) such that c(t) = C(k(t))
Stable manifold interpretation
The stable manifold of the original system has an important interpretation
This is an autonomous problem so time plays no direct role besides through discounting
Thus the optimal consumption at some time t depends only on the capital stock
We can express this as a policy function C(k) such that c(t) = C(k(t))
Optimality requires that the capital stock converge to the steady state, and the only optimal (c(t),k(t)) pairs are on the stable manifold so the stable manifold is the policy function C(k)
