Figure S5 compares the cluster-level activity of the 200 EBMF gene programs (our flashier fit) with 200 matched RQVI programs from our collaborator (Tianze, TianzeCompbio/RQVI_GP_figures). It is produced by script/FigureS5.R, script/FigureS5_rematch.py, and script/FigureS5_plot.py, in the collaborator’s plotting style: two white-to-blue heatmaps sharing row and column order, per-factor relative loading on [0, 1], broad lineage annotations above the columns, and a single shared colorbar.

Cells are our L_pm_filtered cells (those that passed the iterative total-loading filter), restricted to non-thymocytes (annotation_level1 != "thymocyte", all conditions), intersected with the cells carrying RQVI loadings. EBMF and RQVI loadings are averaged within annotation_level2 on those common cells, and each RQVI program is placed on the row of its paired EBMF factor. The collaborator’s EBMF factor F_k was verified equal to our flashier GP_k at the cell level (Pearson r = 1.0 for all 200).

Figure S5

Past versions of S5_ebmf_rqvi_level2_comparison.png

Version	Author	Date
9398c72	Ziang Zhang	2026-07-23

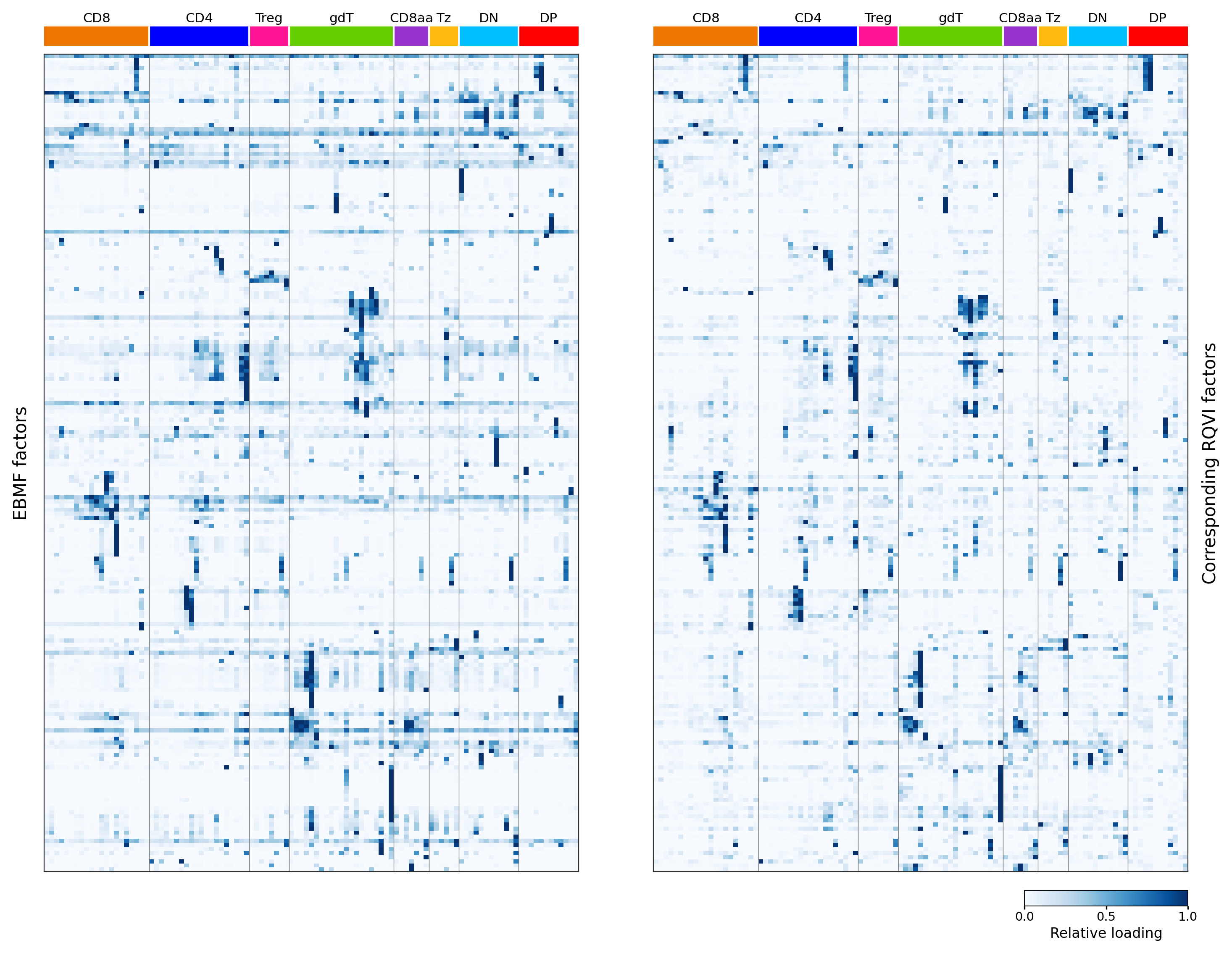

Fig. S5. Cluster-level activity profiles of corresponding EBMF and RQVI factors. EBMF cell loadings (our flashier fit) and matched RQVI program loadings were averaged within 107 fine-grained annotation_level2 clusters, using all non-thymocyte cells present in both the filtered EBMF loading matrix and the RQVI analysis (n = 629,551 cells). The left heatmap shows 200 EBMF factors ordered by hierarchical clustering of their cluster-level profiles. The right heatmap shows, on the same row and column order, the RQVI program assigned to each EBMF factor by a global one-to-one maximum-correlation assignment over all 2,560 candidates (10 seeds x 256 programs), re-derived on this clustering using all common cells. Loadings were independently rescaled to [0, 1] within each factor for display; broad lineage annotations are shown above the columns. The median per-factor Pearson correlation across the displayed clusters was 0.766, and 92.5% of factors had r >= 0.5. Standalone left/right panels and the shared colorbar are saved under figures/generated/Figure S5/S5_subfigures/.

How the figure is made

Three steps, run from the repository root:

Rscript script/FigureS5.R          # cluster-mean matrices + column/palette metadata
python  script/FigureS5_rematch.py # one-to-one EBMF<->RQVI matching on our basis
python  script/FigureS5_plot.py    # Tianze-style heatmaps

The Python steps use an environment with matplotlib, pandas, scipy, h5py, and numpy. The collaborator’s cell-level loading package (data/rqvi_loading/RQVI_EBMF_heatmap_data_v1/) provides the RQVI and EBMF cell-level loadings; data/ is a git-ignored symlink and is not tracked here.

Cluster means

script/FigureS5.R builds the raw annotation_level2 cluster-mean matrices for the EBMF factors and the matched RQVI programs on the common non-thymocyte cells, plus the column order (Figure-1 level1 lineage order, alphabetical within lineage) and the lineage color palette.

# Figure S5 (data step). EBMF vs matched-RQVI level2-cluster comparison.
#
# Design (version B, Tianze-style plotting done in script/FigureS5_plot.py):
#   * Cells: OUR L_pm_filtered cells (passed the iterative total-loading filter),
#     restricted to non-thymocytes (annotation_level1 != "thymocyte"), ALL
#     conditions (no healthy-only restriction), intersected with the cells that
#     have RQVI loadings -> "common cells".
#   * EBMF matrix: our flashier loadings L_pm_filtered (GP1..GP200), averaged
#     within annotation_level2 on the common cells.
#   * RQVI matrix: Tianze's 200 matched RQVI programs (raw cell loadings),
#     averaged within annotation_level2 on the SAME common cells. Each matched
#     program is placed under the column of its paired EBMF factor. The pairing
#     is Tianze's one-to-one match table; F_k == our GP_k (verified at cell level,
#     cell-level Pearson r = 1.0 for all 200).
#   * Columns (level2 clusters) are ordered by the Figure-1 level1 lineage order
#     and alphabetically within each lineage.
#
# This script writes raw cluster-mean matrices + column/palette metadata.
# Row ordering (hierarchical clustering of EBMF), per-factor 0-1 scaling, and
# the heatmaps are produced by script/FigureS5_plot.py in Tianze's visual style.

suppressPackageStartupMessages({
  library(arrow)
  library(data.table)
  library(ZemmourLib)
})

if (!file.exists("code/R/setup_data.R")) {
  stop("Run this script from the immgenT-GP-analysis repository root.")
}
source("code/R/setup_data.R")

outdir <- "figures/generated/Figure S5"
dir.create(outdir, recursive = TRUE, showWarnings = FALSE)

PKG <- "data/rqvi_loading/RQVI_EBMF_heatmap_data_v1/data"
parquet_path <- file.path(PKG, "rqvi_matched_200_cell_loadings.parquet")
matches_path <- file.path(PKG, "ebmf_rqvi_multiseed_level2_one_to_one_matches.csv")
level1_order <- c("CD8", "CD4", "Treg", "gdT", "CD8aa", "Tz", "DN", "DP")

## ---- our EBMF loadings + metadata ----
gp <- load_gp_data()
L  <- gp$L_pm_filtered
colnames(L) <- paste0("GP", seq_len(ncol(L)))
meta <- gp$seurat_meta_filtered
stopifnot(identical(rownames(L), rownames(meta)), ncol(L) == 200L)

nonthy <- meta$annotation_level1 != "thymocyte"
if (anyNA(nonthy)) stop("annotation_level1 has missing values.")

## ---- matched RQVI cell loadings (200 programs) ----
pq   <- as.data.frame(arrow::read_parquet(parquet_path))
prog <- setdiff(colnames(pq), "cell_id")
stopifnot(length(prog) == 200L)
matches <- fread(matches_path)
f_for <- matches$ebmf_factor[match(prog, matches$rqvi_candidate)]   # "F<k>" per program
if (anyNA(f_for) || length(unique(f_for)) != 200L) {
  stop("Could not map every RQVI program column to a unique EBMF factor.")
}

## ---- common cells (non-thymocyte, in L_pm, and with RQVI loading) ----
our_nonthy_ids <- rownames(L)[nonthy]
common_ids <- our_nonthy_ids[our_nonthy_ids %in% pq$cell_id]
grp <- factor(as.character(meta$annotation_level2[match(common_ids, rownames(meta))]))
grp <- droplevels(grp)
if (anyNA(grp) || any(as.character(grp) == "")) stop("Missing level2 labels on common cells.")

message(sprintf("common non-thymocyte cells: %d (healthy %d / non-healthy %d); level2 clusters: %d",
                length(common_ids),
                sum(meta$condition_broad[match(common_ids, rownames(meta))] == "healthy"),
                sum(meta$condition_broad[match(common_ids, rownames(meta))] != "healthy"),
                nlevels(grp)))

## ---- EBMF cluster means (columns F1..F200) ----
Lc <- L[common_ids, , drop = FALSE]
colnames(Lc) <- paste0("F", seq_len(ncol(Lc)))
esum <- rowsum(Lc, grp)
ecnt <- as.integer(table(grp)[rownames(esum)])
ebmf_means <- sweep(esum, 1L, ecnt, "/")                 # K x 200

## ---- matched-RQVI cluster means (columns F1..F200, same pairing) ----
pqc <- as.matrix(pq[match(common_ids, pq$cell_id), prog, drop = FALSE])
colnames(pqc) <- f_for
pqc <- pqc[, paste0("F", seq_len(200)), drop = FALSE]     # reorder to F1..F200
rsum <- rowsum(pqc, grp)
rcnt <- as.integer(table(grp)[rownames(rsum)])
rqvi_means <- sweep(rsum, 1L, rcnt, "/")

stopifnot(identical(rownames(ebmf_means), rownames(rqvi_means)),
          identical(ecnt, rcnt),                           # same cells -> same counts
          nrow(ebmf_means) == 107L, ncol(ebmf_means) == 200L)

## ---- level2 column order (Figure-1 level1 order, alphabetical within) ----
l2  <- rownames(ebmf_means)
lmap <- unique(data.frame(level2 = as.character(meta$annotation_level2),
                          level1 = as.character(meta$annotation_level1),
                          stringsAsFactors = FALSE))
if (anyDuplicated(lmap$level2)) stop("A level2 label maps to multiple level1 labels.")
lin <- lmap$level1[match(l2, lmap$level2)]
if (anyNA(lin) || !all(lin %in% level1_order)) stop("Unexpected level1 lineage among clusters.")
ord <- order(match(lin, level1_order), l2)
cluster_order <- data.frame(
  level2_cluster = l2[ord],
  level1         = lin[ord],
  display_column = seq_along(ord) - 1L,
  n_cells        = ecnt[ord],
  stringsAsFactors = FALSE
)

## ---- level1 palette (our canonical colors) as hex ----
l1pal <- ZemmourLib::immgent_colors$level1
hex <- vapply(l1pal, function(cc) {
  v <- grDevices::col2rgb(cc)
  grDevices::rgb(v[1], v[2], v[3], maxColorValue = 255)
}, character(1))
pal_df <- data.frame(level1 = names(hex), color = unname(hex), stringsAsFactors = FALSE)

## ---- write outputs ----
# cell -> level1/level2 for all L_pm_filtered cells; consumed by FigureS5_rematch.py
# to define common cells and clusters (avoids any machine-specific path).
fwrite(data.frame(
  cellID            = rownames(L),
  annotation_level1 = as.character(meta$annotation_level1),
  annotation_level2 = as.character(meta$annotation_level2),
  stringsAsFactors  = FALSE
), file.path(outdir, "S5_cell_metadata.csv.gz"))

fwrite(data.frame(level2_cluster = rownames(ebmf_means), ebmf_means, check.names = FALSE),
       file.path(outdir, "S5_ebmf_raw_means_level2.csv"))
fwrite(data.frame(level2_cluster = rownames(rqvi_means), rqvi_means, check.names = FALSE),
       file.path(outdir, "S5_rqvi_matched_raw_means_level2.csv"))
fwrite(cluster_order, file.path(outdir, "S5_cluster_order.csv"))
fwrite(pal_df,        file.path(outdir, "S5_level1_palette.csv"))
fwrite(data.frame(
  metric = c("common_cells", "healthy_cells", "nonhealthy_cells", "level2_clusters",
             "ebmf_factors", "rqvi_matched_programs"),
  value  = c(length(common_ids),
             sum(meta$condition_broad[match(common_ids, rownames(meta))] == "healthy"),
             sum(meta$condition_broad[match(common_ids, rownames(meta))] != "healthy"),
             nlevels(grp), 200L, 200L)
), file.path(outdir, "S5_build_summary.csv"))

message("Wrote Fig S5 data inputs to ", normalizePath(outdir))

Matching

The matching is our collaborator’s method applied unchanged to the re-aligned data (only the inputs differ: our updated annotation_level2 clustering and our common cell set). Each factor’s mean-loading profile is z-scored across clusters; the signed Pearson correlation between every EBMF factor and all 2,560 seed-specific RQVI candidates (10 seeds x 256 programs) is EBMF_z^T @ RQVI_z / K; candidates with a constant profile are excluded; and a maximum-weight one-to-one assignment (scipy.optimize.linear_sum_assignment) pairs each EBMF factor with a distinct RQVI candidate so that the total signed correlation is maximized. The matching uses all common cells (L_pm_filtered intersect RQVI, 108 level2 clusters including the thymocyte cluster); the figure displays the 107 non-thymocyte clusters. Median per-factor r = 0.766, 92.5% >= 0.5. Full code: script/FigureS5_rematch.py.

Plotting

script/FigureS5_plot.py orders the EBMF rows by hierarchical clustering (average linkage, correlation distance, optimal leaf ordering), rescales every factor to [0, 1] across clusters, and draws the two heatmaps with a shared colorbar; the matched RQVI panel reuses the EBMF row order. Full code: script/FigureS5_plot.py.

Session information

sessionInfo()

R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.6.1

Matrix products: default
BLAS:   /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.1

locale:
[1] en_CA/en_CA/en_CA/C/en_CA/en_CA

time zone: Asia/Shanghai
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

loaded via a namespace (and not attached):
 [1] vctrs_0.7.3     cli_3.6.6       knitr_1.50      rlang_1.2.0
 [5] xfun_0.55       stringi_1.8.7   otel_0.2.0      promises_1.5.0
 [9] jsonlite_2.0.0  workflowr_1.7.2 glue_1.8.1      rprojroot_2.1.1
[13] git2r_0.36.2    htmltools_0.5.9 httpuv_1.6.16   sass_0.4.10
[17] rmarkdown_2.30  evaluate_1.0.5  jquerylib_0.1.4 tibble_3.3.0
[21] fastmap_1.2.0   yaml_2.3.12     lifecycle_1.0.5 whisker_0.4.1
[25] stringr_1.6.0   compiler_4.5.1  fs_1.6.6        Rcpp_1.1.1-1.1
[29] pkgconfig_2.0.3 later_1.4.4     digest_0.6.39   R6_2.6.1
[33] pillar_1.11.1   magrittr_2.0.5  bslib_0.9.0     tools_4.5.1
[37] cachem_1.1.0
