Figure 1: Overview
Ziang Zhang
Last updated: 2026-07-14
Checks: 6 1
Knit directory:
immgenT-GP-analysis/analysis/
This reproducible R Markdown analysis was created with workflowr (version 1.7.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
The R Markdown file has unstaged changes. To know which version of
the R Markdown file created these results, you’ll want to first commit
it to the Git repo. If you’re still working on the analysis, you can
ignore this warning. When you’re finished, you can run
wflow_publish to commit the R Markdown file and build the
HTML.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(1) was run prior to running the
code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 9bff9a6. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .claude/
Ignored: analysis/.DS_Store
Ignored: analysis/.Rhistory
Ignored: analysis/assets/.DS_Store
Ignored: code/.DS_Store
Ignored: data
Ignored: experiments/.DS_Store
Ignored: figures/.DS_Store
Ignored: figures/final-selected/.DS_Store
Ignored: figures/final-selected/bits/.DS_Store
Ignored: figures/final-selected/bits/Figure 1/.DS_Store
Ignored: figures/final-selected/bits/Figure 2/.DS_Store
Ignored: figures/final-selected/bits/Figure 3/.DS_Store
Ignored: figures/final-selected/bits/Figure 4/.DS_Store
Ignored: figures/final-selected/bits/Figure 6/.DS_Store
Ignored: figures/final-selected/bits/Figure 7/.DS_Store
Ignored: figures/final-selected/bits/Figure S1/.DS_Store
Ignored: figures/final-selected/bits/Figure S2/.DS_Store
Ignored: figures/final-selected/bits/Figure S3/.DS_Store
Ignored: figures/final-selected/bits/Figure S6/.DS_Store
Ignored: figures/final-selected/bits/Figure S7/.DS_Store
Ignored: figures/generated/.DS_Store
Ignored: figures/generated/Figure 5/
Ignored: figures/generated/Figure 7/
Ignored: figures/generated/Figure 8/
Ignored: figures/generated/Figure 9/
Ignored: tmp/
Untracked files:
Untracked: analysis/FigureS4.html
Untracked: analysis/assets/FigureS4/S4a_centered_mean_loading.png
Untracked: analysis/assets/FigureS4/S4b_centered_mean_loading.png
Untracked: analysis/site_libs/
Untracked: code/other/topic_flashier_20250212.R
Untracked: code/other/topic_wrapper_20250215_alldata_backfit.sh
Untracked: experiments/active_metric_comparison/
Untracked: experiments/figure6b_sparsity_ordered/
Untracked: experiments/gene_umap_gp_space/
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_centered_mean_ge_0.01_dominant_group_filter_summary.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_centered_mean_ge_0.01_dominant_group_order.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_raw_mean_loading_raw_mean_ge_0.1_dominant_group_matrix.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_centered_mean_loading_centered_mean_ge_0.01_dominant_group_matrix.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_centered_mean_loading_dominant_group_heatmap.pdf
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_centered_mean_loading_full_level1_order_column_order.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_centered_mean_loading_full_level1_order_heatmap.pdf
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_centered_mean_loading_full_level1_order_row_order.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_centered_mean_loading_matrix.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_centered_mean_ge_0.01_dominant_group_filter_summary.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_centered_mean_ge_0.01_dominant_group_order.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_raw_mean_loading_raw_mean_ge_0.1_dominant_group_matrix.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_centered_mean_loading_centered_mean_ge_0.01_dominant_group_matrix.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_centered_mean_loading_dominant_group_heatmap.pdf
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_centered_mean_loading_full_dominant_group_column_order.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_centered_mean_loading_full_dominant_group_heatmap.pdf
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_centered_mean_loading_full_dominant_group_row_order.csv
Untracked: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_centered_mean_loading_matrix.csv
Untracked: experiments/surface_protein_activation_scatter/
Untracked: figures/generated/Figure S4/S4a_centered_mean_loading.pdf
Untracked: figures/generated/Figure S4/S4b_centered_mean_loading.pdf
Untracked: log/2026-07-13-surface-protein-activation-scatter.md
Untracked: plan/2026-07-13-active-cell-gene-metrics-exploration.md
Untracked: plan/2026-07-13-surface-protein-activation-scatter.md
Untracked: plan/2026-07-13_figure6b_triangular_order_plan.md
Untracked: plan/2026-07-13_figure6b_wide_gp_columns_formal_plan.md
Untracked: plan/2026-07-14-figure-s4-centered-fixed-0.01-filter.md
Untracked: plan/2026-07-14-figure-s4-centered-level2-order.md
Untracked: plan/2026-07-14-figure-s4-centered-per-gp-sd-filter.md
Untracked: plan/2026-07-14-figure-s4-centered-positive-filter.md
Untracked: plan/2026-07-14-healthy-nonthymus-heatmap-output-cleanup.md
Untracked: plan/2026-07-14_figure6b_heatmap_typography_plan.md
Untracked: tables/
Unstaged changes:
Modified: analysis/Figure1.Rmd
Modified: analysis/FigureS4.Rmd
Modified: analysis/Methods_FlashierFit.Rmd
Modified: analysis/assets/Figure1/1C.png
Modified: analysis/assets/FigureS4/S4a_normalized_mean_loading.png
Modified: analysis/assets/FigureS4/S4a_raw_mean_loading.png
Modified: analysis/assets/FigureS4/S4b_normalized_mean_loading.png
Modified: analysis/assets/FigureS4/S4b_raw_mean_loading.png
Modified: experiments/healthy_nonthymus_mean_loading_heatmaps/README.md
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_dominant_group_order.csv
Modified: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_raw_mean_ge_0.1_dominant_group_filter_summary.csv
Modified: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_raw_mean_ge_0.1_dominant_group_order.csv
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_raw_mean_loading_column_order.csv
Modified: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_raw_mean_loading_dominant_group_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_raw_mean_loading_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_raw_mean_loading_matrix.csv
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_raw_mean_loading_row_order.csv
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_raw_mean_loading_triangular_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_normalized_mean_loading_column_order.csv
Modified: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_normalized_mean_loading_dominant_group_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_normalized_mean_loading_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_normalized_mean_loading_matrix.csv
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_normalized_mean_loading_row_order.csv
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_row_normalized_mean_loading_triangular_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/annotation_level2_triangular_order.csv
Modified: experiments/healthy_nonthymus_mean_loading_heatmaps/heatmap_summary.txt
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_dominant_group_order.csv
Modified: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_raw_mean_ge_0.1_dominant_group_filter_summary.csv
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_raw_mean_loading_column_order.csv
Modified: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_raw_mean_loading_dominant_group_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_raw_mean_loading_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_raw_mean_loading_matrix.csv
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_raw_mean_loading_row_order.csv
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_raw_mean_loading_triangular_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_normalized_mean_loading_column_order.csv
Modified: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_normalized_mean_loading_dominant_group_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_normalized_mean_loading_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_normalized_mean_loading_matrix.csv
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_normalized_mean_loading_row_order.csv
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_row_normalized_mean_loading_triangular_heatmap.pdf
Deleted: experiments/healthy_nonthymus_mean_loading_heatmaps/organ_simplified_triangular_order.csv
Modified: experiments/healthy_nonthymus_mean_loading_heatmaps/render_mean_loading_heatmaps.R
Modified: figures/generated/Figure 1/1C.pdf
Modified: figures/generated/Figure S4/S4_filter_summary.csv
Modified: figures/generated/Figure S4/S4a_normalized_mean_loading.pdf
Modified: figures/generated/Figure S4/S4a_raw_mean_loading.pdf
Modified: figures/generated/Figure S4/S4b_normalized_mean_loading.pdf
Modified: figures/generated/Figure S4/S4b_raw_mean_loading.pdf
Modified: log/2026-07-13-healthy-nonthymus-gp-mean-loading-heatmaps.md
Modified: script/Figure1.R
Modified: script/Figure3.R
Modified: script/FigureS4.R
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown (analysis/Figure1.Rmd) and HTML
(docs/Figure1.html) files. If you’ve configured a remote
Git repository (see ?wflow_git_remote), click on the
hyperlinks in the table below to view the files as they were in that
past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | c2b3360 | Ziang Zhang | 2026-07-13 | Use log-scale axes for Fig 1E/1F and add Fig S1E gene-vs-cell sparsity scatter |
| html | c2b3360 | Ziang Zhang | 2026-07-13 | Use log-scale axes for Fig 1E/1F and add Fig S1E gene-vs-cell sparsity scatter |
| html | 92021bf | Ziang Zhang | 2026-07-03 | Build site. |
| html | 827c89b | Ziang Zhang | 2026-07-02 | Build site. |
| Rmd | 8ac7f9f | Ziang Zhang | 2026-07-02 | Add data provenance notes to each script; remove conversational |
| Rmd | f9db962 | Ziang Zhang | 2026-07-02 | Simplify layout: drop old code/script folders, rename |
| html | c6e5086 | Ziang Zhang | 2026-07-02 | Build site. |
| html | 5a79883 | Ziang Zhang | 2026-07-02 | Build site. |
| Rmd | 2b0e445 | Ziang Zhang | 2026-07-02 | Fix GitHub source links to point at the new |
| html | cf1d0ac | Ziang Zhang | 2026-07-02 | Build site. |
| Rmd | 06b2461 | Ziang Zhang | 2026-07-02 | Initial commit: immgenT-GP-analysis |
| html | 06b2461 | Ziang Zhang | 2026-07-02 | Initial commit: immgenT-GP-analysis |
All panels except (B) are produced by script/Figure1.R.
The code below is shown for reference (not re-executed on this page,

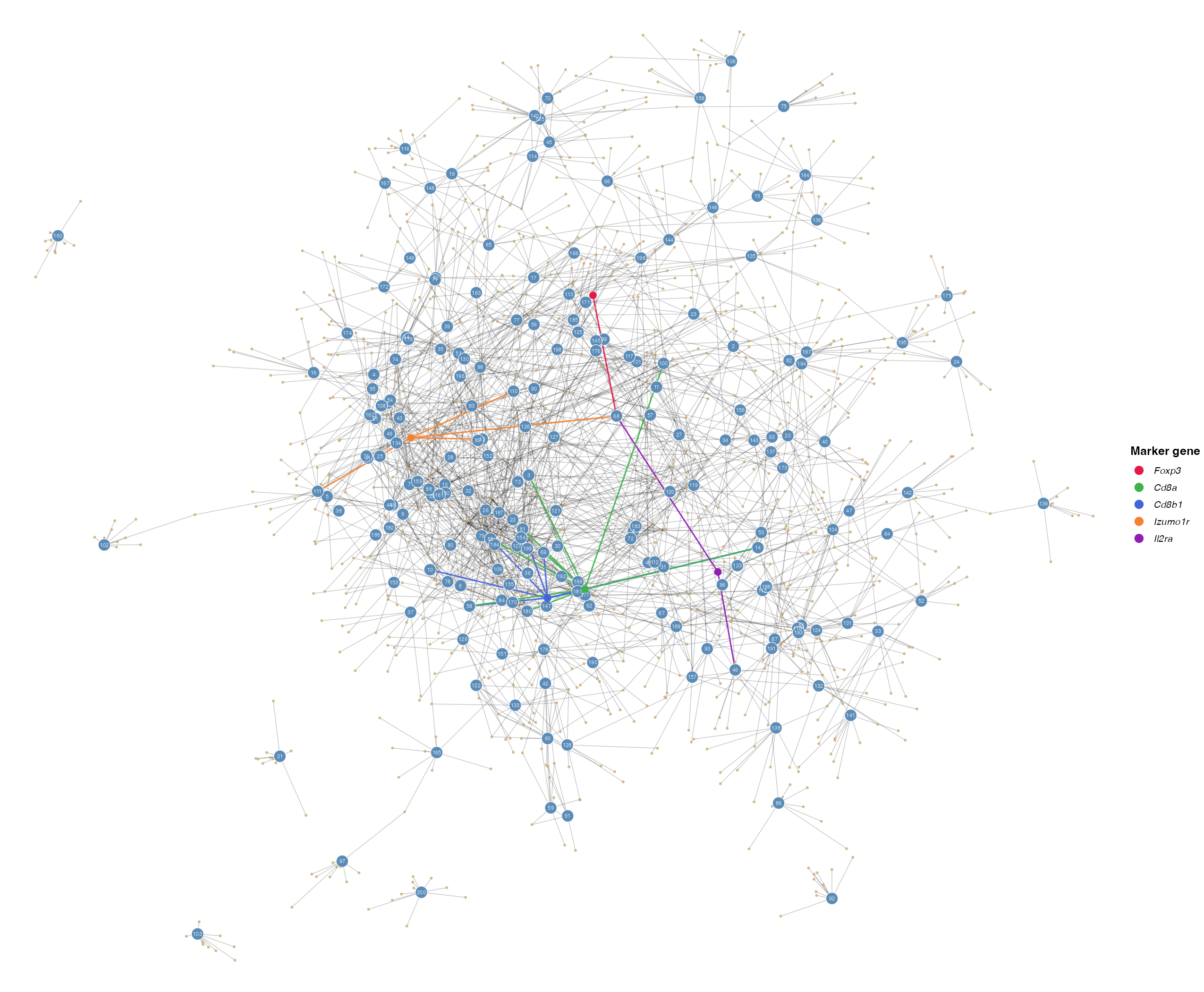

since some steps such as the panel-C heatmap are slow); the images are
its pre-rendered output.
Setup
Data loading, shared across all panels below.
library(ggplot2)
library(dplyr)
library(scattermore)
library(ComplexHeatmap)
library(circlize)
library(tibble)
library(Matrix) # protein_mat_normalized_lognorm is a dgCMatrix; must be
# attached (not just loaded) for `[` subsetting to dispatch
data_path <- "data/"
figure_path <- "figures/generated/Figure 1/"

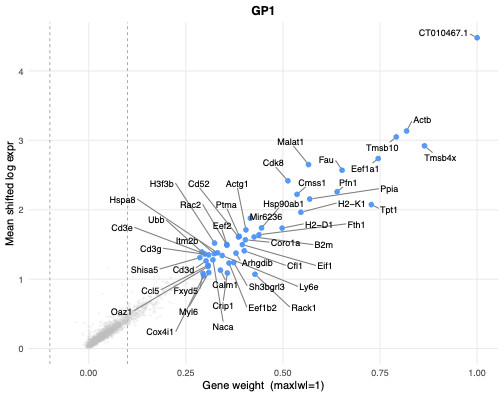

source("code/R/volcano_helpers.R") # plot_gp_signature_volcano() for panel 1D
# ============================================================
# Load data
# ============================================================
flashier_snmf_summary <- readRDS(paste0(data_path, "flashier_snmf_summary.rds"))
L_pm_filtered <- readRDS(paste0(data_path, "L_pm_filtered.rds"))
F_pm_filtered <- readRDS(paste0(data_path, "F_pm_filtered.rds"))
seurat_meta <- readRDS(paste0(data_path, "igt1_96_withtotalvi20260206_clean_ADTonly.Rds"))@meta.data
seurat_meta_filtered <- seurat_meta[rownames(L_pm_filtered), ]
protein_mat_normalized_lognorm <- readRDS(paste0(data_path, "protein_mat_normalized_lognorm.rds"))
protein_mat_normalized_lognorm <- protein_mat_normalized_lognorm[rownames(L_pm_filtered), "CD44"]

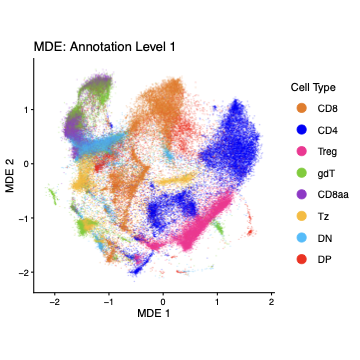

mde_result <- readRDS(paste0(data_path, "umap_result.rds"))
colnames(mde_result) <- c("MDE_1", "MDE_2")
mde_result <- mde_result[rownames(L_pm_filtered), ]

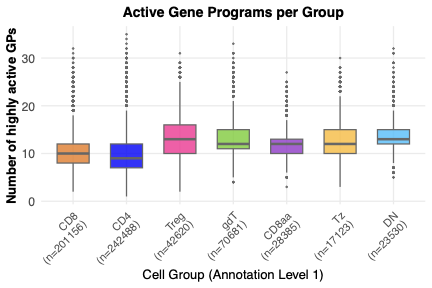

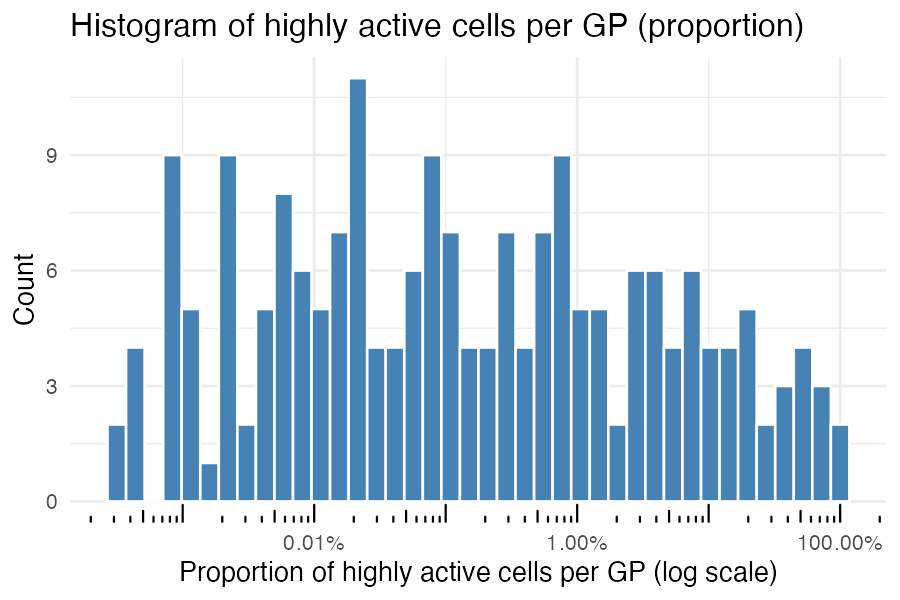

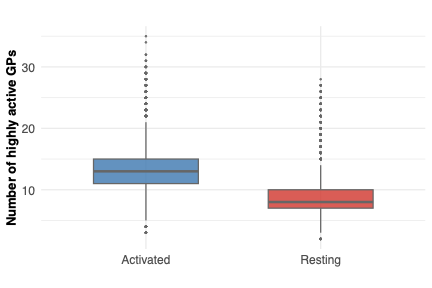

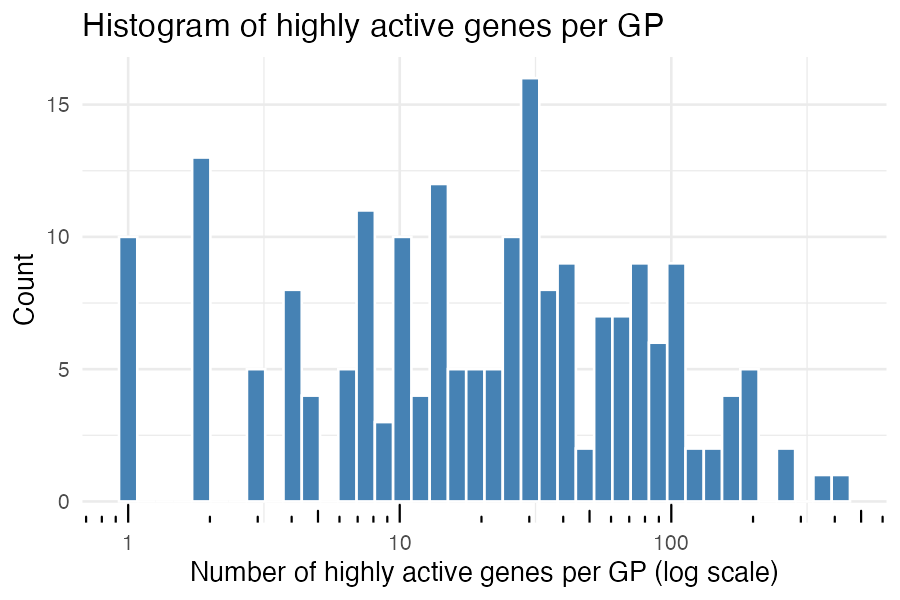

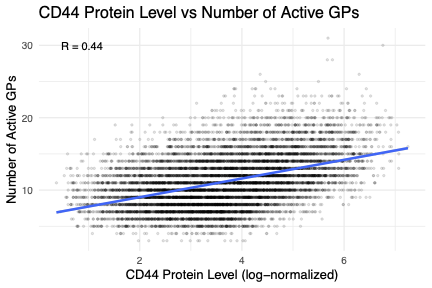

df_mde <- as.data.frame(mde_result)Panels E-I additionally restrict to non-thymocyte cells:
# Drop thymocytes from all downstream cell-level visualizations (matches
# Figure_Overview.R).
non_thymo_cells <- seurat_meta_filtered$cellID[seurat_meta_filtered$annotation_level1 != "thymocyte"]
L_pm_filtered <- L_pm_filtered[non_thymo_cells, ]
seurat_meta_filtered <- seurat_meta_filtered[non_thymo_cells, ]
protein_mat_normalized_lognorm <- protein_mat_normalized_lognorm[non_thymo_cells](A) Global MDE by lineage
# ============================================================
# 1A: Global MDE colored by major lineage, subsampled per lineage
# ============================================================
set.seed(1)
df_mde_a <- df_mde %>% tibble::rownames_to_column("cellID")
plot_df <- df_mde_a %>%
inner_join(seurat_meta_filtered %>% select(cellID, annotation_level1), by = "cellID") %>%
filter(annotation_level1 != "thymocyte")
max_total <- 1000000
min_per_group <- 300
cap_per_group <- 20000
group_sizes <- plot_df %>% count(annotation_level1, name = "n")
G <- nrow(group_sizes)
base_per_group <- ceiling(max_total / max(G, 1))
sample_plan <- group_sizes %>% mutate(n_take = pmin(n, pmax(min_per_group, pmin(cap_per_group, base_per_group))))
plot_df_sub <- plot_df %>%
group_by(annotation_level1) %>%
group_modify(~ dplyr::slice_sample(.x, n = sample_plan$n_take[sample_plan$annotation_level1 == .y$annotation_level1])) %>%
ungroup()
p_1A <- ggplot(plot_df_sub, aes(x = MDE_1, y = MDE_2)) +
scattermore::geom_scattermore(aes(color = annotation_level1), pointsize = 1.2) +
scale_color_manual(values = ZemmourLib::immgent_colors$level1) +
coord_equal() +
theme_classic() +
labs(title = "MDE: Annotation Level 1", x = "MDE 1", y = "MDE 2", color = "Cell Type") +
theme(legend.text = element_text(size = 10), legend.key.size = unit(1.5, "lines")) +
guides(color = guide_legend(override.aes = list(size = 4)))
ggsave(filename = paste0(figure_path, "1A.pdf"), plot = p_1A, width = 5, height = 5)
Fig. 1A. Global MDE embedding of all non-thymocyte cells, colored by major lineage (cells subsampled per lineage for visualization).
(B) Study design schematic
This panel is a hand-drawn schematic, not generated from R – there is
no code or pre-rendered image to show here. See
figures/final-selected/bits/Figure 1/1B.pdf for the
published panel.
(C) Gene-program network
# ============================================================
# 1C: gene-program network -- the 200 GPs linked by shared top signature genes.
# (Replaces the earlier 200-GP x cells loading heatmap.) Each GP is connected to
# its top up-regulated signature genes; a gene shared by several GPs links them,
# so the force-directed layout places programs with overlapping signatures near
# one another. Marker genes are highlighted in color. Method: see the Fig 1C
# caption in analysis/Figure1.Rmd.
# ============================================================
suppressPackageStartupMessages({
library(igraph); library(tidygraph); library(ggraph)
})
N_TOP <- 10 # top up-genes taken per GP
SIG_THR <- 0.1 # min per-GP-normalized loading
MARKERS <- c("Foxp3", "Cd8a", "Cd8b1", "Izumo1r", "Il2ra") # FR4 = Izumo1r
Fn <- F_pm_filtered
colnames(Fn) <- paste0("GP", seq_len(ncol(Fn)))
Fn <- sweep(Fn, 2, apply(abs(Fn), 2, max), "/") # per-GP (column) max-abs norm
GPs <- colnames(Fn)
# each GP -> its top up-regulated signature genes (normalized loading >= SIG_THR)
top_up <- lapply(GPs, function(j) { x <- Fn[, j]
u <- names(sort(x, decreasing = TRUE))[1:N_TOP]; u[x[u] >= SIG_THR] })
names(top_up) <- GPs
edges <- do.call(rbind, lapply(GPs, function(g)
if (length(top_up[[g]])) data.frame(GP = g, Gene = top_up[[g]]) else NULL))
# bipartite GP<->gene graph; a gene shared by several GPs connects those GPs.
# Keep every GP and all of its top signature genes (nothing filtered out).
gi <- graph_from_data_frame(edges, directed = FALSE)
g <- as_tbl_graph(gi, directed = FALSE)
gp_set <- unique(edges$GP)
present <- intersect(MARKERS, V(gi)$name) # markers present in the graph
# one distinct highlight color per marker (shown via legend, not on-plot text)
mkcol <- setNames(c("#e6194B", "#3cb44b", "#4363d8", "#f58231",
"#911eb4")[seq_along(present)], present)
GP_COL <- "#5B8CB8" # uniform GP ball color (blue)
GENE_COL <- "#C7A76C" # shared-gene dot color (tan)
g <- g %>% activate(nodes) %>% mutate(
is_gp = name %in% gp_set,
gp_lab = ifelse(name %in% gp_set, sub("GP", "", name), ""),
marker = !name %in% gp_set & name %in% present,
mk_name = ifelse(!name %in% gp_set & name %in% present, name, NA_character_),
gp_size = ifelse(name %in% gp_set, 5.5, NA)) # uniform GP ball size
g <- g %>% activate(edges) %>% mutate( # marker edges carry marker color
gene_end = ifelse(.N()$marker[from], .N()$name[from],
ifelse(.N()$marker[to], .N()$name[to], NA_character_)),
is_mk = !is.na(gene_end),
edge_col = ifelse(is_mk, mkcol[gene_end], NA_character_))
# FR layout, radially compressed (pull periphery in) + jittered (split twin GPs)
set.seed(2)
lay <- layout_with_fr(gi)
cx <- mean(lay[, 1]); cy <- mean(lay[, 2])
rr <- sqrt((lay[, 1] - cx)^2 + (lay[, 2] - cy)^2)^0.65
th <- atan2(lay[, 2] - cy, lay[, 1] - cx)
lay <- cbind(x = cx + rr * cos(th), y = cy + rr * sin(th))
jit <- 0.012 * max(diff(range(lay[, 1])), diff(range(lay[, 2])))
lay[, 1] <- lay[, 1] + rnorm(nrow(lay), 0, jit)
lay[, 2] <- lay[, 2] + rnorm(nrow(lay), 0, jit)
rownames(lay) <- V(gi)$name
nm <- g %>% activate(nodes) %>% pull(name)
p_1C <- ggraph(g, layout = "manual", x = lay[nm, "x"], y = lay[nm, "y"]) +
geom_edge_link(aes(filter = !is_mk), color = "black", alpha = 0.22, width = 0.32) +
geom_edge_link(aes(filter = is_mk, edge_colour = edge_col), alpha = 0.9, width = 0.7) +
geom_node_point(aes(filter = !is_gp & !marker), shape = 16, size = 1.0,
color = GENE_COL, alpha = 0.75) +
geom_node_point(aes(filter = is_gp, size = gp_size),
shape = 21, fill = GP_COL, color = "white", stroke = 0.4) +
geom_node_text(aes(filter = is_gp, label = gp_lab), color = "grey97", size = 1.9) +
geom_node_point(aes(filter = marker, color = mk_name), shape = 16, size = 3.2) +
scale_color_manual(values = mkcol, breaks = present, name = "Marker gene",
na.translate = FALSE) +
scale_edge_colour_identity() + scale_size_identity() + scale_edge_width_identity() +
scale_x_continuous(expand = expansion(mult = 0.03)) +
scale_y_continuous(expand = expansion(mult = 0.03)) +
theme_void(base_size = 12) +
theme(plot.margin = margin(4, 4, 4, 4), legend.position = "right",
legend.title = element_text(face = "bold", size = 12),
legend.text = element_text(face = "italic", size = 10)) +
guides(color = guide_legend(override.aes = list(size = 4)))
ggsave(filename = paste0(figure_path, "1C.pdf"), plot = p_1C, width = 17, height = 14)
Fig. 1C. Gene-program (GP) network. A map of the 200 GPs and the signature genes they share. Each GP’s loadings are first normalized within the GP (divided by that GP’s maximum absolute loading, so loadings run 0–1), and every GP is connected to its top 10 up-regulated signature genes (largest positive normalized loadings, ≥ 0.1). Blue balls are GPs (numbered) and tan balls are genes; an edge joins a GP to each of its top signature genes, so a gene that appears among several GPs’ top genes links those GPs. Five marker genes (legend: Foxp3, Cd8a, Cd8b1, Izumo1r [FR4], Il2ra) are highlighted, each in its own color shared by the gene’s ball and its edges, indicating which GPs carry that marker.
(D) GP1 signature volcano
F_pm_filtered_1d <- readRDS(paste0(data_path, "F_pm_filtered.rds"))
colnames(F_pm_filtered_1d) <- paste0("GP", seq_len(ncol(F_pm_filtered_1d)))
F_pm_normalized_1d <- normalize_maxabs(F_pm_filtered_1d)
mean_shifted_log_expr <- readRDS(paste0(data_path, "mean_shifted_log_expr.rds"))
p_1D <- plot_gp_signature_volcano("GP1", F_pm_normalized_1d, mean_shifted_log_expr, threshold = 0.1, n_label = 47, bg_alpha = 0.2)
ggsave(filename = paste0(figure_path, "1D.pdf"), plot = p_1D, width = 7, height = 5.5)
Fig. 1D. “Signature volcano” plot for one example GP (GP1): each gene’s normalized score (x-axis, max |score| = 1) versus its mean shifted-log expression (y-axis), with the top-scoring genes labeled.
(E) Active-cell proportion per GP
L_pm_norm_col <- L_pm_filtered / matrix(apply(L_pm_filtered, 2, function(x) max(x)), nrow = nrow(L_pm_filtered), ncol = ncol(L_pm_filtered), byrow = TRUE)
gp_active_cell_counts <- colSums((L_pm_norm_col) > 1e-1)
pdf(paste0(figure_path, "hist_active_cells_per_GP.pdf"), width = 6, height = 4, useDingbats = FALSE)
hist(gp_active_cell_counts, breaks = 100, xlab = "Number of highly active cells per GP", main = "Histogram of highly active cells per GP", freq = TRUE)
dev.off()
gp_active_cell_prop <- gp_active_cell_counts / nrow(L_pm_norm_col)
p_1E <- ggplot(data.frame(prop = gp_active_cell_prop), aes(x = prop)) +
geom_histogram(bins = 40, fill = "steelblue", color = "white") +
scale_x_log10(labels = scales::label_percent()) +
annotation_logticks(sides = "b") +
labs(x = "Proportion of highly active cells per GP (log scale)", y = "Count",
title = "Histogram of highly active cells per GP (proportion)") +
theme_minimal(base_size = 13)
ggsave(filename = paste0(figure_path, "1E.pdf"), plot = p_1E, width = 6, height = 4, dpi = 300)
Fig. 1E. Histogram of the proportion of cells with high loading (> 0.1) per GP, across all 200 GPs (x-axis on log scale).
(F) Active-gene count per GP
F_pm_norm_col <- F_pm_filtered / matrix(apply(F_pm_filtered, 2, function(x) max(abs(x))), nrow = nrow(F_pm_filtered), ncol = ncol(F_pm_filtered), byrow = TRUE)
gp_active_gene_counts <- colSums(abs(F_pm_norm_col) > 0.25)
p_1F <- ggplot(data.frame(count = gp_active_gene_counts), aes(x = count)) +
geom_histogram(bins = 40, fill = "steelblue", color = "white") +
scale_x_log10(labels = scales::label_comma()) +
annotation_logticks(sides = "b") +
labs(x = "Number of highly active genes per GP (log scale)", y = "Count",
title = "Histogram of highly active genes per GP") +
theme_minimal(base_size = 13)
ggsave(filename = paste0(figure_path, "1F.pdf"), plot = p_1F, width = 6, height = 4, dpi = 300)
Fig. 1F. Histogram of the number of highly-active genes (|score| > 0.25 of that GP’s max) per GP (x-axis on log scale).
(G) Active-GP count by lineage
gp_active_cell_counts_level1 <- dplyr::bind_rows(lapply(level1_order, function(grp) {
cells_grp <- seurat_meta_filtered$cellID[seurat_meta_filtered$annotation_level1 == grp]
L_grp <- L_pm_filtered[seurat_meta_filtered$cellID %in% cells_grp, , drop = FALSE]
data.frame(Group = grp, Active_Cell_Counts = rowSums(L_grp > 1e-1))
}))
group_counts <- gp_active_cell_counts_level1 %>%
group_by(Group) %>%
summarise(n = n(), .groups = "drop") %>%
mutate(Group_Label = paste0(Group, "\n(n=", n, ")")) %>%
mutate(Group = factor(Group, levels = level1_order)) %>%
arrange(Group) %>%
mutate(Group_Label = factor(Group_Label, levels = Group_Label))
plot_df_g <- gp_active_cell_counts_level1 %>% left_join(group_counts, by = "Group")
p_1G <- ggplot(plot_df_g, aes(x = Group_Label, y = Active_Cell_Counts, fill = Group)) +
geom_boxplot(outlier.size = 0.4, width = 0.6, alpha = 0.8, color = "gray40") +
scale_fill_manual(values = ZemmourLib::immgent_colors$level1) +
labs(title = "Active Gene Programs per Group", x = "Cell Group (Annotation Level 1)", y = "Number of highly active GPs") +
theme_minimal(base_size = 13) +
theme(plot.title = element_text(face = "bold", size = 14, hjust = 0.5), plot.subtitle = element_text(size = 11, color = "gray30", hjust = 0.5), axis.text.x = element_text(size = 11, angle = 45, hjust = 1), axis.text.y = element_text(size = 12), axis.title.y = element_text(size = 13, face = "bold"), legend.position = "none", panel.grid.minor = element_blank())
ggsave(filename = paste0(figure_path, "1G.pdf"), plot = p_1G, width = 6, height = 4, dpi = 300) # boxplot_active_cells_per_GP_level1
Fig. 1G. Boxplot of the number of active GPs (loading > 0.1) per cell, grouped by major lineage.
(H) Active-GP count, activated vs. resting
cells_activated <- seurat_meta_filtered$cellID[seurat_meta_filtered$annotation_level2_group == "activated"]
L_pm_activated <- L_pm_filtered[seurat_meta_filtered$cellID %in% cells_activated, ]
gp_active_cell_counts_activated <- rowSums(L_pm_activated > 1e-1)
cells_resting <- seurat_meta_filtered$cellID[seurat_meta_filtered$annotation_level2_group == "resting"]
L_pm_resting <- L_pm_filtered[seurat_meta_filtered$cellID %in% cells_resting, ]
gp_active_cell_counts_resting <- rowSums(L_pm_resting > 1e-1)
gp_active_cell_counts_df <- data.frame(
Group = c(rep("Activated", length(gp_active_cell_counts_activated)), rep("Resting", length(gp_active_cell_counts_resting))),
Active_Cell_Counts = c(gp_active_cell_counts_activated, gp_active_cell_counts_resting)
)
p_1H <- ggplot(gp_active_cell_counts_df, aes(x = Group, y = Active_Cell_Counts, fill = Group)) +
geom_boxplot(outlier.size = 0.4, width = 0.6, alpha = 0.8, color = "gray40") +
scale_fill_manual(values = c("Activated" = "#1f78b4", "Resting" = "#e31a1c")) +
labs(title = "", x = "", y = "Number of highly active GPs") +
theme_minimal(base_size = 13) +
theme(plot.title = element_text(face = "bold", size = 14, hjust = 0.5), axis.text.x = element_text(size = 12), axis.text.y = element_text(size = 12), axis.title.y = element_text(size = 13, face = "bold"), legend.position = "none")
ggsave(filename = paste0(figure_path, "1H.pdf"), plot = p_1H, width = 6, height = 4, dpi = 300) # boxplot_active_cells_per_GP
Fig. 1H. Boxplot of the number of active GPs per cell, comparing activated versus resting cells.
(I) CD44 vs. active-GP count
gp_active_cell_counts_all <- rowSums(L_pm_filtered > 1e-1)
gp_cd44_df <- data.frame(CD44_Protein_Level = protein_mat_normalized_lognorm, Active_GP_Counts = gp_active_cell_counts_all)
set.seed(123)
df_nz <- gp_cd44_df %>% dplyr::filter(CD44_Protein_Level > 0)
df_nz <- df_nz %>% sample_n(min(10000, nrow(df_nz)))
R <- cor(df_nz$CD44_Protein_Level, df_nz$Active_GP_Counts, use = "complete.obs")
p_1I <- ggplot(df_nz, aes(CD44_Protein_Level, Active_GP_Counts)) +
geom_point(alpha = 0.1, size = 0.7) +
geom_smooth(method = "lm", se = TRUE) +
labs(title = "CD44 Protein Level vs Number of Active GPs", x = "CD44 Protein Level (log-normalized)", y = "Number of Active GPs") +
annotate("text", x = min(df_nz$CD44_Protein_Level, na.rm = TRUE) + 0.5, y = max(df_nz$Active_GP_Counts, na.rm = TRUE) - 1, label = paste0("R = ", round(R, 2)), size = 4) +
theme_minimal(base_size = 13)
ggsave(filename = paste0(figure_path, "1I.pdf"), plot = p_1I, width = 6, height = 4, dpi = 300) # scatterplot_CD44_vs_active_GPs
Fig. 1I. Scatter plot of CD44 surface-protein level (log-normalized) against the number of active GPs per cell.
sessionInfo()R version 4.5.1 (2025-06-13)
