All panels except (B) are produced by script/Figure1.R.
The code below is shown for reference (not re-executed on this page,

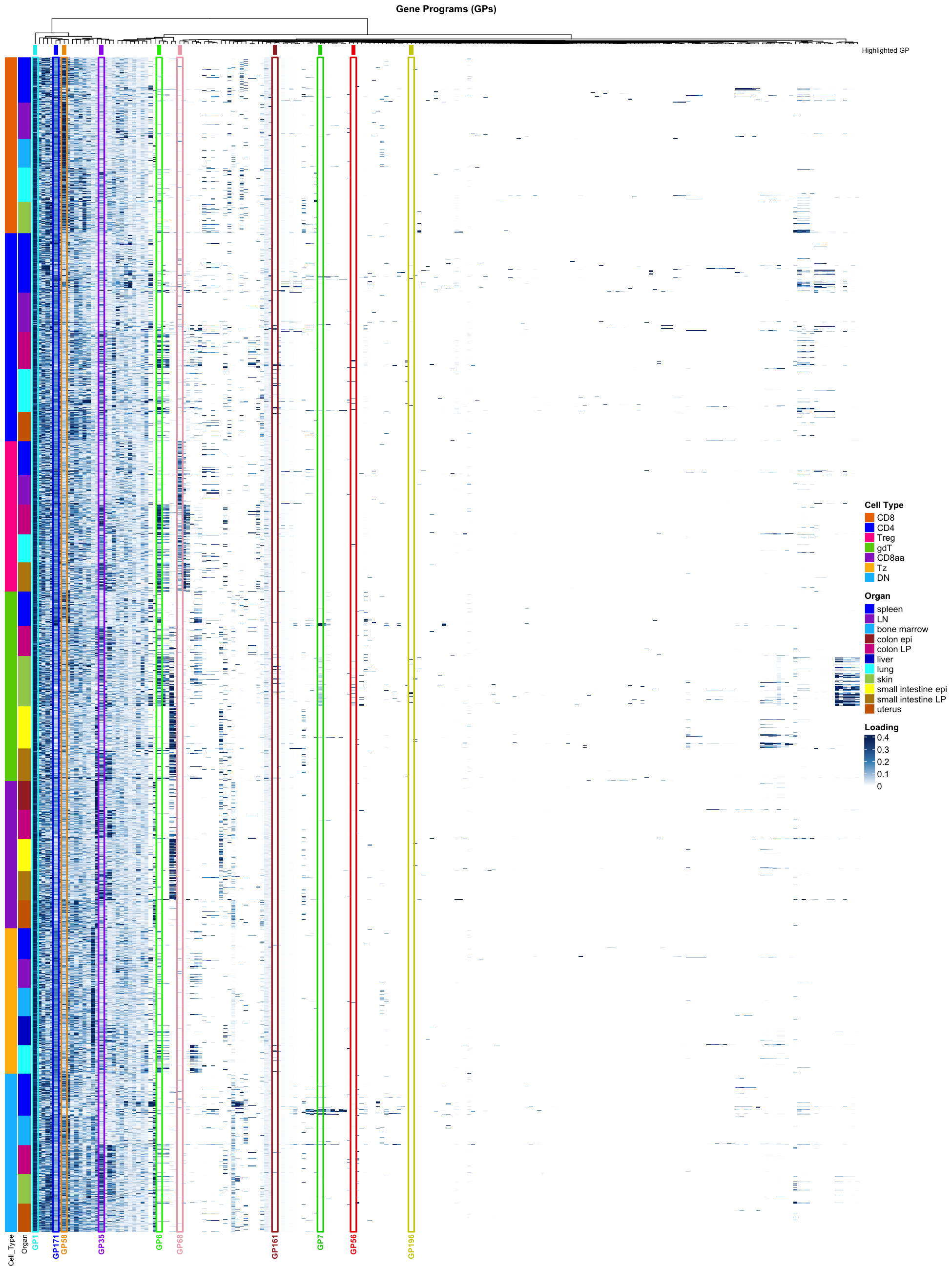

since some steps such as the panel-D heatmap are slow); the images are
its pre-rendered output.
Setup
Data loading, shared across all panels below.
library(ggplot2)
library(dplyr)
library(scattermore)
library(ComplexHeatmap)
library(circlize)
library(tibble)
library(Matrix) # protein_mat_normalized_lognorm is a dgCMatrix; must be
# attached (not just loaded) for `[` subsetting to dispatch
data_path <- "data/"
figure_path <- "figures/generated/Figure 1/"
source("code/R/volcano_helpers.R") # plot_gp_signature_volcano() for panel 1D
# ============================================================
# Load data
# ============================================================
flashier_snmf_summary <- readRDS(paste0(data_path, "flashier_snmf_summary.rds"))
L_pm_filtered <- readRDS(paste0(data_path, "L_pm_filtered.rds"))
F_pm_filtered <- readRDS(paste0(data_path, "F_pm_filtered.rds"))
seurat_meta <- readRDS(paste0(data_path, "igt1_96_withtotalvi20260206_clean_ADTonly.Rds"))@meta.data
seurat_meta_filtered <- seurat_meta[rownames(L_pm_filtered), ]
protein_mat_normalized_lognorm <- readRDS(paste0(data_path, "protein_mat_normalized_lognorm.rds"))
protein_mat_normalized_lognorm <- protein_mat_normalized_lognorm[rownames(L_pm_filtered), "CD44"]
mde_result <- readRDS(paste0(data_path, "umap_result.rds"))
colnames(mde_result) <- c("MDE_1", "MDE_2")
mde_result <- mde_result[rownames(L_pm_filtered), ]
df_mde <- as.data.frame(mde_result)Panels C and D restrict to non-thymocyte cells:
# Drop thymocytes from all downstream cell-level visualizations (matches
# Figure_Overview.R).
non_thymo_cells <- seurat_meta_filtered$cellID[seurat_meta_filtered$annotation_level1 != "thymocyte"]
L_pm_filtered <- L_pm_filtered[non_thymo_cells, ]
seurat_meta_filtered <- seurat_meta_filtered[non_thymo_cells, ]
protein_mat_normalized_lognorm <- protein_mat_normalized_lognorm[non_thymo_cells](A) Global MDE by lineage
# ============================================================
# 1A: Global MDE colored by major lineage, subsampled per lineage
# ============================================================
set.seed(1)
df_mde_a <- df_mde %>% tibble::rownames_to_column("cellID")
plot_df <- df_mde_a %>%
inner_join(seurat_meta_filtered %>% select(cellID, annotation_level1), by = "cellID") %>%
filter(annotation_level1 != "thymocyte")
max_total <- 1000000
min_per_group <- 300
cap_per_group <- 20000
group_sizes <- plot_df %>% count(annotation_level1, name = "n")
G <- nrow(group_sizes)
base_per_group <- ceiling(max_total / max(G, 1))
sample_plan <- group_sizes %>% mutate(n_take = pmin(n, pmax(min_per_group, pmin(cap_per_group, base_per_group))))
plot_df_sub <- plot_df %>%
group_by(annotation_level1) %>%
group_modify(~ dplyr::slice_sample(.x, n = sample_plan$n_take[sample_plan$annotation_level1 == .y$annotation_level1])) %>%
ungroup()
p_1A <- ggplot(plot_df_sub, aes(x = MDE_1, y = MDE_2)) +
scattermore::geom_scattermore(aes(color = annotation_level1), pointsize = 1.2) +
scale_color_manual(values = ZemmourLib::immgent_colors$level1) +
coord_equal() +
theme_classic() +
labs(title = "MDE: Annotation Level 1", x = "MDE 1", y = "MDE 2", color = "Cell Type") +
theme(legend.text = element_text(size = 10), legend.key.size = unit(1.5, "lines")) +
guides(color = guide_legend(override.aes = list(size = 4)))
ggsave(filename = paste0(figure_path, "1A.pdf"), plot = p_1A, width = 5, height = 5)

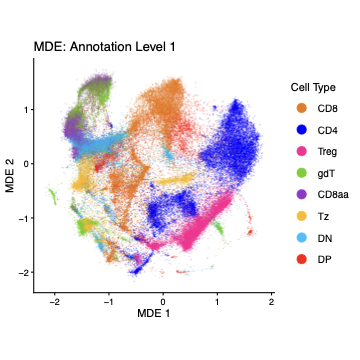

Fig. 1A. Global MDE embedding of all non-thymocyte cells, colored by major lineage (cells subsampled per lineage for visualization).
(B) Study design schematic
This panel is a hand-drawn schematic, not generated from R – there is
no code or pre-rendered image to show here. See
figures/final-selected/bits/Figure 1/1B.pdf for the
published panel.

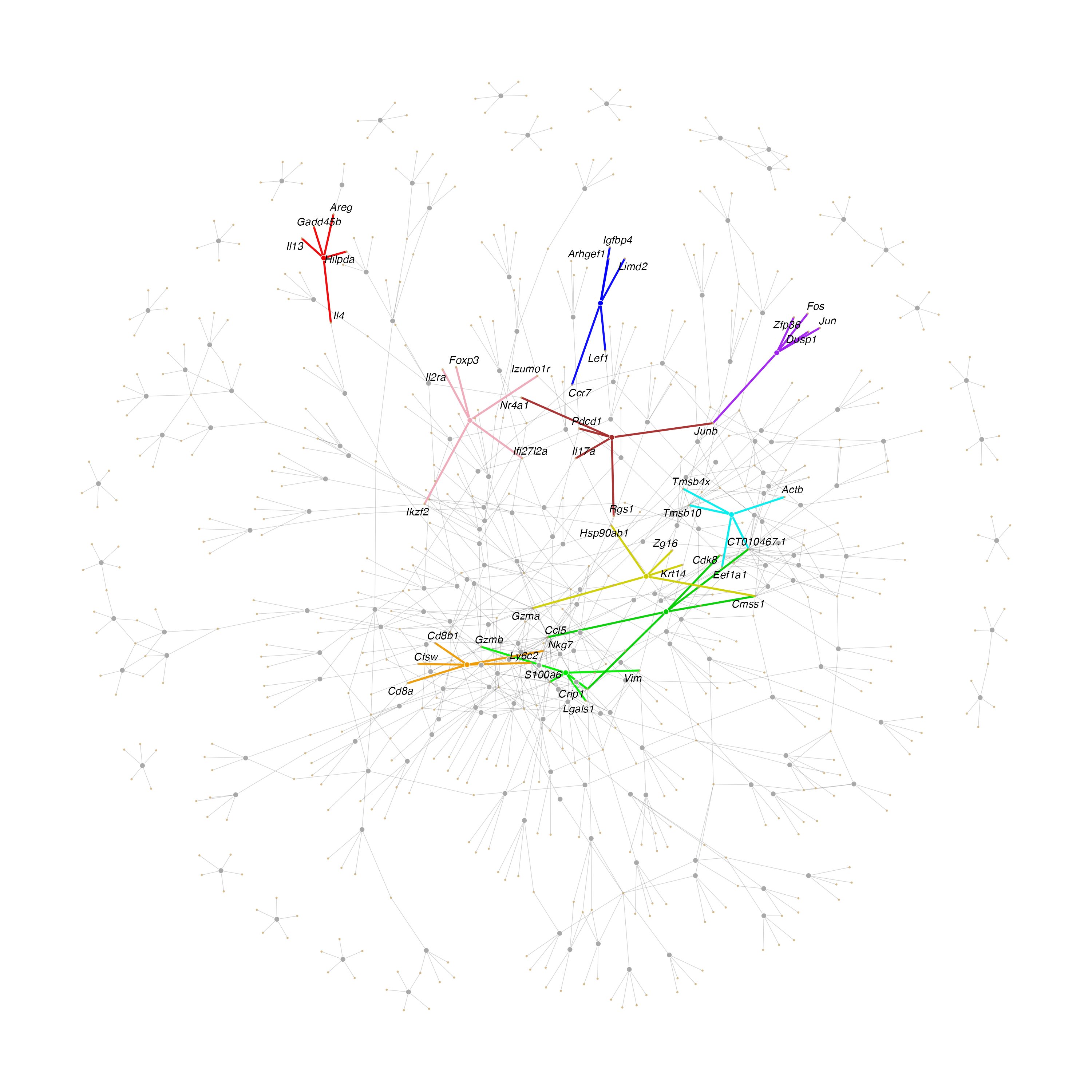

(C) Gene-program network
# ============================================================
# 1C: gene-program network -- the 200 GPs linked by their shared top signature
# genes, with a selected set of GPs highlighted. Each highlighted GP's color runs
# along its edges to its top signature genes (which are labeled); non-highlighted
# GPs are grey. Formal version: no legend / no GP-index labels -- the color->GP
# mapping and interpretation are in the Fig 1C caption (analysis/Figure1.Rmd).
# ============================================================
suppressPackageStartupMessages({
library(igraph); library(tidygraph); library(ggraph)
})
N_TOP <- 5 # top up-genes taken per GP
SIG_THR <- 0.1 # min per-GP-normalized loading
GP_HIGHLIGHTS <- c( # GP -> highlight color
GP68 = "pink2", GP58 = "orange2", GP35 = "purple", GP171 = "blue",
GP1 = "cyan2", GP56 = "red2", GP161 = "brown", GP6 = "green2",
GP7 = "green3", GP196 = "yellow3")
GP_COL <- "darkgrey" # non-highlighted GP nodes
GENE_COL <- "#C7A76C" # gene nodes (tan)
Fn <- F_pm_filtered
colnames(Fn) <- paste0("GP", seq_len(ncol(Fn)))
Fn <- sweep(Fn, 2, apply(abs(Fn), 2, max), "/") # per-GP (column) max-abs norm
GPs <- colnames(Fn)
# each GP -> its top up-regulated signature genes (normalized loading >= SIG_THR)
top_up <- lapply(GPs, function(j) { x <- Fn[, j]
u <- names(sort(x, decreasing = TRUE))[1:N_TOP]; u[x[u] >= SIG_THR] })
names(top_up) <- GPs
edges <- do.call(rbind, lapply(GPs, function(g)
if (length(top_up[[g]])) data.frame(GP = g, Gene = top_up[[g]]) else NULL))
# bipartite GP<->gene graph (every GP + all its top genes); plain FR layout
gi <- graph_from_data_frame(edges, directed = FALSE)
g <- as_tbl_graph(gi, directed = FALSE)
gp_set <- unique(edges$GP)
set.seed(1)
lay <- layout_with_fr(gi)
colnames(lay) <- c("x", "y"); rownames(lay) <- V(gi)$name
nm <- g %>% activate(nodes) %>% pull(name)
# highlight selected GPs: color their node + edges, label the genes they connect to
hl <- intersect(names(GP_HIGHLIGHTS), gp_set)
hl_genes <- setdiff(unique(unlist(
lapply(hl, function(gp) neighbors(gi, gp)$name))), gp_set)
g <- g %>% activate(nodes) %>% mutate(
is_gp = name %in% gp_set,
gp_fill = ifelse(is_gp & name %in% hl, unname(GP_HIGHLIGHTS[name]), GP_COL),
label_gene = !is_gp & name %in% hl_genes,
gene_lab = ifelse(label_gene, name, ""),
gp_size = ifelse(is_gp, 3, NA_real_))
g <- g %>% activate(edges) %>% mutate(
gp_end = ifelse(.N()$is_gp[from], .N()$name[from], .N()$name[to]),
gp_edge_highlight = gp_end %in% hl,
gp_edge_col = ifelse(gp_edge_highlight, unname(GP_HIGHLIGHTS[gp_end]), NA_character_))
p_1C <- ggraph(g, layout = "manual", x = lay[nm, "x"], y = lay[nm, "y"]) +
geom_edge_link(aes(filter = !gp_edge_highlight), color = "black", alpha = 0.18, width = 0.32) +
geom_edge_link(aes(filter = gp_edge_highlight, edge_colour = gp_edge_col), alpha = 0.95, width = 1.25) +
geom_node_point(aes(filter = !is_gp), shape = 16, size = 1, color = GENE_COL, alpha = 0.75) +
geom_node_point(aes(filter = is_gp, size = gp_size, fill = gp_fill),
shape = 21, color = "white", stroke = 0.5) +
geom_node_text(aes(filter = label_gene, label = gene_lab), repel = TRUE,
color = "black", size = 5, fontface = "italic", max.overlaps = Inf) +
scale_fill_identity() + scale_edge_colour_identity() +
scale_size_identity() + scale_edge_width_identity() +
scale_x_continuous(expand = expansion(mult = 0.08)) +
scale_y_continuous(expand = expansion(mult = 0.08)) +
theme_void(base_size = 12) +
theme(plot.margin = margin(10, 10, 10, 10), legend.position = "none")
ggsave(filename = paste0(figure_path, "1C.pdf"), plot = p_1C, width = 20, height = 20)
Fig. 1C. Gene-program (GP) network. A map of the 200
GPs and the signature genes they share. Each GP’s loadings are first
normalized within the GP (divided by that GP’s maximum absolute loading,
so loadings run 0–1), and every GP is connected to its top 5
up-regulated signature genes (largest positive normalized
loadings, ≥ 0.1). Grey balls are GPs and tan
balls are genes; an edge joins a GP to each of its top
signature genes, so a gene that appears among several GPs’ top genes
links those GPs, and a force-directed layout places programs with
overlapping signatures near one another. A selected set of GPs is
highlighted, each in its own color carried along its
edges to its (labeled) top signature genes: GP68 (pink), GP58 (orange),
GP35 (purple), GP171 (blue), GP1 (cyan), GP56 (red), GP161 (dark red),
GP6 (light green), GP7 (green), GP196 (yellow). This shows each
highlighted program’s signature and how programs that share genes sit
together — e.g. the Treg program GP68 (Foxp3, Il2ra, Izumo1r)
and the CD8 program GP58 (Cd8a, Cd8b1) occupy distinct
neighborhoods. An internal version with a color→GP legend and GP-index
labels is kept in experiments/gene_correlation_network/
(gp_highlight_internal).
(D) GP loading heatmap
# ============================================================
# 1D: giant loading heatmap (200 GP loadings x a stratified cell sample; rows =
# cells by lineage x organ, columns = GPs clustered). The same GPs highlighted
# in the 1C network are marked here by a top color bar, a colored/bold column
# label, and a box around each GP column. See the Fig 1D caption (Figure1.Rmd).
# ============================================================
suppressPackageStartupMessages({ library(grid) })
GP_HIGHLIGHTS <- c(
GP68 = "pink2", GP58 = "orange2", GP35 = "purple", GP171 = "blue",
GP1 = "cyan2", GP56 = "red2", GP161 = "brown", GP6 = "green2",
GP7 = "green3", GP196 = "yellow3")
set.seed(6173)
MIN_CELLS <- 20; N_SAMPLE <- 80; TOP_ORGANS <- 5; K_ANCHOR <- 5
level1_order <- c("CD8", "CD4", "Treg", "gdT", "CD8aa", "Tz", "DN")
organs_all <- as.character(unique(seurat_meta_filtered$organ_simplified))
ln_match <- organs_all[grepl("^LN$|lymph", organs_all, ignore.case = TRUE)]
spleen_match <- organs_all[grepl("spleen", organs_all, ignore.case = TRUE)]
organ_order <- c(spleen_match, ln_match, sort(setdiff(organs_all, c(ln_match, spleen_match))))
top_organ_combos <- seurat_meta_filtered |>
dplyr::filter(annotation_level1 %in% level1_order) |>
dplyr::count(annotation_level1, organ_simplified) |>
dplyr::group_by(annotation_level1) |>
dplyr::slice_max(n, n = TOP_ORGANS, with_ties = FALSE) |>
dplyr::ungroup() |> dplyr::select(annotation_level1, organ_simplified)
sampled_random <- seurat_meta_filtered |>
dplyr::filter(annotation_level1 %in% level1_order) |>
dplyr::inner_join(top_organ_combos, by = c("annotation_level1", "organ_simplified")) |>
dplyr::group_by(annotation_level1, organ_simplified) |>
dplyr::filter(dplyr::n() >= MIN_CELLS) |>
dplyr::slice_sample(n = N_SAMPLE) |> dplyr::ungroup()
anchor_cellids <- apply(L_pm_filtered, 2, function(x)
rownames(L_pm_filtered)[order(x, decreasing = TRUE)[seq_len(K_ANCHOR)]]) |> as.vector() |> unique()
anchor_meta <- seurat_meta_filtered |>
dplyr::filter(cellID %in% anchor_cellids, annotation_level1 %in% level1_order) |>
dplyr::inner_join(top_organ_combos, by = c("annotation_level1", "organ_simplified"))
all_meta <- dplyr::bind_rows(sampled_random, anchor_meta) |>
dplyr::distinct(cellID, .keep_all = TRUE) |>
dplyr::arrange(factor(annotation_level1, levels = level1_order),
factor(organ_simplified, levels = organ_order))
L_sampled <- L_pm_filtered[all_meta$cellID, ]
clip_val <- quantile(L_sampled, 0.99)
L_display <- pmin(L_sampled, clip_val)
colnames(L_display) <- gsub("^K", "GP", colnames(L_display))
col_fun <- colorRamp2(c(0, clip_val / 2, clip_val), c("white", "#4393c3", "#08306b"))
level1_present <- intersect(level1_order, as.character(unique(all_meta$annotation_level1)))
organ_present <- intersect(organ_order, as.character(unique(all_meta$organ_simplified)))
row_ann <- rowAnnotation(
Cell_Type = factor(as.character(all_meta$annotation_level1), levels = level1_present),
Organ = factor(as.character(all_meta$organ_simplified), levels = organ_present),
col = list(Cell_Type = ZemmourLib::immgent_colors$level1[level1_present],
Organ = ZemmourLib::immgent_colors$organ_simplified[organ_present]),
annotation_name_gp = gpar(fontsize = 8),
annotation_legend_param = list(Cell_Type = list(title = "Cell Type"), Organ = list(title = "Organ")))
gpn <- colnames(L_display)
hl_val <- ifelse(gpn %in% names(GP_HIGHLIGHTS), gpn, NA_character_)
lab_col <- ifelse(gpn %in% names(GP_HIGHLIGHTS), GP_HIGHLIGHTS[gpn], "grey55")
lab_fs <- ifelse(gpn %in% names(GP_HIGHLIGHTS), 9, 4)
lab_face <- ifelse(gpn %in% names(GP_HIGHLIGHTS), 2, 1)
# Publication version: only the highlighted GP columns keep an index label
# (background GP indices dropped), and the highlighted-GP legend is hidden -- the
# colour->GP mapping is given in the Fig 1D caption. The full-label, legended
# version for collaborators lives in experiments/gene_correlation_network/
# (heatmap_loading.*).
top_ann <- HeatmapAnnotation(
`Highlighted GP` = hl_val, col = list(`Highlighted GP` = GP_HIGHLIGHTS),
na_col = "white", simple_anno_size = unit(4, "mm"), annotation_name_gp = gpar(fontsize = 8),
show_legend = FALSE)
ht_1D <- Heatmap(
L_display, name = "Loading", col = col_fun, left_annotation = row_ann, top_annotation = top_ann,
cluster_rows = FALSE, cluster_columns = TRUE,
clustering_distance_columns = "euclidean", clustering_method_columns = "ward.D2",
show_row_names = FALSE,
column_labels = ifelse(gpn %in% names(GP_HIGHLIGHTS), gpn, ""),
column_names_gp = gpar(col = lab_col, fontsize = lab_fs, fontface = lab_face),
column_title = "Gene Programs (GPs)", column_title_gp = gpar(fontsize = 11, fontface = "bold"),
use_raster = TRUE, raster_quality = 3, border = FALSE,
heatmap_legend_param = list(title = "Loading", direction = "vertical"))
pdf(paste0(figure_path, "1D.pdf"), width = 15, height = 20, useDingbats = FALSE)
ht_drawn <- draw(ht_1D, merge_legend = TRUE)
co <- column_order(ht_drawn); disp <- colnames(L_display)[co]; n_col_ht <- length(co)
decorate_heatmap_body("Loading", {
for (gp in names(GP_HIGHLIGHTS)) { j <- which(disp == gp)
if (length(j)) grid.rect(x = (j - 0.5) / n_col_ht, y = 0.5, width = 1.4 / n_col_ht, height = 1,
gp = gpar(col = GP_HIGHLIGHTS[gp], fill = NA, lwd = 2.5)) } })
dev.off()
Fig. 1D. GP loading heatmap. Loadings of all 200 GPs
(columns) across a stratified sample of cells (rows), ordered by lineage
then organ; the left strips annotate each cell’s cell
type and organ, and GP columns are clustered
by loading similarity. Loadings are clipped at the 99th percentile and
run white → blue. Only the GPs highlighted in the (C) network are marked
and labeled here (background GP column indices are omitted); each is
shown in its matching color via a top color bar, a colored column label,
and a box drawn around its column, so a program’s
cross-cell loading pattern can be read alongside its position in the
network. Colors: GP68 (pink), GP58 (orange), GP35 (purple), GP171
(blue), GP1 (cyan), GP56 (red), GP161 (dark red), GP6 (light green), GP7
(green), GP196 (yellow). A fully-labeled version with a color→GP legend
(all 200 GP indices) is kept for reference in
experiments/gene_correlation_network/
(heatmap_loading).
sessionInfo()R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.6.1
Matrix products: default
BLAS: /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.1
locale:
[1] en_CA/en_CA/en_CA/C/en_CA/en_CA
time zone: Asia/Shanghai
tzcode source: internal
attached base packages:
[1] stats graphics grDevices utils datasets methods base
loaded via a namespace (and not attached):
[1] vctrs_0.7.3 cli_3.6.6 knitr_1.50 rlang_1.2.0
[5] xfun_0.55 stringi_1.8.7 otel_0.2.0 promises_1.5.0
[9] jsonlite_2.0.0 workflowr_1.7.2 glue_1.8.1 rprojroot_2.1.1
[13] git2r_0.36.2 htmltools_0.5.9 httpuv_1.6.16 sass_0.4.10
[17] rmarkdown_2.30 evaluate_1.0.5 jquerylib_0.1.4 tibble_3.3.0
[21] fastmap_1.2.0 yaml_2.3.12 lifecycle_1.0.5 whisker_0.4.1
[25] stringr_1.6.0 compiler_4.5.1 fs_1.6.6 Rcpp_1.1.1-1.1
[29] pkgconfig_2.0.3 later_1.4.4 digest_0.6.39 R6_2.6.1
[33] pillar_1.11.1 magrittr_2.0.5 bslib_0.9.0 tools_4.5.1
[37] cachem_1.1.0
