Make table of sequencial cut-offs where we removed OTUs

This page contains the investigation of the raw data (OTUs) to identify if outliers are present or whether other issues emerge that may influence our results in unexpected ways. This file goes through the following checks:

Removal of Phylum NA features
Computation of total and average prevalence in each Phylum
Removal Phyla with 1% or less of all samples
Computation of total read count for each Phyla
Plotting taxa prevalence vs total counts - identify a natural threshold if clear, if not use 5%
Merging taxa to genus rank/level
Abundance Value Transformations
Plotting of abundance values by “Intervention A or B” before transformation and after
Checking of any bimodal distributions using “subset_taxa” function and plot by “intervention”

Taxonomic Filtering

1. Removal of Phylum NA features

# show ranks
rank_names(phylo_data0)

[1] "Kingdom" "Phylum"  "Class"   "Order"   "Family"  "Genus"

# table of features for each phylum
table(tax_table(phylo_data0)[,"Phylum"], exclude=NULL)


    __Actinobacteria      __Bacteroidetes      __Cyanobacteria
                  19                   49                    5
__Epsilonbacteraeota      __Euryarchaeota         __Firmicutes
                   1                    2                  334
      __Fusobacteria      __Lentisphaerae     __Proteobacteria
                   2                    3                   23
     __Synergistetes        __Tenericutes    __Verrucomicrobia
                   1                   12                    1

Note that no taxa were labels as NA so none were removed.

2. Computation of total and average prevalence in each Phylum

# compute prevalence of each feature
prevdf <- apply(X=otu_table(phylo_data0),
                MARGIN= ifelse(taxa_are_rows(phylo_data0), yes=1, no=2),
                FUN=function(x){sum(x>0)})
# store as data.frame with labels
prevdf <- data.frame(Prevalence=prevdf,
                     TotalAbundance=taxa_sums(phylo_data0),
                     tax_table(phylo_data0))

Now we get to compute the totals and averages.

totals <- plyr::ddply(prevdf, "Phylum",
            function(df1){
              A <- cbind(mean(df1$Prevalence), sum(df1$Prevalence))
              colnames(A) <- c("Average", "Total")
              A
              }
            ) # end

totals

                 Phylum   Average Total
1      __Actinobacteria  6.842105   130
2       __Bacteroidetes 10.816327   530
3       __Cyanobacteria  4.000000    20
4  __Epsilonbacteraeota  5.000000     5
5       __Euryarchaeota  8.000000    16
6          __Firmicutes 11.395210  3806
7        __Fusobacteria  4.000000     8
8       __Lentisphaerae 11.333333    34
9      __Proteobacteria 10.826087   249
10      __Synergistetes  5.000000     5
11        __Tenericutes  4.750000    57
12    __Verrucomicrobia 29.000000    29

The Phylum that appear to be quite low in abundance are Cyanobacteria, Epsilonbacteraeota, Euryarchaeota, Fusobacteria and Synergistetes. However, any of the taxa under a total of 100 may be suspect. First, we will remove the taxa that are clearly too low in abudance (<=5).

filterPhyla <- totals$Phylum[totals$Total <= 5, drop=T] # drop allows some of the attributes to be removed

phylo_data1 <- subset_taxa(phylo_data0, !Phylum %in% filterPhyla)
phylo_data1

phyloseq-class experiment-level object
otu_table()   OTU Table:         [ 450 taxa and 37 samples ]
sample_data() Sample Data:       [ 37 samples by 90 sample variables ]
tax_table()   Taxonomy Table:    [ 450 taxa by 6 taxonomic ranks ]
phy_tree()    Phylogenetic Tree: [ 450 tips and 449 internal nodes ]

Next, we explore the taxa in more detail next as we move to remove some of these low abundance taxa.

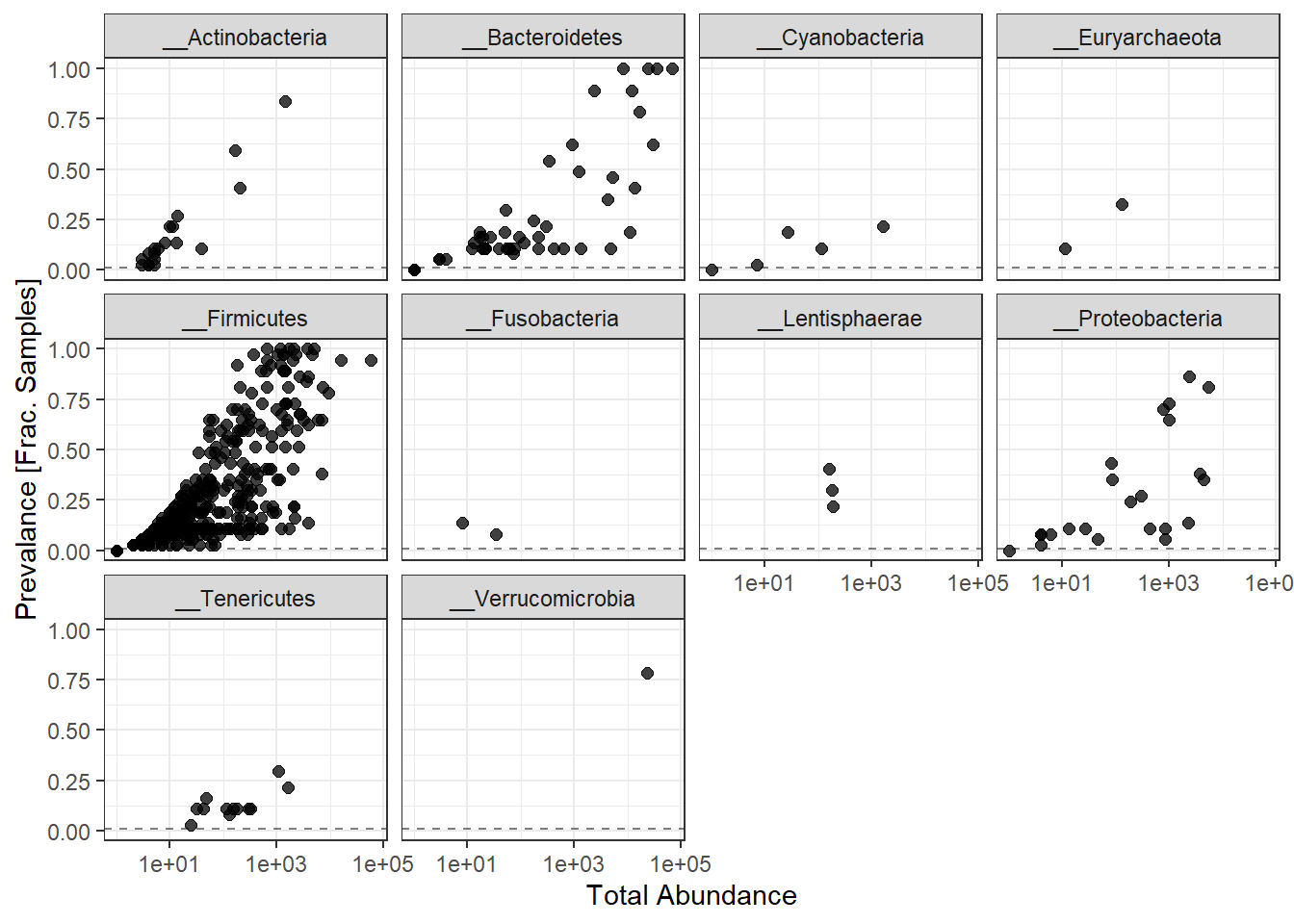

3. Removal Phyla with 1% or less of all samples (prevalence filtering)

prevdf1 <- subset(prevdf, Phylum %in% get_taxa_unique(phylo_data1, "Phylum"))
ggplot(prevdf1, aes(TotalAbundance+1,
                    Prevalence/nsamples(phylo_data0))) +
  geom_hline(yintercept=0.01, alpha=0.5, linetype=2)+
  geom_point(size=2, alpha=0.75) +
  scale_x_log10()+
  labs(x="Total Abundance", y="Prevalance [Frac. Samples]")+
  facet_wrap(.~Phylum) + theme(legend.position = "none")

Note: for plotting purposes, a $+1$ was added to all TotalAbundances to avoid a taking the log of 0.

Next, we define a prevalence threshold, that way the taxa can be pruned to a prespecified level. In this study, we used 0.05 (5%) of total samples.

prevalenceThreshold <- 0.01*nsamples(phylo_data0)
prevalenceThreshold

[1] 0.37

# execute the filtering to this level
keepTaxa <- rownames(prevdf1)[(prevdf1$Prevalence >= prevalenceThreshold)]
phylo_data2 <- prune_taxa(keepTaxa, phylo_data1)

4. Merge taxa (to genus level)

genusNames <- get_taxa_unique(phylo_data2, "Genus")
#phylo_data3 <- merge_taxa(phylo_data2, genusNames, genusNames[which.max(taxa_sums(phylo_data2)[genusNames])])


# How many genera would be present after filtering?
length(get_taxa_unique(phylo_data2, taxonomic.rank = "Genus"))

[1] 159

## [1] 49

phylo_data3 = tax_glom(phylo_data2, "Genus", NArm = TRUE)

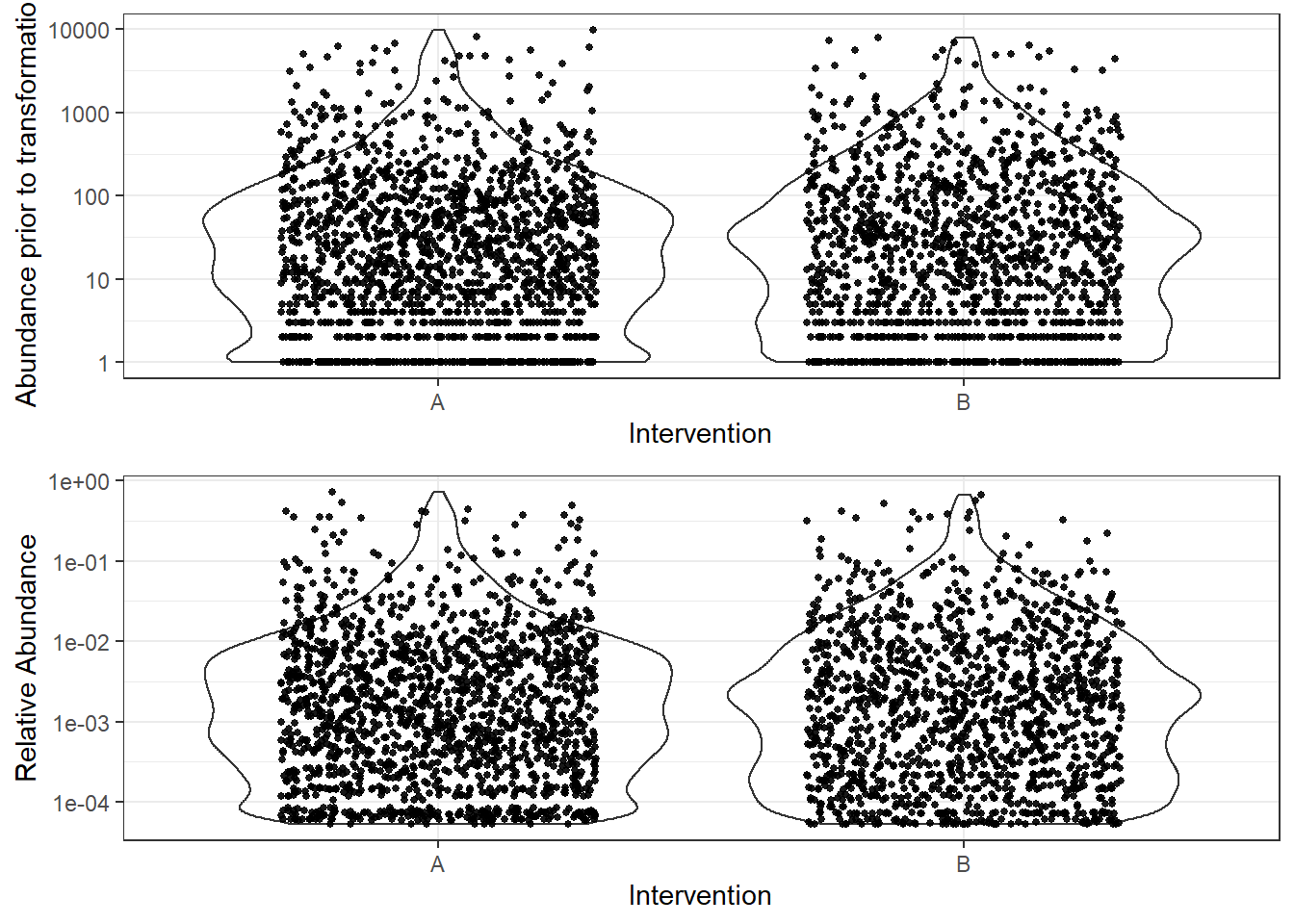

4. Relative Adbundance Plot

plot_abundance = function(physeq, title = "", ylab="Abundance"){
  # Arbitrary subset, based on Phylum, for plotting
  #p1f = subset_taxa(physeq, Phylum %in% "__Firmicutes")
  mphyseq = psmelt(physeq)
  mphyseq <- subset(mphyseq, Abundance > 0)
  ggplot(data = mphyseq, mapping = aes_string(x = "Intervention", y = "Abundance")) +
    geom_violin(fill = NA) +
    geom_point(size = 1, alpha = 0.9,
    position = position_jitter(width = 0.3)) +
    scale_y_log10()+
    labs(y=ylab)+
    theme(legend.position="none")
}


# Transform to relative abundance. Save as new object.
phylo_data3ra = transform_sample_counts(phylo_data3, function(x){x / sum(x)})


plotBefore = plot_abundance(phylo_data3, ylab="Abundance prior to transformation")
plotAfter = plot_abundance(phylo_data3ra, ylab="Relative Abundance")
# Combine each plot into one graphic.
grid.arrange(nrow = 2, plotBefore, plotAfter)

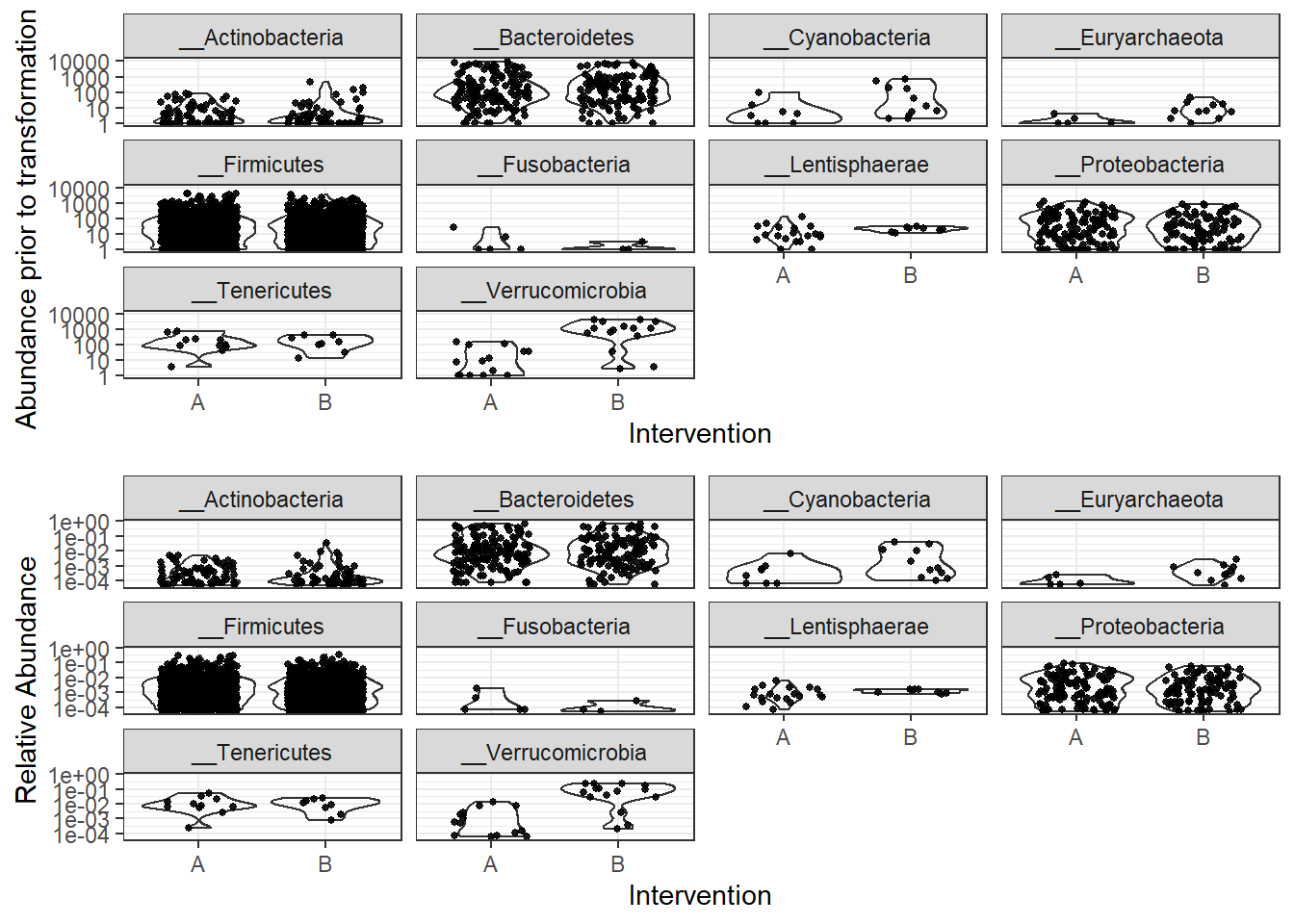

Abundance by Phylum

plot_abundance = function(physeq, title = "", Facet = "Phylum", ylab="Abundance"){
  # Arbitrary subset, based on Phylum, for plotting
  #p1f = subset_taxa(physeq, Phylum %in% "__Firmicutes")
  mphyseq = psmelt(physeq)
  mphyseq <- subset(mphyseq, Abundance > 0)
  ggplot(data = mphyseq, mapping = aes_string(x = "Intervention", y = "Abundance")) +
    geom_violin(fill = NA) +
    geom_point(size = 1, alpha = 0.9,
    position = position_jitter(width = 0.3)) +
    facet_wrap(facets = Facet) + scale_y_log10()+
    labs(y=ylab)+
    theme(legend.position="none")
}



plotBefore = plot_abundance(phylo_data3, ylab="Abundance prior to transformation")
plotAfter = plot_abundance(phylo_data3ra, ylab="Relative Abundance")
# Combine each plot into one graphic.
grid.arrange(nrow = 2, plotBefore, plotAfter)

Now, let’s dive into the abundances in more detail. We will investigate the bacteroidetes, firmicute, verrucomicrobia and proteobacteria in more detail (down to the Order).

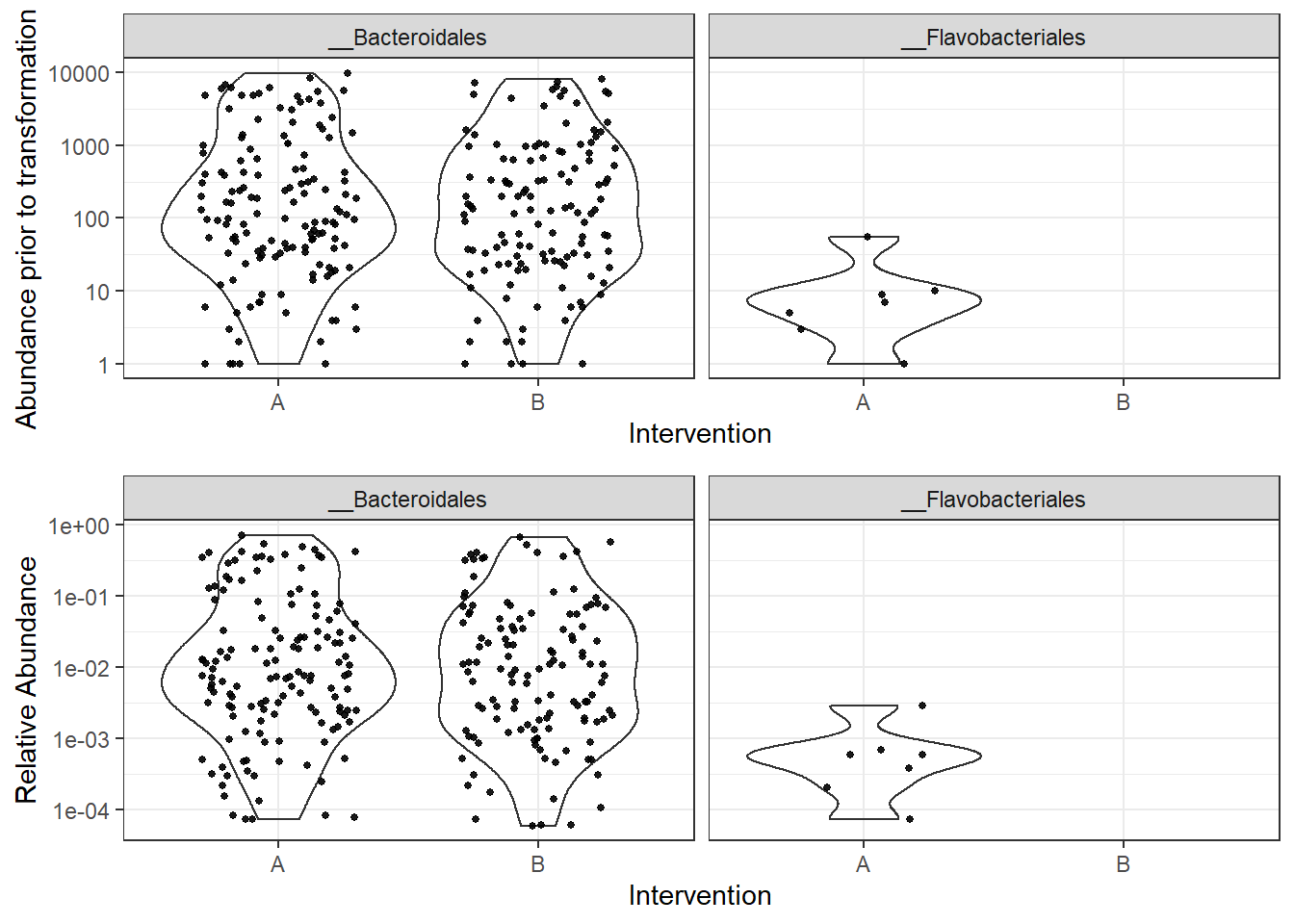

Phylum: Bacteroidetes

plot_abundance = function(physeq, title = "", Facet = "Order", ylab="Abundance"){
  # Arbitrary subset, based on Phylum, for plotting
  p1f = subset_taxa(physeq, Phylum %in%  "__Bacteroidetes")
  mphyseq = psmelt(p1f)
  mphyseq <- subset(mphyseq, Abundance > 0)
  ggplot(data = mphyseq, mapping = aes_string(x = "Intervention", y = "Abundance")) +
    geom_violin(fill = NA) +
    geom_point(size = 1, alpha = 0.9,
    position = position_jitter(width = 0.3)) +
    facet_wrap(facets = Facet) + scale_y_log10()+
    labs(y=ylab)+
    theme(legend.position="none")
}


plotBefore = plot_abundance(phylo_data3,
                            ylab="Abundance prior to transformation")
plotAfter = plot_abundance(phylo_data3ra,
                           ylab="Relative Abundance")
# Combine each plot into one graphic.
grid.arrange(nrow = 2, plotBefore, plotAfter)

Flav. was only present in intervention group A.

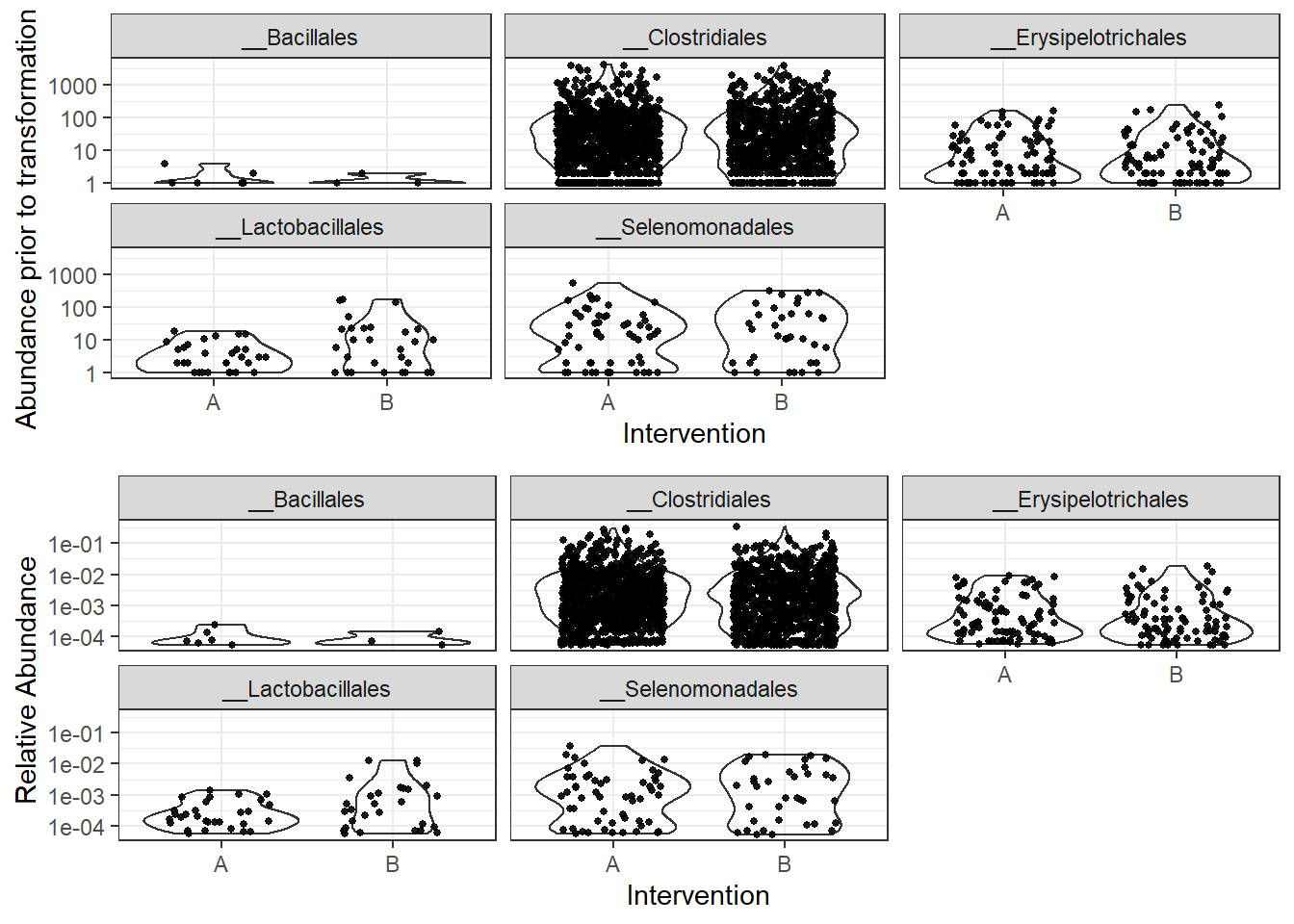

Phylum: Firmicutes

plot_abundance = function(physeq, title = "", Facet = "Order", ylab="Abundance"){
  # Arbitrary subset, based on Phylum, for plotting
  p1f = subset_taxa(physeq, Phylum %in%  "__Firmicutes")
  mphyseq = psmelt(p1f)
  mphyseq <- subset(mphyseq, Abundance > 0)
  ggplot(data = mphyseq, mapping = aes_string(x = "Intervention", y = "Abundance")) +
    geom_violin(fill = NA) +
    geom_point(size = 1, alpha = 0.9,
    position = position_jitter(width = 0.3)) +
    facet_wrap(facets = Facet) + scale_y_log10()+
    labs(y=ylab)+
    theme(legend.position="none")
}


plotBefore = plot_abundance(phylo_data3,
                            ylab="Abundance prior to transformation")
plotAfter = plot_abundance(phylo_data3ra,
                           ylab="Relative Abundance")
# Combine each plot into one graphic.
grid.arrange(nrow = 2, plotBefore, plotAfter)

Order: Selenomonadales

plot_abundance = function(physeq, title = "", Facet = "Genus", ylab="Abundance"){
  # Arbitrary subset, based on Phylum, for plotting
  p1f = subset_taxa(physeq, Phylum %in%  "__Firmicutes" & Order %in% "__Selenomonadales" & Family %in% "__Veillonellaceae")
  mphyseq = psmelt(p1f)
  mphyseq <- subset(mphyseq, Abundance > 0)
  ggplot(data = mphyseq, mapping = aes_string(x = "Intervention", y = "Abundance")) +
    geom_violin(fill = NA) +
    geom_point(size = 1, alpha = 0.9,
    position = position_jitter(width = 0.3)) +
    facet_wrap(facets = Facet) + scale_y_log10()+
    labs(y=ylab)+
    theme(legend.position="none")
}


plotBefore = plot_abundance(phylo_data3,
                            ylab="Abundance prior to transformation")
plotAfter = plot_abundance(phylo_data3ra,
                           ylab="Relative Abundance")
# Combine each plot into one graphic.
grid.arrange(nrow = 2, plotBefore, plotAfter)

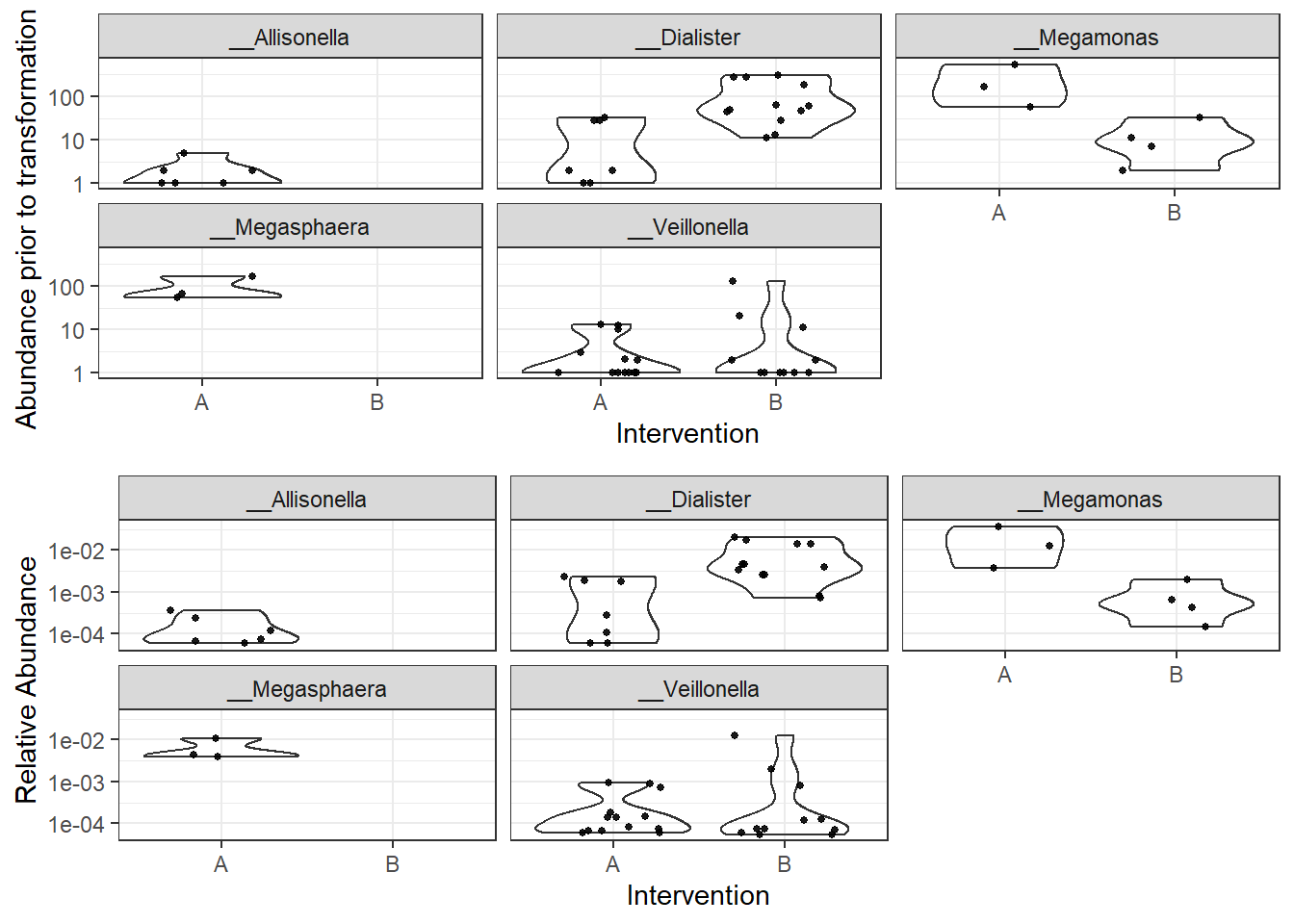

Family: Veillonellaceae

plot_abundance = function(physeq, title = "", Facet = "Genus", ylab="Abundance"){
  # Arbitrary subset, based on Phylum, for plotting
  p1f = subset_taxa(physeq, Phylum %in%  "__Firmicutes" & Order %in% "__Selenomonadales" & Family %in% "__Veillonellaceae")
  mphyseq = psmelt(p1f)
  mphyseq <- subset(mphyseq, Abundance > 0)
  ggplot(data = mphyseq, mapping = aes_string(x = "Intervention", y = "Abundance")) +
    geom_violin(fill = NA) +
    geom_point(size = 1, alpha = 0.9,
    position = position_jitter(width = 0.3)) +
    facet_wrap(facets = Facet) + scale_y_log10()+
    labs(y=ylab)+
    theme(legend.position="none")
}


plotBefore = plot_abundance(phylo_data3,
                            ylab="Abundance prior to transformation")
plotAfter = plot_abundance(phylo_data3ra,
                           ylab="Relative Abundance")
# Combine each plot into one graphic.
grid.arrange(nrow = 2, plotBefore, plotAfter)

Note the Genus: Allisonella & Megasphaera were only present in Int. Group A.

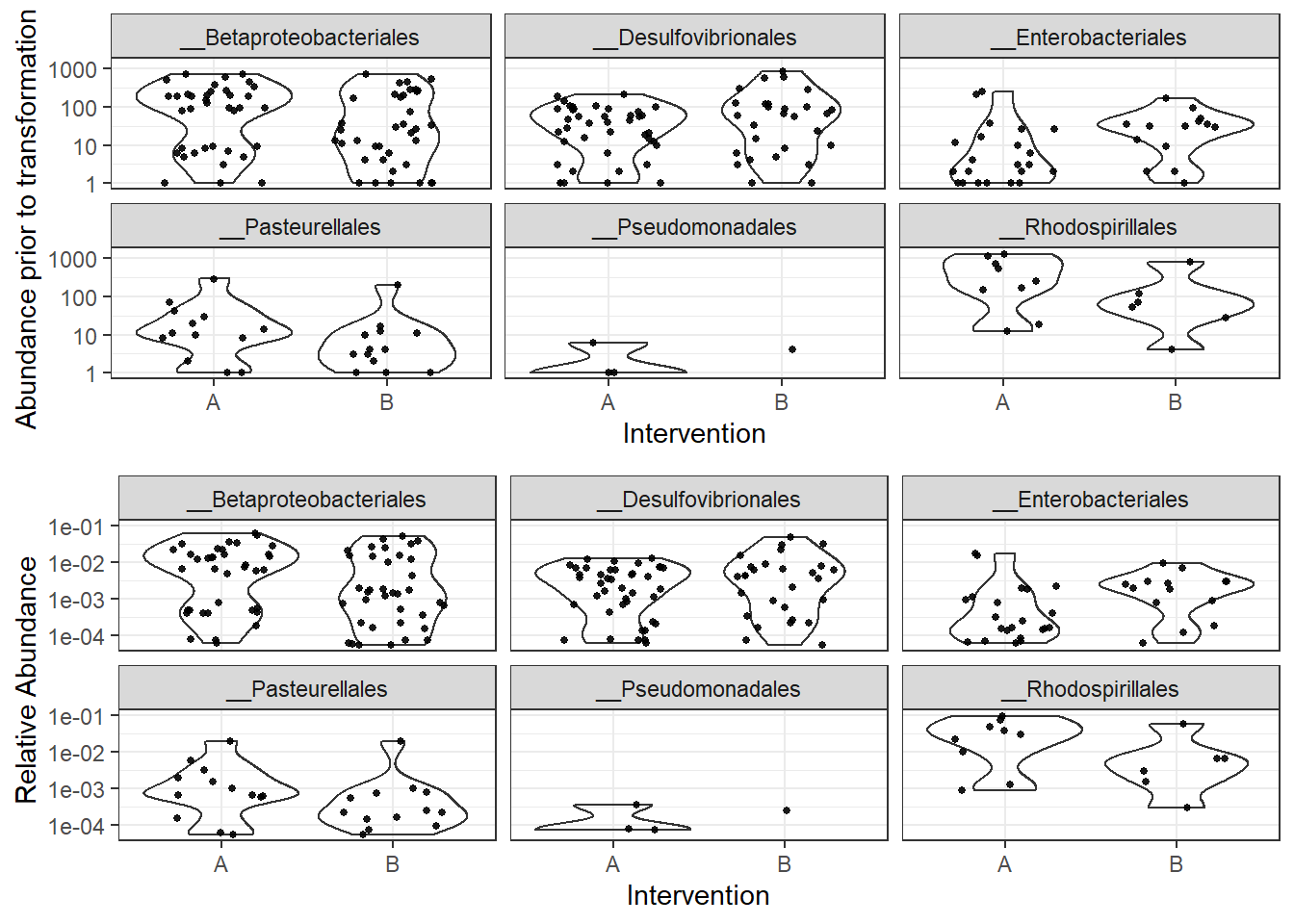

Phylum: Proteobacteria

plot_abundance = function(physeq, title = "", Facet = "Order", ylab="Abundance"){
  # Arbitrary subset, based on Phylum, for plotting
  p1f = subset_taxa(physeq, Phylum %in%  "__Proteobacteria")
  mphyseq = psmelt(p1f)
  mphyseq <- subset(mphyseq, Abundance > 0)
  ggplot(data = mphyseq, mapping = aes_string(x = "Intervention", y = "Abundance")) +
    geom_violin(fill = NA) +
    geom_point(size = 1, alpha = 0.9,
    position = position_jitter(width = 0.3)) +
    facet_wrap(facets = Facet) + scale_y_log10()+
    labs(y=ylab)+
    theme(legend.position="none")
}


plotBefore = plot_abundance(phylo_data3,
                            ylab="Abundance prior to transformation")
plotAfter = plot_abundance(phylo_data3ra,
                           ylab="Relative Abundance")
# Combine each plot into one graphic.
grid.arrange(nrow = 2, plotBefore, plotAfter)

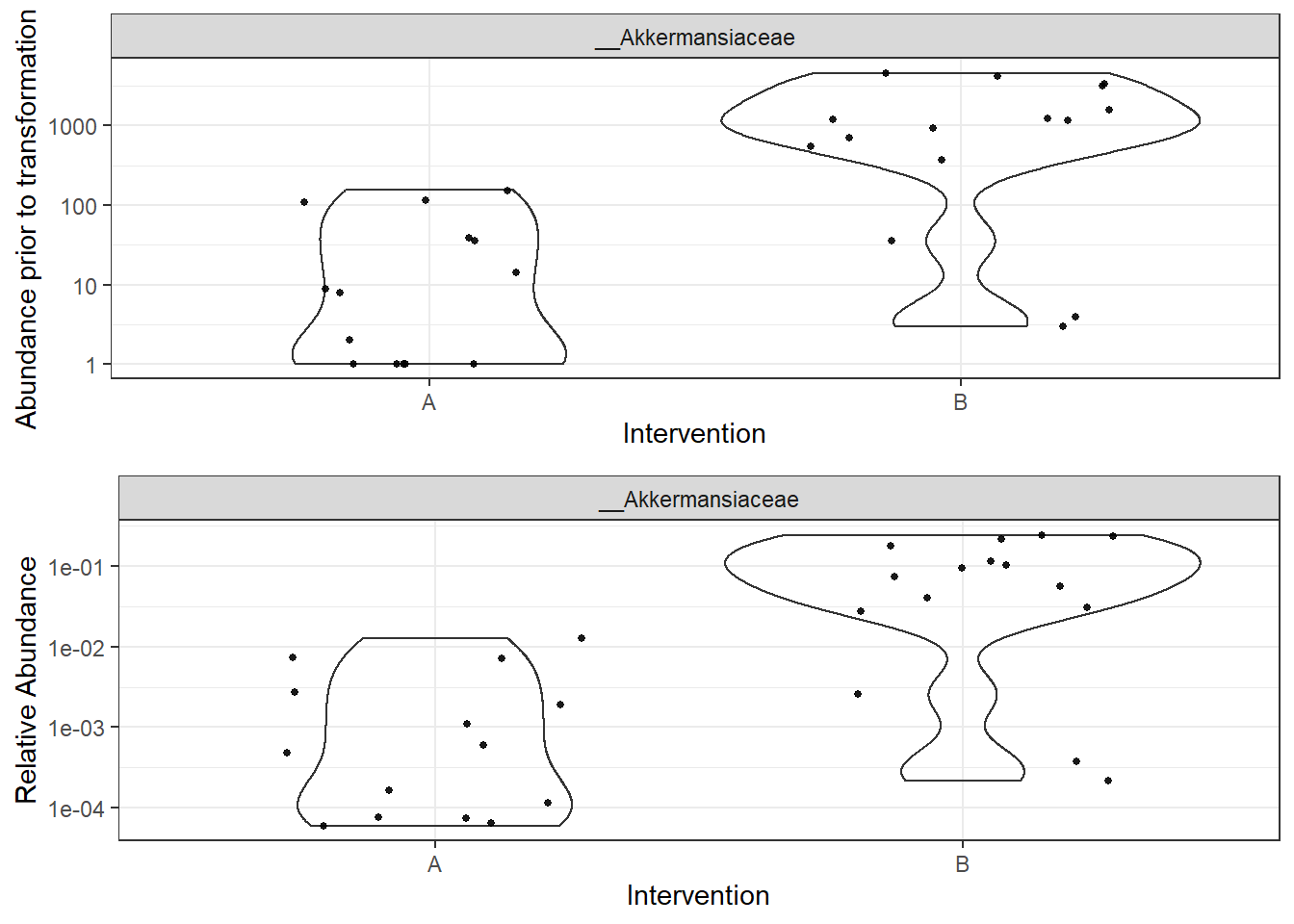

Phylum: Verrucomicrobia

plot_abundance = function(physeq, title = "", Facet = "Family", ylab="Abundance"){
  # Arbitrary subset, based on Phylum, for plotting
  p1f = subset_taxa(physeq, Phylum %in%  "__Verrucomicrobia")
  mphyseq = psmelt(p1f)
  mphyseq <- subset(mphyseq, Abundance > 0)
  ggplot(data = mphyseq, mapping = aes_string(x = "Intervention", y = "Abundance")) +
    geom_violin(fill = NA) +
    geom_point(size = 1, alpha = 0.9,
    position = position_jitter(width = 0.3)) +
    facet_wrap(facets = Facet) + scale_y_log10()+
    labs(y=ylab)+
    theme(legend.position="none")
}


plotBefore = plot_abundance(phylo_data3,
                            ylab="Abundance prior to transformation")

Warning in prune_taxa(taxa, phy_tree(x)): prune_taxa attempted to reduce tree to 1 or fewer tips.
 tree replaced with NULL.

plotAfter = plot_abundance(phylo_data3ra,
                           ylab="Relative Abundance")

Warning in prune_taxa(taxa, phy_tree(x)): prune_taxa attempted to reduce tree to 1 or fewer tips.
 tree replaced with NULL.

# Combine each plot into one graphic.
grid.arrange(nrow = 2, plotBefore, plotAfter)

sessionInfo()

R version 3.6.1 (2019-07-05)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 18362)

Matrix products: default

locale:
[1] LC_COLLATE=English_United States.1252
[2] LC_CTYPE=English_United States.1252
[3] LC_MONETARY=English_United States.1252
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.1252

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] gridExtra_2.3     xtable_1.8-4      kableExtra_1.1.0  plyr_1.8.4
 [5] data.table_1.12.6 readxl_1.3.1      forcats_0.4.0     stringr_1.4.0
 [9] dplyr_0.8.3       purrr_0.3.3       readr_1.3.1       tidyr_1.0.0
[13] tibble_2.1.3      ggplot2_3.2.1     tidyverse_1.3.0   lmerTest_3.1-1
[17] lme4_1.1-21       Matrix_1.2-17     phyloseq_1.30.0

loaded via a namespace (and not attached):
 [1] nlme_3.1-140        fs_1.3.1            lubridate_1.7.4
 [4] webshot_0.5.2       httr_1.4.1          rprojroot_1.3-2
 [7] numDeriv_2016.8-1.1 tools_3.6.1         backports_1.1.5
[10] R6_2.4.1            vegan_2.5-6         DBI_1.0.0
[13] lazyeval_0.2.2      BiocGenerics_0.32.0 mgcv_1.8-28
[16] colorspace_1.4-1    permute_0.9-5       ade4_1.7-13
[19] withr_2.1.2         tidyselect_0.2.5    compiler_3.6.1
[22] git2r_0.26.1        cli_1.1.0           rvest_0.3.5
[25] Biobase_2.46.0      xml2_1.2.2          labeling_0.3
[28] scales_1.1.0        digest_0.6.23       minqa_1.2.4
[31] rmarkdown_1.18      XVector_0.26.0      pkgconfig_2.0.3
[34] htmltools_0.4.0     dbplyr_1.4.2        rlang_0.4.2
[37] rstudioapi_0.10     farver_2.0.1        generics_0.0.2
[40] jsonlite_1.6        magrittr_1.5        biomformat_1.14.0
[43] Rcpp_1.0.3          munsell_0.5.0       S4Vectors_0.24.1
[46] Rhdf5lib_1.8.0      ape_5.3             lifecycle_0.1.0
[49] stringi_1.4.3       yaml_2.2.0          MASS_7.3-51.4
[52] zlibbioc_1.32.0     rhdf5_2.30.1        grid_3.6.1
[55] parallel_3.6.1      promises_1.1.0      crayon_1.3.4
[58] lattice_0.20-38     Biostrings_2.54.0   haven_2.2.0
[61] splines_3.6.1       multtest_2.42.0     hms_0.5.2
[64] zeallot_0.1.0       knitr_1.26          pillar_1.4.2
[67] igraph_1.2.4.2      boot_1.3-22         reshape2_1.4.3
[70] codetools_0.2-16    stats4_3.6.1        reprex_0.3.0
[73] glue_1.3.1          evaluate_0.14       modelr_0.1.5
[76] vctrs_0.2.0         nloptr_1.2.1        httpuv_1.5.2
[79] foreach_1.4.7       cellranger_1.1.0    gtable_0.3.0
[82] assertthat_0.2.1    xfun_0.11           broom_0.5.2
[85] later_1.0.0         viridisLite_0.3.0   survival_2.44-1.1
[88] iterators_1.0.12    IRanges_2.20.1      workflowr_1.5.0
[91] cluster_2.1.0

Data Processing, Checking, and Exploration
