RNA_Metadata <- read_excel("~/diff_timeline_tes/RNA/RNA_Metadata.xlsx")

counts_table <- read.delim("~/diff_timeline_tes/RNA/rna_concat/featureCounts/all_counts.txt")
marker_genes <- read.delim("~/diff_timeline_tes/RNA/CM_Diff_PurityPanel.txt")

RNA_fc <- counts_table %>%
  filter(Geneid != "#") %>%
  filter(Geneid != "Geneid") %>%
  column_to_rownames("Geneid")

# #Rename column Names to More Useful Info
col_names <- RNA_Metadata$SampleName
colnames(RNA_fc) <- col_names
dim(RNA_fc)

ensembl_ids_unfilt <- rownames(RNA_fc)
entrez_ids_unfilt <- mapIds(org.Hs.eg.db,
                            keys = ensembl_ids_unfilt,
                            column = "ENTREZID",
                            keytype = "ENSEMBL",
                            multiVals = "first")
symbol_ids_unfilt <- mapIds(org.Hs.eg.db,
                            keys = ensembl_ids_unfilt,
                            column = "SYMBOL",
                            keytype = "ENSEMBL",
                            multiVals = "first")

RNA_fc_df <- as.data.frame(RNA_fc)
RNA_fc_df <- RNA_fc_df %>%
  rownames_to_column(var = "Ensemble") %>%
  dplyr::mutate(
    Entrez_ID = entrez_ids_unfilt,
    Symbol    = symbol_ids_unfilt
  ) %>%
  dplyr::select(
    Ensemble,        # 1st column
    Entrez_ID,       # 2nd column
    Symbol,          # 3rd column
    everything()     # rest unchanged
  )

rn <- rownames(RNA_fc)

RNA_fc <- as.data.frame(
  lapply(RNA_fc, function(x) as.numeric(as.character(x)))
)

rownames(RNA_fc) <- rn

# saveRDS(RNA_fc,"data/QC/concat/RNA_fc.RDS")
# saveRDS(RNA_fc_df,"data/Raw_Data/concat/RNA_fc_df.RDS")
# saveRDS(RNA_Metadata,"data/Raw_Data/concat/RNA_Metadata.RDS")

library(tidyverse)

total_reads_df <- RNA_fc %>%
  as.data.frame() %>%
  mutate(Gene = rownames(.)) %>%
  dplyr::select(-Gene) %>%
  summarise(across(everything(), \(x) sum(x, na.rm = TRUE))) %>%
  pivot_longer(
    cols = everything(),
    names_to = "Sample",
    values_to = "Total_Counts"
  ) %>%
  left_join(RNA_Metadata, by = c("Sample" = "SampleName"))

day_levels <- c("Day0","Day2","Day4","Day5","Day15","Day30")

total_reads_df <- total_reads_df %>%
  mutate(
    Timepoint = factor(Timepoint, levels = day_levels, ordered = TRUE),

    # force species order: chimp first, human second
    Species = factor(Species, levels = c("C", "H")),

    Individual_Color = ann_colors$individual_cor[Individual]
  ) %>%
  arrange(Species, Individual, Timepoint) %>%
  mutate(Sample = factor(Sample, levels = Sample))

library(ggplot2)

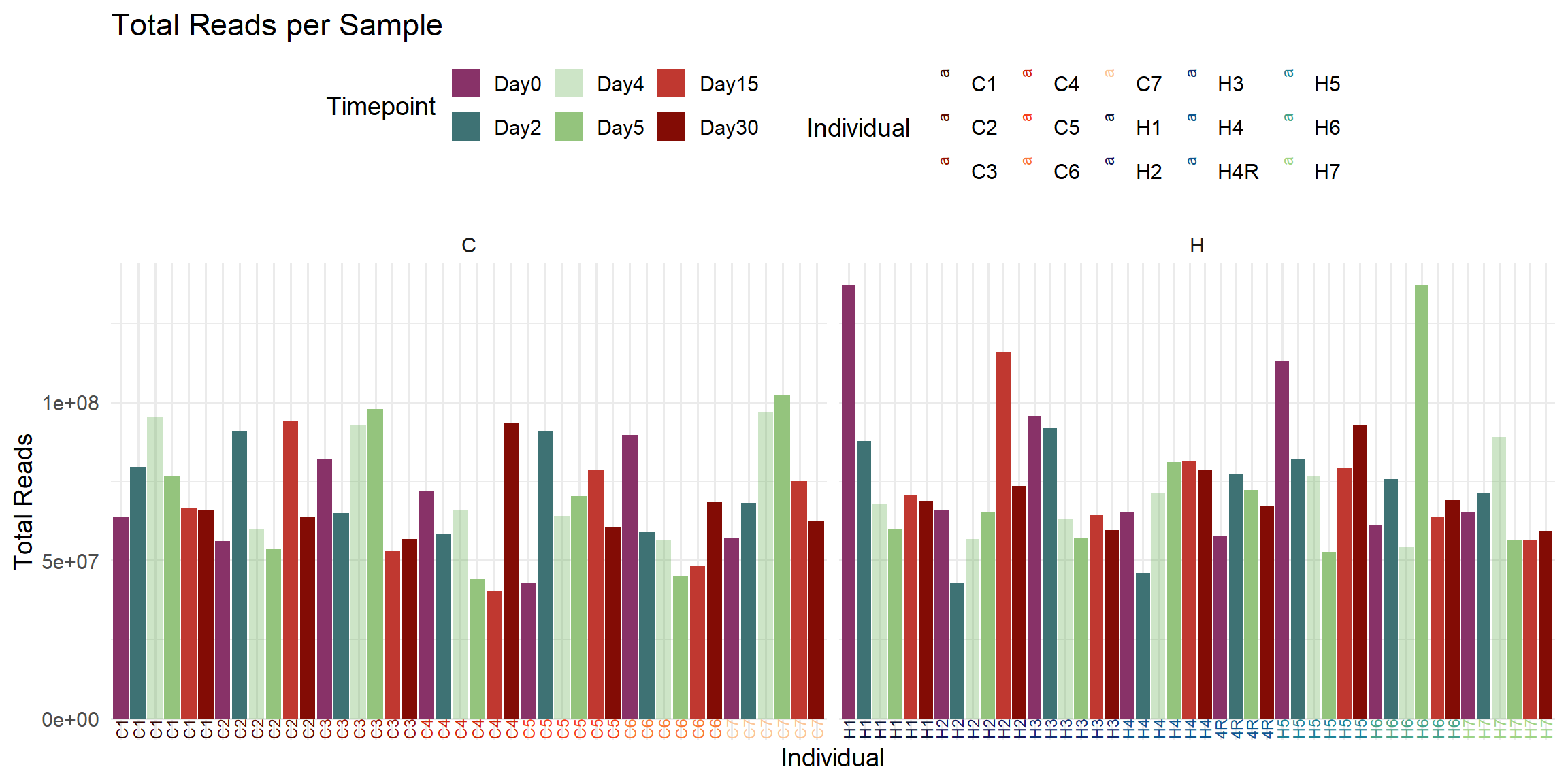

ggplot(total_reads_df, aes(x = Sample, y = Total_Reads, fill = Timepoint)) +
  geom_col() +
  geom_text(aes(label = Individual, color = Individual),
            y = 0, angle = 90, hjust = 1, vjust = 0.5, size = 3) +
  scale_fill_manual(values = ann_colors$timepoint_cor) +
  scale_color_manual(values = ann_colors$individual_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_blank(),
        axis.ticks.x = element_blank(),
        legend.position = "top") +
  labs(
    title = "Total Reads per Sample",
    x = "Individual",
    y = "Total Reads",
    fill = "Timepoint",
    color = "Individual"
  )

Past versions of unnamed-chunk-2-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

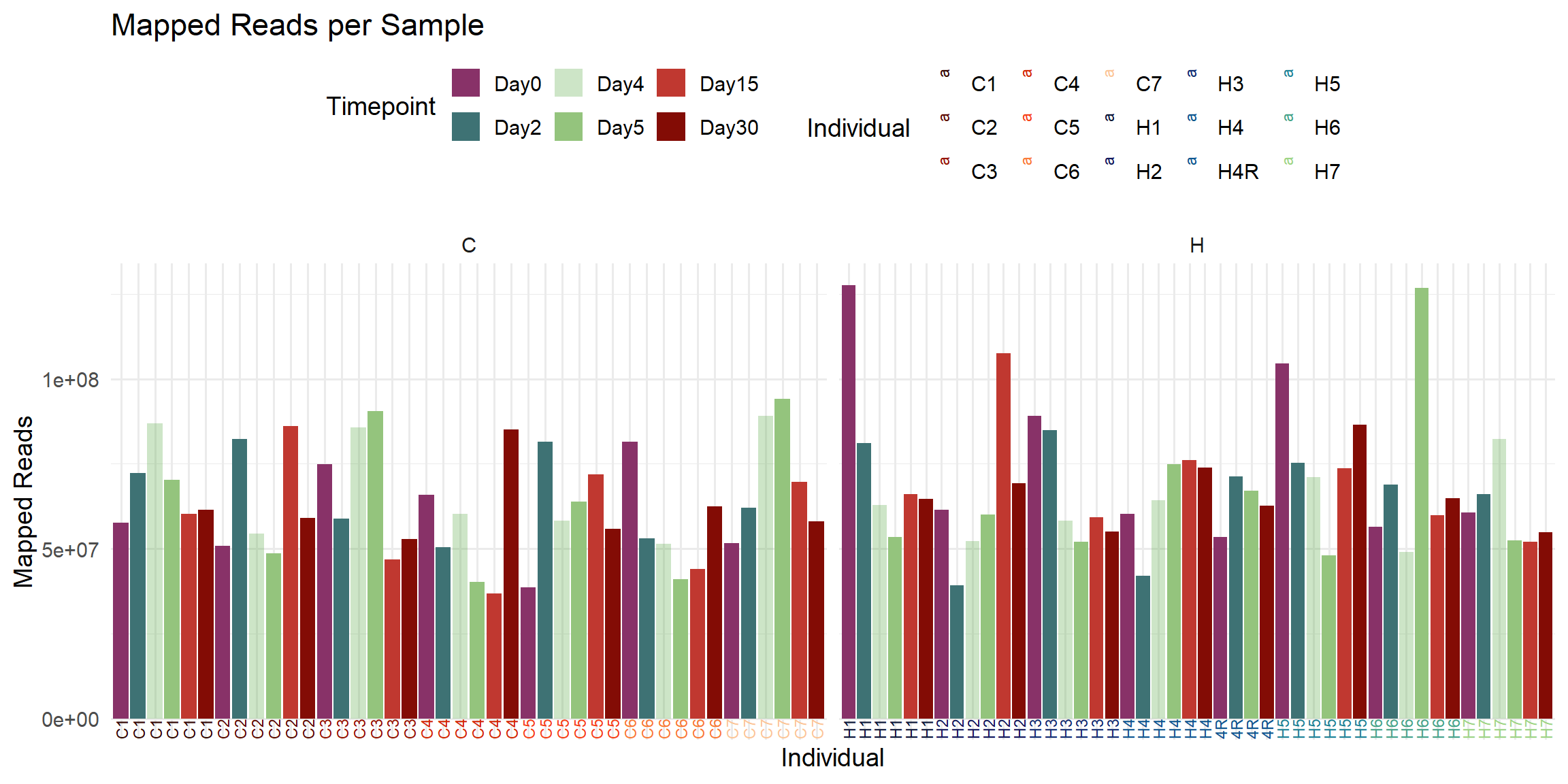

ggplot(total_reads_df, aes(x = Sample, y = Mapped_Reads, fill = Timepoint)) +
  geom_col() +
  geom_text(aes(label = Individual, color = Individual),
            y = 0, angle = 90, hjust = 1, vjust = 0.5, size = 3) +
  scale_fill_manual(values = ann_colors$timepoint_cor) +
  scale_color_manual(values = ann_colors$individual_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_blank(),
        axis.ticks.x = element_blank(),
        legend.position = "top") +
  labs(
    title = "Mapped Reads per Sample",
    x = "Individual",
    y = "Mapped Reads",
    fill = "Timepoint",
    color = "Individual"
  )

Past versions of unnamed-chunk-2-2.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

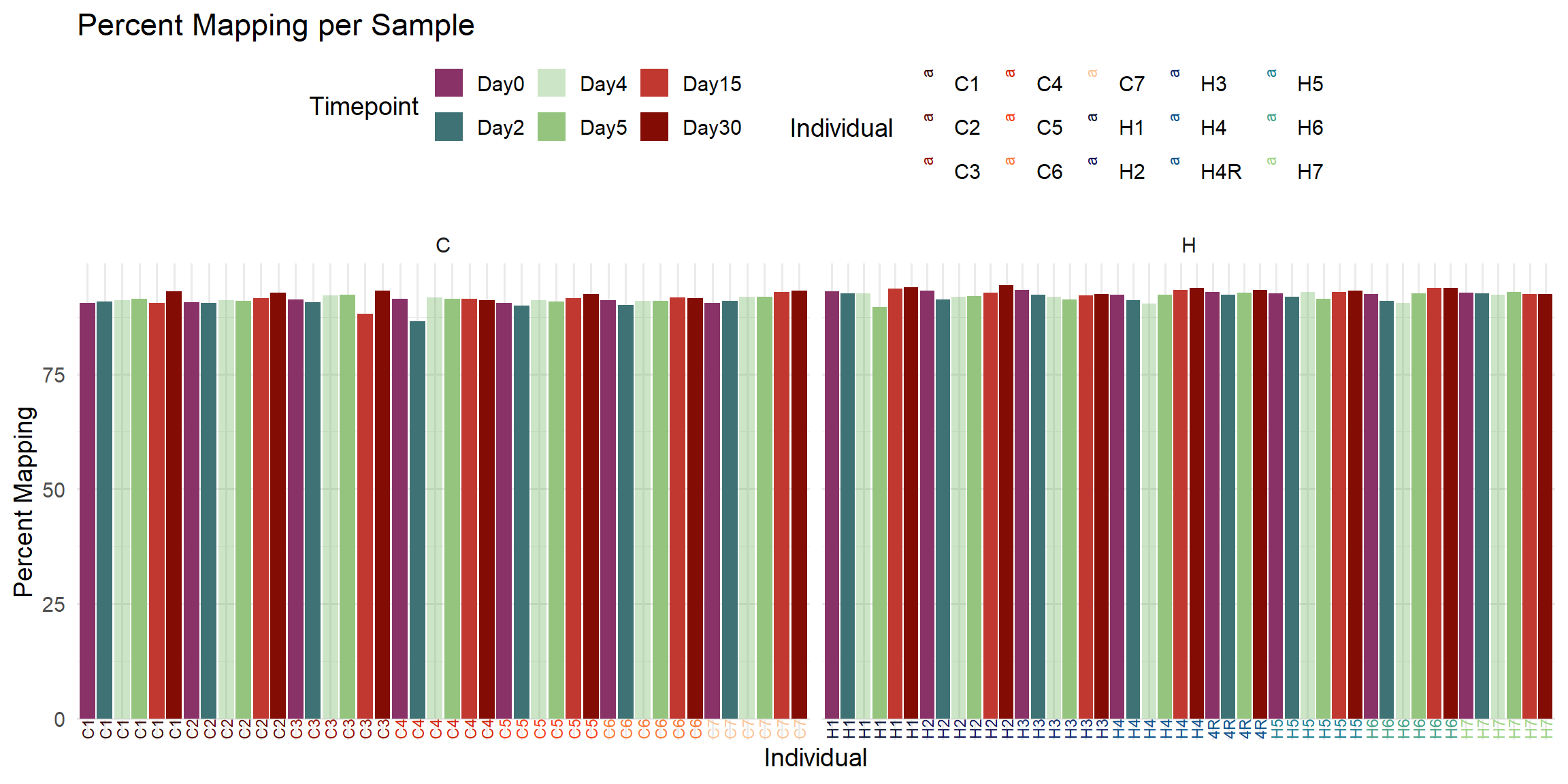

ggplot(total_reads_df, aes(x = Sample, y = Percent_Mapped, fill = Timepoint)) +
  geom_col() +
  geom_text(aes(label = Individual, color = Individual),
            y = 0, angle = 90, hjust = 1, vjust = 0.5, size = 3) +
  scale_fill_manual(values = ann_colors$timepoint_cor) +
  scale_color_manual(values = ann_colors$individual_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_blank(),
        axis.ticks.x = element_blank(),
        legend.position = "top") +
  labs(
    title = "Percent Mapping per Sample",
    x = "Individual",
    y = "Percent Mapping",
    fill = "Timepoint",
    color = "Individual"
  )

Past versions of unnamed-chunk-2-3.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

ggplot(total_reads_df, aes(x = Sample, y = Usable_Fragments, fill = Timepoint)) +
  geom_col() +
  geom_text(aes(label = Individual, color = Individual),
            y = 0, angle = 90, hjust = 1, vjust = 0.5, size = 3) +
  scale_fill_manual(values = ann_colors$timepoint_cor) +
  scale_color_manual(values = ann_colors$individual_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_blank(),
        axis.ticks.x = element_blank(),
        legend.position = "top") +
  labs(
    title = "Usable Fragments per Sample",
    x = "Individual",
    y = "Number Fragments",
    fill = "Timepoint",
    color = "Individual"
  )

Past versions of unnamed-chunk-2-4.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

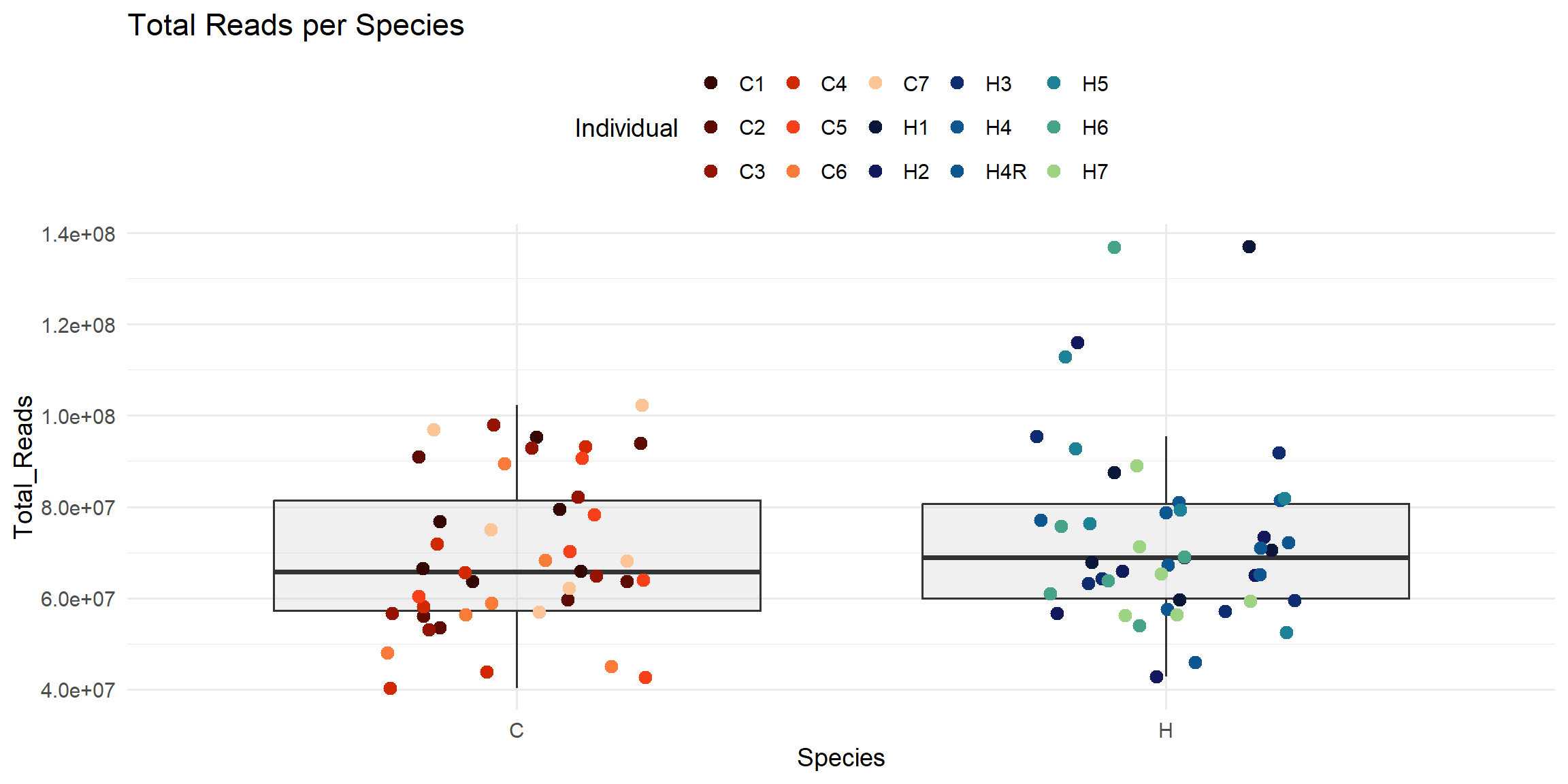

ggplot(total_reads_df, aes(x = Species, y = Total_Reads)) +
  geom_boxplot(fill = "#CCCCCC", alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Individual), width = 0.2, size = 3) +
  scale_color_manual(values = ann_colors$individual_cor) +
  theme_minimal(base_size = 14) +
  theme(legend.position = "top") +
  labs(
    title = "Total Reads per Species",
    x = "Species",
    y = "Total_Reads",
    color = "Individual"
  )

Past versions of unnamed-chunk-3-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

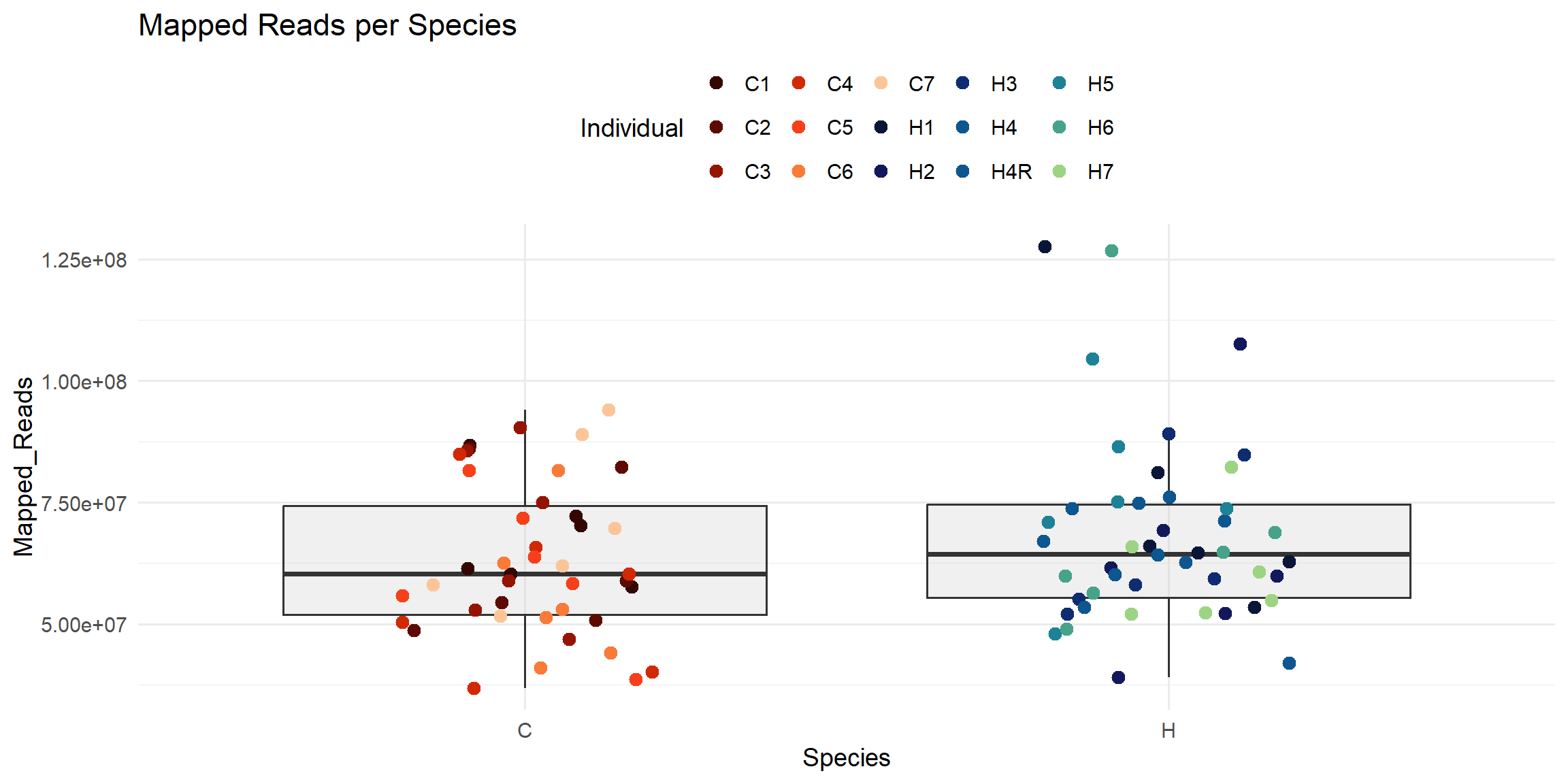

ggplot(total_reads_df, aes(x = Species, y = Mapped_Reads)) +
  geom_boxplot(fill = "#CCCCCC", alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Individual), width = 0.2, size = 3) +
  scale_color_manual(values = ann_colors$individual_cor) +
  theme_minimal(base_size = 14) +
  theme(legend.position = "top") +
  labs(
    title = "Mapped Reads per Species",
    x = "Species",
    y = "Mapped_Reads",
    color = "Individual"
  )

Past versions of unnamed-chunk-3-2.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

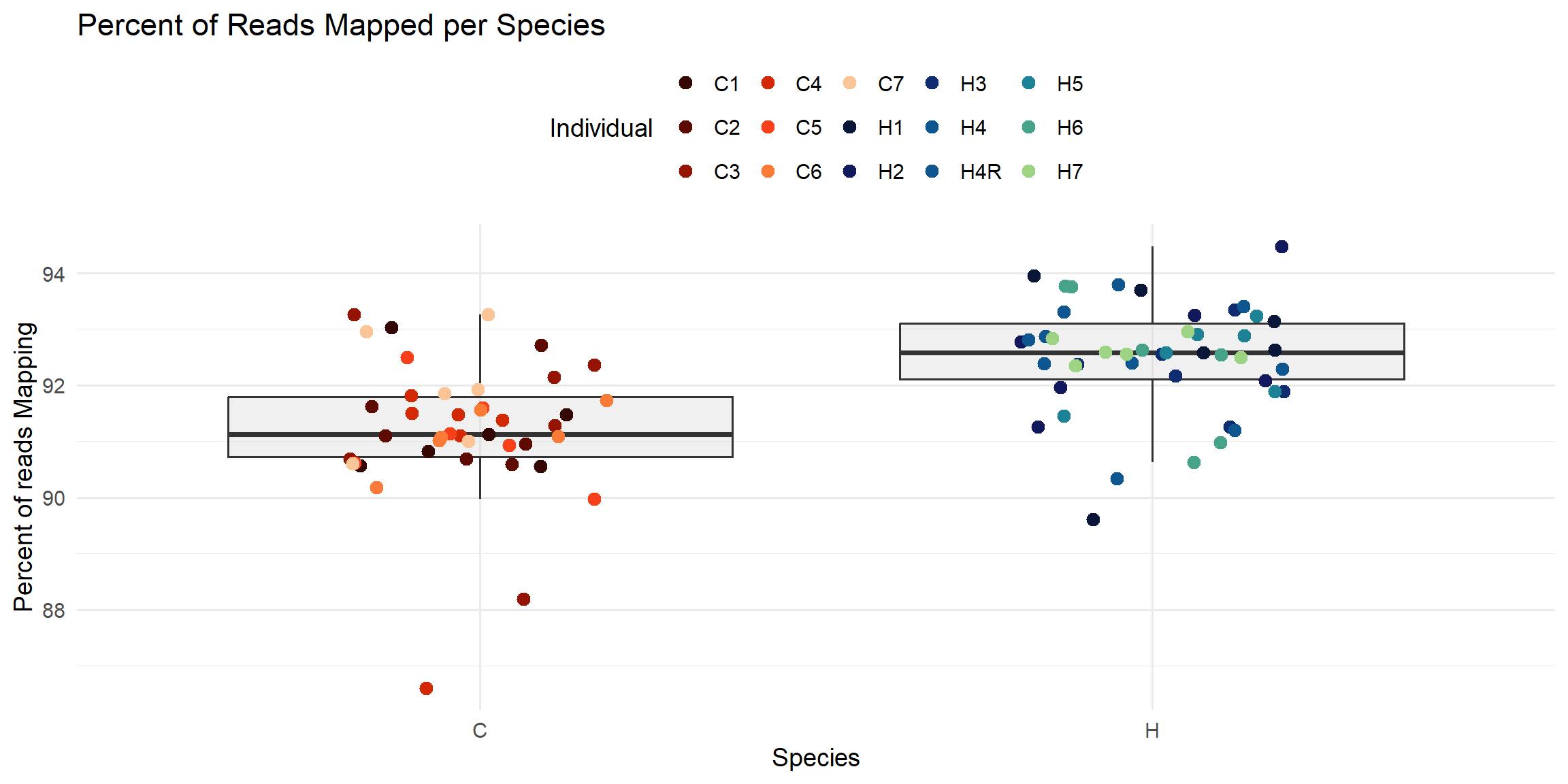

ggplot(total_reads_df, aes(x = Species, y = Percent_Mapped)) +
  geom_boxplot(fill = "#CCCCCC", alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Individual), width = 0.2, size = 3) +
  scale_color_manual(values = ann_colors$individual_cor) +
  theme_minimal(base_size = 14) +
  theme(legend.position = "top") +
  labs(
    title = "Percent of Reads Mapped per Species",
    x = "Species",
    y = "Percent of reads Mapping",
    color = "Individual"
  )

Past versions of unnamed-chunk-3-3.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

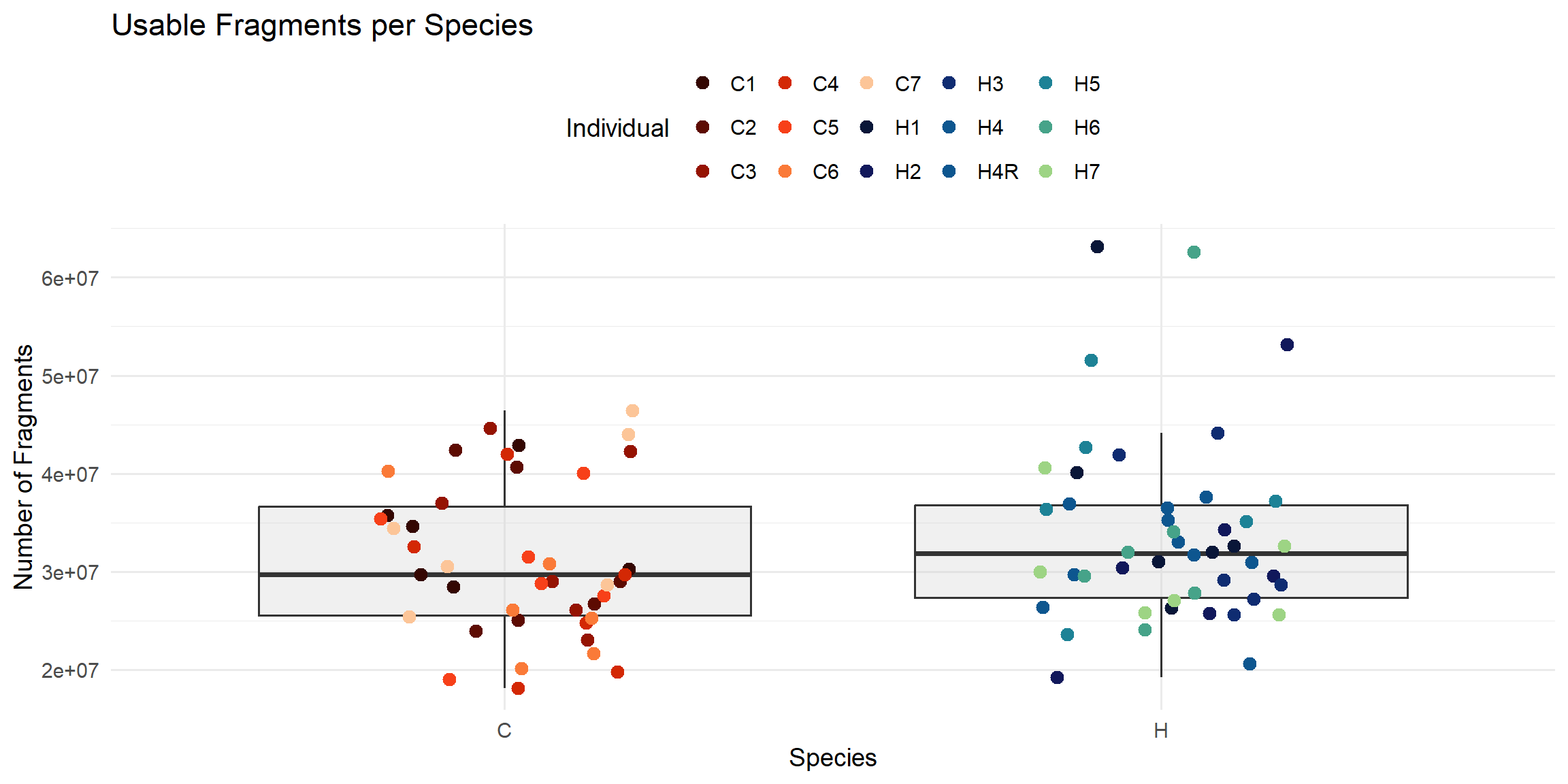

ggplot(total_reads_df, aes(x = Species, y = Usable_Fragments)) +
  geom_boxplot(fill = "#CCCCCC", alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Individual), width = 0.2, size = 3) +
  scale_color_manual(values = ann_colors$individual_cor) +
  theme_minimal(base_size = 14) +
  theme(legend.position = "top") +
  labs(
    title = "Usable Fragments per Species",
    x = "Species",
    y = "Number of Fragments",
    color = "Individual"
  )

Past versions of unnamed-chunk-3-4.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

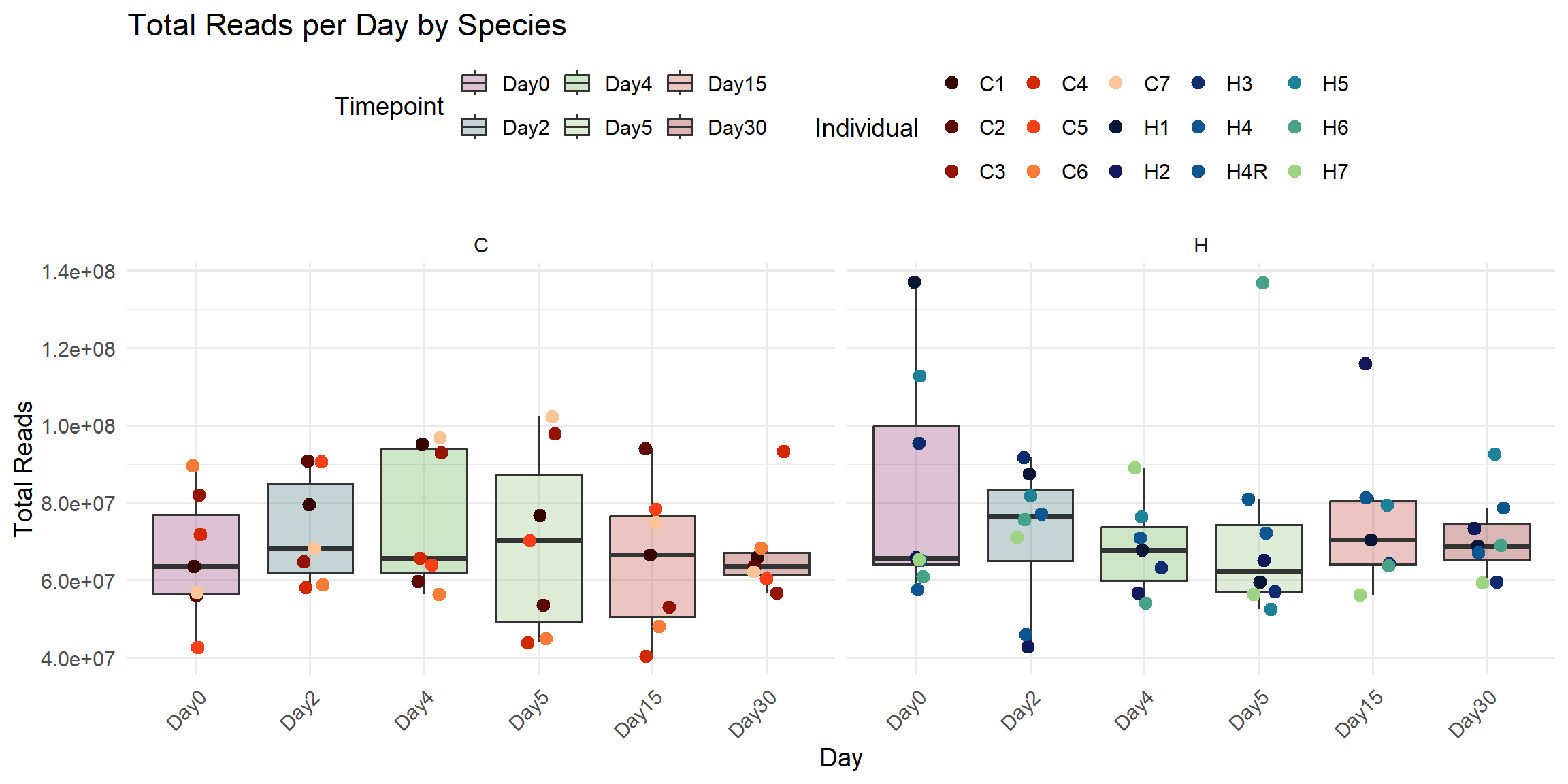

ggplot(total_reads_df, aes(x = Timepoint, y = Total_Reads)) +
  geom_boxplot(aes(fill = Timepoint), alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Individual), width = 0.15, size = 3) +
  scale_fill_manual(values = ann_colors$timepoint_cor) +
  scale_color_manual(values = ann_colors$individual_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "top") +
  labs(
    title = "Total Reads per Day by Species",
    x = "Day",
    y = "Total Reads",
    fill = "Timepoint",
    color = "Individual"
  )

Past versions of unnamed-chunk-4-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

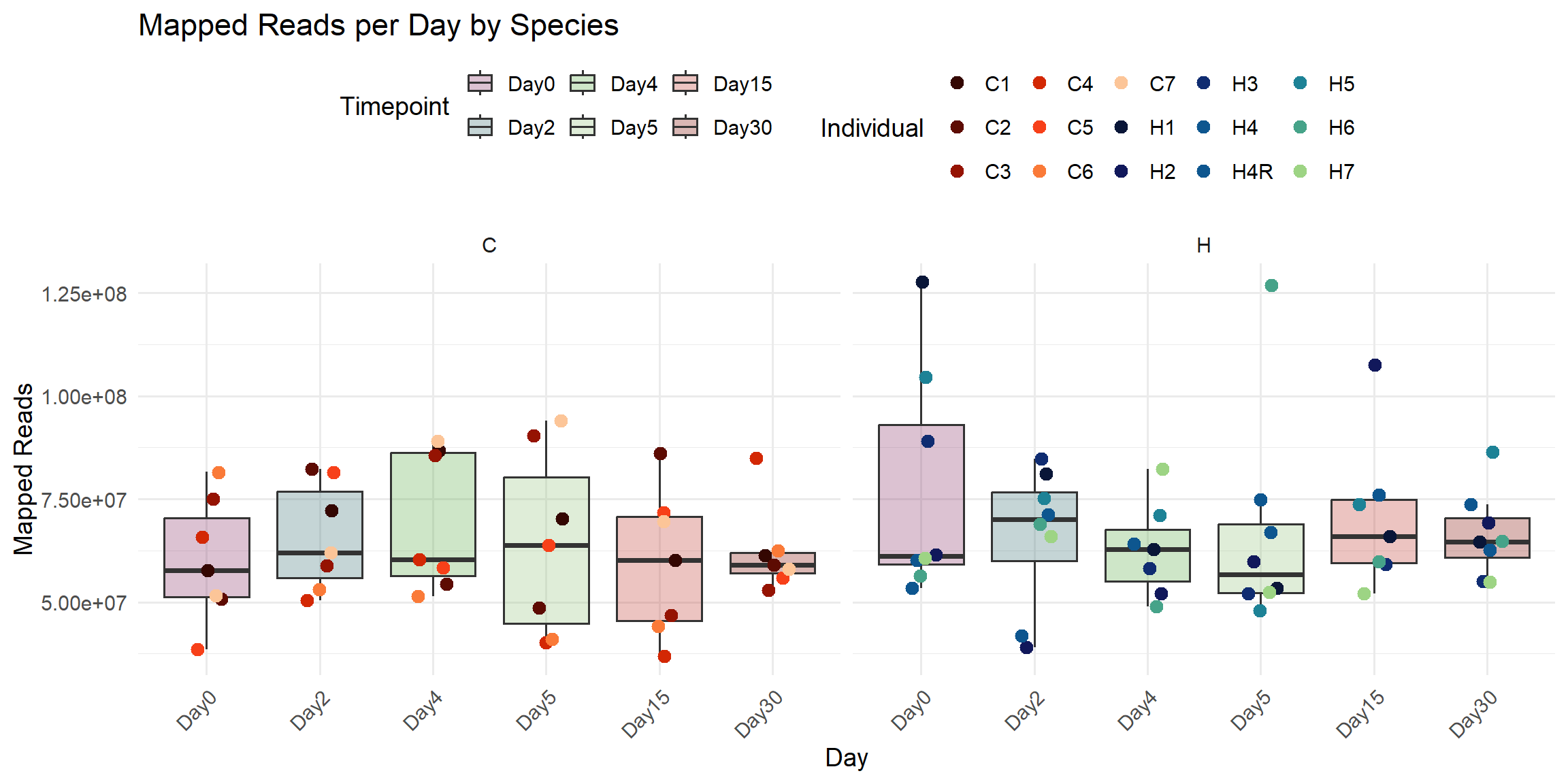

ggplot(total_reads_df, aes(x = Timepoint, y = Mapped_Reads)) +
  geom_boxplot(aes(fill = Timepoint), alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Individual), width = 0.15, size = 3) +
  scale_fill_manual(values = ann_colors$timepoint_cor) +
  scale_color_manual(values = ann_colors$individual_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "top") +
  labs(
    title = "Mapped Reads per Day by Species",
    x = "Day",
    y = "Mapped Reads",
    fill = "Timepoint",
    color = "Individual"
  )

Past versions of unnamed-chunk-4-2.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

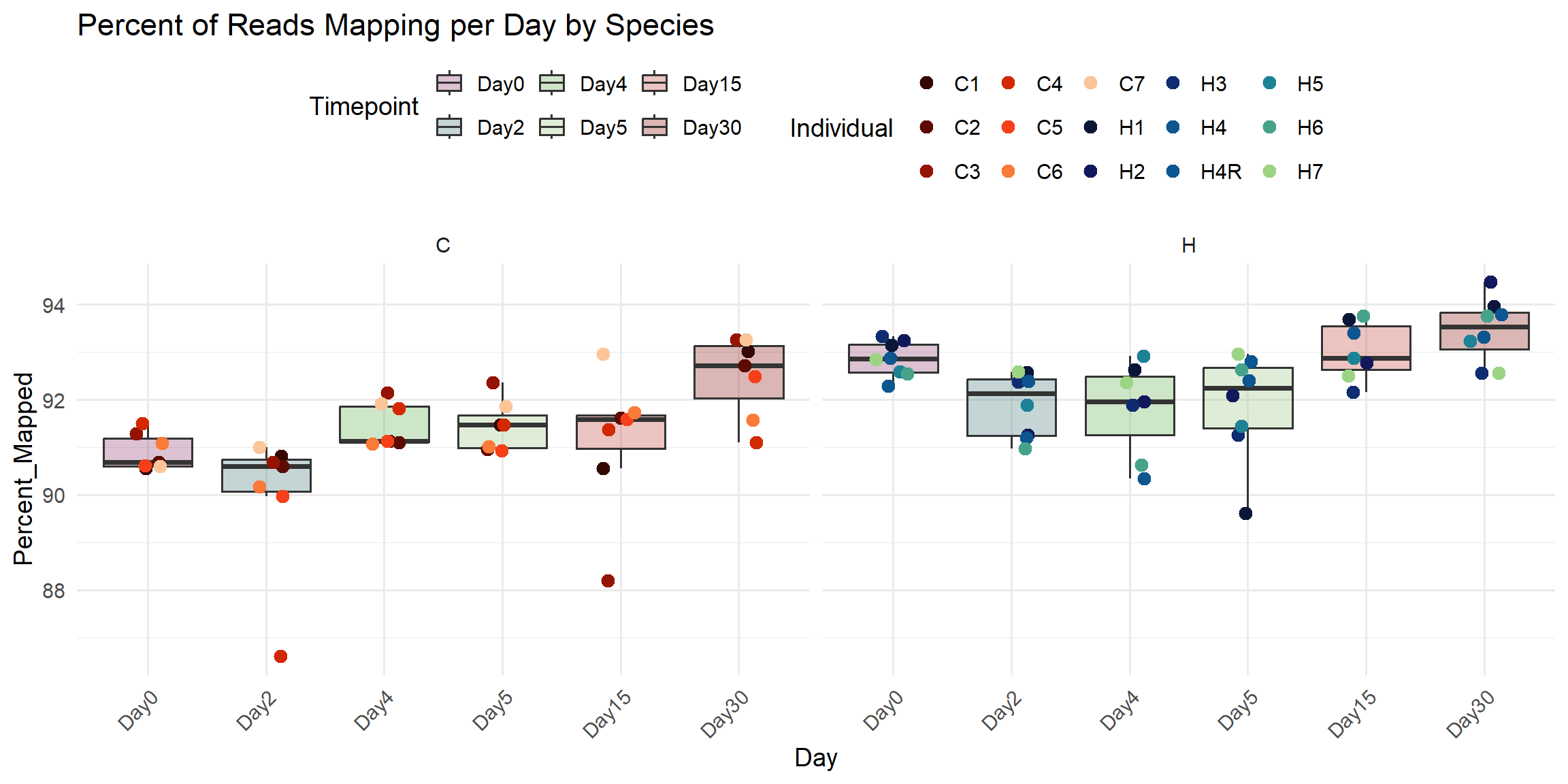

ggplot(total_reads_df, aes(x = Timepoint, y = Percent_Mapped)) +
  geom_boxplot(aes(fill = Timepoint), alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Individual), width = 0.15, size = 3) +
  scale_fill_manual(values = ann_colors$timepoint_cor) +
  scale_color_manual(values = ann_colors$individual_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "top") +
  labs(
    title = "Percent of Reads Mapping per Day by Species",
    x = "Day",
    y = "Percent_Mapped",
    fill = "Timepoint",
    color = "Individual"
  )

Past versions of unnamed-chunk-4-3.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

ggplot(total_reads_df, aes(x = Timepoint, y = Usable_Fragments)) +
  geom_boxplot(aes(fill = Timepoint), alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Individual), width = 0.15, size = 3) +
  scale_fill_manual(values = ann_colors$timepoint_cor) +
  scale_color_manual(values = ann_colors$individual_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "top") +
  labs(
    title = "Usable Fragments per Day by Species",
    x = "Day",
    y = "Number of Fragments",
    fill = "Timepoint",
    color = "Individual"
  )

Past versions of unnamed-chunk-4-4.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

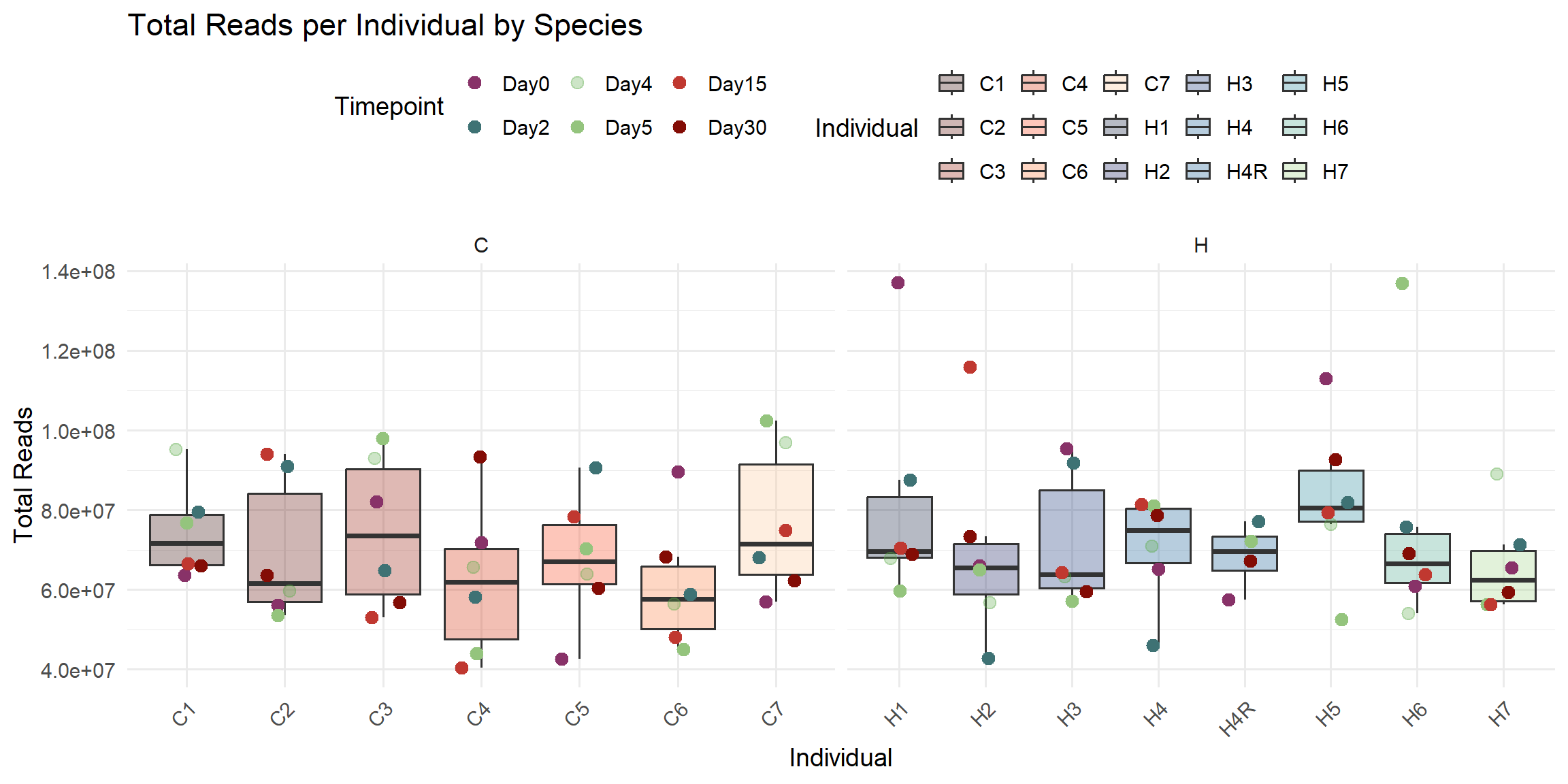

ggplot(total_reads_df, aes(x = Individual, y = Total_Reads)) +
  geom_boxplot(aes(fill = Individual), alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Timepoint), width = 0.2, size = 3) +
  scale_fill_manual(values = ann_colors$individual_cor) +
  scale_color_manual(values = ann_colors$timepoint_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "top") +
  labs(
    title = "Total Reads per Individual by Species",
    x = "Individual",
    y = "Total Reads",
    fill = "Individual",
    color = "Timepoint"
  )

Past versions of unnamed-chunk-5-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

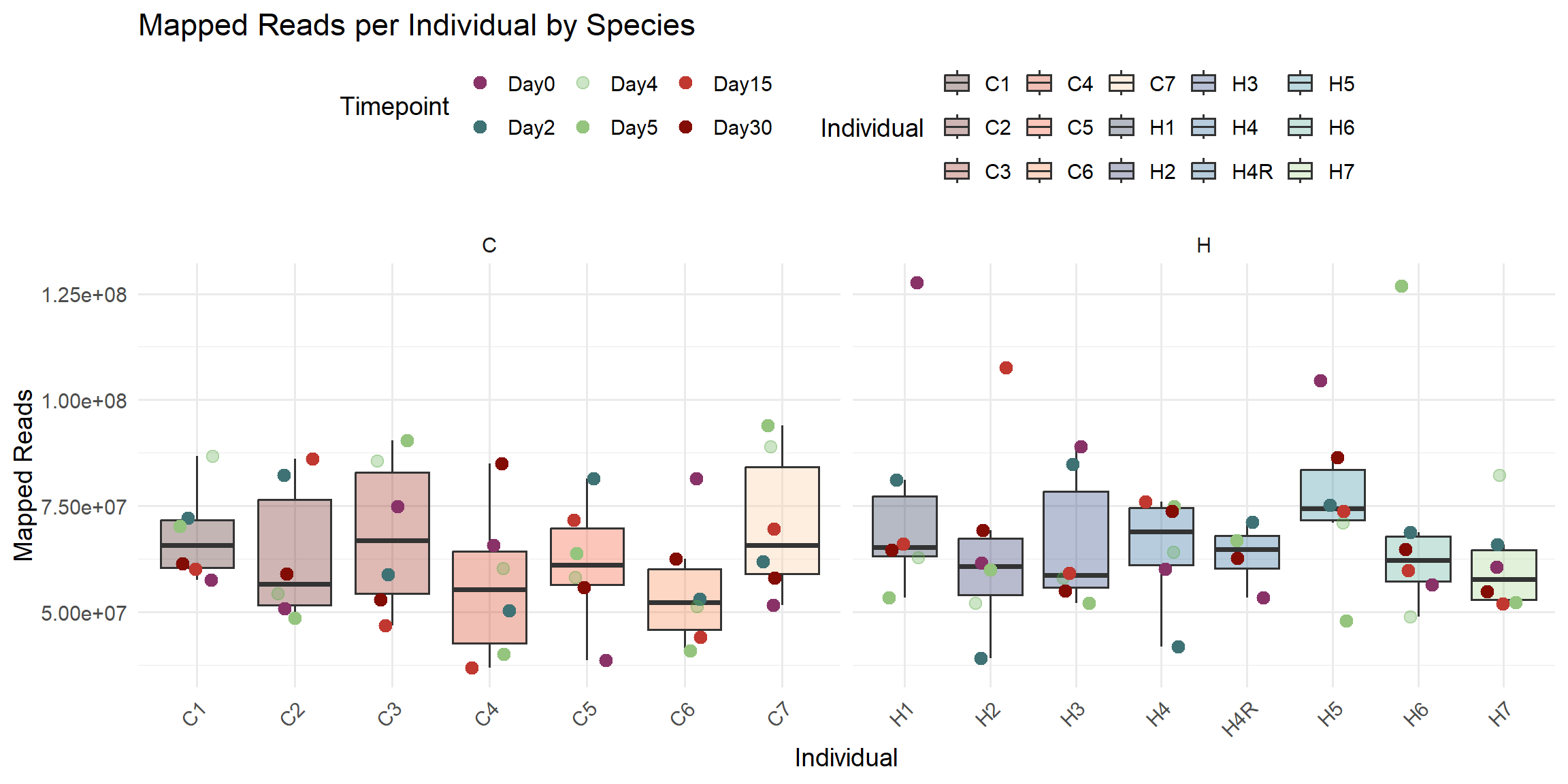

ggplot(total_reads_df, aes(x = Individual, y = Mapped_Reads)) +
  geom_boxplot(aes(fill = Individual), alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Timepoint), width = 0.2, size = 3) +
  scale_fill_manual(values = ann_colors$individual_cor) +
  scale_color_manual(values = ann_colors$timepoint_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "top") +
  labs(
    title = "Mapped Reads per Individual by Species",
    x = "Individual",
    y = "Mapped Reads",
    fill = "Individual",
    color = "Timepoint"
  )

Past versions of unnamed-chunk-5-2.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

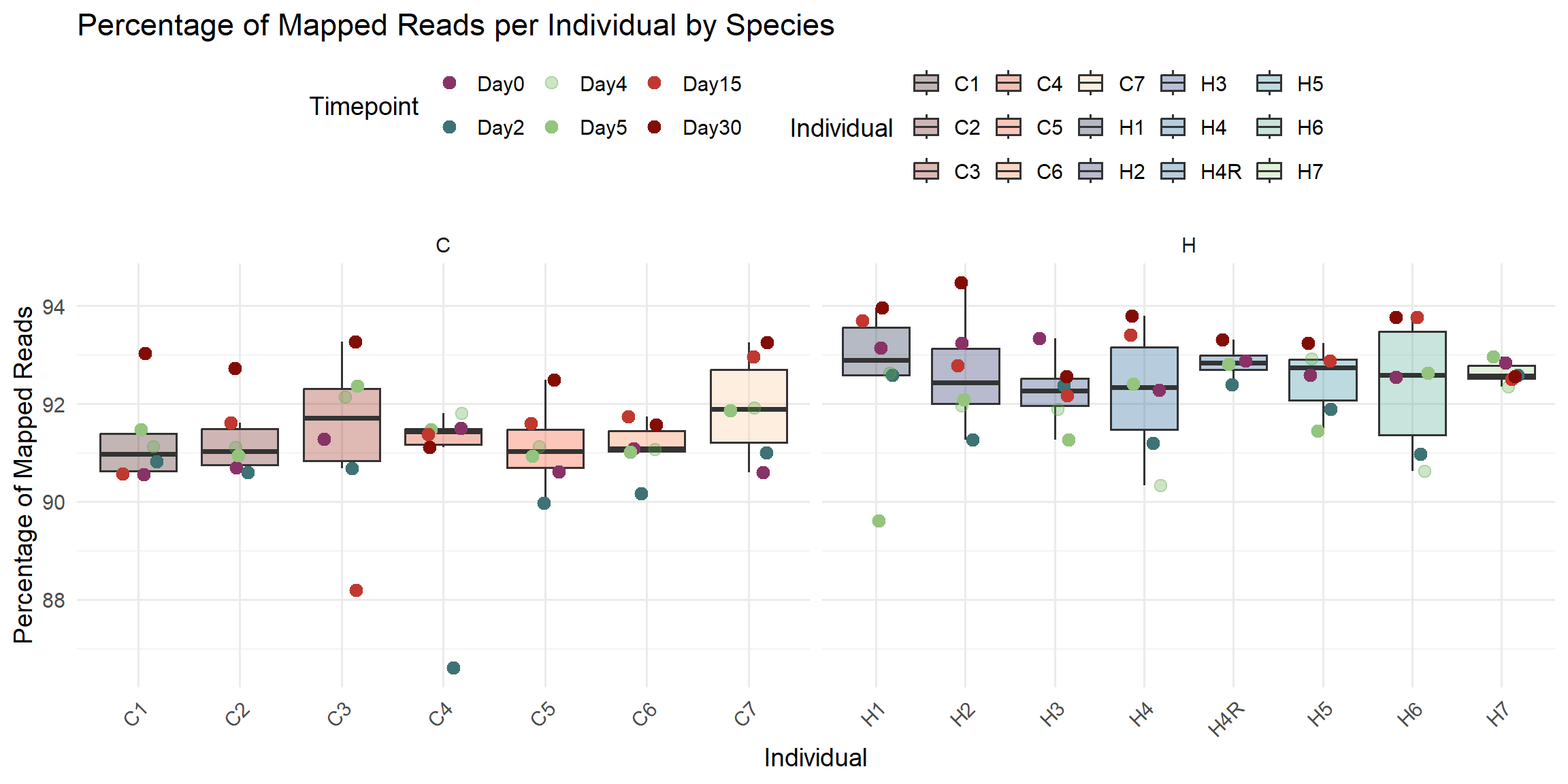

ggplot(total_reads_df, aes(x = Individual, y = Percent_Mapped)) +
  geom_boxplot(aes(fill = Individual), alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Timepoint), width = 0.2, size = 3) +
  scale_fill_manual(values = ann_colors$individual_cor) +
  scale_color_manual(values = ann_colors$timepoint_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "top") +
  labs(
    title = "Percentage of Mapped Reads per Individual by Species",
    x = "Individual",
    y = "Percentage of Mapped Reads",
    fill = "Individual",
    color = "Timepoint"
  )

Past versions of unnamed-chunk-5-3.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

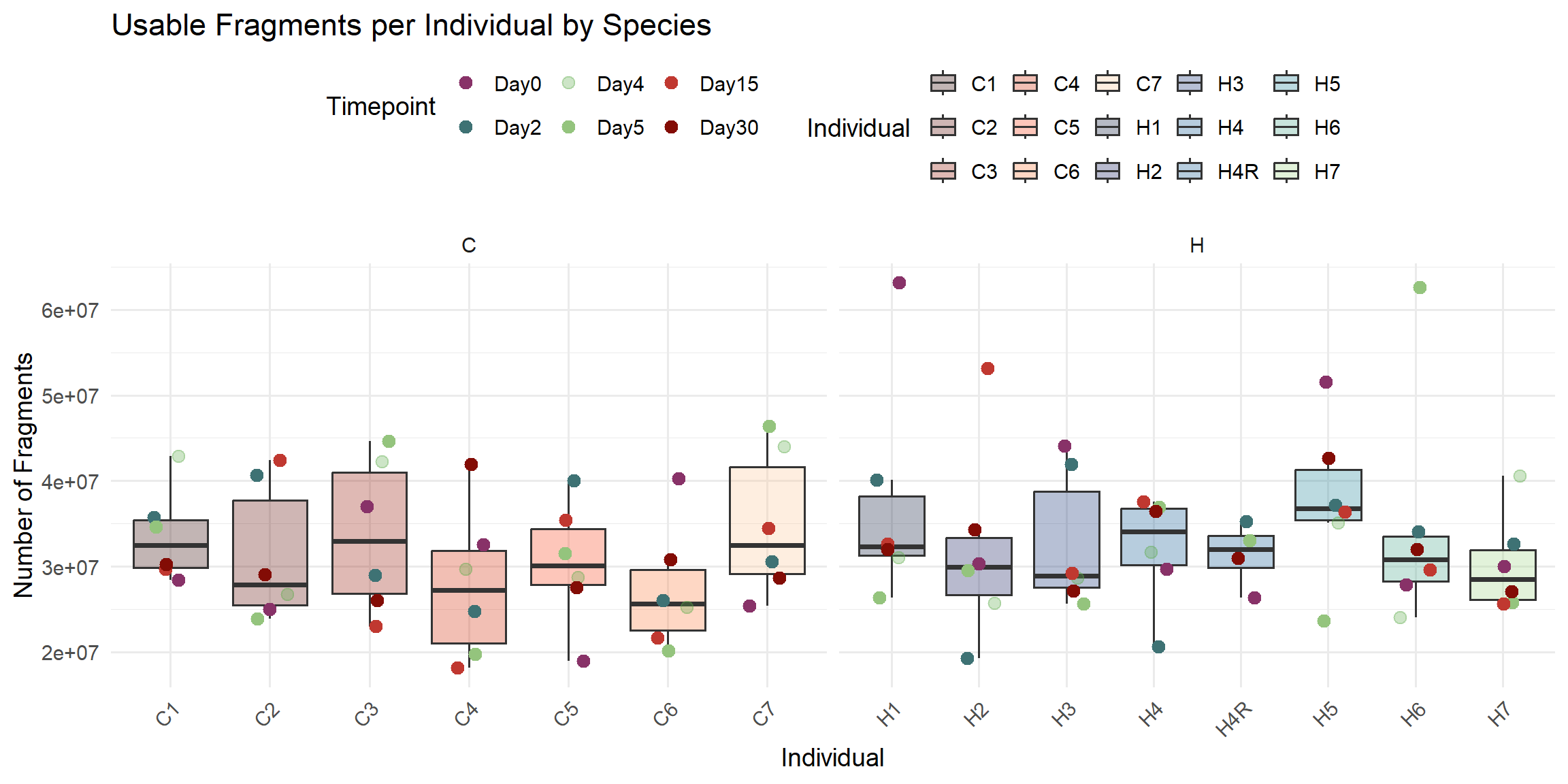

ggplot(total_reads_df, aes(x = Individual, y = Usable_Fragments)) +
  geom_boxplot(aes(fill = Individual), alpha = 0.3, outlier.shape = NA) +
  geom_jitter(aes(color = Timepoint), width = 0.2, size = 3) +
  scale_fill_manual(values = ann_colors$individual_cor) +
  scale_color_manual(values = ann_colors$timepoint_cor) +
  facet_wrap(~Species, scales = "free_x") +
  theme_minimal(base_size = 14) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "top") +
  labs(
    title = "Usable Fragments per Individual by Species",
    x = "Individual",
    y = "Number of Fragments",
    fill = "Individual",
    color = "Timepoint"
  )

Past versions of unnamed-chunk-5-4.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

# -----------------------------
# 1. Prepare long-format data
# -----------------------------
day_levels <- c("Day0","Day2","Day4","Day5","Day15","Day30")
marker_levels <- c("OCT3/4", "Brachy", "ISL-1", "TNNT-2")

RNA_Metadata_NoRep <- RNA_Metadata %>%
  dplyr::filter(!SampleName %in% c(
    "H20682R_Day0",
    "H20682R_Day2",
    "H20682R_Day5",
    "H20682R_Day30"
  ))

df_long_all <- RNA_Metadata_NoRep %>%
  dplyr::select(Individual,Cond, `OCT3/4`, Brachy, `ISL-1`, `TNNT-2`) %>%
  mutate(
    `OCT3/4` = as.numeric(`OCT3/4`),
    Brachy = as.numeric(Brachy),
    `ISL-1` = as.numeric(`ISL-1`),
    `TNNT-2` = as.numeric(`TNNT-2`),
    Group = ifelse(grepl("^H_", Cond), "H", "C")
  ) %>%
  pivot_longer(
    cols = c(`OCT3/4`, Brachy, `ISL-1`, `TNNT-2`),
    names_to = "Marker",
    values_to = "Percent_Positive"
  ) %>%
  mutate(
    Day = gsub(".*_(Day\\d+)$", "\\1", Cond),
    Day = factor(Day, levels = day_levels, ordered = TRUE),
    Marker = factor(Marker, levels = marker_levels, ordered = TRUE)
  )

# -----------------------------
# 2. Compute summary with SEM
# -----------------------------
summary_df <- df_long_all %>%
  group_by(Marker, Day, Group) %>%
  summarise(
    Mean = mean(Percent_Positive, na.rm = TRUE),
    SD = sd(Percent_Positive, na.rm = TRUE),
    N = sum(!is.na(Percent_Positive)),
    SEM = SD / sqrt(N),
    .groups = "drop"
  )

# -----------------------------
# 3. Plot lines over time with SEM error bars
# -----------------------------
library(dplyr)
library(scales)

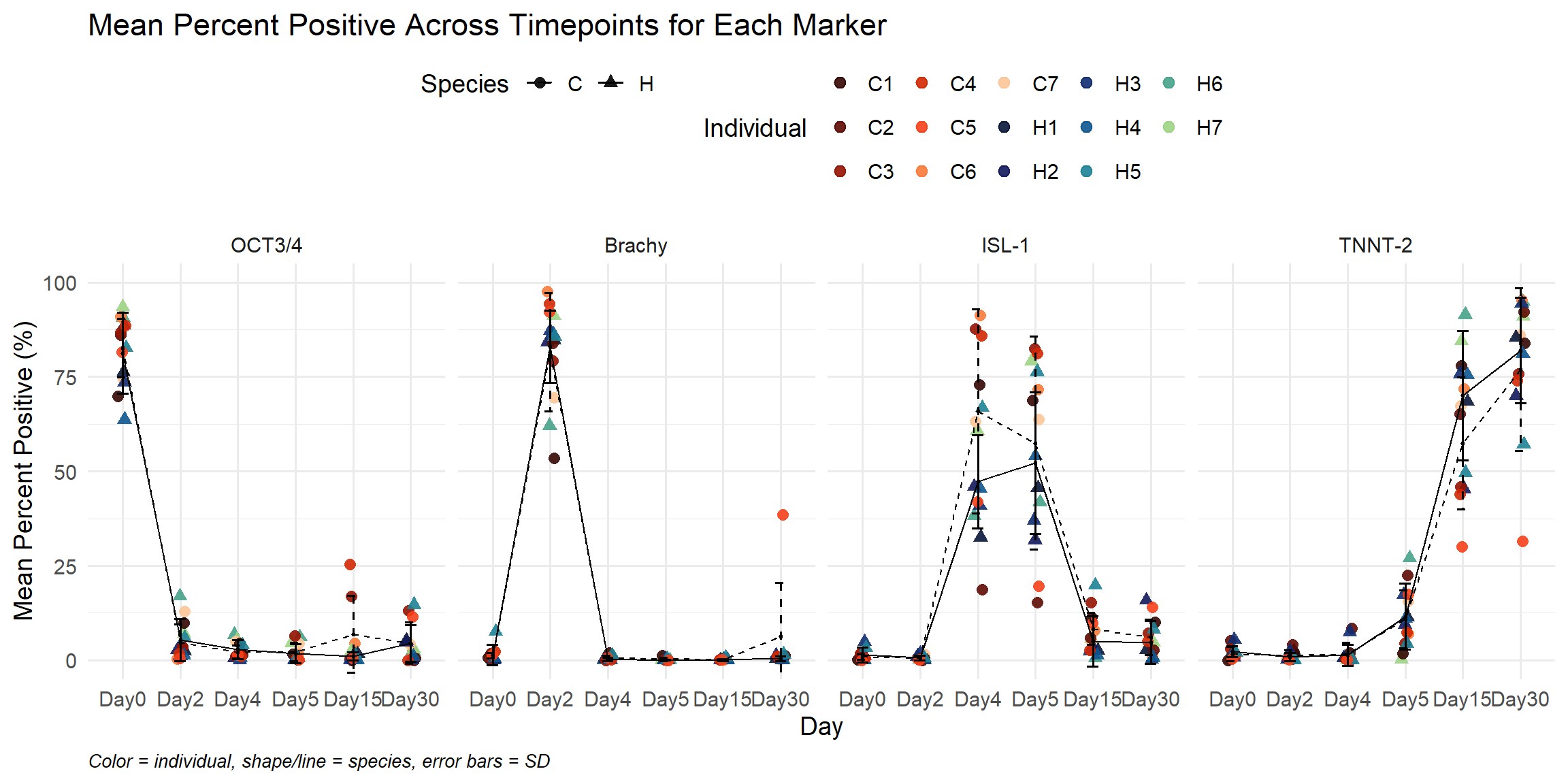

ggplot(summary_df,
       aes(x = Day, y = Mean,
           linetype = Group,
           group = Group)) +

  # Individual points
  geom_point(
    data = df_long_all,
    aes(
      x = Day,
      y = Percent_Positive,
      color = Individual,
      shape = Group
    ),
    size = 2.5,
    alpha = 0.9,
    position = position_jitter(width = 0.08, height = 0)
  ) +

  # Mean line (black, texture = species)
  geom_line(
    linewidth = 0.5,
    color = "black"
  ) +

  # Mean point (black)
  geom_point(
    size = 0.5,
    color = "black"
  ) +

  # Error bars (black)
  geom_errorbar(
    aes(ymin = Mean - SD, ymax = Mean + SD),
    width = 0.2,
    color = "black"
  ) +

  facet_wrap(~ Marker, nrow = 1) +

  # species as line texture
  scale_linetype_manual(
    values = c(
      "H" = "solid",
      "C" = "dashed"
    ),
    name = "Species"
  ) +

  # species as shape
  scale_shape_manual(
    values = c(
      "H" = 17,  # triangle
      "C" = 16   # circle
    ),
    name = "Species"
  ) +

  # individual colors from your manual palette
  scale_color_manual(
    values = ann_colors$individual_cor,
    name = "Individual"
  ) +

  # Use coord_cartesian instead of scale_y_continuous to avoid dropped points
  coord_cartesian(ylim = c(0, 100)) +

  labs(
    title = "Mean Percent Positive Across Timepoints for Each Marker",
    x = "Day",
    y = "Mean Percent Positive (%)",
    caption = "Color = individual, shape/line = species, error bars = SD"
  ) +

  theme_minimal(base_size = 14) +
  theme(
    legend.position = "top",
    axis.text.x = element_text(angle = 0, hjust = 0.5),
    plot.caption = element_text(hjust = 0, face = "italic", size = 10)
  )

Past versions of RNASeq_Purities_graph-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23
fcf8fc0	John D. Hurley	2026-02-18

# -----------------------------

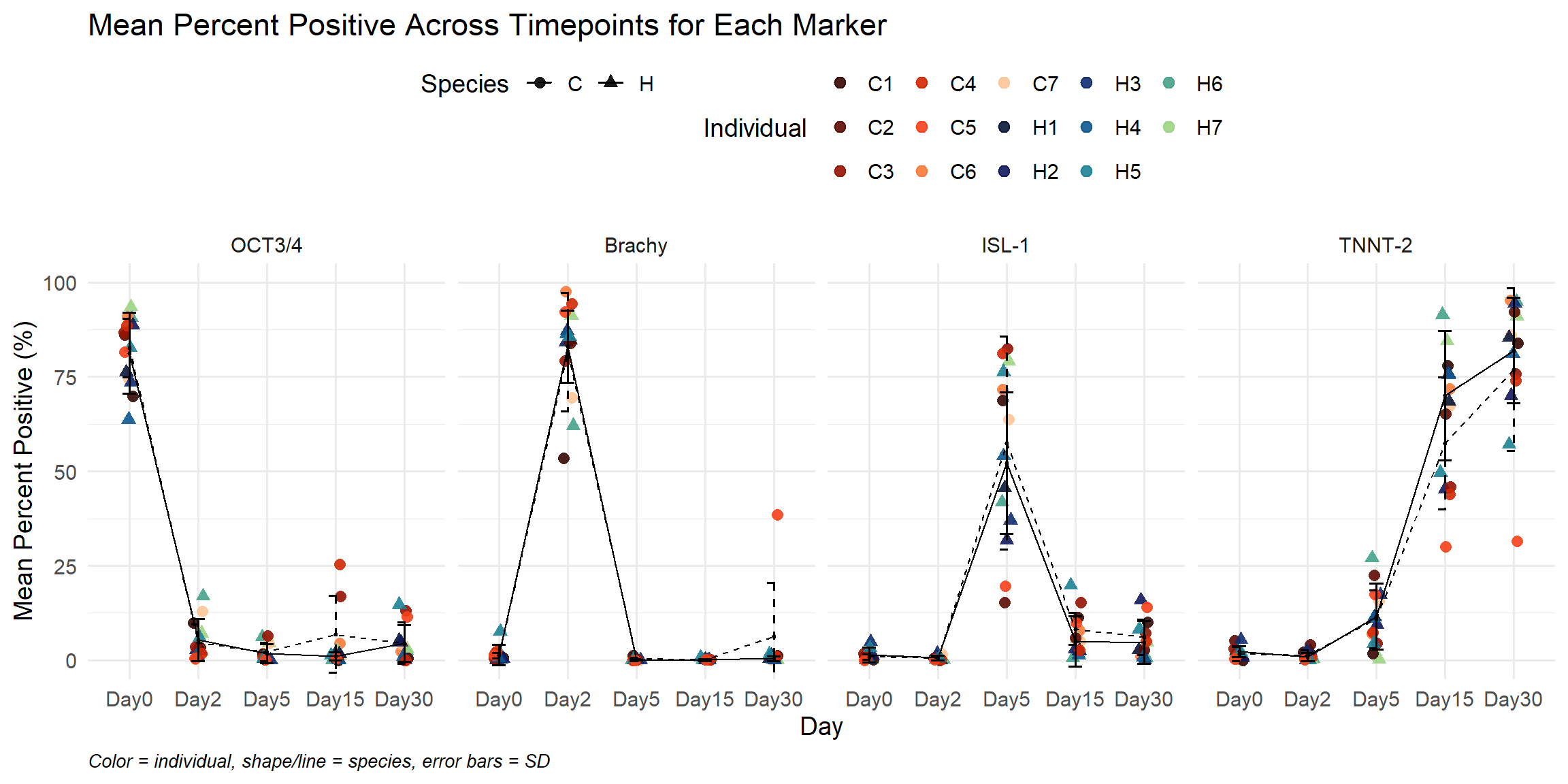

# 1. Prepare long-format data
# -----------------------------
day_levels <- c("Day0","Day2","Day4","Day5","Day15","Day30")
marker_levels <- c("OCT3/4", "Brachy", "ISL-1", "TNNT-2")

RNA_Metadata_NoD4_NoRep <- RNA_Metadata %>%
  dplyr::filter(Timepoint != "Day4") %>%
  dplyr::filter(!SampleName %in% c(
    "H20682R_Day0",
    "H20682R_Day2",
    "H20682R_Day5",
    "H20682R_Day30"
  ))

df_long_all <- RNA_Metadata_NoD4_NoRep %>%
  dplyr::select(Individual,Cond, `OCT3/4`, Brachy, `ISL-1`, `TNNT-2`) %>%
  mutate(
    `OCT3/4` = as.numeric(`OCT3/4`),
    Brachy = as.numeric(Brachy),
    `ISL-1` = as.numeric(`ISL-1`),
    `TNNT-2` = as.numeric(`TNNT-2`),
    Group = ifelse(grepl("^H_", Cond), "H", "C")
  ) %>%
  pivot_longer(
    cols = c(`OCT3/4`, Brachy, `ISL-1`, `TNNT-2`),
    names_to = "Marker",
    values_to = "Percent_Positive"
  ) %>%
  mutate(
    Day = gsub(".*_(Day\\d+)$", "\\1", Cond),
    Day = factor(Day, levels = day_levels, ordered = TRUE),
    Marker = factor(Marker, levels = marker_levels, ordered = TRUE)
  )

# -----------------------------
# 2. Compute summary with SEM
# -----------------------------
summary_df <- df_long_all %>%
  group_by(Marker, Day, Group) %>%
  summarise(
    Mean = mean(Percent_Positive, na.rm = TRUE),
    SD = sd(Percent_Positive, na.rm = TRUE),
    N = sum(!is.na(Percent_Positive)),
    SEM = SD / sqrt(N),
    .groups = "drop"
  )

# -----------------------------
# 3. Plot lines over time with SEM error bars
# -----------------------------
library(dplyr)
library(scales)

ggplot(summary_df,
       aes(x = Day, y = Mean,
           linetype = Group,
           group = Group)) +

  # Individual points
  geom_point(
    data = df_long_all,
    aes(
      x = Day,
      y = Percent_Positive,
      color = Individual,
      shape = Group
    ),
    size = 2.5,
    alpha = 0.9,
    position = position_jitter(width = 0.08, height = 0)
  ) +

  # Mean line (black, texture = species)
  geom_line(
    linewidth = 0.5,
    color = "black"
  ) +

  # Mean point (black)
  geom_point(
    size = 0.5,
    color = "black"
  ) +

  # Error bars (black)
  geom_errorbar(
    aes(ymin = Mean - SD, ymax = Mean + SD),
    width = 0.2,
    color = "black"
  ) +

  facet_wrap(~ Marker, nrow = 1) +

  # species as line texture
  scale_linetype_manual(
    values = c(
      "H" = "solid",
      "C" = "dashed"
    ),
    name = "Species"
  ) +

  # species as shape
  scale_shape_manual(
    values = c(
      "H" = 17,  # triangle
      "C" = 16   # circle
    ),
    name = "Species"
  ) +

  # individual colors from your manual palette
  scale_color_manual(
    values = ann_colors$individual_cor,
    name = "Individual"
  ) +

  # Use coord_cartesian instead of scale_y_continuous to avoid dropped points
  coord_cartesian(ylim = c(0, 100)) +

  labs(
    title = "Mean Percent Positive Across Timepoints for Each Marker",
    x = "Day",
    y = "Mean Percent Positive (%)",
    caption = "Color = individual, shape/line = species, error bars = SD"
  ) +

  theme_minimal(base_size = 14) +
  theme(
    legend.position = "top",
    axis.text.x = element_text(angle = 0, hjust = 0.5),
    plot.caption = element_text(hjust = 0, face = "italic", size = 10)
  )

Past versions of RNASeq_Purities_graph_No4-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

#####Unfiltered####
RNA_log2cpm <- cpm(RNA_fc, log = TRUE)

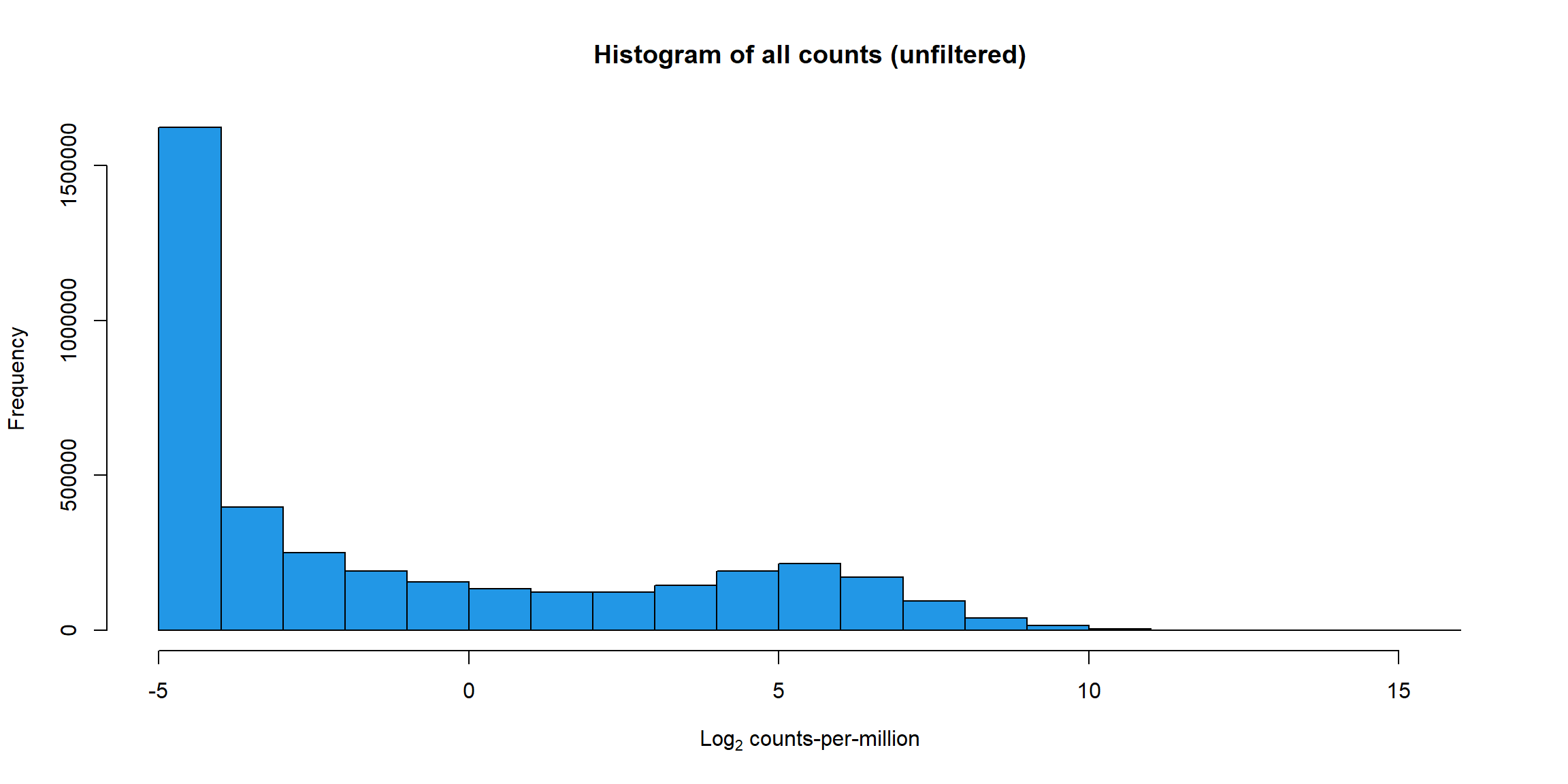

hist(RNA_log2cpm,  main = "Histogram of all counts (unfiltered)",
     xlab =expression("Log"[2]*" counts-per-million"), col =4 )

Past versions of RNASeq_FeatureCounts_Box_Unfiltered-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23
fcf8fc0	John D. Hurley	2026-02-18
7789dff	John D. Hurley	2026-01-28
d9f15a6	John D. Hurley	2026-01-28

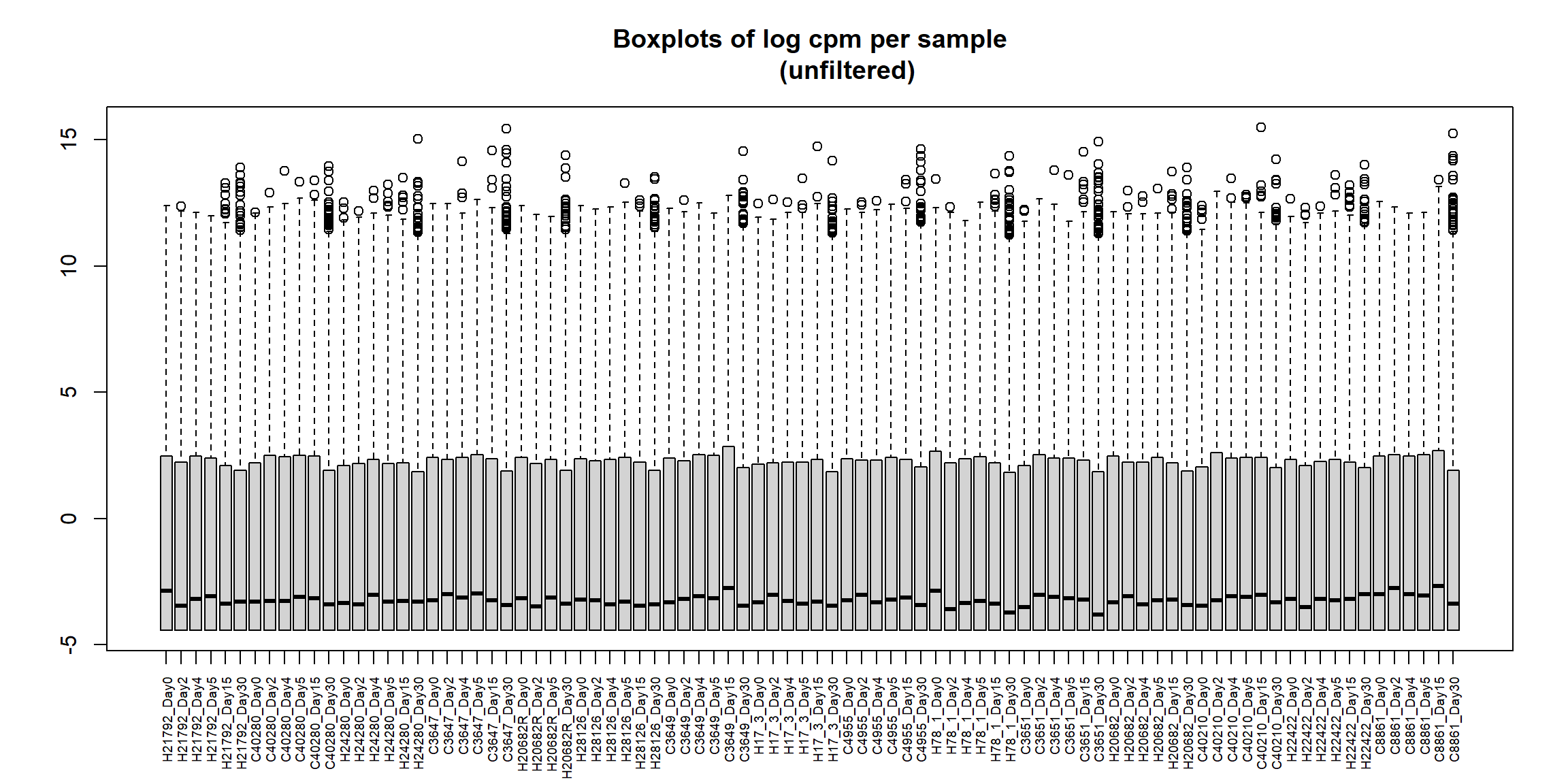

boxplot(RNA_log2cpm, main = "Boxplots of log cpm per sample
          (unfiltered)", xaxt = "n", xlab= "")
axis(1,
     at = 1:length(col_names),  # positions (one per sample)
     labels = col_names,        # your labels vector
     las = 2,               # rotate text vertically (like srt=90)
     cex.axis = 0.6)        # shrink label size

Past versions of RNASeq_FeatureCounts_Box_Unfiltered-2.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23
fcf8fc0	John D. Hurley	2026-02-18
7789dff	John D. Hurley	2026-01-28
d9f15a6	John D. Hurley	2026-01-28

# saveRDS(RNA_log2cpm,"data/QC/concat/RNA_log2cpm.RDS")

#####RowMu>0####
row_means <- rowMeans(RNA_log2cpm)
Filt_RMG0_RNA_fc <- RNA_fc[row_means >0,]

# saveRDS(Filt_RMG0_RNA_fc,"data/QC/concat/Filt_RMG0_RNA_fc.RDS")

Filt_RMG0_RNA_log2cpm <- cpm(Filt_RMG0_RNA_fc,log=TRUE)

# saveRDS(Filt_RMG0_RNA_log2cpm,"data/QC/concat/Filt_RMG0_RNA_log2cpm.RDS")

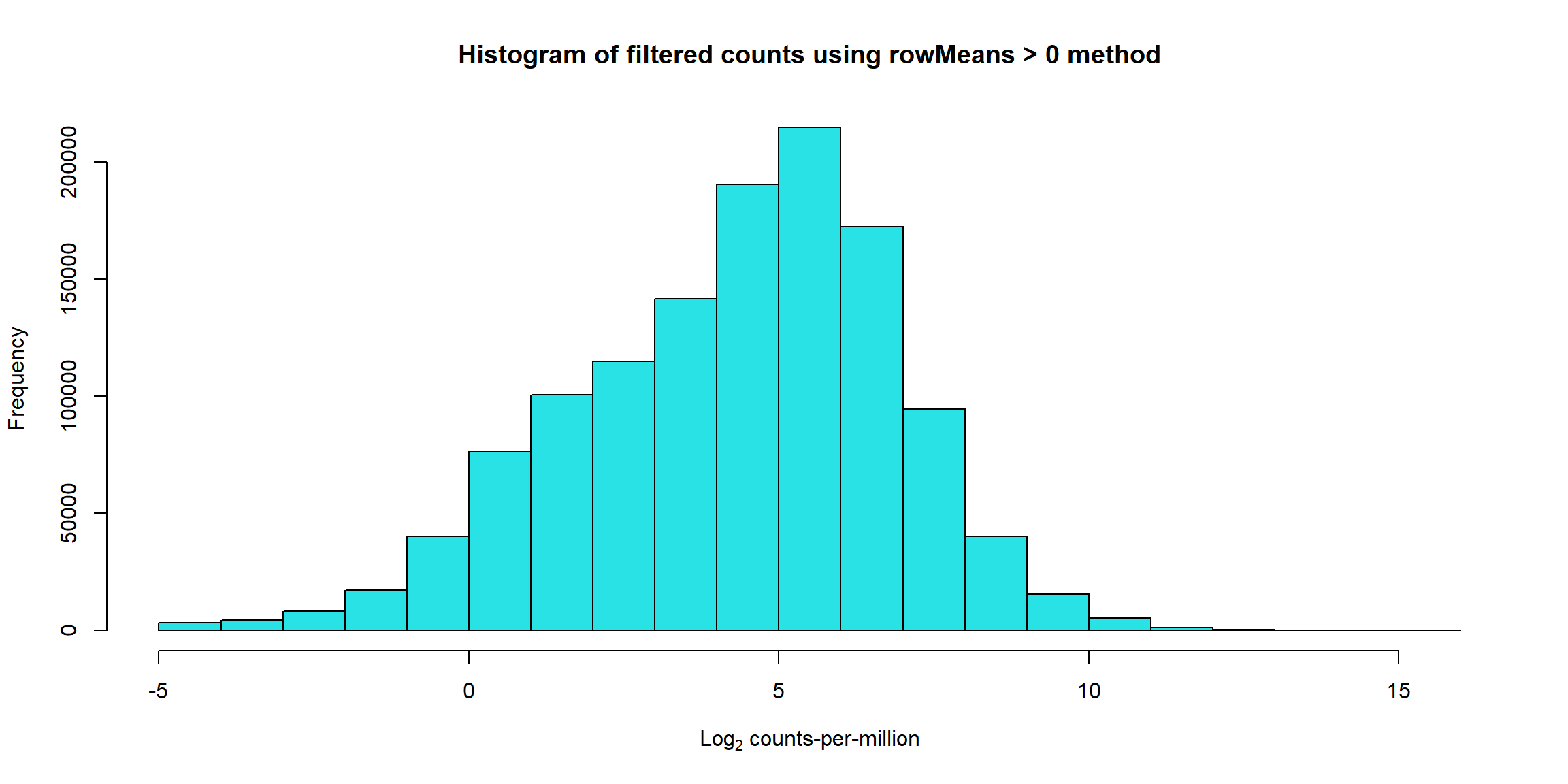

hist(Filt_RMG0_RNA_log2cpm, main = "Histogram of filtered counts using rowMeans > 0 method",
     xlab =expression("Log"[2]*" counts-per-million"), col =5 )

Past versions of RNASeq_FeatureCounts_RMG0-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23
7789dff	John D. Hurley	2026-01-28
d9f15a6	John D. Hurley	2026-01-28

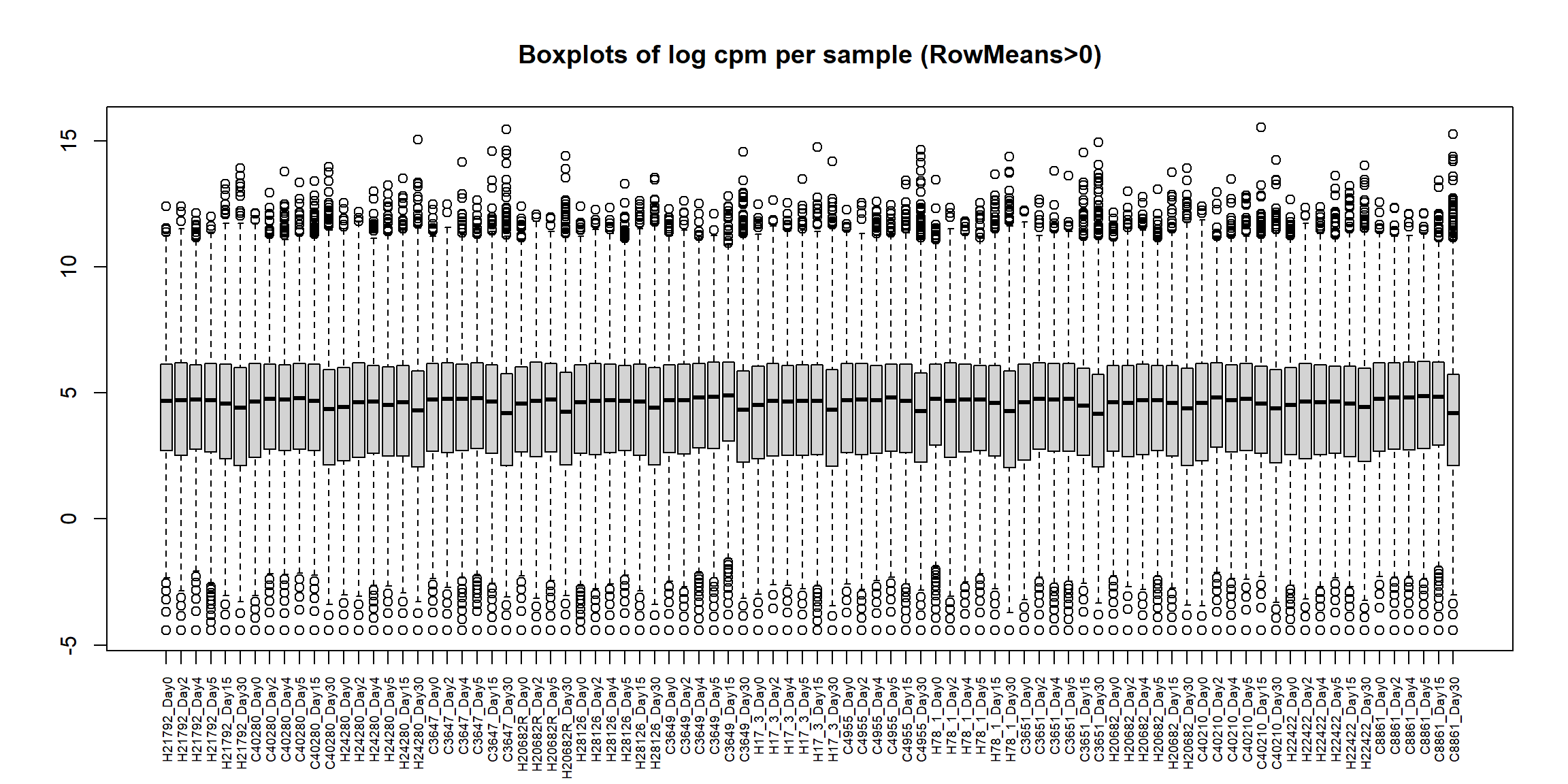

boxplot(Filt_RMG0_RNA_log2cpm, main = "Boxplots of log cpm per sample (RowMeans>0)",xaxt = "n", xlab= "")
axis(1,
     at = 1:length(col_names),  # positions (one per sample)
     labels = col_names,        # your labels vector
     las = 2,               # rotate text vertically (like srt=90)
     cex.axis = 0.6)        # shrink label size

Past versions of RNASeq_FeatureCounts_Box_RMG0-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23
7789dff	John D. Hurley	2026-01-28
d9f15a6	John D. Hurley	2026-01-28

library(ggplot2)
library(dplyr)

# Define ordered day factor
day_levels <- c("Day0", "Day2", "Day4", "Day5", "Day15", "Day30")

total_reads_df <- total_reads_df %>%
  mutate(
    # Order Timepoint for bars
    Timepoint = factor(Timepoint, levels = day_levels, ordered = TRUE),

    # Individual text color
    Individual_Color = ann_colors$individual_cor[Individual]
  ) %>%
  # Order Sample for x-axis: first by Individual, then by Day
  arrange(Individual, Timepoint) %>%
  mutate(Sample = factor(Sample, levels = Sample))  # preserve order in ggplot

# Plot

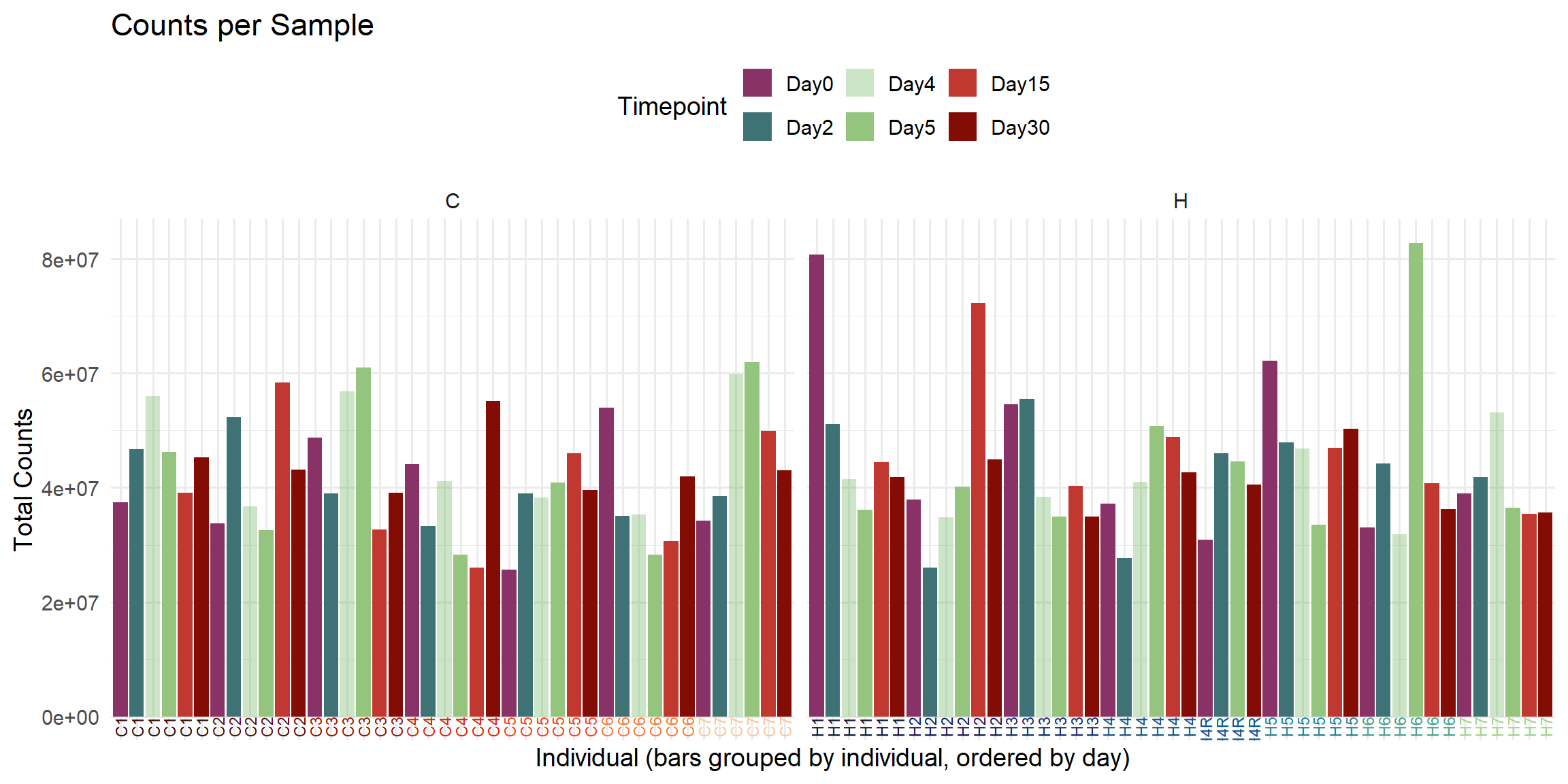

ggplot(total_reads_df, aes(x = Sample, y = Total_Counts, fill = Timepoint)) +

  # Bars colored by Timepoint
  geom_col() +

  # Annotate Individual names under bars, colored by individual
  geom_text(
    aes(label = Individual, color = Individual_Color),
    y = 0, angle = 90, hjust = 1, vjust = 0.5, size = 3
  ) +

  # Manual Timepoint colors
  scale_fill_manual(values = ann_colors$timepoint_cor) +

  # Use exact color for individual labels
  scale_color_identity() +

  # Facet by Species if desired
  facet_grid(~Species, scales = "free_x", space = "free_x") +

  # Theme
  theme_minimal(base_size = 14) +
  theme(
    axis.text.x = element_blank(),  # hide default X labels
    axis.ticks.x = element_blank(),
    legend.position = "top"
  ) +

  labs(
    title = "Counts per Sample",
    x = "Individual (bars grouped by individual, ordered by day)",
    y = "Total Counts",
    fill = "Timepoint"
  )

Past versions of unnamed-chunk-6-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

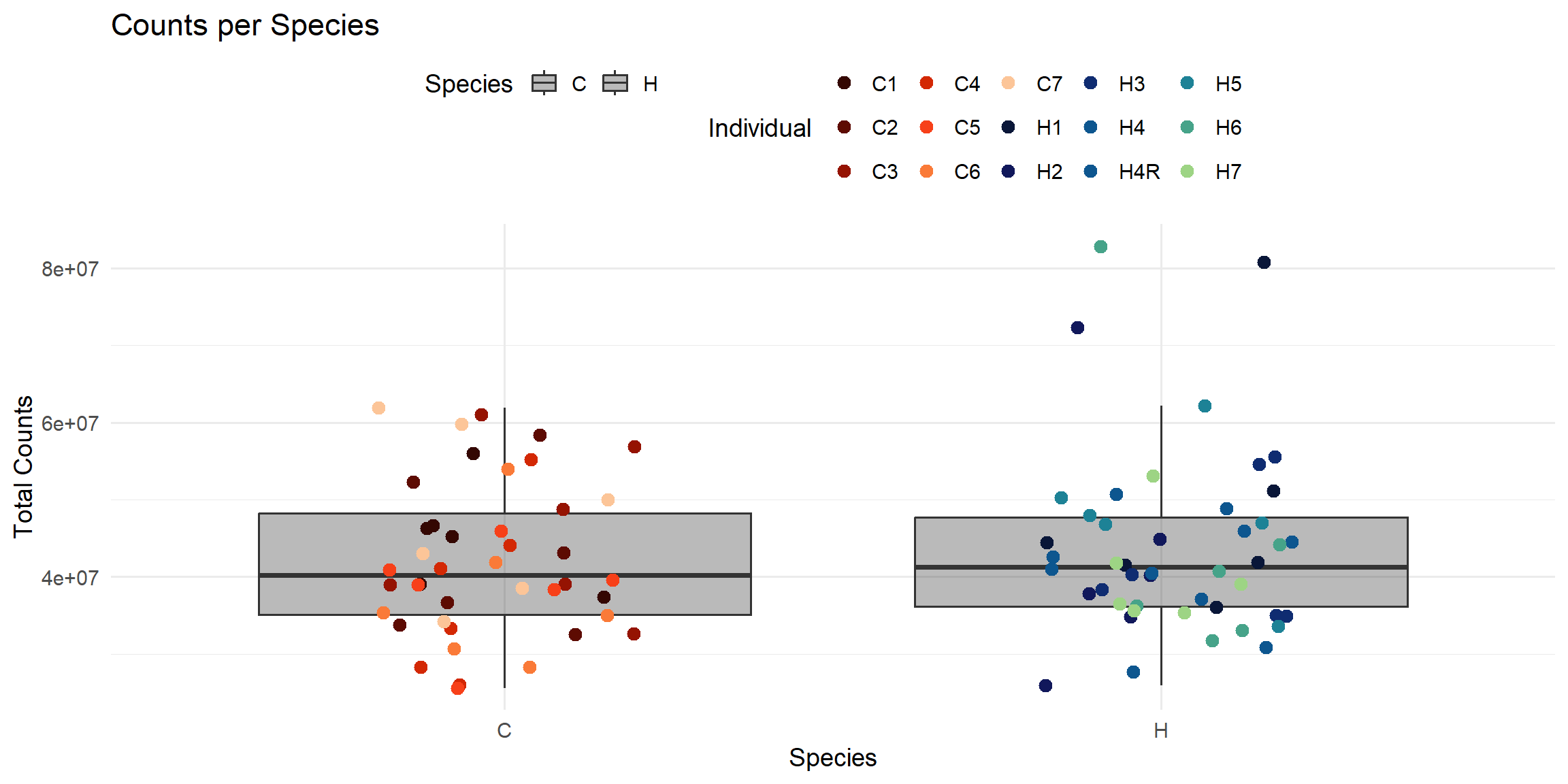

ggplot(total_reads_df, aes(x = Species, y = Total_Counts)) +

  # Boxplot for each species
  geom_boxplot(aes(fill = Species), alpha = 0.3, outlier.shape = NA) +

  # Overlay individual points colored by individual
  geom_jitter(aes(color = Individual), width = 0.2, size = 3) +

  # Use individual colors
  scale_color_manual(values = ann_colors$individual_cor) +

  # Optional: species fill colors (light grey / black)
  scale_fill_manual(values = c("H" = "#17171717", "C" = "#17171717")) +

  theme_minimal(base_size = 14) +
  theme(
    legend.position = "top"
  ) +

  labs(
    title = "Counts per Species",
    x = "Species",
    y = "Total Counts",
    color = "Individual",
    fill = "Species"
  )

Past versions of unnamed-chunk-6-2.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

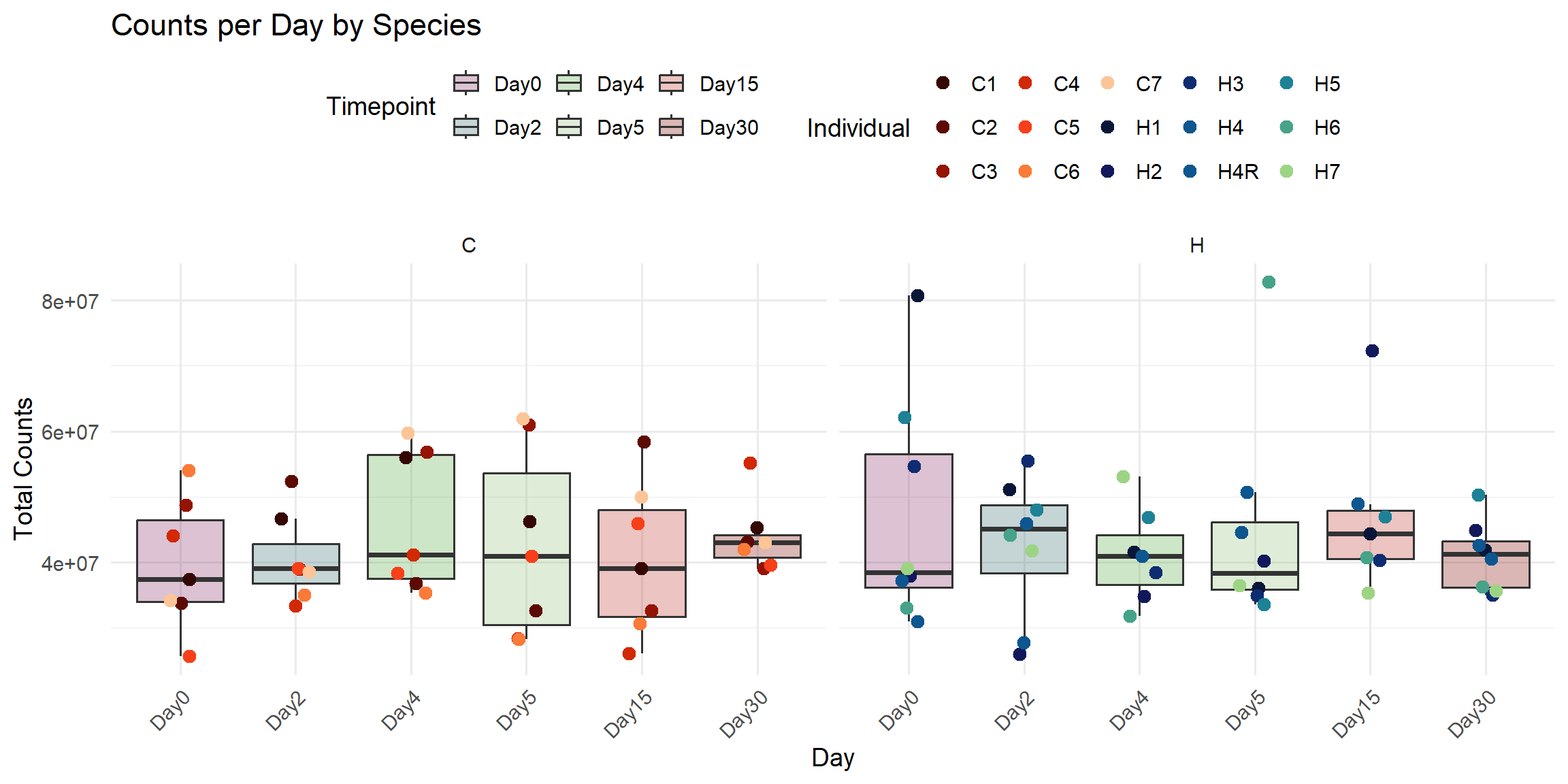

ggplot(total_reads_df, aes(x = Timepoint, y = Total_Counts)) +

  # Boxplot per day
  geom_boxplot(aes(fill = Timepoint), alpha = 0.3, outlier.shape = NA) +

  # Overlay individual points colored by individual
  geom_jitter(aes(color = Individual), width = 0.15, size = 3) +

  # Use individual colors
  scale_color_manual(values = ann_colors$individual_cor) +

  # Use timepoint colors for boxplots
  scale_fill_manual(values = ann_colors$timepoint_cor) +

  # Separate x-axis by species
  facet_wrap(~Species, scales = "free_x") +

  theme_minimal(base_size = 14) +
  theme(
    legend.position = "top",
    axis.text.x = element_text(angle = 45, hjust = 1)
  ) +

  labs(
    title = "Counts per Day by Species",
    x = "Day",
    y = "Total Counts",
    color = "Individual",
    fill = "Timepoint"
  )

Past versions of unnamed-chunk-6-3.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

# Plot
ggplot(total_reads_df, aes(x = Individual, y = Total_Counts)) +

  # Boxplots colored by individual
  geom_boxplot(aes(fill = Individual), alpha = 0.3, outlier.shape = NA) +

  # Overlay points colored by Timepoint
  geom_jitter(aes(color = Timepoint), width = 0.2, size = 3) +

  # Use manual colors
  scale_fill_manual(values = ann_colors$individual_cor) +
  scale_color_manual(values = ann_colors$timepoint_cor) +

  # Facet by species
  facet_wrap(~Species, scales = "free_x", nrow = 1) +

  # Theme
  theme_minimal(base_size = 14) +
  theme(
    legend.position = "top",
    axis.text.x = element_text(angle = 45, hjust = 1)
  ) +

  labs(
    title = "Counts per Individual by Species",
    x = "Individual",
    y = "Total Counts",
    fill = "Individual",
    color = "Timepoint"
  )

Past versions of unnamed-chunk-6-4.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

library(tidyverse)

total_reads_df <- RNA_fc %>%
  as.data.frame() %>%
  mutate(Gene = rownames(.)) %>%
  dplyr::select(-Gene) %>%
  summarise(across(everything(), \(x) sum(x, na.rm = TRUE))) %>%
  pivot_longer(
    cols = everything(),
    names_to = "Sample",
    values_to = "Total_Reads"
  ) %>%
  left_join(RNA_Metadata, by = c("Sample" = "SampleName"))

library(ggplot2)
library(dplyr)

# Define ordered day factor
day_levels <- c("Day0", "Day2", "Day4", "Day5", "Day15", "Day30")

total_reads_df <- total_reads_df %>%
  mutate(
    # Order Timepoint for bars
    Timepoint = factor(Timepoint, levels = day_levels, ordered = TRUE),

    # Individual text color
    Individual_Color = ann_colors$individual_cor[Individual]
  ) %>%
  # Order Sample for x-axis: first by Individual, then by Day
  arrange(Individual, Timepoint) %>%
  mutate(Sample = factor(Sample, levels = Sample))  # preserve order in ggplot

# Plot
ggplot(total_reads_df, aes(x = Sample, y = Total_Reads.x, fill = Timepoint)) +

  # Bars colored by Timepoint
  geom_col() +

  # Annotate Individual names under bars, colored by individual
  geom_text(
    aes(label = Individual, color = Individual_Color),
    y = 0, angle = 90, hjust = 1, vjust = 0.5, size = 3
  ) +

  # Manual Timepoint colors
  scale_fill_manual(values = ann_colors$timepoint_cor) +

  # Use exact color for individual labels
  scale_color_identity() +

  # Facet by Species if desired
  facet_grid(~Species, scales = "free_x", space = "free_x") +

  # Theme
  theme_minimal(base_size = 14) +
  theme(
    axis.text.x = element_blank(),  # hide default X labels
    axis.ticks.x = element_blank(),
    legend.position = "top"
  ) +

  labs(
    title = "Total Reads per Sample",
    x = "Individual (bars grouped by individual, ordered by day)",
    y = "Total Reads",
    fill = "Timepoint"
  )

Past versions of unnamed-chunk-8-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

ggplot(total_reads_df, aes(x = Species, y = Total_Reads.x)) +

  # Boxplot for each species
  geom_boxplot(aes(fill = Species), alpha = 0.3, outlier.shape = NA) +

  # Overlay individual points colored by individual
  geom_jitter(aes(color = Individual), width = 0.2, size = 3) +

  # Use individual colors
  scale_color_manual(values = ann_colors$individual_cor) +

  # Optional: species fill colors (light grey / black)
  scale_fill_manual(values = c("H" = "#17171717", "C" = "#17171717")) +

  theme_minimal(base_size = 14) +
  theme(
    legend.position = "top"
  ) +

  labs(
    title = "Total Reads per Species",
    x = "Species",
    y = "Total Reads",
    color = "Individual",
    fill = "Species"
  )

Past versions of unnamed-chunk-8-2.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

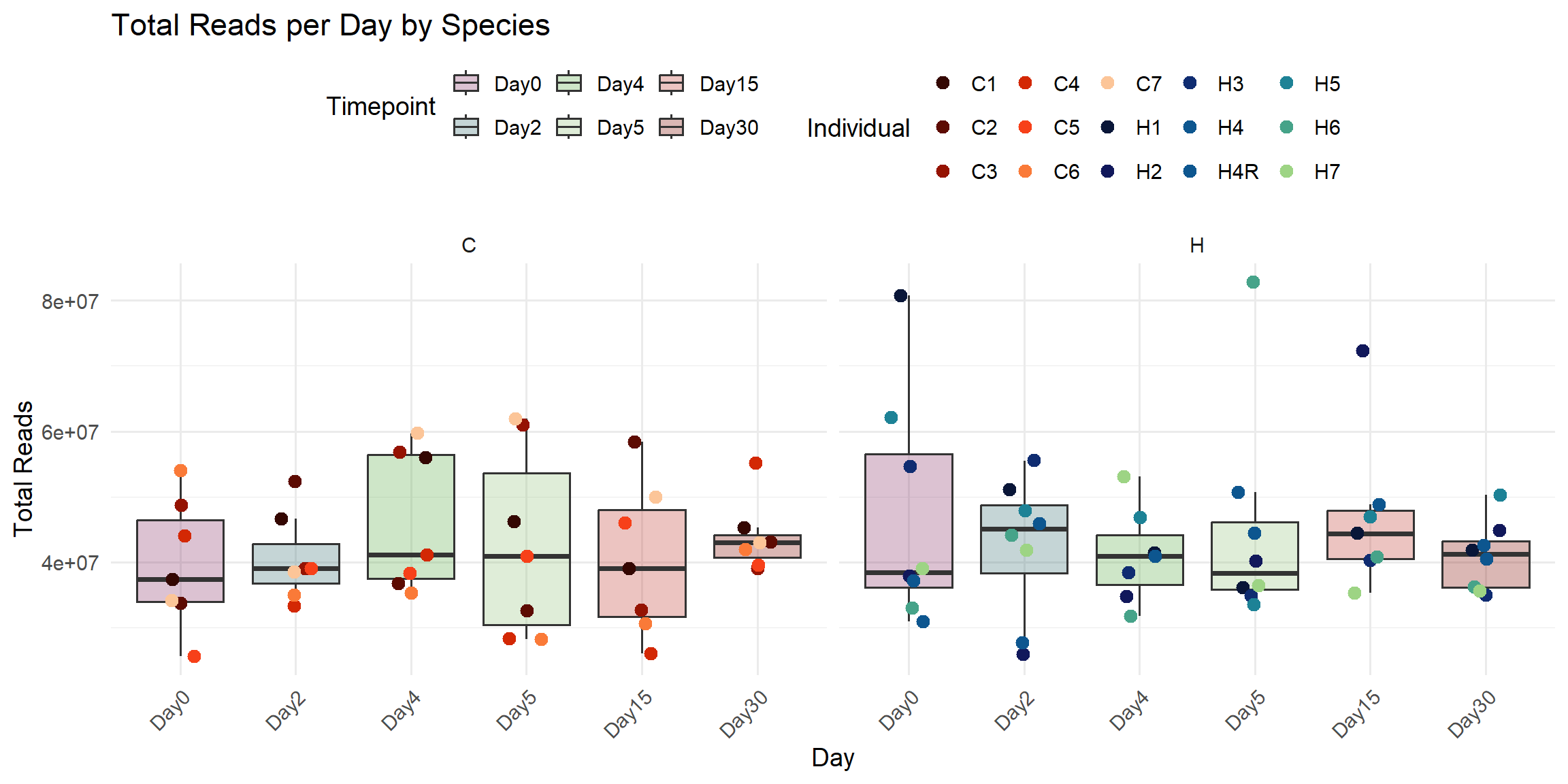

ggplot(total_reads_df, aes(x = Timepoint, y = Total_Reads.x)) +

  # Boxplot per day
  geom_boxplot(aes(fill = Timepoint), alpha = 0.3, outlier.shape = NA) +

  # Overlay individual points colored by individual
  geom_jitter(aes(color = Individual), width = 0.15, size = 3) +

  # Use individual colors
  scale_color_manual(values = ann_colors$individual_cor) +

  # Use timepoint colors for boxplots
  scale_fill_manual(values = ann_colors$timepoint_cor) +

  # Separate x-axis by species
  facet_wrap(~Species, scales = "free_x") +

  theme_minimal(base_size = 14) +
  theme(
    legend.position = "top",
    axis.text.x = element_text(angle = 45, hjust = 1)
  ) +

  labs(
    title = "Total Reads per Day by Species",
    x = "Day",
    y = "Total Reads",
    color = "Individual",
    fill = "Timepoint"
  )

Past versions of unnamed-chunk-8-3.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

# Plot

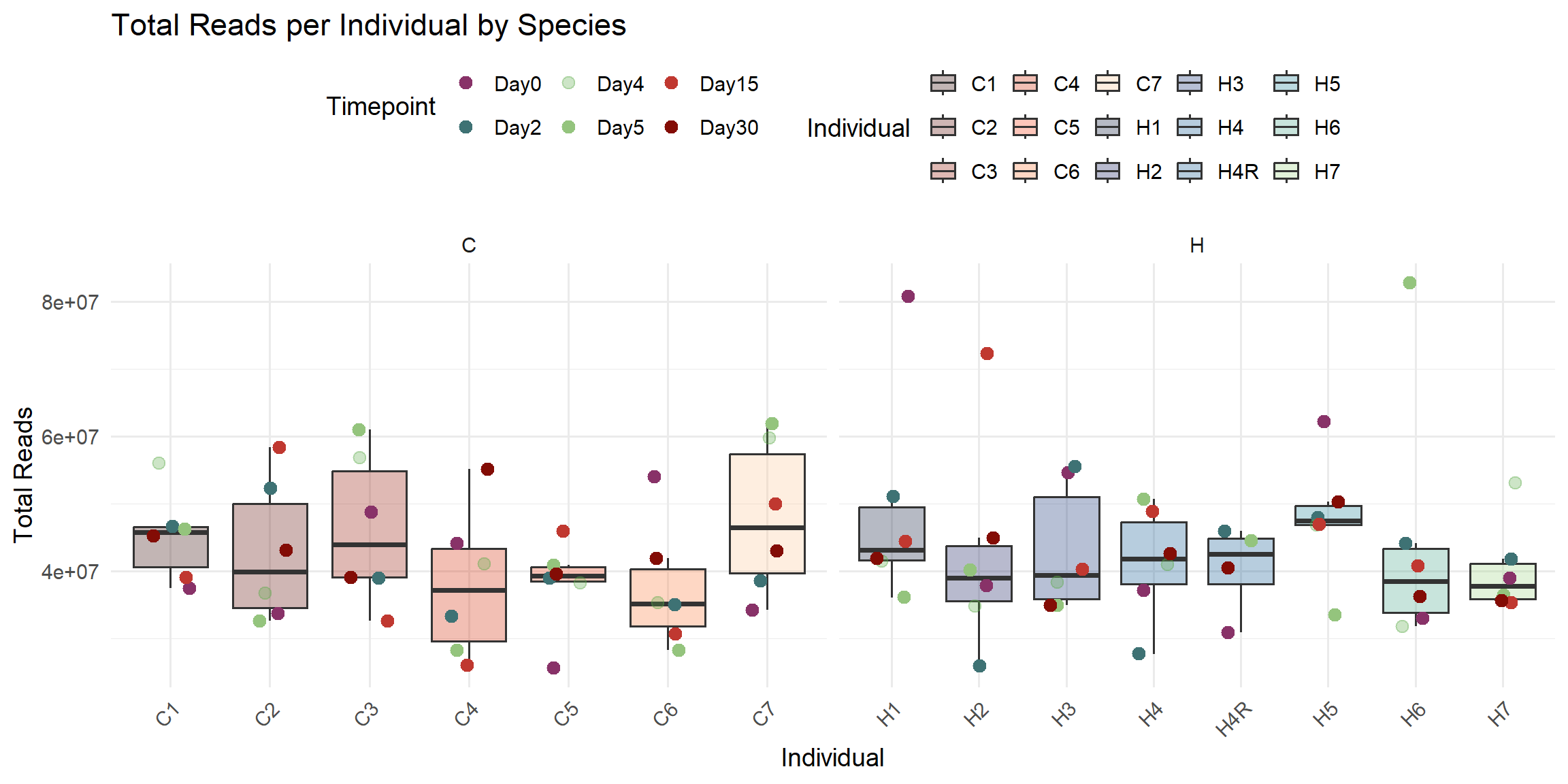

ggplot(total_reads_df, aes(x = Individual, y = Total_Reads.x)) +

  # Boxplots colored by individual
  geom_boxplot(aes(fill = Individual), alpha = 0.3, outlier.shape = NA) +

  # Overlay points colored by Timepoint
  geom_jitter(aes(color = Timepoint), width = 0.2, size = 3) +

  # Use manual colors
  scale_fill_manual(values = ann_colors$individual_cor) +
  scale_color_manual(values = ann_colors$timepoint_cor) +

  # Facet by species
  facet_wrap(~Species, scales = "free_x", nrow = 1) +

  # Theme
  theme_minimal(base_size = 14) +
  theme(
    legend.position = "top",
    axis.text.x = element_text(angle = 45, hjust = 1)
  ) +

  labs(
    title = "Total Reads per Individual by Species",
    x = "Individual",
    y = "Total Reads",
    fill = "Individual",
    color = "Timepoint"
  )

Past versions of unnamed-chunk-8-4.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23

######Cor_HeatMap####
Cor_Filt_RMG0_RNA_log2cpm <- cor(Filt_RMG0_RNA_log2cpm, method = "spearman")
individual <- RNA_Metadata$Individual
species <- RNA_Metadata$Species
timepoint <- RNA_Metadata$Timepoint
timepoint <- factor(timepoint,levels = c("Day0","Day2","Day4","Day5","Day15","Day30"))
Cor_metadata <- data.frame(
  sample_cor = colnames(Filt_RMG0_RNA_log2cpm),
  species_cor = species,
  timepoint_cor = timepoint,
  individual_cor = individual
)


ann_colors <- list(
  timepoint_cor = c(
    "Day0" = "#883268",   # Purple
    "Day2" = "#3E7274",  # blue
    "Day4" = "#5AAA464D",  # light green
    "Day5" = "#94C47D",  # Green
    "Day15" = "#C03830",  # red
    "Day30" = "#830C05"  # dark red
  ),
  species_cor = c(
    "H" = "#171717",  # black
    "C" = "#17171717"   # light grey
  ),
  individual_cor = c(
    H1 = "#091638", #Blue-Green Darkest
    H2 = "#11185B",
    H3 = "#0F2C71",
    H4 = "#0D568F",
    H4R = "#0D568F",
    H5 = "#1D8296",
    H6 = "#46A389",
    H7 = "#9DD484", #Blue-Green Lightest
    C1 = "#340702", #Brown-Orange darkest
    C2 = "#5D0B02",
    C3 = "#951302",
    C4 = "#D32804",
    C5 = "#F74019",
    C6 = "#FA7A38",
    C7 = "#FCC598"

  )
)
rownames(Cor_metadata) <- Cor_metadata$sample_cor

# saveRDS(Cor_Filt_RMG0_RNA_log2cpm, "data/QC/concat/Cor_Filt_RMG0_RNA_log2cpm.RDS")
# saveRDS(Cor_metadata, "data/QC/concat/Cor_RNA_metadata.RDS")
# saveRDS(ann_colors,"data/QC/concat/ann_colors.RDS")

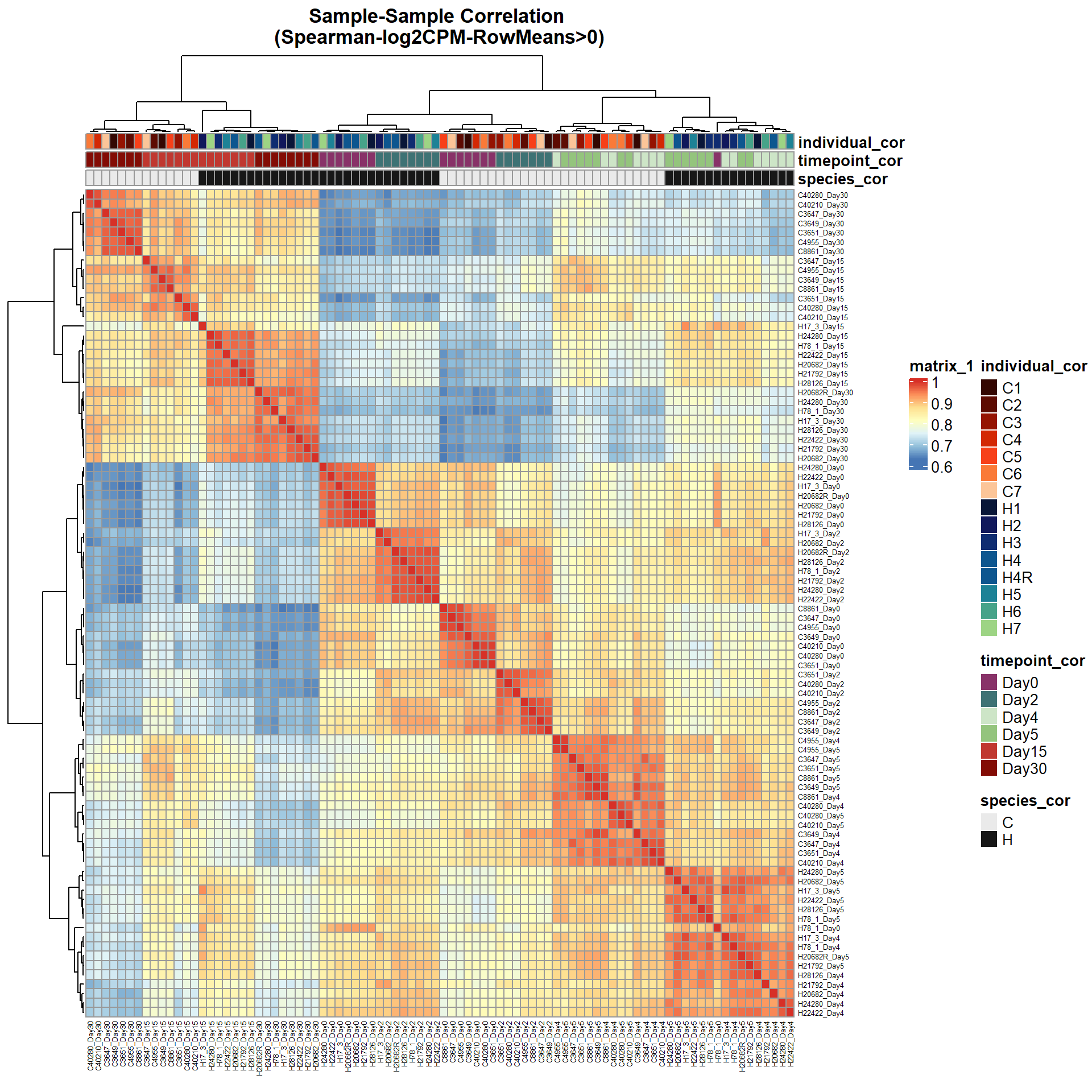

print(
  pheatmap(Cor_Filt_RMG0_RNA_log2cpm,
         fontsize_row = 5,
         fontsize_col = 5,
         annotation_col = Cor_metadata[, c("species_cor", "timepoint_cor","individual_cor")],
         annotation_colors = ann_colors,
         clustering_distance_rows = "correlation",
         clustering_distance_cols = "correlation",
         main = "Sample-Sample Correlation \n(Spearman-log2CPM-RowMeans>0)")
)

Past versions of RNASeq_FeatureCounts_HeatMap_RMG0-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23
fcf8fc0	John D. Hurley	2026-02-18
7789dff	John D. Hurley	2026-01-28
d9f15a6	John D. Hurley	2026-01-28

####Subset####
RNA_Metadata_No4 <- RNA_Metadata %>%
 filter(Timepoint != "Day4")

RNA_fc_NoD4 <- RNA_fc %>%
  dplyr::select(-ends_with("_Day4"))

RNA_log2cpm_NoD4 <- cpm(RNA_fc_NoD4,log=TRUE)
dim(RNA_log2cpm_NoD4)

[1] 44125    74

dim(RNA_fc)

[1] 44125    88

row_means_NoD4 <- rowMeans(RNA_log2cpm_NoD4)
Filt_RMG0_RNA_fc_NoD4 <- RNA_fc_NoD4[row_means_NoD4 >0,]
dim(Filt_RMG0_RNA_fc_NoD4)

[1] 14084    74

Filt_RMG0_RNA_log2cpm_NoD4 <- cpm(Filt_RMG0_RNA_fc_NoD4,log=TRUE)

# saveRDS(RNA_Metadata_No4,"data/QC/concat/RNA_Metatdata_No4.RDS")
# saveRDS(Filt_RMG0_RNA_fc_NoD4,"data/QC/concat/Filt_RMG0_RNA_fc_NoD4.RDS")
# saveRDS(Filt_RMG0_RNA_log2cpm_NoD4, "data/QC/concat/Filt_RMG0_RNA_log2cpm_NoD4.RDS")

######Cor_HeatMap####
Cor_Filt_RMG0_RNA_log2cpm_NoD4 <- cor(Filt_RMG0_RNA_log2cpm_NoD4, method = "spearman")

Cor_metadata_No4 <- Cor_metadata %>%
  dplyr::filter(timepoint_cor !="Day4")

ann_colors_No4 <- ann_colors
ann_colors_No4$timepoint_cor <- ann_colors$timepoint_cor[
  names(ann_colors$timepoint_cor) != "Day4"
]

# saveRDS(Cor_metadata_No4, "data/QC/concat/Cor_metadata_No4.RDS")
# saveRDS(Cor_Filt_RMG0_RNA_log2cpm_NoD4, "data/QC/concat/Cor_Filt_RMG0_RNA_log2cpm_NoD4.RDS")
# saveRDS(ann_colors_No4,"data/QC/concat/ann_colors_no4.RDS")

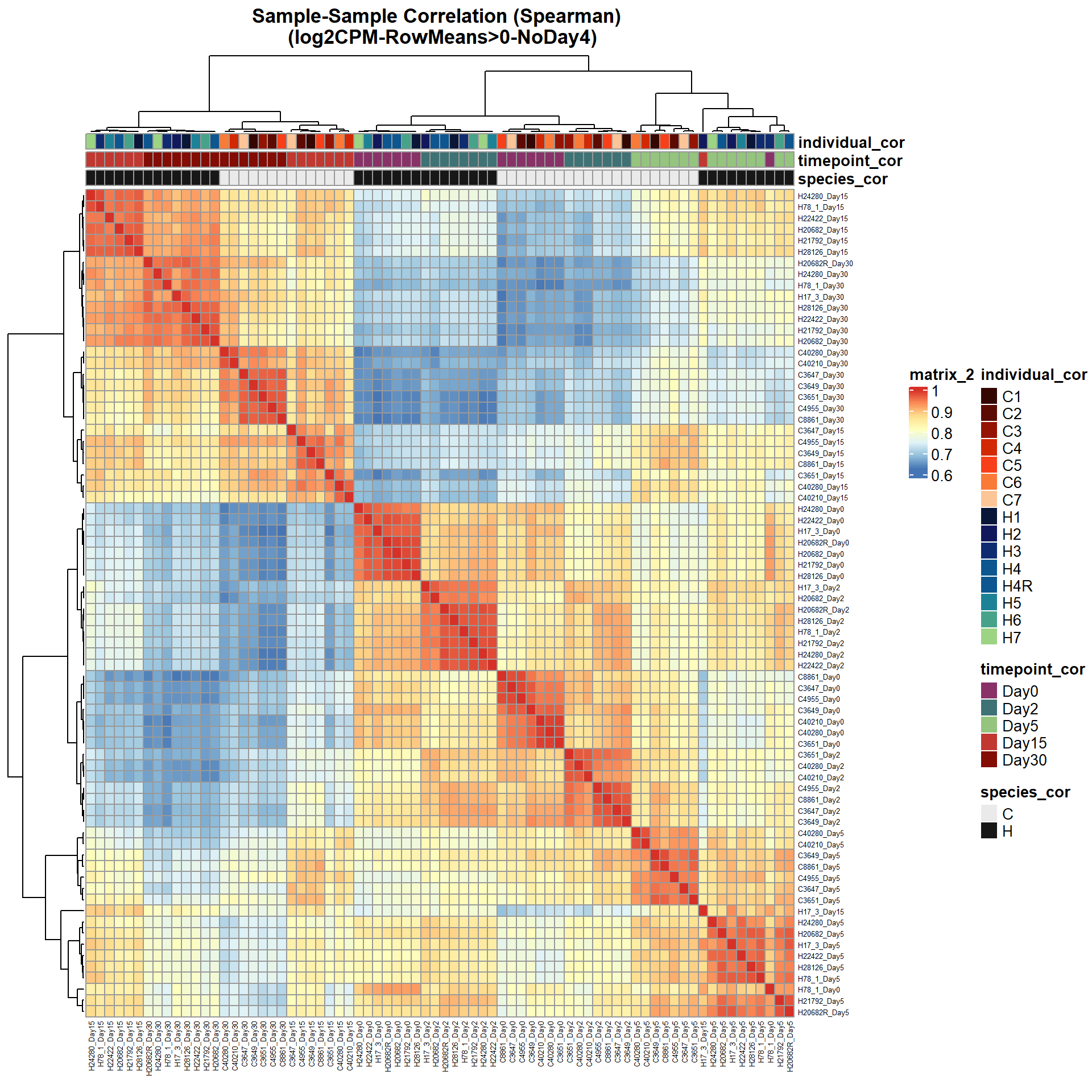

print(
  pheatmap(Cor_Filt_RMG0_RNA_log2cpm_NoD4,
         fontsize_row = 5,
         fontsize_col = 5,
         annotation_col = Cor_metadata_No4[, c("species_cor", "timepoint_cor","individual_cor")],
         annotation_colors = ann_colors_No4,
         clustering_distance_rows = "correlation",
         clustering_distance_cols = "correlation",
         main = "Sample-Sample Correlation (Spearman) \n (log2CPM-RowMeans>0-NoDay4)")
)

Past versions of rRNASeq_FeatureCounts_HeatMap_RMG0_No4-1.png

Version	Author	Date
0958201	John D. Hurley	2026-03-23
fcf8fc0	John D. Hurley	2026-02-18
7789dff	John D. Hurley	2026-01-28
d9f15a6	John D. Hurley	2026-01-28

markers <- marker_genes$Ensembl.ID

log2cpm_long <- Filt_RMG0_RNA_log2cpm %>%
  as.data.frame() %>%
  rownames_to_column("Ensembl.ID") %>%
  filter(Ensembl.ID %in% markers) %>%
  pivot_longer(
    cols = -Ensembl.ID,
    names_to = "Sample",
    values_to = "log2CPM"
  )

log2cpm_long <- log2cpm_long %>%
  left_join(RNA_Metadata, by = c("Sample" = "SampleName"))

log2cpm_long <- log2cpm_long %>%
  left_join(marker_genes, by = "Ensembl.ID")

log2cpm_long$Timepoint <- factor(
  log2cpm_long$Timepoint,
  levels = c("Day0", "Day2", "Day4", "Day5", "Day15", "Day30")
)

log2cpm_long_NoR <- log2cpm_long %>%
  filter(Individual != "H4R")

library(dplyr)

mean_df <- log2cpm_long_NoR %>%
  group_by(Stage, Timepoint, Species) %>%
  summarise(
    mean_log2CPM = mean(log2CPM, na.rm = TRUE),
    .groups = "drop"
  )

log2cpm_long_NoR$Stage <- factor(
  log2cpm_long_NoR$Stage,
  levels = c(
    "Pluripotency",
    "Mesoderm",
    "CardiacMesoderm",
    "CardiacProgenitors",
    "EarlyCardiomyocytes",
    "MatureCardiomyocytes"
  )
)

library(ggplot2)

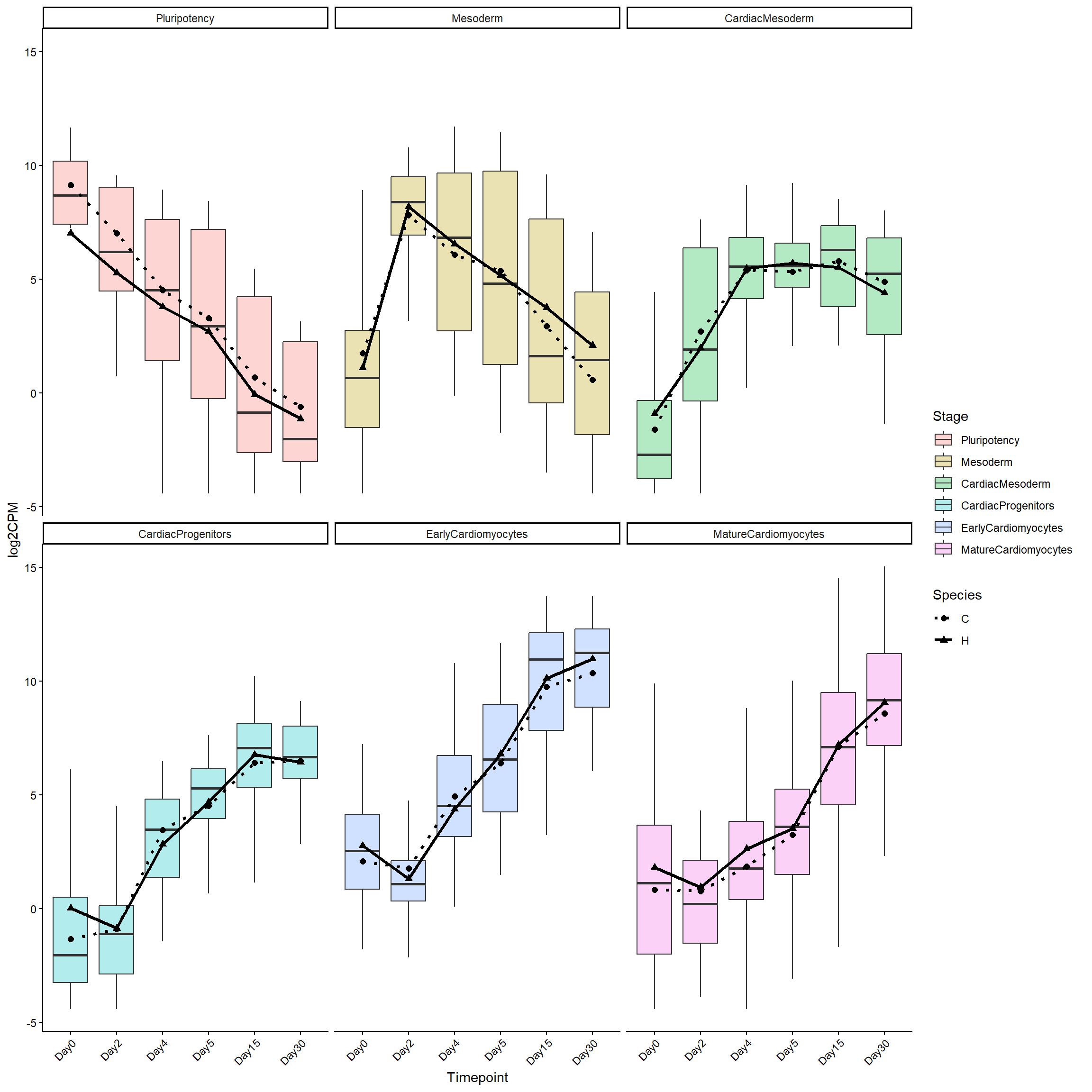

ggplot(log2cpm_long_NoR, aes(
  x = Timepoint,
  y = log2CPM
)) +

  geom_boxplot(
    aes(fill = Stage),
    alpha = 0.3,
    outlier.shape = NA
  ) +

  geom_line(
    data = mean_df,
    aes(
      x = Timepoint,
      y = mean_log2CPM,
      group = interaction(Stage, Species),
      linetype = Species
    ),
    color = "black",
    linewidth = 1.2
  ) +

  geom_point(
    data = mean_df,
    aes(
      x = Timepoint,
      y = mean_log2CPM,
      shape = Species
    ),
    color = "black",
    size = 2
  ) +

  scale_linetype_manual(values = c(
    C = "dotted",
    H = "solid"
  )) +

  scale_shape_manual(values = c(
    C = 16,
    H = 17
  )) +

  facet_wrap(~ factor(Stage, levels = levels(log2cpm_long_NoR$Stage))) +
  theme_classic() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))

# git -> commit all changes
# git -> push
wflow_publish("analysis/RNA_CorrelationHeatMap_Ensemble.Rmd")

Session information

sessionInfo()

R version 4.5.1 (2025-06-13 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26100)

Matrix products: default
  LAPACK version 3.12.1

locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/Chicago
tzcode source: internal

attached base packages:
[1] grid      stats4    stats     graphics  grDevices utils     datasets
[8] methods   base

other attached packages:
 [1] scales_1.4.0                ComplexHeatmap_2.24.1
 [3] ggfortify_0.4.19            readxl_1.4.5
 [5] RUVSeq_1.42.0               EDASeq_2.42.0
 [7] ShortRead_1.66.0            GenomicAlignments_1.44.0
 [9] SummarizedExperiment_1.38.1 MatrixGenerics_1.20.0
[11] matrixStats_1.5.0           Rsamtools_2.24.0
[13] GenomicRanges_1.60.0        Biostrings_2.76.0
[15] GenomeInfoDb_1.44.3         XVector_0.48.0
[17] BiocParallel_1.42.1         lubridate_1.9.5
[19] forcats_1.0.1               stringr_1.6.0
[21] purrr_1.2.1                 tidyr_1.3.2
[23] tidyverse_2.0.0             Cormotif_1.54.0
[25] affy_1.86.0                 pheatmap_1.0.13
[27] org.Hs.eg.db_3.21.0         AnnotationDbi_1.70.0
[29] IRanges_2.42.0              S4Vectors_0.46.0
[31] Biobase_2.68.0              BiocGenerics_0.54.1
[33] generics_0.1.4              readr_2.1.6
[35] ggrepel_0.9.6               dplyr_1.1.4
[37] tibble_3.3.1                ggplot2_4.0.2
[39] edgeR_4.6.3                 limma_3.64.3
[41] workflowr_1.7.2

loaded via a namespace (and not attached):
  [1] later_1.4.5             BiocIO_1.18.0           bitops_1.0-9
  [4] filelock_1.0.3          R.oo_1.27.1             cellranger_1.1.0
  [7] preprocessCore_1.70.0   XML_3.99-0.20           lifecycle_1.0.5
 [10] httr2_1.2.2             pwalign_1.4.0           doParallel_1.0.17
 [13] rprojroot_2.1.1         processx_3.8.6          lattice_0.22-7
 [16] MASS_7.3-65             magrittr_2.0.4          sass_0.4.10
 [19] rmarkdown_2.30          jquerylib_0.1.4         yaml_2.3.12
 [22] httpuv_1.6.16           otel_0.2.0              DBI_1.3.0
 [25] RColorBrewer_1.1-3      abind_1.4-8             R.utils_2.13.0
 [28] RCurl_1.98-1.17         rappdirs_0.3.4          git2r_0.36.2
 [31] circlize_0.4.17         GenomeInfoDbData_1.2.14 codetools_0.2-20
 [34] DelayedArray_0.34.1     xml2_1.5.2              tidyselect_1.2.1
 [37] shape_1.4.6.1           UCSC.utils_1.4.0        farver_2.1.2
 [40] BiocFileCache_2.16.2    jsonlite_2.0.0          GetoptLong_1.1.0
 [43] iterators_1.0.14        foreach_1.5.2           tools_4.5.1
 [46] progress_1.2.3          Rcpp_1.1.1              glue_1.8.0
 [49] gridExtra_2.3           SparseArray_1.8.1       xfun_0.56
 [52] withr_3.0.2             BiocManager_1.30.27     fastmap_1.2.0
 [55] latticeExtra_0.6-31     callr_3.7.6             digest_0.6.39
 [58] timechange_0.4.0        R6_2.6.1                colorspace_2.1-2
 [61] Cairo_1.7-0             jpeg_0.1-11             biomaRt_2.64.0
 [64] RSQLite_2.4.5           R.methodsS3_1.8.2       rtracklayer_1.68.0
 [67] prettyunits_1.2.0       httr_1.4.8              S4Arrays_1.8.1
 [70] whisker_0.4.1           pkgconfig_2.0.3         gtable_0.3.6
 [73] blob_1.3.0              S7_0.2.1                hwriter_1.3.2.1
 [76] htmltools_0.5.9         clue_0.3-66             png_0.1-8
 [79] knitr_1.51              rstudioapi_0.18.0       tzdb_0.5.0
 [82] rjson_0.2.23            curl_7.0.0              cachem_1.1.0
 [85] GlobalOptions_0.1.3     parallel_4.5.1          restfulr_0.0.16
 [88] pillar_1.11.1           vctrs_0.7.1             promises_1.5.0
 [91] dbplyr_2.5.2            cluster_2.1.8.1         evaluate_1.0.5
 [94] GenomicFeatures_1.60.0  cli_3.6.5               locfit_1.5-9.12
 [97] compiler_4.5.1          rlang_1.1.7             crayon_1.5.3
[100] labeling_0.4.3          interp_1.1-6            aroma.light_3.38.0
[103] ps_1.9.1                getPass_0.2-4           fs_1.6.6
[106] stringi_1.8.7           deldir_2.0-4            Matrix_1.7-4
[109] hms_1.1.4               bit64_4.6.0-1           KEGGREST_1.48.1
[112] statmod_1.5.1           memoise_2.0.1           affyio_1.78.0
[115] bslib_0.10.0            bit_4.6.0
