Preprocessing

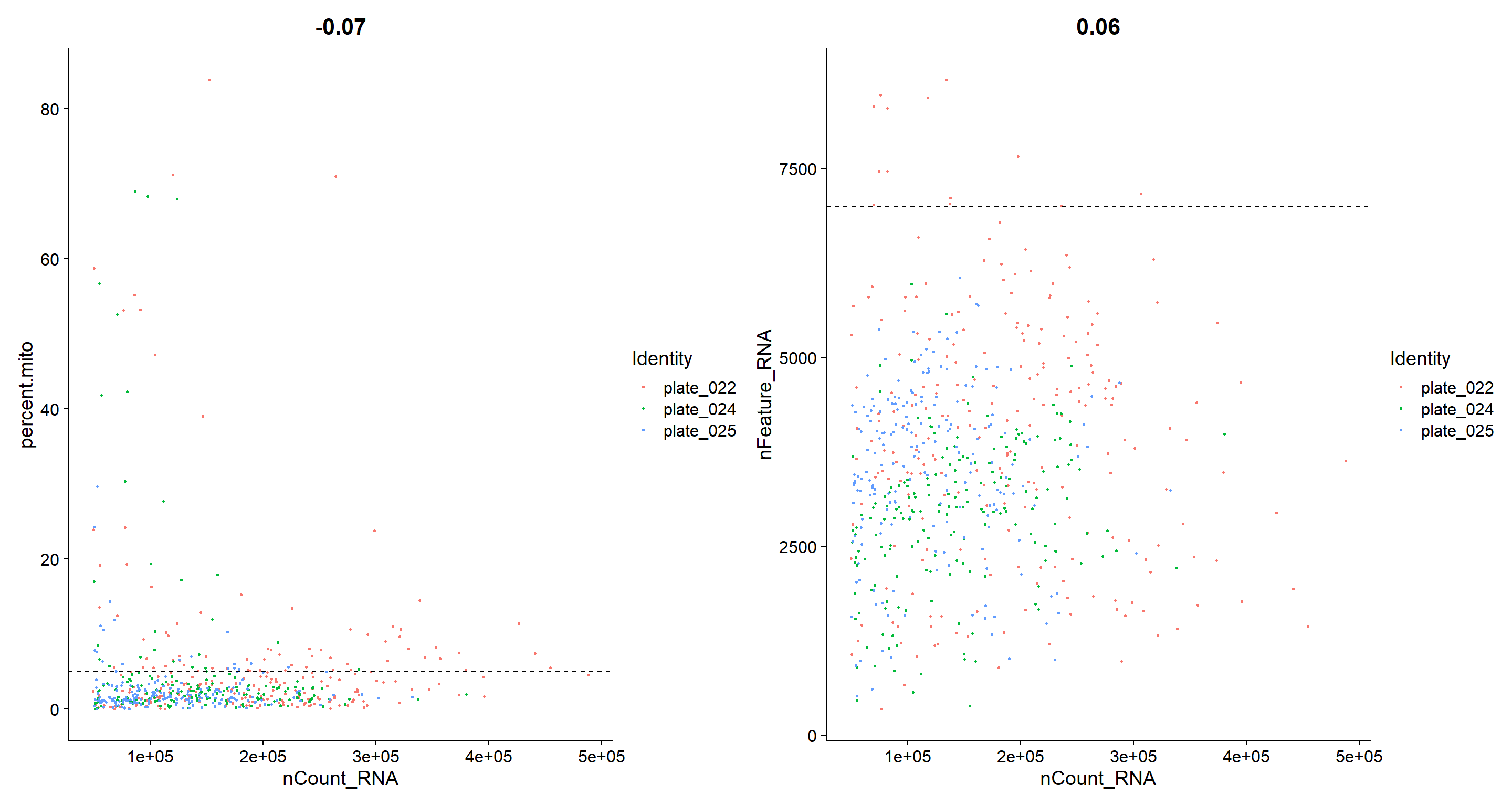

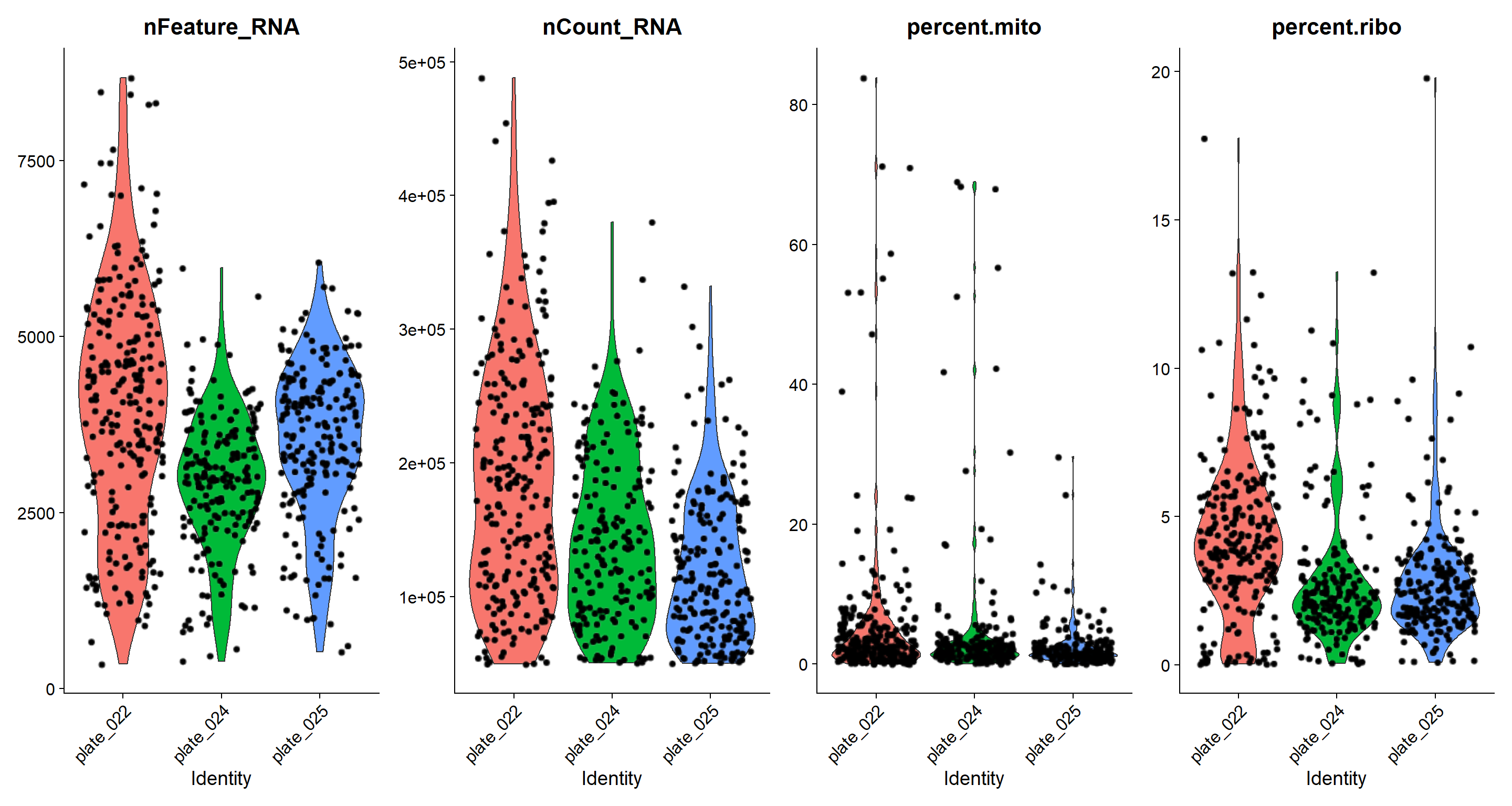

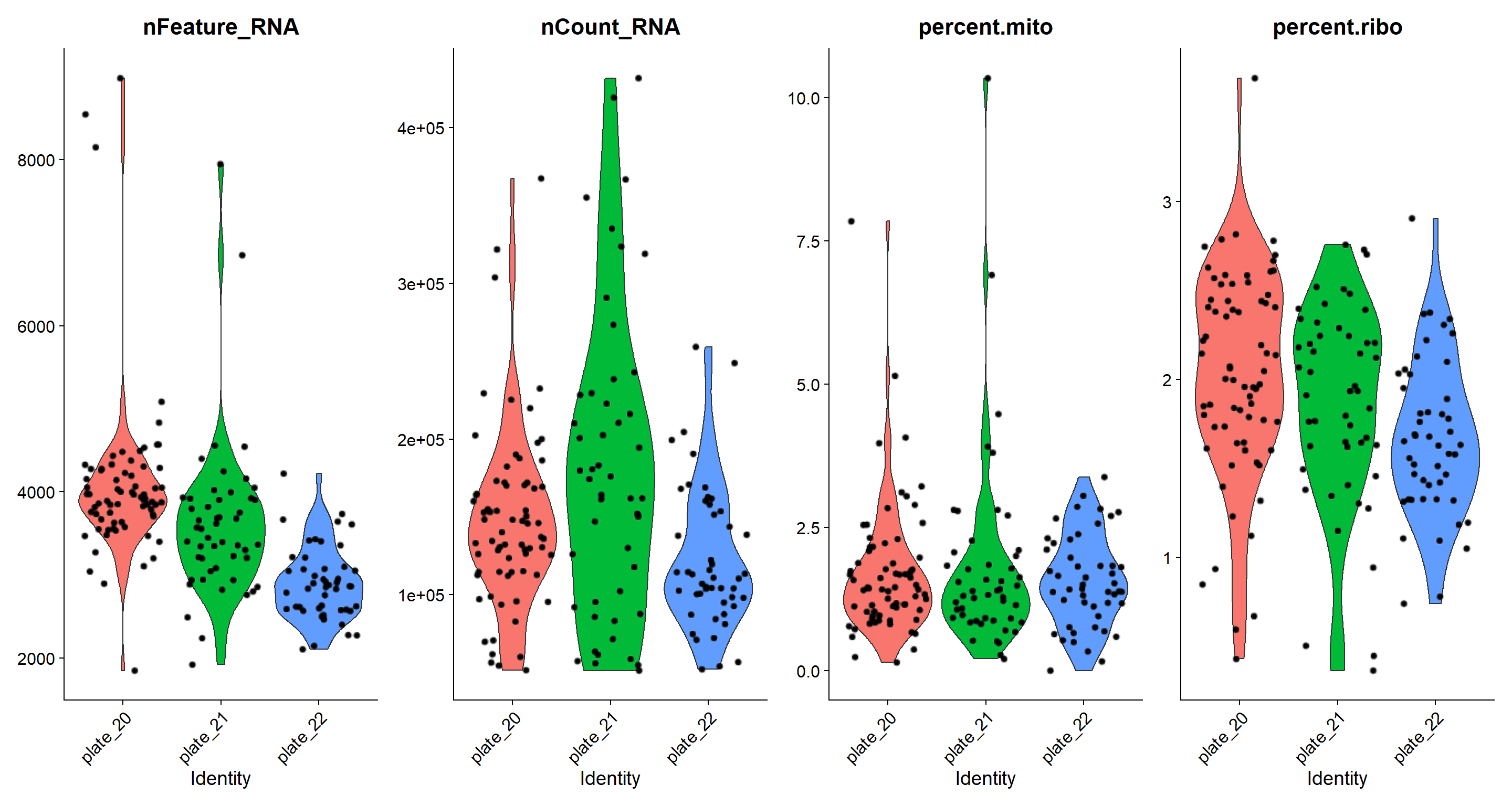

QC metrics from AG Hefendehl (Stroke)
# Visualize QC metrics as a violin plot
Idents(plates_hefendehl) <- "Plate"
VlnPlot(plates_hefendehl, features = c("nFeature_RNA", "nCount_RNA", "percent.mito","percent.ribo"),
group.by = "Plate", pt.size = 1, ncol = 4, )

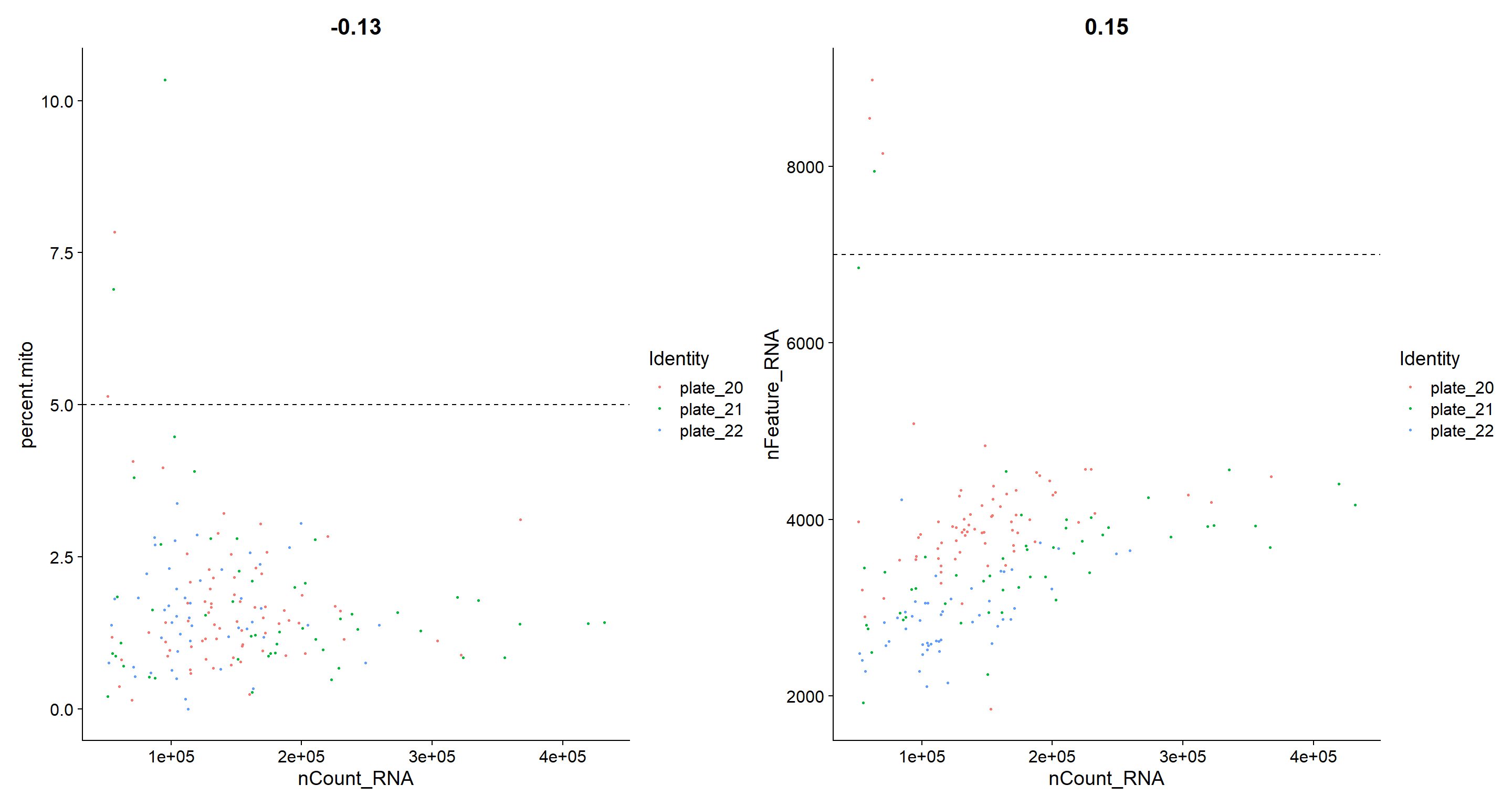

plot1 | plot2
QC metrics from AG Neher (own additional WT control)
# plates_neher <- subset(plates_neher, subset = Genotype == "wt")
# Visualize QC metrics as a violin plot
Idents(plates_neher) <- "Plate"
VlnPlot(plates_neher, features = c("nFeature_RNA", "nCount_RNA", "percent.mito","percent.ribo"),
group.by = "Plate",pt.size =1, ncol = 4)
plot1a | plot2a
Combine both seurat objects and filter cells that have unique feature counts (gene number) over 7000 or less than 200 and cells with >5% mitochondrial counts.

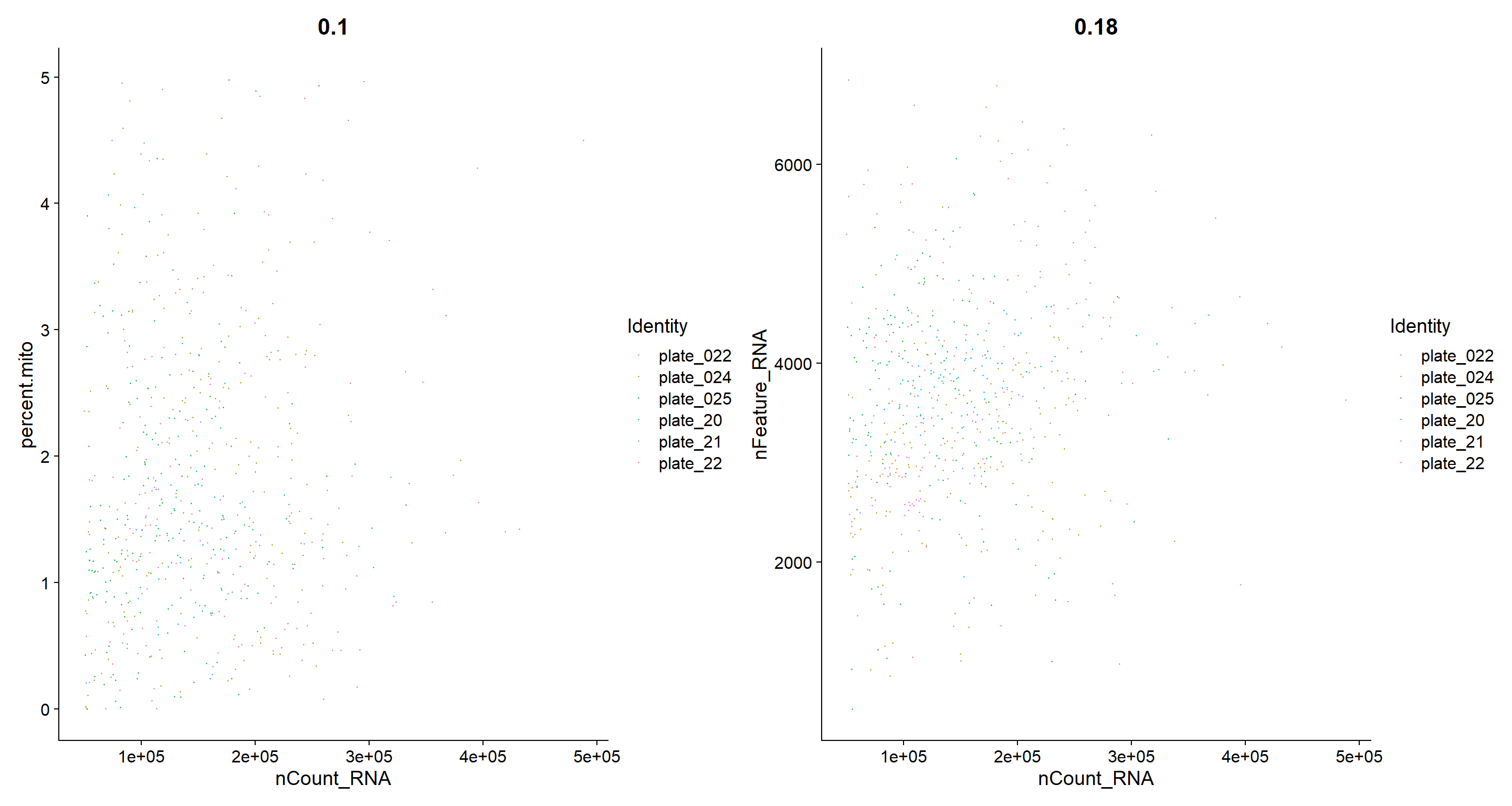

QC metrics after filtering
plot3 | plot4

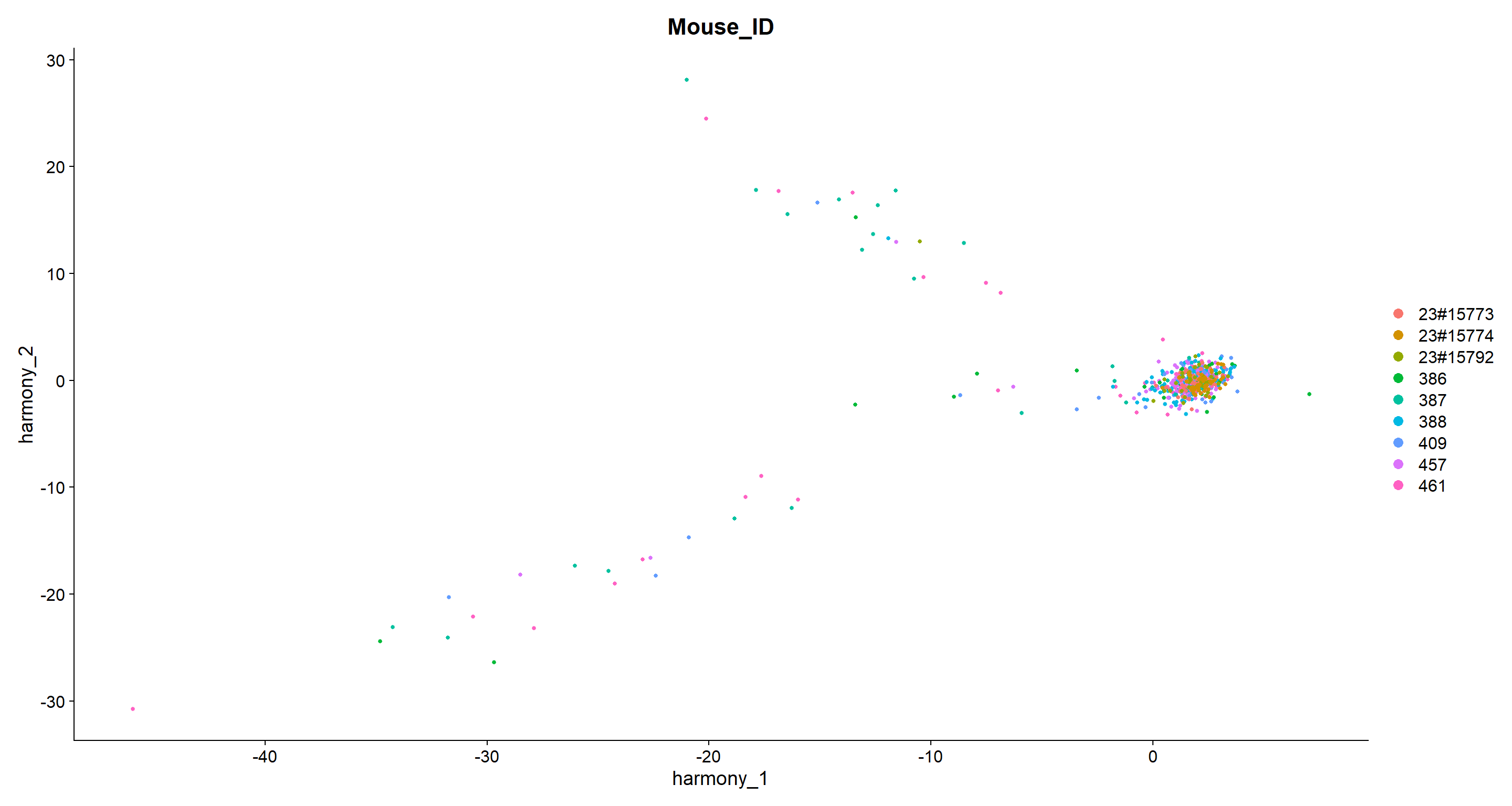

Perform integrated analysis
PCA, tSNE and UMAP from the first 30 dimensions and with a resolution of 0.8

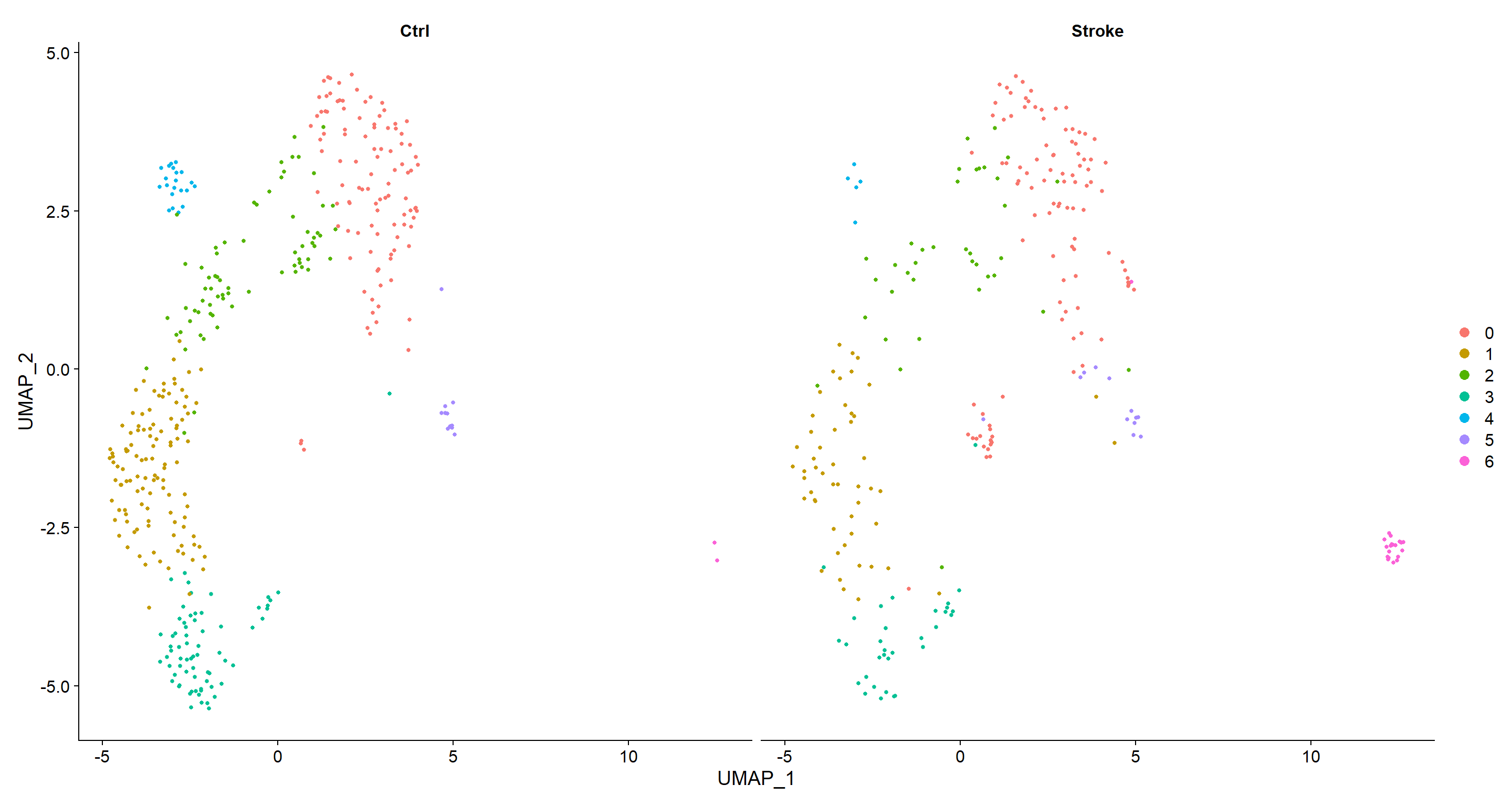

# Visualization
Idents(samples.integrated) <- "seurat_clusters"

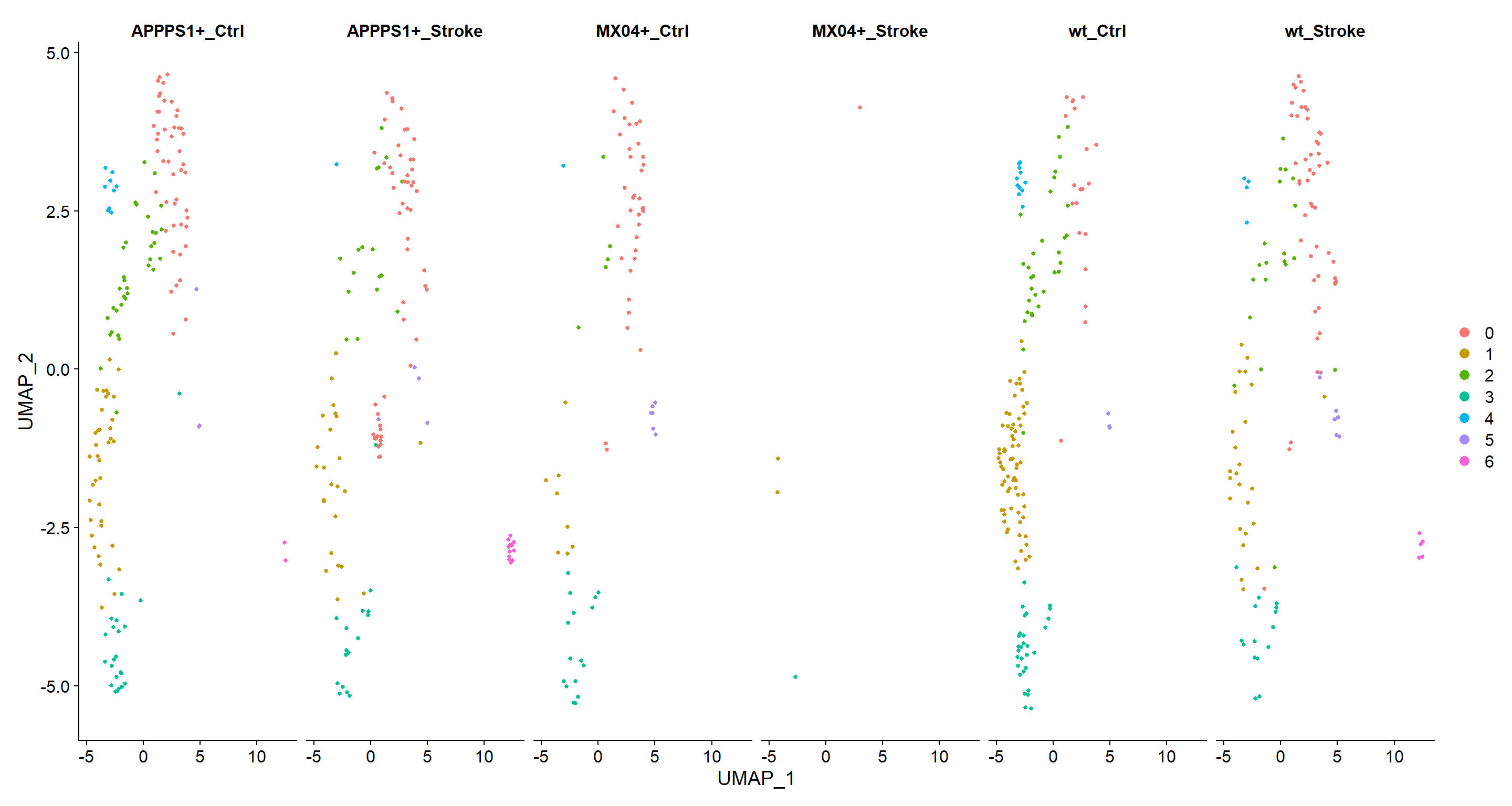

DimPlot(samples.integrated, reduction = "umap", split.by = "Treatment")
p1 + p1a + p1b

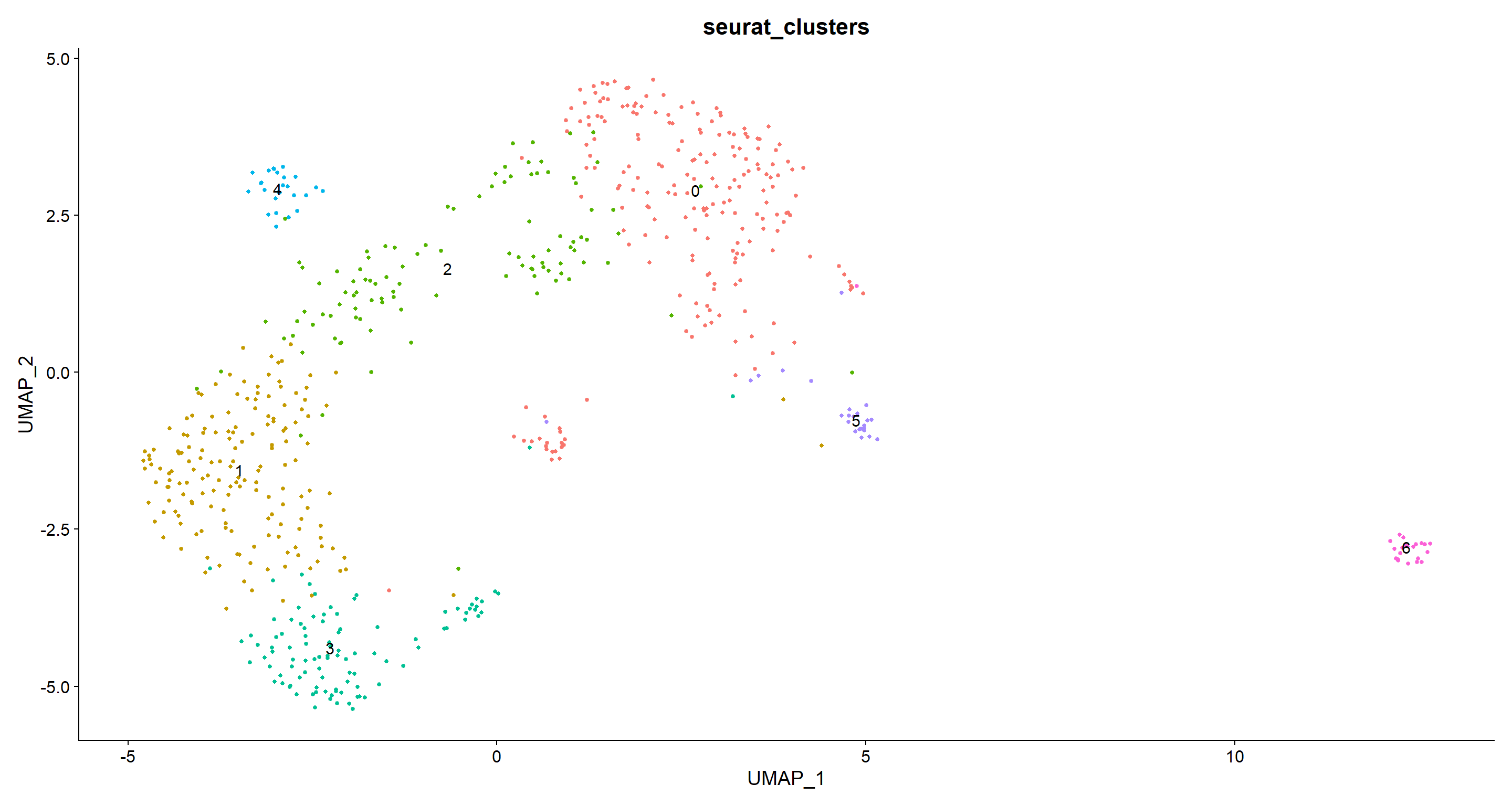

DimPlot(samples.integrated, group.by = "seurat_clusters", pt.size =1, label = T) + NoLegend()

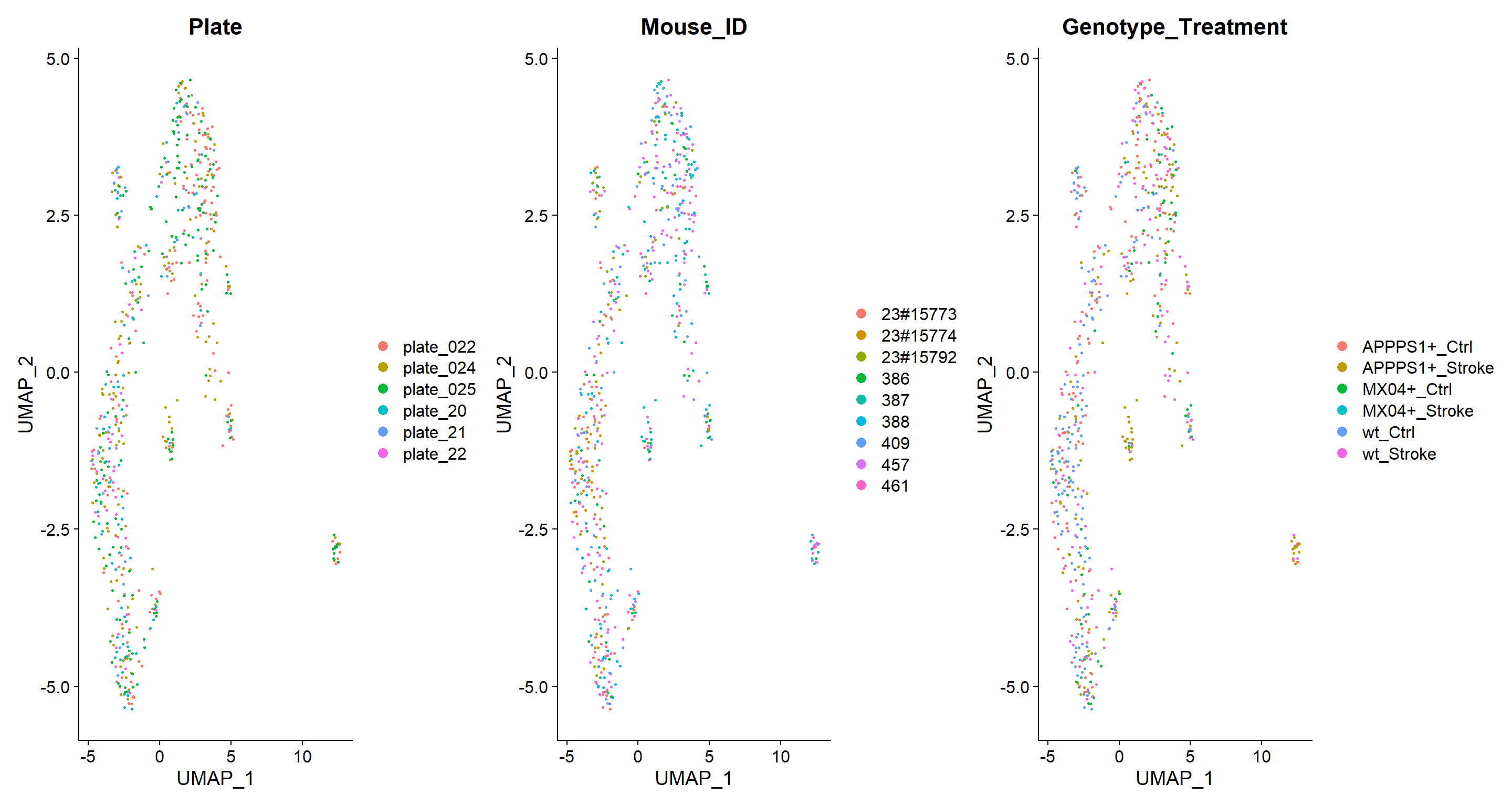

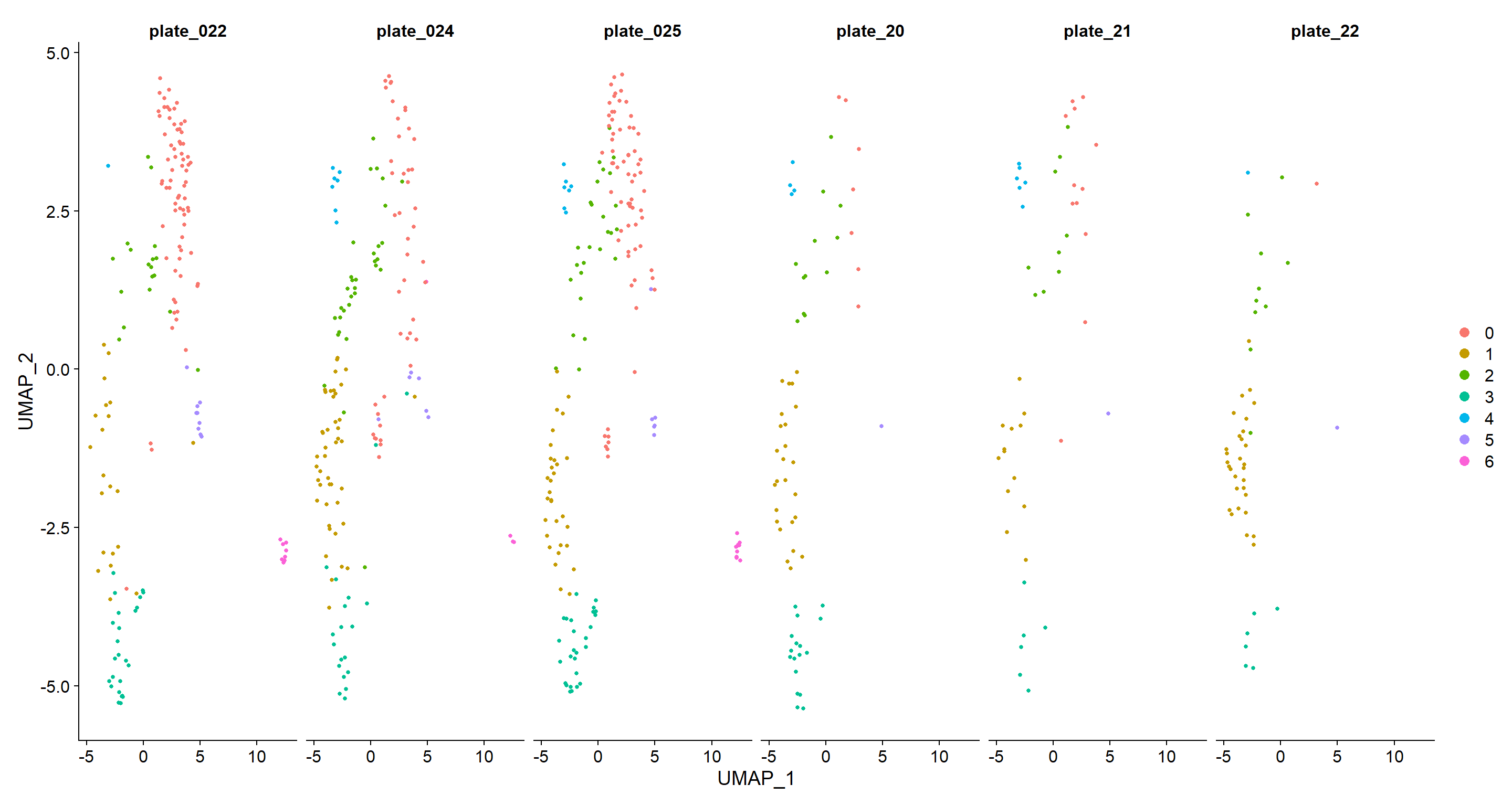

DimPlot(samples.integrated, reduction = "umap", split.by = "Plate", pt.size = 1)
DimPlot(samples.integrated, reduction = "umap", split.by = "Genotype_Treatment", pt.size =1)

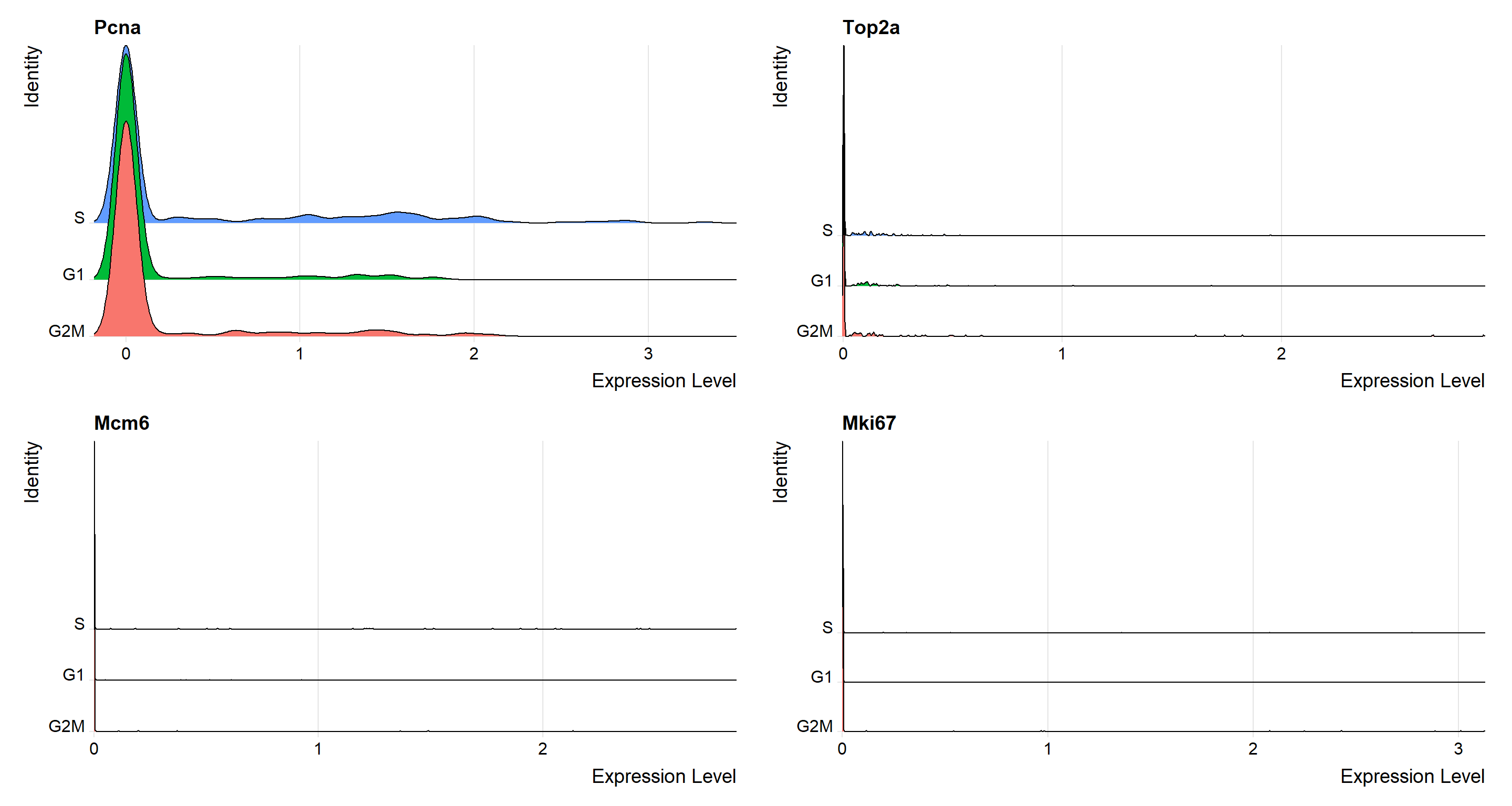

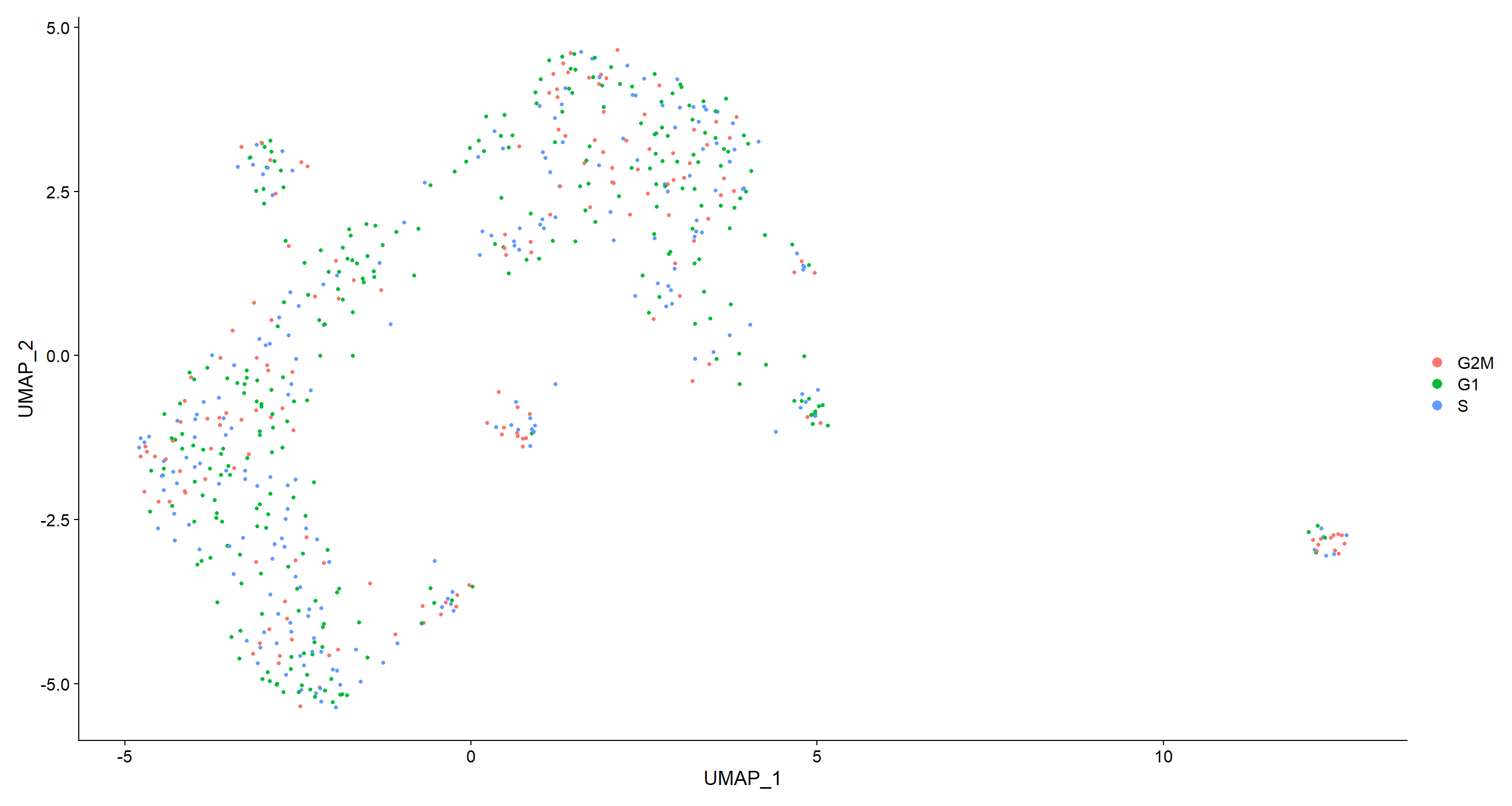

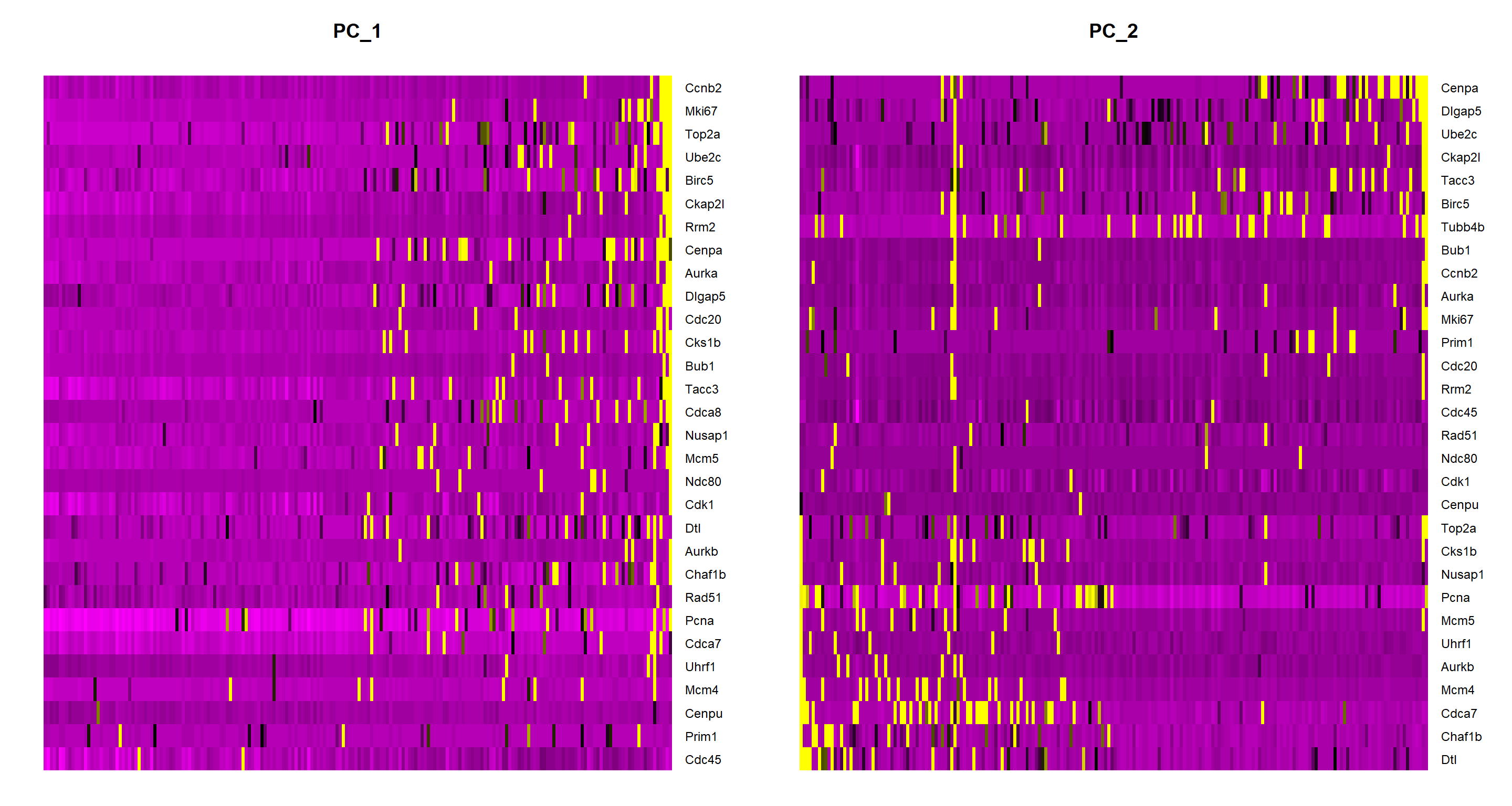

Cell cycle scoring
First, a score is assigned to each cell (Tirosh et al. 2016), based on its expression of G2/M and S phase markers. These markers should be anticorrelated in their expression levels and cells expression neither are likely not cycling and in G1 phase. Note: For downstream cell cylce regression the quantitative scores for G2/M and S phase are used, not the dicrete classification.
Cluster distribution
DimPlot(object = samples.integrated, pt.size = 1,reduction = "umap", group.by="Age",label = F) +

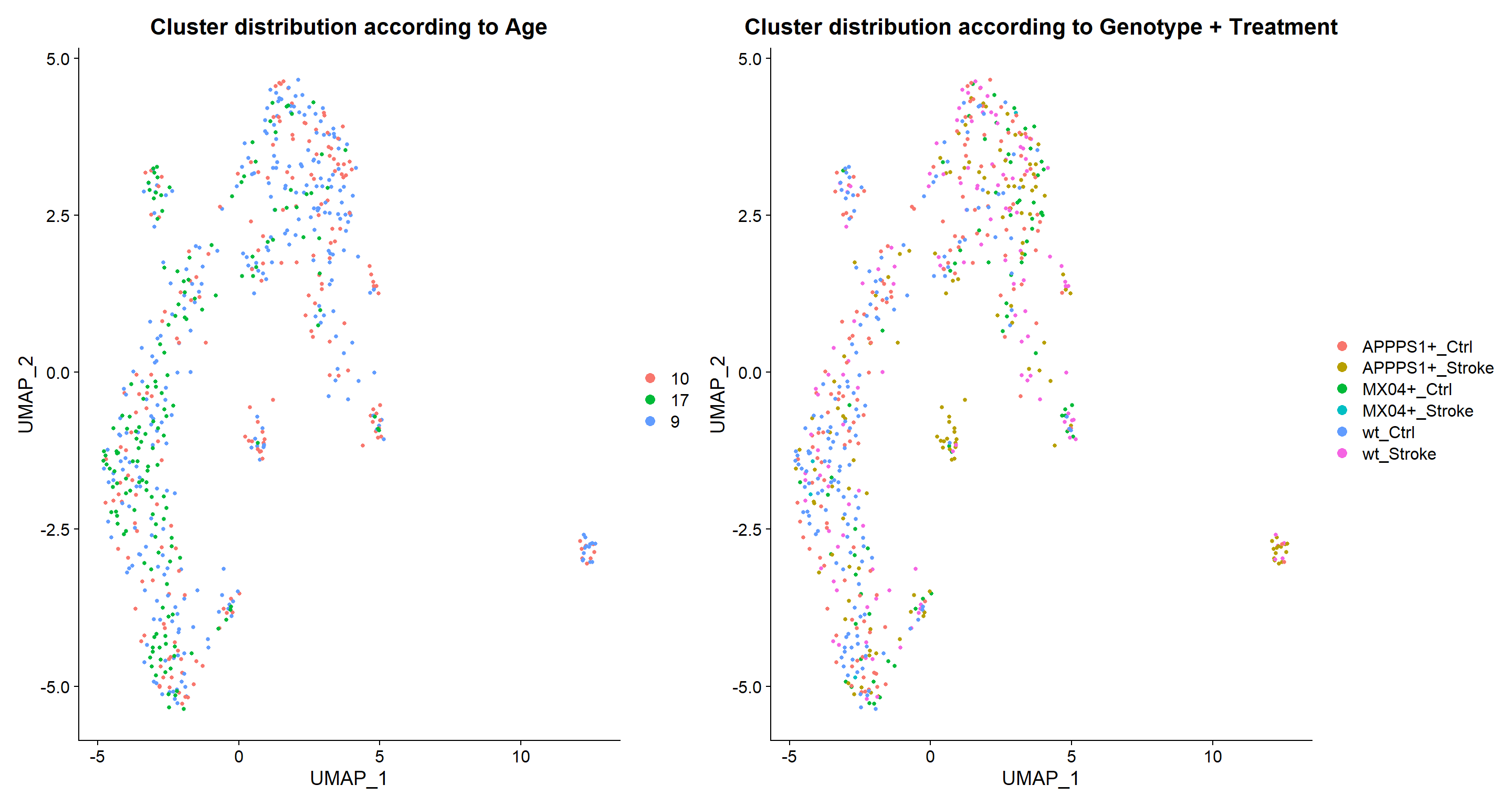

ggtitle("Cluster distribution according to Age") | DimPlot(object = samples.integrated, pt.size = 1,reduction = "umap", group.by="Genotype_Treatment",label = F) +
ggtitle("Cluster distribution according to Genotype + Treatment")
DimPlot(object = samples.integrated, pt.size = 1,reduction = "umap", group.by="Plate",label = F) +

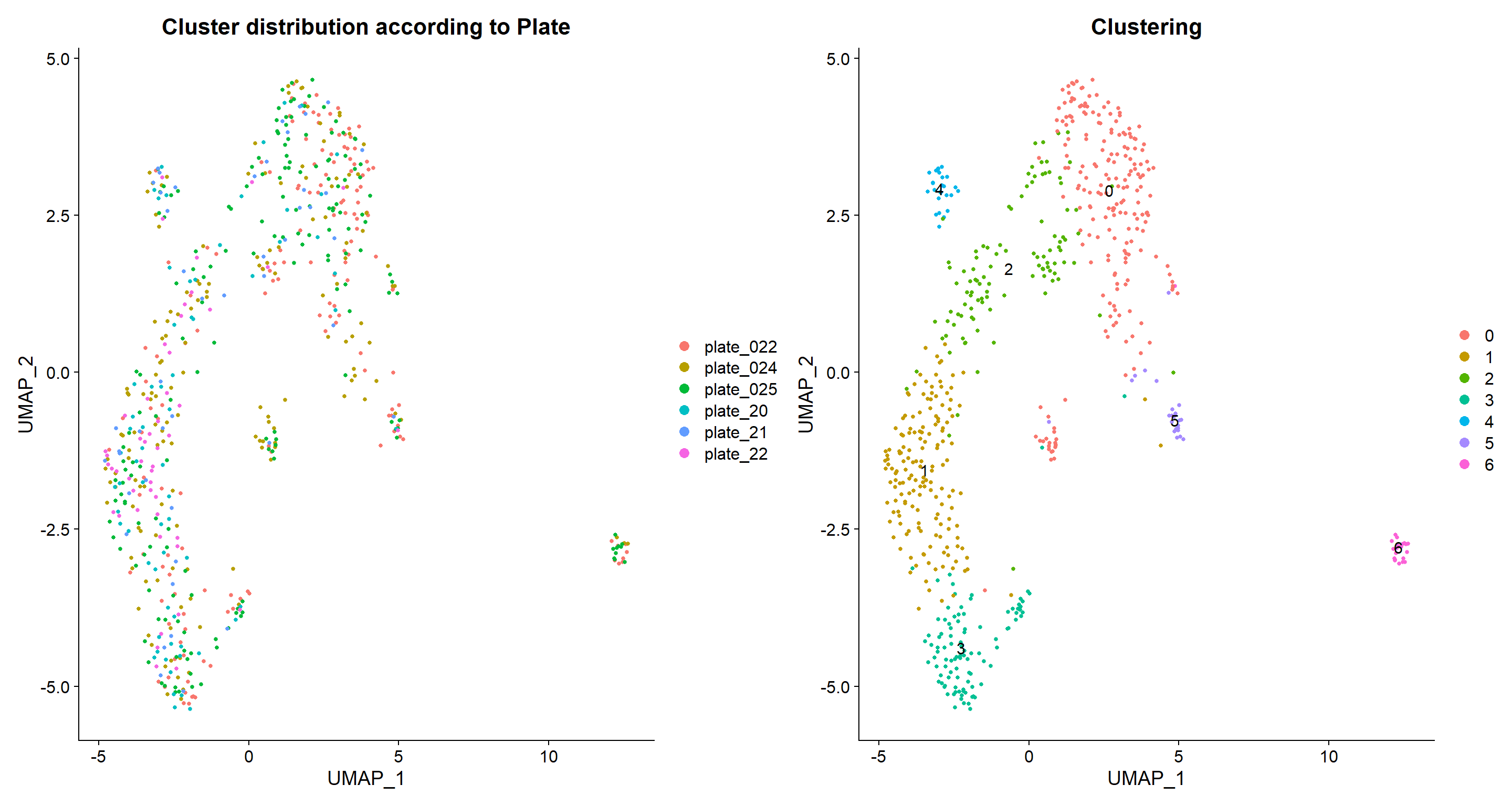

ggtitle("Cluster distribution according to Plate") | DimPlot(object = samples.integrated, pt.size = 1,reduction = "umap", group.by = "seurat_clusters", label = T) +
ggtitle("Clustering")
Idents(samples.integrated) <- "seurat_clusters"
# use same colors for clusters as in plots
require(scales)
identities <- levels(samples.integrated$seurat_clusters) # Create vector with levels of object@ident
cluster_colors <- hue_pal()(length(identities)) # Create vector of default ggplot2 colors
# number of cells in each cluster
cluster_nCell <- as.data.frame.matrix(table(samples.integrated$seurat_clusters,
samples.integrated$Genotype_Age))
cluster_nCell["Total" ,] = colSums(cluster_nCell)
cluster_nCell APPPS1+_10mo APPPS1+_9mo MX04+_10mo MX04+_9mo wt_10mo wt_17mo wt_9mo
0 42 57 20 18 15 20 34
1 23 38 3 7 9 68 16
2 22 29 2 3 2 31 18
3 14 25 12 5 6 29 9
4 4 6 1 0 1 11 3
5 3 4 5 1 5 3 3
6 6 10 0 0 3 0 3
Total 114 169 43 34 41 162 86# % of cells in each cluster , grouped by genotype_Age
cluster_percent_Cell <- data.frame(round((prop.table(x = table(samples.integrated$seurat_clusters,
samples.integrated$Genotype_Age), margin = 2)*100),2))
colnames(cluster_percent_Cell) <- c("Genotype_Age", "Celltype", "Frequency")
cluster_percent_Cell Genotype_Age Celltype Frequency
1 0 APPPS1+_10mo 36.84
2 1 APPPS1+_10mo 20.18
3 2 APPPS1+_10mo 19.30
4 3 APPPS1+_10mo 12.28
5 4 APPPS1+_10mo 3.51
6 5 APPPS1+_10mo 2.63
7 6 APPPS1+_10mo 5.26
8 0 APPPS1+_9mo 33.73
9 1 APPPS1+_9mo 22.49
10 2 APPPS1+_9mo 17.16
11 3 APPPS1+_9mo 14.79
12 4 APPPS1+_9mo 3.55
13 5 APPPS1+_9mo 2.37
14 6 APPPS1+_9mo 5.92
15 0 MX04+_10mo 46.51
16 1 MX04+_10mo 6.98
17 2 MX04+_10mo 4.65
18 3 MX04+_10mo 27.91
19 4 MX04+_10mo 2.33
20 5 MX04+_10mo 11.63
21 6 MX04+_10mo 0.00
22 0 MX04+_9mo 52.94
23 1 MX04+_9mo 20.59
24 2 MX04+_9mo 8.82
25 3 MX04+_9mo 14.71
26 4 MX04+_9mo 0.00
27 5 MX04+_9mo 2.94
28 6 MX04+_9mo 0.00
29 0 wt_10mo 36.59
30 1 wt_10mo 21.95
31 2 wt_10mo 4.88
32 3 wt_10mo 14.63
33 4 wt_10mo 2.44
34 5 wt_10mo 12.20
35 6 wt_10mo 7.32
36 0 wt_17mo 12.35
37 1 wt_17mo 41.98
38 2 wt_17mo 19.14
39 3 wt_17mo 17.90
40 4 wt_17mo 6.79
41 5 wt_17mo 1.85
42 6 wt_17mo 0.00
43 0 wt_9mo 39.53
44 1 wt_9mo 18.60
45 2 wt_9mo 20.93
46 3 wt_9mo 10.47
47 4 wt_9mo 3.49
48 5 wt_9mo 3.49

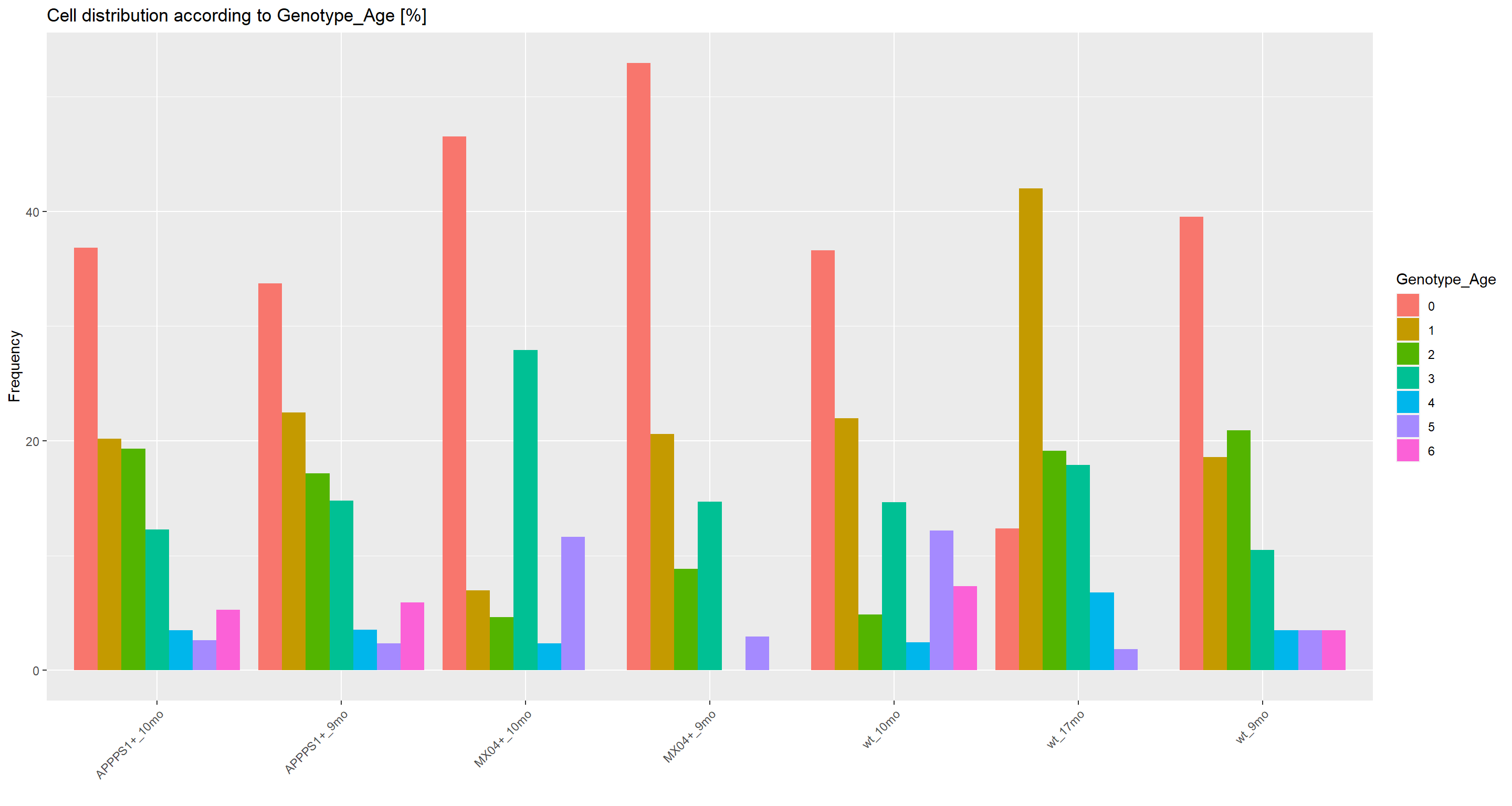

49 6 wt_9mo 3.49# Grouped barchart of cell proportions
ggplot(cluster_percent_Cell, aes(fill=Genotype_Age, y=Frequency, x=Celltype)) +
geom_bar(position="dodge", stat="identity")+
ggtitle("Cell distribution according to Genotype_Age [%]") +
theme(axis.text.x = element_text(angle = 45, hjust=1, vjust=1)) +
xlab("")
# % of cells in each cluster , grouped by genotype_treatment
cluster_percent_Cell <- data.frame(round((prop.table(x = table(samples.integrated$seurat_clusters,
samples.integrated$Genotype_Treatment), margin = 2)*100),2))
colnames(cluster_percent_Cell) <- c("Genotype_Treatment", "Celltype", "Frequency")
cluster_percent_Cell Genotype_Treatment Celltype Frequency
1 0 APPPS1+_Ctrl 30.32
2 1 APPPS1+_Ctrl 23.87
3 2 APPPS1+_Ctrl 21.94
4 3 APPPS1+_Ctrl 14.84
5 4 APPPS1+_Ctrl 5.81
6 5 APPPS1+_Ctrl 1.94
7 6 APPPS1+_Ctrl 1.29
8 0 APPPS1+_Stroke 40.62
9 1 APPPS1+_Stroke 18.75
10 2 APPPS1+_Stroke 13.28
11 3 APPPS1+_Stroke 12.50
12 4 APPPS1+_Stroke 0.78
13 5 APPPS1+_Stroke 3.12
14 6 APPPS1+_Stroke 10.94
15 0 MX04+_Ctrl 50.68
16 1 MX04+_Ctrl 10.96
17 2 MX04+_Ctrl 6.85
18 3 MX04+_Ctrl 21.92
19 4 MX04+_Ctrl 1.37
20 5 MX04+_Ctrl 8.22
21 6 MX04+_Ctrl 0.00
22 0 MX04+_Stroke 25.00
23 1 MX04+_Stroke 50.00
24 2 MX04+_Stroke 0.00
25 3 MX04+_Stroke 25.00
26 4 MX04+_Stroke 0.00
27 5 MX04+_Stroke 0.00
28 6 MX04+_Stroke 0.00
29 0 wt_Ctrl 12.35
30 1 wt_Ctrl 41.98
31 2 wt_Ctrl 19.14
32 3 wt_Ctrl 17.90
33 4 wt_Ctrl 6.79
34 5 wt_Ctrl 1.85
35 6 wt_Ctrl 0.00
36 0 wt_Stroke 38.58
37 1 wt_Stroke 19.69
38 2 wt_Stroke 15.75
39 3 wt_Stroke 11.81
40 4 wt_Stroke 3.15
41 5 wt_Stroke 6.30

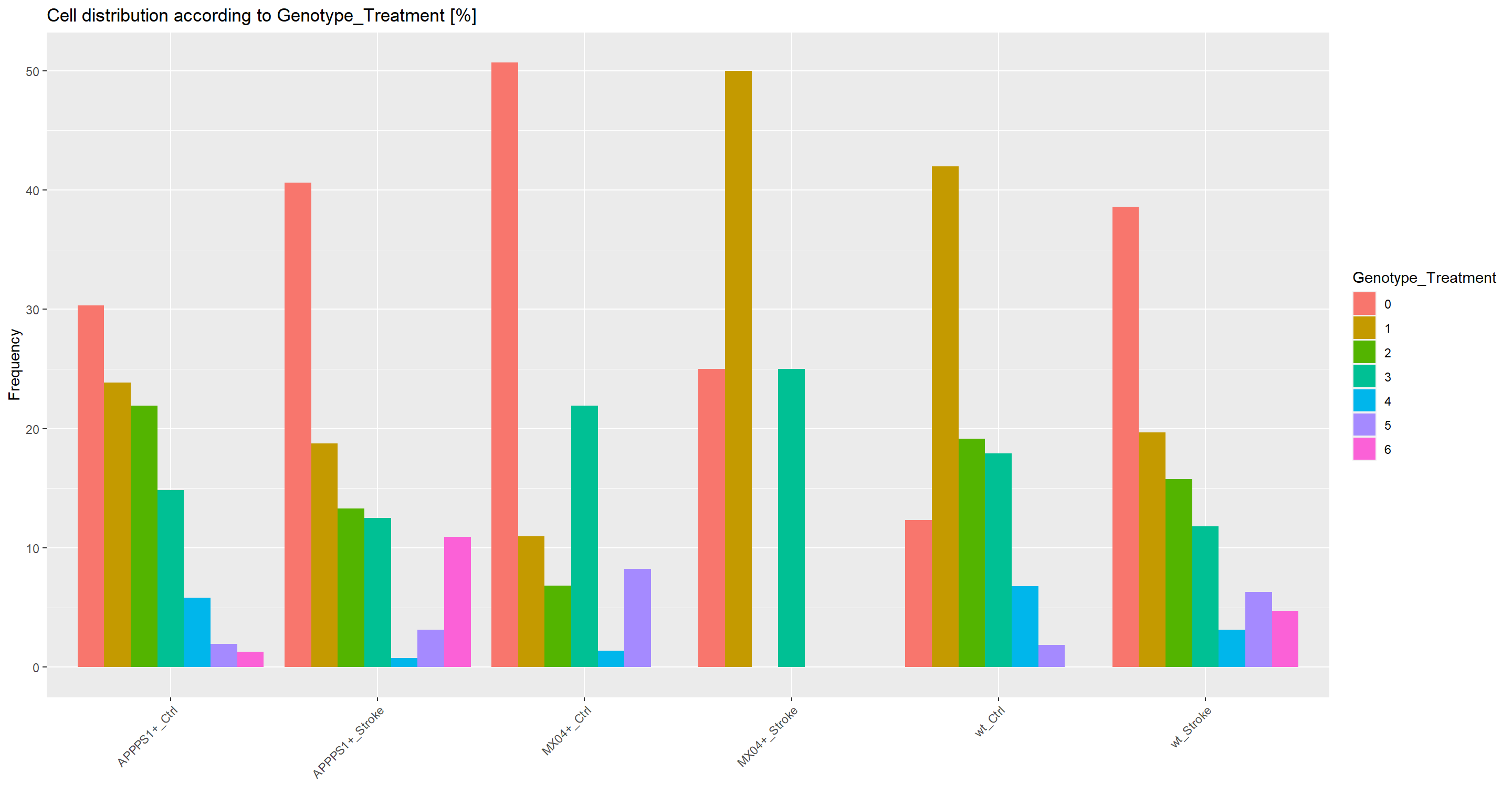

42 6 wt_Stroke 4.72# Grouped barchart of cell proportions
ggplot(cluster_percent_Cell, aes(fill=Genotype_Treatment, y=Frequency, x=Celltype)) +
geom_bar(position="dodge", stat="identity")+
ggtitle("Cell distribution according to Genotype_Treatment [%]") +
theme(axis.text.x = element_text(angle = 45, hjust=1, vjust=1)) +
xlab("")
Cell type identification

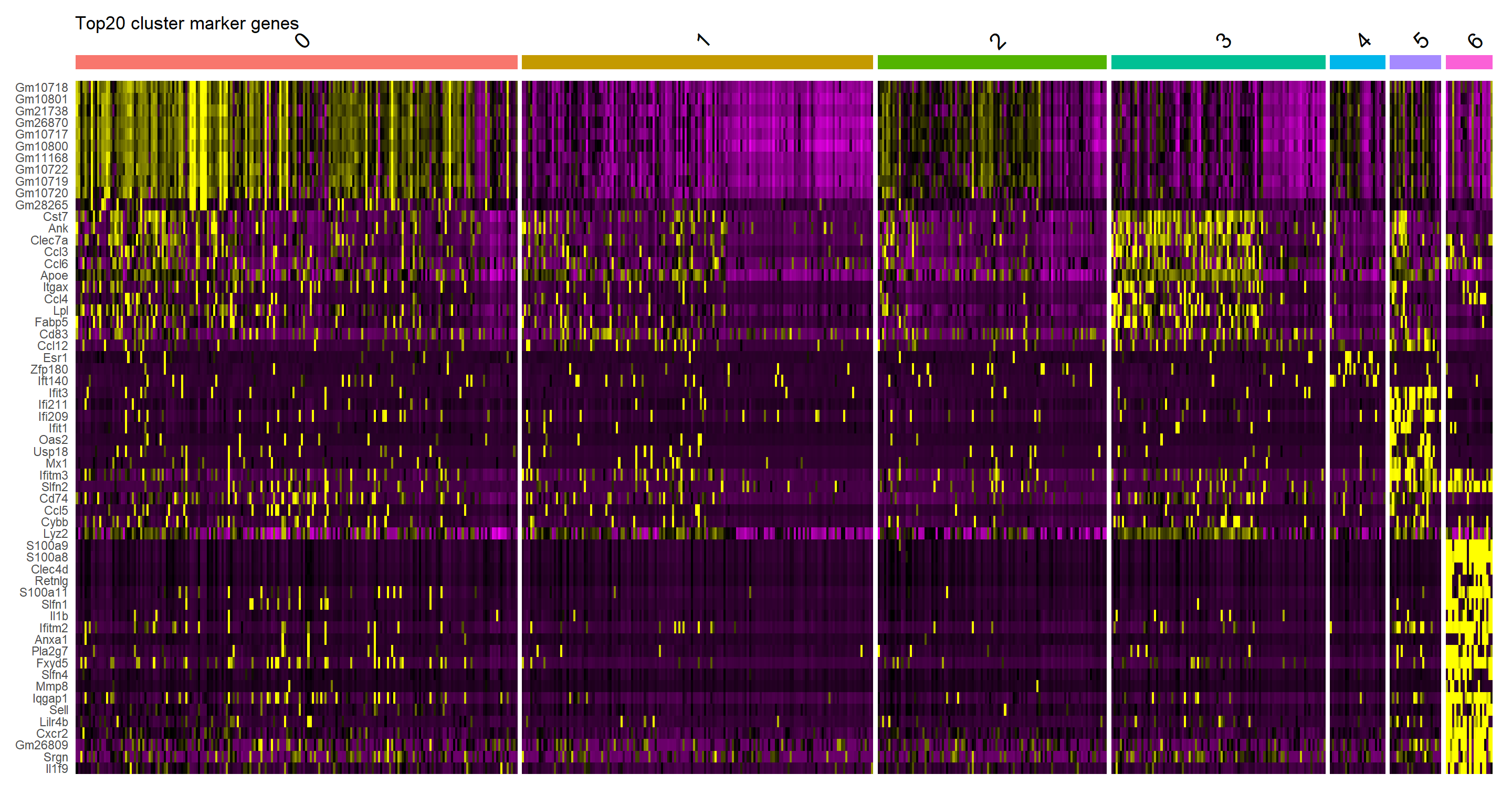

Finding differentially expressed features (cluster biomarkers)
Idents(samples.integrated) <- samples.integrated$seurat_clusters
DoHeatmap(samples.integrated, features = top20$gene) + NoLegend() + ggtitle("Top20 cluster marker genes")
SingleR
SingleR is an automatic annotation method for (scRNAseq) data (Aran et al. 2019). Given a reference dataset of samples (single-cell or bulk) with known labels, it labels new cells from a test dataset based on similarity to the reference set. Here we use the built-in references “Immgen” (830 microarray samples of sorted hematopoetic and immune cell populations) and “Mouse RNA-Seq” (358 non-specific mouse RNA-seq samples).
Immgen reference
Section Skipped as pred.immgen object is not available
MouseRNA-Seq reference Section Skipped as pred.mouseRNA object is not available
# number of cells in each cluster
cluster_nCell <- data.frame(table(samples.integrated$MouseRNASeq_sc_labels,samples.integrated$Genotype_Treatment))
colnames(cluster_nCell) <- c("Genotype_Treatment", "MouseRNASeq_sc_labels", "Number")
#cluster_nCell["Total" ,] = colSums(cluster_nCell)
# cluster_nCell
# % of cells in each cluster
cluster_percent_Cell <- data.frame(round((prop.table(x = table(samples.integrated$MouseRNASeq_sc_labels,
samples.integrated$Genotype_Treatment), margin = 2)*100),2))
colnames(cluster_percent_Cell) <- c("Genotype_Treatment", "MouseRNASeq_sc_labels", "Frequency")
# cluster_percent_Cell

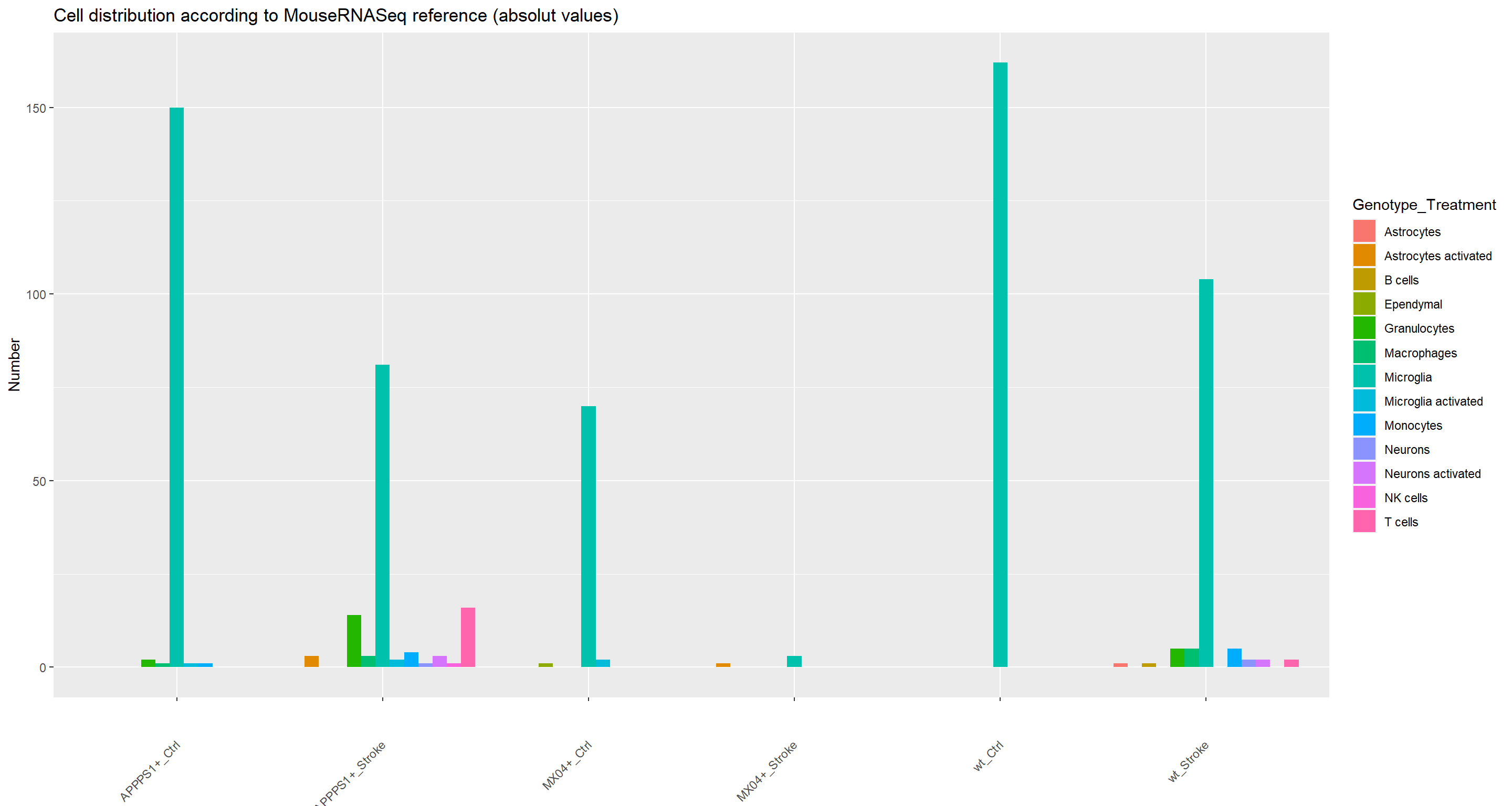

# Grouped barchart of absolute cell numbers
ggplot(cluster_nCell, aes(fill=Genotype_Treatment, y=Number, x=MouseRNASeq_sc_labels)) +
geom_bar(position="dodge", stat="identity") +
ggtitle("Cell distribution according to MouseRNASeq reference (absolut values)") +
theme(axis.text.x = element_text(angle = 45, hjust=1, vjust=0.5)) +
xlab("")

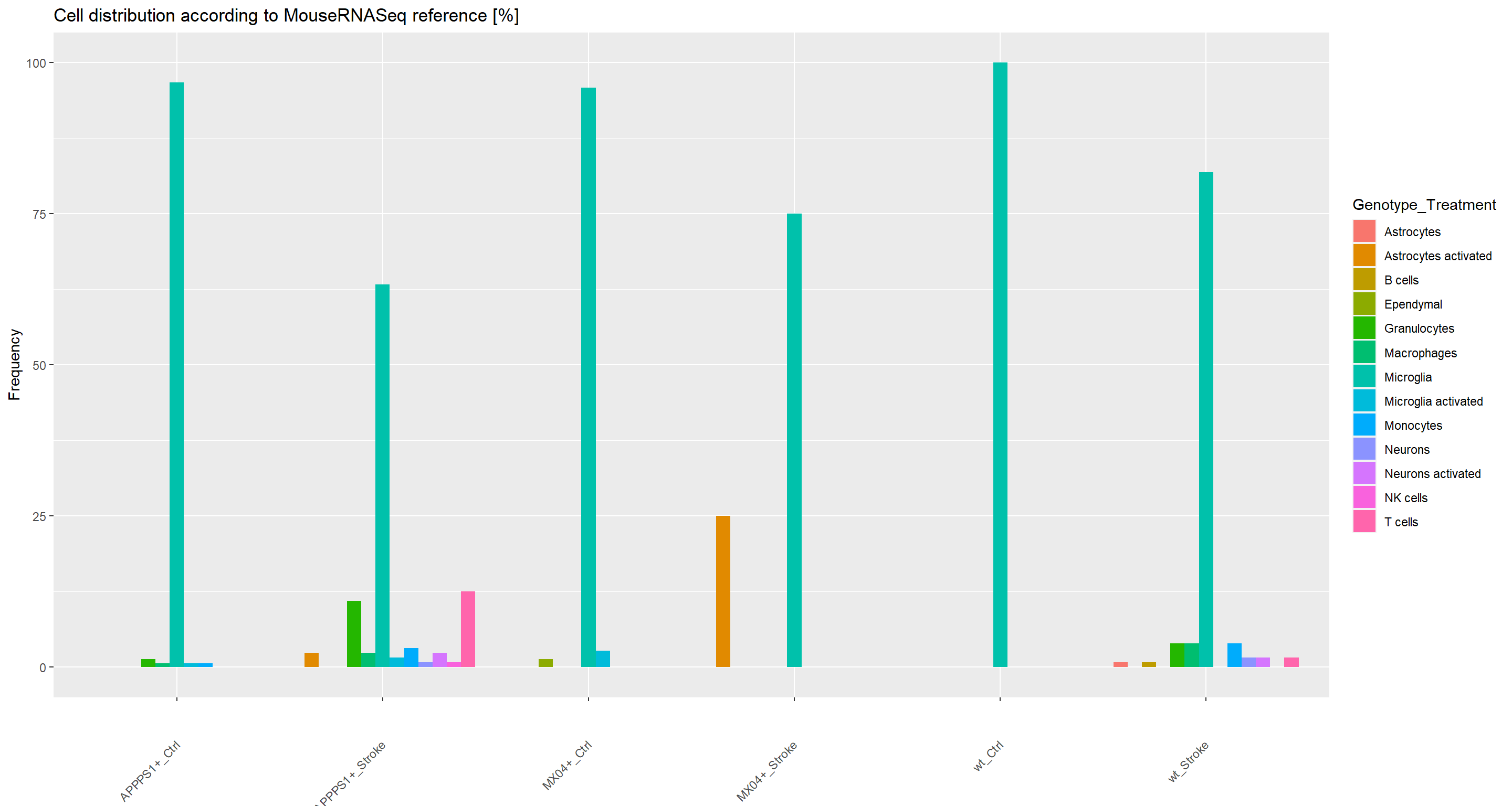

# Grouped barchart of cell proportions
ggplot(cluster_percent_Cell, aes(fill=Genotype_Treatment, y=Frequency, x=MouseRNASeq_sc_labels)) +
geom_bar(position="dodge", stat="identity")+
ggtitle("Cell distribution according to MouseRNASeq reference [%]") +
theme(axis.text.x = element_text(angle = 45, hjust=1, vjust=0.5)) +
xlab("")
# number of cells in each cluster
cluster_nCell <- data.frame(table(samples.integrated$Immgen_sc_labels,samples.integrated$Treatment))
colnames(cluster_nCell) <- c("Treatment", "Immgen_sc_labels", "Number")
#cluster_nCell["Total" ,] = colSums(cluster_nCell)
# cluster_nCell
# % of cells in each cluster
cluster_percent_Cell <- data.frame(round((prop.table(x = table(samples.integrated$Immgen_sc_labels,
samples.integrated$Treatment), margin = 2)*100),2))
colnames(cluster_percent_Cell) <- c("Treatment", "Immgen_sc_labels", "Frequency")
# cluster_percent_Cell
# Grouped barchart of absolute cell numbers
ggplot(cluster_nCell, aes(fill=Treatment, y=Number, x=Immgen_sc_labels)) +
geom_bar(position="dodge", stat="identity") +

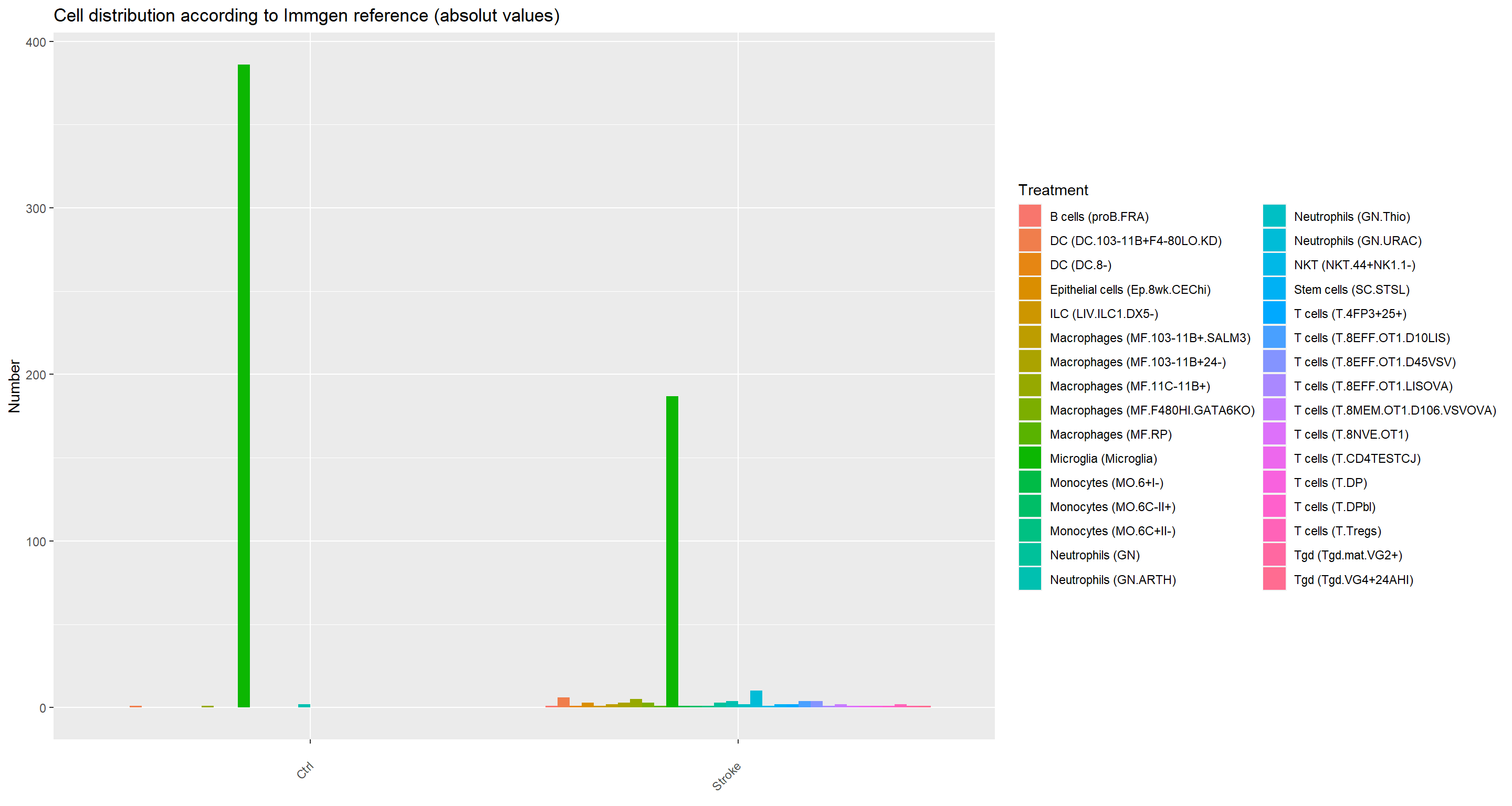

ggtitle("Cell distribution according to Immgen reference (absolut values)") +
theme(axis.text.x = element_text(angle = 45, hjust=1, vjust=0.5)) +
xlab("")

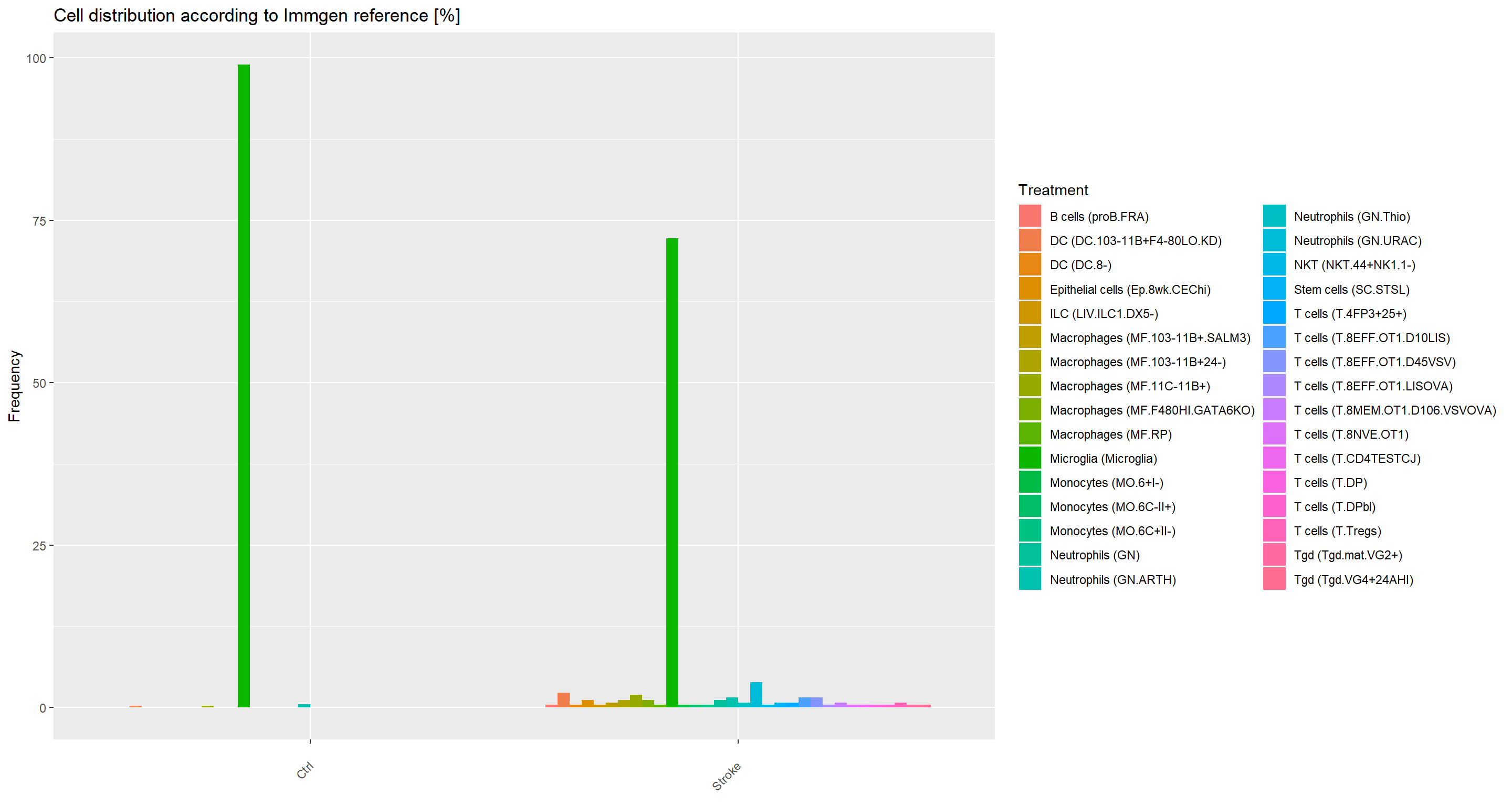

# Grouped barchart of cell proportions
ggplot(cluster_percent_Cell, aes(fill=Treatment, y=Frequency, x=Immgen_sc_labels)) +
geom_bar(position="dodge", stat="identity")+
ggtitle("Cell distribution according to Immgen reference [%]") +
theme(axis.text.x = element_text(angle = 45, hjust=1, vjust=0.5)) +
xlab("")
Renaming Clusters

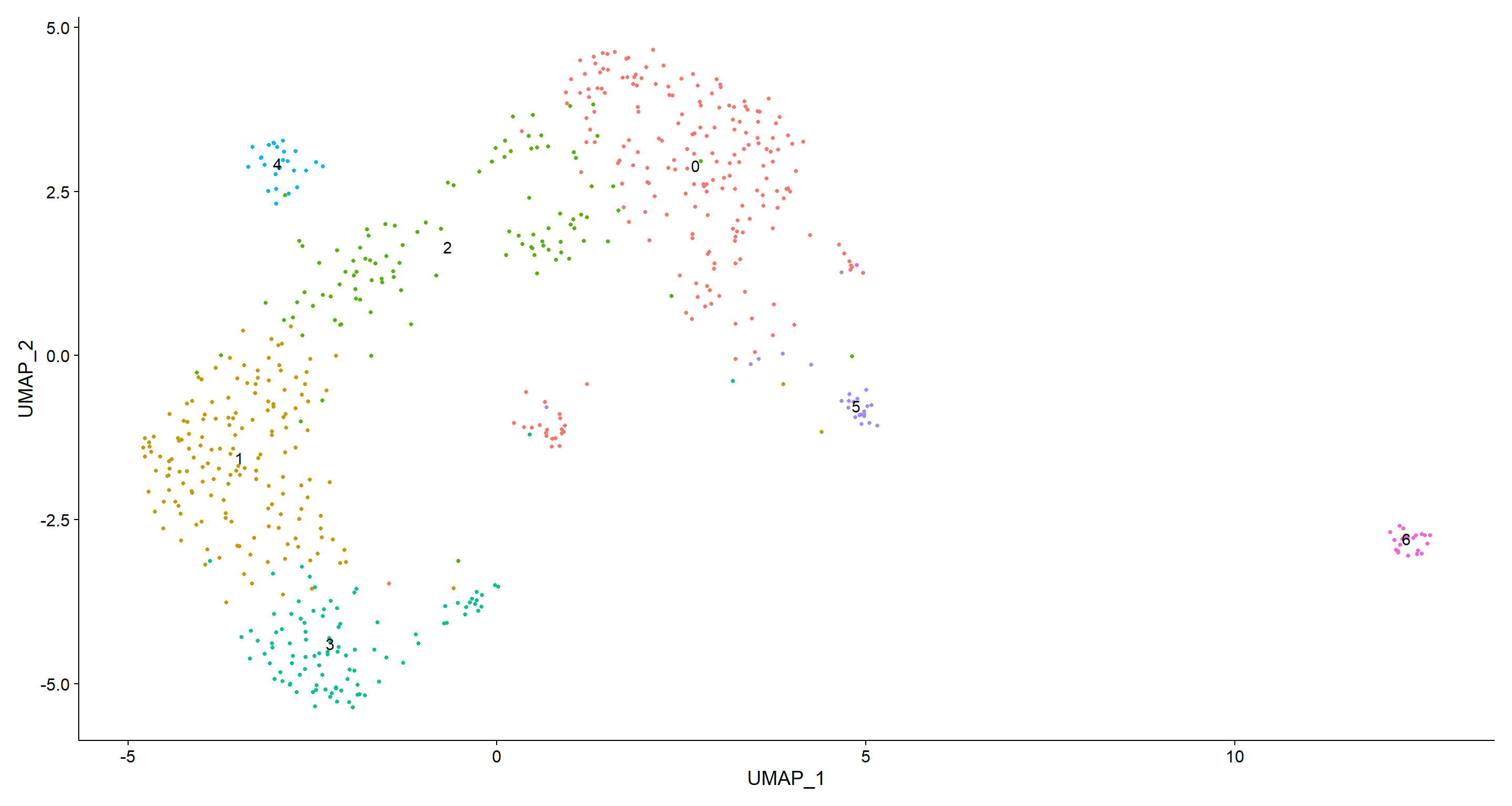

DimPlot(samples.integrated, reduction = "umap", label=T) + NoLegend()

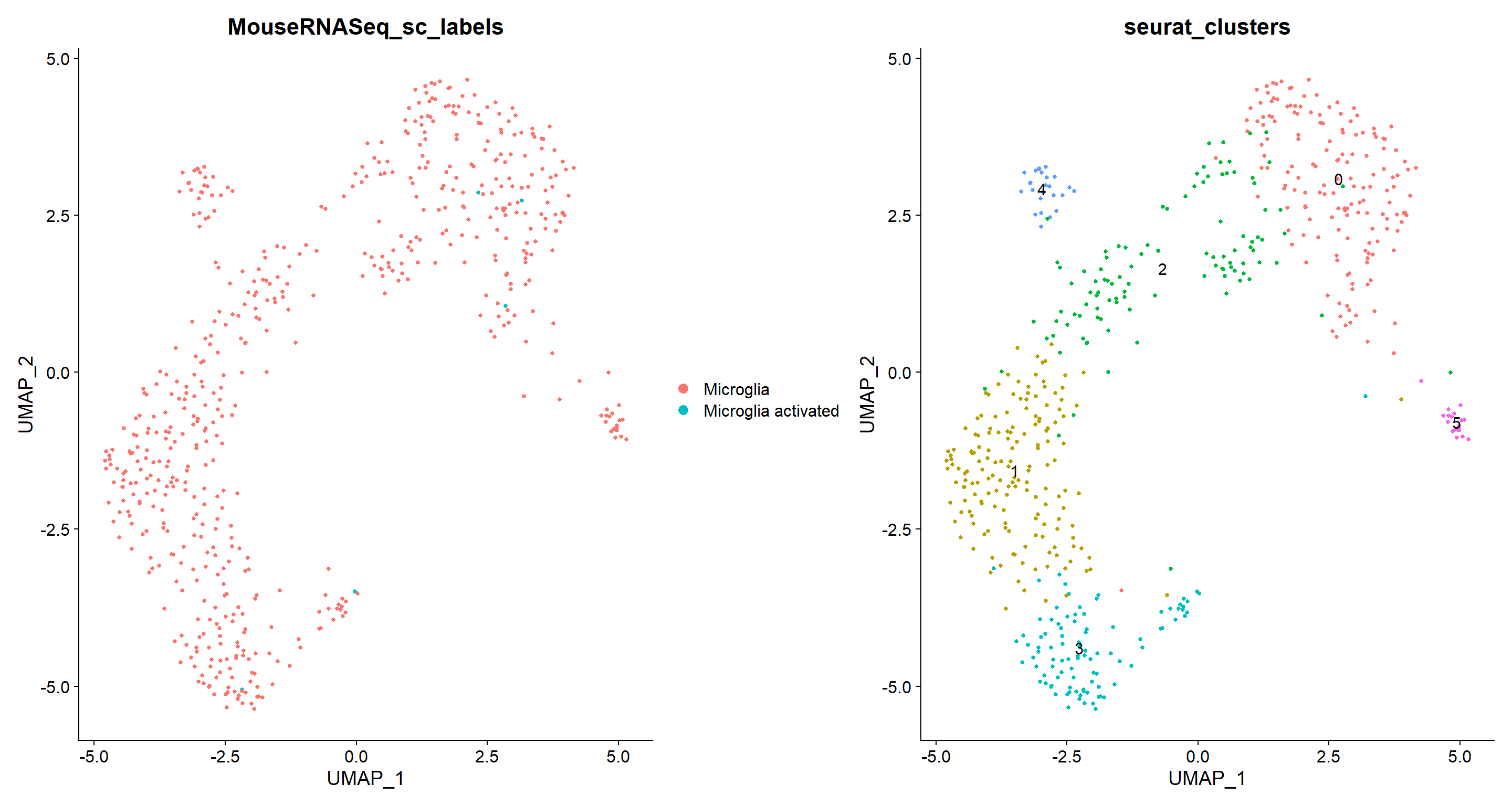

Zoom into Microglia clusters
A second Seurat cluster is generated, where all non-microglial immune cells are removed according to the mouseRNASeq_sc_labels.
p3 + p3a

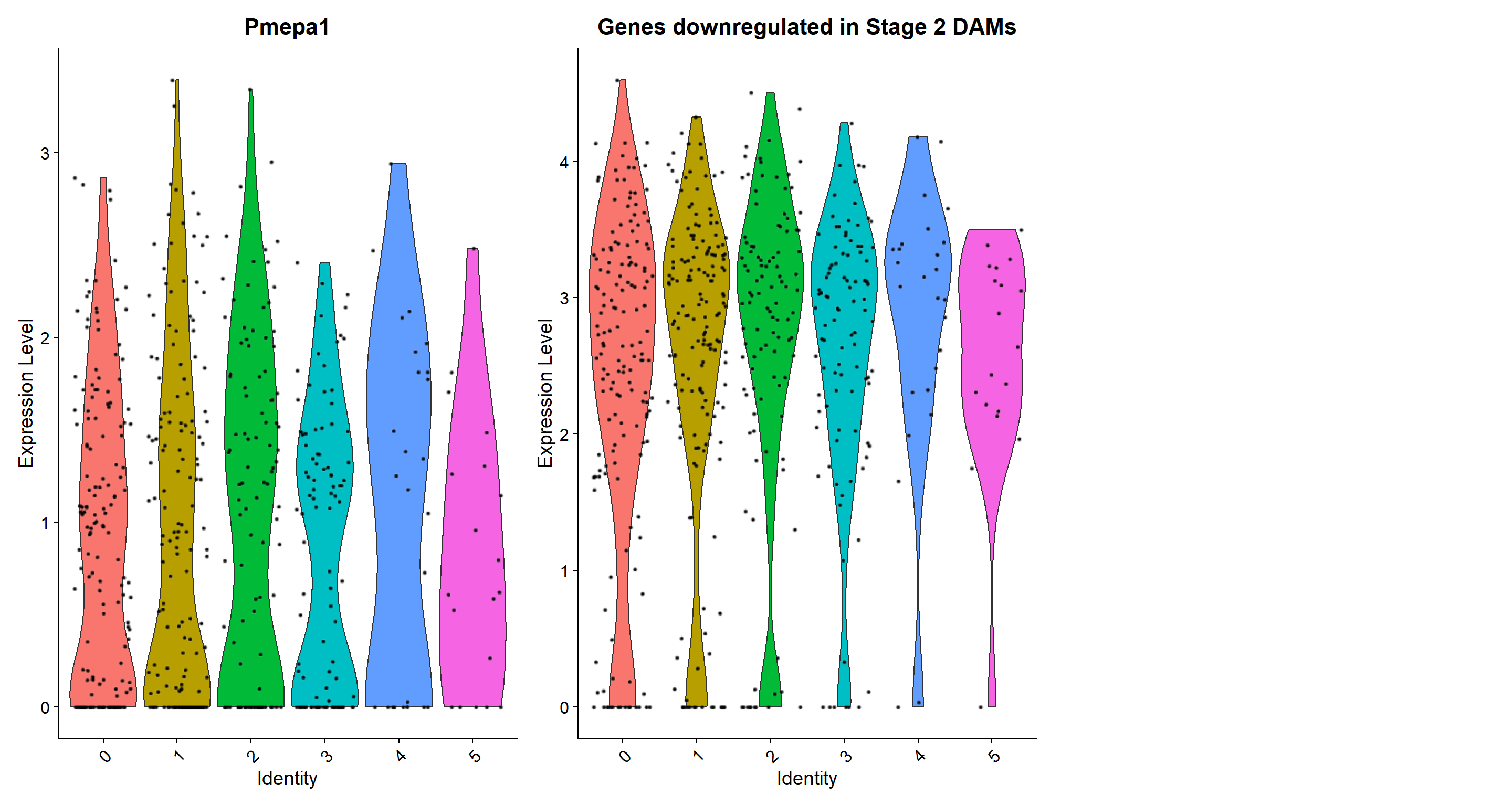

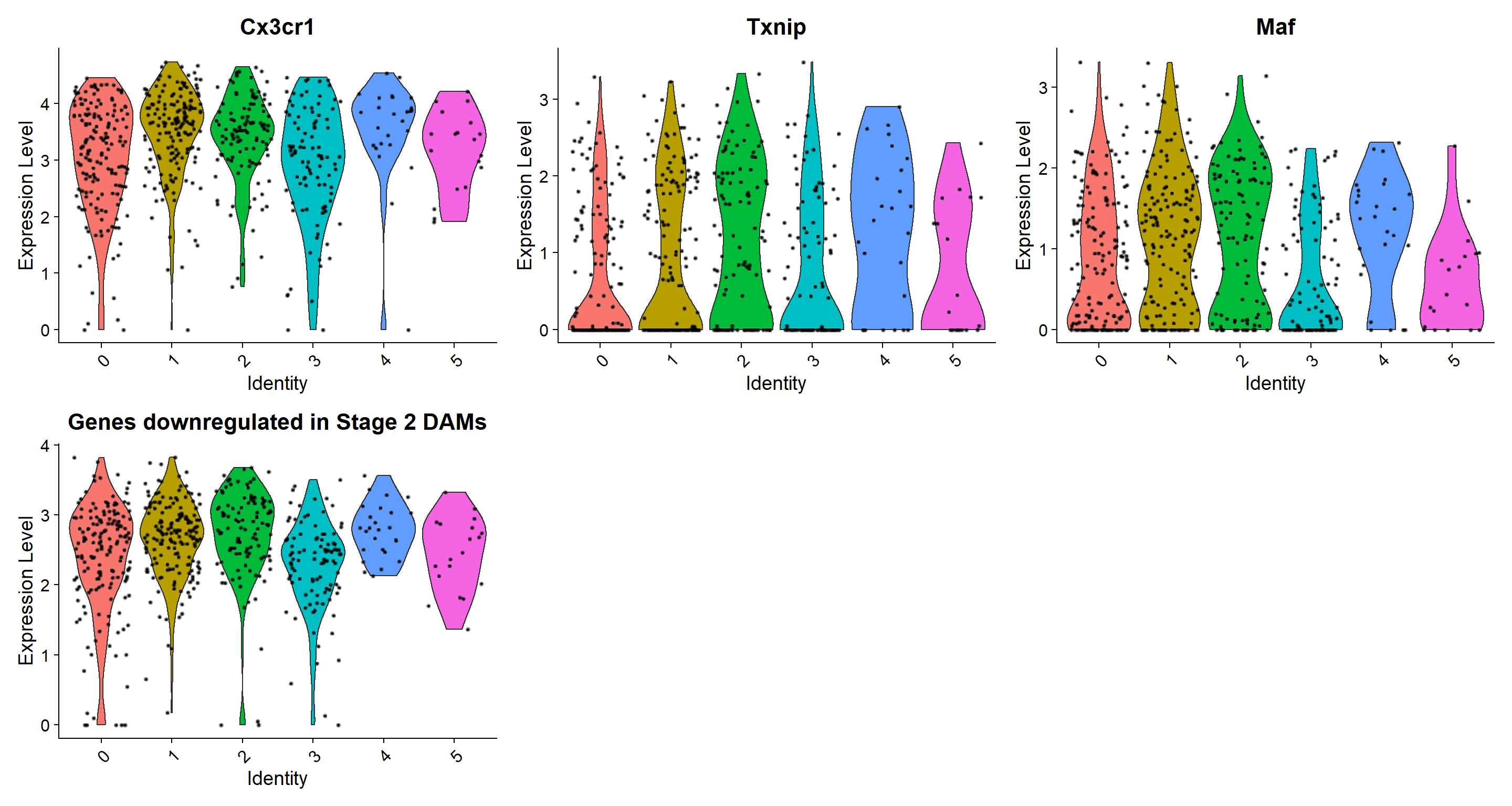

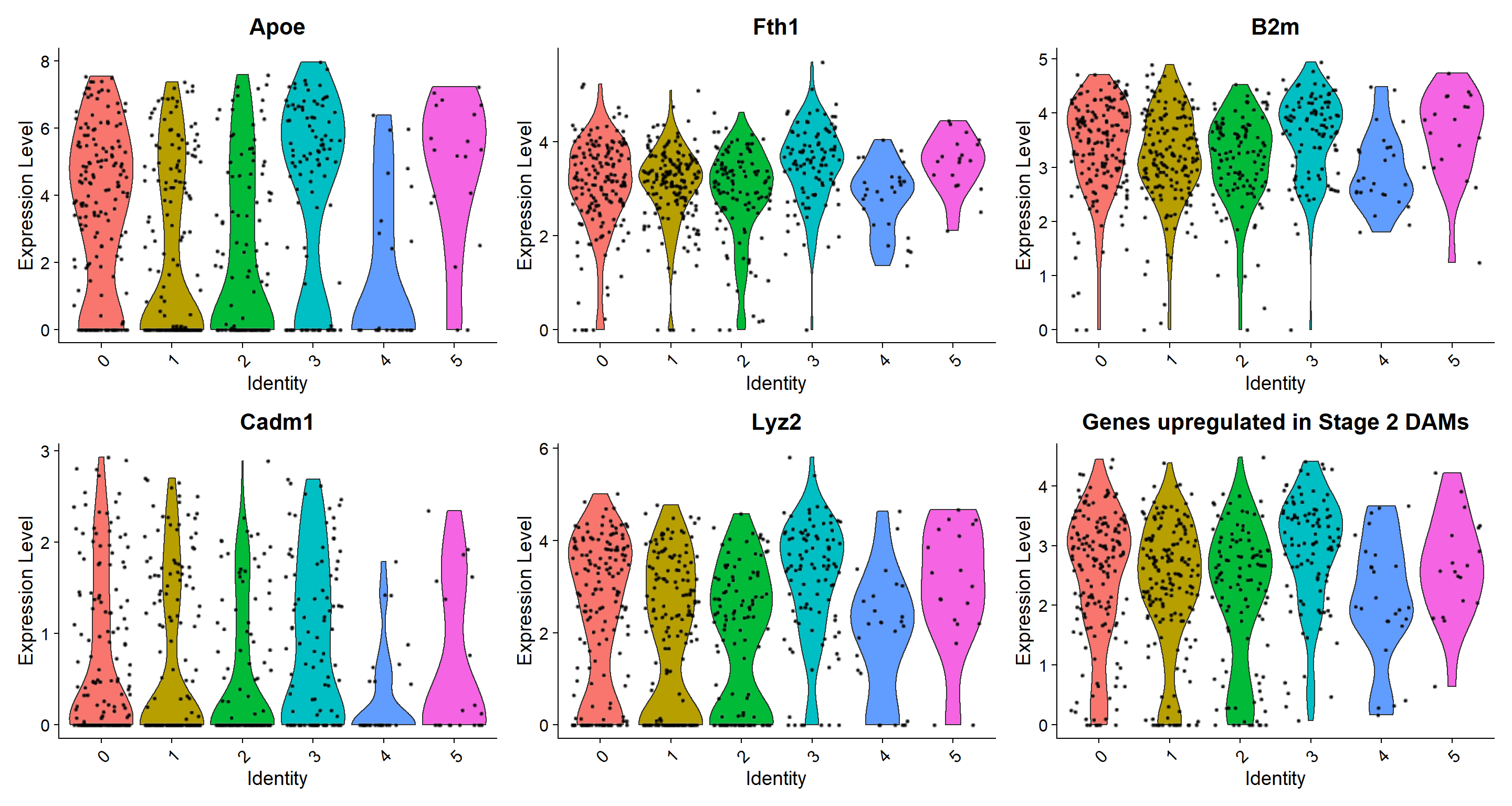

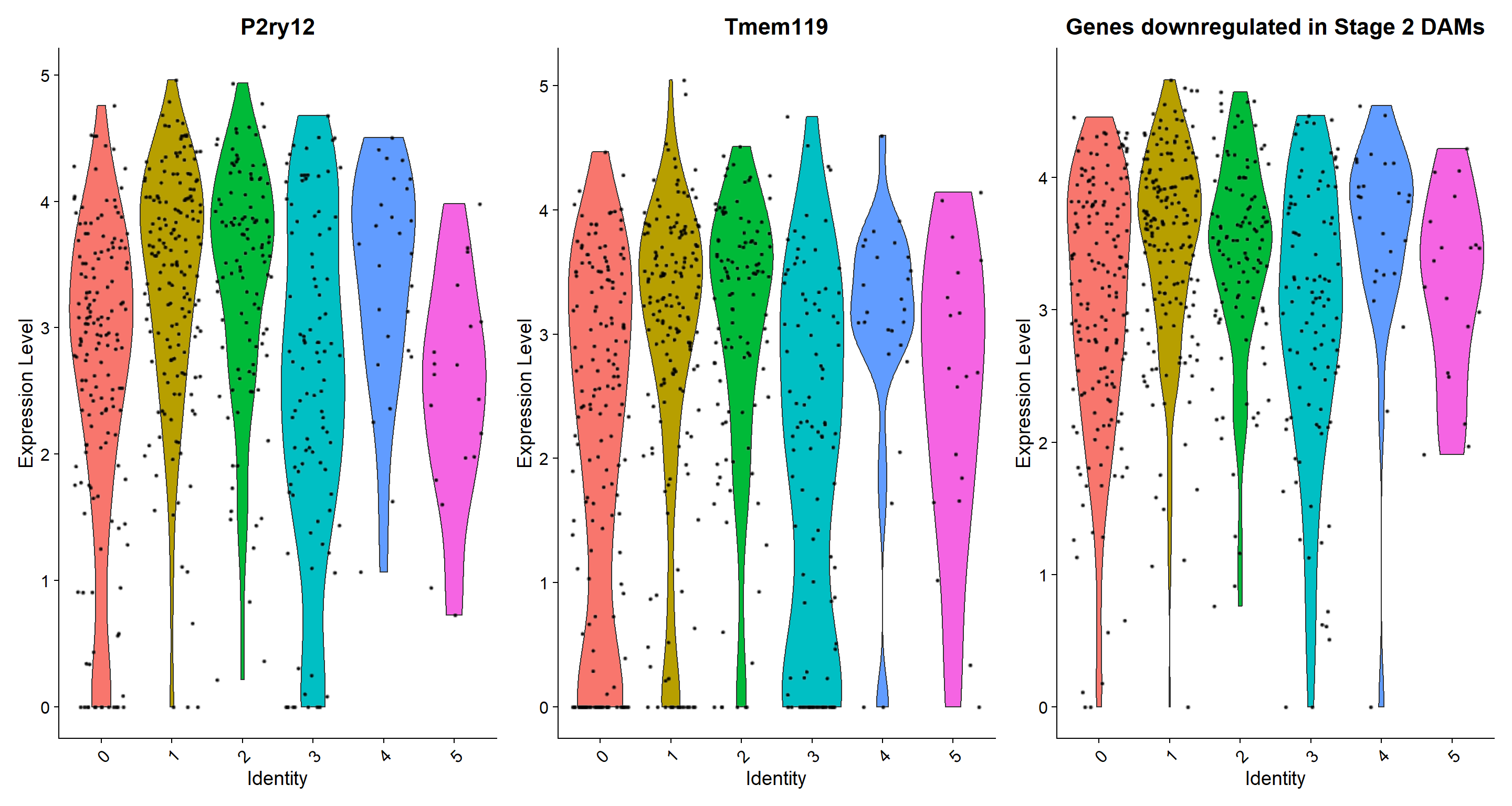

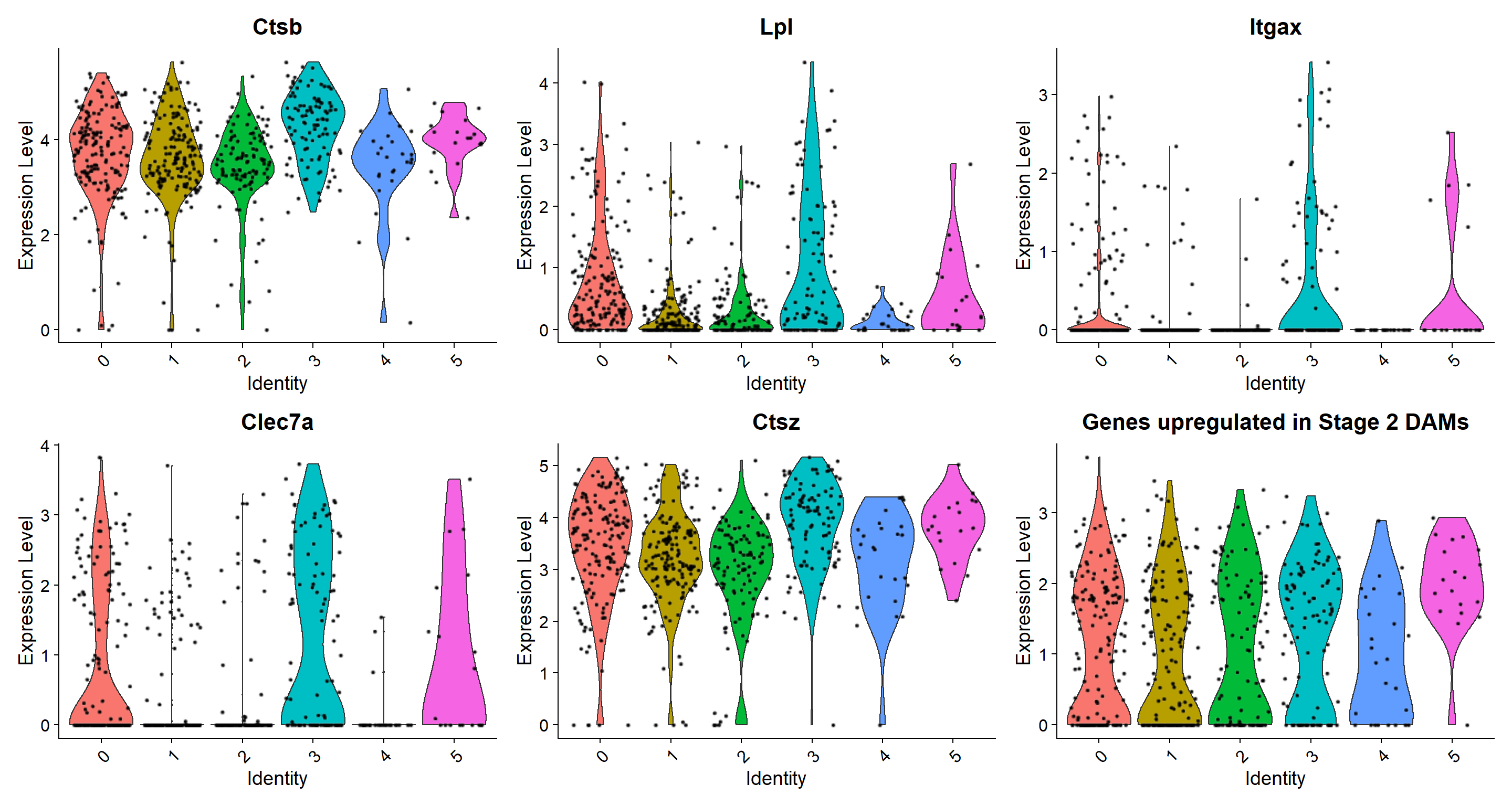

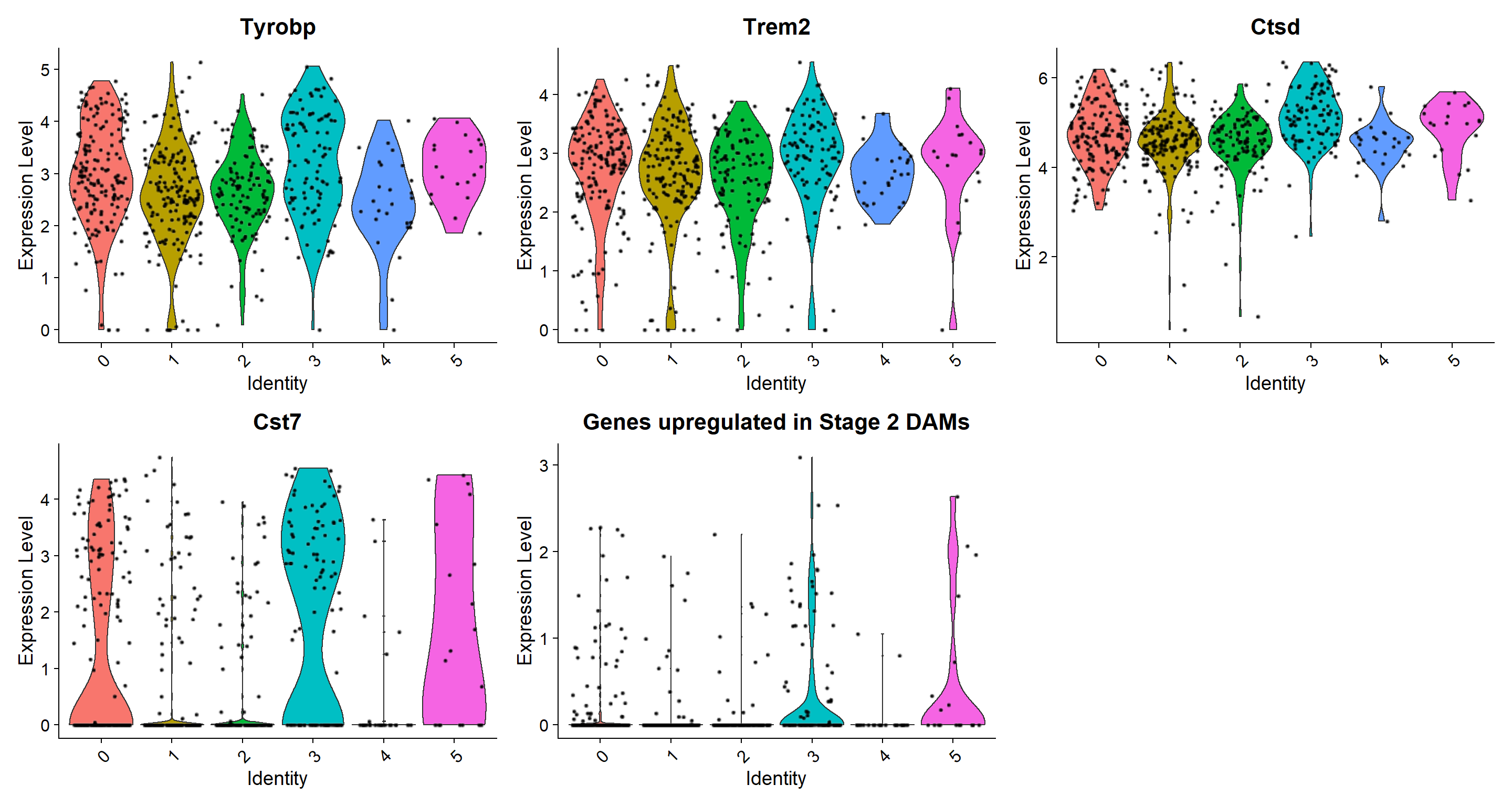

DAMs (Cell. 2017 Jun 15;169(7):1276-1290.e17. doi: 10.1016/j.cell.2017.05.018)

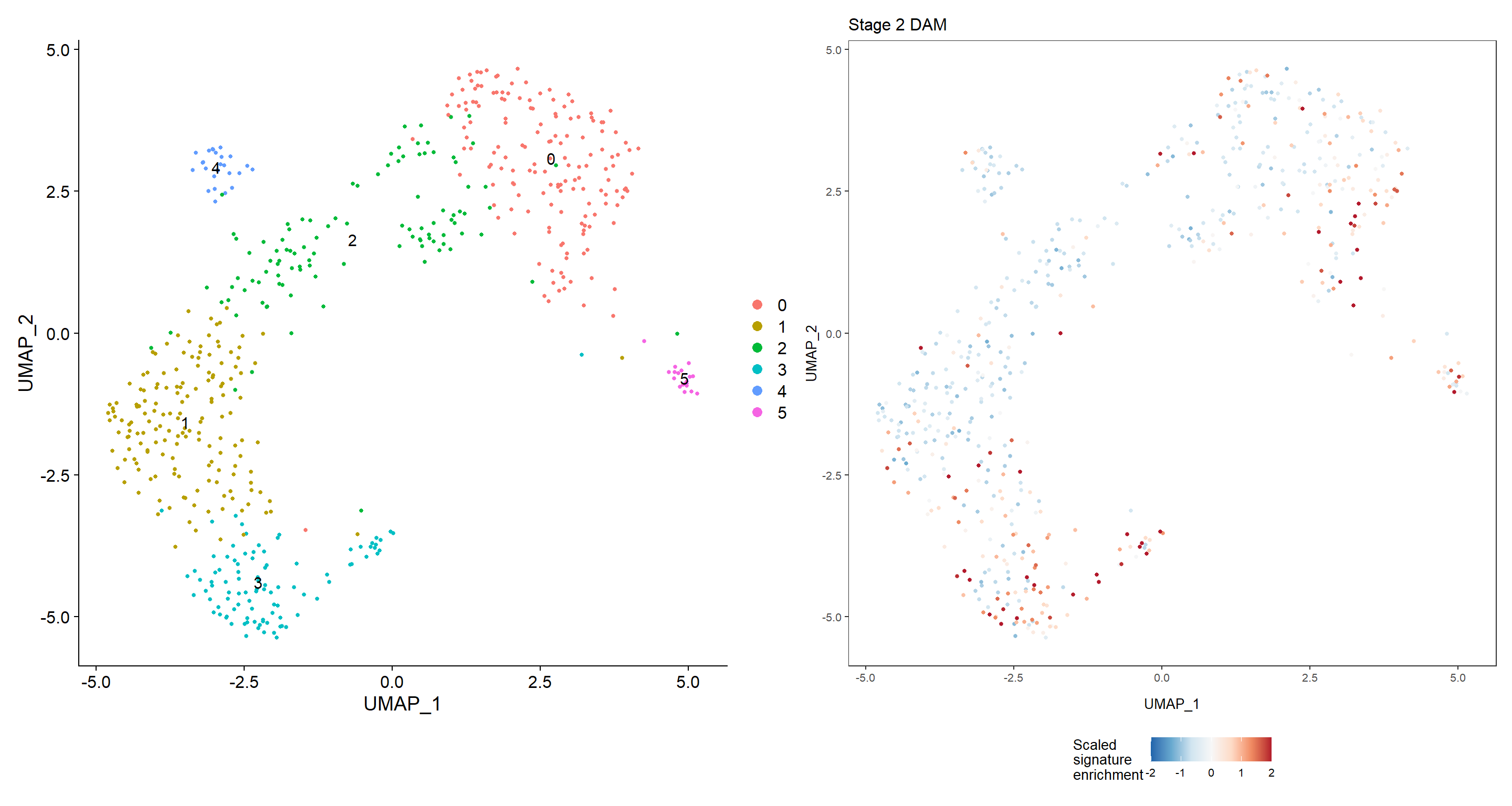

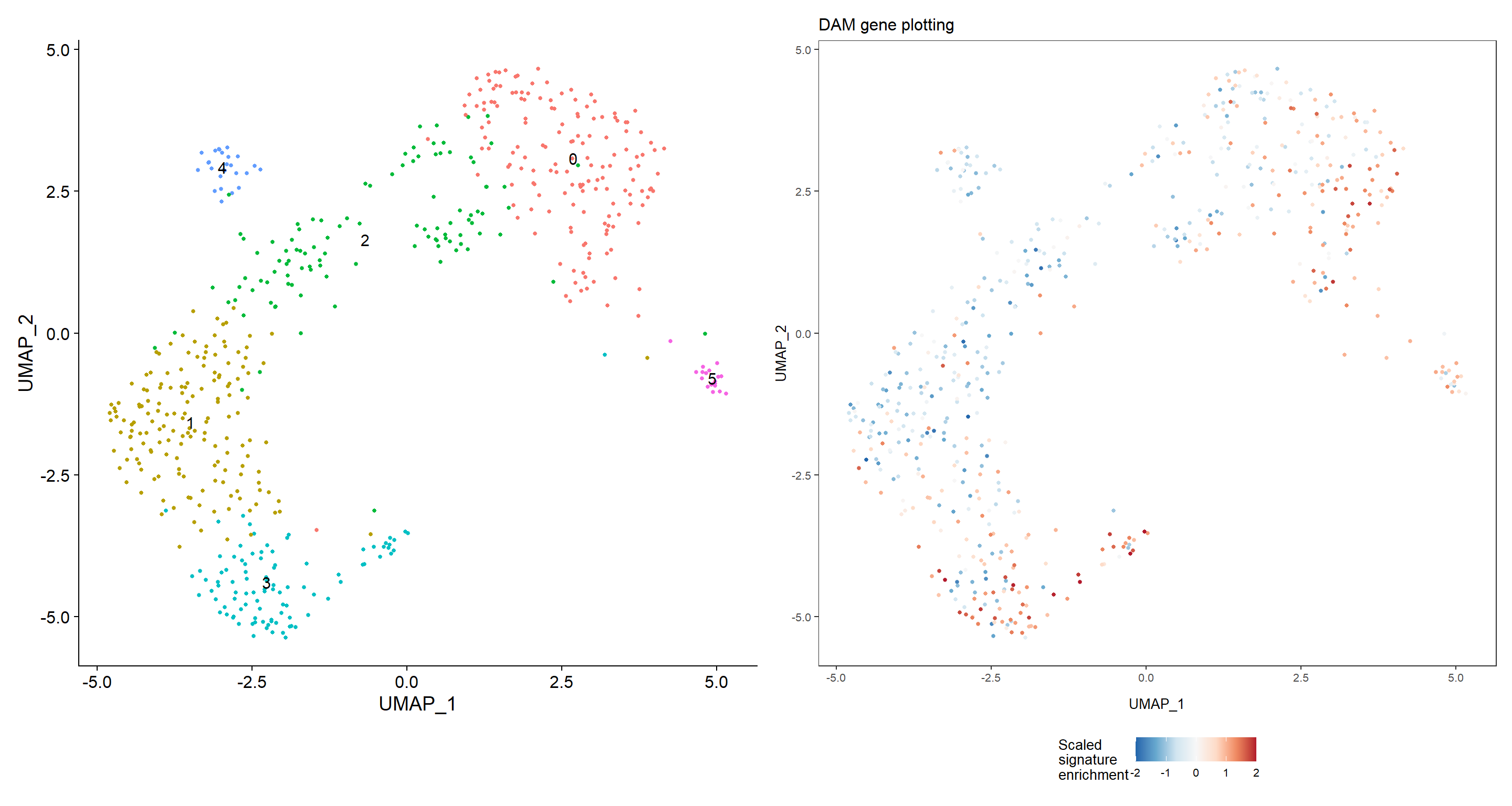

DAM plotting
p5 | p5aWarning: Use of `expr_df[[axes[1]]]` is discouraged. Use `.data[[axes[1]]]`
instead.Warning: Use of `expr_df[[axes[2]]]` is discouraged. Use `.data[[axes[2]]]`
instead.

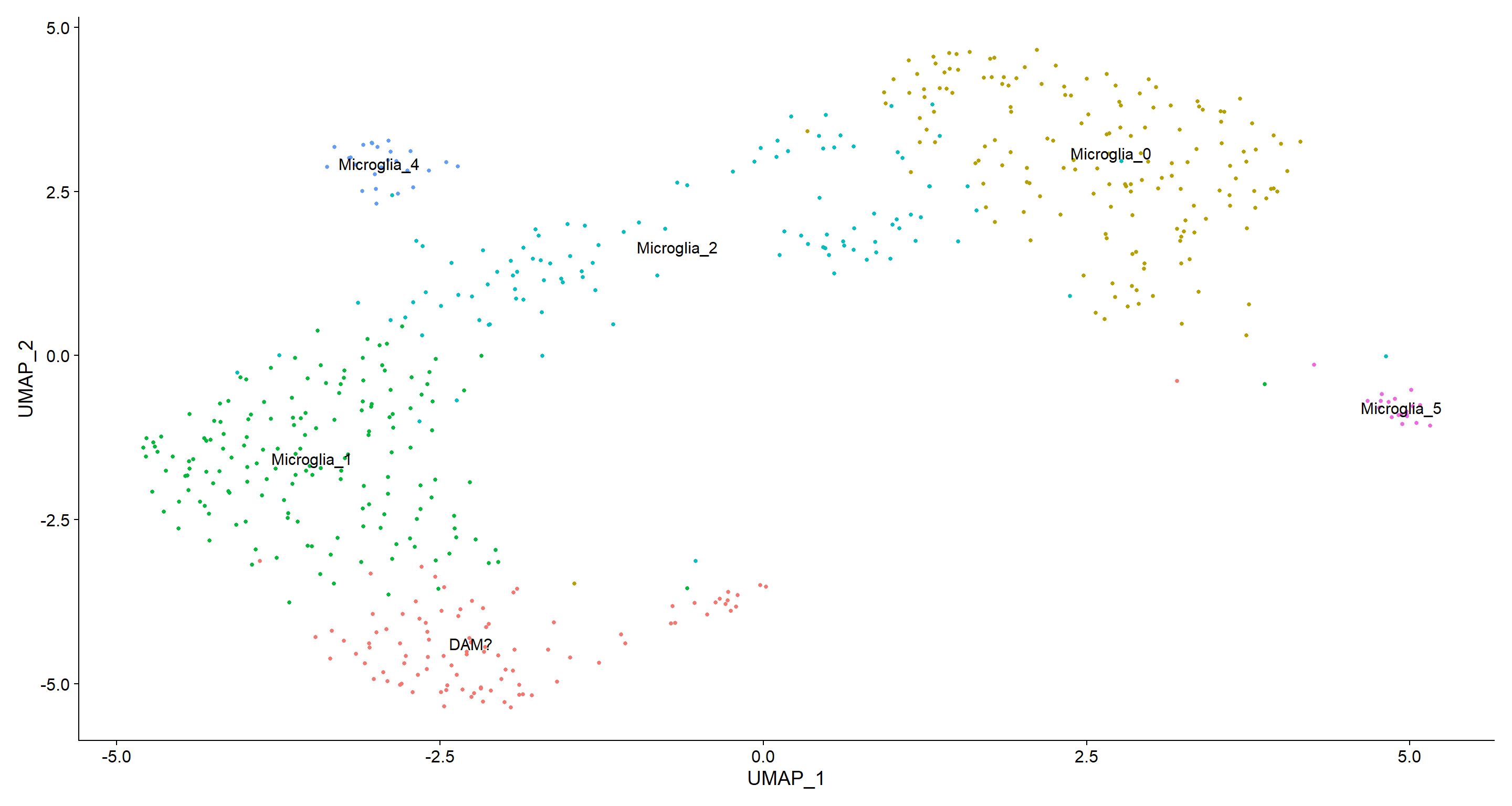

Renaming clusters
Idents(microglia) <- "Celltype"
DimPlot(microglia, reduction = "umap", label = TRUE, pt.size = 1)+ NoLegend()
Signature enrichment
DEGs and GSEA between microglia of different genotypes
WT vs App
WT vs MX04+
MX04+ vs App
DEGs and GSEA of microglia of different genotype and treatment
WT_Ctrl vs WT_Stroke
APP_Ctrl vs APP_Stroke
WT_Ctrl vs APP_Ctrl
WT_Stroke vs APP_Stroke
DEGs and GSEA of each cluster
Microglia_0
Only works if ReloadAllData_Harmony_Hefendehl_Stroke.RData is loaded. Otherwise, an error message will occur.
Microglia_1
Microglia_2
Microglia_4
DAM
Microglia_5
Only works if ReloadAllData_Harmony_Hefendehl_Stroke.RData is loaded. Otherwise, an error message will occur.

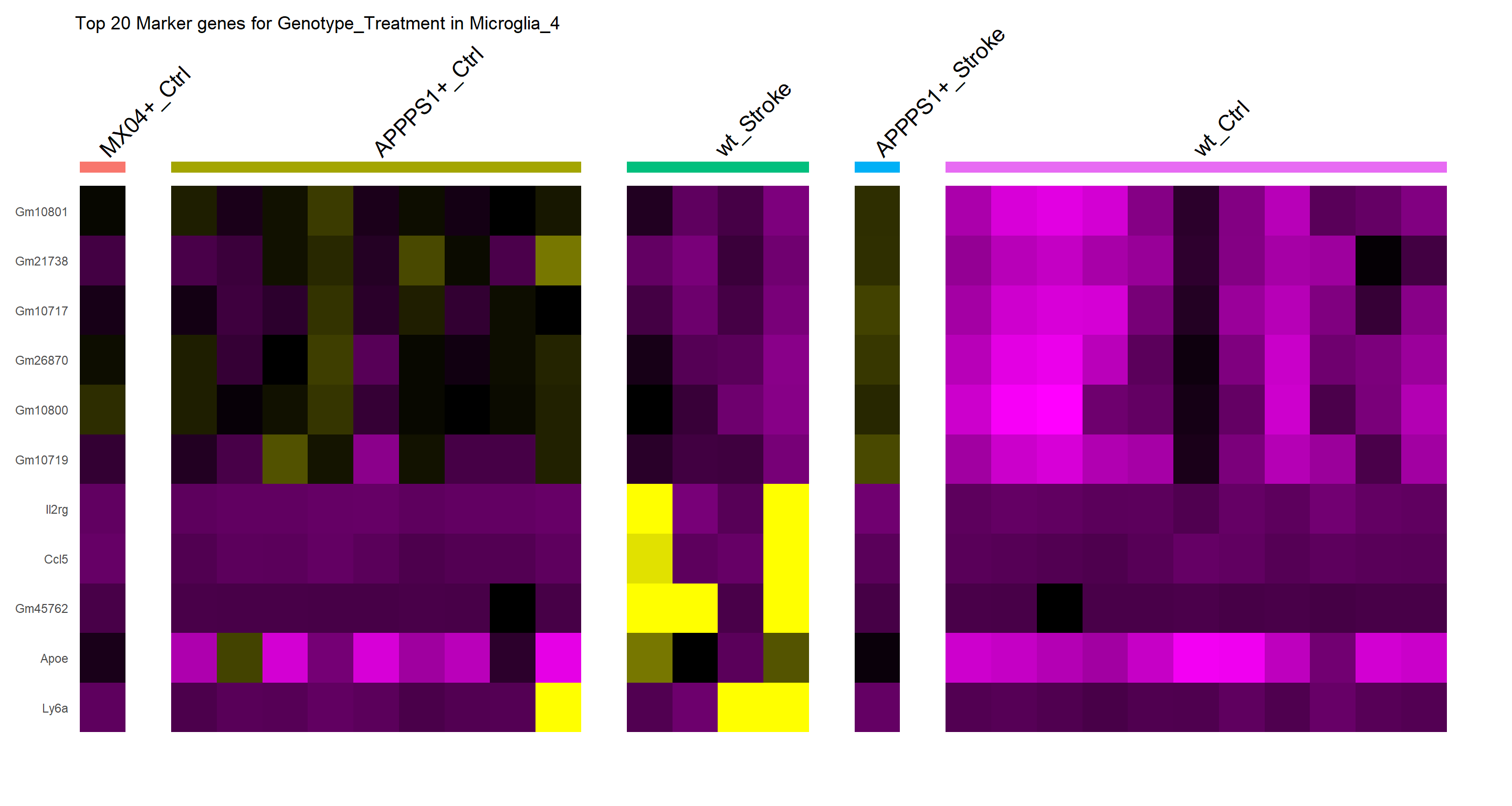

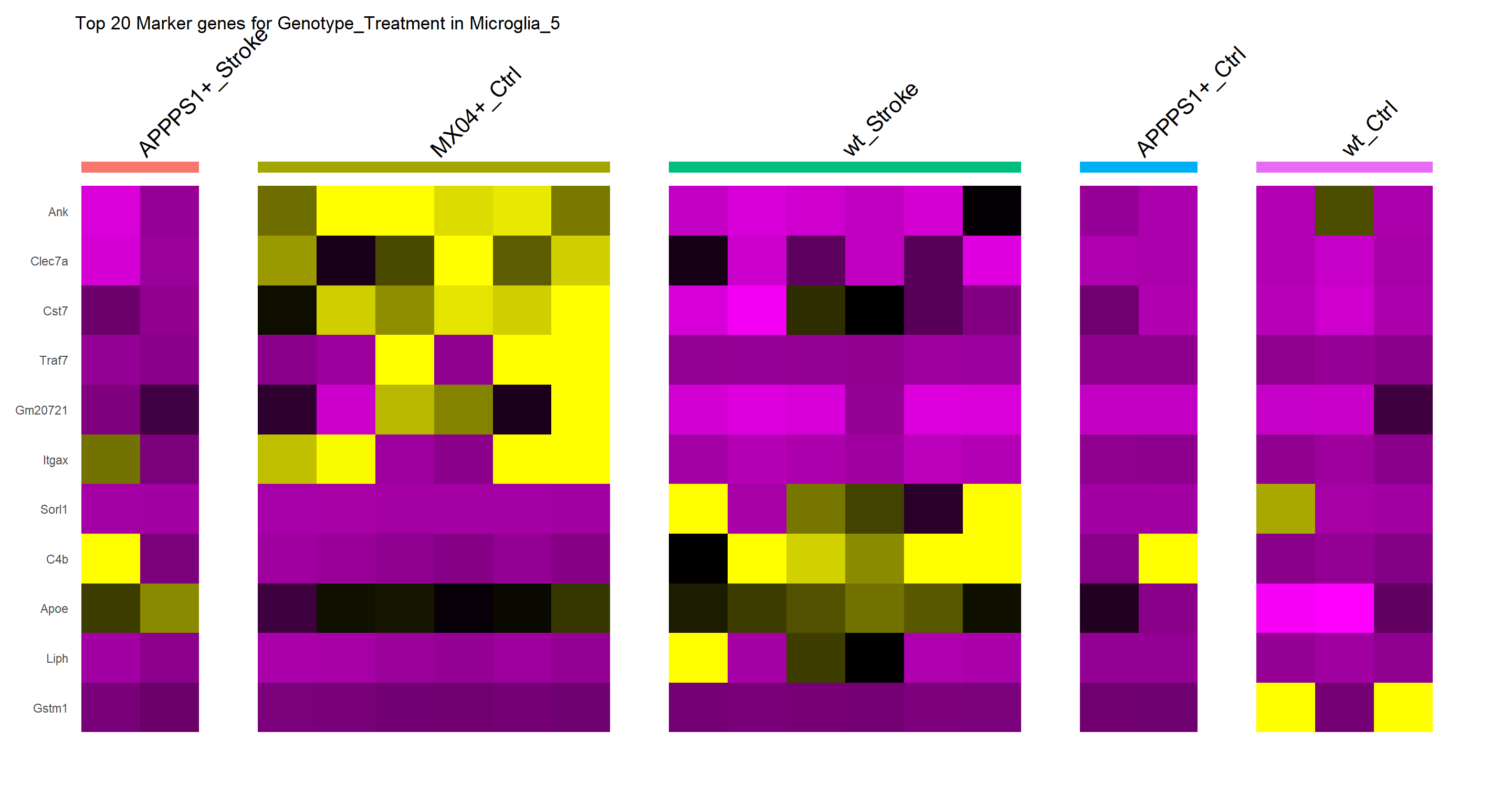

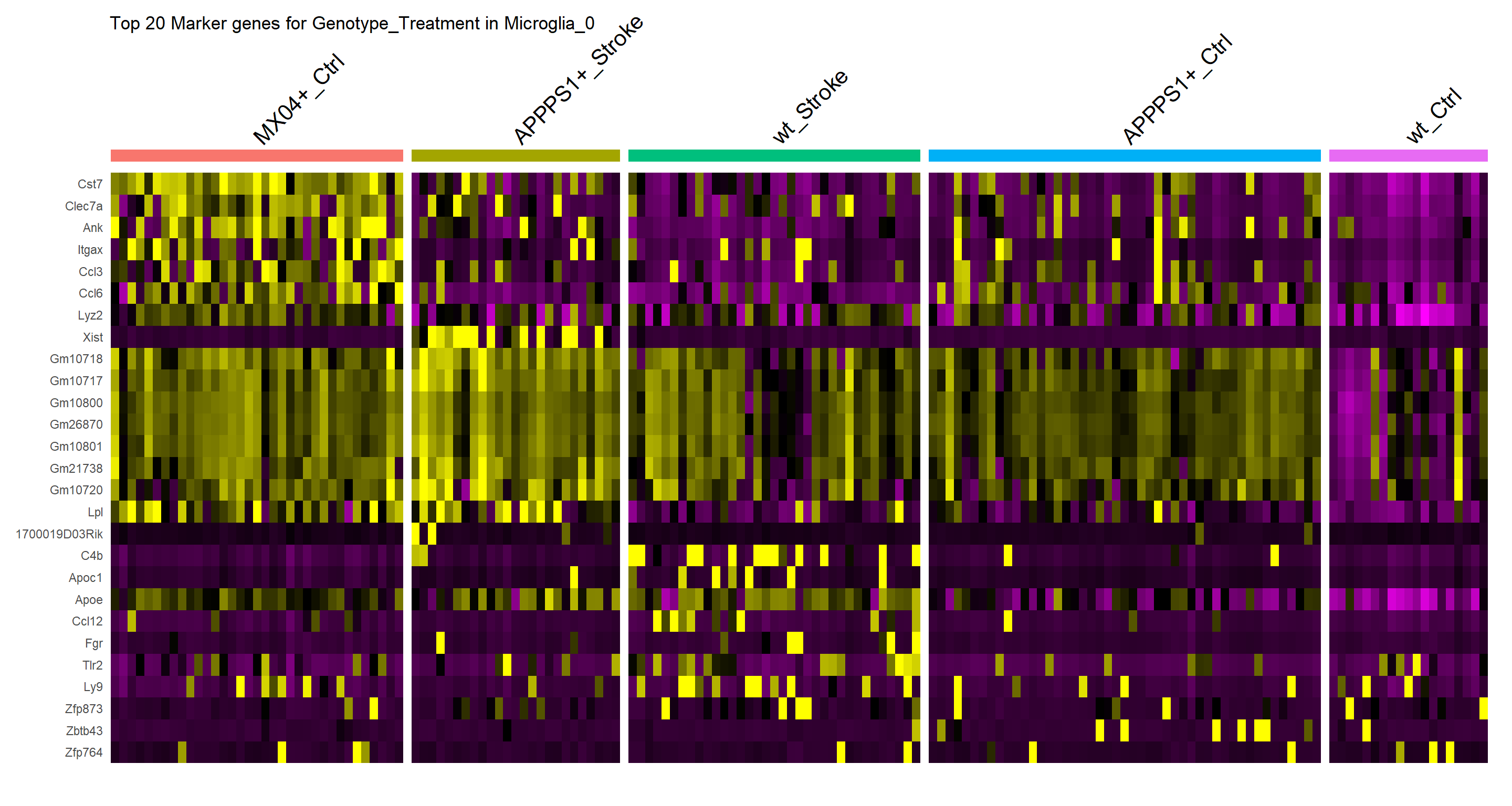

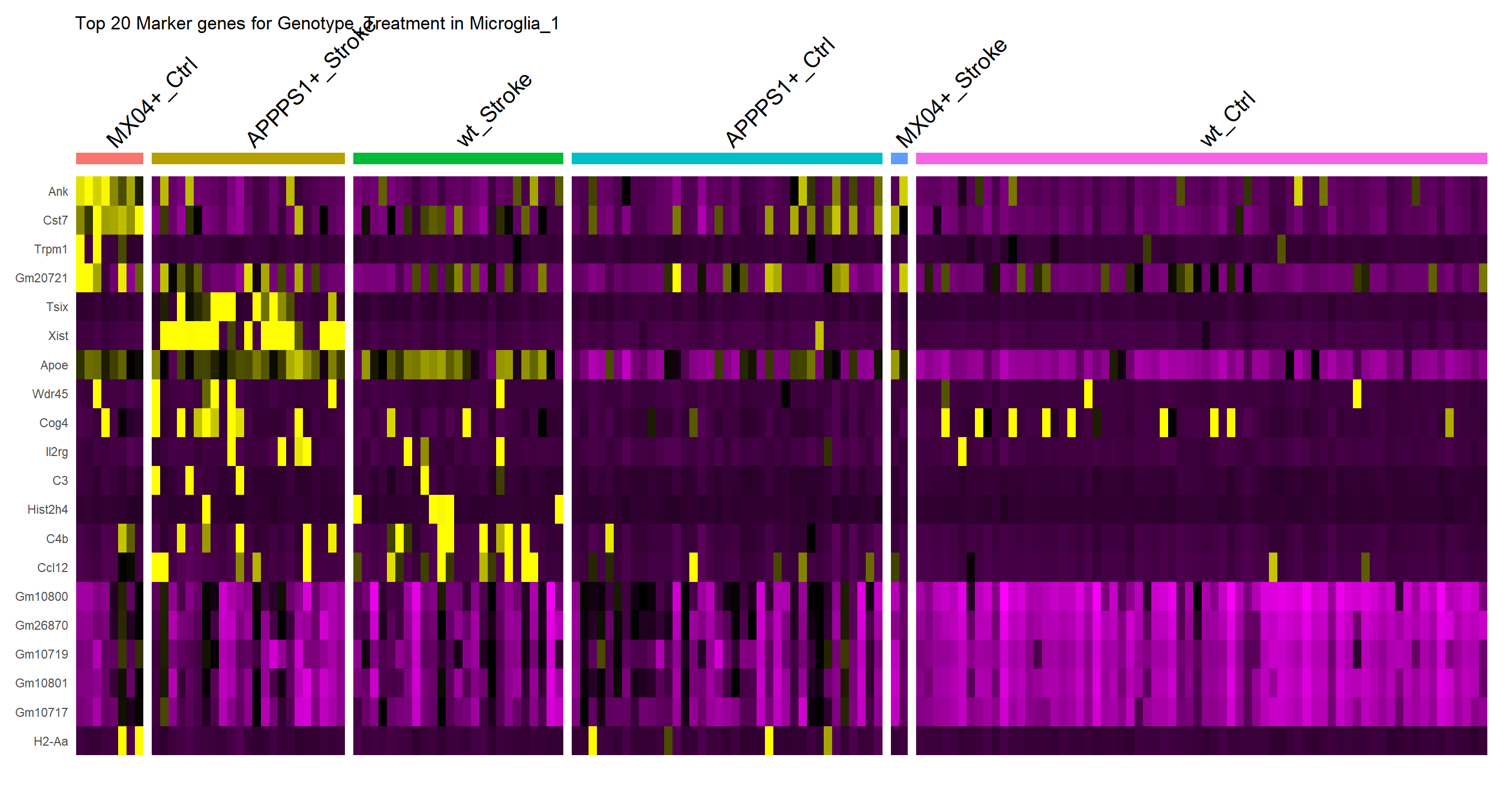

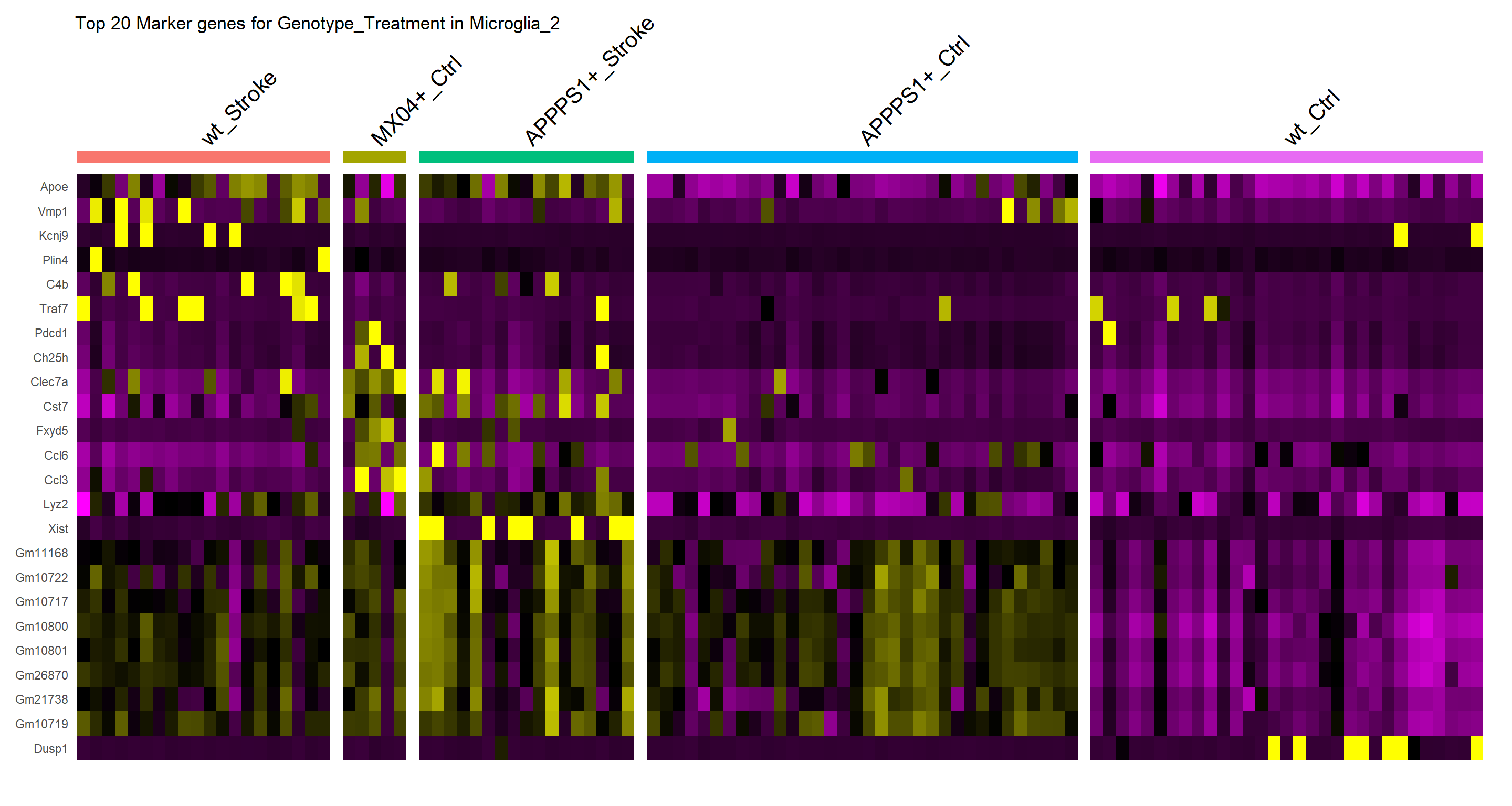

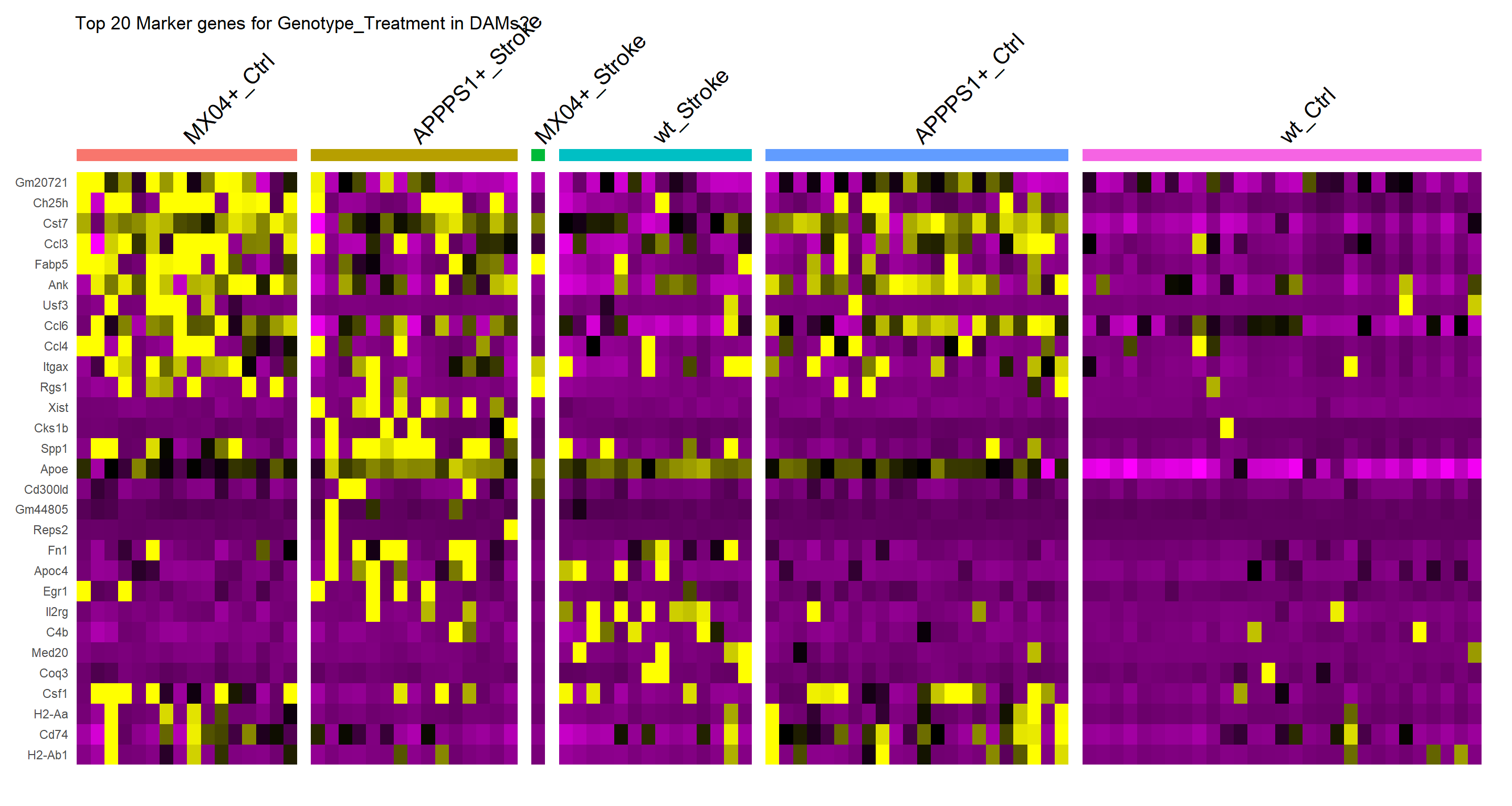

Genotype + Treatment comparison in each cluster
Microglia_0
Microglia_1
Microglia_2
DAM?
Microglia_4
Microglia_5
sessionInfo()R version 4.1.2 (2021-11-01)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 18363)
Matrix products: default
locale:
[1] LC_COLLATE=German_Germany.1252 LC_CTYPE=German_Germany.1252
[3] LC_MONETARY=German_Germany.1252 LC_NUMERIC=C
[5] LC_TIME=German_Germany.1252
attached base packages:
[1] stats4 stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] scales_1.1.1 pheatmap_1.0.12
[3] EnhancedVolcano_1.12.0 ggrepel_0.9.1
[5] SingleR_1.8.1 SummarizedExperiment_1.24.0
[7] Biobase_2.54.0 GenomicRanges_1.46.1
[9] GenomeInfoDb_1.30.1 IRanges_2.28.0
[11] S4Vectors_0.32.3 BiocGenerics_0.40.0
[13] MatrixGenerics_1.6.0 matrixStats_0.61.0
[15] ggplot2_3.3.5 SeuratObject_4.0.4
[17] Seurat_4.1.0 workflowr_1.7.0
loaded via a namespace (and not attached):
[1] scattermore_0.7 tidyr_1.1.4
[3] bit64_4.0.5 knitr_1.37
[5] irlba_2.3.5 DelayedArray_0.20.0
[7] data.table_1.14.2 rpart_4.1.16
[9] KEGGREST_1.34.0 RCurl_1.98-1.5
[11] generics_0.1.2 ScaledMatrix_1.2.0
[13] callr_3.7.0 cowplot_1.1.1
[15] RSQLite_2.2.9 shadowtext_0.1.1
[17] RANN_2.6.1 future_1.23.0
[19] bit_4.0.4 enrichplot_1.14.1
[21] spatstat.data_2.1-2 httpuv_1.6.5
[23] assertthat_0.2.1 viridis_0.6.2
[25] xfun_0.29 jquerylib_0.1.4
[27] evaluate_0.14 promises_1.2.0.1
[29] fansi_1.0.2 igraph_1.2.11
[31] DBI_1.1.2 htmlwidgets_1.5.4
[33] spatstat.geom_2.3-1 purrr_0.3.4
[35] ellipsis_0.3.2 dplyr_1.0.7
[37] deldir_1.0-6 sparseMatrixStats_1.6.0
[39] vctrs_0.3.8 Cairo_1.5-14
[41] ROCR_1.0-11 abind_1.4-5
[43] cachem_1.0.6 withr_2.4.3
[45] ggforce_0.3.3 sctransform_0.3.3
[47] treeio_1.18.1 goftest_1.2-3
[49] cluster_2.1.2 DOSE_3.20.1
[51] ape_5.6-1 lazyeval_0.2.2
[53] crayon_1.4.2 pkgconfig_2.0.3
[55] labeling_0.4.2 tweenr_1.0.2
[57] nlme_3.1-155 vipor_0.4.5
[59] rlang_1.0.0 globals_0.14.0
[61] lifecycle_1.0.1 miniUI_0.1.1.1
[63] downloader_0.4 extrafontdb_1.0
[65] rsvd_1.0.5 ggrastr_1.0.1
[67] rprojroot_2.0.2 polyclip_1.10-0
[69] lmtest_0.9-39 Matrix_1.4-0
[71] aplot_0.1.2 zoo_1.8-9
[73] beeswarm_0.4.0 whisker_0.4
[75] ggridges_0.5.3 processx_3.5.2
[77] png_0.1-7 viridisLite_0.4.0
[79] bitops_1.0-7 getPass_0.2-2
[81] KernSmooth_2.23-20 Biostrings_2.62.0
[83] blob_1.2.2 DelayedMatrixStats_1.16.0
[85] stringr_1.4.0 qvalue_2.26.0
[87] parallelly_1.30.0 gridGraphics_0.5-1
[89] beachmat_2.10.0 memoise_2.0.1
[91] magrittr_2.0.2 plyr_1.8.6
[93] ica_1.0-2 zlibbioc_1.40.0
[95] compiler_4.1.2 scatterpie_0.1.7
[97] RColorBrewer_1.1-2 ash_1.0-15
[99] fitdistrplus_1.1-6 cli_3.1.1
[101] XVector_0.34.0 listenv_0.8.0
[103] patchwork_1.1.1 pbapply_1.5-0
[105] ps_1.6.0 MASS_7.3-55
[107] mgcv_1.8-38 tidyselect_1.1.1
[109] stringi_1.7.6 highr_0.9
[111] proj4_1.0-10.1 yaml_2.2.2
[113] GOSemSim_2.20.0 BiocSingular_1.10.0
[115] grid_4.1.2 sass_0.4.0
[117] fastmatch_1.1-3 tools_4.1.2
[119] future.apply_1.8.1 parallel_4.1.2
[121] rstudioapi_0.13 git2r_0.29.0
[123] gridExtra_2.3 farver_2.1.0
[125] Rtsne_0.15 ggraph_2.0.5
[127] digest_0.6.29 shiny_1.7.1
[129] Rcpp_1.0.8 ggalt_0.4.0
[131] later_1.3.0 RcppAnnoy_0.0.19
[133] httr_1.4.2 AnnotationDbi_1.56.2
[135] colorspace_2.0-2 fs_1.5.2
[137] tensor_1.5 reticulate_1.24
[139] splines_4.1.2 uwot_0.1.11
[141] yulab.utils_0.0.4 tidytree_0.3.7
[143] spatstat.utils_2.3-0 graphlayouts_0.8.0
[145] ggplotify_0.1.0 plotly_4.10.0
[147] xtable_1.8-4 jsonlite_1.7.3
[149] ggtree_3.2.1 tidygraph_1.2.0
[151] ggfun_0.0.5 R6_2.5.1
[153] pillar_1.7.0 htmltools_0.5.2
[155] mime_0.12 glue_1.6.1
[157] fastmap_1.1.0 clusterProfiler_4.2.2
[159] BiocParallel_1.28.3 BiocNeighbors_1.12.0
[161] codetools_0.2-18 maps_3.4.0
[163] fgsea_1.20.0 utf8_1.2.2
[165] lattice_0.20-45 bslib_0.3.1
[167] spatstat.sparse_2.1-0 tibble_3.1.6
[169] ggbeeswarm_0.6.0 leiden_0.3.9
[171] GO.db_3.14.0 Rttf2pt1_1.3.9
[173] survival_3.2-13 rmarkdown_2.11
[175] munsell_0.5.0 DO.db_2.9
[177] GenomeInfoDbData_1.2.7 reshape2_1.4.4
[179] gtable_0.3.0 spatstat.core_2.3-2
[181] extrafont_0.17
