Supplement Figure 2
Anna Joachimbauer
2024-10-02
Last updated: 2026-03-03
Checks: 6 1
Knit directory: Serology Analysis/
This reproducible R Markdown analysis was created with workflowr (version 1.7.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
The R Markdown is untracked by Git. To know which version of the R
Markdown file created these results, you’ll want to first commit it to
the Git repo. If you’re still working on the analysis, you can ignore
this warning. When you’re finished, you can run
wflow_publish to commit the R Markdown file and build the
HTML.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20260121) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version f44c37b. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: analysis/.DS_Store
Ignored: analysis/.RData
Ignored: analysis/.Rhistory
Ignored: output/.DS_Store
Untracked files:
Untracked: analysis/.RData 2
Untracked: analysis/Figure 1.Rmd
Untracked: analysis/Figure 2.Rmd
Untracked: analysis/Figure 3.Rmd
Untracked: analysis/SFigure 1.Rmd
Untracked: analysis/SFigure 2.Rmd
Untracked: analysis/SFigure-2.Rmd
Untracked: output/SFigure2/
Unstaged changes:
Modified: .gitignore
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
There are no past versions. Publish this analysis with
wflow_publish() to start tracking its development.
Load Packages
suppressPackageStartupMessages({
# Data handling
library(tidyverse)
library(data.table)
library(magrittr)
library(janitor)
library(here)
library(scales)
library(table1)
library(tableone)
library(flextable)
library(gtsummary)
library(openxlsx)
library(writexl)
library(readxl)
# Visualization
library(ggplot2)
library(ggpubr)
library(ggrepel)
library(ggbeeswarm)
library(ggcorrplot)
library(corrplot)
library(pheatmap)
library(ComplexHeatmap)
library(circlize)
library(RColorBrewer)
library(EnhancedVolcano)
library(plotly)
library(patchwork)
library(cowplot)
library(gridExtra)
library(grid)
library(ggpattern)
# Statistics
library(rstatix)
library(multcomp)
library(car)
library(Hmisc)
library(MASS)
library(MuMIn)
library(broom)
library(glmnet)
library(logistf)
library(drc)
library(caret)
library(mice)
library(pROC)
# Clustering
library(randomForest)
library(factoextra)
library(cluster)
library(Rtsne)
library(umap)
library(dbscan)
library(kernlab)
library(Seurat)
# Others
library(ImmunoLogic)
})Define Filepath
basedir <- here()Read Data (Healthy, Cohort 1, Cohort 2)
# Import Luminex Data
table_lum_healthy <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Lum_Healthy_DL_corr.xlsx")) %>%
dplyr::select(-RANTES)
table_lum_cohort1 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Lum_Cohort1_DL_corr.xlsx")) %>%
dplyr::select(-RANTES)
table_lum_cohort2 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Lum_Cohort2_DL_corr.xlsx")) %>%
dplyr::select(-RANTES)
# Combine Tables
table_lum_myo_healthy <- rbind(table_lum_cohort2, table_lum_cohort1, table_lum_healthy)Luminex Heatmap (Healthy, Cohort 1, Cohort 2)
# Name Rownames with study ID and remove Study ID and Cohort column
rownames(table_lum_myo_healthy) <- table_lum_myo_healthy$Study_ID
table_lum_myo_healthy_01 <- subset(table_lum_myo_healthy, select = -c(Study_ID, Cohort))
# Remove parameters if they are all the same in all groups
table_lum_myo_healthy_01 <- Filter(var, table_lum_myo_healthy_01)
# Transpose Data Table
table_lum_myo_healthy_01_t <- t(table_lum_myo_healthy_01)
## Column Annotations
# Create list with Study_ID & Cohort
list_cohort_group <- subset(table_lum_myo_healthy, select= c(Study_ID, Cohort))
rownames(list_cohort_group) <- list_cohort_group$Study_ID
list_cohort_group <- subset(list_cohort_group, select= -c(Study_ID))
## Row Annotations
# Create list with Parameters
list_parameter_groups <- read_xlsx("/Users/annajoachimbauer/Documents/Projects/ImmpathCarditis/Data Analysis/Data/Luminex/Grouping of Lumminex Marker.xlsx", sheet = "Groups")
# Create list with Columns of data table
list_parameter_datatable <- as.data.frame(rownames(table_lum_myo_healthy_01_t))
colnames(list_parameter_datatable) <- "Parameter"
# Merge to match the order of parameters
list_parameter_groups_01 <- merge(list_parameter_groups, list_parameter_datatable, by.y = "Parameter")
# Define the predefined order for Group
group_order <- c("Cytokines", "Chemokines", "Tissue Cytokines")
# Order list based on predefined order
list_parameter_groups_02 <- list_parameter_groups_01 %>%
mutate(Group = factor(Group, levels = group_order)) %>%
arrange(Group)
list_parameter_groups_03 <- unlist(list_parameter_groups_02$Parameter)
# Reorder Data Table based on the new ordered list
table_lum_myo_healthy_01_t_ordered <- as.data.frame(table_lum_myo_healthy_01_t)
table_lum_myo_healthy_01_t_ordered <- table_lum_myo_healthy_01_t_ordered[list_parameter_groups_03, , drop = FALSE]
# Convert it back to matrix
table_lum_myo_healthy_01_t_ordered <- as.matrix(table_lum_myo_healthy_01_t_ordered)
# Log Transform
table_lum_myo_healthy_01_t_ordered <- log2(table_lum_myo_healthy_01_t_ordered)
# Scale
table_lum_myo_healthy_01_t_ordered <- t(apply(table_lum_myo_healthy_01_t_ordered, 1, scale))
# Create Cohort Label Colors of Annotations in heatmap
ann_colors <- list(Cohort = c("Cohort2" = "orange", "Cohort1" = "royalblue4", "Healthy" = "grey"),
Group = c("Cytokines" = "darkseagreen", "Chemokines" = "lightblue", "Tissue Cytokines" = "mediumpurple3"))
## Column Annotation
col_anno <- HeatmapAnnotation(df = list_cohort_group, col = ann_colors)
## Row Annotation
# Prepare row annotations as a data frame
row_anno <- rowAnnotation(Group = list_parameter_groups_02$Group,
col = list(Group = c("Cytokines" = "darkseagreen",
"Chemokines" = "lightblue",
"Tissue Cytokines" = "mediumpurple3")))

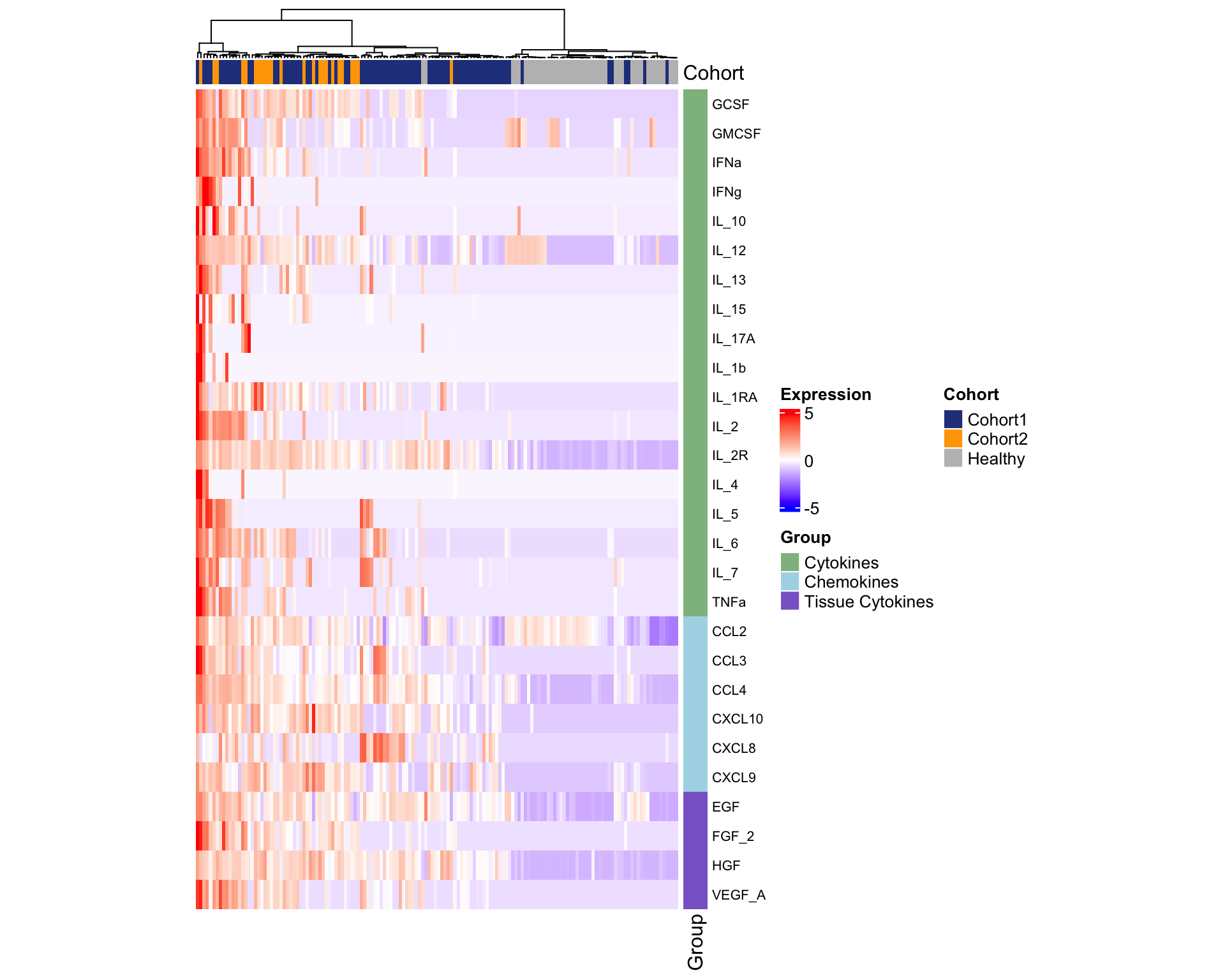

# Create Heatmap
heatmap_lum <- Heatmap(table_lum_myo_healthy_01_t_ordered,
name = "Expression",
col = circlize::colorRamp2(c(-5, 0, 5), c("blue", "white", "red")),
cluster_rows = FALSE,
cluster_columns = TRUE,
clustering_method_columns = "ward.D",
show_column_names = TRUE,
column_names_gp = gpar(fontsize = 8),
row_names_gp = gpar(fontsize = 8),
width = unit(10, "cm"), height = unit(17, "cm"),
right_annotation = row_anno,
top_annotation = col_anno)
# Draw Heatmap
heatmap_lum
Warning! The custom
fig.path you set was
ignored by workflowr.
Data Preparation (Cohort 1 & Healthy)
# Combine Tables
table_lum_cohort1_healthy <- rbind(table_lum_cohort1, table_lum_healthy)
# Remove Columns with same value in all individuals (Variance = 0)
table_lum_cohort1_healthy <- table_lum_cohort1_healthy %>%
select_if(~ !(is.numeric(.) && var(., na.rm = TRUE) == 0))Volcano Plot (Cohort 1 & Healthy)
# Set rownames
rownames(table_lum_cohort1_healthy) <- table_lum_cohort1_healthy$Study_ID
# Calculate p-values between AM and healthy
# Create the loop.vector (all the parameter columns)
names(which(sapply(table_lum_cohort1_healthy, is.numeric) == TRUE)) -> parameters
# Create table for stats
table_lum_cohort1_healthy_stat <- data.table (Parameter = numeric(), group1 = character(),
group2 = character(), n1 = numeric(),
n2 = numeric(), statistic = numeric (),
p = numeric (), p.signif = character(), FDR = numeric())
# Create loop for calculation of stat test by parameter between cohort1 and healthy cohort
for (i in parameters)
{
# Formula to insert parameter in loop
formula = as.formula( paste(i, "Cohort", sep="~") )
stat_parameter <- table_lum_cohort1_healthy %>%
wilcox_test(formula = formula) %>%
add_significance() %>%
mutate(FDR = p.adjust(p, method = "BH")) %>%
rename(Parameter = .y.)
# Combine currently calculated stats with previous calculations
table_lum_cohort1_healthy_stat <- rbind(table_lum_cohort1_healthy_stat, stat_parameter)
}
# Calculate FC between AM and healthy
# Calculate Mean of parameters per group
table_lum_cohort1_healthy_log2 <- table_lum_cohort1_healthy %>%
group_by(Cohort) %>%
summarise(across(FGF_2:CXCL8, ~ mean(.x, na.rm = TRUE)))
# Transverse Data Table and set rownames
table_lum_cohort1_healthy_log2_t <- table_lum_cohort1_healthy_log2 %>%
t %>%
as.data.frame() %>%
row_to_names(1)
# Convert whole data table to numeric
table_lum_cohort1_healthy_log2_t <- mutate_all(table_lum_cohort1_healthy_log2_t,
function(x) as.numeric(as.character(x)))
# Calculate FC between healthy and cohort1
table_lum_cohort1_healthy_log2_t$log2_fc <- log2(table_lum_cohort1_healthy_log2_t$Cohort1 /
table_lum_cohort1_healthy_log2_t$Healthy)
# Add p-values to data table
# Extract only Parameters and p-values
stat.test_p <- table_lum_cohort1_healthy_stat %>%
dplyr::select(Parameter, FDR)
# Merge data tables (log2, FC, p val)
table_lum_cohort1_healthy_log2_t$Parameter <- rownames(table_lum_cohort1_healthy_log2_t)
table_lum_cohort1_healthy_volcano <- merge(table_lum_cohort1_healthy_log2_t, stat.test_p, by = "Parameter")

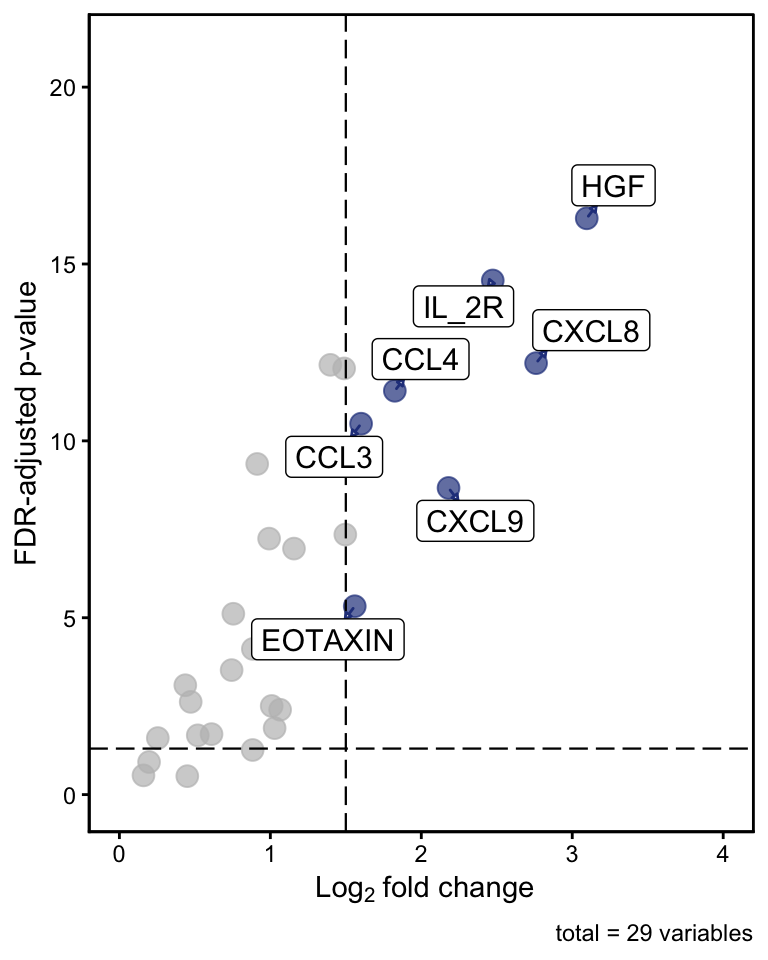

# Create Volcano Plot
# Mark parameters if FC > 1.5 = upregulated
table_lum_cohort1_healthy_volcano$diff_expression <- ifelse (table_lum_cohort1_healthy_volcano$log2_fc > 1.5,
"up", "no")
# Add new column to relabel parameters FC of > 1.5
table_lum_cohort1_healthy_volcano$label_para <- ifelse (table_lum_cohort1_healthy_volcano$log2_fc > 1.5,
table_lum_cohort1_healthy_volcano$Parameter, "")
plot_volcano <- EnhancedVolcano(table_lum_cohort1_healthy_volcano,
lab = table_lum_cohort1_healthy_volcano$label_para,
x = 'log2_fc', y = 'FDR',
FCcutoff = 1.5, pointSize = 3.5, labSize = 4, colAlpha = 0.7,
boxedLabels = TRUE, col = c("grey", "grey", "grey", "royalblue4"),
xlab = bquote(~Log[2]~ "fold change"), ylab = bquote("FDR-adjusted p-value"),
xlim = c(0, 4), ylim = c(0, 21), pCutoff = 0.05,
title = NULL, subtitle = NULL, border = 'full',
drawConnectors = TRUE,widthConnectors = 0.5, colConnectors = "royalblue4") +
theme_classic() +
theme(panel.grid = element_blank(),
panel.border = element_rect(colour = "black", fill = NA,),
legend.position = "none")
print( plot_volcano)
Warning! The custom
fig.path you set was
ignored by workflowr.

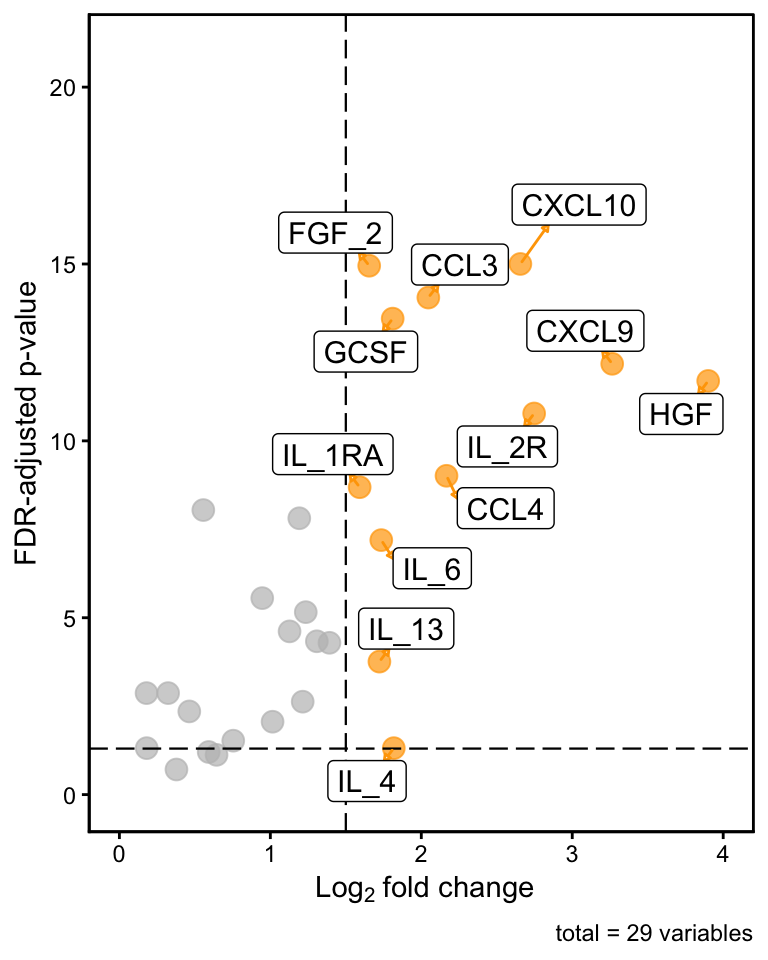

Data Preparation (Cohort 2 & Healthy)
# Combine Tables
table_lum_cohort2_healthy <- rbind(table_lum_cohort2, table_lum_healthy)
# Remove Columns with same value in all individuals (Variance = 0)
table_lum_cohort2_healthy <- table_lum_cohort2_healthy %>%
select_if(~ !(is.numeric(.) && var(., na.rm = TRUE) == 0))Volcano Plot (Cohort 2 & Healthy)
# Set rownames
rownames(table_lum_cohort2_healthy) <- table_lum_cohort2_healthy$Study_ID
# Calculate p-values between AM and healthy
# Create the loop.vector (all the parameter columns)
names(which(sapply(table_lum_cohort2_healthy, is.numeric) == TRUE)) -> parameters
# Create table for stats
table_lum_cohort2_healthy_stat <- data.table (Parameter = numeric(), group1 = character(),
group2 = character(), n1 = numeric(),
n2 = numeric(), statistic = numeric (),
p = numeric (), p.signif = character(), FDR = numeric())
# Create loop for calculation of stat test by parameter between cohort1 and healthy cohort
for (i in parameters)
{
# Formula to insert parameter in loop
formula = as.formula( paste(i, "Cohort", sep="~") )
stat_parameter <- table_lum_cohort2_healthy %>%
wilcox_test(formula = formula) %>%
add_significance() %>%
mutate(FDR = p.adjust(p, method = "BH")) %>%
rename(Parameter = .y.)
# Combine currently calculated stats with previous calculations
table_lum_cohort2_healthy_stat <- rbind(table_lum_cohort2_healthy_stat, stat_parameter)
}
# Calculate FC between AM and healthy
# Calculate Mean of parameters per group
table_lum_cohort2_healthy_log2 <- table_lum_cohort2_healthy %>%
group_by(Cohort) %>%
summarise(across(FGF_2:CXCL8, ~ mean(.x, na.rm = TRUE)))
# Transverse Data Table and set rownames
table_lum_cohort2_healthy_log2_t <- table_lum_cohort2_healthy_log2 %>%
t %>%
as.data.frame() %>%
row_to_names(1)
# Convert whole data table to numeric
table_lum_cohort2_healthy_log2_t <- mutate_all(table_lum_cohort2_healthy_log2_t,
function(x) as.numeric(as.character(x)))
# Calculate FC between healthy and cohort1
table_lum_cohort2_healthy_log2_t$log2_fc <- log2(table_lum_cohort2_healthy_log2_t$Cohort2 /
table_lum_cohort2_healthy_log2_t$Healthy)
# Add p-values to data table
# Extract only Parameters and p-values
stat.test_p <- table_lum_cohort2_healthy_stat %>%
dplyr::select(Parameter, FDR)
# Merge data tables (log2, FC, p val)
table_lum_cohort2_healthy_log2_t$Parameter <- rownames(table_lum_cohort2_healthy_log2_t)
table_lum_cohort2_healthy_volcano <- merge(table_lum_cohort2_healthy_log2_t, stat.test_p, by = "Parameter")
# Create Volcano Plot
# Mark parameters if FC > 1.5 = upregulated
table_lum_cohort2_healthy_volcano$diff_expression <- ifelse (table_lum_cohort2_healthy_volcano$log2_fc > 1.5,
"up", "no")
# Add new column to relabel parameters FC of > 1.5
table_lum_cohort2_healthy_volcano$label_para <- ifelse (table_lum_cohort2_healthy_volcano$log2_fc > 1.5,
table_lum_cohort2_healthy_volcano$Parameter, "")
plot_volcano <- EnhancedVolcano(table_lum_cohort2_healthy_volcano,
lab = table_lum_cohort2_healthy_volcano$label_para,
x = 'log2_fc', y = 'FDR',
FCcutoff = 1.5, pointSize = 3.5, labSize = 4, colAlpha = 0.7,
boxedLabels = TRUE, col = c("grey", "grey", "grey", "orange"),
xlab = bquote(~Log[2]~ "fold change"), ylab = bquote("FDR-adjusted p-value"),
xlim = c(0, 4), ylim = c(0, 21), pCutoff = 0.05,
title = NULL, subtitle = NULL, border = 'full',
drawConnectors = TRUE,widthConnectors = 0.5, colConnectors = "orange") +
theme_classic() +
theme(panel.grid = element_blank(),
panel.border = element_rect(colour = "black", fill = NA,),
legend.position = "none")
print( plot_volcano)
Warning! The custom
fig.path you set was
ignored by workflowr.

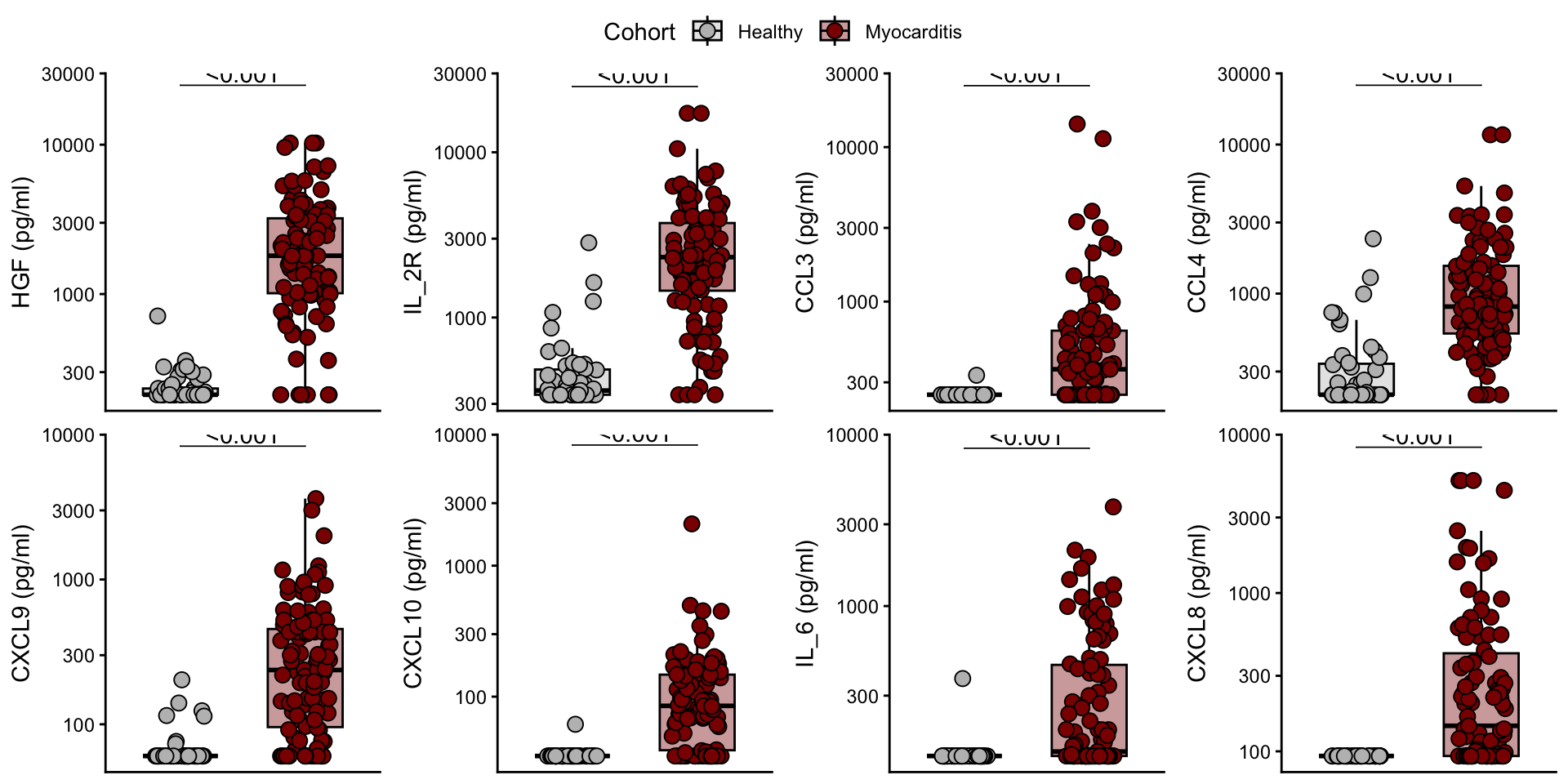

Comparison AM Cohort & Healthy selected parameters
# Subset Data Table
rownames(table_lum_myo_healthy) <- table_lum_myo_healthy$Study_ID
table_lum_myo_healthy_01 <- table_lum_myo_healthy
# Rename Cohorts to combine myocarditis patients
table_lum_myo_healthy_01$Cohort <- ifelse(table_lum_myo_healthy_01$Cohort == "Healthy", "Healthy", "Myocarditis")
# Prepare data table
table_para <- table_lum_myo_healthy_01 %>%
pivot_longer(cols = where(is.numeric),
names_to = "Parameter",
values_to = "Parameter_val")
# Log Transform Parameters
table_para$Parameter_val_log10 <- log10(table_para$Parameter_val)
# Calculate Stats
# Wilcox Test
stat.test <- table_para %>%
group_by(Parameter) %>%
wilcox_test(Parameter_val ~ Cohort) %>%
add_significance() %>%
mutate(p_adj = p.adjust(p, method = "BH"))
# Get max value per parameter (for p-value position)
max_y <- table_para %>%
group_by(Parameter) %>%
summarise(max_val = max(Parameter_val, na.rm = TRUE))
# Get min value per parameter (for y limits)
min_y <- table_para %>%
group_by(Parameter) %>%
summarise(min_val = min(Parameter_val, na.rm = TRUE))
# Combine with max_y info for plotting
stat.test <- stat.test %>%
left_join(max_y, by = "Parameter") %>%
mutate(y.position = max_val * 1)
# Create the loop to create a plot
param <- c("HGF", "IL_2R", "CCL3", "CCL4")
# Create a list for all plots created in the loop
plots_list <- list()
for (param in param)
{
# Filter for the data
temp_data <- table_para %>%
filter(Parameter == param)
temp_stat_test <- stat.test %>%
filter(Parameter == param) %>%
mutate(p_adj_label = ifelse(p_adj < 0.001, "<0.001", sprintf("%.3f", p_adj)))
temp_stat_test <- temp_stat_test %>%
mutate(y.position = 30000 / 1.2)
# Plot Boxplot
plot <- ggplot(temp_data, aes(x = Cohort, y = Parameter_val)) +
geom_boxplot(aes(fill = Cohort), color = "black", outlier.shape = NA,
width = 0.6, alpha = 0.4) +
geom_point(shape = 21, size = 3, color = "black", aes(fill = Cohort),
position = position_jitter(width = 0.2, height = 0)) +
scale_y_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = c(NA, 30000),
expand = expansion(mult = c(0.05, 0), add = c(0,0))) +
scale_fill_manual(values = c("Myocarditis" = "darkred",
"Healthy" = "grey")) +
stat_pvalue_manual(temp_stat_test,label = "p_adj_label",
y.position = log10(temp_stat_test$y.position),
tip.length = 0) +
labs(x = NULL, y = paste0(param, " (pg/ml)")) +
theme_classic() +
theme(axis.title.x = element_blank(),
axis.text.x = element_blank(),
axis.ticks.x = element_blank(),
legend.position = "none")
plots_list[[param]] <- plot
}
# Create the loop to create a plot
param <- c("CXCL9", "CXCL10", "IL_6", "CXCL8")
# Create a list for all plots created in the loop
plots_list_2 <- list()
for (param in param)
{
# Filter for the data
temp_data <- table_para %>%
filter(Parameter == param)
temp_stat_test <- stat.test %>%
filter(Parameter == param) %>%
mutate(p_adj_label = ifelse(p_adj < 0.001, "<0.001", sprintf("%.3f", p_adj)))
temp_stat_test <- temp_stat_test %>%
mutate(y.position = 10000 / 1.2)
# Plot Boxplot
plot <- ggplot(temp_data, aes(x = Cohort, y = Parameter_val)) +
geom_boxplot(aes(fill = Cohort), color = "black", outlier.shape = NA,
width = 0.6, alpha = 0.4) +
geom_point(shape = 21, size = 3, color = "black", aes(fill = Cohort),
position = position_jitter(width = 0.2, height = 0)) +
scale_y_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = c(NA, 10000), breaks = c(100, 300, 1000, 3000, 10000),
expand = expansion(mult = c(0.05, 0), add = c(0,0))) +
scale_fill_manual(values = c("Myocarditis" = "darkred",
"Healthy" = "grey")) +
stat_pvalue_manual(temp_stat_test,label = "p_adj_label",
y.position = log10(temp_stat_test$y.position),
tip.length = 0) +
labs(x = NULL, y = paste0(param, " (pg/ml)")) +
theme_classic() +
theme(axis.title.x = element_blank(),
axis.text.x = element_blank(),
axis.ticks.x = element_blank(),
legend.position = "none")
plots_list_2[[param]] <- plot
}
# Combine plots to a panel
panel <- ggarrange(plotlist = c(plots_list, plots_list_2),
ncol = 4, nrow = ceiling(length(plots_list) / 3),
common.legend = TRUE)
print(panel)
Warning! The custom
fig.path you set was
ignored by workflowr.
Data Preparation Correlation (Healthy, Cohort 1, Cohort 2)
# Import routine blood parameters
table_clindat_healthy <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Serology_Healthy.xlsx")) %>%
dplyr::select(Study_ID, Trop_I, NTproBNP, CRP)
table_clindat_cohort1 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_ClinicalData_Cohort1.xlsx")) %>%
dplyr::select(Study_ID, Trop_I, NTproBNP, CRP)
table_clindat_cohort2 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_ClinicalData_Cohort2.xlsx")) %>%
dplyr::select(Study_ID, Trop_I, NTproBNP, CRP)
# Combine
table_clindat <- bind_rows(table_clindat_cohort1, table_clindat_healthy, table_clindat_cohort2)
# Merge all data tables
table_all_data <- table_lum_myo_healthy %>%

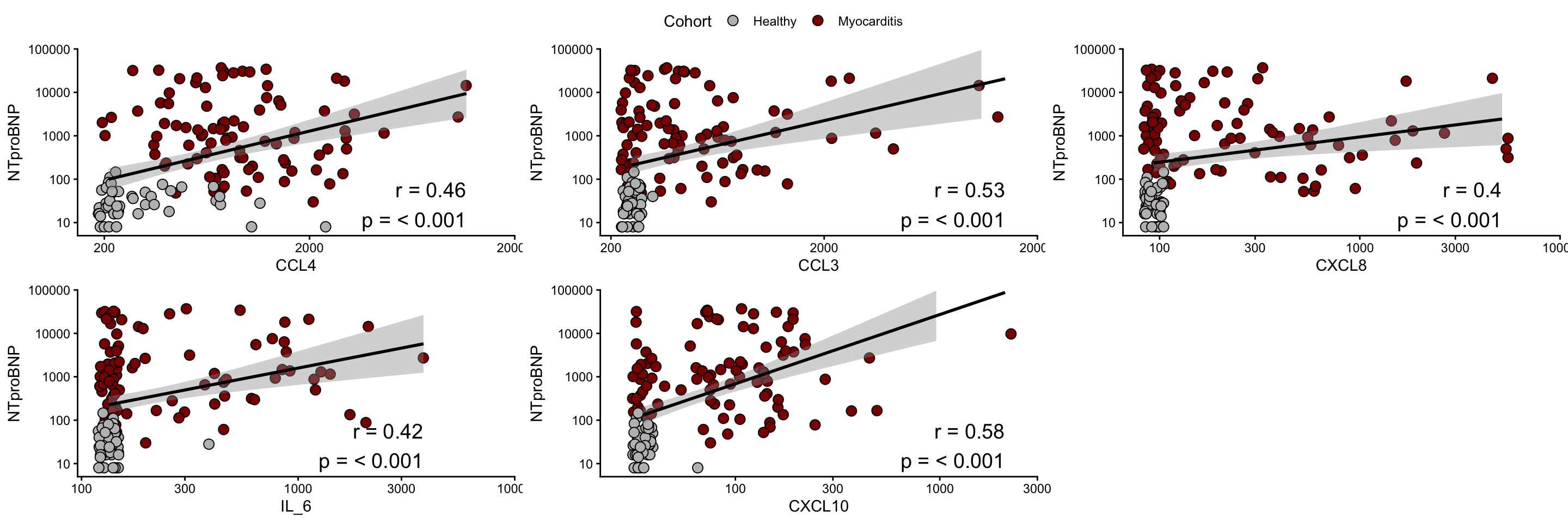

left_join(table_clindat, by = "Study_ID")Correlation Plots NTproBNP & selected Parameters (Healthy, Cohort 1, Cohort 2)
# Rename Cohorts
table_corr <- table_all_data %>%
mutate(Cohort = if_else (Cohort == "Healthy", "Healthy", "Myocarditis"))
# Fixed variable
fixed_param <- "NTproBNP"
# Variables to loop over
param_x <- c("CCL4", "CCL3")
# Create list for plots
plots_list <- list()
# Loop through variables
for (xvar in param_x)
{
# Compute Spearman correlation
cor_test <- cor.test(table_corr[[fixed_param]], table_corr[[xvar]], method = "spearman")
# Create scatter plot
plot_corr <- ggplot(table_corr, aes_string(x = xvar, y = fixed_param)) +
geom_point(shape = 21, size = 3, color = "black", aes(fill = Cohort),
position = position_jitter(width = 0.05, height = 0)) +
geom_smooth(method = "lm", se = TRUE, color = "black") +
scale_fill_manual(values = c("Myocarditis" = "darkred",
"Healthy" = "grey")) +
scale_y_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = c(NA, 100000),
expand = expansion(mult = c(0.05, 0), add = c(0,0))) +
scale_x_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = c(NA, 20000), breaks = c(200, 2000, 20000),
expand = expansion(mult = c(0.05, 0), add = c(0,0))) +
theme_classic() +
labs( y = fixed_param, x = xvar) +
annotate("text", y = min(table_corr[[fixed_param]], na.rm = TRUE),
x = max(table_corr[[xvar]], na.rm = TRUE),
label = paste0("r = ", round(cor_test$estimate, 2),
"\np = ", ifelse(cor_test$p.value < 0.001, "< 0.001", signif(cor_test$p.value, 3))),
hjust = 1, vjust = 0, size = 5)
# Save plot in list
plots_list[[xvar]] <- plot_corr
}
# Fixed variable
fixed_param <- "NTproBNP"
# Variables to loop over
param_x <- c("CXCL8", "IL_6")
# Create list for plots
plots_list_2 <- list()
# Loop through variables
for (xvar in param_x)
{
# Compute Spearman correlation
cor_test <- cor.test(table_corr[[fixed_param]], table_corr[[xvar]], method = "spearman")
# Create scatter plot
plot_corr <- ggplot(table_corr, aes_string(x = xvar, y = fixed_param)) +
geom_point(shape = 21, size = 3, color = "black", aes(fill = Cohort),
position = position_jitter(width = 0.05, height = 0)) +
geom_smooth(method = "lm", se = TRUE, color = "black") +
scale_fill_manual(values = c("Myocarditis" = "darkred",
"Healthy" = "grey")) +
scale_y_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = c(NA, 100000),
expand = expansion(mult = c(0.05, 0), add = c(0,0))) +
scale_x_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = c(NA, 10000), breaks = c(100, 300, 1000, 3000, 10000),
expand = expansion(mult = c(0.05, 0), add = c(0,0))) +
theme_classic() +
labs( y = fixed_param, x = xvar) +
annotate("text", y = min(table_corr[[fixed_param]], na.rm = TRUE),
x = max(table_corr[[xvar]], na.rm = TRUE),
label = paste0("r = ", round(cor_test$estimate, 2),
"\np = ", ifelse(cor_test$p.value < 0.001, "< 0.001", signif(cor_test$p.value, 3))),
hjust = 1, vjust = 0, size = 5)
# Save plot in list
plots_list_2[[xvar]] <- plot_corr
}
# Create scatter plot
# Compute Spearman correlation
cor_test <- cor.test(table_corr[[fixed_param]], table_corr[["CXCL10"]], method = "spearman")
plot_corr_3 <- ggplot(table_corr, aes_string(x = "CXCL10", y = fixed_param)) +
geom_point(shape = 21, size = 3, color = "black", aes(fill = Cohort),
position = position_jitter(width = 0.05, height = 0)) +
geom_smooth(method = "lm", se = TRUE, color = "black") +
scale_fill_manual(values = c("Myocarditis" = "darkred",
"Healthy" = "grey")) +
scale_y_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = c(NA, 100000),
expand = expansion(mult = c(0.05, 0), add = c(0,0))) +
scale_x_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = c(NA, 3000), breaks = c(100, 300, 1000, 3000),
expand = expansion(mult = c(0.08, 0), add = c(0,0))) +
theme_classic() +
labs( y = fixed_param, x = "CXCL10") +
annotate("text", y = min(table_corr[[fixed_param]], na.rm = TRUE),
x = max(table_corr[["CXCL10"]], na.rm = TRUE),
label = paste0("r = ", round(cor_test$estimate, 2),
"\np = ", ifelse(cor_test$p.value < 0.001, "< 0.001", signif(cor_test$p.value, 3))),
hjust = 1, vjust = 0, size = 5)
# Combine plots to a panel
all_plots <- c(plots_list, plots_list_2, plot_corr_3)
panel <- ggarrange(plotlist = all_plots,
ncol = 3,
nrow = ceiling(length(all_plots) / 3),
common.legend = TRUE)
print(panel)
Warning! The custom
fig.path you set was
ignored by workflowr.

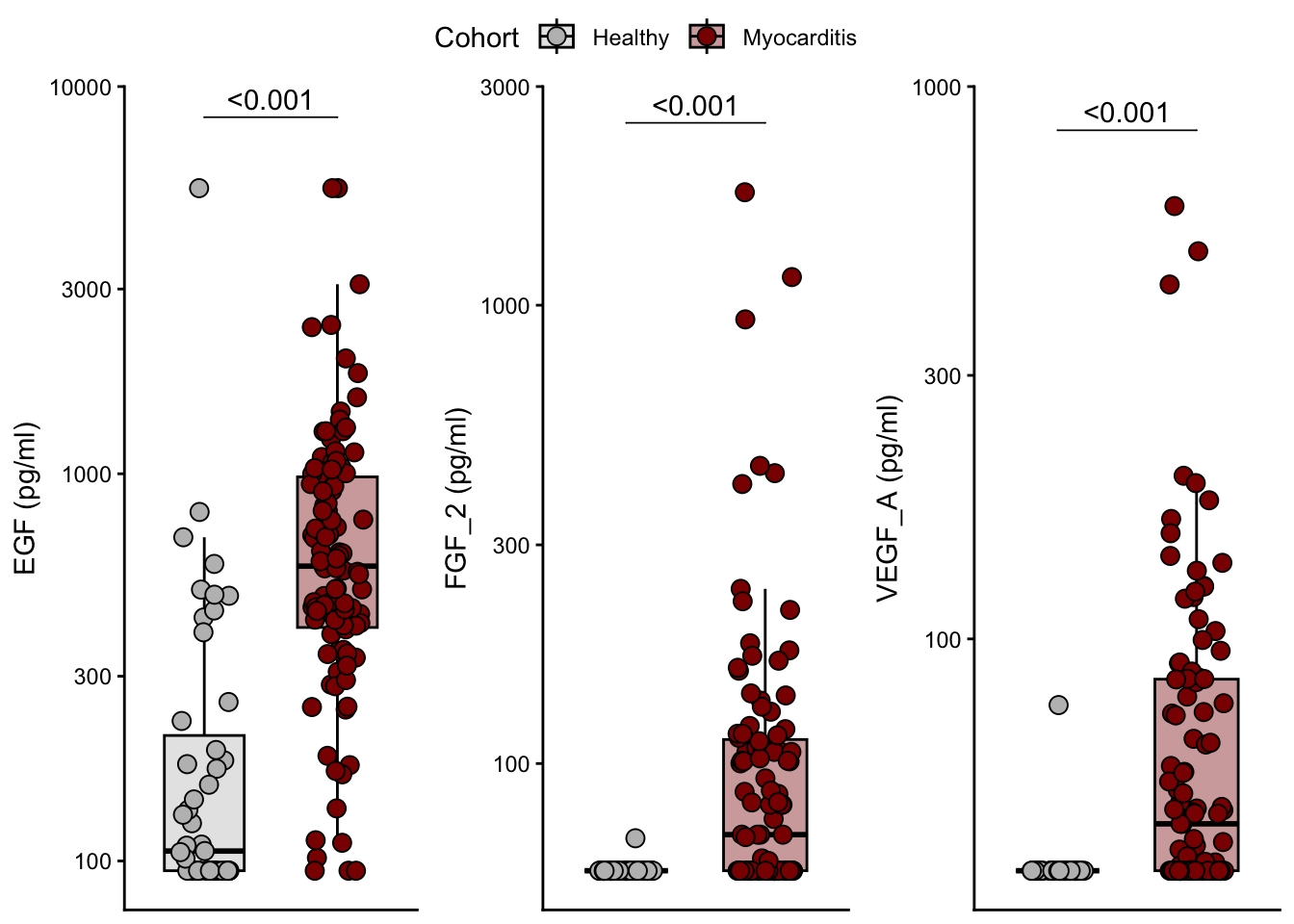

Comparison AM Cohorts & Healthy fibroblast-derived factors
# Subset Data Table
table_lum_myo_healthy_01 <- table_lum_myo_healthy %>%
dplyr::select(EGF, FGF_2, VEGF_A, Cohort)
# Rename Cohorts to combine myocarditis patients
table_lum_myo_healthy_01$Cohort <- ifelse(table_lum_myo_healthy_01$Cohort == "Healthy", "Healthy", "Myocarditis")
# Prepare data table
table_para <- table_lum_myo_healthy_01 %>%
pivot_longer(cols = where(is.numeric),
names_to = "Parameter",
values_to = "Parameter_val")
# Log Transform Parameters
table_para$Parameter_val_log10 <- log10(table_para$Parameter_val)
# Calculate Stats
# Wilcox Test
stat.test <- table_para %>%
group_by(Parameter) %>%
wilcox_test(Parameter_val ~ Cohort) %>%
add_significance() %>%
mutate(p_adj = p.adjust(p, method = "BH"))
# Get max value per parameter (for p-value position)
max_y <- table_para %>%
group_by(Parameter) %>%
summarise(max_val = max(Parameter_val, na.rm = TRUE))
# Get min value per parameter (for y limits)
min_y <- table_para %>%
group_by(Parameter) %>%
summarise(min_val = min(Parameter_val, na.rm = TRUE))
# Combine with max_y info for plotting
stat.test <- stat.test %>%
left_join(max_y, by = "Parameter") %>%
mutate(y.position = max_val * 1)
# Define Parameters and axis settings
param <- c("EGF", "FGF_2", "VEGF_A")
y_settings <- list(EGF = list(limits = c(NA, 10000), breaks = c(100, 300, 1000, 3000, 10000)),
FGF_2 = list(limits = c(NA, 3000), breaks = c(100, 300, 1000, 3000)),
VEGF_A = list(limits = c(NA, 1000), breaks = c(100, 300, 1000)))
# Create a list for all plots created in the loop
plots_list <- list()
for (param in param)
{
# Axis settings
y_lim <- y_settings[[param]]$limits
y_brk <- y_settings[[param]]$breaks
# Filter for the data
temp_data <- table_para %>%
filter(Parameter == param)
temp_stat_test <- stat.test %>%
filter(Parameter == param) %>%
mutate(p_adj_label = ifelse(p_adj < 0.001, "<0.001", sprintf("%.3f", p_adj)))
temp_stat_test <- temp_stat_test %>%
mutate(y.position = max(y_lim, na.rm = TRUE) / 1.2)
# Plot Boxplot
plot <- ggplot(temp_data, aes(x = Cohort, y = Parameter_val)) +
geom_boxplot(aes(fill = Cohort), color = "black", outlier.shape = NA,
width = 0.6, alpha = 0.4) +
geom_point(shape = 21, size = 3, color = "black", aes(fill = Cohort),
position = position_jitter(width = 0.2, height = 0)) +
scale_y_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = y_lim, breaks = y_brk, expand = expansion(mult = c(0.05, 0))) +
scale_fill_manual(values = c("Myocarditis" = "darkred",
"Healthy" = "grey")) +
stat_pvalue_manual(temp_stat_test,label = "p_adj_label",
y.position = log10(temp_stat_test$y.position),
tip.length = 0) +
labs(x = NULL, y = paste0(param, " (pg/ml)")) +
theme_classic() +
theme(axis.title.x = element_blank(),
axis.text.x = element_blank(),
axis.ticks.x = element_blank(),
legend.position = "none")
plots_list[[param]] <- plot
}
# Combine plots to a panel
panel <- ggarrange(plotlist = plots_list,
ncol = 3, nrow = 1,
common.legend = TRUE)
print(panel)
Warning! The custom
fig.path you set was
ignored by workflowr.
session info
sessionInfo()R version 4.4.3 (2025-02-28)
Platform: aarch64-apple-darwin20
Running under: macOS 26.3
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.0
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: Europe/Zurich
tzcode source: internal
attached base packages:
[1] grid stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] ImmunoLogic_0.0.0.9000 Seurat_5.3.1 SeuratObject_5.2.0
[4] sp_2.2-0 kernlab_0.9-33 dbscan_1.2-0
[7] umap_0.2.10.0 Rtsne_0.17 cluster_2.1.8
[10] factoextra_1.0.7 randomForest_4.7-1.2 pROC_1.19.0.1
[13] mice_3.18.0 caret_7.0-1 lattice_0.22-6
[16] drc_3.0-1 logistf_1.26.1 glmnet_4.1-10
[19] Matrix_1.7-2 broom_1.0.11 MuMIn_1.48.11
[22] Hmisc_5.2-3 car_3.1-3 carData_3.0-5
[25] multcomp_1.4-28 TH.data_1.1-4 MASS_7.3-65
[28] survival_3.8-3 mvtnorm_1.3-3 rstatix_0.7.3
[31] ggpattern_1.2.1 gridExtra_2.3 cowplot_1.2.0
[34] patchwork_1.3.2 plotly_4.11.0 EnhancedVolcano_1.24.0
[37] RColorBrewer_1.1-3 circlize_0.4.16 ComplexHeatmap_2.22.0
[40] pheatmap_1.0.12 corrplot_0.95 ggcorrplot_0.1.4.1
[43] ggbeeswarm_0.7.2 ggrepel_0.9.6 ggpubr_0.6.2
[46] readxl_1.4.5 writexl_1.5.0 openxlsx_4.2.5.2
[49] gtsummary_2.4.0 flextable_0.9.6 tableone_0.13.2
[52] table1_1.4.3 scales_1.4.0 here_1.0.2
[55] janitor_2.2.0 magrittr_2.0.4 data.table_1.17.8
[58] lubridate_1.9.4 forcats_1.0.1 stringr_1.6.0
[61] dplyr_1.1.4 purrr_1.2.0 readr_2.1.6
[64] tidyr_1.3.1 tibble_3.3.0 ggplot2_4.0.1
[67] tidyverse_2.0.0
loaded via a namespace (and not attached):
[1] IRanges_2.40.1 nnet_7.3-20 goftest_1.2-3
[4] vctrs_0.6.5 spatstat.random_3.4-3 digest_0.6.39
[7] png_0.1-8 shape_1.4.6.1 git2r_0.36.2
[10] alabama_2023.1.0 deldir_2.0-4 httpcode_0.3.0
[13] parallelly_1.45.1 fontLiberation_0.1.0 reshape2_1.4.5
[16] httpuv_1.6.16 foreach_1.5.2 BiocGenerics_0.52.0
[19] withr_3.0.2 xfun_0.54 crul_1.4.2
[22] emmeans_1.10.4 systemfonts_1.3.1 ragg_1.5.0
[25] zoo_1.8-14 GlobalOptions_0.1.3 gtools_3.9.5
[28] pbapply_1.7-4 Formula_1.2-5 promises_1.5.0
[31] otel_0.2.0 httr_1.4.7 globals_0.18.0
[34] fitdistrplus_1.2-4 rstudioapi_0.17.1 pan_1.9
[37] miniUI_0.1.2 generics_0.1.4 base64enc_0.1-3
[40] curl_7.0.0 S4Vectors_0.44.0 mitools_2.4
[43] polyclip_1.10-7 quadprog_1.5-8 xtable_1.8-4
[46] doParallel_1.0.17 evaluate_1.0.5 hms_1.1.4
[49] irlba_2.3.5.1 colorspace_2.1-2 polynom_1.4-1
[52] ROCR_1.0-11 reticulate_1.44.1 spatstat.data_3.1-9
[55] lmtest_0.9-40 snakecase_0.11.1 later_1.4.4
[58] spatstat.geom_3.6-1 future.apply_1.20.0 scattermore_1.2
[61] survey_4.4-2 matrixStats_1.5.0 RcppAnnoy_0.0.22
[64] class_7.3-23 pillar_1.11.1 nlme_3.1-167
[67] iterators_1.0.14 compiler_4.4.3 RSpectra_0.16-2
[70] stringi_1.8.7 gower_1.0.2 jomo_2.7-6
[73] tensor_1.5.1 minqa_1.2.8 plyr_1.8.9
[76] crayon_1.5.3 abind_1.4-8 orthopolynom_1.0-6.1
[79] sandwich_3.1-1 codetools_0.2-20 textshaping_1.0.4
[82] basefun_1.2-4 recipes_1.3.1 openssl_2.3.4
[85] bslib_0.9.0 GetoptLong_1.0.5 mime_0.13
[88] splines_4.4.3 Rcpp_1.1.0 fastDummies_1.7.5
[91] coneproj_1.20 variables_1.1-2 cellranger_1.1.0
[94] knitr_1.50 clue_0.3-66 lme4_1.1-38
[97] fs_1.6.6 listenv_0.10.0 checkmate_2.3.3
[100] Rdpack_2.6.4 ggsignif_0.6.4 estimability_1.5.1
[103] tzdb_0.5.0 pkgconfig_2.0.3 tools_4.4.3
[106] cachem_1.1.0 rbibutils_2.4 numDeriv_2016.8-1.1
[109] viridisLite_0.4.2 DBI_1.2.3 fastmap_1.2.0
[112] rmarkdown_2.30 ica_1.0-3 tram_1.2-4
[115] sass_0.4.10 officer_0.6.6 coda_0.19-4.1
[118] dotCall64_1.2 RANN_2.6.2 rpart_4.1.24
[121] farver_2.1.2 reformulas_0.4.2 mgcv_1.9-1
[124] yaml_2.3.11 workflowr_1.7.2 foreign_0.8-88
[127] cli_3.6.5 stats4_4.4.3 lifecycle_1.0.4
[130] uwot_0.2.4 askpass_1.2.1 lava_1.8.0
[133] backports_1.5.0 mlt_1.6-6 timechange_0.3.0
[136] gtable_0.3.6 rjson_0.2.23 ggridges_0.5.7
[139] progressr_0.18.0 parallel_4.4.3 jsonlite_2.0.0
[142] RcppHNSW_0.6.0 mitml_0.4-5 qrng_0.0-10
[145] spatstat.utils_3.2-0 zip_2.3.1 jquerylib_0.1.4
[148] spatstat.univar_3.1-5 timeDate_4051.111 lazyeval_0.2.2
[151] shiny_1.12.0 htmltools_0.5.9 sctransform_0.4.2
[154] glue_1.8.0 gfonts_0.2.0 BB_2019.10-1
[157] spam_2.11-1 gdtools_0.3.7 rprojroot_2.1.1
[160] boot_1.3-31 igraph_2.2.1 R6_2.6.1
[163] labeling_0.4.3 ipred_0.9-15 nloptr_2.2.1
[166] tidyselect_1.2.1 vipor_0.4.7 plotrix_3.8-4
[169] htmlTable_2.4.3 operator.tools_1.6.3 xml2_1.5.1
[172] fontBitstreamVera_0.1.1 future_1.68.0 ModelMetrics_1.2.2.2
[175] KernSmooth_2.23-26 S7_0.2.1 fontquiver_0.2.1
[178] htmlwidgets_1.6.4 rlang_1.1.6 spatstat.sparse_3.1-0
[181] spatstat.explore_3.6-0 uuid_1.2-1 formula.tools_1.7.1
[184] hardhat_1.4.1 beeswarm_0.4.0 prodlim_2023.08.28 date()[1] "Tue Mar 3 19:14:37 2026"
sessionInfo()R version 4.4.3 (2025-02-28)
Platform: aarch64-apple-darwin20
Running under: macOS 26.3
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.0
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: Europe/Zurich
tzcode source: internal
attached base packages:
[1] grid stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] ImmunoLogic_0.0.0.9000 Seurat_5.3.1 SeuratObject_5.2.0
[4] sp_2.2-0 kernlab_0.9-33 dbscan_1.2-0
[7] umap_0.2.10.0 Rtsne_0.17 cluster_2.1.8
[10] factoextra_1.0.7 randomForest_4.7-1.2 pROC_1.19.0.1
[13] mice_3.18.0 caret_7.0-1 lattice_0.22-6
[16] drc_3.0-1 logistf_1.26.1 glmnet_4.1-10
[19] Matrix_1.7-2 broom_1.0.11 MuMIn_1.48.11
[22] Hmisc_5.2-3 car_3.1-3 carData_3.0-5
[25] multcomp_1.4-28 TH.data_1.1-4 MASS_7.3-65
[28] survival_3.8-3 mvtnorm_1.3-3 rstatix_0.7.3
[31] ggpattern_1.2.1 gridExtra_2.3 cowplot_1.2.0
[34] patchwork_1.3.2 plotly_4.11.0 EnhancedVolcano_1.24.0
[37] RColorBrewer_1.1-3 circlize_0.4.16 ComplexHeatmap_2.22.0
[40] pheatmap_1.0.12 corrplot_0.95 ggcorrplot_0.1.4.1
[43] ggbeeswarm_0.7.2 ggrepel_0.9.6 ggpubr_0.6.2
[46] readxl_1.4.5 writexl_1.5.0 openxlsx_4.2.5.2
[49] gtsummary_2.4.0 flextable_0.9.6 tableone_0.13.2
[52] table1_1.4.3 scales_1.4.0 here_1.0.2
[55] janitor_2.2.0 magrittr_2.0.4 data.table_1.17.8
[58] lubridate_1.9.4 forcats_1.0.1 stringr_1.6.0
[61] dplyr_1.1.4 purrr_1.2.0 readr_2.1.6
[64] tidyr_1.3.1 tibble_3.3.0 ggplot2_4.0.1
[67] tidyverse_2.0.0
loaded via a namespace (and not attached):
[1] IRanges_2.40.1 nnet_7.3-20 goftest_1.2-3
[4] vctrs_0.6.5 spatstat.random_3.4-3 digest_0.6.39
[7] png_0.1-8 shape_1.4.6.1 git2r_0.36.2
[10] alabama_2023.1.0 deldir_2.0-4 httpcode_0.3.0
[13] parallelly_1.45.1 fontLiberation_0.1.0 reshape2_1.4.5
[16] httpuv_1.6.16 foreach_1.5.2 BiocGenerics_0.52.0
[19] withr_3.0.2 xfun_0.54 crul_1.4.2
[22] emmeans_1.10.4 systemfonts_1.3.1 ragg_1.5.0
[25] zoo_1.8-14 GlobalOptions_0.1.3 gtools_3.9.5
[28] pbapply_1.7-4 Formula_1.2-5 promises_1.5.0
[31] otel_0.2.0 httr_1.4.7 globals_0.18.0
[34] fitdistrplus_1.2-4 rstudioapi_0.17.1 pan_1.9
[37] miniUI_0.1.2 generics_0.1.4 base64enc_0.1-3
[40] curl_7.0.0 S4Vectors_0.44.0 mitools_2.4
[43] polyclip_1.10-7 quadprog_1.5-8 xtable_1.8-4
[46] doParallel_1.0.17 evaluate_1.0.5 hms_1.1.4
[49] irlba_2.3.5.1 colorspace_2.1-2 polynom_1.4-1
[52] ROCR_1.0-11 reticulate_1.44.1 spatstat.data_3.1-9
[55] lmtest_0.9-40 snakecase_0.11.1 later_1.4.4
[58] spatstat.geom_3.6-1 future.apply_1.20.0 scattermore_1.2
[61] survey_4.4-2 matrixStats_1.5.0 RcppAnnoy_0.0.22
[64] class_7.3-23 pillar_1.11.1 nlme_3.1-167
[67] iterators_1.0.14 compiler_4.4.3 RSpectra_0.16-2
[70] stringi_1.8.7 gower_1.0.2 jomo_2.7-6
[73] tensor_1.5.1 minqa_1.2.8 plyr_1.8.9
[76] crayon_1.5.3 abind_1.4-8 orthopolynom_1.0-6.1
[79] sandwich_3.1-1 codetools_0.2-20 textshaping_1.0.4
[82] basefun_1.2-4 recipes_1.3.1 openssl_2.3.4
[85] bslib_0.9.0 GetoptLong_1.0.5 mime_0.13
[88] splines_4.4.3 Rcpp_1.1.0 fastDummies_1.7.5
[91] coneproj_1.20 variables_1.1-2 cellranger_1.1.0
[94] knitr_1.50 clue_0.3-66 lme4_1.1-38
[97] fs_1.6.6 listenv_0.10.0 checkmate_2.3.3
[100] Rdpack_2.6.4 ggsignif_0.6.4 estimability_1.5.1
[103] tzdb_0.5.0 pkgconfig_2.0.3 tools_4.4.3
[106] cachem_1.1.0 rbibutils_2.4 numDeriv_2016.8-1.1
[109] viridisLite_0.4.2 DBI_1.2.3 fastmap_1.2.0
[112] rmarkdown_2.30 ica_1.0-3 tram_1.2-4
[115] sass_0.4.10 officer_0.6.6 coda_0.19-4.1
[118] dotCall64_1.2 RANN_2.6.2 rpart_4.1.24
[121] farver_2.1.2 reformulas_0.4.2 mgcv_1.9-1
[124] yaml_2.3.11 workflowr_1.7.2 foreign_0.8-88
[127] cli_3.6.5 stats4_4.4.3 lifecycle_1.0.4
[130] uwot_0.2.4 askpass_1.2.1 lava_1.8.0
[133] backports_1.5.0 mlt_1.6-6 timechange_0.3.0
[136] gtable_0.3.6 rjson_0.2.23 ggridges_0.5.7
[139] progressr_0.18.0 parallel_4.4.3 jsonlite_2.0.0
[142] RcppHNSW_0.6.0 mitml_0.4-5 qrng_0.0-10
[145] spatstat.utils_3.2-0 zip_2.3.1 jquerylib_0.1.4
[148] spatstat.univar_3.1-5 timeDate_4051.111 lazyeval_0.2.2
[151] shiny_1.12.0 htmltools_0.5.9 sctransform_0.4.2
[154] glue_1.8.0 gfonts_0.2.0 BB_2019.10-1
[157] spam_2.11-1 gdtools_0.3.7 rprojroot_2.1.1
[160] boot_1.3-31 igraph_2.2.1 R6_2.6.1
[163] labeling_0.4.3 ipred_0.9-15 nloptr_2.2.1
[166] tidyselect_1.2.1 vipor_0.4.7 plotrix_3.8-4
[169] htmlTable_2.4.3 operator.tools_1.6.3 xml2_1.5.1
[172] fontBitstreamVera_0.1.1 future_1.68.0 ModelMetrics_1.2.2.2
[175] KernSmooth_2.23-26 S7_0.2.1 fontquiver_0.2.1
[178] htmlwidgets_1.6.4 rlang_1.1.6 spatstat.sparse_3.1-0
[181] spatstat.explore_3.6-0 uuid_1.2-1 formula.tools_1.7.1
[184] hardhat_1.4.1 beeswarm_0.4.0 prodlim_2023.08.28
