Last updated: 2026-03-04

Checks: 6 1

Knit directory: Serology Analysis/

This reproducible R Markdown analysis was created with workflowr (version 1.7.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.

R Markdown file: uncommitted changes

The R Markdown is untracked by Git. To know which version of the R Markdown file created these results, you’ll want to first commit it to the Git repo. If you’re still working on the analysis, you can ignore this warning. When you’re finished, you can run wflow_publish to commit the R Markdown file and build the HTML.

Environment: empty

Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

Seed: set.seed(20260121)

The command set.seed(20260121) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

Session information: recorded

Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

Cache: none

Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.

File paths: relative

Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.

Repository version: f44c37b

Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.

The results in this page were generated with repository version f44c37b. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.

Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:


Ignored files:
    Ignored:    .DS_Store
    Ignored:    .Rhistory
    Ignored:    .Rproj.user/
    Ignored:    analysis/.DS_Store
    Ignored:    analysis/.RData
    Ignored:    analysis/.Rhistory
    Ignored:    analysis/site_libs/
    Ignored:    output/.DS_Store

Untracked files:
    Untracked:  analysis/.RData 2
    Untracked:  analysis/Figure 1.Rmd
    Untracked:  analysis/Figure 2.Rmd
    Untracked:  analysis/Figure 3.Rmd
    Untracked:  analysis/Figure-3.Rmd
    Untracked:  analysis/SFigure 1.Rmd
    Untracked:  analysis/SFigure 2.Rmd
    Untracked:  output/SFigure2/

Unstaged changes:
    Modified:   .gitignore

Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

There are no past versions. Publish this analysis with wflow_publish() to start tracking its development.

Load Packages

suppressPackageStartupMessages({

  # Data handling
  library(tidyverse)
  library(data.table)
  library(magrittr)
  library(janitor)
  library(here)
  library(scales)
  library(table1)
  library(tableone)
  library(flextable)
  library(gtsummary)
  library(openxlsx)
  library(writexl)
  library(readxl)
  # Visualization
  library(ggplot2)
  library(ggpubr)
  library(ggrepel)
  library(ggbeeswarm)
  library(ggcorrplot)
  library(corrplot)
  library(pheatmap)
  library(ComplexHeatmap)
  library(circlize)
  library(RColorBrewer)
  library(EnhancedVolcano)
  library(plotly)
  library(patchwork)
  library(cowplot)
  library(gridExtra)
  library(grid)
  library(ggpattern)
  # Statistics
  library(rstatix)
  library(multcomp)
  library(car)
  library(Hmisc)
  library(MASS)
  library(MuMIn)
  library(broom)
  library(glmnet)
  library(logistf)
  library(drc)
  library(caret)
  library(mice)
  library(pROC)
  # Clustering
  library(randomForest)
  library(factoextra)
  library(cluster)
  library(Rtsne)
  library(umap)
  library(dbscan)
  library(kernlab)
  library(Seurat)
  # Others
  library(ImmunoLogic)

})

Define Filepath

  basedir <- here()

Read Data (Healthy, Cohort 1, Cohort 2)

# Import BMP4 Data
  table_bmp4_healthy <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_BMP4_Healthy.xlsx"))

  table_bmp4_cohort1 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_BMP4_Cohort1.xlsx"))

  table_bmp4_cohort2 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_BMP4_Cohort2.xlsx"))

# Combine Tables
  table_bmp4_myo_healthy <- rbind(table_bmp4_cohort1, table_bmp4_cohort2, table_bmp4_healthy)

# Import Serology Data
  table_clindat_healthy <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Serology_Healthy.xlsx")) %>%
                           dplyr::select(Study_ID, Trop_I, NTproBNP, CRP)

  table_clindat_cohort1 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_ClinicalData_Cohort1.xlsx")) %>%
                           dplyr::select(Study_ID, Trop_I, NTproBNP, CRP, LV_EF)

  table_clindat_cohort2 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_ClinicalData_Cohort2.xlsx")) %>%
                           dplyr::select(Study_ID, Trop_I, NTproBNP, CRP, LV_EF)

# Combine tables
  table_clindat_myo_healthy <- rbind(table_clindat_cohort1 %>% dplyr::select(-LV_EF),
                                     table_clindat_cohort2 %>% dplyr::select(-LV_EF),
                                     table_clindat_healthy)

# Import Luminex Data
  table_lum_healthy <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Lum_Healthy_DL_corr.xlsx")) %>%
                       dplyr::select(-RANTES)

  table_lum_cohort1 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Lum_Cohort1_DL_corr.xlsx")) %>%
                       dplyr::select(-RANTES)

  table_lum_cohort2 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Lum_Cohort2_DL_corr.xlsx")) %>%
                       dplyr::select(-RANTES)

# Combine tables
  table_lum_myo_healthy <- rbind(table_lum_cohort1, table_lum_cohort2, table_lum_healthy) %>%
                           dplyr::select(-Cohort)

# Combine all data tables
  table_all_myo_healthy <-  table_lum_myo_healthy %>%
                            left_join(table_bmp4_myo_healthy, by = "Study_ID") %>%
                            left_join(table_clindat_myo_healthy, by = "Study_ID")

  table_cohorts <- table_all_myo_healthy %>%
                   dplyr::select(Study_ID, Cohort)

Multiple Imputation (all)

# Remove Cohort
  table_all_myo_healthy_01 <- table_all_myo_healthy %>%
                              dplyr::select(-Cohort)

# Impute missing values
  imputed_data <- mice(table_all_myo_healthy_01, m = 5, method = 'pmm', maxit = 5, seed = 123)


 iter imp variable
  1   1  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  1   2  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  1   3  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  1   4  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  1   5  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  2   1  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  2   2  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  2   3  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  2   4  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  2   5  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  3   1  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  3   2  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  3   3  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  3   4  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  3   5  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  4   1  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  4   2  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  4   3  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  4   4  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  4   5  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  5   1  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  5   2  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  5   3  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  5   4  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP
  5   5  EOTAXIN  BMP4  Grem_1  Trop_I  NTproBNP

# Check the imputed data

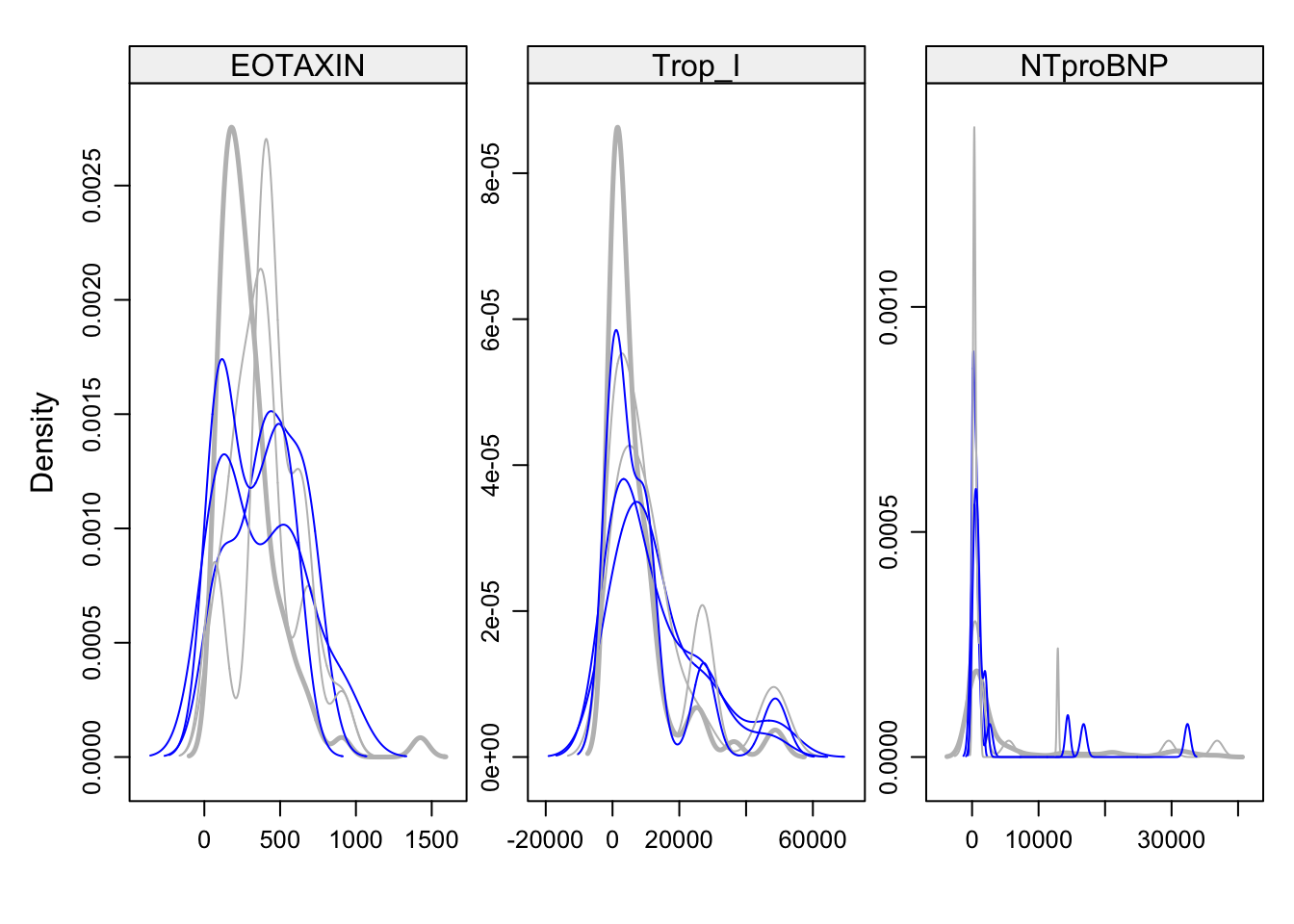

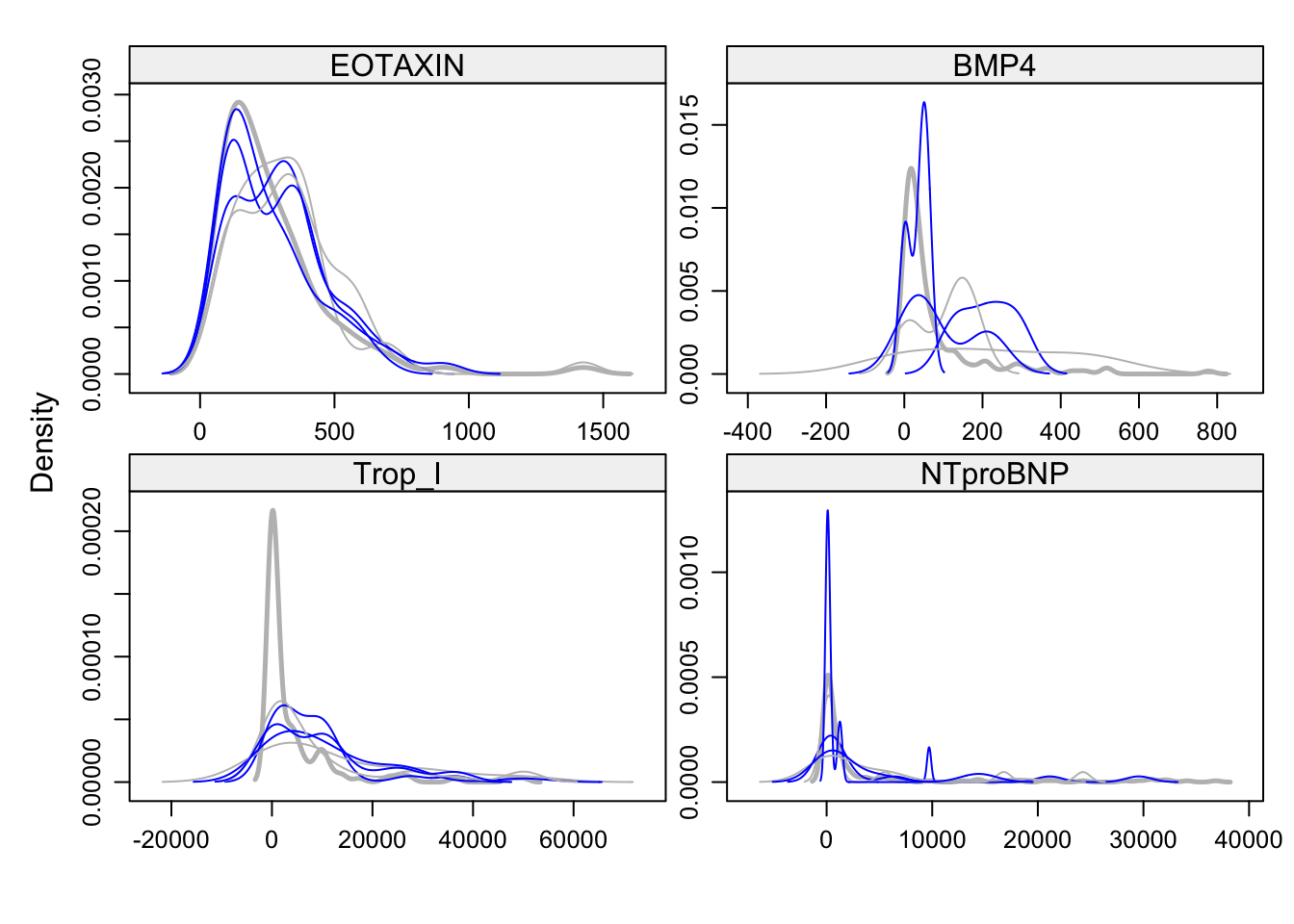

  densityplot(imputed_data, col=c("grey", "blue"), pch = c(1, 20))
