Load libraries

suppressPackageStartupMessages({
  library(BiocStyle)
  library(tidyverse)
  library(here)
  library(glue)
  library(Seurat)
  library(patchwork)
  library(paletteer)
  library(limma)
  library(edgeR)
  library(RUVSeq)
  library(scMerge)
  library(SingleCellExperiment)
  library(scater)
  library(tidyHeatmap)
  library(org.Hs.eg.db)
  library(TxDb.Hsapiens.UCSC.hg38.knownGene)
  library(missMethyl)
})

source(here("code/utility.R"))

Load Data

ambient <- ""
file <- here("data",
            "C133_Neeland_merged",
            glue("C133_Neeland_full_clean{ambient}_macrophages_annotated_diet.SEU.rds"))

seu <- readRDS(file)
seu
An object of class Seurat
21568 features across 165209 samples within 1 assay
Active assay: RNA (21568 features, 0 variable features)

Create pseudobulk samples by cell type (ann_level_2)

Use cell type and sample as our two factors; each column of the output corresponds to one unique combination of these two factors.

out <- here("data",
            "C133_Neeland_merged",
            glue("C133_Neeland_full_clean{ambient}_macrophages_pseudobulk.rds"))

sce <- SingleCellExperiment(list(counts = seu[["RNA"]]@counts),
                            colData = seu@meta.data)

if(!file.exists(out)){
  pseudoBulk <- aggregateAcrossCells(sce,
                                 id = colData(sce)[, c("ann_level_2", "sample.id")])
  saveRDS(pseudoBulk, file = out)

} else {
  pseudoBulk <- readRDS(file = out)

}

pseudoBulk
class: SingleCellExperiment
dim: 21568 533
metadata(0):
assays(1): counts
rownames(21568): A1BG A1BG-AS1 ... ZNRD2 ZRANB2-AS2
rowData names(0):
colnames: NULL
colData names(72): nCount_RNA nFeature_RNA ... sample.id ncells
reducedDimNames(0):
mainExpName: NULL
altExpNames(0):

Code micro information

Create a factor that identifies individuals that were infected with the top 4 clinically important pathogens at time of sample collection i.e. Pseudomonas aeruginosa, Staphylococcus aureus, Haemophilus influenzae, and Aspergillus.

important_micro <- c("Pseudomonas aeruginosa", "Staphylococcus aureus",
                     "Haemophilus influenzae", "Aspergillus", "S. aureus",
                     "Staph Aureus (Methicillin Resistant)", "MRSA")

pseudoBulk$Micro_code <- sapply(strsplit(pseudoBulk$Bacteria_type, ","), function(bacteria){
  any(tolower(str_trim(bacteria)) %in% tolower(important_micro))
})

table(pseudoBulk$Micro_code)

FALSE  TRUE
  312   221

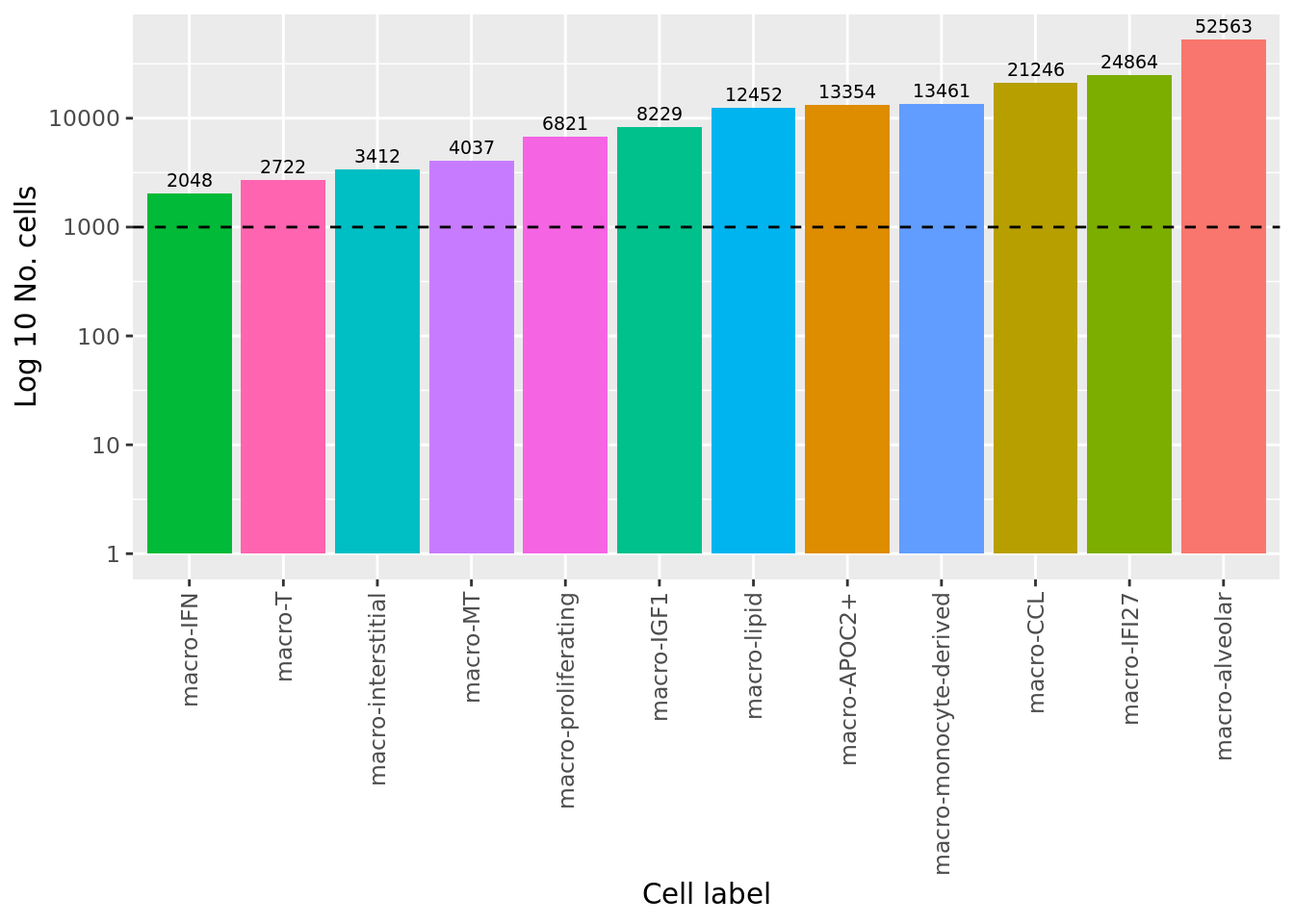

No. cells per cell type

colData(pseudoBulk) %>%
  data.frame %>%
  group_by(ann_level_2) %>%
  summarise(total = sum(ncells)) %>%
  ggplot(aes(x = fct_reorder(ann_level_2, total),
             y = total, fill = ann_level_2)) +
  geom_col() +
  geom_text(aes(label = total), vjust = -0.5, colour = "black", size = 2.5) +
  scale_y_log10() +
  labs(x = "Cell label",
       y = "Log 10 No. cells") +
  theme(axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.5),
        legend.position = "bottom") +
  geom_hline(yintercept = 1000, linetype = "dashed") +
    NoLegend()

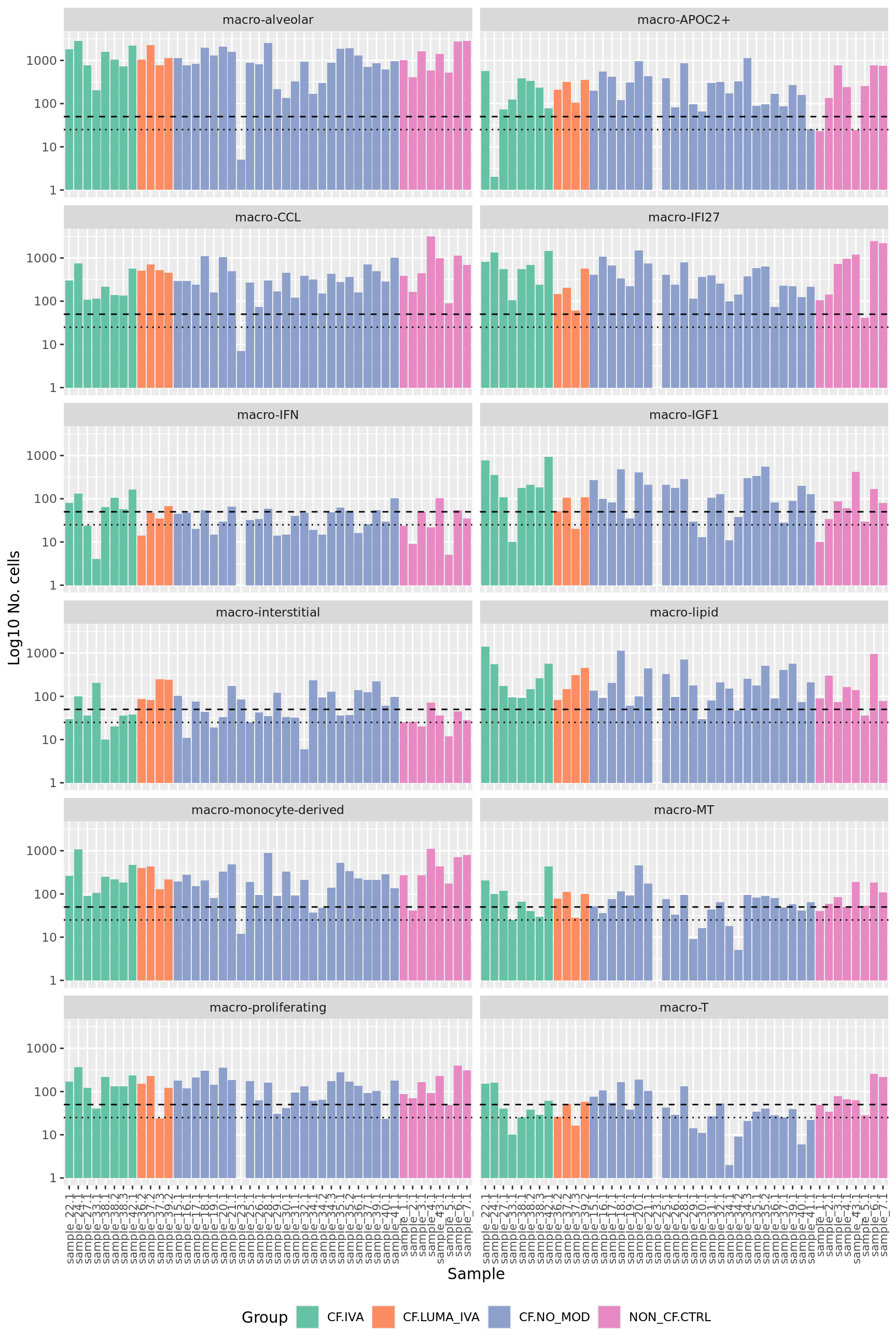

No. cells per cell type per sample

How many pseudobulk samples are comprised of >50 cells?

 colData(pseudoBulk) %>%
  data.frame %>%
  arrange(Group) %>%
  ggplot(aes(x = fct_inorder(sample.id),
             y = ncells, fill = Group)) +
  geom_col() +
  scale_fill_brewer(palette = "Set2") +
  scale_y_log10() +
  facet_wrap(~ann_level_2, ncol = 2) +
  labs(x = "Sample",
       y = "Log10 No. cells") +
  theme(axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.5,
                                   size = 8),
        legend.position = "bottom") +
  geom_hline(yintercept = 50, linetype = "dashed") +
  geom_hline(yintercept = 25, linetype = "dotted")

Data preparation

Extract cell type

Make a DGElist object.

yPB <- DGEList(counts = counts(pseudoBulk),
               samples = colData(pseudoBulk) %>% data.frame)
dim(yPB)
[1] 21568   533

Remove genes with zero counts in all samples.

keep <- rowSums(yPB$counts) > 0
yFlt <- yPB[keep, ]
dim(yFlt)
[1] 21559   533

Extract only the macro-APOC2+ cells.

cell <- "macro-APOC2+"
ySub <- yFlt[, yFlt$samples$ann_level_2 == cell]
dim(ySub)
[1] 21559    44

Filter samples & genes

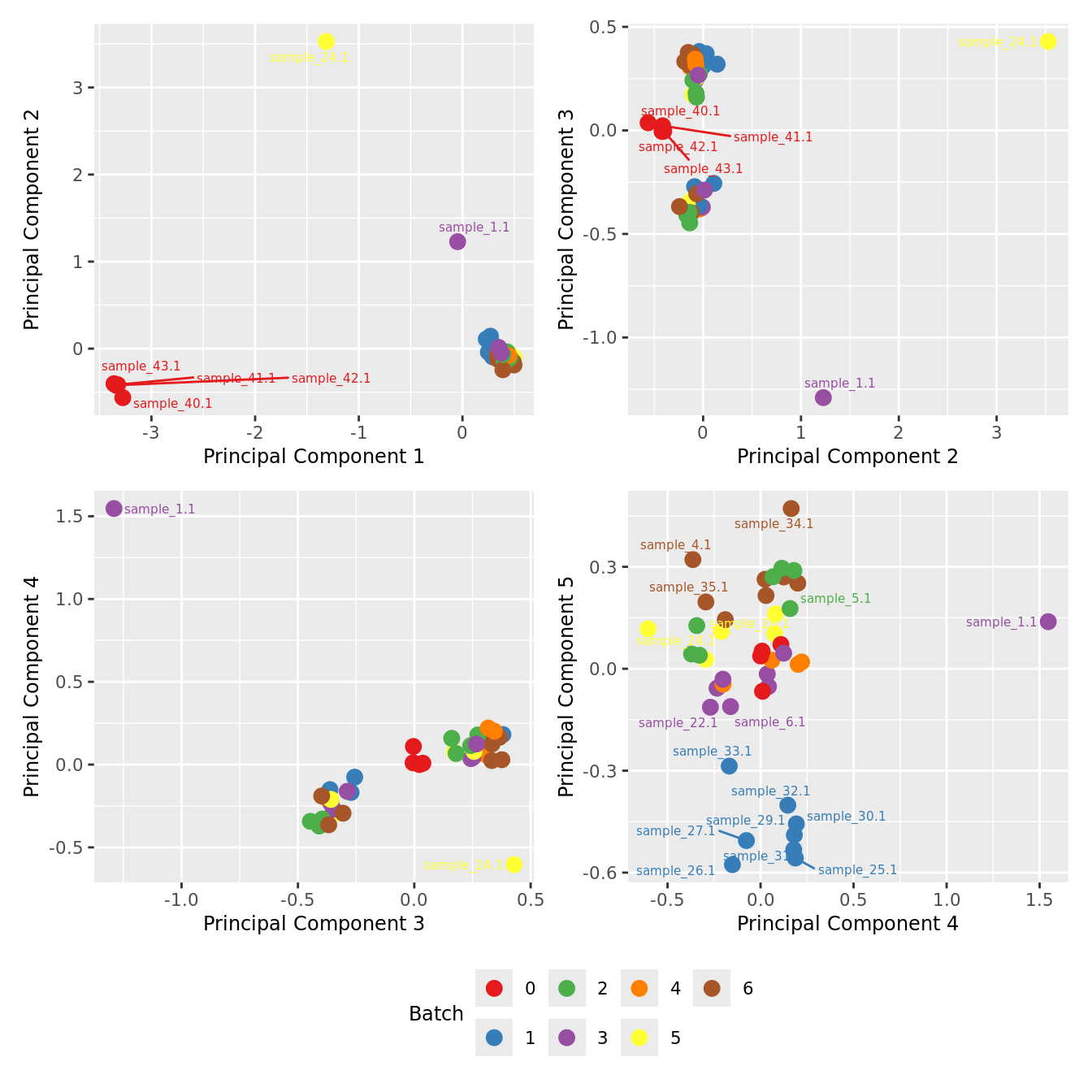

Examine MDS plot for outlier samples.

mds_by_factor <- function(data, factor, lab){
  dims <- list(c(1,2), c(2:3), c(3,4), c(4,5))
  p <- vector("list", length(dims))

  for(i in 1:length(dims)){

    mds <- limma::plotMDS(edgeR::cpm(data,
                                     log = TRUE),
                          gene.selection = "common",
                          plot = FALSE, dim.plot = dims[[i]])

    data.frame(x = mds$x,
               y = mds$y,
               sample = rownames(mds$distance.matrix.squared)) %>%
      left_join(rownames_to_column(data$samples, var = "sample")) -> dat

    p[[i]] <- ggplot(dat, aes(x = x, y = y,
                              colour = eval(parse(text=(factor))))) +
      geom_point(size = 3) +
      ggrepel::geom_text_repel(aes(label = sample.id),
                               size = 2) +
      labs(x = glue("Principal Component {dims[[i]][1]}"),
           y = glue("Principal Component {dims[[i]][2]}"),
           colour = lab) +
      theme(legend.direction = "horizontal",
            legend.text = element_text(size = 8),
            legend.title = element_text(size = 9),
            axis.text = element_text(size = 8),
            axis.title = element_text(size = 9)) -> p[[i]]
  }

  wrap_plots(p, ncol = 2) +
    plot_layout(guides = "collect") &
    theme(legend.position = "bottom")
}

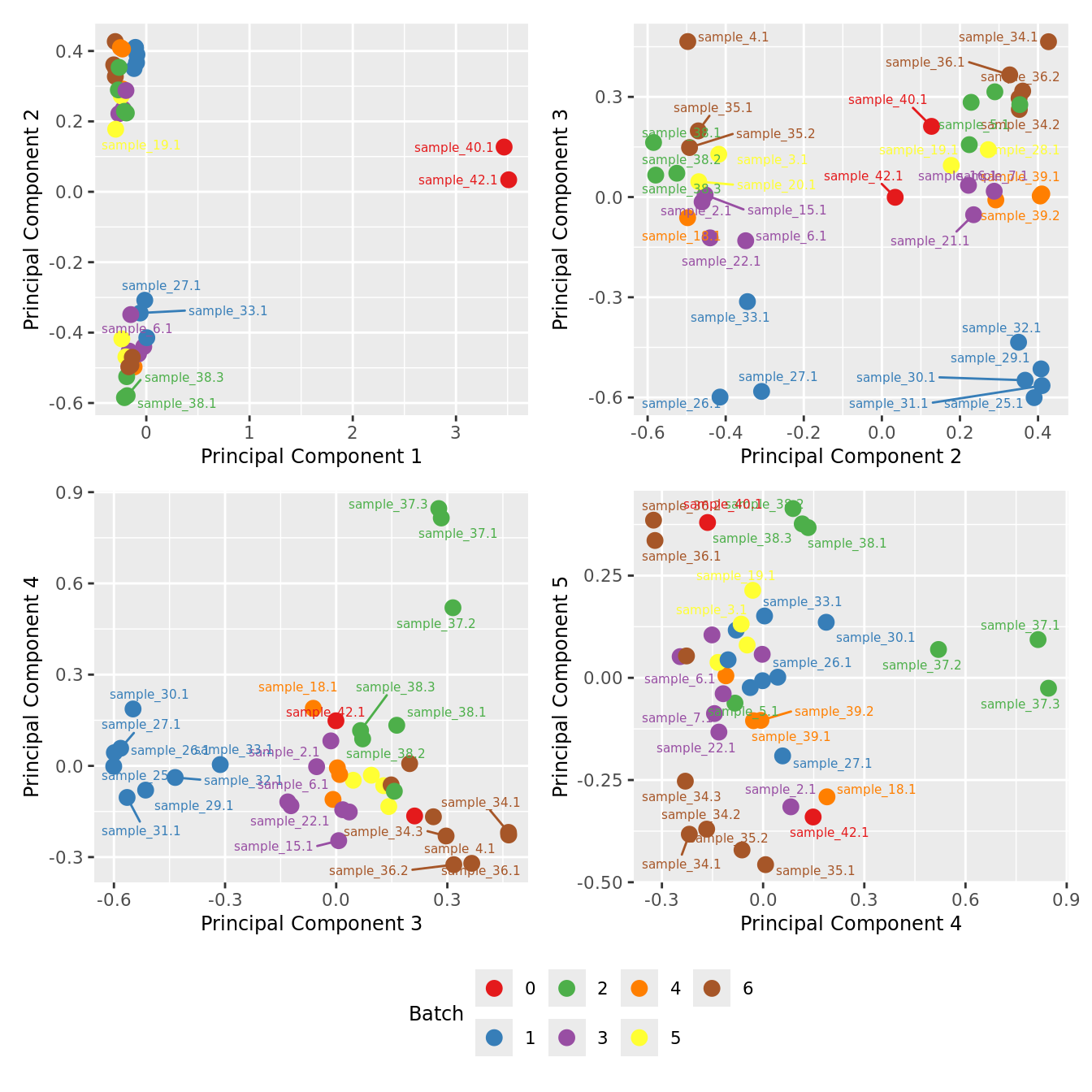

mds_by_factor(ySub, "as.factor(Batch)", "Batch") & scale_color_brewer(palette = "Set1")

mds_by_factor(ySub, "as.factor(Sex)", "Sex") & scale_color_brewer(palette = "Set2")

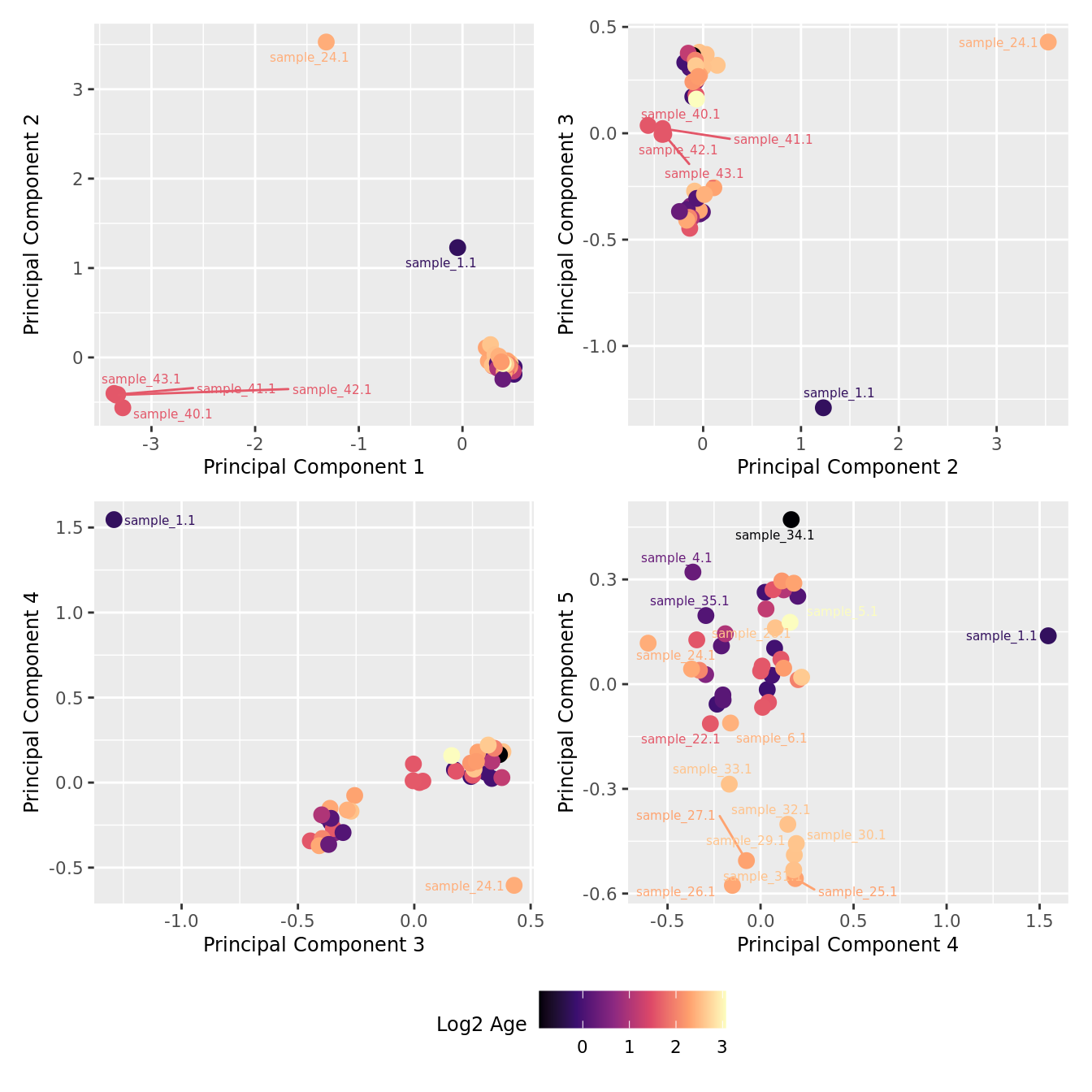

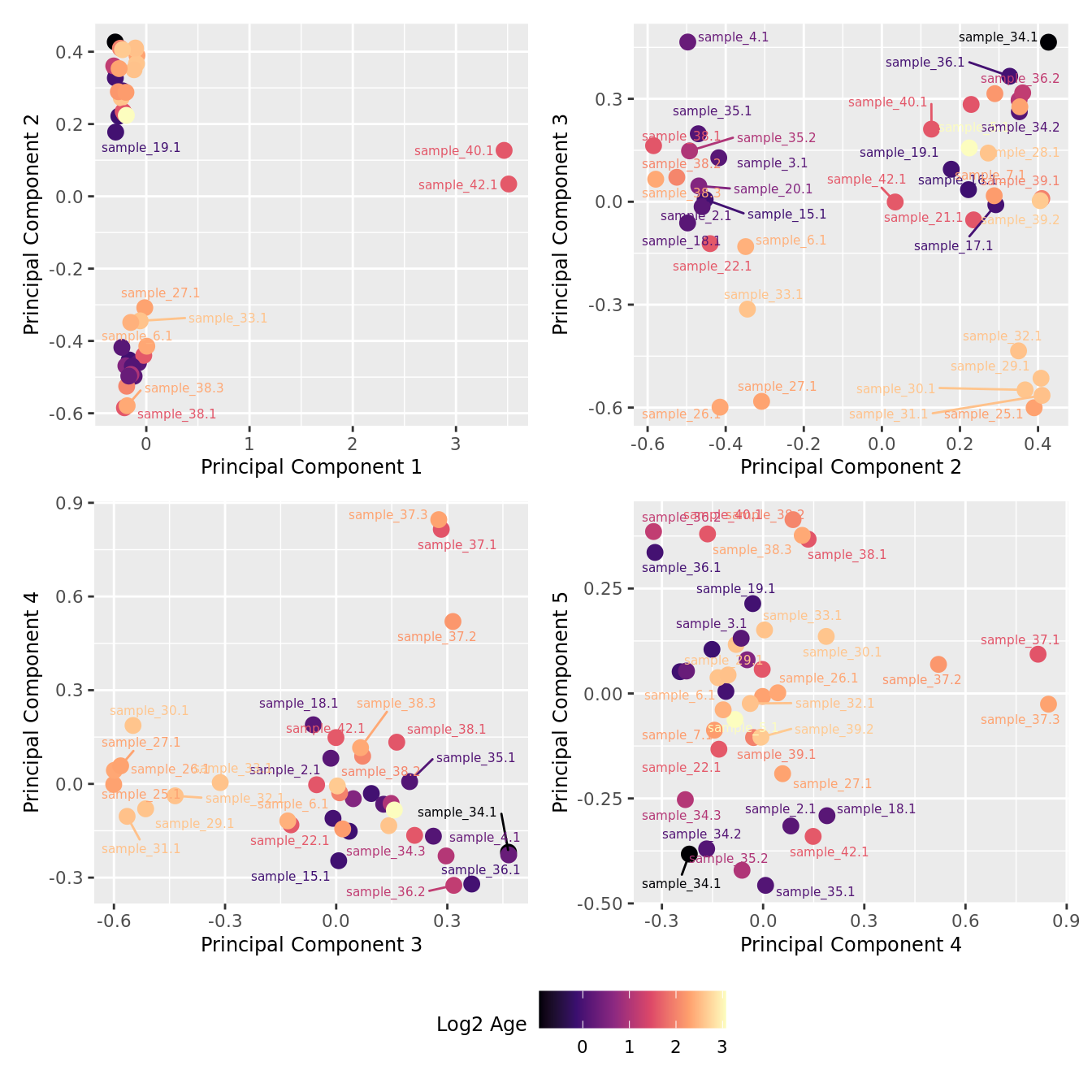

mds_by_factor(ySub, "log2(Age)", "Log2 Age") & scale_colour_viridis_c(option = "magma")

mds_by_factor(ySub, "as.factor(Group)", "Group") & scale_color_brewer(palette = "Dark2")

mds_by_factor(ySub, "as.factor(Severity)", "Severity") & scale_color_brewer(palette = "Accent")

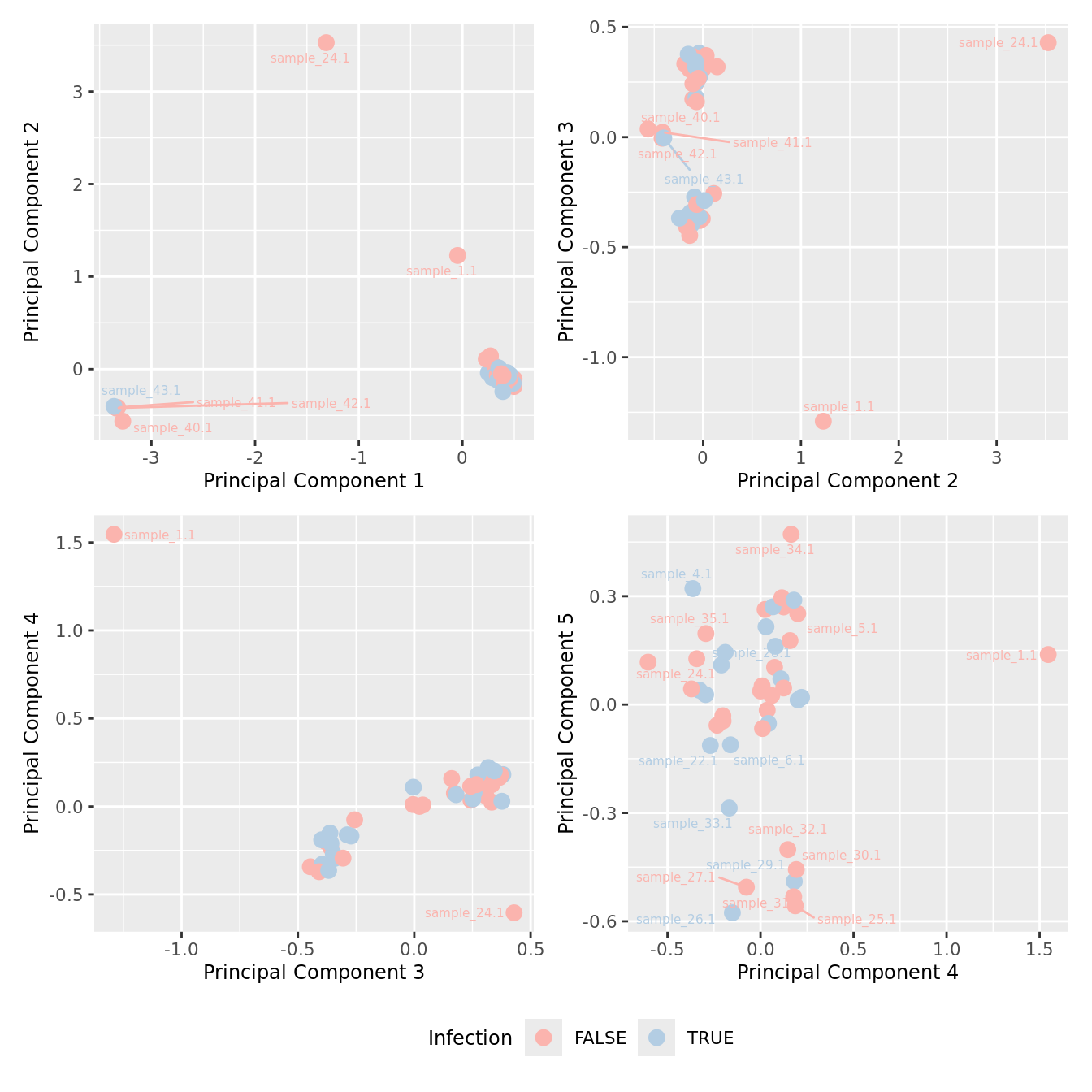

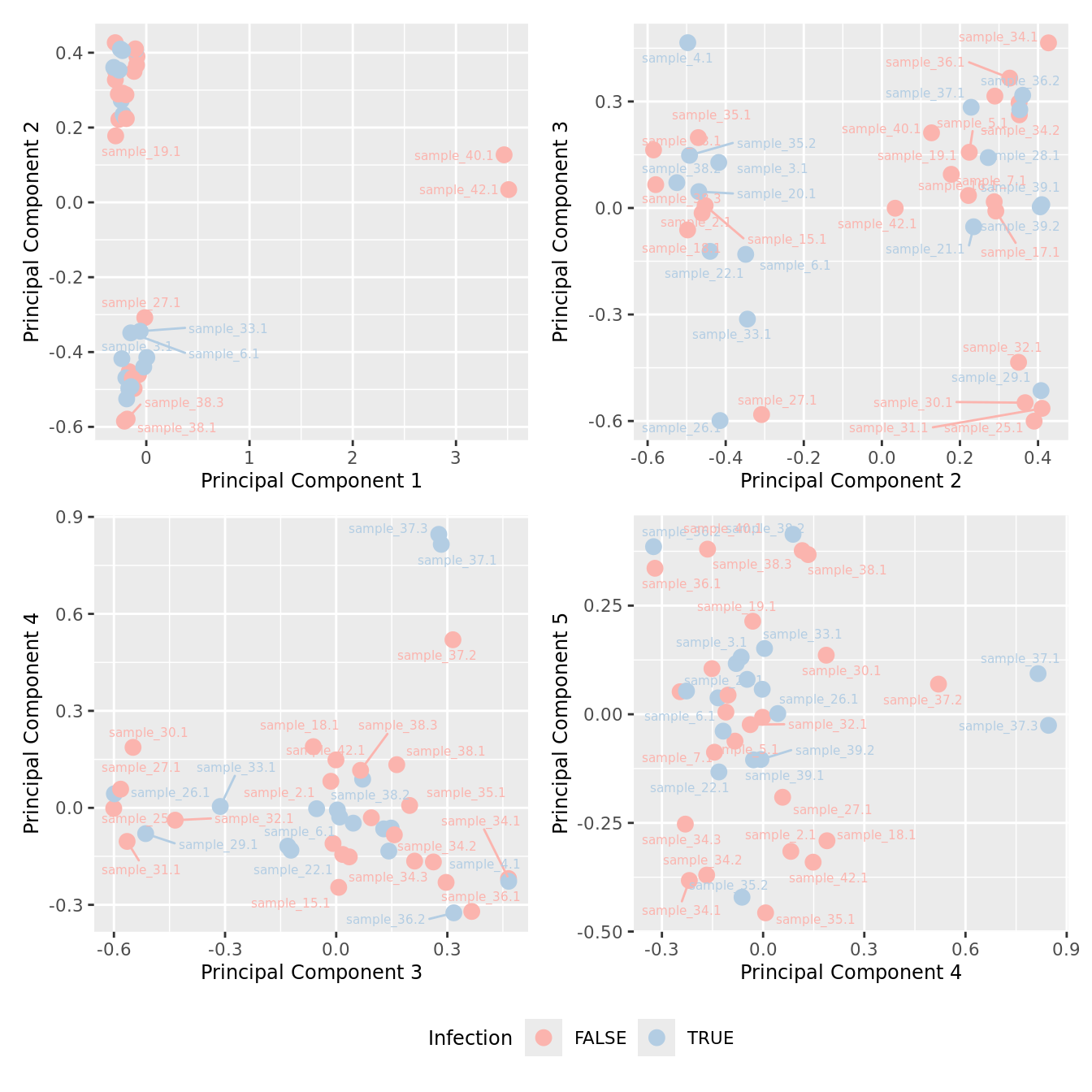

mds_by_factor(ySub, "as.factor(Micro_code)", "Infection") & scale_color_brewer(palette = "Pastel1")

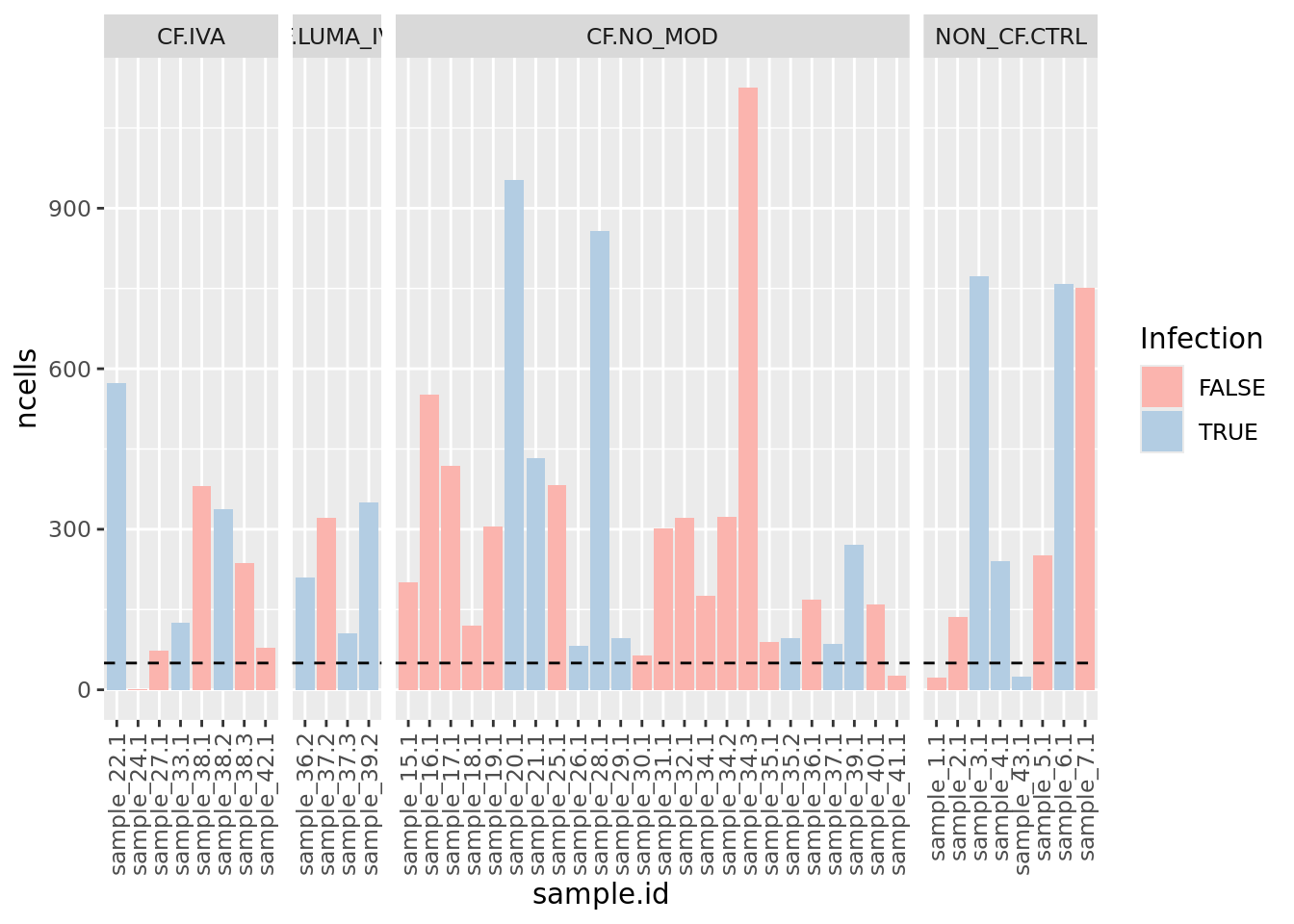

Examine number of cells per sample. Identify outliers and cross-reference with MDS plot. Determine a threshold for minimum number of cells per sample.

minCells <- 50

ySub$samples %>%
  ggplot(aes(x = sample.id, y = ncells, fill = Micro_code)) +
  geom_col() +
  labs(fill = "Infection") +
  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust = 1)) +
  geom_hline(yintercept = minCells, linetype = "dashed") +
  facet_grid(~Group, space = "free_x", scales = "free_x") +
  scale_fill_brewer(palette = "Pastel1")

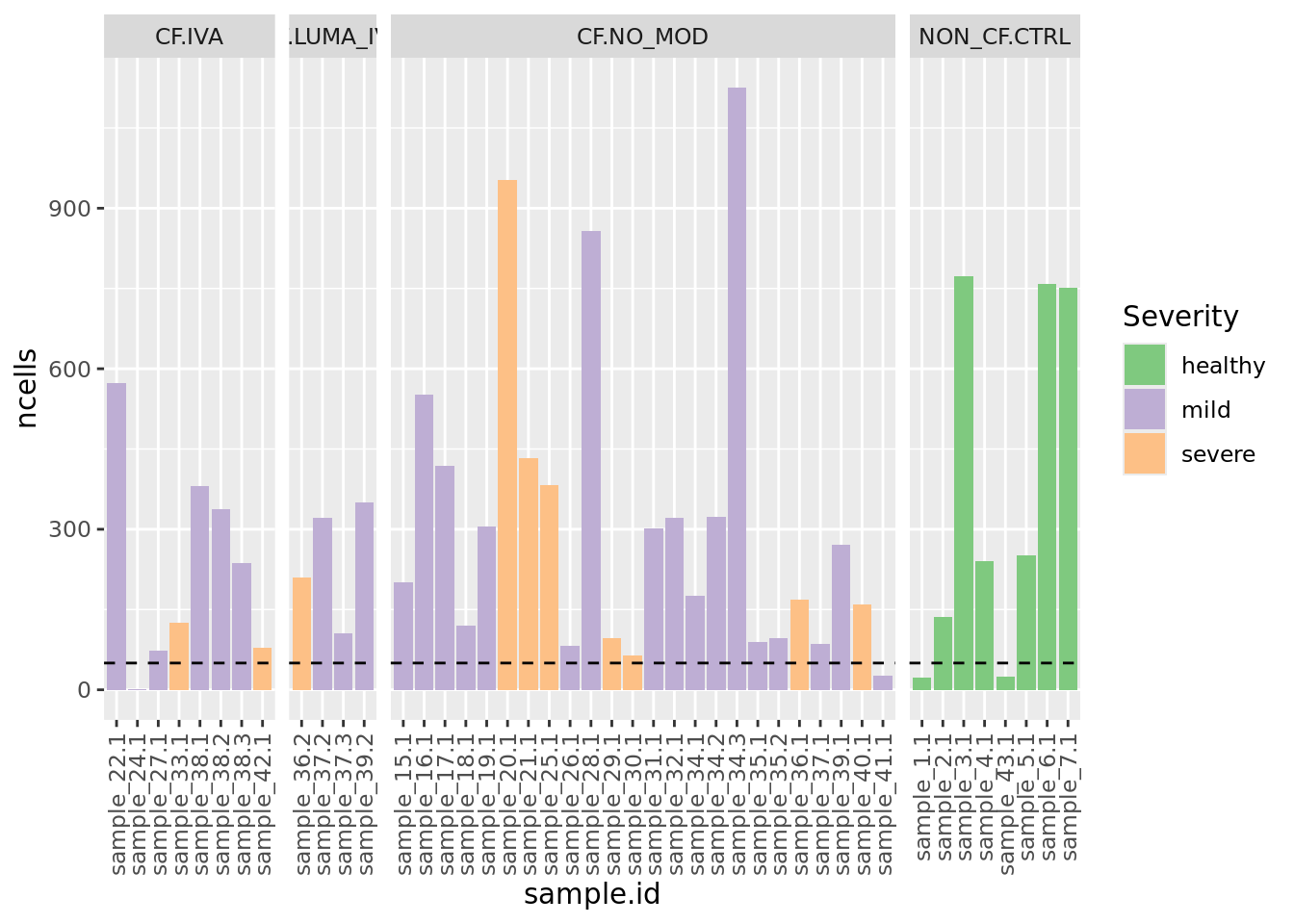

ySub$samples %>%
  ggplot(aes(x = sample.id, y = ncells, fill = Severity)) +
  geom_col() +
  labs(fill = "Severity") +
  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust = 1)) +
  geom_hline(yintercept = minCells, linetype = "dashed") +
  facet_grid(~Group, space = "free_x", scales = "free_x") +
  scale_fill_brewer(palette = "Accent")

Filter out samples with less than previously determined minimum number of cells.

ySub <- ySub[, ySub$samples$ncells > minCells]
dim(ySub)
[1] 21559    40

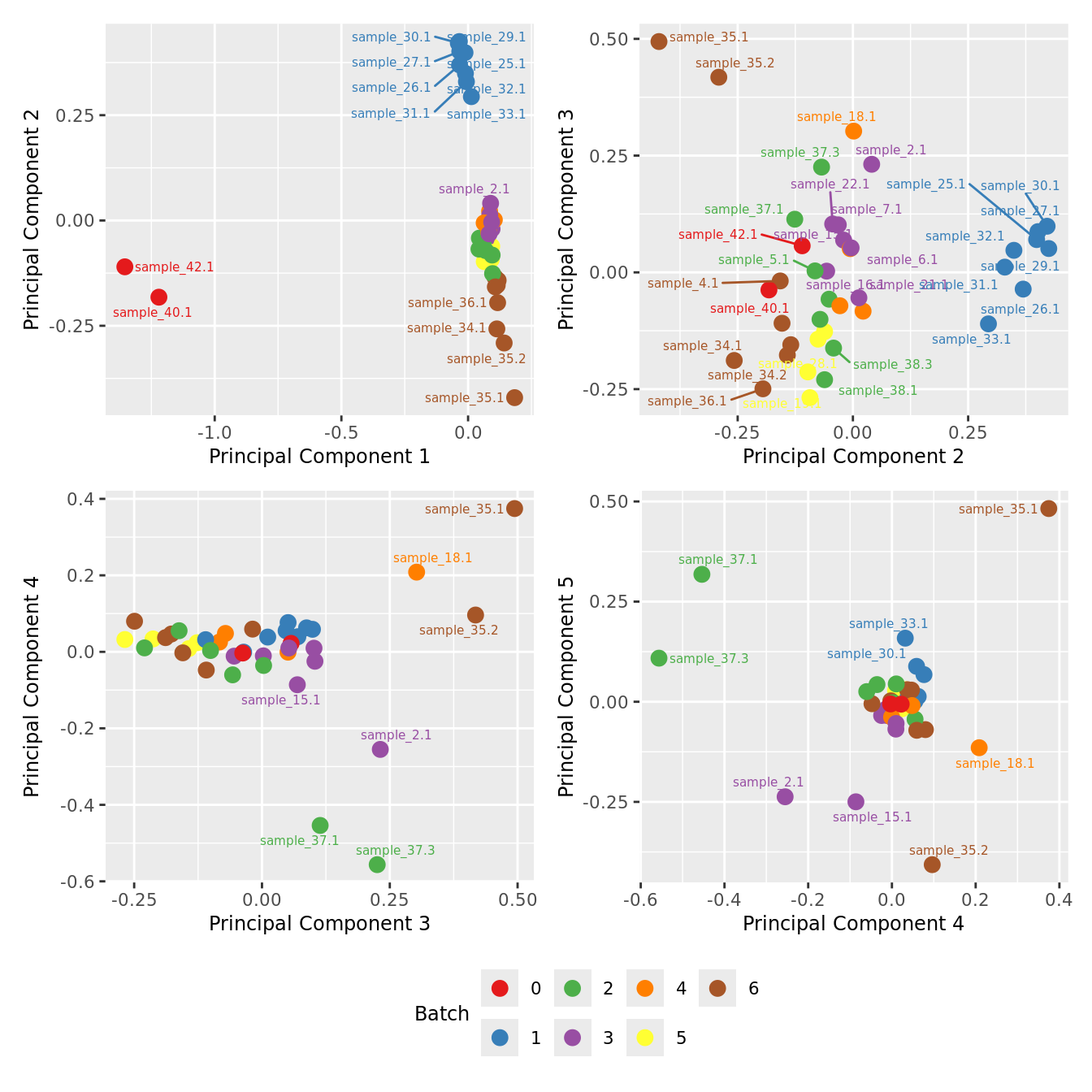

Re-examine MDS plots.

mds_by_factor(ySub, "as.factor(Batch)", "Batch") & scale_color_brewer(palette = "Set1")

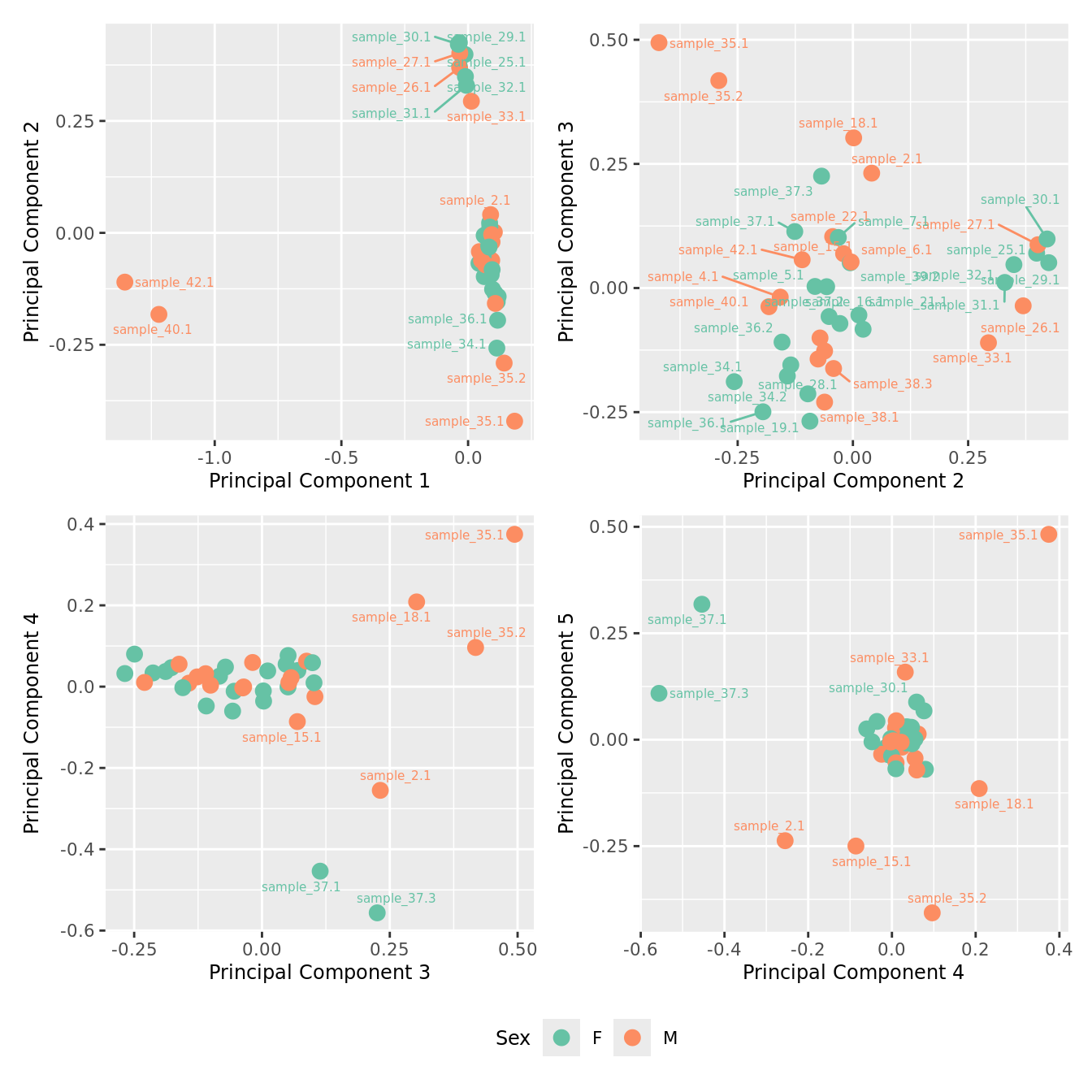

mds_by_factor(ySub, "as.factor(Sex)", "Sex") & scale_color_brewer(palette = "Set2")

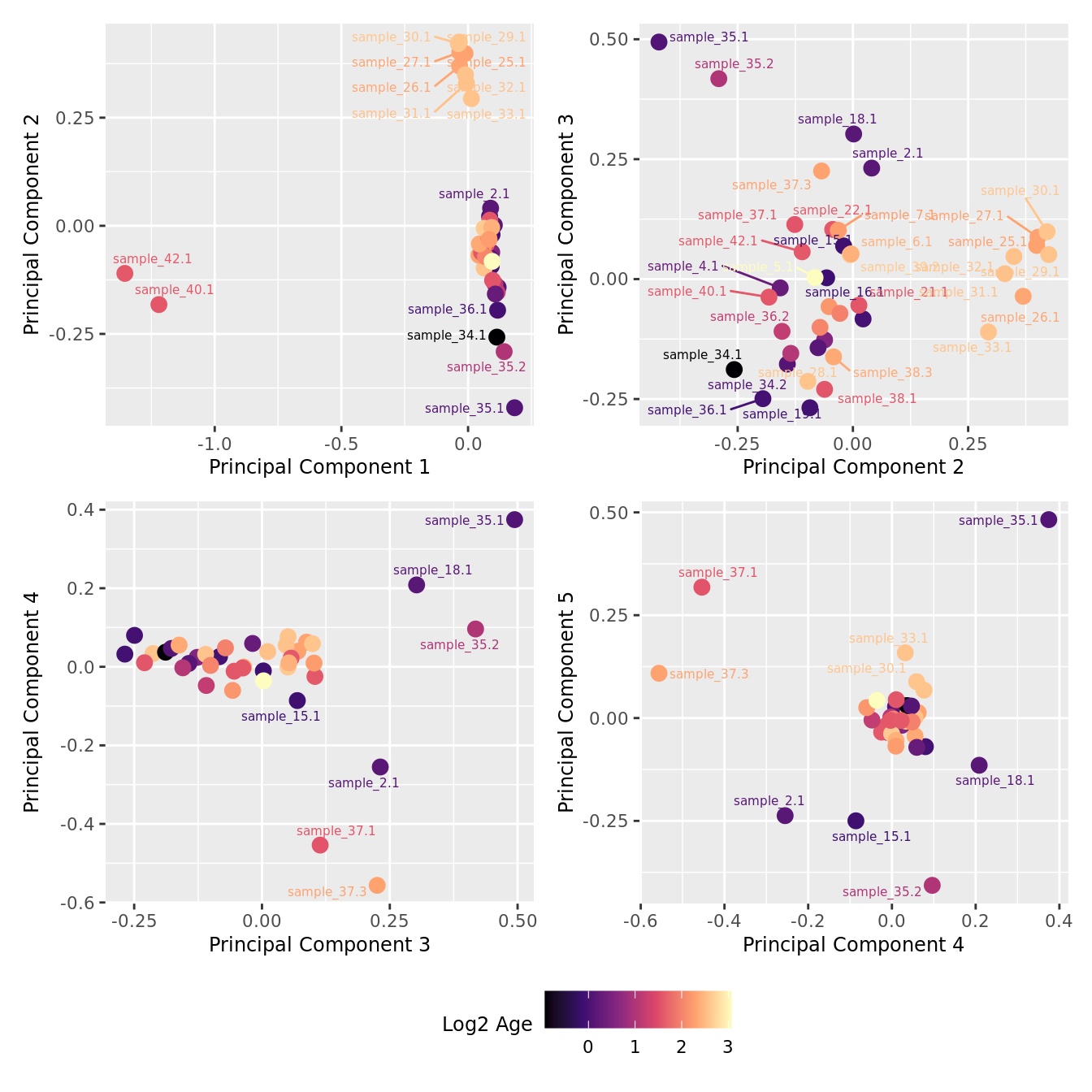

mds_by_factor(ySub, "log2(Age)", "Log2 Age") & scale_colour_viridis_c(option = "magma")

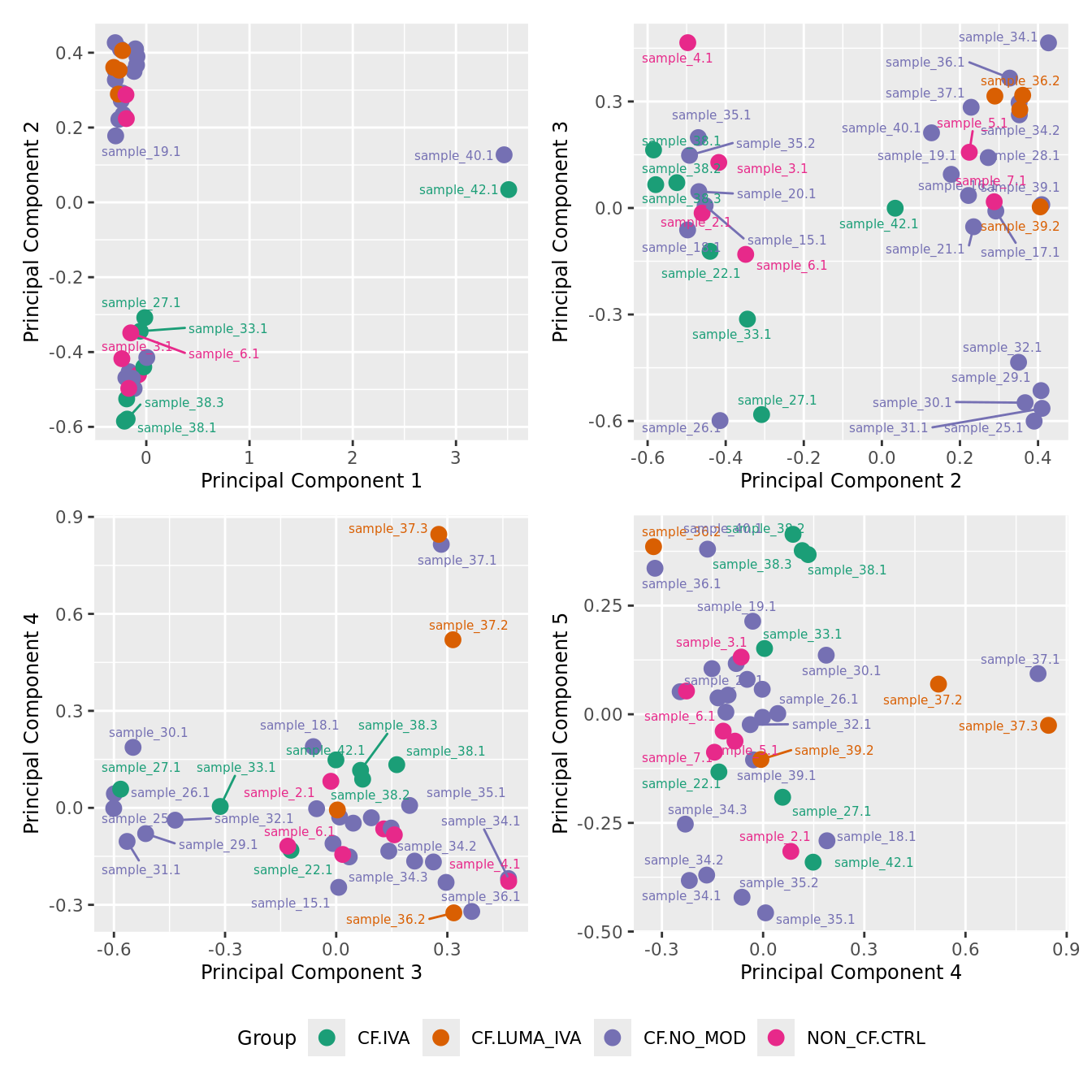

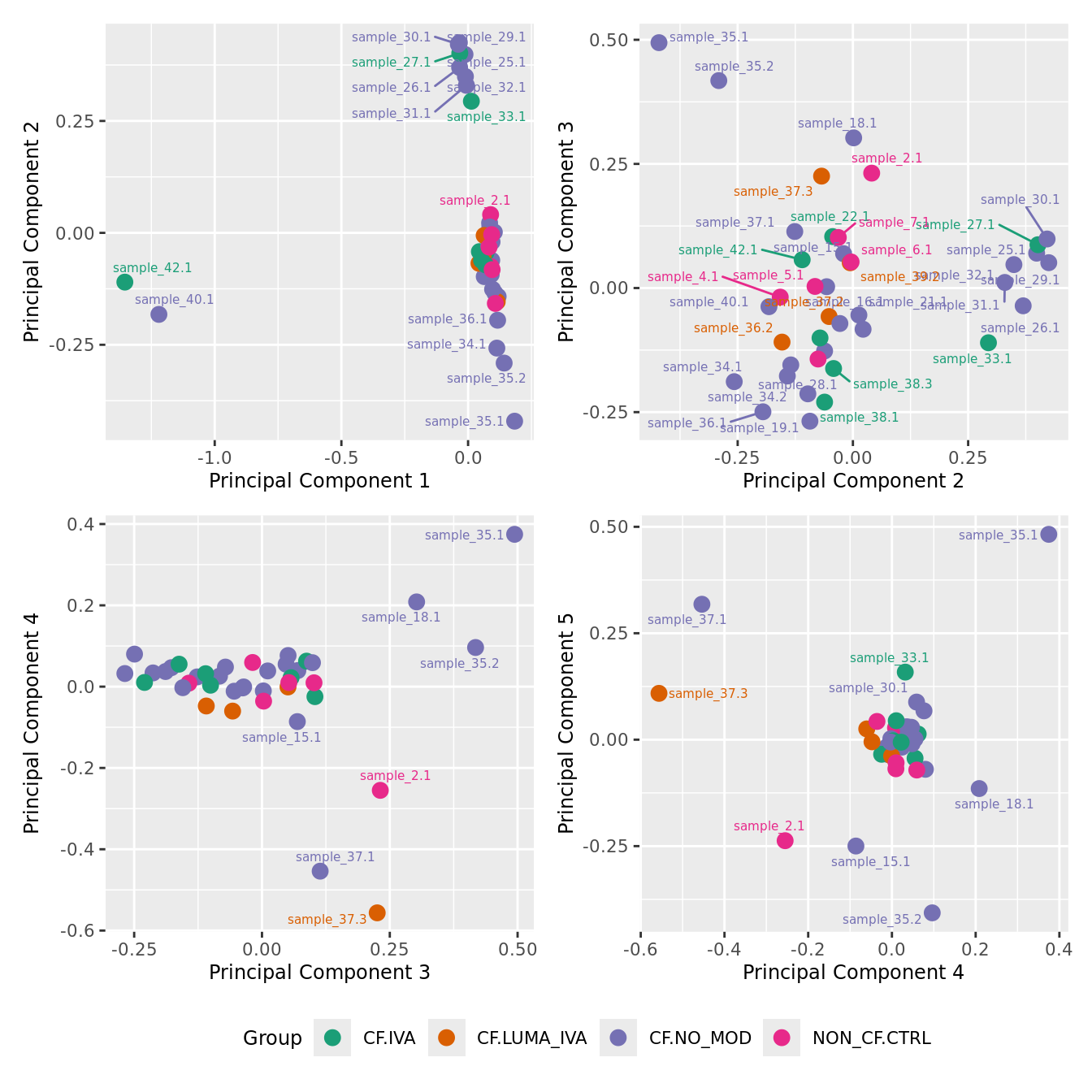

mds_by_factor(ySub, "as.factor(Group)", "Group") & scale_color_brewer(palette = "Dark2")

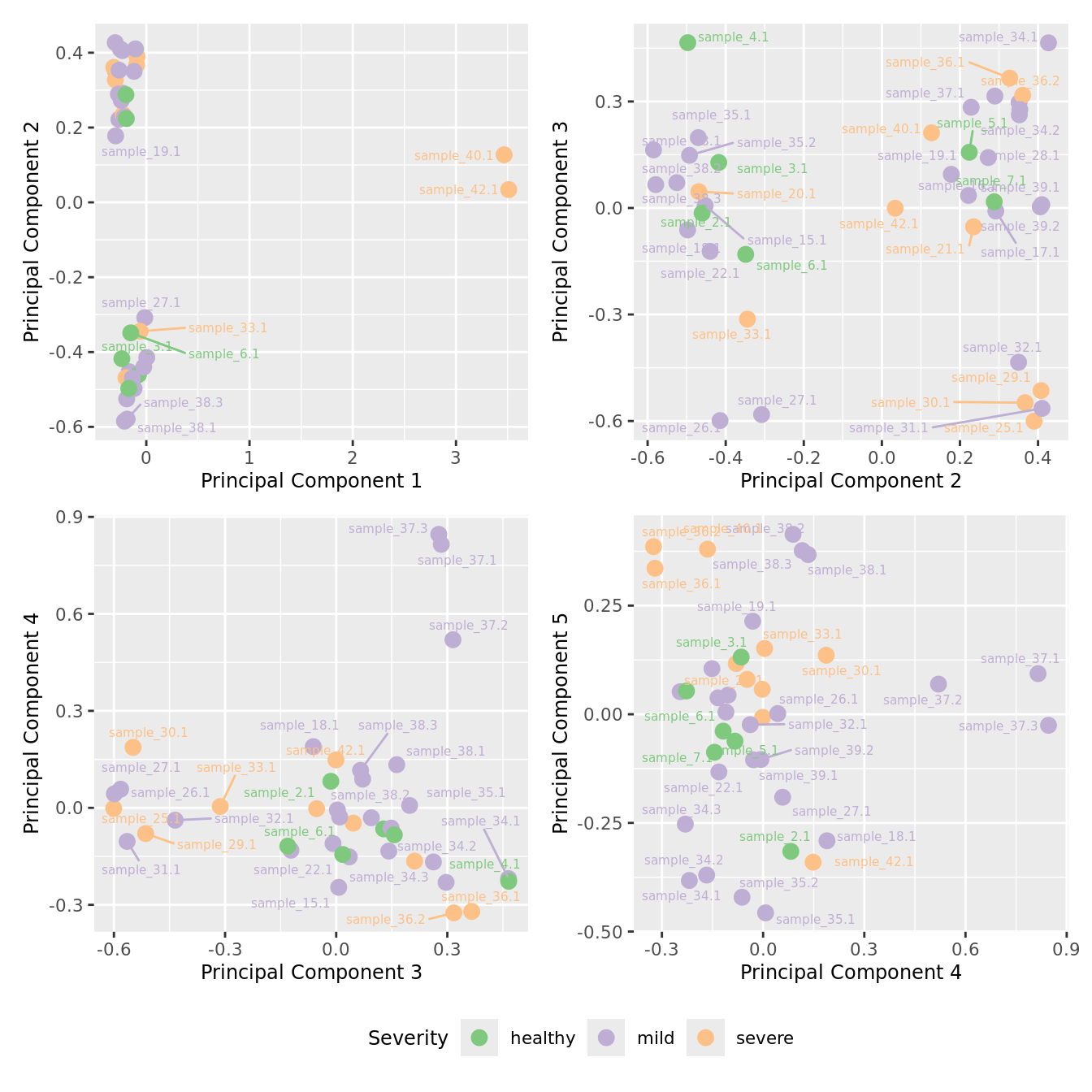

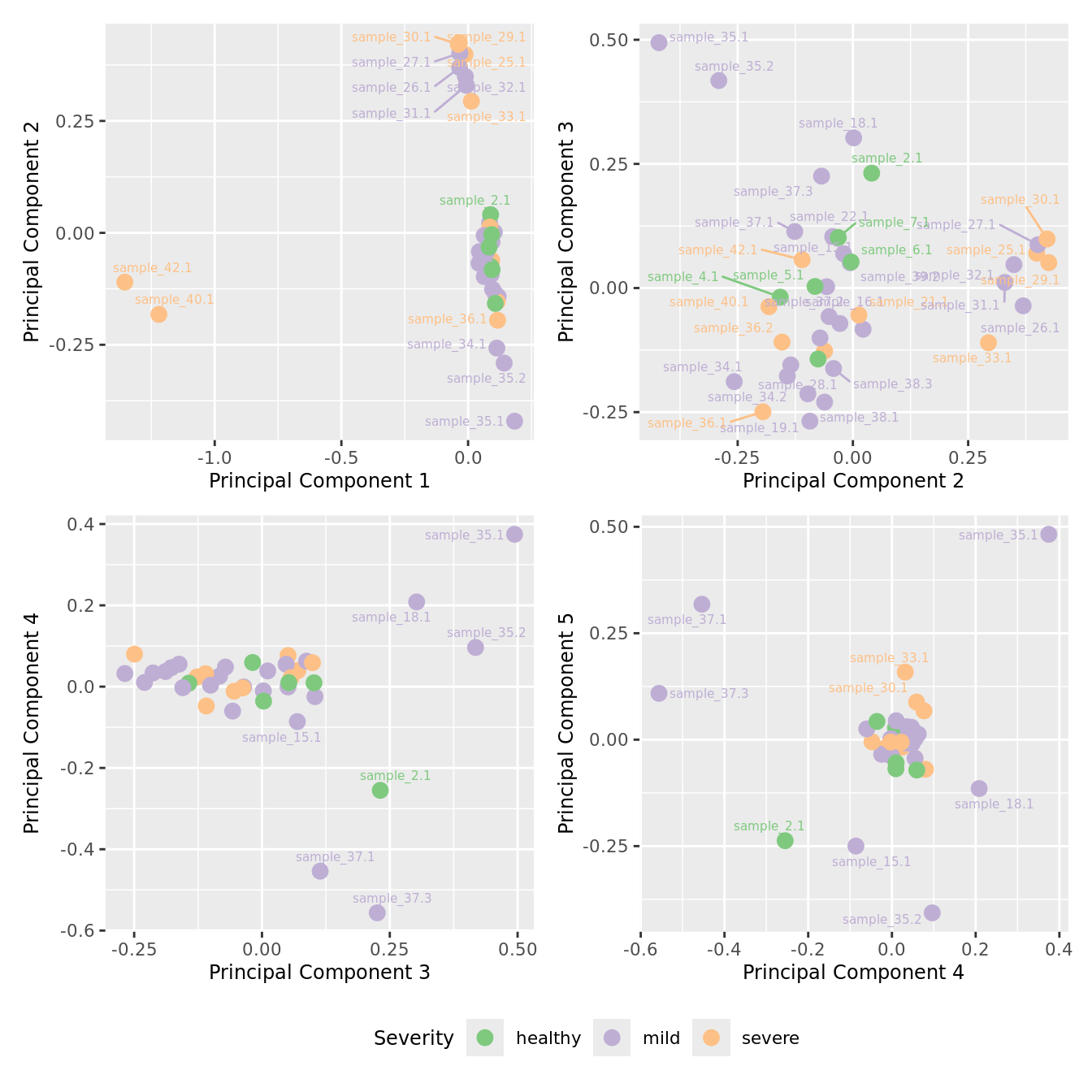

mds_by_factor(ySub, "as.factor(Severity)", "Severity") & scale_color_brewer(palette = "Accent")

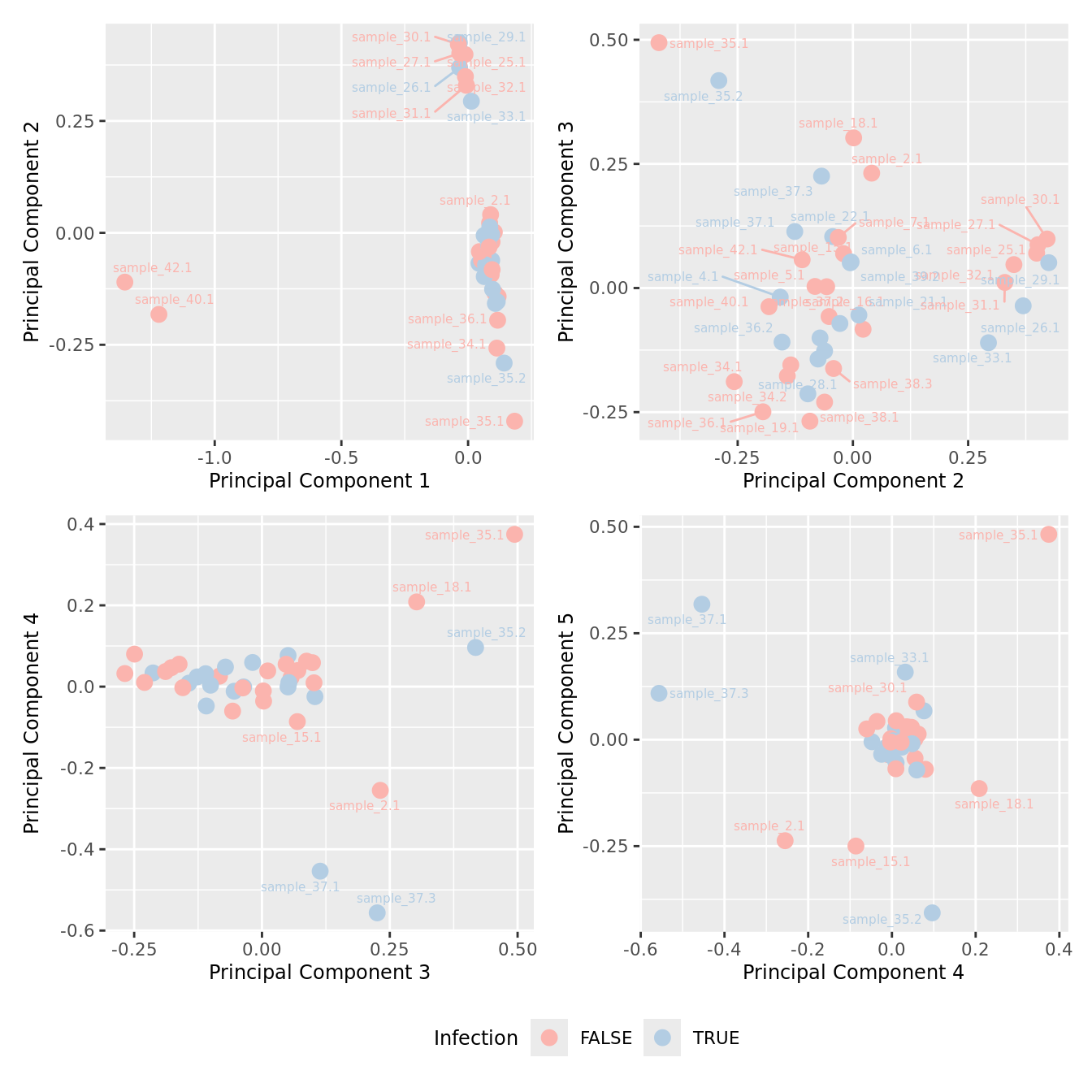

mds_by_factor(ySub, "as.factor(Micro_code)", "Infection") & scale_color_brewer(palette = "Pastel1")

Filter out genes with no ENTREZ IDs and very low expression.

gns <- AnnotationDbi::mapIds(org.Hs.eg.db,
                             keys = rownames(ySub),
                             column = c("ENTREZID"),
                             keytype = "SYMBOL",
                             multiVals = "first")
keep <- !is.na(gns)
ySub <- ySub[keep,]

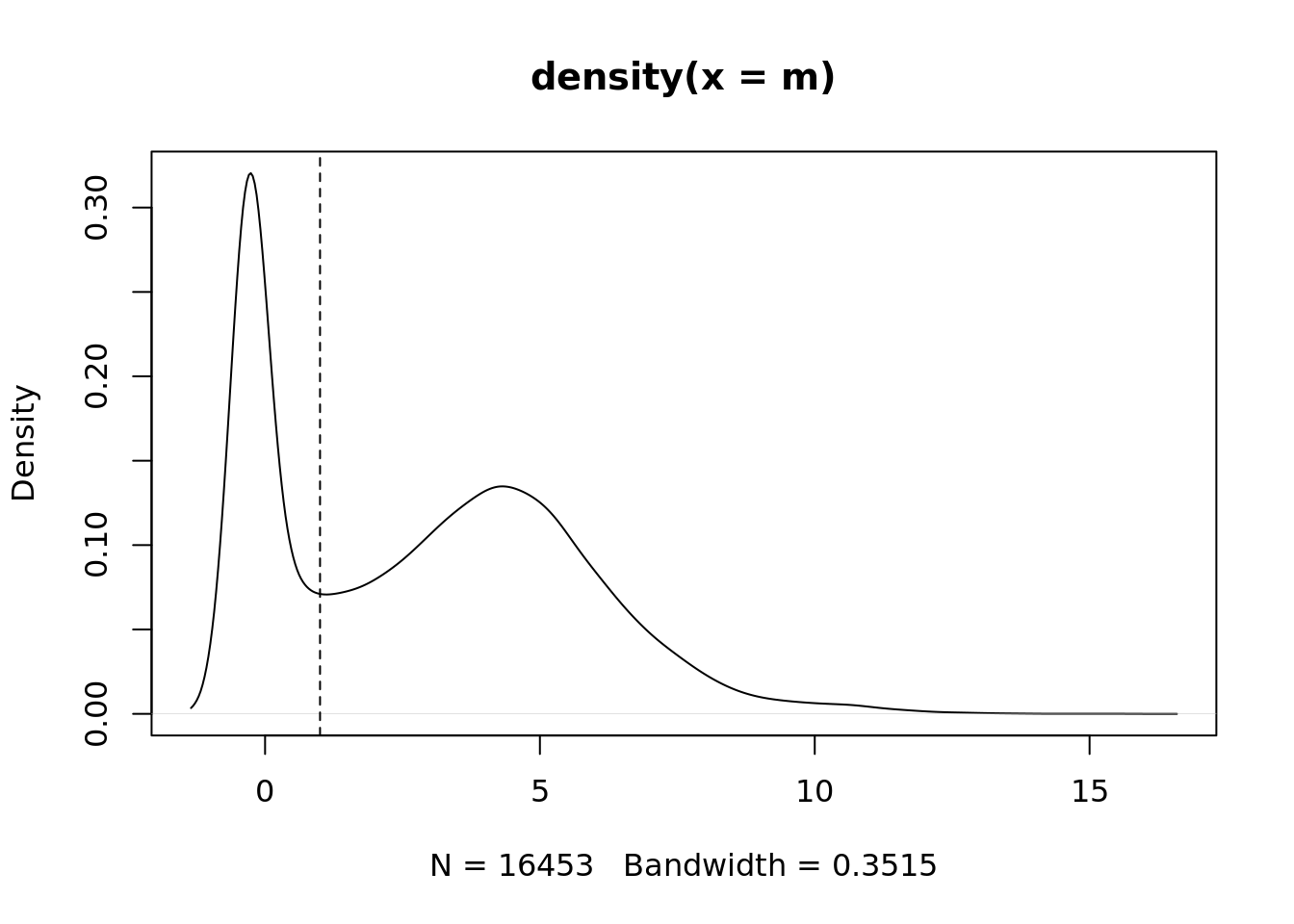

thresh <- 1
m <- rowMedians(edgeR::cpm(ySub$counts, log = TRUE))
plot(density(m))
abline(v = thresh, lty = 2)

# filter out genes with low median expression
keep <- m > thresh
table(keep)
keep
FALSE  TRUE
 5656 10797
ySub <- ySub[keep, ]
dim(ySub)
[1] 10797    40

Examine covariates

Principal components analysis (PCA) allows us to mathematically determine the sources of variation in the data. We can then investigate whether these correlate with any of the specifed covariates.

Prepare the data.

PCs <- prcomp(t(edgeR::cpm(ySub$counts, log = TRUE)),
              center = TRUE, retx = TRUE)
loadings = PCs$x # pc loadings


nGenes = nrow(ySub)
nSamples = ncol(ySub)

datTraits <- ySub$samples %>% dplyr::select(Batch, Disease, Micro_code,
                                            Severity, Age, Sex, ncells) %>%
  mutate(Batch = factor(Batch),
         Disease = factor(Disease,
                            labels = 1:length(unique(Disease))),
         Sex = factor(Sex, labels = length(unique(Sex))),
         Severity = factor(Severity, labels = length(unique(Severity)))) %>%
  mutate(across(everything(), as.numeric))

moduleTraitCor <- suppressWarnings(cor(loadings[, 1:min(10, nSamples)],
                                       datTraits, use = "p"))
moduleTraitPvalue <- WGCNA::corPvalueStudent(moduleTraitCor, (nSamples-2))

textMatrix <- paste(signif(moduleTraitCor, 2), "\n(",
                    signif(moduleTraitPvalue, 1), ")", sep = "")
dim(textMatrix) <- dim(moduleTraitCor)

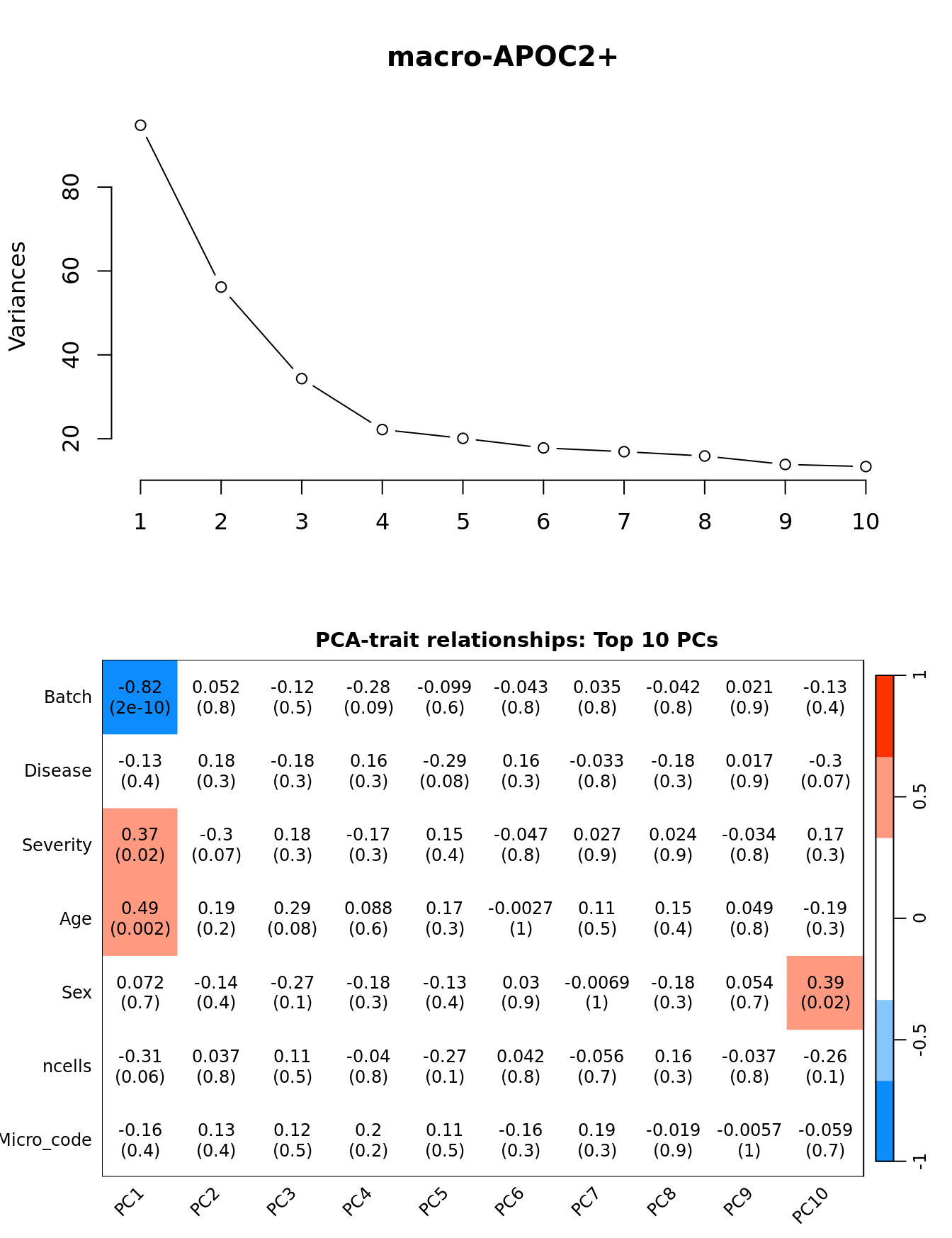

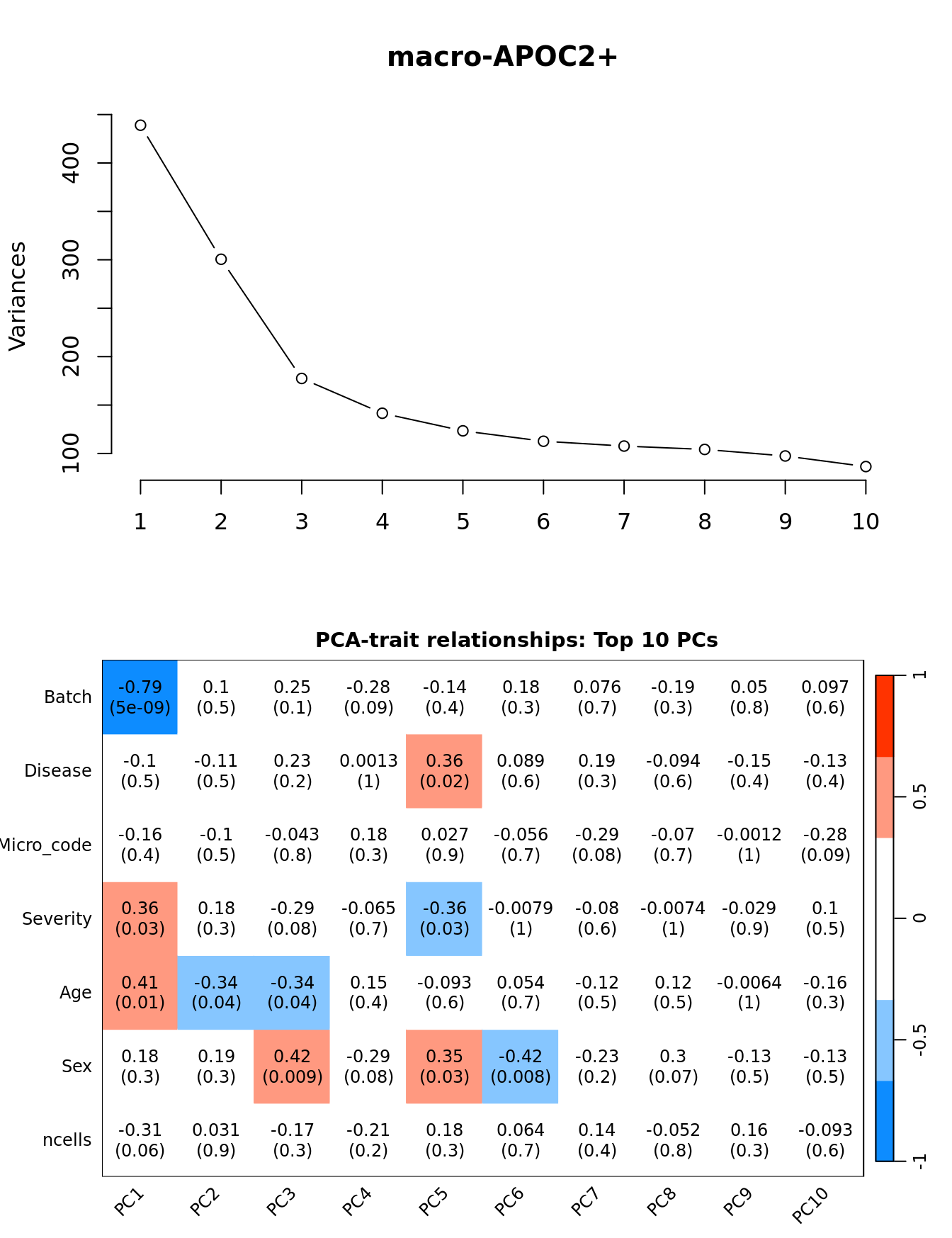

Output results.

par(mfrow = c(2, 1))
plot(PCs, type="lines", main = cell) # scree plot

## Display the correlation values within a heatmap plot
par(cex=0.75, mar = c(3, 5, 2, 1))
WGCNA::labeledHeatmap(Matrix = t(moduleTraitCor),
                            xLabels = colnames(loadings)[1:min(10, nSamples)],
                            yLabels = names(datTraits),
                            colorLabels = FALSE,
                            colors = WGCNA::blueWhiteRed(6),
                            textMatrix = t(textMatrix),
                            setStdMargins = FALSE,
                            cex.text = 1,
                            zlim = c(-1,1),
                            main = paste0("PCA-trait relationships: Top ",
                                          min(10, nSamples),
                                          " PCs"))

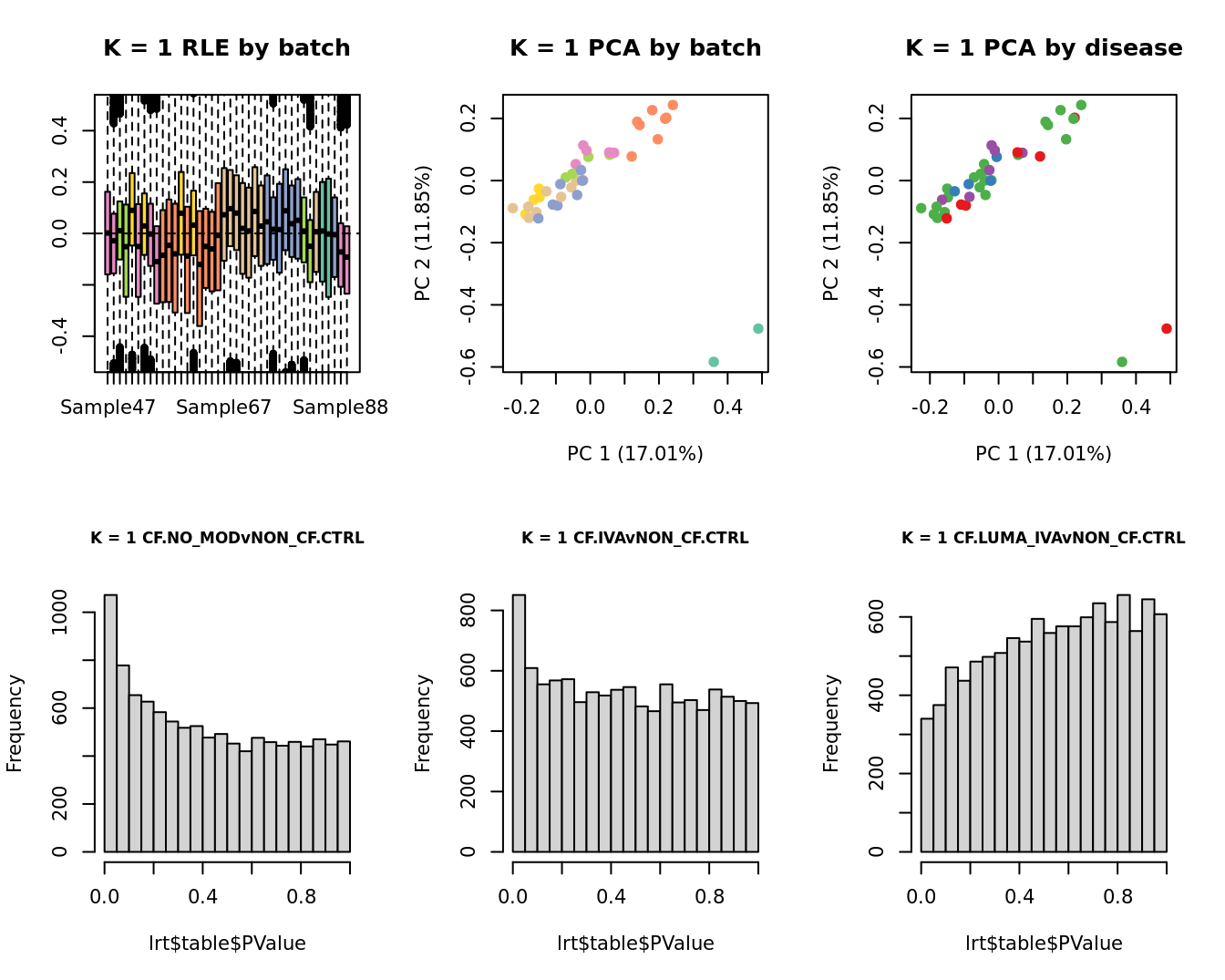

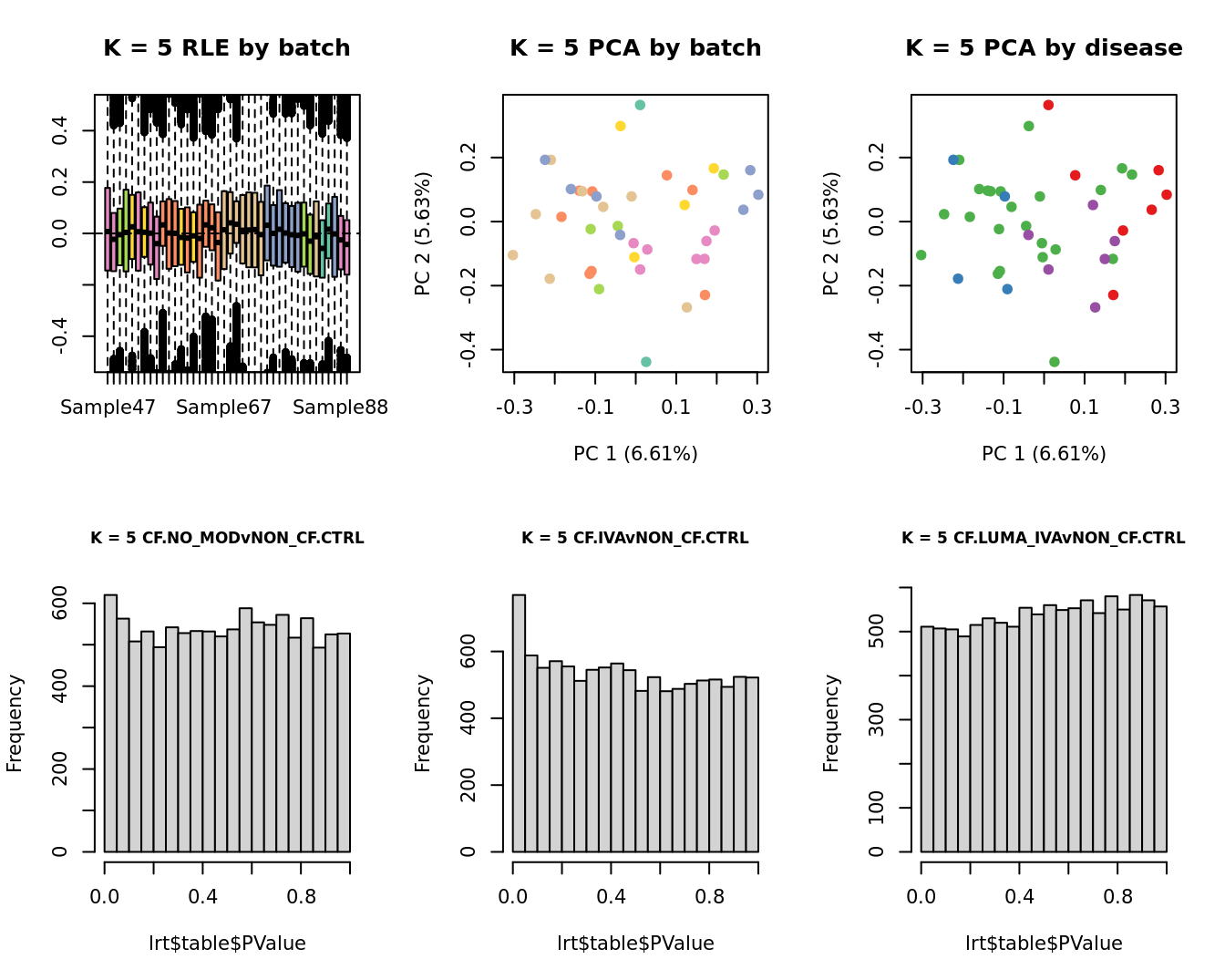

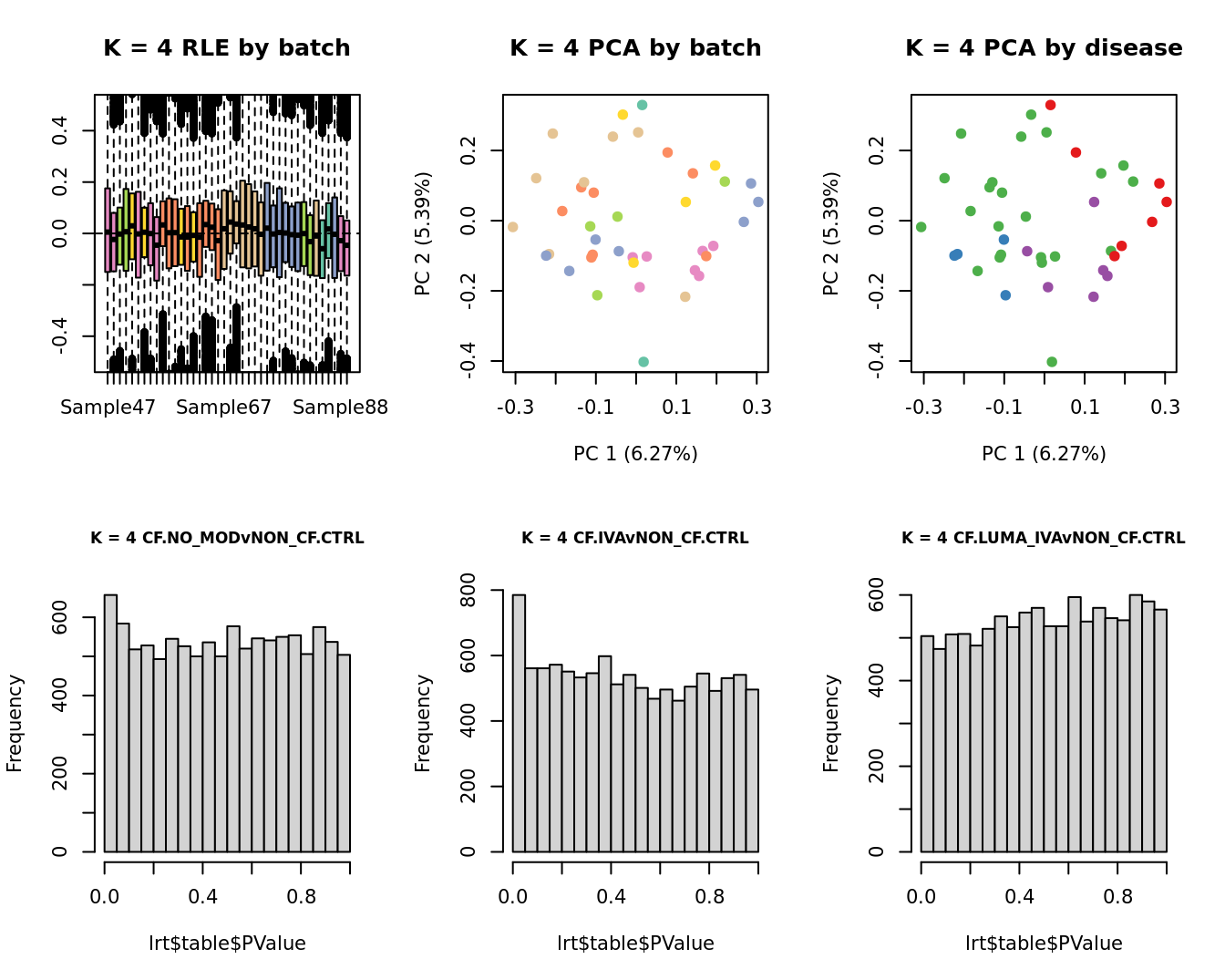

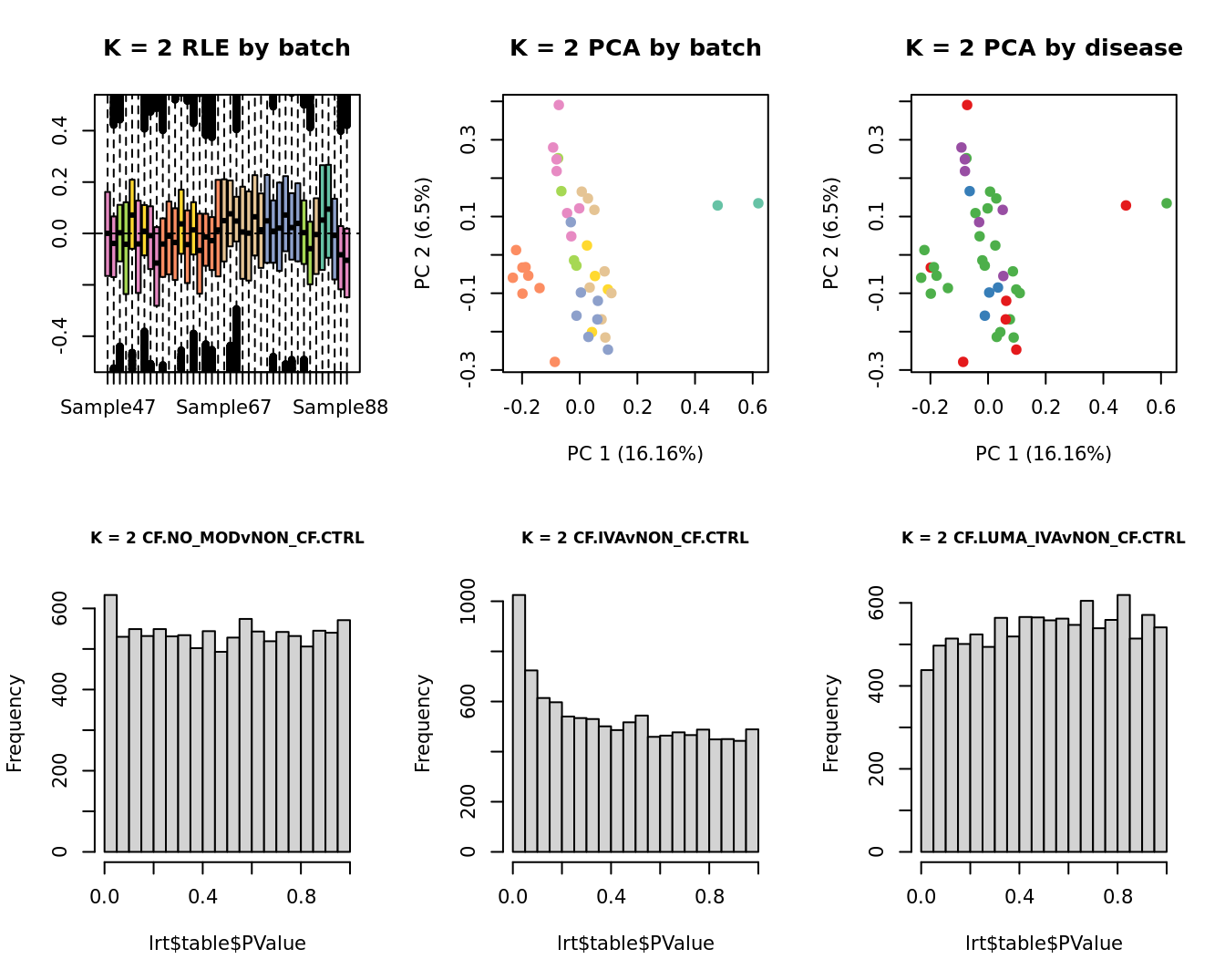

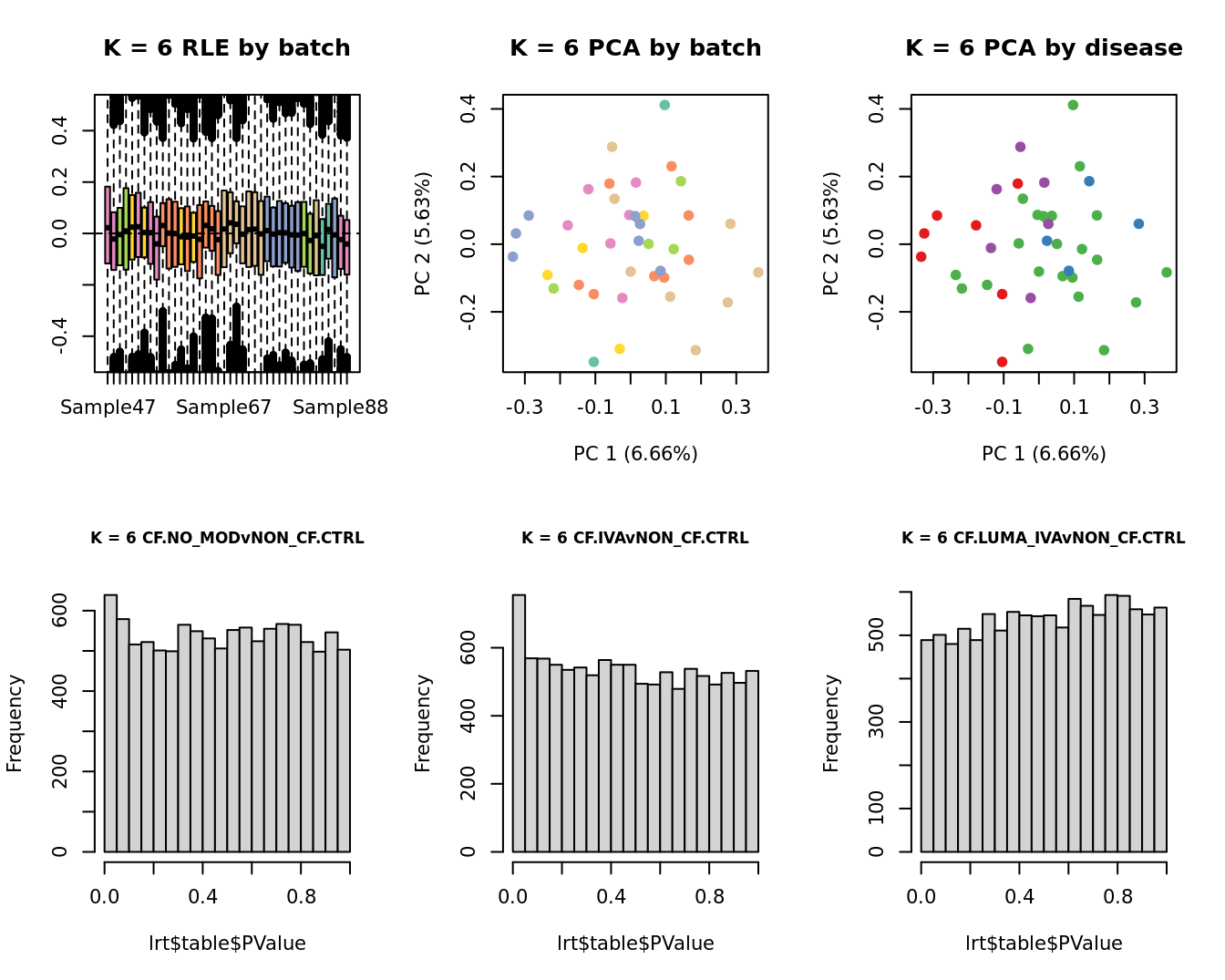

Statistical analysis with RUVseq

Use RUVseq and edgeR for differential expression analysis between sample groups.

Use house-keeping genes (HKG) identified from human single-cell RNAseq experiments.

data("segList", package = "scMerge")

HKGs <- segList$human$bulkRNAseqHK
ctl <- rownames(ySub) %in% HKGs
table(ctl)
ctl
FALSE  TRUE
 7344  3453

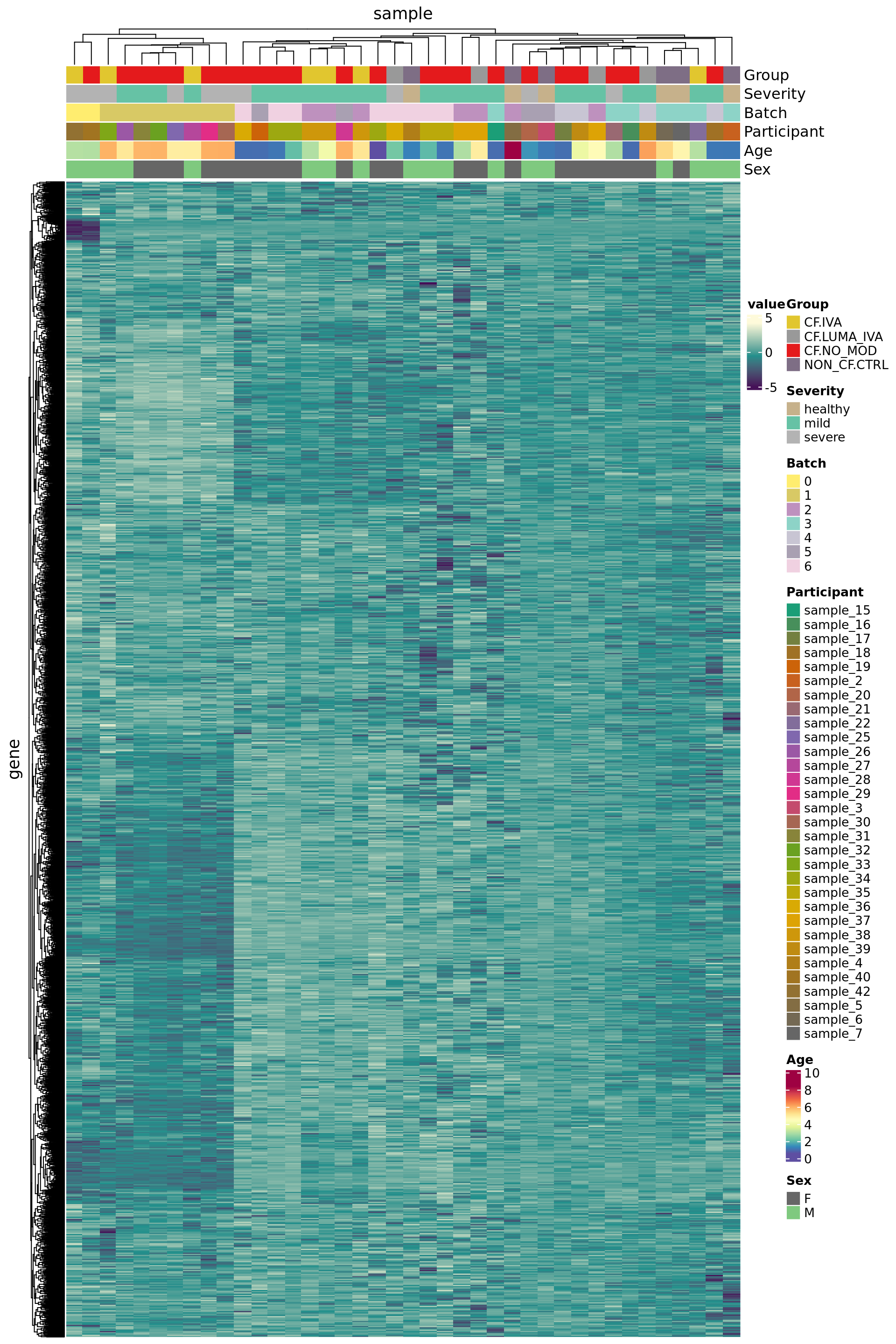

Plot HKG expression profiles across all the samples.

edgeR::cpm(ySub$counts, log = TRUE) %>%
  data.frame %>%
  rownames_to_column(var = "gene") %>%
  pivot_longer(-gene, names_to = "sample") %>%
  left_join(rownames_to_column(ySub$samples,
                               var = "sample")) %>%
  dplyr::filter(gene %in% HKGs) %>%
  dplyr::filter(ann_level_2 == cell) %>%
  mutate(Batch = as.factor(Batch)) -> dat

dat %>%
  heatmap(gene, sample, value,
          scale = "row",
          show_row_names = FALSE,
          show_column_names = FALSE) %>%
  add_tile(Group) %>%
  add_tile(Severity) %>%
  add_tile(Batch) %>%
  add_tile(Participant) %>%
  add_tile(Age) %>%
  add_tile(Sex)

mds_by_factor(ySub[rownames(ySub) %in% HKGs,], "as.factor(Batch)", "Batch") & scale_color_brewer(palette = "Set1")

mds_by_factor(ySub[rownames(ySub) %in% HKGs,], "as.factor(Sex)", "Sex") & scale_color_brewer(palette = "Set2")

mds_by_factor(ySub[rownames(ySub) %in% HKGs,], "log2(Age)", "Log2 Age") & scale_colour_viridis_c(option = "magma")

mds_by_factor(ySub[rownames(ySub) %in% HKGs,], "as.factor(Group)", "Group") & scale_color_brewer(palette = "Dark2")

mds_by_factor(ySub[rownames(ySub) %in% HKGs,], "as.factor(Severity)", "Severity") &
  scale_color_brewer(palette = "Accent")

mds_by_factor(ySub[rownames(ySub) %in% HKGs,], "as.factor(Micro_code)", "Infection") & scale_color_brewer(palette = "Pastel1")

Investigate whether HKG PCAs correlate with any known covariates. Prepare the data.

PCs <- prcomp(t(edgeR::cpm(ySub$counts[ctl, ], log = TRUE)),
              center = TRUE, retx = TRUE)
loadings = PCs$x # pc loadings


nGenes = nrow(ySub)
nSamples = ncol(ySub)

datTraits <- ySub$samples %>% dplyr::select(Batch, Disease,
                                            Severity, Age, Sex, ncells, Micro_code) %>%
  mutate(Batch = factor(Batch),
         Disease = factor(Disease,
                            labels = 1:length(unique(Disease))),
         Sex = factor(Sex, labels = length(unique(Sex))),
         Severity = factor(Severity, labels = length(unique(Severity)))) %>%
  mutate(across(everything(), as.numeric))

moduleTraitCor <- suppressWarnings(cor(loadings[, 1:min(10, nSamples)],
                                       datTraits, use = "p"))
moduleTraitPvalue <- WGCNA::corPvalueStudent(moduleTraitCor, (nSamples-2))

textMatrix <- paste(signif(moduleTraitCor, 2), "\n(",
                    signif(moduleTraitPvalue, 1), ")", sep = "")
dim(textMatrix) <- dim(moduleTraitCor)

Output results.

par(mfrow = c(2, 1))
plot(PCs, type="lines", main = cell) # scree plot

## Display the correlation values within a heatmap plot
par(cex=0.75, mar = c(3, 5, 2, 1))
WGCNA::labeledHeatmap(Matrix = t(moduleTraitCor),
                            xLabels = colnames(loadings)[1:min(10, nSamples)],
                            yLabels = names(datTraits),
                            colorLabels = FALSE,
                            colors = WGCNA::blueWhiteRed(6),
                            textMatrix = t(textMatrix),
                            setStdMargins = FALSE,
                            cex.text = 1,
                            zlim = c(-1,1),
                            main = paste0("PCA-trait relationships: Top ",
                                          min(10, nSamples),
                                          " PCs"))

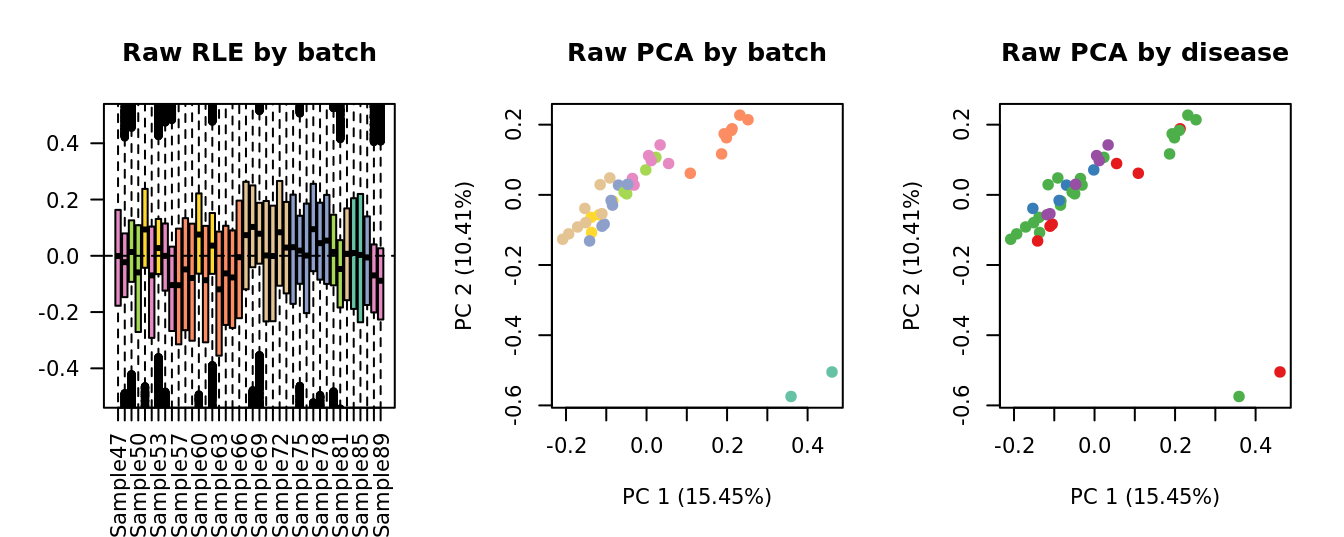

First, we need to select k for use with RUVseq. Examine the structure of the raw pseudobulk data.

x1 <- as.factor(ySub$samples$Batch)
cols1 <- RColorBrewer::brewer.pal(7, "Set2")

par(mfrow = c(1,3))
EDASeq::plotRLE(edgeR::cpm(ySub$counts),
                col = cols1[x1], ylim = c(-0.5, 0.5),
                main = "Raw RLE by batch", las = 2)
EDASeq::plotPCA(edgeR::cpm(ySub$counts),
                col = cols1[x1], labels = FALSE,
                pch = 19, main = "Raw PCA by batch")
x2 <- as.factor(ySub$samples$Group)
cols2 <- RColorBrewer::brewer.pal(4, "Set1")
EDASeq::plotPCA(edgeR::cpm(ySub$counts),
                col = cols2[x2], labels = FALSE,
                pch = 19, main = "Raw PCA by disease")

Select the value for the k parameter i.e. the number of columns of the W matrix that will be included in the modelling.

# define the sample groups
group <- factor(ySub$samples$Group)
#micro <- factor(ySub$samples$Micro_code)
sex <- factor(ySub$samples$Sex)
age <- log2(ySub$samples$Age)

for(k in 1:6){
  adj <- RUVg(ySub$counts, ctl, k = k)
  W <- adj$W

  # create the design matrix
  design <- model.matrix(~0 + group + W + sex + age)
  colnames(design)[1:length(levels(group))] <- levels(group)

  # add the factors for the replicate samples
  dups <- unique(ySub$samples$Participant[duplicated(ySub$samples$Participant)])
  dups <- sapply(dups, function(d){
    ifelse(ySub$samples$Participant == d, 1, 0)
  }, USE.NAMES = TRUE)

  contr <- makeContrasts(CF.NO_MODvNON_CF.CTRL = CF.NO_MOD - NON_CF.CTRL,
                         CF.IVAvNON_CF.CTRL = CF.IVA - NON_CF.CTRL,
                         CF.LUMA_IVAvNON_CF.CTRL = CF.LUMA_IVA - NON_CF.CTRL,
                         levels = design)

  y <- DGEList(counts = ySub$counts)
  y <- calcNormFactors(y)
  y <- estimateGLMCommonDisp(y, design)
  y <- estimateGLMTagwiseDisp(y, design)
  fit <- glmFit(y, design)

  x1 <- as.factor(ySub$samples$Batch)
  cols1 <- RColorBrewer::brewer.pal(7, "Set2")

  par(mfrow = c(2,3))
  EDASeq::plotRLE(edgeR::cpm(adj$normalizedCounts),
                  col = cols1[x1], ylim = c(-0.5, 0.5),
                  main = paste0("K = ", k, " RLE by batch"))
  EDASeq::plotPCA(edgeR::cpm(adj$normalizedCounts),
                  col = cols1[x1], labels = FALSE,
                  pch = 19,
                  main = paste0("K = ", k, " PCA by batch"))

  x2 <- as.factor(ySub$samples$Group)
  cols2 <- RColorBrewer::brewer.pal(5, "Set1")
  EDASeq::plotPCA(edgeR::cpm(adj$normalizedCounts),
                  col = cols2[x2], labels = FALSE,
                  pch = 19,
                  main = paste0("K = ", k, " PCA by disease"))

  lrt <- glmLRT(fit, contrast = contr[, 1])
  hist(lrt$table$PValue, main = paste0("K = ", k, " ", colnames(contr)[1]),
       cex.main = 0.8)
  lrt <- glmLRT(fit, contrast = contr[, 2])
  hist(lrt$table$PValue, main = paste0("K = ", k, " ", colnames(contr)[2]),
       cex.main = 0.8)
  lrt <- glmLRT(fit, contrast = contr[, 3])
  hist(lrt$table$PValue, main = paste0("K = ", k, " ", colnames(contr)[3]),
       cex.main = 0.8)

}

Test for DGE using RUVSeq and edgeR. First, create design matrix to model the sample groups and take into account the unwanted variation, age, sex, severity and replicate samples from the same individual.

# use RUVSeq to identify the factors of unwanted variation
adj <- RUVg(ySub$counts, ctl, k = 5)
W <- adj$W

# create the design matrix
design <- model.matrix(~ 0 + group + W + sex + age)
colnames(design)[1:length(levels(group))] <- levels(group)

# add the factors for the replicate samples
dups <- unique(ySub$samples$Participant[duplicated(ySub$samples$Participant)])
dups <- sapply(dups, function(d){
  ifelse(ySub$samples$Participant == d, 1, 0)
}, USE.NAMES = TRUE)

design <- cbind(design, dups)
design %>% knitr::kable()
CF.IVA CF.LUMA_IVA CF.NO_MOD NON_CF.CTRL WW_1 WW_2 WW_3 WW_4 WW_5 sexM age sample_34 sample_35 sample_36 sample_37 sample_38 sample_39
0 0 1 0 -0.1722921 -0.0300264 0.0257528 -0.0829477 0.0693928 1 -0.0939001 0 0 0 0 0 0
0 0 1 0 0.0385200 -0.0662890 0.0282431 -0.0861324 0.0284805 0 -0.1151479 0 0 0 0 0 0
0 0 1 0 0.1021505 -0.0717381 0.0170333 0.0504562 -0.0602857 0 -0.0441471 0 0 0 0 0 0
0 0 1 0 -0.1857497 0.0281927 0.0994847 -0.2965959 -0.0632797 1 0.1428834 0 0 0 0 0 0
0 0 1 0 0.0147965 -0.1119710 -0.0598901 0.1517663 -0.0890425 0 -0.0729608 0 0 0 0 0 0
0 0 0 1 -0.2414514 0.0506973 0.1006417 -0.1537499 0.3654633 1 0.1464588 0 0 0 0 0 0
0 0 1 0 0.2658593 -0.1537408 -0.0150277 -0.0176931 0.0090708 1 0.5597097 0 0 0 0 0 0
0 0 1 0 0.0050670 -0.0517131 0.0456762 -0.0578848 0.0638001 0 1.5743836 0 0 0 0 0 0
1 0 0 0 0.0384326 -0.0383319 0.0844305 -0.2681979 0.1204096 1 1.5993830 0 0 0 0 0 0
0 0 1 0 0.3312128 0.2121165 0.2198811 -0.0776420 0.0123314 0 2.2957230 0 0 0 0 0 0
0 0 1 0 -0.0574478 0.2332403 0.1464699 0.1361196 -0.0419434 1 2.3360877 0 0 0 0 0 0
1 0 0 0 -0.0596821 0.2506107 0.1828820 0.0644781 -0.1058938 1 2.2980155 0 0 0 0 0 0
0 0 1 0 0.1919699 -0.1930267 -0.1107259 0.1367957 -0.0153055 0 2.5790214 0 0 0 0 0 0
0 0 1 0 -0.0625330 0.2626201 0.1895347 0.1498863 -0.0962875 0 2.5823250 0 0 0 0 0 0
0 0 0 1 0.1926413 -0.1479988 -0.0448056 0.0872031 -0.0208289 1 0.1321035 0 0 0 0 0 0
0 0 1 0 -0.0582226 0.2636383 0.2027319 0.0702764 -0.1096823 0 2.5889097 0 0 0 0 0 0
0 0 1 0 0.2543259 0.1822612 0.1696632 -0.0302150 -0.0032311 0 2.5583683 0 0 0 0 0 0
0 0 1 0 0.2679888 0.1769947 0.1793924 -0.0422766 -0.0272989 0 2.5670653 0 0 0 0 0 0
1 0 0 0 -0.0890895 0.1531046 0.0840937 0.4925509 -0.1615934 1 2.5730557 0 0 0 0 0 0
0 0 1 0 -0.1066149 -0.1649281 -0.1082168 0.0330959 -0.0400333 0 -0.9343238 1 0 0 0 0 0
0 0 1 0 0.0283633 -0.1551211 -0.0674272 0.0669979 -0.0747502 0 0.0918737 1 0 0 0 0 0
0 0 1 0 0.2939590 -0.2202645 -0.0657156 -0.0541632 0.0167419 0 1.0409164 1 0 0 0 0 0
0 0 1 0 -0.2672614 -0.0924986 -0.0178240 -0.2422017 -0.5096210 1 0.0807044 0 1 0 0 0 0
0 0 1 0 -0.2399715 -0.0755946 -0.0047837 -0.2373094 -0.3349088 1 0.9940589 0 1 0 0 0 0
0 0 1 0 -0.1391558 -0.1300250 -0.0975287 0.1352719 -0.0992987 0 -0.0564254 0 0 1 0 0 0
0 1 0 0 -0.0881348 -0.1271193 -0.0491764 0.0704153 0.0154408 0 1.1764977 0 0 1 0 0 0
0 0 1 0 -0.2580038 0.0002313 -0.0104993 0.1116308 0.3925322 0 1.5597097 0 0 0 1 0 0
0 1 0 0 0.0125102 -0.0643531 -0.0111233 0.0469133 0.1083535 0 2.1930156 0 0 0 1 0 0
0 1 0 0 -0.2361380 0.0203387 -0.0017328 0.0774358 0.4250079 0 2.2980155 0 0 0 1 0 0
1 0 0 0 0.0385461 -0.1076111 -0.0931103 0.2676708 -0.0080886 1 1.5703964 0 0 0 0 1 0
1 0 0 0 0.0235013 -0.1029403 -0.0547878 0.1250621 0.0210062 1 2.0206033 0 0 0 0 1 0
1 0 0 0 -0.0659717 -0.0719273 -0.0588911 0.2084914 -0.0213793 1 2.3485584 0 0 0 0 1 0
0 0 1 0 -0.0171066 -0.0571921 0.0103729 0.0182289 -0.0322398 0 1.9730702 0 0 0 0 0 1
0 1 0 0 0.0362619 -0.0463789 0.0535693 -0.1228051 0.0555745 0 2.6297159 0 0 0 0 0 1
0 0 0 1 -0.0920842 -0.1105305 -0.0310468 -0.0231152 -0.0527614 1 0.2923784 0 0 0 0 0 0
0 0 1 0 0.1453777 0.2945668 -0.6021791 -0.0475001 0.0293127 1 1.5801455 0 0 0 0 0 0
1 0 0 0 -0.0186567 0.4496259 -0.5228532 -0.1757368 -0.0094606 1 1.5993178 0 0 0 0 0 0
0 0 0 1 -0.0726117 -0.0400277 0.0200310 -0.0484271 0.0840458 0 3.0699187 0 0 0 0 0 0
0 0 0 1 0.1182209 -0.0677148 0.0879828 -0.2028690 0.0807257 1 2.4204621 0 0 0 0 0 0
0 0 0 1 0.1284747 -0.0791763 0.0794784 -0.2332839 0.0795245 0 2.2356012 0 0 0 0 0 0

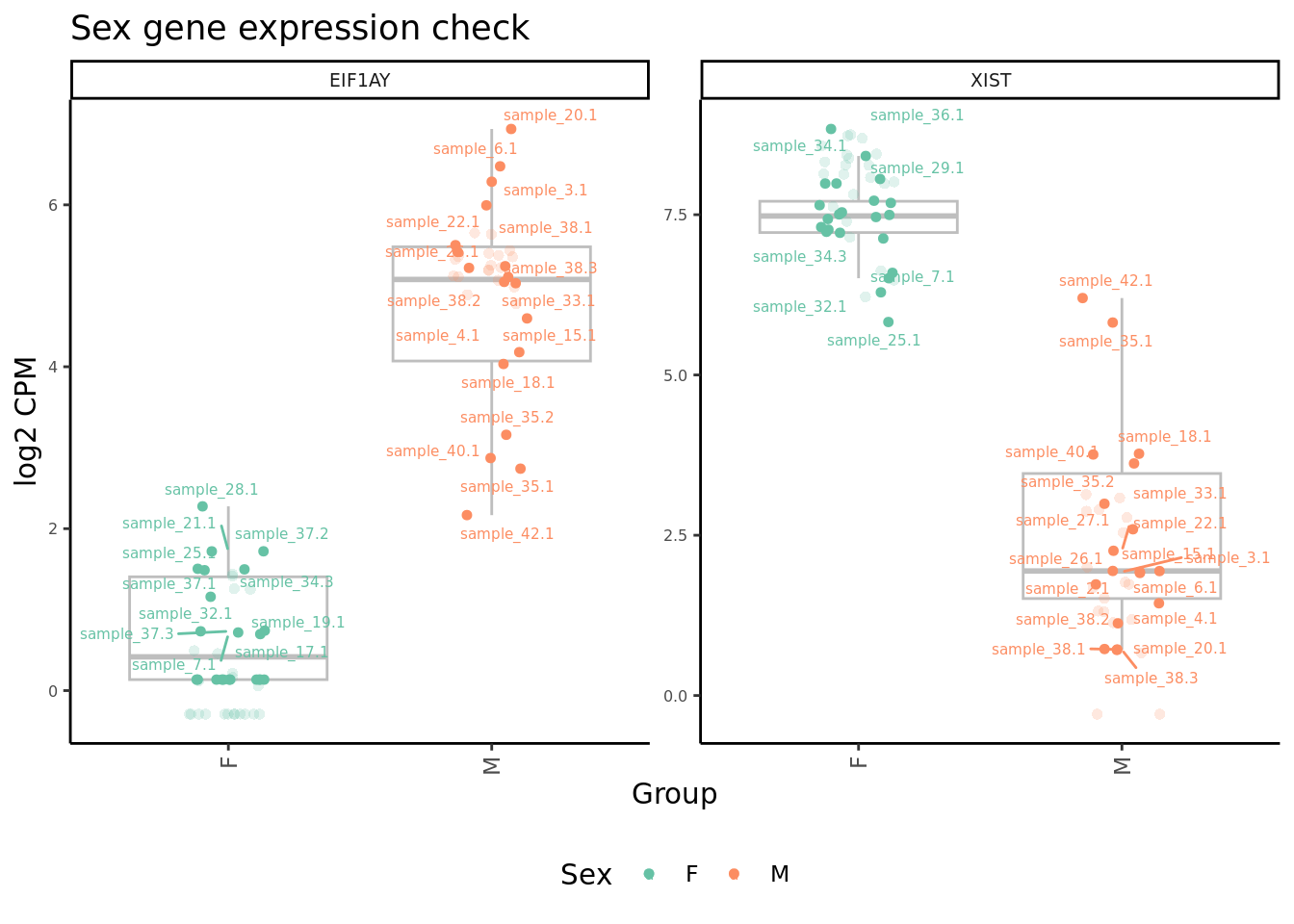

edgeR::cpm(ySub$counts, log = TRUE) %>%
      data.frame %>%
      rownames_to_column(var = "gene") %>%
      pivot_longer(-gene,
                   names_to = "sample",
                   values_to = "raw") %>%
      inner_join(edgeR::cpm(adj$normalizedCounts, log = TRUE) %>%
                   data.frame %>%
                   rownames_to_column(var = "gene") %>%
                   pivot_longer(-gene,
                                names_to = "sample",
                                values_to = "norm")) %>%
      left_join(rownames_to_column(ySub$samples,
                                   var = "sample")) %>%
      mutate(Batch = as.factor(Batch)) %>%
      dplyr::filter(gene %in% c("ZFY", "EIF1AY", "XIST")) %>%
      ggplot(aes(x = Sex,
                 y = norm,
                 colour = Sex)) +
      geom_boxplot(outlier.shape = NA, colour = "grey") +
      geom_jitter(stat = "identity",
                  width = 0.15,
                  size = 1.25) +
      geom_jitter(aes(x = Sex,
                      y = raw), stat = "identity",
                  width = 0.15,
                  size = 2,
                  alpha = 0.2,
                  stroke = 0) +
     ggrepel::geom_text_repel(aes(label = sample.id),
                             size = 2) +
      theme_classic() +
      theme(axis.text.x = element_text(angle = 90,
                                       hjust = 1,
                                       vjust = 0.5),
            legend.position = "bottom",
            legend.direction = "horizontal",
            strip.text = element_text(size = 7),
            axis.text.y = element_text(size = 6)) +
      labs(x = "Group", y = "log2 CPM") +
      facet_wrap(~gene, scales = "free_y") +
      scale_color_brewer(palette = "Set2") +
      ggtitle("Sex gene expression check") -> p2

p2

Create the contrast matrix for the sample group comparisons.

  contr <- makeContrasts(CF.NO_MODvNON_CF.CTRL = CF.NO_MOD - NON_CF.CTRL,
                         CF.IVAvNON_CF.CTRL = CF.IVA - NON_CF.CTRL,
                         CF.LUMA_IVAvNON_CF.CTRL = CF.LUMA_IVA - NON_CF.CTRL,
                         levels = design)

contr %>% knitr::kable()
CF.NO_MODvNON_CF.CTRL CF.IVAvNON_CF.CTRL CF.LUMA_IVAvNON_CF.CTRL
CF.IVA 0 1 0
CF.LUMA_IVA 0 0 1
CF.NO_MOD 1 0 0
NON_CF.CTRL -1 -1 -1
WW_1 0 0 0
WW_2 0 0 0
WW_3 0 0 0
WW_4 0 0 0
WW_5 0 0 0
sexM 0 0 0
age 0 0 0
sample_34 0 0 0
sample_35 0 0 0
sample_36 0 0 0
sample_37 0 0 0
sample_38 0 0 0
sample_39 0 0 0

Fit the model.

y <- DGEList(counts = ySub$counts)
y <- calcNormFactors(y)
y <- estimateGLMCommonDisp(y, design)
y <- estimateGLMTagwiseDisp(y, design)
fit <- glmFit(y, design)

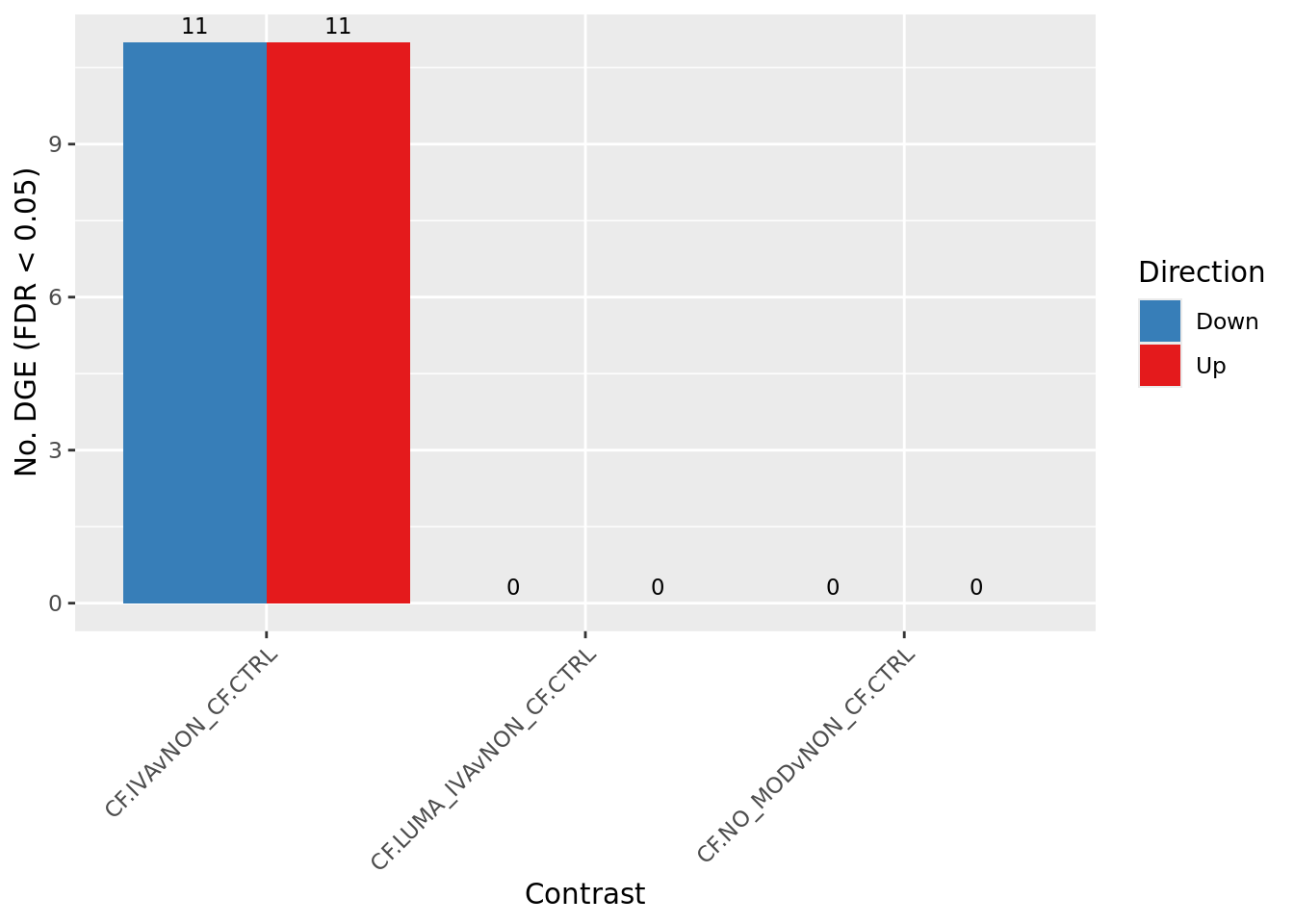

cutoff <- 0.05

dt <- lapply(1:ncol(contr), function(i){
  decideTests(glmLRT(fit, contrast = contr[,i]),
                            p.value = cutoff)
})

s <- sapply(dt, function(d){
  summary(d)
})
colnames(s) <- colnames(contr)
rownames(s) <- c("Down", "NotSig", "Up")

pal <- c(paletteer::paletteer_d("RColorBrewer::Set1")[2:1], "grey")

s[-2,] %>%
  data.frame %>%
  rownames_to_column(var = "Direction") %>%
  pivot_longer(-Direction) %>%
  ggplot(aes(x = name, y = value, fill = Direction)) +
  geom_col(position = "dodge") +
  geom_text(aes(label = value),
            position = position_dodge(width = 0.9),
            vjust = -0.5,
            size = 3) +
  labs(y = glue("No. DGE (FDR < {cutoff})"),
       x = "Contrast") +
      scale_fill_manual(values = pal) +
  theme(axis.text.x = element_text(angle = 45,
                                   hjust = 1,
                                   vjust = 1)) +
      scale_fill_manual(values = pal)

Explore results of statistical analysis for each contrast with significant DGEs. First, setup the output directories.

outDir <- here("output","dge_analysis")
if(!dir.exists(outDir)) dir.create(outDir)
cellDir <- file.path(outDir, cell)
if(!dir.exists(cellDir)) dir.create(cellDir)

Also, perform gene set enrichment analysis (GSEA) using the cameraPR method. cameraPR tests whether a set of genes is highly ranked relative to other genes in terms of differential expression, accounting for inter-gene correlation. Prepare the Broad MSigDB Gene Ontology, Hallmark gene sets and Reactome pathways.

Hs.c2.all <- convert_gmt_to_list(here("data/c2.all.v2024.1.Hs.entrez.gmt"))
Hs.h.all <- convert_gmt_to_list(here("data/h.all.v2024.1.Hs.entrez.gmt"))
Hs.c5.all <- convert_gmt_to_list(here("data/c5.all.v2024.1.Hs.entrez.gmt"))

fibrosis <- create_custom_gene_lists_from_file(here("data/fibrosis_gene_sets.csv"))
# add fibrosis sets from REACTOME and WIKIPATHWAYS
fibrosis <- c(lapply(fibrosis, function(l) l[!is.na(l)]),
              Hs.c2.all[str_detect(names(Hs.c2.all), "FIBROSIS")])

gene_sets_list <- list(HALLMARK = Hs.h.all,
                       GO = Hs.c5.all,
                       REACTOME = Hs.c2.all[str_detect(names(Hs.c2.all), "REACTOME")],
                       WP = Hs.c2.all[str_detect(names(Hs.c2.all), "^WP")],
                       FIBROSIS = fibrosis)

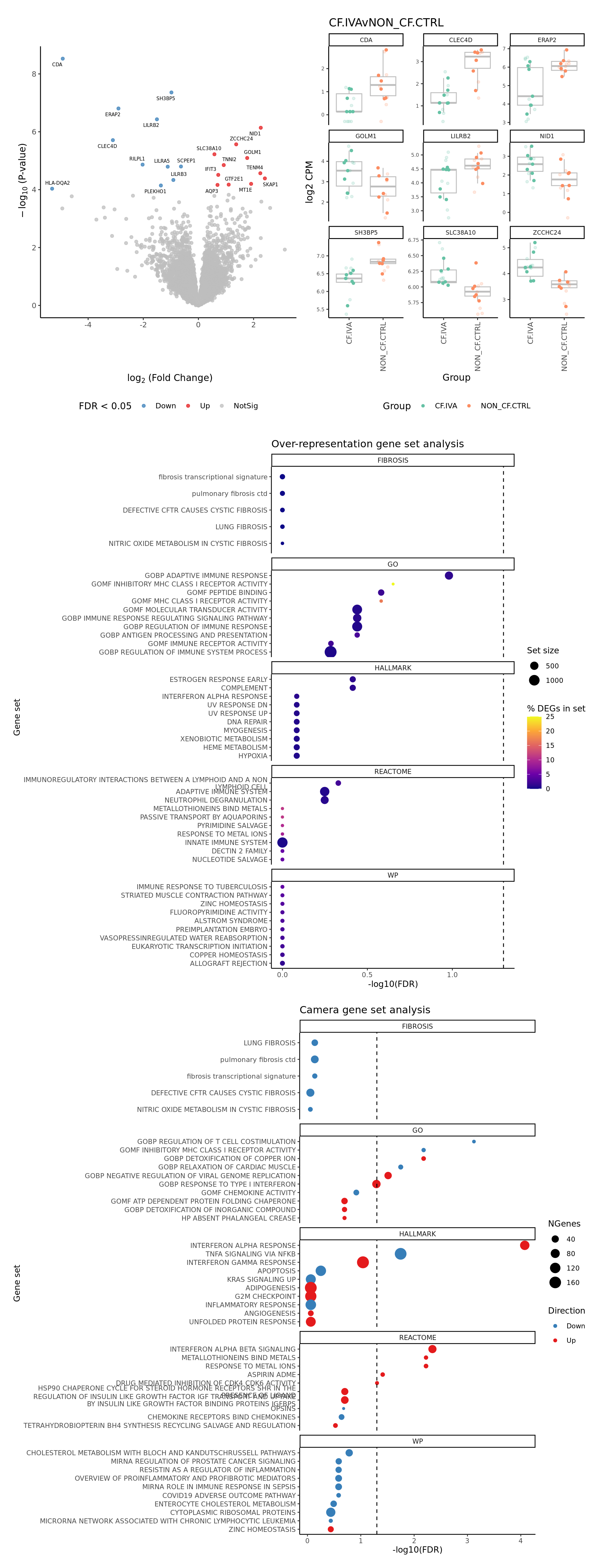

Plot a detailed summary of the results.

layout <- "
      AAAA
      AAAA
      AAAA
      BBBB
      BBBB
      BBBB
      BBBB
      EEEE
      EEEE
      EEEE
      EEEE"

plot_ruv_results_summary(contr, cutoff, cellDir, gene_sets_list, gns,
                         raw_counts = ySub$counts,
                         norm_counts = adj$normalizedCounts,
                         group_info = data.frame(Group = ySub$samples$Group,
                                                 sample = rownames(ySub$samples)),
                         layout,
                         pal) -> p
p
[[1]]
NULL

[[2]]


[[3]]
NULL

Compare log fold changes and statistical significance between various contrasts.

lapply(1:ncol(contr), function(i) {
  lrt <- glmLRT(fit, contrast = contr[,i])
  topTags(lrt, n = Inf) %>%
    data.frame %>%
    rownames_to_column(var = "Symbol") %>%
    dplyr::arrange(Symbol) %>%
    dplyr::rename_with(~ paste0(.x, ".", i))
}) %>% bind_cols -> all_lrt

all_lrt %>%
  mutate(IVA = ifelse(FDR.1 < 0.05 & FDR.2 < 0.05, "red",
                      ifelse(FDR.1 < 0.05 & FDR.2 >= 0.05, "orange",
                             ifelse(FDR.1 >= 0.05 & FDR.2 < 0.05, "green",
                                    "grey")))) -> all_lrt

ggplot(all_lrt, aes(x = logFC.1,
                    y = logFC.2)) +
  geom_point(data = subset(all_lrt, IVA %in% "grey"), aes(colour = "grey")) +
  geom_point(data = subset(all_lrt, IVA %in% "green"), aes(colour = "green")) +
  geom_point(data = subset(all_lrt, IVA %in% "orange"), aes(colour = "orange")) +
  geom_point(data = subset(all_lrt, IVA %in% "red"), aes(colour = "red")) +
  ggrepel::geom_text_repel(data = subset(all_lrt, (!IVA %in% "grey")),
                           aes(x = logFC.1, y = logFC.2,
                               label = Symbol.1),
                           size = 2, colour = "black", max.overlaps = 10) +
  labs(x = "log2FC CF.NO_MODvNON_CF.CTRL",
       y = "log2FC CF.IVAvNON_CF.CTRL") +
  scale_colour_identity(guide = "legend",
                        breaks = c("red", "green", "orange","grey"),
                        labels = c("Sig. in both",
                                   "Sig. CF.IVAvNON_CF.CTRL & N.S. CF.NO_MODvNON_CF.CTRL",
                                   "Sig. CF.NO_MODvNON_CF.CTRL & N.S. CF.IVAvNON_CF.CTRL",
                                   "N.S. in both"),
                        name = "Statistical significance") +
  theme(legend.position = "bottom",
        legend.direction = "vertical")

Session info


sessionInfo()
R version 4.3.3 (2024-02-29)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 22.04.4 LTS

Matrix products: default
BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.20.so;  LAPACK version 3.10.0

locale:
 [1] LC_CTYPE=en_AU.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_AU.UTF-8        LC_COLLATE=en_AU.UTF-8
 [5] LC_MONETARY=en_AU.UTF-8    LC_MESSAGES=en_AU.UTF-8
 [7] LC_PAPER=en_AU.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_AU.UTF-8 LC_IDENTIFICATION=C

time zone: Etc/UTC
tzcode source: system (glibc)

attached base packages:
[1] parallel  stats4    stats     graphics  grDevices datasets  utils
[8] methods   base

other attached packages:
 [1] missMethyl_1.36.0
 [2] IlluminaHumanMethylationEPICanno.ilm10b4.hg19_0.6.0
 [3] IlluminaHumanMethylation450kanno.ilmn12.hg19_0.6.1
 [4] minfi_1.48.0
 [5] bumphunter_1.44.0
 [6] locfit_1.5-9.8
 [7] iterators_1.0.14
 [8] foreach_1.5.2
 [9] TxDb.Hsapiens.UCSC.hg38.knownGene_3.18.0
[10] GenomicFeatures_1.54.3
[11] org.Hs.eg.db_3.18.0
[12] AnnotationDbi_1.64.1
[13] tidyHeatmap_1.8.1
[14] scater_1.30.1
[15] scuttle_1.12.0
[16] SingleCellExperiment_1.24.0
[17] scMerge_1.18.0
[18] RUVSeq_1.36.0
[19] EDASeq_2.36.0
[20] ShortRead_1.60.0
[21] GenomicAlignments_1.38.2
[22] SummarizedExperiment_1.32.0
[23] MatrixGenerics_1.14.0
[24] matrixStats_1.2.0
[25] Rsamtools_2.18.0
[26] GenomicRanges_1.54.1
[27] Biostrings_2.70.2
[28] GenomeInfoDb_1.38.6
[29] XVector_0.42.0
[30] IRanges_2.36.0
[31] S4Vectors_0.40.2
[32] BiocParallel_1.36.0
[33] Biobase_2.62.0
[34] BiocGenerics_0.48.1
[35] edgeR_4.0.15
[36] limma_3.58.1
[37] paletteer_1.6.0
[38] patchwork_1.2.0
[39] SeuratObject_4.1.4
[40] Seurat_4.4.0
[41] glue_1.7.0
[42] here_1.0.1
[43] lubridate_1.9.3
[44] forcats_1.0.0
[45] stringr_1.5.1
[46] dplyr_1.1.4
[47] purrr_1.0.2
[48] readr_2.1.5
[49] tidyr_1.3.1
[50] tibble_3.2.1
[51] ggplot2_3.5.0
[52] tidyverse_2.0.0
[53] BiocStyle_2.30.0
[54] workflowr_1.7.1

loaded via a namespace (and not attached):
  [1] igraph_2.0.1.1            ica_1.0-3
  [3] plotly_4.10.4             Formula_1.2-5
  [5] rematch2_2.1.2            zlibbioc_1.48.0
  [7] tidyselect_1.2.0          bit_4.0.5
  [9] doParallel_1.0.17         clue_0.3-65
 [11] lattice_0.22-5            rjson_0.2.21
 [13] nor1mix_1.3-3             M3Drop_1.28.0
 [15] blob_1.2.4                rngtools_1.5.2
 [17] S4Arrays_1.2.0            base64_2.0.1
 [19] scrime_1.3.5              png_0.1-8
 [21] ResidualMatrix_1.12.0     cli_3.6.2
 [23] askpass_1.2.0             openssl_2.1.1
 [25] multtest_2.58.0           goftest_1.2-3
 [27] BiocIO_1.12.0             bluster_1.12.0
 [29] BiocNeighbors_1.20.2      densEstBayes_1.0-2.2
 [31] uwot_0.1.16               dendextend_1.17.1
 [33] curl_5.2.0                mime_0.12
 [35] evaluate_0.23             leiden_0.4.3.1
 [37] ComplexHeatmap_2.18.0     stringi_1.8.3
 [39] backports_1.4.1           XML_3.99-0.16.1
 [41] httpuv_1.6.14             magrittr_2.0.3
 [43] rappdirs_0.3.3            splines_4.3.3
 [45] mclust_6.1                jpeg_0.1-10
 [47] doRNG_1.8.6               sctransform_0.4.1
 [49] ggbeeswarm_0.7.2          DBI_1.2.1
 [51] HDF5Array_1.30.0          genefilter_1.84.0
 [53] jquerylib_0.1.4           withr_3.0.0
 [55] git2r_0.33.0              rprojroot_2.0.4
 [57] lmtest_0.9-40             bdsmatrix_1.3-6
 [59] rtracklayer_1.62.0        BiocManager_1.30.22
 [61] htmlwidgets_1.6.4         fs_1.6.3
 [63] biomaRt_2.58.2            ggrepel_0.9.5
 [65] labeling_0.4.3            SparseArray_1.2.4
 [67] DEoptimR_1.1-3            annotate_1.80.0
 [69] reticulate_1.35.0         zoo_1.8-12
 [71] knitr_1.45                beanplot_1.3.1
 [73] timechange_0.3.0          fansi_1.0.6
 [75] caTools_1.18.2            grid_4.3.3
 [77] data.table_1.15.0         rhdf5_2.46.1
 [79] ruv_0.9.7.1               R.oo_1.26.0
 [81] irlba_2.3.5.1             ellipsis_0.3.2
 [83] aroma.light_3.32.0        lazyeval_0.2.2
 [85] yaml_2.3.8                survival_3.7-0
 [87] scattermore_1.2           crayon_1.5.2
 [89] RcppAnnoy_0.0.22          RColorBrewer_1.1-3
 [91] progressr_0.14.0          later_1.3.2
 [93] ggridges_0.5.6            codetools_0.2-19
 [95] base64enc_0.1-3           GlobalOptions_0.1.2
 [97] KEGGREST_1.42.0           bbmle_1.0.25.1
 [99] Rtsne_0.17                shape_1.4.6
[101] startupmsg_0.9.6.1        filelock_1.0.3
[103] foreign_0.8-86            pkgconfig_2.0.3
[105] xml2_1.3.6                getPass_0.2-4
[107] sfsmisc_1.1-17            spatstat.sparse_3.0-3
[109] viridisLite_0.4.2         xtable_1.8-4
[111] interp_1.1-6              fastcluster_1.2.6
[113] highr_0.10                hwriter_1.3.2.1
[115] plyr_1.8.9                httr_1.4.7
[117] tools_4.3.3               globals_0.16.2
[119] pkgbuild_1.4.3            beeswarm_0.4.0
[121] htmlTable_2.4.2           checkmate_2.3.1
[123] nlme_3.1-164              loo_2.6.0
[125] dbplyr_2.4.0              digest_0.6.34
[127] numDeriv_2016.8-1.1       Matrix_1.6-5
[129] farver_2.1.1              tzdb_0.4.0
[131] reshape2_1.4.4            viridis_0.6.5
[133] cvTools_0.3.2             rpart_4.1.23
[135] cachem_1.0.8              BiocFileCache_2.10.1
[137] polyclip_1.10-6           WGCNA_1.72-5
[139] Hmisc_5.1-1               generics_0.1.3
[141] proxyC_0.3.4              dynamicTreeCut_1.63-1
[143] mvtnorm_1.2-4             parallelly_1.37.0
[145] statmod_1.5.0             impute_1.76.0
[147] ScaledMatrix_1.10.0       GEOquery_2.70.0
[149] pbapply_1.7-2             dqrng_0.3.2
[151] utf8_1.2.4                siggenes_1.76.0
[153] StanHeaders_2.32.5        gtools_3.9.5
[155] preprocessCore_1.64.0     gridExtra_2.3
[157] shiny_1.8.0               GenomeInfoDbData_1.2.11
[159] R.utils_2.12.3            rhdf5filters_1.14.1
[161] RCurl_1.98-1.14           memoise_2.0.1
[163] rmarkdown_2.25            scales_1.3.0
[165] R.methodsS3_1.8.2         future_1.33.1
[167] reshape_0.8.9             RANN_2.6.1
[169] renv_1.0.3                Cairo_1.6-2
[171] illuminaio_0.44.0         spatstat.data_3.0-4
[173] rstudioapi_0.15.0         cluster_2.1.6
[175] QuickJSR_1.1.3            whisker_0.4.1
[177] rstantools_2.4.0          spatstat.utils_3.0-4
[179] hms_1.1.3                 fitdistrplus_1.1-11
[181] munsell_0.5.0             cowplot_1.1.3
[183] colorspace_2.1-0          quadprog_1.5-8
[185] rlang_1.1.3               DelayedMatrixStats_1.24.0
[187] sparseMatrixStats_1.14.0  circlize_0.4.15
[189] mgcv_1.9-1                xfun_0.42
[191] reldist_1.7-2             abind_1.4-5
[193] rstan_2.32.5              Rhdf5lib_1.24.2
[195] bitops_1.0-7              ps_1.7.6
[197] promises_1.2.1            inline_0.3.19
[199] RSQLite_2.3.5             DelayedArray_0.28.0
[201] GO.db_3.18.0              compiler_4.3.3
[203] prettyunits_1.2.0         beachmat_2.18.1
[205] listenv_0.9.1             Rcpp_1.0.12
[207] BiocSingular_1.18.0       tensor_1.5
[209] MASS_7.3-60.0.1           progress_1.2.3
[211] spatstat.random_3.2-2     R6_2.5.1
[213] fastmap_1.1.1             vipor_0.4.7
[215] distr_2.9.3               ROCR_1.0-11
[217] rsvd_1.0.5                nnet_7.3-19
[219] gtable_0.3.4              KernSmooth_2.23-24
[221] latticeExtra_0.6-30       miniUI_0.1.1.1
[223] deldir_2.0-2              htmltools_0.5.7
[225] RcppParallel_5.1.7        bit64_4.0.5
[227] spatstat.explore_3.2-6    lifecycle_1.0.4
[229] processx_3.8.3            callr_3.7.3
[231] restfulr_0.0.15           sass_0.4.8
[233] vctrs_0.6.5               spatstat.geom_3.2-8
[235] robustbase_0.99-2         scran_1.30.2
[237] sp_2.1-3                  future.apply_1.11.1
[239] bslib_0.6.1               pillar_1.9.0
[241] batchelor_1.18.1          prismatic_1.1.1
[243] gplots_3.1.3.1            metapod_1.10.1
[245] jsonlite_1.8.8            GetoptLong_1.0.5
