Load package
if (!require("pacman")) install.packages("pacman")Loading required package: pacmanWarning: package 'pacman' was built under R version 3.6.1pacman::p_load(tidyverse,
qgraph,
stats,
bootnet,
igraph,
plotrix,
mgm,
NetworkComparisonTest,
rio,
furrr,
cowplot,
doParallel,
huge,
EGAnet)Report network without group as variable
ODI labels
# ODI custom figure
nodeLabels <- c("Pain Intensity", "Personal Care", "Lifting", "Walking", "Sitting",
"Standing", "Sleeping", "Sex life", "Social life", "Travelling")
ques <- paste0("Q", 1:10)
node_df <- data.frame("Item" = ques,
"Variable" = nodeLabels)Load models
# Model with missing data as input
res <- readRDS("output/raw.RDS")
# Model with complete imputed data as input
#res <- readRDS("output/com.RDS")Plot network

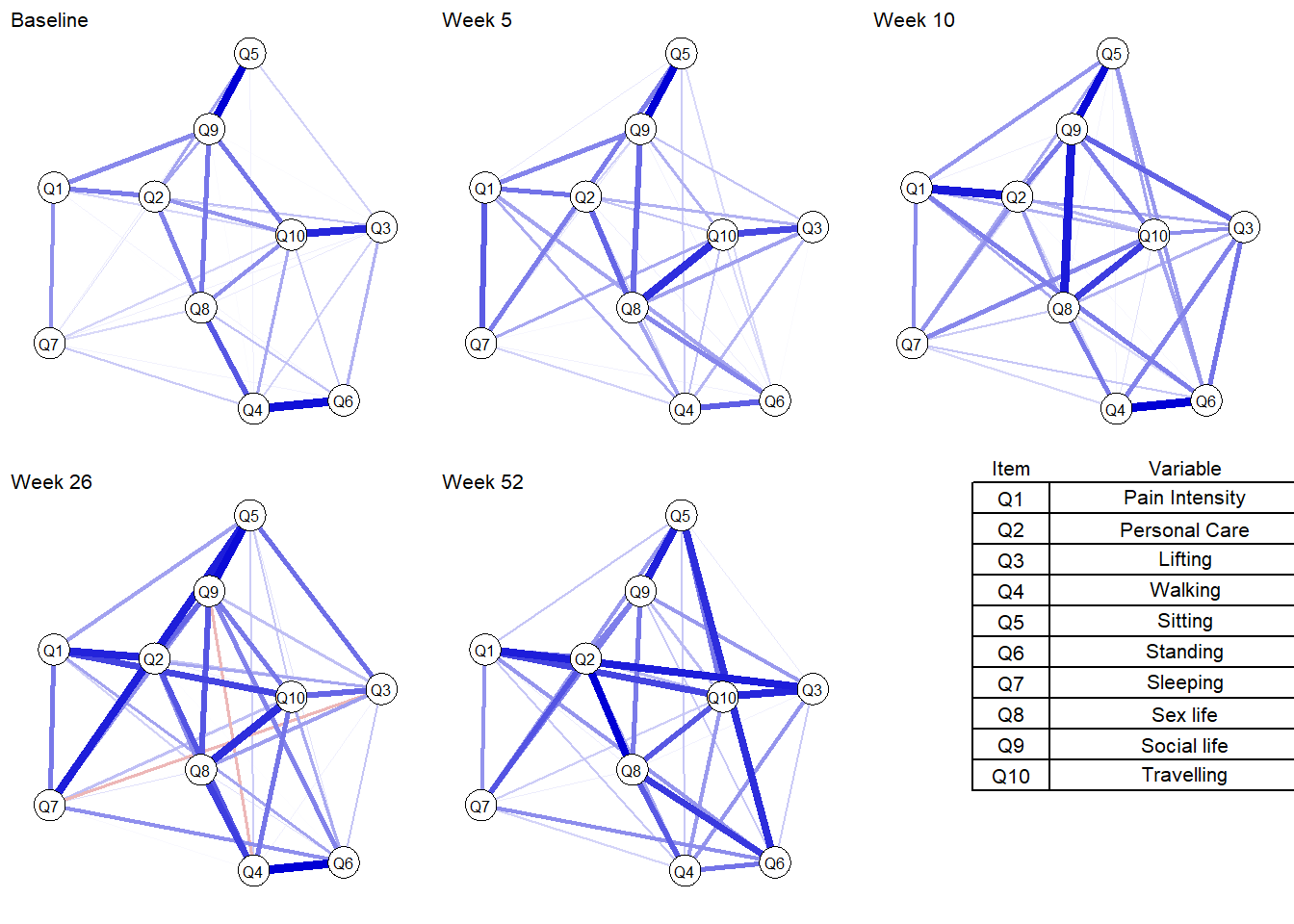

Blue edges - positive correlation
Red edges - negative correlation
The thickness of the edges indicate the magnitude of correlation.
#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_network.tiff")
par (mfrow = c(2,3))
p1 <- plot (res$nw[[1]], title = "Baseline", label.cex = 1.5, vsize = 10)
plot (res$nw[[2]], title = "Week 5", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[3]], title = "Week 10", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[4]], title = "Week 26", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[5]], title = "Week 52", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot.new()
addtable2plot(0,0,node_df,
xpad=1, ypad=1,
bty='o',
display.rownames = FALSE,
hlines = TRUE,
vlines = TRUE)
#dev.off()Plot centrality
Strength - sum of direct connections a given node has in the network
Betweenness - shortest paths that go through the node under investigation
Closeness - sum of shortest paths from the node under investigation to all other nodes in the network
Expected influence - sum of a node’s connections and represents the relative importance of a node in a network
# Plot centrality

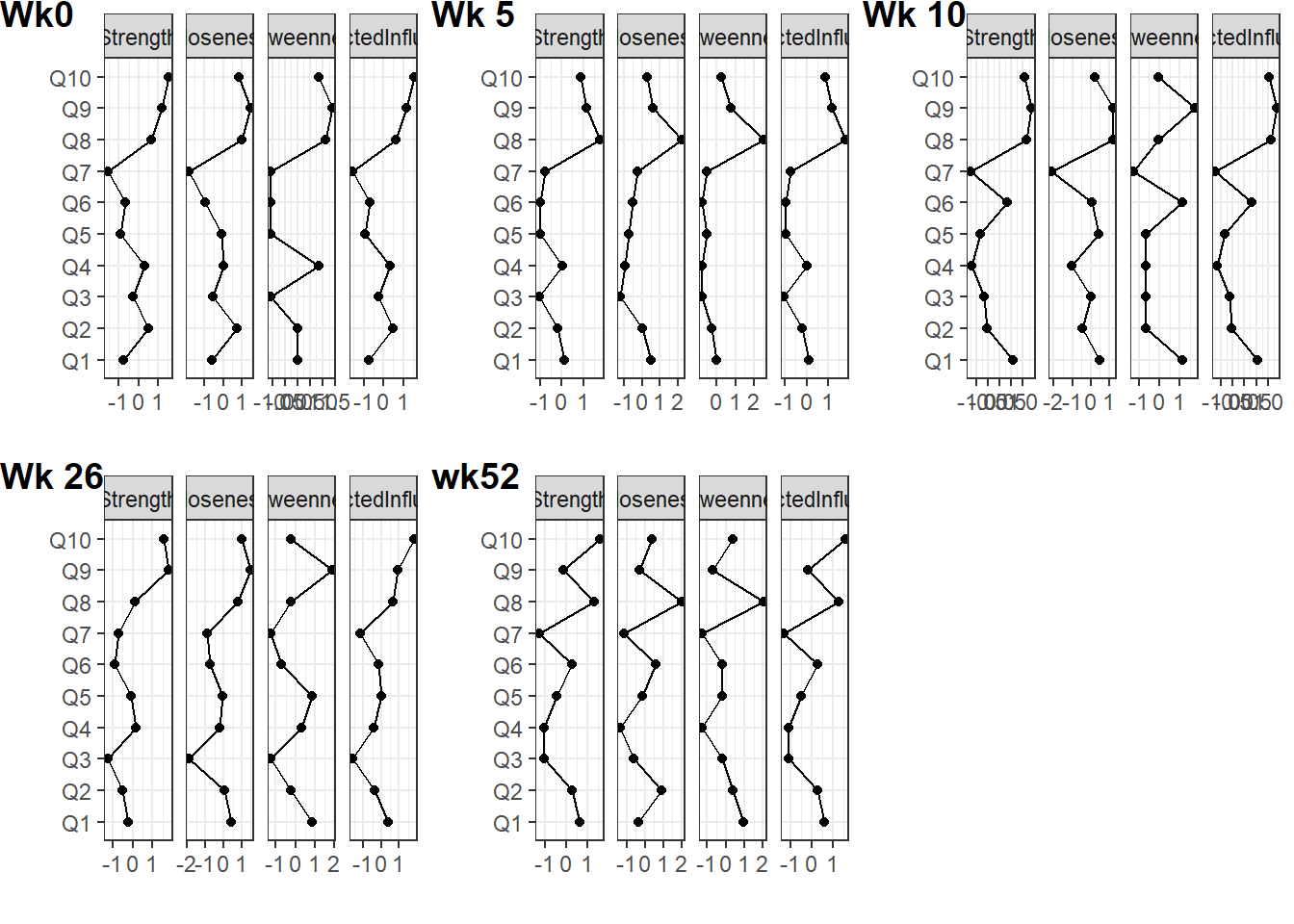

c_fig <- map (res$nw, centralityPlot, include = "all", print = FALSE)Note: z-scores are shown on x-axis rather than raw centrality indices.
Note: z-scores are shown on x-axis rather than raw centrality indices.
Note: z-scores are shown on x-axis rather than raw centrality indices.
Note: z-scores are shown on x-axis rather than raw centrality indices.
Note: z-scores are shown on x-axis rather than raw centrality indices.#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_strength.tiff")
cowplot::plot_grid(plotlist = c_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = 0)
#dev.off()Plot centrality stability
Is the centrality order stable?
# Plot centrality stability

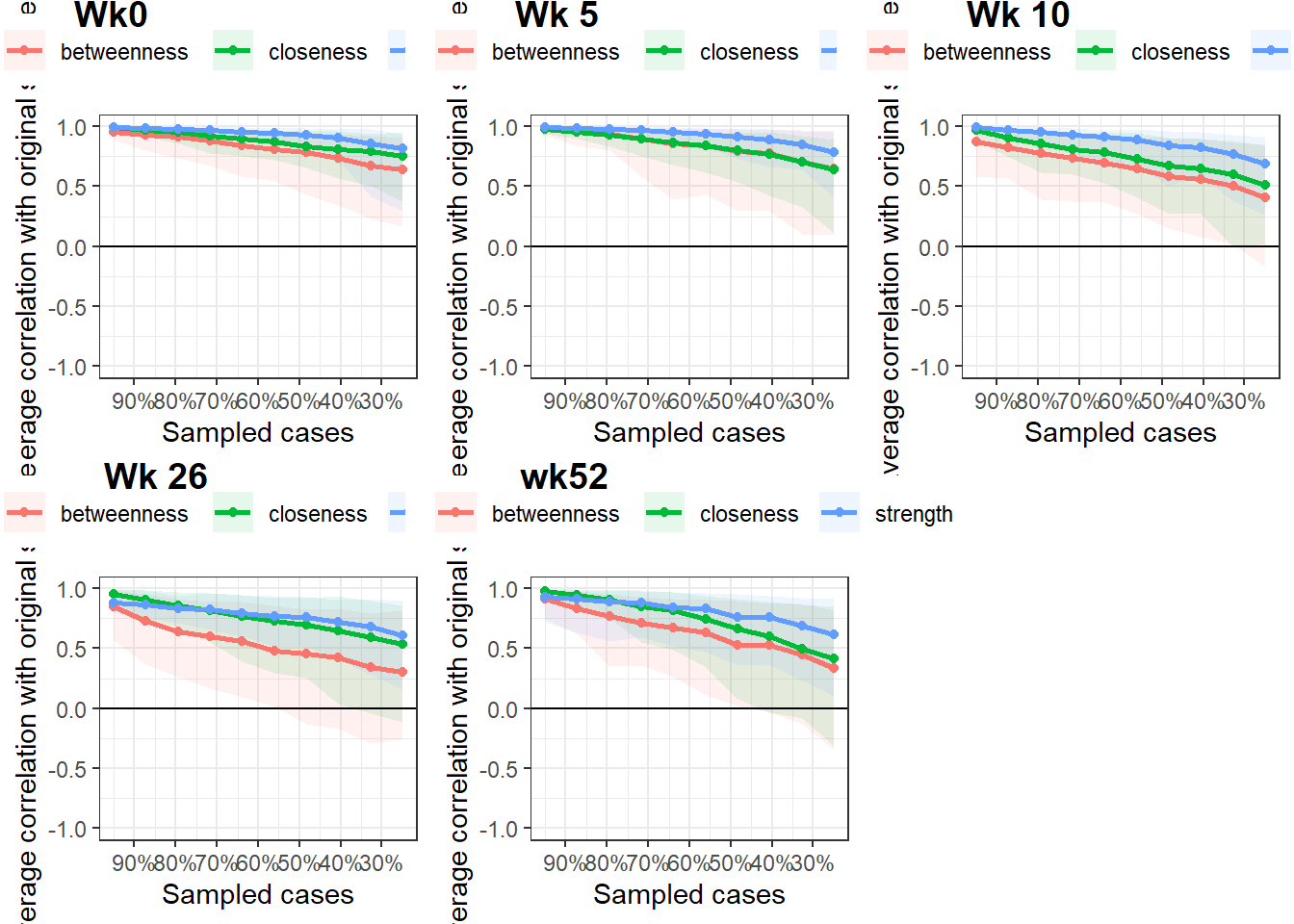

s_fig <- map (res$centr_stb, plot, statistics = c("closeness", "strength", "betweenness"))Warning: `filter_()` is deprecated as of dplyr 0.7.0.
Please use `filter()` instead.
See vignette('programming') for more help
This warning is displayed once every 8 hours.
Call `lifecycle::last_warnings()` to see where this warning was generated.Warning: `select_()` is deprecated as of dplyr 0.7.0.
Please use `select()` instead.
This warning is displayed once every 8 hours.
Call `lifecycle::last_warnings()` to see where this warning was generated.Warning: `group_by_()` is deprecated as of dplyr 0.7.0.
Please use `group_by()` instead.
See vignette('programming') for more help
This warning is displayed once every 8 hours.
Call `lifecycle::last_warnings()` to see where this warning was generated.Warning: `summarise_()` is deprecated as of dplyr 0.7.0.
Please use `summarise()` instead.
This warning is displayed once every 8 hours.
Call `lifecycle::last_warnings()` to see where this warning was generated.Warning: `arrange_()` is deprecated as of dplyr 0.7.0.
Please use `arrange()` instead.
See vignette('programming') for more help
This warning is displayed once every 8 hours.
Call `lifecycle::last_warnings()` to see where this warning was generated.#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_stability.tiff")
cowplot::plot_grid(plotlist = s_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = -1)
#dev.off()Get CS coefficient
The stability of centrality estimation, and results in a centrality-stability coefficient (CS-coefficient) that should not be lower than 0.25 and preferably above 0.5
cs_coef <- res %>%
select (time, cor_stb) %>%
unnest () %>%
ungroup() %>%
mutate (measure = rep (c("betweenness", "closeness", "edge", "expectedInfluence", "strength"), 5))Warning: `cols` is now required.
Please use `cols = c(cor_stb)`Plot edge weights stability
See which edges differ from each other in size significantly (to answer the question is edge A significantly larger than edge B).

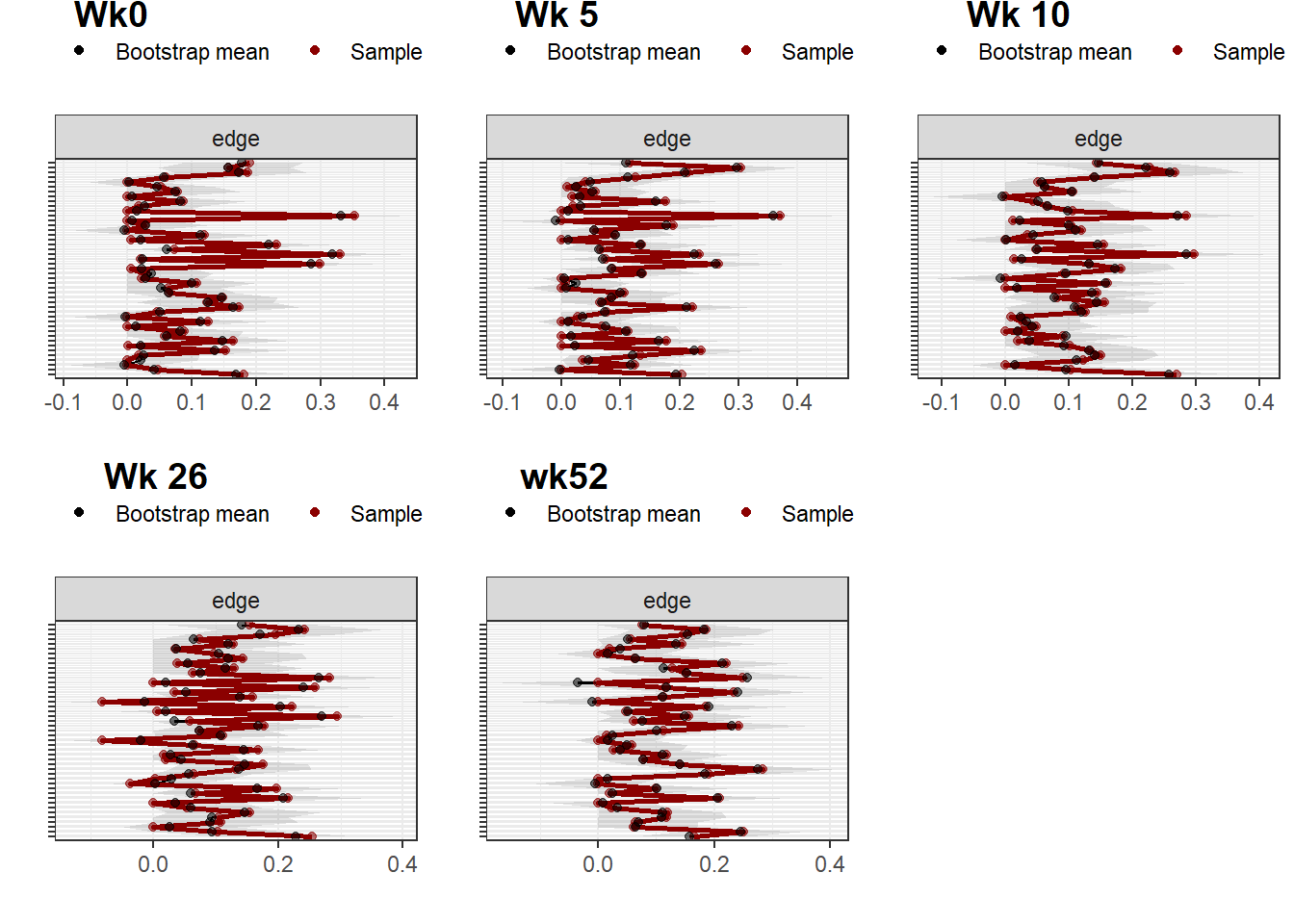

w_fig <- map (res$edgewts, plot, labels = FALSE)Warning: `mutate_()` is deprecated as of dplyr 0.7.0.
Please use `mutate()` instead.
See vignette('programming') for more help
This warning is displayed once every 8 hours.
Call `lifecycle::last_warnings()` to see where this warning was generated.cowplot::plot_grid(plotlist = w_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = -1)
Report network with group as variable
Load models
# Model with missing data as input
res <- readRDS("output/mgm_raw.RDS")
# Model with complete imputed data as input
#res <- readRDS("output/com.RDS")Plot network

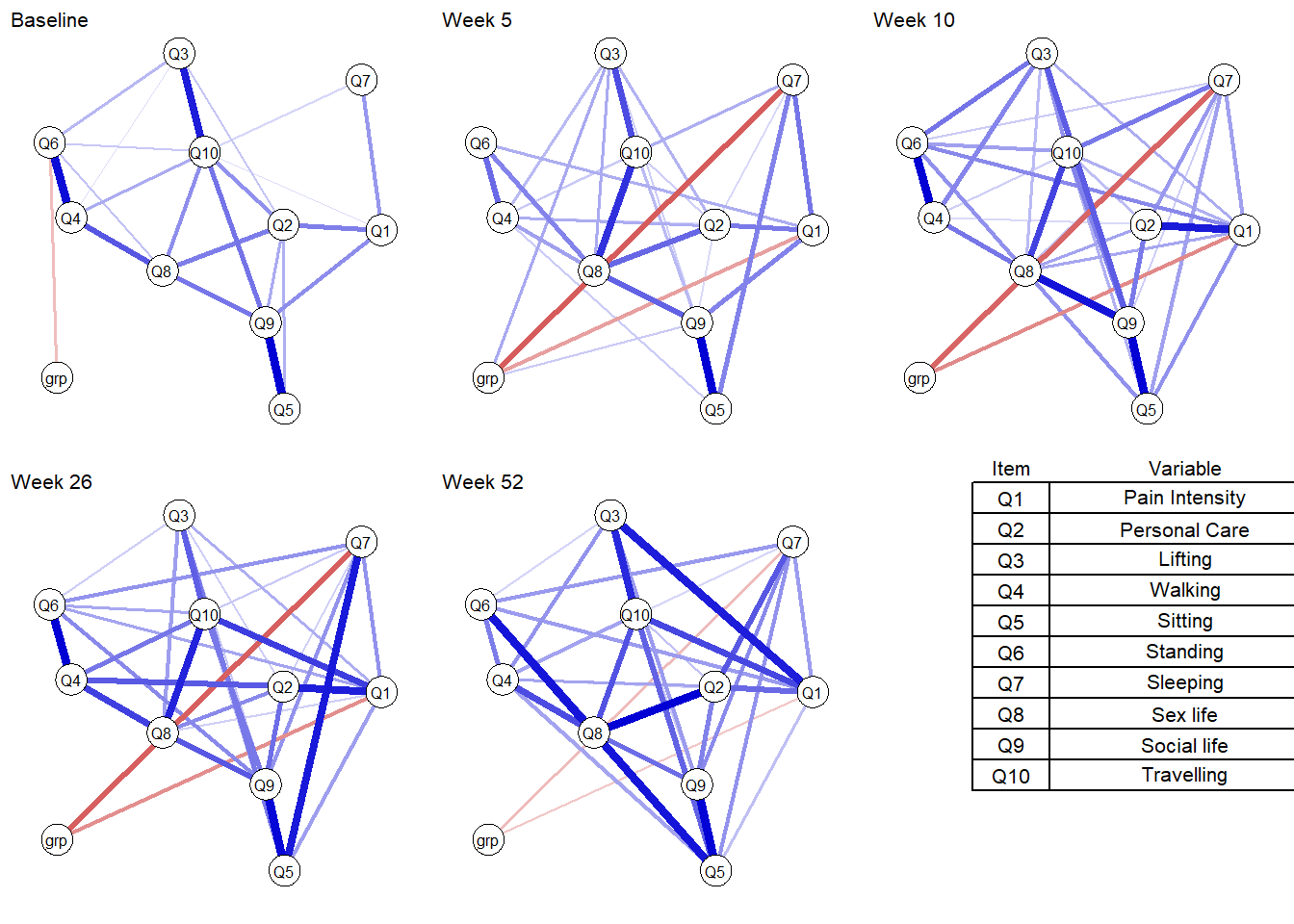

Blue edges - positive correlation
Red edges - negative correlation
The thickness of the edges indicate the magnitude of correlation.
#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_network.tiff")
par (mfrow = c(2,3))
p1 <- plot (res$nw[[1]], title = "Baseline", label.cex = 1.5, vsize = 10)
plot (res$nw[[2]], title = "Week 5", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[3]], title = "Week 10", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[4]], title = "Week 26", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[5]], title = "Week 52", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot.new()
addtable2plot(0,0,node_df,
xpad=1, ypad=1,
bty='o',
display.rownames = FALSE,
hlines = TRUE,
vlines = TRUE)
#dev.off()Plot centrality
Strength - sum of direct connections a given node has in the network
Betweenness - shortest paths that go through the node under investigation
Closeness - sum of shortest paths from the node under investigation to all other nodes in the network
Expected influence - sum of a node’s connections and represents the relative importance of a node in a network
# Plot centrality

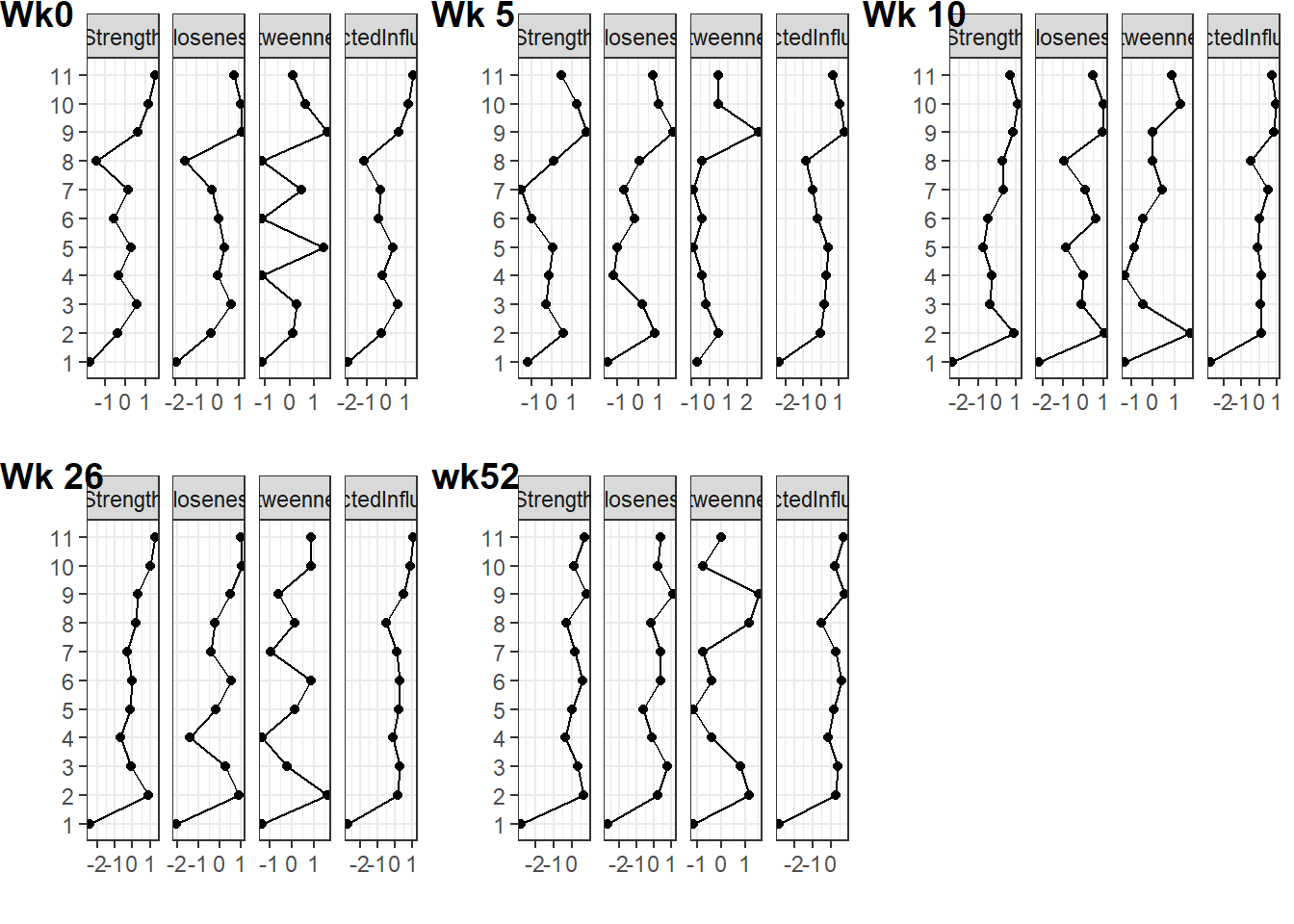

c_fig <- map (res$nw, centralityPlot, include = "all", print = FALSE)Note: z-scores are shown on x-axis rather than raw centrality indices.
Note: z-scores are shown on x-axis rather than raw centrality indices.
Note: z-scores are shown on x-axis rather than raw centrality indices.
Note: z-scores are shown on x-axis rather than raw centrality indices.
Note: z-scores are shown on x-axis rather than raw centrality indices.#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_strength.tiff")
cowplot::plot_grid(plotlist = c_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = 0)
#dev.off()Plot centrality stability
Is the centrality order stable?
# Plot centrality stability

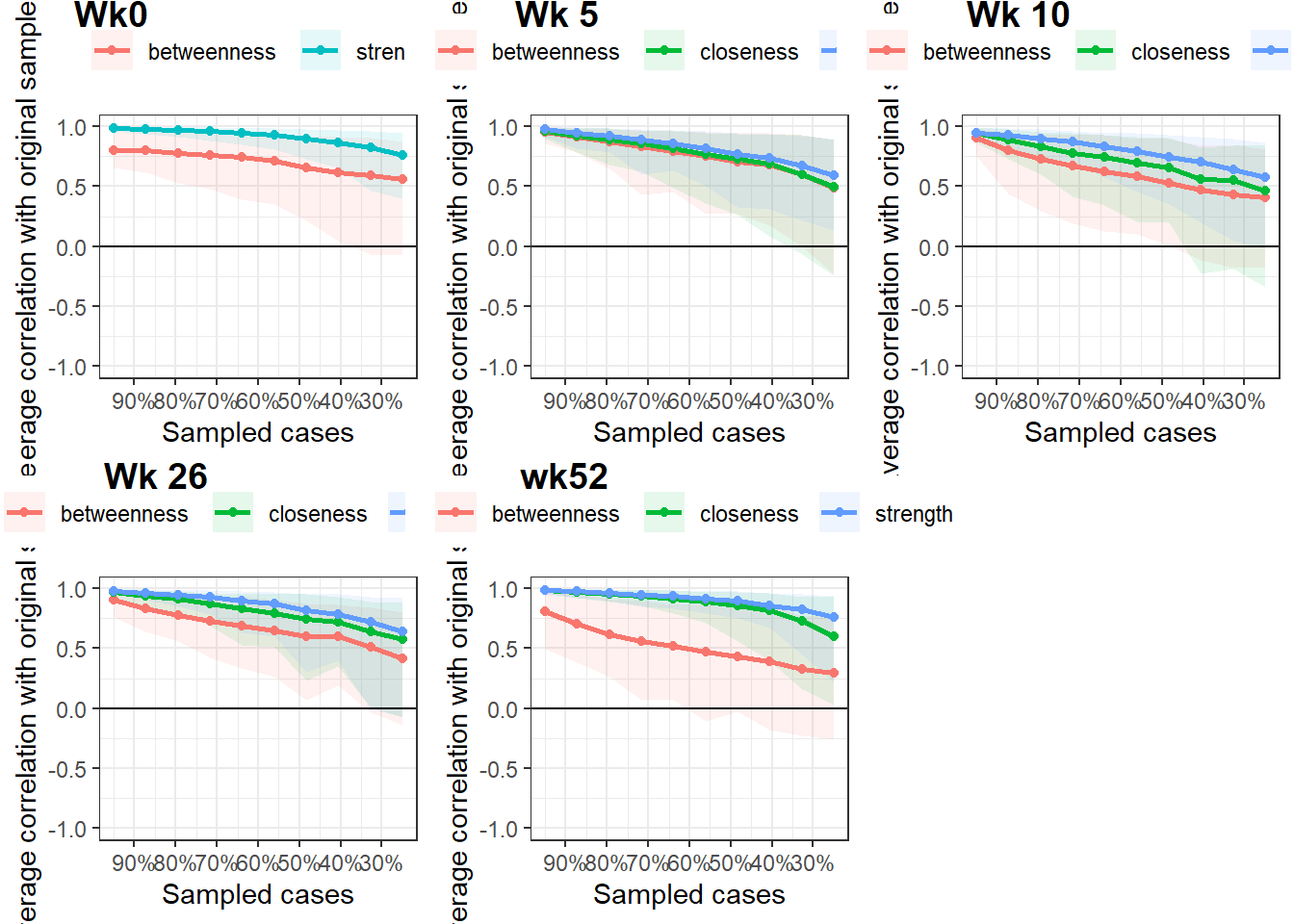

s_fig <- map (res$centr_stb, plot, statistics = c("closeness", "strength", "betweenness"))Warning in plot.bootnet(.x[[i]], ...): Statistic closeness does not contain any
variance and is therefore not shown.#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_stability.tiff")
cowplot::plot_grid(plotlist = s_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = -1)
#dev.off()Get CS coefficient
The stability of centrality estimation, and results in a centrality-stability coefficient (CS-coefficient) that should not be lower than 0.25 and preferably above 0.5
cs_coef <- res %>%
select (time, cor_stb) %>%
unnest () %>%
ungroup() %>%
mutate (measure = rep (c("betweenness", "closeness", "edge", "expectedInfluence", "strength"), 5))Warning: `cols` is now required.
Please use `cols = c(cor_stb)`Plot edge weights stability
See which edges differ from each other in size significantly (to answer the question is edge A significantly larger than edge B).

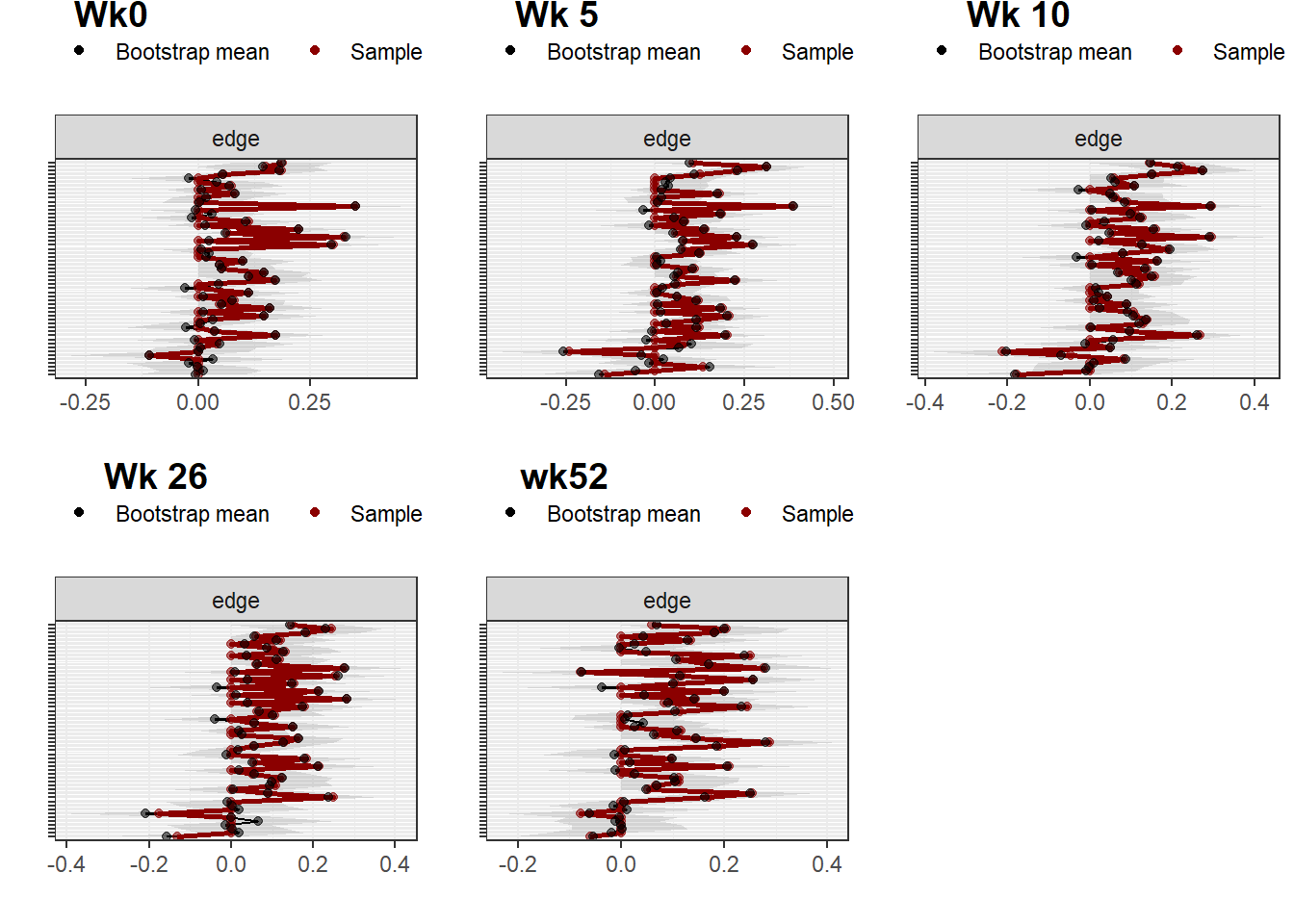

w_fig <- map (res$edgewts, plot, labels = FALSE)
cowplot::plot_grid(plotlist = w_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = -1)
