First glance at titration series

Intro

In order to get a better sense of how these small molecule splicing modifiers are different, we need to account for the different effective concentrations/potencies that these drugs were administered in our first experiment. For example, if CUOME was administered at a higher concentration, would it start to resemeble risdiplam at the given concentration? If so, would the effects be similar to risdiplam at all introns/genes or just a subset?

So we decided to perform a titration series and RNA-seq of three molecules:

• C2-C5-1: 1000, 316, 100, 31.6, 10, 3.16, 1, 0.316 nM
• Branaplam: 3,160, 1000, 316, 100, 31.6, 10, 3.16, 1 nM.
• Risdiplam: 10,000, 3,160, 1000, 316, 100, 31.6, 10, 3.16 nM

The libraries were stranded RNA-seq, sequenced to ~60-90M reads per sample. Here I am going to have a first look at the results, after quantifying gene expression with featureCounts. First read in the count table, and do some basic data QC

Gene expression analysis QC

library(tidyverse)
library(edgeR)
library(RColorBrewer)
library(gplots)
library(viridis)
library(magrittr)

dat <- read_tsv("../code/featureCounts/Counts.titration_series.txt", comment="#") %>%
  dplyr::select(-ends_with("_1")) %>%
  rename_at(vars(-(1:6)), ~str_replace(.x, "Alignments/STAR_Align/TitrationExp(.+?)/Aligned.sortedByCoord.out.bam", "\\1")) %>%
  dplyr::select(Geneid, everything(), -c(2:6)) %>%
  column_to_rownames("Geneid") %>%
  DGEList()

ColorsTreatments <- c("blue"="Bran", "red"="C2C5", "green"="Ris")

Samples <- dat$samples %>%
  rownames_to_column("Sample") %>%
  separate(Sample, into=c("Treatment", "TitrationPoint"), remove = F, convert = T) %>%
  rowwise() %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ rev(brewer.pal(n=8, name="Blues"))[TitrationPoint],
    Treatment == "C2C5" ~ rev(brewer.pal(n=8, name="Reds"))[TitrationPoint],
    Treatment == "Ris" ~ rev(brewer.pal(n=8, name="Greens"))[TitrationPoint],
    TRUE ~ "gray"
  )) %>%
  ungroup() %>%
  dplyr::select(Sample, Treatment, TitrationPoint, lib.size, Color)

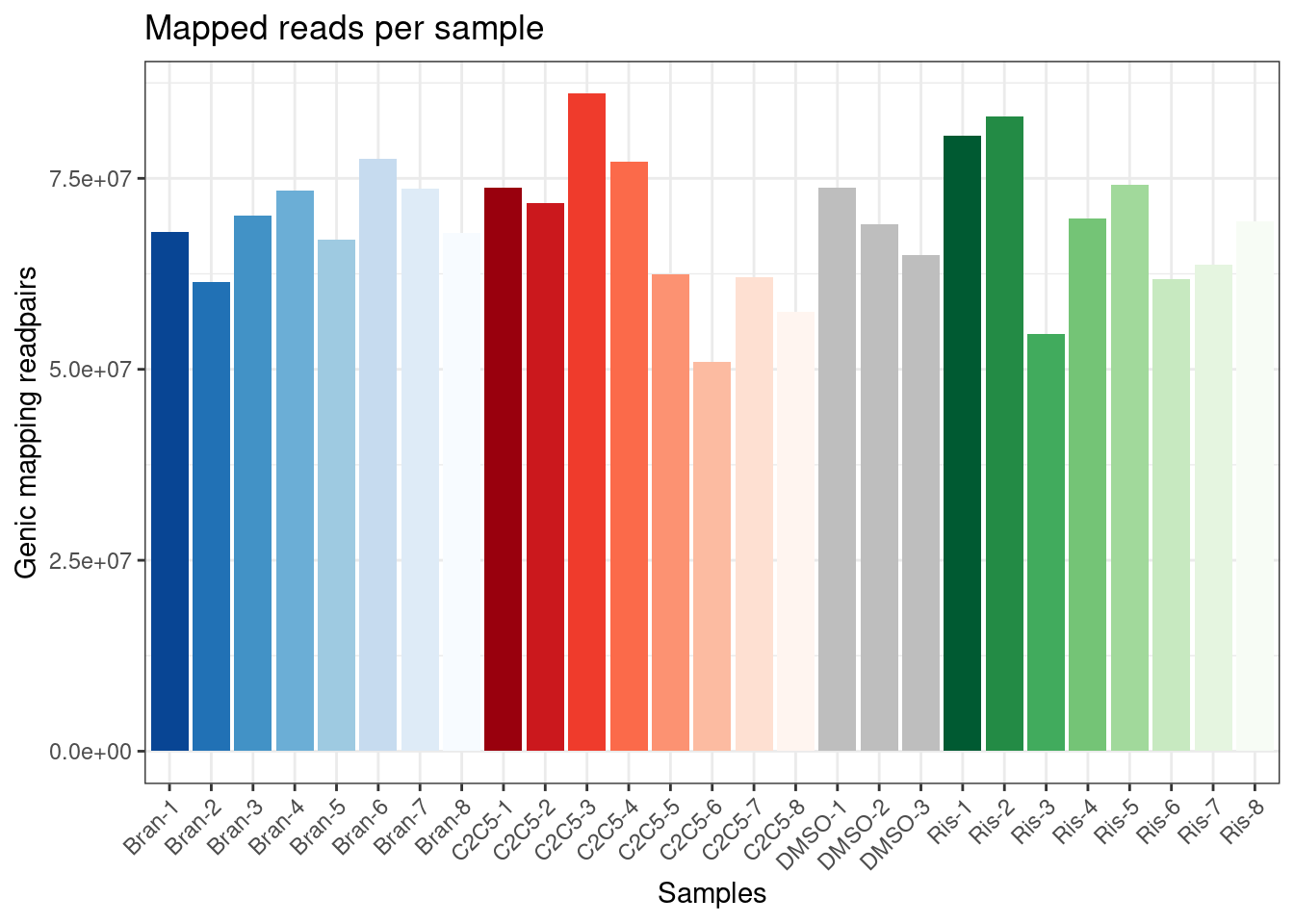

ggplot(Samples, aes(x=Sample, y=lib.size, fill=Color)) +
  geom_col() +
  scale_fill_identity() +
  labs(x="Samples", y="Genic mapping readpairs", title="Mapped reads per sample") +
  theme_bw() +
  theme(axis.text.x = element_text(angle = 45, vjust = 1, hjust=1))

Past versions of unnamed-chunk-1-1.png

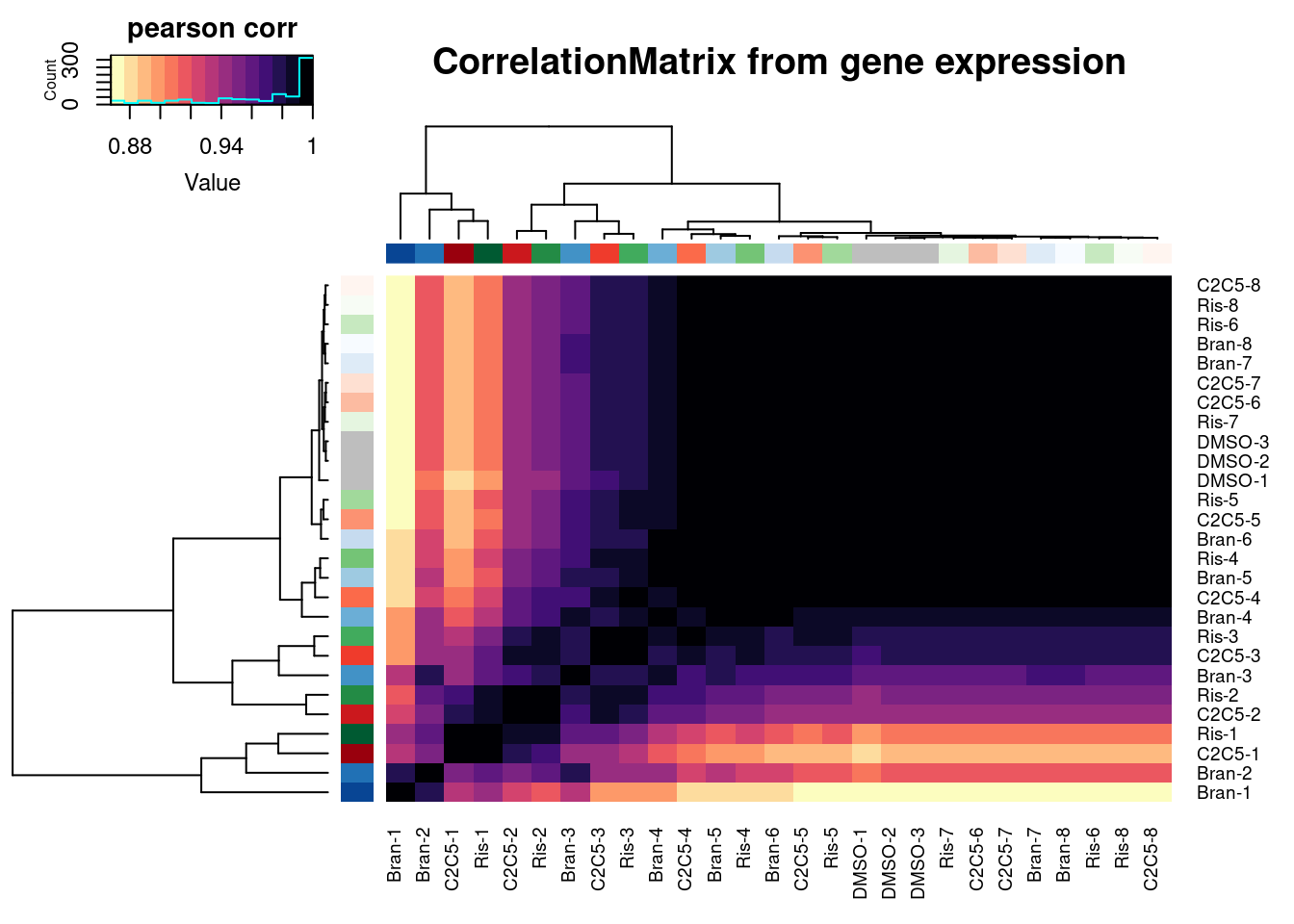

Ok, now let’s check correlation matrix of sample expression profiles and see how they cluster

#Calculate mean cpm and filter for expressed genes
mean.cpm <- dat %>%
    cpm(log=T) %>%
    apply(1, mean)

ExpressedGeneCounts <- dat[mean.cpm>1,]

#Speaman correlation matrix heatmap for CountsPerMillion expression
ExpressedGeneCounts %>%
  cpm(log=T) %>%
  cor(method="pearson") %>%
  heatmap.2(trace="none", ColSideColors=Samples$Color, RowSideColors = Samples$Color, labRow=Samples$Sample, labCol=Samples$Sample, col=magma(15, direction = -1), key.title="pearson corr", main="CorrelationMatrix from gene expression")

Past versions of unnamed-chunk-2-1.png

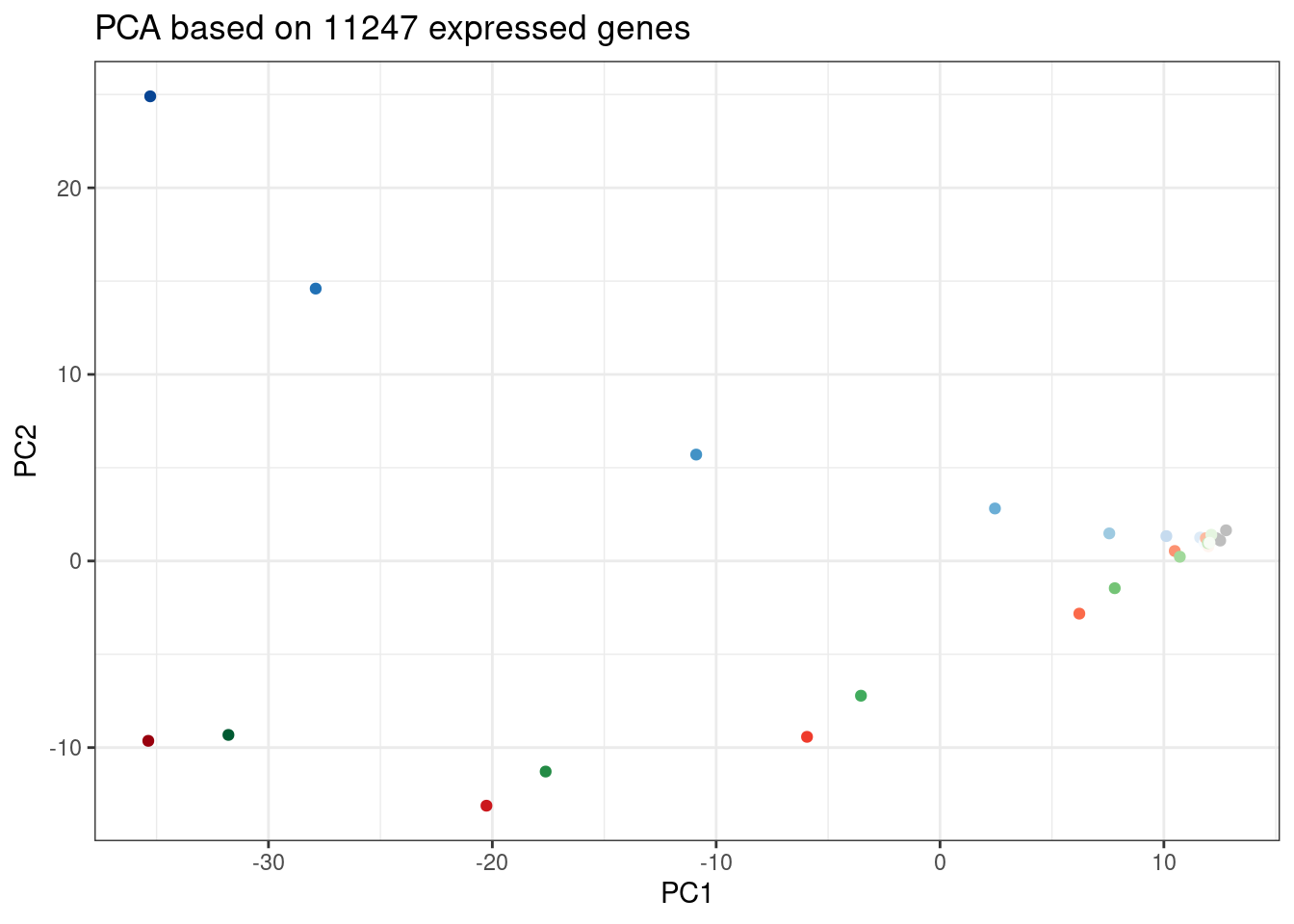

Another way to visualize how samples cluster is to plot them in PC space…

pca.results.expression <- ExpressedGeneCounts %>%
  cpm(log=T) %>%
  scale() %>%
  t() %>%
  prcomp()

dim(ExpressedGeneCounts)

[1] 11247    27

PC.dat <- pca.results.expression$x %>%
  as.data.frame() %>%
  rownames_to_column("Sample") %>%
  dplyr::select(Sample, PC1, PC2, PC3) %>%
  left_join(Samples, by="Sample")
ggplot(PC.dat, aes(x=PC1, y=PC2, color=Color)) +
  geom_point() +
  scale_color_identity() +
  theme_bw() +
  labs(title = "PCA based on 11247 expressed genes")

Past versions of unnamed-chunk-3-1.png

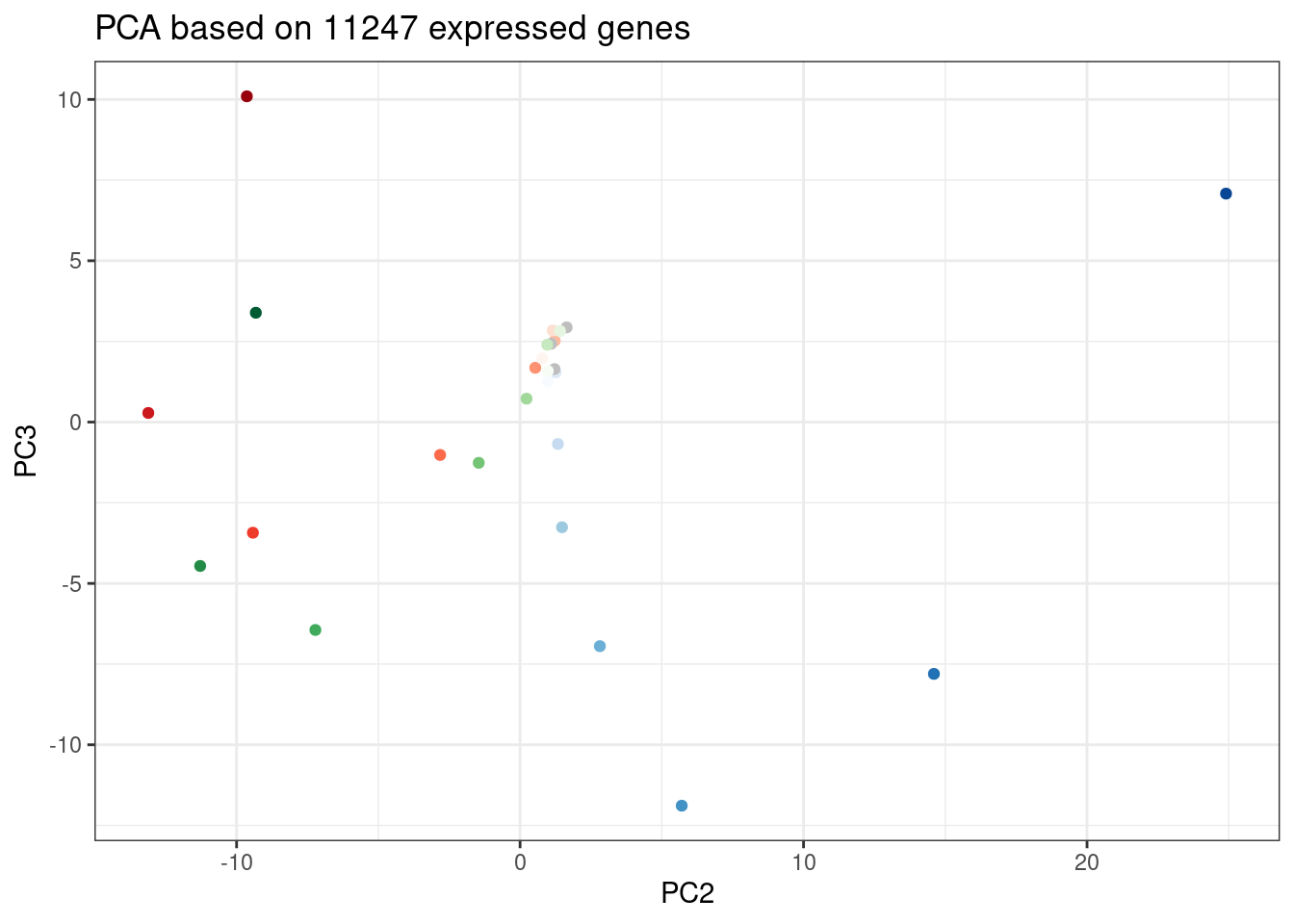

ggplot(PC.dat, aes(x=PC2, y=PC3, color=Color)) +
  geom_point() +
  scale_color_identity() +
  theme_bw() +
  labs(title = "PCA based on 11247 expressed genes")

Past versions of unnamed-chunk-3-2.png

Again, we can see the low concentration doses resemble DMSO control. Out of this PC it seems that branaplam effects are distinct from C2C5/risdiplam effects…

Gene expression dose-response plots

Now let’s make some of the plots yang was suggesting: - get DE down-regulated genes from previous analysis at set concentration - plot dose-response curves for these genes as heatmap, and allow heatmap function’s default distance matrix function and hierachal clustering alogorithm sort the rows of genes to pick out how some genes might have different effects than others to different treatments

DE.results <- read_tsv("../code/DE_testing/Results.txt.gz") %>%
  separate(Geneid, into=c("EnsemblID", "GeneSymbol"), sep = "_")

DE.genes <- DE.results %>%
  filter(FDR<0.01) %>%
  filter(logFC < -1) %>%
  distinct(EnsemblID) %>%
  pull(EnsemblID)

ensembl_to_symbols <- DE.results %>%
  distinct(EnsemblID, GeneSymbol) %>%
  deframe()

length(intersect(DE.genes, rownames(ExpressedGeneCounts$counts)))

[1] 920

Plot.Titration.Heatmap.dat <- ExpressedGeneCounts %>%
  cpm(log=F) %>%
  as.data.frame() %>%
  rownames_to_column("gene") %>%
  filter(gene %in% DE.genes) %>%
  gather("sample", "cpm", -gene) %>%
  separate(sample, into=c("Treatment", "TitrationPoint"), remove = F, convert = T) %>%
  dplyr::select(-sample) %>%
  pivot_wider(names_from = "TitrationPoint", values_from = "cpm") %>%
  unite(Rowname, gene, Treatment, remove = F) %>%
  drop_na() %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  dplyr::select(Rowname, 11:3, everything())

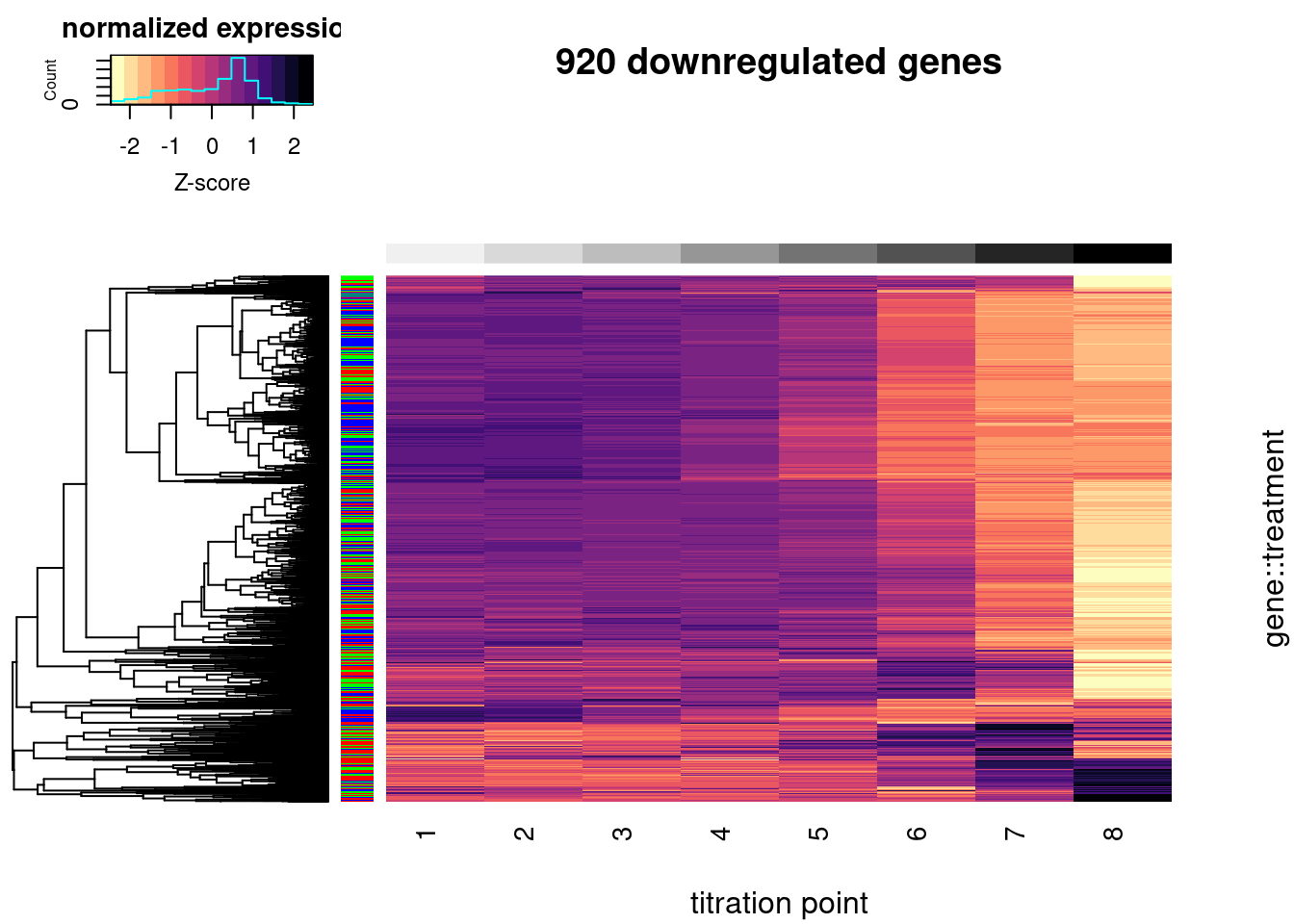

Plot.Titration.Heatmap.dat %>%
  column_to_rownames("Rowname") %>%
  dplyr::select(1:8) %>%
  as.matrix() %>%
  t() %>%
  scale(scale=T, center=T) %>%
  t() %>%
  heatmap.2(trace="none", labRow=F, labCol=T, dendrogram="row", Colv=F, RowSideColors = Plot.Titration.Heatmap.dat$Color, col=magma(15, direction = -1), ColSideColors = brewer.pal(n = 9, name = "Greys")[2:9], symbreaks = FALSE, main="920 downregulated genes", xlab="titration point", ylab="gene::treatment", key.title="normalized expression", key.xlab="Z-score")

Past versions of unnamed-chunk-4-1.png

#, breaks=seq(0,1,length.out=16)

In the plot above, rows represent a gene::drug pair and row side colors represent the treatment drug. Z-score normalized gene expression across the increasing doses (columns). Only 920 genes that were DE downregulated in the original experiment were included (FDR<1%, and log2FC<-1) and also expressed in this experiment (mean(log(cpm)) > 1).

Lastly, let’s pick a couple genes that distinguish the branaplam effect from the C2/C5 effect, and plot dose-response curves specifically for that.

First let’s re-create the PCA plot from those DE genes

pca.results.DE.expression <- ExpressedGeneCounts %>%
  cpm(log=T) %>%
  as.data.frame() %>%
  rownames_to_column("gene") %>%
  filter(gene %in% DE.genes) %>%
  column_to_rownames("gene") %>%
  as.matrix() %>%
  scale() %>%
  t() %>%
  prcomp()

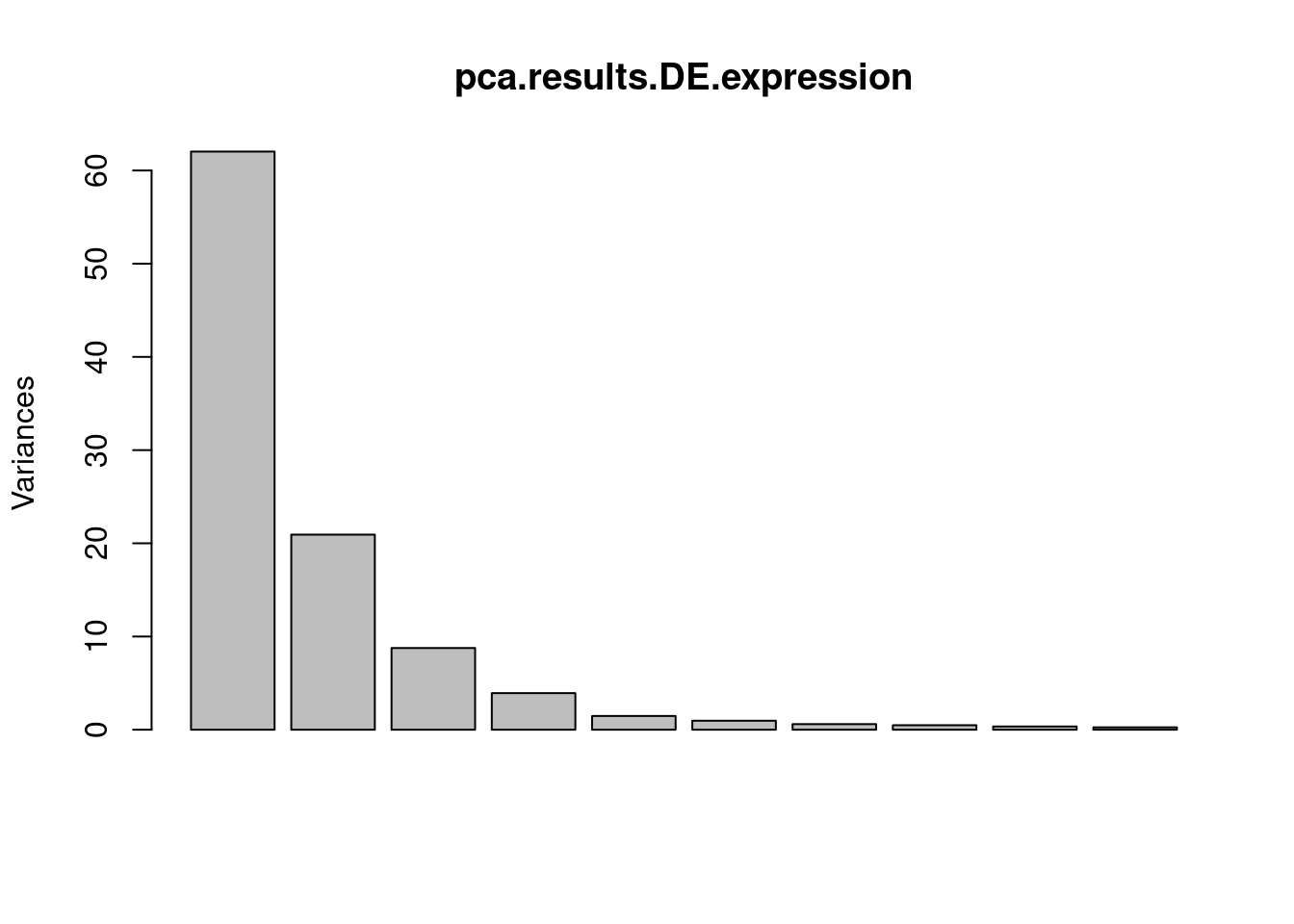

screeplot(pca.results.DE.expression)

Past versions of unnamed-chunk-5-1.png

PC.dat <- pca.results.DE.expression$x %>%
  as.data.frame() %>%
  rownames_to_column("Sample") %>%
  dplyr::select(Sample, PC1, PC2, PC3) %>%
  left_join(Samples, by="Sample")

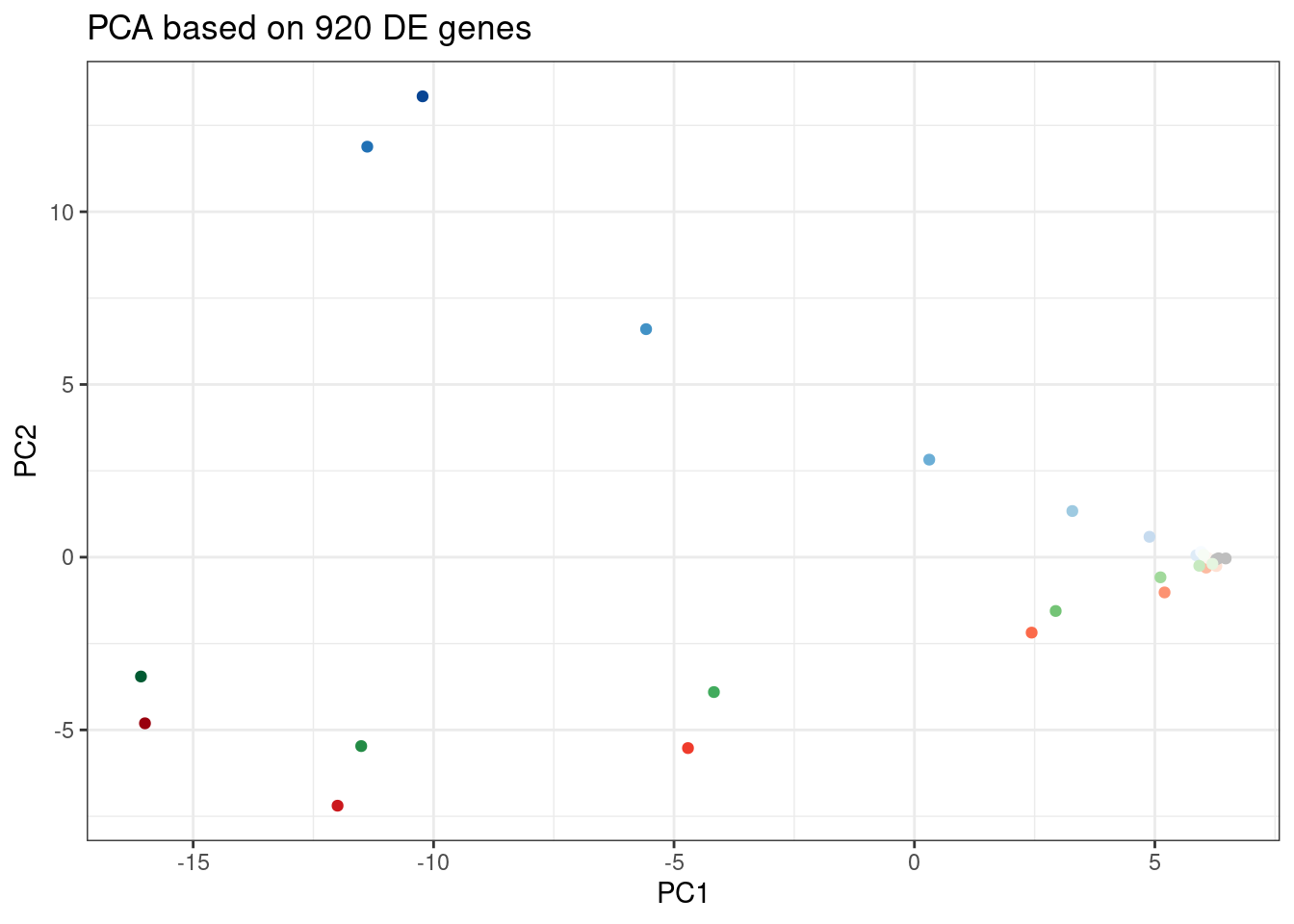

ggplot(PC.dat, aes(x=PC1, y=PC2, color=Color)) +
  geom_point() +
  scale_color_identity() +
  theme_bw() +
  labs(title = "PCA based on 920 DE genes")

Past versions of unnamed-chunk-5-2.png

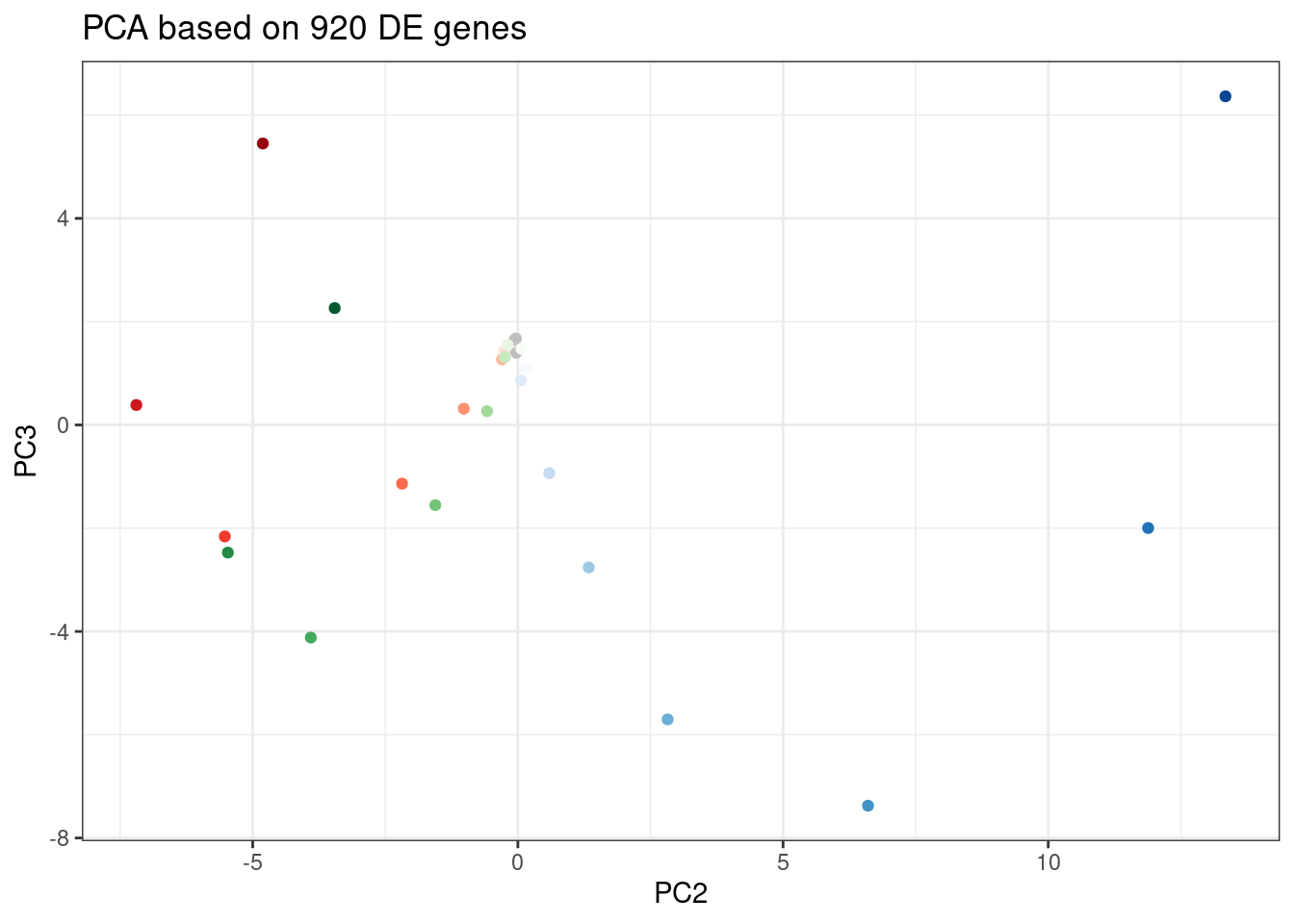

ggplot(PC.dat, aes(x=PC2, y=PC3, color=Color)) +
  geom_point() +
  scale_color_identity() +
  theme_bw() +
  labs(title = "PCA based on 920 DE genes")

Past versions of unnamed-chunk-5-3.png

Let’s pick some genes with high loadings in PC2, and plot the dose response. The facet titles will be the gene, followed by the sign of the PC2 loading.

DE.GenesOrderedBy.PC2 <- pca.results.DE.expression$rotation %>%
  as.data.frame() %>%
  rownames_to_column("gene") %>%
  dplyr::select(gene, PC2) %>%
  arrange(desc(abs(PC2)))

Genes.to.plot <- DE.GenesOrderedBy.PC2 %>%
  slice(1:50)

ExpressedGeneCounts %>%
  cpm(log=F) %>%
  as.data.frame() %>%
  rownames_to_column("gene") %>%
  filter(gene %in% Genes.to.plot$gene) %>%
  gather("sample", "cpm", -gene) %>%
  separate(sample, into=c("Treatment", "TitrationPoint"), remove = F, convert = T) %>%
  dplyr::select(-sample) %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  inner_join(DE.GenesOrderedBy.PC2, by="gene") %>%
  mutate(gene = recode(gene, !!!ensembl_to_symbols)) %>%
  mutate(FacetLabel = paste(gene, sign(PC2), sep='\n')) %>%
  ggplot(aes(x=TitrationPoint, y=cpm, color=Color)) +
  geom_line() +
  scale_color_identity(labels=ColorsTreatments, guide="legend") +
  scale_x_reverse() +
  facet_wrap(~FacetLabel, scales = "free_y") +
  labs(title = "dose response of top50 DE genes by PC2 loading") +
  theme_bw()

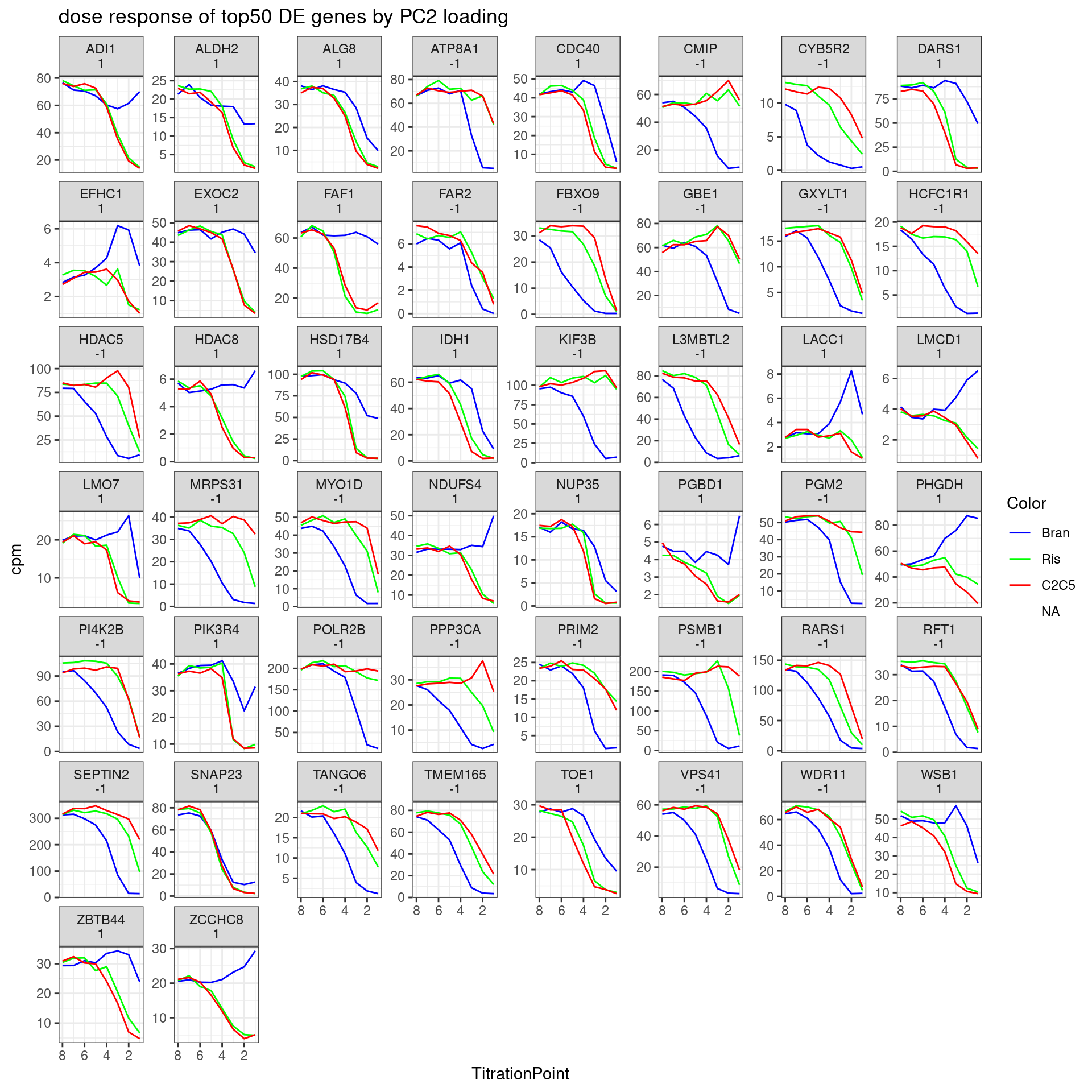

Past versions of unnamed-chunk-6-1.png

Let’s write out the list of genes by PC2 loading for Jingxin

DE.GenesOrderedBy.PC2 %>%
  mutate(gene = recode(gene, !!!ensembl_to_symbols)) %>%
  write_tsv("../code/scratch/DownregulatedGenesSortedByPC2Loading.tsv")

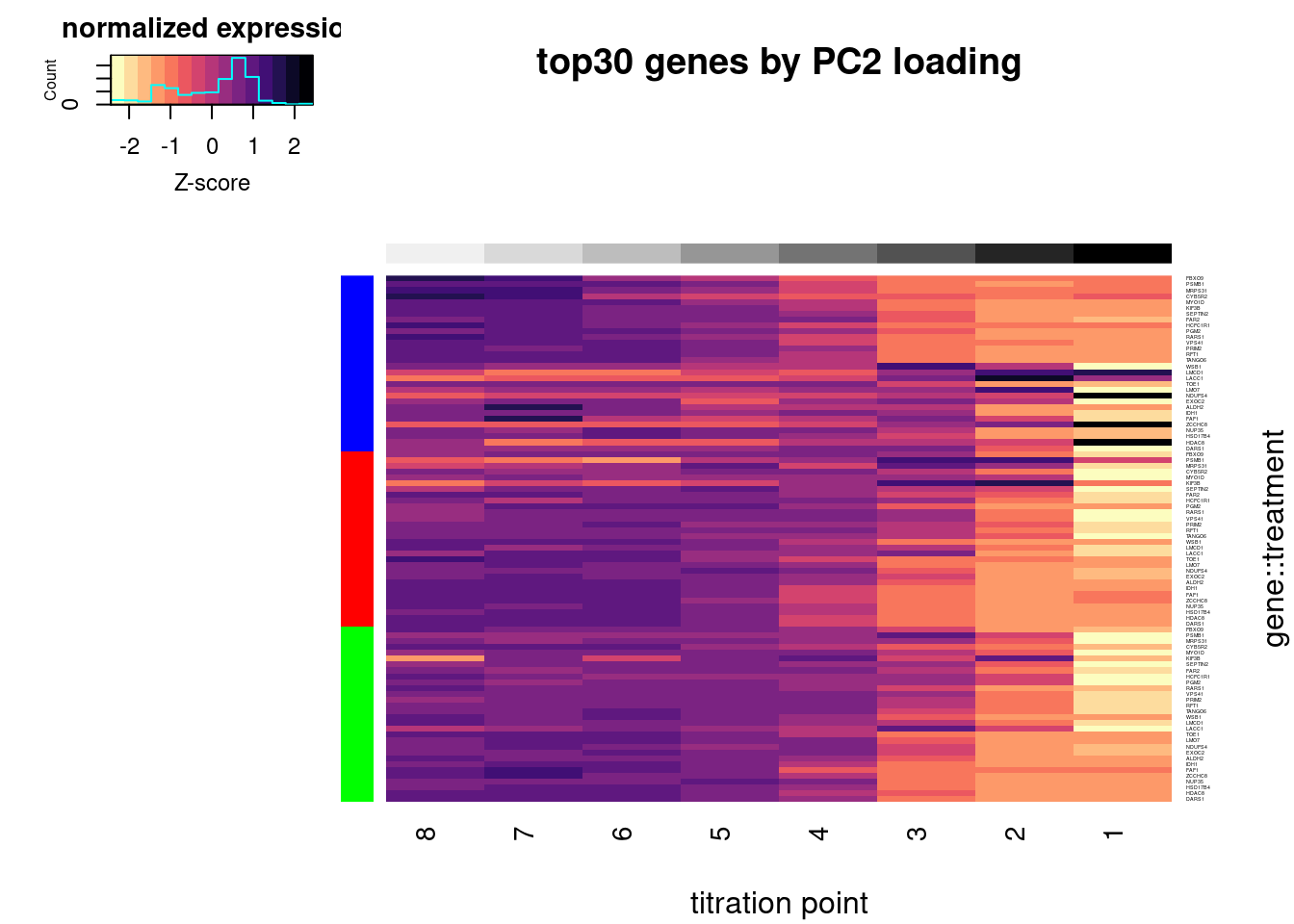

Let’s replot the heatmap but order the rows by treatment and then by gene loadings in PC2, so as to highlight how some genes have different effects in branaplam. Only plot the top30 genes by PC2 loadings.

Plot.Titration.Heatmap.dat.rearranged <- pca.results.DE.expression$rotation %>%
  as.data.frame() %>%
  rownames_to_column("gene") %>%
  dplyr::select(gene, PC2) %>%
  right_join(Plot.Titration.Heatmap.dat, by="gene") %>%
  mutate(gene = recode(gene, !!!ensembl_to_symbols)) %>%
  arrange(Treatment, desc(abs(PC2))) %>%
  group_by(Treatment) %>%
  slice(1:30) %>%
  # slice(tail(row_number(), 30)) %>%
  ungroup() %>%
  arrange(Treatment, PC2) %>%
  dplyr::select(-gene, -PC2, everything())

Plot.Titration.Heatmap.dat.rearranged %>%
  column_to_rownames("Rowname") %>%
  dplyr::select(-gene) %>%
  dplyr::select(1:8) %>%
  as.matrix() %>%
  t() %>%
  scale(scale=T, center=T) %>%
  t() %>%
  heatmap.2(trace="none", labCol=NULL, dendrogram="none", Colv=F, Rowv=F, RowSideColors = Plot.Titration.Heatmap.dat.rearranged$Color, col=magma(15, direction = -1), ColSideColors = brewer.pal(n = 9, name = "Greys")[2:9], symbreaks = FALSE, labRow=Plot.Titration.Heatmap.dat.rearranged$gene, cexRow=0.25, offsetRow=0.1, main="top30 genes by PC2 loading", xlab="titration point", ylab="gene::treatment", key.title="normalized expression", key.xlab="Z-score")

Past versions of unnamed-chunk-8-1.png

#, breaks=seq(-30,30,length.out=16)

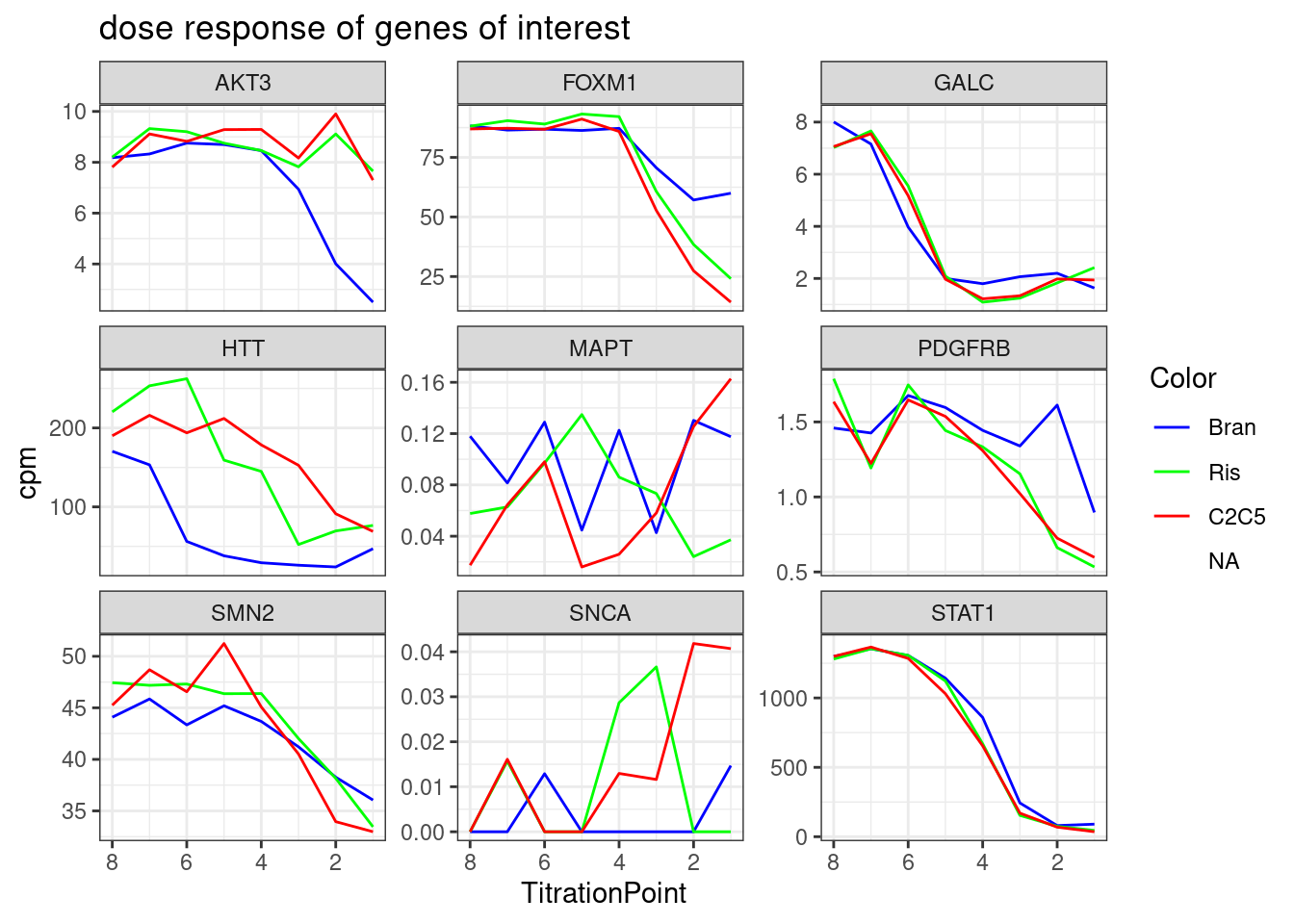

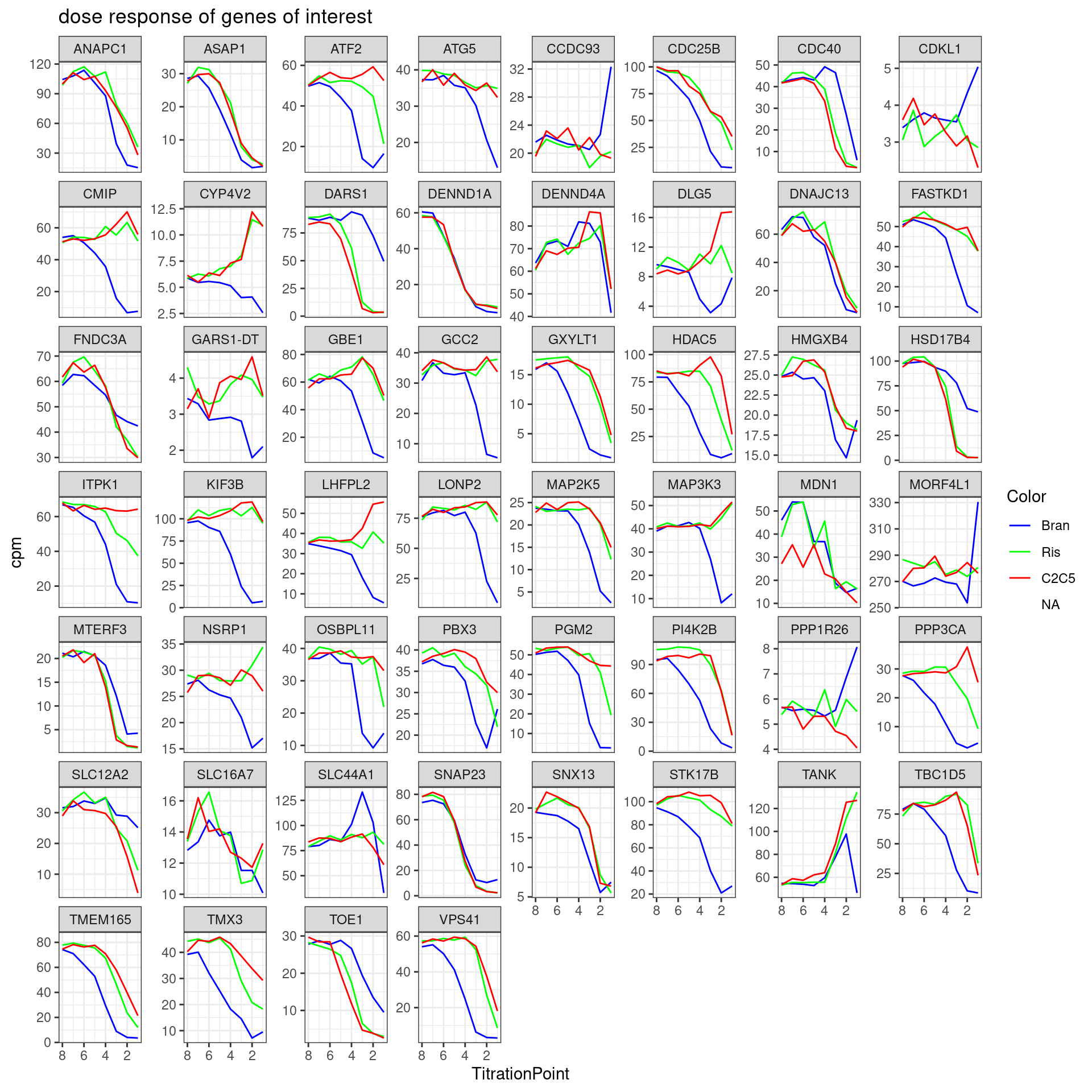

Let’s check out the dose-response for a couple genes of interest now:

GenesOfInterest <- c("MAPT", "SNCA", "SMN2", "HTT", "GALC", "FOXM1", "STAT1", "AKT3", "PDGFRB")

dat %>%
  cpm(log=F) %>%
  as.data.frame() %>%
  rownames_to_column("gene") %>%
  mutate(gene = recode(gene, !!!ensembl_to_symbols)) %>%
  filter(gene %in% GenesOfInterest) %>%
  gather("sample", "cpm", -gene) %>%
  separate(sample, into=c("Treatment", "TitrationPoint"), remove = F, convert = T) %>%
  dplyr::select(-sample) %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  ggplot(aes(x=TitrationPoint, y=cpm, color=Color)) +
  geom_line() +
  scale_color_identity(labels=ColorsTreatments, guide="legend") +
  scale_x_reverse() +
  facet_wrap(~gene, scales = "free_y") +
  labs(title = "dose response of genes of interest") +
  theme_bw()

Past versions of unnamed-chunk-9-1.png

Splicing quantification QC

Now let’s also plot some dose response for previously identified differential splicing events. First read in the splice junction count table (created from leafcutter clustering, using only these titration experiment samples for clustering), and do some quick QC

counts <- read.table("../code/SplicingAnalysis/leafcutter/clustering/autosomes_titrationseries/leafcutter_perind_numers.counts.gz", sep = ' ',  header=T) %>%
  rownames_to_column("intron") %>%
  gather(key="Sample", value="Count", -intron)

PSI.table <- counts %>%
  mutate(Cluster = str_replace(intron, ".+:(.+)$", "\\1")) %>%
  group_by(Sample, Cluster) %>%
  mutate(ClusterSum = sum(Count)) %>%
  mutate(PSI = Count/ClusterSum * 100) %>%
  ungroup()

PSI.table %>%
  dplyr::select(intron, Sample, PSI) %>%
  spread(key = Sample, value = PSI) %>%
  column_to_rownames("intron") %>%
  drop_na() %>%
  cor(method="spearman") %>%
  heatmap.2(trace="none", ColSideColors=Samples$Color, RowSideColors = Samples$Color, labRow=Samples$Sample, labCol=Samples$Sample, col=magma(30, direction = -1), key.title="pearson corr", main="Correlation matrix from splicing")

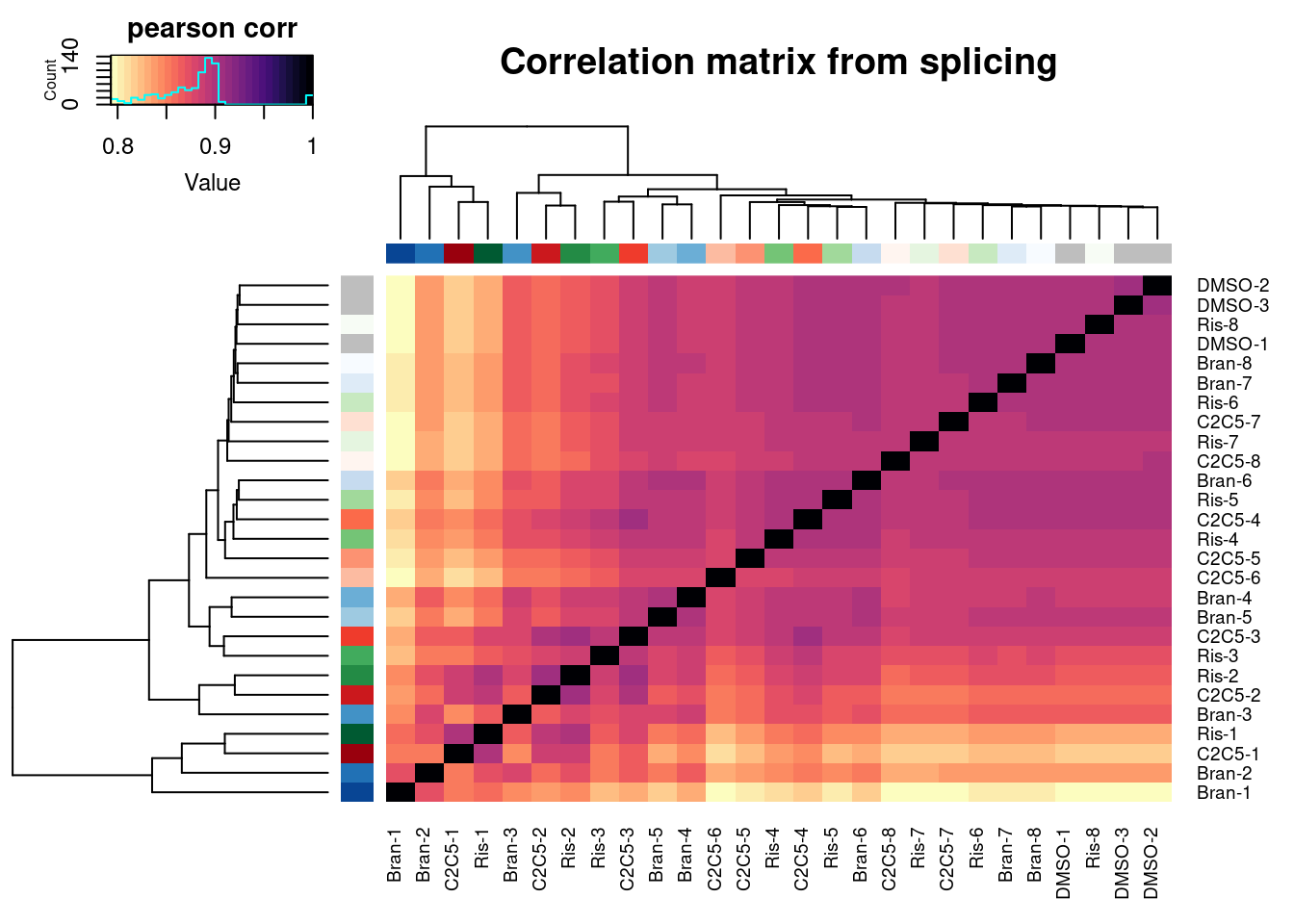

Past versions of unnamed-chunk-10-1.png

Ok similar clustering pattern arises, with samples clustering primarily by titration point. Keep in mind this is all junctions from leafcutter count table, no additional filtering for well expressed or differentially spliced junctions.

Similar to what I did with the expression, now let’s pick some of the previously differentially spliced introns, and plot the samples in PC space and also plot some dose-response curves…

First, read in the previous differential splicing results…

cluster_sig_files <- list.files("../code/SplicingAnalysis/leafcutter/differential_splicing", "*_cluster_significance.txt", full.names = T)
effect_sizes_files <- list.files("../code/SplicingAnalysis/leafcutter/differential_splicing", "*_effect_sizes.txt", full.names = T)
treatments <- str_replace(cluster_sig_files, ".+/(.+?)_cluster_significance.txt", "\\1")

cluster.sig <- map(cluster_sig_files, read_tsv) %>%
  set_names(cluster_sig_files) %>%
  bind_rows(.id="f") %>%
  mutate(treatment = str_replace(f, ".+/(.+?)_cluster_significance.txt", "\\1")) %>%
  dplyr::select(-f)

effect_sizes <- map(effect_sizes_files, read_tsv) %>%
  set_names(effect_sizes_files) %>%
  bind_rows(.id="f") %>%
  mutate(treatment = str_replace(f, ".+/(.+?)_effect_sizes.txt", "\\1")) %>%
  dplyr::select(-f) %>%
  unite("psi_treatment", treatments, sep=" ", na.rm=T) %>%
  mutate(psi_treatment = as.numeric(psi_treatment),
         cluster = str_replace(intron, "(.+?:).+:(.+?)", "\\1\\2")) %>%
  mutate(deltapsi = deltapsi*-1,
         logef = logef *-1)

#Combine effect sizes and significance for all samples into single df
leafcutter.ds <- effect_sizes %>%
  left_join(cluster.sig, by=c("treatment", "cluster"))

# read in some annotations about these splice sites
SpliceTypeAnnotations <- read_tsv("../code/SplicingAnalysis/leafcutter/JuncfilesMerged.annotated.basic.bed.gz") %>%
  unite(Intron, chrom, start, end) %>%
  distinct(Intron, .keep_all = T) %>%
  dplyr::select(Intron, strand, exons_skipped, anchor, gene_names, gene_ids, splice_site, strand) %>%
  mutate(IntronType = recode(anchor, A="Alt 5'ss", D="Alt 3'ss", DA="Annotated", N="New Intron", NDA="New Splice Site combination"))

head(SpliceTypeAnnotations)

# A tibble: 6 × 8
  Intron  strand exons_skipped anchor gene_names gene_ids splice_site IntronType
  <chr>   <chr>          <dbl> <chr>  <chr>      <chr>    <chr>       <chr>
1 chr1_1… +                  1 DA     DDX11L1    ENSG000… GT-AG       Annotated
2 chr1_1… +                  6 N      <NA>       <NA>     GT-AG       New Intron
3 chr1_1… -                 21 N      <NA>       <NA>     GT-AG       New Intron
4 chr1_1… -                  0 N      <NA>       <NA>     GT-AG       New Intron
5 chr1_1… -                  0 N      <NA>       <NA>     GT-AG       New Intron
6 chr1_1… -                  0 N      <NA>       <NA>     GT-AG       New Intron

FivePrimeSS <- read_tsv("../code/SplicingAnalysis/leafcutter/JuncfilesMerged.annotated.basic.bed.5ss.tab.gz", col_names = c("Intron", "DonorSeq", "DonorScore")) %>%
  mutate(Intron = str_replace(Intron, "(.+)_.+?::.+$", "\\1"))


SpliceTypeAnnotations <- SpliceTypeAnnotations %>%
  inner_join(FivePrimeSS, by="Intron")

leafcutter.ds.annotated <- leafcutter.ds %>%
  mutate(Intron=str_replace(intron, "(.+?):(.+?):(.+?):.+", "\\1_\\2_\\3")) %>%
  inner_join(SpliceTypeAnnotations, by="Intron") %>%
  mutate(UpstreamOfDonor2BaseSeq = substr(DonorSeq, 3, 4))

Ok now pick some differentially spliced junctions to plot… Perhaps only consider introns that are significant, large effect size, and pass some minimum read count across this new dataset (say, at least 30 junction reads across the treatment titration).

DifferentiallySplicedIntrons <- leafcutter.ds.annotated %>%
  filter(abs(logef) > 2 & abs(psi_treatment) > 0.02 & p.adjust < 0.01) %>%
  distinct(Intron, .keep_all=T)

PSI.table.filtered <- PSI.table %>%
  mutate(Intron = str_replace(intron, "^(.+?):(.+?):(.+?):clu_.+$", "\\1_\\2_\\3")) %>%
  filter(Intron %in% DifferentiallySplicedIntrons$Intron) %>%
  mutate(Sample = str_replace(Sample, "TitrationExp(.+?)\\.(.+?)$", "\\1-\\2")) %>%
  left_join(Samples, by="Sample") %>%
  group_by(Intron, Treatment) %>%
  mutate(IntronSum = sum(Count)) %>%
  ungroup() %>%
  mutate(PassFilterInTreatment = IntronSum >= 30) %>%
  group_by(Intron) %>%
  filter(any(PassFilterInTreatment)) %>%
  ungroup() %>%
  filter(!is.na(PSI))

After doing that filtering, how many introns are left in the dataset:

PSI.table.filtered %>%
  distinct(Intron) %>% nrow()

[1] 3387

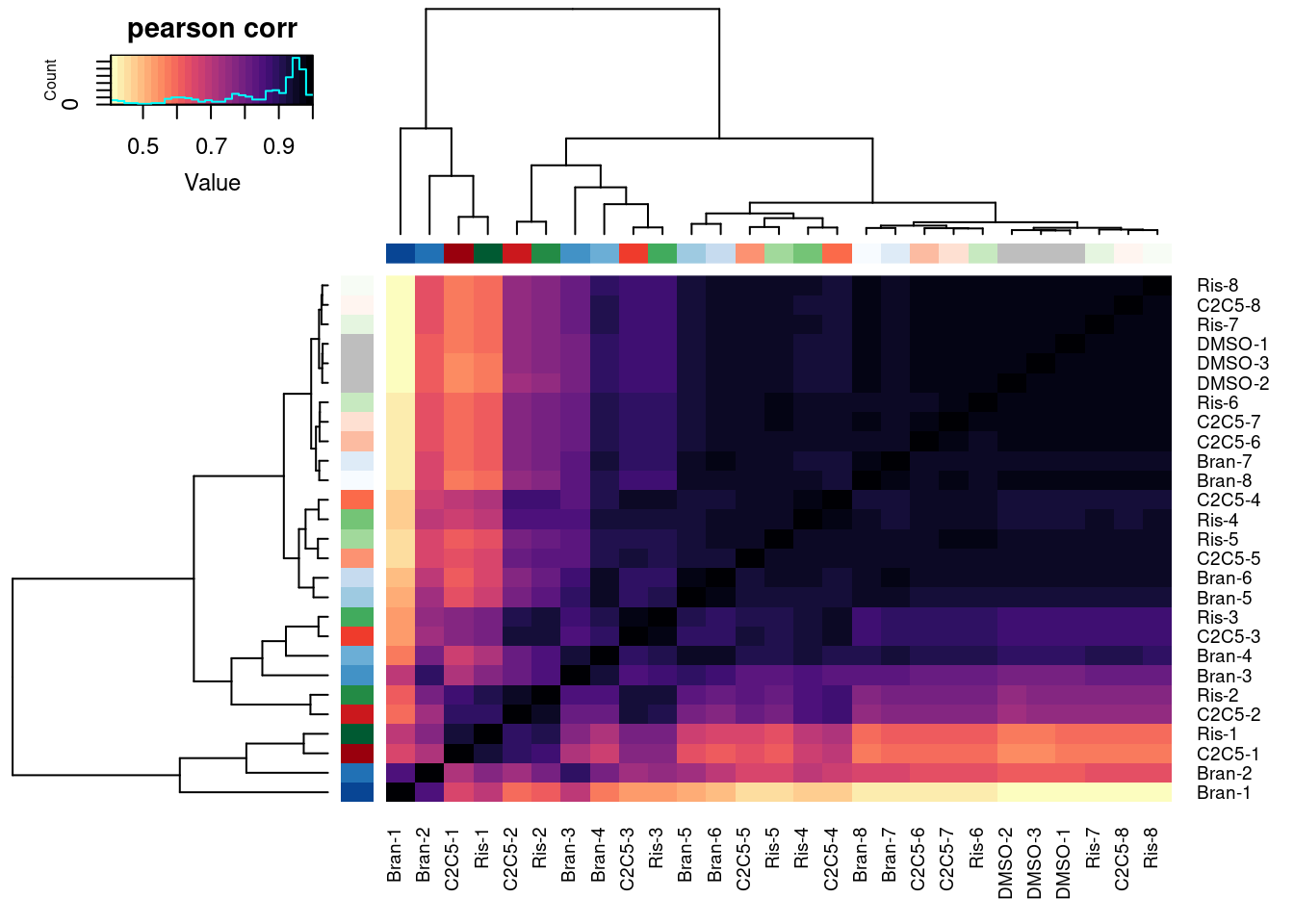

Now let’s remake that correlation matrix heatmap using just these junctions… Also plot in PC space.

PSI.table.filtered.mat <- PSI.table.filtered %>%
  dplyr::select(Intron, PSI, Sample) %>%
  pivot_wider(names_from="Sample", values_from="PSI", id_cols="Intron", values_fill=0) %>%
  column_to_rownames("Intron") %>% as.matrix()

PSI.table.filtered.mat %>%
  cor(method="spearman") %>%
  heatmap.2(trace="none", ColSideColors=Samples$Color, RowSideColors = Samples$Color, labRow=Samples$Sample, labCol=Samples$Sample, col=magma(30, direction = -1), key.title="pearson corr")

Past versions of unnamed-chunk-14-1.png

pca.results.splicing <- PSI.table.filtered.mat %>%
  scale() %>%
  t() %>%
  prcomp()

PC.dat <- pca.results.splicing$x %>%
  as.data.frame() %>%
  rownames_to_column("Sample") %>%
  dplyr::select(Sample, PC1, PC2, PC3) %>%
  left_join(Samples, by="Sample")

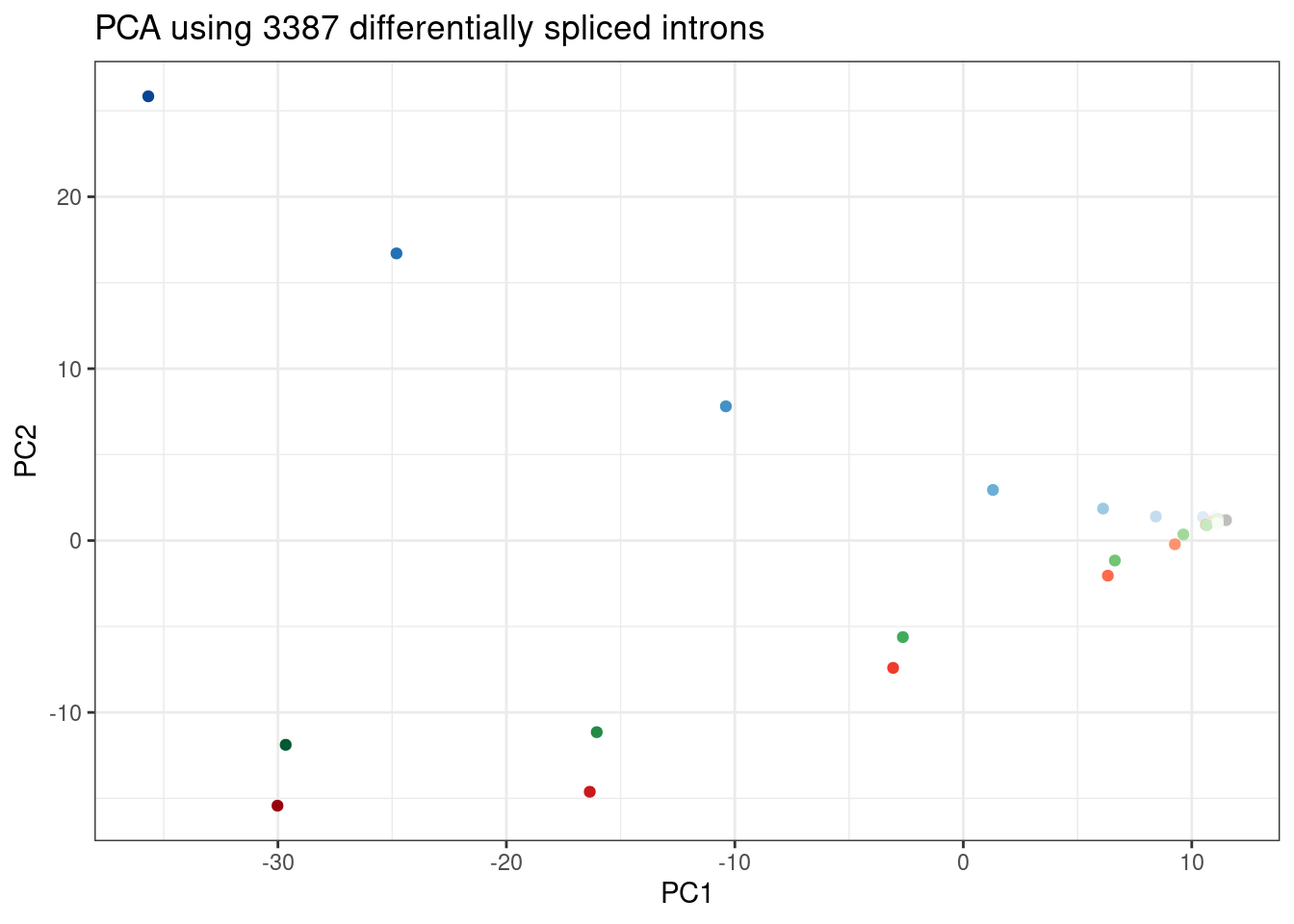

ggplot(PC.dat, aes(x=PC1, y=PC2, color=Color)) +
  geom_point() +
  scale_color_identity() +
  theme_bw() +
  labs(title = "PCA using 3387 differentially spliced introns")

Past versions of unnamed-chunk-14-2.png

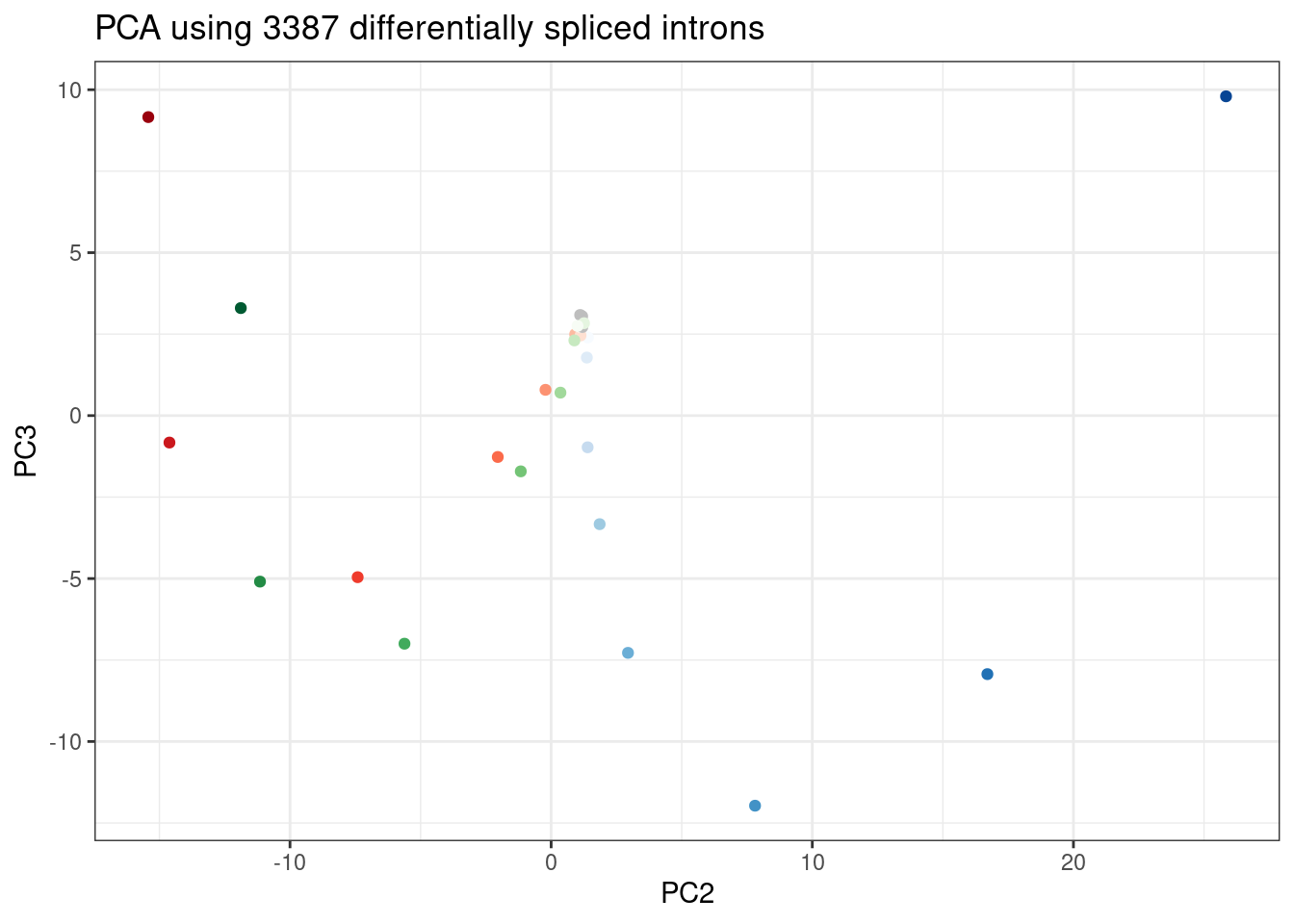

ggplot(PC.dat, aes(x=PC2, y=PC3, color=Color)) +
  geom_point() +
  scale_color_identity() +
  theme_bw() +
  labs(title = "PCA using 3387 differentially spliced introns")

Past versions of unnamed-chunk-14-3.png

Wow, that looks just like how the samples were in gene expression PC space. It’s really striking. I’m pretty sure there are no silly bugs though. So again, the within each treatment clearly go in the order of the dose given, but also it’s obvious that branaplam has distinct effects from the other two.

Splicing dose-response plots

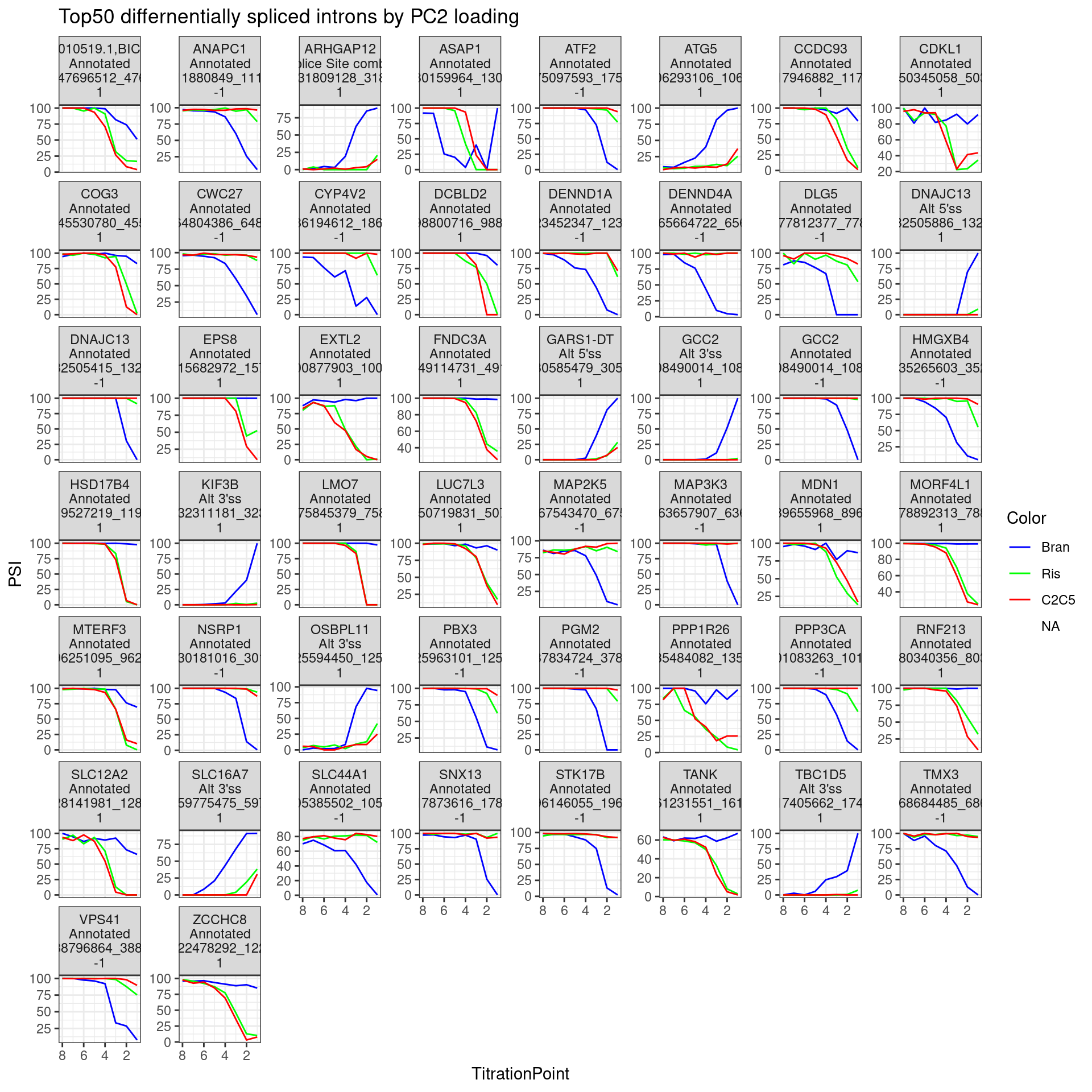

Let’s plot a few dose response curves… Just as before, to highlight differences between branaplam and the other two, let’s pick the introns with high loadings in PC2.

Introns.to.plot <- pca.results.splicing$rotation %>%
  as.data.frame() %>%
  rownames_to_column("Intron") %>%
  dplyr::select(Intron, PC2) %>%
  arrange(desc(abs(PC2))) %>%
  slice(1:50)

PSI.table.filtered.mat %>%
  as.data.frame() %>%
  rownames_to_column("Intron") %>%
  inner_join(Introns.to.plot, by="Intron") %>%
  # mutate(gene = recode(gene, !!!ensembl_to_symbols)) %>%
  gather("sample", "PSI", -Intron, -PC2) %>%
  separate(sample, into=c("Treatment", "TitrationPoint"), remove = F, convert = T) %>%
  dplyr::select(-sample) %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  left_join(
    (leafcutter.ds.annotated %>%
       dplyr::select(Intron, gene_names,IntronType)),
    by="Intron") %>%
  mutate(Facet_label = paste(gene_names,IntronType,Intron, sign(PC2), sep="\n")) %>%
  ggplot(aes(x=TitrationPoint, y=PSI, color=Color)) +
  geom_line() +
  scale_color_identity(labels=ColorsTreatments, guide="legend") +
  scale_x_reverse() +
  labs(title="Top50 differnentially spliced introns by PC2 loading") +
  facet_wrap(~Facet_label, scales = "free_y") +
  theme_bw()

Past versions of unnamed-chunk-15-1.png

The facet labels indicate the host gene,, the “type” of intron (annotated, cryptic 3’ss, etc), the intron coordinates, and the sign of PC2 loading (1 indicating more branaplam specific splicing positive effect (enhancement), -1 indicating branaplam specific splicing negative effect).

Let’s write out the genes used for this plot for Jingxin:

leafcutter.ds.annotated %>%
  dplyr::select(Intron, IntronType, DonorSeq, DonorScore, gene_names, gene_ids, strand, treatment, fibroblast.Splicing.logFC=logef) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2)
    , by="Intron") %>%
  pivot_wider(names_from="treatment", values_from="fibroblast.Splicing.logFC", names_prefix="FibroblastSplicingLogFC.") %>%
separate(Intron, into=c("Chrom", "IntronLeftCoord", "IntronRightCoord"), sep="_", remove=F) %>%
  arrange(desc(abs(PC2))) %>%
  write_tsv("../code/scratch/Fibroblast.DifferentiallySplicedIntronList.With.LCL.PC2.Loading.tsv.gz")

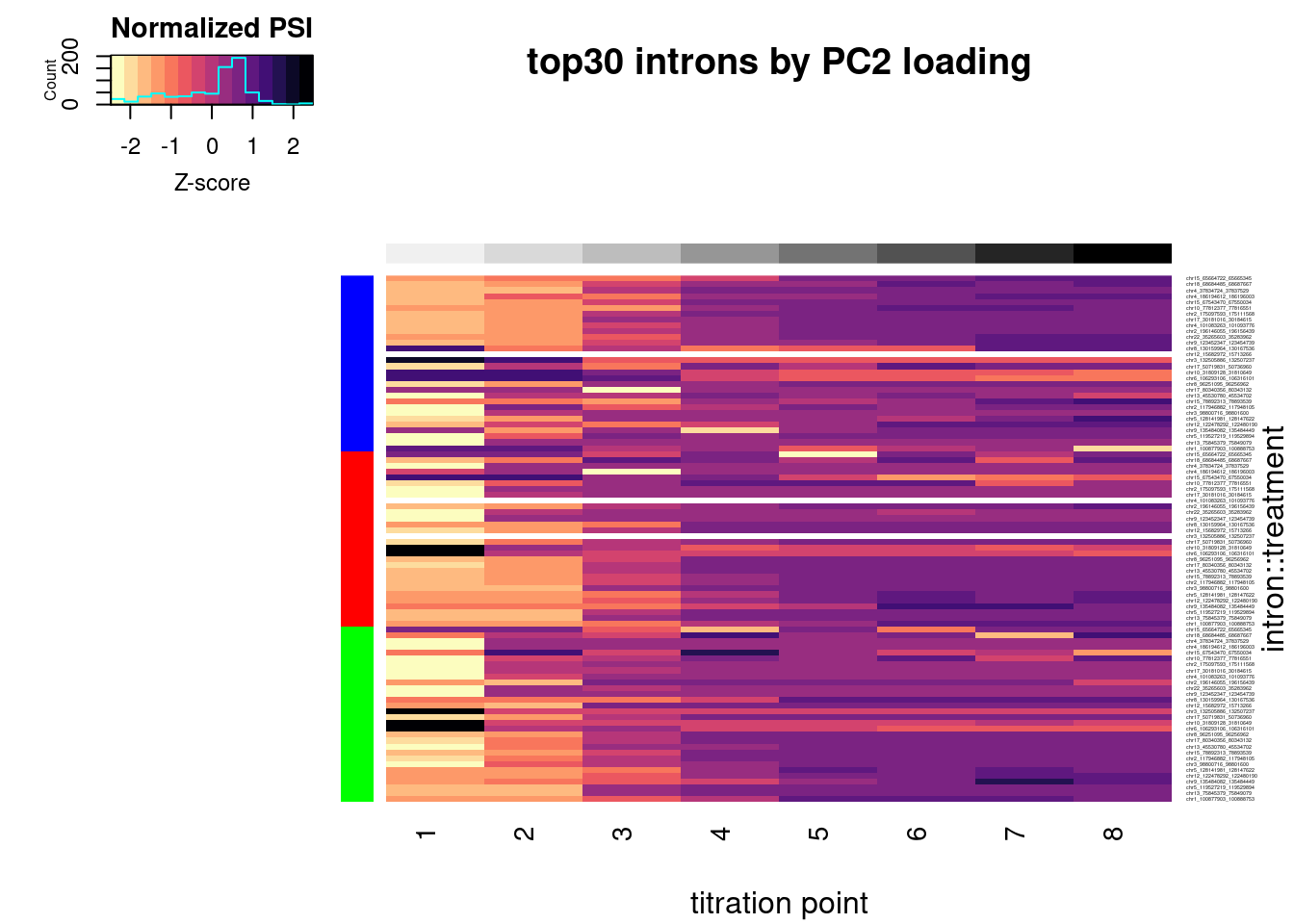

Lastly, let’s plot the top 30 PC2 introns heatmap style

Plot.Titration.Heatmap.dat.rearranged <- pca.results.splicing$rotation %>%
  as.data.frame() %>%
  rownames_to_column("Intron") %>%
  dplyr::select(Intron, PC2) %>%
  right_join(
    (PSI.table.filtered.mat %>%
      as.data.frame() %>%
      rownames_to_column("Intron") %>%
      gather("sample", "PSI", -Intron) %>%
      separate(sample, into=c("Treatment", "TitrationPoint"), remove = F, convert = T) %>%
      pivot_wider(values_from="PSI", names_from="TitrationPoint", id_cols=c("Intron", "Treatment"))
       ),
    by="Intron") %>%
  mutate(Rowname = paste(Intron, Treatment)) %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  arrange(Treatment, desc(abs(PC2))) %>%
  group_by(Treatment) %>%
  slice(1:30) %>%
  filter(!Treatment == "DMSO") %>%
  # slice(tail(row_number(), 30)) %>%
  ungroup() %>%
  arrange(Treatment, PC2) %>%
  dplyr::select(-Intron, -PC2, -Treatment, -Color, everything())

Plot.Titration.Heatmap.dat.rearranged %>%
  column_to_rownames("Rowname") %>%
  dplyr::select(1:8) %>%
  as.matrix() %>%
  t() %>%
  scale(scale=T, center=T) %>%
  t() %>%
  heatmap.2(trace="none", labCol=NULL, dendrogram="none", Colv=F, Rowv=F, RowSideColors = Plot.Titration.Heatmap.dat.rearranged$Color, col=magma(15, direction = -1), ColSideColors = brewer.pal(n = 9, name = "Greys")[2:9], symbreaks = FALSE, labRow=Plot.Titration.Heatmap.dat.rearranged$Intron, cexRow=0.25, offsetRow=0.1, main="top30 introns by PC2 loading", xlab="titration point", ylab="intron::treatment", key.title="Normalized PSI", key.xlab="Z-score")

Past versions of unnamed-chunk-17-1.png

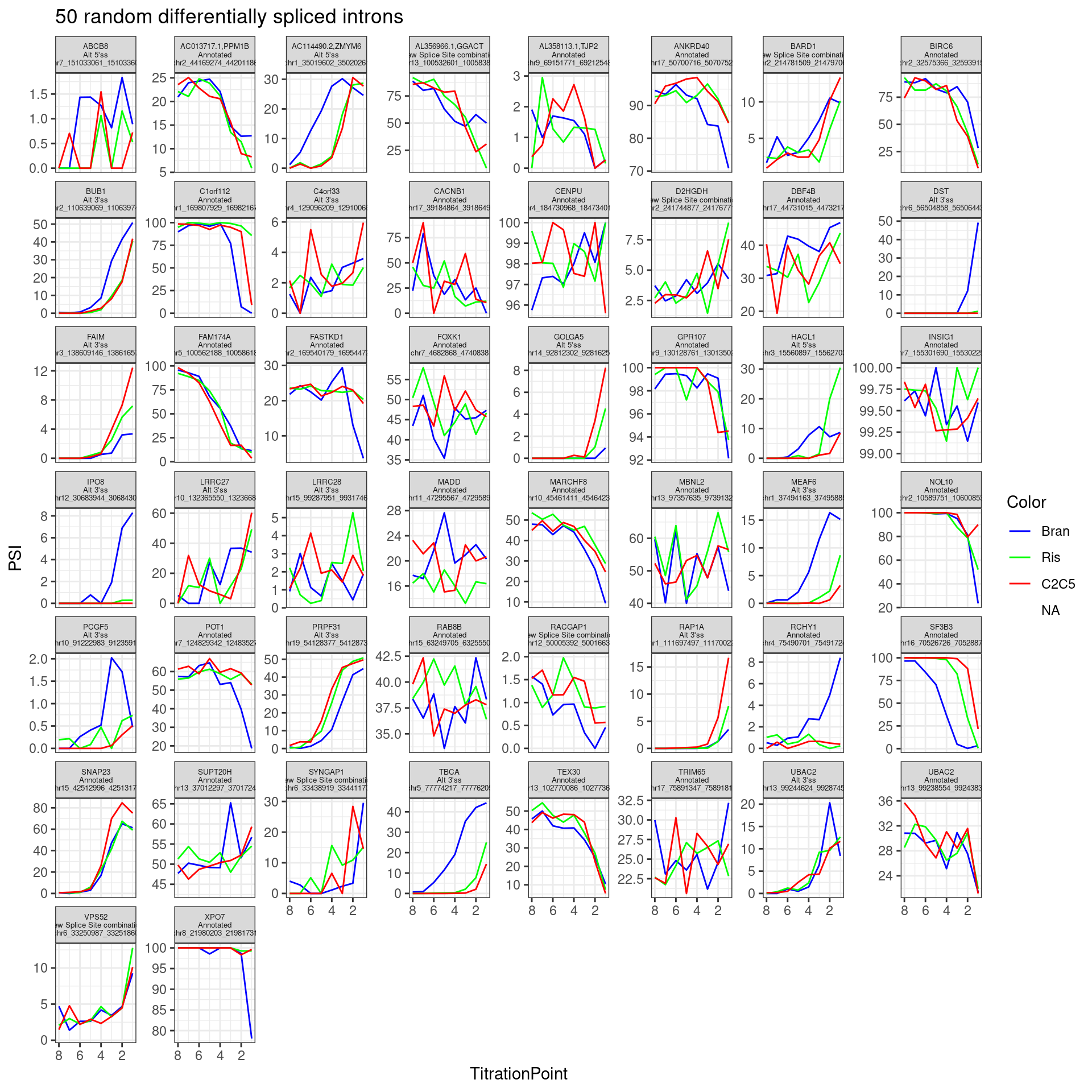

In addition to plotting the top introns by PC2 loading, let’s plot the dose-response for some 50ish randomly selected introns that passed my criteria (from the original experiment: abs(logef) > 2 & abs(psi_treatment) > 0.02 & p.adjust < 0.01, as well as at least 30 counts across any treatment series in this experiment)

set.seed(0)
PSI.table.filtered.mat %>%
  as.data.frame() %>%
  rownames_to_column("Intron") %>%
  sample_n(50) %>%
  # mutate(gene = recode(gene, !!!ensembl_to_symbols)) %>%
  gather("sample", "PSI", -Intron) %>%
  separate(sample, into=c("Treatment", "TitrationPoint"), remove = F, convert = T) %>%
  dplyr::select(-sample) %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  left_join(
    (leafcutter.ds.annotated %>%
       dplyr::select(Intron, gene_names,IntronType)),
    by="Intron") %>%
  mutate(Facet_label = paste(gene_names,IntronType,Intron, sep="\n")) %>%
  ggplot(aes(x=TitrationPoint, y=PSI, color=Color)) +
  geom_line() +
  scale_color_identity(labels=ColorsTreatments, guide="legend") +
  scale_x_reverse() +
  facet_wrap(~Facet_label, scales = "free_y") +
  labs(title="50 random differentially spliced introns") +
  theme_bw() +
  theme(strip.text.x = element_text(size = 5))

Past versions of unnamed-chunk-18-1.png

Neat even from this random sample (among differentially spliced genes) I can clearly see a nunmber of introns with effects different between branaplam and the other two… Like some introns where branaplam has a stronger effect, then other introns where the risdiplam/C2C5 has the stronger effect.

Let’s focus on any differentially spliced introns that passed my previous critera hosted within genes of interest.

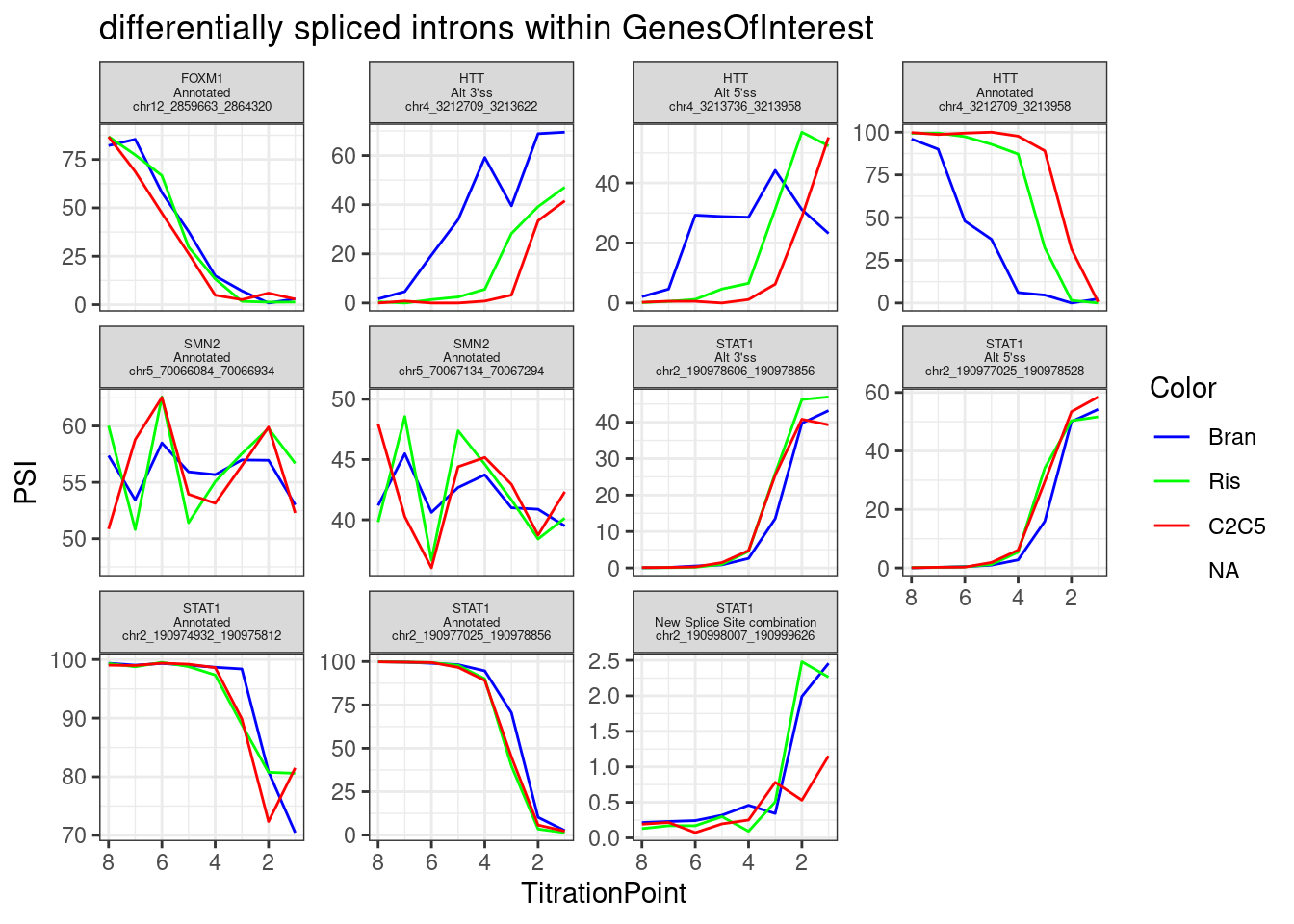

PSI.table.filtered.mat %>%
  as.data.frame() %>%
  rownames_to_column("Intron") %>%
  # mutate(gene = recode(gene, !!!ensembl_to_symbols)) %>%
  gather("sample", "PSI", -Intron) %>%
  separate(sample, into=c("Treatment", "TitrationPoint"), remove = F, convert = T) %>%
  dplyr::select(-sample) %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  left_join(
    (leafcutter.ds.annotated %>%
       dplyr::select(Intron, gene_names,IntronType)),
    by="Intron") %>%
  filter(gene_names %in% GenesOfInterest) %>%
  mutate(Facet_label = paste(gene_names,IntronType,Intron, sep="\n")) %>%
  ggplot(aes(x=TitrationPoint, y=PSI, color=Color)) +
  geom_line() +
  scale_color_identity(labels=ColorsTreatments, guide="legend") +
  scale_x_reverse() +
  facet_wrap(~Facet_label, scales = "free_y") +
  labs(title="differentially spliced introns within GenesOfInterest") +
  theme_bw() +
  theme(strip.text.x = element_text(size = 5))

Past versions of unnamed-chunk-19-1.png

Combined.df <- rbind(
  PSI.table.filtered.mat %>%
  as.data.frame() %>%
  rownames_to_column("Name") %>%
  mutate(Name = paste0("Intron;", Name)) %>%
  column_to_rownames("Name"),
  ExpressedGeneCounts %>%
  cpm(log=T) %>%
  as.data.frame() %>%
  rownames_to_column("gene") %>%
  filter(gene %in% DE.genes) %>%
  mutate(gene =  paste0("Gene;", gene)) %>%
  column_to_rownames("gene")
)

pca.results.combined <- Combined.df %>%
  scale() %>%
  t() %>%
  prcomp()

PC.dat <- pca.results.combined$x %>%
  as.data.frame() %>%
  rownames_to_column("Sample") %>%
  dplyr::select(Sample, PC1, PC2, PC3) %>%
  left_join(Samples, by="Sample")

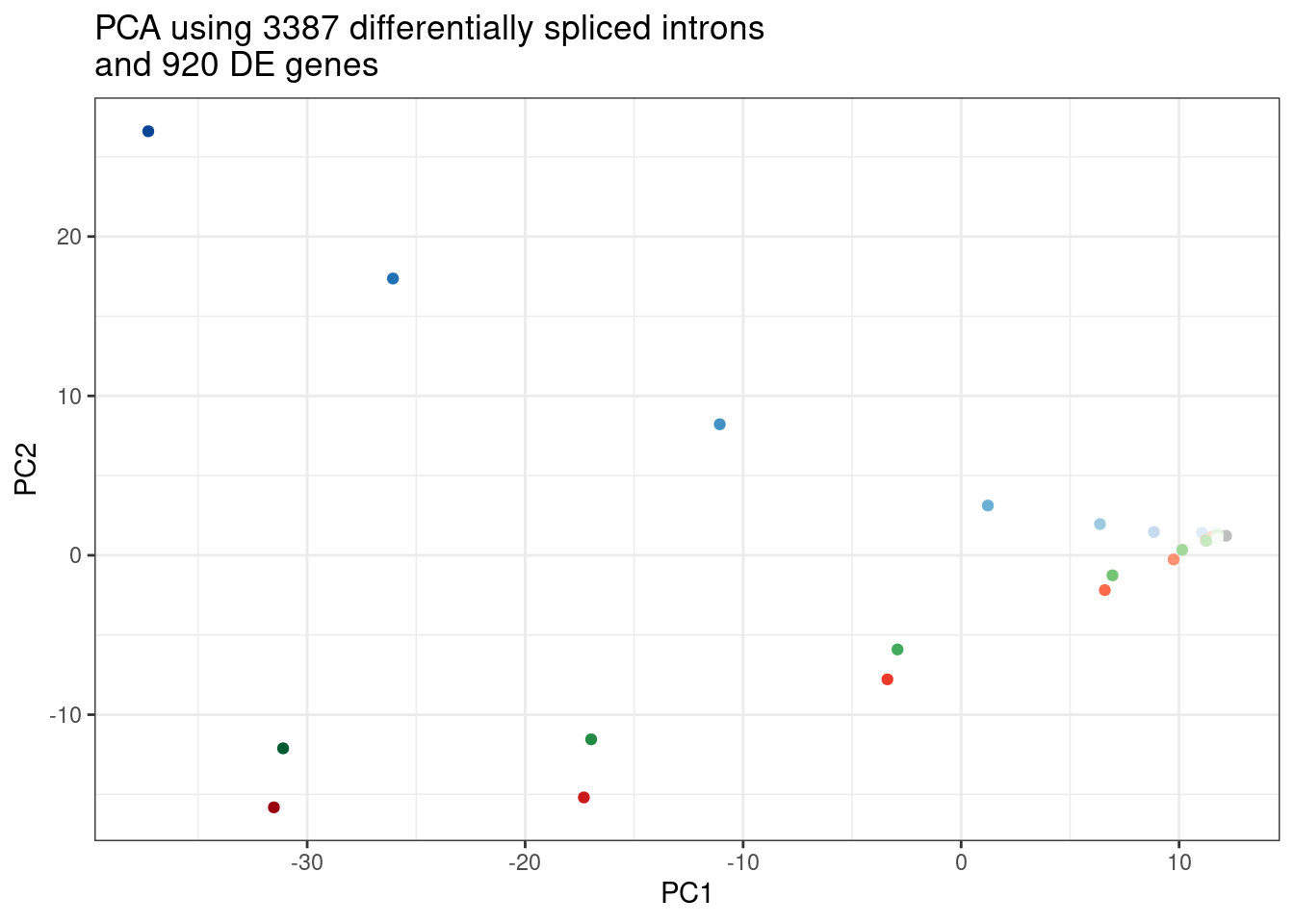

ggplot(PC.dat, aes(x=PC1, y=PC2, color=Color)) +
  geom_point() +
  scale_color_identity() +
  theme_bw() +
  labs(title = "PCA using 3387 differentially spliced introns\nand 920 DE genes")

Combined.df.tidy <- Combined.df %>%
  rownames_to_column("feature") %>%
  gather("sample", "Quantification", -feature) %>%
  inner_join(
  pca.results.combined$rotation %>%
  as.data.frame() %>%
  rownames_to_column("feature") %>%
  dplyr::select(feature, PC2),
  by="feature") %>%
  separate(sample, into=c("Treatment", "TitrationPoint"), remove = F, convert = T) %>%
  separate(feature, into=c("IntronOrGene", "feature"), convert = T, sep=";") %>%
  mutate(Quantification = case_when(
    IntronOrGene == "Gene" ~ 2**Quantification,
    TRUE ~ Quantification
  )) %>%
  mutate(feature = case_when(
    IntronOrGene == "Gene" ~ recode(feature, !!!ensembl_to_symbols),
    TRUE ~ feature
  )) %>%
  left_join(
    (leafcutter.ds.annotated %>%
       mutate(IsGAGT = UpstreamOfDonor2BaseSeq == "GA") %>%
       dplyr::select(Intron, gene_names,IntronType, IsGAGT, strand) %>%
       distinct(Intron, .keep_all = T)),
    by=c("feature"="Intron")) %>%
  mutate(HostGene = case_when(
    IntronOrGene == "Gene" ~ feature,
    TRUE ~ gene_names
  ))

Combined.df.tidy %>%
  group_by(HostGene) %>%
  filter(
    any(IntronType == "Alt 3'ss") &
    any(IntronType == "Alt 5'ss") &
    any(IntronOrGene == "Gene")) %>%
  filter(IntronType == "Alt 5'ss" | IntronOrGene=="Gene") %>%
  group_by(IntronType,HostGene) %>%
  nest() %>%
  sample_n(1) %>%
  unnest() %>%
  distinct(feature, .keep_all = T) %>%
  dplyr::select(IntronOrGene, PC2, HostGene) %>%
  pivot_wider(names_from="IntronOrGene", values_from="PC2", id_cols=c("HostGene")) %>%
  unnest() %>%

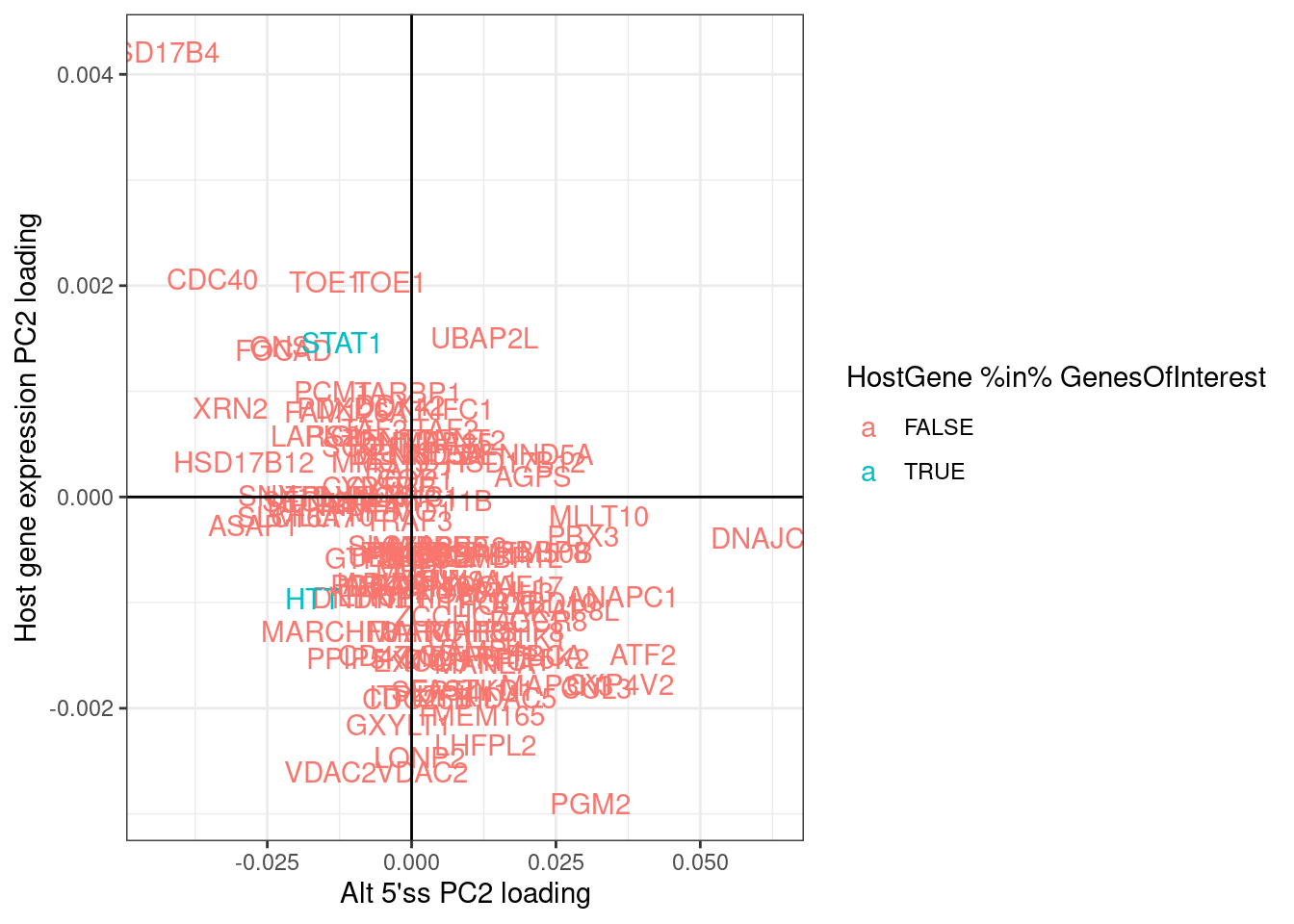

  ggplot(aes(x=Intron, y=Gene, color=HostGene %in% GenesOfInterest)) +
  geom_text(aes(label=HostGene)) +
  geom_hline(yintercept = 0) +
  geom_vline(xintercept = 0) +
  theme_bw() +
  labs(x="Alt 5'ss PC2 loading", y="Host gene expression PC2 loading")

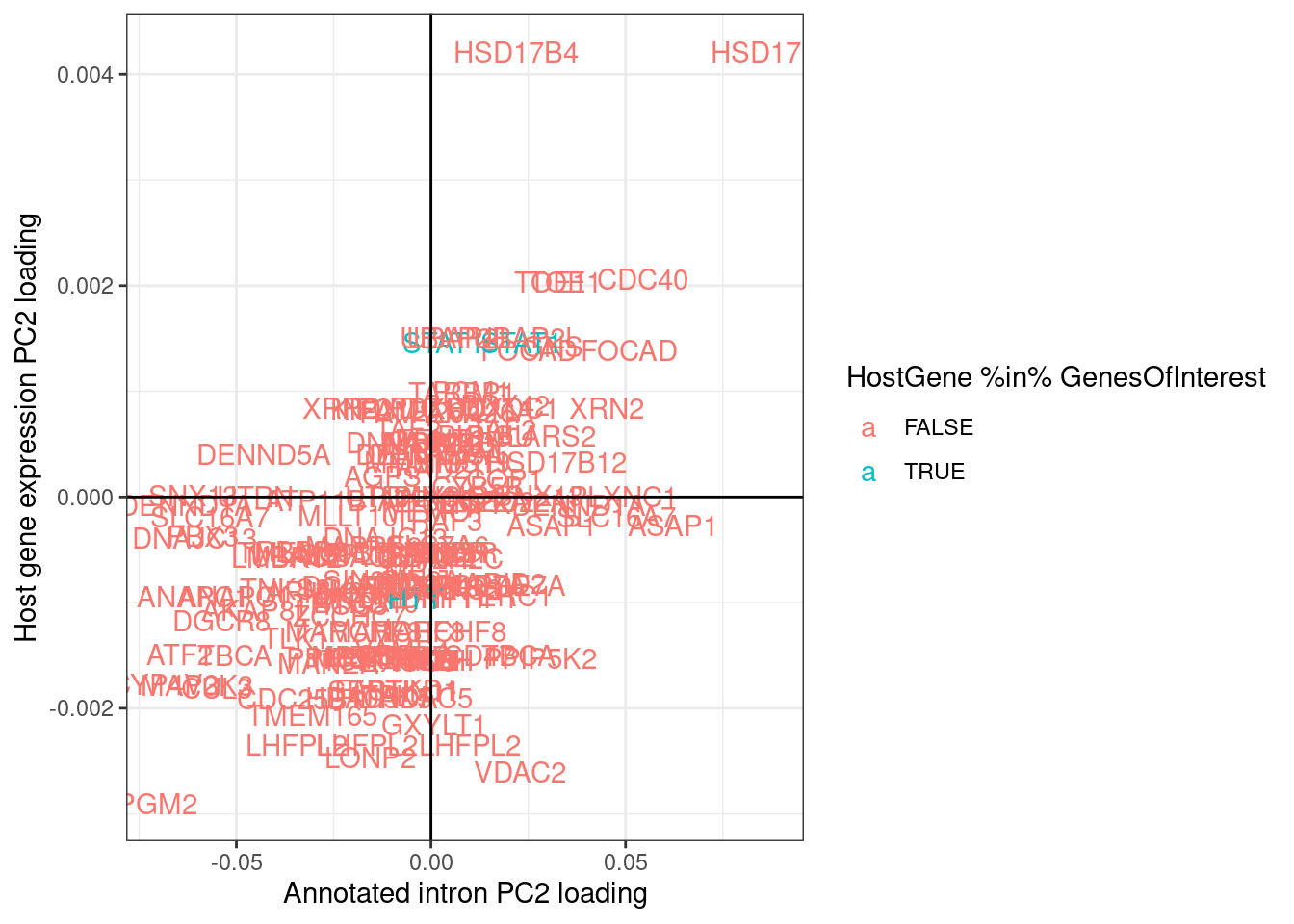

Combined.df.tidy %>%
  group_by(HostGene) %>%
  filter(
    any(IntronType == "Alt 3'ss") &
    any(IntronType == "Alt 5'ss") &
    any(IntronOrGene == "Gene")) %>%
  filter(IntronType == "Annotated" | IntronOrGene=="Gene") %>%
  group_by(IntronType,HostGene) %>%
  nest() %>%
  sample_n(1) %>%
  unnest() %>%
  distinct(feature, .keep_all = T) %>%
  dplyr::select(IntronOrGene, PC2, HostGene) %>%
  pivot_wider(names_from="IntronOrGene", values_from="PC2", id_cols=c("HostGene")) %>%
  unnest() %>%
  ggplot(aes(x=Intron, y=Gene, color=HostGene %in% GenesOfInterest)) +
  geom_text(aes(label=HostGene)) +
  geom_hline(yintercept = 0) +
  geom_vline(xintercept = 0) +
  theme_bw() +
  labs(x="Annotated intron PC2 loading", y="Host gene expression PC2 loading")

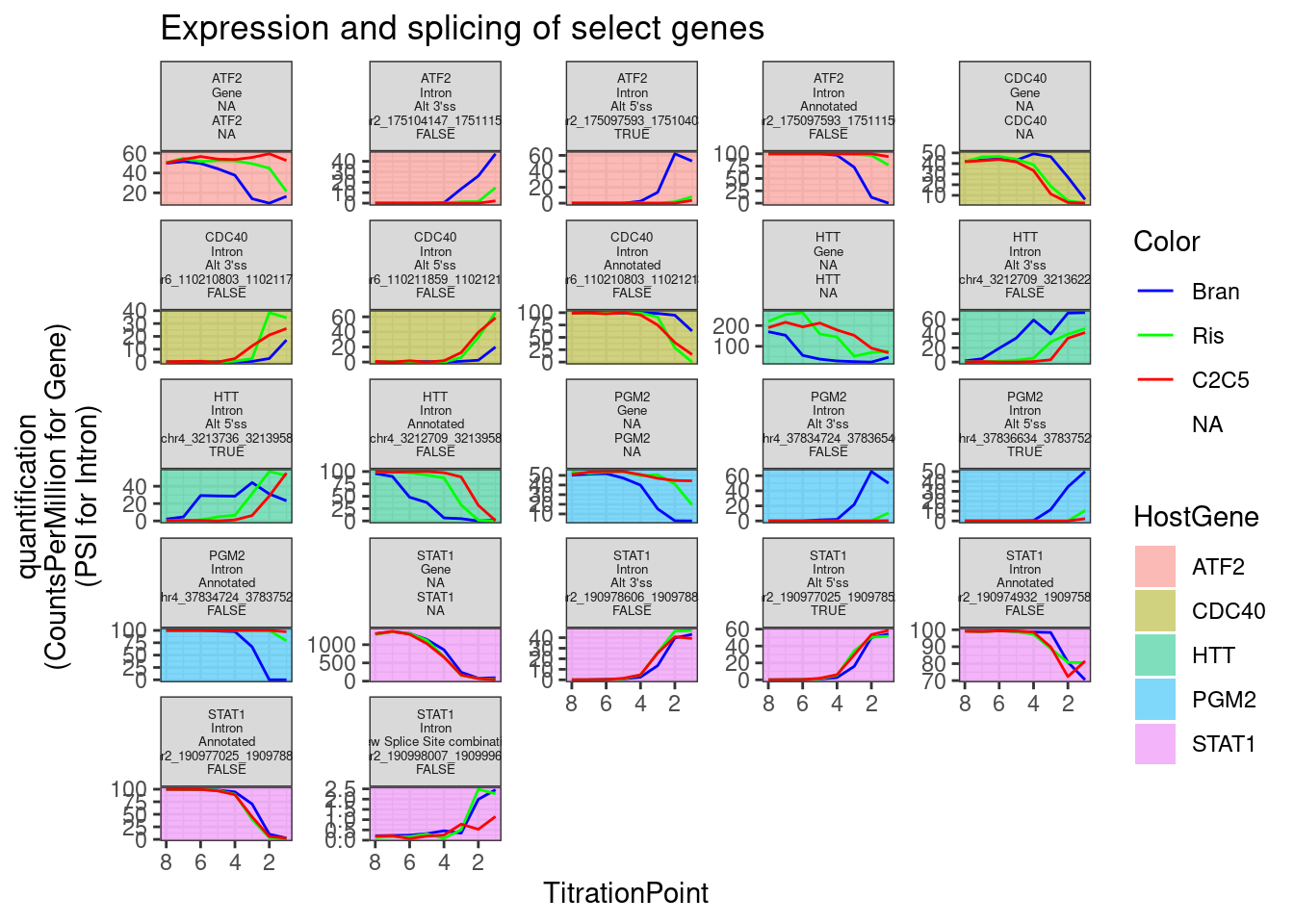

Combined.df.tidy %>%
  filter(HostGene %in% c("PGM2", "STAT1", "HTT", "CDC40", "ATF2")) %>%
  mutate(Facet_label = paste(HostGene, IntronOrGene, IntronType, feature, IsGAGT, sep='\n')) %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  ggplot(aes(x=TitrationPoint, y=Quantification)) +
    geom_rect(data=(. %>% distinct(Facet_label, .keep_all = T)), xmin=-Inf, xmax=Inf, ymin=-Inf, ymax=Inf, alpha=0.5, aes(fill=HostGene)) +
    geom_line(aes(color=Color)) +
    scale_color_identity(labels=ColorsTreatments, guide="legend") +
    scale_x_reverse() +
    facet_wrap(~Facet_label, scales = "free_y") +
    theme_bw() +
    theme(strip.text.x = element_text(size = 5)) +
    labs(y="quantification\n(CountsPerMillion for Gene)\n(PSI for Intron)", title="Expression and splicing of select genes")

Top20 <- Combined.df.tidy %>%
  group_by(HostGene) %>%
  filter(
    any(!(IntronType == "Annotated") & !(is.na(IntronType))) &
    any(IntronOrGene == "Gene")) %>%
  ungroup() %>%
  filter(IntronOrGene == "Gene") %>%
  distinct(HostGene, .keep_all = T) %>%
  top_n(20, PC2) %>%
  pull(HostGene)

Bottom20 <- Combined.df.tidy %>%
  group_by(HostGene) %>%
  filter(
    any(!(IntronType == "Annotated") & !(is.na(IntronType))) &
    any(IntronOrGene == "Gene")) %>%
  ungroup() %>%
  filter(IntronOrGene == "Gene") %>%
  distinct(HostGene, .keep_all = T) %>%
  top_n(-20, PC2) %>%
  pull(HostGene)

Middle20 <- Combined.df.tidy %>%
  group_by(HostGene) %>%
  filter(
    any(!(IntronType == "Annotated") & !(is.na(IntronType))) &
    any(IntronOrGene == "Gene")) %>%
  ungroup() %>%
  filter(IntronOrGene == "Gene") %>%
  distinct(HostGene, .keep_all = T) %>%
  top_n(-20, abs(PC2)) %>%
  pull(HostGene)

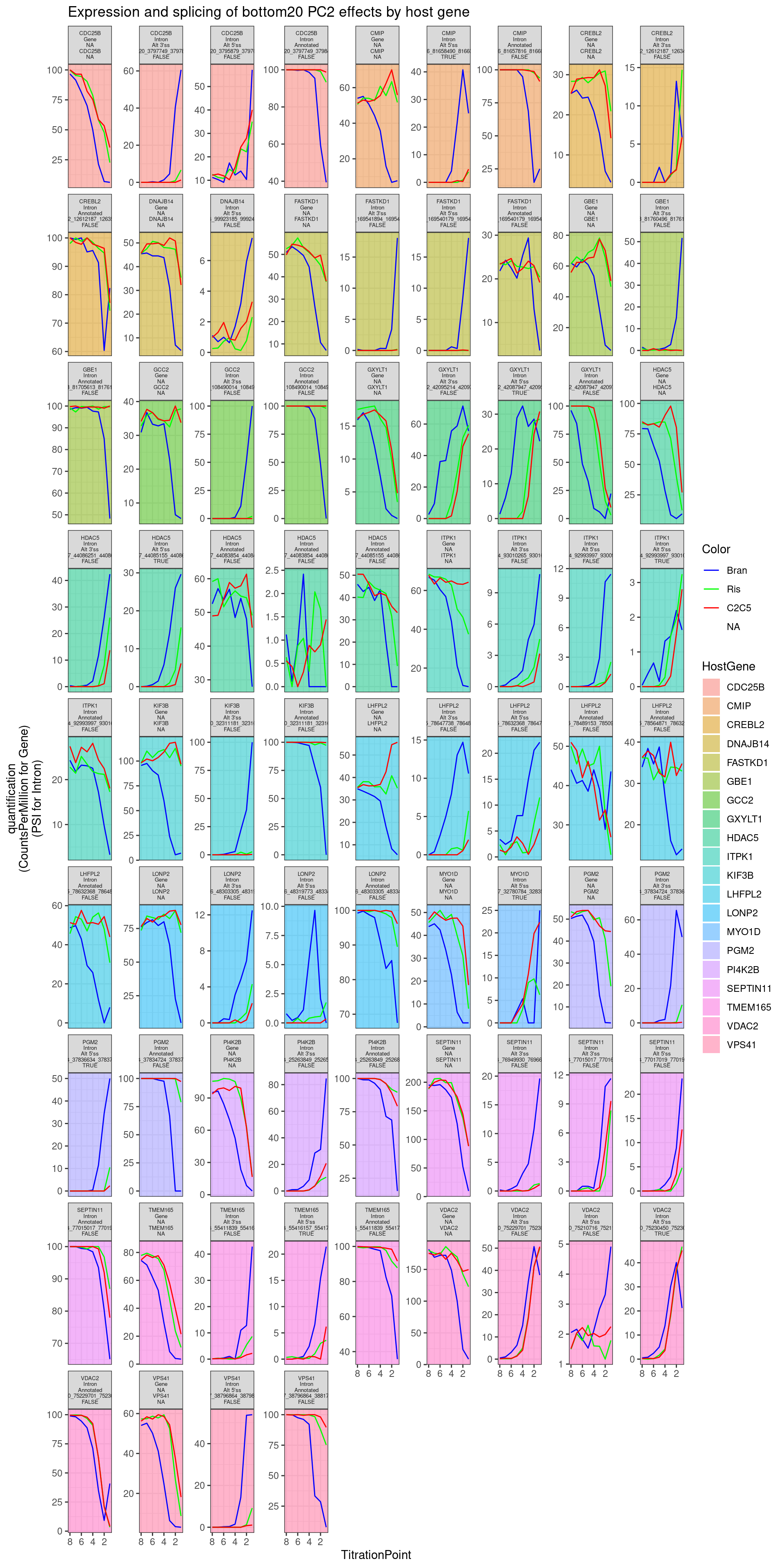

Combined.df.tidy %>%
  filter(HostGene %in% Bottom20) %>%
  mutate(Facet_label = paste(HostGene, IntronOrGene, IntronType, feature, IsGAGT, sep='\n')) %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  ggplot(aes(x=TitrationPoint, y=Quantification)) +
    geom_rect(data=(. %>% distinct(Facet_label, .keep_all = T)), xmin=-Inf, xmax=Inf, ymin=-Inf, ymax=Inf, alpha=0.5, aes(fill=HostGene)) +
    geom_line(aes(color=Color)) +
    scale_color_identity(labels=ColorsTreatments, guide="legend") +
    scale_x_reverse() +
    facet_wrap(~Facet_label, scales = "free_y") +
    theme_bw() +
    theme(strip.text.x = element_text(size = 5)) +
    labs(y="quantification\n(CountsPerMillion for Gene)\n(PSI for Intron)", title="Expression and splicing of bottom20 PC2 effects by host gene")

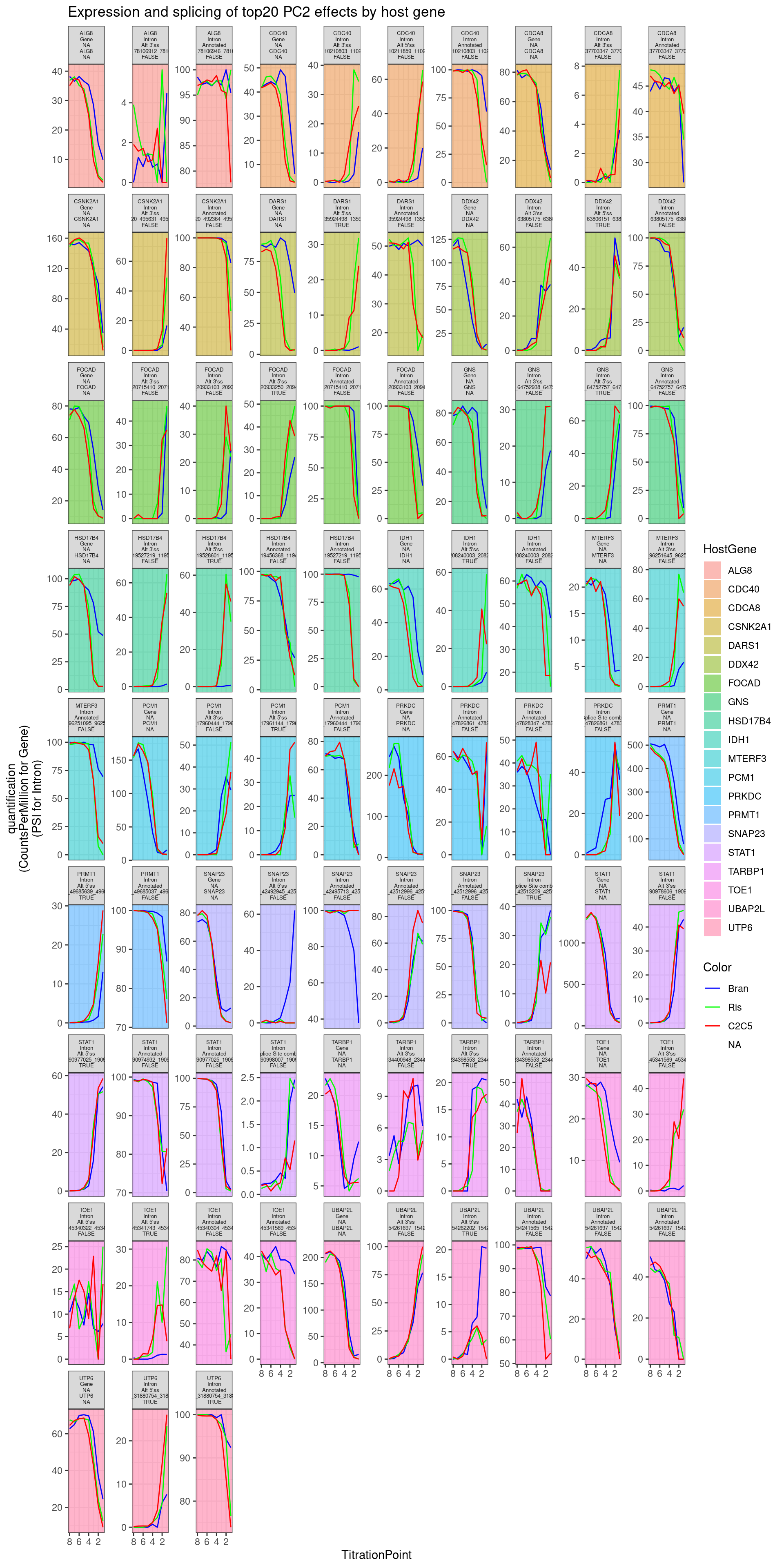

Combined.df.tidy %>%
  filter(HostGene %in% Top20) %>%
  mutate(Facet_label = paste(HostGene, IntronOrGene, IntronType, feature, IsGAGT, sep='\n')) %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  ggplot(aes(x=TitrationPoint, y=Quantification)) +
    geom_rect(data=(. %>% distinct(Facet_label, .keep_all = T)), xmin=-Inf, xmax=Inf, ymin=-Inf, ymax=Inf, alpha=0.5, aes(fill=HostGene)) +
    geom_line(aes(color=Color)) +
    scale_color_identity(labels=ColorsTreatments, guide="legend") +
    scale_x_reverse() +
    facet_wrap(~Facet_label, scales = "free_y") +
    theme_bw() +
    theme(strip.text.x = element_text(size = 5)) +
    labs(y="quantification\n(CountsPerMillion for Gene)\n(PSI for Intron)", title="Expression and splicing of top20 PC2 effects by host gene")

Combined.df.tidy %>%
  filter(HostGene %in% c(Top20, Bottom20)) %>%
  distinct(feature, IntronOrGene, gene_names, IntronType, strand, IsGAGT, PC2 ) %>%
  write_tsv("../code/scratch/Top20AndBottom20ByPC2.tsv.gz")

Explore 5’ss of branaplam specific effects

Since PC2 seems to do such a good job at distinguishing branaplam-specific effects, i may be able to use it to quickly learn something about the features of introns that make them more susceptible to branaplam than risdiplam/C2C5… Let’s go back to the list of previously identified differentially spliced introns, with the 5’ss sequence I annotated, and try to see if anything correlates with PC2 loadings (as a proxy for branaplam specific effects).

Let’s start by manually classifying AG|GT 5’ss by other potential bulges based on sequence (the same ones I tested in my previous notebook) and see if the distribution of PC2 loadings at those introns is different for different 5’ss classes, only considering the introns that are significant by the previous critera from the previous analysis, as well as the ones that go up in treatment (as opposed to down). The reasoning for this is that there are a lot of introns that will go down, as a natural consequence of the GA|GT primary effect introns going up… I would rather focus on the sequence features of primary effect introns.

leafcutter.ds.annotated %>%
  filter(p.adjust<0.01 & logef>0) %>%
  distinct(Intron, .keep_all = T) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2),
    by="Intron"
  ) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  dplyr::select(intron, PC2, DonorSeq) %>%
    mutate(
    `11_nnng|guUaag` = str_detect(DonorSeq, "^\\w\\w\\wGGTTAAG"),
    `2_nngA|gunnnn` = str_detect(DonorSeq, "^\\w\\wGAGT"),
    `3_nngA|guaagn` = str_detect(DonorSeq, "^\\w\\wGAGTAAG"),
    `4_nagA|guaagn` = str_detect(DonorSeq, "^\\wAGAGTAAG\\w"),
    `5_nGgA|guaagn` = str_detect(DonorSeq, "^\\wGGAGTAAG\\w"),
    `6_nCgA|guaagn` = str_detect(DonorSeq, "^\\wCGAGTAAG\\w"),
    `7_nUgA|guaagn` = str_detect(DonorSeq, "^\\wTGAGTAAG\\w"),
    `7.2_nagC|guaagn` = str_detect(DonorSeq, "^\\wGACGTAAG\\w"),
    `7.3_nagG|guaagn` = str_detect(DonorSeq, "^\\wGAGGTAAG\\w"),
    `8_nngU|guaagn` = str_detect(DonorSeq, "^\\w\\wGTGTAAG"),
    `9_nagU|guaagn` = str_detect(DonorSeq, "^\\wAGTGTAAG"),
    `1_nnag|guaagn` = str_detect(DonorSeq, "^\\w\\wAGGTAAG\\w"),
    `10_nnng|guVaag` = str_detect(DonorSeq, "^\\w\\w\\wGGT[ACG]AAG"),
    `9.5_nnnn|guaaHg` = str_detect(DonorSeq, "^\\w\\w\\w\\wGTAA[ACT]G")
  ) %>%
  filter_at(vars(-c("intron", "PC2", "DonorSeq")), any_vars(. == T)) %>%
  gather(key="Pattern", value="IsMatch", -c("intron", "PC2", "DonorSeq")) %>%
  filter(IsMatch) %>%
  add_count(Pattern) %>%
  mutate(Pattern = paste0(Pattern, "; n=", n)) %>%
  ggplot(aes(x=PC2, color=Pattern)) +
  stat_ecdf() +
  theme_bw() +
  labs(y="ecdf", x="PC2 loading", title="some 5'ss sequences may confer branaplam specific effects")

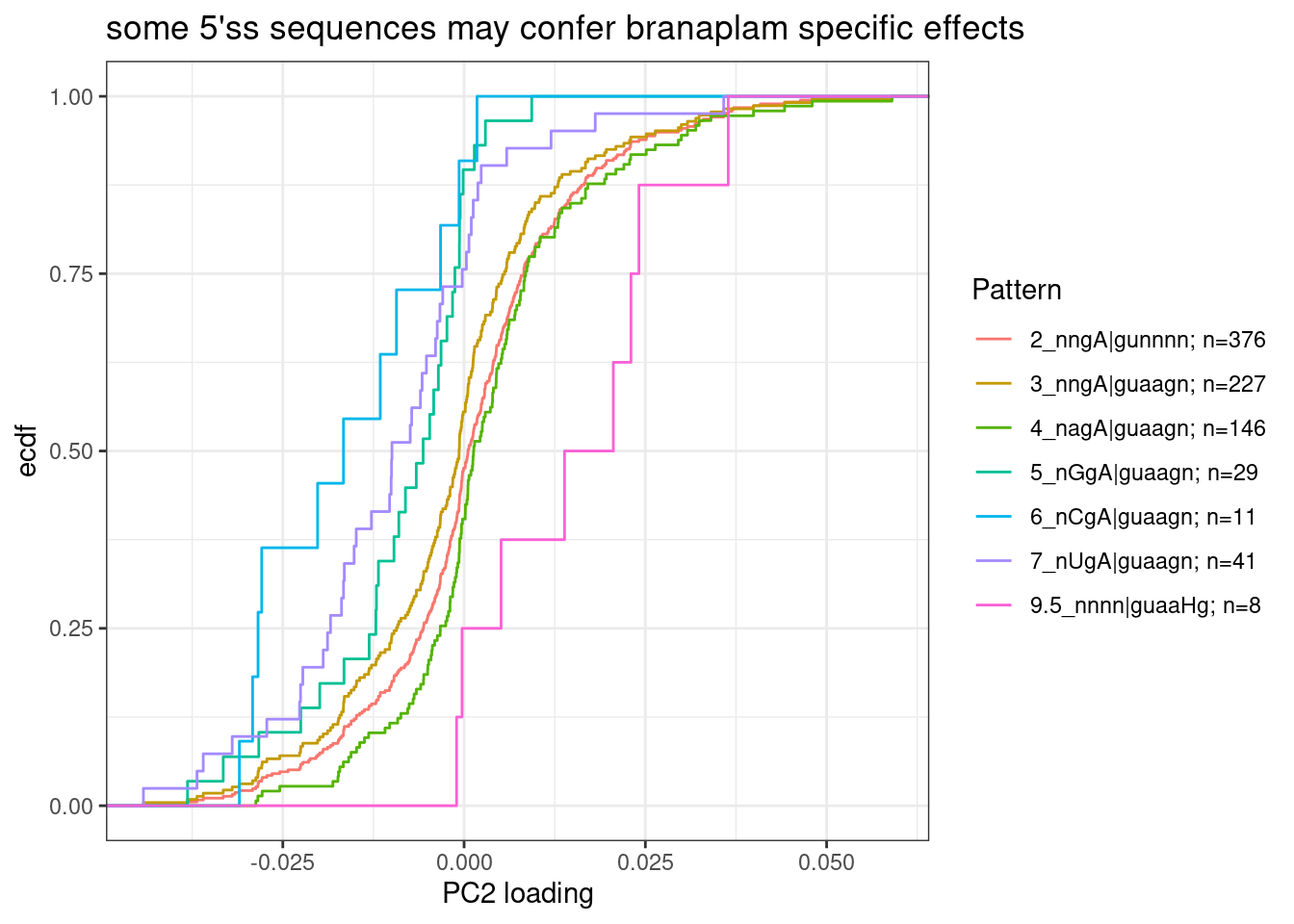

Past versions of unnamed-chunk-25-1.png

Note that in GA|GT introns, where the A is bulged out such that the -2 G can basepair with U1, the preferred base pairing at -3 position would be an A in the pre-mRNA.

Group5, 6, and 7 seem to all have more negative PC2 loadings, suggesting that an additional mismatch to U1 at -3 position of pre-mRNA might confer stronger splicing enhancement by risdiplam than branaplam.

Let’s replot that but just focusing on the group that popped out and aggregating groups to highlight: AGA|GT 5’ss versus BGA|GT (where B just means not A, according to IUPAC code):

dat.to.plot <- leafcutter.ds.annotated %>%
  filter(p.adjust<0.01 & logef>0) %>%
  distinct(Intron, .keep_all = T) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2),
    by="Intron"
  ) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  dplyr::select(intron, PC2, DonorSeq) %>%
    mutate(
    `nBgA|gunnnn` = str_detect(DonorSeq, "^\\w[GCT]GAGT"),
    `nagA|gunnnn` = str_detect(DonorSeq, "^\\wAGAGT")
  ) %>%
  filter_at(vars(-c("intron", "PC2", "DonorSeq")), any_vars(. == T)) %>%
  gather(key="Pattern", value="IsMatch", -c("intron", "PC2", "DonorSeq")) %>%
  filter(IsMatch) %>%
  add_count(Pattern) %>%
  mutate(Pattern = paste0(Pattern, "; n=", n))

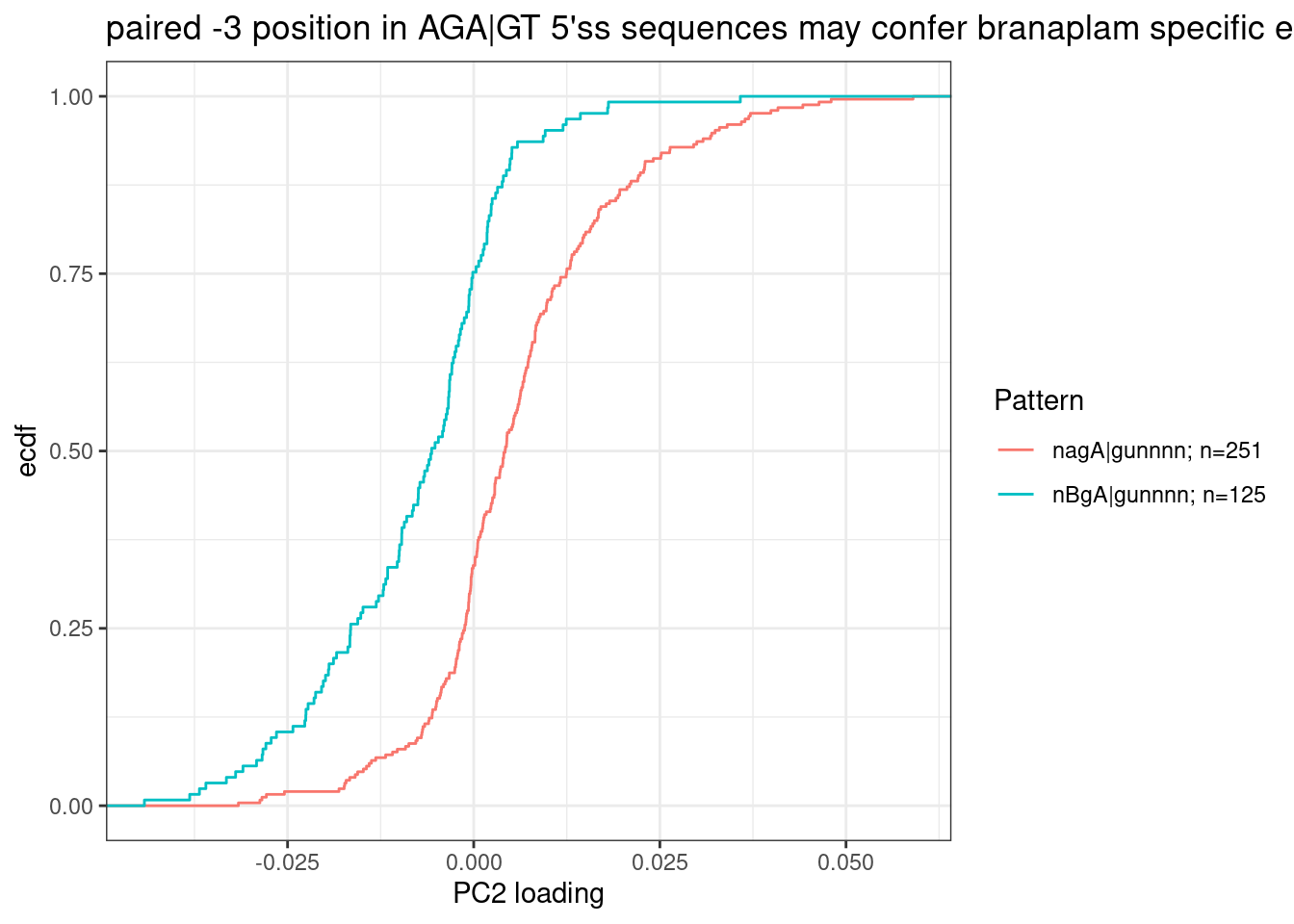

ggplot(dat.to.plot, aes(x=PC2, color=Pattern)) +
  stat_ecdf() +
  theme_bw() +
  labs(y="ecdf", x="PC2 loading", title="paired -3 position in AGA|GT 5'ss sequences may confer branaplam specific enhancement")

For formality sake, let’s get a P value for this effect, even though this hypothesis likely going to be more carefully tested later eventually, rather than this very ad-hoc way of looking at PC2 loadings.

wilcox.test(PC2 ~ Pattern, data=dat.to.plot)

    Wilcoxon rank sum test with continuity correction

data:  PC2 by Pattern
W = 24693, p-value < 2.2e-16
alternative hypothesis: true location shift is not equal to 0

My quick literature search I think I see that SMN2 affected 5’ss matches BgA|gu pattern (GGA|GU), and HTT affected 5’ss matches AGA|GU. That is consistent of with these results. These results are also consistent with Bhattacharyya et al’s observations which used similar molecules.

Together, these data demonstrate that HTT-C2 and SMN-C3 represent two distinct classes of splicing modifiers that target 5′ ss with the noncanonical GA dinucleotide at position −2, −1 of the 5′ ss, with the distinction being a preference for adenosine at either −3 for HTT-selective molecules or −4 for SMN-selective molecules.

Let’s exactly test their conclusion about NAGA|GT versus ANGA|GT with the same type of plots. But let’s also add BNGA|GT as a third class:

dat.to.plot <- leafcutter.ds.annotated %>%
  filter(p.adjust<0.01 & logef>0) %>%
  distinct(Intron, .keep_all = T) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2),
    by="Intron"
  ) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  dplyr::select(intron, PC2, DonorSeq) %>%
    mutate(
    `NAGA|GT` = str_detect(DonorSeq, "^\\wAGAGT"),
    `NBGA|GT` = str_detect(DonorSeq, "^\\w[CGT]GAGT"),
    `ABGA|GT` = str_detect(DonorSeq, "^A[CGT]GAGT"),
    `BBGA|GT` = str_detect(DonorSeq, "^[CGT][CGT]GAGT")
  ) %>%
  filter_at(vars(-c("intron", "PC2", "DonorSeq")), any_vars(. == T)) %>%
  gather(key="Pattern", value="IsMatch", -c("intron", "PC2", "DonorSeq")) %>%
  filter(IsMatch) %>%
  add_count(Pattern) %>%
  mutate(Pattern = paste0(Pattern, "; n=", n))
ggplot(dat.to.plot, aes(x=PC2, color=Pattern)) +
  stat_ecdf() +
  theme_bw() +
  labs(y="ecdf", x="PC2 loading", title="paired -3 position in AGA|GT 5'ss sequences may confer branaplam specific enhancement")

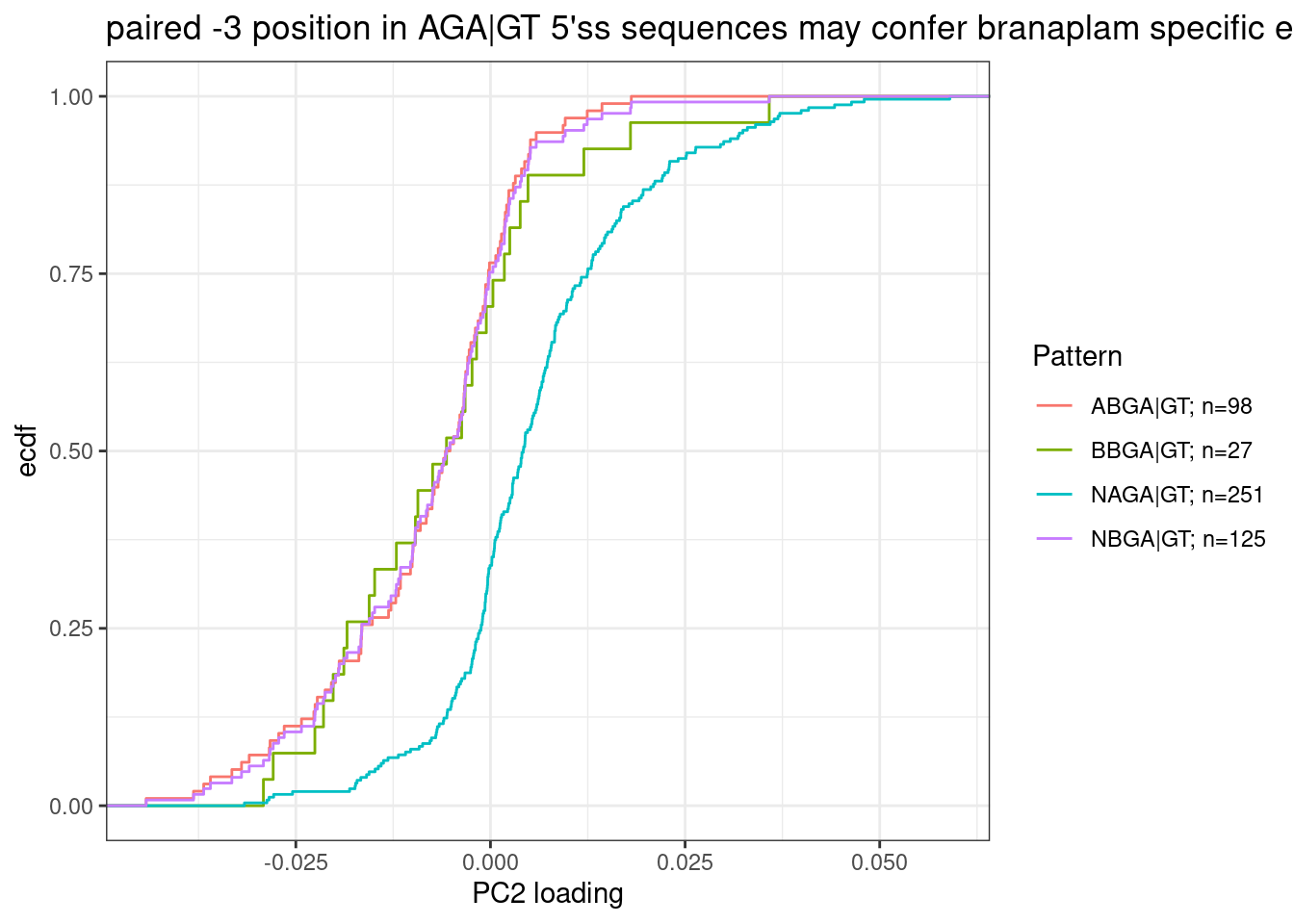

Past versions of unnamed-chunk-28-1.png

Ok, so while I agree with Bhattacharyya et al that the paired A at -3 position confers branaplam specific splicing enhancement, I don’t think C2C5 or risdiplam have a preference for A (or any nucleotide) at the -4 position.

Perhaps a simple more systematic way to do search for 5’ss sequence preferences is to systematically score each possible nucleotide at each position and by the difference in PC2 loading or some other metric…

Here is a quick implementation of that idea… I’ll have to go back and think about how to maybe do it better later…

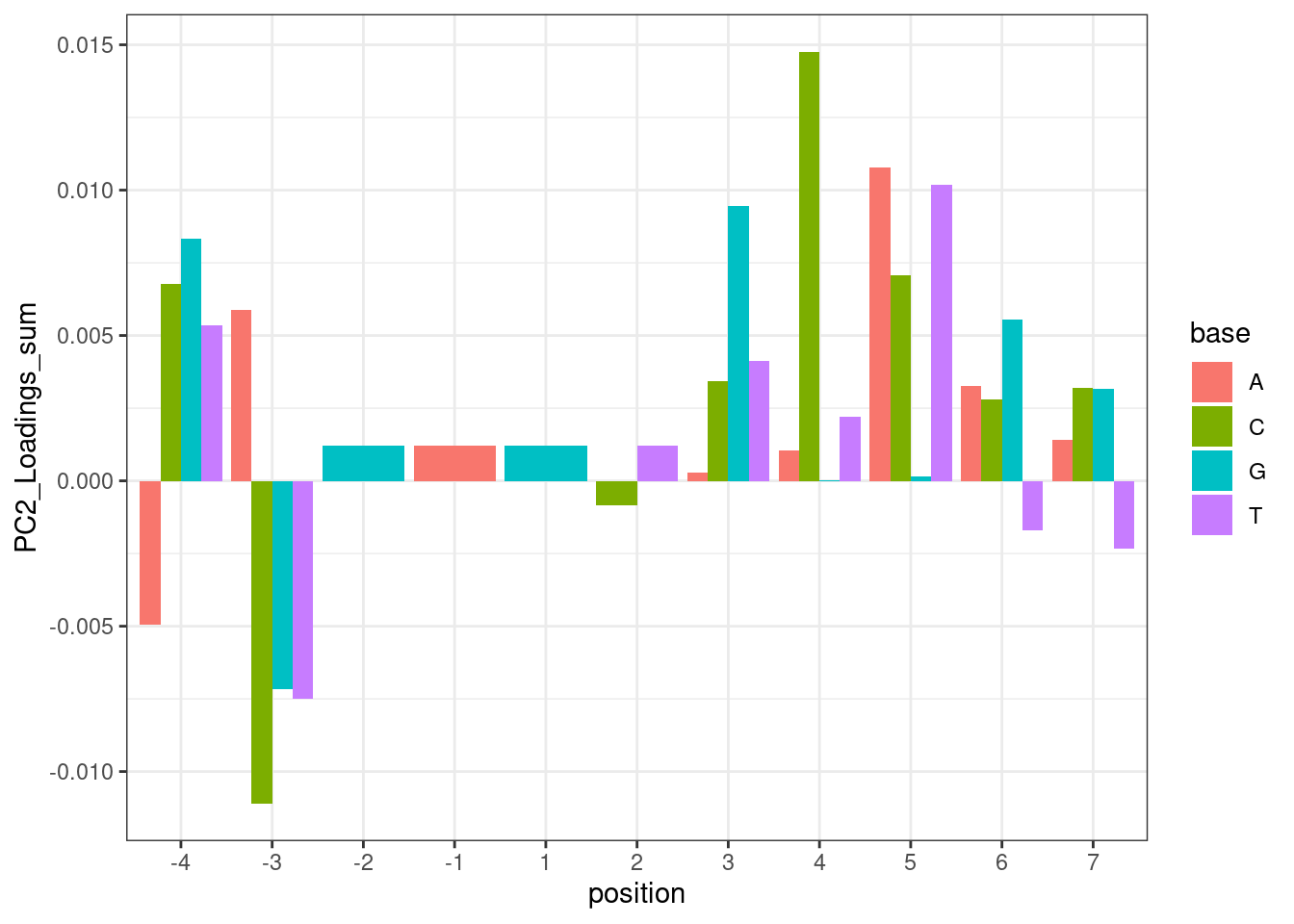

For now, let’s make a plot where the height of the bars for each base at each position is the sum of the PC2 loadings for all introns that contain a base at that position. First let’s filter for GA|GT introns like above…

PerNucleotidePC2Effect <- leafcutter.ds.annotated %>%
  filter(logef>0) %>%
  distinct(Intron, .keep_all = T) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2),
    by="Intron"
  ) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  dplyr::select(intron, PC2, DonorSeq) %>%
  separate(DonorSeq, into=as.character(c(-4:-1, 1:7)), sep = 1:10) %>%
  gather(key="position", value="base", -PC2, -intron) %>%
  group_by(position, base) %>%
  summarise(PC2_Loadings_sum = mean(PC2)) %>%
  ungroup() %>%
  mutate(position = factor(position, levels = as.character(c(-4:-1, 1:7)))) %>%
  ggplot(aes(x=position, y=PC2_Loadings_sum, fill=base)) +
  geom_col(position='dodge') +
  theme_bw()
PerNucleotidePC2Effect

Past versions of unnamed-chunk-29-1.png

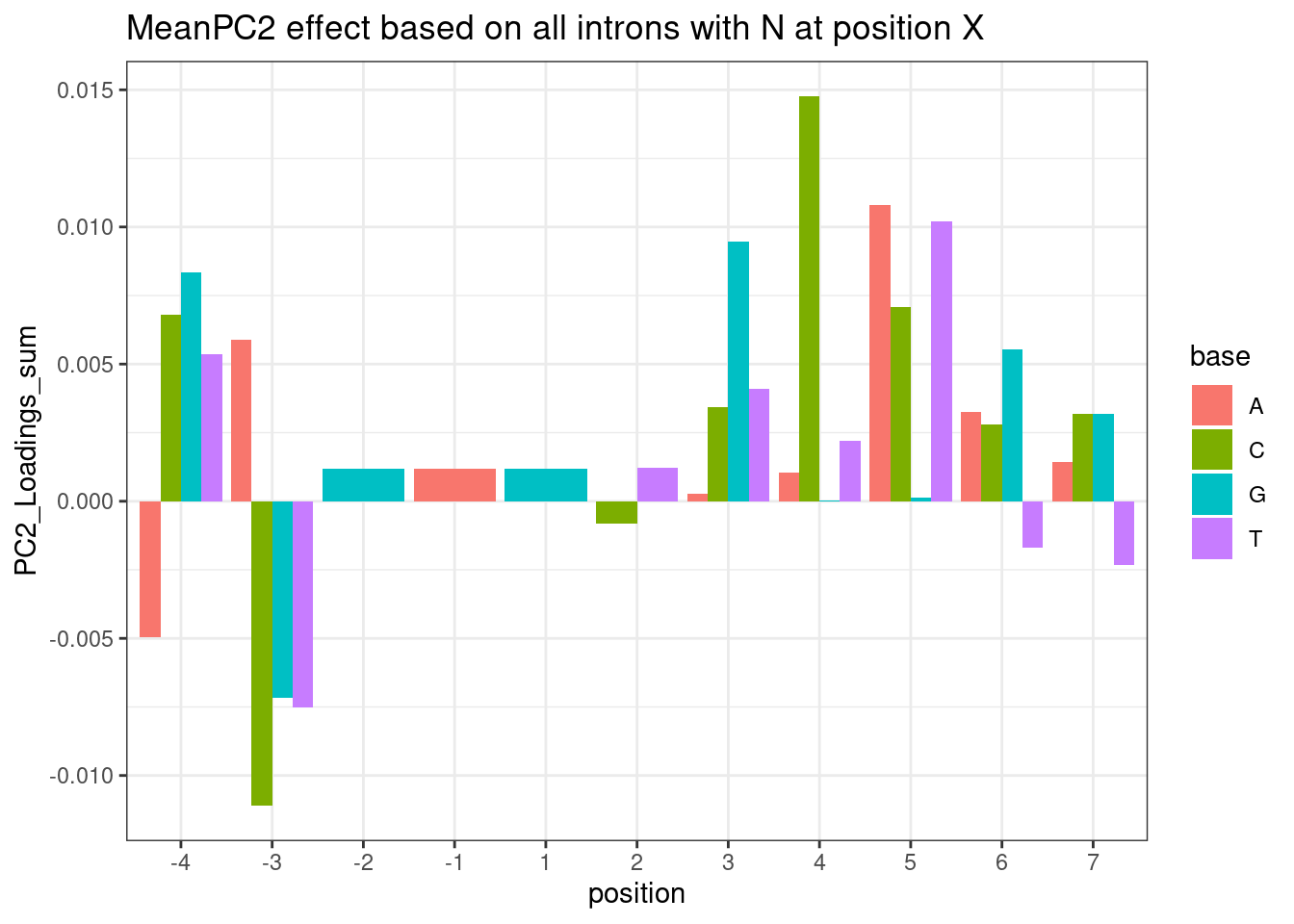

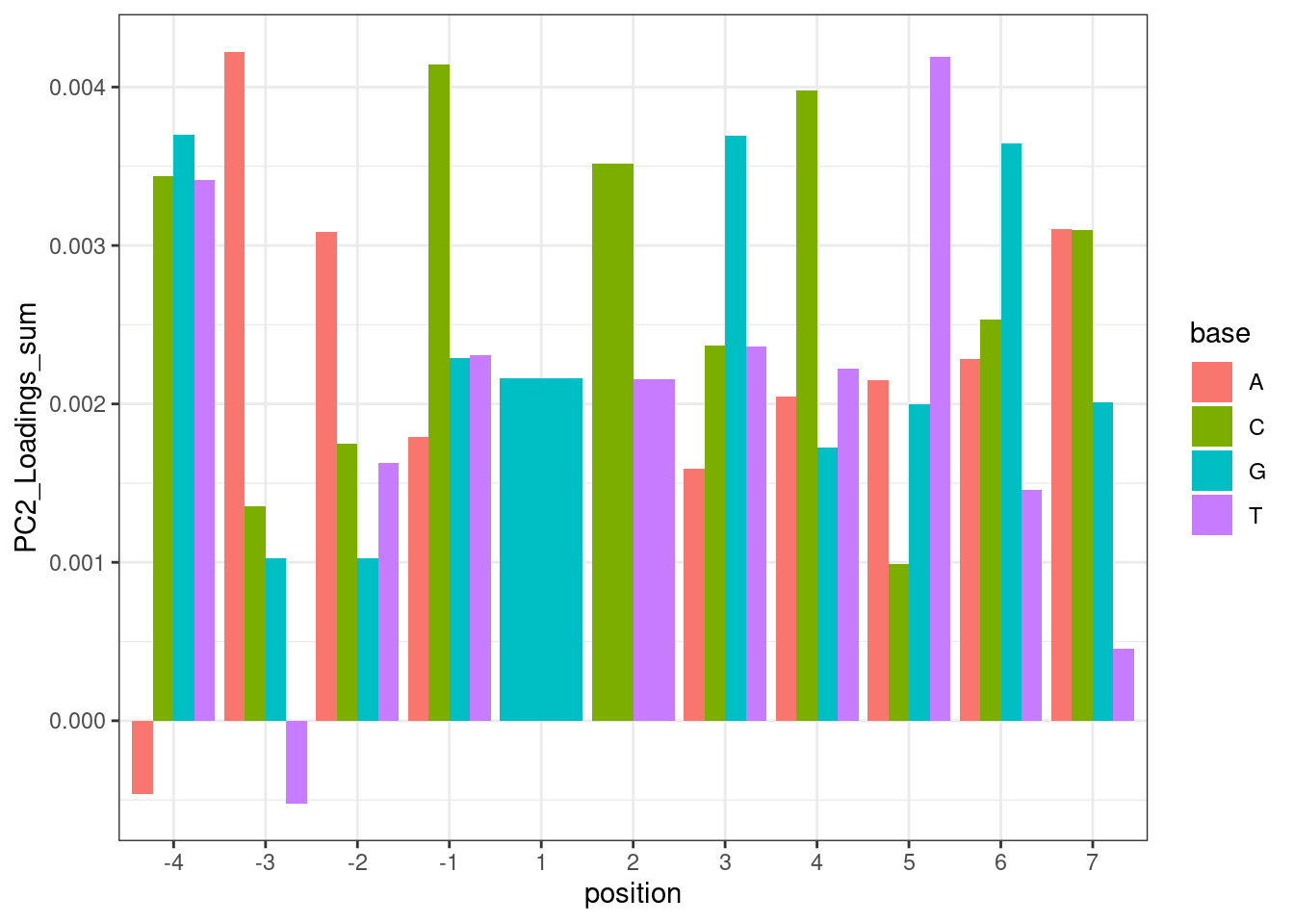

And plotting the same thing without the GA|GT filter, but do filter for things with positive effect direction (splicing is enhanced by treatment)

leafcutter.ds.annotated %>%
  filter(p.adjust<0.01 & logef>0) %>%
  distinct(Intron, .keep_all = T) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2),
    by="Intron"
  ) %>%
  dplyr::select(intron, PC2, DonorSeq) %>%
  separate(DonorSeq, into=as.character(c(-4:-1, 1:7)), sep = 1:10) %>%
  gather(key="position", value="base", -PC2, -intron) %>%
  group_by(position, base) %>%
  summarise(PC2_Loadings_sum = mean(PC2)) %>%
  ungroup() %>%
  mutate(position = factor(position, levels = as.character(c(-4:-1, 1:7)))) %>%
  ggplot(aes(x=position, y=PC2_Loadings_sum, fill=base)) +
  geom_col(position="dodge") +
  theme_bw()

Hmm… maybe this isn’t such a good way to do the analysis. While I do see the A at position -3 pop out with a positive effect, I also see it pop out with a strong negative effect in position -4. But based on the ecdf plots above where I compare PC2 loading distribution for introns that match ABGA|GT to BBGA|GT, I don’t see much of a difference, suggesting that when you control for the nucleotides at other positions, whether you have A or B at position -4 doesn’t make much of a difference. I think the problem with these plots is that they don’t control for sequences at other positions.

Formally fitting dose response model

I’ll try fitting hill curve to dose-response data similar to this link using drc package… still on to-do list.

Exploring ideas in Jingxin’s email: “ATGA | GTAAGT” sequence as risdiplam specific:

Email correspondance from Jingxin:

After the last meeting, we extracted all cryptic exons + 5’ ss (20 nt) sequences for the splicing modulation events that are either risdiplam/C2-C5-1-selective (10 sequences) or branaplam-selective (17 sequences). This is based on Ben’s PCA analysis with PC2 loading. We’ve checked all the associated curves. Interestingly, MEME analysis showed that 10/10 risdiplam/C2-C5-1 selective splice sites have a conserved sequence ATGA | GTAAGT with <=1 nt tolerable mismatch. https://meme-suite.org/meme//opal-jobs/appMEME_5.4.116593091869461440423053/meme.html This recognition site (10 nt) is quite long for a small molecule! Branaplam selective sequences do not have such conservation. A GA-rich sequence is found in the exon region but this is not absolutely required for all sequences. https://meme-suite.org/meme//opal-jobs/appMEME_5.4.11659309262442-54252450/meme.html Plan: 1. Site-specific mutations in splicing assay should prove this hypothesis in experiments, i.e., elimination of the ATGA | GTAAGT should reduce the activity difference between branaplam and risdiplam/C2-C5-1. 2. I am also wondering if this is generalizable among all the small-molecule regulatable splicing events (~3000), i.e., search for ATGA | GTAAGT splice sites in all ~3000 splice sites and see if all of them have risdiplam being more active. Please let me know your thoughts. Thanks!

I should check across more introns for ATGA|GTAAGT as potentially risdiplam specific sequence… Also, Jingxin posted an excel of genes that were I think derived from a table I sent him… In any case, I want to peruse the dose response effect of all those genes on the list…

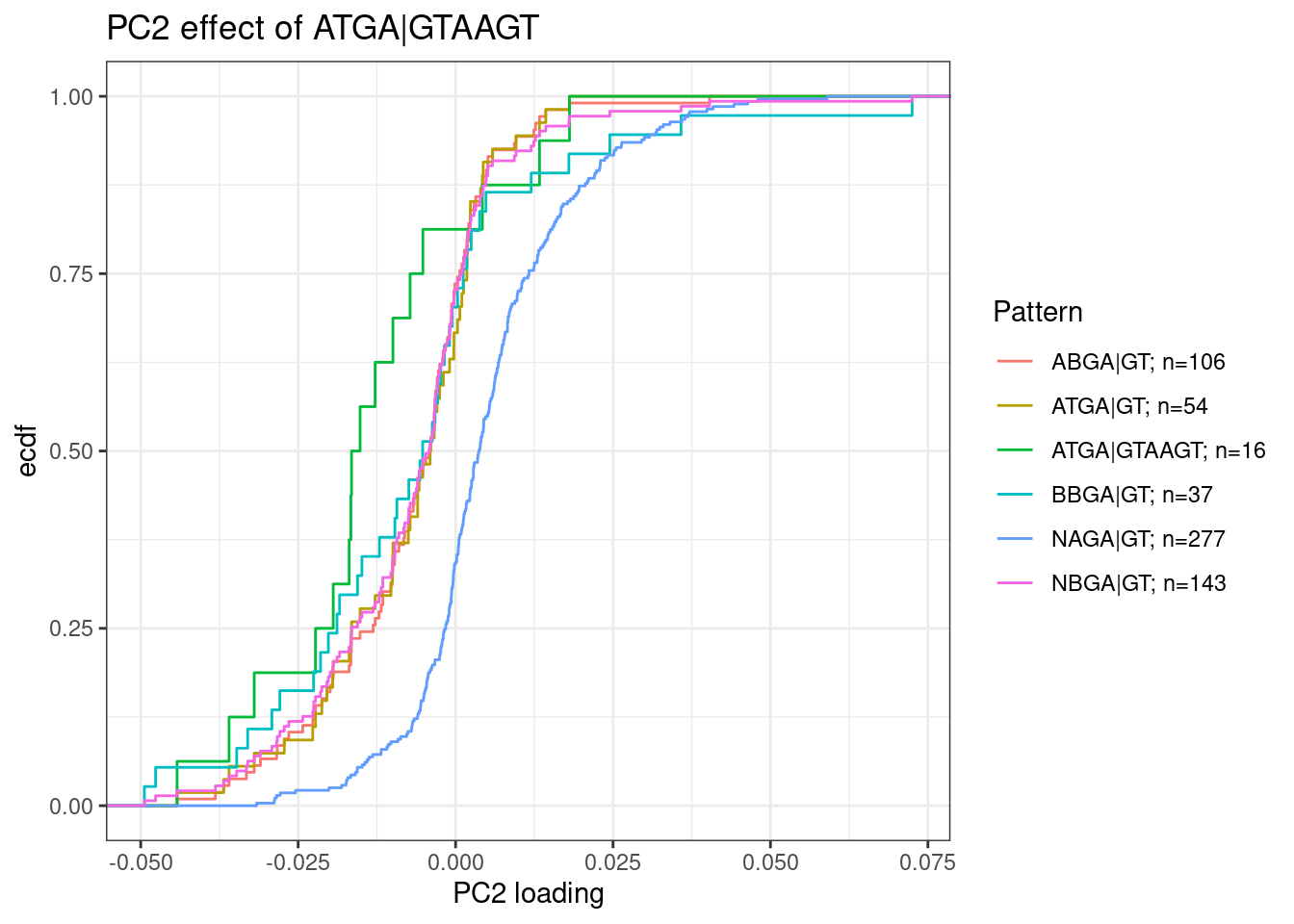

For now I will plot the PC2 loading distribution of sets of introns based on their 5’ss sequence. According to Jingxin’s email, I expect ATGA|GTAAGT to have strong negative loadings (risdiplam specific). These plots are utilizing all 3387 introns used in the splicing PCA analysis, and then subsetting intron groups by their 5’ sequence:

dat.to.plot <- leafcutter.ds.annotated %>%
  # filter(p.adjust<0.01) %>%
  # filter(logef>0) %>%
  distinct(Intron, .keep_all = T) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2),
    by="Intron"
  ) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  dplyr::select(intron, PC2, DonorSeq) %>%
    mutate(
    `ATGA|GTAAGT` = str_detect(DonorSeq, "^ATGAGTAAGT"),
    `ATGA|GT` = str_detect(DonorSeq, "^ATGAGT"),
    `NAGA|GT` = str_detect(DonorSeq, "^\\wAGAGT"),
    `NBGA|GT` = str_detect(DonorSeq, "^\\w[CGT]GAGT"),
    `ABGA|GT` = str_detect(DonorSeq, "^A[CGT]GAGT"),
    `BBGA|GT` = str_detect(DonorSeq, "^[CGT][CGT]GAGT")
  ) %>%
  filter_at(vars(-c("intron", "PC2", "DonorSeq")), any_vars(. == T)) %>%
  gather(key="Pattern", value="IsMatch", -c("intron", "PC2", "DonorSeq")) %>%
  filter(IsMatch) %>%
  add_count(Pattern) %>%
  mutate(Pattern = paste0(Pattern, "; n=", n))
ggplot(dat.to.plot, aes(x=PC2, color=Pattern)) +
  stat_ecdf() +
  theme_bw() +
  labs(y="ecdf", x="PC2 loading", title="PC2 effect of ATGA|GTAAGT")

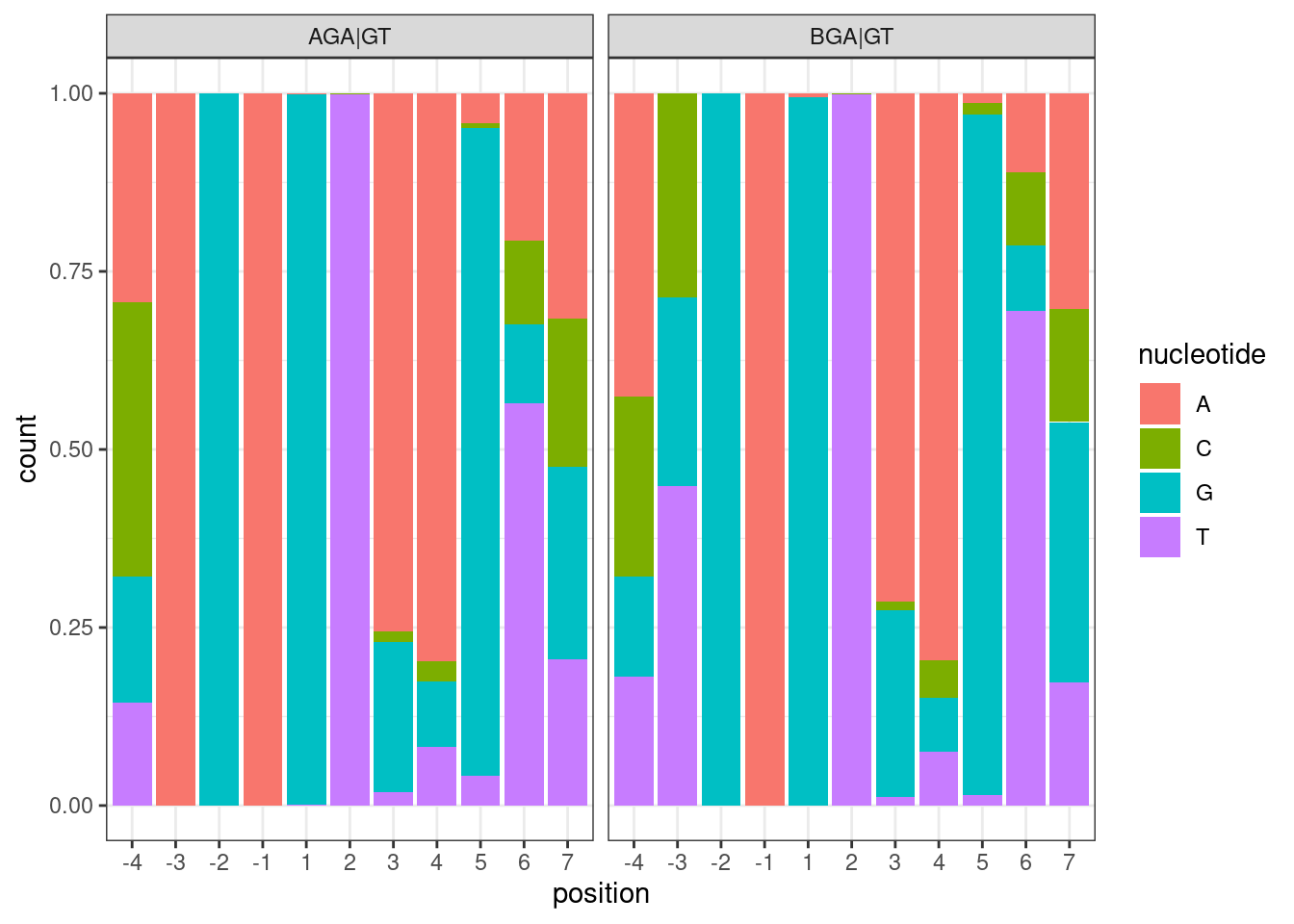

Let’s also check how common sequences are, conditioned on also GA|GT introns (based on all introns tested in the fibroblast data). “Tested” just means it passes some minimum level of junction read counts in some number of samples:

leafcutter.ds.annotated %>%
  distinct(intron, .keep_all=T) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%

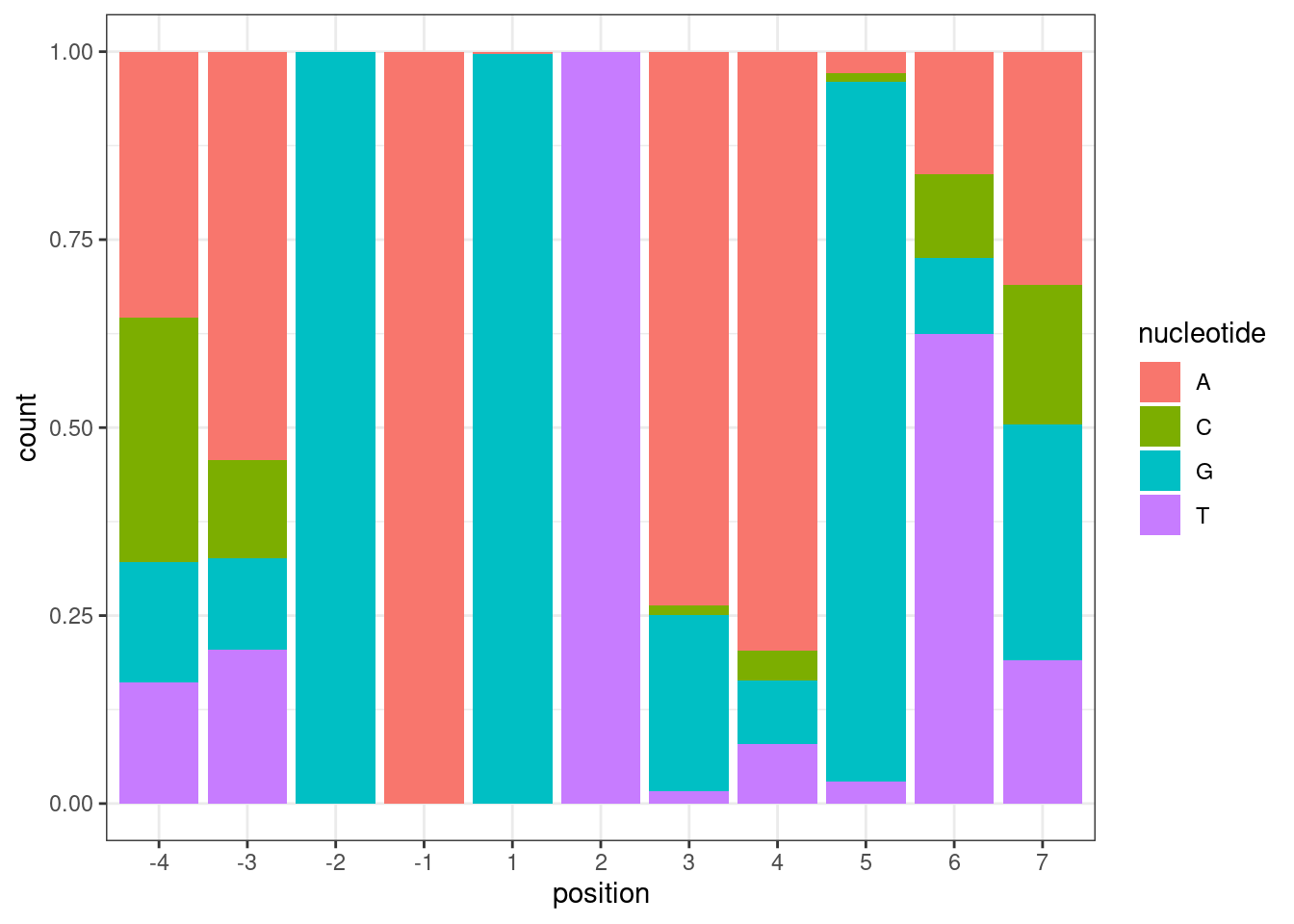

  select(DonorSeq) %>%
  separate(DonorSeq, into=as.character(c(-4:-1, 1:7)), sep=1:10) %>%
  gather(key="position", value="nucleotide") %>%
  mutate(position = factor(position, levels=as.character(c(-4:-1, 1:7)))) %>%
  ggplot(aes(x=position, fill=nucleotide)) +
  geom_bar(position="fill") +
  theme_bw()

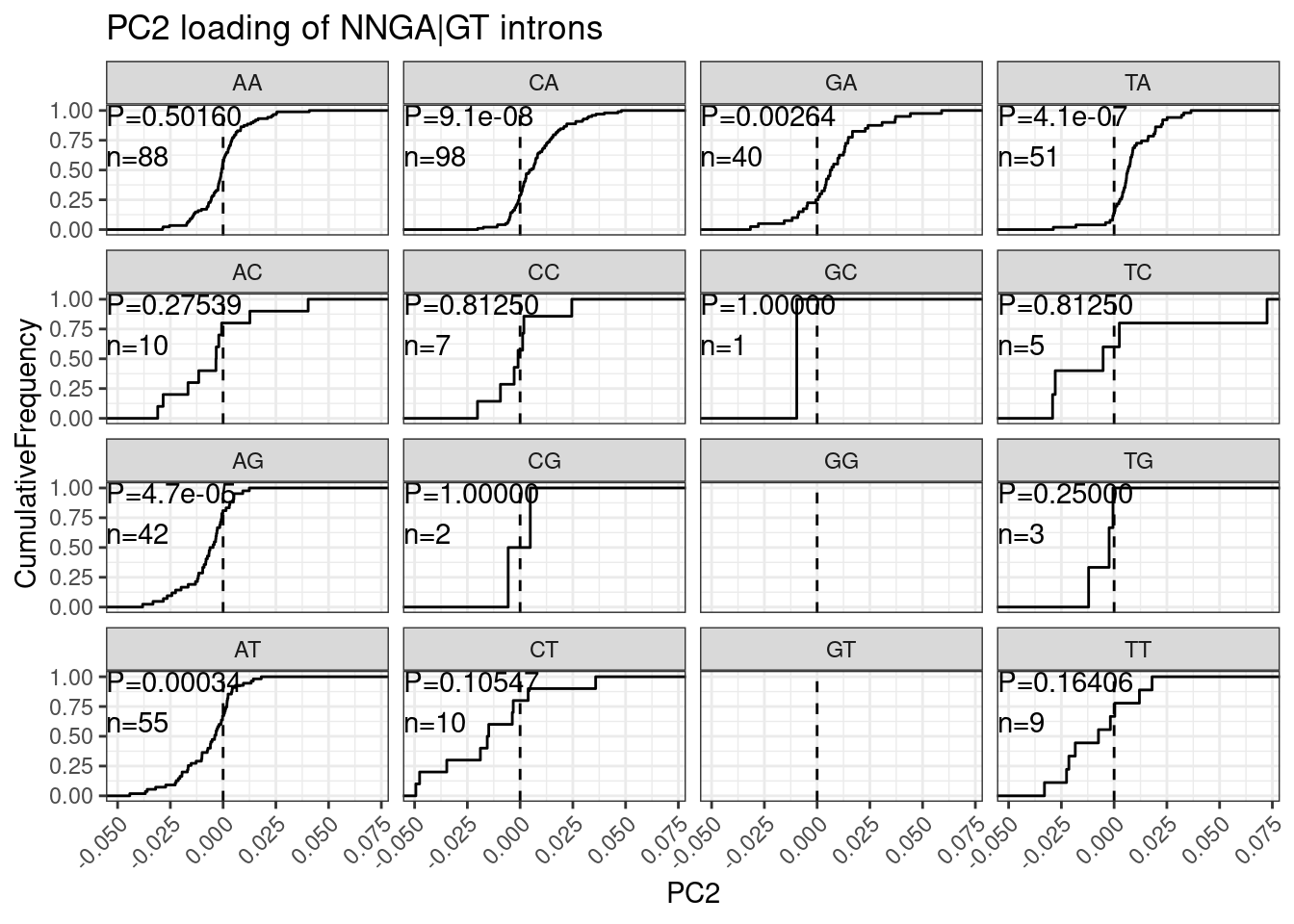

Ok, now, conditioned on GA|GT, let’s check all -4,-3 dinucleotide pairs for PC2 effect distribution:

leafcutter.ds.annotated %>%
  # filter(p.adjust<0.01 & logef>0) %>%
  distinct(Intron, .keep_all = T) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2),
    by="Intron"
  ) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  mutate(Minus4Minus3Bases = str_replace(DonorSeq, "^(\\w\\w).+$", "\\1")) %>%
  nest(-Minus4Minus3Bases) %>%
  mutate(P=map_dbl(data, ~wilcox.test(x=.$PC2, data = .)$p.value)) %>%  # get p value for wilcoxon test
  unnest(data) %>%
  add_count(Minus4Minus3Bases) %>%
  mutate(Minus4Minus3Bases = factor(Minus4Minus3Bases,
                           levels=(expand.grid(c("A", "C", "G", "T"),c("A", "C", "G", "T")) %>% unite(x, Var1, Var2, sep="") %>% pull(x)))) %>%
ggplot(aes(x=PC2)) +
  stat_ecdf() +
  geom_vline(xintercept = 0, linetype="dashed") +
  geom_text(x=-Inf, y=Inf, aes(label=paste0("P=", format.pval(P, 2), "\nn=", n)), data=(. %>% distinct(Minus4Minus3Bases,.keep_all=T)), hjust=0, vjust=1) +
  facet_wrap(~Minus4Minus3Bases, drop=F) +
  theme_bw() +
  labs(y="CumulativeFrequency", title="PC2 loading of NNGA|GT introns") +
  theme(axis.text.x = element_text(angle = 45, vjust = 1, hjust=1))

Conclusion:

I think this is actually consistent with my interpretation from above:

Ok, so while I agree with Bhattacharyya et al that the paired A at -3 position confers branaplam specific splicing enhancement, I don’t think C2C5 or risdiplam have a preference for A (or any nucleotide) at the -4 position.

But notice that most BGA|GT introns happen to also have an A at -4.

Let me plot that for visual clarity:

NucleotideFreqPlotFaceted <- leafcutter.ds.annotated %>%
  distinct(intron, .keep_all=T) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  select(DonorSeq) %>%
  separate(DonorSeq, into=as.character(c(-4:-1, 1:7)), sep=1:10) %>%
  mutate(MinusThreePos = if_else(`-3`=="A", "AGA|GT", "BGA|GT")) %>%
  gather(key="position", value="nucleotide", -MinusThreePos) %>%
  mutate(position = factor(position, levels=as.character(c(-4:-1, 1:7)))) %>%
  ggplot(aes(x=position, fill=nucleotide)) +
  geom_bar(position="fill") +
  facet_wrap(~MinusThreePos) +
  theme_bw()
NucleotideFreqPlotFaceted

Hmm, well its admittedly a subtle effect, but it is there: the conditioned on BGA|GT, the most common nucleotide at -4 is A, and the most common at -3 is T…

Jingxin has some more questions via email:

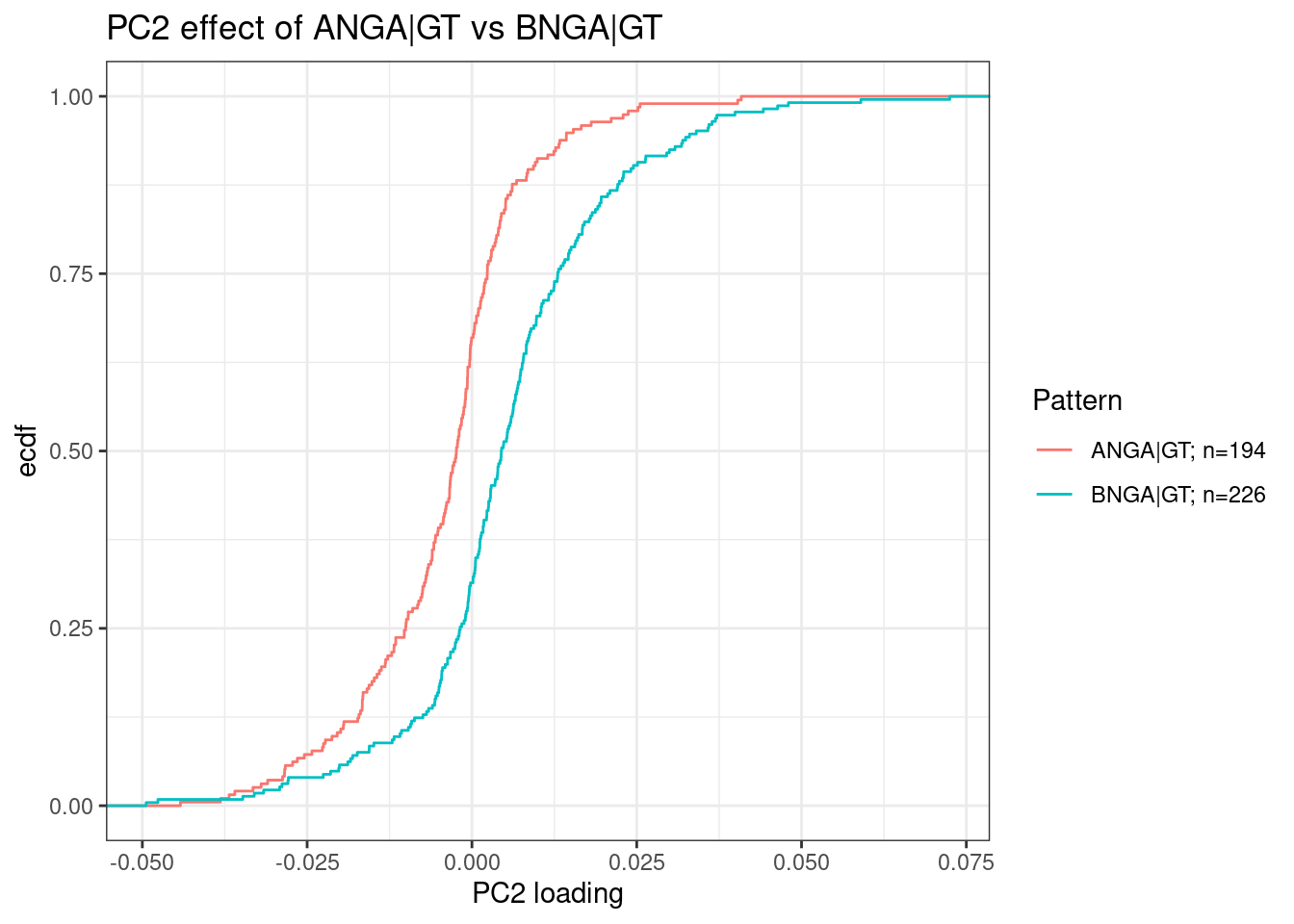

Hi Ben, Thanks for sharing the data! Very informative. Can you look at ANGA | GT vs BNGA | GT too? It looks like there should be some effects in risdiplam selectivity (attached figure, if you look at the left four subfigures). With this and NAGA | GT vs NBGA | GT analysis at the -3 position, the preference of the two compounds is clear to me.

dat.to.plot <- leafcutter.ds.annotated %>%
  # filter(p.adjust<0.01) %>%
  # filter(logef>0) %>%
  distinct(Intron, .keep_all = T) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2),
    by="Intron"
  ) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  dplyr::select(intron, PC2, DonorSeq) %>%
    mutate(
    `ANGA|GT` = str_detect(DonorSeq, "^A\\wGAGT"),
    `BNGA|GT` = str_detect(DonorSeq, "^[TGC]\\wGAGT")
  ) %>%
  filter_at(vars(-c("intron", "PC2", "DonorSeq")), any_vars(. == T)) %>%
  gather(key="Pattern", value="IsMatch", -c("intron", "PC2", "DonorSeq")) %>%
  filter(IsMatch) %>%
  add_count(Pattern) %>%
  mutate(Pattern = paste0(Pattern, "; n=", n))
ggplot(dat.to.plot, aes(x=PC2, color=Pattern)) +
  stat_ecdf() +
  theme_bw() +
  labs(y="ecdf", x="PC2 loading", title="PC2 effect of ANGA|GT vs BNGA|GT")

Ok, to Jingxin’s point, there is an difference here. But my interpretation based on the plot where I faceted all 16 NNGA|GT dinucleotides, I think the effect here is driven by the fact that BNGA|GT introns are mostly BAGA|GT introns, whereas ANGA|GT introns are not mostly AAGA|GT introns, and it is the -3A nucleotide that really drives branaplam specific effects when other nucletodies are controlled for.

Here is another excerpt from Jingxin:

I see your point: ATGA|GTAAGT is the most popular combination at the 5’ ss. My counter argument is that I don’t see this in the branaplam selective sequence data. Although ATGA | GTAAGT is the most common at each position, the combination of all positions may be not that common. Specifically, can you check (+4) GA|GTAA vs GA|GTAB, (+5) GA|GTAAG vs GA|GTAAH, (+4 to +6) GA|GTAAGT vs GA|GTA(not the exact combination of AGT), we probably should see some effect here.

Jingxin is getting at that the ATGA|GTAAGT did show stronger PC2 loadings as a group than ATGA|GT. Though, there were only 15ish introns in that group so small sample size limits interpretation. But what Jingxin is getting at is that perhaps those +3 to +6 positions matter. Ok, let’s plot all of the requested groups:

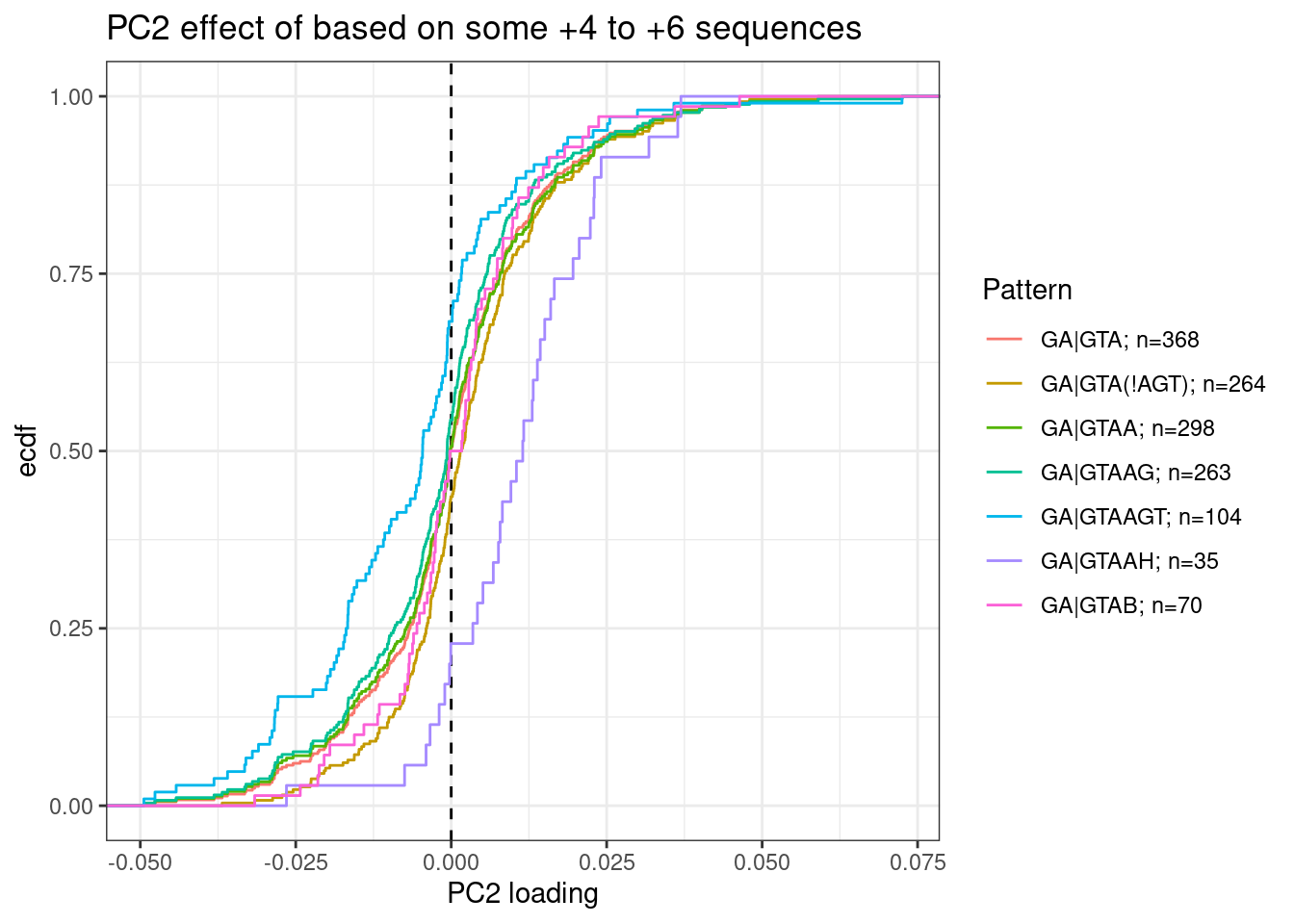

dat.to.plot <- leafcutter.ds.annotated %>%
  distinct(Intron, .keep_all = T) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2),
    by="Intron"
  ) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  dplyr::select(intron, PC2, DonorSeq) %>%
    mutate(
    `GA|GTAA` = str_detect(DonorSeq, "^\\w\\wGAGTAA"),
    `GA|GTAB` = str_detect(DonorSeq, "^\\w\\wGAGTA[CGT]"),
    `GA|GTAAG` = str_detect(DonorSeq, "^\\w\\wGAGTAAG"),
    `GA|GTAAH` = str_detect(DonorSeq, "^\\w\\wGAGTAA[CTA]"),
    `GA|GTAAGT` = str_detect(DonorSeq, "^\\w\\wGAGTAAGT"),
    `GA|GTA(!AGT)` = str_detect(DonorSeq, "^\\w\\wGAGTA(?!AGT)"),
    `GA|GTA` = str_detect(DonorSeq, "^\\w\\wGAGTA")
  ) %>%
  filter_at(vars(-c("intron", "PC2", "DonorSeq")), any_vars(. == T)) %>%
  gather(key="Pattern", value="IsMatch", -c("intron", "PC2", "DonorSeq")) %>%
  filter(IsMatch) %>%
  add_count(Pattern) %>%
  mutate(Pattern = paste0(Pattern, "; n=", n))
ggplot(dat.to.plot, aes(x=PC2, color=Pattern)) +
  geom_vline(xintercept = 0, linetype='dashed') +
  stat_ecdf() +
  theme_bw() +
  labs(y="ecdf", x="PC2 loading", title="PC2 effect of based on some +4 to +6 sequences")

Ok this is interesting. Maybe there is an effect between G versus not G at the +5 position. Note that this position base pairs with both U1 snRNA during initial spliceosome assembly, and also U6 snRNA during catalysis (See this figure). I wonder if there be some kind of branaplam-specific bulge-repair mechanisms during those later steps of splicing? Really the a better analysis than what I have done would be to look for nucleotide enrichments or MEME to compare affected versus unaffected introns (and limit hits from things that appear just because they are common splice sites). In general it would be nice to do a more unbiased analysis rather than testing all these specific hypothesis. Something like what I did above with this plot:

PerNucleotidePC2Effect +
  labs(title="MeanPC2 effect based on all introns with N at position X")

For clarity, the way to read this plot is to look at the nucleotide at each position and height of the column is the average PC2 loading based on all introns with the given nucleotide at the given position. So you probably want to compare loading relative to other nucleotides at the same position. For example, C at position +4 sticks out from other nucleotides at position 4. Let’s plot the distribution of PC2 loadings as I have been before for introns with or without C at position4:

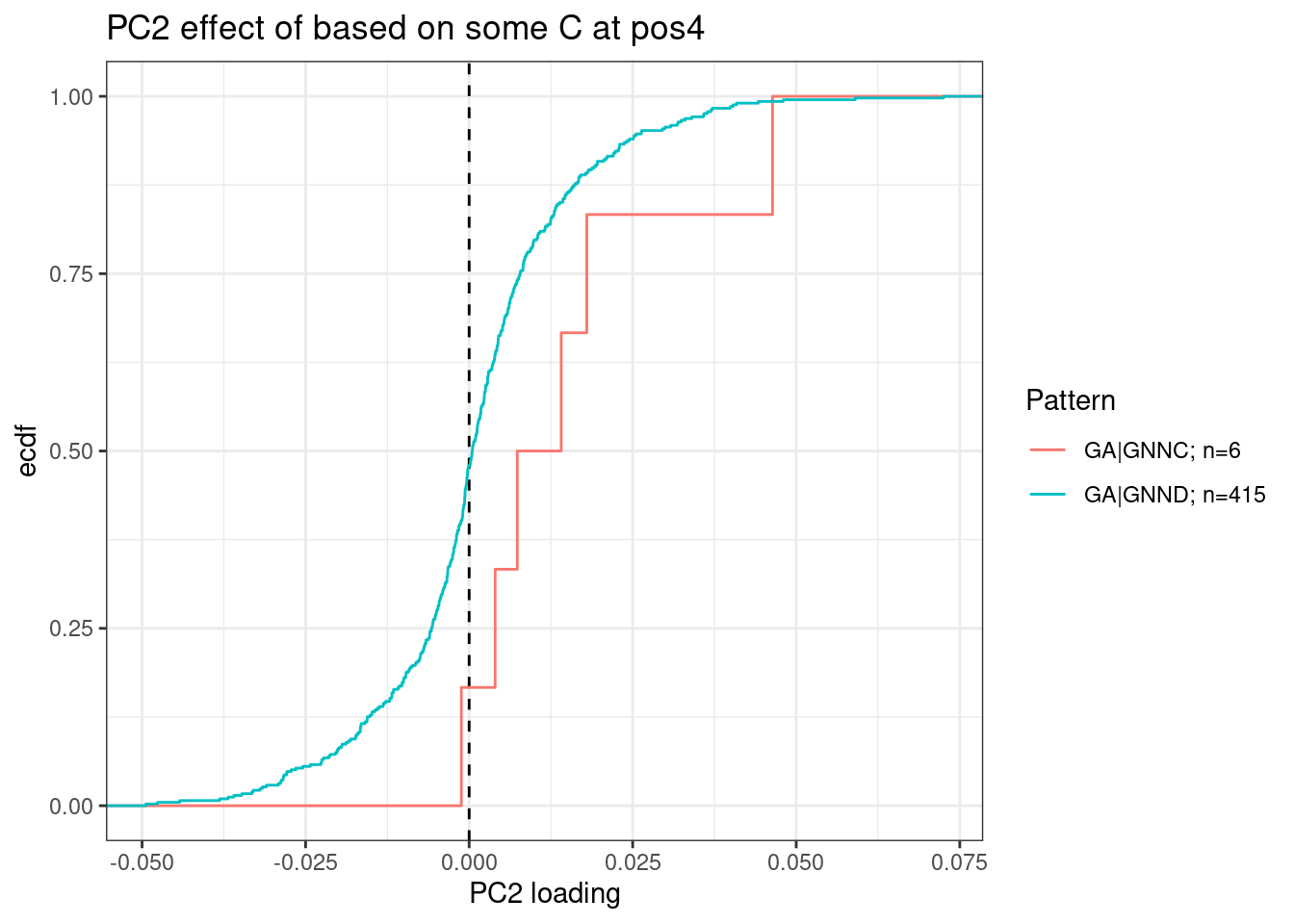

dat.to.plot <- leafcutter.ds.annotated %>%
  distinct(Intron, .keep_all = T) %>%
  inner_join(
    pca.results.splicing$rotation %>%
    as.data.frame() %>%
    rownames_to_column("Intron") %>%
    dplyr::select(Intron, PC2),
    by="Intron"
  ) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  dplyr::select(intron, PC2, DonorSeq) %>%
    mutate(
    `GA|GNNC` = str_detect(DonorSeq, "^\\w\\w\\w\\w\\w\\w\\wC"),
    `GA|GNND` = str_detect(DonorSeq, "^\\w\\w\\w\\w\\w\\w\\w[AGT]"),
  ) %>%
  filter_at(vars(-c("intron", "PC2", "DonorSeq")), any_vars(. == T)) %>%
  gather(key="Pattern", value="IsMatch", -c("intron", "PC2", "DonorSeq")) %>%
  filter(IsMatch) %>%
  add_count(Pattern) %>%
  mutate(Pattern = paste0(Pattern, "; n=", n))
ggplot(dat.to.plot, aes(x=PC2, color=Pattern)) +
  geom_vline(xintercept = 0, linetype='dashed') +
  stat_ecdf() +
  theme_bw() +
  labs(y="ecdf", x="PC2 loading", title="PC2 effect of based on some C at pos4")

The other obvious problem with the bar plot is that it doesn’t take into account sample size. I should come up with a statistical test for this, and then I think it would be a much more useful analysis. That is on my to-do list…

But again, the a different problem with the bar plot analysis is it doesn’t really address that nucleotide frequencies are not independent. Experimentally it would be nice to have a reporter for using in some kind of MPRA where we could test all NNNN|GTNNNNNN substrates for different effects in different treatments.

A minor question for the nucleotide count figure in your latest email, is the total count from the ~3000 drug sensitive splice sites (already enriched by Branaplam/risdiplam)?

This comment is referring to this plot:

NucleotideFreqPlotFaceted

This plot is based on all introns tested in the fibroblast data). “Tested” just means it passes some minimum level of junction read counts in some number of samples from the fibroblast data. It does not require that there is some significant splicing effect. Here are how many introns are in each group:

#How many introns are in each of the facet sub-plot groups
leafcutter.ds.annotated %>%
  distinct(intron, .keep_all=T) %>%
  filter(UpstreamOfDonor2BaseSeq == "GA") %>%
  select(DonorSeq) %>%
  separate(DonorSeq, into=as.character(c(-4:-1, 1:7)), sep=1:10) %>%
  mutate(MinusThreePos = if_else(`-3`=="A", "AGA|GT", "BGA|GT"))  %>%
  count(MinusThreePos)

# A tibble: 2 × 2
  MinusThreePos     n
  <chr>         <int>
1 AGA|GT         1283
2 BGA|GT         1079

Lastly, I wanted to check the dose response curves for all the genes in the excel:

First let’s read in the excel that Jingxin shared, then plot all the dose response data…

Jingxin.excel <- readxl::read_excel("../data/Risdplam_Branaplam_specific_exons 5'ss.xlsx", skip = 1)

dat %>%
  cpm(log=F) %>%
  as.data.frame() %>%
  rownames_to_column("gene") %>%
  mutate(gene = recode(gene, !!!ensembl_to_symbols)) %>%
  filter(gene %in% Jingxin.excel$`Gene name`) %>%
  gather("sample", "cpm", -gene) %>%
  separate(sample, into=c("Treatment", "TitrationPoint"), remove = F, convert = T) %>%
  dplyr::select(-sample) %>%
  mutate(Color = case_when(
    Treatment == "Bran" ~ "blue",
    Treatment == "C2C5" ~ "red",
    Treatment == "Ris" ~ "green")) %>%
  ggplot(aes(x=TitrationPoint, y=cpm, color=Color)) +
  geom_line() +
  scale_color_identity(labels=ColorsTreatments, guide="legend") +
  scale_x_reverse() +
  facet_wrap(~gene, scales = "free_y") +
  labs(title = "dose response of genes of interest") +
  theme_bw()

Session information

sessionInfo()

R version 3.6.1 (2019-07-05)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Scientific Linux 7.4 (Nitrogen)

Matrix products: default
BLAS/LAPACK: /software/openblas-0.2.19-el7-x86_64/lib/libopenblas_haswellp-r0.2.19.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] magrittr_1.5       viridis_0.5.1      viridisLite_0.3.0  gplots_3.0.1.1
 [5] RColorBrewer_1.1-2 edgeR_3.26.5       limma_3.40.6       forcats_0.4.0
 [9] stringr_1.4.0      dplyr_1.0.9        purrr_0.3.4        readr_1.3.1
[13] tidyr_1.2.0        tibble_3.1.7       ggplot2_3.3.6      tidyverse_1.3.0

loaded via a namespace (and not attached):
 [1] httr_1.4.1         jsonlite_1.6       modelr_0.1.8       gtools_3.9.2.2
 [5] assertthat_0.2.1   highr_0.9          cellranger_1.1.0   yaml_2.2.0
 [9] pillar_1.7.0       backports_1.4.1    lattice_0.20-38    glue_1.6.2
[13] digest_0.6.20      promises_1.0.1     rvest_0.3.5        colorspace_1.4-1
[17] htmltools_0.3.6    httpuv_1.5.1       pkgconfig_2.0.2    broom_1.0.0
[21] haven_2.3.1        scales_1.1.0       gdata_2.18.0       whisker_0.3-2
[25] later_0.8.0        git2r_0.26.1       generics_0.1.3     farver_2.1.0
[29] ellipsis_0.3.2     withr_2.4.1        cli_3.3.0          crayon_1.3.4
[33] readxl_1.3.1       evaluate_0.15      fs_1.3.1           fansi_0.4.0
[37] xml2_1.3.2         tools_3.6.1        hms_0.5.3          lifecycle_1.0.1
[41] munsell_0.5.0      reprex_0.3.0       locfit_1.5-9.1     compiler_3.6.1
[45] caTools_1.17.1.2   rlang_1.0.3        grid_3.6.1         rstudioapi_0.10
[49] bitops_1.0-6       labeling_0.3       rmarkdown_1.13     gtable_0.3.0
[53] DBI_1.1.0          R6_2.4.0           gridExtra_2.3      lubridate_1.7.4
[57] knitr_1.39         utf8_1.1.4         workflowr_1.6.2    rprojroot_2.0.2
[61] KernSmooth_2.23-15 stringi_1.4.3      Rcpp_1.0.5         vctrs_0.4.1
[65] dbplyr_1.4.2       tidyselect_1.1.2   xfun_0.31
