20220919_chRNA_IntronRetention

effect sizes in chRNA versus polyA

Let’s check the first hypothesis… that chRNA will generally show larger effect sizes between ratio of included versus skipped reads.

GA.GT.Introns.DrugInducedCassetteExons <- GA.GT.Introns %>%
  filter(!is.na(Steepness)) %>%
  filter(UpperLimit > LowerLimit) %>%
  filter(!is.na(UpstreamSpliceAcceptor)) %>%
  dplyr::rename(strand=strand.y)


chRNA.Comparison.Samples <- sample.list %>%
  filter(cell.type=="LCL") %>%
  group_by(dose.nM, treatment) %>%
  filter(any(libType=="chRNA"))


IntronsToQuantifyInDrugInducedCassetteExons <- all.samples.PSI %>%
  filter(gid %in% GA.GT.Introns$gid) %>%
  mutate(SpliceAcceptor = case_when(
    strand == "+" ~ paste(`#Chrom`, end, strand, sep="."),
    strand == "-" ~ paste(`#Chrom`, start-2, strand, sep=".")
  )) %>%
  select(1:6, SpliceAcceptor, contains("LCL")) %>%
  gather(key="Sample", value="PSI", contains("LCL")) %>%
  group_by(junc, gid, strand, SpliceAcceptor) %>%
  drop_na() %>%
  summarise(mean=mean(PSI, na.rm = F)) %>%
  group_by(SpliceAcceptor) %>%
  filter(mean == max(mean)) %>%
  ungroup() %>%
  dplyr::select(UpstreamJunc = junc, SpliceAcceptor) %>%
  inner_join(GA.GT.Introns.DrugInducedCassetteExons, by=c("SpliceAcceptor"="UpstreamSpliceAcceptor")) %>%
  rename(DownstreamJunc = junc) %>%
  mutate(SkippingJunc = case_when(
    strand == "+" ~ str_replace(paste(UpstreamJunc, DownstreamJunc), "^(chr.+?):(.+?):(.+?):(clu.+?) (chr.+?):(.+?):(.+?):clu.+$", "\\1:\\2:\\7:\\4"),
    strand == "-" ~ str_replace(paste(UpstreamJunc, DownstreamJunc), "^(chr.+?):(.+?):(.+?):(clu.+?) (chr.+?):(.+?):(.+?):clu.+$", "\\1:\\6:\\3:\\4")
  )) %>%
  dplyr::select(UpstreamJunc,DownstreamJunc, SkippingJunc ) %>%
  gather(key="IntronType", value="junc") %>%
  distinct(.keep_all = T) %>%
  mutate(gid = str_replace(junc, ".+?:(clu.+$)", "\\1")) %>%
  add_count(gid) %>%
  filter(n==3)

chRNA.Comparison.PSI.Inclusion.tidy <- IntronsToQuantifyInDrugInducedCassetteExons %>%
  dplyr::select(-n, -gid) %>%
  inner_join(
    all.samples.PSI %>%
      select(1:6, chRNA.Comparison.Samples$SampleName),
    by="junc"
  ) %>%
  gather("Sample", "PSI", contains("LCL")) %>%
  pivot_wider(names_from = "IntronType", values_from="PSI", id_cols=c("gid", "Sample")) %>%
  unnest() %>%
  mutate(InclusionPSI=UpstreamJunc+DownstreamJunc) %>%
  separate(Sample, into=c("treatment", "dose.nM", "cell.type", "libType", "rep"), sep="_", convert=T) %>%
  group_by("treatment", "dose.nM") %>%
  filter(any(libType == "chRNA")) %>%
  ungroup() %>%
  group_by(gid, treatment, dose.nM, cell.type, libType) %>%
  summarise_at(vars(UpstreamJunc:InclusionPSI), mean, na.rm=T) %>%
  mutate(TreatedOrControl = if_else(treatment=="DMSO", "Control", "Treatment")) %>%
  ungroup()


inner_join(
    chRNA.Comparison.PSI.Inclusion.tidy %>%
      filter(TreatedOrControl == "Treatment") %>%
      dplyr::select(-TreatedOrControl),
    chRNA.Comparison.PSI.Inclusion.tidy %>%
      filter(TreatedOrControl == "Control") %>%
      dplyr::select(-TreatedOrControl, -treatment, -dose.nM),
    by=c("gid", "cell.type", "libType"),
    suffix=c(".treatment", ".control")) %>%
  inner_join(
  sample.list %>%
    filter(cell.type=="LCL") %>%
    distinct(treatment, dose.nM, color)) %>%
ggplot(aes(x=InclusionPSI.treatment-InclusionPSI.control, color=color)) +
  stat_ecdf(aes(linetype=libType)) +
  scale_color_identity() +
  facet_wrap(~treatment) +
  theme_bw() +

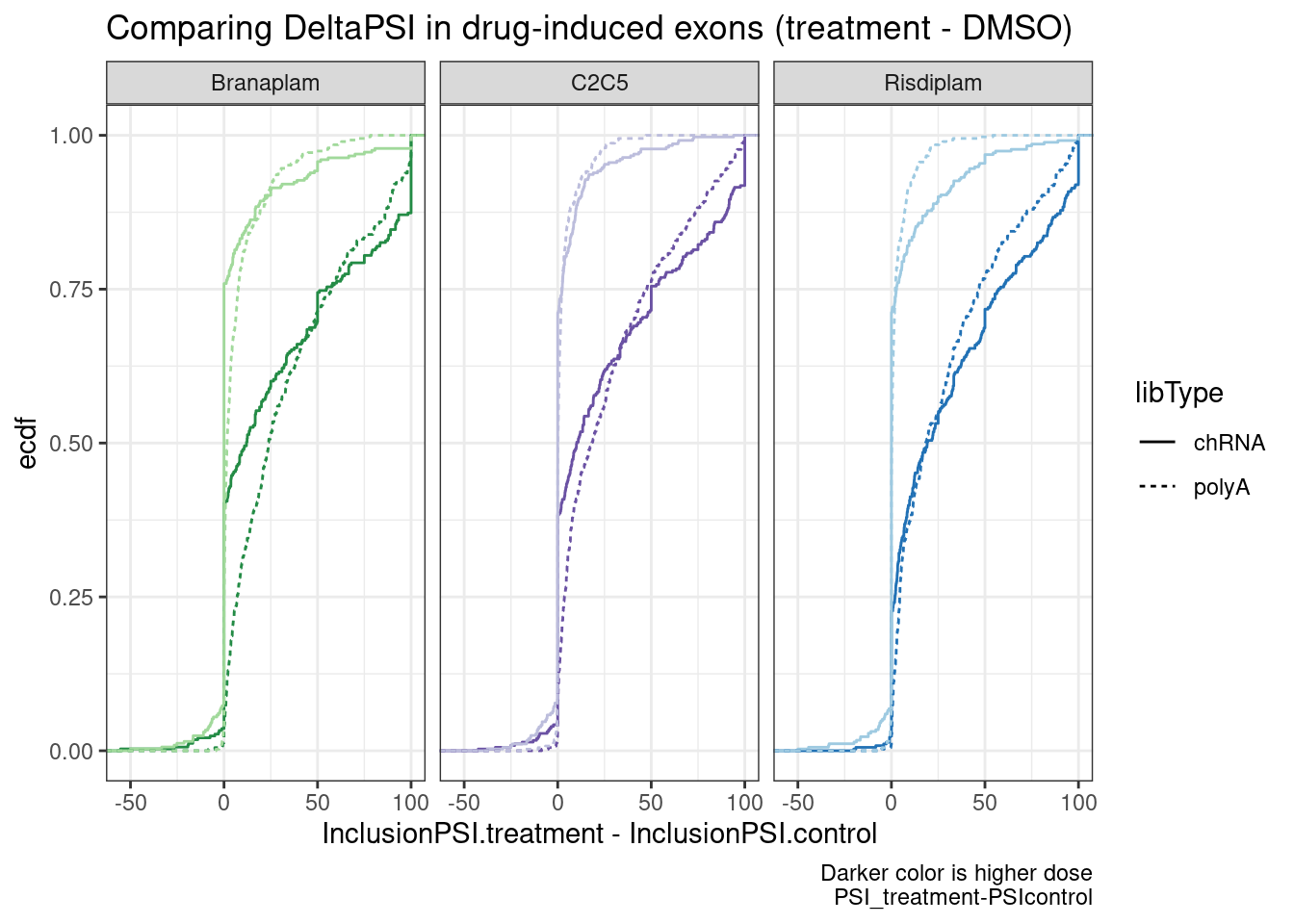

  labs(title="Comparing DeltaPSI in drug-induced exons (treatment - DMSO)", y="ecdf",
       caption="Darker color is higher dose\nPSI_treatment-PSIcontrol")

inner_join(
    chRNA.Comparison.PSI.Inclusion.tidy %>%
      filter(TreatedOrControl == "Treatment") %>%
      dplyr::select(-TreatedOrControl),
    chRNA.Comparison.PSI.Inclusion.tidy %>%
      filter(TreatedOrControl == "Control") %>%
      dplyr::select(-TreatedOrControl, -treatment, -dose.nM),
    by=c("gid", "cell.type", "libType"),
    suffix=c(".treatment", ".control")) %>%
  inner_join(
  sample.list %>%
    filter(cell.type=="LCL") %>%
    distinct(treatment, dose.nM, color)) %>%
ggplot(aes(x=InclusionPSI.treatment/InclusionPSI.control, color=color)) +
  stat_ecdf(aes(linetype=libType)) +
  scale_color_identity() +
  scale_x_continuous(trans="log2") +
  facet_wrap(~treatment) +
  theme_bw() +

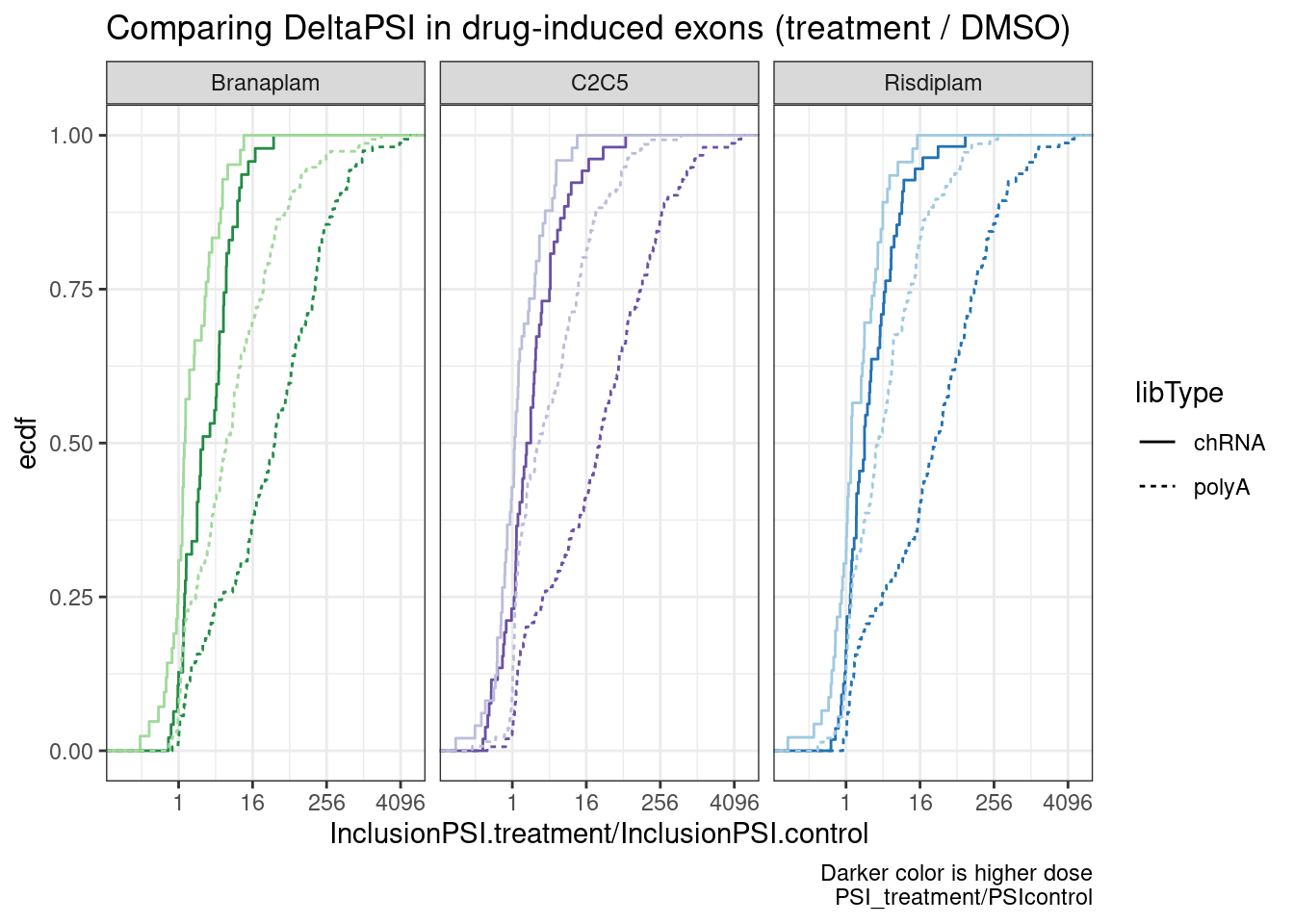

  labs(title="Comparing DeltaPSI in drug-induced exons (treatment / DMSO)", y="ecdf",
       caption="Darker color is higher dose\nPSI_treatment/PSIcontrol")

Ok, so while we can see these exons have a generally positive deltaPSI (as expected, by design of how i filtered the data), and the deltaPSI is more positive at higher dose, it doesn’t seem that the deltaPSI is any bigger in chRNA. And how you choose to the process the data makes all the difference (Difference in PSI, versus Ratio).

inner_join(
    chRNA.Comparison.PSI.Inclusion.tidy %>%
      filter(TreatedOrControl == "Treatment") %>%
      dplyr::select(-TreatedOrControl),
    chRNA.Comparison.PSI.Inclusion.tidy %>%
      filter(TreatedOrControl == "Control") %>%
      dplyr::select(-TreatedOrControl, -treatment, -dose.nM),
    by=c("gid", "cell.type", "libType"),
    suffix=c(".treatment", ".control")) %>%
  inner_join(
  sample.list %>%
    filter(cell.type=="LCL") %>%
    distinct(treatment, dose.nM, color)) %>%
ggplot(aes(x=(InclusionPSI.treatment/SkippingJunc.treatment)/(InclusionPSI.control/SkippingJunc.control), color=color)) +
  stat_ecdf(aes(linetype=libType)) +
  scale_color_identity() +
  scale_x_continuous(trans="log2") +
  facet_wrap(~treatment) +
  theme_bw() +
  labs(title="Comparing DeltaPSI in drug-induced exons (treatment / DMSO)", y="ecdf",
       caption="Darker color is higher dose\nPSI_treatment/PSIcontrol")

AddPsuedocount <- function(x){
  return(x+0.01)
}

dat.to.plot <- inner_join(
    chRNA.Comparison.PSI.Inclusion.tidy %>%
      filter(TreatedOrControl == "Treatment") %>%
      dplyr::select(-TreatedOrControl),
    chRNA.Comparison.PSI.Inclusion.tidy %>%
      filter(TreatedOrControl == "Control") %>%
      dplyr::select(-TreatedOrControl, -treatment, -dose.nM),
    by=c("gid", "cell.type", "libType"),
    suffix=c(".treatment", ".control")) %>%
  inner_join(
  sample.list %>%
    filter(cell.type=="LCL") %>%
    distinct(treatment, dose.nM, color)) %>%
  #Add pseudocount to PSI
  mutate_at(vars(UpstreamJunc.treatment:InclusionPSI.control), AddPsuedocount) %>%
  mutate(SkippingToInclusionRatio = (InclusionPSI.treatment/SkippingJunc.treatment)/(InclusionPSI.control/SkippingJunc.control)) %>%
  dplyr::select(-(UpstreamJunc.treatment:InclusionPSI.control)) %>%
  pivot_wider(names_from="libType", values_from="SkippingToInclusionRatio")

ggplot(dat.to.plot, aes(x=(chRNA/polyA), color=color)) +
  geom_vline(xintercept=1) +
  stat_ecdf() +
  scale_color_identity() +
  scale_x_continuous(trans="log10") +
  facet_wrap(~treatment) +
  theme_bw() +

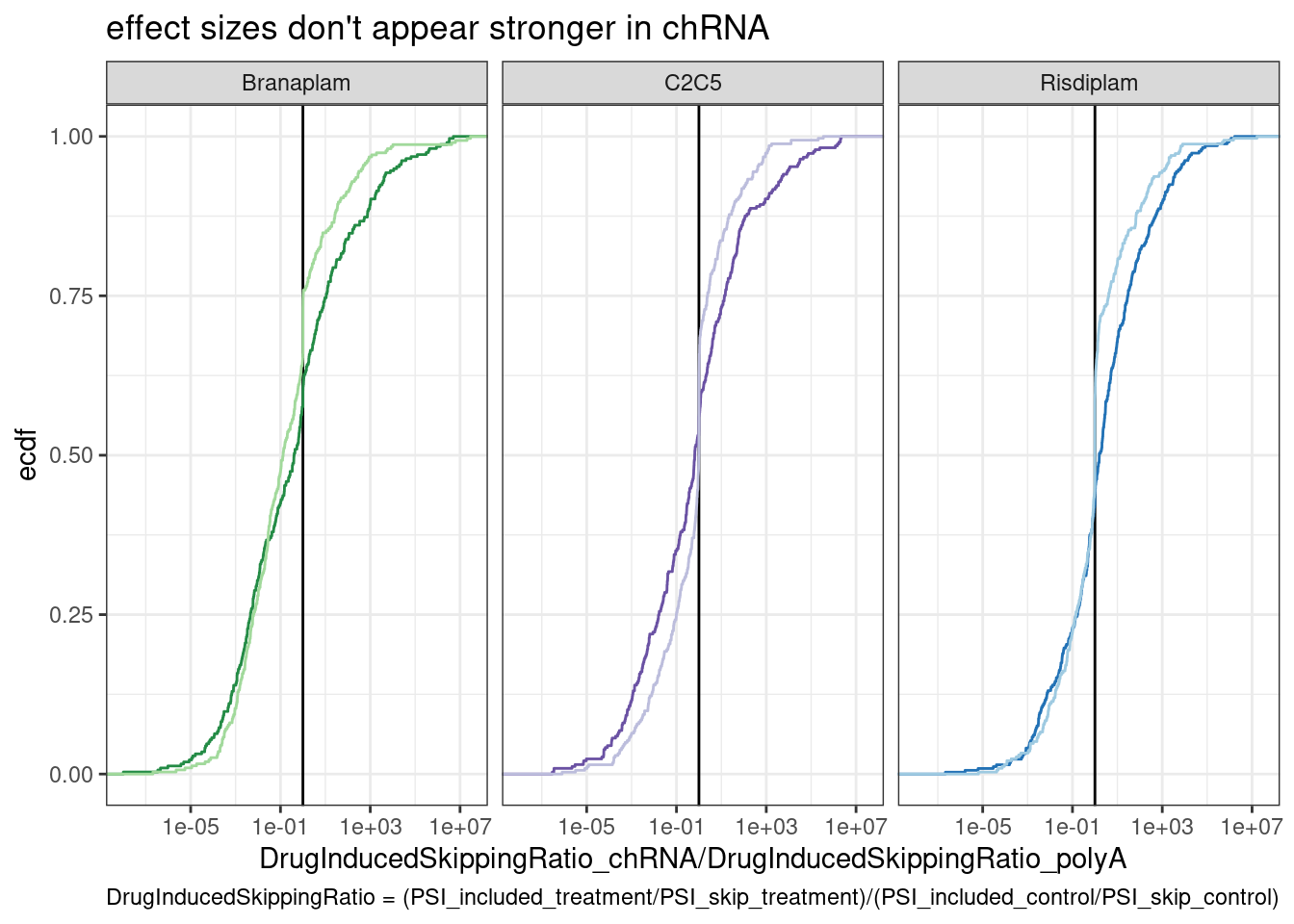

  labs(title="effect sizes don't appear stronger in chRNA", y="ecdf",
       x="DrugInducedSkippingRatio_chRNA/DrugInducedSkippingRatio_polyA",
       caption="DrugInducedSkippingRatio = (PSI_included_treatment/PSI_skip_treatment)/(PSI_included_control/PSI_skip_control)")

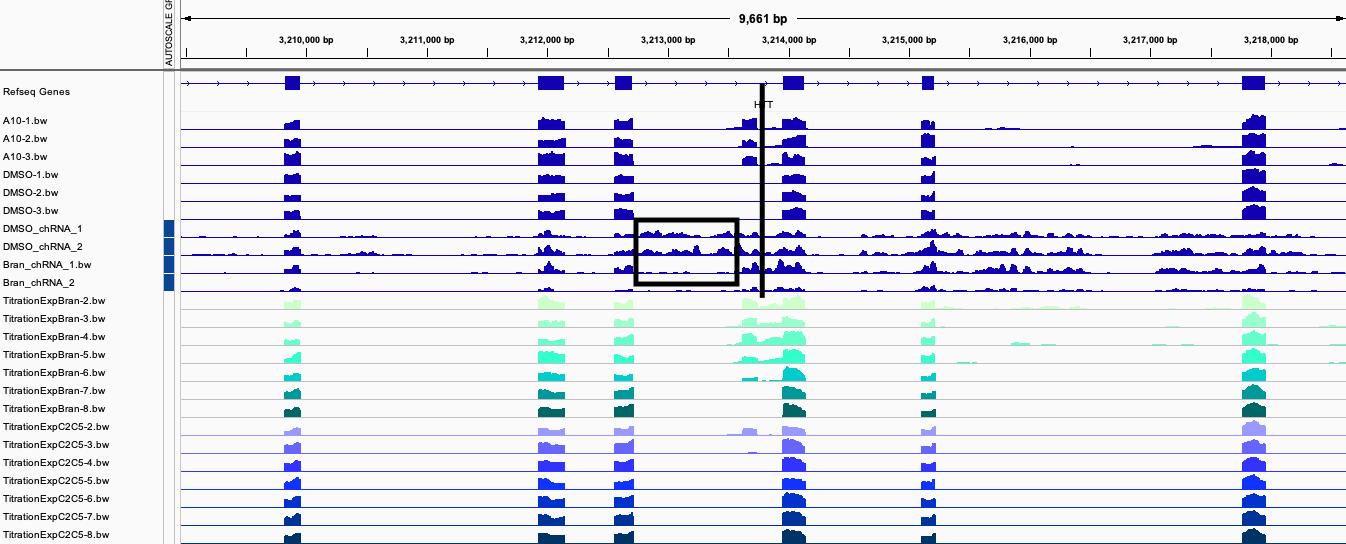

And to verify that I did the analysis reasonably, let’s look at the HTT skipping event, where I know (from manually inspecting the screenshot at the top with the sashimi plots of the raw PSI) that chRNA should have a higher DrugInducedSkipping Ratio in branaplam

GA.GT.Introns.DrugInducedCassetteExons %>%
  filter(gene_names == "HTT")

# A tibble: 1 × 34
  junc          `#Chrom`  start    end gid   strand seq   Donor.score gene_names
  <chr>         <chr>     <dbl>  <dbl> <chr> <chr>  <chr>       <dbl> <chr>
1 chr4:3213736… chr4     3.21e6 3.21e6 chr4… +      CAGA…        5.53 HTT
# … with 25 more variables: gene_ids <chr>, SpliceDonor <chr>,
#   UpstreamSpliceAcceptor <chr>, IntronType <chr>, Steepness <dbl>,
#   LowerLimit <dbl>, UpperLimit <dbl>, ED50_Branaplam <dbl>, ED50_C2C5 <dbl>,
#   ED50_Risdiplam <dbl>, spearman.coef.Branaplam <dbl>,
#   spearman.coef.C2C5 <dbl>, spearman.coef.Risdiplam <dbl>,
#   EC.Ratio.Test.Estimate_Branaplam.C2C5 <dbl>,
#   EC.Ratio.Test.Estimate_Branaplam.Risdiplam <dbl>, …

dat.to.plot %>%
  filter(gid=="chr4_clu_9322_+")

# A tibble: 6 × 7
  gid             treatment dose.nM cell.type color       chRNA        polyA
  <chr>           <chr>       <dbl> <chr>     <chr>       <dbl>        <dbl>
1 chr4_clu_9322_+ Branaplam    31.6 LCL       #A1D99B    63164.     2118.
2 chr4_clu_9322_+ Branaplam  1000   LCL       #238B45 86351968. 12502500.
3 chr4_clu_9322_+ C2C5         10   LCL       #BCBDDC      164.        0.125
4 chr4_clu_9322_+ C2C5        316   LCL       #6A51A3   153728.     2500.
5 chr4_clu_9322_+ Risdiplam   100   LCL       #9ECAE1     6395.       96.9
6 chr4_clu_9322_+ Risdiplam  3160   LCL       #2171B5 96352968.    78659.

…as expected. Overall I don’t think drug-induced exons are actually that more apparent in chRNA. Later I will peruse a large handful of sashimi plots to make verify. Now let’s move on to looking at the natural splicing rate of introns that host the drug-induced exons…

Host intron inclusion of drug-induced introns

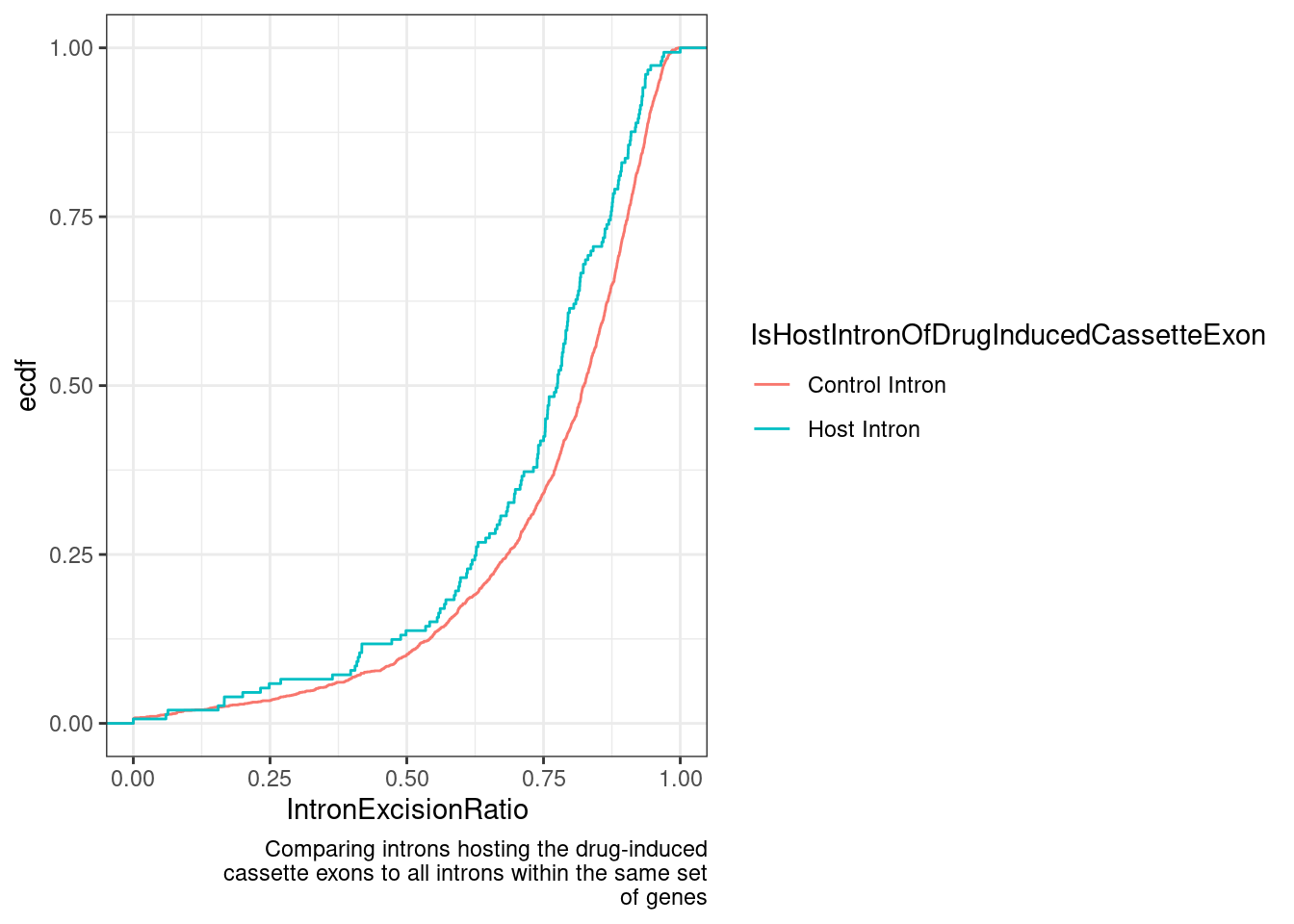

First let’s look at the correlation matrix based on IntronExcisionRatio and SpliceEfficiency metrics (see SpliceQ paper) for the GA|GT introns that I previously fit dose-response curves to… Since

GA.GT.Introns.DrugInducedCassetteExons

# A tibble: 454 × 34
   junc         `#Chrom`  start    end gid   strand seq   Donor.score gene_names
   <chr>        <chr>     <dbl>  <dbl> <chr> <chr>  <chr>       <dbl> <chr>
 1 chr1:120396… chr1     1.20e6 1.20e6 chr1… -      AGGA…        4.21 TNFRSF18
 2 chr1:836597… chr1     8.37e6 8.40e6 chr1… -      AAGA…        5.57 RERE
 3 chr1:971413… chr1     9.71e6 9.72e6 chr1… +      AGGA…        4.27 PIK3CD
 4 chr1:119818… chr1     1.20e7 1.20e7 chr1… +      ATGA…        3.40 MFN2
 5 chr1:120660… chr1     1.21e7 1.21e7 chr1… +      GAGA…        1.60 <NA>
 6 chr1:154268… chr1     1.54e7 1.54e7 chr1… +      CAGA…        4.22 EFHD2
 7 chr1:238632… chr1     2.39e7 2.39e7 chr1… -      AGGA…        3.08 FUCA1
 8 chr1:238756… chr1     2.39e7 2.39e7 chr1… -      AAGA…        4.84 CNR2
 9 chr1:281725… chr1     2.82e7 2.82e7 chr1… -      AGGA…        5.37 <NA>
10 chr1:292069… chr1     2.92e7 2.92e7 chr1… -      CAGA…        4.60 MECR
# … with 444 more rows, and 25 more variables: gene_ids <chr>,
#   SpliceDonor <chr>, UpstreamSpliceAcceptor <chr>, IntronType <chr>,
#   Steepness <dbl>, LowerLimit <dbl>, UpperLimit <dbl>, ED50_Branaplam <dbl>,
#   ED50_C2C5 <dbl>, ED50_Risdiplam <dbl>, spearman.coef.Branaplam <dbl>,
#   spearman.coef.C2C5 <dbl>, spearman.coef.Risdiplam <dbl>,
#   EC.Ratio.Test.Estimate_Branaplam.C2C5 <dbl>,
#   EC.Ratio.Test.Estimate_Branaplam.Risdiplam <dbl>, …

chRNA.Comparison.PSI.Inclusion.tidy

# A tibble: 5,474 × 10
   gid           treatment dose.nM cell.type libType UpstreamJunc DownstreamJunc
   <chr>         <chr>       <dbl> <chr>     <chr>          <dbl>          <dbl>
 1 chr10_clu_19… Branaplam    31.6 LCL       chRNA            0              0
 2 chr10_clu_19… Branaplam    31.6 LCL       polyA            0              3.5
 3 chr10_clu_19… Branaplam  1000   LCL       chRNA            0              0
 4 chr10_clu_19… Branaplam  1000   LCL       polyA           16              7.8
 5 chr10_clu_19… C2C5         10   LCL       chRNA           25              0
 6 chr10_clu_19… C2C5         10   LCL       polyA            4.7            0
 7 chr10_clu_19… C2C5        316   LCL       chRNA           22              0
 8 chr10_clu_19… C2C5        316   LCL       polyA            7.9           13
 9 chr10_clu_19… DMSO         NA   LCL       chRNA            0              0
10 chr10_clu_19… DMSO         NA   LCL       polyA            0              0
# … with 5,464 more rows, and 3 more variables: SkippingJunc <dbl>,
#   InclusionPSI <dbl>, TreatedOrControl <chr>

HostIntronsToQuantifyInDrugInducedCassetteExons <- IntronsToQuantifyInDrugInducedCassetteExons %>%
  pivot_wider(names_from="IntronType", values_from="junc") %>%
  separate(SkippingJunc, into=c("Chrom", "start","stop","cluster"), sep=":", convert=T) %>%
  mutate(strand = str_extract(cluster, "[+-]"))

SpliceQ.IER %>%
  dplyr::select(1:4, matches("DMSO_NA_LCL_chRNA_.+")) %>%
  gather("Sample", "IER", contains("DMSO")) %>%
  group_by(Chrom, start, stop, strand) %>%
  summarise(IER.mean=mean(IER)) %>%
  inner_join(all.samples.intron.annotations, by=c("Chrom"="chrom", "start", "stop"="end", "strand")) %>%
  left_join(HostIntronsToQuantifyInDrugInducedCassetteExons) %>%
  group_by(gene_ids) %>%
  filter(any(!is.na(UpstreamJunc))) %>%
  ungroup() %>%
  ggplot(aes(x=IER.mean)) +
  stat_ecdf() +
  geom_vline(
    data = . %>% filter(!is.na(UpstreamJunc)),
    aes(xintercept=IER.mean)
  ) +
  facet_wrap(~gene_names) +
  theme_bw() +

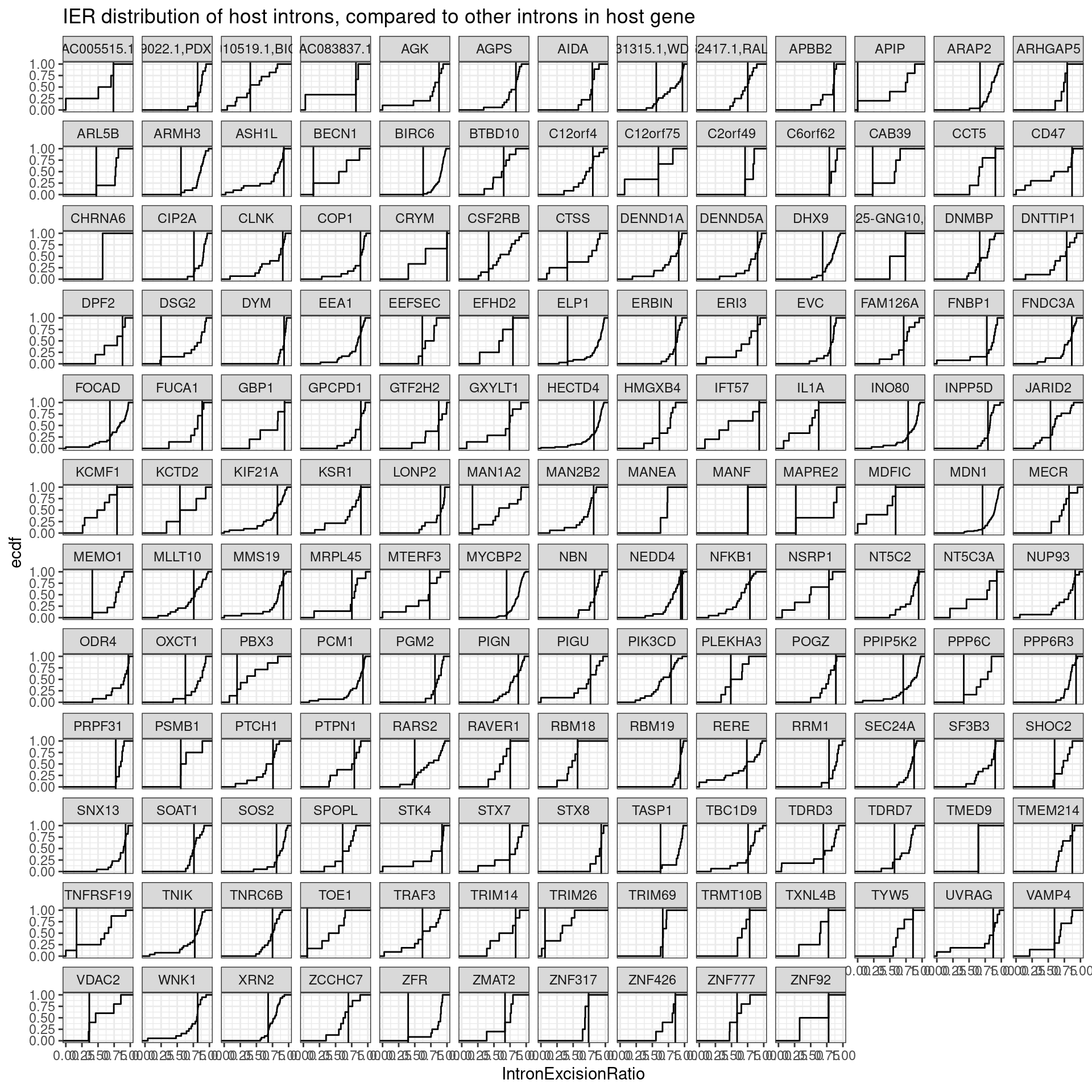

  labs(y="ecdf", x="IntronExcisionRatio", title="IER distribution of host introns, compared to other introns in host gene")

Hmmm, It’s not obvious if there is a trend… I was hypothesizing that introns hosting the cassette exon would have have lower intron excision ratios, indicating less efficient splicing. Let’s plot this a few different ways:

SpliceQ.IER %>%
  dplyr::select(1:4, matches("DMSO_NA_LCL_chRNA_.+")) %>%
  gather("Sample", "IER", contains("DMSO")) %>%
  group_by(Chrom, start, stop, strand) %>%
  summarise(IER.mean=mean(IER)) %>%
  inner_join(all.samples.intron.annotations, by=c("Chrom"="chrom", "start", "stop"="end", "strand")) %>%
  left_join(HostIntronsToQuantifyInDrugInducedCassetteExons) %>%
  group_by(gene_ids) %>%
  filter(any(!is.na(UpstreamJunc))) %>%
  ungroup() %>%
  mutate(IsHostIntronOfDrugInducedCassetteExon = if_else(is.na(UpstreamJunc), "Control Intron", "Host Intron")) %>%
  # group_by(gene_names, IsHostIntronOfDrugInducedCassetteExon) %>%
  # sample_n(1) %>%
  ggplot(aes(x=IER.mean, color=IsHostIntronOfDrugInducedCassetteExon)) +
  stat_ecdf() +
  theme_bw() +
  labs(y="ecdf", x="IntronExcisionRatio", caption=str_wrap("Comparing introns hosting the drug-induced cassette exons to all introns within the same set of genes", 50))

The intron excision ratio metric is basically the length-normalized intronic coverage, relative to the flanking exons… So if there is a cassette exon that is spliced in at an appreciable rate in DMSO samples, that might explain this. The splice efficiency metric, based only on exon-exon junction and exon-intron, intron-exon reads should be less sensitive to this. let’s check that the effect is there too.

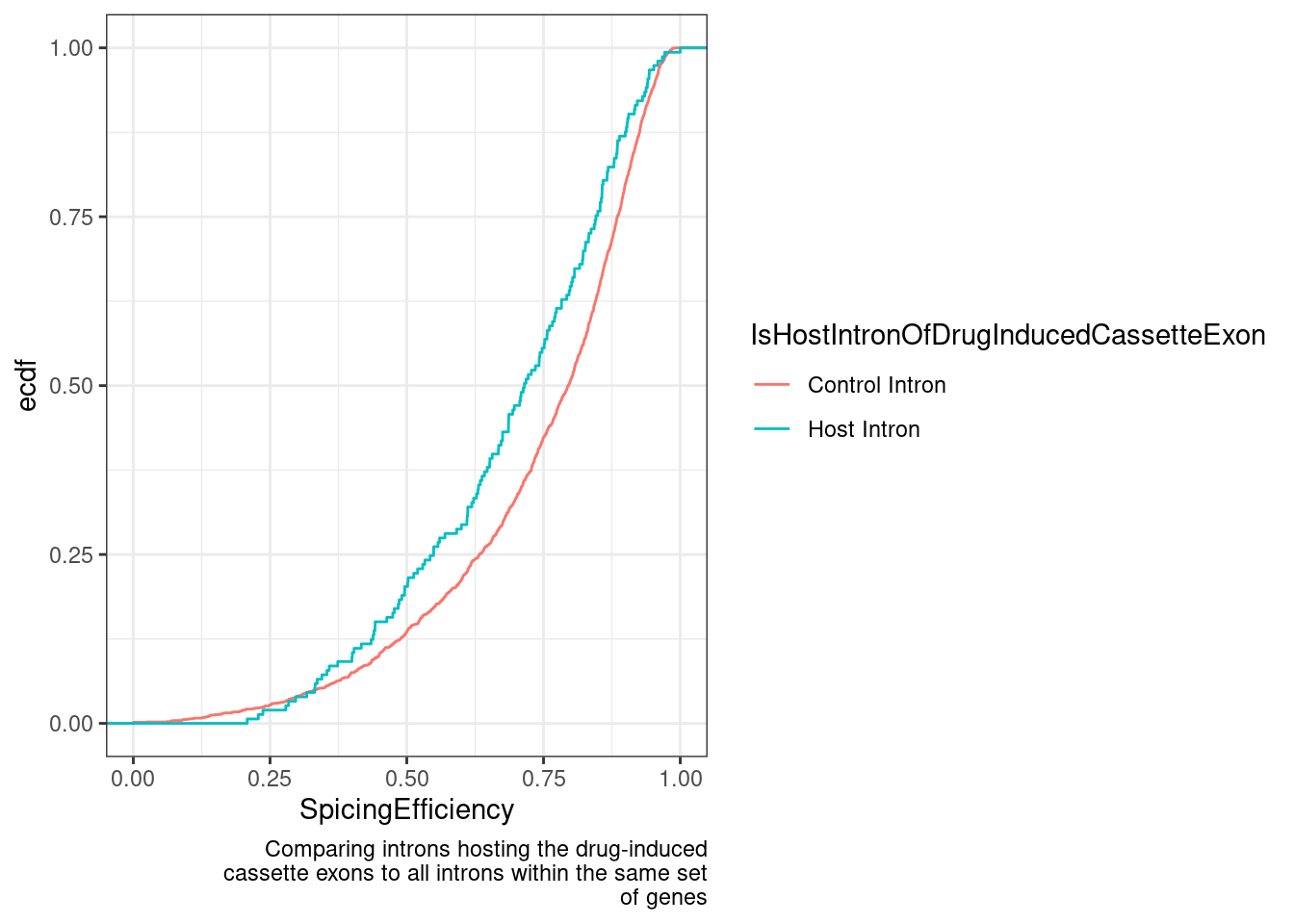

SpliceQ.SE %>%
  dplyr::select(1:4, matches("DMSO_NA_LCL_chRNA_.+")) %>%
  gather("Sample", "IER", contains("DMSO")) %>%
  group_by(Chrom, start, stop, strand) %>%
  summarise(IER.mean=mean(IER)) %>%
  inner_join(all.samples.intron.annotations, by=c("Chrom"="chrom", "start", "stop"="end", "strand")) %>%
  left_join(HostIntronsToQuantifyInDrugInducedCassetteExons) %>%
  group_by(gene_ids) %>%
  filter(any(!is.na(UpstreamJunc))) %>%
  ungroup() %>%
  mutate(IsHostIntronOfDrugInducedCassetteExon = if_else(is.na(UpstreamJunc), "Control Intron", "Host Intron")) %>%
  # group_by(gene_names, IsHostIntronOfDrugInducedCassetteExon) %>%
  # sample_n(1) %>%
  ggplot(aes(x=IER.mean, color=IsHostIntronOfDrugInducedCassetteExon)) +
  stat_ecdf() +
  theme_bw() +
  labs(y="ecdf", x="SpicingEfficiency", caption=str_wrap("Comparing introns hosting the drug-induced cassette exons to all introns within the same set of genes", 50))

Hm, here there is some very modest effect, but I will get to doing a more proper test for significance later.

Finally I want to get to the question about whether that exon-definition effect was apparent, wherein the upstream intron has more efficient splicing… I think I’ll do this later, as it requires me to quantify intron retention in unannotated introns, which isn’t in the existing intron retention quantifications that I made using splice-q.

Session information

sessionInfo()

R version 3.6.1 (2019-07-05)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: CentOS Linux 7 (Core)

Matrix products: default
BLAS/LAPACK: /software/openblas-0.2.19-el7-x86_64/lib/libopenblas_haswellp-r0.2.19.so

locale:
 [1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C         LC_TIME=C
 [4] LC_COLLATE=C         LC_MONETARY=C        LC_MESSAGES=C
 [7] LC_PAPER=C           LC_NAME=C            LC_ADDRESS=C
[10] LC_TELEPHONE=C       LC_MEASUREMENT=C     LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] gplots_3.0.1.1  forcats_0.4.0   stringr_1.4.0   dplyr_1.0.9
 [5] purrr_0.3.4     readr_1.3.1     tidyr_1.2.0     tibble_3.1.7
 [9] ggplot2_3.3.6   tidyverse_1.3.0

loaded via a namespace (and not attached):
 [1] Rcpp_1.0.5         lubridate_1.7.4    gtools_3.9.2.2     assertthat_0.2.1
 [5] rprojroot_2.0.2    digest_0.6.20      utf8_1.1.4         R6_2.4.0
 [9] cellranger_1.1.0   backports_1.4.1    reprex_0.3.0       evaluate_0.15
[13] httr_1.4.4         highr_0.9          pillar_1.7.0       rlang_1.0.5
[17] readxl_1.3.1       rstudioapi_0.14    gdata_2.18.0       rmarkdown_1.13
[21] labeling_0.3       munsell_0.5.0      broom_1.0.0        compiler_3.6.1
[25] httpuv_1.5.1       modelr_0.1.8       xfun_0.31          pkgconfig_2.0.2
[29] htmltools_0.5.3    tidyselect_1.1.2   workflowr_1.6.2    fansi_0.4.0
[33] crayon_1.3.4       dbplyr_1.4.2       withr_2.5.0        later_0.8.0
[37] bitops_1.0-6       grid_3.6.1         jsonlite_1.6       gtable_0.3.0
[41] lifecycle_1.0.1    DBI_1.1.0          git2r_0.26.1       magrittr_1.5
[45] scales_1.1.0       KernSmooth_2.23-15 cli_3.3.0          stringi_1.4.3
[49] farver_2.1.0       fs_1.5.2           promises_1.0.1     xml2_1.3.2
[53] ellipsis_0.3.2     generics_0.1.3     vctrs_0.4.1        tools_3.6.1
[57] glue_1.6.2         hms_0.5.3          fastmap_1.1.0      yaml_2.2.0
[61] colorspace_1.4-1   caTools_1.17.1.2   rvest_0.3.5        knitr_1.39
[65] haven_2.3.1
