Background

In my previous analysis based on fibroblast data, I found about as many instances of upregulated cryptic 3’ss splicing (restricted analyses to clusters with only 2 introns) as upregulated cryptic 5’ss. That suggested to me that the known mechanisms of increasing splicing at GA|GT introns only accounts for part of the observed splicing changes… For example, I hypothesized that these molecules may also promote activation of cryptic 3’ss through stabilizing non-canonical branchpoints with extra bulges to U2snRNA. However, I failed to detect any particular motif in the bpt region among the top cryptic 3’ss with MEME. Furthermore, in a more recent analysis, when I looked at the dose response data of a random set of ~200 introns, most introns did not have a reasonable looking dose-response effect, and in fact, the introns that did have a reasonable dose-response increase where mostly in GA-GT intron-containing clusters, suggesting the GA-GT introns do account for most of the direct dose-dependent effects of the molecules. Today I will investigate these ideas a bit more… For example, I want to get a better sense of what fraction of reliable dose-dependent effects can be attributed to GA-GT introns (or introns in the same cluster which can be attributed an effect on the GA-GT introns).

If I find a large fraction (say 50%) of reliable dose-response curves aren’t in a cluster containing a GA-GT intron, I will be a bit more intrigued by the hypothesis about U2 snRNA and branchpoints. However, since the BP can only be mapped in a basically invisible (to RNA-seq) and short-lived intermediate, it makes proving this hypothesis very difficult from current data. I feel like to really test this hypothesis, one would actually need to experimentally modify the BP region in a gene and test drug effects on splicing.

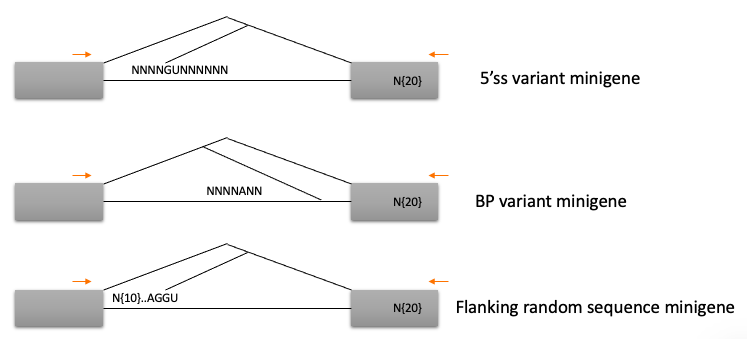

About splicing MPRA design

I have talked briefly to Yang about a potential future experiment involving a MPRA to experimentally measure drug-induced splicing effects on various splice-site sequences. He asked for a bit of background, before we gameplan if we really want to do these kinds of experiments, and if we should try collaborate, etc.

Here are a few papers that do something similar:

• Rosenberg et al, from Georg Seelig and Shendure labs.
• Soemedi et al, from Fairbrother lab.
• Adamson et al, from Gravely lab.

I think Rosenberg et al is most similar to what I envision would be useful for us… But all of these papers are similar in the sense that the idea to create a plasmid library of minigenes with splice-substrate minigene with sequence variants, then transiently transfect into cells, and measure splicing with RT-PCR followed by deep-sequencing. Rosenberg et al uses either a minigene with competing 5’ss, or with competing 3’ss, and introduces 25N degenerate regions to measure the effect of random sequences in positions flanking the splice sites. I think in our case, we are most interested in the sequences directly at the 5’ss::U1 interface (by the known mechanism of these drugs), and in my opinion in the branchpoint region would be another interesting place to introduce random sequences. I think for our experiments, a 25N degenerate region might be a bit too complex of a plasmid library, and we can focus our degenerate regions to say -4:+7 relative to the 5’ss, while fixing the splice donor GT sequence, so that we can more exhaustively cover the \(4^9=262144\) possible sequences, or maybe if we were to test the branchpoint region we could just create a smaller 6 or 7 nucleotide degenerate region, fixing an single A or something (\(4^6=4096\) possible sequences). I could also envision putting a large degenerate sequencing flanking a splice site to test the hypothesis that local secondary structures may influence susceptability to drug as has been suggested in SMN2. And so of course, we would want measure splicing of the plasmid library at least twice: with or without drug treatment. Here is a rough schematic of what I mean:

Here, like Rosenberg et al, I drew in 3’ UTR barcodes into the plsamid library, to easily distinguish the pre-mRNA substrates sequence from the sequence at the 3’ UTR that can be read out in paired end sequencing of an RT-PCR product.

In Rosenberg, where they used competing 5’ss, they didn’t give much detail onto the origin of these competing 5’ss. I surmise finding 5’ss that can actually naturally compete near 50/50 (or rather, close to 22.4/50 is what Rosenberg actually observed between the two splice sites) is key to getting useful read-out. started with the Citrine gene sequence and inserted competing splice sites. The methods section is devoid of much detail:

“Cloning of Degenerate Libraries The libraries were assembled with PCR and standard Gibson assembly (Gibson et al., 2009) using degenerate oligonucleotides (IDTDNA). First Citrine was split into two exons, and the first exon of the Citrine gene was altered to remove any potential splice donors, without altering the amino acid sequence. The introns with degenerate sequences were inserted between the two exons of Citrine. The barcode sequence was inserted into the 3′ UTR of Citrine.”

I figure that perhaps a good place to start is to look for naturally occuring cryptic 5’ss that is drug-inducible (from our existing fibroblast/LCL data) for a good starting point for cloning a library. Or we could alterantively/additionally, start with a naturally occuring cryptic 3’ss with a ratio close to 50/50. If Jingxin is also interested in pursuing this idea with us, I could find some candidate introns with these qualities, in case they are interested in cloning them (since they probably have the cloning protocol well figured for these kinds of minigene assays), to establish a plasmid backbone before introducing degenerate regions.

Also, there are many papers that use MPRA and have tips for cloning with degenerate oligos (it is slightly different from cloning a single sequence, since we want to be able to maintain and measure library complexity). Here is one protocol I found online. The protocol seems straightforward to me. The other aspects of this experiment seem straightforward or things I have experience with: transient transfection of plasmid library, RT-PCR deep sequencing, processing similar data.

Ok, now I will get back to analysis… thinking about look at lots of dose-response curves, and getting a sense of if most all the upregulated introns are a GA|GT intron (or in a GA|GT intron cluster)… Also, here I will show my work in finding a list of candidate minigene backbones for this degenerate plasmid MPRA idea.

library(tidyverse)
library(GenomicRanges)
library(drc)
library(broom)
library(GGally)
library(qvalue)

#Read in sample metadata
sample.list <- read_tsv("../code/bigwigs/BigwigList.tsv",
                        col_names = c("SampleName", "bigwig", "group", "strand")) %>%
  filter(strand==".") %>%
  mutate(old.sample.name = str_replace(bigwig, "/project2/yangili1/bjf79/20211209_JingxinRNAseq/code/bigwigs/unstranded/(.+?).bw", "\\1")) %>%
  separate(SampleName, into=c("treatment", "dose.nM", "cell.type", "libType", "rep"), convert=T, remove=F, sep="_") %>%
  left_join(
    read_tsv("../code/bigwigs/BigwigList.groups.tsv", col_names = c("group", "color", "bed", "supergroup")),
    by="group"
  )

TreatmentColorsForLabels <- sample.list %>%
  group_by(treatment) %>%
  filter(dose.nM == max(dose.nM) | treatment == "DMSO") %>%
  ungroup() %>%
  distinct(treatment, .keep_all=T) %>%
  arrange(dose.nM) %>%
  mutate(vjust=row_number()*1.2)

TreatmentColorsLabels.Layer <- geom_text(
    data = TreatmentColorsForLabels,
    aes(label=treatment, color=color, vjust=vjust),
    y=Inf, x=Inf, hjust=1.05
  )

# Read in list of introns detected across all experiments that pass leafcutter's default clustering processing thresholds
all.samples.PSI <- read_tsv("../code/SplicingAnalysis/leafcutter_all_samples/PSI.table.bed.gz")

all.samples.5ss <- read_tsv("../code/SplicingAnalysis/FullSpliceSiteAnnotations/JuncfilesMerged.annotated.basic.bed.5ss.tab.gz", col_names = c("intron", "seq", "score")) %>%
  mutate(intron = str_replace(intron, "^(.+?)::.+$", "\\1")) %>%
  separate(intron, into=c("chrom", "start", "stop", "strand"), sep="_", convert=T, remove=F)

all.samples.intron.annotations <- read_tsv("../code/SplicingAnalysis/FullSpliceSiteAnnotations/JuncfilesMerged.annotated.basic.bed.gz")

merged.dat.df <- all.samples.PSI %>%
  dplyr::select(-contains("fibroblast")) %>%
  dplyr::select(-contains("chRNA")) %>%
  drop_na() %>%
  inner_join(all.samples.5ss, by=c("#Chrom"="chrom", "start", "end"="stop", "strand")) %>%
  inner_join(all.samples.intron.annotations, by=c("#Chrom"="chrom", "start", "end", "strand") )

Identifying cassette exons

identifying splice donors that have a nearby upstream splice acceptor:

MaxCassetteExonLen <- 300

merged.dat.df.donors.granges <- merged.dat.df %>%
  dplyr::select(chrom=`#Chrom`, intron.start=start, intron.end=end, strand) %>%
  mutate(start = case_when(
    strand == "+" ~ intron.start,
    strand == "-" ~ intron.end -2
  )) %>%
  mutate(end = start +2) %>%
  dplyr::select(chrom, start, end, strand) %>%
  distinct() %>%
  add_row(chrom="DUMMY", start=0, end=1, strand="+", .before=1) %>%
  makeGRangesFromDataFrame()

splicing.acceptors.granges <- all.samples.PSI %>%
  dplyr::select(1:6) %>%
  filter(gid %in% merged.dat.df$gid) %>%
  filter(!junc %in% merged.dat.df$junc) %>%
  dplyr::select(chrom=`#Chrom`, intron.start=start, intron.end=end, strand) %>%
  mutate(start = case_when(
    strand == "+" ~ intron.end -2,
    strand == "-" ~ intron.start -2
  )) %>%
  mutate(end = start +2) %>%
  dplyr::select(chrom, start, end, strand) %>%
  distinct() %>%
  makeGRangesFromDataFrame()

PrecedingIndexes <- GenomicRanges::follow(merged.dat.df.donors.granges, splicing.acceptors.granges, select="last") %>%
  replace_na(1)

UpstreamAcceptors.df <- cbind(
  merged.dat.df.donors.granges %>% as.data.frame() %>%
    dplyr::rename(chrom=1, start=2, end=3, width=4, strand=5),
  splicing.acceptors.granges[PrecedingIndexes] %>% as.data.frame() %>%
    dplyr::rename(chrom.preceding=1, start.preceding=2, end.preceding=3, width.preceding=4, strand.preceding=5)
) %>%
  filter(as.character(chrom) == as.character(chrom.preceding)) %>%
  filter((strand=="+" & start - end.preceding   < MaxCassetteExonLen) | (strand=="-" & start.preceding - end < MaxCassetteExonLen)) %>%
  mutate(SpliceDonor = case_when(
    strand == "+" ~ paste(chrom, start, strand, sep="."),
    strand == "-" ~ paste(chrom, end, strand, sep=".")
  )) %>%
  mutate(UpstreamSpliceAcceptor = case_when(
    strand == "+" ~ paste(chrom, end.preceding, strand, sep="."),
    strand == "-" ~ paste(chrom, start.preceding, strand, sep=".")
  )) %>%
  dplyr::select(SpliceDonor, UpstreamSpliceAcceptor)

# Add the UpstreamSpliceAcceptor column to the splicing.gagt.df. NA indicates there is no upstream splice acceptor
merged.dat.df <- merged.dat.df %>%
  mutate(SpliceDonor = case_when(
    strand == "+" ~ paste(`#Chrom`, start, strand, sep="."),
    strand == "-" ~ paste(`#Chrom`, end, strand, sep=".")
    )) %>%
  left_join(UpstreamAcceptors.df, by="SpliceDonor") %>%
  mutate(IntronType = recode(anchor, A="Alt 5'ss", D="Alt 3'ss", DA="Annotated", N="New Intron", NDA="New Splice Site combination"))

So I added a new column called UpstreamSpliceAcceptor that has the coordinates of the nearest upstream 3’ss (within the leafcutter PSI table, which by nature excludes constitutive splice sites) within 300bp. I have found that this is a good way to filter for the GA|GT introns involved in cassette exon inclusion. If this column has NA, it is unlikely this intron is involved in exon inclusion.

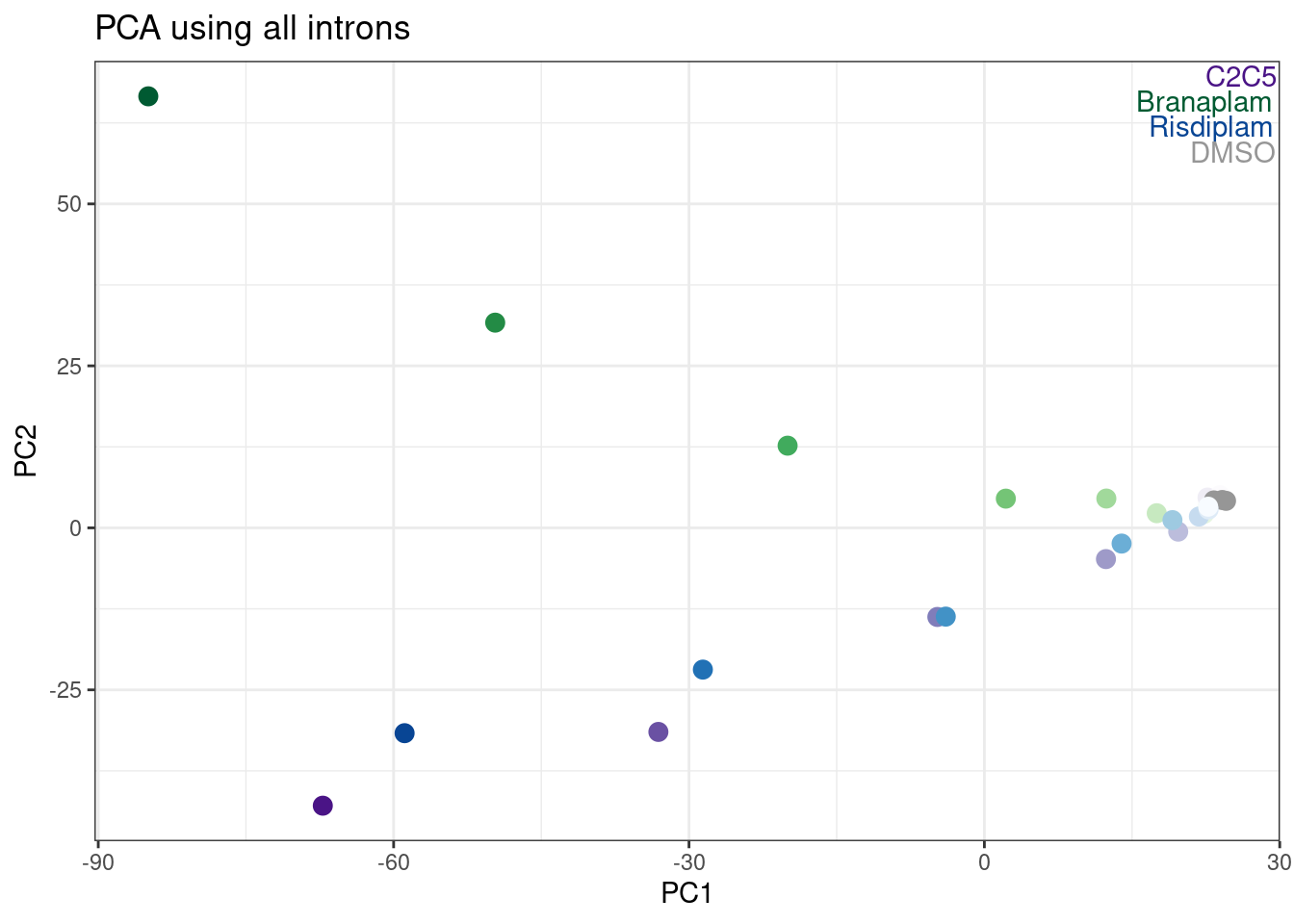

Before looking at the spearman correlation ceofficient, let’s reproduce that PCA with the first PC basically representing dose, and the second PC representing branaplam/risdiplam-specific effects:

merged.dat.df.pca <- merged.dat.df %>%
  dplyr::select(junc, contains("LCL")) %>%
  column_to_rownames("junc") %>% as.matrix() %>%
  scale() %>%
  t() %>% prcomp()

PC.dat <- merged.dat.df.pca$x %>%
  as.data.frame() %>%
  rownames_to_column("SampleName") %>%
  dplyr::select(SampleName, PC1, PC2, PC3) %>%
  left_join(sample.list, by="SampleName")

ggplot(PC.dat, aes(x=PC1, y=PC2, color=color)) +
  TreatmentColorsLabels.Layer +
  geom_point(size=3) +
  scale_color_identity() +
  theme_bw() +
  labs(title = "PCA using all introns")

Now read in the spearman coef for each intron that I previously calculated. As in my previous notebook, I included a randomly selected DMSO sample for each junction into the titration series (as dose=0) before calculating spearman coef.

spearman.dat <- read_tsv("../code/DoseResponseData/LCL/TidySplicingDoseData.txt.gz")

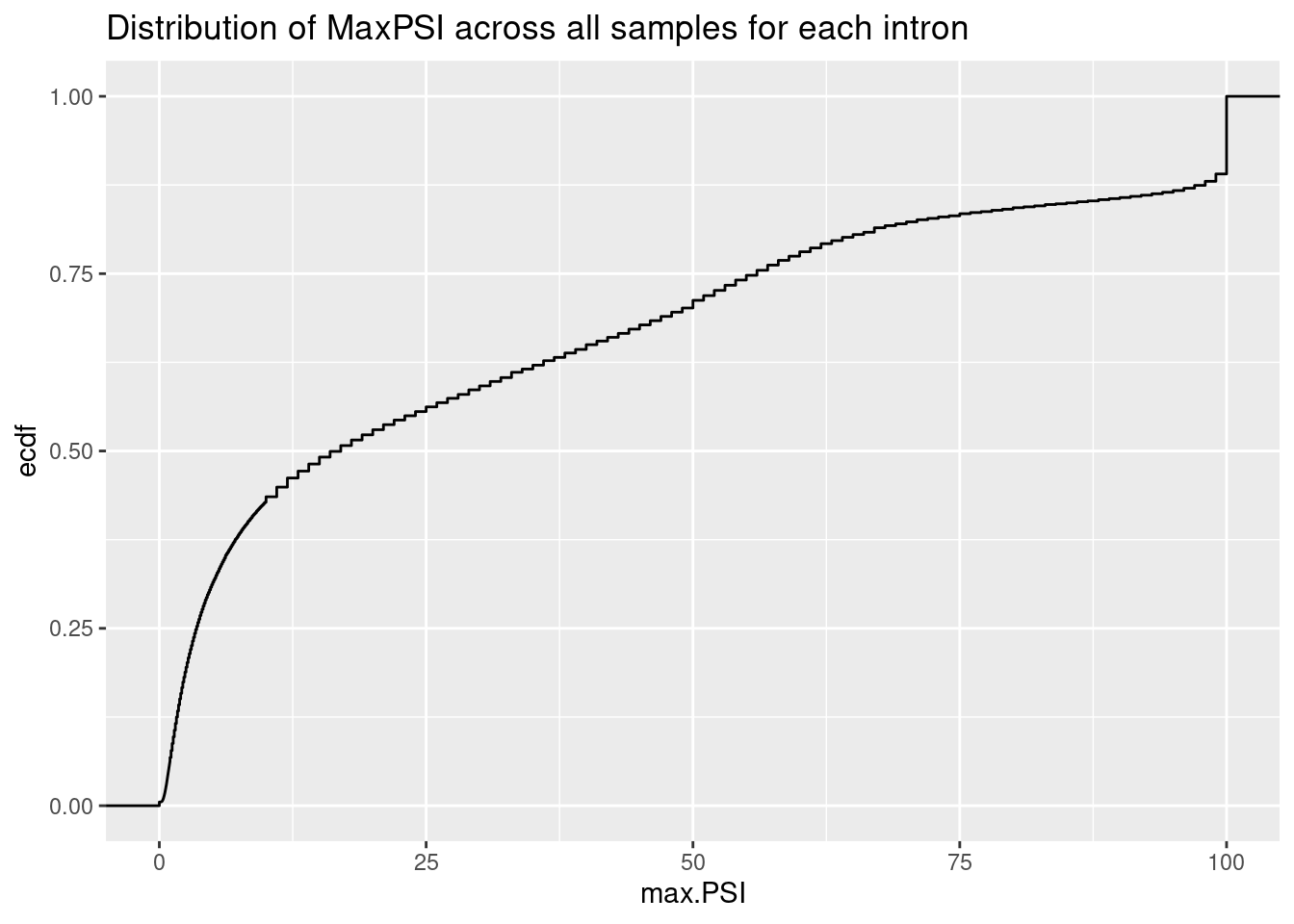

spearman.dat %>%
  group_by(junc) %>%
  summarise(max.PSI=max(PSI)) %>%
  ggplot(aes(x=max.PSI)) +
  stat_ecdf() +
  labs(title="Distribution of MaxPSI across all samples for each intron", y="ecdf")

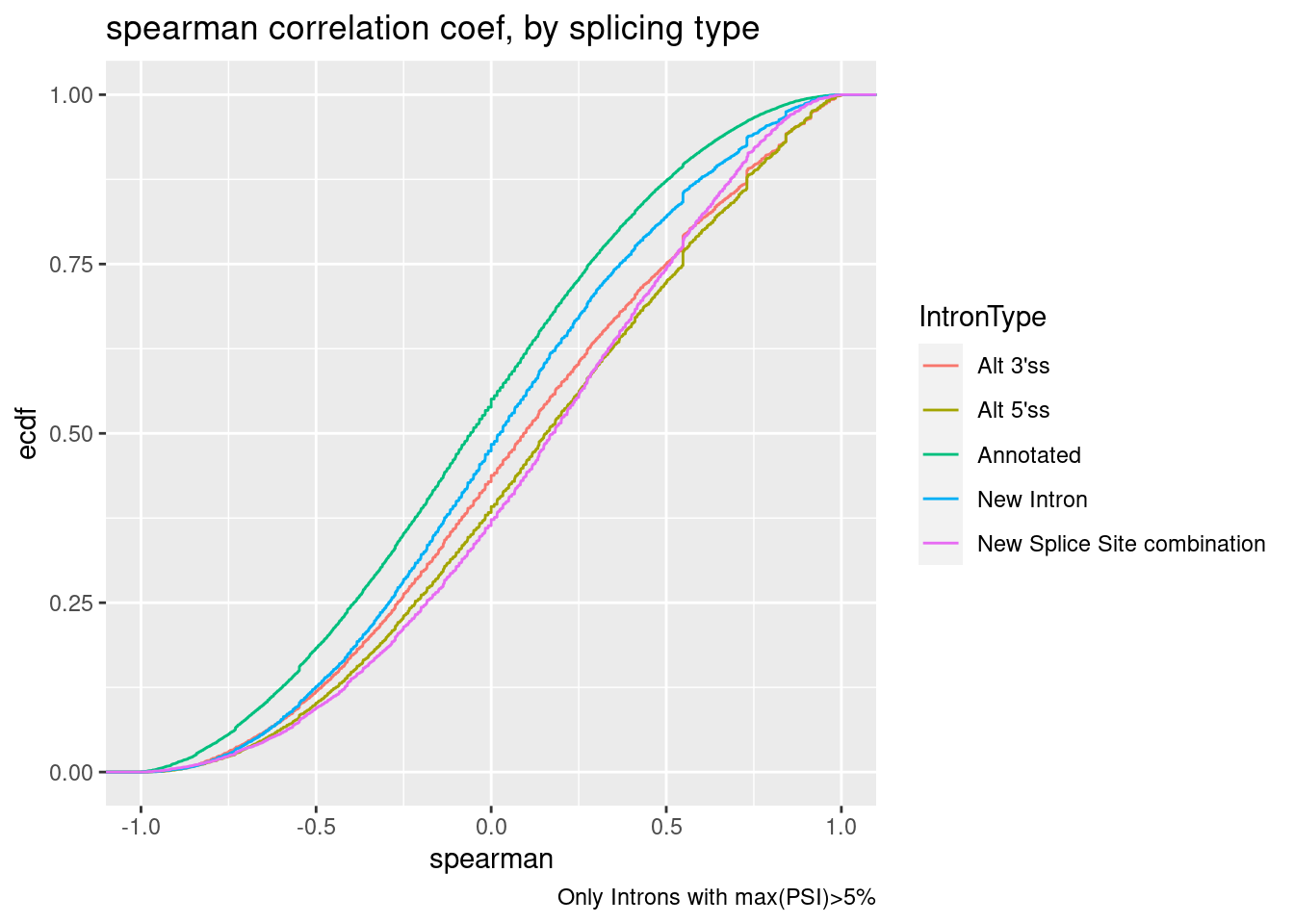

spearman.dat %>%
  group_by(junc) %>%
  filter(max(PSI) > 5) %>%
  distinct(junc, treatment, spearman, IntronType) %>%
  ggplot(aes(x=spearman, color=IntronType)) +
  stat_ecdf() +
  labs(title="spearman correlation coef, by splicing type", caption="Only Introns with max(PSI)>5%", y="ecdf")

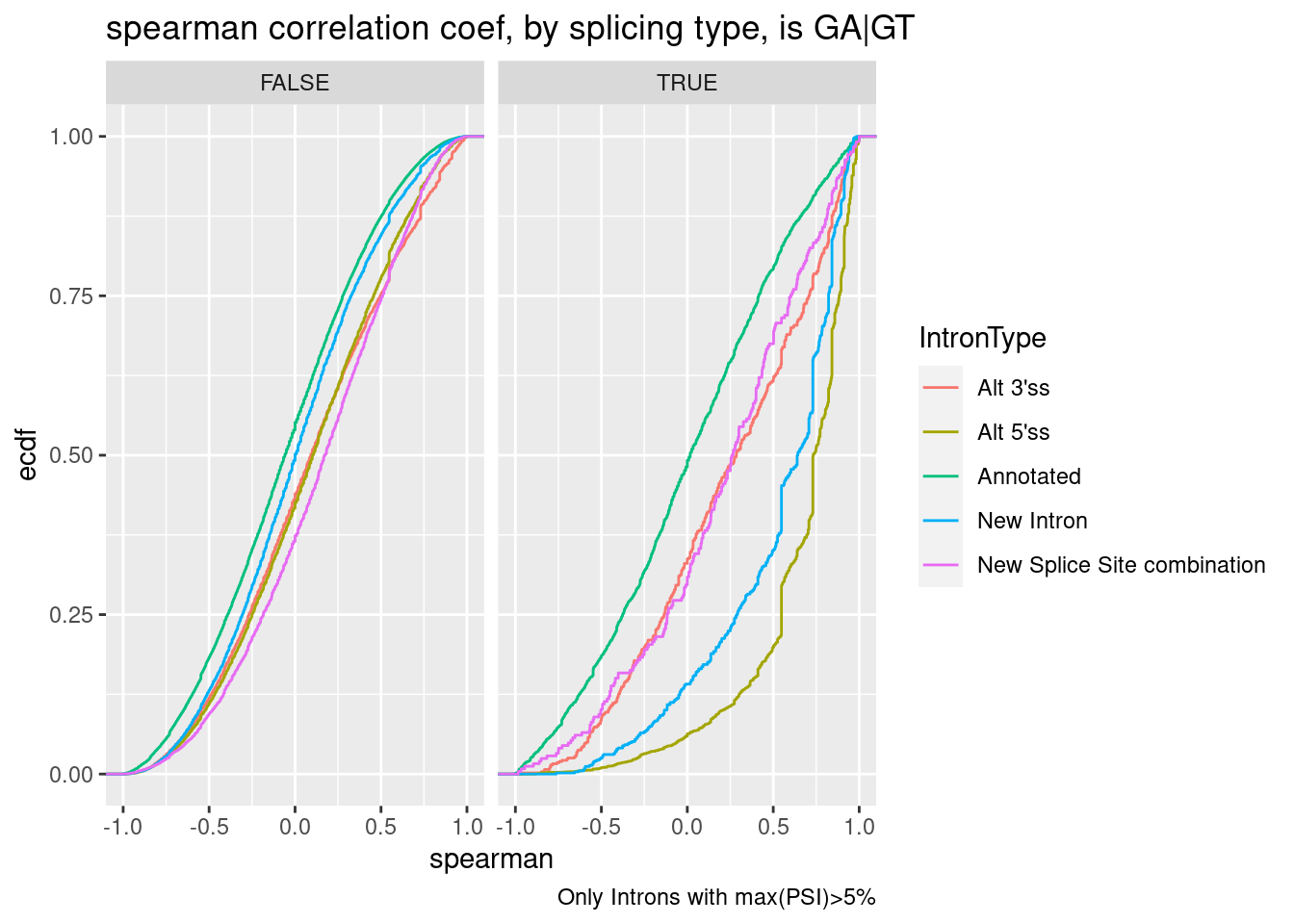

spearman.dat %>%
  group_by(junc) %>%
  filter(max(PSI) > 5) %>%
  ungroup() %>%
  distinct(junc, treatment, spearman, IntronType, .keep_all=T) %>%
  mutate(IsGAGT = str_detect(seq, "^\\w{2}GAGT")) %>%
  ggplot(aes(x=spearman, color=IntronType)) +
  stat_ecdf() +
  facet_wrap(~IsGAGT) +
  labs(title="spearman correlation coef, by splicing type, is GA|GT", caption="Only Introns with max(PSI)>5%", y="ecdf")

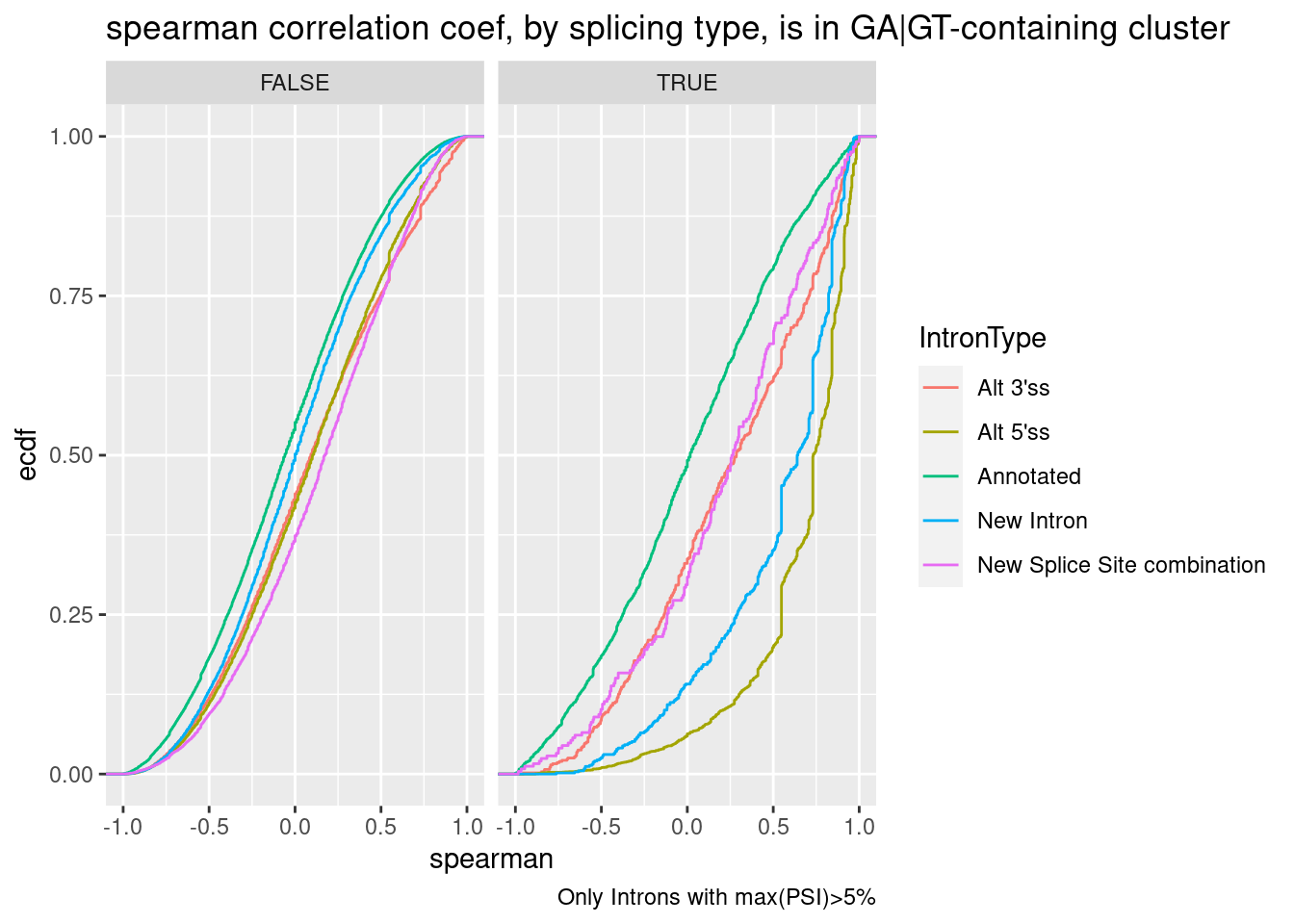

Ok, note that alt 3’ss also had positive median effect. Is this true even if we eliminate introns in a GA|GT cluster?

spearman.dat %>%
  group_by(junc) %>%
  filter(max(PSI) > 5) %>%
  ungroup() %>%
  distinct(junc, treatment, spearman, IntronType, .keep_all=T) %>%
  group_by(gid) %>%
  mutate(any(str_detect(seq, "^\\w{2}GAGT"))) %>%
  mutate(In.GAGT.cluster = str_detect(seq, "^\\w{2}GAGT")) %>%
  ggplot(aes(x=spearman, color=IntronType)) +
  stat_ecdf() +
  facet_wrap(~In.GAGT.cluster) +
  labs(title="spearman correlation coef, by splicing type, is in GA|GT-containing cluster", caption="Only Introns with max(PSI)>5%", y="ecdf")

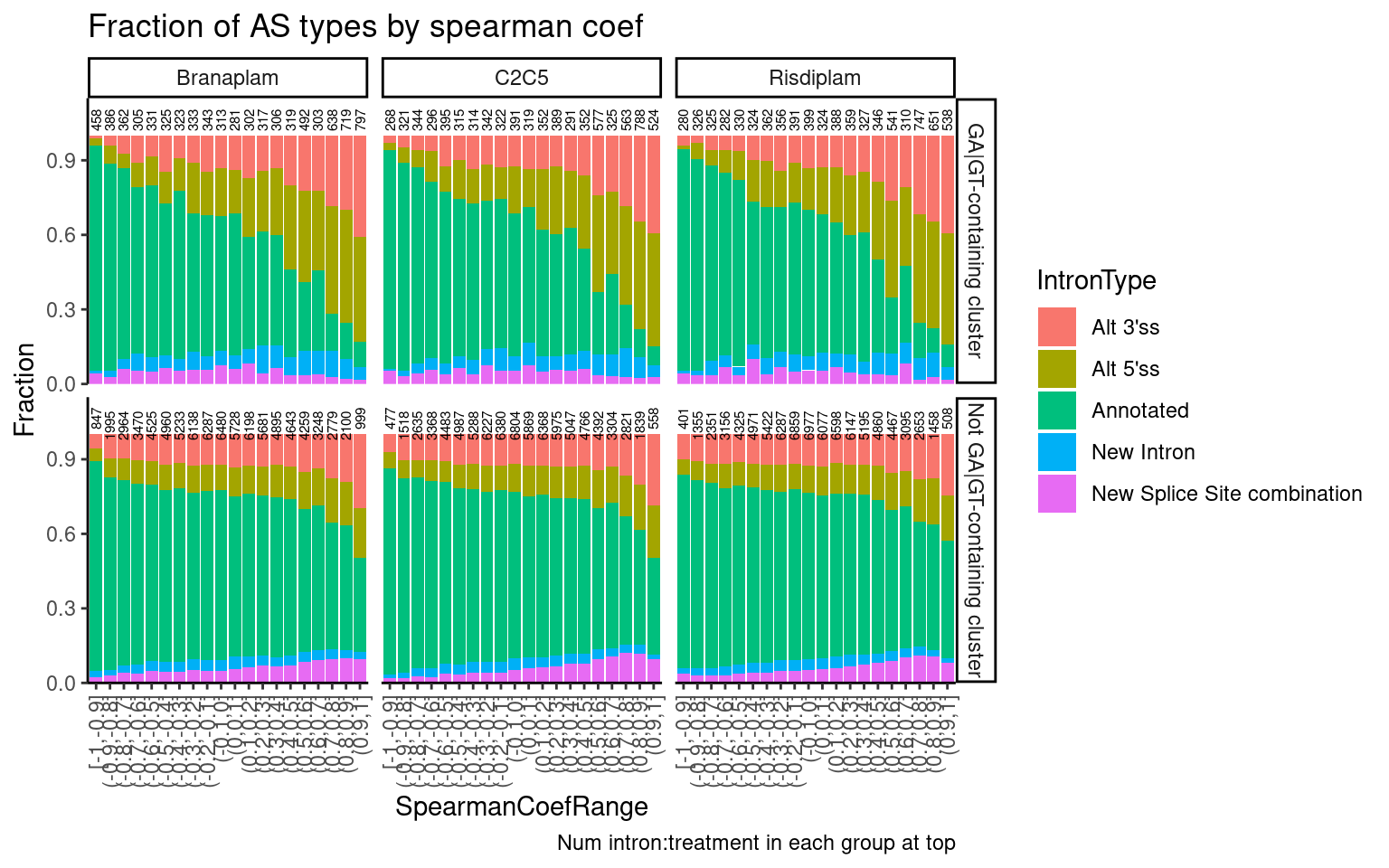

Let’s check some of the top introns by spearman correlation ceof, and ask how many of them are in GA-GT containing clusters:

spearman.dat %>%
  group_by(junc) %>%
  filter(max(PSI) > 5) %>%
  ungroup() %>%
  distinct(junc, treatment, spearman, IntronType, .keep_all=T) %>%
  group_by(gid) %>%
  mutate(In.GAGT.cluster = if_else(any(str_detect(seq, "^\\w{2}GAGT")), "GA|GT-containing cluster", "Not GA|GT-containing cluster")) %>%
  ungroup() %>%
  filter(!is.na(spearman)) %>%
  mutate(SpearmanCoefRange = cut(spearman, include.lowest=T, breaks=seq(-1, 1, 0.1))) %>%
  add_count(SpearmanCoefRange, treatment, In.GAGT.cluster) %>%
  ggplot(aes(x=SpearmanCoefRange, fill=IntronType)) +
  geom_bar(position="fill") +
  scale_y_continuous(expand=c(0,0), limits=c(0,1.15)) +
  geom_text(
    data = . %>%
      distinct(treatment, SpearmanCoefRange, In.GAGT.cluster, .keep_all=T),
    aes(x=SpearmanCoefRange, label=n, angle=90, hjust=1.5, vjust=0.5),
    y=Inf-0.1, size=2) +
  theme_classic() +
  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) +
  facet_grid(rows= vars(In.GAGT.cluster), cols=vars(treatment)) +
  labs(title="Fraction of AS types by spearman coef", y="Fraction", caption="Num intron:treatment in each group at top")

So there similar number or maybe more introns in non-GA|GT clusters than in GA|GT clusters with high spearman correlation coef, many of which are alt 5’ss or alt 3’ss.

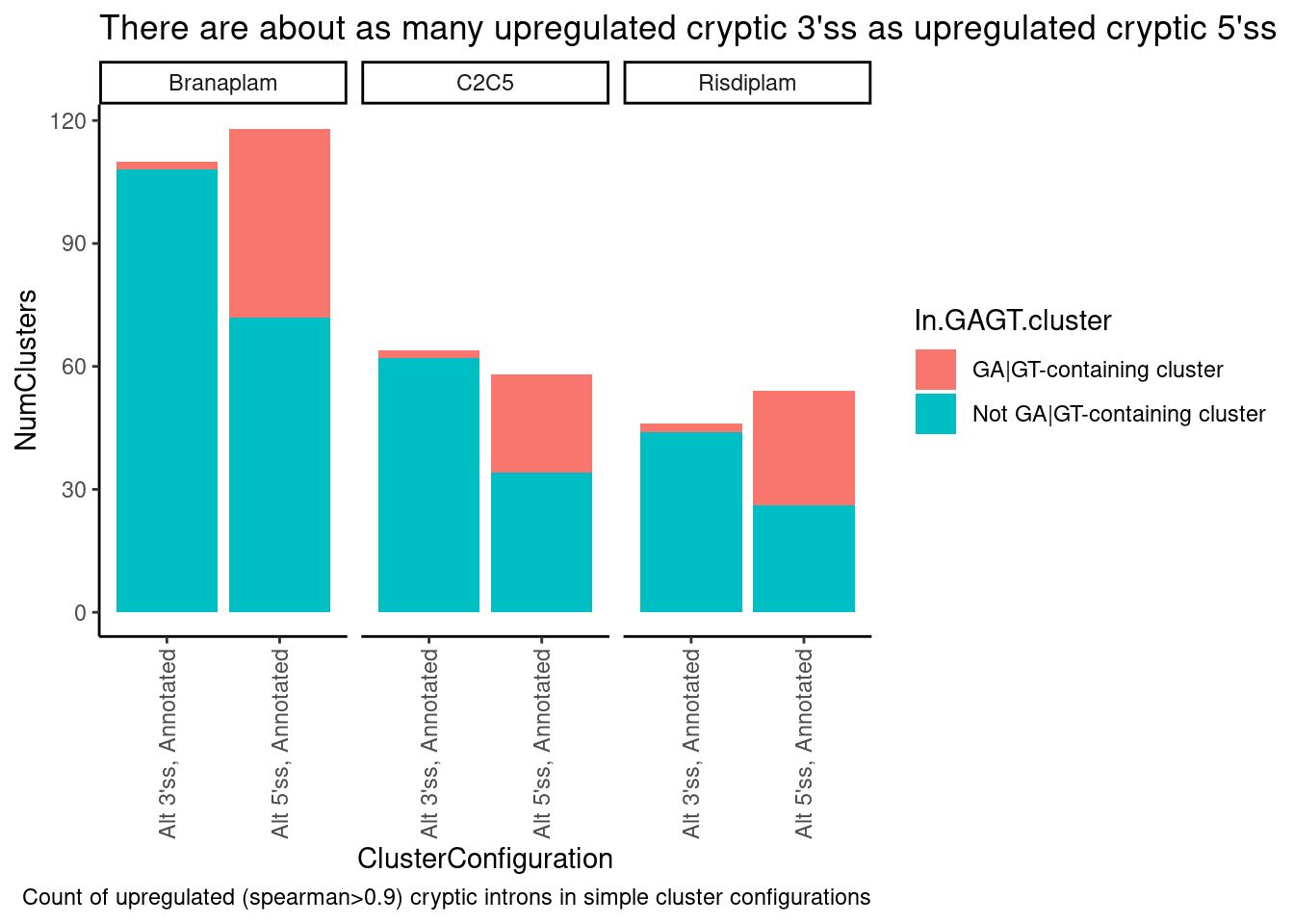

Now let’s look at all clusters with just two, and see if there are as many upregulated cryptic 3’ss as there is cryptic 5’ss events.

spearman.dat %>%
  distinct(junc, treatment, .keep_all=T) %>%
  add_count(treatment, gid) %>%
  filter(n==2) %>%
  group_by(gid, treatment) %>%
  filter(any((spearman > 0.9) & (IntronType %in% c("Alt 3'ss", "Alt 5'ss")))) %>%
  filter(all(IntronType %in% c("Alt 3'ss", "Annotated")) | all(IntronType %in% c("Alt 5'ss", "Annotated"))) %>%
  mutate(In.GAGT.cluster = if_else(any(str_detect(seq, "^\\w{2}GAGT")), "GA|GT-containing cluster", "Not GA|GT-containing cluster")) %>%
  arrange(IntronType) %>%
  mutate(ClusterConfiguration = paste(IntronType, collapse = ", ")) %>%
  ungroup() %>%
  count(treatment, ClusterConfiguration, In.GAGT.cluster, name="NumClusters") %>%
  filter(ClusterConfiguration %in% c("Alt 3'ss, Annotated", "Alt 5'ss, Annotated")) %>%
  ggplot(aes(y=NumClusters, x=ClusterConfiguration, fill=In.GAGT.cluster)) +
  geom_col(position="stack") +
  theme_classic() +
  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) +
  facet_wrap(~treatment) +
  labs(title="There are about as many upregulated cryptic 3'ss as upregulated cryptic 5'ss",
       caption="Count of upregulated (spearman>0.9) cryptic introns in simple cluster configurations")

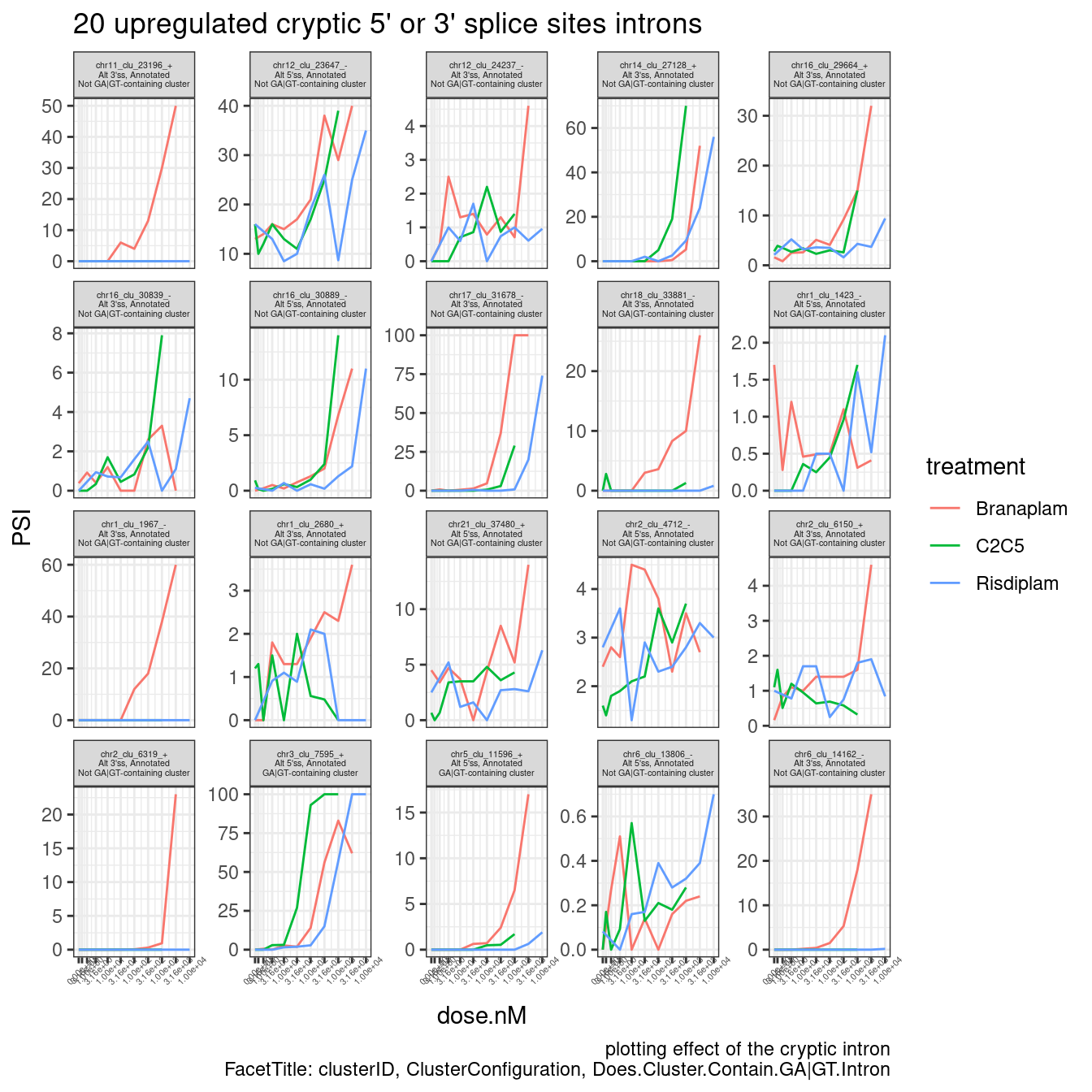

Ok, that is all consistent with what I saw in the fibroblast data: I see that (as expected) the simple leafcutter clusters with crpytic splicing (n=2 introns, with one annotated and one upregulated cryptic splice site intron) where the crpytic splice site intron is an alt 5’ss, there is a huge enrichment in GA|GT introns. What I find more interesting about this is that there are overall about a similar number of upregulated alt 3’ss as upregulated alt 5’ss in this set of simple/interpretable clusters. Let me plot the dose response data for some of these introns to make sure the dose-response data is solid.

SimpleClustersToPlot <- spearman.dat %>%
  distinct(junc, treatment, .keep_all=T) %>%
  add_count(treatment, gid) %>%
  filter(n==2) %>%
  group_by(gid, treatment) %>%
  filter(any((spearman > 0.9) & (IntronType %in% c("Alt 3'ss", "Alt 5'ss")))) %>%
  filter(all(IntronType %in% c("Alt 3'ss", "Annotated")) | all(IntronType %in% c("Alt 5'ss", "Annotated"))) %>%
  mutate(In.GAGT.cluster = if_else(any(str_detect(seq, "^\\w{2}GAGT")), "GA|GT-containing cluster", "Not GA|GT-containing cluster")) %>%
  arrange(IntronType) %>%
  mutate(ClusterConfiguration = paste(IntronType, collapse = ", ")) %>%
  ungroup() %>%
  distinct(gid, ClusterConfiguration, In.GAGT.cluster)

sample_n_of <- function(data, size, ...) {
  dots <- quos(...)

  group_ids <- data %>%
    group_by(!!! dots) %>%
    group_indices()

  sampled_groups <- sample(unique(group_ids), size)

  data %>%
    filter(group_ids %in% sampled_groups)
}

set.seed(0)
spearman.dat %>%
  inner_join(SimpleClustersToPlot, by="gid") %>%
  mutate(gid = paste(gid, ClusterConfiguration, In.GAGT.cluster, sep="\n")) %>%
  filter(!IntronType=="Annotated") %>%
  sample_n_of(20, gid) %>%
  ggplot(aes(color=treatment)) +
    geom_line(aes(x=dose.nM, y=PSI)) +
    scale_x_continuous(trans="log1p", limits=c(0, 10000), breaks=c(10000, 3160, 1000, 316, 100, 31.6, 10, 3.16, 1, 0.316, 0)) +
    facet_wrap(~gid, scales = "free_y") +
    theme_bw() +
    theme(axis.text.x = element_text(angle = 45, vjust = 1, size=4)) +
  labs(title="20 upregulated cryptic 5' or 3' splice sites introns", caption="plotting effect of the cryptic intron\nFacetTitle: clusterID, ClusterConfiguration, Does.Cluster.Contain.GA|GT.Intron") +
  theme(strip.text.x = element_text(size = 4))

Ok, so these cryptic 5’ss that aren’t in a GA-GT-containing cluster, and also these cryptic 3’ss that aren’t in a GA-GT-containing cluster, both look like really quality/believable dose-response relationship… So again, I am intriguied by the possibility of non GA-GT related mechanisms for splice modulation.
