knitr::opts_chunk$set(echo = TRUE, warning = F, message = F)

library(tidyverse)
── Attaching packages ─────────────────────────────────────── tidyverse 1.3.1 ──
✔ ggplot2 3.3.6     ✔ purrr   0.3.4
✔ tibble  3.1.7     ✔ dplyr   1.0.9
✔ tidyr   1.2.0     ✔ stringr 1.4.0
✔ readr   2.1.2     ✔ forcats 0.5.1
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()

Recheck list of risdi/brana-specific introns

I previously made a list of risdiplam/branaplam/C2C5-specific introns based on the dose response experiment. Because the different molecules have different genome-wide effective potencies (ie, 100nM C2C5 is different than 100nM risdiplam, despite them having generally similar specificity profiles), I tested for a difference in the EC50 of each intron for each traitment pair, relative to the genome-wide median. You can see that in a previous notebook I plotted the dose-response datapoints for a random sample of 20 of these significant molecule-specific effects, and they are generally believable effects from those.

GA.GT.Introns <- read_tsv("../output/EC50Estimtes.FromPSI.txt.gz")

ColorKey <- c("Branaplam-specific"="#005A32", "Risdiplam-specific"="#084594", "Non significant"="#969696")

P1.dat <- GA.GT.Introns %>%
  mutate(Color = case_when(
    EC.Ratio.Test.Estimate.FDR_Branaplam.Risdiplam > 0.05 ~ "Non significant",
    ECRatio.ComparedToGenomewideMedian_Branaplam.Risdiplam > 1 ~ "Risdiplam-specific",
    ECRatio.ComparedToGenomewideMedian_Branaplam.Risdiplam < 1 ~ "Branaplam-specific"
  ))

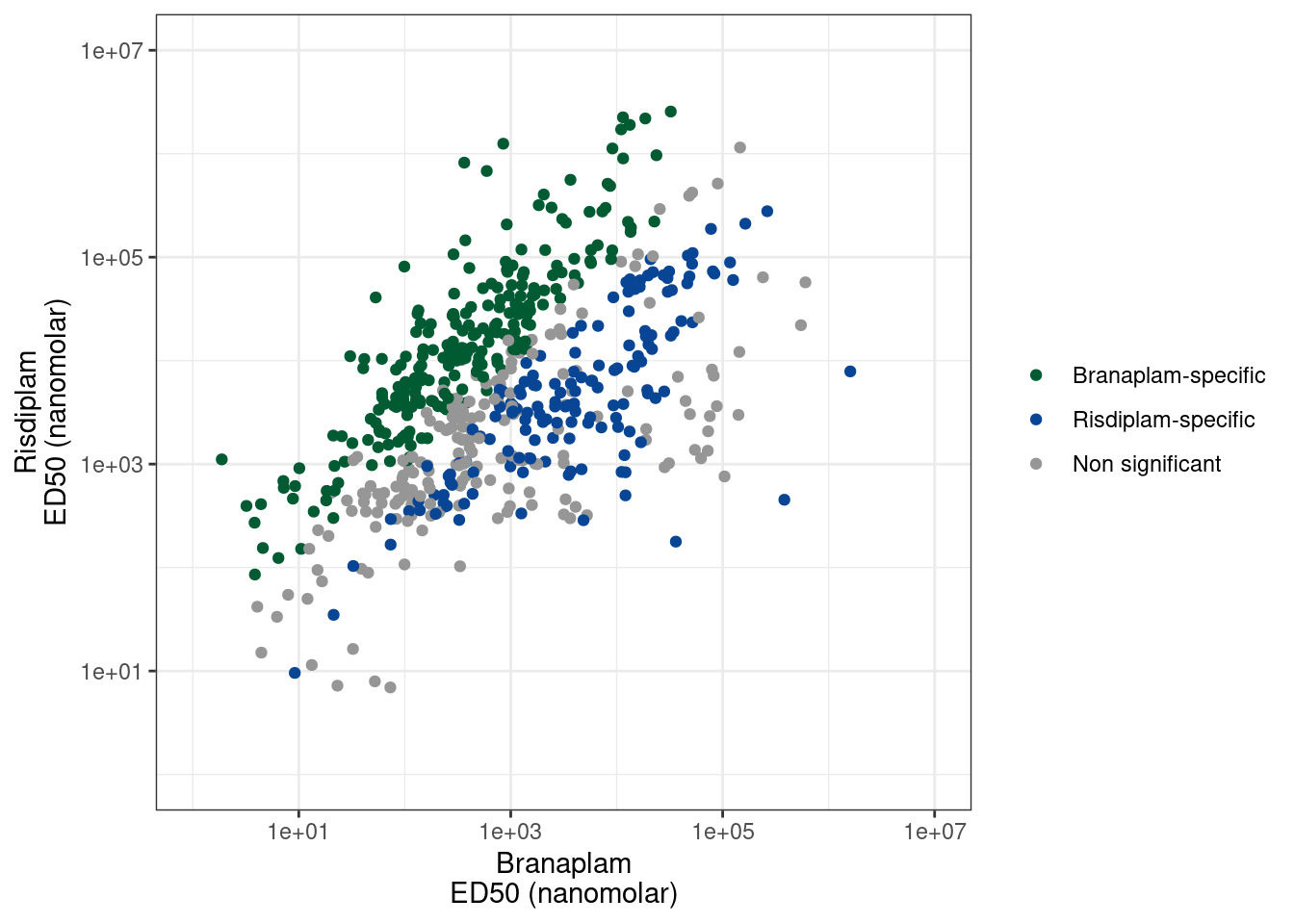

ggplot(P1.dat, aes(x=ED50_Branaplam, y=ED50_Risdiplam, color=Color)) +
  geom_point() +
  scale_x_continuous(trans='log10', limits = c(1, 1E7)) +
  scale_y_continuous(trans='log10', limits = c(1, 1E7)) +
  scale_color_manual(values=ColorKey) +
  labs(x= "Branaplam\nED50 (nanomolar)", y= "Risdiplam\nED50 (nanomolar)", color=NULL) +
  theme(legend.position='bottom') +
  theme_bw()

Version Author Date
ea36e65 Benjmain Fair 2023-03-07
P1.dat %>%
  count(Color)
# A tibble: 4 × 2
  Color                  n
  <chr>              <int>
1 Branaplam-specific   240
2 Non significant      200
3 Risdiplam-specific   161
4 <NA>                2878

Ok, so each point is a branaplam-specific or risdiplam-specific GA-GT intron. There are 200 non-significant points, 161 risdiplam-specific points, and 240 branaplam-specific points. I think it will be useful for Jingxin to be able to easily visualize these before validating them… Some introns that change PSI from 1% to 3% might be very significant, but not the best for validation. Furthermore, not all of these events might be involved in poison exon inclusion. Some of them might just be alt 5’ss or something. And these details might inform which are the best candidates for validation by flanking PCR primers. Also, when looking at the data, some of the ‘risdiplam-specific’ introns I called are just not believable effects. Like the dose-response data points might just be too noisy. I did a reasonable job of filtering these out, and trying to make the FDR estimate reasonably calibrated… Or like there are some examples where it appears ‘risdiplam-specific’ but it is because the cryptic event is only just barely visible at the highest dose of risdiplam, and not visible in any of the branaplam doses (so it just requires a really really high dose to see the effect). So for all these reasons, it will be best to check the raw coverage data first… So I’ll write the out this list as a bedfile for easy viewing in IGV, a save a session that has the bedfile loaded, along with bigwigs for the dose response experiment so hopefully it will be easy to view.

P1.dat %>%
  dplyr::select(chrom=`#Chrom`, start, end, junc, score=ECRatio.ComparedToGenomewideMedian_Branaplam.Risdiplam, strand=strand.y, Color) %>%
  filter(!is.na(score)) %>%
  mutate(thickStart = start, thickEnd=end, Color=recode(Color, !!!ColorKey)) %>%
  mutate(RgbCol = apply(col2rgb(Color), 2, paste, collapse=',')) %>%
  dplyr::select(chrom:strand, thickStart, thickEnd, RgbCol) %>%
  arrange(chrom, start, end) %>%
  write_tsv("../code/Branaplam_Risdiplam_specific_introns.bed", col_names = F)
bgzip ../code/Branaplam_Risdiplam_specific_introns.bed
tabix -p bed ../code/Branaplam_Risdiplam_specific_introns.bed.gz

So to view, you will need to use the globus link I shared with Jingxin to download the code directory, or at minimum download the code/bigwigs folder of bigwig files, the code/tracks.xml IGV session, and the code/Branaplam_Risdiplam_specific_introns.bed.gz and code/Branaplam_Risdiplam_specific_introns.bed.gz.tbi. Then, from IGV, go to File >> OpenSession and open the tracks.xml. The tracks.xml uses relative filepaths so you need to preserve the relative filepaths of the thing you downloaded (that is, they need to all be in the same folder, such as a folder named code).

Now you should be able to select the Branaplam_Risdiplam_specific_introns.bed track, and Ctl-F or Ctl-B to jump to the next GA-GT introns, colored according to significance. Browse around to find coordinates of potential splice events for validation. Note that each bigwig is already normalized signal relative to library depth. With autoscaling for the y-axis turned on (the default), it may be visually obvious to see the poison exons, but it might not be totally obvious to see if there are effects on gene expression. To better visualize effects on host gene expression, I recommend just selecting all bigwig tracks and right-click to “group autoscale”. Since coverage of each track is already normalized by library size, it should be easy to visually interpret if there is a change in gene expression.

Here are screenshots of a few examples…

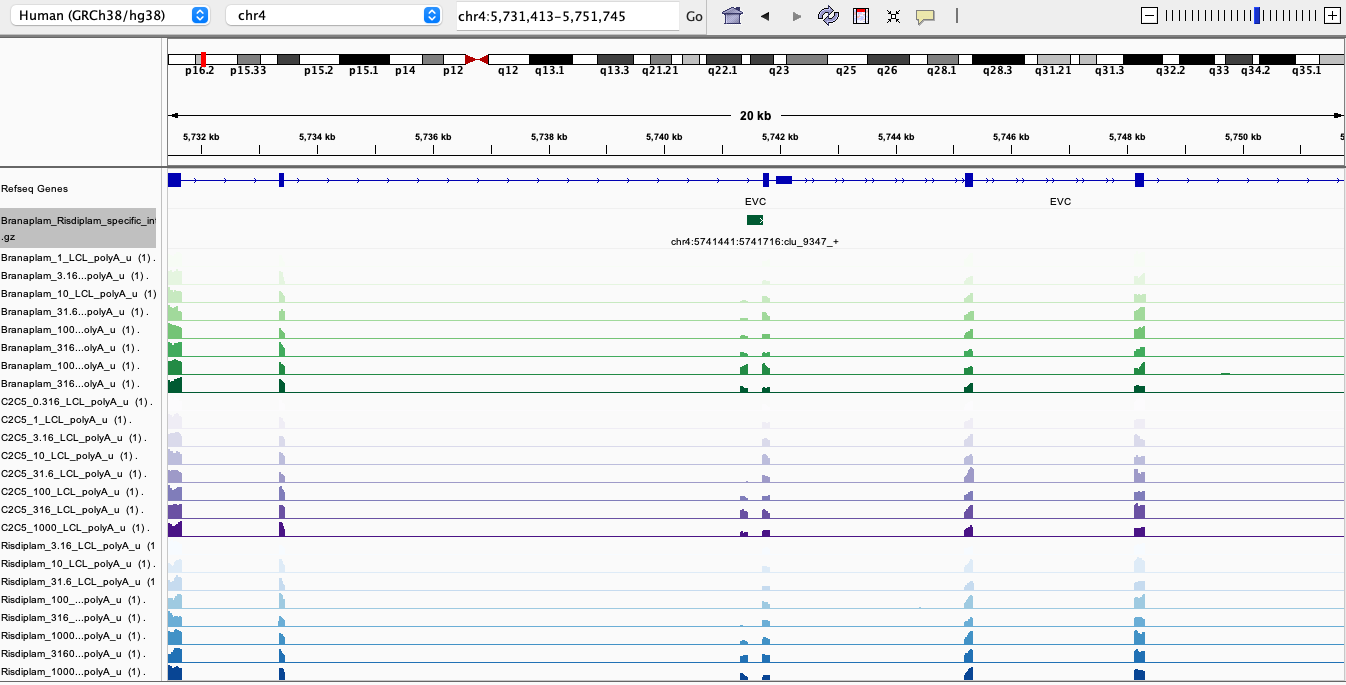

BranaSpecific1

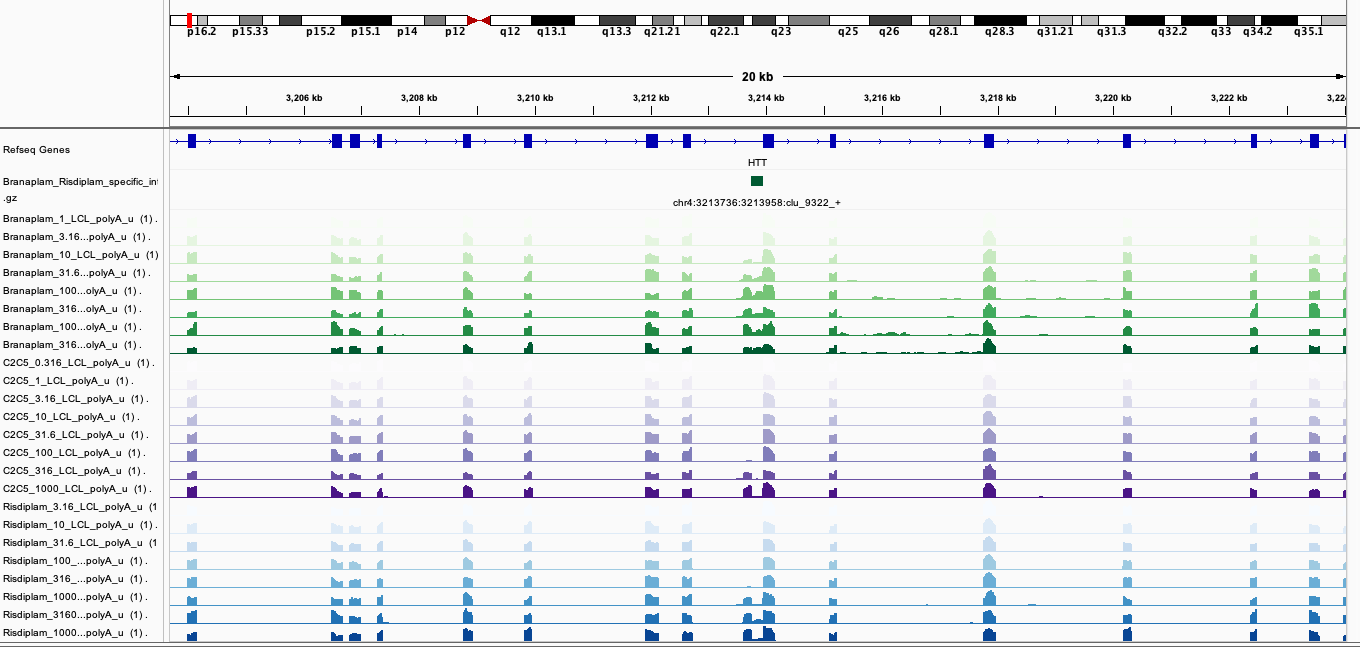

BranaSpecific2

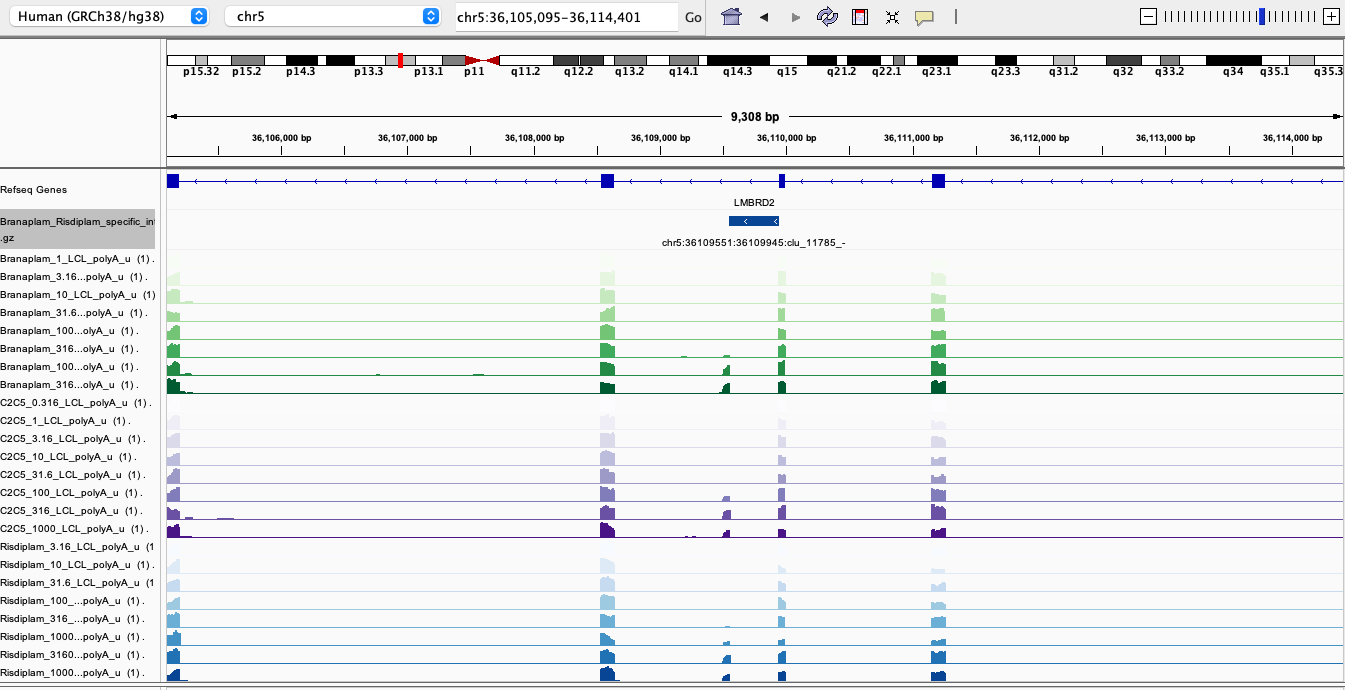

RisdiSpecific1

In general, I’m noticing there a quite a few believable branaplam-specific examples but the risdlam-specific are for the most part very small specificity effect sizes. That is, there are very few obviously risdiplam-specific events, compared to branaplam-specific events.

Let’s list the top risdi-specific introns in the following table:

P1.dat %>%
  arrange(desc(ECRatio.ComparedToGenomewideMedian_Branaplam.Risdiplam)) %>%
  head() %>%
  knitr::kable()
junc #Chrom start end gid strand.y seq Donor.score gene_names gene_ids SpliceDonor UpstreamSpliceAcceptor IntronType Steepness LowerLimit UpperLimit ED50_Branaplam ED50_C2C5 ED50_Risdiplam spearman.coef.Branaplam spearman.coef.C2C5 spearman.coef.Risdiplam EC.Ratio.Test.Estimate_Branaplam.C2C5 EC.Ratio.Test.Estimate_Branaplam.Risdiplam EC.Ratio.Test.Estimate_C2C5.Risdiplam ECRatio.ComparedToGenomewideMedian_Branaplam.C2C5 ECRatio.ComparedToGenomewideMedian_Branaplam.Risdiplam ECRatio.ComparedToGenomewideMedian_C2C5.Risdiplam EC.Ratio.Test.Estimate.P_Branaplam.C2C5 EC.Ratio.Test.Estimate.P_Branaplam.Risdiplam EC.Ratio.Test.Estimate.P_C2C5.Risdiplam EC.Ratio.Test.Estimate.FDR_Branaplam.C2C5 EC.Ratio.Test.Estimate.FDR_Branaplam.Risdiplam EC.Ratio.Test.Estimate.FDR_C2C5.Risdiplam Color
chr2:72179461:72182894:clu_4568_- chr2 72179461 72182894 chr2_clu_4568_- - GAGAGTAAGTA 6.005894 EXOC6B ENSG00000144036.16 chr2.72182894.- chr2.72182903.- Annotated -2.7570544 3.1361062 31.384932 2.495499e+09 248.12468 785.0629479 0.2277339 0.5594024 0.9139077 1.005744e+07 3178724.1044 0.3160571 7.482724e+06 25547101.480 3.0610287 0.0000000 0.0000000 0.0000000 0.0000000 0.0000000 0.0000000 Risdiplam-specific
chr13:20404741:20405904:clu_25569_- chr13 20404741 20405904 chr13_clu_25569_- - GAGAGTAAGTC 5.446634 CRYL1 ENSG00000165475.15 chr13.20405904.- chr13.20405997.- Alt 5’ss -2.8191629 3.3431713 48.302244 1.641993e+09 1400.00395 4071.6117233 0.1740777 0.6024948 0.9128709 1.172849e+06 403278.4047 0.3438452 8.725985e+05 3241109.952 3.3301579 0.0000000 0.0000000 0.0000000 0.0000000 0.0000000 0.0000000 Risdiplam-specific
chr9:108931201:108933271:clu_18237_- chr9 108931201 108933271 chr9_clu_18237_- - AAGAGTAAGCA 4.905988 ELP1 ENSG00000070061.15 chr9.108933271.- chr9.108933405.- Alt 5’ss -9.6753286 0.5638888 7.339398 2.540583e+07 33.32162 895.8671341 0.1926687 0.9052038 0.7822166 7.624427e+05 28358.9229 0.0371948 5.672567e+05 227917.950 0.3602338 0.0000021 0.0000000 0.0000000 0.0000023 0.0000000 0.0000000 Risdiplam-specific
chr18:10773629:10774006:clu_33760_- chr18 10773629 10774006 chr18_clu_33760_- - ATGAGTAAGTC 4.559120 PIEZO2 ENSG00000154864.12 chr18.10774006.- chr18.10774036.- Annotated -2.2089456 0.0687500 51.453519 1.001587e+07 143.33677 1424.8728605 0.2738613 0.9128709 0.8416254 6.987650e+04 7029.3086 0.1005962 5.198805e+04 56493.880 0.9742791 0.0000000 0.0000000 0.4229854 0.0000000 0.0000000 0.6497405 Risdiplam-specific
chr19:10330526:10332870:clu_34319_- chr19 10330526 10332870 chr19_clu_34319_- - GAGAGTACGCC 2.214523 RAVER1 ENSG00000161847.14 chr19.10332870.- chr19.10332909.- Alt 5’ss -0.0000251 0.1685537 3.589164 1.413434e+03 22.81686 0.7759248 0.9831921 -0.2712254 -0.5135291 6.194690e+01 1821.6118 29.4060210 4.608844e+01 14640.120 284.7988165 0.9969948 0.9965823 0.9983501 0.4873920 0.4546814 1.0000000 Non significant
chr4:41014398:41032584:clu_10225_- chr4 41014398 41032584 chr4_clu_10225_- - AGGAGTAGGTG 5.043083 APBB2 ENSG00000163697.17 chr4.41032584.- chr4.41032626.- Alt 5’ss -3.0030040 0.0355949 1.682290 3.820296e+05 22.66113 452.1565311 0.3195048 0.8580987 0.9082951 1.685837e+04 844.9056 0.0501179 1.254261e+04 6790.426 0.4853942 0.0010952 0.0000000 0.0006567 0.0009786 0.0000000 0.0025582 Risdiplam-specific

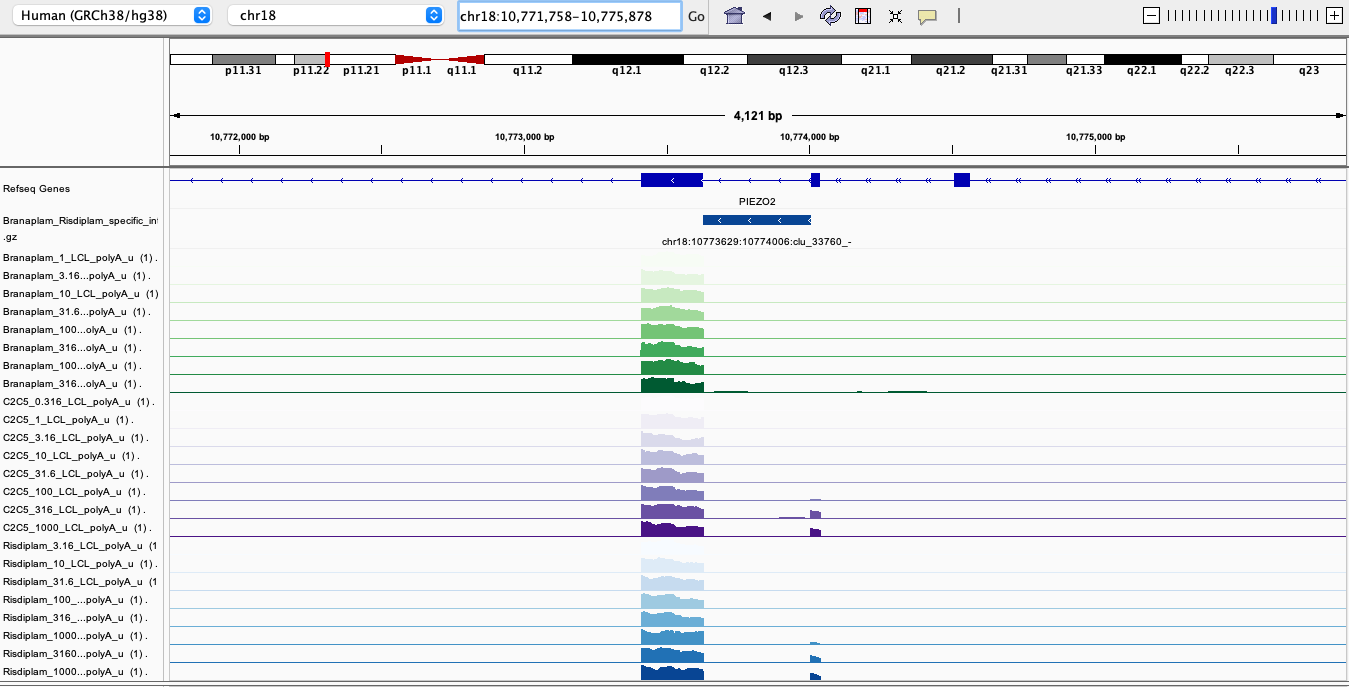

After looking at some of the top risdiplam-specific hits from the list above, here is perhaps the most clear example:

RisdiSpecific2
