Introduction
This notebook uses the {fpc} package’s
cluster.stats() function to comprehensively assess cluster
quality and heterogeneity in scRNA-seq data. This function calculates
dozens of clustering validation metrics in a single call.
Dependencies
install.packages("fpc")Seurat workflow
Import raw pbmc3k dataset from my server.
seurat_obj <- readRDS(url("https://davetang.org/file/pbmc3k_seurat.rds", "rb"))
seurat_objAn object of class Seurat
32738 features across 2700 samples within 1 assay
Active assay: RNA (32738 features, 0 variable features)
1 layer present: countsFilter.
seurat_obj <- CreateSeuratObject(
counts = seurat_obj@assays$RNA$counts,
min.cells = 3,
min.features = 200,
project = "pbmc3k"
)
seurat_objAn object of class Seurat
13714 features across 2700 samples within 1 assay
Active assay: RNA (13714 features, 0 variable features)
1 layer present: countsProcess with the Seurat 4 workflow.
seurat_wf_v4 <- function(seurat_obj, scale_factor = 1e4, num_features = 2000, num_pcs = 30, cluster_res = 0.5, debug_flag = FALSE){
seurat_obj <- NormalizeData(seurat_obj, normalization.method = "LogNormalize", scale.factor = scale_factor, verbose = debug_flag)
seurat_obj <- FindVariableFeatures(seurat_obj, selection.method = 'vst', nfeatures = num_features, verbose = debug_flag)
seurat_obj <- ScaleData(seurat_obj, verbose = debug_flag)
seurat_obj <- RunPCA(seurat_obj, verbose = debug_flag)
seurat_obj <- RunUMAP(seurat_obj, dims = 1:num_pcs, verbose = debug_flag)
seurat_obj <- FindNeighbors(seurat_obj, dims = 1:num_pcs, verbose = debug_flag)
seurat_obj <- FindClusters(seurat_obj, resolution = cluster_res, verbose = debug_flag)
seurat_obj
}
seurat_obj <- seurat_wf_v4(seurat_obj)Warning: The default method for RunUMAP has changed from calling Python UMAP via reticulate to the R-native UWOT using the cosine metric
To use Python UMAP via reticulate, set umap.method to 'umap-learn' and metric to 'correlation'
This message will be shown once per sessionCluster statistics
Cluster results are in seurat_clusters.

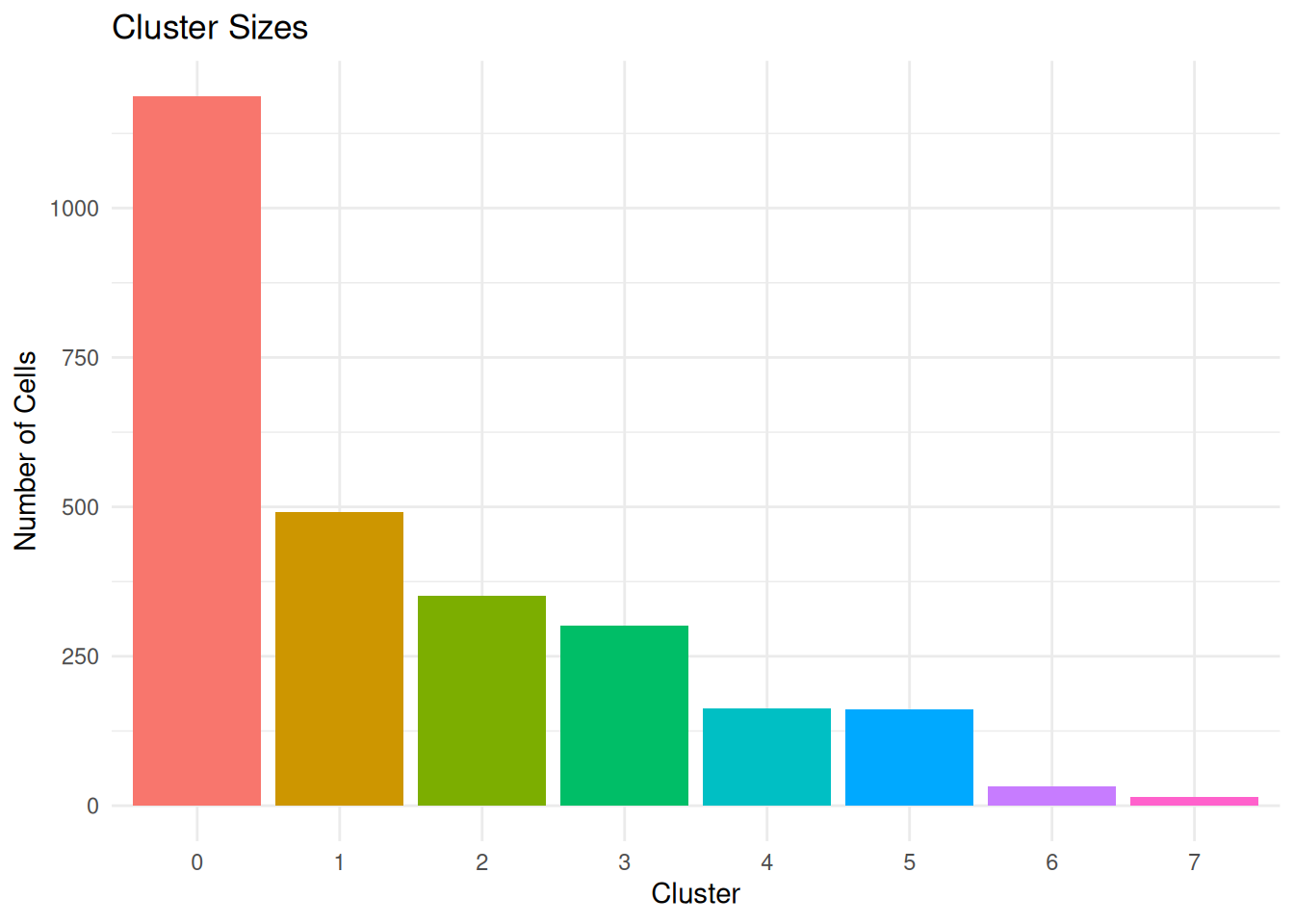

table(seurat_obj$seurat_clusters)
0 1 2 3 4 5 6 7
1187 491 351 301 163 161 32 14 Calculate cluster statistics.
pca_embeddings <- Seurat::Embeddings(seurat_obj, reduction = "pca")[, 1:30]
clusters <- as.numeric(seurat_obj$seurat_clusters)
# Calculate distance matrix
dist_matrix <- stats::dist(pca_embeddings)
# Calculate comprehensive cluster statistics
stats <- fpc::cluster.stats(d = dist_matrix, clustering = clusters)
names(stats) [1] "n" "cluster.number" "cluster.size"
[4] "min.cluster.size" "noisen" "diameter"
[7] "average.distance" "median.distance" "separation"
[10] "average.toother" "separation.matrix" "ave.between.matrix"
[13] "average.between" "average.within" "n.between"
[16] "n.within" "max.diameter" "min.separation"
[19] "within.cluster.ss" "clus.avg.silwidths" "avg.silwidth"
[22] "g2" "g3" "pearsongamma"
[25] "dunn" "dunn2" "entropy"
[28] "wb.ratio" "ch" "cwidegap"
[31] "widestgap" "sindex" "corrected.rand"
[34] "vi" Global Clustering Quality Metrics
These metrics evaluate the overall quality of the clustering solution.
global_metrics <- data.frame(
Metric = c("Number of Clusters",
"Cluster Sizes (min, mean, max)",
"Dunn Index",
"Dunn2 Index",
"Average Silhouette Width",
"Average Distance Within Clusters",
"Average Distance Between Clusters",
"Within/Between Ratio",
"Calinski-Harabasz Index",
"Pearson Gamma"),
Value = c(
stats$cluster.number,
paste(min(stats$cluster.size), round(mean(stats$cluster.size), 1),
max(stats$cluster.size), sep = " / "),
round(stats$dunn, 4),
round(stats$dunn2, 4),
round(stats$avg.silwidth, 4),
round(stats$average.within, 2),
round(stats$average.between, 2),
round(stats$wb.ratio, 4),
round(stats$ch, 2),
round(stats$pearsongamma, 4)
),
Interpretation = c(
"Total number of clusters identified",
"Range and average cluster sizes",
"Higher is better (>1 is good, >2 is excellent)",
"Alternative Dunn index, similar interpretation",
"Higher is better (-1 to 1, >0.5 is good)",
"Lower is better (compact clusters)",
"Higher is better (well-separated clusters)",
"Lower is better (ratio of within to between distance)",
"Higher is better (well-separated, compact clusters)",
"Correlation between distances and clustering (higher is better)"
)
)
knitr::kable(global_metrics)| Metric | Value | Interpretation |
|---|---|---|
| Number of Clusters | 8 | Total number of clusters identified |
| Cluster Sizes (min, mean, max) | 14 / 337.5 / 1187 | Range and average cluster sizes |
| Dunn Index | 0.0828 | Higher is better (>1 is good, >2 is excellent) |
| Dunn2 Index | 0.4506 | Alternative Dunn index, similar interpretation |
| Average Silhouette Width | 0.1966 | Higher is better (-1 to 1, >0.5 is good) |
| Average Distance Within Clusters | 12.74 | Lower is better (compact clusters) |
| Average Distance Between Clusters | 20.32 | Higher is better (well-separated clusters) |
| Within/Between Ratio | 0.6269 | Lower is better (ratio of within to between distance) |
| Calinski-Harabasz Index | 402.79 | Higher is better (well-separated, compact clusters) |
| Pearson Gamma | 0.5376 | Correlation between distances and clustering (higher is better) |
Key Global Metrics Explained:
Dunn Index (dunn,
dunn2)
What it measures: Ratio of minimum inter-cluster distance to maximum intra-cluster diameter.
Formula: Dunn = (min distance between clusters) / (max distance within clusters)
Interpretation:
- Higher values = better clustering
- Values > 1: clusters are well-separated
- Values > 2: excellent separation
dunn2is a more robust alternative calculation
cat(paste("Dunn Index:", round(stats$dunn, 4), "\n"))Dunn Index: 0.0828 cat(paste("Dunn2 Index:", round(stats$dunn2, 4), "\n"))Dunn2 Index: 0.4506 if (stats$dunn > 2) {
cat("Excellent cluster separation\n")
} else if (stats$dunn > 1) {
cat("Good cluster separation\n")
} else {
cat("Clusters may be overlapping or poorly defined\n")
}Clusters may be overlapping or poorly definedAverage Silhouette Width
(avg.silwidth)
What it measures: How similar each point is to its own cluster compared to other clusters.
Interpretation:
- 1.0: Perfect clustering
- 0.7-1.0: Strong structure
- 0.5-0.7: Reasonable structure
- 0.25-0.5: Weak structure
- < 0.25: No substantial structure
cat(paste("Average Silhouette Width:", round(stats$avg.silwidth, 4), "\n"))Average Silhouette Width: 0.1966 if (stats$avg.silwidth > 0.7) {
cat("Strong cluster structure\n")
} else if (stats$avg.silwidth > 0.5) {
cat("Reasonable cluster structure\n")
} else if (stats$avg.silwidth > 0.25) {
cat("Weak cluster structure\n")
} else {
cat("Very weak or no substantial structure\n")
}Very weak or no substantial structureCalinski-Harabasz Index (ch)
What it measures: Ratio of between-cluster variance to within-cluster variance.
Interpretation:
- Higher values = better clustering
- No absolute threshold, use for comparing different clustering solutions
- Combines compactness and separation
cat(paste("Calinski-Harabasz Index:", round(stats$ch, 2), "\n"))Calinski-Harabasz Index: 402.79 cat("Higher values indicate better-defined clusters\n")Higher values indicate better-defined clusterscat("Use this to compare different clustering resolutions\n")Use this to compare different clustering resolutionsWithin/Between Cluster Distance Ratio
(wb.ratio)
What it measures: Ratio of average within-cluster distance to average between-cluster distance.
Interpretation:
- Lower values = better clustering
- < 0.5: Very good separation
- 0.5-1.0: Moderate separation
1.0: Poor separation (clusters overlap)
cat(paste("Within/Between Ratio:", round(stats$wb.ratio, 4), "\n"))Within/Between Ratio: 0.6269 cat(paste("Average distance within clusters:", round(stats$average.within, 2), "\n"))Average distance within clusters: 12.74 cat(paste("Average distance between clusters:", round(stats$average.between, 2), "\n"))Average distance between clusters: 20.32 if (stats$wb.ratio < 0.5) {
cat("Very good cluster separation\n")
} else if (stats$wb.ratio < 1.0) {
cat("Moderate cluster separation\n")
} else {
cat("Poor cluster separation - clusters may overlap\n")
}Moderate cluster separationPer-Cluster Metrics
These metrics evaluate each cluster individually.
# Get cluster labels back to original format
cluster_labels <- levels(seurat_obj$seurat_clusters)
# Create per-cluster summary
per_cluster_summary <- data.frame(
cluster = cluster_labels,
n_cells = stats$cluster.size,

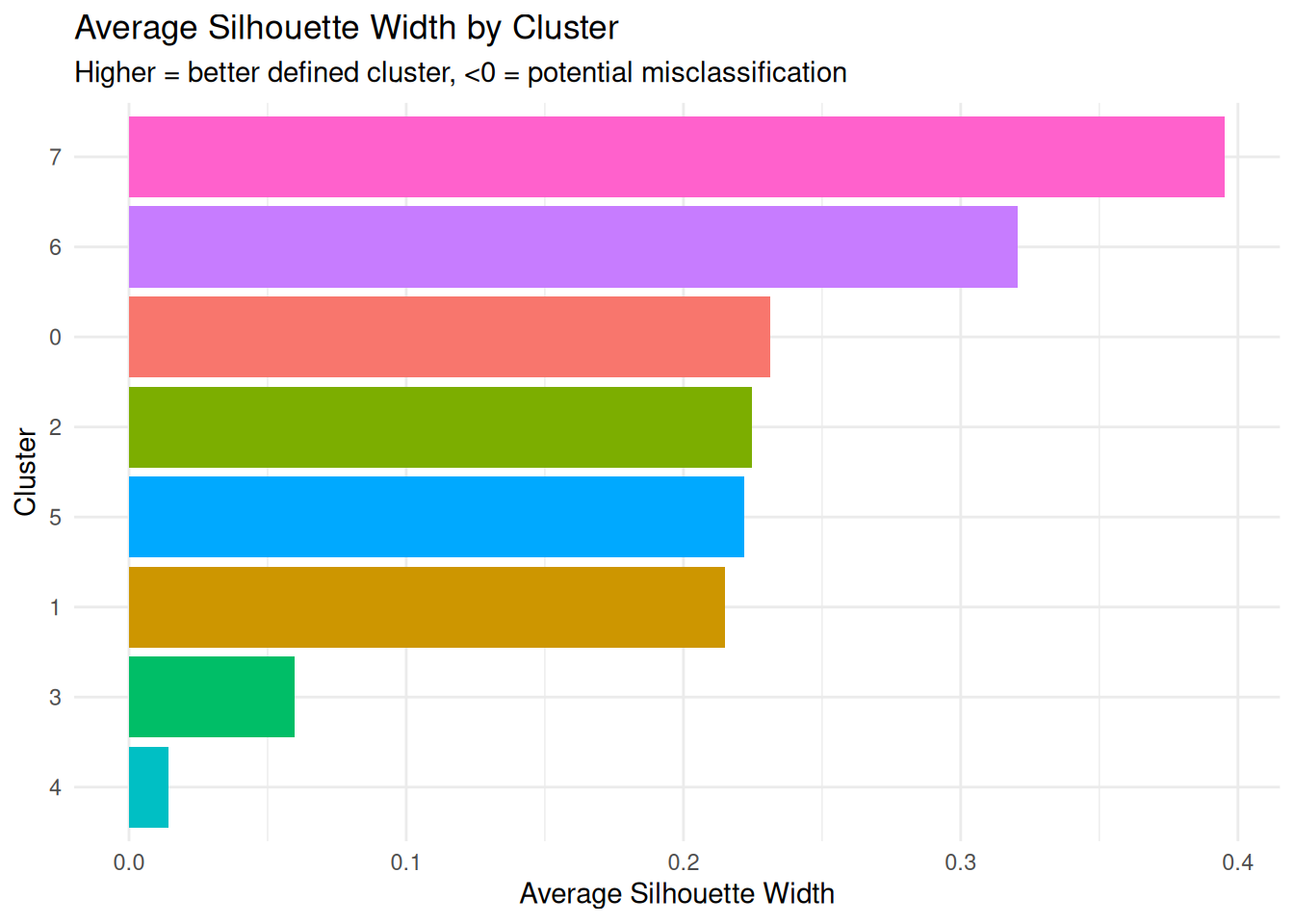

avg_silwidth = stats$clus.avg.silwidths,

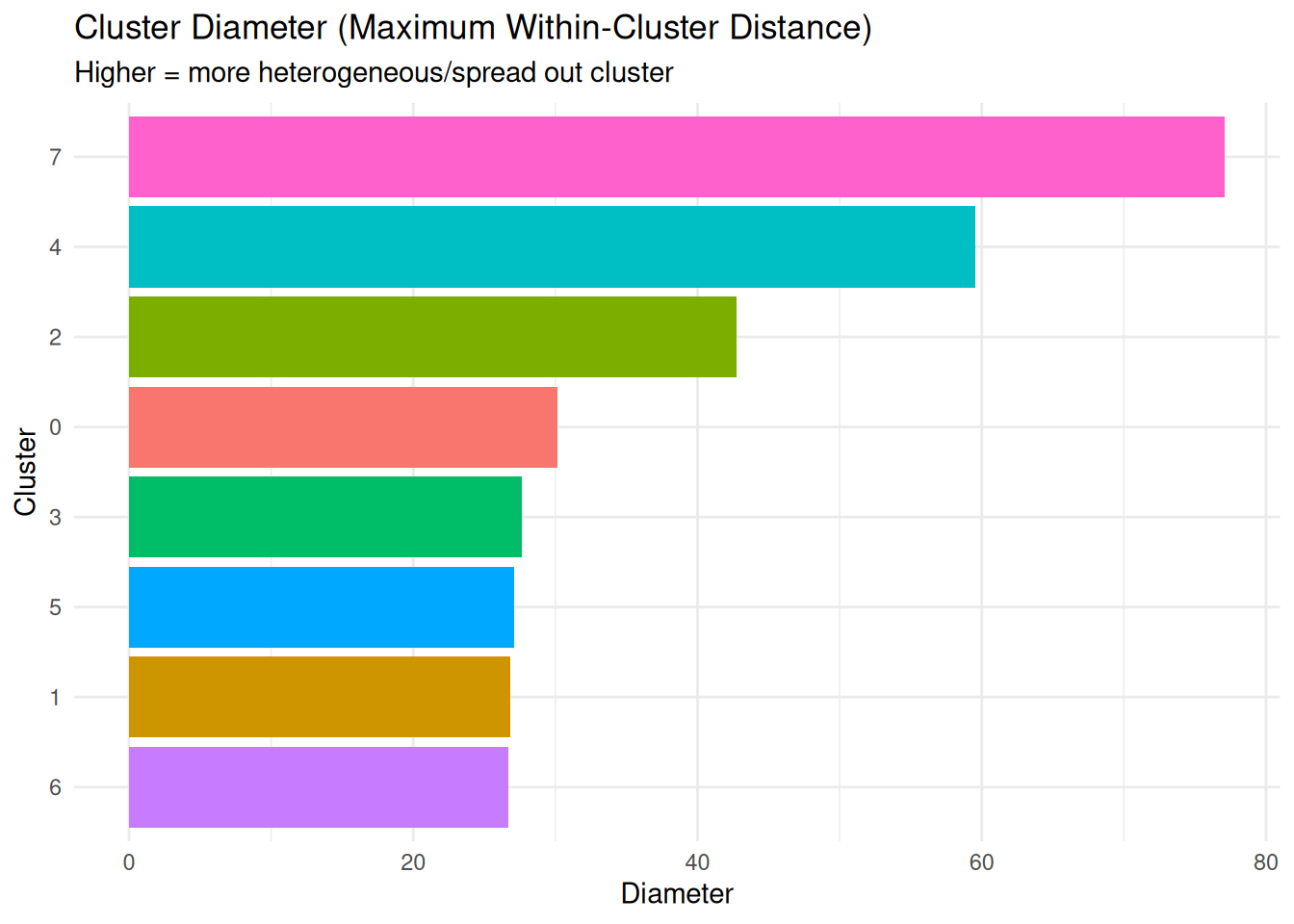

diameter = stats$diameter,

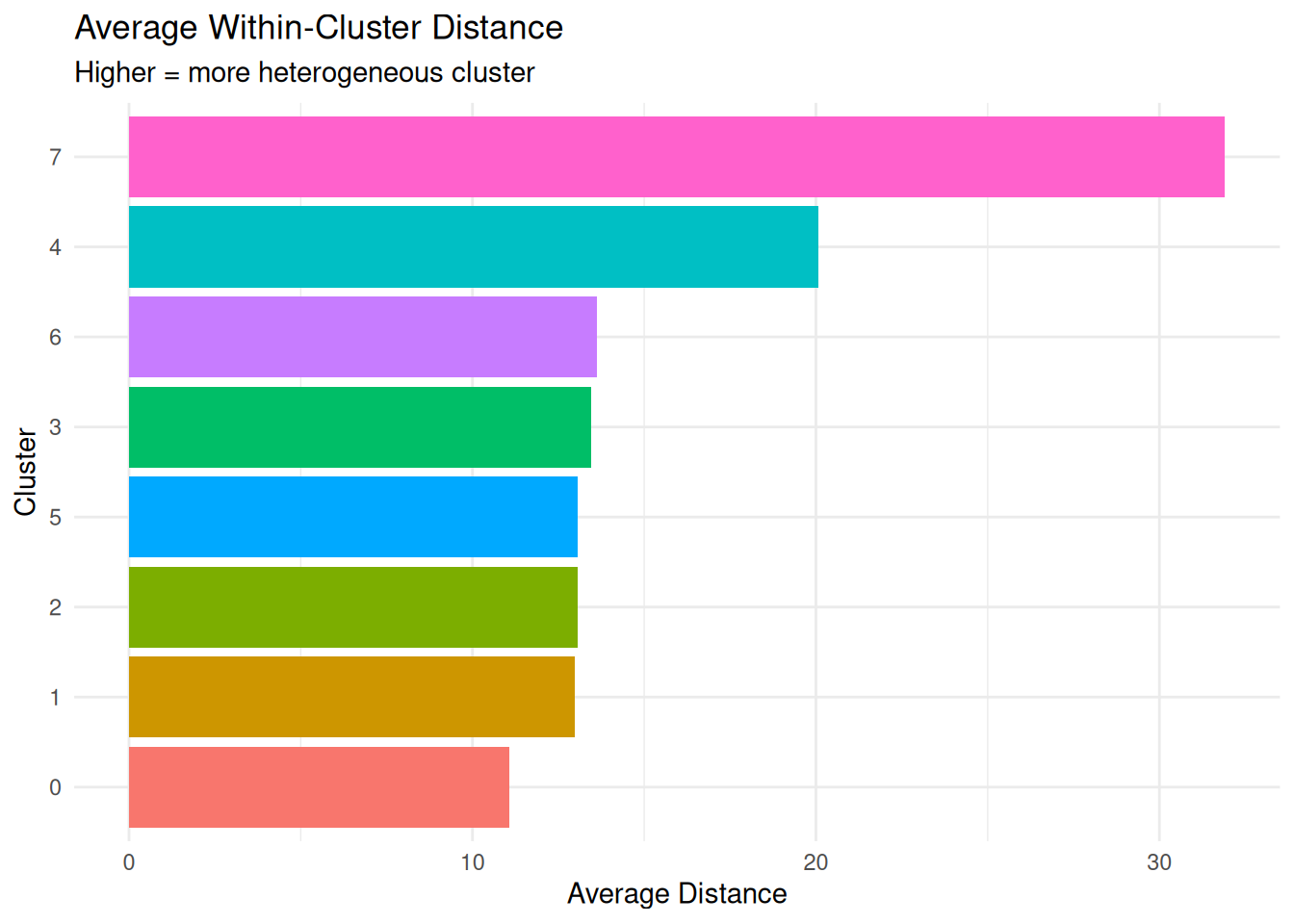

average_distance = stats$average.distance,

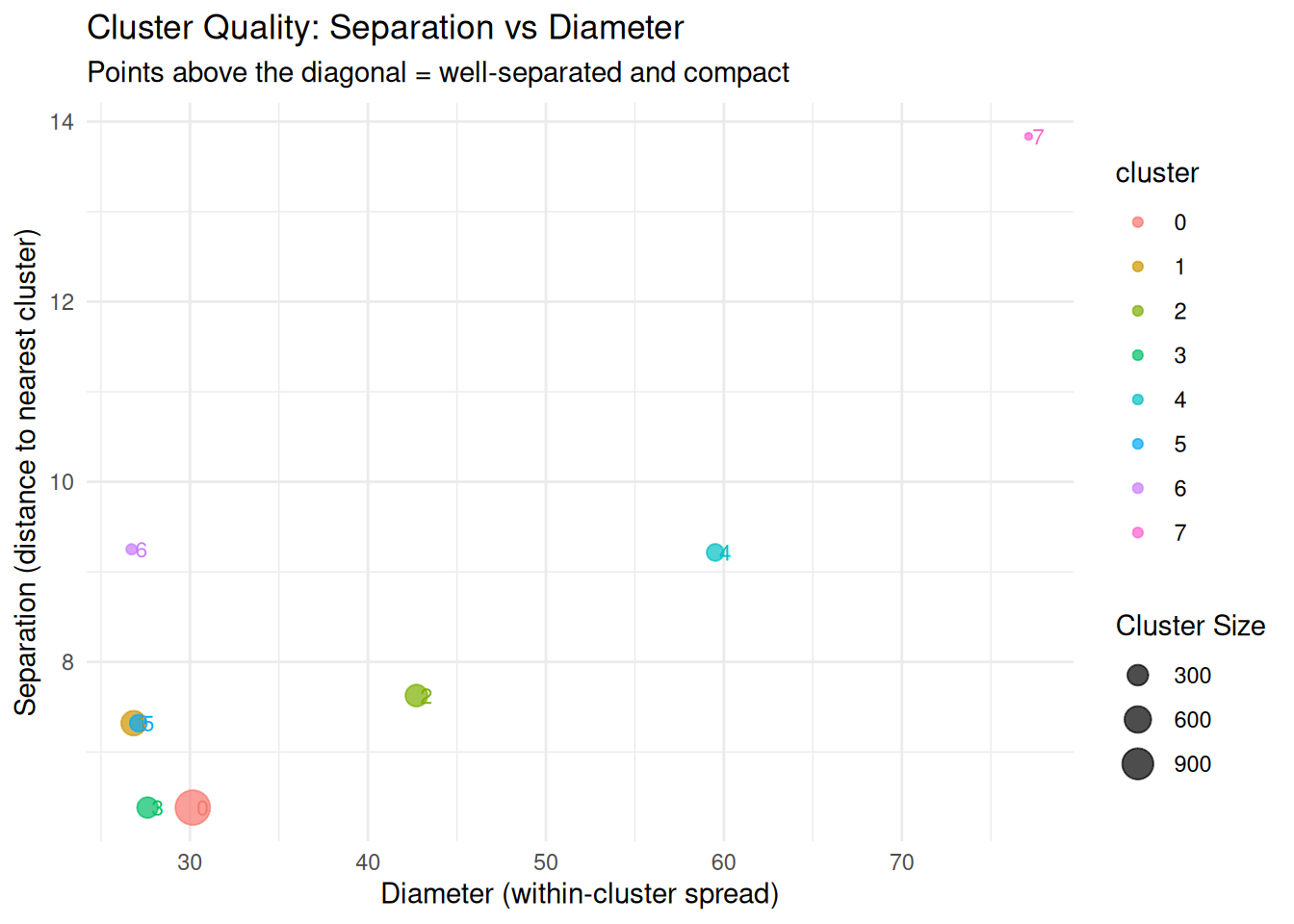

separation = stats$separation
)
print("Per-Cluster Metrics:")[1] "Per-Cluster Metrics:"print(per_cluster_summary) cluster n_cells avg_silwidth diameter average_distance separation
1 0 1187 0.23125232 30.15910 11.06922 6.382385
2 1 491 0.21488745 26.83629 12.98647 7.319883
3 2 351 0.22471219 42.72548 13.05064 7.626182
4 3 301 0.05981687 27.61723 13.44704 6.382385
5 4 163 0.01407852 59.51402 20.08154 9.216088
6 5 161 0.22205239 27.09877 13.06556 7.319883
7 6 32 0.32047942 26.71827 13.63669 9.250153
8 7 14 0.39537997 77.12201 31.91325 13.835638Per-Cluster Metrics Explained:
Cluster Size (cluster.size)
What it measures: Number of cells in each cluster.
Why it matters: Very small clusters may be outliers; very large clusters may need sub-clustering.
ggplot(per_cluster_summary, aes(x = cluster, y = n_cells, fill = cluster)) +
geom_bar(stat = "identity") +
labs(title = "Cluster Sizes",
x = "Cluster", y = "Number of Cells") +
theme_minimal() +
theme(legend.position = "none")
Average Silhouette Width per Cluster
(clus.avg.silwidths)
What it measures: How well-defined each cluster is.
Interpretation:
- Higher values = more homogeneous and well-separated cluster
- Values close to 1: Very tight, well-separated cluster
- Values close to 0: Cluster on the boundary with others
- Negative values: Cells may be in the wrong cluster
ggplot(per_cluster_summary, aes(x = reorder(cluster, avg_silwidth),
y = avg_silwidth, fill = cluster)) +
geom_bar(stat = "identity") +
coord_flip() +
labs(title = "Average Silhouette Width by Cluster",
subtitle = "Higher = better defined cluster, <0 = potential misclassification",
x = "Cluster", y = "Average Silhouette Width") +
theme_minimal() +
theme(legend.position = "none")
Cluster Diameter (diameter)
What it measures: Maximum distance between any two points in the cluster.
Interpretation:
- Lower values = more compact/homogeneous cluster
- Higher values = more spread out/heterogeneous cluster
- Larger clusters naturally tend to have larger diameters
ggplot(per_cluster_summary, aes(x = reorder(cluster, diameter),
y = diameter, fill = cluster)) +
geom_bar(stat = "identity") +
coord_flip() +
labs(title = "Cluster Diameter (Maximum Within-Cluster Distance)",
subtitle = "Higher = more heterogeneous/spread out cluster",
x = "Cluster", y = "Diameter") +
theme_minimal() +
theme(legend.position = "none")
Average Distance Within Cluster
(average.distance)
What it measures: Mean pairwise distance between all points in the cluster.
Interpretation:
- Lower values = more compact cluster
- Higher values = more dispersed cluster
- More robust than diameter (not affected by single outliers)
ggplot(per_cluster_summary, aes(x = reorder(cluster, average_distance),
y = average_distance, fill = cluster)) +
geom_bar(stat = "identity") +
coord_flip() +
labs(title = "Average Within-Cluster Distance",
subtitle = "Higher = more heterogeneous cluster",
x = "Cluster", y = "Average Distance") +
theme_minimal() +
theme(legend.position = "none")
# Identify most and least heterogeneous clusters
most_heterogeneous <- per_cluster_summary %>%
dplyr::arrange(desc(average_distance)) %>%
dplyr::slice(1:3)
least_heterogeneous <- per_cluster_summary %>%
dplyr::arrange(average_distance) %>%
dplyr::slice(1:3)
cat("\nMost heterogeneous clusters (highest average distance):\n")
Most heterogeneous clusters (highest average distance):print(most_heterogeneous %>% dplyr::select(cluster, average_distance, diameter)) cluster average_distance diameter
8 7 31.91325 77.12201
5 4 20.08154 59.51402
7 6 13.63669 26.71827cat("\nLeast heterogeneous clusters (lowest average distance):\n")
Least heterogeneous clusters (lowest average distance):print(least_heterogeneous %>% dplyr::select(cluster, average_distance, diameter)) cluster average_distance diameter
1 0 11.06922 30.15910
2 1 12.98647 26.83629
3 2 13.05064 42.72548Cluster Separation (separation)
What it measures: Minimum distance from each cluster to any other cluster.
Interpretation:
- Higher values = better separated from other clusters
- Lower values = close to other clusters, potential overlap
- Combined with diameter, helps assess cluster quality
ggplot(per_cluster_summary, aes(x = reorder(cluster, separation),
y = separation, fill = cluster)) +
geom_bar(stat = "identity") +
coord_flip() +
labs(title = "Cluster Separation (Distance to Nearest Cluster)",
subtitle = "Higher = better separated from other clusters",
x = "Cluster", y = "Separation") +
theme_minimal() +
theme(legend.position = "none")
Cluster Quality Assessment
Combining diameter and separation gives a comprehensive view of cluster quality.
# Calculate a simple quality metric: separation / diameter
# Higher values = well-separated and compact
per_cluster_summary <- per_cluster_summary |>
dplyr::mutate(quality_ratio = separation / diameter)
ggplot(per_cluster_summary, aes(x = diameter, y = separation,
color = cluster, size = n_cells)) +
geom_point(alpha = 0.7) +
geom_text(ggplot2::aes(label = cluster), hjust = -0.3, size = 3, show.legend = FALSE) +
geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "gray") +
labs(title = "Cluster Quality: Separation vs Diameter",
subtitle = "Points above the diagonal = well-separated and compact",
x = "Diameter (within-cluster spread)",
y = "Separation (distance to nearest cluster)",
size = "Cluster Size") +
theme_minimal()
cat("\nCluster Quality Ratios (Separation/Diameter):\n")
Cluster Quality Ratios (Separation/Diameter):cat("Higher values indicate better quality (compact and well-separated)\n\n")Higher values indicate better quality (compact and well-separated)print(per_cluster_summary |>
dplyr::select(cluster, diameter, separation, quality_ratio) |>
dplyr::arrange(desc(quality_ratio))) cluster diameter separation quality_ratio
7 6 26.71827 9.250153 0.3462107
2 1 26.83629 7.319883 0.2727606
6 5 27.09877 7.319883 0.2701186
4 3 27.61723 6.382385 0.2311016
1 0 30.15910 6.382385 0.2116238
8 7 77.12201 13.835638 0.1793993
3 2 42.72548 7.626182 0.1784926
5 4 59.51402 9.216088 0.1548558Summary and Recommendations
cat("=== CLUSTERING QUALITY SUMMARY ===\n\n")=== CLUSTERING QUALITY SUMMARY ===cat("Overall Assessment:\n")Overall Assessment:cat(paste(" Number of clusters:", stats$cluster.number, "\n")) Number of clusters: 8 cat(paste(" Average Silhouette Width:", round(stats$avg.silwidth, 3),
ifelse(stats$avg.silwidth > 0.5, "✓ Good", "⚠ Needs review"), "\n")) Average Silhouette Width: 0.197 ⚠ Needs review cat(paste(" Dunn Index:", round(stats$dunn, 3),
ifelse(stats$dunn > 1, "✓ Good separation", "⚠ Weak separation"), "\n")) Dunn Index: 0.083 ⚠ Weak separation cat(paste(" Within/Between Ratio:", round(stats$wb.ratio, 3),
ifelse(stats$wb.ratio < 1, "✓ Good", "⚠ Overlapping"), "\n")) Within/Between Ratio: 0.627 ✓ Good cat("\nClusters Needing Review:\n")
Clusters Needing Review:problem_clusters <- per_cluster_summary %>%
dplyr::filter(avg_silwidth < 0.25 | quality_ratio < 0.5)
if (nrow(problem_clusters) > 0) {
print(problem_clusters %>%
dplyr::select(cluster, avg_silwidth, quality_ratio))
cat("\nThese clusters may benefit from:\n")
cat(" - Sub-clustering (if large and heterogeneous)\n")
cat(" - Merging with similar clusters (if poorly separated)\n")
cat(" - Removal as outliers (if very small)\n")
} else {
cat(" All clusters show reasonable quality metrics ✓\n")
} cluster avg_silwidth quality_ratio
1 0 0.23125232 0.2116238
2 1 0.21488745 0.2727606
3 2 0.22471219 0.1784926
4 3 0.05981687 0.2311016
5 4 0.01407852 0.1548558
6 5 0.22205239 0.2701186
7 6 0.32047942 0.3462107
8 7 0.39537997 0.1793993
These clusters may benefit from:
- Sub-clustering (if large and heterogeneous)
- Merging with similar clusters (if poorly separated)
- Removal as outliers (if very small)cat("\nMost Heterogeneous Clusters (consider sub-clustering):\n")
Most Heterogeneous Clusters (consider sub-clustering):print(per_cluster_summary %>%
dplyr::arrange(desc(average_distance)) %>%
dplyr::select(cluster, n_cells, diameter, average_distance) %>%
dplyr::slice(1:3)) cluster n_cells diameter average_distance
8 7 14 77.12201 31.91325
5 4 163 59.51402 20.08154
7 6 32 26.71827 13.63669Interpretation Guide
- When to trust your clustering:
- Average Silhouette Width > 0.5
- Dunn Index > 1
- Within/Between Ratio < 1
- Most clusters have positive silhouette widths
- Red flags:
- Negative average silhouette widths for clusters
- Dunn Index < 0.5
- Within/Between Ratio > 1
- Very large differences in cluster sizes (unless biologically expected)
- What to do about heterogeneous clusters:
- High diameter/average distance: Consider sub-clustering
- Low separation: May need to merge with nearby clusters
- Negative silhouette: Cells may be misassigned
- Very small clusters: May be outliers or rare cell types (requires biological interpretation)
sessionInfo()R version 4.5.0 (2025-04-11)
Platform: x86_64-pc-linux-gnu
Running under: Ubuntu 24.04.3 LTS
Matrix products: default
BLAS: /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so; LAPACK version 3.12.0
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
time zone: Etc/UTC
tzcode source: system (glibc)
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] future_1.58.0 fpc_2.2-13 Seurat_5.3.0 SeuratObject_5.1.0
[5] sp_2.2-0 lubridate_1.9.4 forcats_1.0.0 stringr_1.5.1
[9] dplyr_1.1.4 purrr_1.0.4 readr_2.1.5 tidyr_1.3.1
[13] tibble_3.3.0 ggplot2_3.5.2 tidyverse_2.0.0 workflowr_1.7.1
loaded via a namespace (and not attached):
[1] RColorBrewer_1.1-3 rstudioapi_0.17.1 jsonlite_2.0.0
[4] magrittr_2.0.3 modeltools_0.2-24 spatstat.utils_3.1-5
[7] farver_2.1.2 rmarkdown_2.29 fs_1.6.6
[10] vctrs_0.6.5 ROCR_1.0-11 spatstat.explore_3.5-2
[13] htmltools_0.5.8.1 sass_0.4.10 sctransform_0.4.2
[16] parallelly_1.45.0 KernSmooth_2.23-26 bslib_0.9.0
[19] htmlwidgets_1.6.4 ica_1.0-3 plyr_1.8.9
[22] plotly_4.11.0 zoo_1.8-14 cachem_1.1.0
[25] whisker_0.4.1 igraph_2.1.4 mime_0.13
[28] lifecycle_1.0.4 pkgconfig_2.0.3 Matrix_1.7-3
[31] R6_2.6.1 fastmap_1.2.0 fitdistrplus_1.2-4
[34] shiny_1.11.1 digest_0.6.37 colorspace_2.1-1
[37] patchwork_1.3.0 ps_1.9.1 rprojroot_2.0.4
[40] tensor_1.5.1 RSpectra_0.16-2 irlba_2.3.5.1
[43] labeling_0.4.3 progressr_0.15.1 spatstat.sparse_3.1-0
[46] timechange_0.3.0 httr_1.4.7 polyclip_1.10-7
[49] abind_1.4-8 compiler_4.5.0 withr_3.0.2
[52] fastDummies_1.7.5 MASS_7.3-65 tools_4.5.0
[55] lmtest_0.9-40 prabclus_2.3-4 httpuv_1.6.16
[58] future.apply_1.20.0 nnet_7.3-20 goftest_1.2-3
[61] glue_1.8.0 callr_3.7.6 nlme_3.1-168
[64] promises_1.3.3 grid_4.5.0 Rtsne_0.17
[67] getPass_0.2-4 cluster_2.1.8.1 reshape2_1.4.4
[70] generics_0.1.4 gtable_0.3.6 spatstat.data_3.1-6
[73] tzdb_0.5.0 class_7.3-23 data.table_1.17.4
[76] hms_1.1.3 flexmix_2.3-20 spatstat.geom_3.5-0
[79] RcppAnnoy_0.0.22 ggrepel_0.9.6 RANN_2.6.2
[82] pillar_1.10.2 spam_2.11-1 RcppHNSW_0.6.0
[85] later_1.4.2 robustbase_0.99-4-1 splines_4.5.0
[88] lattice_0.22-6 survival_3.8-3 deldir_2.0-4
[91] tidyselect_1.2.1 miniUI_0.1.2 pbapply_1.7-4
[94] knitr_1.50 git2r_0.36.2 gridExtra_2.3
[97] scattermore_1.2 stats4_4.5.0 xfun_0.52
[100] diptest_0.77-1 matrixStats_1.5.0 DEoptimR_1.1-3-1
[103] stringi_1.8.7 lazyeval_0.2.2 yaml_2.3.10
[106] evaluate_1.0.3 codetools_0.2-20 kernlab_0.9-33
[109] cli_3.6.5 uwot_0.2.3 xtable_1.8-4
[112] reticulate_1.43.0 processx_3.8.6 jquerylib_0.1.4
[115] Rcpp_1.0.14 globals_0.18.0 spatstat.random_3.4-1
[118] png_0.1-8 spatstat.univar_3.1-4 parallel_4.5.0
[121] mclust_6.1.1 dotCall64_1.2 listenv_0.9.1
[124] viridisLite_0.4.2 scales_1.4.0 ggridges_0.5.6
[127] rlang_1.1.6 cowplot_1.2.0
