If I re-run Seurat in the same manner with the same dataset, will I get identical results?

Seurat object

Import raw pbmc3k dataset from my server.

seurat_obj <- readRDS(url("https://davetang.org/file/pbmc3k_seurat.rds", "rb"))
seurat_obj

An object of class Seurat
32738 features across 2700 samples within 1 assay
Active assay: RNA (32738 features, 0 variable features)
 1 layer present: counts

Filter.

pbmc3k <- CreateSeuratObject(
  counts = seurat_obj@assays$RNA$counts,
  min.cells = 3,
  min.features = 200,
  project = "pbmc3k"
)
pbmc3k

An object of class Seurat
13714 features across 2700 samples within 1 assay
Active assay: RNA (13714 features, 0 variable features)
 1 layer present: counts

Seurat workflow

Seurat version 5 workflow as a function: seurat_wf_v5.

seurat_wf_v5 <- function(seurat_obj, scale_factor = 1e4, num_features = 2000, num_pcs = 30, cluster_res = 0.5, debug_flag = FALSE){

  seurat_obj <- SCTransform(seurat_obj, verbose = debug_flag)
  seurat_obj <- RunPCA(seurat_obj, verbose = debug_flag)
  seurat_obj <- RunUMAP(seurat_obj, dims = 1:num_pcs, verbose = debug_flag)
  seurat_obj <- FindNeighbors(seurat_obj, dims = 1:num_pcs, verbose = debug_flag)
  seurat_obj <- FindClusters(seurat_obj, resolution = cluster_res, verbose = debug_flag)

  seurat_obj
}

First run

Process pbmc3k using the Seurat version 5 workflow.

pbmc3k_1 <- seurat_wf_v5(pbmc3k)

Warning: The default method for RunUMAP has changed from calling Python UMAP via reticulate to the R-native UWOT using the cosine metric
To use Python UMAP via reticulate, set umap.method to 'umap-learn' and metric to 'correlation'
This message will be shown once per session

pbmc3k_1

An object of class Seurat
26286 features across 2700 samples within 2 assays
Active assay: SCT (12572 features, 3000 variable features)
 3 layers present: counts, data, scale.data
 1 other assay present: RNA
 2 dimensional reductions calculated: pca, umap

Second run

Process pbmc3k using the Seurat version 5 workflow again.

pbmc3k_2 <- seurat_wf_v5(pbmc3k)
pbmc3k_2

An object of class Seurat
26286 features across 2700 samples within 2 assays
Active assay: SCT (12572 features, 3000 variable features)
 3 layers present: counts, data, scale.data
 1 other assay present: RNA
 2 dimensional reductions calculated: pca, umap

Compare first and second runs

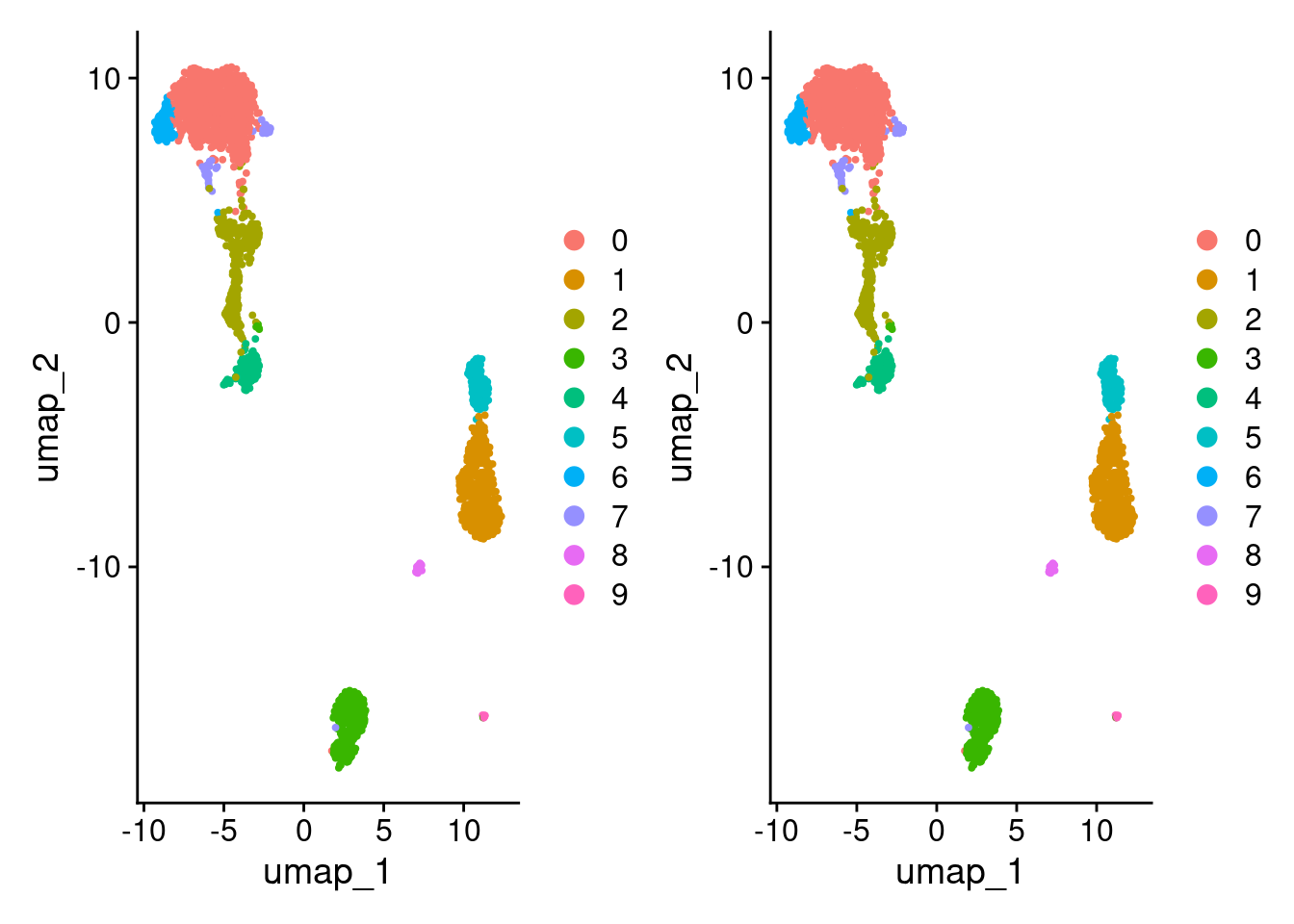

Compare UMAPs.

DimPlot(pbmc3k_1) + DimPlot(pbmc3k_1)

Looks the same but let’s double check.

identical(
  pbmc3k_1@reductions$umap@cell.embeddings,
  pbmc3k_2@reductions$umap@cell.embeddings
)

[1] TRUE

Compare clustering.

identical(
  row.names(pbmc3k_1@meta.data),
  row.names(pbmc3k_2@meta.data)
)

[1] TRUE

identical(
  pbmc3k_1@meta.data$seurat_clusters,
  pbmc3k_2@meta.data$seurat_clusters
)

[1] TRUE

Third run

Use the same dataset but re-order the count matrix randomly.

my_mat <- seurat_obj@assays$RNA$counts
set.seed(1984)
col_order <- sample(colnames(my_mat))
row_order <- sample(rownames(my_mat))
my_mat <- my_mat[row_order, col_order]

pbmc3k_reordered <- CreateSeuratObject(
  counts = my_mat,
  min.cells = 3,
  min.features = 200,
  project = "pbmc3k"
)
pbmc3k_reordered

An object of class Seurat
13714 features across 2700 samples within 1 assay
Active assay: RNA (13714 features, 0 variable features)
 1 layer present: counts

Process the re-ordered pbmc3k dataset using the Seurat version 5 workflow again.

pbmc3k_3 <- seurat_wf_v5(pbmc3k_reordered)
pbmc3k_3

An object of class Seurat
26286 features across 2700 samples within 2 assays
Active assay: SCT (12572 features, 3000 variable features)
 3 layers present: counts, data, scale.data
 1 other assay present: RNA
 2 dimensional reductions calculated: pca, umap

Compare third run

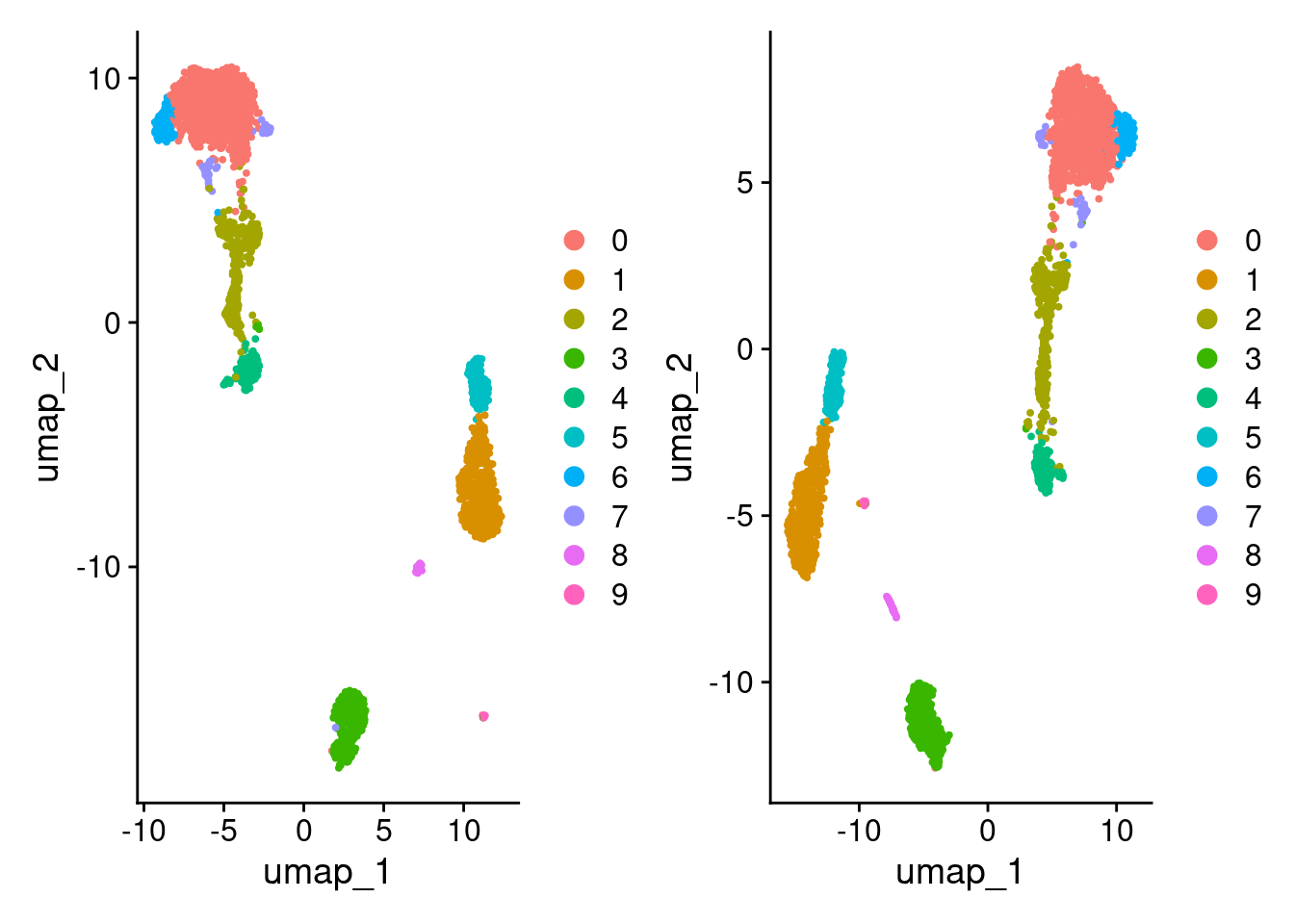

Compare UMAPs.

DimPlot(pbmc3k_1) + DimPlot(pbmc3k_3)

Compare clustering.

idx <- match(row.names(pbmc3k_1@meta.data), row.names(pbmc3k_3@meta.data))

stopifnot(row.names(pbmc3k_1@meta.data) == row.names(pbmc3k_3@meta.data)[idx])

table(
  pbmc3k_1@meta.data$seurat_clusters,
  pbmc3k_3@meta.data$seurat_clusters[idx]
)


      0   1   2   3   4   5   6   7   8   9
  0 968   0   1   0   0   0   6   0   0   0
  1   0 497   0   0   0   0   0   0   0   0
  2   1   0 365   0   0   0   0   0   0   0
  3   0   0   4 355   0   0   0   0   0   0
  4   0   0   1   0 156   0   0   0   0   0
  5   0   0   0   0   0 154   0   0   0   0
  6   1   0   0   0   0   0  99   0   0   0
  7   0   0   2   1   0   0   0  43   0   0
  8   0   0   0   0   0   0   0   0  34   0
  9   0   0   0   0   0   0   0   0   0  12

Summary

Using Seurat version 5:

Re-running Seurat on the same object produced the same UMAP and clustering results.
Re-running Seurat on the same data but shuffled produced different results.
