PCA with DESeq2

Installation

Install using BiocManager::install().

if (!require("BiocManager", quietly = TRUE))
  install.packages("BiocManager")

BiocManager::install("DESeq2")

Package version.

packageVersion("DESeq2")

[1] '1.46.0'

Count table

https://zenodo.org/records/13970886.

my_url <- 'https://zenodo.org/records/13970886/files/rsem.merged.gene_counts.tsv?download=1'
my_file <- 'rsem.merged.gene_counts.tsv'

if(file.exists(my_file) == FALSE){
  download.file(url = my_url, destfile = my_file)
}

gene_counts <- read_tsv("rsem.merged.gene_counts.tsv", show_col_types = FALSE)
head(gene_counts)

# A tibble: 6 × 10
  gene_id   `transcript_id(s)` ERR160122 ERR160123 ERR160124 ERR164473 ERR164550
  <chr>     <chr>                  <dbl>     <dbl>     <dbl>     <dbl>     <dbl>
1 ENSG0000… ENST00000373020,E…        2         6         5      374       1637
2 ENSG0000… ENST00000373031,E…       19        40        28        0          1
3 ENSG0000… ENST00000371582,E…      268.      274.      429.     489        637
4 ENSG0000… ENST00000367770,E…      360.      449.      566.     363.       606.
5 ENSG0000… ENST00000286031,E…      156.      185.      265.      85.4      312.
6 ENSG0000… ENST00000374003,E…       24        23        40     1181        423
# ℹ 3 more variables: ERR164551 <dbl>, ERR164552 <dbl>, ERR164554 <dbl>

Metadata.

tibble::tribble(
  ~sample, ~run_id, ~group,
  "C2_norm", "ERR160122", "normal",
  "C3_norm", "ERR160123", "normal",
  "C5_norm", "ERR160124", "normal",
  "C1_norm", "ERR164473", "normal",
  "C1_cancer", "ERR164550", "cancer",
  "C2_cancer", "ERR164551", "cancer",
  "C3_cancer", "ERR164552", "cancer",
  "C5_cancer", "ERR164554", "cancer"
) -> my_metadata

my_metadata$group <- factor(my_metadata$group, levels = c('normal', 'cancer'))

Matrix.

gene_counts |>
  dplyr::select(starts_with("ERR")) |>
  mutate(across(everything(), as.integer)) |>
  as.matrix() -> gene_counts_mat

row.names(gene_counts_mat) <- gene_counts$gene_id

idx <- match(colnames(gene_counts_mat), my_metadata$run_id)
colnames(gene_counts_mat) <- my_metadata$sample[idx]

tail(gene_counts_mat)

                C2_norm C3_norm C5_norm C1_norm C1_cancer C2_cancer C3_cancer
ENSG00000293594       0       0       0       0         0         0         0
ENSG00000293595       3       5       3       0         0         0         0
ENSG00000293596       0       0       0       0         0         0         0
ENSG00000293597       1       2      11       1         2         3         1
ENSG00000293599       2       0       1       0         1         2         0
ENSG00000293600      45      59      85     561       789      1099       701
                C5_cancer
ENSG00000293594         0
ENSG00000293595         0
ENSG00000293596         0
ENSG00000293597         2
ENSG00000293599         0
ENSG00000293600       845

PCA

Create DESeqDataSet object.

lung_cancer <- DESeqDataSetFromMatrix(
  countData = gene_counts_mat,
  colData   = my_metadata,
  design    = ~ group
)
lung_cancer

class: DESeqDataSet
dim: 63140 8
metadata(1): version
assays(1): counts
rownames(63140): ENSG00000000003 ENSG00000000005 ... ENSG00000293599
  ENSG00000293600
rowData names(0):
colnames(8): C2_norm C3_norm ... C3_cancer C5_cancer
colData names(3): sample run_id group

Quickly estimate dispersion trend and apply a variance stabilizing transformation.

pas_vst <- vst(lung_cancer)
pas_vst

class: DESeqTransform
dim: 63140 8
metadata(1): version
assays(1): ''
rownames(63140): ENSG00000000003 ENSG00000000005 ... ENSG00000293599
  ENSG00000293600
rowData names(4): baseMean baseVar allZero dispFit
colnames(8): C2_norm C3_norm ... C3_cancer C5_cancer
colData names(4): sample run_id group sizeFactor

Plot PCA.

plotPCA(pas_vst, intgroup = "group") +
  theme_minimal()

using ntop=500 top features by variance

Past versions of plot_PCA-1.png

PCA data.

pca_data <- plotPCA(pas_vst, intgroup = "group", returnData = TRUE)

using ntop=500 top features by variance

pca_data

                 PC1         PC2  group group.1      name
C2_norm   -117.37808   7.0149036 normal  normal   C2_norm
C3_norm   -116.03913 -13.2708426 normal  normal   C3_norm
C5_norm   -115.34425   6.2593420 normal  normal   C5_norm
C1_norm     69.82117   0.8856676 normal  normal   C1_norm
C1_cancer   67.53316  -2.1774785 cancer  cancer C1_cancer
C2_cancer   70.13468   0.7640921 cancer  cancer C2_cancer
C3_cancer   70.50438   0.1610337 cancer  cancer C3_cancer
C5_cancer   70.76807   0.3632821 cancer  cancer C5_cancer

Source code.

plotPCA_copied = function(object, intgroup="condition", ntop=500, returnData=FALSE, pcsToUse=1:2){
  message(paste0("using ntop=",ntop," top features by variance"))

  # calculate the variance for each gene
  rv <- rowVars(assay(object))

  # select the ntop genes by variance
  select <- order(rv, decreasing=TRUE)[seq_len(min(ntop, length(rv)))]

  # perform a PCA on the data in assay(x) for the selected genes
  pca <- prcomp(t(assay(object)[select,]))

  # the contribution to the total variance for each component
  percentVar <- pca$sdev^2 / sum( pca$sdev^2 )

  if (!all(intgroup %in% names(colData(object)))) {
    stop("the argument 'intgroup' should specify columns of colData(dds)")
  }

  # add the intgroup factors together to create a new grouping factor
  group <- if (length(intgroup) > 1) {
    intgroup.df <- as.data.frame(colData(object)[, intgroup, drop=FALSE])
    factor(apply( intgroup.df, 1, paste, collapse=":"))
  } else {
    colData(object)[[intgroup]]
  }

  # assembly the data for the plot
  pcs <- paste0("PC", pcsToUse)
  d <- data.frame(V1=pca$x[,pcsToUse[1]],
                  V2=pca$x[,pcsToUse[2]],
                  group=group, name=colnames(object), colData(object))
  colnames(d)[1:2] <- pcs

  if (returnData) {
    attr(d, "percentVar") <- percentVar[pcsToUse]
    return(d)
  }

  ggplot(data=d, aes_string(x=pcs[1], y=pcs[2], color="group")) +
    geom_point(size=3) +
    xlab(paste0(pcs[1],": ",round(percentVar[pcsToUse[1]] * 100),"% variance")) +
      ylab(paste0(pcs[2],": ",round(percentVar[pcsToUse[2]] * 100),"% variance")) +
        coord_fixed()
}

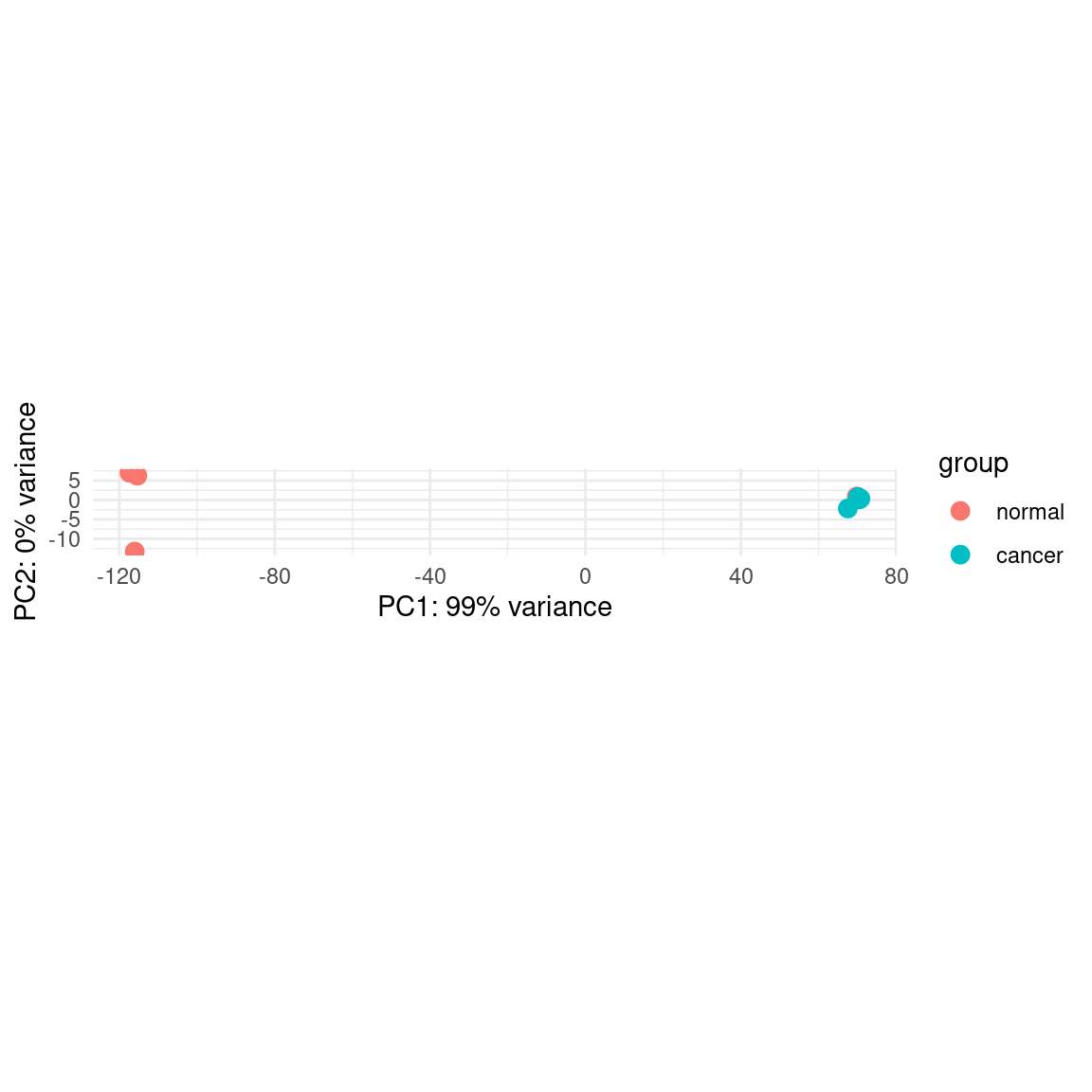

Plot using the copied function.

plotPCA_copied(pas_vst, intgroup = "group") +
  theme_minimal()

using ntop=500 top features by variance

Warning: `aes_string()` was deprecated in ggplot2 3.0.0.
ℹ Please use tidy evaluation idioms with `aes()`.
ℹ See also `vignette("ggplot2-in-packages")` for more information.
This warning is displayed once every 8 hours.
Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
generated.

Past versions of plot_PCA_copied-1.png

Perform PCA as per plotPCA().

# calculate the variance for each gene
rv <- rowVars(assay(pas_vst))
head(rv)

ENSG00000000003 ENSG00000000005 ENSG00000000419 ENSG00000000457 ENSG00000000460
      6.3038555       3.4528327       0.1236461       0.5966854       1.0711842
ENSG00000000938
      3.6559005

# select the ntop genes by variance
ntop <- 500
topgenes <- order(rv, decreasing=TRUE)[seq_len(min(ntop, length(rv)))]
head(topgenes)

[1] 12679 12446 12359 20116 53333  8411

# perform a PCA on the data in assay(x) for the selected genes
pca <- prcomp(t(assay(pas_vst)[topgenes,]))

Loadings are the coefficients that define how strongly each genes contributes to a principal component (PC).

loadings <- pca$rotation
loadings[1:10, 1:2]

                        PC1          PC2
ENSG00000169876 -0.06639949  0.008294131
ENSG00000168878  0.06304686  0.005076416
ENSG00000168484  0.05002038  0.117877848
ENSG00000205277 -0.05947887  0.023446665
ENSG00000275969 -0.05923209  0.013935605
ENSG00000143520 -0.05881607  0.007613250
ENSG00000087086  0.05824667  0.016638253
ENSG00000204849 -0.05843500  0.001321622
ENSG00000276040 -0.05730797  0.013343573
ENSG00000185775 -0.05689974 -0.001037869

Squared loadings represent how much variance of each PC is attributable to each variable.

contribution <- loadings^2
contribution[1:10, 1:2]

                        PC1          PC2
ENSG00000169876 0.004408893 6.879261e-05
ENSG00000168878 0.003974907 2.577000e-05
ENSG00000168484 0.002502039 1.389519e-02
ENSG00000205277 0.003537736 5.497461e-04
ENSG00000275969 0.003508441 1.942011e-04
ENSG00000143520 0.003459330 5.796158e-05
ENSG00000087086 0.003392674 2.768315e-04
ENSG00000204849 0.003414650 1.746686e-06
ENSG00000276040 0.003284204 1.780509e-04
ENSG00000185775 0.003237580 1.077171e-06

Gene contributing most to PC1.

sort(contribution[, 1], decreasing = TRUE) |> head()

ENSG00000169876 ENSG00000168878 ENSG00000205277 ENSG00000275969 ENSG00000143520
    0.004408893     0.003974907     0.003537736     0.003508441     0.003459330
ENSG00000204849
    0.003414650

Note that the order is the same, because plotPCA() already sorted the genes by their variance!
