Introduction
In this part of the workshop, we will learn how to create some spatial plots using Seurat and how to customise them.
Load packages and data
library(Seurat)
library(qs2)
library(ggplot2)
library(scales)We will be using the Seurat object that we have QCed and normalised in part 2.
dat <- qs_read(file.path(here::here(), "data", "visium", "data", "visium_seurat_qced_norm.qs2"))
datAn object of class Seurat
35982 features across 3959 samples within 2 assays
Active assay: SCT (17991 features, 3000 variable features)
3 layers present: counts, data, scale.data
1 other assay present: Spatial
1 spatial field of view present: slice1SpatialFeaturePlot
SpatialFeaturePlot is a function in Seurat that allows you to plot a feature (e.g., the expression of a gene) of the spots over the image of the tissue.
For example, let’s plot the expression of CD3D gene of our data.
SpatialFeaturePlot(dat, features = "CD3D")Warning: `aes_string()` was deprecated in ggplot2 3.0.0.
ℹ Please use tidy evaluation idioms with `aes()`.
ℹ See also `vignette("ggplot2-in-packages")` for more information.
ℹ The deprecated feature was likely used in the Seurat package.
Please report the issue at <https://github.com/satijalab/seurat/issues>.
This warning is displayed once every 8 hours.
Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
generated.

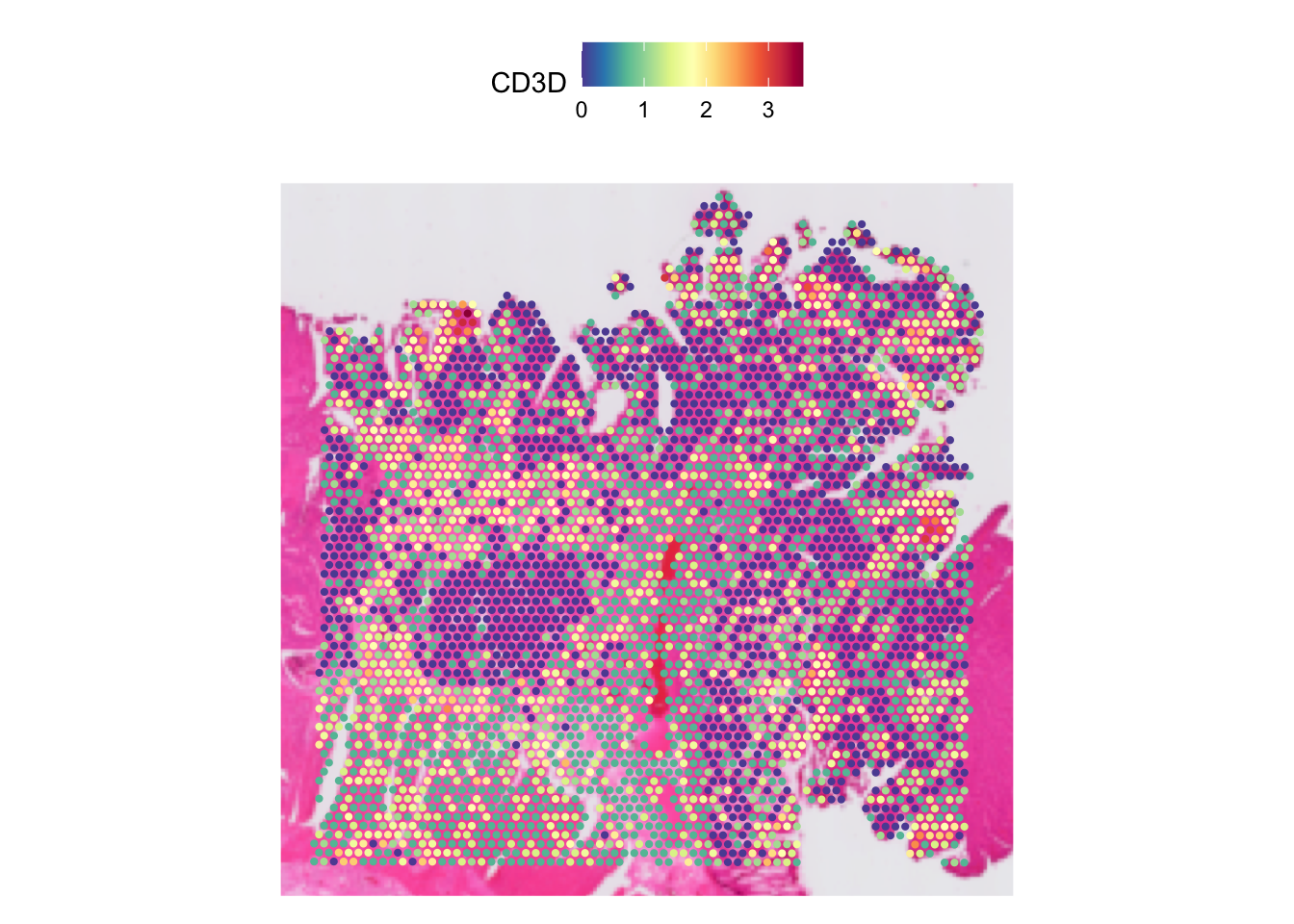

Often, the spots may look too small, like in this case. We can
increase it by increasing the pt.size.factor parameter.
# store it so we can use the same number later on
pt_size <- 5
SpatialFeaturePlot(dat, features = "CD3D", pt.size.factor = pt_size)

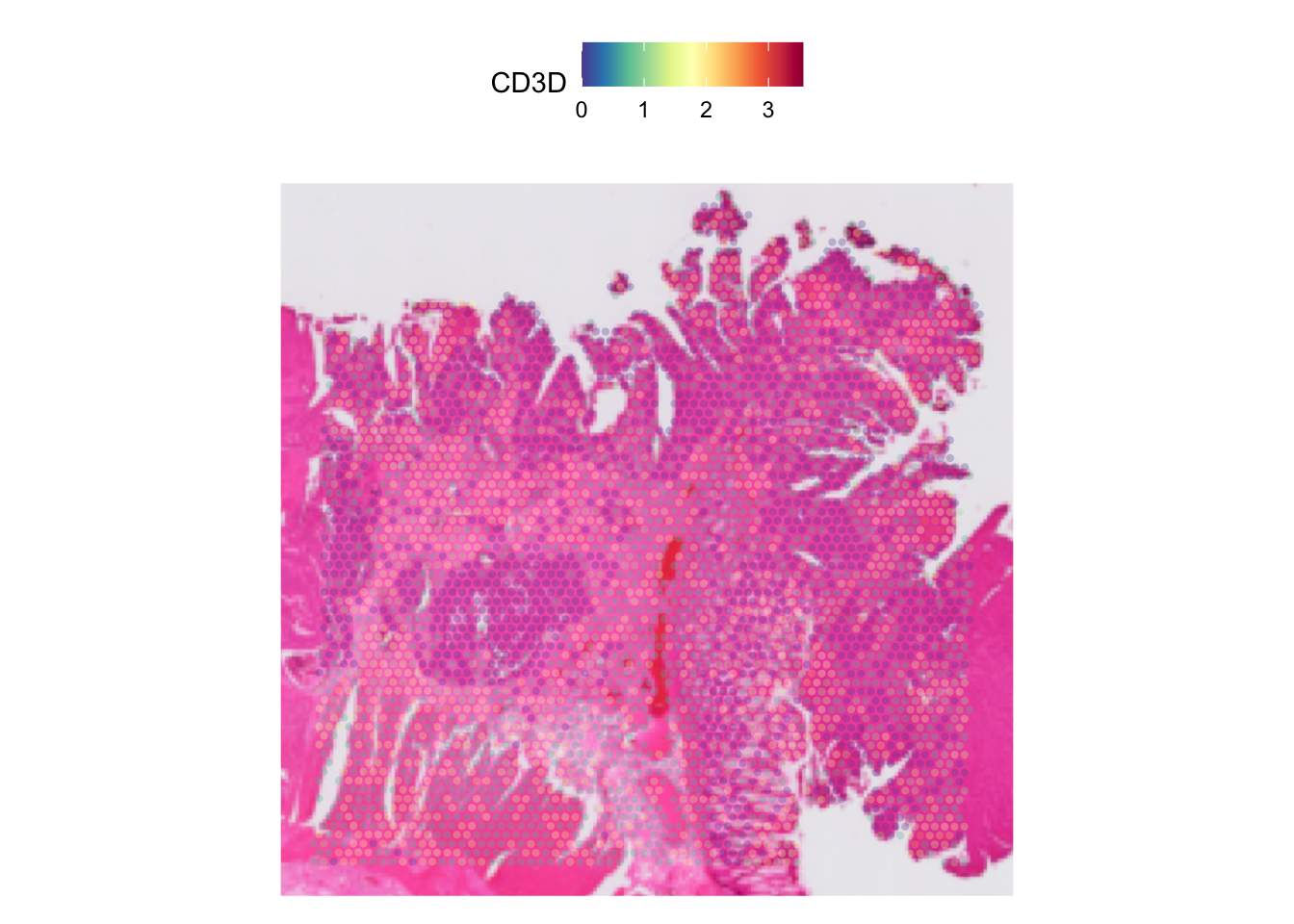

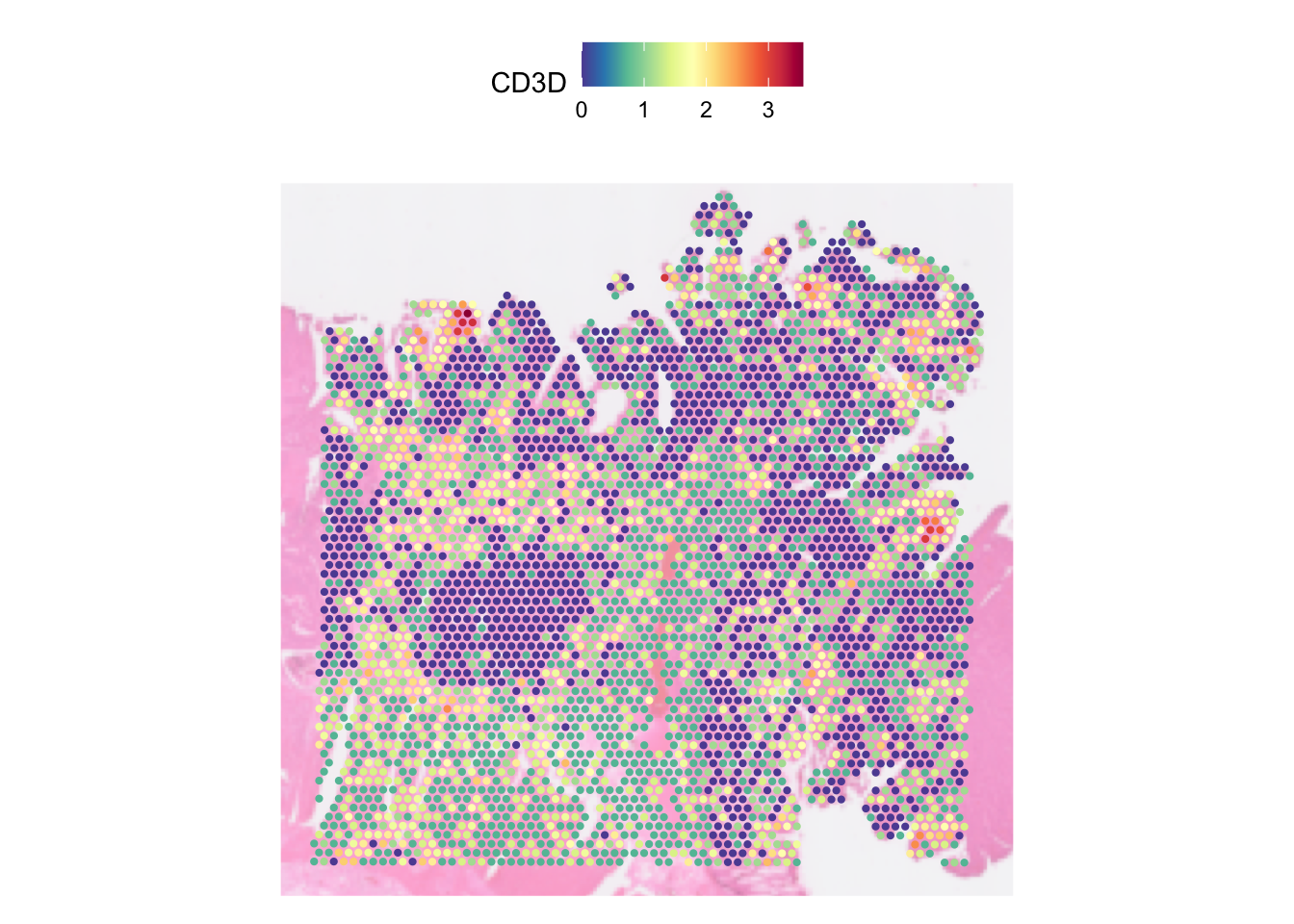

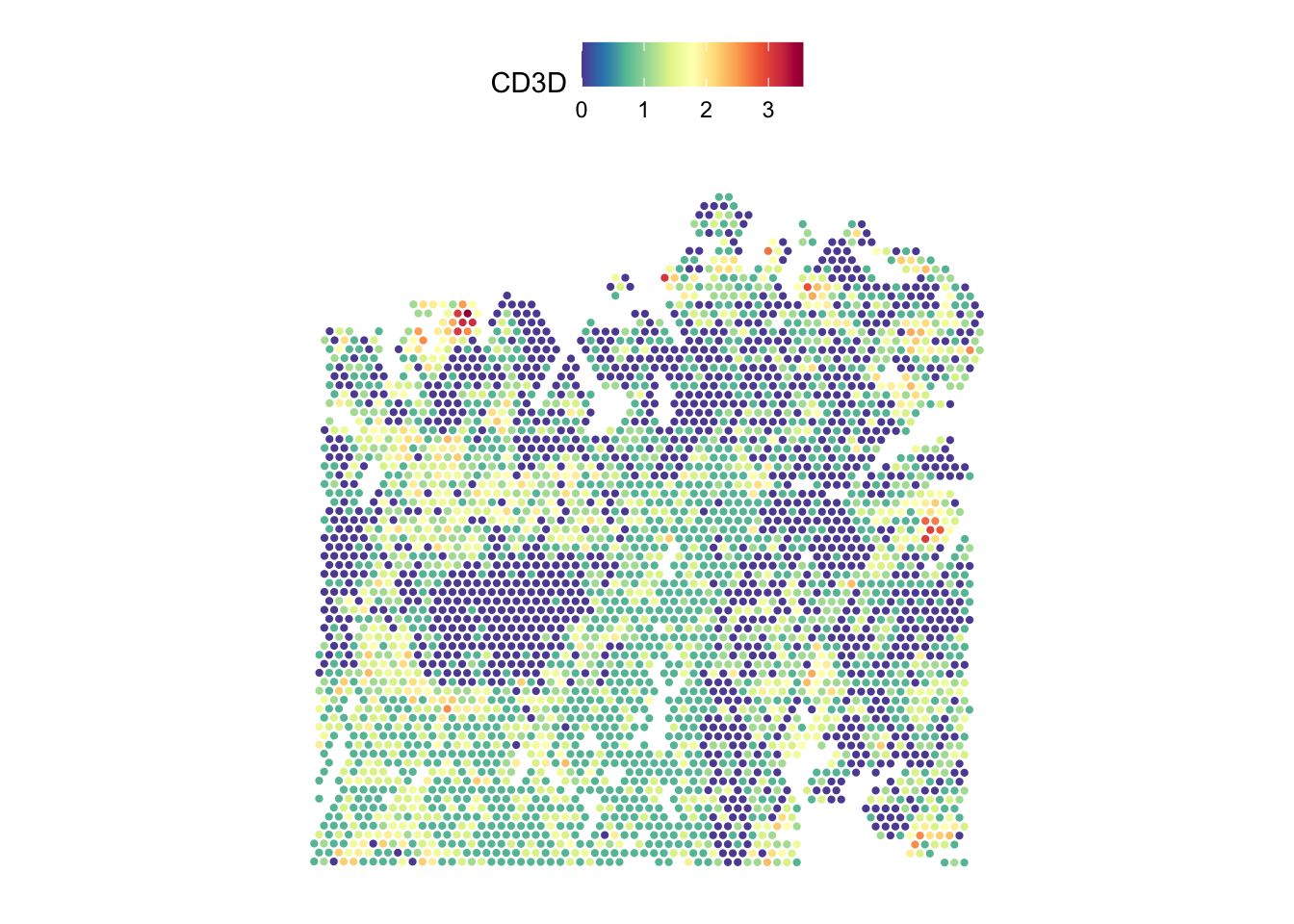

We can also adjust the opacity of the spots and the image underneath
it by tuning the alpha and image.alpha
parameter accordingly. The higher the number, the less opaque the spots
and image will be.
# Dimming the spots
SpatialFeaturePlot(dat, features = "CD3D", pt.size.factor = pt_size, alpha = 0.3)
# Dimming the image
SpatialFeaturePlot(dat, features = "CD3D", pt.size.factor = pt_size, image.alpha = 0.5)
# Completely removing the image
SpatialFeaturePlot(dat, features = "CD3D", pt.size.factor = pt_size, image.alpha = 0)

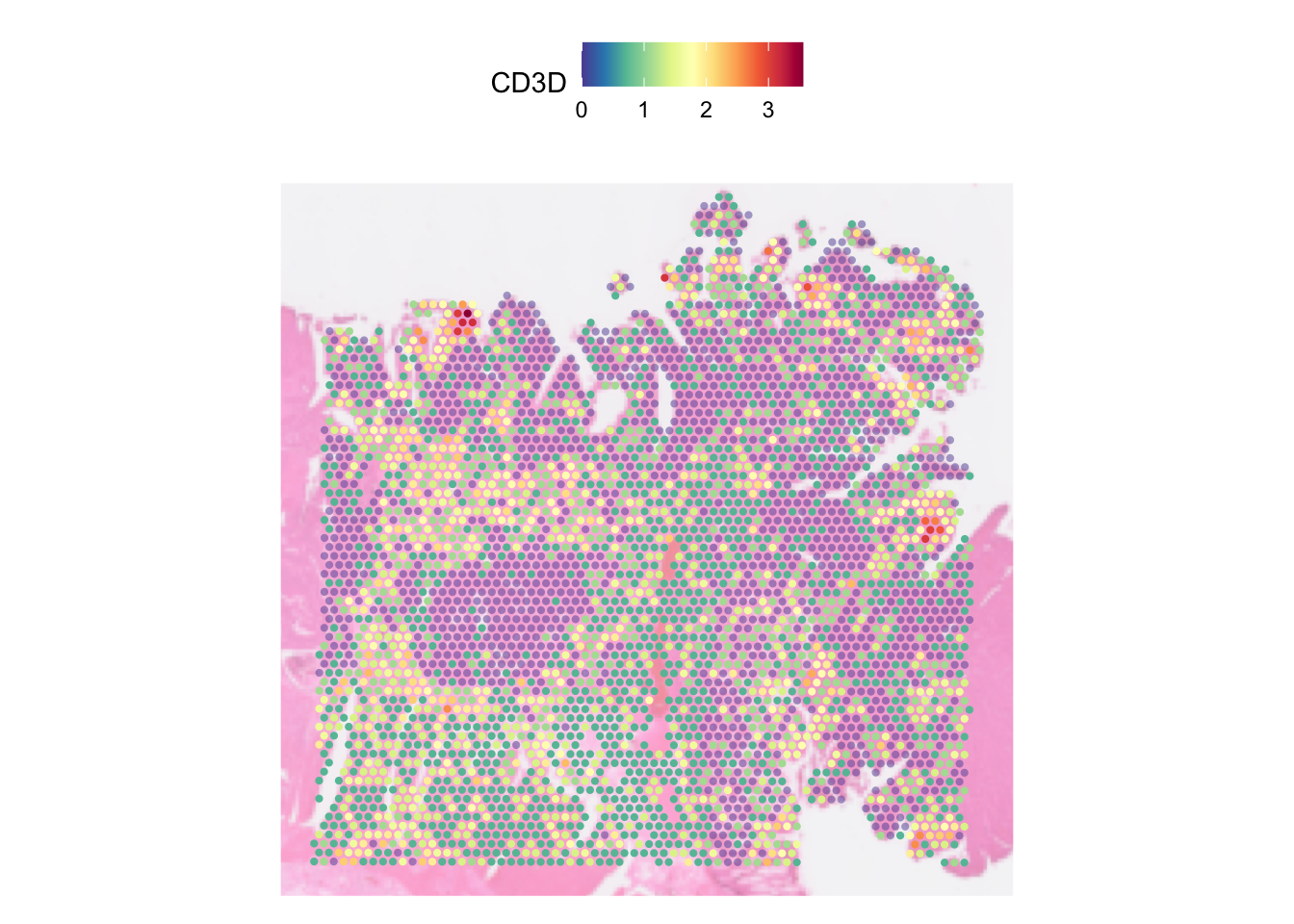

If a range is passed onto the alpha parameter, it will
alter the minimum and maximum opacity. This is handy if you want to
accentuate the higher expression as we can lower the minimum opacity
(which defaulted to 1) and increase the maximum opacity.
SpatialFeaturePlot(dat, features = "CD3D", pt.size.factor = 5,
image.alpha = 0.5, alpha = c(0.5, 3))
In the plot above, each spot is coloured by the expression of CD3D
gene. Notably, because the active assay of the data was set to SCT
before we run SpatialFeaturePlot, the CD3D expression we
plotted above is not the raw UMI count, but rather the count that has
been normalised using SCTransformed, stored in the data
layer.

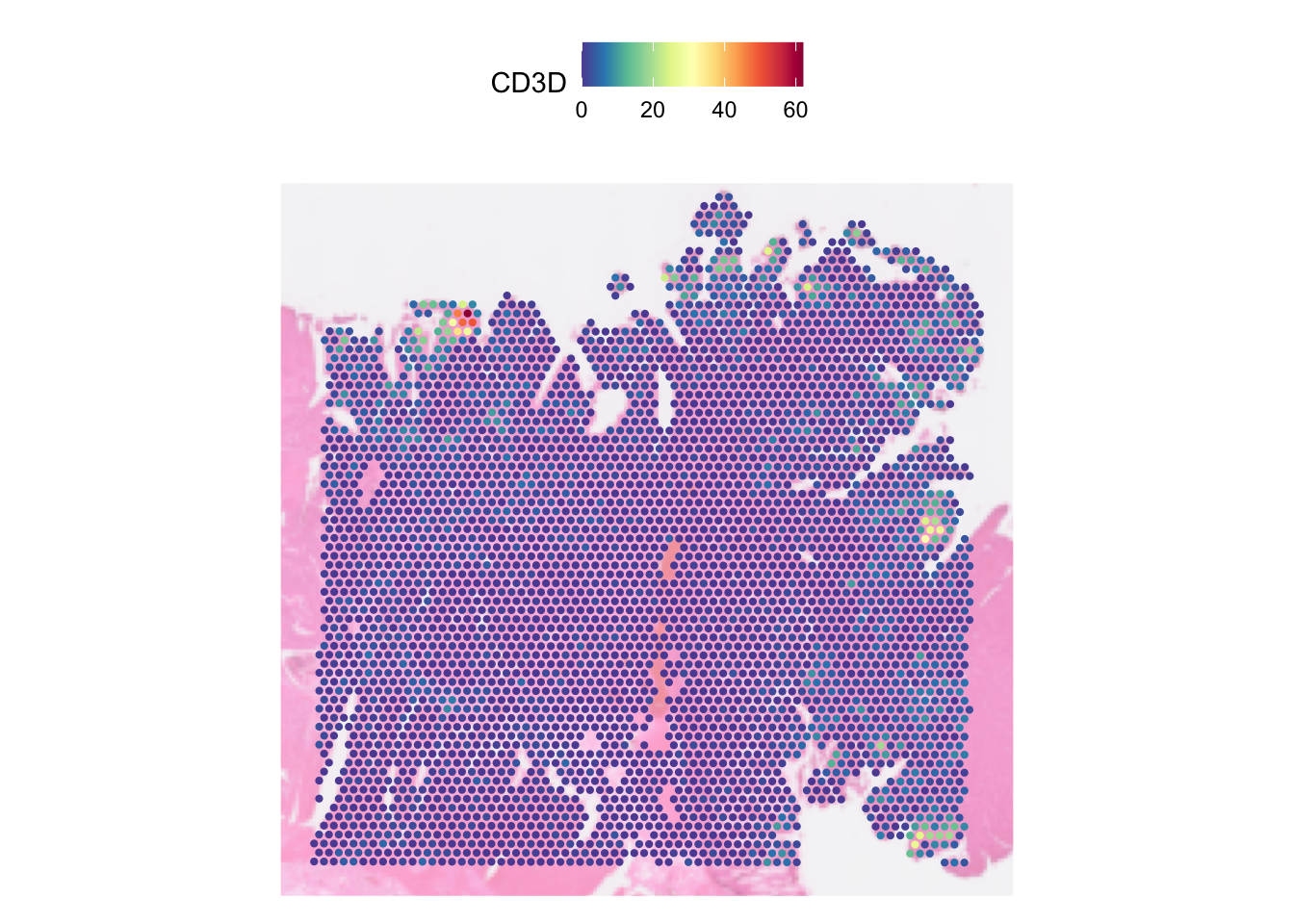

We can run the function on the raw unnormalised count by changing the
default assay and setting the slot parametr to the count
layer:
DefaultAssay(dat) <- "Spatial"
SpatialFeaturePlot(dat, features = "CD3D", pt.size.factor = pt_size, image.alpha = 0.5,
slot = "count")

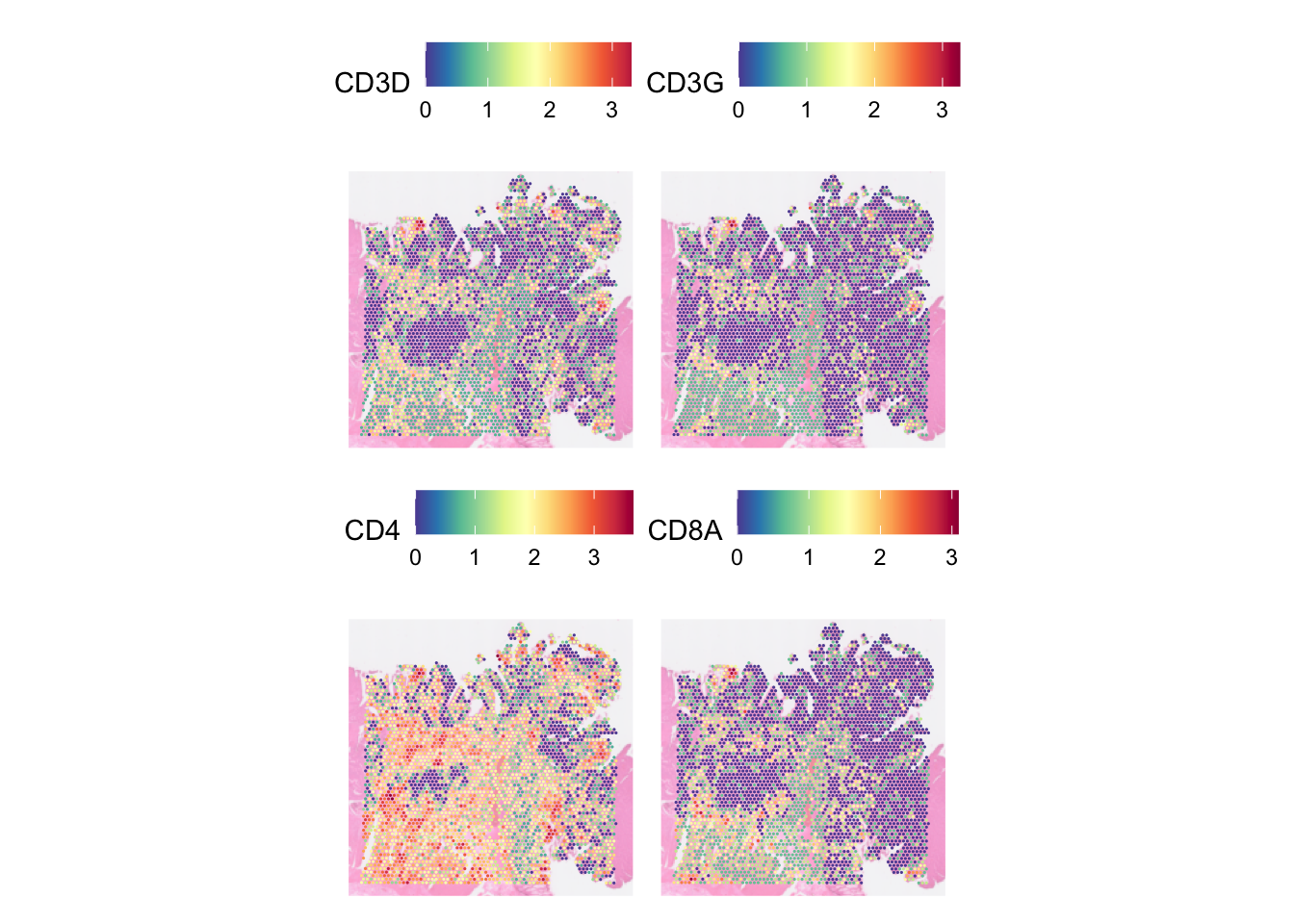

In one SpatialFeaturePlot call, we can visualise multiple features. E.g., let’s visualise four genes, CD3D, CD3G, CD4, CD8A, :
DefaultAssay(dat) <- "SCT"
SpatialFeaturePlot(dat, pt.size.factor = 5,
image.alpha = 0.5, features = c("CD3D", "CD3G", "CD4", "CD8A"))

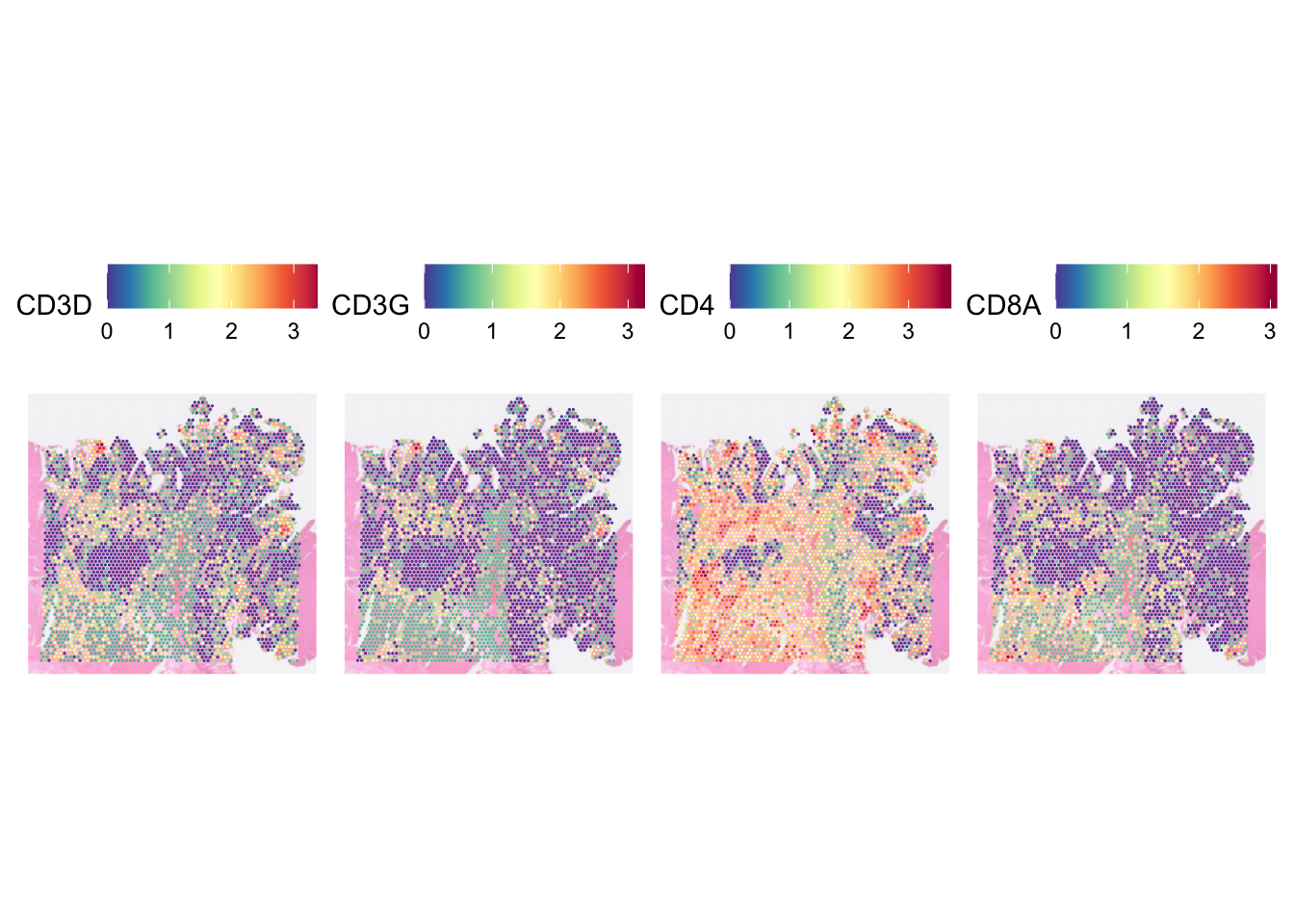

You can set how many columns do you want to spread the images across
by specifying the parameter ncol.
SpatialFeaturePlot(dat, pt.size.factor = 5,
image.alpha = 0.5,
features = c("CD3D", "CD3G", "CD4", "CD8A"), ncol = 4)
By default, the plot will focus on the the area of the tissue where the spots are. Disabling this by setting crop to FALSE will show the entire tissue.
SpatialFeaturePlot(dat, features = "CD3D", crop=FALSE, image.alpha = 0.5,
pt.size.factor = 3)
SpatialDimPlot

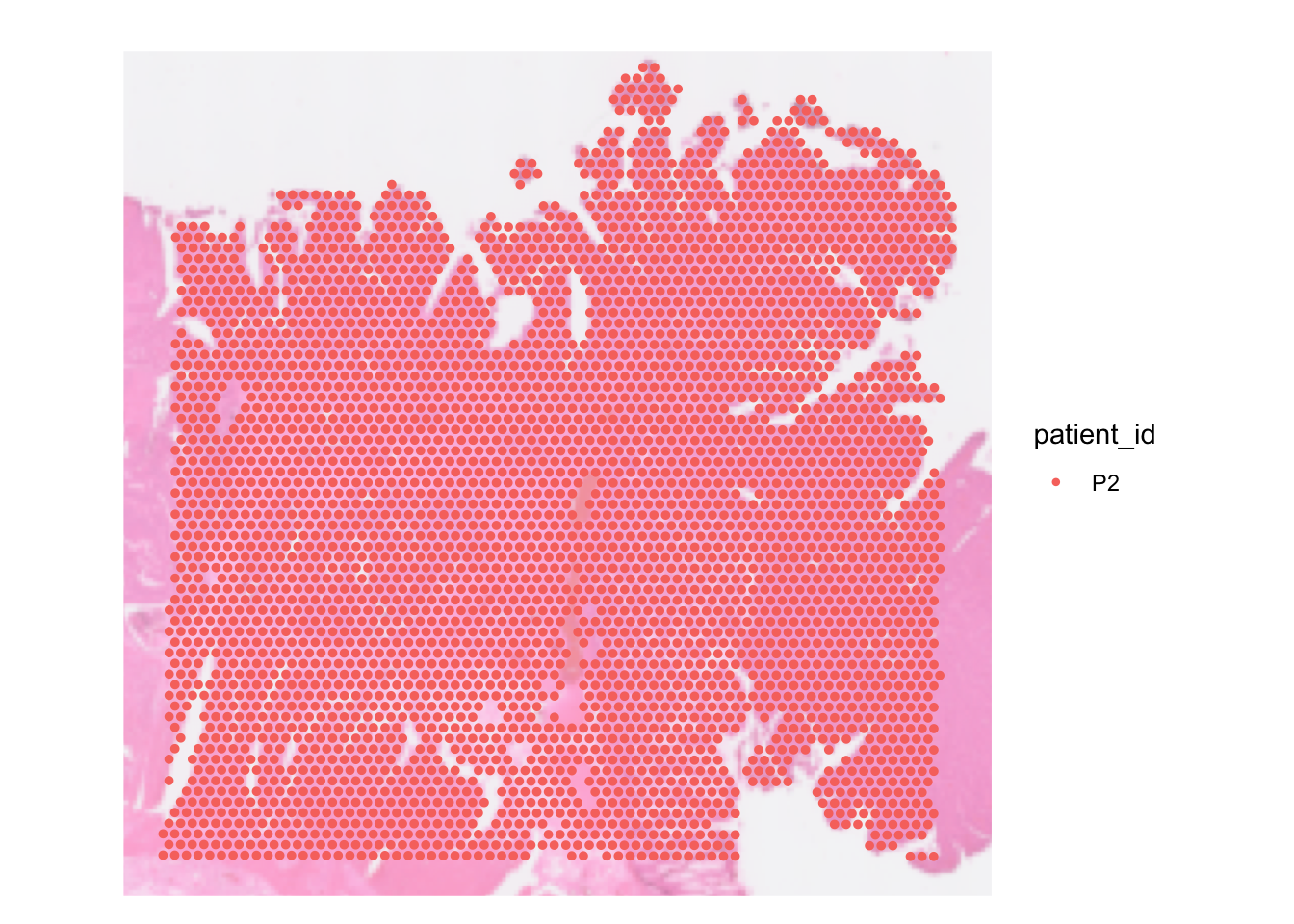

SpatialDimPlot is different from SpatialFeaturePlot in that it allows us to visualise qualitative features.
For example, let’s visualise the spot by the patient ID metadata we added in part 1 before.
SpatialDimPlot(dat, group.by = 'patient_id', pt.size.factor = pt_size,
image.alpha = 0.5)
There are some parameters that are shared between SpatialDimPlot and
SpatialFeaturePlot, like pt.size.factor,
image.alpha, alpha
We can override the spot colour by setting the cols
parameter with a named vector mapping the discrete category in the data
against the colour. To visualise this, let’s pretend we have 3 patients
in our data.
# pretend we have three patients in the data
dat[[]]$pretend_patient_id <- c(
rep("Adam", 3000),
rep("Jane", 700),
rep("Clare", 259)
)
SpatialDimPlot(dat, group.by = 'pretend_patient_id',
pt.size.factor = pt_size, image.alpha = 0.5,
cols = c("Adam" = "#0096FF", "Jane" = "orange", "Clare" = "#023020"))

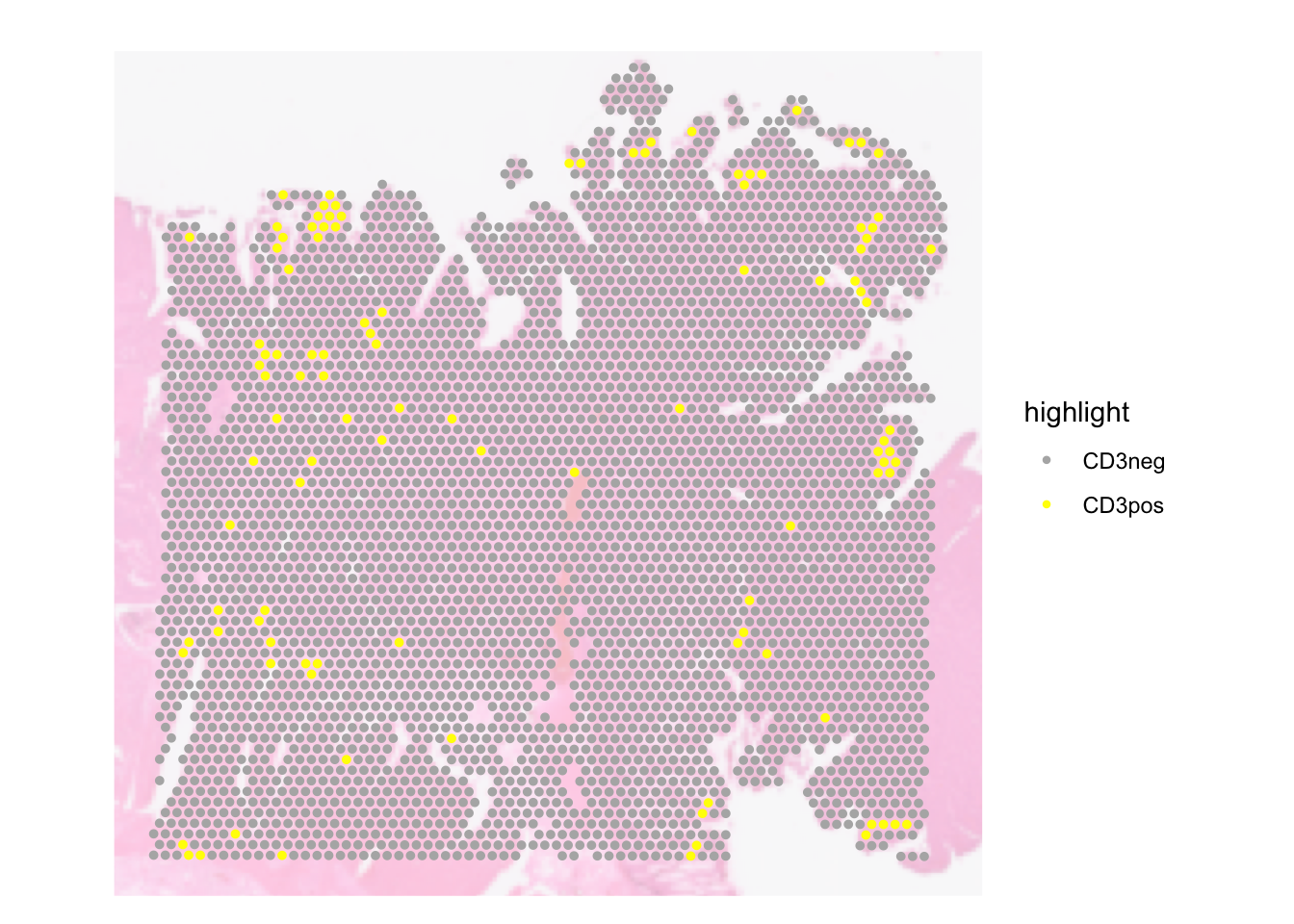

We can also highlight only spots that belong to certain group and grey out the rest. E.g. let’s discretise spots based on their CD3D expression
SpatialDimPlot(dat, pt.size.factor = pt_size, image.alpha = 0.3,
cells.highlight = list(
"CD3pos" = WhichCells(dat, expression = CD3D > 2),
"CD3neg" = WhichCells(dat, expression = CD3D <= 2)),
cols.highlight = c(
"CD3pos" = "yellow",
"CD3neg" = "grey70"))

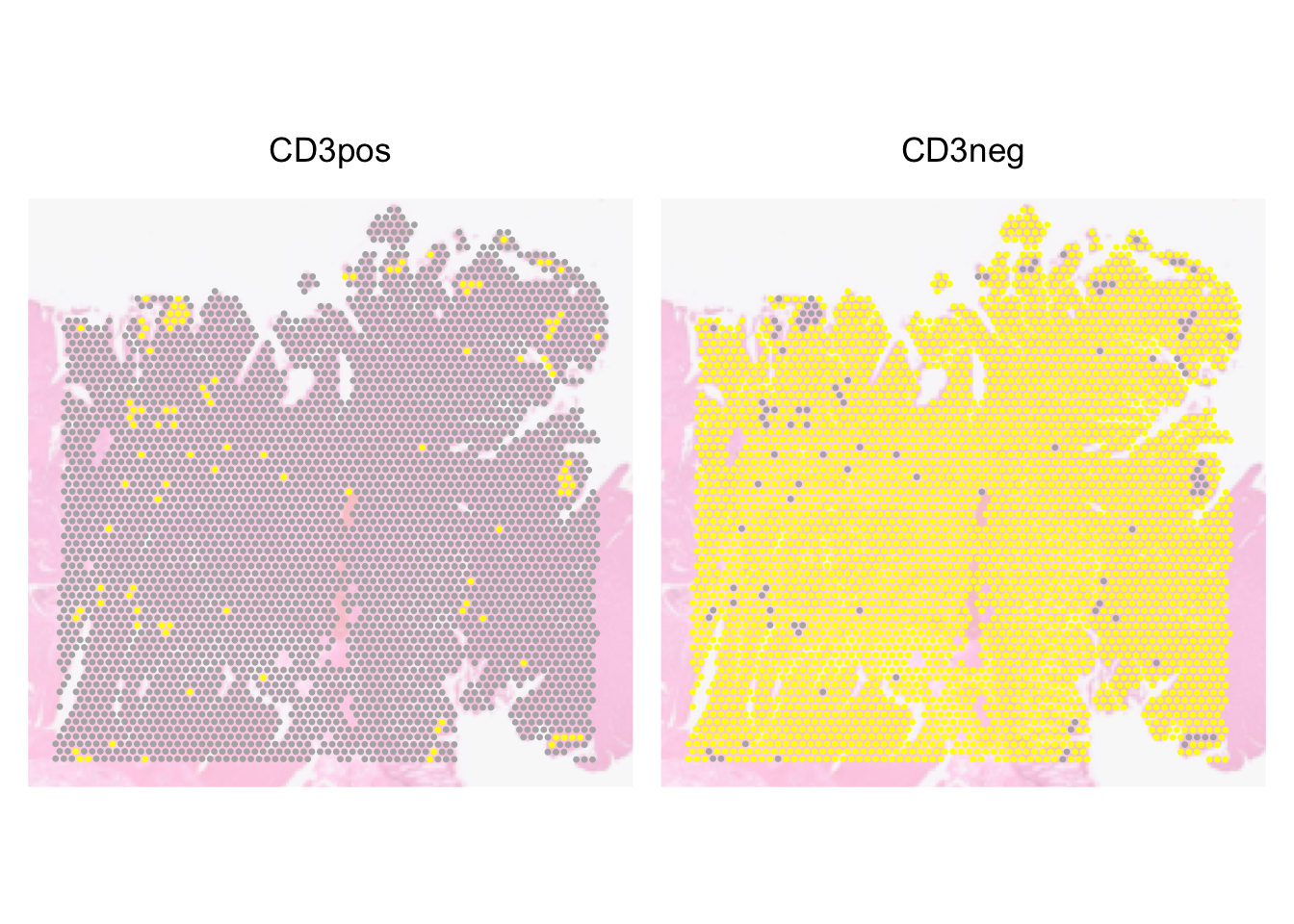

We can also split the image such that we have 1 panel each for each group.
SpatialDimPlot(dat, pt.size.factor = pt_size, image.alpha = 0.3,
cells.highlight = list(
"CD3pos" = WhichCells(dat, expression = CD3D > 2),
"CD3neg" = WhichCells(dat, expression = CD3D <= 2)),
cols.highlight = c("yellow", "grey70"),
facet.highlight = TRUE)
Further customising the plots
Both SpatialFeaturePlot and SpatialDimPlot
will return a ggplot object, which we can modify using the
functions and notations built into the ggplot2 package.

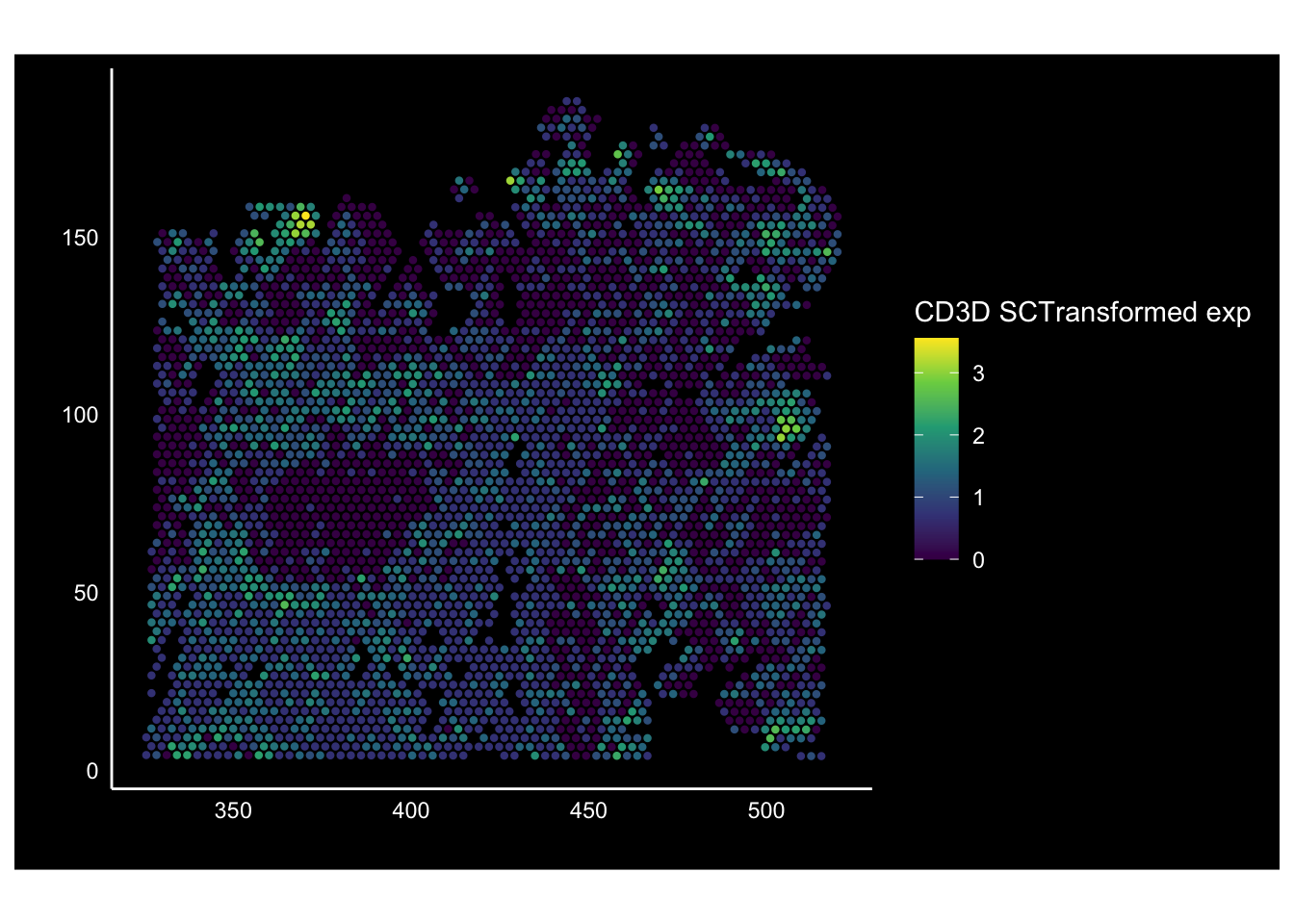

As an example, let’s update a feature plot showing CD3D expression such that we:
- Use the viridis colour scheme.
- Rename
CD3DtoCD3D SCTransformed exp - Have a black background and white axes
# Default SpatialFeature Plot
plt_dark_bg <- SpatialFeaturePlot(
dat,
features = "CD3D",
pt.size.factor = pt_size,
image.alpha = 0
)
# 1) Overriding the colour scheme to viridis
plt_dark_bg <- plt_dark_bg + scale_fill_viridis_c(option = 'viridis')Scale for fill is already present.
Adding another scale for fill, which will replace the existing scale.# 2) Rename `CD3D` to `CD3D SCTransformed exprssion`
plt_dark_bg <- plt_dark_bg + labs(fill='CD3D SCTransformed exp')
# 3) Have a black background and white axes
plt_dark_bg <- plt_dark_bg +
theme_minimal() +
theme(
legend.text = element_text(colour = "white"),
legend.title = element_text(colour = "white"),
legend.background = element_rect(fill = "black"),
plot.background = element_rect(fill = "black"),
panel.grid = element_blank(),
axis.text = element_text(colour = "white"),
axis.line = element_line(colour = "white")
)
plt_dark_bg
Since the plot is a ggplot object, we can export them using either the export button in Rstudio’s panel, or the ggsave function:
ggsave(filename="visium/data/spatial_plot_darkbg.png", plot=plt_dark_bg)Customising SpatialFeaturePlot with multiple features
When there are multiple features drawn using
SpatialFeaturePlot, the resulting object is no longer a
ggplot object but rather a “Large patchwork” object, an object generated
by the patchwork
package. This package is commonly used for combining plots in R. In
actual fact, the large patchwork object itself is a list where each
element is a ggplot object. Thus, to modify the plot, you will just need
to override each object like above.
