TCGA_luad_data_parser.Rmd

This code essentially processes LUAD TCGA data:

1. Mutation Data
2. RSEM Normalized
3. mRNA Count DAta
4. Exon Expression data
   Once it processes these data, it makes a merged all_data_luad.csv file for ALK that contains:
5. RSEM
6. RPKM (exon 20-29/exon 1-19 expression)
7. Count data
8. EGFR and KRAS Mutations
   Please note: there are two chunks with eval=F. Therefore, turn EVAL=T when running these for the first time

library(knitr)
library(tictoc)
library(workflowr)

This is workflowr version 1.1.1
Run ?workflowr for help getting started

library(VennDiagram)

Loading required package: grid

Loading required package: futile.logger

library(dplyr)

Attaching package: 'dplyr'

The following objects are masked from 'package:stats':

    filter, lag

The following objects are masked from 'package:base':

    intersect, setdiff, setequal, union

library(foreach)
library(doParallel)

Loading required package: iterators

Loading required package: parallel

library(ggplot2)
library(reshape2)
library(RColorBrewer)
library(devtools)
library(ggsignif)
source("code/contab_maker.R")
source("code/alldata_compiler.R")
source("code/quadratic_solver.R")
source("code/mut_excl_genes_generator.R")
source("code/mut_excl_genes_datapoints.R")
source("code/simresults_generator.R")

######################Cleanup for GGPlot2#########################################
cleanup=theme_bw() +
  theme(plot.title = element_text(hjust=.5),
        panel.grid.major = element_blank(),
        panel.grid.major.y = element_blank(),
        panel.background = element_blank(),
        axis.line = element_line(color = "black"))

LUAD Mutation Data: Grabbing EGFR and KRAS for 230 patients.

x1=list.dirs("data/tcga_luad_expression/luad_mutation_data",full.names=TRUE)#Lists all files in the current working directory x

Data_list=list.files(x1[1],pattern="^TCGA-[A-Za-z0-9]{2}-[A-Za-z0-9]{4}-[A-Za-z0-9]{2}.hg19.oncotator.hugo_entrez_remapped.maf.txt*", ignore.case=F)#lists the files in the folder

  patmat=matrix(nrow=length(Data_list),ncol=3)# This initializes the storage matrix
  for (i in 1:length(Data_list)){
    patdat=read.table(paste(x1,"/",Data_list[i],sep=""),stringsAsFactors=FALSE,header=TRUE, sep="\t",fill=TRUE,quote = "")#opens each file as the loop progresses
    egfr=patdat%>%filter(Hugo_Symbol=="EGFR",Variant_Classification!="Silent")
    kras=patdat%>%filter(Hugo_Symbol=="KRAS",Variant_Classification!="Silent")

    #This essentially says that if you can't find the mutant, enter NaN. If you find two mutants, then search for the major transforming mutation (e.g. BrafV600E). Non of the >1 mutations are the transforming mutation, just select the first one
      if(nrow(egfr)>=2){
      if(egfr$Protein_Change%in%"p.T790M"){
        egfr=egfr%>%filter(Protein_Change=="p.T790M")
      } else{
          egfr=egfr[1,]
        }
      } else if(nrow(egfr)==0){
        egfr[1,]="p.NaN"
      }
    if(nrow(kras)>=2){
      if(kras$Protein_Change%in%"p.G12D"){
        kras=kras%>%filter(Protein_Change=="p.G12D")
      } else{
          kras=kras[1,]
        }
      } else if(nrow(kras)==0){
        kras[1,]="p.NaN"
      }

    # missense=nrow(patdat[patdat$Variant_Classification=="Missense_Mutation",])#counts missense mutations by identifying the number of rows in a
    patmat[i,1]=Data_list[i]#Record the Patient ID from the file name
    patmat[i,2]=egfr$Protein_Change
    patmat[i,3]=kras$Protein_Change
    }

Warning in if (egfr$Protein_Change %in% "p.T790M") {: the condition has
length > 1 and only the first element will be used

Warning in if (egfr$Protein_Change %in% "p.T790M") {: the condition has
length > 1 and only the first element will be used

Warning in if (egfr$Protein_Change %in% "p.T790M") {: the condition has
length > 1 and only the first element will be used

Warning in if (egfr$Protein_Change %in% "p.T790M") {: the condition has
length > 1 and only the first element will be used

Warning in if (egfr$Protein_Change %in% "p.T790M") {: the condition has
length > 1 and only the first element will be used

Warning in if (egfr$Protein_Change %in% "p.T790M") {: the condition has
length > 1 and only the first element will be used

Warning in if (egfr$Protein_Change %in% "p.T790M") {: the condition has
length > 1 and only the first element will be used

Warning in if (kras$Protein_Change %in% "p.G12D") {: the condition has
length > 1 and only the first element will be used

Warning in if (egfr$Protein_Change %in% "p.T790M") {: the condition has
length > 1 and only the first element will be used

Warning in if (egfr$Protein_Change %in% "p.T790M") {: the condition has
length > 1 and only the first element will be used

Warning in if (egfr$Protein_Change %in% "p.T790M") {: the condition has
length > 1 and only the first element will be used

patframe=data.frame(patmat)#Turn storage matrix into data frame
colnames(patframe)[1:3]=c("Patid","EGFR","KRAS")#Rename the columns
# write.csv(patframe,"patients_tally_muttype2.csv")# Record data frame as a CSV and write to the working directory

#Grabbing Patient Names so that they can be used to merge with exon data later
alk_mutated_data=patframe
alk_mutated_data$Patid=substring(alk_mutated_data$Patid,first = 1,last = 12)
###Removing "p." from names of mutants:
alk_mutated_data$EGFR=unlist(sub("p.","",alk_mutated_data$EGFR))
alk_mutated_data$KRAS=unlist(sub("p.","",alk_mutated_data$KRAS))
head(alk_mutated_data)

         Patid  EGFR KRAS
1 TCGA-05-4249   NaN G12C
2 TCGA-05-4382 R222L  NaN
3 TCGA-05-4384   NaN  NaN
4 TCGA-05-4389   NaN  NaN
5 TCGA-05-4390   NaN G12V
6 TCGA-05-4395   NaN G12V

LUAD Genes RSEM

rsemdatanormalized=read.table("data/tcga_luad_expression/luadrsemdata/gdac.broadinstitute.org_LUAD.Merge_rnaseqv2__illuminahiseq_rnaseqv2__unc_edu__Level_3__RSEM_genes_normalized__data.Level_3.2016012800.0.0/LUAD.rnaseqv2__illuminahiseq_rnaseqv2__unc_edu__Level_3__RSEM_genes_normalized__data.data.txt",sep = "\t",header = T,stringsAsFactors = F)
alk_rsem=data.frame(t(rsemdatanormalized[grepl("^alk\\|",rsemdatanormalized$Hybridization.REF,ignore.case = T),])[-1,])
#410 of the 577 patients have an RSEM higher than 410
colnames(alk_rsem)[1]="RSEM_normalized"
alk_rsem$Patid=rownames(alk_rsem)
#Standardizing Patid Names
alk_rsem$Patid=substring(alk_rsem$Patid,first = 1,last = 12)
alk_rsem$Patid=gsub("\\.","-",alk_rsem$Patid)

# # As Character
alk_rsem[colnames(alk_rsem)] <- lapply(alk_rsem[colnames(alk_rsem)],as.character)
# # As Numeric: Converting from list to numeric
alk_rsem$RSEM_normalized=unlist(alk_rsem$RSEM_normalized)
alk_rsem$RSEM_normalized=as.numeric(alk_rsem$RSEM_normalized)

LUAD Count data:

#Non-normalized:
gene_expression_data=read.table("data/tcga_luad_expression/luadgeneexpression/gdac.broadinstitute.org_LUAD.Merge_rnaseq__illuminahiseq_rnaseq__unc_edu__Level_3__gene_expression__data.Level_3.2016012800.0.0/LUAD.rnaseq__illuminahiseq_rnaseq__unc_edu__Level_3__gene_expression__data.data.txt",sep = "\t",header = T,stringsAsFactors = F)
#Normalized
# gene_expression_data=read.table(,sep = "\t",header = T,stringsAsFactors = F)

  #Finding Alk
  alk_gene_exp=rbind(gene_expression_data[1,],gene_expression_data[grepl("^alk\\|",gene_expression_data$Hybridization.REF,ignore.case = T),])
  #Removing Columns for Median_length_normalized and RPKM
  t_alk_gene_exp=data.frame(t(alk_gene_exp[,grepl("raw_count",alk_gene_exp[1,])]))

  #Counting patients with raw reads >500
  # sum(as.numeric(as.numeric(as.character(t_alk_gene_exp$X580))>=500))
#ONLY 6 PATIENTS HAVE RAW COUNTS OF >500

LUAD Exon RPKM This creates a .csv file and only needs to be run once.

# rm(list=ls())#Clears workspace
exondatacomb=read.table("data/tcga_luad_expression/luadexondatacomb/gdac.broadinstitute.org_LUAD.Merge_rnaseq__illuminahiseq_rnaseq__unc_edu__Level_3__exon_expression__data.Level_3.2016012800.0.0/LUAD.rnaseq__illuminahiseq_rnaseq__unc_edu__Level_3__exon_expression__data.data.txt",stringsAsFactors=FALSE,header=TRUE, sep="\t",fill=TRUE)
# head(exondatacomb)

#Chromosome 2
exondatachr2=exondatacomb[grep("^chr2:",exondatacomb$Hybridization.REF),] #i.e. it starts with chromosome 2
#Alk within Chromosome 2
# The exon locations were found on ensembl here https://useast.ensembl.org/Homo_sapiens/Transcript/Exons?db=core;g=ENSG00000171094;r=2:29192774-29921566;t=ENST00000389048
##These start at chr2:29415641-29416788:-
exondatachr2alk=exondatacomb[c(26031:26059),]

# # write.table(exondatachr2alk,'exondatachr2alk.csv')
# exondatachr2alk=read.csv("exondatachr2alk.csv",stringsAsFactors = F,header = T,sep = "",fill = T)
#Adding Names for Exons
exondatachr2alk$exon=c(29:1)
alldataalk=exondatachr2alk[,c(488,c(2:487))]
#Switching up order
alldataalk2=alldataalk[c(29:1),]

#Making the dataframe of a numeric type so that analysis can be carried out on it.
# As Character
alldataalk2[colnames(alldataalk2)] <- lapply(alldataalk2[colnames(alldataalk2)],as.character)
# As Numeric
alldataalk2[colnames(alldataalk2)] <- lapply(alldataalk2[colnames(alldataalk2)],as.numeric)

#Getting the correct column names for alldataalk2
# alldataalk2[1,]
colnames_exondata=exondatacomb[1,]
colnames(colnames_exondata)=colnames(alldataalk2)

alldataalk2=rbind(colnames_exondata,alldataalk2) #Adding first row that contains names of measurements such as RPKM, RSEM, Counts
write.table(alldataalk2,'output/luad_alk_exon_expression.csv')

#I used this code to find the length of exons and compare these to the lengths of the exons on Ensembl. I had to calculate exon lengths because annotations in this file and annotations in enseml weren't the same.
# trunc_names=gsub("chr2:|:\\+|:\\-","",exondatachr2$Hybridization.REF)
# ##Code to get the length of each exon:
# names=exondatachr2$Hybridization.REF
# trunc_names2=gsub("\\-","",trunc_names)
# trunc_names2=gsub("chr2:","",trunc_names)
# start=sapply(strsplit(trunc_names,"-"),"[",1)
# end=sapply(strsplit(trunc_names,"-"),"[",2)
# positions=data.frame(start,end,names)
# positions[,c(1,2)]=lapply(positions[,c(1,2)],as.character)
# positions[,c(1,2)]=lapply(positions[,c(1,2)],as.numeric)
# positions$net=positions$end-positions$start

alldataalk2=read.csv("output/luad_alk_exon_expression.csv",stringsAsFactors = F,header = T,sep = "",fill = T)
#Getting Count Data
alldataalk2_count=cbind(alldataalk2$exon,alldataalk2[,grepl("raw_counts",alldataalk2[1,])])[-1,]
# As Character
alldataalk2_count[colnames(alldataalk2_count)] <-lapply(alldataalk2_count[colnames(alldataalk2_count)],as.character)
# As Numeric
alldataalk2_count[colnames(alldataalk2_count)] <- lapply(alldataalk2_count[colnames(alldataalk2_count)],as.numeric)
#Sum exons 1:29
alk_count_data=data.frame(t(data.frame(lapply(alldataalk2_count[c(1:29),],sum))[,-1])) #Not sure if lapply is the right thing to use here. Really messed up way of summing indices in dataframe
colnames(alk_count_data)="mRNA_count"

alldataalk2_medianlength=cbind(alldataalk2$exon,alldataalk2[,grepl("median_length",alldataalk2[1,])])
# As Character
alldataalk2_medianlength=alldataalk2_medianlength[-1,] #Removing the first row. May be unnecessary in the future
alldataalk2_medianlength[colnames(alldataalk2_medianlength)] <- lapply(alldataalk2_medianlength[colnames(alldataalk2_medianlength)],as.character)
# As Numeric
alldataalk2_medianlength[colnames(alldataalk2_medianlength)] <- lapply(alldataalk2_medianlength[colnames(alldataalk2_medianlength)],as.numeric)
#Sum exons 1:29
alk_medianlength_data=data.frame(t(data.frame(lapply(alldataalk2_medianlength[c(1:29),],sum))[,-1])) #Removing sum of exons lol
colnames(alk_medianlength_data)="medianlength"

#Getting RPKM
alldataalk2_RPKM=cbind(alldataalk2$exon,alldataalk2[,grepl("RPKM",alldataalk2[1,])])
# As Character
alldataalk2_RPKM=alldataalk2_RPKM[-1,] #Removing the first row. May be unnecessary in the future
alldataalk2_RPKM[colnames(alldataalk2_RPKM)] <- lapply(alldataalk2_RPKM[colnames(alldataalk2_RPKM)],as.character)
# As Numeric
alldataalk2_RPKM[colnames(alldataalk2_RPKM)] <- lapply(alldataalk2_RPKM[colnames(alldataalk2_RPKM)],as.numeric)
alk_RPKM_data=data.frame(cbind(lapply(alldataalk2_RPKM[c(1:19),],mean),lapply(alldataalk2_RPKM[c(20:29),],mean))[-1,])
colnames(alk_RPKM_data)=c("mean_RPKM_1.19","mean_RPKM_20.29")
# As Character
alk_RPKM_data[colnames(alk_RPKM_data)] <- lapply(alk_RPKM_data[colnames(alk_RPKM_data)],as.character)
# As Numeric
alk_RPKM_data[colnames(alk_RPKM_data)] <- lapply(alk_RPKM_data[colnames(alk_RPKM_data)],as.numeric)
#  Calculating Ratios of exon RPKM means
alk_RPKM_data$Ratio20.29=alk_RPKM_data$mean_RPKM_20.29/alk_RPKM_data$mean_RPKM_1.19

#Changing rownames (patient_ids) to become the same between each other
rownames(alk_RPKM_data)=substring(rownames(alk_RPKM_data),first=1,last=28)
rownames(alk_medianlength_data)=substring(rownames(alk_medianlength_data),first=1,last=28)
alk_RPKM_data$Patid=rownames(alk_RPKM_data)
alk_medianlength_data$Patid=rownames(alk_medianlength_data)
alk_count_data$Patid=rownames(alk_count_data)

mergetemp=merge(alk_RPKM_data,alk_count_data,by="Patid")
alk_exon_data=merge(mergetemp,alk_medianlength_data,by="Patid")
#Transforming the Patids so that they're compatible with the Patids in the mutation data
alk_exon_data$Patid=substring(alk_exon_data$Patid,first = 1,last = 12)
#Since the names for exon data are not the same format as the mutation data, we're gonna change that here
alk_exon_data$Patid=gsub("\\.","-",alk_exon_data$Patid)
alkati_merged_data=merge(alk_exon_data,alk_mutated_data,by="Patid",all=T)
alkati_merged_data=merge(alkati_merged_data,alk_rsem,by="Patid",all = T)
# alkati_merged_data=merge(alk_exon_data,alk_mutated_data,by="Patid")
# alkati_merged_data=merge(alkati_merged_data,alk_rsem,by="Patid")

###Now adding ALK hits to the data based on filters by Wiesner et al
###2/15 note: use the TCGA data sorter to just process your data
# alk_data=read.csv("../data/all_data.csv",stringsAsFactors = F)
# alldata=tcgadatasorter("data/all_data.csv",meanRPKM,100,500)
alkati_merged_data_alkati=alkati_merged_data%>%
  group_by(Patid,mean_RPKM_1.19,mean_RPKM_20.29,Ratio20.29, mRNA_count,EGFR,KRAS,RSEM_normalized)%>%
  summarize(ATI=as.numeric(mRNA_count>=100&Ratio20.29>10&RSEM_normalized>=80)[1])

write.csv(alkati_merged_data_alkati,"output/all_data_luad.csv")

alkati_merged_data=read.csv("output/all_data_luad.csv")

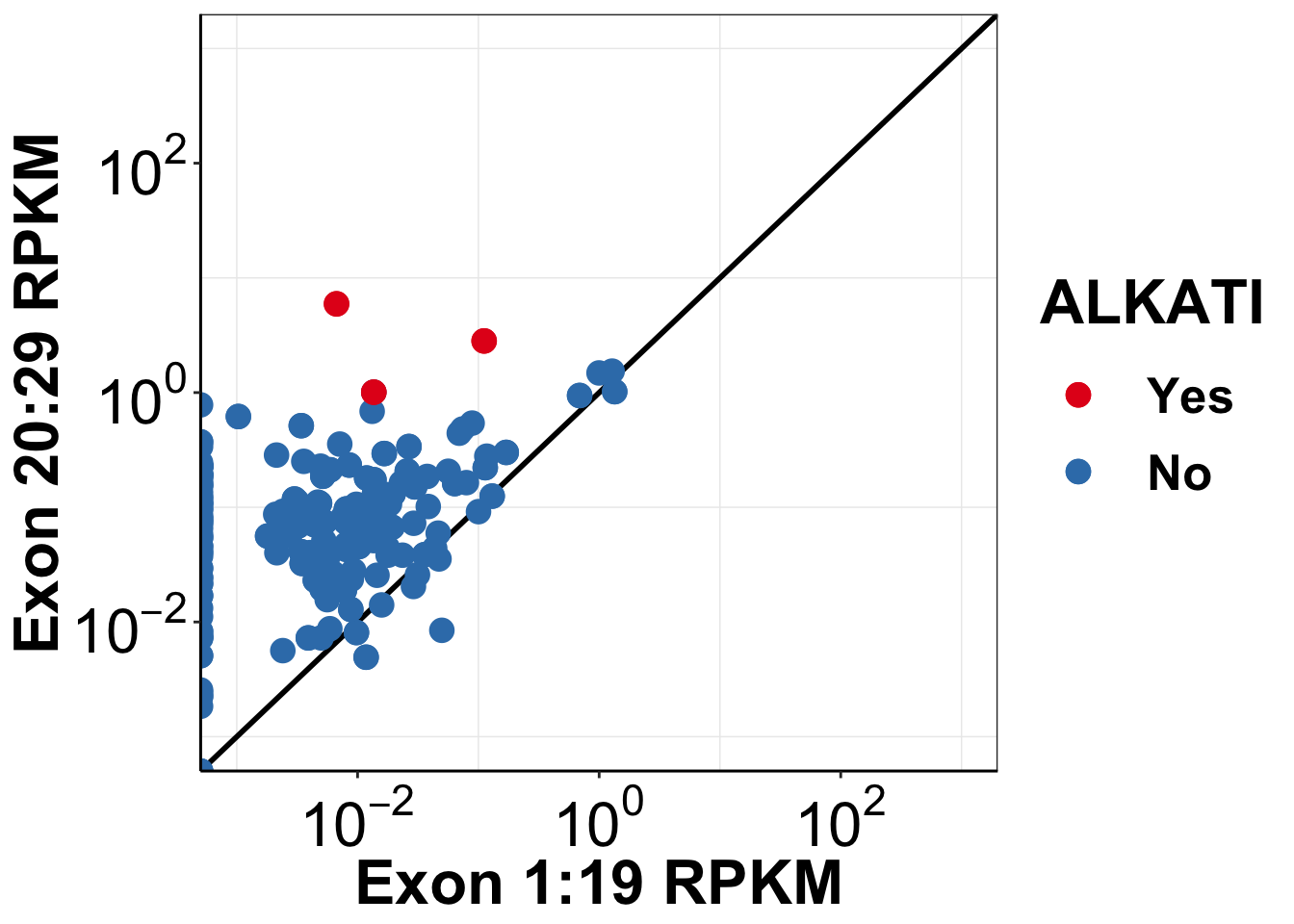

alkati_merged_data$alkati=0
alkati_merged_data$alkati[alkati_merged_data$Ratio>=10&alkati_merged_data$mRNA_count>=500&alkati_merged_data$RSEM_normalized>=80]=1
alkati_merged_data$alkati=factor(alkati_merged_data$alkati,levels=c("1","0"))

  ggplot(alkati_merged_data,aes(x=mean_RPKM_1.19, y=mean_RPKM_20.29,color=factor(alkati)))+
    geom_abline(size=1)+
    geom_point(size=4)+
    ####Had to add this line to not overplot the alkati datapoint- Haider 1/31/19
    geom_point(data=alkati_merged_data[alkati_merged_data$alkati==1,],aes(x=mean_RPKM_1.19, y=mean_RPKM_20.29,color=factor(alkati)),size=4)+
    scale_x_continuous(trans = "log10",name="Exon 1:19 RPKM",breaks=c(1e-2,1e0,1e2),labels = parse(text = c("10^-2","10^0","10^2")),limits = c(1e-3,1e3))+
    scale_y_continuous(trans = "log10",name="Exon 20:29 RPKM",breaks=c(1e-2,1e0,1e2),labels = parse(text = c("10^-2","10^0","10^2")),limits = c(1e-3,1e3))+
    scale_color_brewer(palette="Set1",name="ALKATI",labels=c("Yes", "No"))+
    cleanup+
    theme(plot.title = element_text(hjust=.5),
          text = element_text(size=24,face = "bold"),
          axis.title = element_text(face="bold",size="24"),
          axis.text=element_text(face="bold",size="24",colour = "black"))+
    theme(legend.key.size = unit(30,"pt"))

Warning: Transformation introduced infinite values in continuous x-axis

Warning: Transformation introduced infinite values in continuous y-axis

Warning: Removed 391 rows containing missing values (geom_point).

ggsave("output/alkati_luad_exonimbalance.pdf",width =12 ,height =10 ,units = "in",useDingbats=F)

Warning: Transformation introduced infinite values in continuous x-axis

Warning: Transformation introduced infinite values in continuous y-axis

Warning: Removed 391 rows containing missing values (geom_point).

#Testing if both kinase and ALK expression are different
ks.test(alkati_merged_data$mean_RPKM_1.19,alkati_merged_data$mean_RPKM_20.29)

Warning in ks.test(alkati_merged_data$mean_RPKM_1.19,
alkati_merged_data$mean_RPKM_20.29): p-value will be approximate in the
presence of ties

    Two-sample Kolmogorov-Smirnov test

data:  alkati_merged_data$mean_RPKM_1.19 and alkati_merged_data$mean_RPKM_20.29
D = 0.65401, p-value < 2.2e-16
alternative hypothesis: two-sided

###We observed a significant difference between the distribution for the 20-29 exons and the 1-19 exons The reported p-value was 2-16.

Session information

sessionInfo()

R version 3.5.2 (2018-12-20)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS Mojave 10.14.3

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] parallel  grid      stats     graphics  grDevices utils     datasets
[8] methods   base

other attached packages:
 [1] bindrcpp_0.2.2      ggsignif_0.4.0      usethis_1.4.0
 [4] devtools_2.0.1      RColorBrewer_1.1-2  reshape2_1.4.3
 [7] ggplot2_3.1.0       doParallel_1.0.14   iterators_1.0.10
[10] foreach_1.4.4       dplyr_0.7.8         VennDiagram_1.6.20
[13] futile.logger_1.4.3 workflowr_1.1.1     tictoc_1.0
[16] knitr_1.21

loaded via a namespace (and not attached):
 [1] tidyselect_0.2.5     xfun_0.4             remotes_2.0.2
 [4] purrr_0.3.0          colorspace_1.4-0     htmltools_0.3.6
 [7] yaml_2.2.0           rlang_0.3.1          pkgbuild_1.0.2
[10] R.oo_1.22.0          pillar_1.3.1         glue_1.3.0
[13] withr_2.1.2          R.utils_2.7.0        sessioninfo_1.1.1
[16] lambda.r_1.2.3       bindr_0.1.1          plyr_1.8.4
[19] stringr_1.3.1        munsell_0.5.0        gtable_0.2.0
[22] R.methodsS3_1.7.1    codetools_0.2-16     evaluate_0.12
[25] memoise_1.1.0        callr_3.1.1          ps_1.3.0
[28] Rcpp_1.0.0           backports_1.1.3      scales_1.0.0
[31] formatR_1.5          desc_1.2.0           pkgload_1.0.2
[34] fs_1.2.6             digest_0.6.18        stringi_1.2.4
[37] processx_3.2.1       rprojroot_1.3-2      cli_1.0.1
[40] tools_3.5.2          magrittr_1.5         lazyeval_0.2.1
[43] tibble_2.0.1         futile.options_1.0.1 crayon_1.3.4
[46] whisker_0.3-2        pkgconfig_2.0.2      prettyunits_1.0.2
[49] assertthat_0.2.0     rmarkdown_1.11       R6_2.3.0
[52] git2r_0.24.0         compiler_3.5.2
