QGT-Columbia-analysis-plan
Hae Kyung Im
2020-06-03
Last updated: 2020-06-05
Checks: 6 1
Knit directory: QGT-Columbia-HKI/
This reproducible R Markdown analysis was created with workflowr (version 1.6.0). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
The R Markdown file has unstaged changes. To know which version of the R Markdown file created these results, you’ll want to first commit it to the Git repo. If you’re still working on the analysis, you can ignore this warning. When you’re finished, you can run wflow_publish to commit the R Markdown file and build the HTML.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20200603) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.
Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
Ignored files:
Ignored: .Rproj.user/
Unstaged changes:
Modified: analysis/analysis_plan.Rmd
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the R Markdown and HTML files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view them.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 0deee3c | Hae Kyung Im | 2020-06-05 | added TWMR |
| html | 0deee3c | Hae Kyung Im | 2020-06-05 | added TWMR |
| Rmd | 064f6ee | Hae Kyung Im | 2020-06-05 | added figures and slides under extras |
| html | 064f6ee | Hae Kyung Im | 2020-06-05 | added figures and slides under extras |
| Rmd | 1b70eb7 | Hae Kyung Im | 2020-06-05 | updated prerequisites |
| html | 1b70eb7 | Hae Kyung Im | 2020-06-05 | updated prerequisites |
| Rmd | 339f40c | Hae Kyung Im | 2020-06-05 | added plan |
| html | 339f40c | Hae Kyung Im | 2020-06-05 | added plan |
| Rmd | a3aa03e | Hae Kyung Im | 2020-06-05 | prerequisites added |
| Rmd | 09f5dae | Hae Kyung Im | 2020-06-05 | fastenloc |
| Rmd | ccb1167 | Hae Kyung Im | 2020-06-05 | knit |
| html | ccb1167 | Hae Kyung Im | 2020-06-05 | knit |
| Rmd | d427aee | Hae Kyung Im | 2020-06-05 | minor comment sort1 |
| Rmd | 4ca65b9 | Hae Kyung Im | 2020-06-05 | edits 2 |
| Rmd | f59cd02 | Hae Kyung Im | 2020-06-04 | edits |
| html | f59cd02 | Hae Kyung Im | 2020-06-04 | edits |
| Rmd | d65c555 | Hae Kyung Im | 2020-06-04 | twmr |
| html | d65c555 | Hae Kyung Im | 2020-06-04 | twmr |
| html | 682b6e2 | Hae Kyung Im | 2020-06-04 | Build site. |
| Rmd | d3502e8 | Hae Kyung Im | 2020-06-04 | wflow_publish(“analysis/analysis_plan.Rmd”) |
| Rmd | 4420fc7 | Hae Kyung Im | 2020-06-04 | wflow_rename(“analysis/predixcan_analysis.Rmd”, “analysis/analysis_plan.Rmd”) |
| html | 4420fc7 | Hae Kyung Im | 2020-06-04 | wflow_rename(“analysis/predixcan_analysis.Rmd”, “analysis/analysis_plan.Rmd”) |
set up
This information is also on the slides - download from Box data and software
- install anaconda/miniconda
- define imlabtools conda environment
- download the folder from Box here -[ ] TODO: add box link with updated folder this will have copies of all the software repositories and the models
- download metaxcan repo
- download torus repo
- download fastenloc repo
- download TMWR repo
- download prediction models from predictdb.org
workaround: in the experimental Rstudio server (http://104.154.186.85) For the terminal to work properly we need to run > source /home/rstudio/.bashrc > conda activate imlabtools
analysis plan
- predict whole blood expression
- run association between predicted expression and a simulated phenotype
- calculate association between expression levels and coronary artery disease risk using s-predixcan
- fine-map the coronary artery disease gwas results using torus (need some preformatting)
- calculate colocalization probability using fastenloc
- run transcriptome-wide mendelian randomization in one locus of interest
library(tidyverse)── Attaching packages ───────────────────────────────────────────────────────────────────────── tidyverse 1.3.0 ──✓ ggplot2 3.2.1 ✓ purrr 0.3.3
✓ tibble 2.1.3 ✓ dplyr 0.8.3
✓ tidyr 1.0.2 ✓ stringr 1.4.0
✓ readr 1.3.1 ✓ forcats 0.4.0── Conflicts ──────────────────────────────────────────────────────────────────────────── tidyverse_conflicts() ──
x dplyr::filter() masks stats::filter()
x dplyr::lag() masks stats::lag()Preliminary information
Data and copies of repositories can be downloaded from Box here
The latest version of the analysis plan that generated this page is on github here
Transcriptome-wide association methods
print(getwd())[1] "/Users/yanyul/Documents/repo/github/QGT-Columbia-HKI"pre="/home/student/QGT-Columbia-HKI"
model.dir=glue::glue("{pre}/models")
metaxcan.dir=glue::glue("{pre}/repos/MetaXcan-master/software")
fastenloc.dir=glue::glue("{pre}/repos/fastenloc-master")
torus.dir=glue::glue("{pre}/repos/torus-master")
twmr.dir=glue::glue("{pre}/repos/TWMR-master")
results.dir=glue::glue("{pre}/results")predict expression

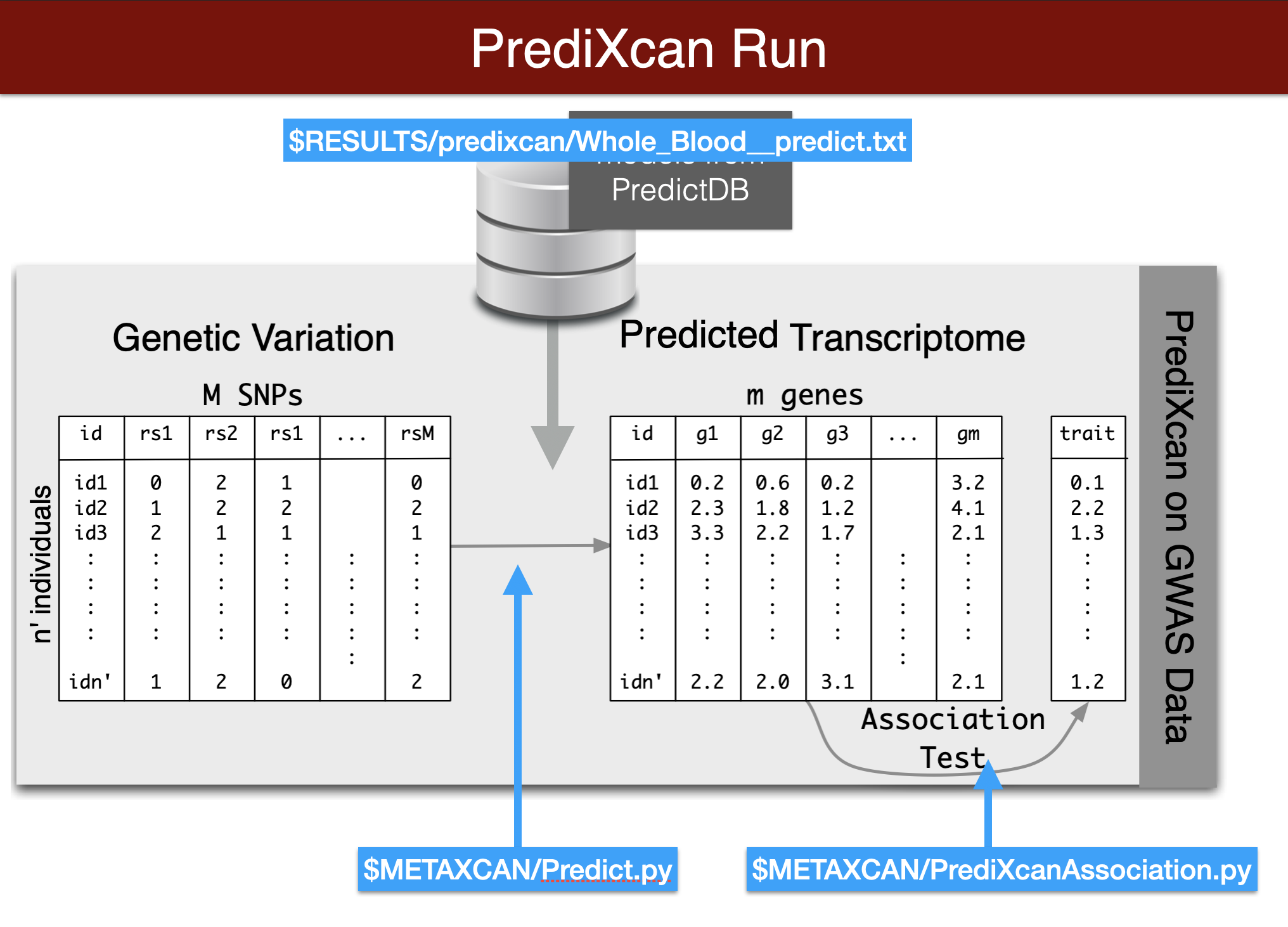

Visual summary of predixcan runs
conda activate imlabtools
export PRE="/home/student/QGT-Columbia-HKI"
export DATA=$PRE/data/predixcan
export MODEL=$PRE/models
export METAXCAN=$PRE/repos/MetaXcan-master/software
export RESULTS=$PRE/results
printf "Predict expression\n\n"
python3 $METAXCAN/Predict.py \
--model_db_path $PRE/models/gtex_v8_en/en_Whole_Blood.db \
--vcf_genotypes $DATA/genotype/ALL.chr22.shapeit2_integrated_snvindels_v2a_27022019.GRCh38.phased.vcf.gz \
--vcf_mode genotyped \
--variant_mapping $DATA/gtex_v8_eur_filtered_maf0.01_monoallelic_variants.txt.gz id rsid \
--on_the_fly_mapping METADATA "chr{}_{}_{}_{}_b38" \
--prediction_output $RESULTS/predixcan/Whole_Blood__predict.txt \
--prediction_summary_output $RESULTS/predixcan/Whole_Blood__summary.txt \
--verbosity 9 \
--throwassess prediction performance (optional)
predicted_expression = read_tsv(glue::glue("{results.dir}/predixcan/Whole_Blood__predict.txt"))
dim(predicted_expression)
head(predicted_expression[,1:5])
prediction_summary = read_tsv(glue::glue("{results.dir}/predixcan/Whole_Blood__summary.txt"))
dim(prediction_summary)
head(prediction_summary)
## merge with GEUVADIS expression data
## calculate spearman correlation
## select a few genes and plot predicted vs observed expressionrun association with phenotype
export PRE="/home/student/QGT-Columbia-HKI"
export DATA=$PRE/data/predixcan
export MODEL=$PRE/models
export METAXCAN=$PRE/repos/MetaXcan-master/software
export RESULTS=$PRE/results
printf "association\n\n"
python3 $METAXCAN/PrediXcanAssociation.py \
--expression_file $RESULTS/predixcan/Whole_Blood__predict.txt \
--input_phenos_file $DATA/phenotype/random_pheno_1000G_hg38.txt \
--input_phenos_column pheno \
--output $RESULTS/predixcan/random_pheno/Whole_Blood__association.txt \
--verbosity 9 \
--throw
read results
predixcan_association = read_tsv(glue::glue("{results.dir}/predixcan/random_pheno/Whole_Blood__association.txt"))
dim(predixcan_association)
predixcan_association %>% arrange(pvalue) %>% head
predixcan_association %>% arrange(pvalue) %>% ggplot(aes(pvalue)) + geom_histogram(bins=20)Exercise
-[ ] Run association with another phenotype in $PRE/predixcan/data/phenotype/ALL.chr22.shapeit2_integrated_snvindels_v2a_27022019.GRCh38_x_en_Whole_Blood.simulated_phenotype.spike_n_slab_0.5_x_pve0.6.txt
——-
Summary PrediXcan

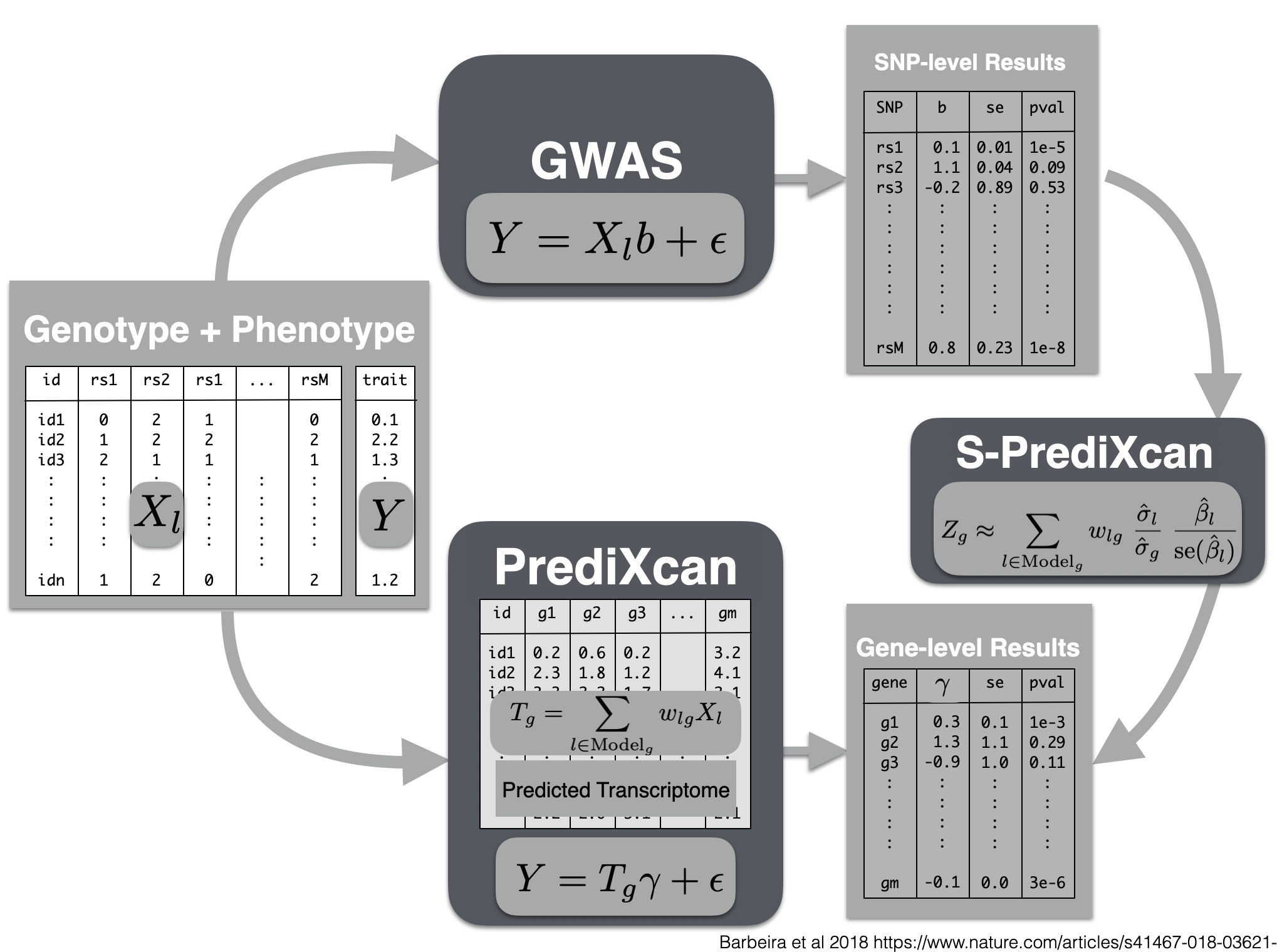

Visual summary of s-predixcan
## harmonized and imputed GWAS result for coronary artery disease is available in
# $PRE/s-predixcan/data/run s-predixcan
export PRE="/home/student/QGT-Columbia-HKI"
export DATA=$PRE/data/s-predixcan
export MODEL=$PRE/models
export METAXCAN=$PRE/repos/MetaXcan-master/software
export RESULTS=$PRE/results
python $METAXCAN/SPrediXcan.py \
--gwas_file $DATA/imputed_CARDIoGRAM_C4D_CAD_ADDITIVE.txt.gz \
--snp_column panel_variant_id --effect_allele_column effect_allele --non_effect_allele_column non_effect_allele --zscore_column zscore \
--model_db_path $MODEL/gtex_v8_mashr/mashr_Whole_Blood.db \
--covariance $MODEL/gtex_v8_mashr/mashr_Whole_Blood.txt.gz \
--keep_non_rsid --additional_output --model_db_snp_key varID \
--throw \
--output_file $RESULTS/spredixcan/eqtl/CARDIoGRAM_C4D_CAD_ADDITIVE__PM__Whole_Blood.csv
plot and interpret s-predixcan results
spredixcan_association = read_csv(glue::glue("{results.dir}/spredixcan/eqtl/CARDIoGRAM_C4D_CAD_ADDITIVE__PM__Whole_Blood.csv"))
dim(spredixcan_association)
spredixcan_association %>% arrange(pvalue) %>% head
spredixcan_association %>% arrange(pvalue) %>% ggplot(aes(pvalue)) + geom_histogram(bins=20)SORT1, considered to be a causal gene for LDL cholesterol and as a consequence of coronary artery disease, is not found here. Why? (tissue)
run multixcan (optional)
export MODEL=$PRE/models
export DATA=$PRE/data/s-predixcan
python $METAXCAN/SMulTiXcan.py \
--models_folder $MODEL/gtex_v8_mashr \
--models_name_pattern "mashr_(.*).db" \
--snp_covariance $MODEL/gtex_v8_expression_mashr_snp_covariance.txt.gz \
--metaxcan_folder $RESULTS/spredixcan/eqtl/ \
--metaxcan_filter "CARDIoGRAM_C4D_CAD_ADDITIVE__PM__(.*).csv" \
--metaxcan_file_name_parse_pattern "(.*)__PM__(.*).csv" \
--gwas_file $DATA/imputed_CARDIoGRAM_C4D_CAD_ADDITIVE.txt.gz \
--snp_column panel_variant_id --effect_allele_column effect_allele --non_effect_allele_column non_effect_allele --zscore_column zscore --keep_non_rsid --model_db_snp_key varID \
--cutoff_condition_number 30 \
--verbosity 7 \
--throw \
--output $RESULTS/smultixcan/eqtl/CARDIoGRAM_C4D_CAD_ADDITIVE_smultixcan.txt
Colocalization methods

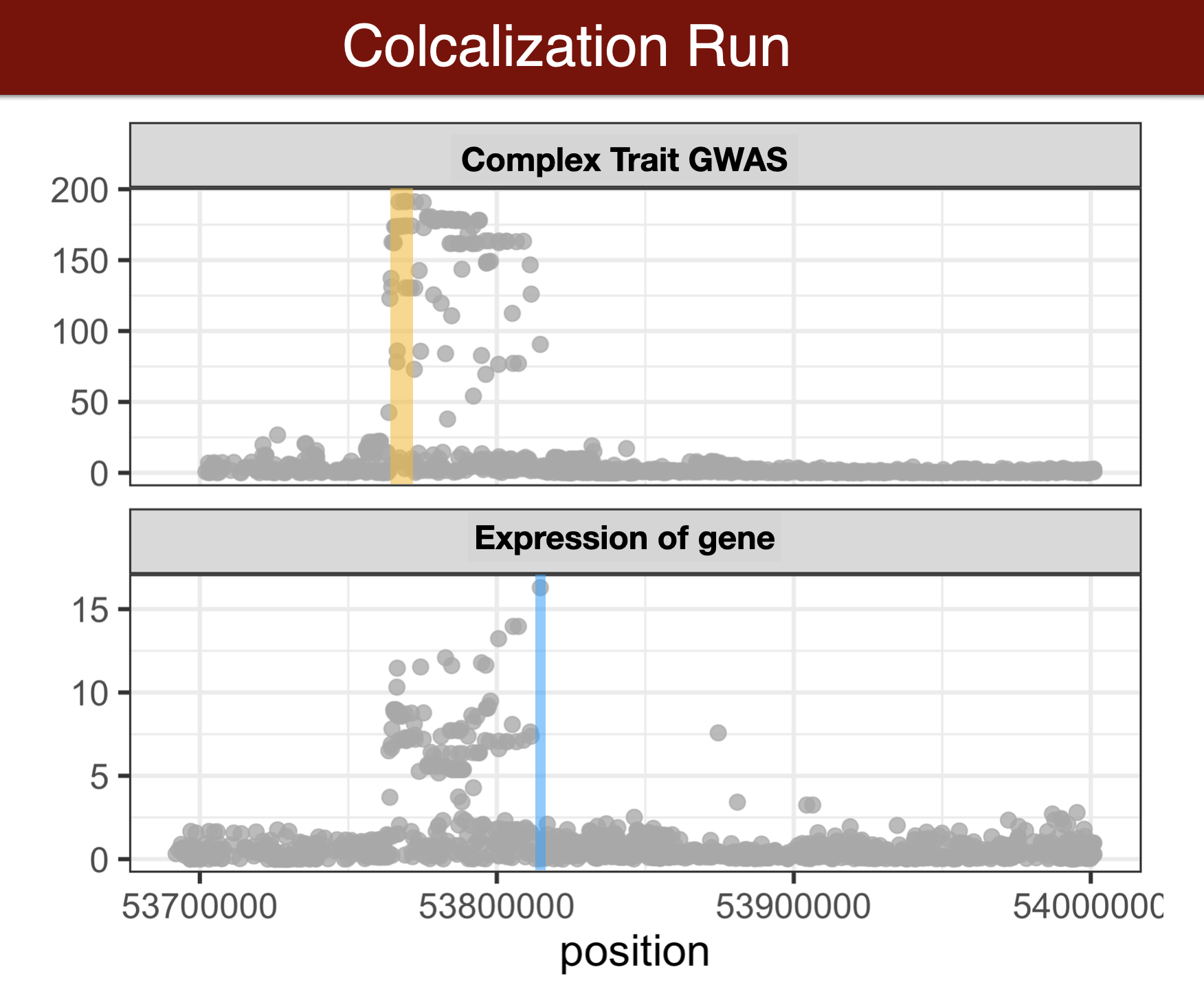

Visual summary of colocalization
fine-map GWAS results
We will run torus due to time limitation but ideally we would like to run a method that allows multiple causal variants per locus.
#torus -d Height.torus.zval.gz --load_zval -dump_pip Height.gwas.pip
#gzip Height.gwas.pip
TORUSOFT=torus
$TORUSOFT -d $PRE/data/fastenloc/Height.torus.zval.gz --load_zval -dump_pip $PRE/data/fastenloc/Height.gwas.pip
cd $PRE/data/fastenloc
gzip Height.gwas.pip
cd $PRE
calculate colocalization with fastENLOC
## check out tutorial https://github.com/xqwen/fastenloc/tree/master/tutorial
export eqtl_annotation_gzipped=$PRE/data/fastenloc/FASTENLOC-gtex_v8.eqtl_annot.vcf.gz
export gwas_data_gzipped=$PRE/data/fastenloc/Height.gwas.pip.gz
export TISSUE=Whole_Blood
export FASTENLOCSOFT=fastenloc
mkdir $RESULTS/fastenloc/
cd $RESULTS/fastenloc/
$FASTENLOCSOFT -eqtl $eqtl_annotation_gzipped -gwas $gwas_data_gzipped -t $TISSUE
#[-total_variants total_snp] [-thread n] [-prefix prefix_name] [-s shrinkage]
analyze results
## optional - compare with s-predixcan results-[] prepare
Mendelian randomization methods
run SMR (optional)

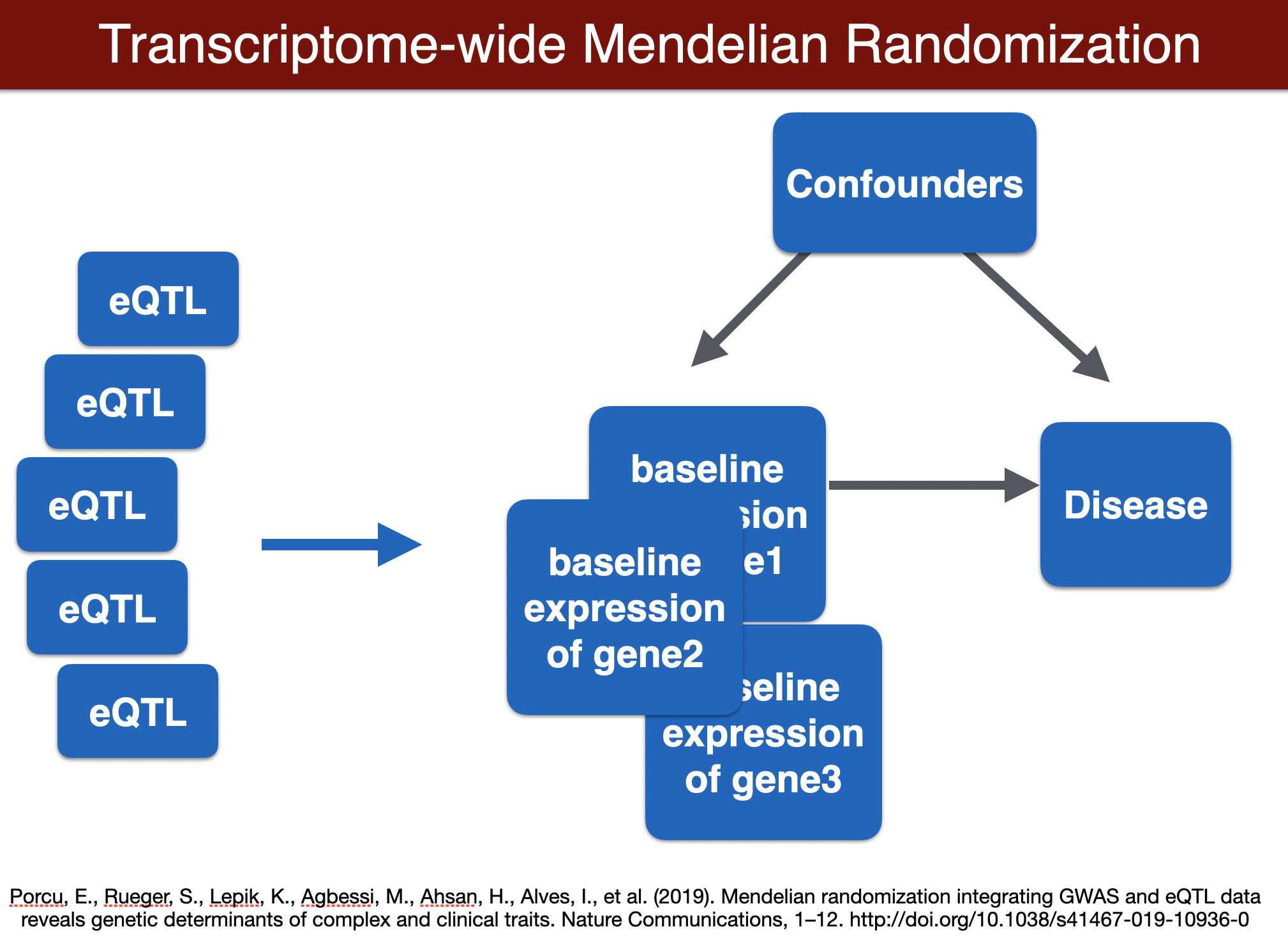

run TWMR (for a locus)
TWMR
export TWMR=$PRE/repos/TWMR-master
export OUTPUT=$PRE/results
GENE=ENSG00000002919
cd $TWMR
R < $TWMR/MR.R --no-save $GENE
cd $PRE
## output: /home/student/QGT-Columbia-HKI/repos/TWMR-master/ENSG00000002919.alpha
sessionInfo()R version 3.6.2 (2019-12-12)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.6
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.6/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.6/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] forcats_0.4.0 stringr_1.4.0 dplyr_0.8.3 purrr_0.3.3
[5] readr_1.3.1 tidyr_1.0.2 tibble_2.1.3 ggplot2_3.2.1
[9] tidyverse_1.3.0 workflowr_1.6.0
loaded via a namespace (and not attached):
[1] tidyselect_1.0.0 xfun_0.12 haven_2.2.0 lattice_0.20-38
[5] colorspace_1.4-1 vctrs_0.2.2 generics_0.0.2 htmltools_0.4.0
[9] yaml_2.2.0 rlang_0.4.3 later_1.0.0 pillar_1.4.3
[13] withr_2.1.2 glue_1.3.1 DBI_1.1.0 dbplyr_1.4.2
[17] modelr_0.1.5 readxl_1.3.1 lifecycle_0.1.0 munsell_0.5.0
[21] gtable_0.3.0 cellranger_1.1.0 rvest_0.3.5 evaluate_0.14
[25] knitr_1.27 httpuv_1.5.2 fansi_0.4.1 broom_0.5.4
[29] Rcpp_1.0.3 promises_1.1.0 backports_1.1.5 scales_1.1.0
[33] jsonlite_1.6 fs_1.3.1 hms_0.5.3 digest_0.6.23
[37] stringi_1.4.5 grid_3.6.2 rprojroot_1.3-2 cli_2.0.1
[41] tools_3.6.2 magrittr_1.5 lazyeval_0.2.2 crayon_1.3.4
[45] whisker_0.4 pkgconfig_2.0.3 xml2_1.2.2 reprex_0.3.0
[49] lubridate_1.7.4 rstudioapi_0.10 assertthat_0.2.1 rmarkdown_2.1
[53] httr_1.4.1 R6_2.4.1 nlme_3.1-143 git2r_0.26.1
[57] compiler_3.6.2
