MTP071 Overview

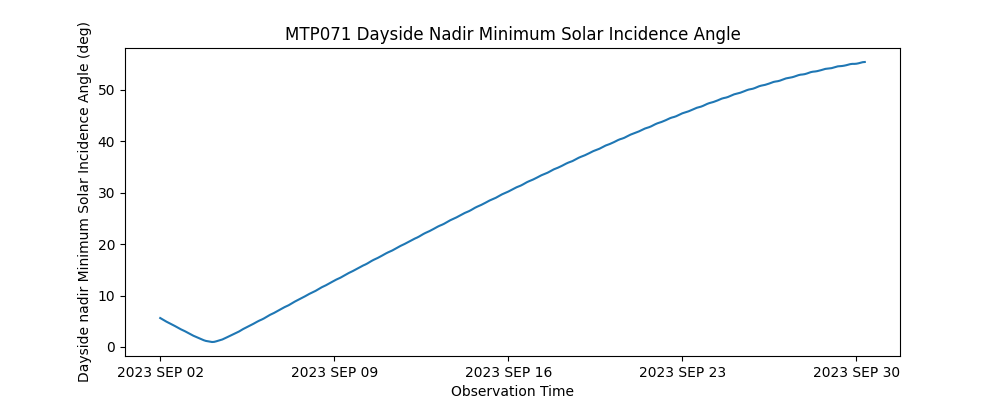

Geometry

UVIS typically operates on all dayside nadirs and all occultations

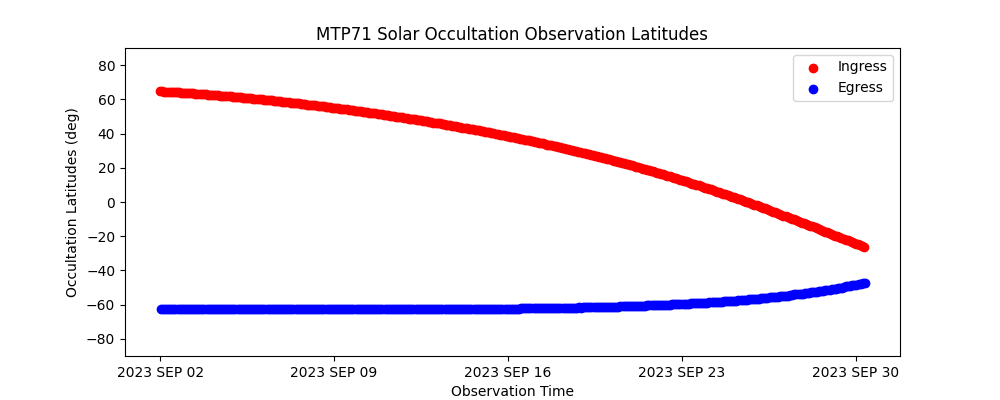

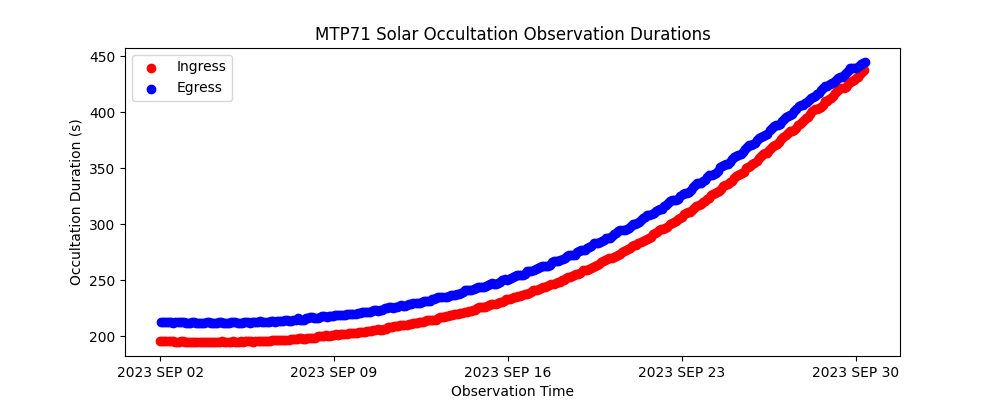

Solar Occultations

Solar occultation diffraction orders measured this MTP: 118, 119, 121, 122, 123, 126, 127, 129, 130, 132, 133, 134, 135, 136, 137, 140, 142, 145, 148, 149, 154, 155, 156, 157, 158, 159, 160, 164, 165, 167, 169, 171, 183, 184, 185, 186, 187, 188, 189, 190, 191,

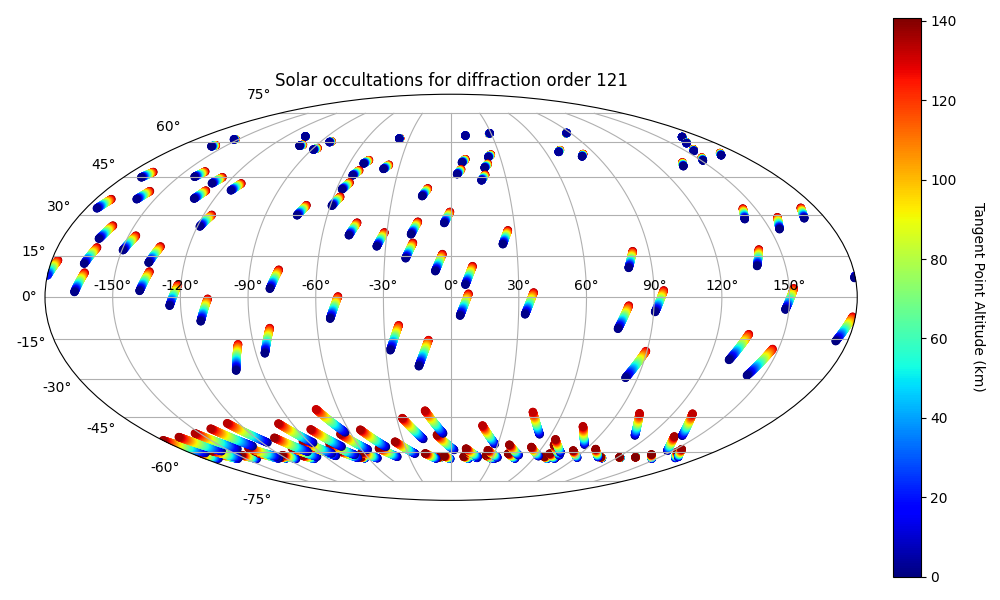

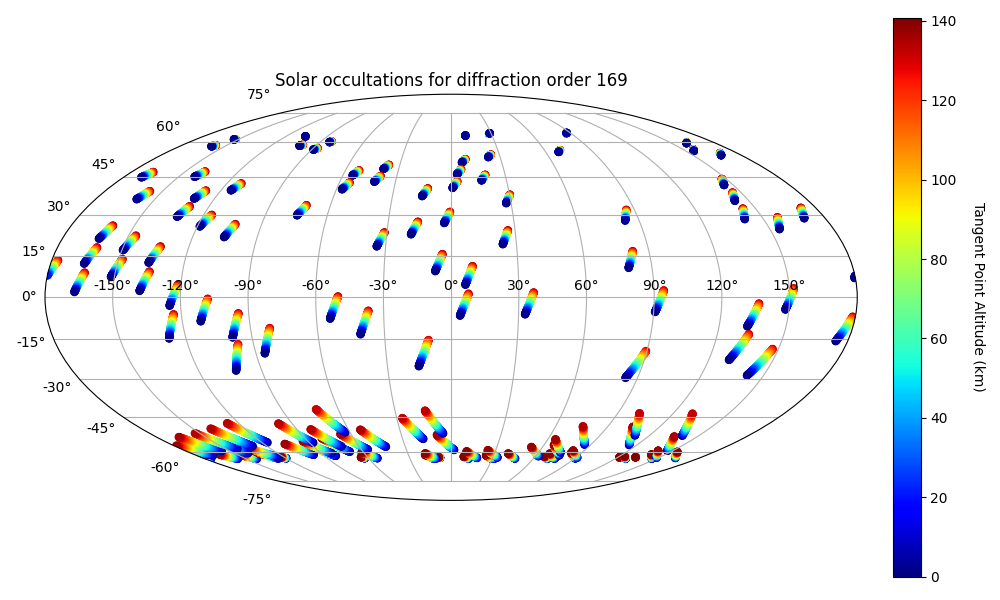

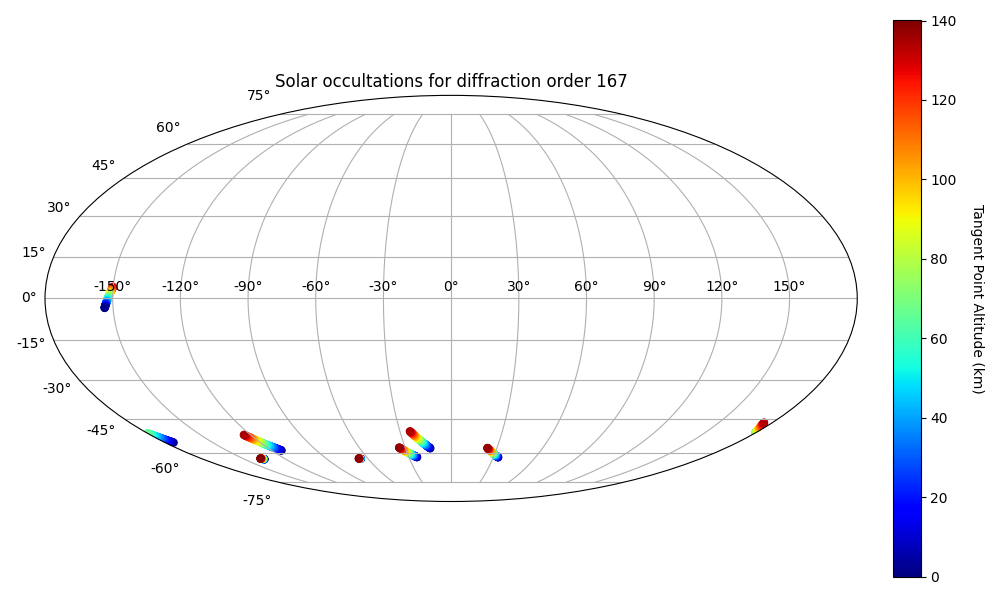

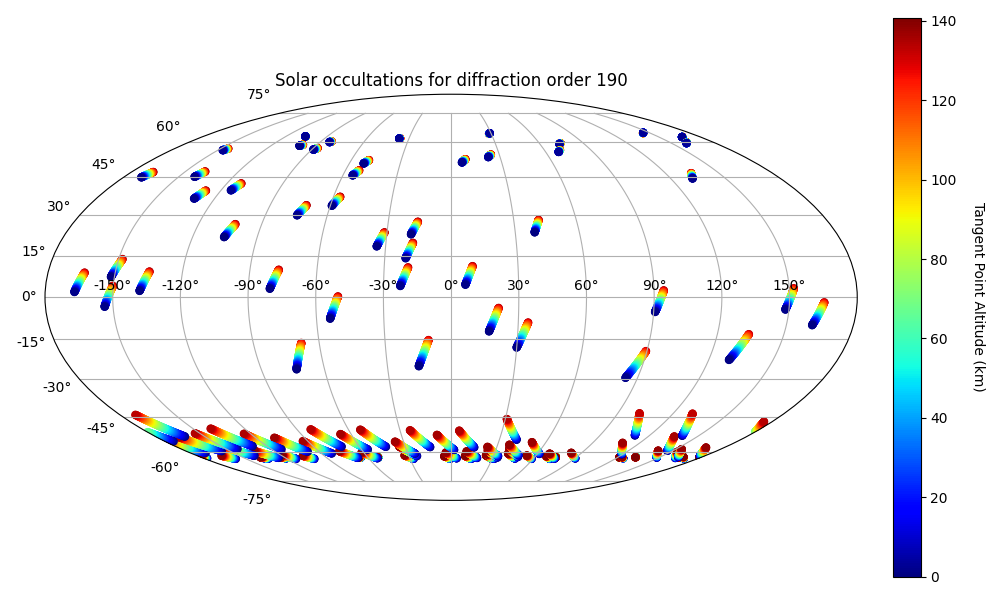

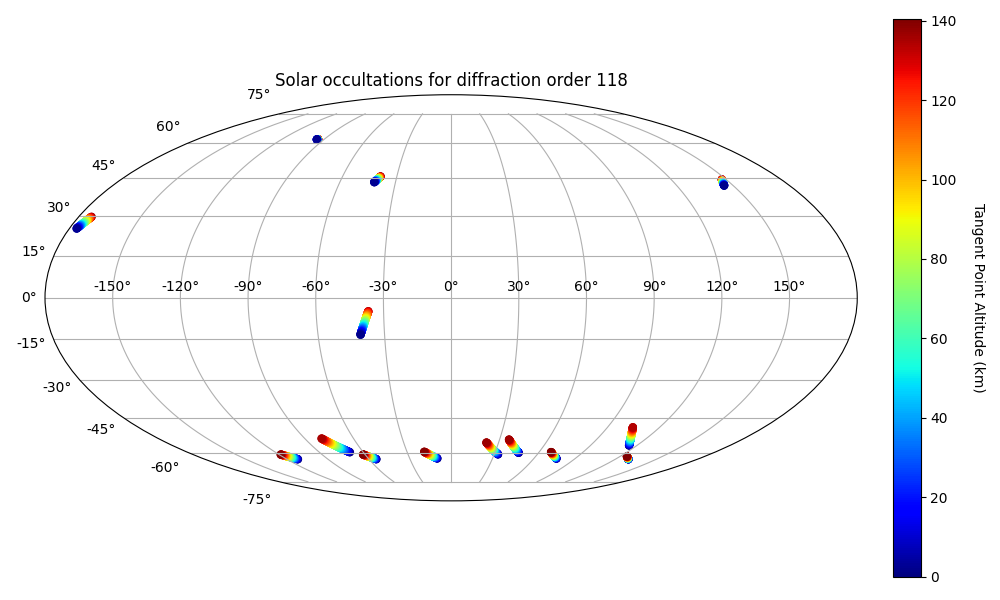

Solar occultations for diffraction order 118

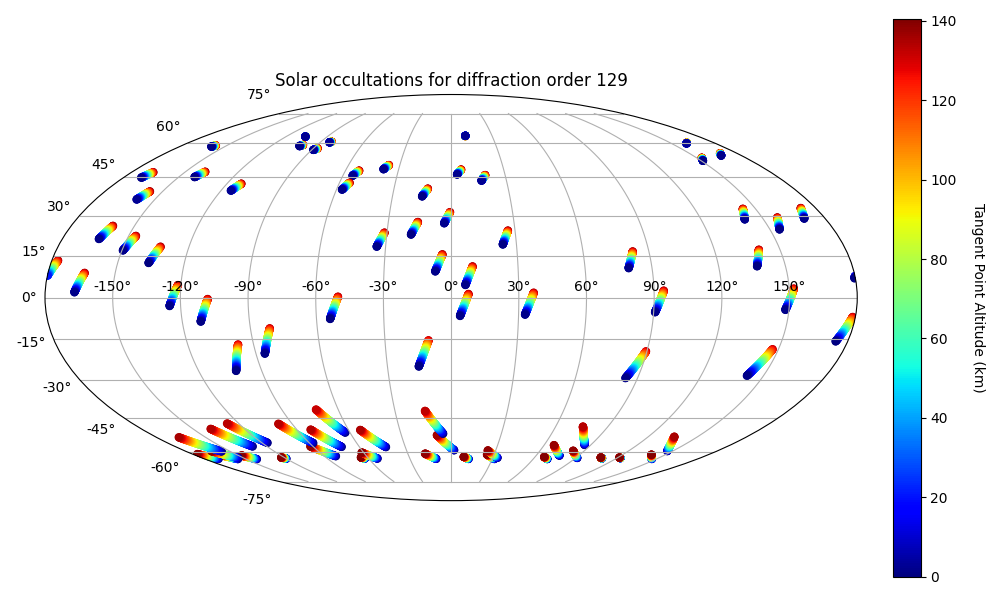

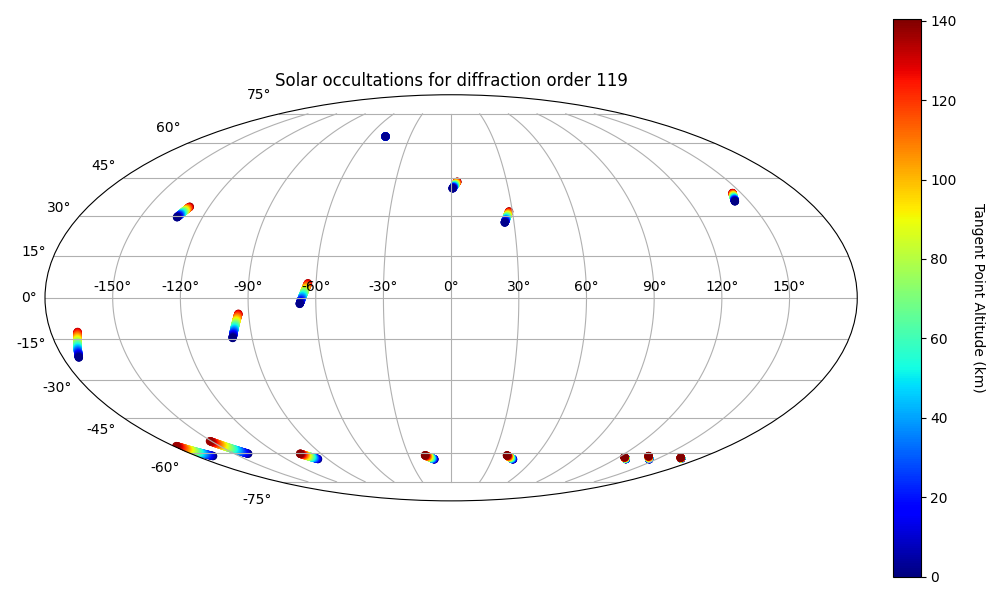

Solar occultations for diffraction order 119

Solar occultations for diffraction order 121

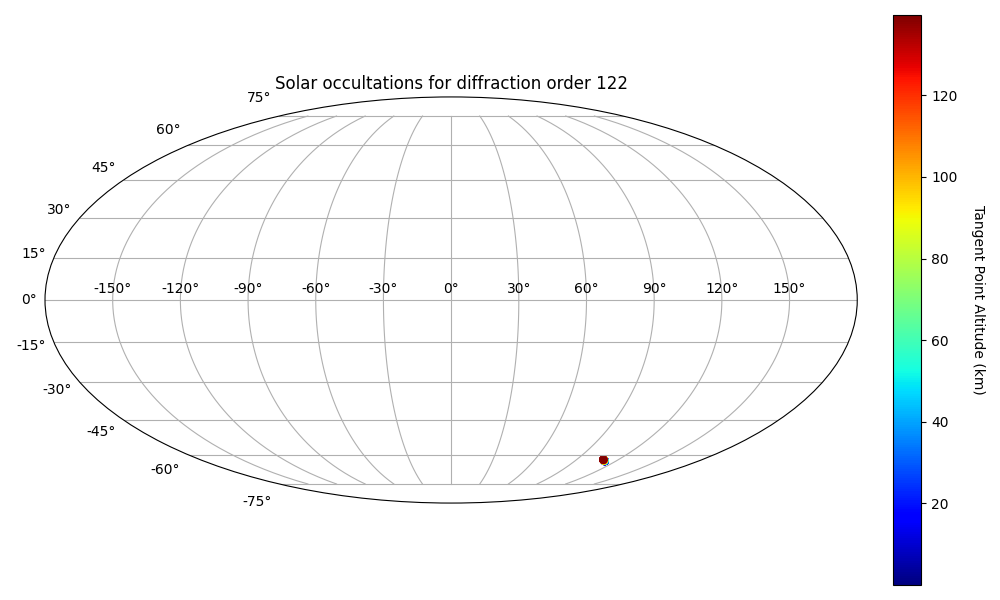

Solar occultations for diffraction order 122

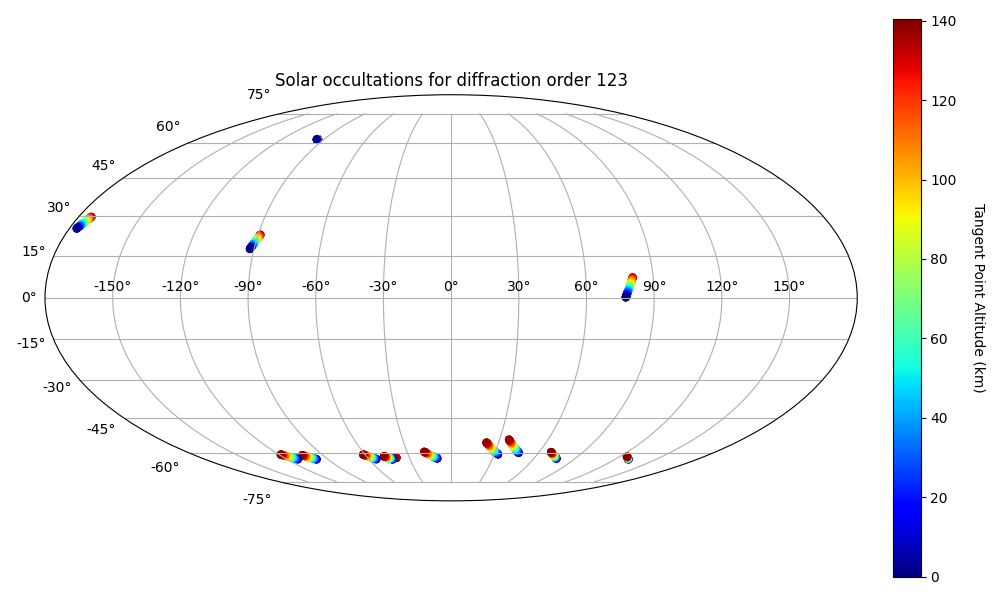

Solar occultations for diffraction order 123

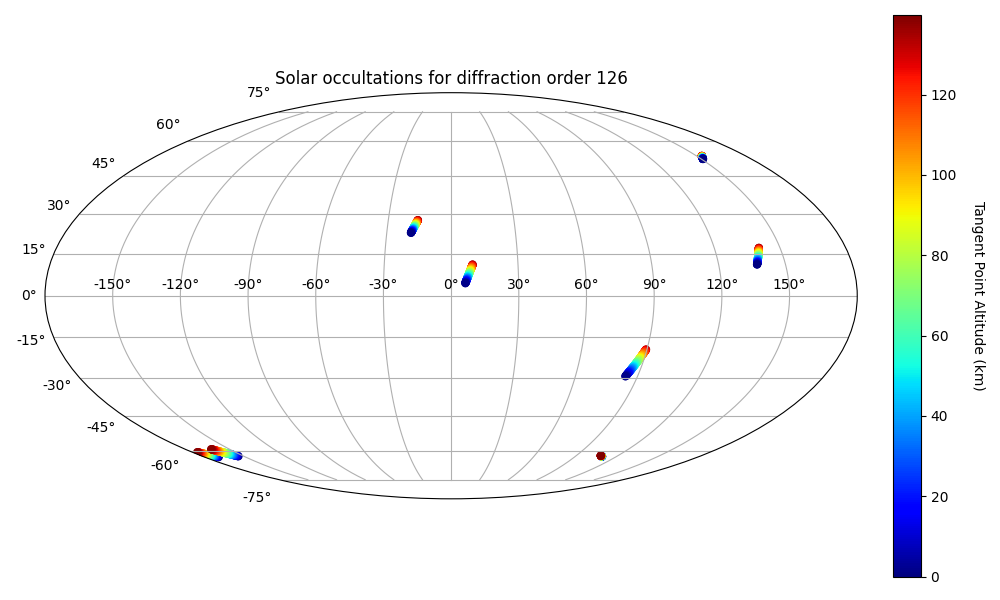

Solar occultations for diffraction order 126

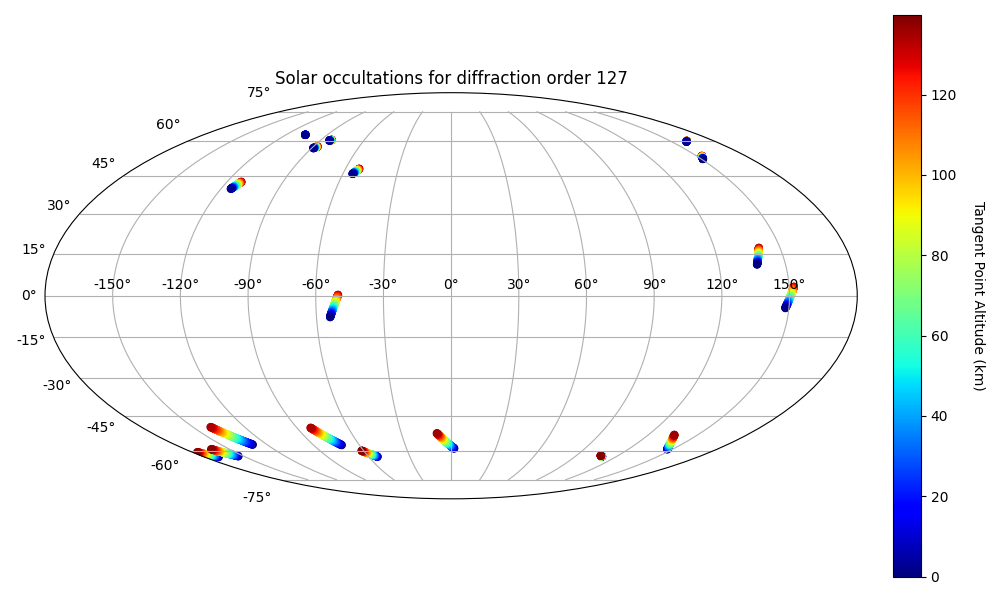

Solar occultations for diffraction order 127

Solar occultations for diffraction order 129

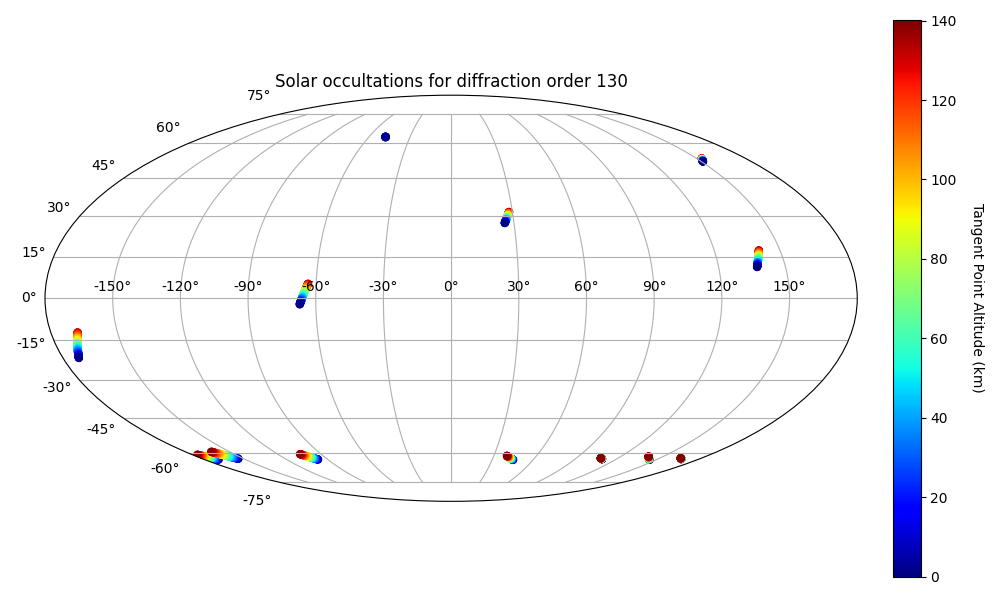

Solar occultations for diffraction order 130

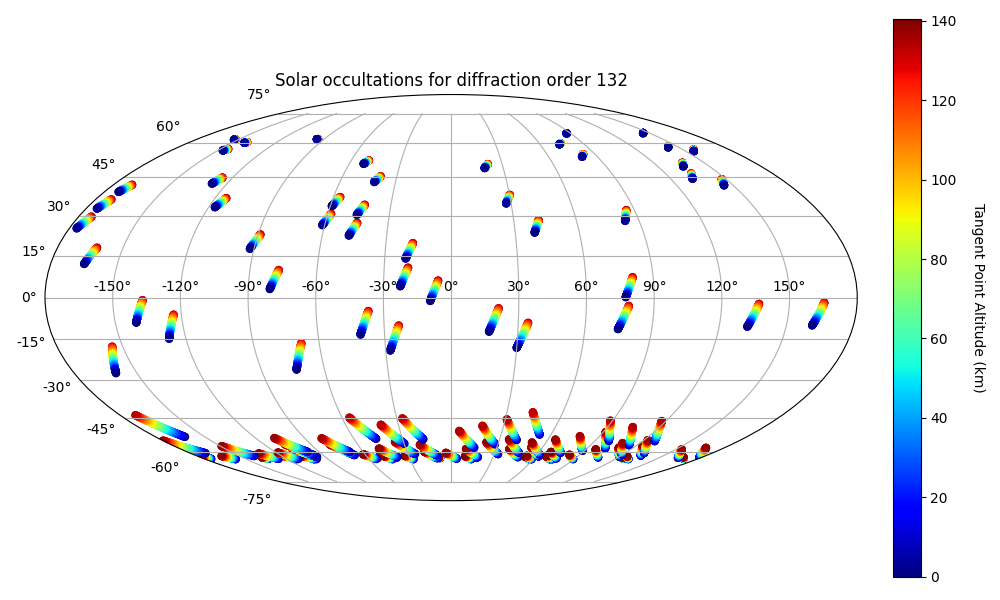

Solar occultations for diffraction order 132

Solar occultations for diffraction order 133

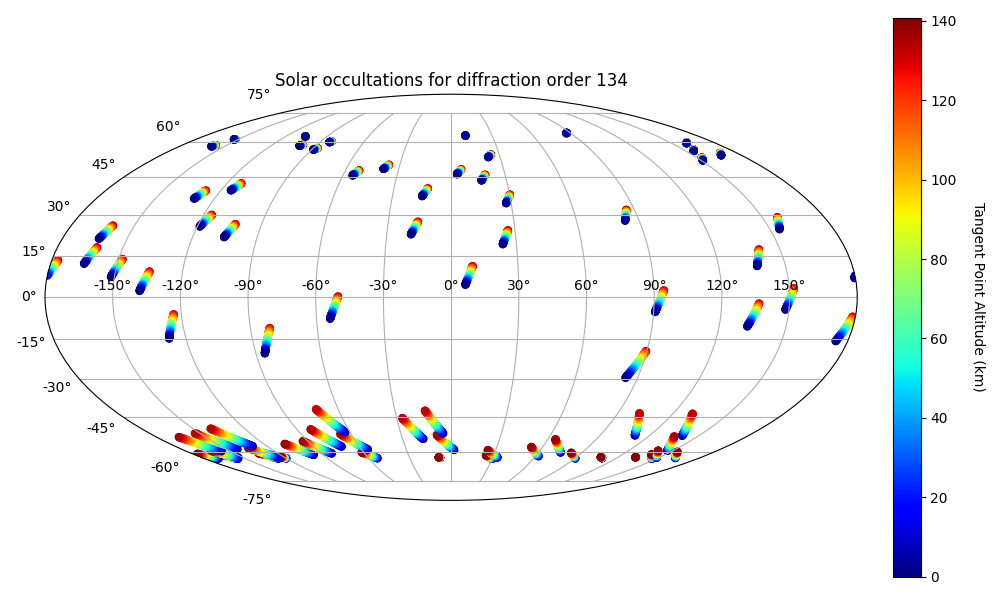

Solar occultations for diffraction order 134

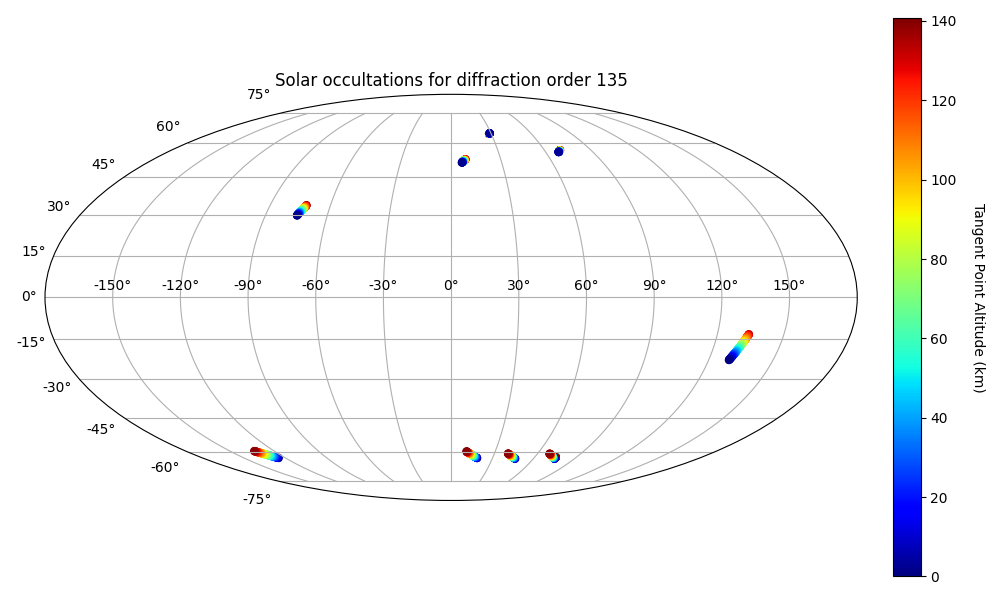

Solar occultations for diffraction order 135

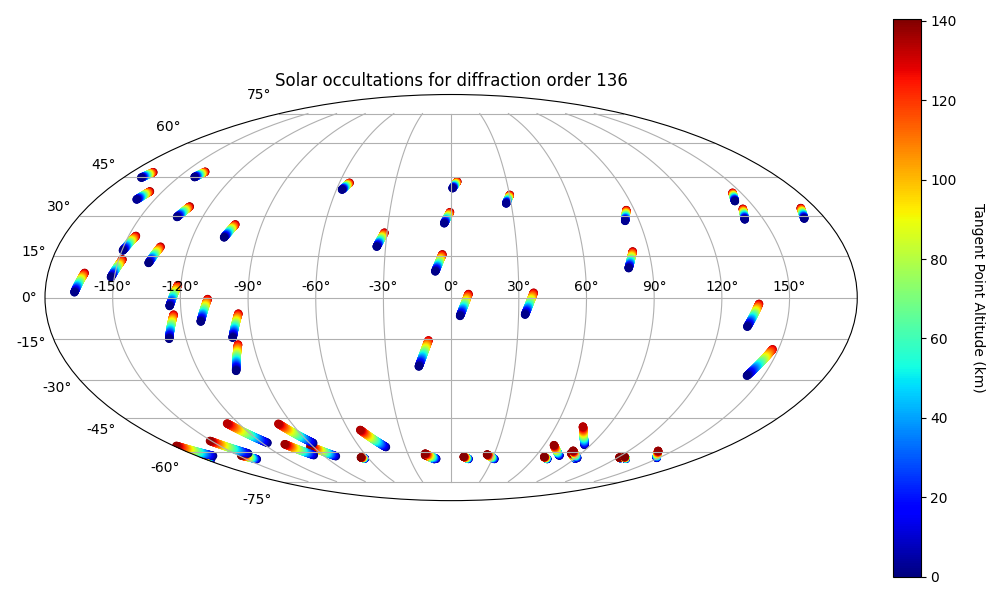

Solar occultations for diffraction order 136

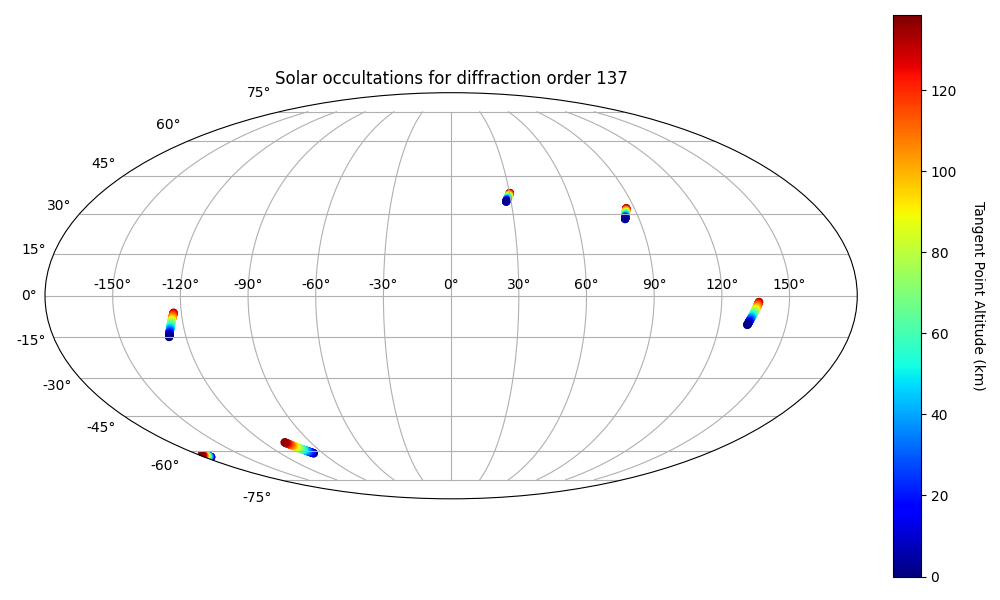

Solar occultations for diffraction order 137

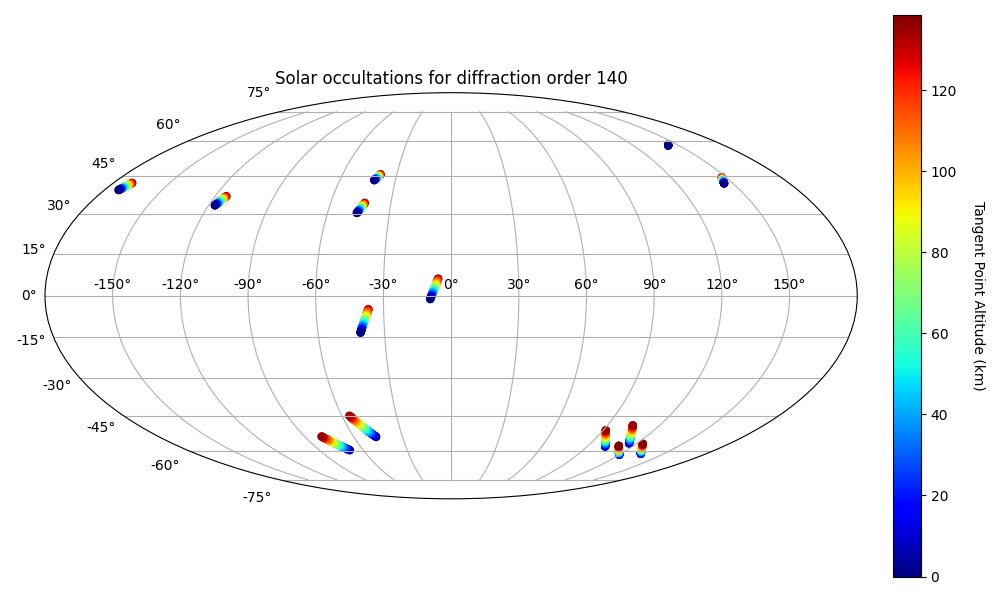

Solar occultations for diffraction order 140

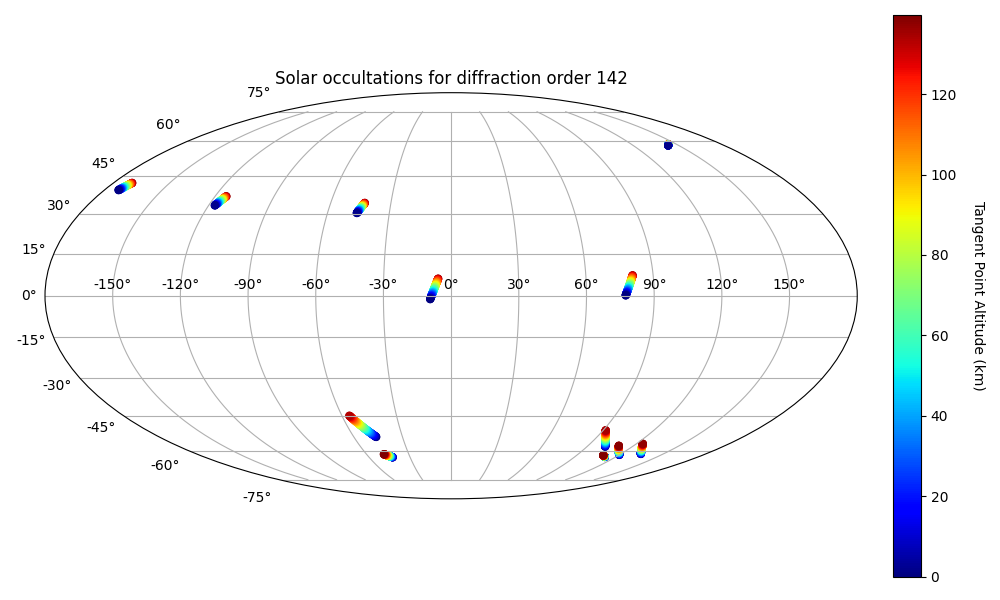

Solar occultations for diffraction order 142

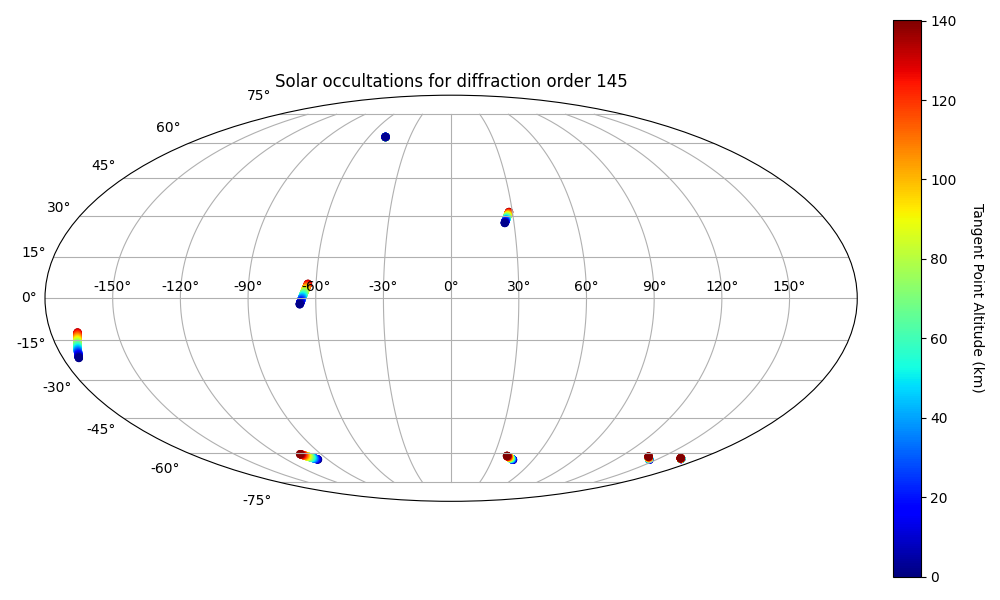

Solar occultations for diffraction order 145

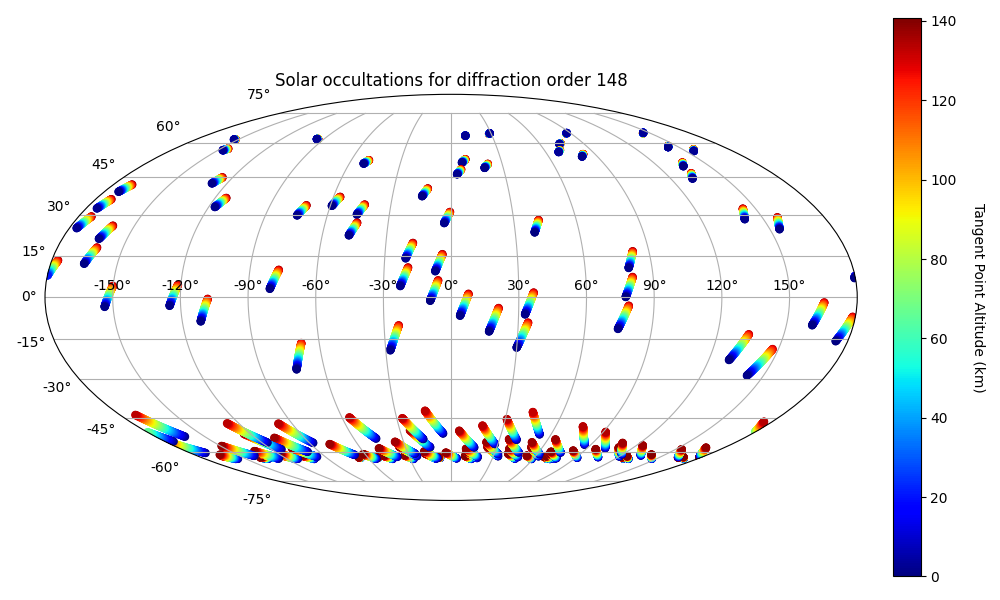

Solar occultations for diffraction order 148

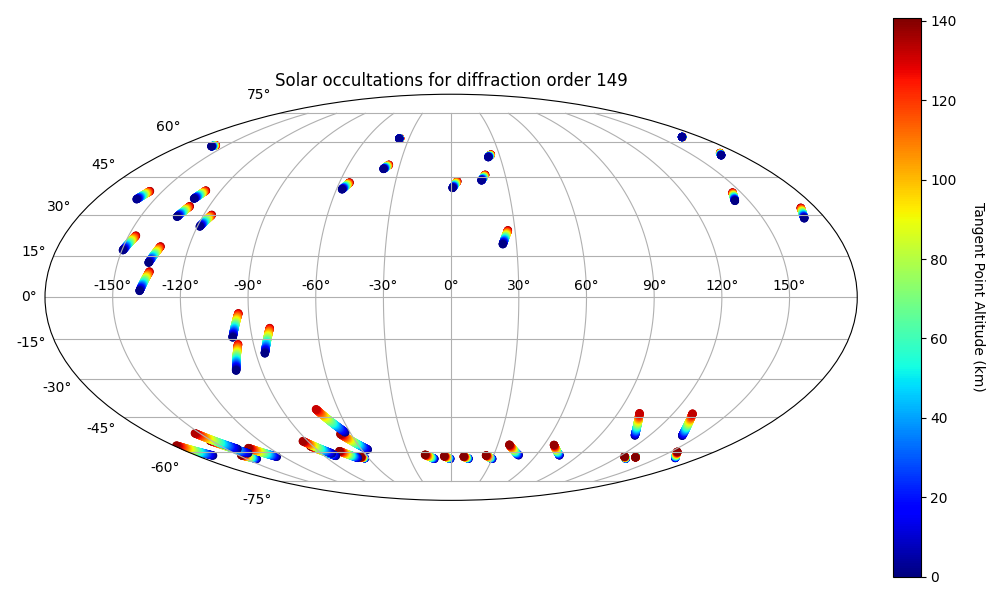

Solar occultations for diffraction order 149

Solar occultations for diffraction order 154

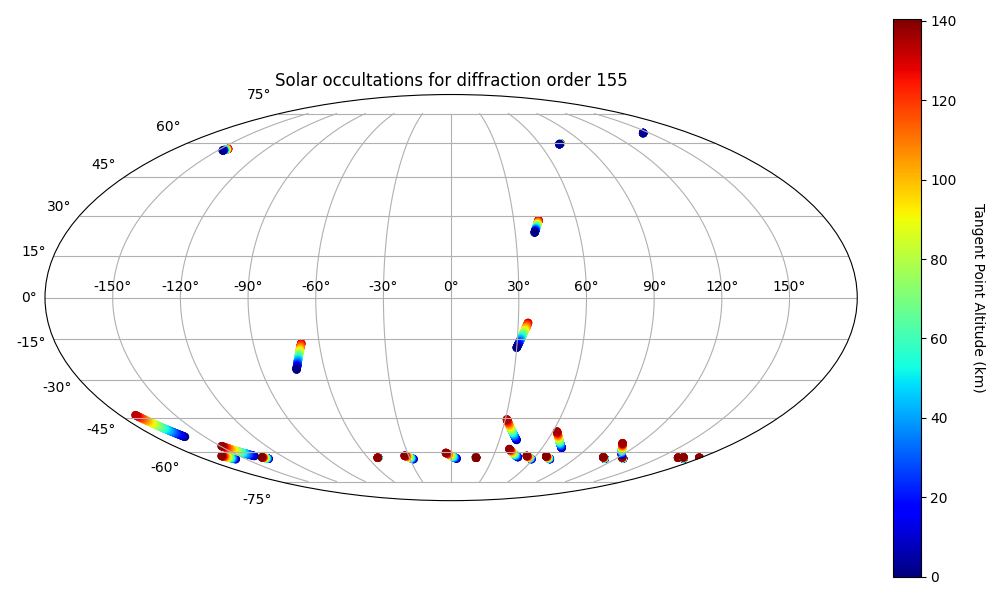

Solar occultations for diffraction order 155

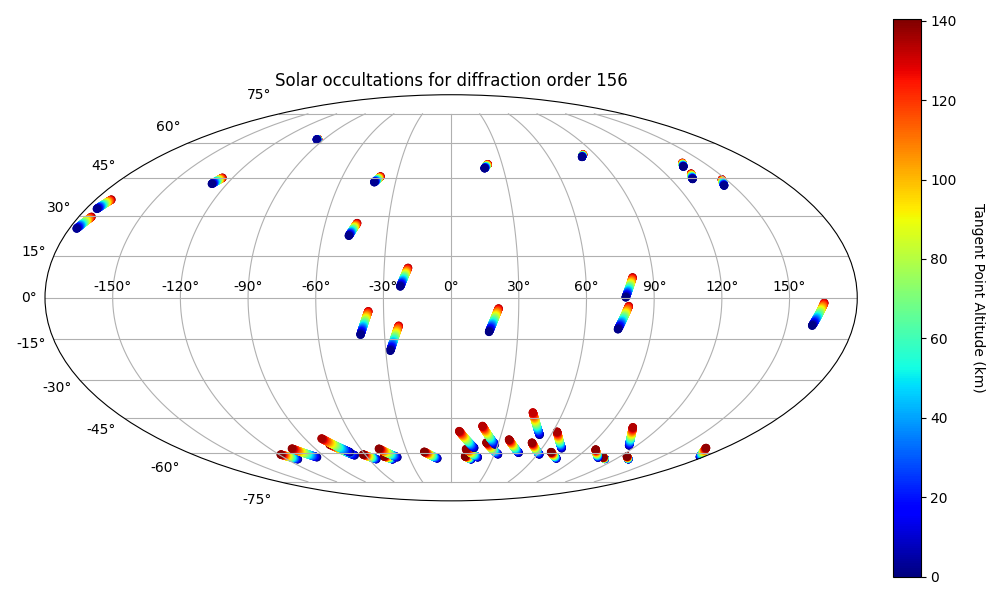

Solar occultations for diffraction order 156

Solar occultations for diffraction order 157

Solar occultations for diffraction order 158

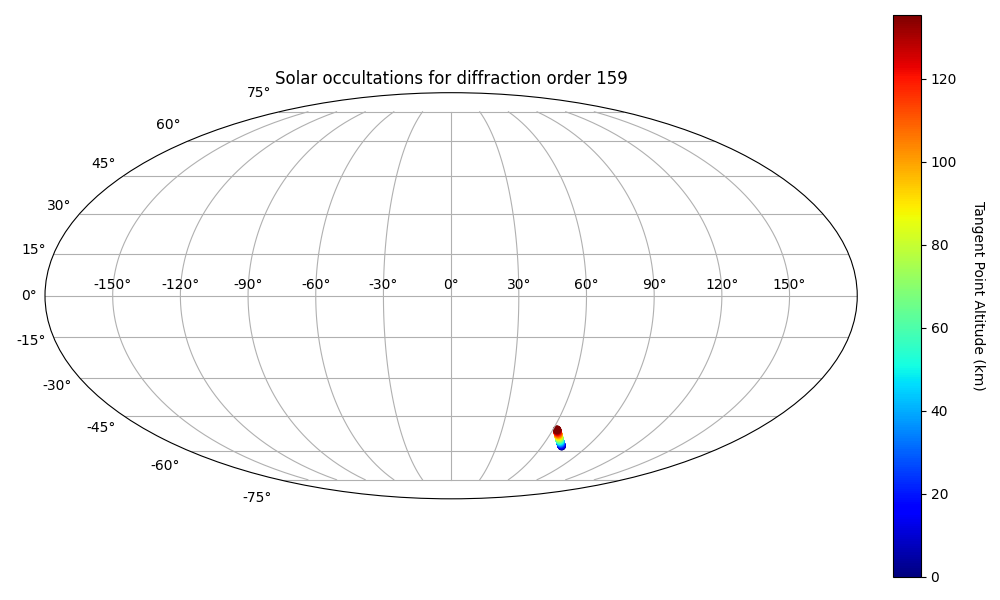

Solar occultations for diffraction order 159

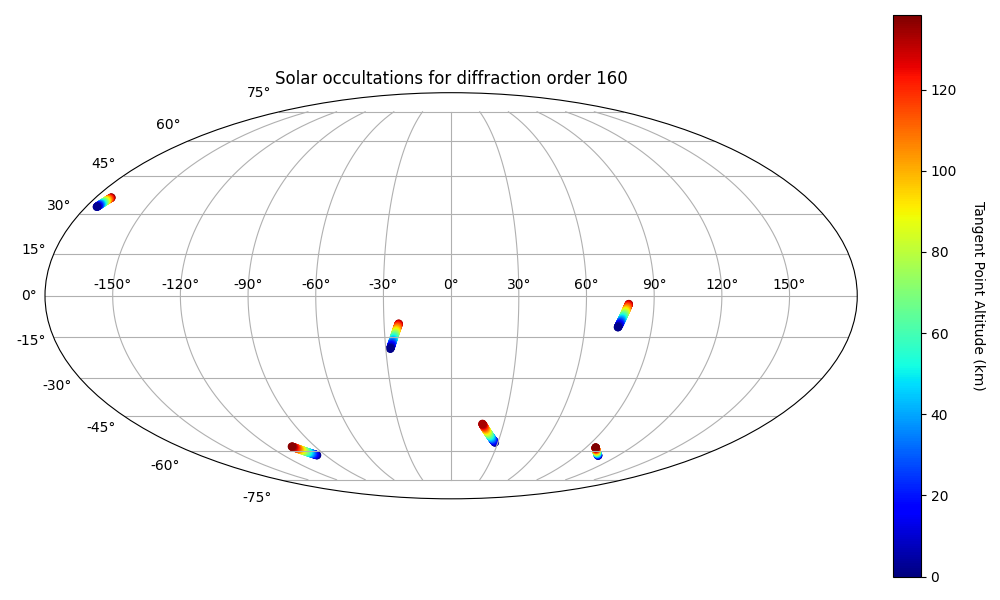

Solar occultations for diffraction order 160

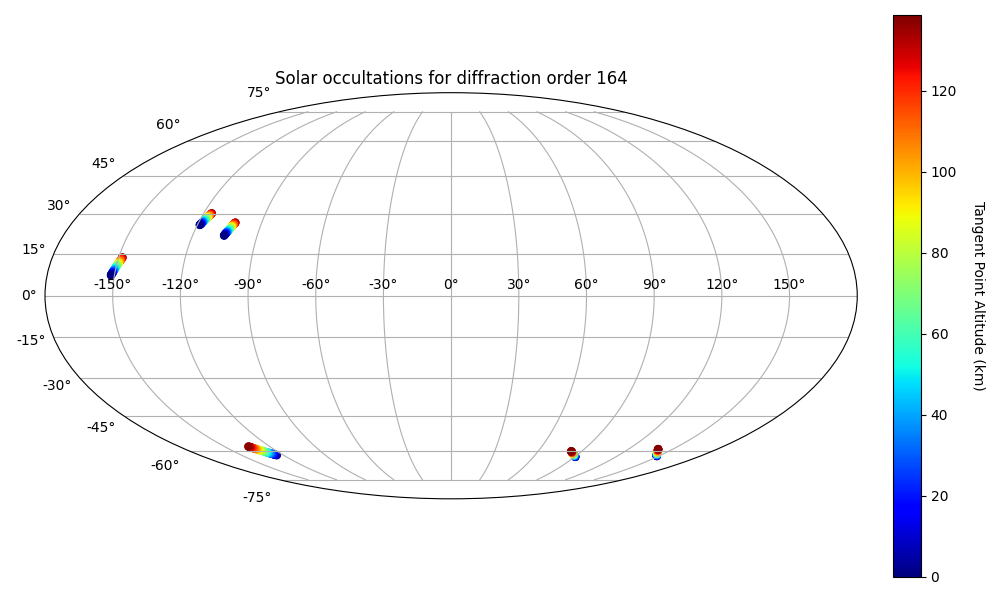

Solar occultations for diffraction order 164

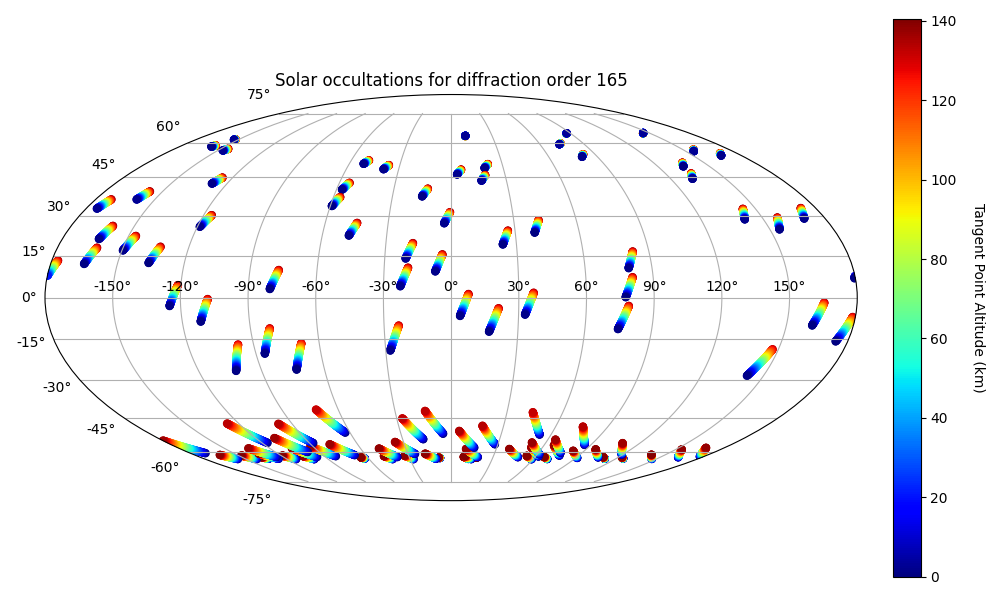

Solar occultations for diffraction order 165

Solar occultations for diffraction order 167

Solar occultations for diffraction order 169

Solar occultations for diffraction order 171

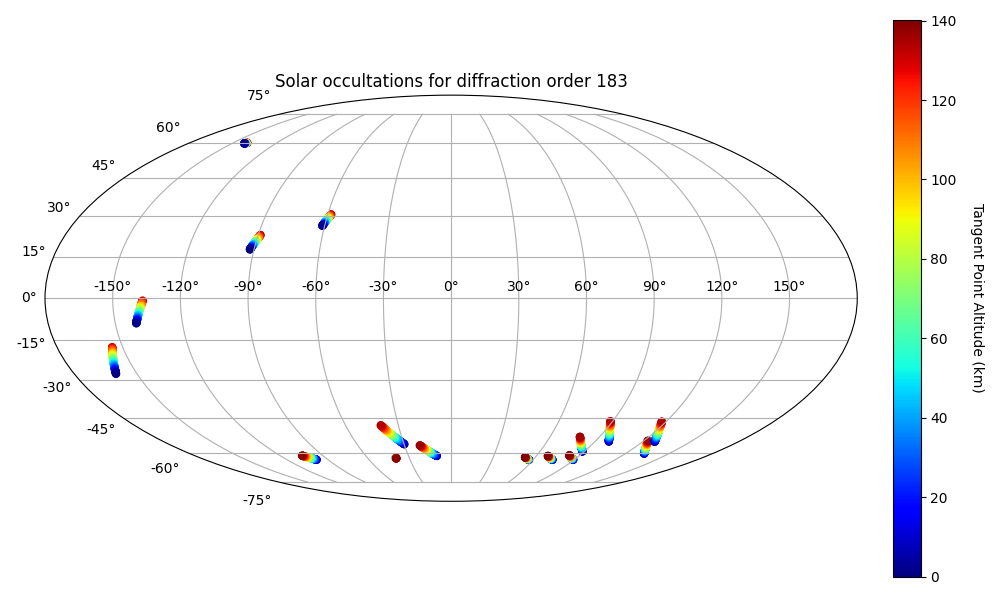

Solar occultations for diffraction order 183

Solar occultations for diffraction order 184

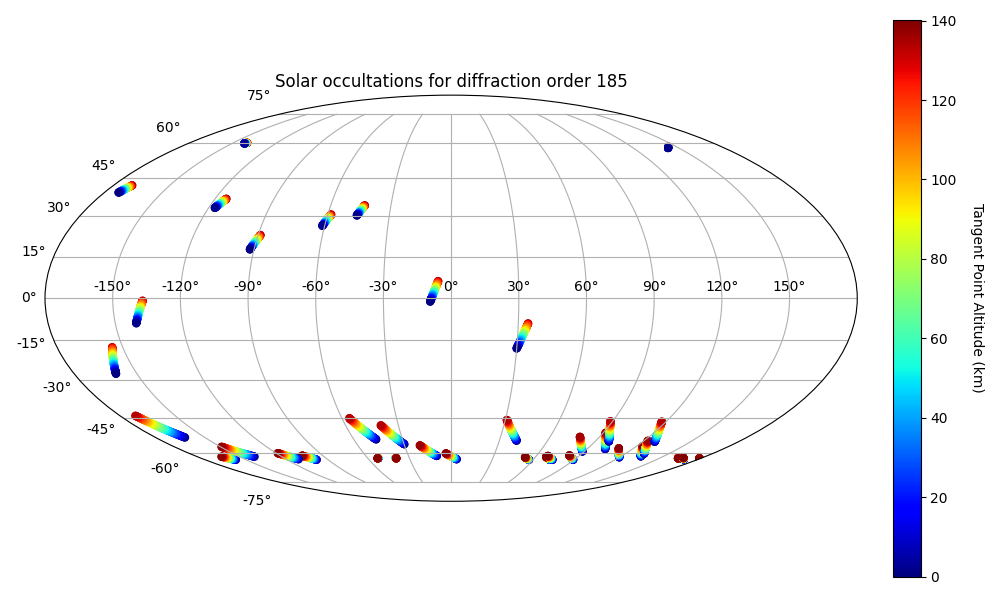

Solar occultations for diffraction order 185

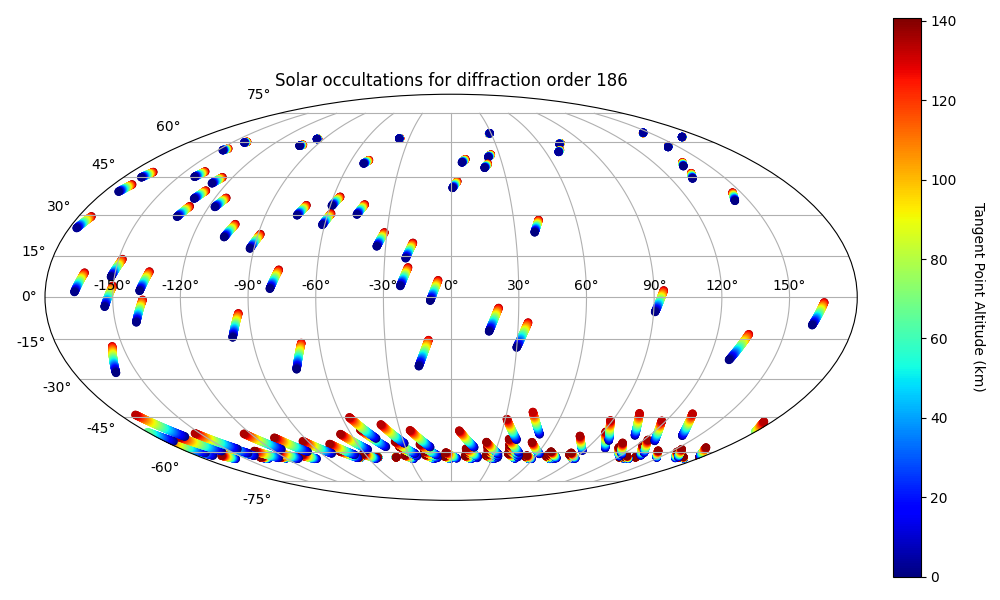

Solar occultations for diffraction order 186

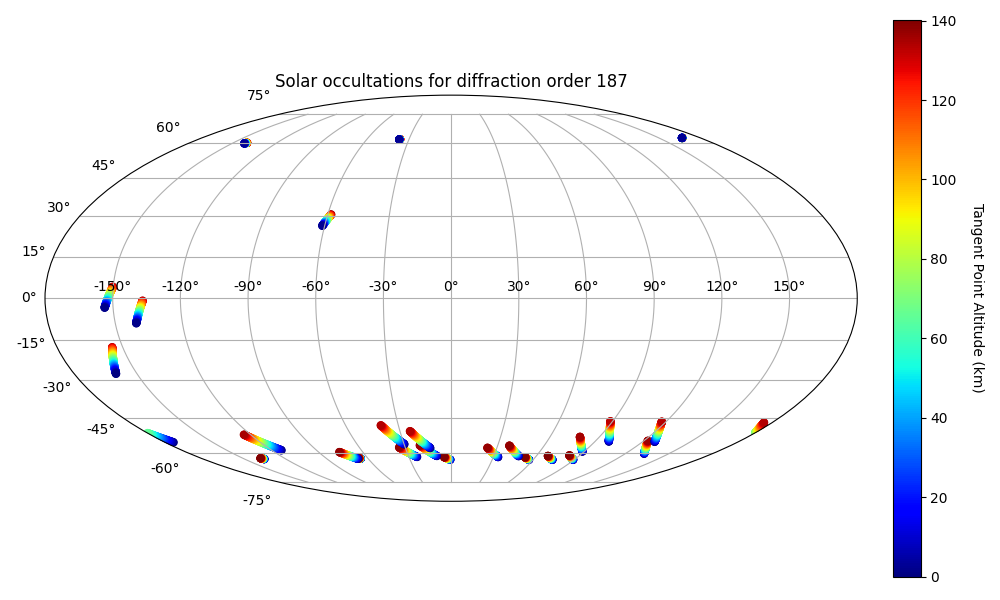

Solar occultations for diffraction order 187

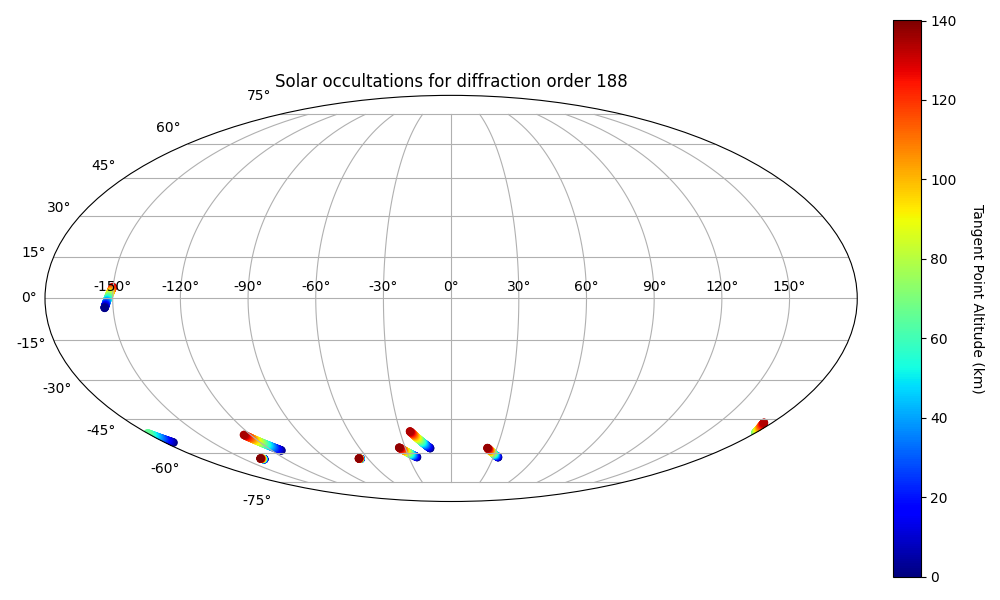

Solar occultations for diffraction order 188

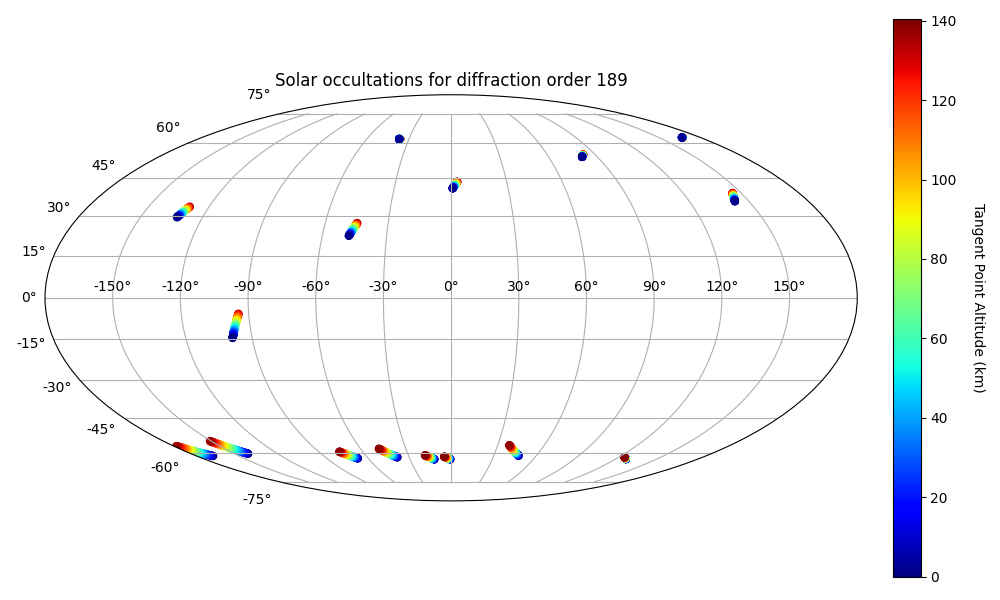

Solar occultations for diffraction order 189

Solar occultations for diffraction order 190

Solar occultations for diffraction order 191

Dayside Nadirs

Dayside nadir diffraction orders measured this MTP: 121, 132, 133, 134, 136, 149, 164, 167, 168, 169, 187, 189, 190, 193, 194, 196, 199,

Dayside nadirs for diffraction order 121

Dayside nadirs for diffraction order 132

Dayside nadirs for diffraction order 133

Dayside nadirs for diffraction order 134

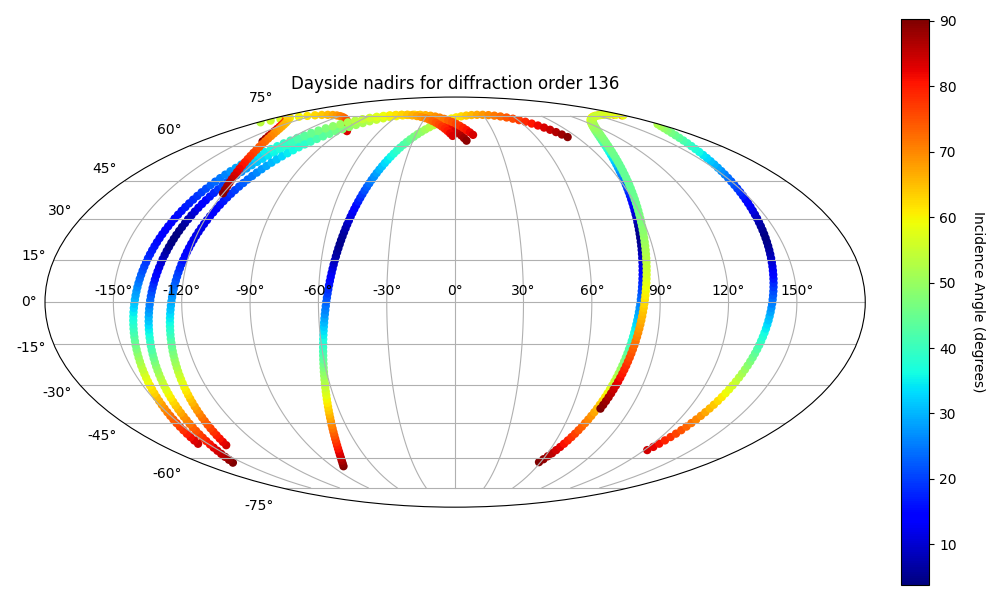

Dayside nadirs for diffraction order 136

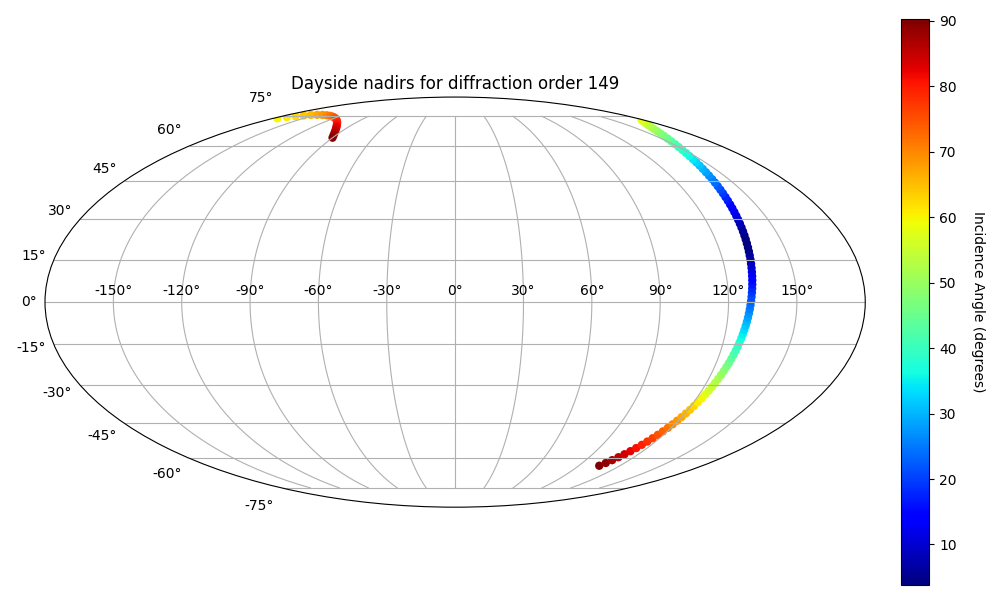

Dayside nadirs for diffraction order 149

Dayside nadirs for diffraction order 164

Dayside nadirs for diffraction order 167

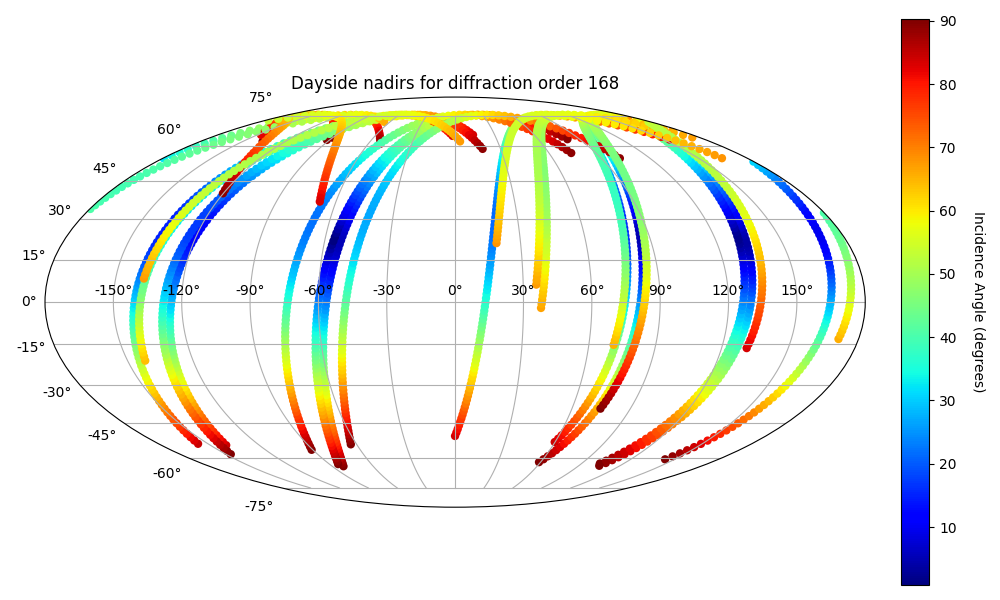

Dayside nadirs for diffraction order 168

Dayside nadirs for diffraction order 169

Dayside nadirs for diffraction order 187

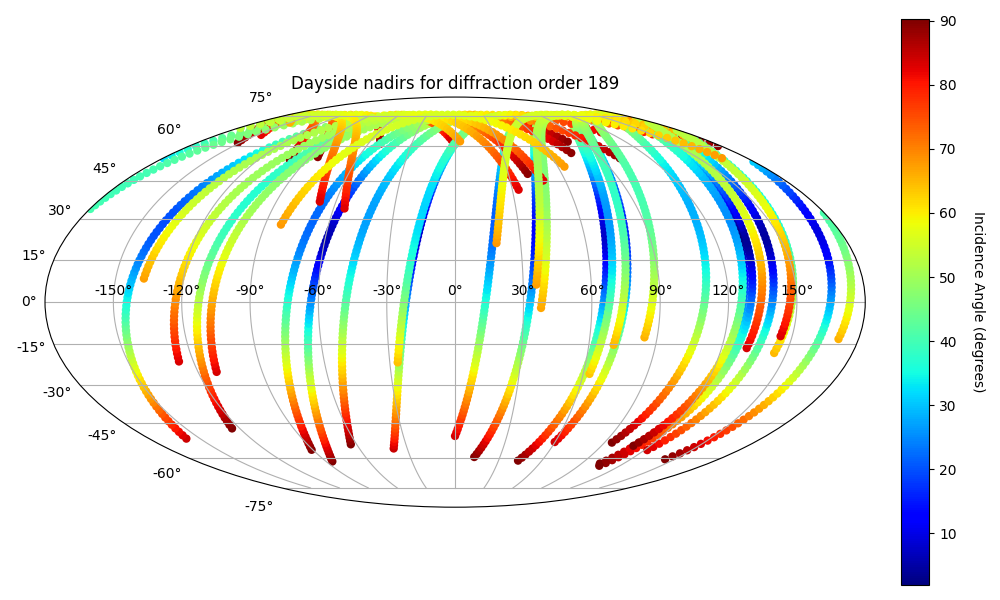

Dayside nadirs for diffraction order 189

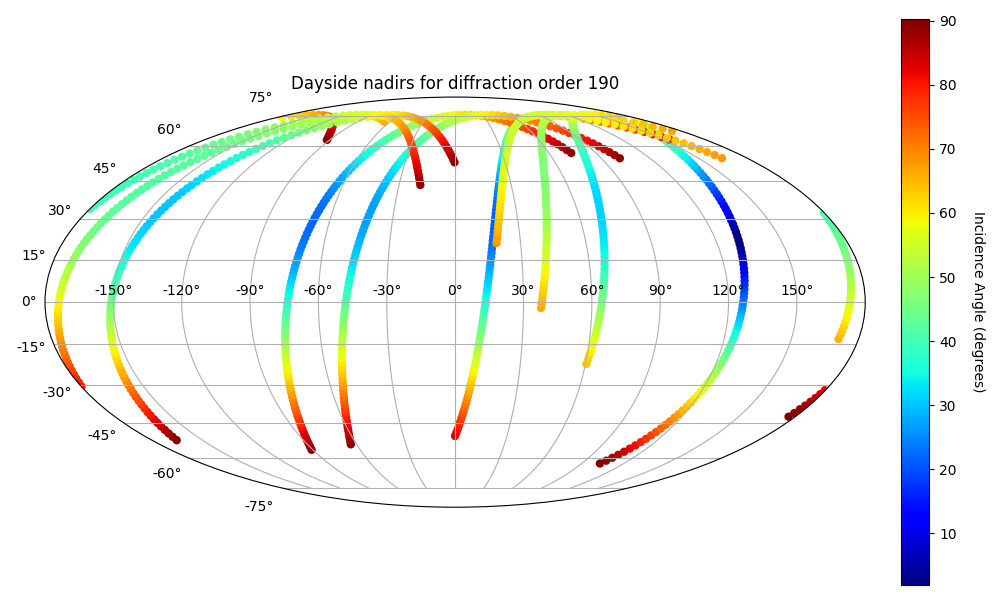

Dayside nadirs for diffraction order 190

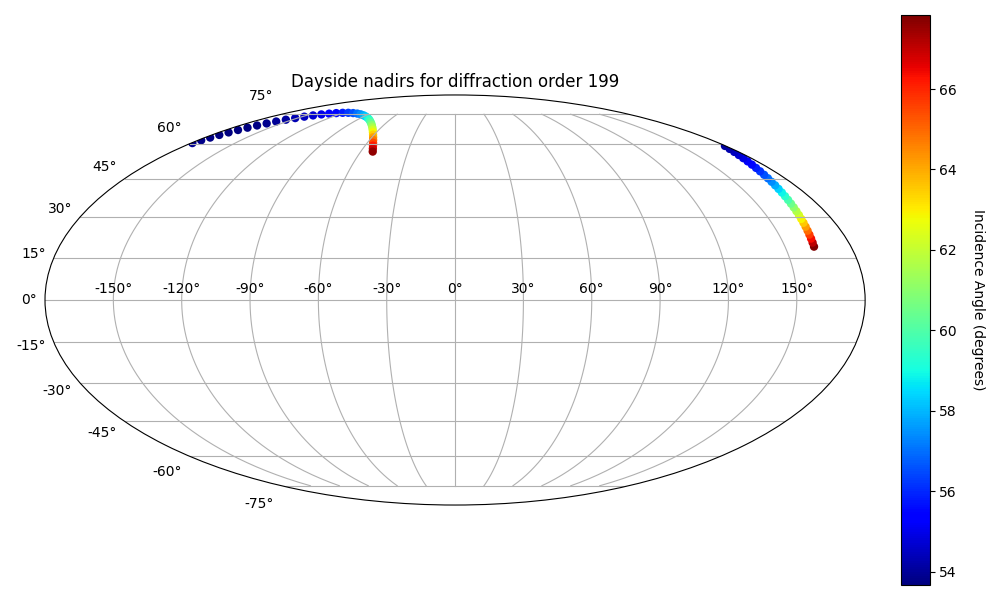

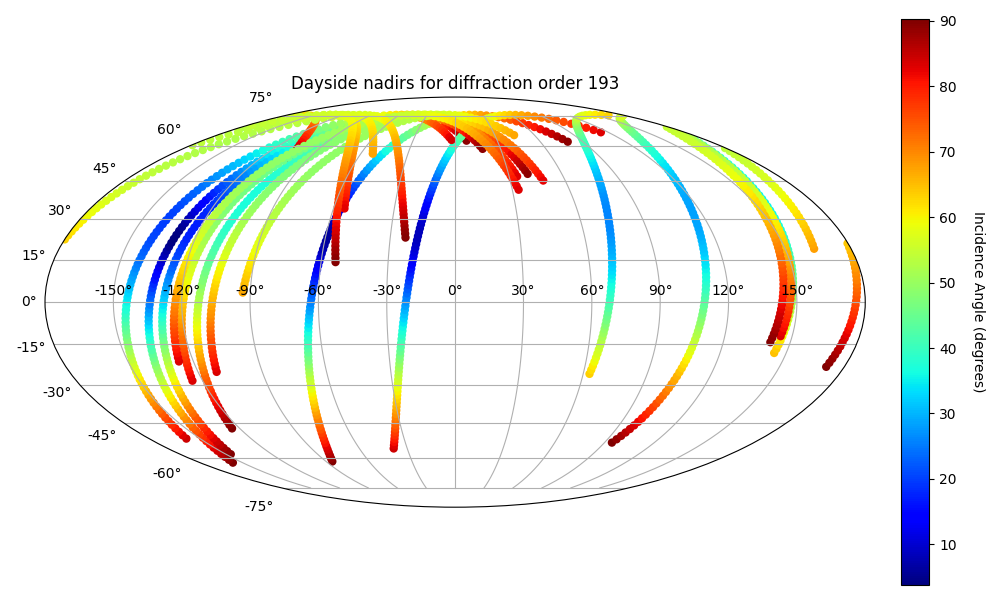

Dayside nadirs for diffraction order 193

Dayside nadirs for diffraction order 194

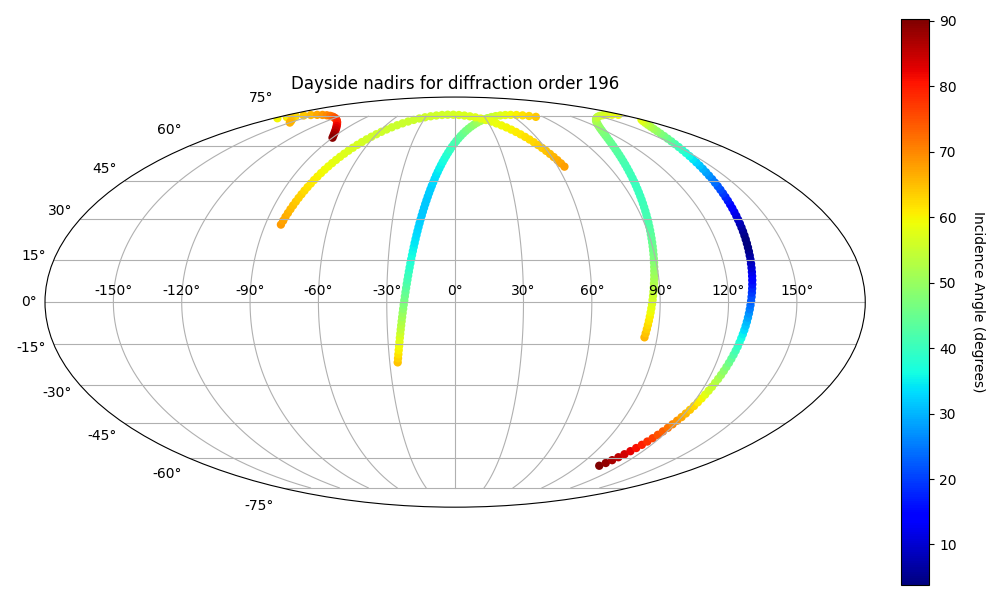

Dayside nadirs for diffraction order 196

Dayside nadirs for diffraction order 199

SO/LNO Observation Dictionaries

Solar Occultation

Name	Diffraction Order 1	Diffraction Order 2	Diffraction Order 3	Diffraction Order 4	Diffraction Order 5	Diffraction Order 6	Integration Time	Rhythm	Detector Height
119 only #2	119	119	119	119	119	119	4	1	16
119 with 1xDark	0	119	119	119	119	119	4	1	16
120 only #2	120	120	120	120	120	120	4	1	16
120 with 1xDark	0	120	120	120	120	120	4	1	16
121 only #2	121	121	121	121	121	121	4	1	16
121 with 1xDark	0	121	121	121	121	121	4	1	16
122 only #2	122	122	122	122	122	122	4	1	16
122 with 1xDark	0	122	122	122	122	122	4	1	16
123 only #2	123	123	123	123	123	123	4	1	16
123 with 1xDark	0	123	123	123	123	123	4	1	16
126 only #2	126	126	126	126	126	126	4	1	16
127 only #2	127	127	127	127	127	127	4	1	16
129 only #2	129	129	129	129	129	129	4	1	16
132 only #2	132	132	132	132	132	132	4	1	16
132 with 1xDark	0	132	132	132	132	132	4	1	16
133 only #2	133	133	133	133	133	133	4	1	16
133 with 1xDark	0	133	133	133	133	133	4	1	16
134 only #2	134	134	134	134	134	134	4	1	16
134 with 1xDark	0	134	134	134	134	134	4	1	16
134 with 5xDark	0	0	0	0	0	134	4	1	16
135 only #2	135	135	135	135	135	135	4	1	16
135 with 1xDark	0	135	135	135	135	135	4	1	16
136 only #2	136	136	136	136	136	136	4	1	16
136 with 1xDark	0	136	136	136	136	136	4	1	16
136 with 5xDark	0	0	0	0	0	136	4	1	16
179 only #2	179	179	179	179	179	179	4	1	16
190 with 1xDark	0	190	190	190	190	190	4	1	16
6SUBD CH4 #1	121	133	134	135	136	169	4	1	16
6SUBD CH4 H2O #1	132	133	134	136	137	169	4	1	16
6SUBD CO #1	132	183	184	185	186	187	4	1	16
6SUBD CO #2	123	132	183	184	185	186	4	1	16
6SUBD CO #3	132	132	185	185	186	186	4	1	16
6SUBD CO #4	132	185	185	185	185	185	4	1	16
6SUBD CO #5	132	186	186	186	186	186	4	1	16
6SUBD CO #6	132	148	183	184	185	186	4	1	16
6SUBD CO H2O #1	134	169	186	187	189	190	4	1	16
6SUBD CO H2O #2	136	169	186	187	189	190	4	1	16
6SUBD CO2 #1	116	118	140	154	156	158	4	1	16
6SUBD CO2 #10	116	118	154	156	158	169	4	1	16
6SUBD CO2 #12	118	132	140	154	156	158	4	1	16
6SUBD CO2 #13	118	132	140	154	156	169	4	1	16
6SUBD CO2 #16	121	148	149	155	164	165	4	1	16
6SUBD CO2 #17	123	142	148	155	156	165	4	1	16
6SUBD CO2 #18	154	155	156	157	158	159	4	1	16
6SUBD CO2 #19	123	132	142	148	156	165	4	1	16
6SUBD CO2 #20	123	148	155	156	160	165	4	1	16
6SUBD CO2 #21	122	142	155	156	165	171	4	1	16
6SUBD CO2 #22	142	148	155	156	160	165	4	1	16
6SUBD CO2 #23	132	148	156	165	186	190	4	1	16
6SUBD CO2 #24	132	148	155	165	186	190	4	1	16
6SUBD CO2 CO #1	119	149	164	165	186	190	4	1	16
6SUBD CO2 CO #25	118	123	132	148	156	186	4	1	16
6SUBD CO2 CO #26	132	145	177	186	197	200	4	1	16
6SUBD CO2 CO #27	118	123	132	148	156	186	4	1	16
6SUBD CO2 CO #28	132	148	155	185	186	190	4	1	16
6SUBD CO2 CO #29	132	140	142	148	185	186	4	1	16
6SUBD CO2 CO #34	121	140	146	148	169	186	4	1	16
6SUBD CO2 Dipole #1	132	133	134	136	137	169	4	1	16
6SUBD CO2 H2O #11	121	132	148	156	160	165	4	1	16
6SUBD CO2 H2O #12	121	132	148	156	165	189	4	1	16
6SUBD CO2 H2O #13	121	132	148	156	165	186	4	1	16
6SUBD CO2 H2O #14	121	132	134	148	165	169	4	1	16
6SUBD CO2 H2O CO #15	121	132	148	165	186	190	4	1	16
6SUBD Nom 4 line #1	121	129	134	148	165	169	4	1	4
6SUBD Nom 4 line #2	121	129	136	148	165	169	4	1	4
6SUBD Nom CH4 #1	134	136	148	164	187	190	4	1	16
6SUBD Nom CH4 #2	134	136	164	169	186	190	4	1	16
6SUBD Nom CO #1	121	149	186	187	189	190	4	1	16
6SUBD Nom CO #2	134	169	186	187	189	190	4	1	16
6SUBD Nom CO #3	136	169	186	187	189	190	4	1	16
6SUBD Nom CO #4	121	136	190	191	192	193	4	1	16
6SUBD Nom CO #5	121	136	168	169	189	193	4	1	16
6SUBD Nom CO #6	148	167	186	187	188	190	4	1	16
6SUBD Nom CO #7	121	135	148	169	186	190	4	1	16
6SUBD Nom CO2 #1	121	134	149	164	165	169	4	1	16
6SUBD Nom CO2 #2	121	149	164	165	186	190	4	1	16
6SUBD Nominal #1	121	134	149	169	186	190	4	1	16
6SUBD Nominal #11	121	126	129	134	169	190	4	1	16
6SUBD Nominal #12	121	127	129	134	169	190	4	1	16
6SUBD Nominal #2	119	136	149	169	186	189	4	1	16
6SUBD Nominal #3	121	136	167	169	190	192	4	1	16
6SUBD Nominal #42	121	129	134	149	165	169	4	1	16
6SUBD Nominal #45	121	129	136	149	165	169	4	1	16
6SUBD Nominal #48	121	129	134	169	186	190	4	1	16
6SUBD Nominal #51	121	129	136	169	186	190	4	1	16
6SUBD Nominal #52	121	129	134	148	165	169	4	1	16
6SUBD Nominal #53	121	129	136	148	165	169	4	1	16
6SUBD Nominal #54	121	134	148	169	186	190	4	1	16
ACS Ridealong Science	COP#1550	-	-	-	-	-	0	1	16
ACS Ridealong Science 2SUBD 01	164	165	-	-	-	-	40	4	24
ACS Ridealong Science 6SUBD 01	121	134	149	165	168	190	10	4	20
ACS Ridealong Science 6SUBD 02	121	134	149	165	168	190	20	4	20
ACS Ridealong Science All Fullscan Fast	COP#294	-	-	-	-	-	0	1	16
AER 01	0	119	133	143	154	169	4	1	16
AER 02	0	120	133	143	154	181	4	1	16
All Fullscan Fast	COP#293	-	-	-	-	-	0	1	16
All Fullscan Fast #2	COP#53	-	-	-	-	-	4	1	16
All Fullscan Slow	COP#107	-	-	-	-	-	0	1	24
All Fullscan Slow #2	COP#31	-	-	-	-	-	4	1	24
BgSubTest 01	121	134	149	165	167	190	4	1	16
BgSubTest 02	119	136	148	166	168	189	4	1	16
BgSubTest 03	121	134	149	165	168	190	4	1	16
BgSubTest 04	119	136	148	166	168	189	4	1	16
BgSubTest 05	121	134	148	167	169	190	4	1	16
BgSubTest 06	121	136	148	167	169	189	4	1	16
CH4 01	0	133	134	135	136	168	4	1	16
CO 01	0	167	188	189	190	191	4	1	16
CO Fullscan Fast	COP#254	-	-	-	-	-	0	1	16
CO Fullscan Fast #2	COP#46	-	-	-	-	-	4	1	16
CO2 01	0	146	147	148	154	167	4	1	16
CO2 02	0	148	155	159	164	167	4	1	16
CO2 100km #1	0	148	155	159	164	167	4	1	16
CO2 Fullscan	COP#239	-	-	-	-	-	0	1	16
CO2 Fullscan Fast	COP#239	-	-	-	-	-	0	1	16
CO2 Fullscan Fast #2	COP#41	-	-	-	-	-	4	1	16
CO2 Fullscan Fast #3	COP#34	-	-	-	-	-	4	1	16
CO2 Fullscan Fast #4	COP#42	-	-	-	-	-	4	1	16
CO2 Fullscan Fast #5	COP#37	-	-	-	-	-	4	1	16
Dust H2O 01	0	119	130	145	171	191	4	1	16
Dust H2O 02	0	121	130	145	169	195	4	1	16
Fullscan fast step4 all #1	COP#3241	-	-	-	-	-	4	1	16
Fullscan fast step5 all #1	COP#3244	-	-	-	-	-	4	1	16
HCL #10	121	126	127	129	130	134	4	1	16
HCL #11	121	126	127	129	130	136	4	1	16
HCL #4	121	129	129	129	129	134	4	1	16
HCL #5	121	130	130	130	130	134	4	1	16
HCL #8	121	129	129	129	129	136	4	1	16
HCL #9	121	130	130	130	130	136	4	1	16
HDO 01	0	124	129	134	168	190	4	1	16
LNO CO Fullscan Fast #1	COP#49	-	-	-	-	-	2	1	16
LNO Occultation Fullscan 01	COP#93	-	-	-	-	-	2	1	20
LNO Occultation Fullscan Fast #2	COP#56	-	-	-	-	-	2	1	16
LNO Occultation Nominal Science 1xCO2 01	COP#697	-	-	-	-	-	2	1	20
Nominal Science 1xCO2 HA01	0	121	134	165	168	190	4	1	16
Nominal Science 1xCO2 HA02	0	119	134	165	168	190	4	1	16
Nominal Science 1xCO2 HA03	0	121	134	165	168	189	4	1	16
Nominal Science 1xCO2 HA04	0	119	136	165	168	189	4	1	16
Nominal Science 1xCO2 LA01	0	121	134	149	168	190	4	1	16
Nominal Science 1xCO2 LA02	0	119	134	149	168	190	4	1	16
Nominal Science 1xCO2 LA03	0	121	134	149	168	189	4	1	16
Nominal Science 1xCO2 LA04	0	119	136	149	168	189	4	1	16
Nominal Science 1xCO2 LA05	0	121	136	148	169	190	4	1	16
Nominal Science 1xCO2 LA06	0	121	134	148	169	190	4	1	16
Nominal Science 1xCO2 TOA	0	121	135	164	168	190	4	1	16
Nominal Science with CO 01	0	121	134	147	169	186	4	1	16
UVIS Binning 3 IT 70 Delay 300	COP#391	-	-	-	-	-	70	0	135
UVIS Unbinned IT 70 Delay 2700	COP#364	-	-	-	-	-	70	0	135
Water Ice 01	0	119	140	153	170	191	4	1	16

Nadir/Limb

Name	Diffraction Order 1	Diffraction Order 2	Diffraction Order 3	Diffraction Order 4	Diffraction Order 5	Diffraction Order 6	Integration Time	Rhythm	Detector Height
AER H2Oi 3SUBD 01	127	131	169	-	-	-	205	15	144
AER H2Oi CO2i 4SUBD 01	127	131	164	169	-	-	195	15	144
CH4 2SUBD 01	134	167	-	-	-	-	200	15	144
CH4 2SUBD 02	134	136	-	-	-	-	200	15	144
CH4 2SUBD 03	136	136	-	-	-	-	200	15	144
CH4 3SUBD 01	134	136	168	-	-	-	205	15	144
CH4 3SUBD 03	134	134	134	-	-	-	205	15	144
CH4 CO 2SUBD #3	136	189	-	-	-	-	200	15	144
CH4 CO 2SUBD #4	134	189	-	-	-	-	200	15	144
CH4 CO 2SUBD 01	136	190	-	-	-	-	200	15	144
CH4 CO 2SUBD 02	134	190	-	-	-	-	200	15	144
CH4 Fullscan	COP#104	-	-	-	-	-	0	15	144
CH4 H2O 2SUBD 01	134	168	-	-	-	-	200	15	144
CH4 H2O 2SUBD 02	136	168	-	-	-	-	200	15	144
CO 2SUBD 02	167	189	-	-	-	-	200	15	144
CO Fullscan	COP#124	-	-	-	-	-	0	15	144
CO Fullscan #2	COP#71	-	-	-	-	-	0	15	144
CO H2O 3SUBD 01	168	190	191	-	-	-	205	15	144
CO2 Fullscan	COP#144	-	-	-	-	-	0	15	144
D/H 2SUBD 01	121	169	-	-	-	-	200	15	144
D/H 3SUBD 01	121	167	169	-	-	-	205	15	144
H2O 2SUBD 01	167	169	-	-	-	-	200	15	144
H2O CO 2SUBD #1	168	189	-	-	-	-	200	15	144
H2O CO 2SUBD 01	168	189	-	-	-	-	200	15	144
H2O CO 3SUBD #2	168	189	190	-	-	-	205	15	144
H2O Fullscan	COP#116	-	-	-	-	-	0	15	144
H2O Fullscan #2	COP#67	-	-	-	-	-	0	15	144
HDO 3SUBD 01	121	124	171	-	-	-	205	15	144
HDO CO 3SUBD 01	121	167	190	-	-	-	205	15	144
HDO CO 3SUBD 02	121	168	190	-	-	-	205	15	144
HDO Fullscan	COP#140	-	-	-	-	-	0	15	144
HDO H2O 2SUBD 01	121	169	-	-	-	-	200	15	144
HDO H2O 2SUBD 02	124	168	-	-	-	-	200	15	144
HDO H2O 2SUBD 03	121	168	-	-	-	-	200	15	144
Ice CH4 2SUBD #1	136	193	-	-	-	-	200	15	144
Ice CO 2SUBD #1	190	193	-	-	-	-	200	15	144
Ice CO 2SUBD #2	189	193	-	-	-	-	200	15	144
Ice CO 2SUBD #3	193	193	-	-	-	-	200	15	144
Ice H2O 2SUBD #1	168	193	-	-	-	-	200	15	144
LNO Ice Index 2SUBD 01	153	158	-	-	-	-	200	15	144
LNO Ice Index 2SUBD 02	193	194	-	-	-	-	200	15	144
Limb 2SUBD 01	161	162	-	-	-	-	200	15	144
Limb 2SUBD 02	162	163	-	-	-	-	200	15	144
Limb 2SUBD 03	163	164	-	-	-	-	200	15	144
Limb 2SUBD 04	164	165	-	-	-	-	200	15	144
Limb 2SUBD 05	165	166	-	-	-	-	200	15	144
Limb 2SUBD 06	166	167	-	-	-	-	200	15	144
Limb 2SUBD 07	164	164	-	-	-	-	200	15	144
Night Limb #1	153	158	-	-	-	-	200	15	144
Night Limb #2	158	158	-	-	-	-	200	15	144
Nominal 3SUBD 01	167	169	190	-	-	-	205	15	144
Nominal 4SUBD #2	121	134	168	189	-	-	195	15	144
Nominal 4SUBD 01	121	134	168	190	-	-	195	15	144
Nominal 6SUBD #2	121	134	149	168	189	196	220	15	144
Nominal 6SUBD 01	119	134	149	168	190	196	220	15	144
Nominal 6SUBD 02	121	134	167	168	189	197	220	15	144
Nominal Limb 01	164	169	-	-	-	-	200	15	144
Nominal Nightside 01	169	190	-	-	-	-	200	15	144
Nominal Nightside 02	162	163	-	-	-	-	200	15	144
Surface 3SUBD #3	189	194	196	-	-	-	205	15	144
Surface 3SUBD 01	168	190	191	-	-	-	205	15	144
Surface 3SUBD 02	191	194	196	-	-	-	205	15	144
Surface Ice 2SUBD #1	132	133	-	-	-	-	200	15	144
Surface Ice 2SUBD 4S 01	193	199	-	-	-	-	205	4	144
Surface Ice 2SUBD 4S 02	194	198	-	-	-	-	205	4	144
Surface Ice 2SUBD 4S 03	193	194	-	-	-	-	205	4	144
Surface Ice 2SUBD 4S 04	187	199	-	-	-	-	205	4	144
Surface Ice 3SUBD #2	132	133	189	-	-	-	205	15	144
Surface Ice 3SUBD #3	132	133	193	-	-	-	205	15	144
Surface Ice 3SUBD 01	188	194	199	-	-	-	205	15	144
Surface Ice 3SUBD 8S 01	188	194	199	-	-	-	180	8	144
Surface Ice 4SUBD 01	187	193	194	199	-	-	195	15	144
Surface Ice 4SUBD 02	187	188	189	199	-	-	195	15	144
Surface Ice 4SUBD 8S 01	187	193	194	199	-	-	220	8	144
Surface Ice 4SUBD 8S 02	187	188	189	199	-	-	220	8	144
Surface Ice 6SUBD 01	186	187	193	194	198	199	220	15	144
Surface Ice 6SUBD 8S 01	186	187	193	194	198	199	205	8	144
UVIS Binning 3 IT 10000 Delay 0	COP#89	-	-	-	-	-	10000	12017	57
UVIS Binning 3 IT 16000 Delay 7	COP#95	-	-	-	-	-	16000	25471	57
UVIS Binning 3 IT 5000 Delay 0	COP#81	-	-	-	-	-	5000	7017	57
UVIS Binning 3 IT 7000 Delay 0	COP#85	-	-	-	-	-	7000	9017	57
UVIS Unbinned IT 16000 Delay 8	COP#79	-	-	-	-	-	16000	25868	57

Page last modified: Mon, 26 Aug 2024 13:23:14
