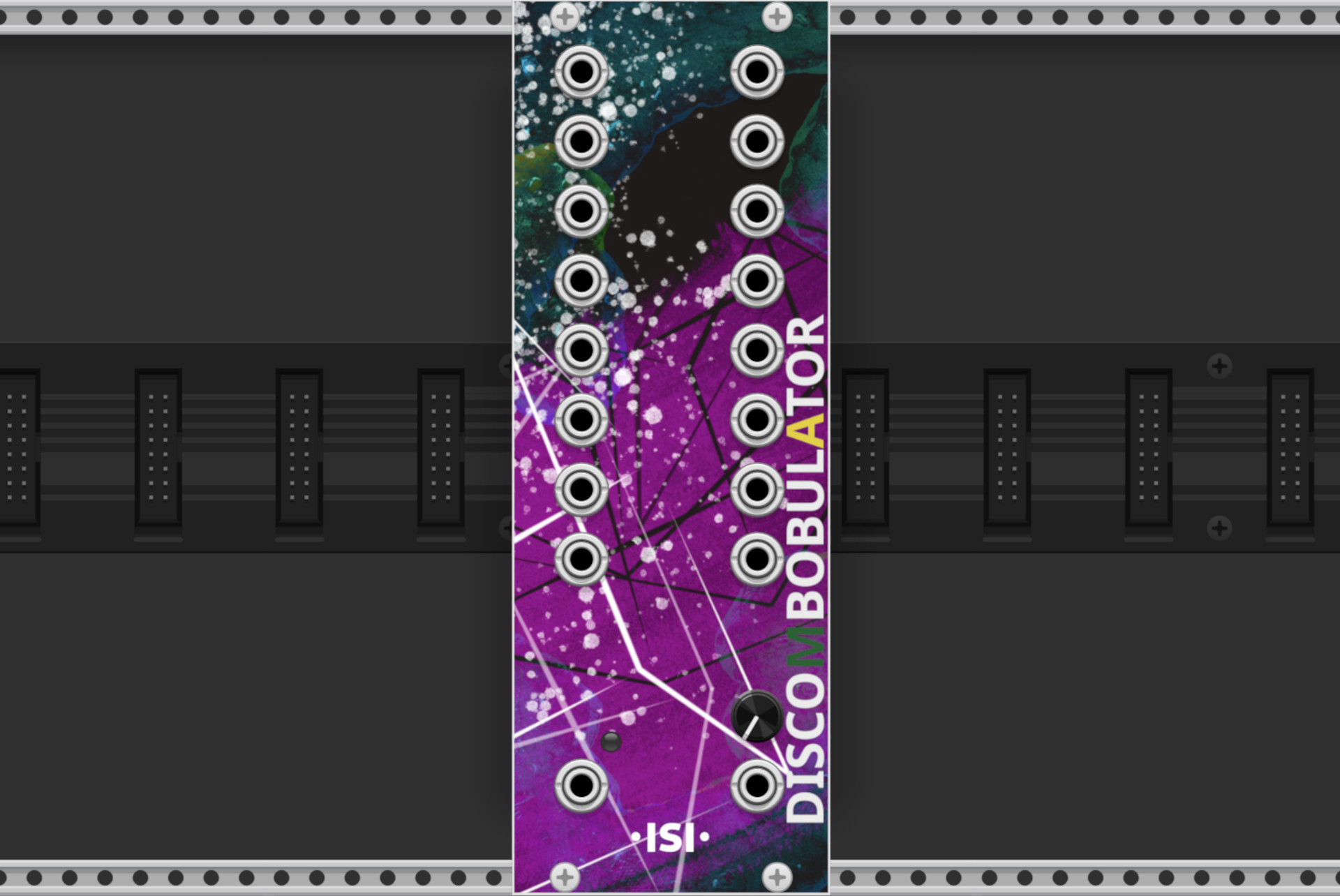

Discombobulator

Randomize inputs and outputs.

Randomly switches inputs and outputs on command.

Monophonic Input

Accepts a single voltage.

Fade controls how much of the old output should fade out if the gate triggers a swap. There is a knob that also controls this value.

Trigger Input

Takes a trigger value as an input. This works as a Schmitt Trigger.

When voltage moves from a low voltage threshold (0.2V) through a high voltage threshhold (2V) the trigger will activate. The trigger wont be able to activate again until it moves back below the low voltage threshhold

Gate When this gate is activated the inputs swap to a different active output. If you had inputs 1, 2, and 4 connected only the outputs 1, 2, and 4 would swap.

P

Polyphonic Input Port

Can accept monophonic and polyphonic voltages.

Inputs 1-8, by default their corresponding output is the one mirrored on the other side of the device. When the gate is activated they swap to another output. (they only swap to another output that also has a corresponding input)

P

Polyphonic Output

Can output monophonic and polyphonic voltages.

Outputs 1-8 are the outputs that initially correspond to the input mirroring it.

Themes

The modules context menu has a theme submenu where you can change the background to a solid white or black color if you are having trouble with the default background design.

Labels

Knob and plug labels can be toggled via the toggle labels option in the context menu.
