mkdir -p /project2/xinhe/kevinluo/GSFA/data

cp /project2/xinhe/yifan/Factor_analysis/shared_data/LUHMES_cropseq_data_seurat.rds \
  /project2/xinhe/kevinluo/GSFA/data

cp /project2/xinhe/yifan/Factor_analysis/LUHMES/GSE142078_raw/GSM4219575_Run1_genes.tsv.gz \
  /project2/xinhe/kevinluo/GSFA/data/LUHMES_GSM4219575_Run1_genes.tsv.gz

Load the data sets

CROP-seq datasets: /project2/xinhe/yifan/Factor_analysis/shared_data/LUHMES_cropseq_data_seurat.rds

The data are Seurat objects, with raw gene counts stored in obj@assays $RNA@counts, and cell meta data stored in obj@meta.data. Normalized and scaled data used for GSFA are stored in obj@assays$ RNA@scale.data, the rownames of which are the 6k genes used for GSFA.

Load packages

suppressPackageStartupMessages(library(data.table))
suppressPackageStartupMessages(library(Seurat))
suppressPackageStartupMessages(library(MUSIC))
suppressPackageStartupMessages(library(ComplexHeatmap))
suppressPackageStartupMessages(library(ggplot2))
require(reshape2)
require(dplyr)
require(ComplexHeatmap)
theme_set(theme_bw() + theme(plot.title = element_text(size = 14, hjust = 0.5),
                             axis.title = element_text(size = 14),
                             axis.text = element_text(size = 13),
                             legend.title = element_text(size = 13),
                             legend.text = element_text(size = 12),
                             panel.grid.minor = element_blank())
)

source("code/plotting_functions.R")

Set directories

data_dir <- "/project2/xinhe/kevinluo/GSFA/data/"
res_dir <- "/project2/xinhe/kevinluo/GSFA/twostep_clustering/LUHMES"
dir.create(res_dir, recursive = TRUE, showWarnings = FALSE)

Load input data

combined_obj <- readRDS(file.path(data_dir,"LUHMES_cropseq_data_seurat.rds"))

pre-processing

The steps below encompass the standard pre-processing workflow for scRNA-seq data in Seurat.

These represent the selection and filtration of cells based on QC metrics, data normalization and scaling, and the detection of highly variable features.

QC and selecting cells for further analysis.

# The number of unique genes detected in each cell.
range(combined_obj$nFeature_RNA)

# The total number of molecules detected within a cell
range(combined_obj$nCount_RNA)

# The percentage of reads that map to the mitochondrial genome
range(combined_obj$percent_mt)

[1]  375 4861
[1]  1572 19991
[1] 0.128082 9.804772

# Visualize QC metrics as a violin plot
VlnPlot(combined_obj, features = c("nFeature_RNA", "nCount_RNA", "percent_mt"), ncol = 3)

We filter cells that have more than 500 genes identified.

combined_obj <- subset(combined_obj, subset = nFeature_RNA > 500)

Normalizing the data

combined_obj <- NormalizeData(combined_obj, normalization.method = "LogNormalize", scale.factor = 10000)

Identification of highly variable features (feature selection)

Select a subset of features that exhibit high cell-to-cell variation in the dataset, by modeling the mean-variance relationship inherent in single-cell data.

Select the 1,000 most variable genes across cells.

combined_obj <- FindVariableFeatures(combined_obj, selection.method = "vst", nfeatures = 1000)

Regress out total UMI counts per cell and percent of mitochondrial genes detected per cell and scaled to obtain gene level z-scores.

The results of this are stored in combined_obj[[“RNA”]]@scale.data

combined_obj <- ScaleData(combined_obj, vars.to.regress = c("nCount_RNA", "percent_mt"))
# combined_obj <- ScaleData(combined_obj, vars.to.regress = c("nCount_RNA", "percent_mt"), features = selected_gene_id)
dim(combined_obj[["RNA"]]@counts)
dim(combined_obj[["RNA"]]@data)
dim(combined_obj[["RNA"]]@scale.data)

saveRDS(combined_obj, file = file.path(res_dir, "LUHMES_seurat_processed_data.rds"))

Perform dimensional reduction

Perform PCA on the scaled data.

combined_obj <- readRDS(file.path(res_dir, "LUHMES_seurat_processed_data.rds"))
combined_obj <- RunPCA(combined_obj, features = VariableFeatures(object = combined_obj))

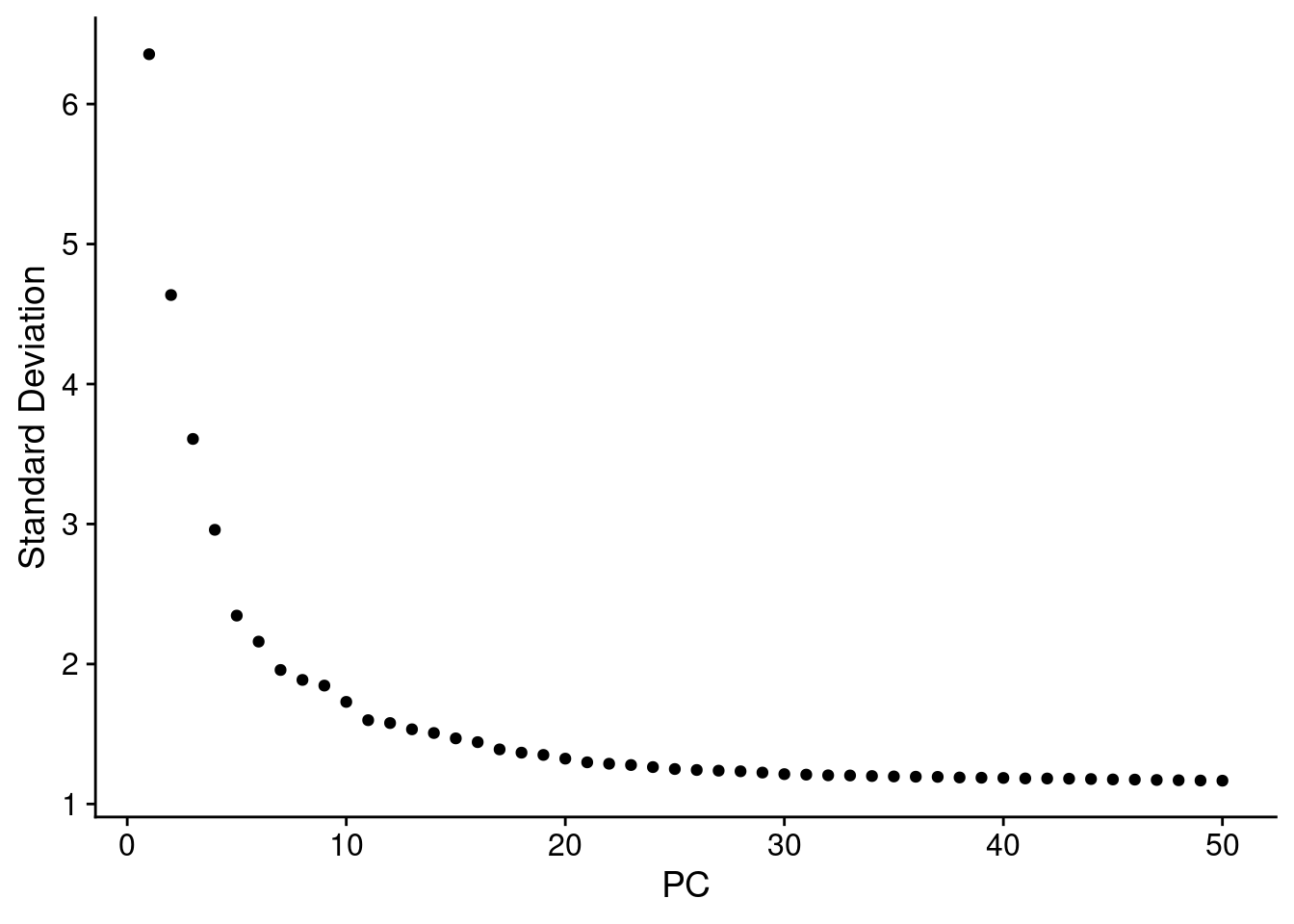

ElbowPlot(combined_obj, ndims = 50)

Cluster the cells

combined_obj <- FindNeighbors(combined_obj, dims = 1:30)
combined_obj <- FindClusters(combined_obj)

saveRDS(combined_obj, file = file.path(res_dir, "LUHMES_seurat_clustered.rds"))

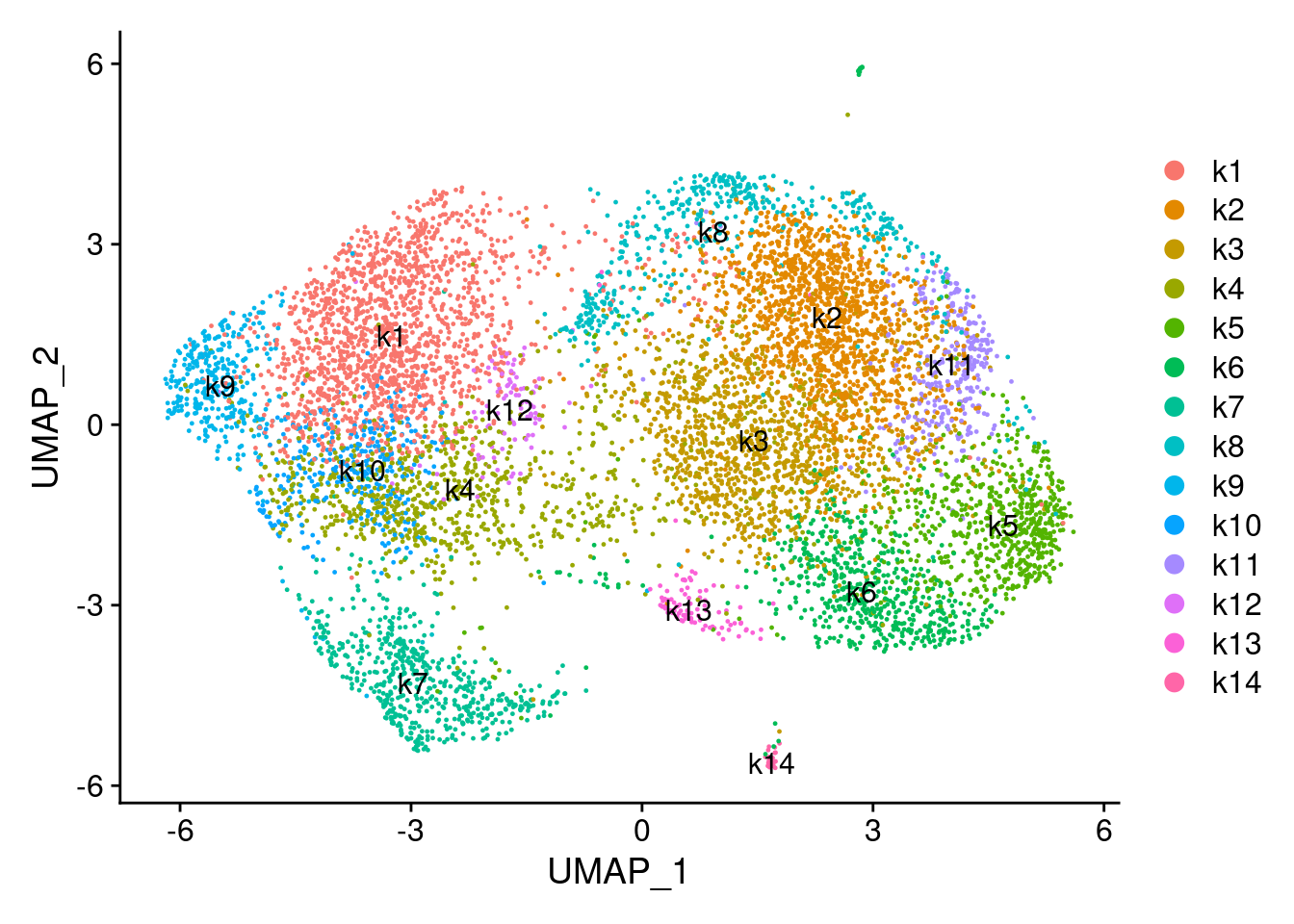

Run non-linear dimensional reduction (UMAP/tSNE)

combined_obj <- readRDS(file.path(res_dir, "LUHMES_seurat_clustered.rds"))

cluster_labels <- Idents(combined_obj)
cluster_labels <- as.factor(as.numeric(as.character(cluster_labels))+1)
new_cluster_labels <- paste0("k", levels(cluster_labels))
names(new_cluster_labels) <- levels(combined_obj)
combined_obj <- RenameIdents(combined_obj, new_cluster_labels)

combined_obj <- RunUMAP(combined_obj, dims = 1:30)
DimPlot(combined_obj, reduction = "umap", label = TRUE)

Finding differentially expressed features (cluster biomarkers)

combined_obj <- readRDS(file.path(res_dir, "LUHMES_seurat_clustered.rds"))

cat("Run DE test using MAST...\n")
cat(length(levels(combined_obj)), "clusters.\n")
registerDoParallel(cores=n_cores)
ptm <- proc.time()
de.markers <- foreach(i=levels(combined_obj), .packages="Seurat") %dopar% {
  FindMarkers(combined_obj, ident.1 = i, test.use = "MAST")
}
proc.time() - ptm
stopImplicitCluster()
saveRDS(de.markers, file = file.path(res_dir, "LUHMES_seurat_MAST_DEGs.rds"))

Associate perturbation with clustering results

combined_obj <- readRDS(file.path(res_dir, "LUHMES_seurat_clustered.rds"))
perturb_matrix <- combined_obj@meta.data[, 4:18]

cluster_labels <- Idents(combined_obj)
cluster_labels <- as.factor(as.numeric(as.character(cluster_labels))+1)
new_cluster_labels <- paste0("k", levels(cluster_labels))
names(new_cluster_labels) <- levels(combined_obj)
combined_obj <- RenameIdents(combined_obj, new_cluster_labels)

cluster_matrix <- matrix(0, nrow = nrow(perturb_matrix), ncol = length(levels(cluster_labels)))
cluster_matrix[cbind(1:nrow(perturb_matrix), cluster_labels)] <- 1
rownames(cluster_matrix) <- rownames(perturb_matrix)
colnames(cluster_matrix) <- new_cluster_labels

Chi-squared contingency table tests

summary_df <- expand.grid(colnames(perturb_matrix), colnames(cluster_matrix))
colnames(summary_df) <- c("perturb", "cluster")

summary_df <- cbind(summary_df, statistic = NA, stdres = NA, pval = NA)

for(i in 1:nrow(summary_df)){
  dt <- table(data.frame(perturb = perturb_matrix[,summary_df$perturb[i]],
                         cluster = cluster_matrix[,summary_df$cluster[i]]))
  chisq <- chisq.test(dt)
  summary_df[i, ]$statistic <- chisq$statistic
  summary_df[i, ]$stdres <- chisq$stdres[2,2]
  summary_df[i, ]$pval <- chisq$p.value
}

summary_df$fdr <- p.adjust(summary_df$pval, method = "BH")
summary_df$bonferroni_adj <- p.adjust(summary_df$pval, method = "bonferroni")

stdres_mat <- reshape2::dcast(summary_df %>% dplyr::select(perturb, cluster, stdres), perturb ~ cluster, value.var = "stdres")
rownames(stdres_mat) <- stdres_mat$perturb
stdres_mat$perturb <- NULL

fdr_mat <- reshape2::dcast(summary_df %>% dplyr::select(perturb, cluster, fdr), perturb ~ cluster, value.var = "fdr")
rownames(fdr_mat) <- fdr_mat$perturb
fdr_mat$perturb <- NULL

bonferroni_mat <- reshape2::dcast(summary_df %>% dplyr::select(perturb, cluster, bonferroni_adj),
                                  perturb ~ cluster, value.var = "bonferroni_adj")
rownames(bonferroni_mat) <- bonferroni_mat$perturb
bonferroni_mat$perturb <- NULL

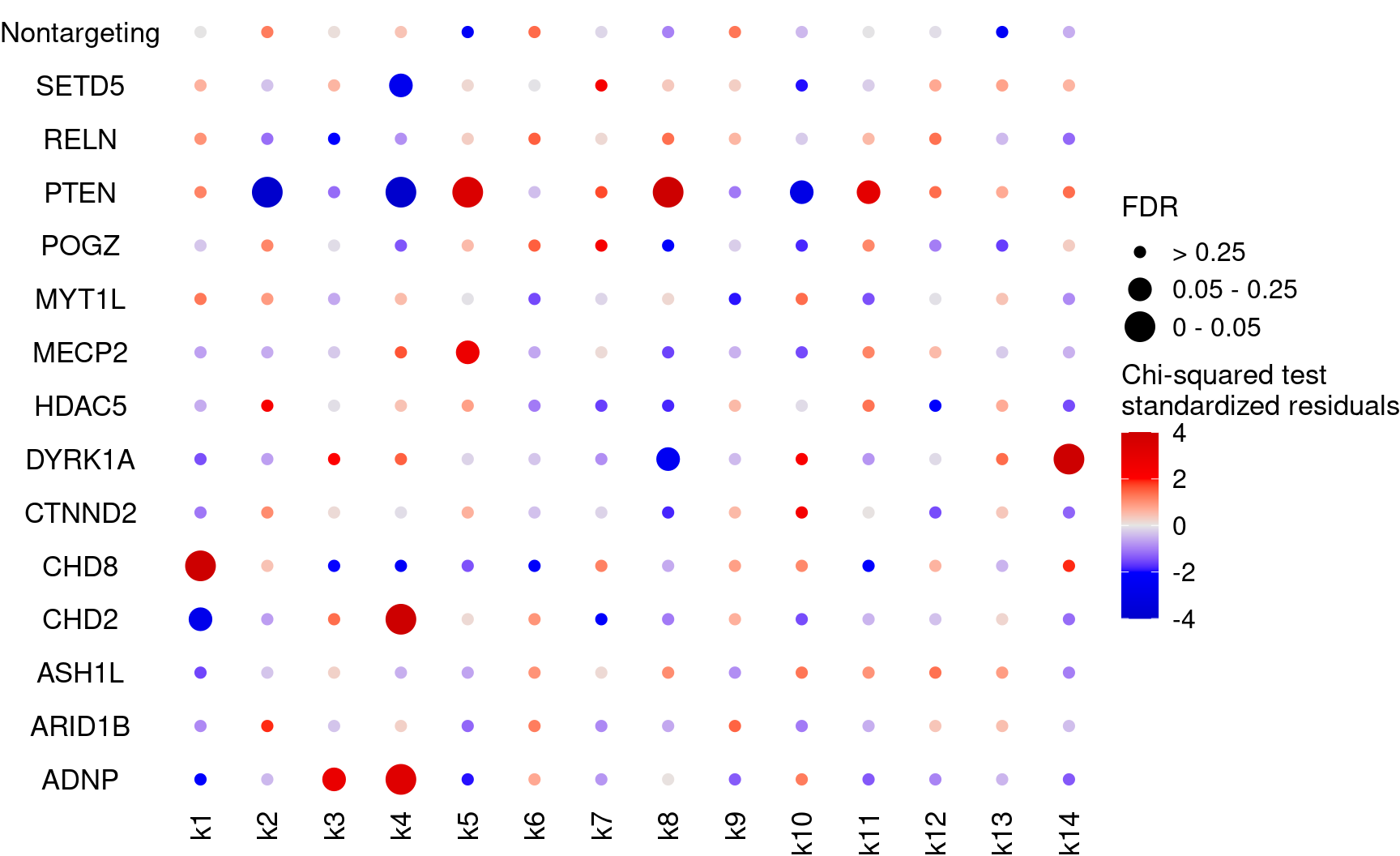

Dot plot for the perturbation ~ cluster associations (standardized residues and FDRs)

KO_names <- rownames(fdr_mat)
dotplot_effectsize(t(stdres_mat), t(fdr_mat),
                   reorder_markers = c(KO_names[KO_names!="Nontargeting"], "Nontargeting"),
                   color_lgd_title = "Chi-squared test\nstandardized residuals",
                   size_lgd_title = "FDR",
                   max_score = 4,
                   min_score = -4,
                   by_score = 2) + coord_flip()

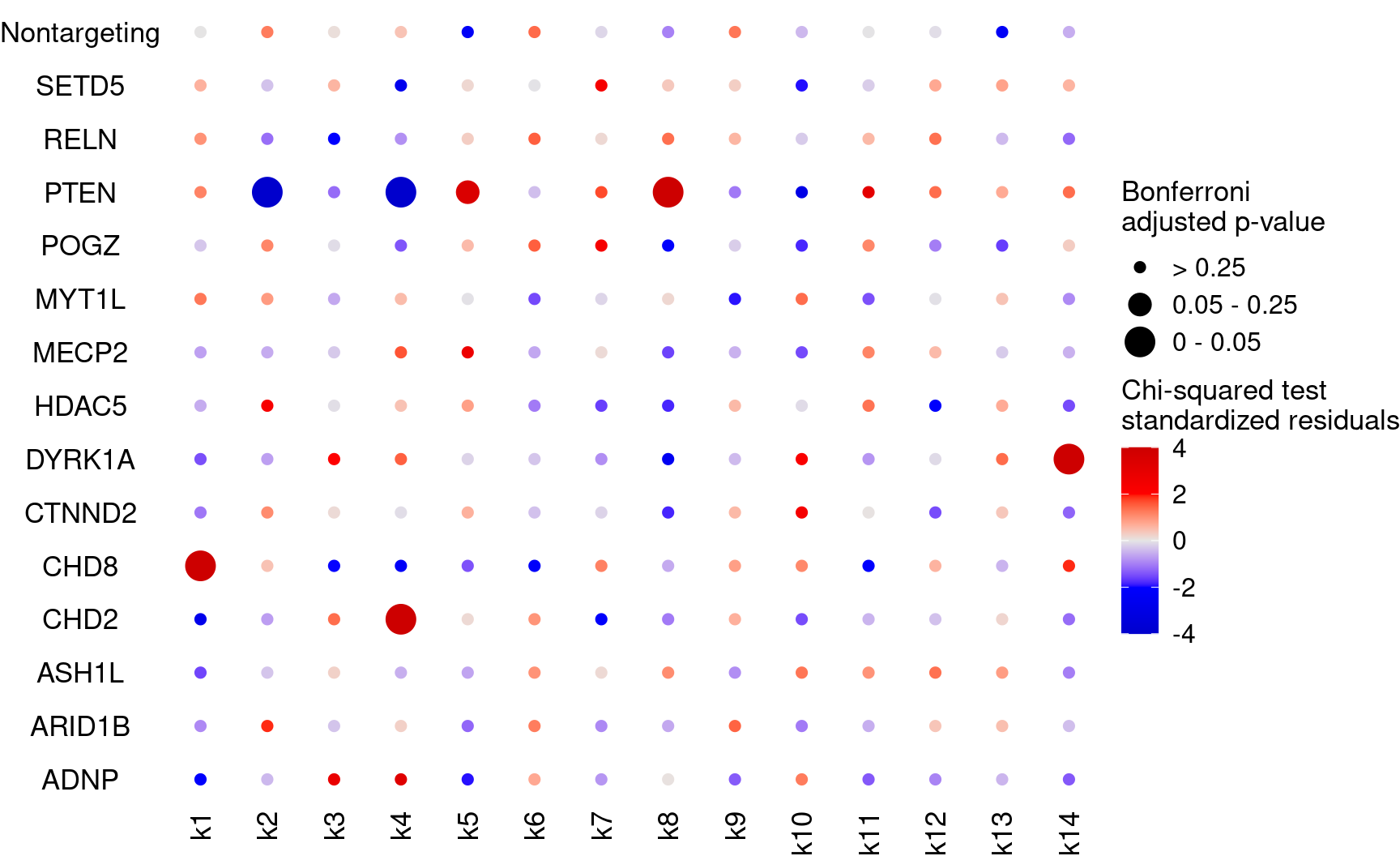

Dot plot for the perturbation ~ cluster associations (standardized residues and Bonferroni adjusted p-values)

KO_names <- rownames(bonferroni_mat)
dotplot_effectsize(t(stdres_mat), t(bonferroni_mat),
                   reorder_markers = c(KO_names[KO_names!="Nontargeting"], "Nontargeting"),
                   color_lgd_title = "Chi-squared test\nstandardized residuals",
                   size_lgd_title = "Bonferroni\nadjusted p-value",
                   max_score = 4,
                   min_score = -4,
                   by_score = 2) + coord_flip()

Load DE genes for each cluster and assign DE genes to associated perturbations

feature.names <- data.frame(fread(file.path(data_dir, "LUHMES_GSM4219575_Run1_genes.tsv.gz"),
                                  header = FALSE), stringsAsFactors = FALSE)

de.markers <- readRDS(file.path(res_dir, "LUHMES_seurat_MAST_DEGs.rds"))
names(de.markers) <- paste0("k", levels(cluster_labels))

de.genes.clusters <- vector("list", length = length(de.markers))
names(de.genes.clusters) <- names(de.markers)
for( i in 1:length(de.genes.clusters)){
  de_sumstats <- de.markers[[i]]
  de_genes <- unique(rownames(de_sumstats[de_sumstats$p_val_adj < 0.05,]))
  de_genes <- feature.names$V2[match(de_genes, feature.names$V1)]
  de.genes.clusters[[i]] <- de_genes
}

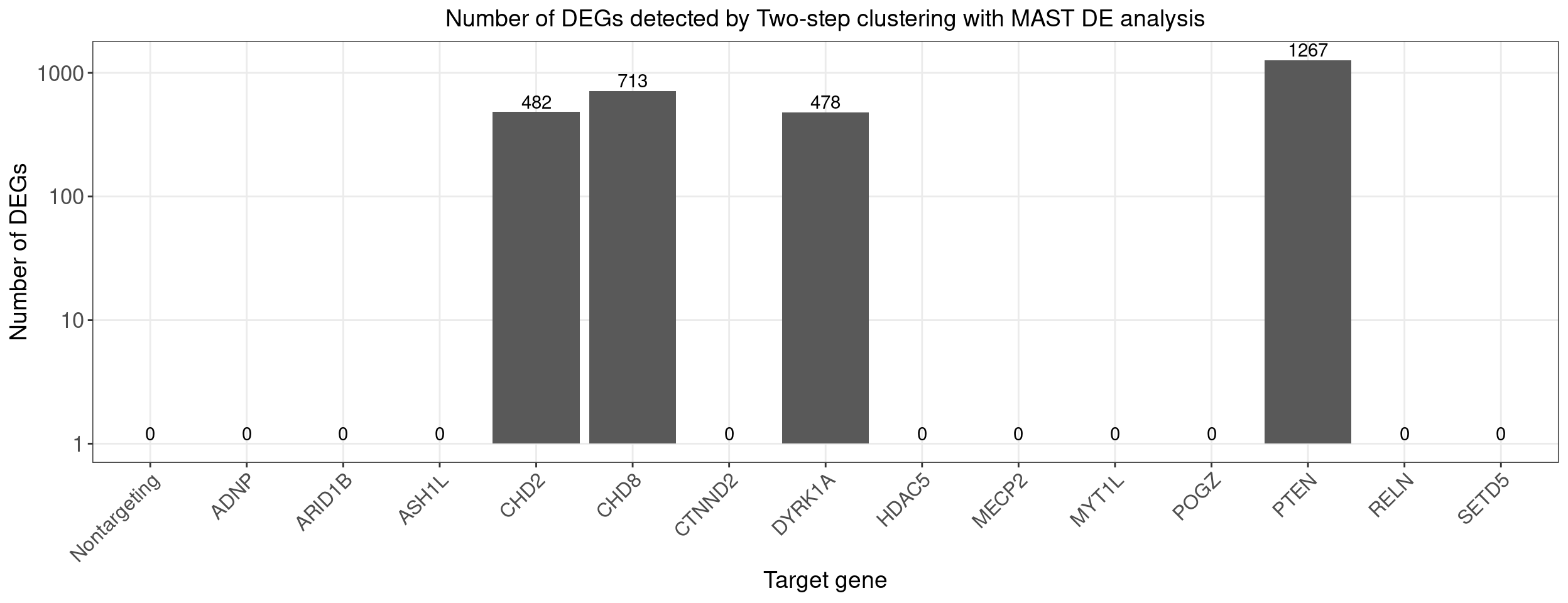

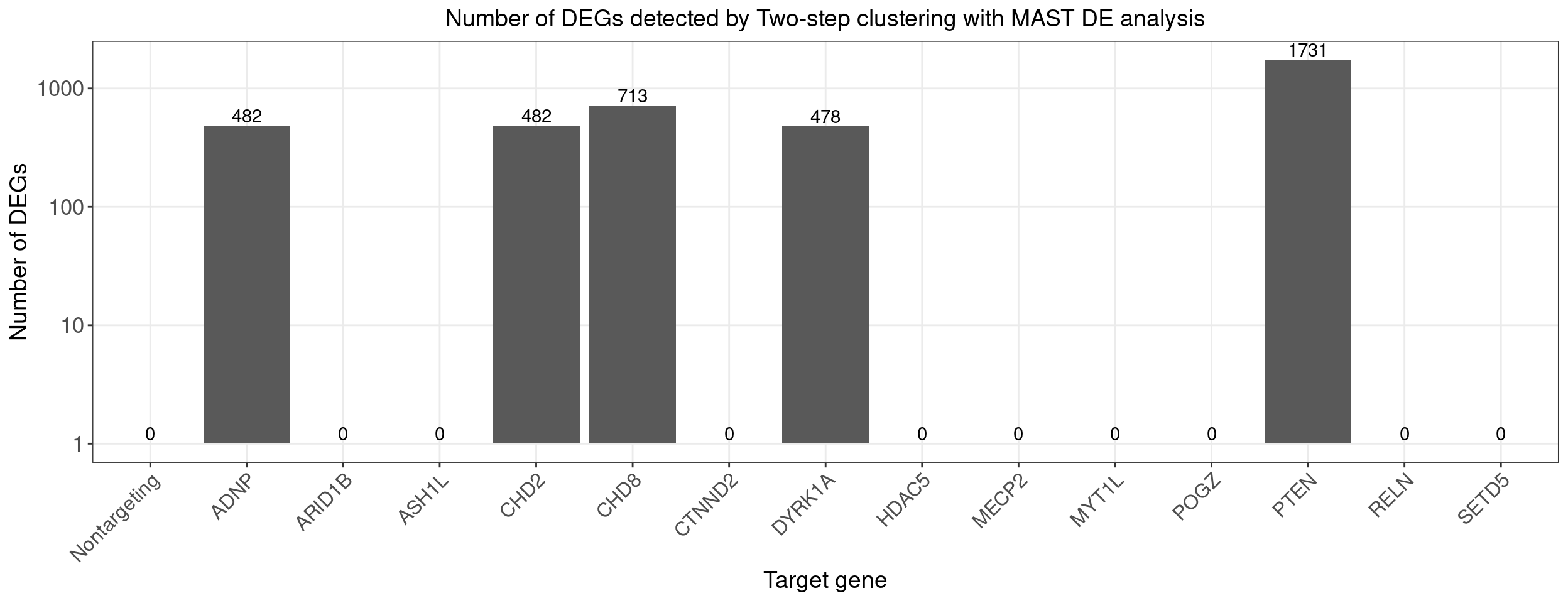

Count DE genes for each perturbation (FDR < 0.05)

perturb_names <- rownames(fdr_mat)
perturb_names <- c("Nontargeting", perturb_names[perturb_names!="Nontargeting"])

de.genes.perturbs <- vector("list", length = length(perturb_names))
names(de.genes.perturbs) <- perturb_names

for(i in 1:length(de.genes.perturbs)){
  perturb_name <- names(de.genes.perturbs)[i]
  associated_cluster_labels <- colnames(fdr_mat)[which(fdr_mat[perturb_name, ] < 0.05)]
  if(length(associated_cluster_labels) > 0){
    de.genes.perturbs[[i]] <- unique(unlist(de.genes.clusters[associated_cluster_labels]))
  }
}

num.de.genes.perturbs <- sapply(de.genes.perturbs, length)

dge_plot_df <- data.frame(Perturbation = names(num.de.genes.perturbs), Num_DEGs = num.de.genes.perturbs)
dge_plot_df$Perturbation <- factor(dge_plot_df$Perturbation, levels = names(num.de.genes.perturbs))

ggplot(data=dge_plot_df, aes(x = Perturbation, y = Num_DEGs+1)) +
  geom_bar(position = "dodge", stat = "identity") +
  geom_text(aes(label = Num_DEGs), position=position_dodge(width=0.9), vjust=-0.25) +
  scale_y_log10() +
  scale_fill_brewer(palette = "Set2") +
  labs(x = "Target gene",
       y = "Number of DEGs",
       title = "Number of DEGs detected by Two-step clustering with MAST DE analysis") +
  theme(axis.text.x = element_text(angle = 45, hjust = 1, size = 12),
        legend.position = "bottom",
        legend.text = element_text(size = 13))

Count DE genes for each perturbation (Bonferroni adjusted p-value < 0.05)

perturb_names <- rownames(bonferroni_mat)
perturb_names <- c("Nontargeting", perturb_names[perturb_names!="Nontargeting"])

de.genes.perturbs <- vector("list", length = length(perturb_names))
names(de.genes.perturbs) <- perturb_names

for(i in 1:length(de.genes.perturbs)){
  perturb_name <- names(de.genes.perturbs)[i]
  associated_cluster_labels <- colnames(bonferroni_mat)[which(bonferroni_mat[perturb_name, ] < 0.05)]
  if(length(associated_cluster_labels) > 0){
    de.genes.perturbs[[i]] <- unique(unlist(de.genes.clusters[associated_cluster_labels]))
  }
}

num.de.genes.perturbs <- sapply(de.genes.perturbs, length)

dge_plot_df <- data.frame(Perturbation = names(num.de.genes.perturbs), Num_DEGs = num.de.genes.perturbs)
dge_plot_df$Perturbation <- factor(dge_plot_df$Perturbation, levels = names(num.de.genes.perturbs))

ggplot(data=dge_plot_df, aes(x = Perturbation, y = Num_DEGs+1)) +
  geom_bar(position = "dodge", stat = "identity") +
  geom_text(aes(label = Num_DEGs), position=position_dodge(width=0.9), vjust=-0.25) +
  scale_y_log10() +
  scale_fill_brewer(palette = "Set2") +
  labs(x = "Target gene",
       y = "Number of DEGs",
       title = "Number of DEGs detected by Two-step clustering with MAST DE analysis") +
  theme(axis.text.x = element_text(angle = 45, hjust = 1, size = 12),
        legend.position = "bottom",
        legend.text = element_text(size = 13))

sessionInfo()

R version 4.1.0 (2021-05-18)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Scientific Linux 7.4 (Nitrogen)

Matrix products: default
BLAS/LAPACK: /software/openblas-0.3.13-el7-x86_64/lib/libopenblas_haswellp-r0.3.13.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
 [1] grid      stats4    parallel  stats     graphics  grDevices utils
 [8] datasets  methods   base

other attached packages:
 [1] lattice_0.20-45        dplyr_1.0.8            reshape2_1.4.4
 [4] ggplot2_3.3.5          ComplexHeatmap_2.6.2   MUSIC_1.0
 [7] SAVER_1.1.2            clusterProfiler_3.18.1 hash_2.2.6.2
[10] topicmodels_0.2-12     Biostrings_2.58.0      XVector_0.30.0
[13] IRanges_2.24.1         S4Vectors_0.28.1       BiocGenerics_0.36.1
[16] SeuratObject_4.0.4     Seurat_4.1.0           data.table_1.14.2
[19] workflowr_1.7.0

loaded via a namespace (and not attached):
  [1] utf8_1.2.2            R.utils_2.11.0        reticulate_1.24
  [4] tidyselect_1.1.2      RSQLite_2.2.11        AnnotationDbi_1.52.0
  [7] htmlwidgets_1.5.4     BiocParallel_1.24.1   Rtsne_0.15
 [10] scatterpie_0.1.7      munsell_0.5.0         codetools_0.2-18
 [13] ica_1.0-2             future_1.24.0         miniUI_0.1.1.1
 [16] withr_2.5.0           spatstat.random_2.1-0 colorspace_2.0-3
 [19] GOSemSim_2.16.1       Biobase_2.50.0        highr_0.9
 [22] NLP_0.2-1             knitr_1.38            rstudioapi_0.13
 [25] ROCR_1.0-11           tensor_1.5            DOSE_3.16.0
 [28] listenv_0.8.0         labeling_0.4.2        git2r_0.30.1
 [31] slam_0.1-50           polyclip_1.10-0       bit64_4.0.5
 [34] farver_2.1.0          rprojroot_2.0.2       downloader_0.4
 [37] parallelly_1.31.0     vctrs_0.4.1           generics_0.1.2
 [40] xfun_0.30             R6_2.5.1              clue_0.3-60
 [43] graphlayouts_0.8.0    spatstat.utils_2.3-0  cachem_1.0.6
 [46] fgsea_1.21.0          assertthat_0.2.1      promises_1.2.0.1
 [49] scales_1.2.0          ggraph_2.0.5          enrichplot_1.10.2
 [52] gtable_0.3.0          Cairo_1.5-15          globals_0.14.0
 [55] processx_3.5.3        goftest_1.2-3         tidygraph_1.2.0
 [58] rlang_1.0.4           GlobalOptions_0.1.2   splines_4.1.0
 [61] lazyeval_0.2.2        spatstat.geom_2.3-2   BiocManager_1.30.16
 [64] yaml_2.3.5            abind_1.4-5           httpuv_1.6.5
 [67] qvalue_2.22.0         tools_4.1.0           ellipsis_0.3.2
 [70] spatstat.core_2.4-0   jquerylib_0.1.4       RColorBrewer_1.1-3
 [73] ggridges_0.5.3        Rcpp_1.0.9            plyr_1.8.6
 [76] zlibbioc_1.36.0       purrr_0.3.4           ps_1.6.0
 [79] rpart_4.1-15          deldir_1.0-6          GetoptLong_1.0.5
 [82] pbapply_1.5-0         viridis_0.6.2         cowplot_1.1.1
 [85] zoo_1.8-9             ggrepel_0.9.1         cluster_2.1.2
 [88] fs_1.5.2              magrittr_2.0.3        RSpectra_0.16-0
 [91] scattermore_0.7       DO.db_2.9             circlize_0.4.14
 [94] lmtest_0.9-40         RANN_2.6.1            whisker_0.4
 [97] fitdistrplus_1.1-8    matrixStats_0.61.0    patchwork_1.1.1
[100] mime_0.12             evaluate_0.15         xtable_1.8-4
[103] shape_1.4.6           gridExtra_2.3         compiler_4.1.0
[106] tibble_3.1.6          KernSmooth_2.23-20    crayon_1.5.1
[109] shadowtext_0.1.1      R.oo_1.24.0           htmltools_0.5.2
[112] ggfun_0.0.5           mgcv_1.8-39           later_1.3.0
[115] tidyr_1.2.0           DBI_1.1.2             tweenr_1.0.2
[118] MASS_7.3-56           Matrix_1.4-1          cli_3.3.0
[121] R.methodsS3_1.8.1     igraph_1.2.11         pkgconfig_2.0.3
[124] getPass_0.2-2         rvcheck_0.2.1         plotly_4.10.0
[127] spatstat.sparse_2.1-0 foreach_1.5.2         xml2_1.3.3
[130] bslib_0.3.1           yulab.utils_0.0.4     stringr_1.4.0
[133] callr_3.7.0           digest_0.6.29         sctransform_0.3.3
[136] RcppAnnoy_0.0.19      spatstat.data_2.1-2   tm_0.7-8
[139] rmarkdown_2.13        leiden_0.3.9          fastmatch_1.1-3
[142] uwot_0.1.11           shiny_1.7.1           modeltools_0.2-23
[145] rjson_0.2.21          lifecycle_1.0.1       nlme_3.1-155
[148] jsonlite_1.8.0        viridisLite_0.4.0     fansi_1.0.3
[151] pillar_1.7.0          fastmap_1.1.0         httr_1.4.2
[154] survival_3.3-1        GO.db_3.12.1          glue_1.6.2
[157] iterators_1.0.14      png_0.1-7             bit_4.0.4
[160] ggforce_0.3.3         stringi_1.7.6         sass_0.4.1
[163] blob_1.2.3            memoise_2.0.1         irlba_2.3.5
[166] future.apply_1.8.1
