Functional analysis with MISTy - pathway specific genes
Leoni Zimmermann
Heidelberg University, Heidelberg, GermanyJovan Tanevski
Heidelberg University and Heidelberg University Hospital, Heidelberg, GermanyJožef Stefan Institute, Ljubljana, Sloveniajovan.tanevski@uni-heidelberg.de
2024-03-11
Last updated: 2024-03-11
Checks: 7 0
Knit directory:
ProtocolLabRotationSaezRodriguezGroup/
This reproducible R Markdown analysis was created with workflowr (version 1.7.1). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20240306) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 64a10dc. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Untracked files:
Untracked: 10X_Visium_ACH005.tar.gz
Untracked: ACH005/
Untracked: bc_metadata.tsv
Untracked: data/10X_Visium_ACH005.tar.gz
Untracked: hca_p14.rds
Untracked: imc_bc_optim_zoi.RDS
Untracked: omni_resource.csv
Untracked: omnipathr-log/
Untracked: result/
Untracked: results/
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown
(analysis/FunctionalPipelinePathwaySpecific.Rmd) and HTML
(docs/FunctionalPipelinePathwaySpecific.html) files. If
you’ve configured a remote Git repository (see
?wflow_git_remote), click on the hyperlinks in the table
below to view the files as they were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| html | 64a10dc | leotenshii | 2024-03-11 | added html |
| Rmd | 38a9f93 | leotenshii | 2024-03-11 | Revert "changed paths to data/…" |
| Rmd | 5e9bf15 | leotenshii | 2024-03-11 | changed paths to data/… |
| Rmd | 5ec41b8 | leotenshii | 2024-03-11 | upload of vignettes |
Introduction
10X Visium captures spatially resolved transcriptomic profiles in spots containing multiple cells. In this vignette, we will use the gene expression information from Visium data to investigate spatial relationships between pathway-specific genes.
Load the necessary packages:
# MISTy
library(mistyR)
library(future)
#Seurat
library(Seurat)
library(SeuratObject)
# Data manipulation
library(tidyverse)
# Pathways
library(decoupleR)Get and load data
For this showcase, we use a 10X Visium spatial slide from Kuppe et al., 2022, where they created a spatial multi-omic map of human myocardial infarction. The tissue example data comes from the human heart of patient 14, which is in a later state after myocardial infarction. The Seurat object contains, among other things, the normalized and raw gene counts. First, we have to download and extract the file:
download.file("https://zenodo.org/records/6580069/files/10X_Visium_ACH005.tar.gz?download=1",
destfile = "10X_Visium_ACH005.tar.gz", method = "curl")
untar("10X_Visium_ACH005.tar.gz")The next step is to load the data, extract the normalized gene counts, names of genes expressed in at least 5% of the spots, and pixel coordinates. It is recommended to use pixel coordinates instead of row and column numbers since the rows are shifted and therefore do not express the real distance between the spots.
seurat_vs <- readRDS("ACH005/ACH005.rds")
expression <- as.matrix(GetAssayData(seurat_vs, layer = "counts", assay = "SCT"))
gene_names <- rownames(expression[(rowSums(expression > 0) / ncol(expression)) >= 0.05,])
geometry <- GetTissueCoordinates(seurat_vs, scale = NULL)Obtain pathway-specific genes
First, we get the top 15 pathway-responsive human genes for each of
the 14 available pathways in PROGENy.We
will focus on two pathways - the VEGF pathway, which is responsible for
promoting the formation of new blood vessels, and the TGF-beta pathway,
which plays a critical role in regulating various cellular processes to
promote tissue repair. We only extracted genes from these pathways that
were present in the count matrix.
progeny <- get_progeny(organism = "human", top = 15)
VEGF_footprints <- progeny %>%
filter(source == "VEGF", weight != 0, target %in% gene_names) %>%
pull(target)
TGFb_footprints <- progeny %>%
filter(source == "TGFb", weight != 0, target %in% gene_names) %>%
pull(target)Visualize gene expression

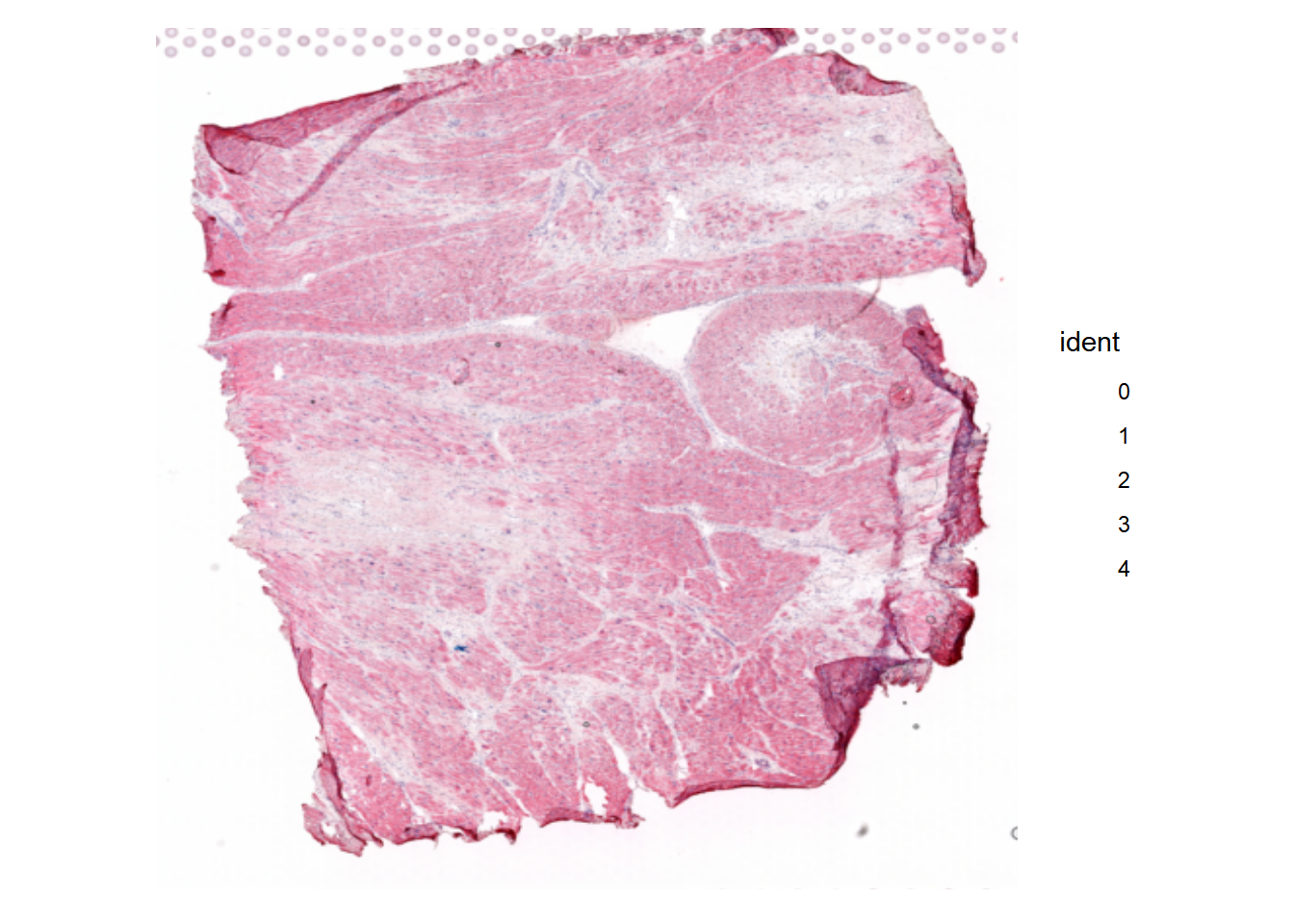

Before continuing with creating the Misty view, we can look at the slide itself and the expression of some of the selected pathway-reactive genes.
#Slide
SpatialPlot(seurat_vs, alpha = 0)
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |

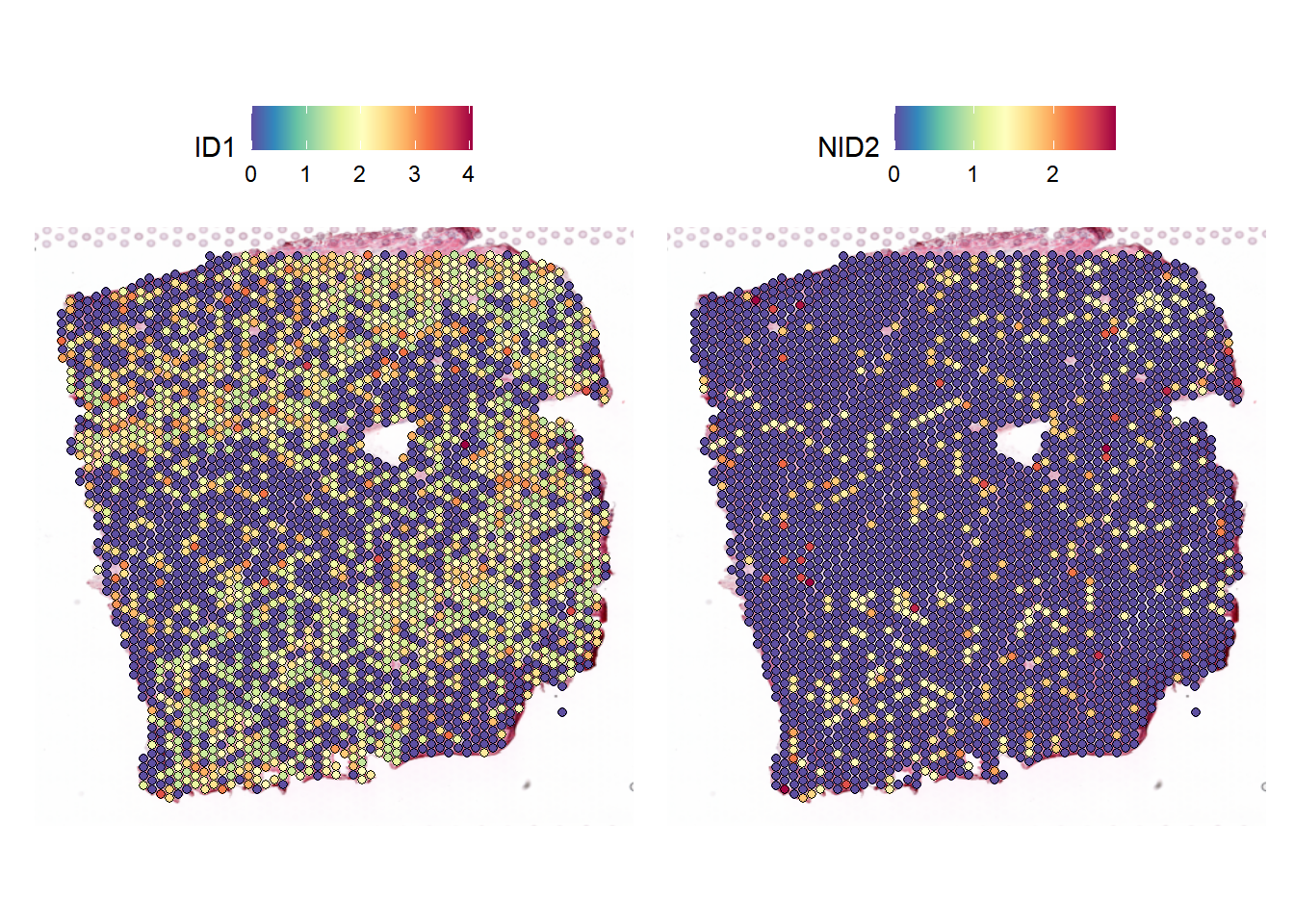

# Gene expression examples
SpatialFeaturePlot(seurat_vs, feature = c("ID1", "NID2"), keep.scale = NULL)
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |
Misty views
Now we need to create the Misty views of interest. We are interested
in the relationship of TGF-beta responsive genes in the same spot
(intraview) and the five closest spots (paraview). Therefore we choose
the family constant which will select the five nearest
neighbors. Depending on the goal of the analysis, different families can
be applied.
We are also intrigued about the relationship of VEGF-responsive genes with TGF-beta responsive genes in the broader tissue. For this, we again create an intra- and paraview, this time for VEGF, but from this view, we only need the paraview. In the next step, we add it to the TGF-beta views to achieve our intended views.
TGFb_views <- create_initial_view(t(expression[TGFb_footprints,]) %>% as_tibble()) %>%
add_paraview(geometry, l=10, family = "constant")
Generating paraview using 10 nearest neighbors per unitVEGF_views <- create_initial_view(t(expression[VEGF_footprints,]) %>% as_tibble()) %>%
add_paraview(geometry, l=10, family = "constant")
Generating paraview using 10 nearest neighbors per unitmisty_views <- TGFb_views %>%
add_views(create_view("paraview.VEGF_10", VEGF_views[["paraview.10"]]$data, "para.VEGFn.10"))Then run MISTy and collect the results:
run_misty(misty_views, "result/vignette_functional_pipeline") [1] "F:/LabRotationSaez/ProtocolLabRotationSaezRodriguezGroup/result/vignette_functional_pipeline"misty_results <- collect_results("result/vignette_functional_pipeline")Downstream analysis
With the collected results, we can now answer the following questions:
1. To what extent can the surrounding tissues’ gene expression explain the gene expression of the spot compared to the intraview?
Here we can look at two different statistics: multi.R2 shows the total variance explained by the multiview model. gain.R2 shows the increase in explainable variance from the paraview.
misty_results %>%
plot_improvement_stats("gain.R2") %>%
plot_improvement_stats("multi.R2")Warning: Removed 11 rows containing missing values or values outside the scale range
(`geom_segment()`).
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |
Warning: Removed 11 rows containing missing values or values outside the scale range
(`geom_segment()`).
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |
The paraview particularly increases the explained variance for COMP, ID1, and COL4A1. In general, the significant gain in R2 can be interpreted as the following:
“We can better explain the expression of marker X when we consider additional views other than the intrinsic view.”

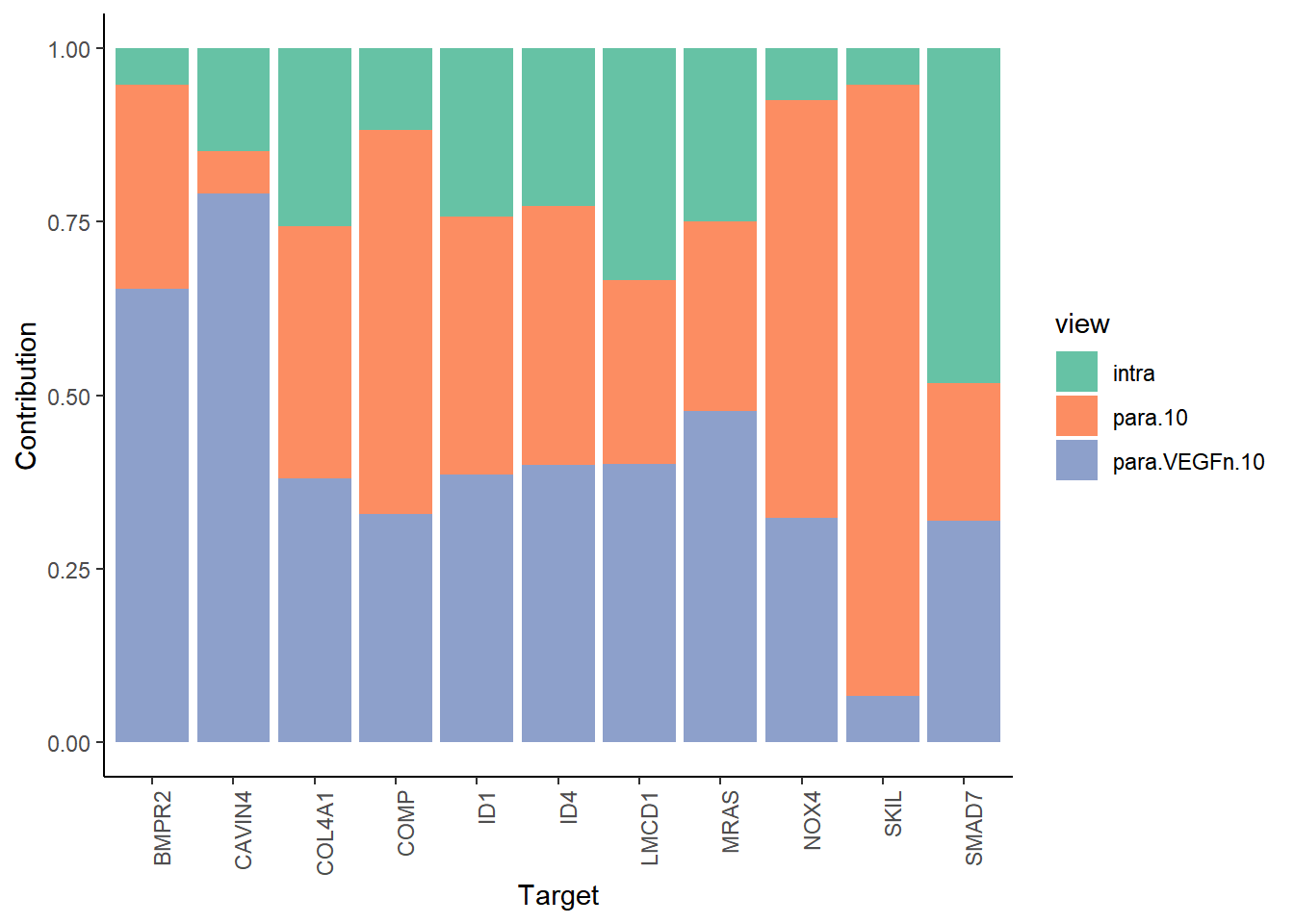

To see the individual contributions of the views we can use:
misty_results %>% plot_view_contributions()
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |
2. What are the specific relations that can explain gene expression?
The importance of the markers from each viewpoint as predictors of the expression of the intrinsic markers of the TGF-beta pathway can be shown individually to explain the contributions.

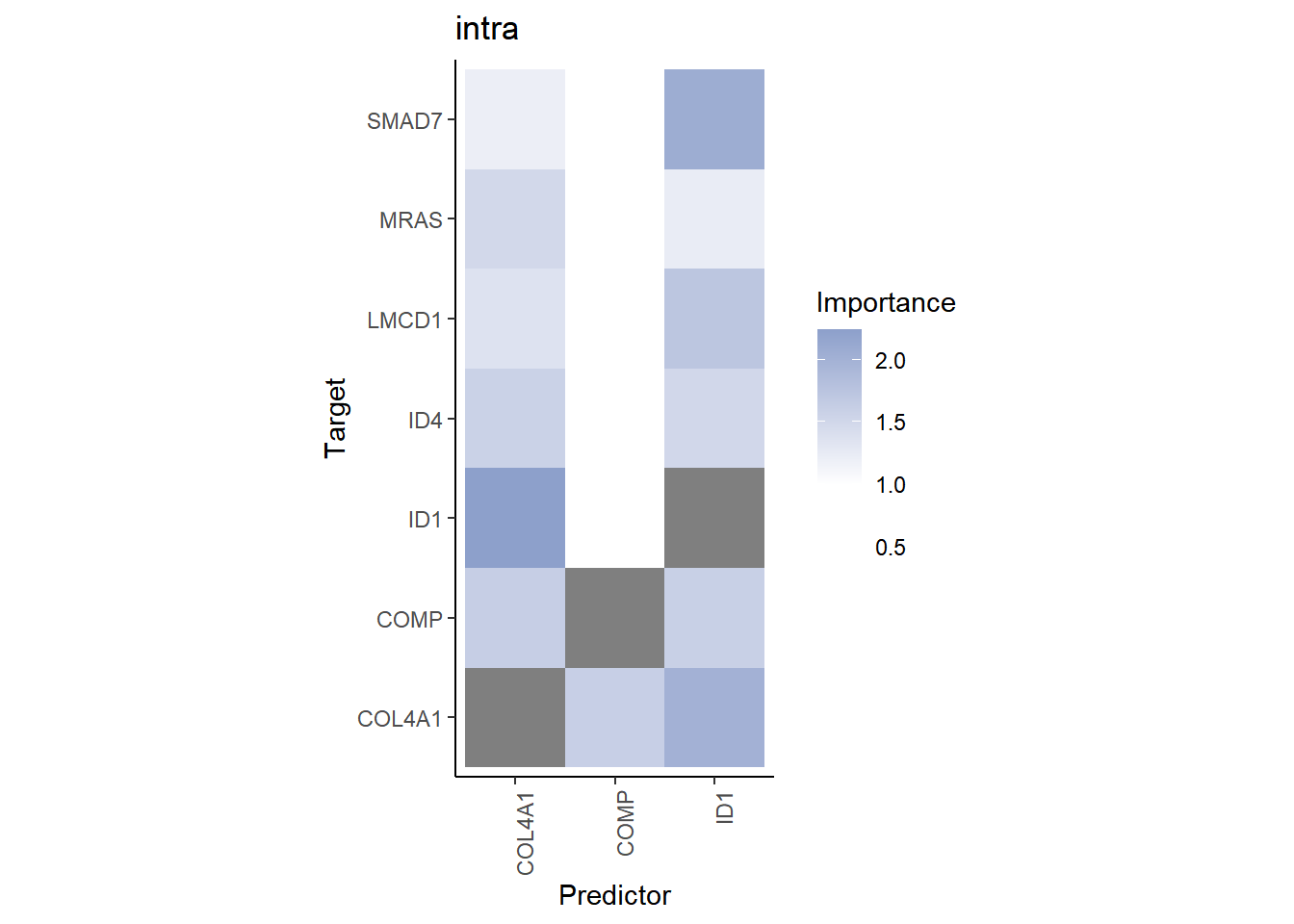

First, for the intrinsic view:
misty_results %>%
plot_interaction_heatmap("intra", clean = TRUE)
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |

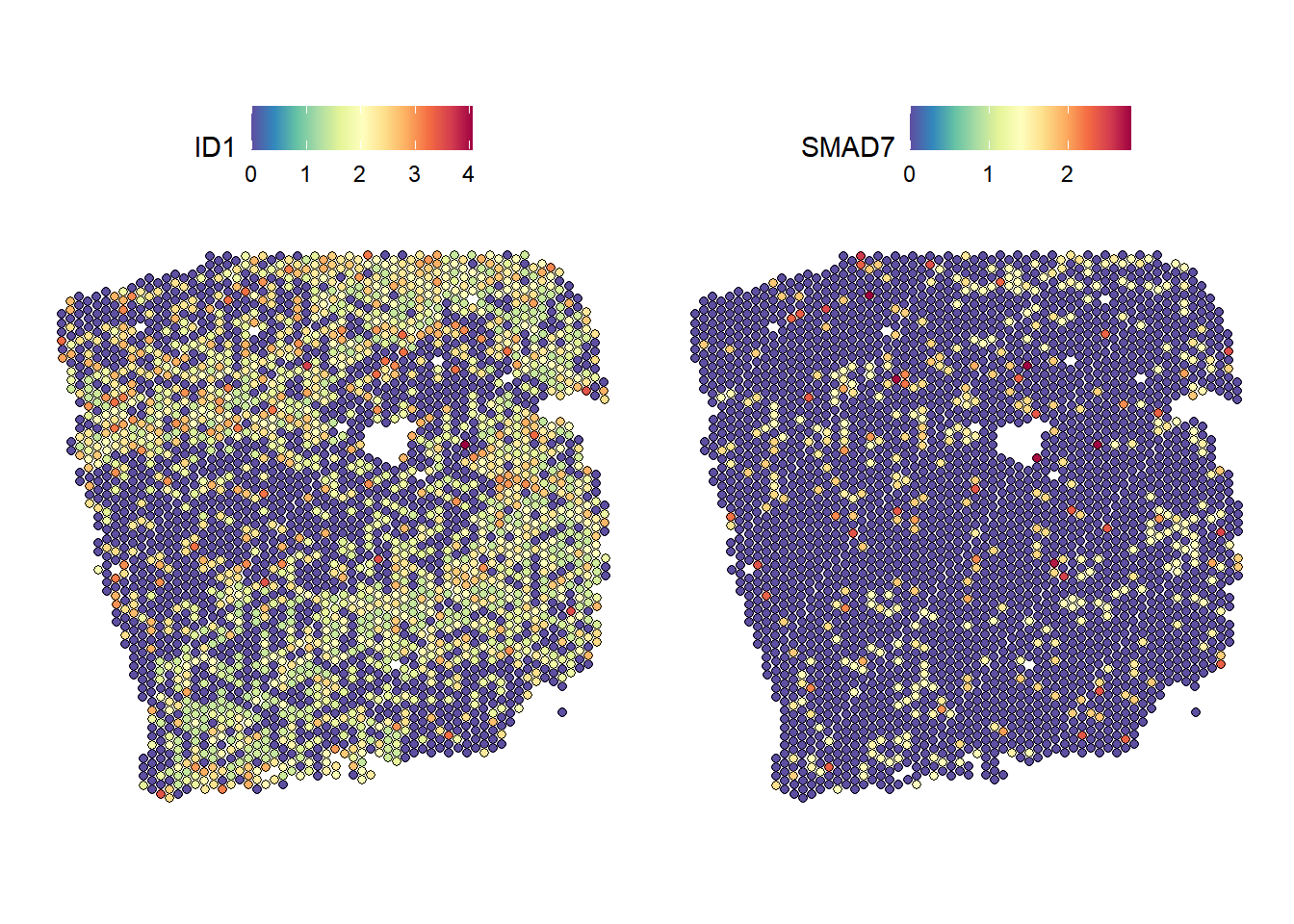

We can observe that COL4A1 and ID1 are a significant predictor for the expression of several genes when in the same spot. ID1 is an important predictor for SMAD7. Let’s take a look at the spatial distribution of these genes in the tissue slide:
SpatialFeaturePlot(seurat_vs, features = c("ID1", "SMAD7"), image.alpha = 0)
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |
We can see that in spots with ID1 mRNA often SMAD7 is also expressed.
Now we repeat this analysis with the TGF-beta paraview. With
trim we display only targets with a value above 0.5 for
gain.R2. To set an importance threshold we apply
cutoff.
misty_results %>%
plot_interaction_heatmap(view = "para.10",
clean = TRUE,
trim = 0.5,
trim.measure = "gain.R2",
cutoff = 1.25)
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |

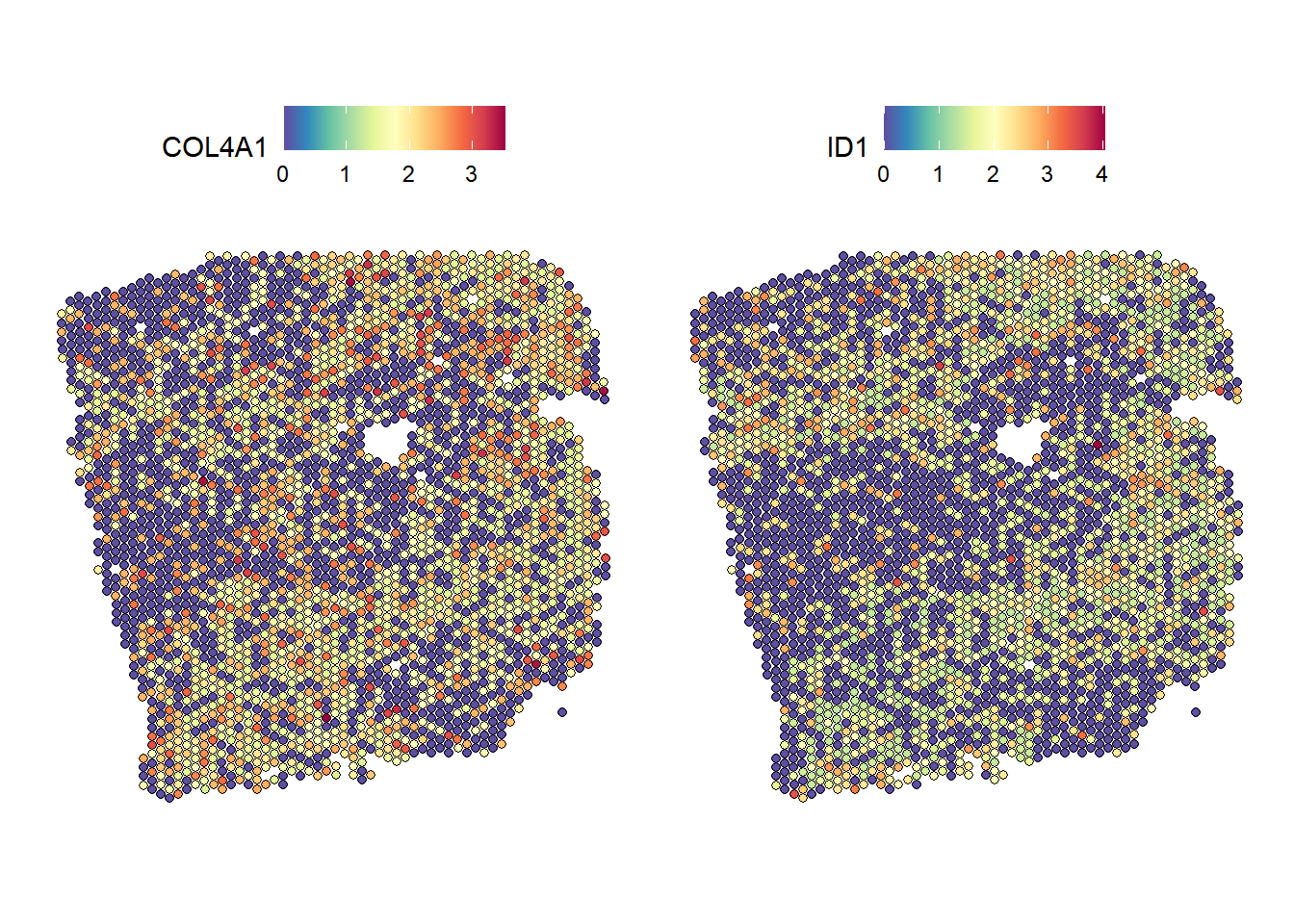

From the gain.R2 we know that the paraview contributes a
lot to explaining the ID1 expression. Let’s visualize ID1 and its most
important predictor COL4A1:
SpatialFeaturePlot(seurat_vs, features = c("COL4A1", "ID1"), image.alpha = 0)
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |
The plots show us that, in some places, the localization of the mRNA overlaps.

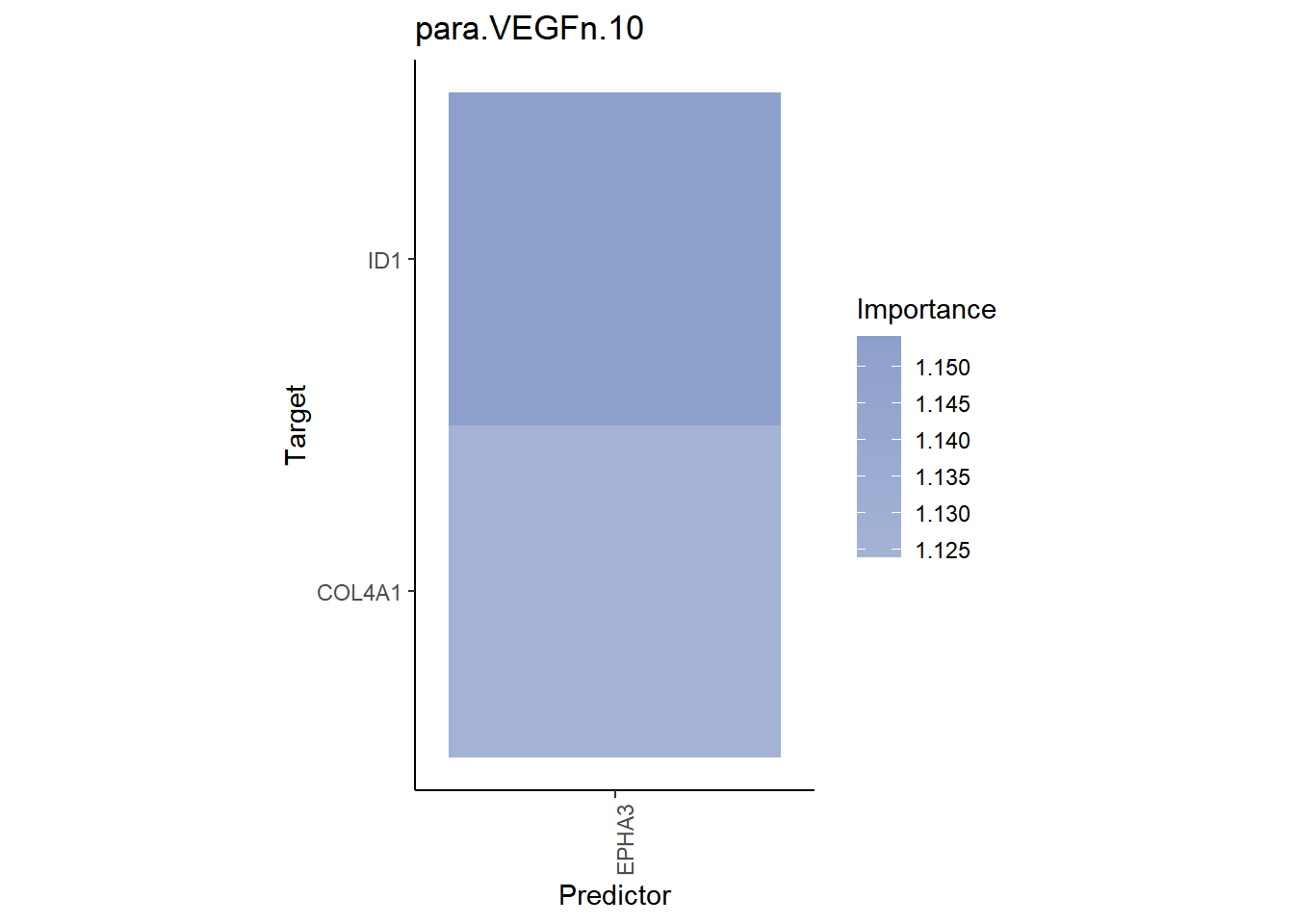

Now we will analyze the last view, the VEGF-paraview:
misty_results %>%
plot_interaction_heatmap(view = "para.VEGFn.10", clean = TRUE)
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |

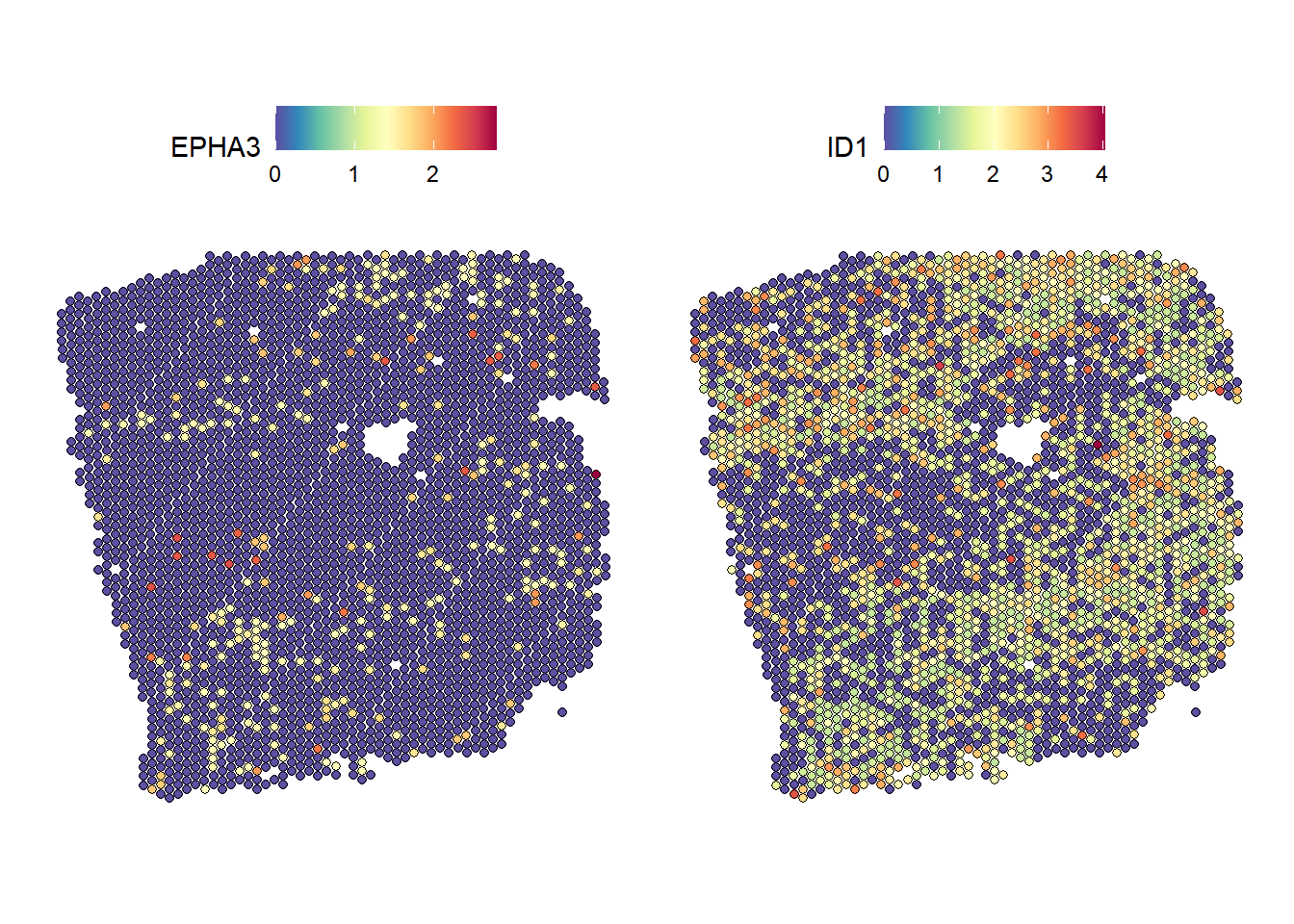

EPHA3 is a predictor of both ID1 and COL4A1.
SpatialFeaturePlot(seurat_vs, keep.scale = NULL, features = c("EPHA3","ID1"), image.alpha = 0)
| Version | Author | Date |
|---|---|---|
| 64a10dc | leotenshii | 2024-03-11 |
A similar distribution as for ID1 can be observed for the expression of EPHA3.
See also
browseVignettes("mistyR")
