Variance and covariance in line mean phenotypes

Generally there is positive covariance between line means for different traits, and all 4 measures of fitness exhibit considerable phenotypic variance across lines.

lims <- c(1.1*min(apply(predicted_line_means[,2:5], 2, min)),
          1.1*max(apply(predicted_line_means[,2:5], 2, max)))

fix.title <- function(x){
  x[x == "female.fitness.early" | x == "femalefitnessearly"] <- "Female early-life fitness"
  x[x == "male.fitness.early" | x == "malefitnessearly"] <- "Male early-life fitness"
  x[x == "female.fitness.late" | x == "femalefitnesslate"] <- "Female late-life fitness"
  x[x == "male.fitness.late" | x == "malefitnesslate"] <- "Male late-life fitness"
  x
}

make_figure_1 <- function(){

  nice.plot <- function(df, v1, v2){

    formula <- as.formula(paste(v2, "~", v1))
    model <- summary(lm(formula, data = df))
    r2 <- format(model$r.squared %>% round(2), nsmall = 2)
    slope <- format(model$coefficients[2,1] %>% round(2), nsmall = 2)
    se <- format(model$coefficients[2,2] %>% round(2), nsmall = 2)
    # print(model$coefficients[2,4]) # print p-value of the correlation
    text1 <- paste("R^2 == ", r2, sep = "")
    text2 <- paste("β = ", slope, " \u00B1 ", se, sep = "")

    pp <- df %>%
      ggplot(aes_string(x = v1, y = v2)) +
      annotate("text", x=min(lims)+0.1, y=max(lims), label = text1, parse = TRUE, hjust= 0) +
      annotate("text", x=min(lims)+0.1, y=max(lims)-0.4, label = text2, hjust= 0) +
      geom_point(alpha = 0.7) +
      stat_smooth(method = "lm", level = 0, colour = "tomato") +
      xlab(fix.title(v1)) + ylab(fix.title(v2)) +
      theme_classic() +
      theme(text = element_text(family = "Raleway")) +
      scale_x_continuous(limits = lims) +
      scale_y_continuous(limits = lims)

    if(v1 == "male.fitness.early" & v2 == "female.fitness.early") cols <- c("lightblue", "pink")
    if(v1 == "male.fitness.late" & v2 == "female.fitness.late")  cols <- c("steelblue", "deeppink2")
    if(v1 == "male.fitness.early" & v2 == "male.fitness.late") cols <- c("lightblue", "steelblue")
    if(v1 == "female.fitness.early" & v2 == "female.fitness.late") cols <- c("pink", "deeppink2")

    ggExtra::ggMarginal(pp, type = "histogram", bins = 15, xparams = list(fill = cols[1]), yparams = list(fill = cols[2]))
  }

  p1 <- nice.plot(predicted_line_means, "male.fitness.early", "female.fitness.early")
  p2 <- nice.plot(predicted_line_means, "male.fitness.late", "female.fitness.late")
  p3 <- nice.plot(predicted_line_means, "male.fitness.early", "male.fitness.late")
  p4 <- nice.plot(predicted_line_means, "female.fitness.early", "female.fitness.late")
  full_plot <- grid.arrange(p1, p2, p3, p4)

  cairo_ps("figures/figure1.eps", height = 9, width = 9)
  full_plot
  invisible(dev.off())
}
make_figure_1()

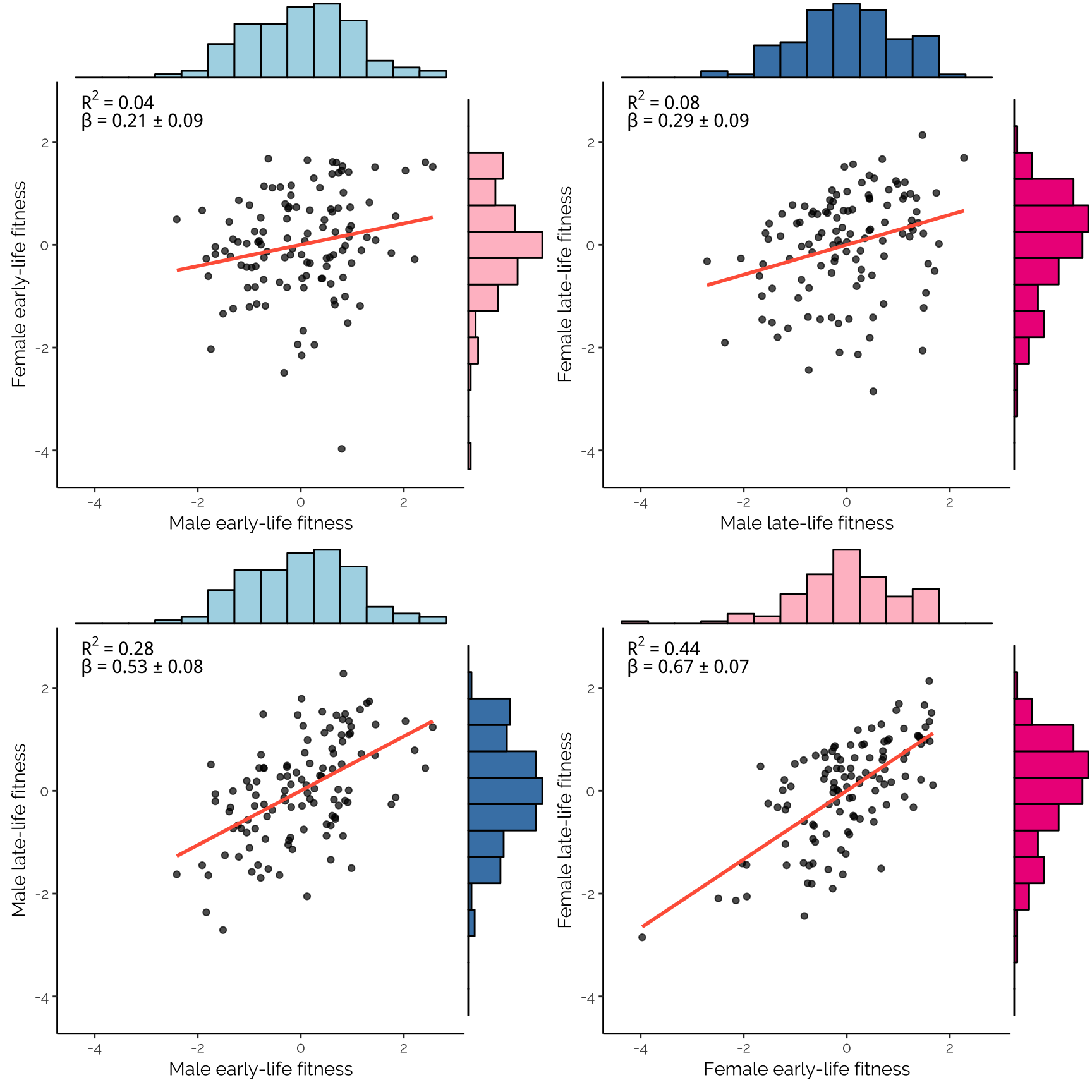

Figure 1: Correlations among estimated line means for the four fitness components. The line means were estimated from Bayesian mixed models that account for block effects, and the non-independence of our early- and late-life fitness measurements.

Interaction plot showing trait covariance across lines

All possible types of lines were observed: some lines are uniformly bad, or uniformly good, or good in one sex or age class but bad in the other.

make_figure_2 <- function(){
  out.file <- "figures/figure2.eps"

  interaction.plot <- function(predicted_line_means, x1, x2, title, sex.or.age){
    if(sex.or.age == "sex"){
      x.labs <-  c("Female", "Male")
      cols <- c("red", "darkgrey", "blue")
    } else {
      x.labs <- c("Young", "Old")
      cols <- c("green", "darkgrey", "purple")
    }

    df <- predicted_line_means %>% select_(x1, x2)
    df$rank.x1 <- rank(df[,1]) / max(abs(rank(df[,1])))
    df$rank.x2 <- rank(df[,2]) / max(abs(rank(df[,2])))
    df %>% mutate(slope = rank.x1 - rank.x2,
                  line = 1:length(rank.x1)) %>%
      gather(key = sex_or_age, value = fitness, rank.x1, rank.x2) %>%
      mutate(fitness = fitness / max(fitness),
             title = title) %>%
      ggplot(aes(x = sex_or_age, y = fitness, group = line, colour = slope)) +
      geom_line(size=0.8, alpha=.7) +
      scale_color_gradient2(low = cols[1], mid = cols[2], high = cols[3]) +
      scale_x_discrete(expand = c(0.1,0.1), labels = x.labs) +
      theme_classic(15) +
      theme(strip.background = element_blank(),
            strip.text = element_text(hjust =0.1, face = "bold")) +
      xlab(NULL) + ylab(NULL) +
      facet_wrap(~title) +
      theme(legend.position = "none")
  }

  cairo_ps("figures/figure2.eps", height = 9, width = 9)
  grid.arrange(
    interaction.plot(predicted_line_means, "female.fitness.early", "male.fitness.early", "Early-life fitness", "sex"),
    interaction.plot(predicted_line_means, "female.fitness.late", "male.fitness.late", "Late-life fitness", "sex"),
    interaction.plot(predicted_line_means, "female.fitness.early", "female.fitness.late", "Females", "age"),
    interaction.plot(predicted_line_means, "male.fitness.early", "male.fitness.late", "Males", "age"),
    ncol = 2, left = "Fitness rank among the 115 lines (0 is worst, 1 is best)", bottom = "Sex or age category"
  )
  invisible(dev.off())
}
make_figure_2()

Figure 2: The relative fitness ranks for each line, for four pairs of fitness traits. The y-axis was calculated by taking the adjusted line mean fitnesses, ranking them, and then dividing by the number of lines. The intensity and hue of the colour helps highlight genotypes that rank highly for one fitness component but not the other.

Relating fitness data to genotype

inv.data <- predicted_line_means %>%
  left_join(read.csv("data/input/inversion genotypes.csv", stringsAsFactors = FALSE) %>%
              mutate(line = paste("line_", line, sep = "")), by = "line") %>%
  left_join(read.csv("data/input/wolbachia.csv", stringsAsFactors = FALSE) %>%
              mutate(line = paste("line_", line, sep = "")), by = "line") %>% select(-line, -block)
inv.data[inv.data == "homozygous"] <- NA
inv.data[inv.data == "ST"] <- 0
inv.data[inv.data == "INV"] <- 1
inv.data[inv.data == "n"] <- 0
inv.data[inv.data == "y"] <- 1
for(i in 1:ncol(inv.data)) inv.data[,i] <- inv.data[,i] %>% as.numeric()
inversion.cors <- cor(inv.data, use = "pairwise.complete.obs")

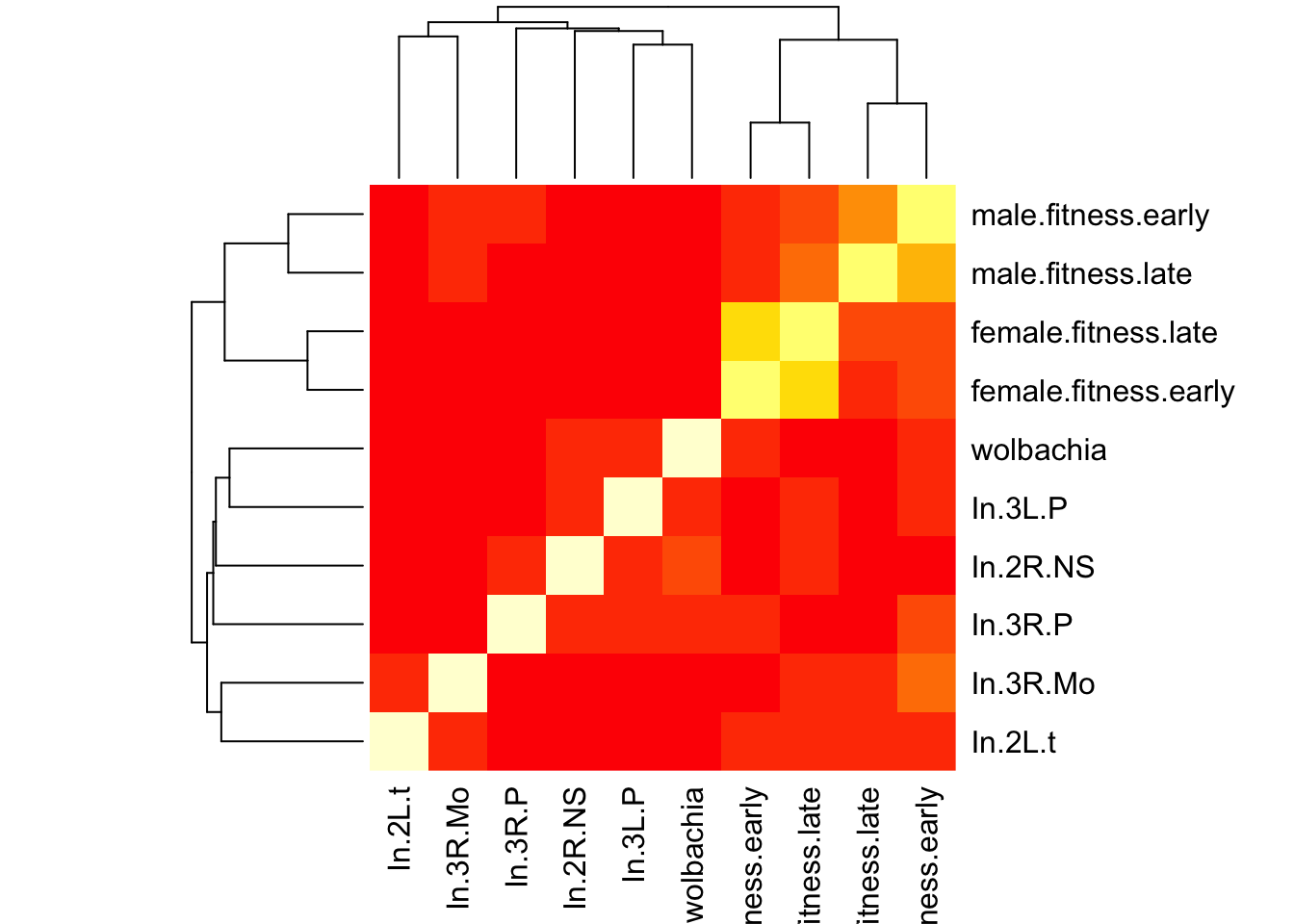

heatmap(inversion.cors[!is.na(inversion.cors[,1]), !is.na(inversion.cors[,1])])
