Merge samples
Mechthild Lütge
14 May 2020
Last updated: 2022-06-23
Checks: 6 1
Knit directory: humanCardiacFibroblasts/
This reproducible R Markdown analysis was created with workflowr (version 1.7.0). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
The R Markdown is untracked by Git. To know which version of the R
Markdown file created these results, you’ll want to first commit it to
the Git repo. If you’re still working on the analysis, you can ignore
this warning. When you’re finished, you can run
wflow_publish to commit the R Markdown file and build the
HTML.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20210903) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 70e878c. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: data/humanFibroblast/
Untracked files:
Untracked: analysis/DEgenes_NormlaHFMyo.Rmd
Untracked: analysis/mergeHumanSamplesPlusGraz.Rmd
Untracked: figure/DEgenes_NormlaHFMyo.Rmd/
Untracked: metadata2.txt
Unstaged changes:
Modified: analysis/Vis_plus_analyse_NormlaHFMyo.Rmd
Modified: analysis/Vis_plus_analyse_NormlaHFMyo_woECMO4.Rmd
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
There are no past versions. Publish this analysis with
wflow_publish() to start tracking its development.
load packages
suppressPackageStartupMessages({
library(SingleCellExperiment)
library(tidyverse)
library(Seurat)
library(magrittr)
library(dplyr)
library(purrr)
library(ggplot2)
library(here)
library(runSeurat3)
library(ggsci)
library(ggpubr)
library(pheatmap)
})set dir
basedir <- here()
metaDat <- read_tsv(paste0(basedir, "/metadata2.txt"), col_names = T)load and assign samples
assignSamples <- function(smpNam, basedirSmp, smpTec, smpID, smpCond, smpOri,
smpIso, smpProc){
smpNamFull <- list.files(path = paste0(basedirSmp, "/data/humanFibroblast/"),
pattern = paste0(smpNam, ".*_seurat.rds"))
seuratSmp <- readRDS(paste0(basedirSmp, "/data/humanFibroblast/", smpNamFull))
seuratSmp$technique <- smpTec
seuratSmp$ID <- smpID
seuratSmp$cond <- smpCond
seuratSmp$origin <- smpOri
seuratSmp$isolation <- smpIso
seuratSmp$processing <- smpProc
return(seuratSmp)
}
####################################################################
for(i in 1:length(metaDat$Sample)){
seuratX <- assignSamples(smpNam = metaDat$Sample[i],
basedirSmp = basedir,
smpTec = metaDat$technique[i],
smpID = metaDat$ID[i],
smpCond = metaDat$cond[i],
smpOri = metaDat$origin[i],
smpProc = metaDat$processing[i],
smpIso = metaDat$isolation[i])
if(exists("seurat")){
seurat <- merge(x = seurat, y = seuratX, project = "humanCardiacFibro")
}else{
seurat <- seuratX
}
}
remove(seuratX)run clustering and DR and remove contaminating cells
seurat <- rerunSeurat3(seurat)Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck
Number of nodes: 44788
Number of edges: 1552846
Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.9624
Number of communities: 17
Elapsed time: 11 seconds
Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck
Number of nodes: 44788
Number of edges: 1552846
Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.9290
Number of communities: 26
Elapsed time: 10 seconds
Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck
Number of nodes: 44788
Number of edges: 1552846
Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.9160
Number of communities: 29
Elapsed time: 9 seconds
Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck
Number of nodes: 44788
Number of edges: 1552846
Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.9469
Number of communities: 20
Elapsed time: 10 seconds#seuratSub <- subset(seurat1, subset = `MGP-BALBcJ-G0026271.Grem1` >0) ## 5 cells
#seuratSub <- subset(seurat1, subset = `MGP-BALBcJ-G0026527.Bmp2` >0) ## 14104 cells
dat <- data.frame(table(seurat$dataset))
colnames(dat) <- c("dataset", "all")
knitr::kable(dat)| dataset | all |
|---|---|
| 1_20210930_Hu_nucseq_HTrans_Heart22_24_GEM | 2381 |
| 1_20211018_Hu_nucseq_Myocar_Heart27_GEM | 238 |
| 10_20210907_Hu_nucseq_iDCM_Heart01_GEM | 826 |
| 2_20210930_Hu_nucseq_HTrans_Heart23_25_GEM | 3131 |
| 9_20210817_Hu_nucleoi_seq_cardiac_transplant_Heart17_biopsy_NG | 1321 |
| 9_20210907_Hu_nucseq_HTrans_Heart21_GEM | 1536 |
| o27533_1_09-9_20220203_Hu_nucseq_EMB28_GEM | 1545 |
| o27533_1_10-10_20220203_Hu_nucseq_EMB29_GEM | 1254 |
| o27533_1_11-11_20220203_Hu_nucseq_EMB30_GEM | 1242 |
| o27533_1_12-12_20220203_Hu_nucseq_EMB31_GEM | 236 |
| o27936_1_7-7_20220309_Hu_nucseq_EMB32_GEM | 1192 |
| o28576_1_01-1_20220525_Hu_nucseq_Graz_1_EMB_GEM | 2740 |
| o28576_1_02-2_20220525_Hu_nucseq_Graz_2_EMB_GEM | 1684 |
| o28576_1_03-3_20220525_Hu_nucseq_Graz_3_EMB_GEM | 2396 |
| o28576_1_04-4_20220525_Hu_nucseq_Graz_4_EMB_GEM | 545 |
| o28576_1_05-5_20220525_Hu_nucseq_Graz_5_EMB_GEM | 781 |
| o28576_1_06-6_20220525_Hu_nucseq_Graz_6_EMB_GEM | 491 |
| o28576_1_07-7_20220525_Hu_nucseq_Graz_7_EMB_GEM | 653 |
| o28576_1_08-8_20220525_Hu_nucseq_Graz_8_HH_GEM | 3921 |
| o28576_1_09-9_20220525_Hu_nucseq_Graz_9_HH_GEM | 3707 |
| o28576_1_10-10_20220525_Hu_nucseq_Graz_10_HH_GEM | 3731 |
| o28576_1_11-11_20220525_Hu_nucseq_Graz_11_HH_GEM | 3991 |
| o28576_1_12-12_20220525_Hu_nucseq_Graz_12_HH_GEM | 3818 |
| o28576_1_13-13_20220525_Hu_nucseq_EMB32_GEM | 1428 |
color vectors
colPal <- pal_igv()(length(levels(seurat)))
colTec <- pal_jama()(length(unique(seurat$technique)))
colSmp <- c(pal_uchicago()(8), pal_npg()(8), pal_aaas()(10))[1:length(unique(seurat$dataset))]
colCond <- pal_npg()(length(unique(seurat$cond)))
colID <- c(pal_jco()(10), pal_npg()(10))[1:length(unique(seurat$ID))]
colOrig <- pal_futurama()(length(unique(seurat$origin)))
colIso <- pal_nejm()(length(unique(seurat$isolation)))
colProc <- pal_aaas()(length(unique(seurat$processing)))
names(colPal) <- levels(seurat)
names(colTec) <- unique(seurat$technique)
names(colSmp) <- unique(seurat$dataset)
names(colCond) <- unique(seurat$cond)
names(colID) <- unique(seurat$ID)
names(colOrig) <- unique(seurat$origin)
names(colIso) <- unique(seurat$isolation)
names(colProc) <- unique(seurat$processing)vis data

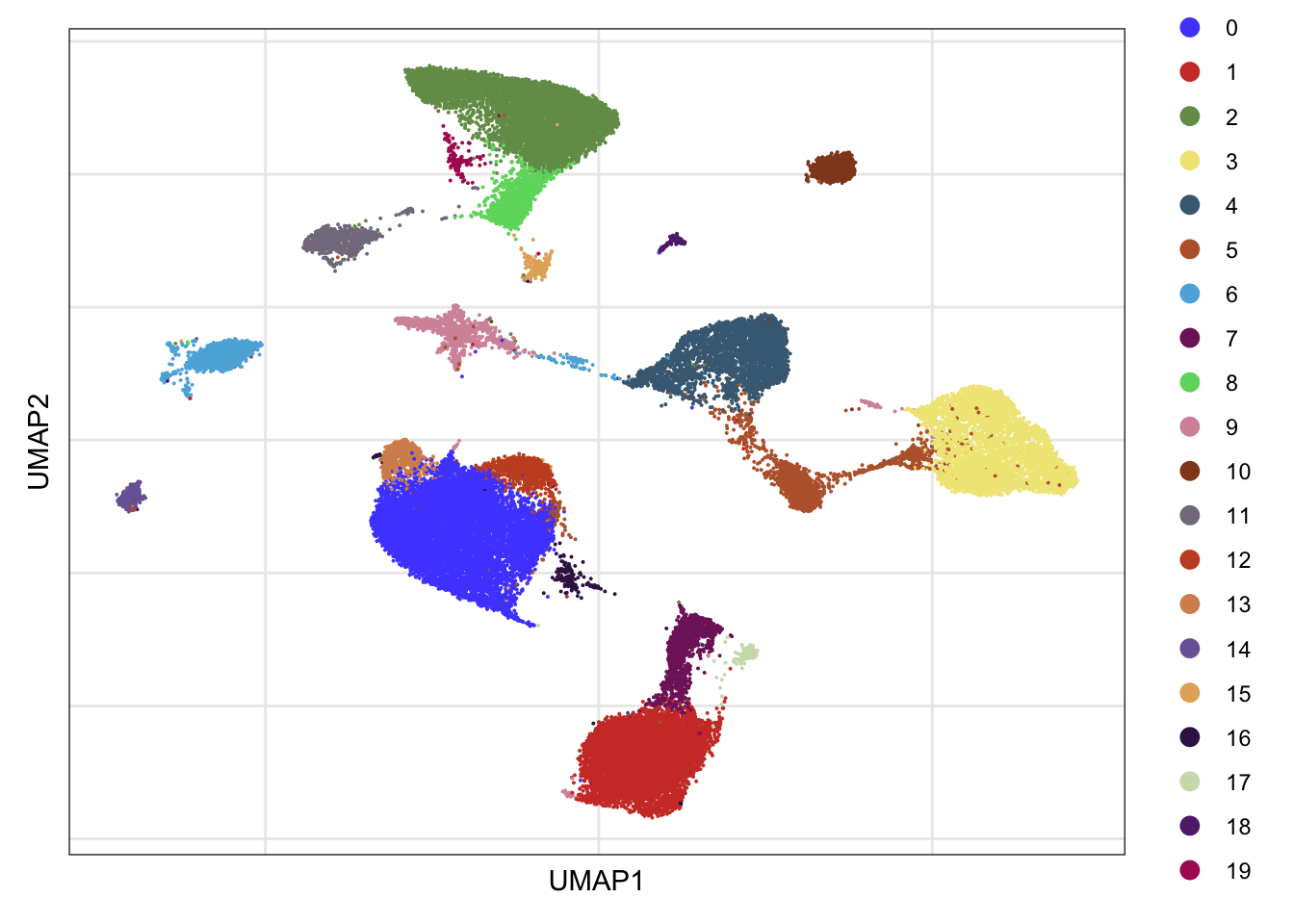

clusters
DimPlot(seurat, reduction = "umap", cols=colPal)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")
technique
DimPlot(seurat, reduction = "umap", group.by = "technique", cols=colTec)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")
Sample
DimPlot(seurat, reduction = "umap", group.by = "dataset", cols=colSmp)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

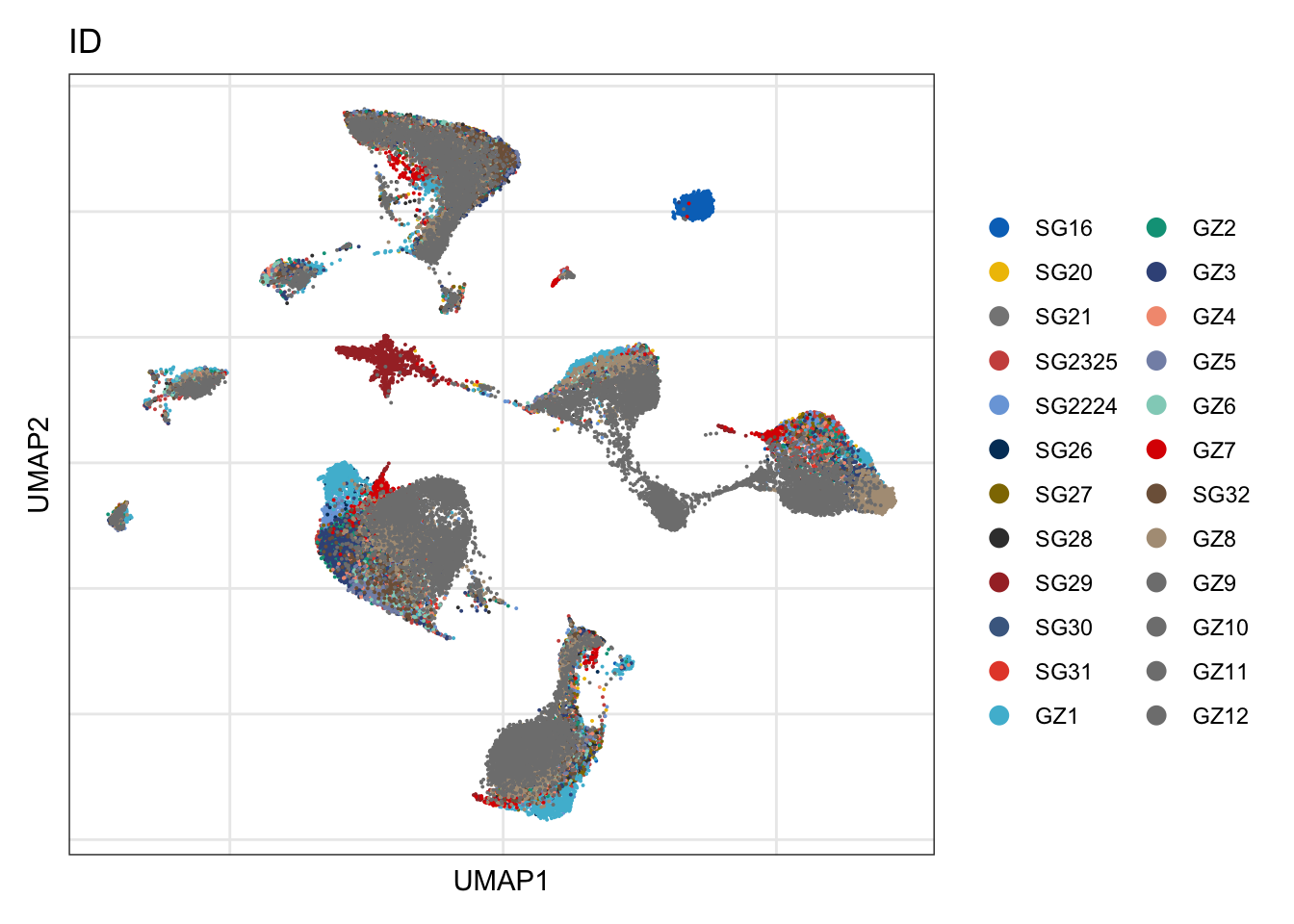

ID
DimPlot(seurat, reduction = "umap", group.by = "ID", cols=colID)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

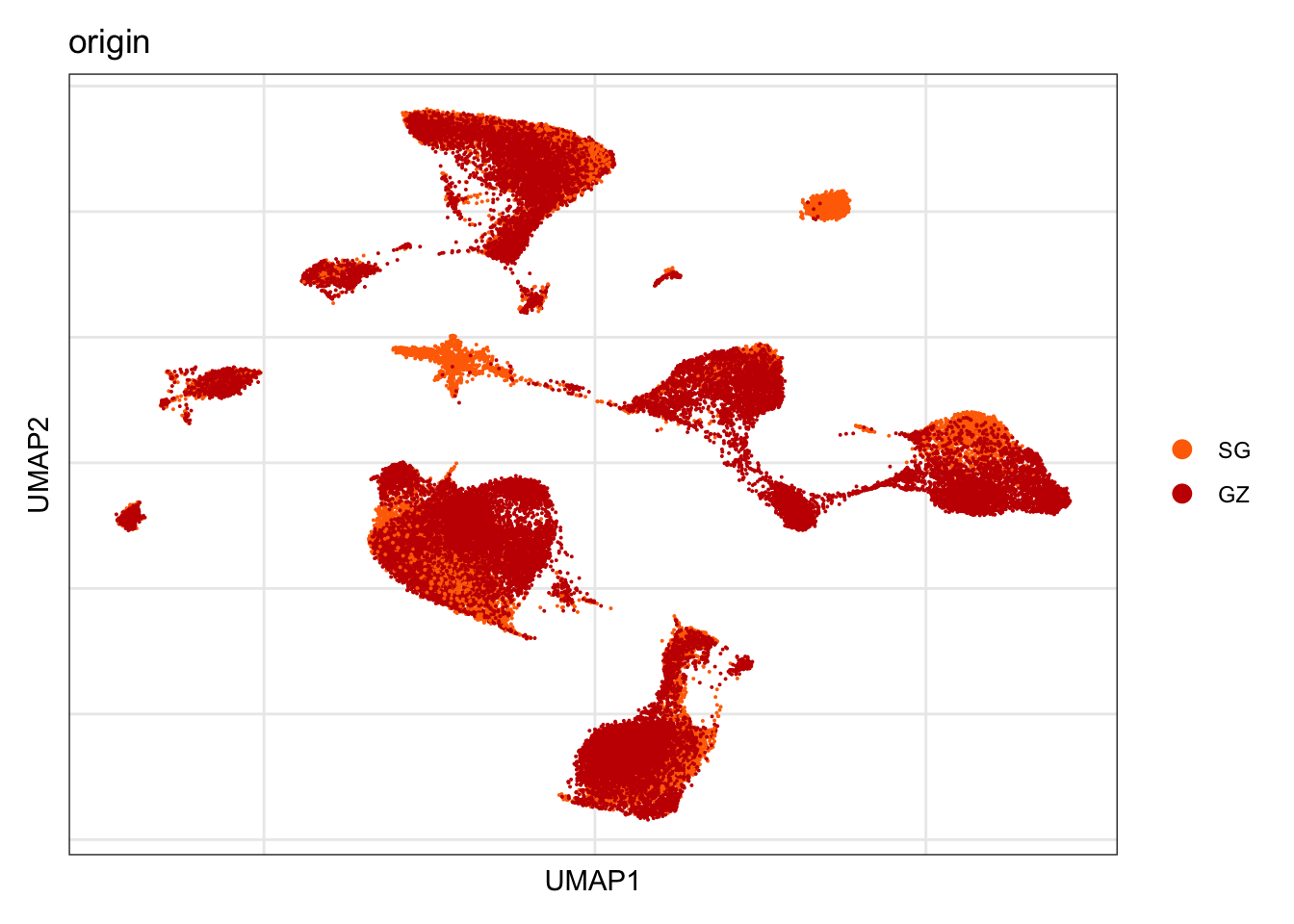

Origin
DimPlot(seurat, reduction = "umap", group.by = "origin", cols=colOrig)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

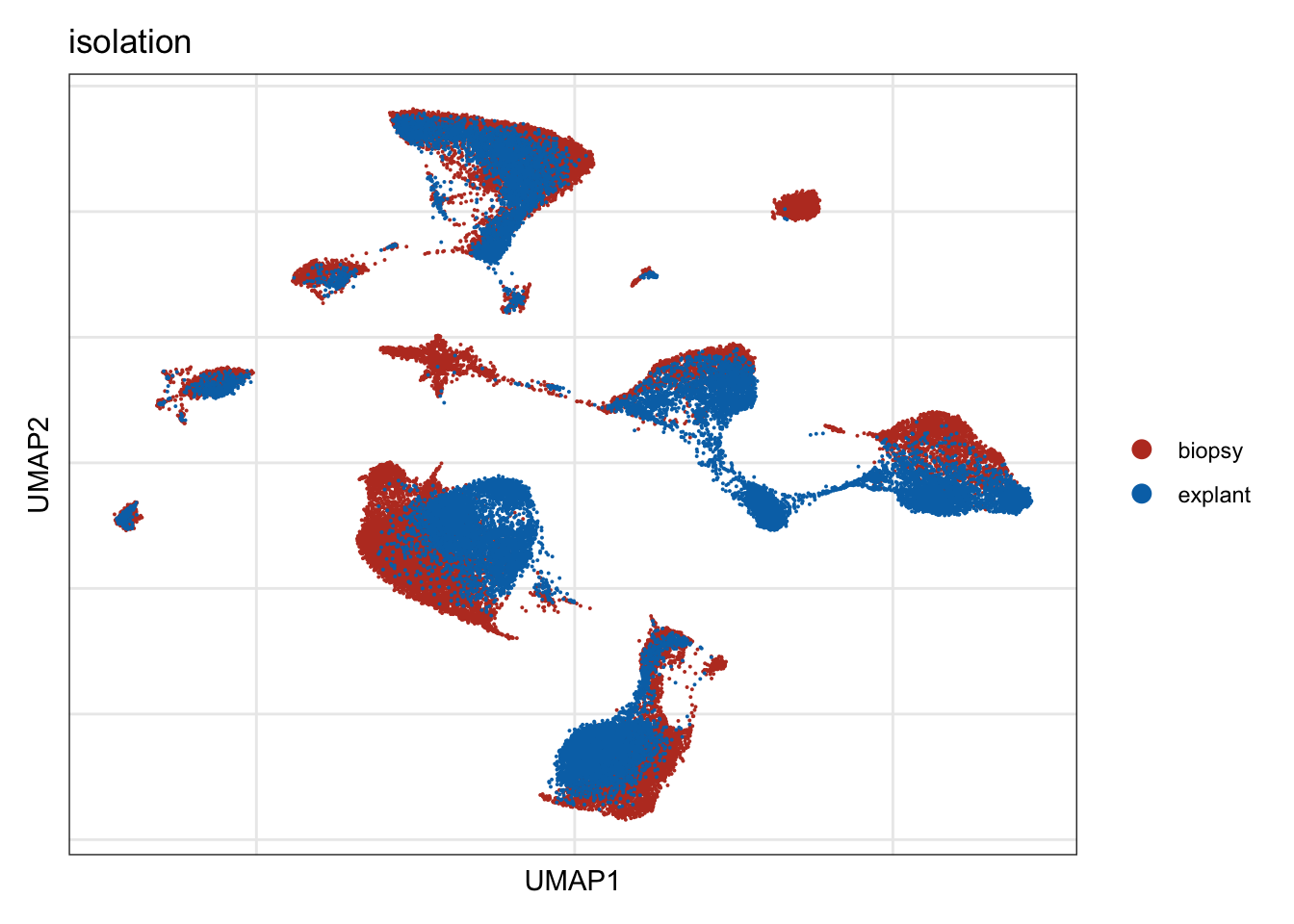

isolation
DimPlot(seurat, reduction = "umap", group.by = "isolation", cols=colIso)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

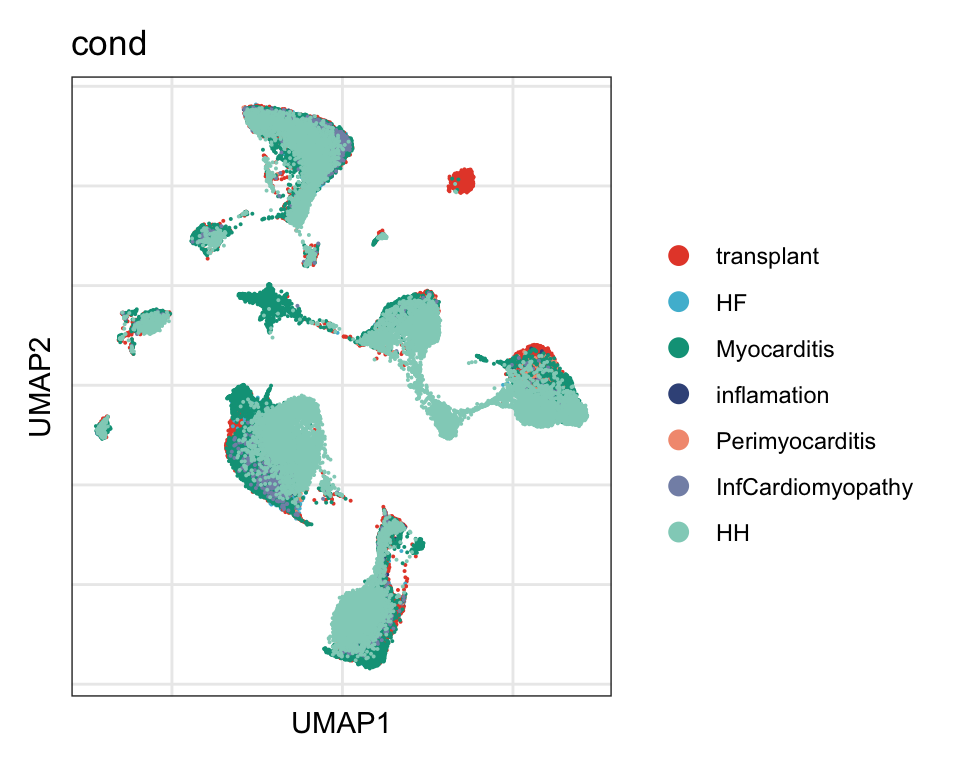

cond
DimPlot(seurat, reduction = "umap", group.by = "cond", cols=colCond)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")
processing
DimPlot(seurat, reduction = "umap", group.by = "processing", cols=colProc)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")
marker genes
seurat_markers_all <- FindAllMarkers(object = seurat, assay ="RNA",
only.pos = TRUE, min.pct = 0.25,
logfc.threshold = 0.25,

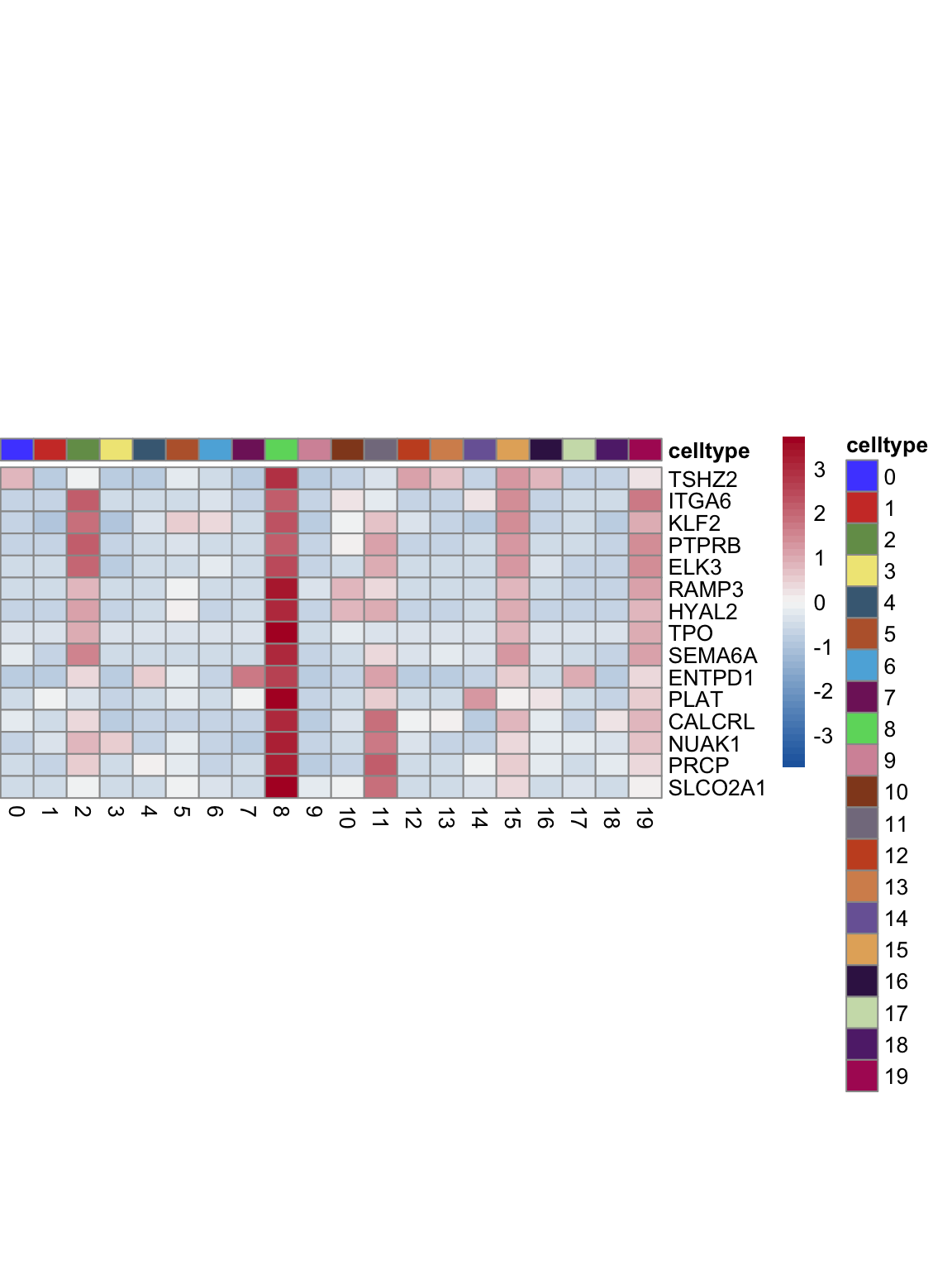

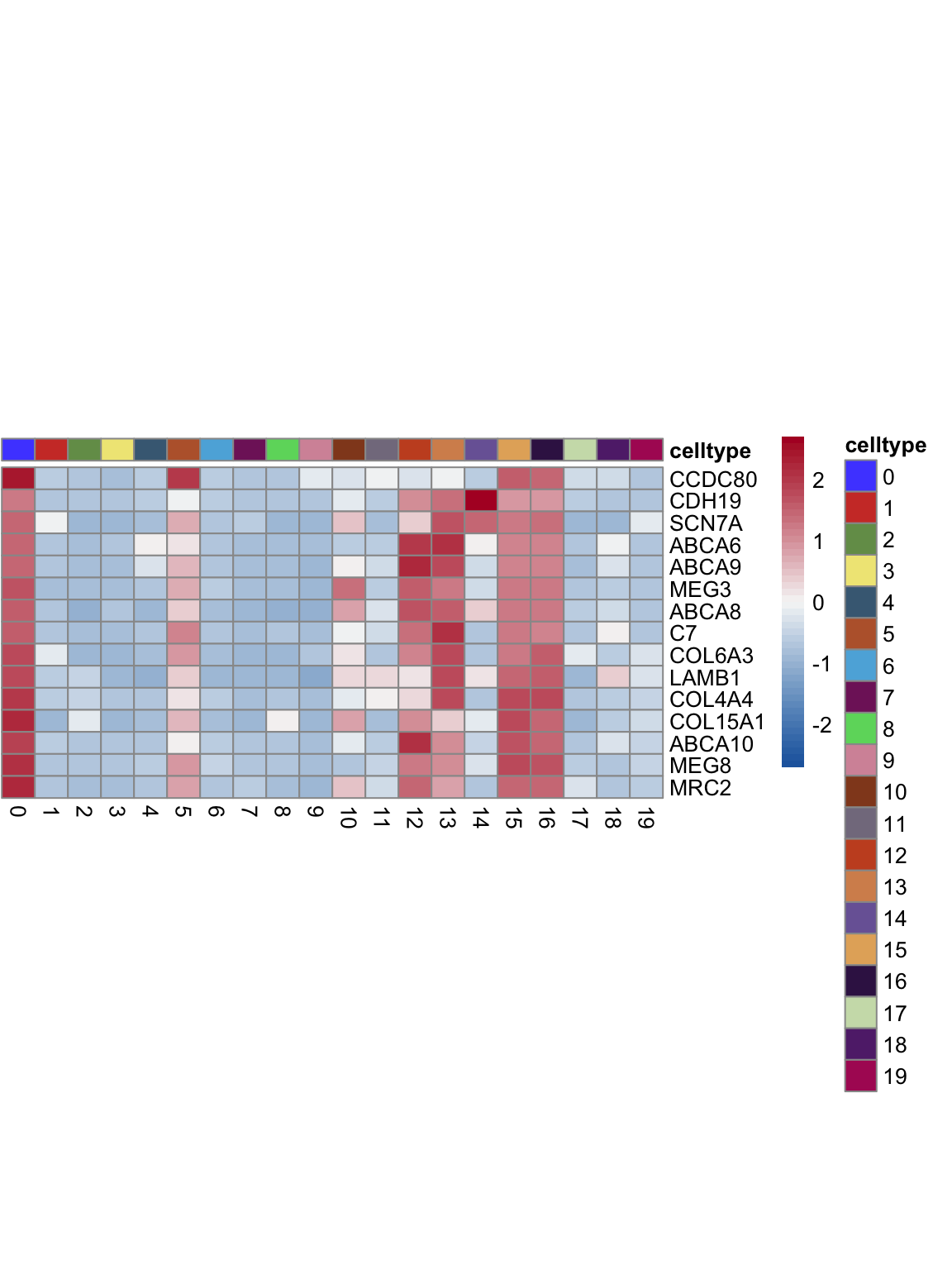

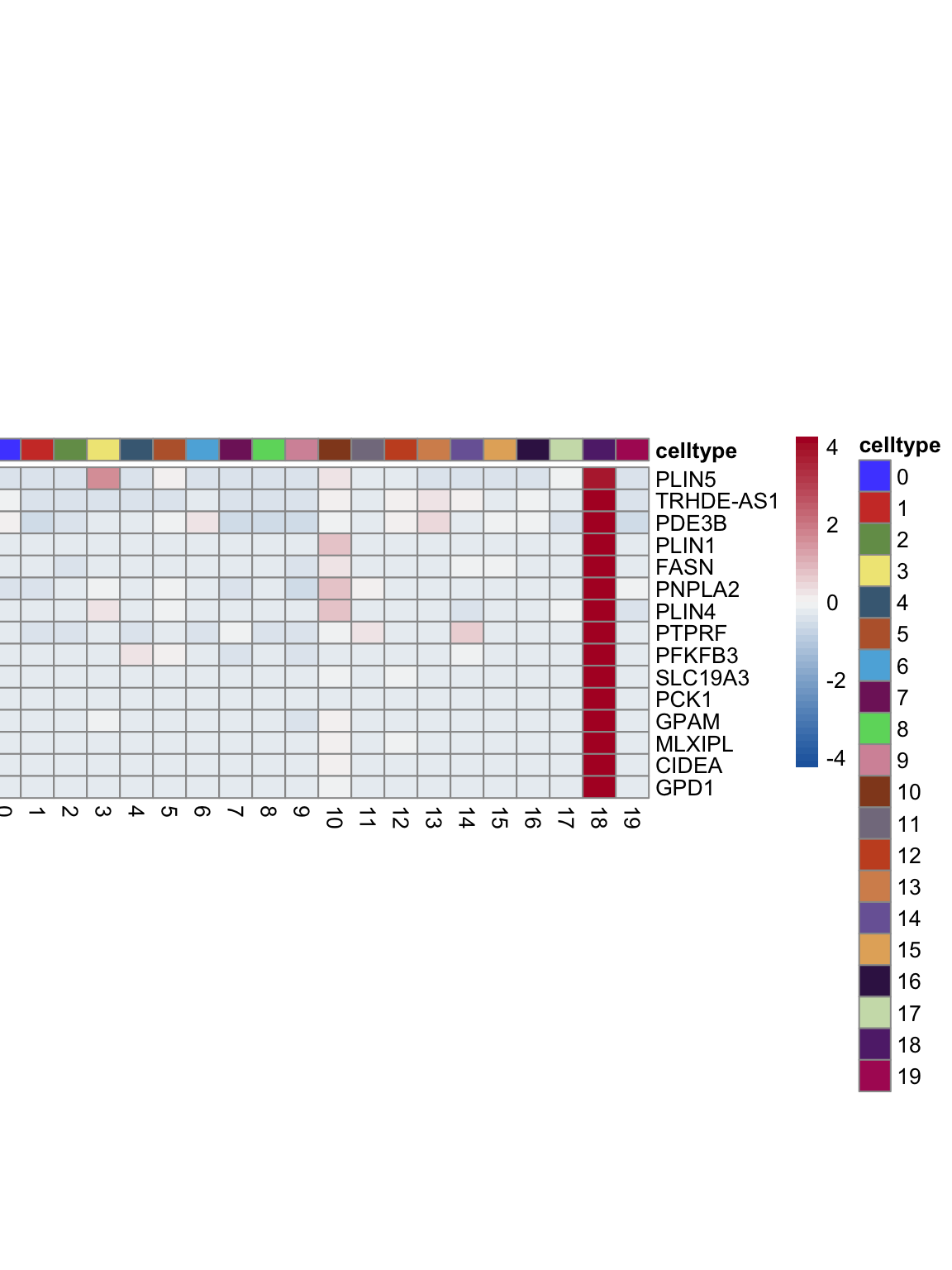

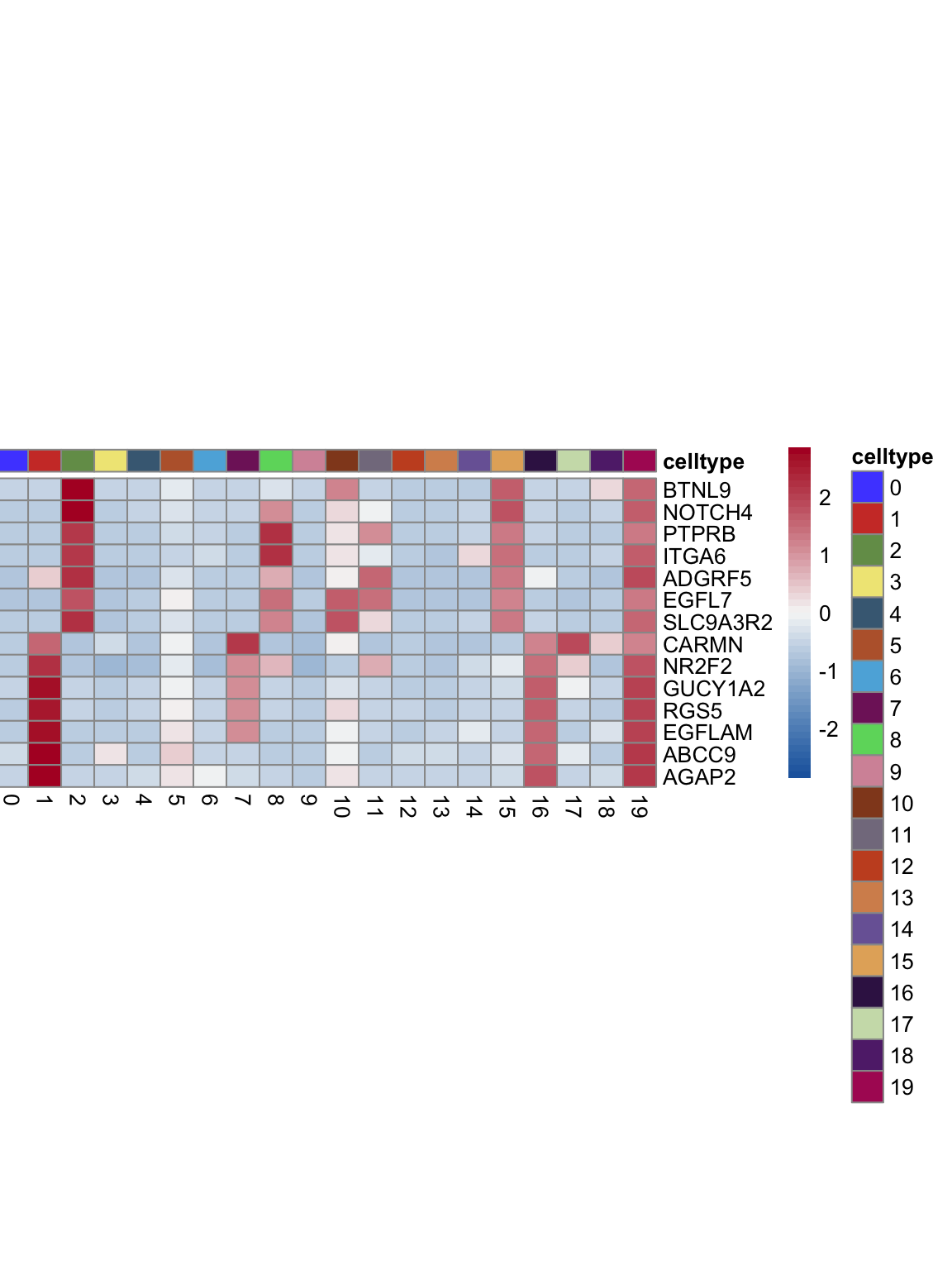

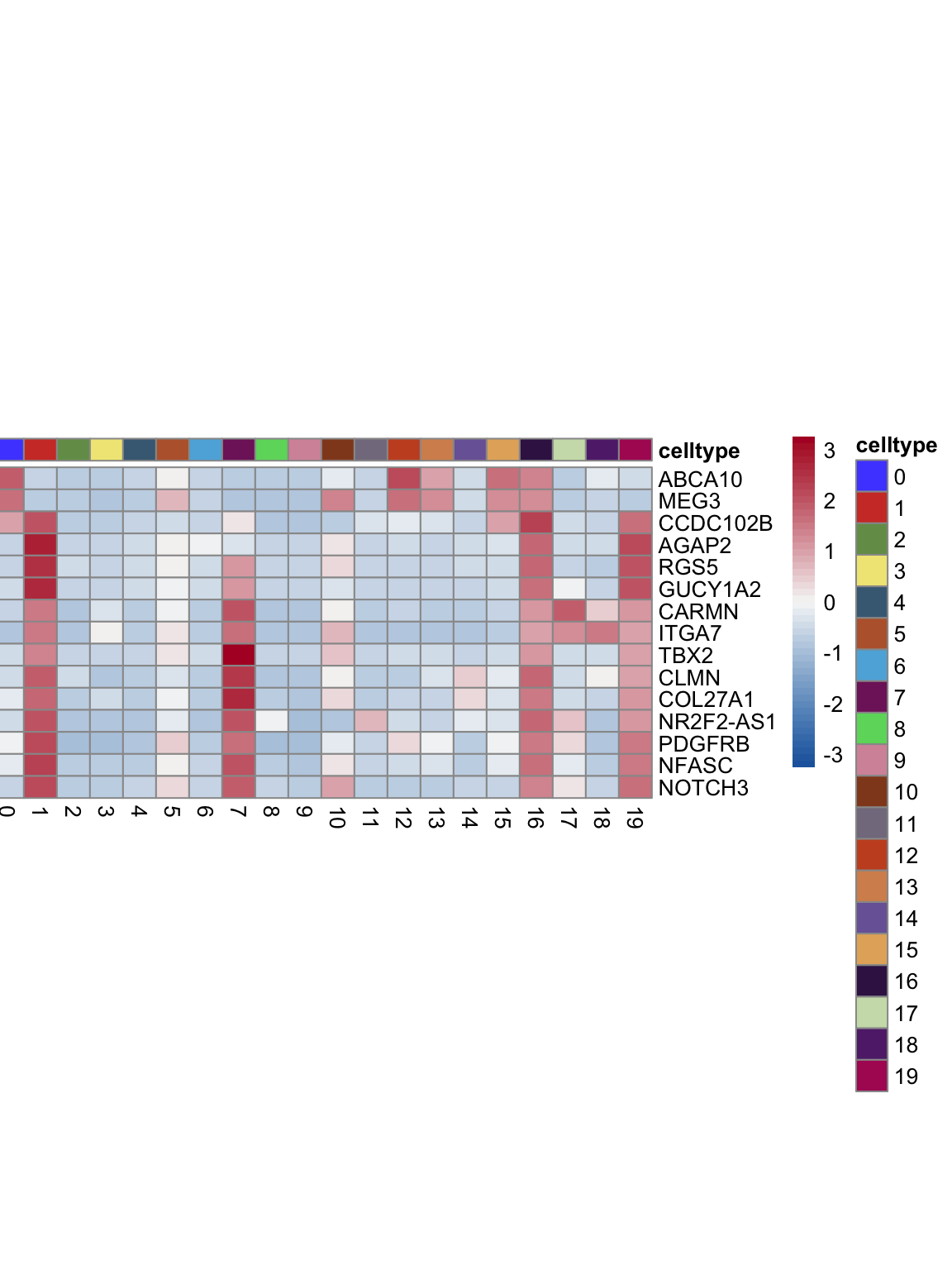

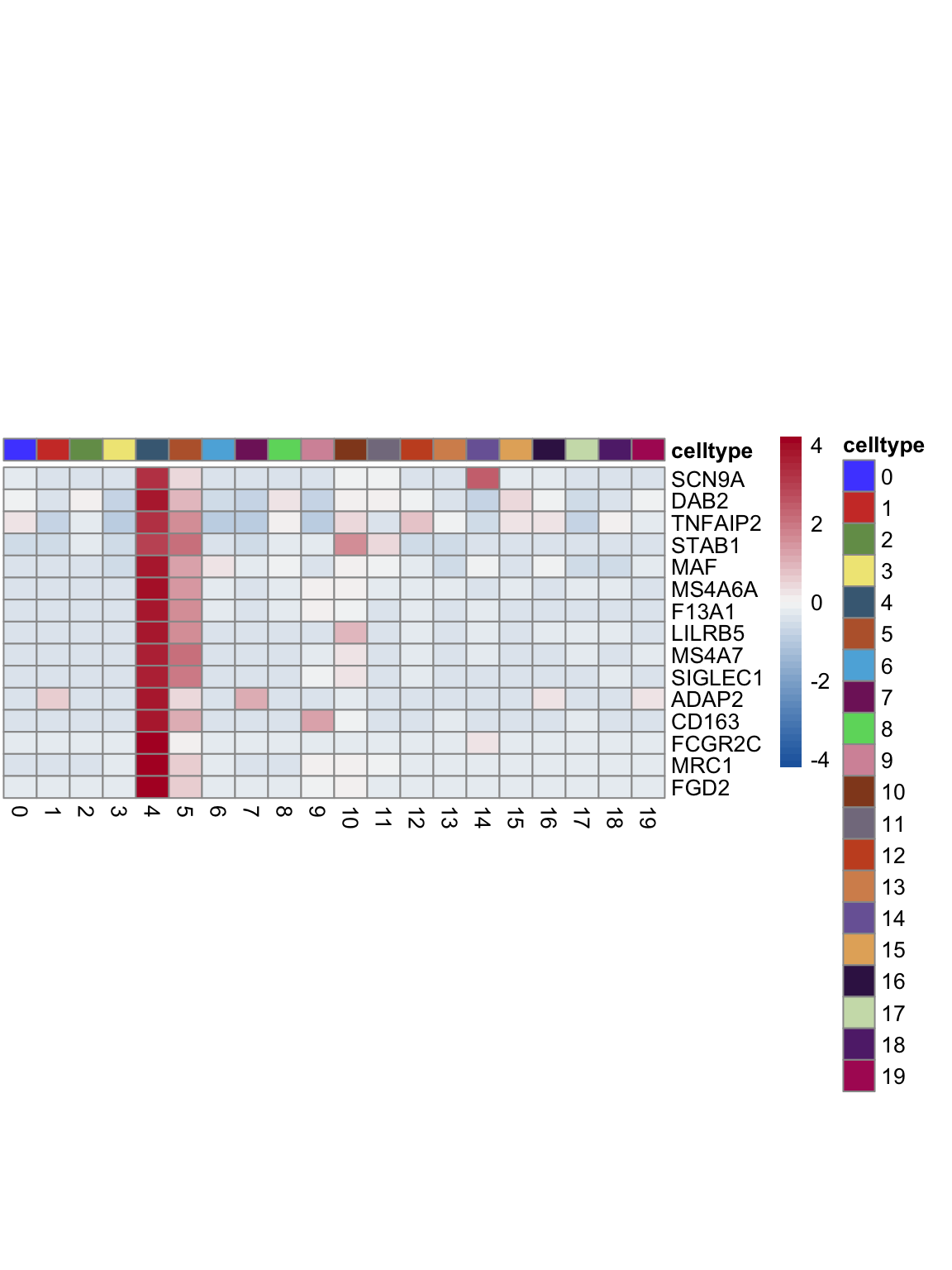

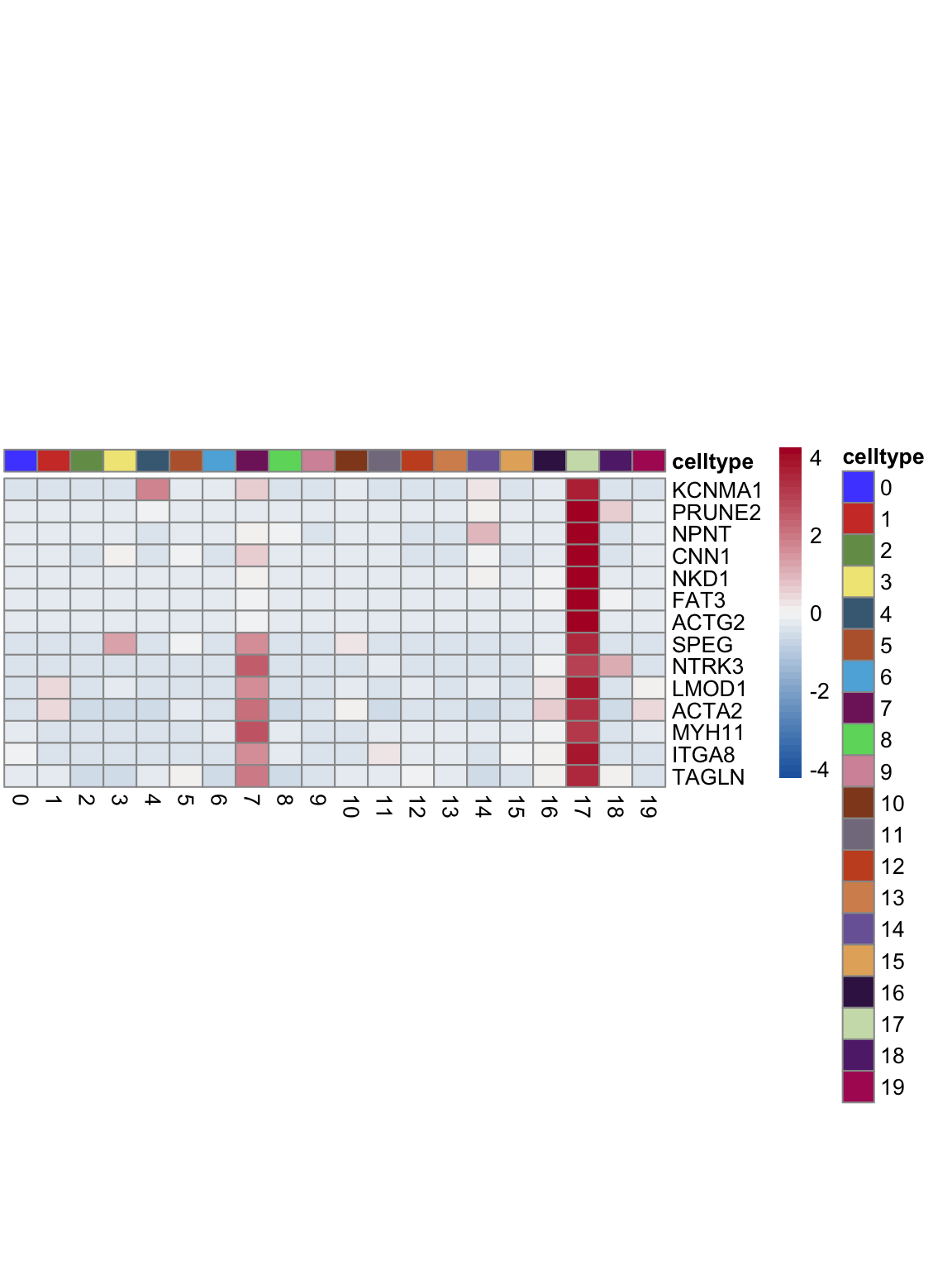

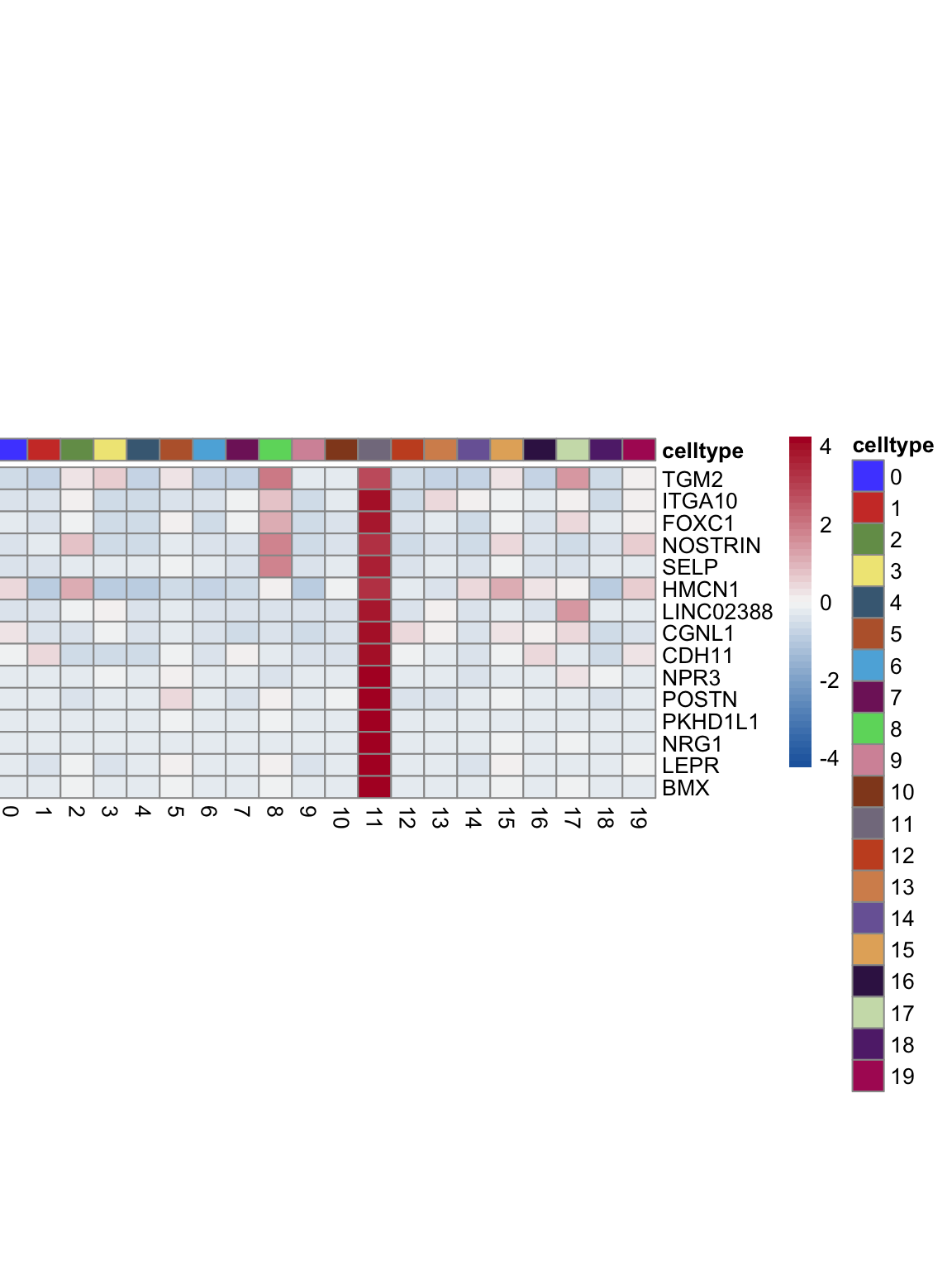

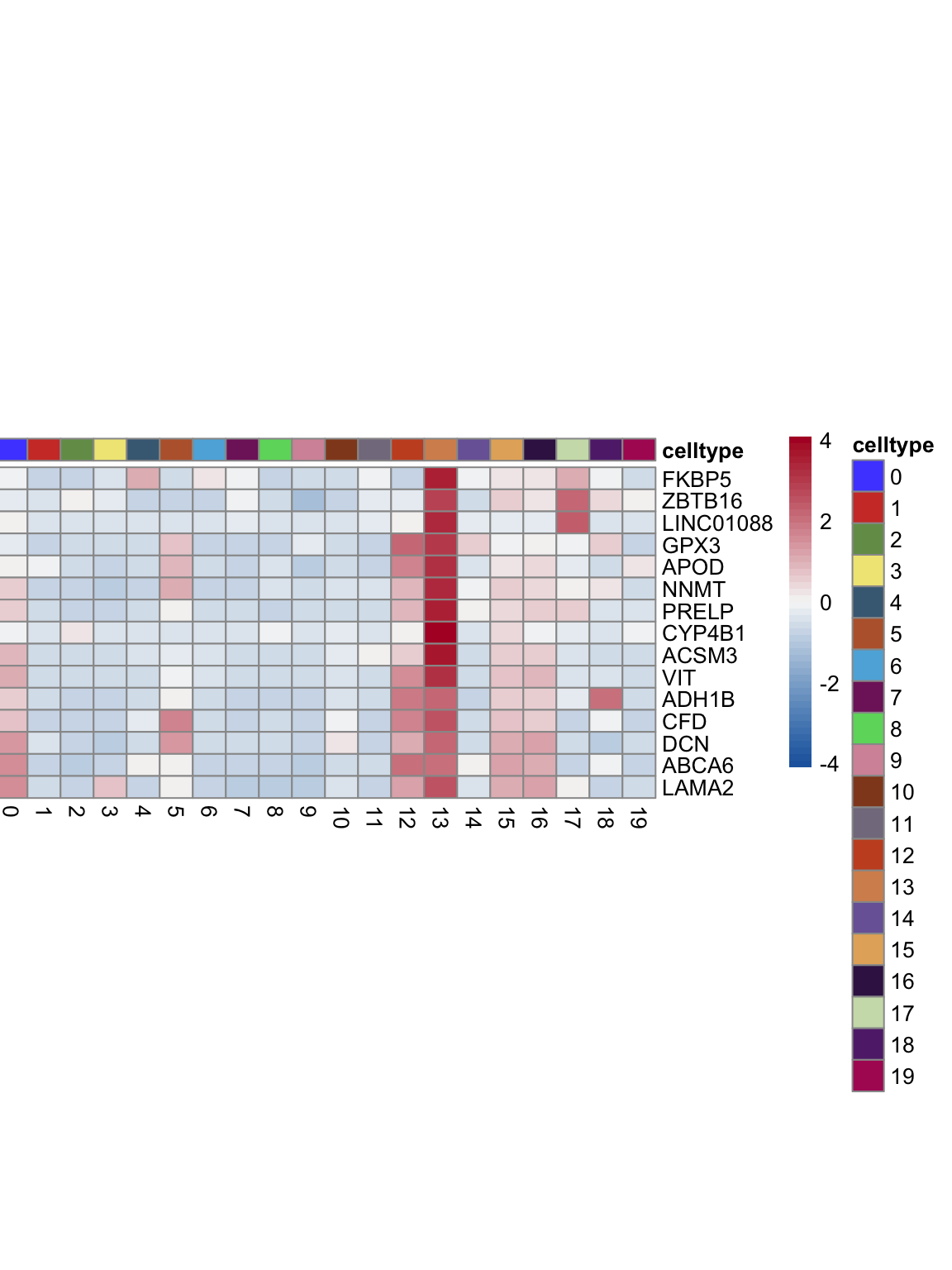

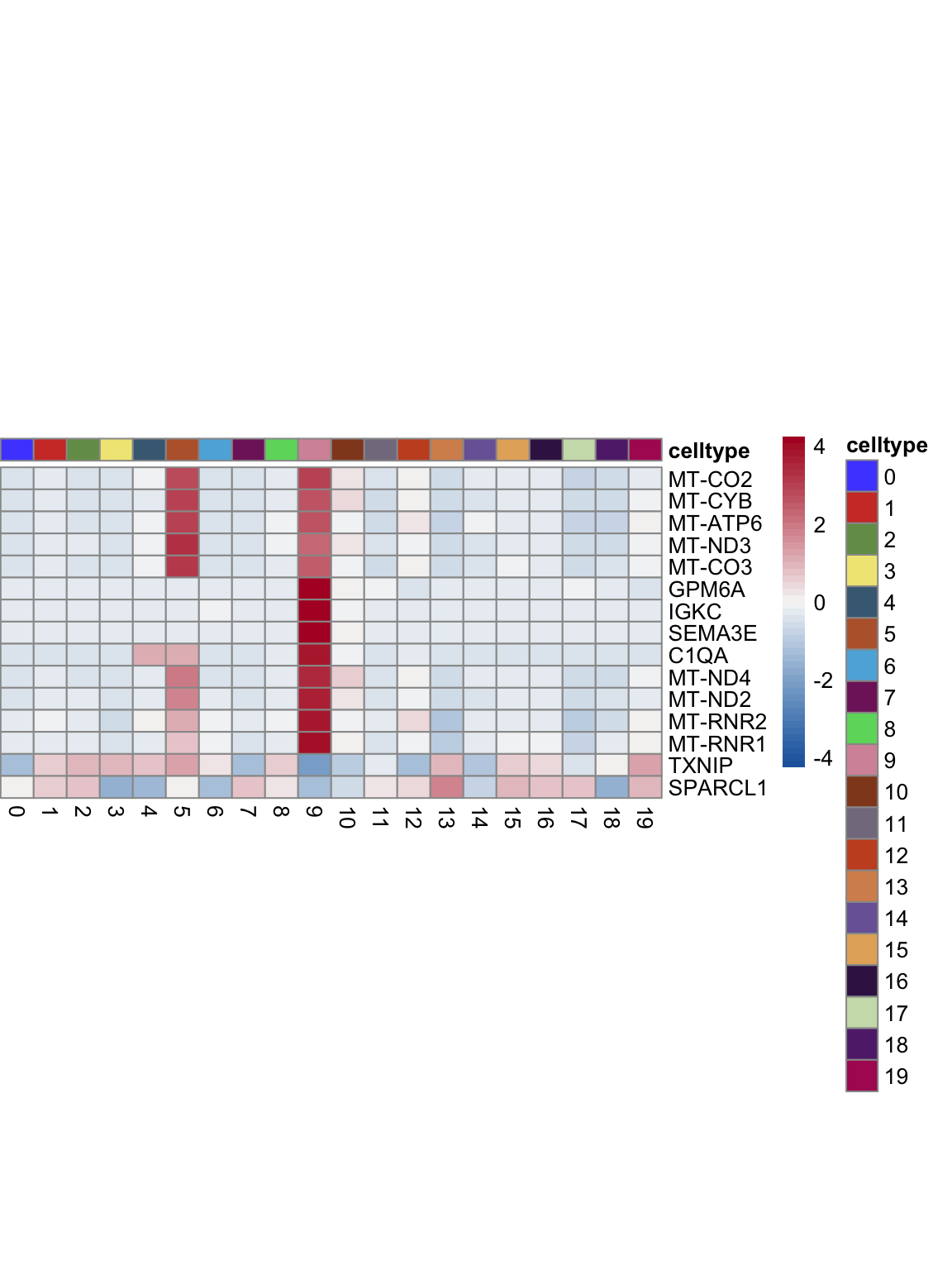

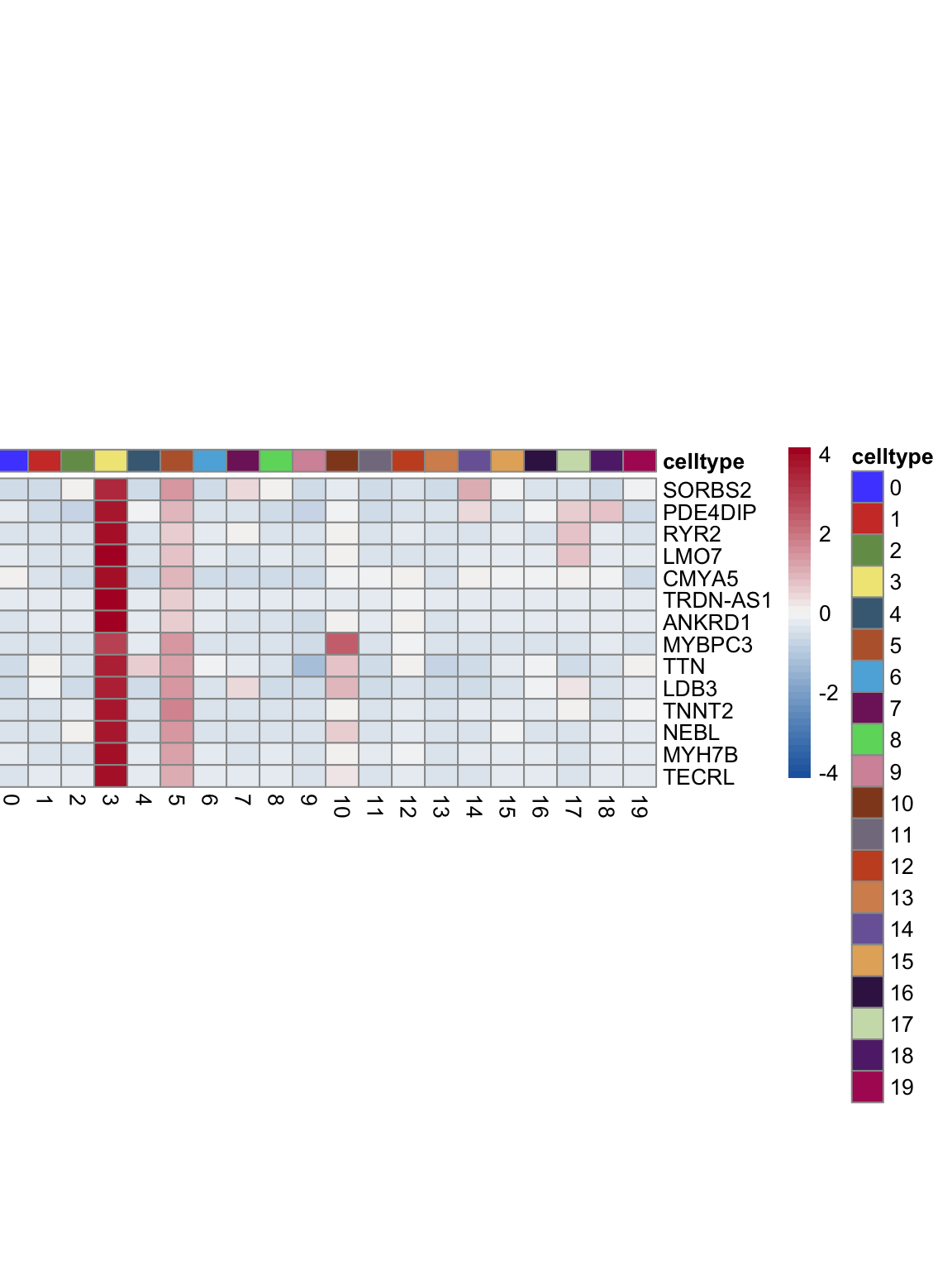

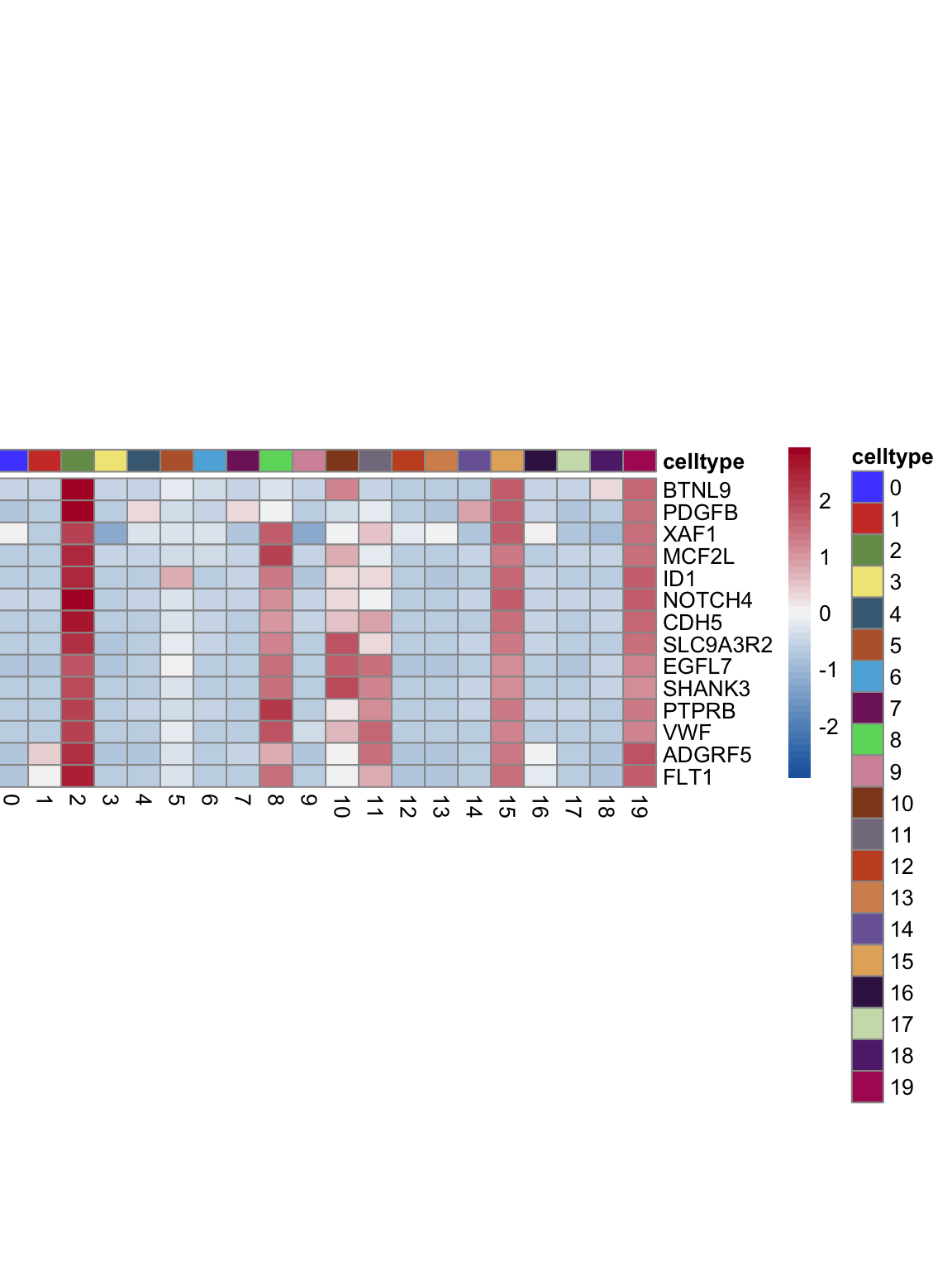

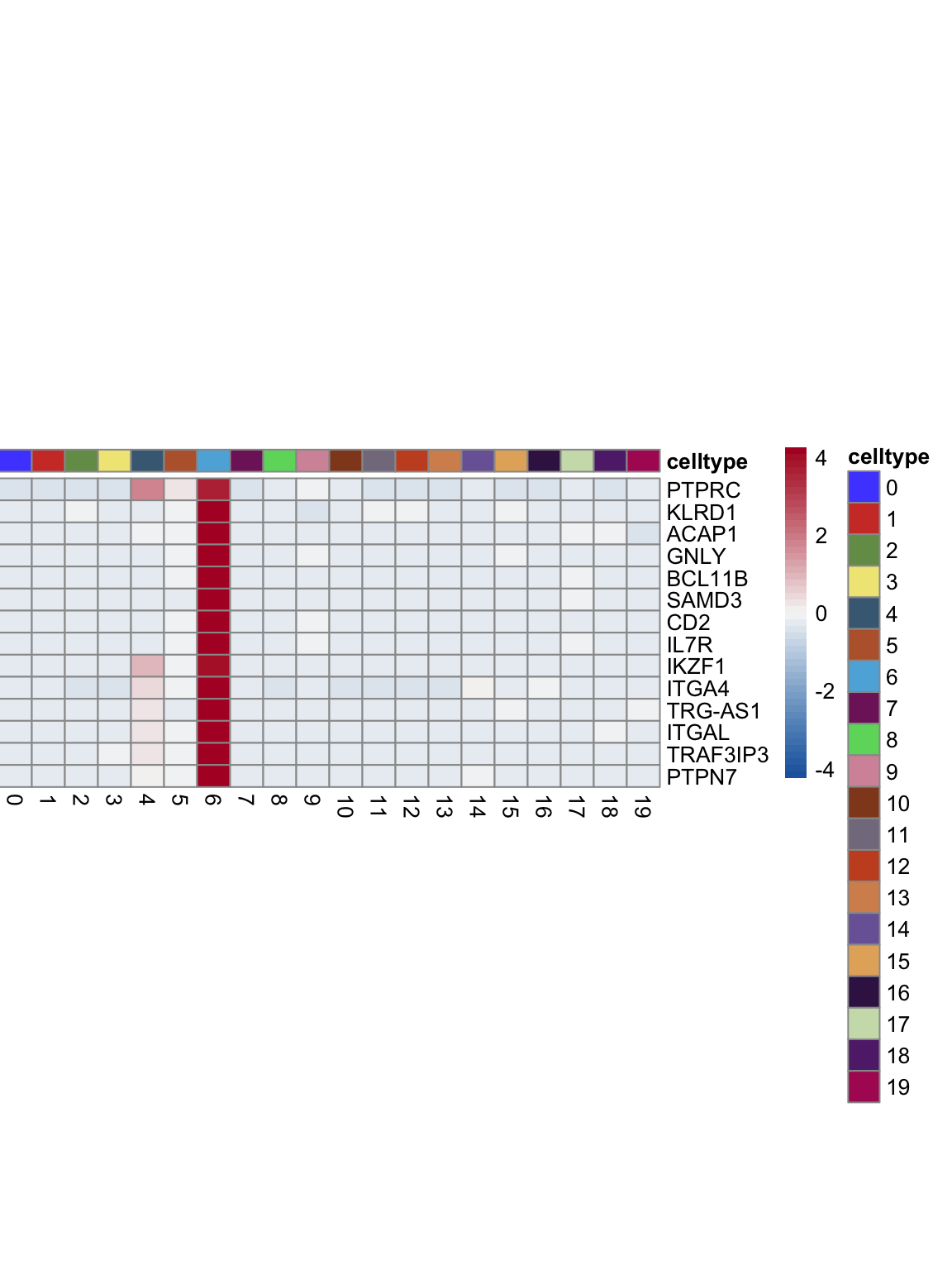

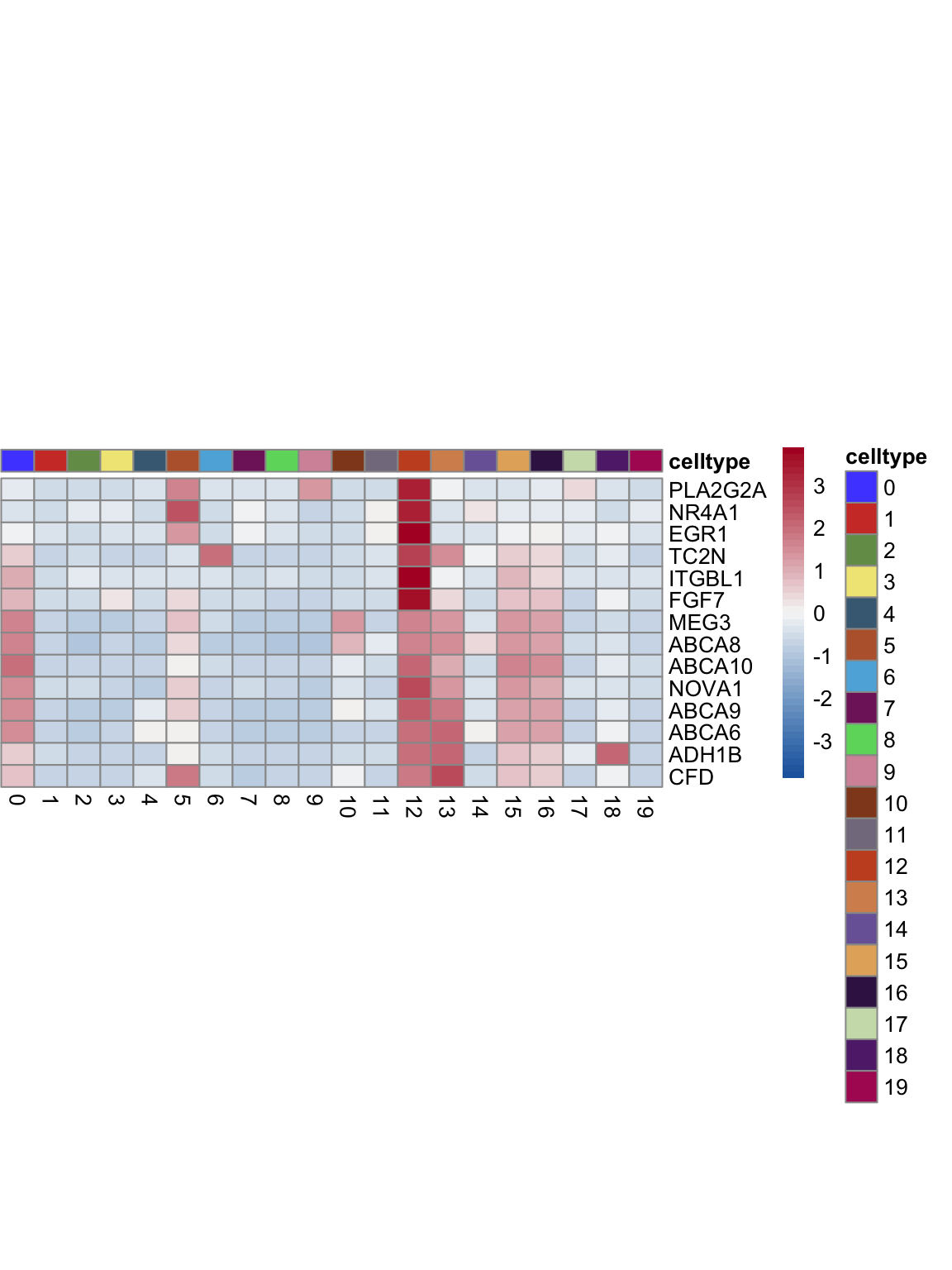

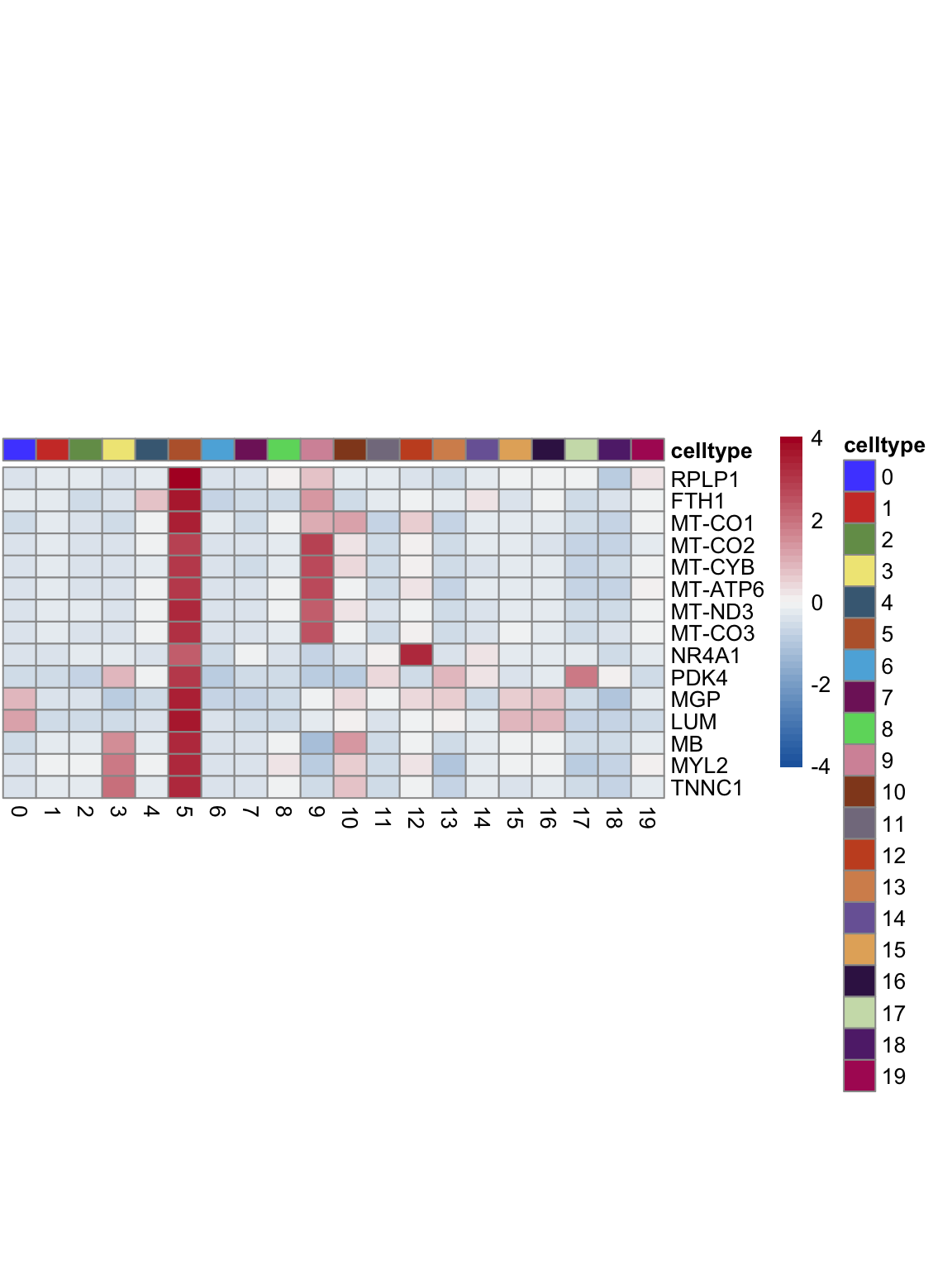

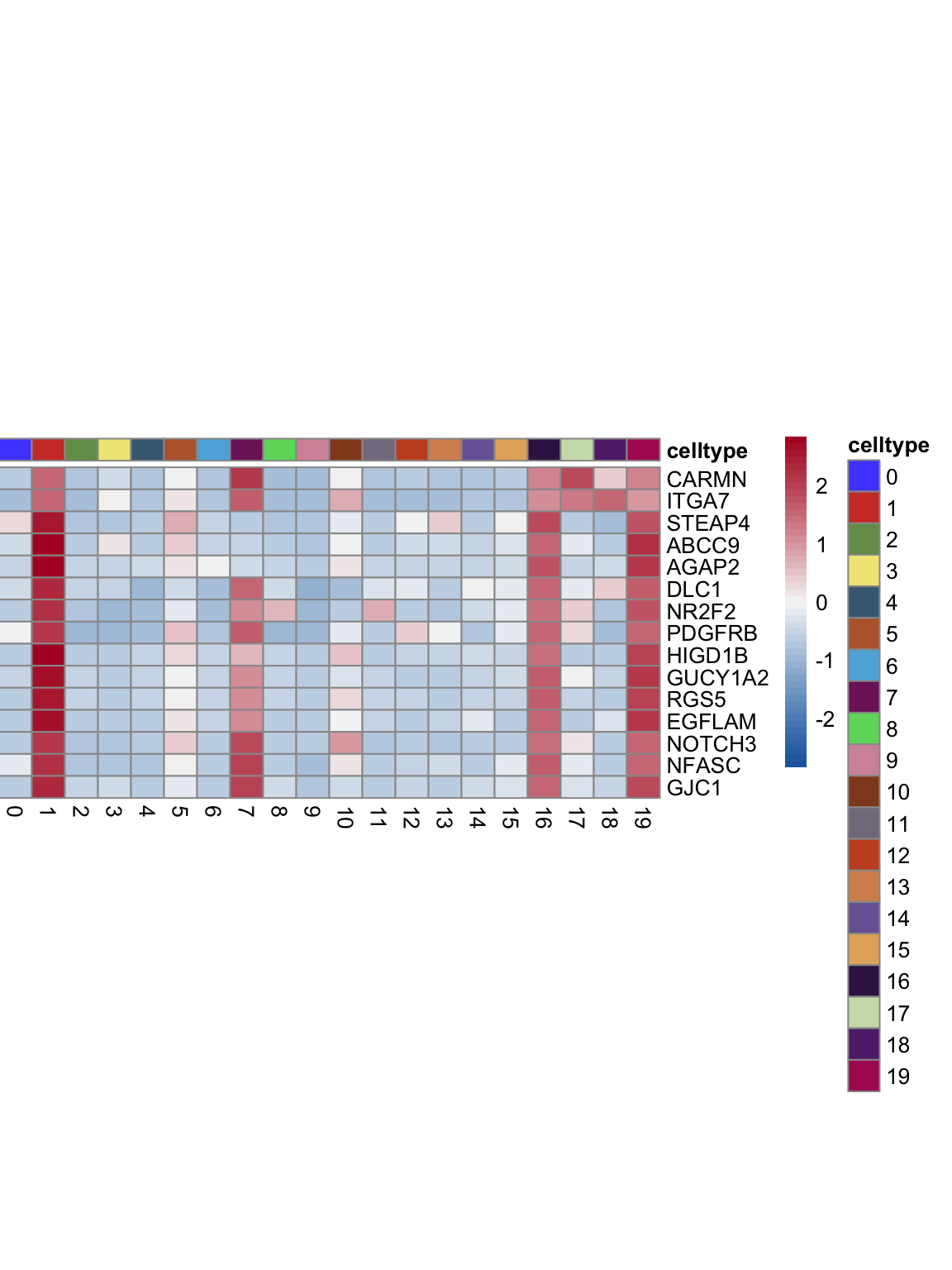

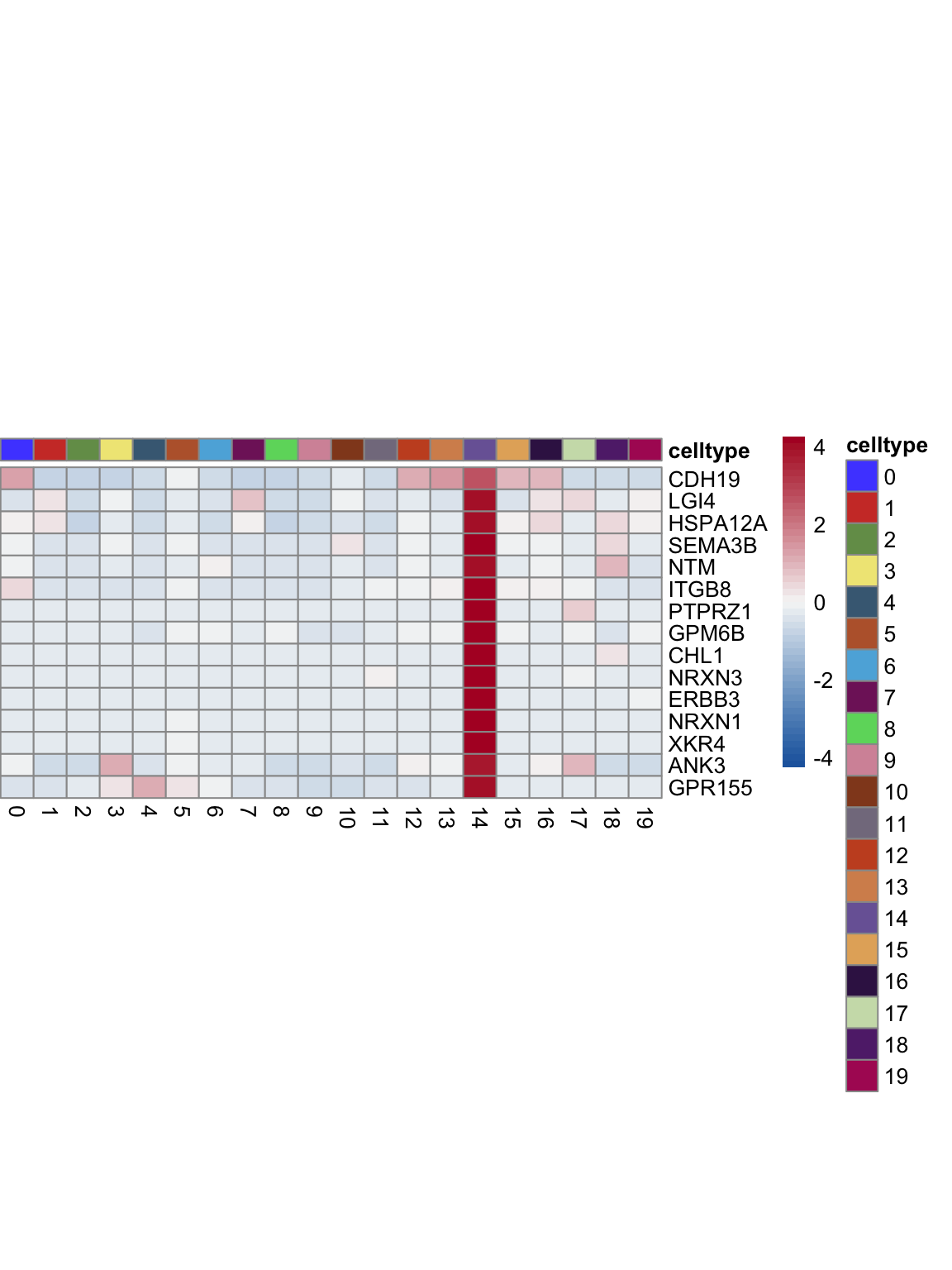

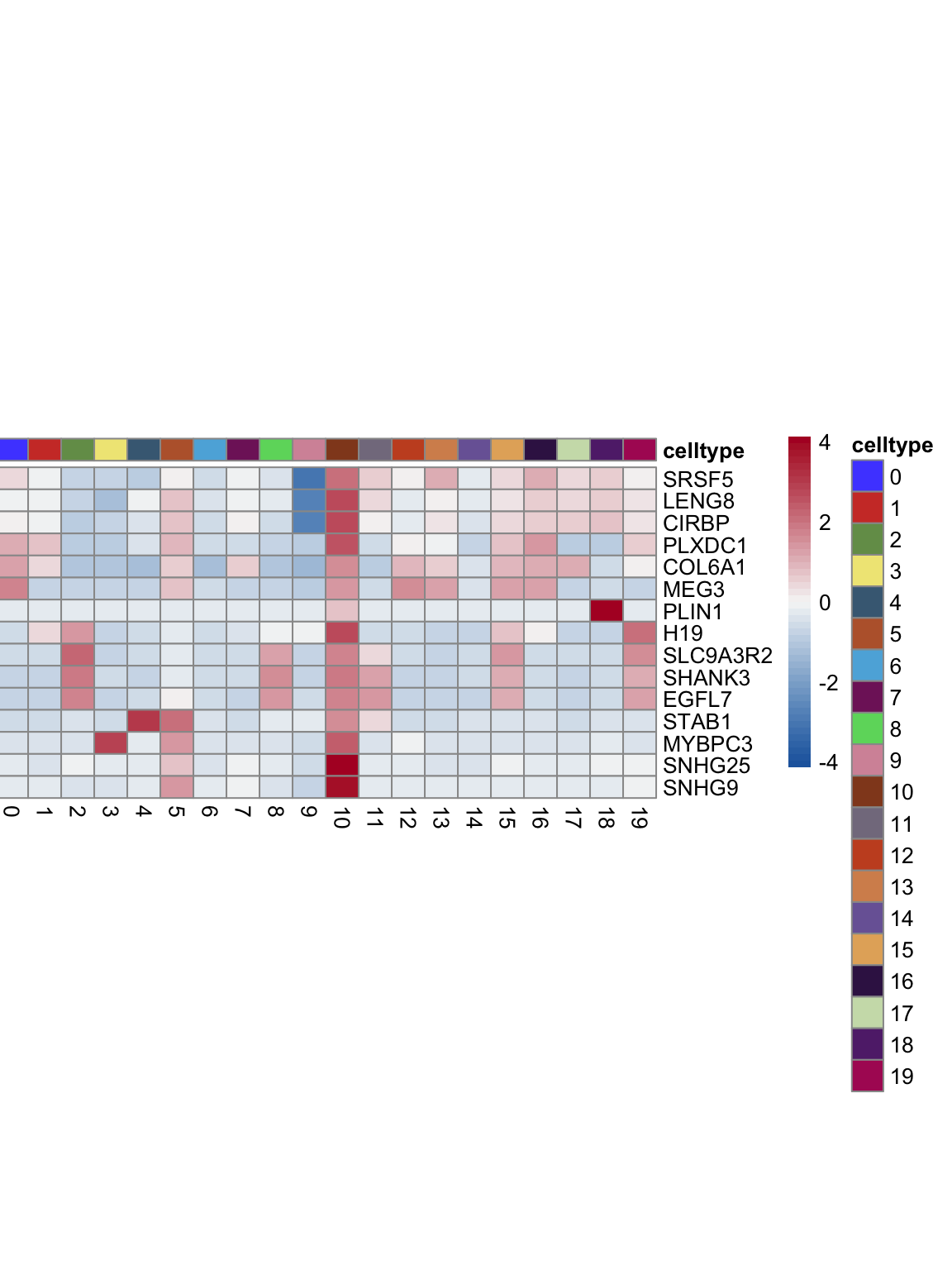

test.use = "wilcox")top 15 marker genes per cluster
cluster <- levels(seurat)
selGenesAll <- seurat_markers_all %>% group_by(cluster) %>%
top_n(-15, p_val_adj) %>%
top_n(15, avg_log2FC)
selGenesAll <- selGenesAll %>% mutate(geneIDval=gsub("^.*\\.", "", gene)) %>% filter(nchar(geneIDval)>1)
template_hm <- c(
"#### {{cl}}\n",
"```{r top marker {{cl}}, fig.height=8, fig.width=6, echo = FALSE}\n",
"selGenes <- selGenesAll %>% filter(cluster=='{{cl}}')",
"pOut <- avgHeatmap(seurat = seurat, selGenes = selGenes,
colVecIdent = colPal,
ordVec=levels(seurat),
gapVecR=NULL, gapVecC=NULL,cc=FALSE,
cr=T, condCol=F)\n",
"```\n",
"\n"
)
plots_gp <- lapply(cluster,
function(cl) knitr::knit_expand(text = template_hm)
)0
1
2
3
4
5
6

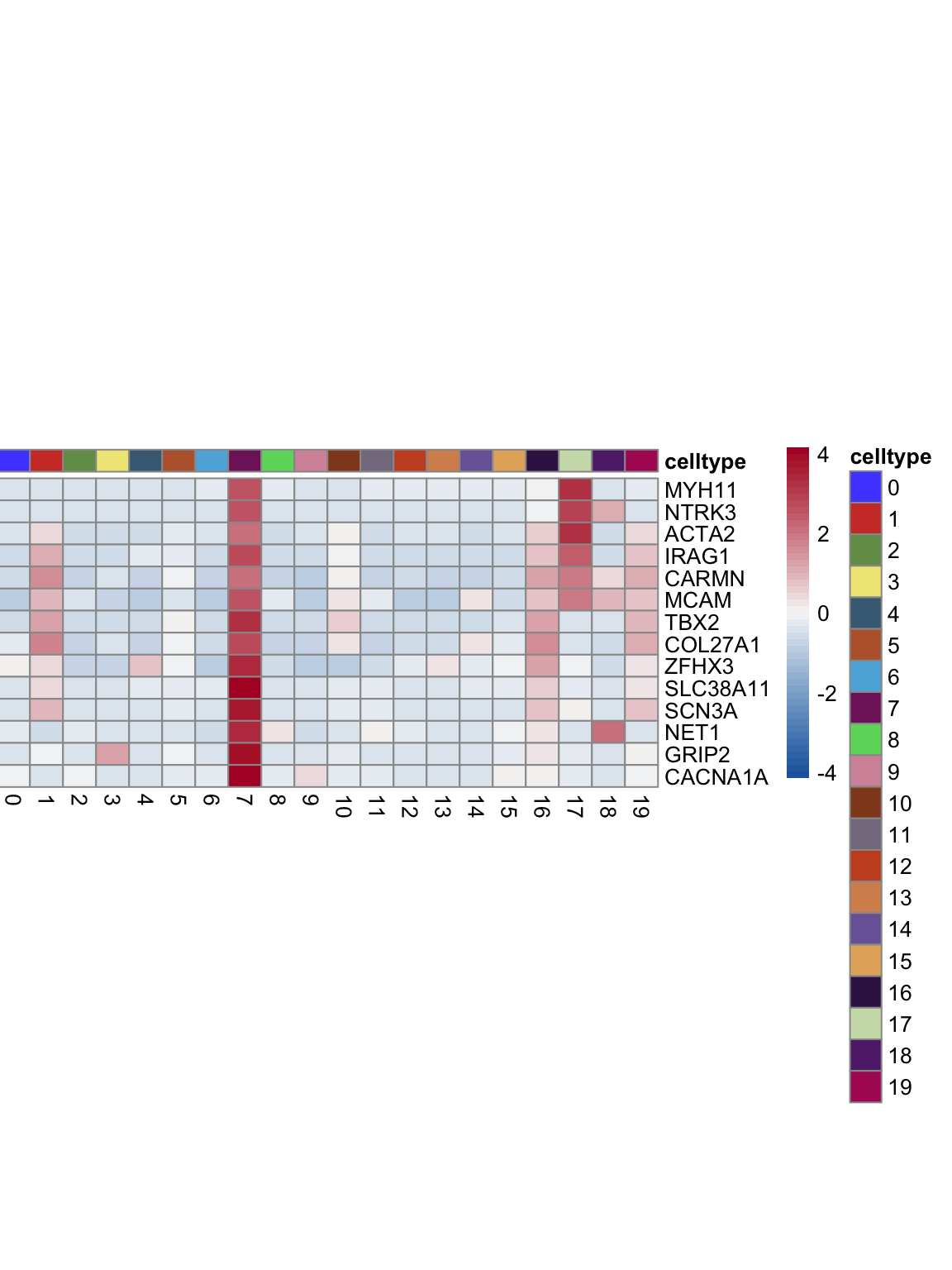

7
8
9
10
11
12
13
14

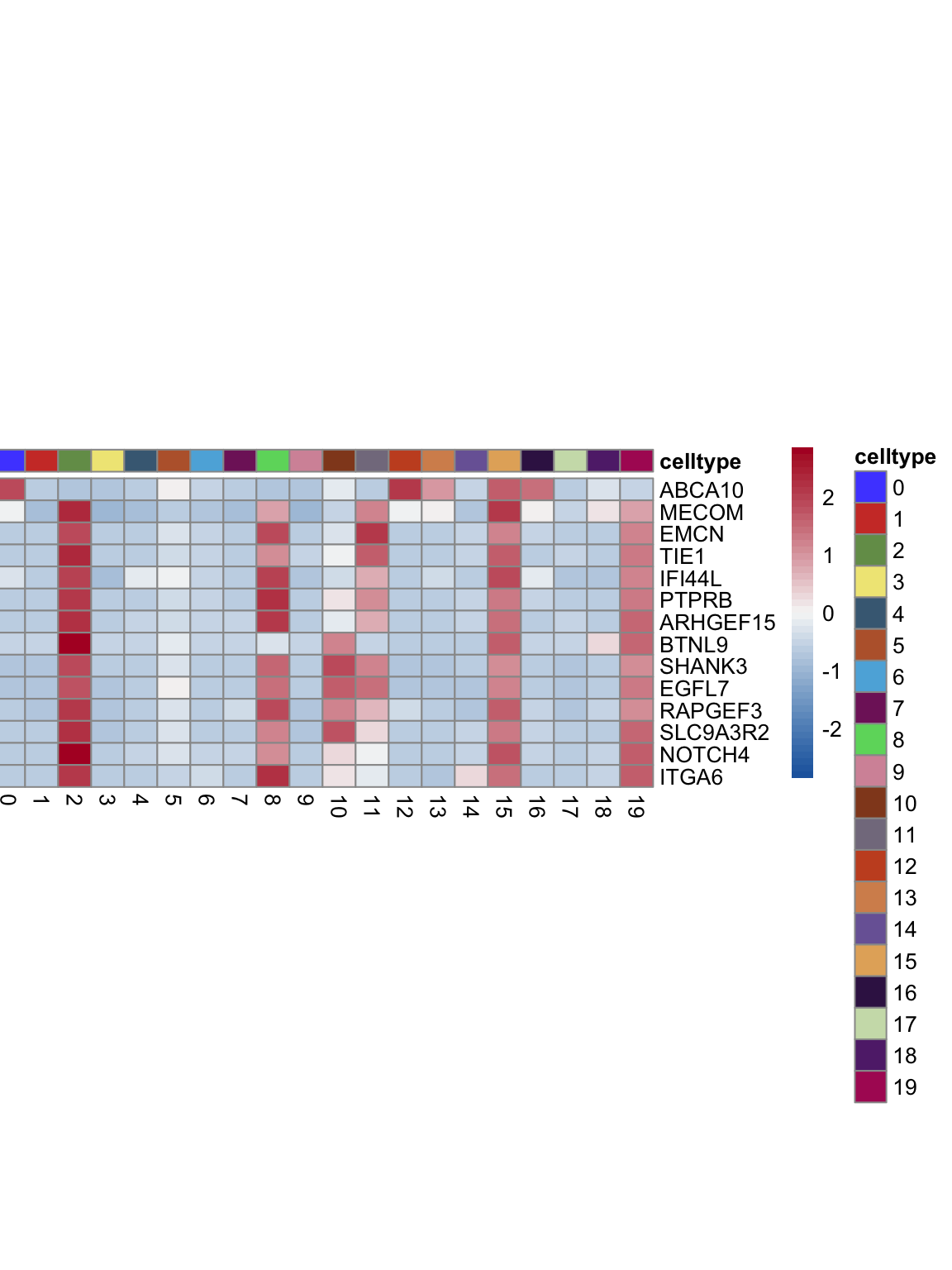

15
16
17
18
19
save objects
Idents(seurat) <- seurat$seurat_clusters
saveRDS(seurat, file = paste0(basedir,
"/data/humanHeartsPlusGraz_merged_seurat.rds"))
write.table(seurat_markers_all,
file=paste0(basedir, "/data/humanHeartsPlusGraz_merged_markerGenes.txt"),
row.names = FALSE, col.names = TRUE, quote = FALSE, sep = "\t")session info
sessionInfo()R version 4.1.0 (2021-05-18)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Big Sur 10.16
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRblas.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] parallel stats4 stats graphics grDevices utils datasets
[8] methods base
other attached packages:
[1] pheatmap_1.0.12 ggpubr_0.4.0
[3] ggsci_2.9 runSeurat3_0.1.0
[5] here_1.0.1 magrittr_2.0.3
[7] sp_1.4-7 SeuratObject_4.1.0
[9] Seurat_4.1.1 forcats_0.5.1
[11] stringr_1.4.0 dplyr_1.0.9
[13] purrr_0.3.4 readr_2.1.2
[15] tidyr_1.2.0 tibble_3.1.7
[17] ggplot2_3.3.6 tidyverse_1.3.1
[19] SingleCellExperiment_1.14.1 SummarizedExperiment_1.22.0
[21] Biobase_2.52.0 GenomicRanges_1.44.0
[23] GenomeInfoDb_1.28.4 IRanges_2.26.0
[25] S4Vectors_0.30.2 BiocGenerics_0.38.0
[27] MatrixGenerics_1.4.3 matrixStats_0.62.0
loaded via a namespace (and not attached):
[1] utf8_1.2.2 reticulate_1.24 tidyselect_1.1.2
[4] htmlwidgets_1.5.4 grid_4.1.0 Rtsne_0.16
[7] munsell_0.5.0 codetools_0.2-18 ica_1.0-2
[10] future_1.25.0 miniUI_0.1.1.1 withr_2.5.0
[13] spatstat.random_2.2-0 colorspace_2.0-3 progressr_0.10.0
[16] highr_0.9 knitr_1.39 rstudioapi_0.13
[19] ROCR_1.0-11 ggsignif_0.6.3 tensor_1.5
[22] listenv_0.8.0 labeling_0.4.2 git2r_0.30.1
[25] GenomeInfoDbData_1.2.6 polyclip_1.10-0 farver_2.1.0
[28] bit64_4.0.5 rprojroot_2.0.3 parallelly_1.31.1
[31] vctrs_0.4.1 generics_0.1.2 xfun_0.30
[34] R6_2.5.1 bitops_1.0-7 spatstat.utils_2.3-1
[37] DelayedArray_0.18.0 assertthat_0.2.1 promises_1.2.0.1
[40] scales_1.2.0 vroom_1.5.7 rgeos_0.5-9
[43] gtable_0.3.0 globals_0.15.0 goftest_1.2-3
[46] workflowr_1.7.0 rlang_1.0.2 splines_4.1.0
[49] rstatix_0.7.0 lazyeval_0.2.2 spatstat.geom_2.4-0
[52] broom_0.8.0 yaml_2.3.5 reshape2_1.4.4
[55] abind_1.4-5 modelr_0.1.8 backports_1.4.1
[58] httpuv_1.6.5 tools_4.1.0 ellipsis_0.3.2
[61] spatstat.core_2.4-2 jquerylib_0.1.4 RColorBrewer_1.1-3
[64] ggridges_0.5.3 Rcpp_1.0.8.3 plyr_1.8.7
[67] zlibbioc_1.38.0 RCurl_1.98-1.6 rpart_4.1.16
[70] deldir_1.0-6 pbapply_1.5-0 cowplot_1.1.1
[73] zoo_1.8-10 haven_2.5.0 ggrepel_0.9.1
[76] cluster_2.1.3 fs_1.5.2 data.table_1.14.2
[79] RSpectra_0.16-1 scattermore_0.8 lmtest_0.9-40
[82] reprex_2.0.1 RANN_2.6.1 fitdistrplus_1.1-8
[85] hms_1.1.1 patchwork_1.1.1 mime_0.12
[88] evaluate_0.15 xtable_1.8-4 readxl_1.4.0
[91] gridExtra_2.3 compiler_4.1.0 KernSmooth_2.23-20
[94] crayon_1.5.1 htmltools_0.5.2 mgcv_1.8-40
[97] later_1.3.0 tzdb_0.3.0 lubridate_1.8.0
[100] DBI_1.1.2 dbplyr_2.1.1 MASS_7.3-57
[103] Matrix_1.4-1 car_3.0-13 cli_3.3.0
[106] igraph_1.3.1 pkgconfig_2.0.3 plotly_4.10.0
[109] spatstat.sparse_2.1-1 xml2_1.3.3 bslib_0.3.1
[112] XVector_0.32.0 rvest_1.0.2 digest_0.6.29
[115] sctransform_0.3.3 RcppAnnoy_0.0.19 spatstat.data_2.2-0
[118] rmarkdown_2.14 cellranger_1.1.0 leiden_0.3.10
[121] uwot_0.1.11 shiny_1.7.1 lifecycle_1.0.1
[124] nlme_3.1-157 jsonlite_1.8.0 carData_3.0-5
[127] limma_3.48.3 viridisLite_0.4.0 fansi_1.0.3
[130] pillar_1.7.0 lattice_0.20-45 fastmap_1.1.0
[133] httr_1.4.3 survival_3.3-1 glue_1.6.2
[136] png_0.1-7 bit_4.0.4 stringi_1.7.6
[139] sass_0.4.1 irlba_2.3.5 future.apply_1.9.0 date()[1] "Thu Jun 23 14:56:37 2022"
sessionInfo()R version 4.1.0 (2021-05-18)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Big Sur 10.16
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRblas.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] parallel stats4 stats graphics grDevices utils datasets
[8] methods base
other attached packages:
[1] pheatmap_1.0.12 ggpubr_0.4.0
[3] ggsci_2.9 runSeurat3_0.1.0
[5] here_1.0.1 magrittr_2.0.3
[7] sp_1.4-7 SeuratObject_4.1.0
[9] Seurat_4.1.1 forcats_0.5.1
[11] stringr_1.4.0 dplyr_1.0.9
[13] purrr_0.3.4 readr_2.1.2
[15] tidyr_1.2.0 tibble_3.1.7
[17] ggplot2_3.3.6 tidyverse_1.3.1
[19] SingleCellExperiment_1.14.1 SummarizedExperiment_1.22.0
[21] Biobase_2.52.0 GenomicRanges_1.44.0
[23] GenomeInfoDb_1.28.4 IRanges_2.26.0
[25] S4Vectors_0.30.2 BiocGenerics_0.38.0
[27] MatrixGenerics_1.4.3 matrixStats_0.62.0
loaded via a namespace (and not attached):
[1] utf8_1.2.2 reticulate_1.24 tidyselect_1.1.2
[4] htmlwidgets_1.5.4 grid_4.1.0 Rtsne_0.16
[7] munsell_0.5.0 codetools_0.2-18 ica_1.0-2
[10] future_1.25.0 miniUI_0.1.1.1 withr_2.5.0
[13] spatstat.random_2.2-0 colorspace_2.0-3 progressr_0.10.0
[16] highr_0.9 knitr_1.39 rstudioapi_0.13
[19] ROCR_1.0-11 ggsignif_0.6.3 tensor_1.5
[22] listenv_0.8.0 labeling_0.4.2 git2r_0.30.1
[25] GenomeInfoDbData_1.2.6 polyclip_1.10-0 farver_2.1.0
[28] bit64_4.0.5 rprojroot_2.0.3 parallelly_1.31.1
[31] vctrs_0.4.1 generics_0.1.2 xfun_0.30
[34] R6_2.5.1 bitops_1.0-7 spatstat.utils_2.3-1
[37] DelayedArray_0.18.0 assertthat_0.2.1 promises_1.2.0.1
[40] scales_1.2.0 vroom_1.5.7 rgeos_0.5-9
[43] gtable_0.3.0 globals_0.15.0 goftest_1.2-3
[46] workflowr_1.7.0 rlang_1.0.2 splines_4.1.0
[49] rstatix_0.7.0 lazyeval_0.2.2 spatstat.geom_2.4-0
[52] broom_0.8.0 yaml_2.3.5 reshape2_1.4.4
[55] abind_1.4-5 modelr_0.1.8 backports_1.4.1
[58] httpuv_1.6.5 tools_4.1.0 ellipsis_0.3.2
[61] spatstat.core_2.4-2 jquerylib_0.1.4 RColorBrewer_1.1-3
[64] ggridges_0.5.3 Rcpp_1.0.8.3 plyr_1.8.7
[67] zlibbioc_1.38.0 RCurl_1.98-1.6 rpart_4.1.16
[70] deldir_1.0-6 pbapply_1.5-0 cowplot_1.1.1
[73] zoo_1.8-10 haven_2.5.0 ggrepel_0.9.1
[76] cluster_2.1.3 fs_1.5.2 data.table_1.14.2
[79] RSpectra_0.16-1 scattermore_0.8 lmtest_0.9-40
[82] reprex_2.0.1 RANN_2.6.1 fitdistrplus_1.1-8
[85] hms_1.1.1 patchwork_1.1.1 mime_0.12
[88] evaluate_0.15 xtable_1.8-4 readxl_1.4.0
[91] gridExtra_2.3 compiler_4.1.0 KernSmooth_2.23-20
[94] crayon_1.5.1 htmltools_0.5.2 mgcv_1.8-40
[97] later_1.3.0 tzdb_0.3.0 lubridate_1.8.0
[100] DBI_1.1.2 dbplyr_2.1.1 MASS_7.3-57
[103] Matrix_1.4-1 car_3.0-13 cli_3.3.0
[106] igraph_1.3.1 pkgconfig_2.0.3 plotly_4.10.0
[109] spatstat.sparse_2.1-1 xml2_1.3.3 bslib_0.3.1
[112] XVector_0.32.0 rvest_1.0.2 digest_0.6.29
[115] sctransform_0.3.3 RcppAnnoy_0.0.19 spatstat.data_2.2-0
[118] rmarkdown_2.14 cellranger_1.1.0 leiden_0.3.10
[121] uwot_0.1.11 shiny_1.7.1 lifecycle_1.0.1
[124] nlme_3.1-157 jsonlite_1.8.0 carData_3.0-5
[127] limma_3.48.3 viridisLite_0.4.0 fansi_1.0.3
[130] pillar_1.7.0 lattice_0.20-45 fastmap_1.1.0
[133] httr_1.4.3 survival_3.3-1 glue_1.6.2
[136] png_0.1-7 bit_4.0.4 stringi_1.7.6
[139] sass_0.4.1 irlba_2.3.5 future.apply_1.9.0
