See here for a PDF version of this vignette.

Prerequisites

You should be familiar with the concept of a Markov chain and its stationary distribution.

Introduction

The Metropolis Hastings algorithm is a beautifully simple algorithm for producing samples from distributions that may otherwise be difficult to sample from.

Suppose we want to sample from a distribution \(\pi\), which we will call the “target distribution”. For simplicity we assume that \(\pi\) is a one-dimensional distribution on the real line, although it is easy to extend to more than one dimension (see below).

The M-H algorithm works by simulating a Markov Chain, whose stationary distribution is \(\pi\). This means that, in the long run, the samples from the Markov chain look like the samples from \(\pi\). As we will see, the algorithm is incredibly simple and flexible. Its main limitation is that, for difficult problems, “in the long run” may mean after a very long time. However, for simple problems the algorithm can work well.

The Metropolis-Hastings algorithm

The transition kernel

To implement the M-H algorithm, the user (you!) must provide a “transition kernel”, \(Q\). A transition kernel is simply a way of moving, randomly, to a new position in space (\(y\) say), given a current position (\(x\) say). That is, \(Q\) is a distribution on \(y\) given \(x\), and we will write it \(Q(y \mid x)\). In many applications, \(Q\) will be a continuous distribution, in which case \(Q(y \mid x)\) will be a density on \(y\), and so \(\int Q(y \mid x) \, dy = 1\) (for all \(x\)).

For example, a very simple way to generate a new position \(y\) from a current position \(x\) is to add an \(N(0,1)\) random number to \(x\). That is, set \(y = x + N(0,1)\), or \(y \mid x \sim N(x,1)\). So we have \[ Q(y \mid x) = \frac{1}{\sqrt{2\pi}} \times \textstyle \exp\big[-\frac{1}{2}(y-x)^2\big]. \] This kind of transition kernel, which adds some random number to the current position \(x\) to obtain \(y\), is often used in practice and is called a “random walk” transition kernel.

Because of the role \(Q\) plays in the M-H algorithm (see below), it is also sometimes called the “proposal distribution”. And the example given above would be called a “random walk proposal”.

The algorithm

The M-H algorithm for sampling from a target distribution \(\pi\), using transition kernel \(Q\), consists of the following steps:

  • Initialize the Markov chain, \(X_1 = x_1\).

  • For \(t = 1,2,\ldots\)

    • Sample \(y\) from \(Q(y \mid x_t)\). Think of \(y\) as a “proposed” value for \(x_{t+1}\).

    • Compute \(A= \min \big\{1, \frac{\pi(y)Q(x_t \mid y)}{\pi(x_t)Q(y \mid x_t)} \big\}.\) \(A\) is often called the “acceptance probabilty”.

    • With probability \(A\), “accept” the proposed value, and set \(x_{t+1} = y\). Otherwise, set \(x_{t+1} = x_t\).

The Metropolis algorithm

Notice that the example random walk proposal \(Q\) given above satisfies \(Q(y \mid x) = Q(x \mid y)\) for all \(x, y\). Any proposal that satisfies this is called “symmetric”. When \(Q\) is symmetric, the formula for \(A\) in the M-H algorithm simplifies to \[ A = \min \bigg\{1, \frac{\pi(y)}{\pi(x_t)} \bigg\}. \]

This special case of the algorithm, with \(Q\) symmetric, was first presented by Metropolis et al (1953), and for this reason it is sometimes called the “Metropolis algorithm”.

In 1970, Hastings presented the more general version — now known as the M-H algorithm — which allows that \(Q\) may be assymmetric. Specifically, Hastings modified the acceptance probability by introducing the term \(Q(x_t \mid y)/Q(y \mid x_t)\). This ratio is sometimes called the “Hastings ratio”.

Toy example

To help understand the M-H algorithm we now do a simple example: we implement the algorithm to sample from an exponential distribution with \(\lambda = 1\): \[ \pi(x) = e^{-x}, \quad x \geq 0. \] (Of course it would be much easier to sample from an exponential distribution in other ways; we are just using this to illustrate the algorithm.)

Remember that \(\pi\) is called the “target” distribution, so we call our function to compute \(\pi\) “target”:

target <- function (x)
  ifelse(x < 0,0,exp(-x))

Now we implement the M-H algorithm using the simple normal random walk transition kernel \(Q\) mentioned above. Since this \(Q\) is symmetric, the Hastings ratio is 1, and we get the simpler form for the acceptance probability \(A\) in the Metropolis algorithm.

Here is the code:

x <- rep(0,10000)
x[1] <- 3
for (i in 2:10000) {
  current_x <- x[i-1]
  proposed_x <- current_x + rnorm(1)
  A <- target(proposed_x)/target(current_x)
  u <- runif(1)
  if (u < A)
    x[i] <- proposed_x
  else
    x[i] <- current_x
}

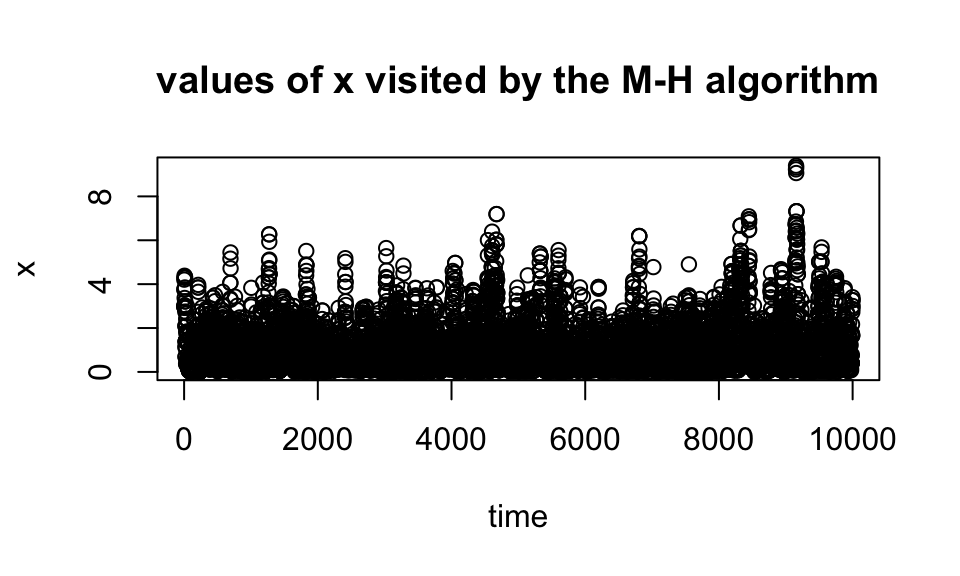

Having run this code, we can plot the locations visited by the Markov chain, \(x\) (sometimes called a “trace plot”).

plot(x,xlab = "time",main = "values of x visited by the M-H algorithm")

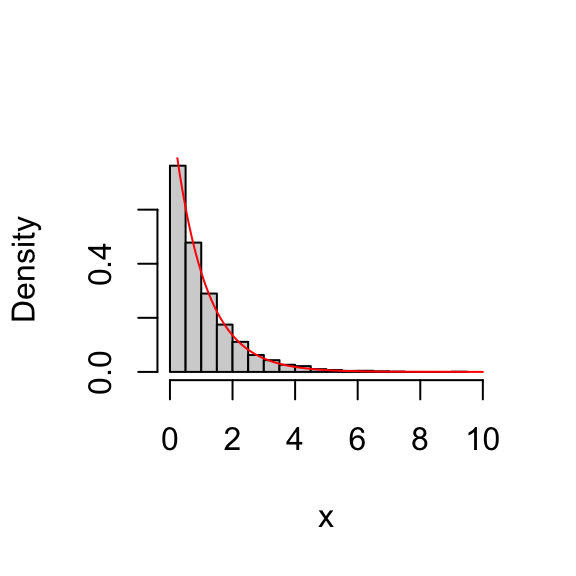

Remember that we designed this algorithm to sample from an exponential distribution. This means that — provided we ran the algorithm for long enough! — the histogram of \(x\) should look like an exponential distribution. Here we check this:

hist(x,xlim = c(0,10),probability = TRUE,main = "")
xx <- seq(0,10,length = 100)
lines(xx,target(xx),col = "red")

So we see that, indeed, the histogram of the values in \(x\) indeed provides a close fit to an exponential distribution.

Closing remarks

One particularly useful feature of the M-H algorithm is that it can be implemented even when \(\pi\) is known only up to a constant: that is, \(\pi(x) = c f(x)\) for some known \(f\) with unknown constant \(c\). This is because the algorithm depends on \(\pi\) only through the ratio: \[ \frac{\pi(y)}{\pi(x_t)} = \frac{cf(y)}{cf(x_t)} = \frac{f(y)}{f(x_t)}. \]

This issue arises in Bayesian applications where the posterior distribution is proportional to the prior times the likelihood but the constant of proportionality is often unknown. So the M-H algorithm is particularly useful for sampling from posterior distributions to perform analytically intractible Bayesian calculations.
