Introduction

In this page, we present the analysis of the RNA-seq experiments from the human cancer cell lines H1975 and HCC827, namely the paired-end Illumina short read RNA-seq data (GSE172421), the single-end Illumina short read RNA-seq data (GSE86337) and the long read Oxford Nanopore Technologies (ONT) data (GSE172421). This report is divided in three main parts, one for each dataset. In the end, we summarize all the results and generate the plots and tables presented in the main and supplementary materials text from the edgeR with count scaling paper.

The analysis presented in this report begins with the experimental data already quantified by Salmon. Please refer to the script files located in the GitHub repository of this page under the directory paths ./code/lung, ./code/lung-se, and ./data/lung-ont, which show the commands (or the already prepared DGEList object for ONT data) used to quantify the RNA-seq reads from these experiments. The targets files from these experiments are located in the directory paths ./data/lung, ./data/lung-se, and ./data/lung-ont, respectively.

Setup

We begin this report by setting up some options for rendering this webpage and loading the necessary libraries.

knitr::opts_chunk$set(dev = "png",
                      dpi = 300,
                      dev.args = list(type = "cairo-png"),
                      root.dir = '.')

library(edgeR)
library(plyr)
library(AnnotationHub)
library(data.table)
library(tximeta)
library(SummarizedExperiment)
library(fishpond)
library(sleuth)
library(patchwork)
library(grid)
library(ComplexHeatmap)
library(tibble)
library(ragg)
library(ggplot2)
library(magrittr)
library(kableExtra)

Paths used in this report are specified below.

path.misc <- file.path('../misc',knitr::current_input())
dir.create(path.misc,recursive = TRUE,showWarnings = FALSE)

path.data.paired <- '../data/lung'
path.quant.paired <- '../output/lung'

path.data.single <- '../data/lung-se'
path.quant.single <- '../output/lung-se'

path.data.long <- '../data/lung-ont'

Data loading

First, we load the targets data for all experiments we analyze in this report.

df.targets.short.paired <-
  read.delim(file.path(path.data.paired,'misc/targets.txt'))

df.targets.short.paired$Color <-
  mapvalues(df.targets.short.paired$Group,
            from = c('H1975','HCC827'),to = c('blue','red'))

df.targets.short.single <-
  read.delim(file.path(path.data.single,'misc/targets.txt'))
df.targets.short.single$Color <-
  mapvalues(df.targets.short.single$Group,
            from = c('H1975','HCC827'),to = c('blue','red'))

df.targets.long <-
  read.delim(file.path(path.data.long,'misc/targets.txt'))
df.targets.long$Color <-
  mapvalues(df.targets.long$Group,
            from = c('H1975','HCC827'),to = c('blue','red'))

Next, we load the output from Salmon with catchSalmon. The ONT long read data have already been stored in a DGEList object and is available for download in the GitHub repository of this report.

catch.short.paired <-
  catchSalmon(list.dirs(file.path(path.quant.paired,'salmon'),recursive = FALSE))

Reading ../output/lung/salmon/GSM5255695, 227223 transcripts, 100 bootstraps
Reading ../output/lung/salmon/GSM5255696, 227223 transcripts, 100 bootstraps
Reading ../output/lung/salmon/GSM5255697, 227223 transcripts, 100 bootstraps
Reading ../output/lung/salmon/GSM5255704, 227223 transcripts, 100 bootstraps
Reading ../output/lung/salmon/GSM5255705, 227223 transcripts, 100 bootstraps
Reading ../output/lung/salmon/GSM5255706, 227223 transcripts, 100 bootstraps

catch.short.paired$annotation$TranscriptSymbol <-
  strsplit2(rownames(catch.short.paired$counts),"\\|")[,5]

catch.short.paired$annotation$GeneID <-
  strsplit2(rownames(catch.short.paired$counts),"\\|")[,2]

catch.short.paired$annotation$GeneSymbol <-
  strsplit2(rownames(catch.short.paired$counts),"\\|")[,6]

catch.short.paired$samples <-
  df.targets.short.paired[match(basename(colnames(catch.short.paired$counts)),
                                strsplit2(df.targets.short.paired$File1,"_")[,1]),]

colnames(catch.short.paired$counts) <- catch.short.paired$samples$Sample

rownames(catch.short.paired$counts) <-
  rownames(catch.short.paired$annotation) <-
  strsplit2(rownames(catch.short.paired$counts),"\\|")[,1]

dte.short.paired <-
  DGEList(counts = catch.short.paired$counts,
          group = strsplit2(colnames(catch.short.paired$counts),"\\.")[,1],
          genes = catch.short.paired$annotation,
          samples = catch.short.paired$samples)

catch.short.single <-
  catchSalmon(list.dirs(file.path(path.quant.single,'salmon'),recursive = FALSE))

Reading ../output/lung-se/salmon/GSM2300448, 227223 transcripts, 100 bootstraps
Reading ../output/lung-se/salmon/GSM2300449, 227223 transcripts, 100 bootstraps
Reading ../output/lung-se/salmon/GSM2300450, 227223 transcripts, 100 bootstraps
Reading ../output/lung-se/salmon/GSM2300451, 227223 transcripts, 100 bootstraps

catch.short.single$annotation$TranscriptSymbol <-
  strsplit2(rownames(catch.short.single$counts),"\\|")[,5]

catch.short.single$annotation$GeneID <-
  strsplit2(rownames(catch.short.single$counts),"\\|")[,2]

catch.short.single$annotation$GeneSymbol <-
  strsplit2(rownames(catch.short.single$counts),"\\|")[,6]

catch.short.single$samples <-
  df.targets.short.single[match(basename(colnames(catch.short.single$counts)),
                                strsplit2(df.targets.short.single$File,"_")[,1]),]

colnames(catch.short.single$counts) <- catch.short.single$samples$Sample

rownames(catch.short.single$counts) <-
  rownames(catch.short.single$annotation) <-
  strsplit2(rownames(catch.short.single$counts),"\\|")[,1]

dte.short.single <-
  DGEList(counts = catch.short.single$counts,
          group = strsplit2(colnames(catch.short.single$counts),"\\.")[,1],
          genes = catch.short.single$annotation,
          samples = catch.short.single$samples)

For the ONT data, we disregard the in-silico mixtures and only keep the pure cell lines data.

dte.long <- readRDS(file.path(path.data.long,'220928_dge.rds'))

# Keeping only pure cell lines
dte.long <- dte.long[,grepl('barcode',colnames(dte.long))]

dte.long$samples <-
  cbind(dte.long$samples,
        df.targets.long[match(basename(colnames(dte.long)),df.targets.long$File),])

colnames(dte.long$counts) <-
  rownames(dte.long$samples) <-
  dte.long$samples$Sample

dte.long$samples$group <- dte.long$samples$Group

dte.long$genes$TranscriptSymbol <- strsplit2(rownames(dte.long$genes),"\\|")[,5]
dte.long$genes$GeneID <- strsplit2(rownames(dte.long$genes),"\\|")[,2]
dte.long$genes$GeneSymbol <- strsplit2(rownames(dte.long$genes),"\\|")[,6]

rownames(dte.long$counts) <-
  rownames(dte.long$genes) <- strsplit2(rownames(dte.long$counts),"\\|")[,1]

The ONT long read data contain the 849 duplicated transcripts that exist in the Gencode version 33 of the human genome hg38 (Ensembl annotation version 99). This is because the ONT data was processed with Salmon while keeping such duplicates in the transcriptome index. I exclude such duplicates below.

stopifnot(nrow(dte.short.paired) == nrow(dte.short.single))
stopifnot(nrow(dte.long) - nrow(dte.short.paired) == 849)
stopifnot(rownames(dte.short.paired) %in% rownames(dte.long))

dte.long <- dte.long[rownames(dte.long) %in% rownames(dte.short.paired),]

stopifnot(rownames(dte.long) == rownames(dte.short.paired))

Design

Now, we can create the design matrices (and the appropriate contrast) that will be used when assessing differential expression, both at the transcript-level and at the gene-level.

design.short.paired <- model.matrix(~0+group,data = dte.short.paired$samples)
colnames(design.short.paired) <- gsub("group","",colnames(design.short.paired))

design.short.single <- model.matrix(~0+group,data = dte.short.single$samples)
colnames(design.short.single) <- gsub("group","",colnames(design.short.single))

design.long <- model.matrix(~0+group,data = dte.long$samples)
colnames(design.long) <- gsub("group","",colnames(design.long))

contr <- makeContrasts(HCC827vsH1975 = HCC827 - H1975,levels = design.short.paired)

Transcriptome annotation

Now, I will load the complete Ensemble annotation from AnnotationHub to bring in some extra information that will be used throughout this report. Again, all three datasets (paired-end reads, single-end reads, and ONT long reads) were quantified with Salmon using the Ensembl-oriented Gencode annotation version 33 of the human genome hg38 (Ensembl version 99). We select genes of interest for this analysis: only protein-coding and lncRNA genes with an associated Entrez ID.

ah <- AnnotationHub()

snapshotDate(): 2022-10-31

edb <- ah[['AH78783']] # Ensembl version 99 relative to Gencode version 33

loading from cache

require("ensembldb")

edb.names <- c("TXIDVERSION","SYMBOL","TXBIOTYPE",
               "GENEIDVERSION","GENENAME","GENEBIOTYPE","ENTREZID")

dt.anno <- as.data.table(select(edb,keys(edb),edb.names))

dt.anno.gene <-
  dt.anno[,.(NTranscriptPerGene = .N),
          by = c('GENEIDVERSION','GENEBIOTYPE','ENTREZID','GENENAME')]

dt.anno.gene[,GeneOfInterest :=
               GENEBIOTYPE %in% c('protein_coding','lncRNA') & !is.na(ENTREZID)]

key.anno <- match(dte.long$genes$GeneID,dt.anno.gene$GENEIDVERSION)

dte.short.paired$genes$EntrezID <- dt.anno.gene$ENTREZID[key.anno]
dte.short.single$genes$EntrezID <- dt.anno.gene$ENTREZID[key.anno]
dte.long$genes$EntrezID <- dt.anno.gene$ENTREZID[key.anno]

dte.short.paired$genes$GeneType <- dt.anno.gene$GENEBIOTYPE[key.anno]
dte.short.single$genes$GeneType <- dt.anno.gene$GENEBIOTYPE[key.anno]
dte.long$genes$GeneType <- dt.anno.gene$GENEBIOTYPE[key.anno]

dte.short.paired$genes$GeneOfInterest <- dt.anno.gene$GeneOfInterest[key.anno]
dte.short.single$genes$GeneOfInterest <- dt.anno.gene$GeneOfInterest[key.anno]
dte.long$genes$GeneOfInterest <- dt.anno.gene$GeneOfInterest[key.anno]

dte.short.paired$genes$GeneOfInterest[is.na(dte.short.paired$genes$GeneOfInterest)] <- FALSE
dte.short.single$genes$GeneOfInterest[is.na(dte.short.single$genes$GeneOfInterest)] <- FALSE
dte.long$genes$GeneOfInterest[is.na(dte.long$genes$GeneOfInterest)] <- FALSE

dte.short.paired$genes$NTranscriptPerGene <- dt.anno.gene$NTranscriptPerGene[key.anno]
dte.short.single$genes$NTranscriptPerGene <- dt.anno.gene$NTranscriptPerGene[key.anno]
dte.long$genes$NTranscriptPerGene <- dt.anno.gene$NTranscriptPerGene[key.anno]

Analysis of Illumina paired-end short reads

The analysis of paired-end data is divided in two parts. First, we present the analysis at the transcript-level. Second, we present a gene-level analysis. All results discussed in the main paper regarding these experiments are presented in this report.

Differential transcript expression analysis

edgeR with count scaling

Below we run edgeR with scaled counts using the QL pipeline.

dte.short.paired.edger.scaled <- dte.short.paired

dte.short.paired.edger.scaled$counts <-
  dte.short.paired.edger.scaled$counts/dte.short.paired.edger.scaled$genes$Overdispersion

keep.short.paired.edger.scaled <-
  filterByExpr(dte.short.paired.edger.scaled) &
  (dte.short.paired.edger.scaled$genes$GeneOfInterest == TRUE)

dte.short.paired.edger.scaled.filtr <-
  dte.short.paired.edger.scaled[keep.short.paired.edger.scaled,, keep.lib.sizes = FALSE]

dte.short.paired.edger.scaled.filtr <-
  calcNormFactors(dte.short.paired.edger.scaled.filtr)

dte.short.paired.edger.scaled.filtr <-
  estimateDisp(dte.short.paired.edger.scaled.filtr,
               design = design.short.paired,robust = TRUE)

fit.short.paired.edger.scaled <-
  glmQLFit(dte.short.paired.edger.scaled.filtr,design.short.paired,robust = TRUE)

qlf.short.paired.edger.scaled <-
  glmQLFTest(fit.short.paired.edger.scaled,contrast = contr)

out.short.paired.edger.scaled <- topTags(qlf.short.paired.edger.scaled,n = Inf)

summary(decideTests(qlf.short.paired.edger.scaled))

       -1*H1975 1*HCC827
Down                9620
NotSig              8667
Up                  9079

edgeR with raw counts

Below we run edgeR with raw counts using the QL pipeline.

dte.short.paired.edger.raw <- dte.short.paired

keep.short.paired.edger.raw <-
  filterByExpr(dte.short.paired.edger.raw) &
  (dte.short.paired.edger.raw$genes$GeneOfInterest == TRUE)

dte.short.paired.edger.raw.filtr <-
  dte.short.paired.edger.raw[keep.short.paired.edger.raw,, keep.lib.sizes = FALSE]

dte.short.paired.edger.raw.filtr <-
  calcNormFactors(dte.short.paired.edger.raw.filtr)

dte.short.paired.edger.raw.filtr <-
  estimateDisp(dte.short.paired.edger.raw.filtr,
               design = design.short.paired,robust = TRUE)

fit.short.paired.edger.raw <-
  glmQLFit(dte.short.paired.edger.raw.filtr,design.short.paired,robust = TRUE)

qlf.short.paired.edger.raw <-
  glmQLFTest(fit.short.paired.edger.raw,contrast = contr)

out.short.paired.edger.raw <- topTags(qlf.short.paired.edger.raw,n = Inf)

summary(decideTests(qlf.short.paired.edger.raw))

       -1*H1975 1*HCC827
Down                8722
NotSig             28799
Up                  8234

Swish

We then run Swish.

dt.swish <-
  data.frame(paths = list.dirs(file.path(path.quant.paired,'salmon'),recursive = FALSE))

dt.swish$names <- df.targets.short.paired$Sample[match(basename(dt.swish$paths),strsplit2(df.targets.short.paired$File1,'_')[,1])]

dt.swish$files <- file.path(dt.swish$paths,'quant.sf')

dt.swish$group <-
  factor(df.targets.short.paired$Group[match(basename(dt.swish$paths),
                                             strsplit2(df.targets.short.paired$File1,'_')[,1])],levels = c("H1975","HCC827"))

dte.swish <- tximeta(coldata = dt.swish,type = 'salmon')

importing quantifications

reading in files with read_tsv

1 2 3 4 5 6
couldn't find matching transcriptome, returning non-ranged SummarizedExperiment

mcols(dte.swish)$GeneID <- strsplit2(rownames(dte.swish),"\\|")[,2]

mcols(dte.swish)$GeneOfInterest <-
  dt.anno.gene$GeneOfInterest[match(mcols(dte.swish)$GeneID ,dt.anno.gene$GENEIDVERSION)]

mcols(dte.swish)$GeneOfInterest[is.na(mcols(dte.swish)$GeneOfInterest)] <- FALSE

rownames(dte.swish) <- strsplit2(rownames(dte.swish),"\\|")[,1]

dte.swish <- scaleInfReps(dte.swish)
dte.swish <- labelKeep(dte.swish)
dte.swish <-
  dte.swish[mcols(dte.swish)$keep & (mcols(dte.swish)$GeneOfInterest == TRUE),]
dte.swish <- swish(y = dte.swish, x = "group")
out.swish <- as.data.frame(mcols(dte.swish))

sleuth with Wald

Now, we run sleuth with Wald test. For a fair comparison, we focus on genes of interest also with sleuth and Swish. In the code chunk below, we filter out genes that are lowly expressed (according to sleuth’s criteria, similar to what we have done with Swish) and genes that are not interesting (i.e., they are either not protein-coding or lncRNA gene, or do not have an associated Entrez ID).

dt.sleuth <-
  data.frame(path = list.dirs(file.path(path.quant.paired,'salmon'),recursive = FALSE))
dt.sleuth$sample <-
  df.targets.short.paired$Sample[match(basename(dt.sleuth$path),strsplit2(df.targets.short.paired$File1,'_')[,1])]
dt.sleuth$group <-
  factor(df.targets.short.paired$Group[match(basename(dt.sleuth$path),strsplit2(df.targets.short.paired$File1,'_')[,1])],levels = c("H1975","HCC827"))

### Filtering for sleuth similarly to edgeR and swish, i.e. by expression (according to their own method) and only genes of interest
### (see https://github.com/pachterlab/sleuth/issues/184#issuecomment-397771403)
sleuth.matrix <-
  sleuth_prep(sample_to_covariates = dt.sleuth,normalize = FALSE,filter_fun = function(x){TRUE})

Warning in check_num_cores(num_cores): It appears that you are running Sleuth from within Rstudio.
Because of concerns with forking processes from a GUI, 'num_cores' is being set to 1.
If you wish to take advantage of multiple cores, please consider running sleuth from the command line.

reading in kallisto results

dropping unused factor levels

......
227223 targets passed the filter

sleuth.matrix <-
  sleuth_to_matrix(sleuth.matrix, "obs_raw", "est_counts")

Warning: `select_()` was deprecated in dplyr 0.7.0.
ℹ Please use `select()` instead.
ℹ The deprecated feature was likely used in the sleuth package.
  Please report the issue at <]8;;https://github.com/pachterlab/sleuth/issueshttps://github.com/pachterlab/sleuth/issues]8;;>.

Warning: `spread_()` was deprecated in tidyr 1.2.0.
ℹ Please use `spread()` instead.
ℹ The deprecated feature was likely used in the sleuth package.
  Please report the issue at <]8;;https://github.com/pachterlab/sleuth/issueshttps://github.com/pachterlab/sleuth/issues]8;;>.

sleuth.rownames <- strsplit2(rownames(sleuth.matrix),"\\|")[,2]
keep.sleuth <-
  apply(sleuth.matrix,1,basic_filter) &
  dt.anno.gene$GeneOfInterest[match(sleuth.rownames ,dt.anno.gene$GENEIDVERSION)]

dte.sleuth.wald <-
  sleuth_prep(sample_to_covariates = dt.sleuth,
              full_model = ~ group,
              filter_target_id = rownames(sleuth.matrix)[keep.sleuth])

Warning in check_num_cores(num_cores): It appears that you are running Sleuth from within Rstudio.
Because of concerns with forking processes from a GUI, 'num_cores' is being set to 1.
If you wish to take advantage of multiple cores, please consider running sleuth from the command line.

reading in kallisto results
dropping unused factor levels
......
normalizing est_counts
A list of target IDs for filtering was found. Using this for filtering
57131 targets passed the filter
normalizing tpm
merging in metadata
summarizing bootstraps
......

dte.sleuth.wald <- sleuth_fit(obj = dte.sleuth.wald, fit_name = 'full')

fitting measurement error models
shrinkage estimation
3 NA values were found during variance shrinkage estimation due to mean observation values outside of the range used for the LOESS fit.
The LOESS fit will be repeated using exact computation of the fitted surface to extrapolate the missing values.
These are the target ids with NA values: ENST00000409702.1|ENSG00000150722.10|OTTHUMG00000154326.4|OTTHUMT00000334876.1|PPP1R1C-203|PPP1R1C|1157|protein_coding|, ENST00000432789.1|ENSG00000100413.17|OTTHUMG00000150971.2|OTTHUMT00000320706.1|POLR3H-207|POLR3H|1598|nonsense_mediated_decay|, ENST00000547886.5|ENSG00000079387.14|OTTHUMG00000169896.4|OTTHUMT00000406473.1|SENP1-203|SENP1|965|processed_transcript|
computing variance of betas

dte.sleuth.wald <- sleuth_wt(obj = dte.sleuth.wald,which_beta = 'groupHCC827',which_model = 'full')

out.sleuth.wald <-
  sleuth_results(obj = dte.sleuth.wald,test = 'groupHCC827',
                 test_type = 'wald',show_all = FALSE)

sleuth with LRT

We proceed similarly with sleuth using LRT.

dte.sleuth.lrt <-
  sleuth_prep(sample_to_covariates = dt.sleuth,
              full_model = ~ group,
              filter_target_id = rownames(sleuth.matrix)[keep.sleuth])

Warning in check_num_cores(num_cores): It appears that you are running Sleuth from within Rstudio.
Because of concerns with forking processes from a GUI, 'num_cores' is being set to 1.
If you wish to take advantage of multiple cores, please consider running sleuth from the command line.

reading in kallisto results

dropping unused factor levels

......
normalizing est_counts
A list of target IDs for filtering was found. Using this for filtering
57131 targets passed the filter
normalizing tpm
merging in metadata
summarizing bootstraps
......

dte.sleuth.lrt <- sleuth_fit(obj = dte.sleuth.lrt, fit_name = 'full')

fitting measurement error models
shrinkage estimation
3 NA values were found during variance shrinkage estimation due to mean observation values outside of the range used for the LOESS fit.
The LOESS fit will be repeated using exact computation of the fitted surface to extrapolate the missing values.
These are the target ids with NA values: ENST00000409702.1|ENSG00000150722.10|OTTHUMG00000154326.4|OTTHUMT00000334876.1|PPP1R1C-203|PPP1R1C|1157|protein_coding|, ENST00000432789.1|ENSG00000100413.17|OTTHUMG00000150971.2|OTTHUMT00000320706.1|POLR3H-207|POLR3H|1598|nonsense_mediated_decay|, ENST00000547886.5|ENSG00000079387.14|OTTHUMG00000169896.4|OTTHUMT00000406473.1|SENP1-203|SENP1|965|processed_transcript|
computing variance of betas

dte.sleuth.lrt <-
  sleuth_fit(obj = dte.sleuth.lrt,formula = ~ 1,fit_name = 'reduced')

fitting measurement error models
shrinkage estimation
3 NA values were found during variance shrinkage estimation due to mean observation values outside of the range used for the LOESS fit.
The LOESS fit will be repeated using exact computation of the fitted surface to extrapolate the missing values.
These are the target ids with NA values: ENST00000409702.1|ENSG00000150722.10|OTTHUMG00000154326.4|OTTHUMT00000334876.1|PPP1R1C-203|PPP1R1C|1157|protein_coding|, ENST00000432789.1|ENSG00000100413.17|OTTHUMG00000150971.2|OTTHUMT00000320706.1|POLR3H-207|POLR3H|1598|nonsense_mediated_decay|, ENST00000547886.5|ENSG00000079387.14|OTTHUMG00000169896.4|OTTHUMT00000406473.1|SENP1-203|SENP1|965|processed_transcript|
computing variance of betas

dte.sleuth.lrt <-
  sleuth_lrt(obj = dte.sleuth.lrt,null_model = 'reduced',alt_model = 'full')

out.sleuth.lrt <-
  sleuth_results(obj = dte.sleuth.lrt,
                 test = 'reduced:full',test_type = 'lrt',show_all = FALSE)

Differential gene expression analysis

Now, we perform a gene-level analysis of the same data.

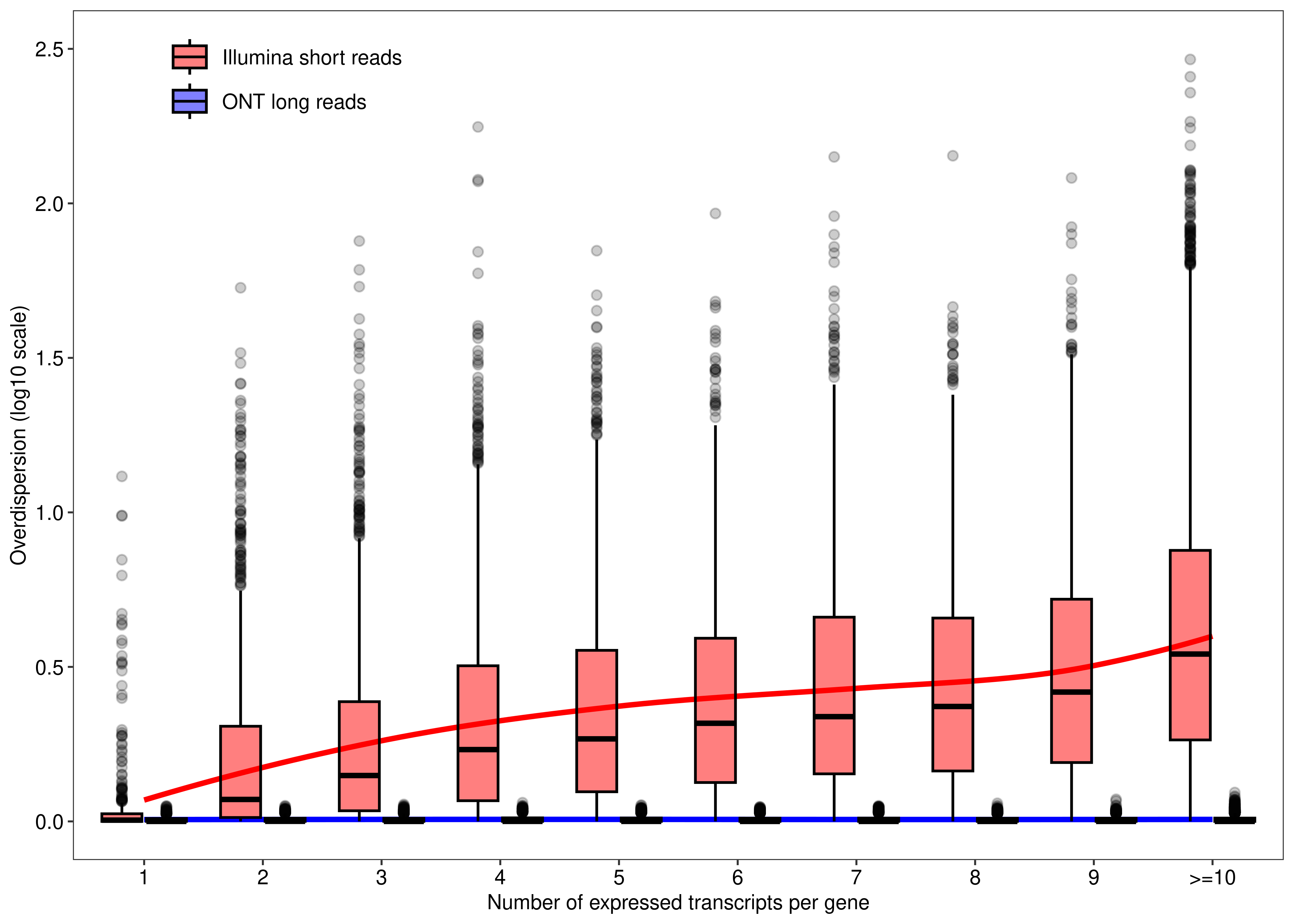

The function below computes estimates the mapping ambiguity overdispersion parameter at the level of gene-wise counts. It implements the exact same formula from catchSalmon, but it instead uses the aggregated counts at the gene-level from tximport::summarizeToGene.

## Function with catchSalmon's estimator for gene-level counts
## To be used only for exploratory purposes
geneLevelCatchSalmon <- function(x) {
  NSamples <- ncol(x)
  NBoot <- sum(grepl('infRep', assayNames(x)))
  NTx <- nrow(x)
  DF <- rep_len(0L, NTx)
  OverDisp <- rep_len(0, NTx)

  for (i.samples in 1:NSamples) {
    Boot <- lapply(1:NBoot, function(i.boot) {
      assay(x, paste0('infRep', i.boot))[, i.samples]
    })
    Boot <- do.call(cbind, Boot)
    M <- rowMeans(Boot)
    i <- (M > 0)
    OverDisp[i] <- OverDisp[i] + rowSums((Boot[i,] - M[i]) ^ 2) / M[i]
    DF[i] <- DF[i] + NBoot - 1L
  }
  i <- (DF > 0L)
  OverDisp[i] <- OverDisp[i] / DF[i]
  DFMedian <- median(DF[i])
  DFPrior <- 3
  OverDispPrior <-
    median(OverDisp[i]) / qf(0.5, df1 = DFMedian, df2 = DFPrior)
  if (OverDispPrior < 1) {
    OverDispPrior <- 1
  }
  OverDisp[i] <-
    (DFPrior * OverDispPrior + DF[i] * OverDisp[i]) / (DFPrior + DF[i])
  OverDisp <- pmax(OverDisp, 1)
  OverDisp[!i] <- OverDispPrior
  rowData(x)$Overdispersion <- OverDisp
  return(x)
}

edgeR

We summarize counts to the gene-level below and run the standard edgeR QL pipeline. We note here that the reason why tximeta Love et al. (2020) reports 160 missing transcripts is because we quantified such RNA-seq dataset with the spiked-in sequins transcripts added to the transcriptomic index (see here), which are not present in the Ensembl annotation we get from AnnotationHub. We are ignoring such transcripts in this report.

txm <- tximeta(coldata = dt.swish[,c('files','names')],
               tx2gene = dt.anno[,c('TXIDVERSION','GENEIDVERSION')],
               txOut = FALSE, skipMeta = TRUE, ignoreAfterBar = TRUE)

reading in files with read_tsv

1 2 3 4 5 6
removing duplicated transcript rows from tx2gene
transcripts missing from tx2gene: 160
summarizing abundance
summarizing counts
summarizing length
summarizing inferential replicates

txm <- geneLevelCatchSalmon(txm)

dge <- DGEList(counts = assay(txm,'counts'),
               samples = dt.swish,
               genes = as.data.frame(rowData(txm)))

key.gene <- match(rownames(dge),dt.anno.gene$GENEIDVERSION)

dge$genes$EntrezID <- dt.anno.gene$ENTREZID[key.gene]
dge$genes$GeneName <- dt.anno.gene$GENENAME[key.gene]
dge$genes$GeneType <- dt.anno.gene$GENEBIOTYPE[key.gene]
dge$genes$GeneOfInterest <- dt.anno.gene$GeneOfInterest[key.gene]

keep.gene <- filterByExpr(dge) & dge$genes$GeneOfInterest == TRUE

dge.filtr <- dge[keep.gene, , keep.lib.sizes = FALSE]
dge.filtr <- calcNormFactors(dge.filtr)
dge.filtr <- estimateDisp(dge.filtr, design = design.short.paired, robust = TRUE)

fit.gene <- glmQLFit(dge.filtr,design.short.paired, robust = TRUE)

qlf.gene <- glmQLFTest(fit.gene,contrast = contr)

out.gene <- topTags(qlf.gene,n = Inf)

summary(decideTests(qlf.gene))

       -1*H1975 1*HCC827
Down                5634
NotSig              2739
Up                  5459

Analysis of Illumina single-end short reads

Similarly to the paired-end read data, we now run a transcript-level DE analysis using the single-end read data. We note that such dataset only contains 2 biological replicates per group, whereas the paired-end data had 3 biological replicates per group.

Differential transcript expression analysis

edgeR with count scaling

dte.short.single.edger.scaled <- dte.short.single

dte.short.single.edger.scaled$counts <-
  dte.short.single.edger.scaled$counts/dte.short.single.edger.scaled$genes$Overdispersion

keep.short.single.edger.scaled <-
  filterByExpr(dte.short.single.edger.scaled) &
  (dte.short.single.edger.scaled$genes$GeneOfInterest == TRUE)

dte.short.single.edger.scaled.filtr <-
  dte.short.single.edger.scaled[keep.short.single.edger.scaled,, keep.lib.sizes = FALSE]

dte.short.single.edger.scaled.filtr <-
  calcNormFactors(dte.short.single.edger.scaled.filtr)

dte.short.single.edger.scaled.filtr <-
  estimateDisp(dte.short.single.edger.scaled.filtr,design = design.short.single,robust = TRUE)

fit.short.single.edger.scaled <-
  glmQLFit(dte.short.single.edger.scaled.filtr,design.short.single,robust = TRUE)

qlf.short.single.edger.scaled <-
  glmQLFTest(fit.short.single.edger.scaled,contrast = contr)

out.short.single.edger.scaled <-
  topTags(qlf.short.single.edger.scaled,n = Inf)

summary(decideTests(qlf.short.single.edger.scaled))

       -1*H1975 1*HCC827
Down                5401
NotSig             17587
Up                  5067

Analysis of ONT long reads

Finally, we run a transcript-level analysis with ONT long read data using raw counts from Salmon.

Differential transcript expression analysis

edgeR

keep.long <- filterByExpr(dte.long) & dte.long$genes$GeneOfInterest == TRUE

dte.long.filtr <- dte.long[keep.long,, keep.lib.sizes = FALSE]

dte.long.filtr <- calcNormFactors(dte.long.filtr)
dte.long.filtr <- estimateDisp(dte.long.filtr,design = design.long,robust = TRUE)

fit.long <- glmQLFit(dte.long.filtr,design.long,robust = TRUE)
qlf.long <- glmQLFTest(fit.long,contrast = contr)
out.long <- topTags(qlf.long,n = Inf)
summary(decideTests(qlf.long))

       -1*H1975 1*HCC827
Down               13671
NotSig             23593
Up                 14146

Results

Comparison of DTE methods using long reads as gold-standard

We first put all the results in a single data frame.

df.bench <- data.table(TranscriptID = rownames(out.long),
                       GeneID = out.long$table$GeneID,
                       GeneSymbol = out.long$table$GeneSymbol,
                       LongRead.FDR = out.long$table$FDR)

df.bench$edgeR.SE.Scaled.FDR <-
  out.short.single.edger.scaled$table$FDR[match(df.bench$TranscriptID,rownames(out.short.single.edger.scaled))]

df.bench$edgeR.PE.Scaled.FDR <-
  out.short.paired.edger.scaled$table$FDR[match(df.bench$TranscriptID,rownames(out.short.paired.edger.scaled))]

df.bench$edgeR.PE.Raw.FDR <-
  out.short.paired.edger.raw$table$FDR[match(df.bench$TranscriptID,rownames(out.short.paired.edger.raw))]

df.bench$swish.FDR <-
  out.swish$qvalue[match(df.bench$TranscriptID,rownames(out.swish))]

df.bench$sleuth.wald.FDR <-
  out.sleuth.wald$qval[match(df.bench$TranscriptID,strsplit2(out.sleuth.wald$target_id,"\\|")[,1])]

df.bench$sleuth.lrt.FDR <- out.sleuth.lrt$qval[match(df.bench$TranscriptID,strsplit2(out.sleuth.lrt$target_id,"\\|")[,1])]

df.bench[is.na(df.bench)] <- 1

Then, we check how many DE transcripts called using ONT long read data are also called by the DTE methods using short reads data.

foo.power <- function(target,reference,FDR = 0.05){
  tb <- table(reference < FDR,target < FDR)
  c(tb[2,2],tb[2,2]/sum(tb[2,]))
}

df.bench[,lapply(.SD,foo.power,reference = df.bench$LongRead.FDR),
         .SDcols = c('edgeR.SE.Scaled.FDR','edgeR.PE.Scaled.FDR',
                     'edgeR.PE.Raw.FDR','swish.FDR',
                     'sleuth.wald.FDR','sleuth.lrt.FDR')]

   edgeR.SE.Scaled.FDR edgeR.PE.Scaled.FDR edgeR.PE.Raw.FDR    swish.FDR
1:        5734.0000000         1.17800e+04     1.114800e+04 7836.0000000
2:           0.2061329         4.23482e-01     4.007621e-01    0.2816982
   sleuth.wald.FDR sleuth.lrt.FDR
1:    1.020600e+04    1.07960e+04
2:    3.668979e-01    3.88108e-01

Differential isoform expression for genes KRAS (Entrez ID 3845) and PD-L1 (CD274, Entrez ID 29126) has been previously identified in the literature (Yang and Kim (2018) Qu et al. (2021)):

df.bench[df.bench$GeneSymbol %in% c('KRAS','CD274'),]

        TranscriptID             GeneID GeneSymbol LongRead.FDR
1: ENST00000256078.9 ENSG00000133703.12       KRAS  0.005625001
2: ENST00000381577.4 ENSG00000120217.14      CD274  0.112219353
3: ENST00000311936.8 ENSG00000133703.12       KRAS  0.262346227
4: ENST00000381573.8 ENSG00000120217.14      CD274  0.414941458
   edgeR.SE.Scaled.FDR edgeR.PE.Scaled.FDR edgeR.PE.Raw.FDR swish.FDR
1:        4.438211e-03        0.0006684569      0.006746031 0.1269837
2:        5.203877e-01        0.0054850903      0.067250683 0.1336139
3:        5.780247e-06        0.7044697409      0.769575093 0.8352103
4:        1.000000e+00        1.0000000000      1.000000000 1.0000000
   sleuth.wald.FDR sleuth.lrt.FDR
1:     0.000108482    0.005220296
2:     0.025719153    0.028812393
3:     0.842825570    0.035237275
4:     1.000000000    1.000000000

Comparison of short and long read mapping ambiguity overdispersions

We begin by assessing the mapping ambiguity overdispersion parameter of each transcript (y-axis) according the number of expressed transcripts associated with their parent gene (x-axis). This is Figure 1 of the main paper.

dt.mao.plot <- as.data.table(dte.short.paired.edger.scaled.filtr$genes)

dt.mao.plot$TranscriptID <- rownames(dte.short.paired.edger.scaled.filtr)

dt.mao.plot$LR.Overdispersion <-
  dte.long$genes$Overdispersion[match(dt.mao.plot$TranscriptID,rownames(dte.long$genes))]

dt.mao.plot[,NTranscriptPerGeneTrunc :=
              ifelse(NTranscriptPerGene<10,NTranscriptPerGene,paste0('>=10'))]

dt.mao.plot$NTranscriptPerGeneTrunc %<>% factor(levels = paste0(c(1:10,'>=10')))

# Number of transcripts from single-transcript genes
dt.mao.plot[NTranscriptPerGene == 1,
            .(.N,sum(NTranscriptPerGene == 1 & Overdispersion>(1/0.9))/sum(NTranscriptPerGene == 1))]

     N        V2
1: 813 0.1057811

# Number of transcripts from multi-transcript genes
dt.mao.plot[NTranscriptPerGene > 1,
            .(.N,sum(NTranscriptPerGene > 1 & Overdispersion>(1/0.9))/sum(NTranscriptPerGene > 1))]

       N        V2
1: 26553 0.9001243

# Number of transcripts from transcript-rich genes (#tx>10)
dt.mao.plot[NTranscriptPerGene >= 10,
            .(NGeneID = length(unique(GeneID)),
              NTranscriptID = .N,mean(Overdispersion))]

   NGeneID NTranscriptID       V3
1:    4687         13527 6.752402

dt.mao.plot.long <-
  melt(dt.mao.plot,
       id.vars = c('TranscriptID','NTranscriptPerGeneTrunc'),
       measure.vars = c('Overdispersion','LR.Overdispersion'),
       variable.name = 'Type',value.name = 'Overdispersion')
dt.mao.plot.long$Type %<>%
  mapvalues(from = c('Overdispersion','LR.Overdispersion'),
            to = c('Illumina short reads','ONT long reads'))

plot.mao <-
  ggplot(data = dt.mao.plot.long,aes(x = NTranscriptPerGeneTrunc,y = log10(Overdispersion))) +
  geom_smooth(aes(group = Type,color = Type),se = FALSE,span = 0.8,method = 'loess',show.legend = FALSE) +
  geom_boxplot(aes(fill = Type),outlier.alpha = 0.2,col = 'black',alpha = 0.5) +
  labs(x = 'Number of expressed transcripts per gene', y = 'Overdispersion (log10 scale)') +
  scale_y_continuous(limits = c(0,2.5),breaks = seq(0,3,0.5)) +
  scale_fill_manual(values = c('Illumina short reads' = 'red','ONT long reads' = 'blue')) +
  scale_color_manual(values = c('Illumina short reads' = 'red','ONT long reads' = 'blue')) +
  theme_bw(base_size = 8,base_family = 'sans') +
  theme(panel.grid = element_blank(),
        axis.text = element_text(colour = 'black', size = 8),
        legend.title = element_blank(),
        legend.position = c(0.175, 0.925),
        legend.text = element_text(colour = 'black', size = 8),
        legend.background = element_rect(fill = alpha("white", 0)))

plot.mao

`geom_smooth()` using formula = 'y ~ x'

Past versions of casestudy_res_overdispersion-1.png

Version	Author	Date
1839ef1	Pedro Baldoni	2023-02-23

agg_png(filename = file.path(path.misc,"figure1.png"),
        width = 5,height = 5,units = 'in',res = 300)
plot.mao

`geom_smooth()` using formula = 'y ~ x'

dev.off()

png
  2

Comparison of transcript-level and gene-level results using paired-end read data

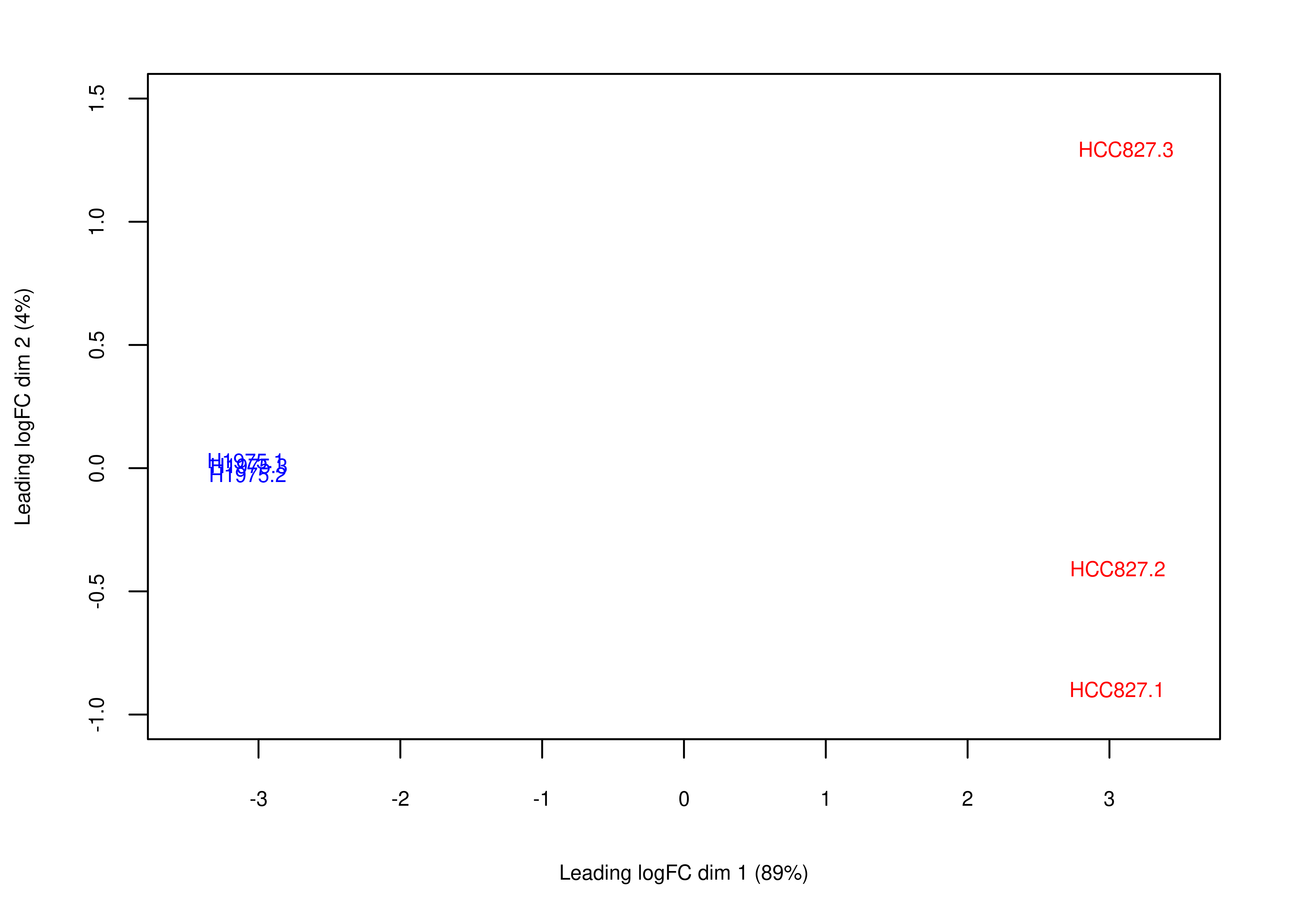

Then, we generate Figure 6 of the main paper below. First we generate panel (a).

# plotMDS returns invisible(), we need to manually export the plot (code from limma::plotMDS.MDS)
foo.mds <- function(x,fontsize = 8){
  obj.mds <- plotMDS(x,col = x$samples$Color,main = NULL)
  par(mar = c(5, 4, 2, 2))
  labels <- colnames(obj.mds$distance.matrix.squared)
  StringRadius <- 0.15 * 1 * nchar(labels)
  left.x <- obj.mds$x - StringRadius
  right.x <- obj.mds$x + StringRadius
  Perc <- round(obj.mds$var.explained * 100)
  xlab <- paste(obj.mds$axislabel, 1)
  ylab <- paste(obj.mds$axislabel, 2)
  xlab <- paste0(xlab, " (", Perc[1], "%)")
  ylab <- paste0(ylab, " (", Perc[2], "%)")

  plot(c(-3.5, 3.5), c(-1, 1.5),
       type = "n",xlab = xlab,ylab = ylab,
       cex.lab = fontsize/12,
       cex.axis = fontsize/12)
  text(obj.mds$x, obj.mds$y, labels = labels, cex = fontsize/12,col = x$samples$Color)
}

plot.mds <- wrap_elements(full = ~foo.mds(dte.short.paired.edger.scaled.filtr))

plot.mds

Past versions of casestudy_res_txgene_mds-1.png

Version	Author	Date
1839ef1	Pedro Baldoni	2023-02-23

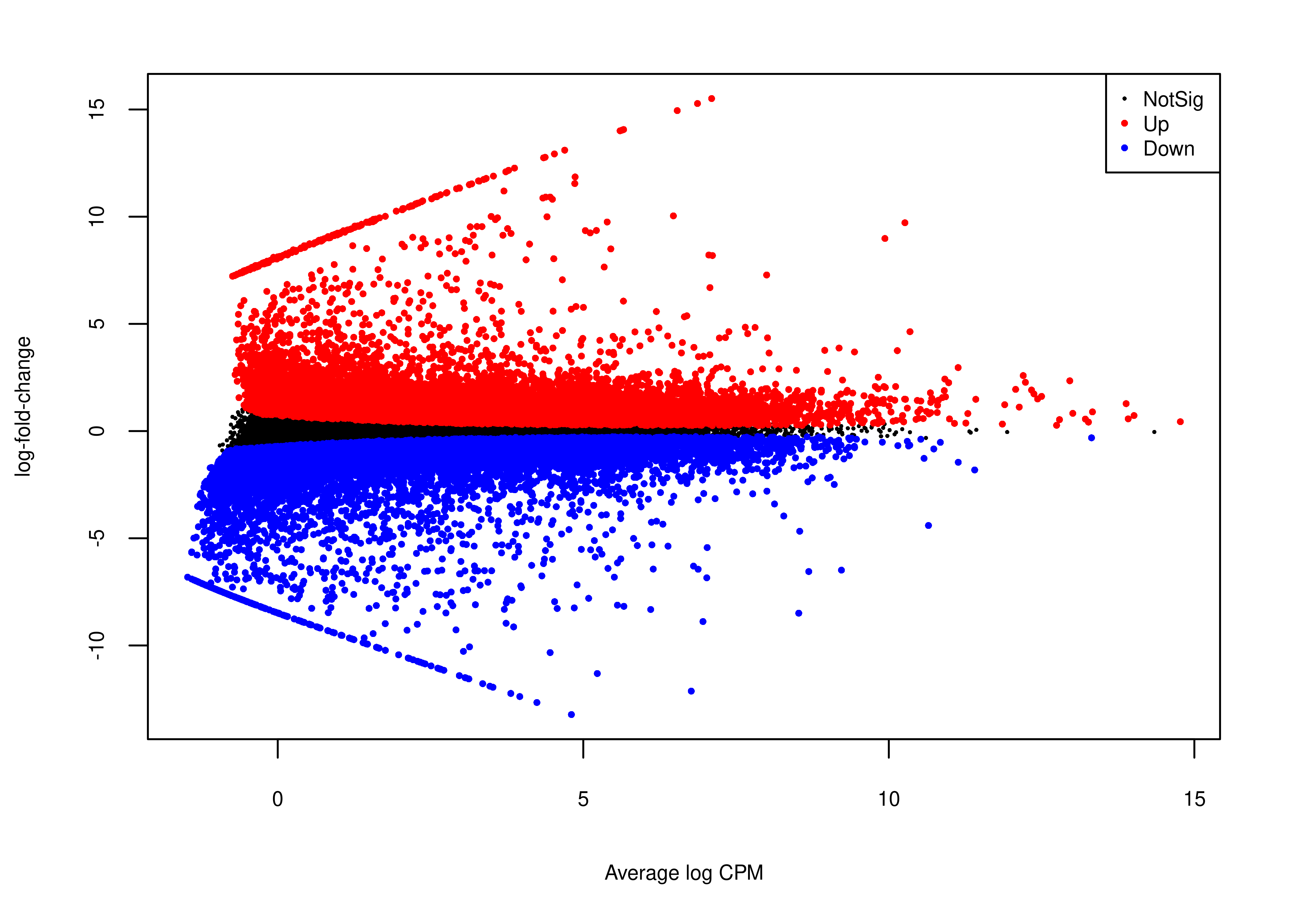

Next, we generate panel (b).

# plotMD does not return invisible(), so we just use wrap_elements
foo.md <- function(x,fontsize = 8){
  par(mar = c(5, 4, 2, 2))
  plotMD(x,
         main = NULL,cex = 0.5,legend = FALSE,
         cex.lab = fontsize/12,
         cex.axis = fontsize/12)
  legend('topright',
         legend = c('NotSig','Up','Down'),
         pch = rep(16,3),
         col = c('black','red','blue'),
         cex = fontsize/12,
         pt.cex = c(0.3,0.5,0.5))
}
plot.md <-
  wrap_elements(full = ~foo.md(qlf.short.paired.edger.scaled))

plot.md

Past versions of casestudy_res_txgene_md-1.png

Version	Author	Date
1839ef1	Pedro Baldoni	2023-02-23

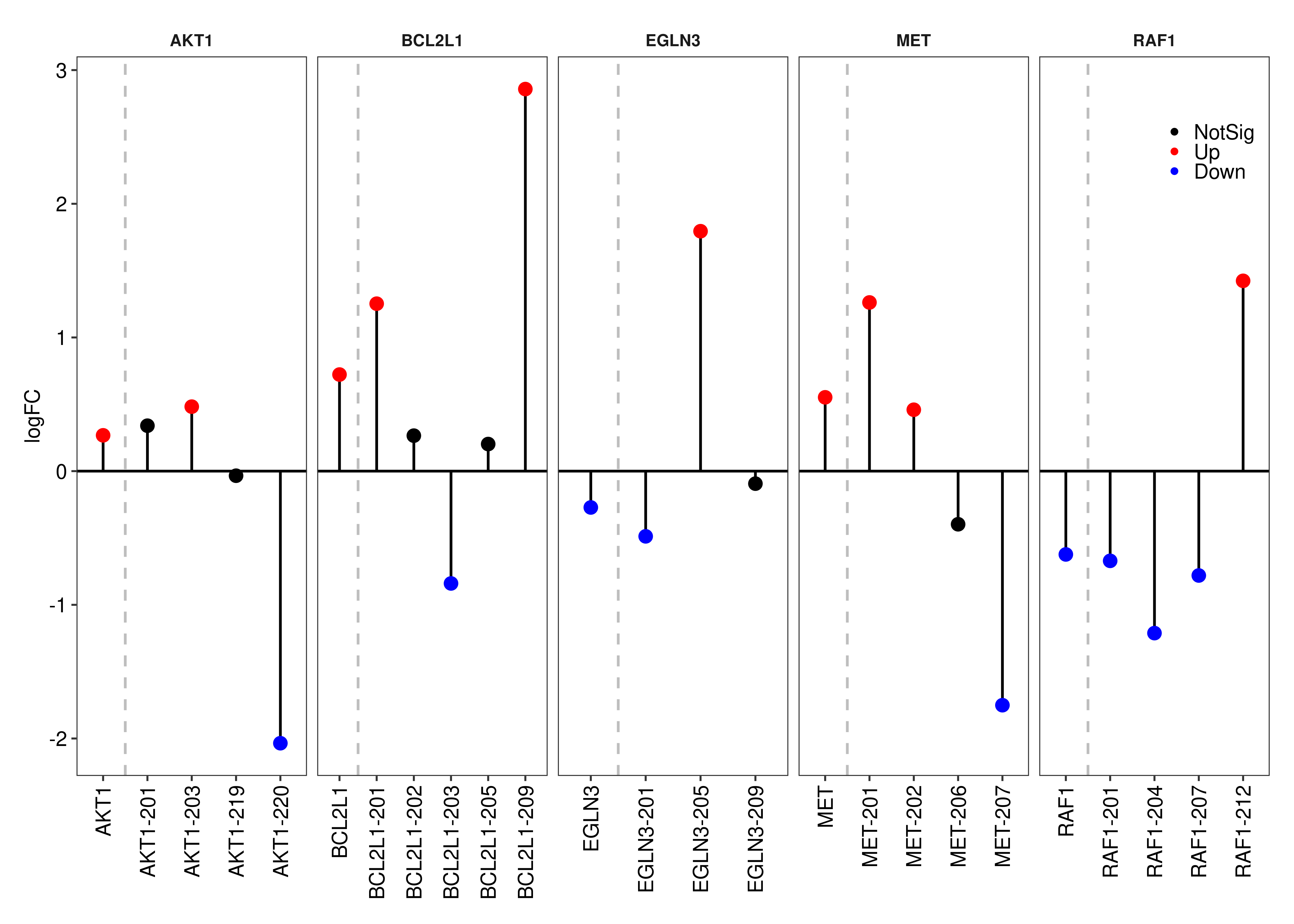

Panel (c) is created below.

foo.lolipop <-
  function(symbols,gene.table,transcript.table, fontsize = 8,
           legend = c(0.9,0.9),
           colornames = c('NotSig' = 'black','Up' = 'red','Down' = 'blue')){

    ls.loli <- lapply(symbols,function(x){
      df.loli <-
        rbind(as.data.table(transcript.table$table[transcript.table$table$GeneSymbol == x,c('TranscriptSymbol','FDR','logFC')]),
              as.data.table(gene.table$table[gene.table$table$GeneName == x,c("FDR","logFC")]),fill = TRUE)
      df.loli[is.na(df.loli)] <- x
      df.loli$Color <- ifelse(df.loli$FDR > 0.05,'NotSig',ifelse(df.loli$logFC < 0,'Down','Up'))
      df.loli <- df.loli[order(df.loli$TranscriptSymbol),]
      df.loli$Gene <- x
      return(df.loli)
    })

    ls.loli <- do.call(rbind,ls.loli)

    ls.loli$Color <- factor(ls.loli$Color,levels = names(colornames))

    ggplot(data = ls.loli,aes(x = TranscriptSymbol,xend = TranscriptSymbol,yend = 0,y = logFC)) +
      facet_wrap('Gene',nrow = 1,scales = 'free_x') +
      geom_segment(color = 'black') +
      geom_point(size = 2,aes(color = Color)) +
      geom_hline(yintercept = 0) +
      geom_vline(xintercept = 1.5,linetype = 'dashed',color = 'gray') +
      scale_color_manual(values = colornames) +
      labs(x = NULL) +
      theme_bw(base_size = fontsize,base_family = 'sans') +
      theme(panel.grid = element_blank(),
            strip.background = element_blank(),
            strip.text = element_text(face = 'bold'),
            axis.text = element_text(colour = 'black',size = fontsize),
            legend.position = legend,
            axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1),
            legend.title = element_blank(),
            legend.text = element_text(colour = 'black',size = fontsize),
            legend.background=element_rect(fill = alpha("white", 0))) +
      guides(colour = guide_legend(keywidth=0.1,
                                   keyheight=0.1,
                                   default.unit="inch",
                                   override.aes = list(size = 0.75)))
  }

plot.lolipop <- wrap_elements(foo.lolipop(symbols = c('EGLN3','RAF1','MET','AKT1','BCL2L1'),
                                          gene.table = out.gene,
                                          transcript.table = out.short.paired.edger.scaled,legend = c(0.95,0.875)))
plot.lolipop

Past versions of casestudy_res_txgene_loliplot-1.png

Version	Author	Date
1839ef1	Pedro Baldoni	2023-02-23

Finally, we create panel (d). We use that package ComplexHeatmap Gu, Eils, and Schlesner (2016) to create the heatmap plot.

cpm.scaled <- cpm(dte.short.paired.edger.scaled.filtr,log = TRUE)
cpm.scaled <- t(scale(t(cpm.scaled)))

## Here I want to check non-significant genes associated with cancer pathways that have at least 1 DE transcript

df.tx.gene <- out.short.paired.edger.scaled$table
df.tx.gene$FDR.Gene <-
  out.gene$table$FDR[match(df.tx.gene$GeneID,rownames(out.gene$table))]
interestGenes.ns <-
  unique(df.tx.gene[df.tx.gene$FDR.Gene > 0.05 &
                      df.tx.gene$FDR < 0.05 &
                      df.tx.gene$GeneOfInterest == TRUE,"EntrezID"])

# Number of non-significant genes for which at least one of their transcripts is DE
length(interestGenes.ns)

[1] 841

# Running KEGG analysis
GK <- getGeneKEGGLinks(species.KEGG = "hsa")

interestGenes.ns.cancer <-
  interestGenes.ns[interestGenes.ns %in%
                     GK$GeneID[GK$PathwayID %in% c('path:hsa05223','path:hsa05200')]]

# Number of non-significant genes for which at least one of their transcripts is DE
length(interestGenes.ns.cancer)

[1] 24

df.tx.gene.cancer <-
  df.tx.gene[df.tx.gene$EntrezID %in% interestGenes.ns.cancer,]

df.tx.gene.cancer <-
  df.tx.gene.cancer[df.tx.gene.cancer$FDR < 0.05,]

cpm.scaled.cancer <- cpm.scaled[rownames(df.tx.gene.cancer),]
rownames(cpm.scaled.cancer) <-
  dte.short.paired.edger.scaled.filtr$genes$TranscriptSymbol[match(rownames(cpm.scaled.cancer),rownames(dte.short.paired.edger.scaled.filtr))]

foo.heat <- function(x,cluster_rows = TRUE, fontsize = 8){
  Heatmap(matrix = x,
          heatmap_legend_param = list(title = 'Expression',
                                      title_position = 'topcenter',
                                      direction = "horizontal",
                                      at = seq(-3,3,1),
                                      title_position = 'topcenter',
                                      title_gp = gpar(fontsize = fontsize),
                                      labels_gp = gpar(fontsize = fontsize)),
          cluster_rows = cluster_rows,
          row_names_gp = gpar(fontsize = fontsize),
          column_names_gp = gpar(fontsize = fontsize),
          col = c("blue", "white", "red")) %>%
    draw(heatmap_legend_side = "top")
}

plot.heat.cancer <-
  wrap_elements(grid.grabExpr(draw(foo.heat(t(cpm.scaled.cancer)))))

Finally, we put all these plots together with the package patchwork Pedersen (2022).

plot.design <- c(area(1, 1),area(1,2),area(2,1,2,2),area(3,1,3,2))

fig.panel <- wrap_plots(A = plot.mds,
                        B = plot.md,
                        C = plot.lolipop,
                        D = plot.heat.cancer,
                        design = plot.design,
                        heights = c(0.35,0.25,0.4)) +
  plot_annotation(tag_levels = 'a')

fig.panel <- fig.panel &
  theme(plot.tag = element_text(size = 8))

agg_png(filename = '../misc/casestudy.Rmd/figure6.png',#file.path(path.misc,"figure6.png"),
        width = 10,height = 12,units = 'in',res = 300)
fig.panel
dev.off()

png
  2

For the genes presented in panel (b), below we present the results from our DE analysis at the gene-level.

tb.gene <-
  out.gene$table[out.gene$table$GeneName %in% c('EGLN3','RAF1','MET','AKT1','BCL2L1'),]

tb.gene$EnsemblID <- rownames(tb.gene)
tb.gene <- data.frame(tb.gene[,c('EnsemblID','GeneName','EntrezID','GeneType',
                                 'logFC','logCPM','F','PValue','FDR')],row.names = NULL)
setnames(tb.gene,
         old = c('EnsemblID','GeneName','EntrezID','GeneType'),
         new = c('Ensembl ID','Symbol','Entrez ID','Biotype'))

tb.gene$Biotype <- gsub("_"," ",tb.gene$Biotype)

tb.gene$logFC <- formatC(round(tb.gene$logFC,3),digits = 3,format = 'f')
tb.gene$logCPM <- formatC(round(tb.gene$logCPM,3),digits = 3,format = 'f')
tb.gene$`F` <- formatC(round(tb.gene$`F`,3),digits = 3,format = 'f')
tb.gene$PValue <- formatC(tb.gene$PValue,digits = 3,format = 'e')
tb.gene$FDR <- formatC(tb.gene$FDR,digits = 3,format = 'e')

tb.gene$Biotype <- NULL

cap.kb.gene <-
  paste('edgeR results from a DE analysis at the gene-level for',
        'a set of cancer-related genes comparing cell lines H1975 and HCC827.',
        'Data from the paired-end RNA-seq experiment of the the human cell lines (GSE172421).',
        'Such genes have at least one its transcripts differentially expressed between cell lines',
        '(nominal FDR 0.05 at the transcript-level).')

kb.gene <-
  kbl(tb.gene,
      escape = FALSE,
      format = 'latex',
      booktabs = TRUE,
      caption = cap.kb.gene,
      align = 'llcccccc') %>%
  kable_styling(font_size = 10)
save_kable(kb.gene,file = file.path(path.misc,"supptable_gene.tex"))

We can also compare the distribution of the overdispersion estimates between gene- and transcript-level analyses.

df.output.gene <-
  as.data.table(dge$genes[,c('GeneName','EntrezID','GeneType','Overdispersion')])
setnames(df.output.gene,
         old = c('GeneName','EntrezID','GeneType','Overdispersion'),
         new = c('Symbol','EntrezID','Type','Overdispersion'))
df.output.gene[,Level := 'Gene']
df.output.gene$EnsemblID <- rownames(dge)

## Transcript-level
df.output.tx <-
  data.table(Symbol = dte.short.paired.edger.scaled$genes$TranscriptSymbol,
             EntrezID = dte.short.paired.edger.scaled$genes$EntrezID,
             Type = dte.short.paired.edger.scaled$genes$GeneType,
             Overdispersion = catch.short.paired$annotation$Overdispersion,
             Level = 'Transcript',
             EnsemblID = rownames(dte.short.paired.edger.scaled$genes))


df.output.gene.tx <- rbindlist(list(df.output.gene,df.output.tx))

fig.mao.gene.tx <- ggplot(df.output.gene.tx,aes(x = log10(Overdispersion),y = Level,fill = Level)) +
  geom_boxplot(outlier.alpha = 0.25,fill = "#bebebe",col = 'black') +
  labs(y = NULL,x = 'Mapping ambiguity overdispersion (log10 scale)') +
  theme_bw(base_size = 8,base_family = 'sans') +
  theme(legend.position = 'none',
        panel.grid = element_blank(),
        axis.text = element_text(colour = 'black',size = 8))

agg_png(filename = file.path(path.misc,"suppfigure_overdispersion.png"),
        width = 7.5,height = 5,units = 'in',res = 300)
fig.mao.gene.tx
dev.off()

png
  2

Below we have a table of the top genes with highest mapping ambiguity estimated overdispersion. Most of such genes do not have an associated Entrez ID.

df.output.gene.top <-
  df.output.gene[order(-Overdispersion),][1:100,c('EnsemblID','Symbol','Type','EntrezID','Overdispersion')]
df.output.gene.top$Type <- gsub("_"," ",df.output.gene.top$Type)
df.output.gene.top$EntrezID[is.na(df.output.gene.top$EntrezID)] <- "-"

cap.mao <- paste("Top 100 genes with largest mapping ambiguity overdispersion.",
                 "Data from the RNA-seq experiment of the human cell lines",
                 "generated with paired-end reads (GSE172421).")

kb.output.gene.top <-
  kbl(df.output.gene.top,
      longtable = TRUE,
      escape = FALSE,
      format = 'latex',
      booktabs = TRUE,
      caption = cap.mao,
      digits = 2,
      align = c('lllcc'),
      col.names = c('Ensembl ID','Symbol','Entrez ID','Biotype','Overdispersion')) %>%
  kable_styling(latex_options = c("scale_down","repeat_header"),font_size = 10)

Warning in styling_latex_scale_down(out, table_info): Longtable cannot be
resized.

save_kable(kb.output.gene.top,file = file.path(path.misc,"supptable_overdispersion.tex"))

Comparison between analyses using paired- and single-end reads

Finally, we can compute how many transcripts are being called as DE using both paired- and single-end Illumina short reads. We add the transcript-level results from ONT long read data as a comparison.

tb.tx.genes <- dte.short.paired$genes

tb.tx.genes$FDR.SE <-
  out.short.single.edger.scaled$table$FDR[match(rownames(tb.tx.genes),rownames(out.short.single.edger.scaled))]

tb.tx.genes$FDR.PE <-
  out.short.paired.edger.scaled$table$FDR[match(rownames(tb.tx.genes),rownames(out.short.paired.edger.scaled))]

tb.tx.genes$FDR.LR <- out.long$table$FDR[match(rownames(tb.tx.genes),rownames(out.long))]

tb.tx.genes <- (tb.tx.genes[,c('FDR.SE','FDR.PE','FDR.LR')] < 0.05)*1L
tb.tx.genes[is.na(tb.tx.genes)] <- 0L

agg_png(filename = file.path(path.misc,"suppfigure_venn.png"),
        width = 6,height = 6,units = 'in',res = 300)
limma::vennDiagram(tb.tx.genes[,c('FDR.SE','FDR.PE','FDR.LR')],
                   names = c('Illumina\nsingle-end reads',
                             'Illumina\npaired-end reads',
                             'ONT\nlong reads'),
                   circle.col = c('salmon','red','blue'),cex = c(12,10,8)/12)
dev.off()

png
  2

And the MA plot highlighting DE transcripts called with single-end Illumina short reads is presented below.

agg_png(filename = file.path(path.misc,"suppfigure_maplot.png"),
        width = 6,height = 6,units = 'in',res = 300)
plotMD(qlf.short.single.edger.scaled,
       main = NULL,cex = 0.5,legend = FALSE,
       cex.lab = 8/12,
       cex.axis = 8/12)
legend('topright',
       legend = c('NotSig','Up','Down'),
       pch = rep(16,3),
       col = c('black','red','blue'),
       cex = 8/12,
       pt.cex = c(0.3,0.5,0.5))
dev.off()

png
  2

Gu, Zuguang, Roland Eils, and Matthias Schlesner. 2016. “Complex Heatmaps Reveal Patterns and Correlations in Multidimensional Genomic Data.” Bioinformatics 32 (18): 2847–49.

Love, Michael I, Charlotte Soneson, Peter F Hickey, Lisa K Johnson, N Tessa Pierce, Lori Shepherd, Martin Morgan, and Rob Patro. 2020. “Tximeta: Reference Sequence Checksums for Provenance Identification in RNA-Seq.” PLoS Computational Biology 16 (2): e1007664. https://doi.org/10.1371/journal.pcbi.1007664.

Pedersen, Thomas Lin. 2022. Patchwork: The Composer of Plots.

Qu, Shuang, Zichen Jiao, Geng Lu, Bing Yao, Ting Wang, Weiwei Rong, Jiahan Xu, et al. 2021. “PD-L1 lncRNA Splice Isoform Promotes Lung Adenocarcinoma Progression via Enhancing c-Myc Activity.” Genome Biology 22 (1): 1–24.

Yang, In Seok, and Sangwoo Kim. 2018. “Isoform Specific Gene Expression Analysis of KRAS in the Prognosis of Lung Adenocarcinoma Patients.” BMC Bioinformatics 19 (1): 1–10.

Session information

sessionInfo()

R version 4.2.1 (2022-06-23)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: CentOS Linux 7 (Core)

Matrix products: default
BLAS:   /stornext/System/data/apps/R/R-4.2.1/lib64/R/lib/libRblas.so
LAPACK: /stornext/System/data/apps/R/R-4.2.1/lib64/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] grid      stats4    stats     graphics  grDevices utils     datasets
[8] methods   base

other attached packages:
 [1] ensembldb_2.22.0            AnnotationFilter_1.22.0
 [3] GenomicFeatures_1.50.4      AnnotationDbi_1.60.0
 [5] kableExtra_1.3.4            magrittr_2.0.3
 [7] ggplot2_3.4.1               ragg_1.2.5
 [9] tibble_3.1.8                ComplexHeatmap_2.14.0
[11] patchwork_1.1.2             sleuth_0.30.0
[13] fishpond_2.4.1              SummarizedExperiment_1.28.0
[15] Biobase_2.58.0              GenomicRanges_1.50.2
[17] GenomeInfoDb_1.34.9         IRanges_2.32.0
[19] S4Vectors_0.36.1            MatrixGenerics_1.10.0
[21] matrixStats_0.63.0          tximeta_1.16.1
[23] data.table_1.14.6           AnnotationHub_3.6.0
[25] BiocFileCache_2.6.0         dbplyr_2.3.0
[27] BiocGenerics_0.44.0         plyr_1.8.8
[29] edgeR_3.40.2                limma_3.54.1
[31] workflowr_1.7.0

loaded via a namespace (and not attached):
  [1] circlize_0.4.15               systemfonts_1.0.4
  [3] lazyeval_0.2.2                splines_4.2.1
  [5] BiocParallel_1.32.5           digest_0.6.31
  [7] foreach_1.5.2                 htmltools_0.5.4
  [9] fansi_1.0.4                   memoise_2.0.1
 [11] svMisc_1.2.3                  cluster_2.1.4
 [13] doParallel_1.0.17             tzdb_0.3.0
 [15] readr_2.1.4                   Biostrings_2.66.0
 [17] vroom_1.6.1                   svglite_2.1.1
 [19] prettyunits_1.1.1             colorspace_2.1-0
 [21] rvest_1.0.3                   blob_1.2.3
 [23] rappdirs_0.3.3                textshaping_0.3.6
 [25] xfun_0.37                     dplyr_1.1.0
 [27] callr_3.7.3                   crayon_1.5.2
 [29] RCurl_1.98-1.10               jsonlite_1.8.4
 [31] tximport_1.26.1               iterators_1.0.14
 [33] glue_1.6.2                    gtable_0.3.1
 [35] zlibbioc_1.44.0               XVector_0.38.0
 [37] webshot_0.5.4                 GetoptLong_1.0.5
 [39] DelayedArray_0.24.0           Rhdf5lib_1.20.0
 [41] shape_1.4.6                   SingleCellExperiment_1.20.0
 [43] abind_1.4-5                   scales_1.2.1
 [45] DBI_1.1.3                     Rcpp_1.0.10
 [47] viridisLite_0.4.1             xtable_1.8-4
 [49] progress_1.2.2                clue_0.3-64
 [51] gridGraphics_0.5-1            bit_4.0.5
 [53] httr_1.4.4                    RColorBrewer_1.1-3
 [55] ellipsis_0.3.2                farver_2.1.1
 [57] pkgconfig_2.0.3               XML_3.99-0.13
 [59] sass_0.4.1                    locfit_1.5-9.7
 [61] utf8_1.2.3                    labeling_0.4.2
 [63] reshape2_1.4.4                tidyselect_1.2.0
 [65] rlang_1.0.6                   later_1.3.0
 [67] munsell_0.5.0                 BiocVersion_3.16.0
 [69] tools_4.2.1                   cachem_1.0.6
 [71] cli_3.6.0                     generics_0.1.3
 [73] RSQLite_2.2.20                evaluate_0.20
 [75] stringr_1.5.0                 fastmap_1.1.0
 [77] yaml_2.3.7                    processx_3.8.0
 [79] knitr_1.42                    bit64_4.0.5
 [81] fs_1.6.1                      purrr_1.0.1
 [83] KEGGREST_1.38.0               nlme_3.1-162
 [85] whisker_0.4.1                 mime_0.12
 [87] xml2_1.3.3                    biomaRt_2.54.0
 [89] compiler_4.2.1                rstudioapi_0.14
 [91] filelock_1.0.2                curl_5.0.0
 [93] png_0.1-8                     interactiveDisplayBase_1.36.0
 [95] statmod_1.5.0                 bslib_0.4.2
 [97] stringi_1.7.12                highr_0.10
 [99] ps_1.7.2                      lattice_0.20-45
[101] ProtGenerics_1.30.0           Matrix_1.5-3
[103] vctrs_0.5.2                   pillar_1.8.1
[105] lifecycle_1.0.3               rhdf5filters_1.10.0
[107] BiocManager_1.30.19           jquerylib_0.1.4
[109] GlobalOptions_0.1.2           bitops_1.0-7
[111] qvalue_2.30.0                 httpuv_1.6.5
[113] rtracklayer_1.58.0            R6_2.5.1
[115] BiocIO_1.8.0                  promises_1.2.0.1
[117] codetools_0.2-19              gtools_3.9.4
[119] assertthat_0.2.1              rhdf5_2.42.0
[121] rprojroot_2.0.3               rjson_0.2.21
[123] withr_2.5.0                   GenomicAlignments_1.34.0
[125] Rsamtools_2.14.0              GenomeInfoDbData_1.2.9
[127] mgcv_1.8-41                   parallel_4.2.1
[129] hms_1.1.2                     tidyr_1.3.0
[131] rmarkdown_2.20                Cairo_1.6-0
[133] git2r_0.31.0                  getPass_0.2-2
[135] shiny_1.7.4                   restfulr_0.0.15
