Examining motif clusters
Renee Matthews
2025-08-25
Last updated: 2025-09-03
Checks: 7 0
Knit directory: DXR_continue/
This reproducible R Markdown analysis was created with workflowr (version 1.7.1). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20250701) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version c572b2b. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: analysis/figure/
Ignored: data/Cormotif_data/
Ignored: data/DER_data/
Ignored: data/alignment_summary.txt
Ignored: data/all_peak_final_dataframe.txt
Ignored: data/cell_line_info_.tsv
Ignored: data/full_summary_QC_metrics.txt
Ignored: data/motif_lists/
Ignored: data/number_frag_peaks_summary.txt
Untracked files:
Untracked: analysis/proteomics.Rmd
Untracked: code/corMotifcustom.R
Untracked: code/making_analysis_file_summary.R
Unstaged changes:
Modified: analysis/Cormotif_analysis.Rmd
Modified: analysis/Cormotif_outlier_removal.Rmd
Modified: analysis/multiQC_cut_tag.Rmd
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown
(analysis/Motif_cluster_analysis.Rmd) and HTML
(docs/Motif_cluster_analysis.html) files. If you’ve
configured a remote Git repository (see ?wflow_git_remote),
click on the hyperlinks in the table below to view the files as they
were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | c572b2b | reneeisnowhere | 2025-09-03 | wflow_publish("analysis/Motif_cluster_analysis.Rmd") |
library(tidyverse)
library(readr)
library(edgeR)
library(ComplexHeatmap)
library(data.table)
library(dplyr)
library(stringr)
library(ggplot2)
library(viridis)
library(DT)
library(kableExtra)
library(genomation)
library(GenomicRanges)
library(ggpubr) ## For customizing figures
library(corrplot) ## For correlation plot
library(ggpmisc)
library(gcplyr)
library(Rsubread)
library(limma)
library(ggrastr)
library(cowplot)
library(smplot2)
library(ggVennDiagram)
library(ggsignif)
library(BiocParallel)
library(TxDb.Hsapiens.UCSC.hg38.knownGene)
library(ChIPseeker)# sampleinfo <- read_delim("data/sample_info.tsv", delim = "\t")
H3K27ac_set1 <- read_delim("data/motif_lists/H3K27ac_set1.txt",delim="\t")
H3K27ac_set2 <- read_delim("data/motif_lists/H3K27ac_set2.txt",delim="\t")
H3K27ac_set3 <- read_delim("data/motif_lists/H3K27ac_set3.txt",delim="\t")
H3K27me3_set1 <- read_delim("data/motif_lists/H3K27me3_set1.txt",delim="\t")
H3K27me3_set2 <- read_delim("data/motif_lists/H3K27me3_set2.txt",delim="\t")
H3K36me3_set1 <- read_delim("data/motif_lists/H3K36me3_set1.txt",delim="\t")
H3K36me3_set2 <- read_delim("data/motif_lists/H3K36me3_set2.txt",delim="\t")
H3K9me3_set1 <- read_delim("data/motif_lists/H3K9me3_set1.txt",delim="\t")
H3K9me3_set2 <- read_delim("data/motif_lists/H3K9me3_set2.txt",delim="\t")
H3K9me3_set3 <- read_delim("data/motif_lists/H3K9me3_set3.txt",delim="\t")
### loading filtered raw counts for visualization
H3K27ac_filt_raw_counts <- read_delim("data/DER_data/H3K27ac_filtered_raw_counts.txt",delim = "\t") %>% column_to_rownames("Peakid")
H3K27me3_filt_raw_counts <- read_delim("data/DER_data/H3K27me3_filtered_raw_counts.txt",delim = "\t")%>% column_to_rownames("Peakid")
H3K36me3_filt_raw_counts <- read_delim("data/DER_data/H3K36me3_filtered_raw_counts.txt",delim = "\t")%>% column_to_rownames("Peakid")
H3K9me3_filt_raw_counts <- read_delim( "data/DER_data/H3K9me3_filtered_raw_counts.txt",delim = "\t")%>% column_to_rownames("Peakid")
all_H3K27ac_regions <- H3K27ac_filt_raw_counts %>% rownames_to_column("Peakid") %>% distinct(Peakid)
all_H3K27me3_regions <- H3K27me3_filt_raw_counts %>% rownames_to_column("Peakid") %>% distinct(Peakid)
all_H3K36me3_regions <- H3K36me3_filt_raw_counts %>% rownames_to_column("Peakid") %>% distinct(Peakid)
all_H3K9me3_regions <- H3K9me3_filt_raw_counts %>% rownames_to_column("Peakid") %>% distinct(Peakid)
H3K27ac_filt_lcpm <- cpm(H3K27ac_filt_raw_counts, log = TRUE)
H3K27me3_filt_lcpm <- cpm(H3K27me3_filt_raw_counts, log = TRUE)
H3K36me3_filt_lcpm <- cpm(H3K36me3_filt_raw_counts, log = TRUE)
H3K9me3_filt_lcpm <- cpm(H3K9me3_filt_raw_counts, log = TRUE)
H3K9me3_toplist <- readRDS( "data/DER_data/H3K9me3_toplist_nooutlier.RDS")
H3K36me3_toplist <- readRDS( "data/DER_data/H3K36me3_toplist_nooutlier.RDS")
H3K27me3_toplist <- readRDS( "data/DER_data/H3K27me3_toplist.RDS")
H3K27ac_toplist <- readRDS( "data/DER_data/H3K27ac_toplist.RDS")
H3K27ac_toptable_list <- bind_rows(H3K27ac_toplist, .id = "group")
H3K27me3_toptable_list <- bind_rows(H3K27me3_toplist, .id = "group")
H3K36me3_toptable_list <- bind_rows(H3K36me3_toplist, .id = "group")
H3K9me3_toptable_list <- bind_rows(H3K9me3_toplist, .id = "group")H3K27ac motifs samples
Set 1
examp_H3K27ac_1 <-#slice_sample(H3K27ac_set1,n = 3, replace=FALSE)
c("chr1:77923740-77924468","chr20:25484622-25485357","chr1:229148017-229149226")
examp_H3K27ac_2 <-#slice_sample(H3K27ac_set2,n = 3, replace=FALSE)
c("chr5:85451856-85453893","chr10:114271262-114272616", "chr3:63343167-63344341" )
examp_H3K27ac_3 <- #slice_sample(H3K27ac_set3,n = 3, replace=FALSE)
c("chr8:8664034-8666371","chr3:141152796-141154087","chr21:43701994-43704465")
H3K27ac_filt_lcpm %>%
as.data.frame() %>%
rownames_to_column("Peakid") %>%
dplyr::filter(Peakid %in% examp_H3K27ac_1) %>%
###pivot and add additional information from dataframe
pivot_longer(., cols = !Peakid, names_to = "sample", values_to = "lcpm" ) %>%
separate_wider_delim(., cols=sample, delim="_", names=c("ind","tx","time")) %>%
mutate(ind=factor(ind, levels=c("Ind1", "Ind2", "Ind3", "Ind4","Ind5")),
tx=factor(tx,levels = c("DOX","VEH")),
time=factor(time, levels=c("24T","24R","144R")),
group_graph= paste0(tx, "_", time),
group=paste0("H3K27ac_",time),
group_graph = factor(group_graph, levels = c(
"DOX_24T", "VEH_24T",
"DOX_24R", "VEH_24R",
"DOX_144R", "VEH_144R"))) %>%
ggplot(., aes(x=group_graph, y=lcpm)) +
geom_boxplot(aes(fill=tx))+
facet_wrap(~Peakid, scales="free")+
theme_bw()+
theme(axis.text.x=element_text(angle = 90))+

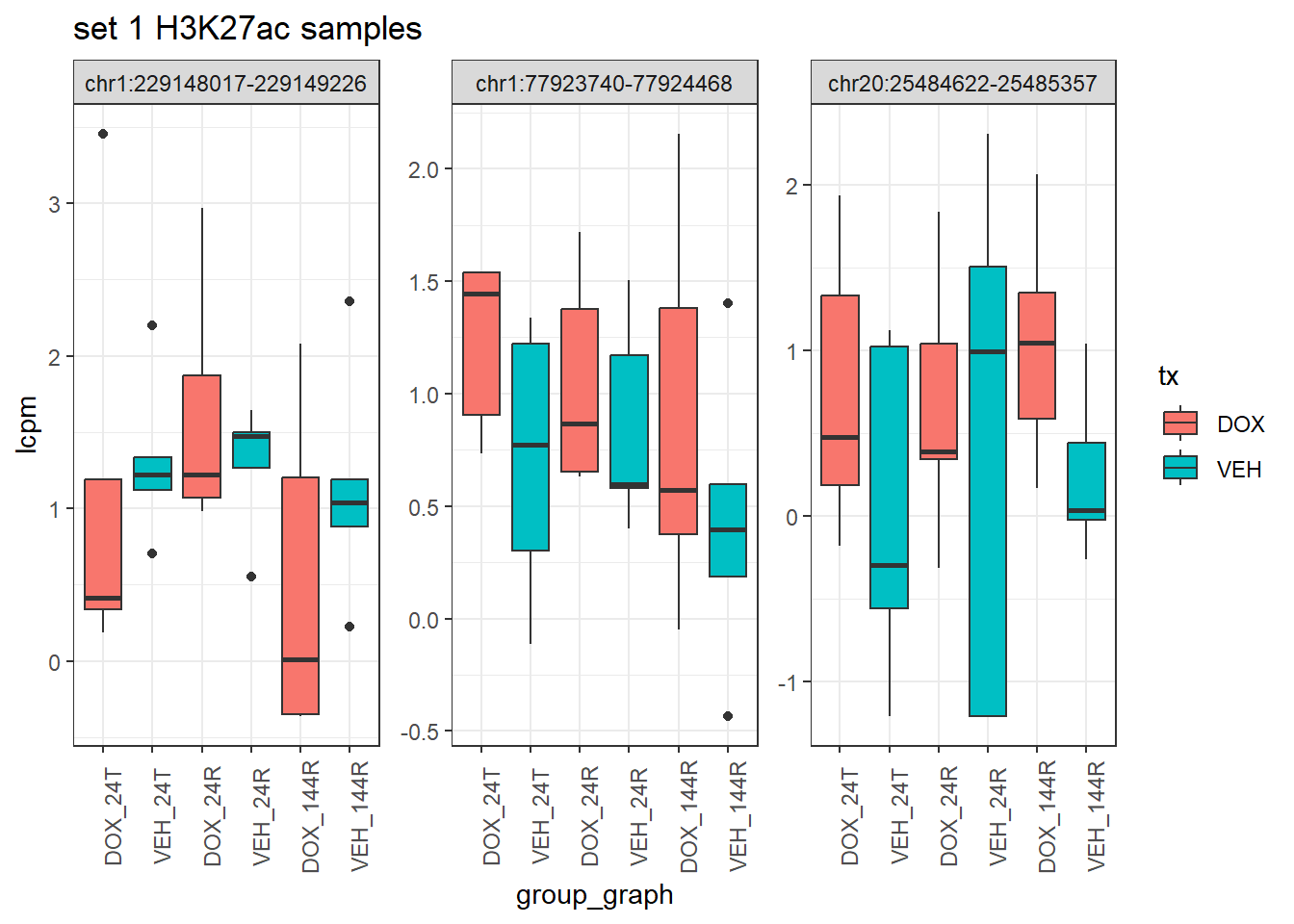

ggtitle("set 1 H3K27ac samples")

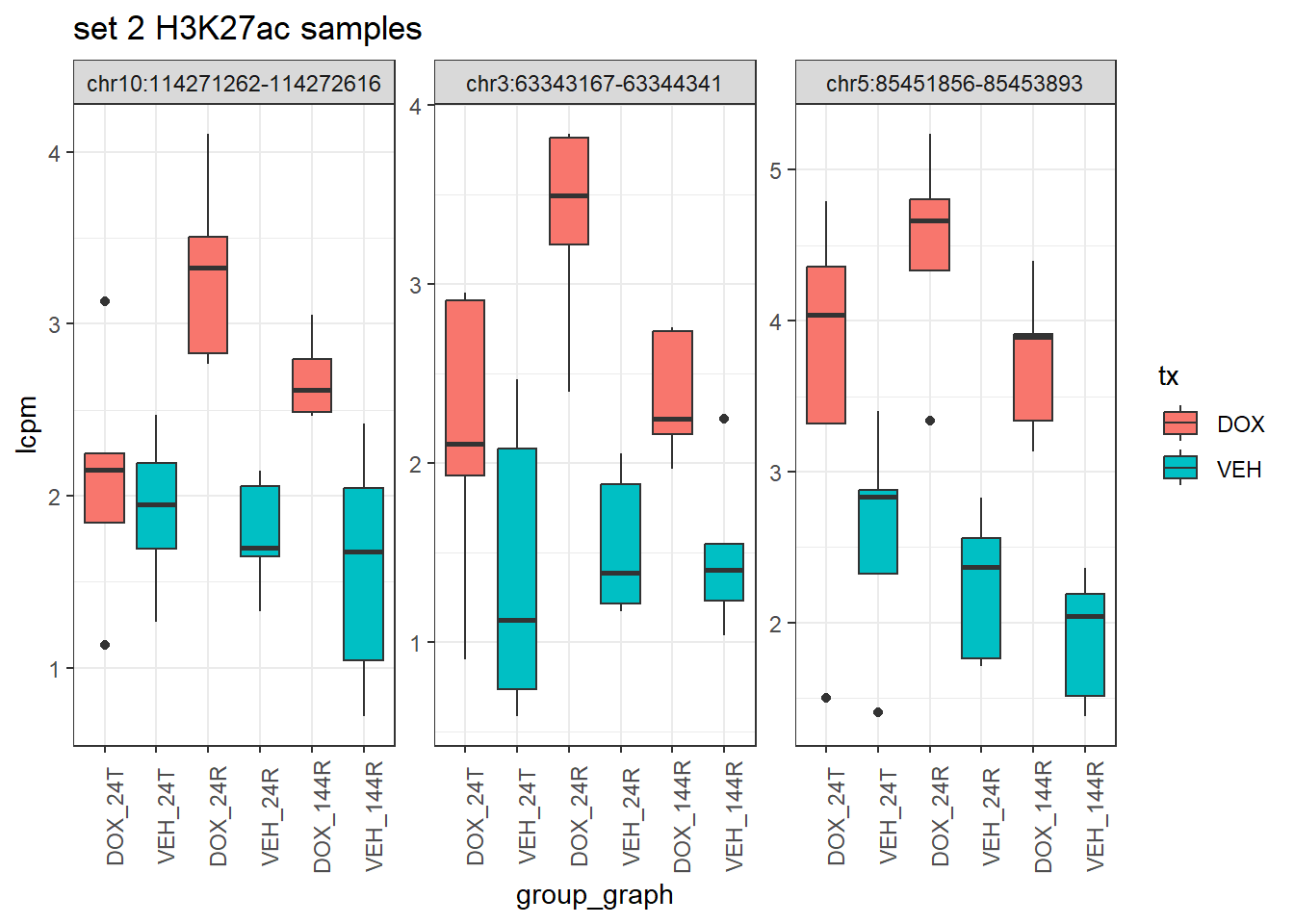

Set 2
H3K27ac_filt_lcpm %>%
as.data.frame() %>%
dplyr::filter(row.names(H3K27ac_filt_lcpm) %in% examp_H3K27ac_2) %>%
###pivot and add additional information from dataframe
rownames_to_column("Peakid") %>%
pivot_longer(., cols = !Peakid, names_to = "sample", values_to = "lcpm" ) %>%
separate_wider_delim(., cols=sample, delim="_", names=c("ind","tx","time")) %>%
mutate(ind=factor(ind, levels=c("Ind1", "Ind2", "Ind3", "Ind4","Ind5")),
tx=factor(tx,levels = c("DOX","VEH")),
time=factor(time, levels=c("24T","24R","144R")),
group_graph= paste0(tx, "_", time),
group=paste0("H3K27ac_",time),
group_graph = factor(group_graph, levels = c(
"DOX_24T", "VEH_24T",
"DOX_24R", "VEH_24R",
"DOX_144R", "VEH_144R"))) %>%
ggplot(., aes(x=group_graph, y=lcpm)) +
geom_boxplot(aes(fill=tx))+
facet_wrap(~Peakid, scales="free")+
theme_bw()+
theme(axis.text.x=element_text(angle = 90))+
ggtitle("set 2 H3K27ac samples")

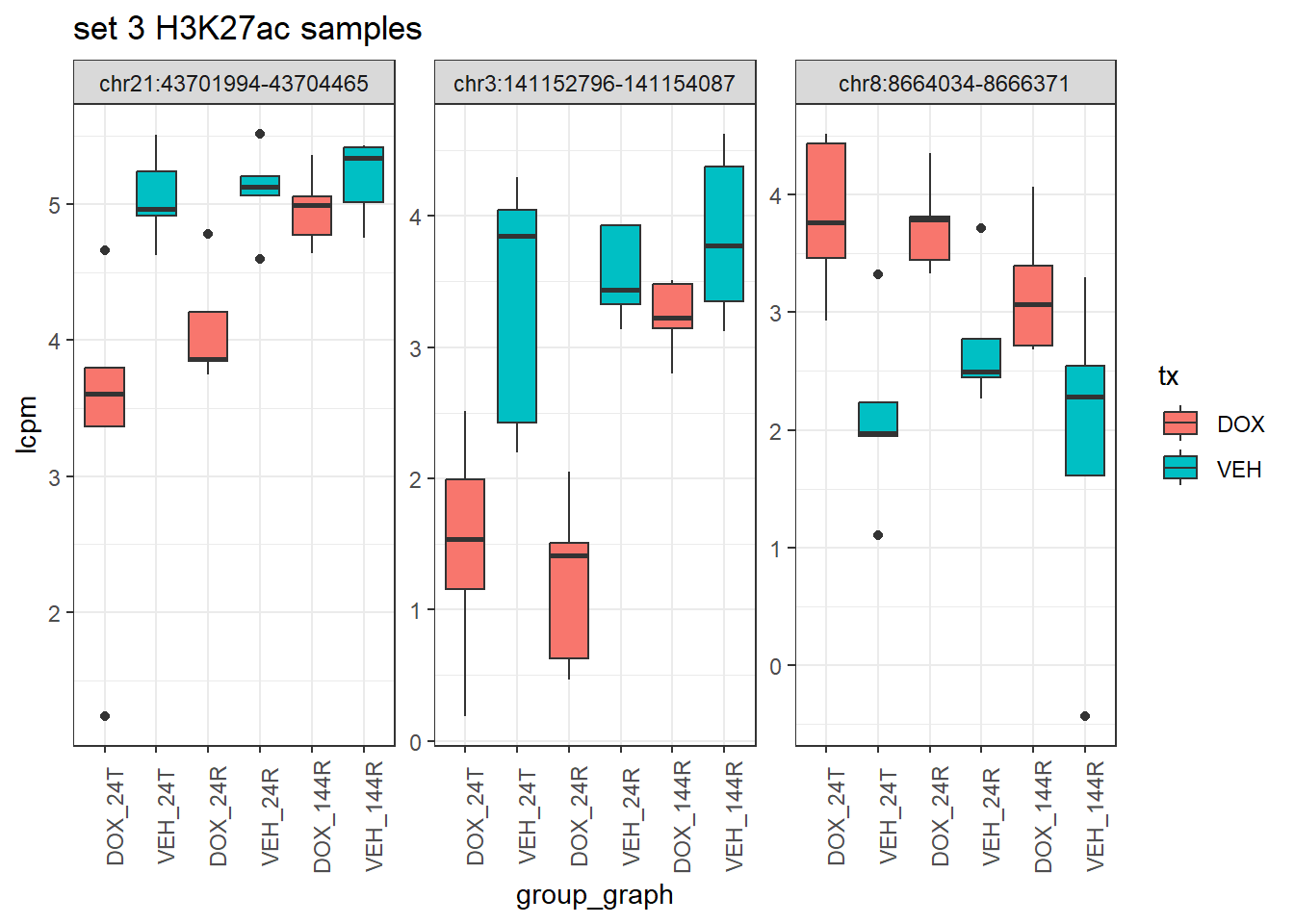

Set 3
H3K27ac_filt_lcpm %>%
as.data.frame() %>%
dplyr::filter(row.names(H3K27ac_filt_lcpm) %in% examp_H3K27ac_3) %>%
###pivot and add additional information from dataframe
rownames_to_column("Peakid") %>%
pivot_longer(., cols = !Peakid, names_to = "sample", values_to = "lcpm" ) %>%
separate_wider_delim(., cols=sample, delim="_", names=c("ind","tx","time")) %>%
mutate(ind=factor(ind, levels=c("Ind1", "Ind2", "Ind3", "Ind4","Ind5")),
tx=factor(tx,levels = c("DOX","VEH")),
time=factor(time, levels=c("24T","24R","144R")),
group_graph= paste0(tx, "_", time),
group=paste0("H3K27ac_",time),
group_graph = factor(group_graph, levels = c(
"DOX_24T", "VEH_24T",
"DOX_24R", "VEH_24R",
"DOX_144R", "VEH_144R"))) %>%
ggplot(., aes(x=group_graph, y=lcpm)) +
geom_boxplot(aes(fill=tx))+
facet_wrap(~Peakid, scales="free")+
theme_bw()+
theme(axis.text.x=element_text(angle = 90))+
ggtitle("set 3 H3K27ac samples")

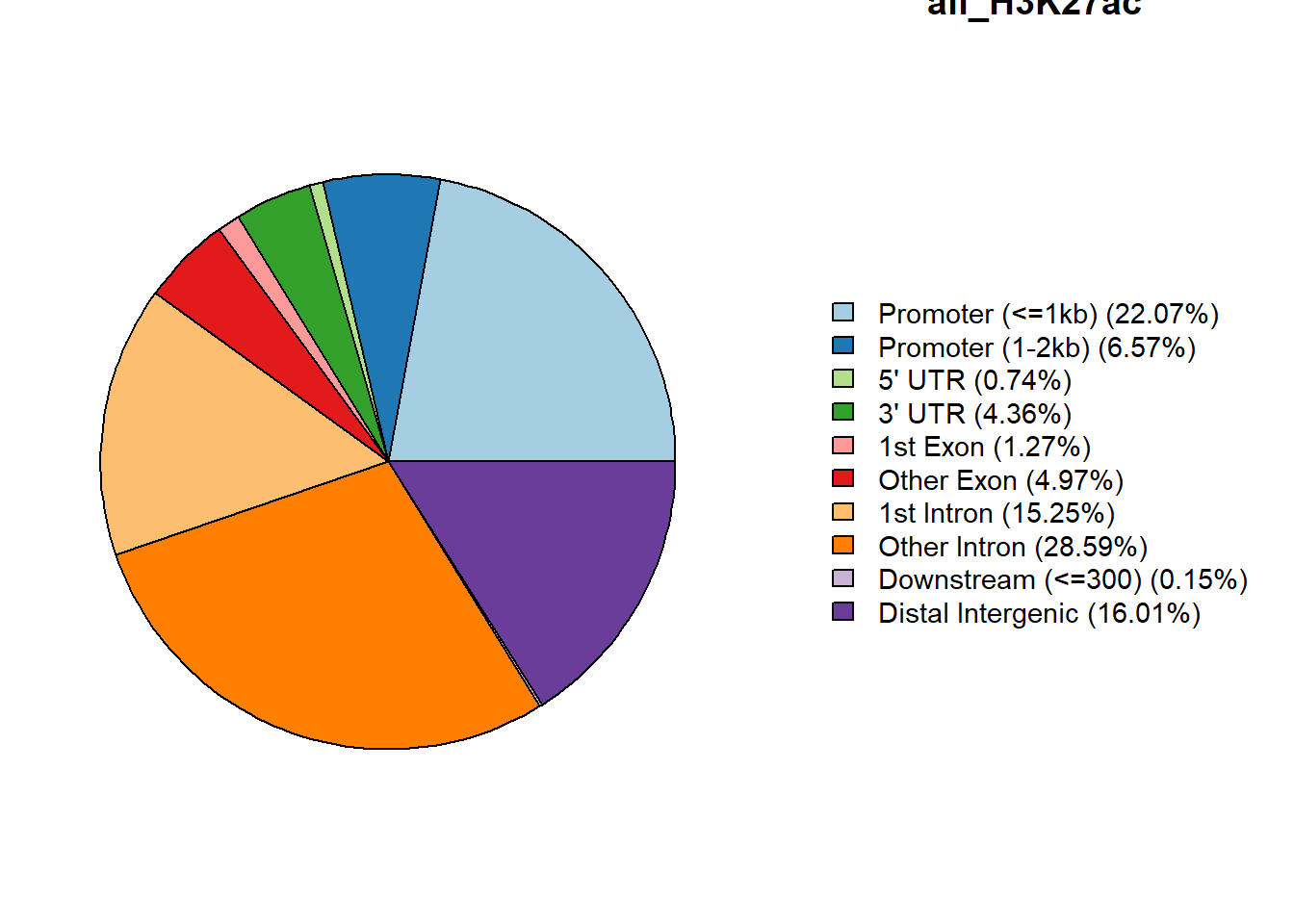

Genomic regions
txdb <- TxDb.Hsapiens.UCSC.hg38.knownGene
all_H3K27ac_regions_gr <- all_H3K27ac_regions %>%
tidyr::separate(., col = "Peakid", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
GRanges()
H3K27ac_set1_gr <- H3K27ac_set1 %>%
tidyr::separate(., col = ".", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
dplyr::rename("Peakid"=".") %>%
GRanges()
H3K27ac_set2_gr <- H3K27ac_set2 %>%
tidyr::separate(., col = ".", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
dplyr::rename("Peakid"=".") %>%
GRanges()
H3K27ac_set3_gr <- H3K27ac_set3 %>%
tidyr::separate(., col = ".", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
dplyr::rename("Peakid"=".") %>%
GRanges()
H3K27ac_list <- list("Set_1"=H3K27ac_set1_gr,"Set_2"=H3K27ac_set2_gr,"Set_3"=H3K27ac_set3_gr,"all_H3K27ac"=all_H3K27ac_regions_gr)
# peakAnnoList_H3K27ac <- lapply(H3K27ac_list, annotatePeak, tssRegion =c(-2000,2000), TxDb=txdb)
# saveRDS(peakAnnoList_H3K27ac, "data/motif_lists/H3K27ac_annotated_peaks.RDS")
peakAnnoList_H3K27ac <- readRDS("data/motif_lists/H3K27ac_annotated_peaks.RDS")

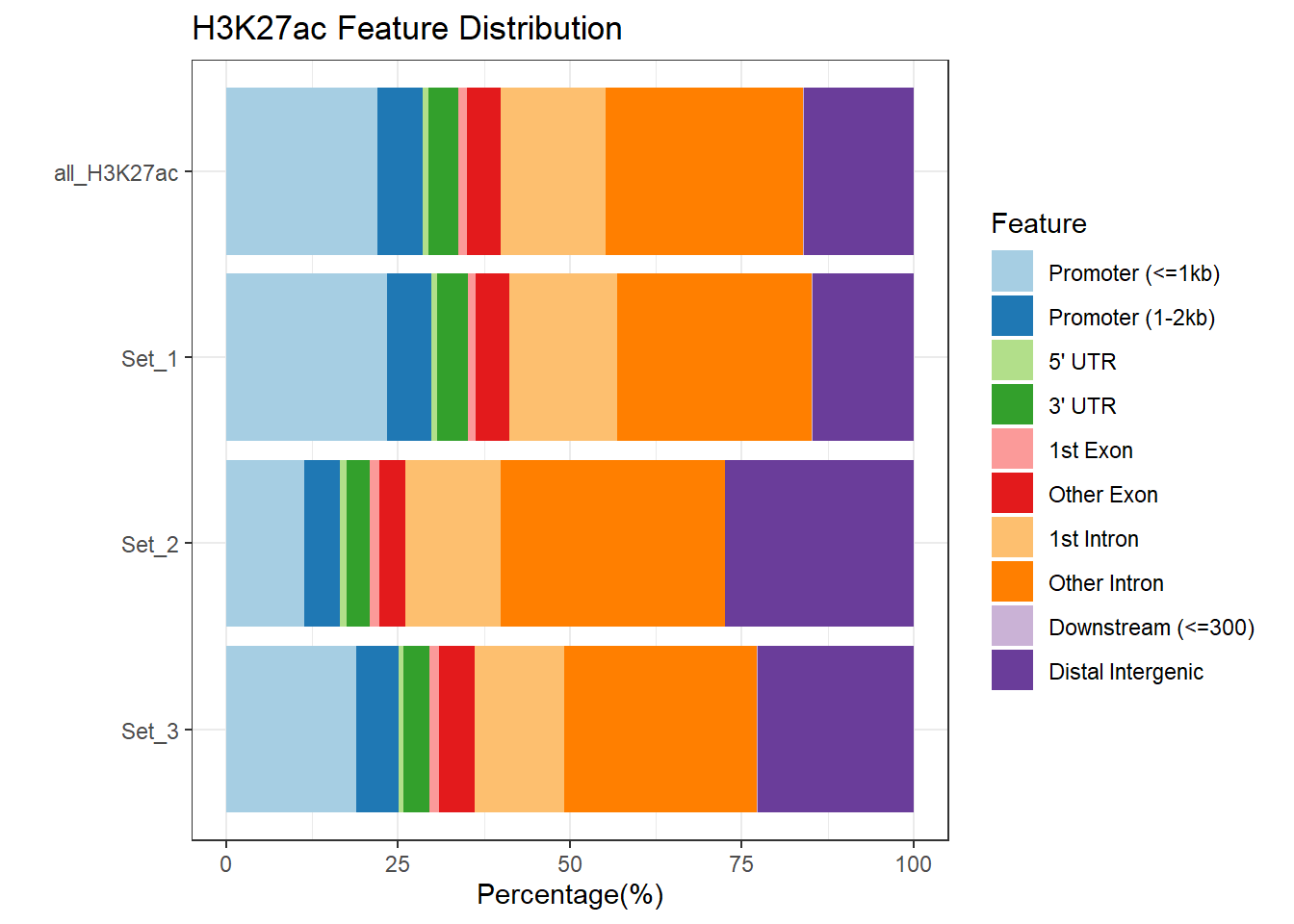

plotAnnoBar(peakAnnoList_H3K27ac[c(4,1,2,3)])+
ggtitle("H3K27ac Feature Distribution")

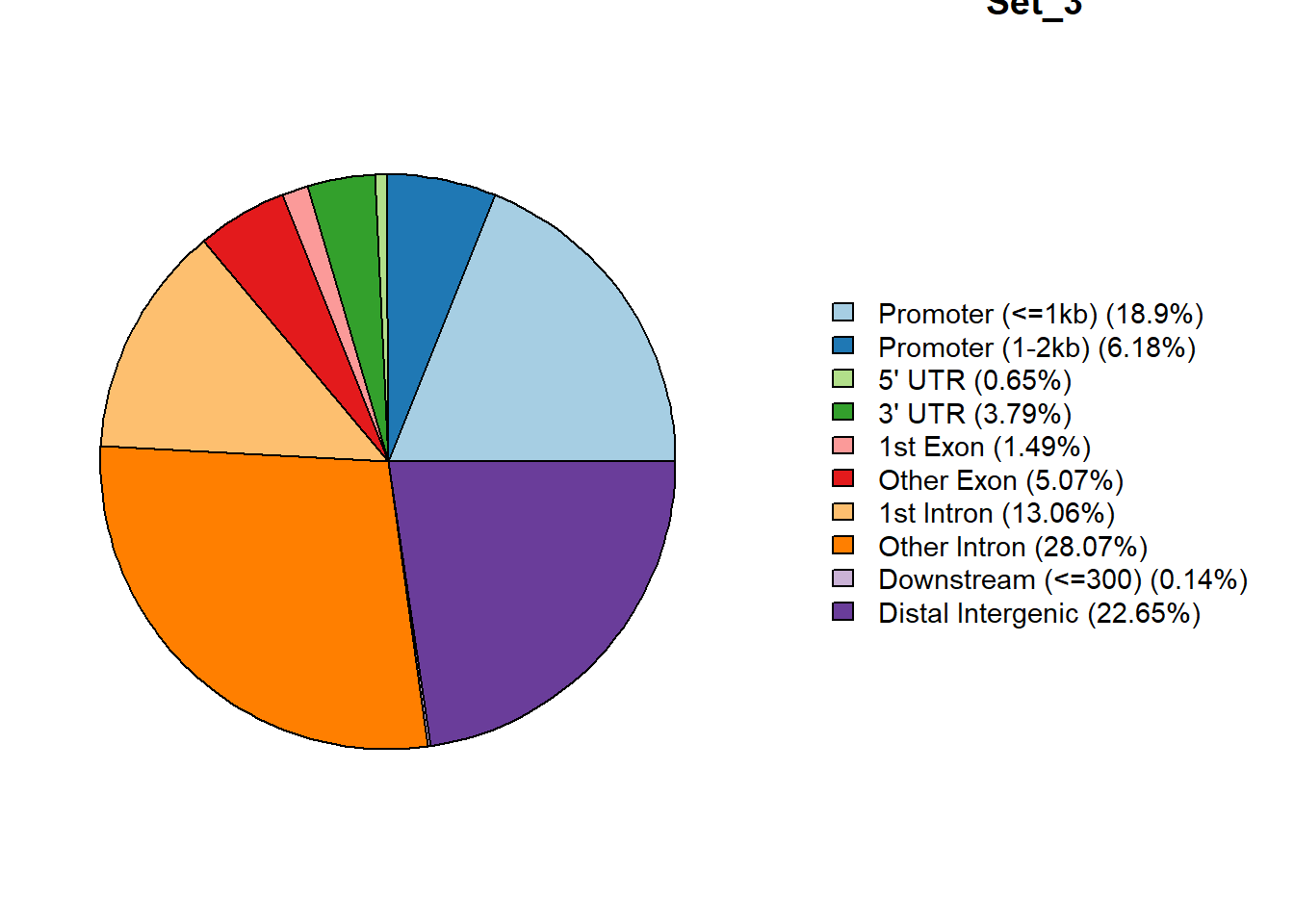

# pie_plots_H3K27ac <- map(peakAnnoList_H3K27ac, ~ plotAnnoPie(.x))

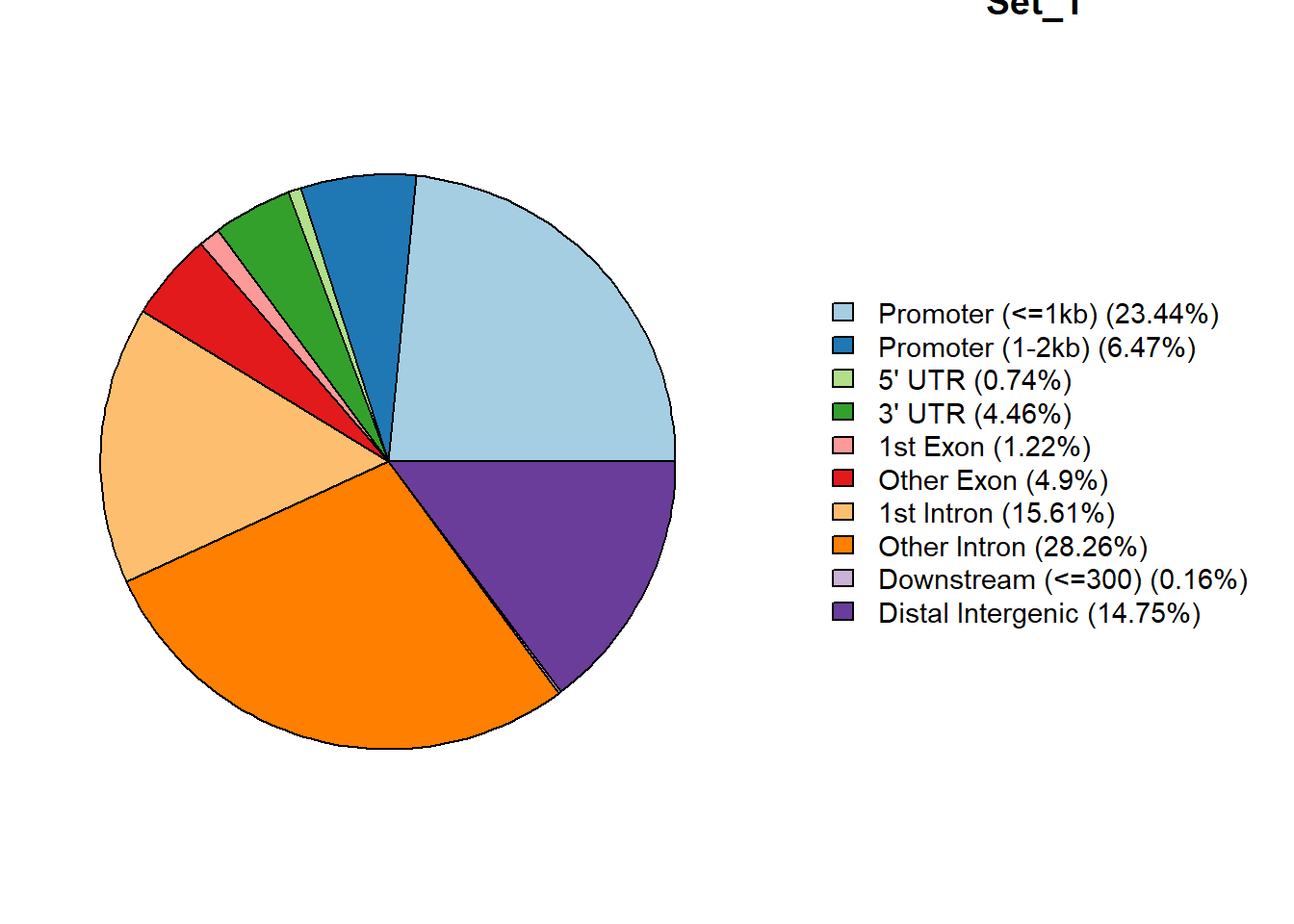

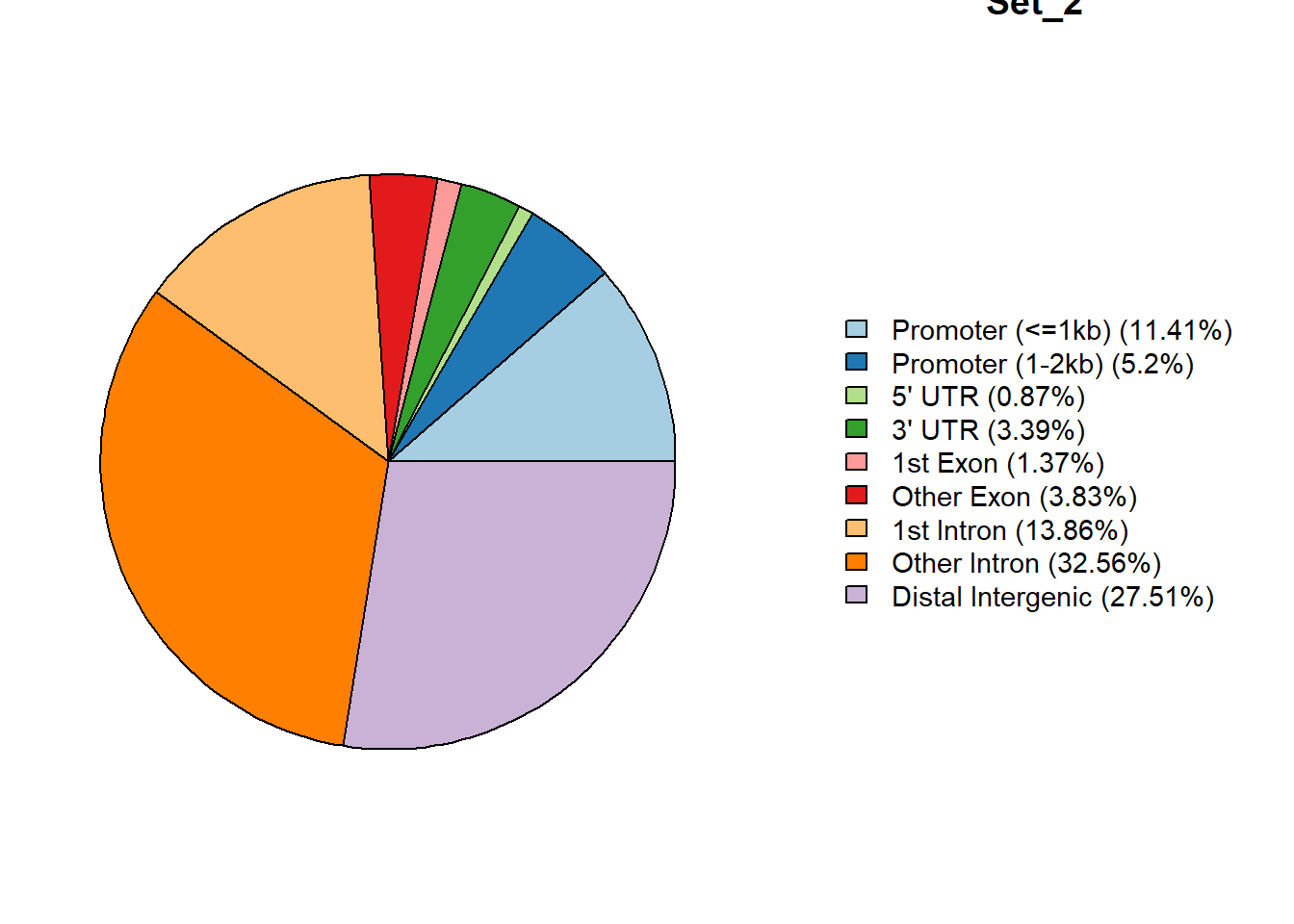

for(nm in names(peakAnnoList_H3K27ac)) {
plotAnnoPie(peakAnnoList_H3K27ac[[nm]])
title(main = nm) # base R title
}
LFC H3K27ac
Set1
# H3K27ac_toptable_list %>%
# dplyr::filter(genes %in% H3K27ac_set1$.) %>%
# dplyr::select(group,genes,logFC) %>%
# mutate(group=factor(group, levels = c("H3K27ac_24T","H3K27ac_24R","H3K27ac_144R"))) %>%
# ggplot(., aes(x=group, y=logFC))+
# geom_boxplot(aes(fill=group))+
# geom_signif(comparisons = list(c("H3K27ac_24T", "H3K27ac_144R"),
# c("H3K27ac_24T","H3K27ac_24R"),
# c("H3K27ac_24R", "H3K27ac_144R")),
# step_increase = 0.1,
# map_signif_level = FALSE,
# test = "wilcox.test")+
# theme_bw()+
# ggtitle("LFC across time for H3K27ac set1")
H3K27ac_toptable_list %>%
dplyr::filter(genes %in% H3K27ac_set1$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K27ac_24T","H3K27ac_24R","H3K27ac_144R")),
logFC=abs(logFC)) %>%
ggplot(., aes(x=group, y=logFC))+
geom_boxplot(aes(fill=group))+
geom_signif(comparisons = list(c("H3K27ac_24T", "H3K27ac_144R"),
c("H3K27ac_24T","H3K27ac_24R"),
c("H3K27ac_24R", "H3K27ac_144R")),
step_increase = 0.1,
map_signif_level = FALSE,
test = "wilcox.test")+
theme_bw()+

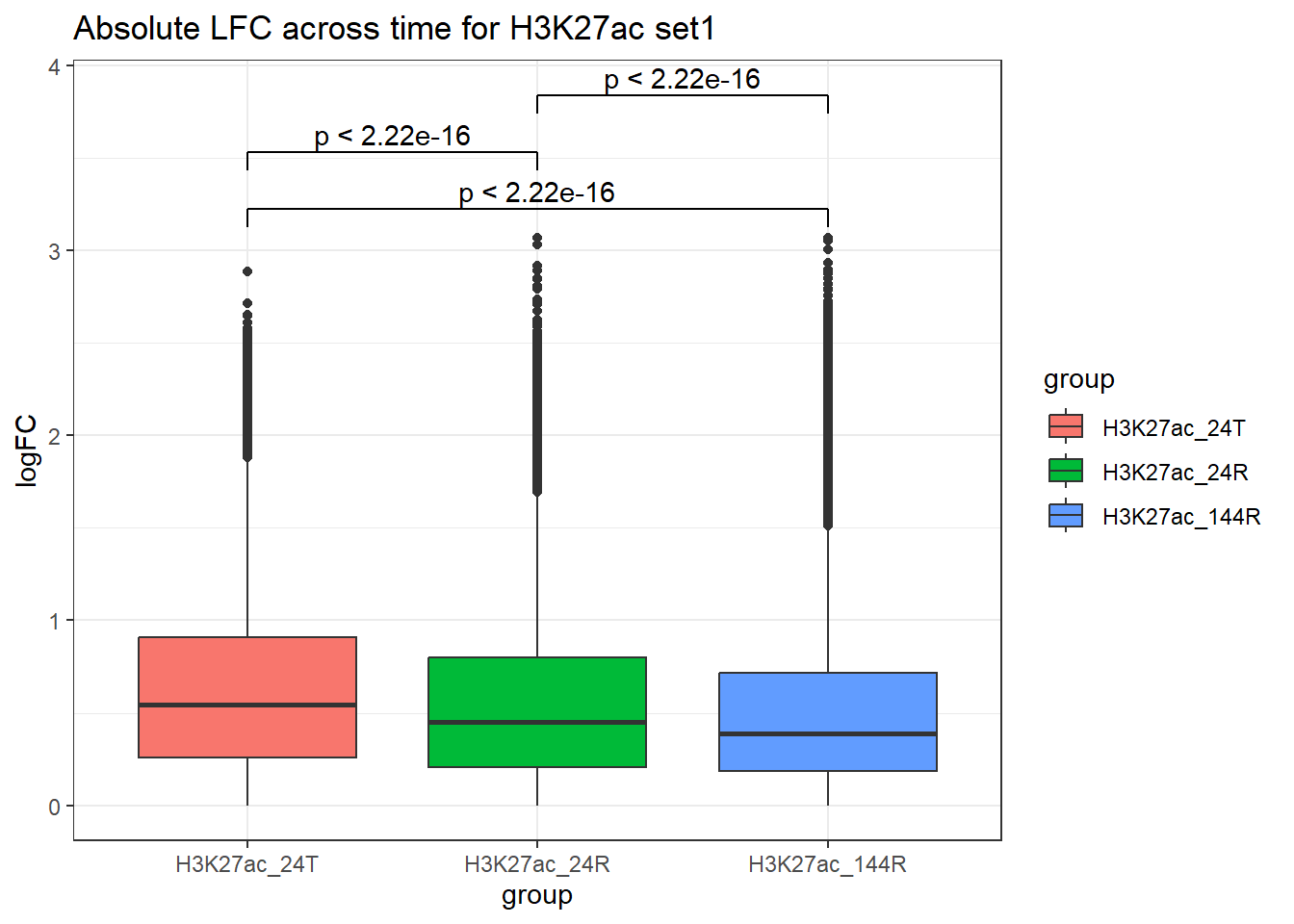

ggtitle("Absolute LFC across time for H3K27ac set1")

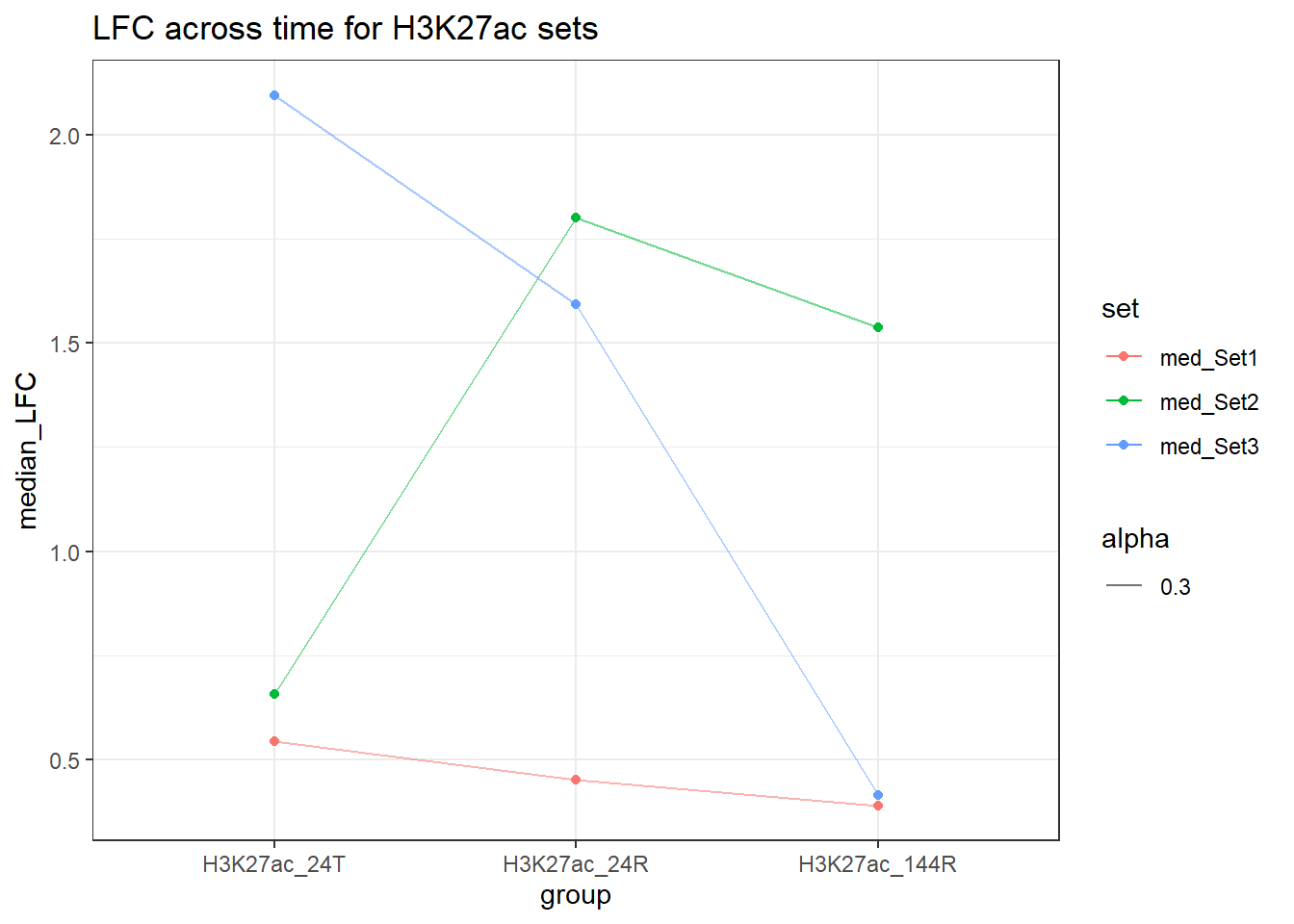

set1_27ac <- H3K27ac_toptable_list %>%
dplyr::filter(genes %in% H3K27ac_set1$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K27ac_24T","H3K27ac_24R","H3K27ac_144R")),
logFC=abs(logFC)) %>%
group_by(group) %>%
summarize(med_Set1=median(logFC),.groups="drop")set2
# H3K27ac_toptable_list %>%
# dplyr::filter(genes %in% H3K27ac_set2$.) %>%
# dplyr::select(group,genes,logFC) %>%
# mutate(group=factor(group, levels = c("H3K27ac_24T","H3K27ac_24R","H3K27ac_144R"))) %>%
# ggplot(., aes(x=group, y=logFC))+
# geom_boxplot(aes(fill=group))+
# geom_signif(comparisons = list(c("H3K27ac_24T", "H3K27ac_144R"),
# c("H3K27ac_24T","H3K27ac_24R"),
# c("H3K27ac_24R", "H3K27ac_144R")),
# step_increase = 0.1,
# map_signif_level = FALSE,
# test = "wilcox.test")+
# theme_bw()+
# ggtitle("LFC across time for H3K27ac set2")

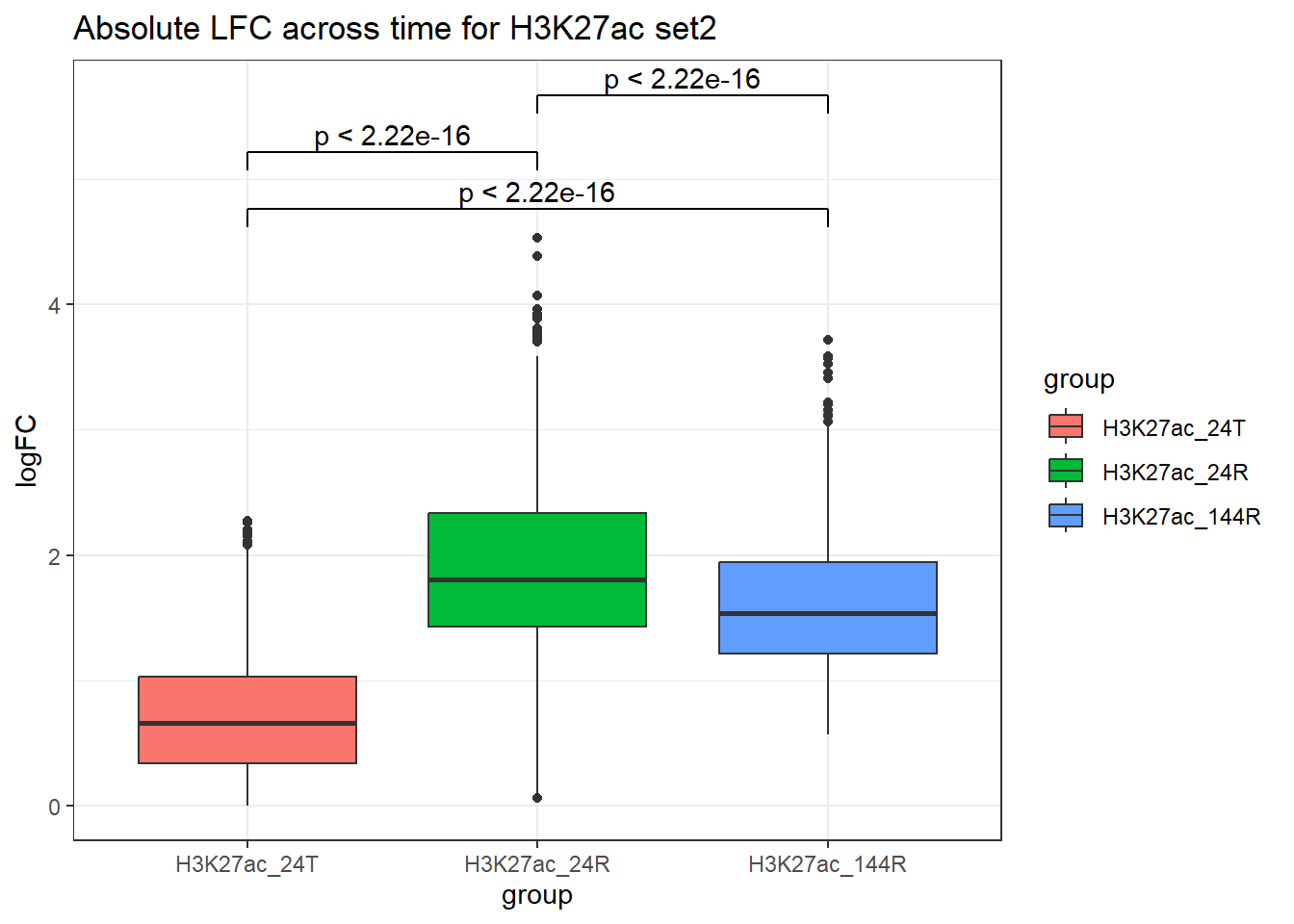

H3K27ac_toptable_list %>%
dplyr::filter(genes %in% H3K27ac_set2$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K27ac_24T","H3K27ac_24R","H3K27ac_144R")),
logFC=abs(logFC)) %>%
ggplot(., aes(x=group, y=logFC))+
geom_boxplot(aes(fill=group))+
geom_signif(comparisons = list(c("H3K27ac_24T", "H3K27ac_144R"),
c("H3K27ac_24T","H3K27ac_24R"),
c("H3K27ac_24R", "H3K27ac_144R")),
step_increase = 0.1,
map_signif_level = FALSE,
test = "wilcox.test")+
theme_bw()+
ggtitle("Absolute LFC across time for H3K27ac set2")
set2_27ac <- H3K27ac_toptable_list %>%
dplyr::filter(genes %in% H3K27ac_set2$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K27ac_24T","H3K27ac_24R","H3K27ac_144R")),
logFC=abs(logFC)) %>%
group_by(group) %>%
summarize(med_Set2=median(logFC),.groups="drop")set3
# H3K27ac_toptable_list %>%
# dplyr::filter(genes %in% H3K27ac_set3$.) %>%
# dplyr::select(group,genes,logFC) %>%
# mutate(group=factor(group, levels = c("H3K27ac_24T","H3K27ac_24R","H3K27ac_144R"))) %>%
# ggplot(., aes(x=group, y=logFC))+
# geom_boxplot(aes(fill=group))+
# geom_signif(comparisons = list(c("H3K27ac_24T", "H3K27ac_144R"),
# c("H3K27ac_24T","H3K27ac_24R"),
# c("H3K27ac_24R", "H3K27ac_144R")),
# step_increase = 0.1,
# map_signif_level = FALSE,
# test = "wilcox.test")+
# theme_bw()+
# ggtitle("LFC across time for H3K27ac set3")
H3K27ac_toptable_list %>%
dplyr::filter(genes %in% H3K27ac_set3$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K27ac_24T","H3K27ac_24R","H3K27ac_144R")),
logFC=abs(logFC)) %>%
ggplot(., aes(x=group, y=logFC))+
geom_boxplot(aes(fill=group))+
geom_signif(comparisons = list(c("H3K27ac_24T", "H3K27ac_144R"),
c("H3K27ac_24T","H3K27ac_24R"),
c("H3K27ac_24R", "H3K27ac_144R")),
step_increase = 0.1,
map_signif_level = FALSE,
test = "wilcox.test")+
theme_bw()+

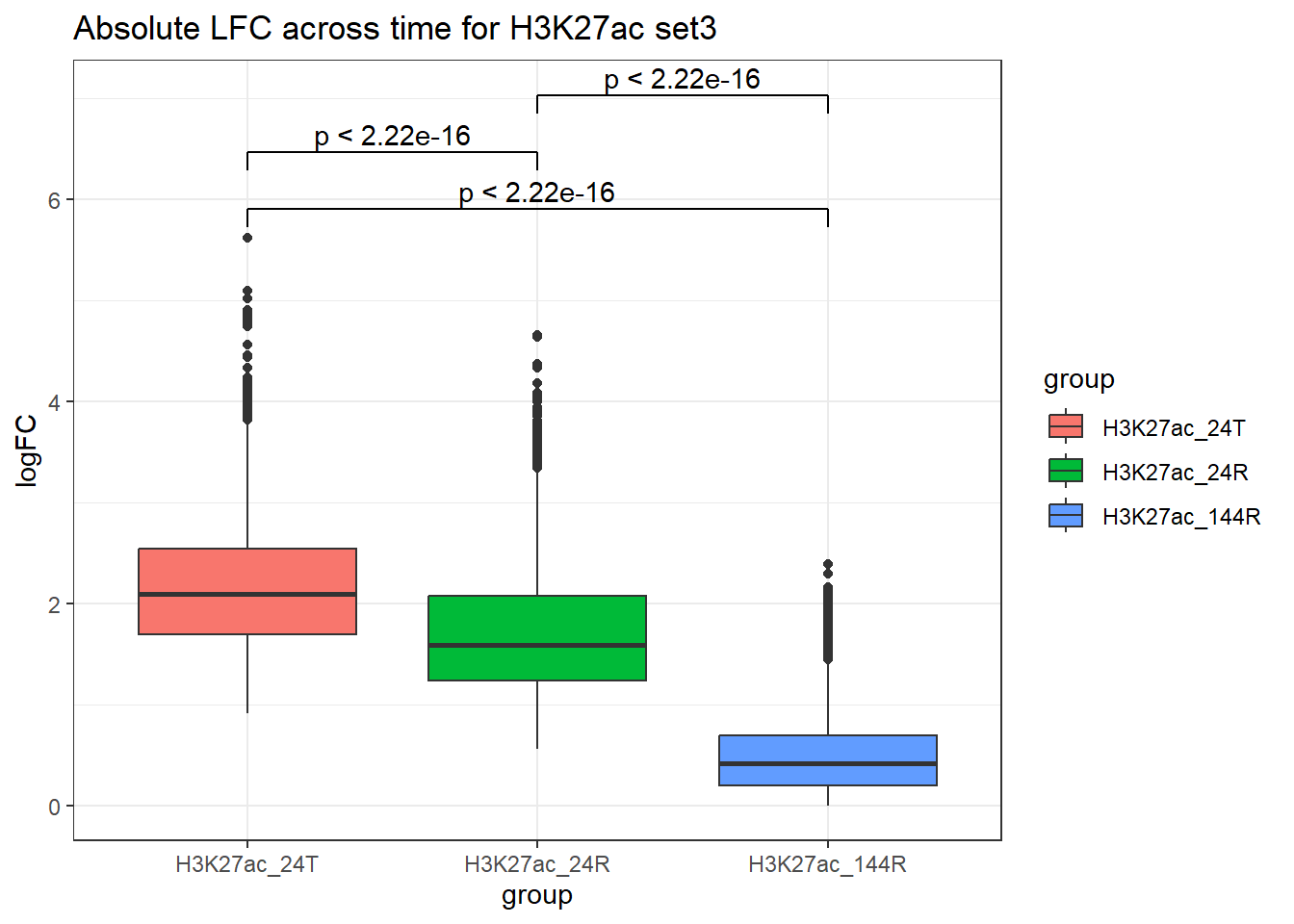

ggtitle("Absolute LFC across time for H3K27ac set3")
H3K27ac_toptable_list %>%
dplyr::filter(genes %in% H3K27ac_set3$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K27ac_24T","H3K27ac_24R","H3K27ac_144R")),
logFC=abs(logFC)) %>%
group_by(group) %>%
summarize(med_Set3=median(logFC),.groups="drop") %>%
left_join(set1_27ac, by="group") %>%
left_join(set2_27ac, by="group") %>%
pivot_longer(cols=!group, values_to = "median_LFC", names_to = "set") %>%
ggplot(., aes(x=group, y=median_LFC, group=set, color=set))+
geom_point()+
geom_line(aes(alpha = 0.3))+
theme_bw()+
ggtitle("LFC across time for H3K27ac sets")
Toptable top 100
This is the calculation of Top 100 in each category, then united
Sets_H3K27ac <- H3K27ac_toptable_list %>%
mutate(cluster=case_when(genes %in% H3K27ac_set1$. ~ "Set1",
genes %in% H3K27ac_set2$. ~ "Set2",
genes %in% H3K27ac_set3$. ~ "Set3",
TRUE ~ "not_assigned"))
Sets_H3K27ac %>%
dplyr::filter(cluster != "not_assigned") %>%
group_by(group) %>%
slice_min(.,order_by=adj.P.Val,n = 100) %>%
ungroup() %>%
group_by(cluster) %>% tally()
H3K27ac_toptable_list %>%
group_by(group) %>%
slice_min(.,order_by=adj.P.Val,n = 100) %>%
ungroup() %>%
distinct(genes)
### Emma's way
Sets_H3K27ac %>%
dplyr::filter(cluster != "not_assigned") %>%
group_by(group, genes) %>%
summarise("min.adj.P"= min(adj.P.Val), .groups="drop", cluster=unique(cluster)) %>%
arrange(cluster, min.adj.P) %>%
group_by(cluster) %>%
slice_head(n = 100) %>%
distinct (genes)H3K27me3 motifs samples
Set 1
# slice_sample(H3K27me3_set2,n = 3, replace=FALSE)
examp_H3K27me3_1 <-#slice_sample(H3K27me3_set1,n = 3, replace=FALSE)
c("chr17:8878023-8878923", "chr2:23436468-23436797","chr10:132830096-132830712")
examp_H3K27me3_2 <-#slice_sample(H3K27me3_set2,n = 3, replace=FALSE)
c("chr5:141004122-141004627" , "chr6:101195726-101195968", "chr3:139117155-139117784")
H3K27me3_filt_lcpm %>%
as.data.frame() %>%
dplyr::filter(row.names(H3K27me3_filt_lcpm) %in% examp_H3K27me3_1) %>%
###pivot and add additional information from dataframe
rownames_to_column("Peakid") %>%
pivot_longer(., cols = !Peakid, names_to = "sample", values_to = "lcpm" ) %>%
separate_wider_delim(., cols=sample, delim="_", names=c("ind","tx","time")) %>%
mutate(ind=factor(ind, levels=c("Ind1", "Ind2", "Ind3", "Ind4","Ind5")),
tx=factor(tx,levels = c("DOX","VEH")),
time=factor(time, levels=c("24T","24R","144R")),
group_graph= paste0(tx, "_", time),
group=paste0("H3K27me3_",time),
group_graph = factor(group_graph, levels = c(
"DOX_24T", "VEH_24T",
"DOX_24R", "VEH_24R",
"DOX_144R", "VEH_144R"))) %>%
ggplot(., aes(x=group_graph, y=lcpm)) +
geom_boxplot(aes(fill=tx))+
facet_wrap(~Peakid, scales="free")+
theme_bw()+
theme(axis.text.x=element_text(angle = 90))+

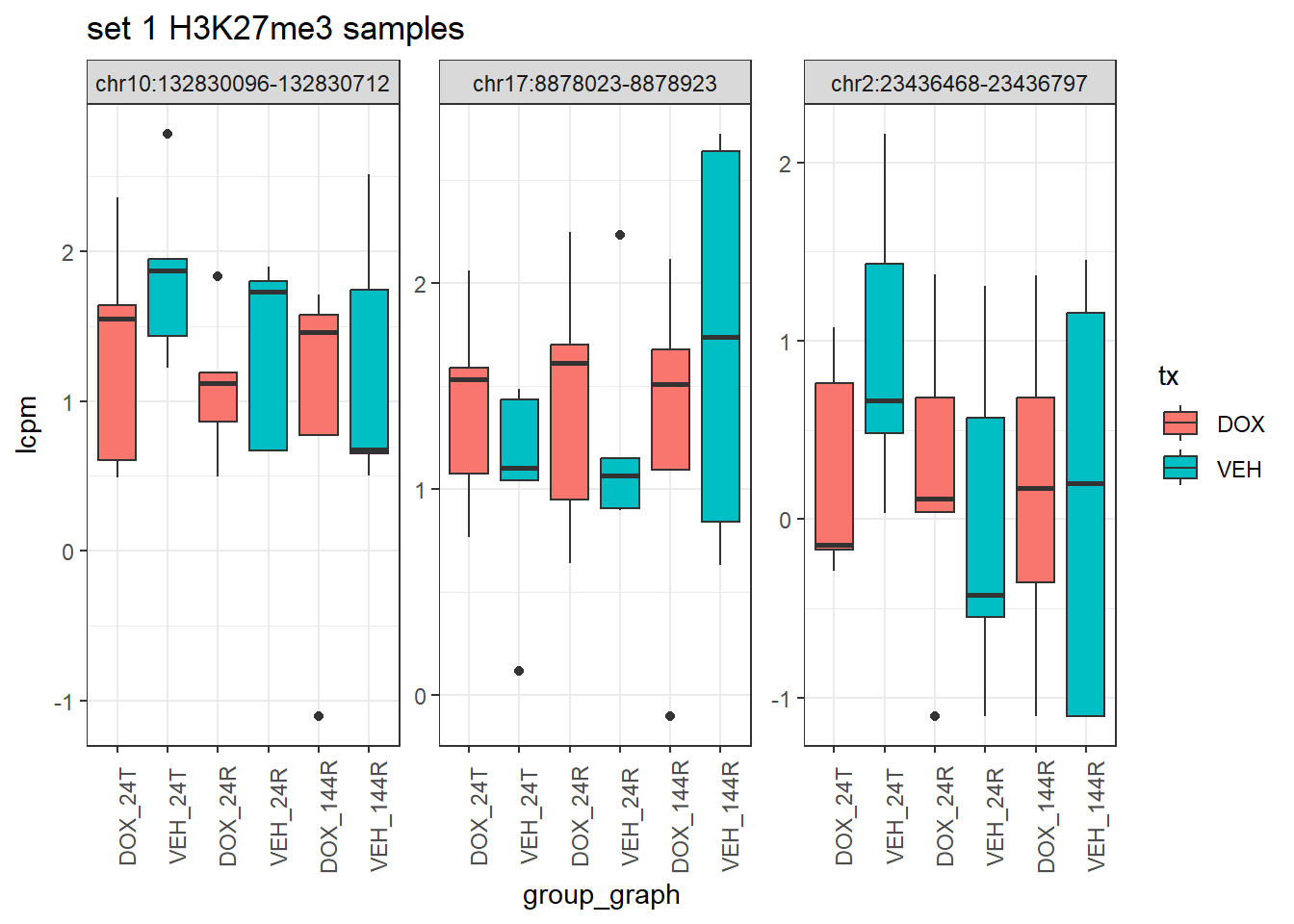

ggtitle("set 1 H3K27me3 samples")

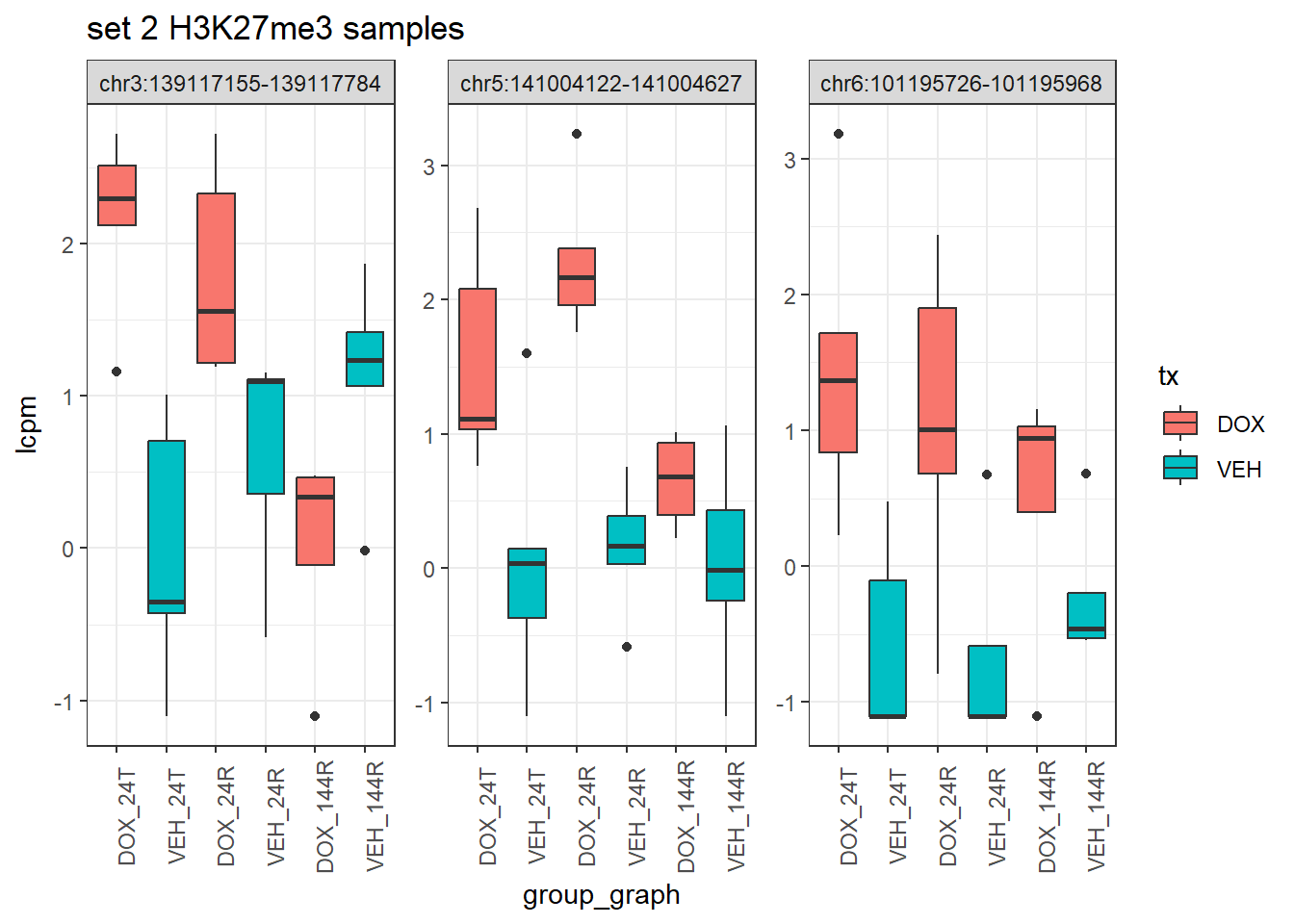

Set 2
H3K27me3_filt_lcpm %>%
as.data.frame() %>%
dplyr::filter(row.names(H3K27me3_filt_lcpm) %in% examp_H3K27me3_2) %>%
###pivot and add additional information from dataframe
rownames_to_column("Peakid") %>%
pivot_longer(., cols = !Peakid, names_to = "sample", values_to = "lcpm" ) %>%
separate_wider_delim(., cols=sample, delim="_", names=c("ind","tx","time")) %>%
mutate(ind=factor(ind, levels=c("Ind1", "Ind2", "Ind3", "Ind4","Ind5")),
tx=factor(tx,levels = c("DOX","VEH")),
time=factor(time, levels=c("24T","24R","144R")),
group_graph= paste0(tx, "_", time),
group=paste0("H3K27me3_",time),
group_graph = factor(group_graph, levels = c(
"DOX_24T", "VEH_24T",
"DOX_24R", "VEH_24R",
"DOX_144R", "VEH_144R"))) %>%
ggplot(., aes(x=group_graph, y=lcpm)) +
geom_boxplot(aes(fill=tx))+
facet_wrap(~Peakid, scales="free")+
theme_bw()+
theme(axis.text.x=element_text(angle = 90))+
ggtitle("set 2 H3K27me3 samples")
all_H3K27me3_regions_gr <- all_H3K27ac_regions %>%
tidyr::separate(., col = "Peakid", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
GRanges()
H3K27me3_set1_gr <- H3K27me3_set1 %>%
tidyr::separate(., col = ".", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
dplyr::rename("Peakid"=".") %>%
GRanges()
H3K27me3_set2_gr <- H3K27me3_set2 %>%
tidyr::separate(., col = ".", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
dplyr::rename("Peakid"=".") %>%
GRanges()
H3K27me3_list <- list("Set_1"=H3K27me3_set1_gr,"Set_2"=H3K27me3_set2_gr,"all_H3K27me3_regions"=all_H3K27me3_regions_gr)
# peakAnnoList_H3K27me3 <- lapply(H3K27me3_list, annotatePeak, tssRegion =c(-2000,2000), TxDb=txdb)
# saveRDS(peakAnnoList_H3K27me3, "data/motif_lists/H3K27me3_annotated_peaks.RDS")
peakAnnoList_H3K27me3 <- readRDS("data/motif_lists/H3K27me3_annotated_peaks.RDS")

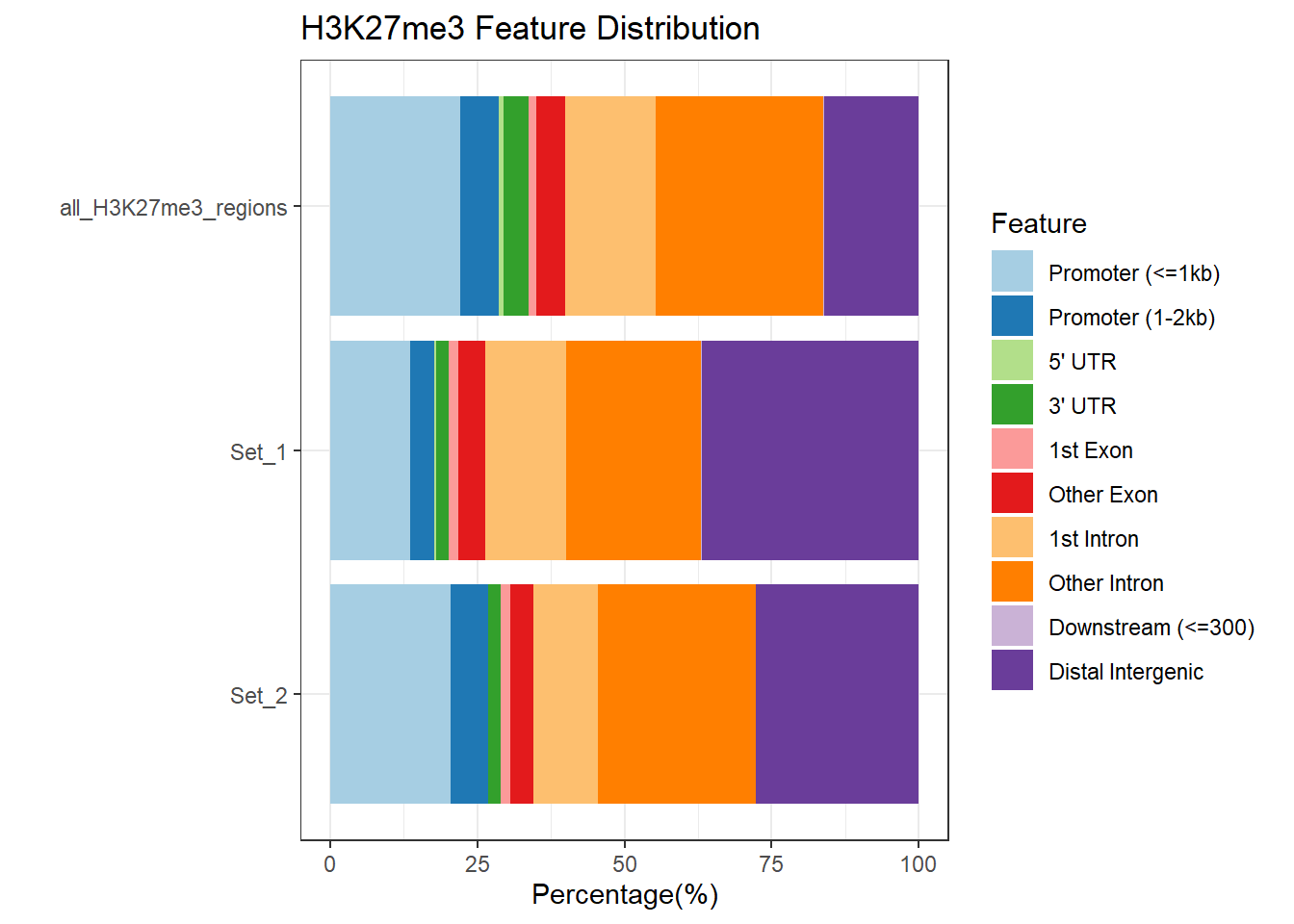

plotAnnoBar(peakAnnoList_H3K27me3[c(3,1,2)])+
ggtitle("H3K27me3 Feature Distribution")

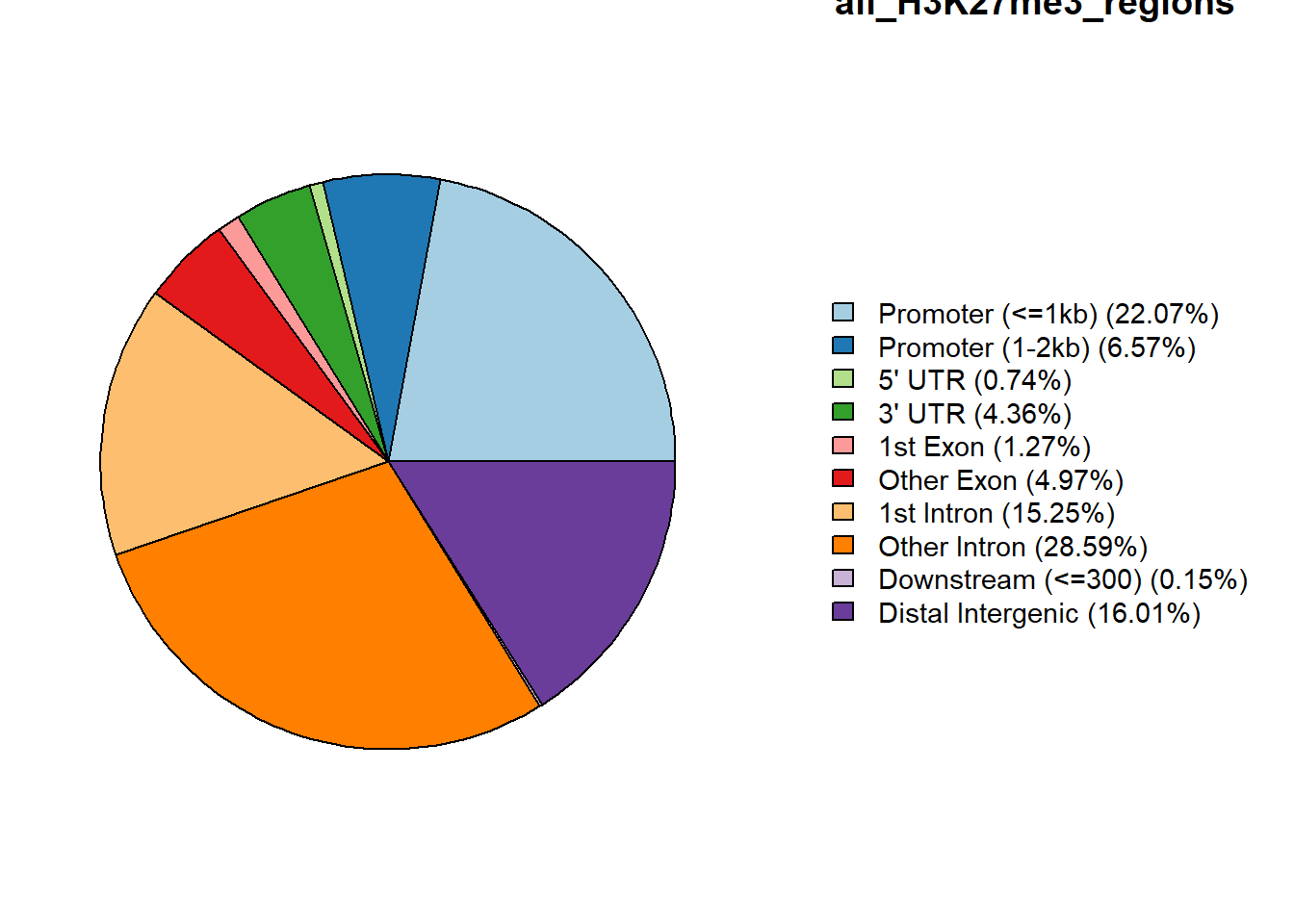

# pie_plots_H3K27me3 <- map(peakAnnoList_H3K27me3, ~ plotAnnoPie(.x))

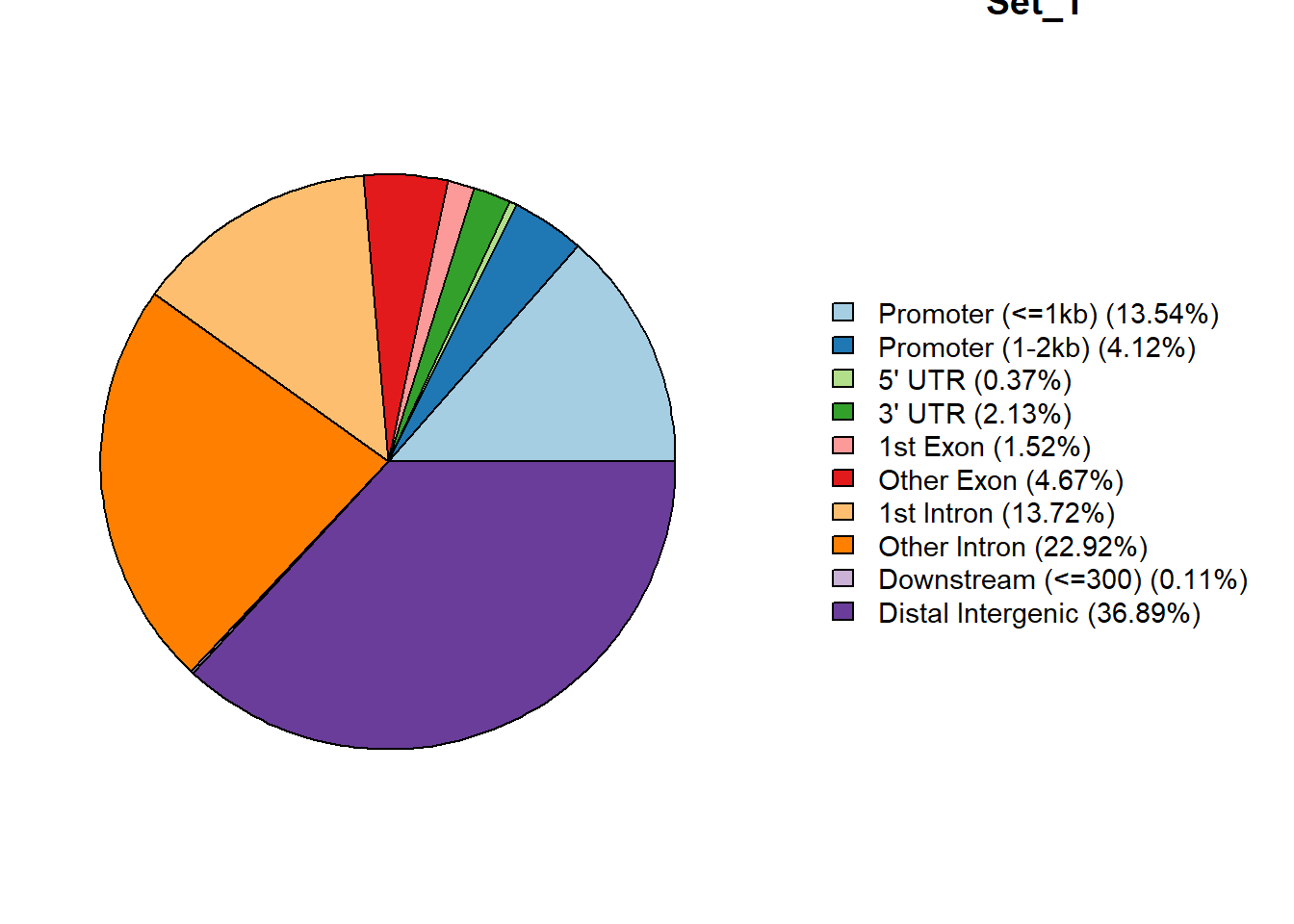

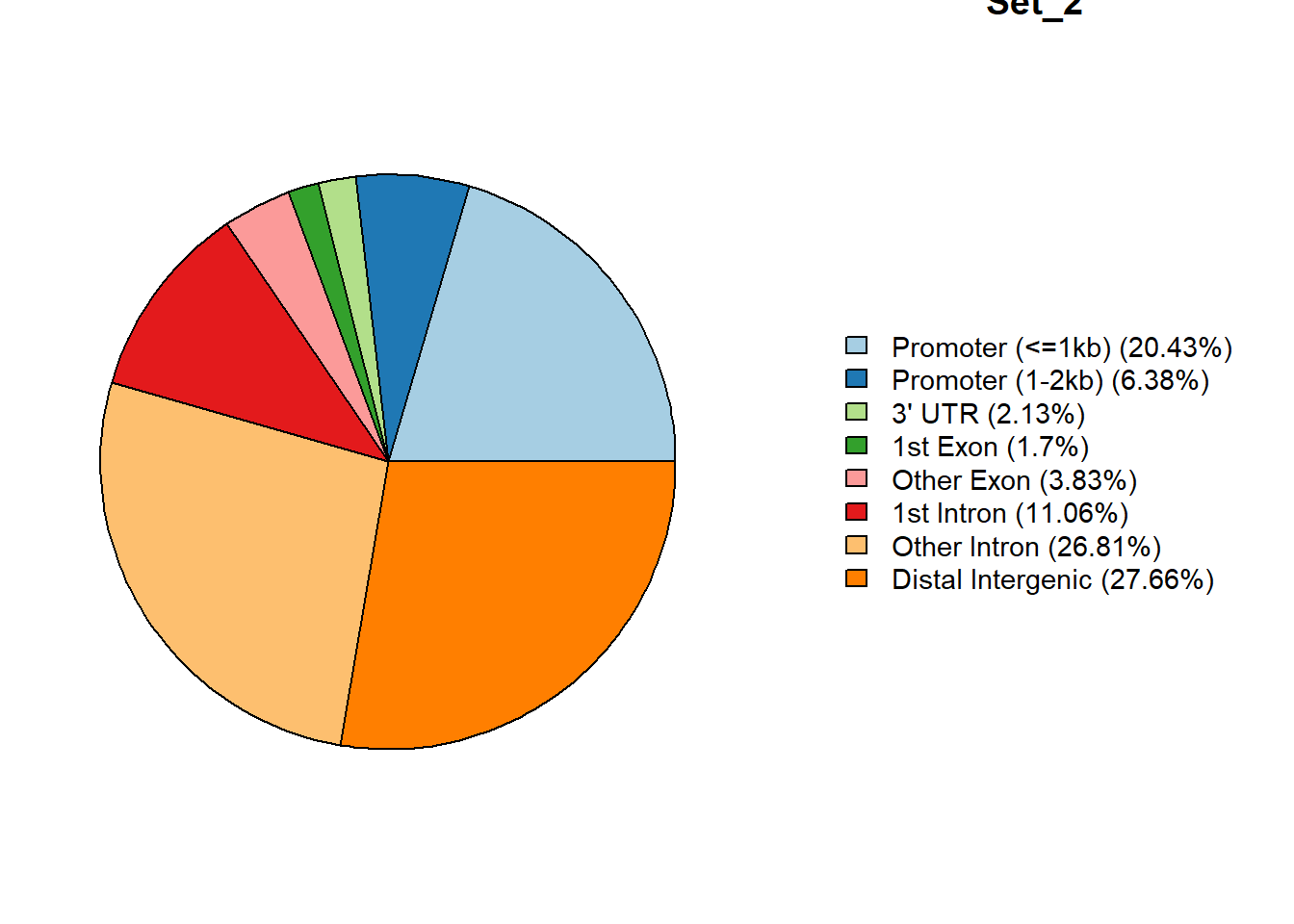

for(nm in names(peakAnnoList_H3K27me3)) {
plotAnnoPie(peakAnnoList_H3K27me3[[nm]])
title(main = nm) # base R title
}
LFC H3K27me3
Set1
# H3K27me3_toptable_list %>%
# dplyr::filter(genes %in% H3K27me3_set1$.) %>%
# dplyr::select(group,genes,logFC) %>%
# mutate(group=factor(group, levels = c("H3K27me3_24T","H3K27me3_24R","H3K27me3_144R"))) %>%
# ggplot(., aes(x=group, y=logFC))+
# geom_boxplot(aes(fill=group))+
# geom_signif(comparisons = list(c("H3K27me3_24T", "H3K27me3_144R"),
# c("H3K27me3_24T","H3K27me3_24R"),
# c("H3K27me3_24R", "H3K27me3_144R")),
# step_increase = 0.1,
# map_signif_level = FALSE,
# test = "wilcox.test")+
# theme_bw()+
# ggtitle("LFC across time for H3K27me3 set1")

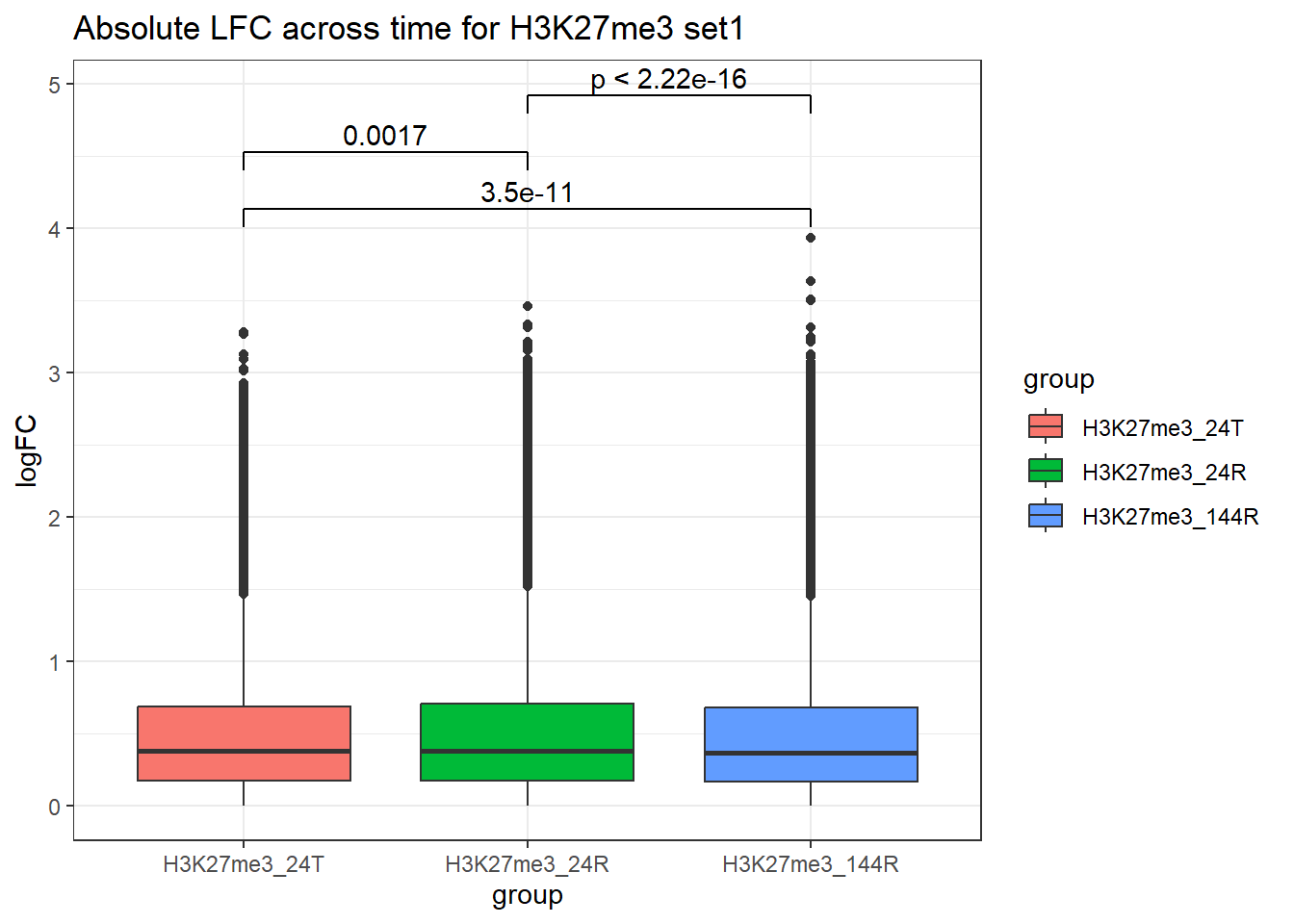

H3K27me3_toptable_list %>%
dplyr::filter(genes %in% H3K27me3_set1$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K27me3_24T","H3K27me3_24R","H3K27me3_144R")),
logFC=abs(logFC)) %>%
ggplot(., aes(x=group, y=logFC))+
geom_boxplot(aes(fill=group))+
geom_signif(comparisons = list(c("H3K27me3_24T", "H3K27me3_144R"),
c("H3K27me3_24T","H3K27me3_24R"),
c("H3K27me3_24R", "H3K27me3_144R")),
step_increase = 0.1,
map_signif_level = FALSE,
test = "wilcox.test")+
theme_bw()+
ggtitle("Absolute LFC across time for H3K27me3 set1")
set1_27me3 <- H3K27me3_toptable_list %>%
dplyr::filter(genes %in% H3K27me3_set1$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K27me3_24T","H3K27me3_24R","H3K27me3_144R")),
logFC=abs(logFC)) %>%
group_by(group) %>%
summarize(med_Set1=median(logFC),.groups="drop")set2
# H3K27me3_toptable_list %>%
# dplyr::filter(genes %in% H3K27me3_set2$.) %>%
# dplyr::select(group,genes,logFC) %>%
# mutate(group=factor(group, levels = c("H3K27me3_24T","H3K27me3_24R","H3K27me3_144R"))) %>%
# ggplot(., aes(x=group, y=logFC))+
# geom_boxplot(aes(fill=group))+
# geom_signif(comparisons = list(c("H3K27me3_24T", "H3K27me3_144R"),
# c("H3K27me3_24T","H3K27me3_24R"),
# c("H3K27me3_24R", "H3K27me3_144R")),
# step_increase = 0.1,
# map_signif_level = FALSE,
# test = "wilcox.test")+
# theme_bw()+
# ggtitle("LFC across time for H3K27me3 set2")
H3K27me3_toptable_list %>%
dplyr::filter(genes %in% H3K27me3_set2$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K27me3_24T","H3K27me3_24R","H3K27me3_144R")),
logFC=abs(logFC)) %>%
ggplot(., aes(x=group, y=logFC))+
geom_boxplot(aes(fill=group))+
geom_signif(comparisons = list(c("H3K27me3_24T", "H3K27me3_144R"),
c("H3K27me3_24T","H3K27me3_24R"),
c("H3K27me3_24R", "H3K27me3_144R")),
step_increase = 0.1,
map_signif_level = FALSE,
test = "wilcox.test")+
theme_bw()+

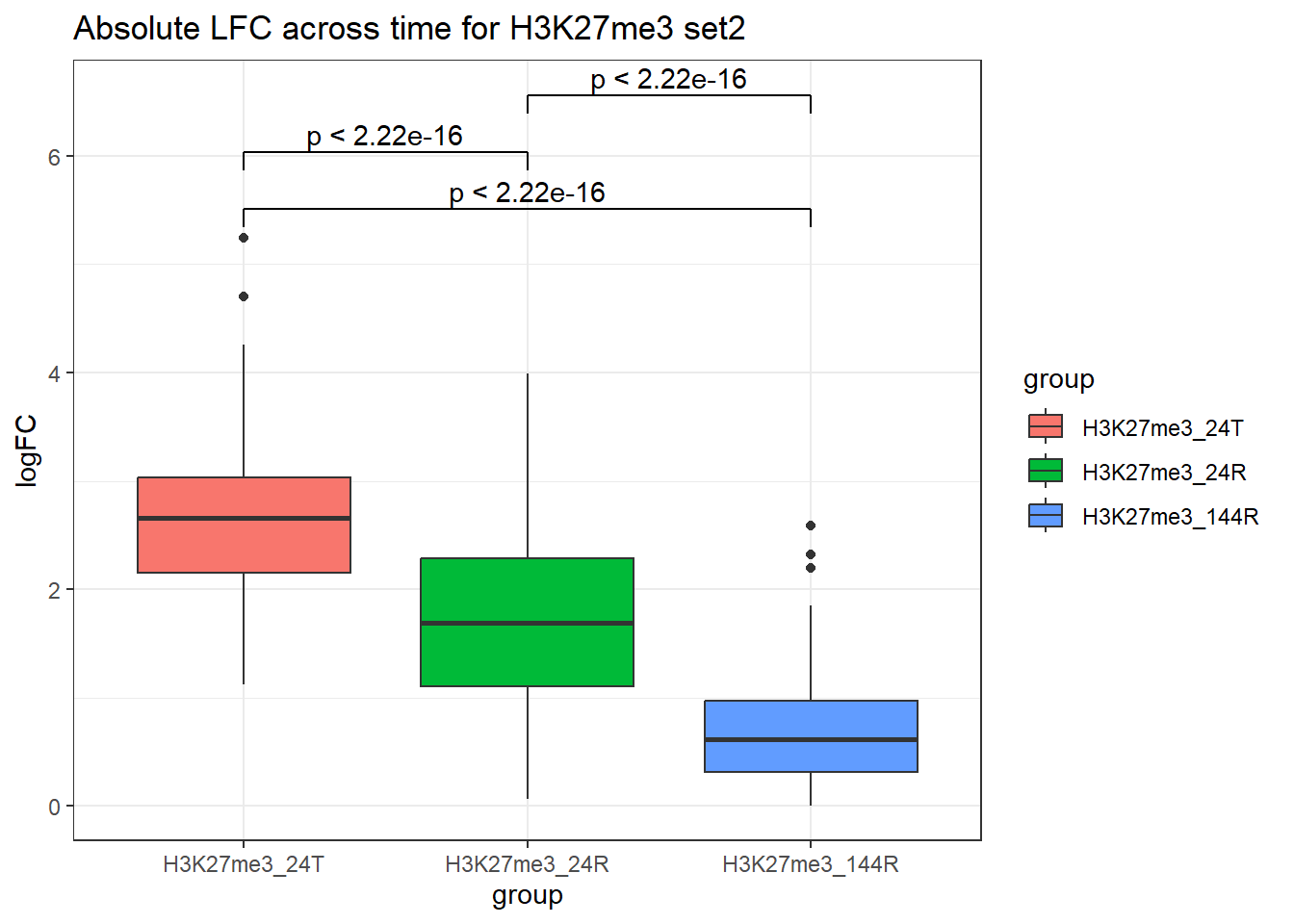

ggtitle("Absolute LFC across time for H3K27me3 set2")

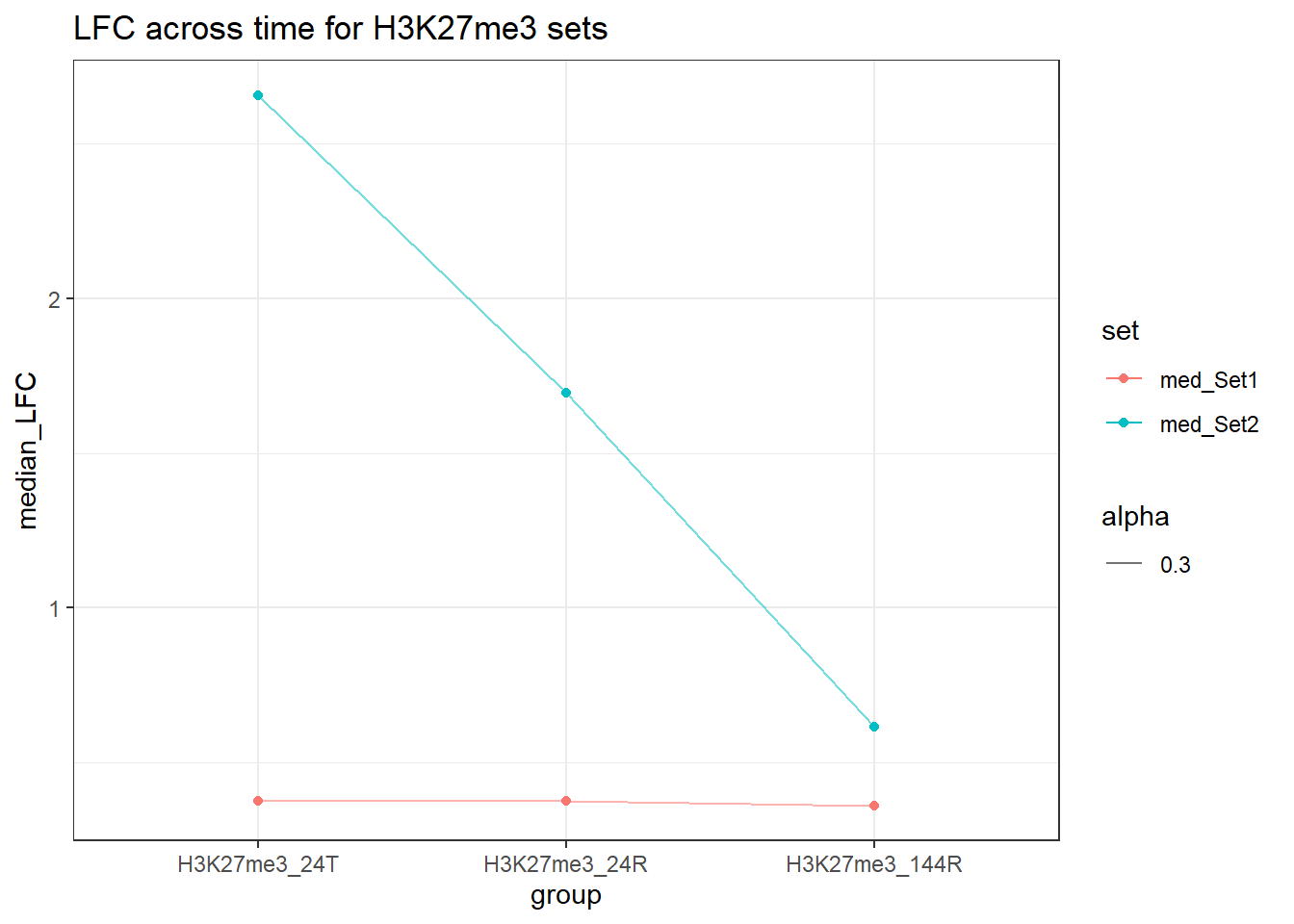

H3K27me3_toptable_list %>%
dplyr::filter(genes %in% H3K27me3_set2$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K27me3_24T","H3K27me3_24R","H3K27me3_144R")),
logFC=abs(logFC)) %>%
group_by(group) %>%
summarize(med_Set2=median(logFC),.groups="drop") %>%
left_join(set1_27me3,by = "group") %>%
pivot_longer(cols=!group, values_to = "median_LFC", names_to = "set") %>%
ggplot(., aes(x=group, y=median_LFC, group=set, color=set))+
geom_point()+
geom_line(aes(alpha = 0.3))+
theme_bw()+
ggtitle("LFC across time for H3K27me3 sets")
H3K36me3 motifs samples

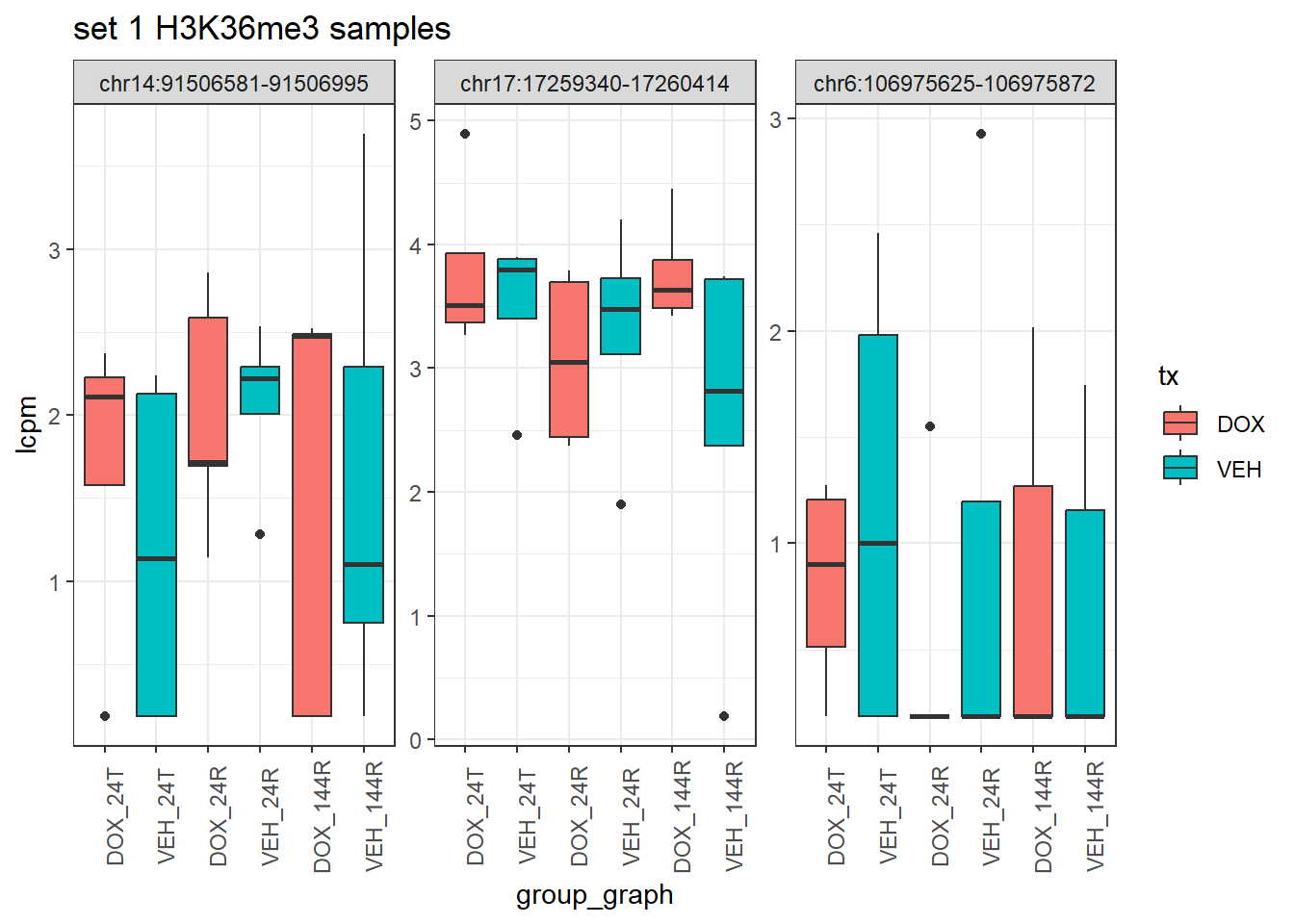

Set 1
# slice_sample(H3K36me3_set1,n = 3, replace=FALSE)
examp_H3K36me3_1 <-#slice_sample(H3K36me3_set1,n = 3, replace=FALSE)
c("chr6:106975625-106975872","chr17:17259340-17260414","chr14:91506581-91506995")

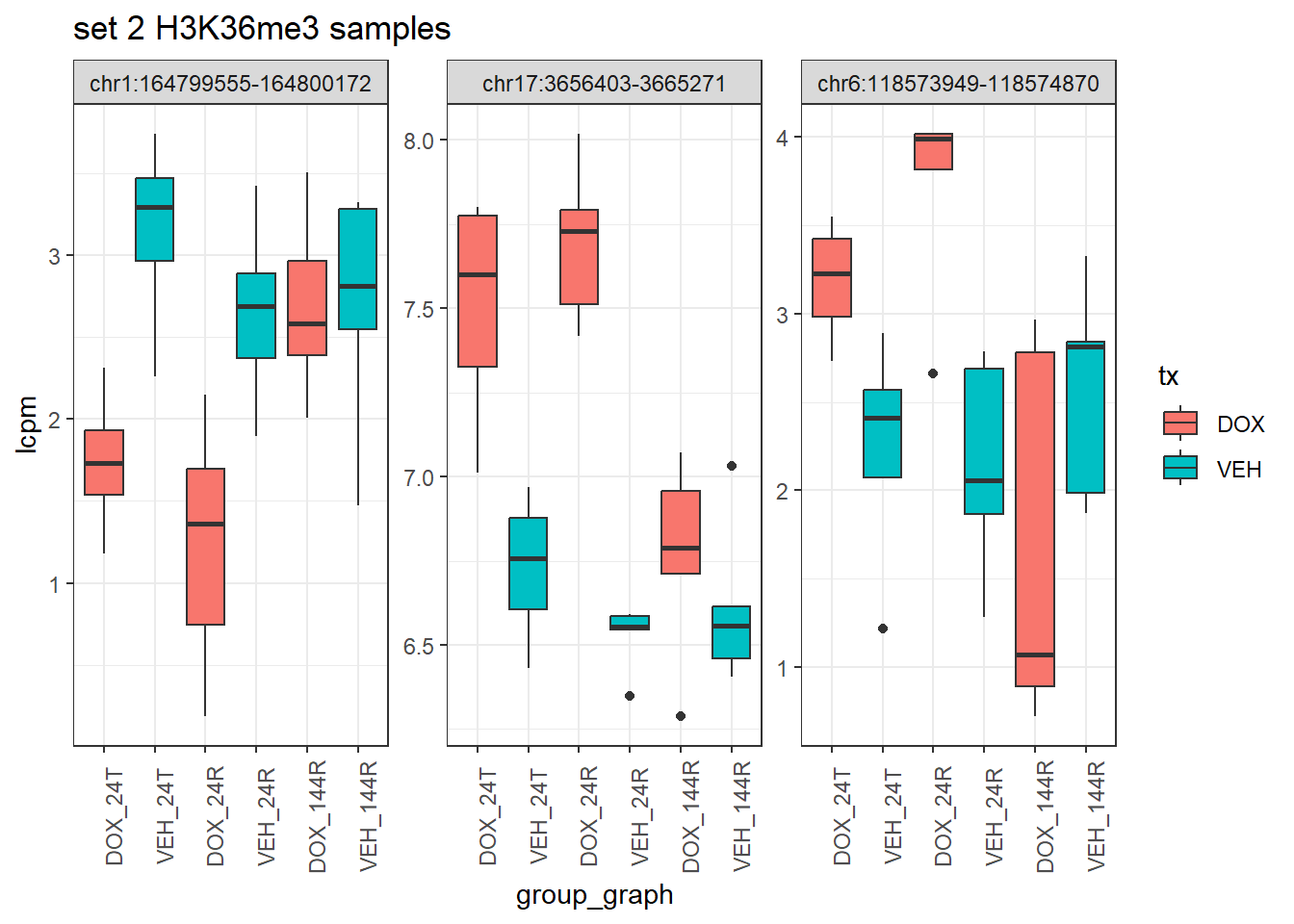

examp_H3K36me3_2 <-#slice_sample(H3K36me3_set2,n = 3, replace=FALSE)
# c("chr2:191013033-191013351","chr5:66597066-66597500","chr16:22232346-22233214")
c("chr17:3656403-3665271","chr6:118573949-118574870","chr1:164799555-164800172")
H3K36me3_filt_lcpm %>%
as.data.frame() %>%
dplyr::filter(row.names(H3K36me3_filt_lcpm) %in% examp_H3K36me3_1) %>%
###pivot and add additional information from dataframe
rownames_to_column("Peakid") %>%
pivot_longer(., cols = !Peakid, names_to = "sample", values_to = "lcpm" ) %>%
separate_wider_delim(., cols=sample, delim="_", names=c("ind","tx","time")) %>%
mutate(ind=factor(ind, levels=c("Ind1", "Ind2", "Ind3", "Ind4","Ind5")),
tx=factor(tx,levels = c("DOX","VEH")),
time=factor(time, levels=c("24T","24R","144R")),
group_graph= paste0(tx, "_", time),
group=paste0("H3K36me3_",time),
group_graph = factor(group_graph, levels = c(
"DOX_24T", "VEH_24T",
"DOX_24R", "VEH_24R",
"DOX_144R", "VEH_144R"))) %>%
ggplot(., aes(x=group_graph, y=lcpm)) +
geom_boxplot(aes(fill=tx))+
facet_wrap(~Peakid, scales="free")+
theme_bw()+
theme(axis.text.x=element_text(angle = 90))+
ggtitle("set 1 H3K36me3 samples")
Set 2
H3K36me3_filt_lcpm %>%
as.data.frame() %>%
dplyr::filter(row.names(H3K36me3_filt_lcpm) %in% examp_H3K36me3_2) %>%
###pivot and add additional information from dataframe
rownames_to_column("Peakid") %>%
pivot_longer(., cols = !Peakid, names_to = "sample", values_to = "lcpm" ) %>%
separate_wider_delim(., cols=sample, delim="_", names=c("ind","tx","time")) %>%
mutate(ind=factor(ind, levels=c("Ind1", "Ind2", "Ind3", "Ind4","Ind5")),
tx=factor(tx,levels = c("DOX","VEH")),
time=factor(time, levels=c("24T","24R","144R")),
group_graph= paste0(tx, "_", time),
group=paste0("H3K36me3_",time),
group_graph = factor(group_graph, levels = c(
"DOX_24T", "VEH_24T",
"DOX_24R", "VEH_24R",
"DOX_144R", "VEH_144R"))) %>%
ggplot(., aes(x=group_graph, y=lcpm)) +
geom_boxplot(aes(fill=tx))+
facet_wrap(~Peakid, scales="free")+
theme_bw()+
theme(axis.text.x=element_text(angle = 90))+
ggtitle("set 2 H3K36me3 samples")
all_H3K36me3_regions_gr <- all_H3K36me3_regions %>%
tidyr::separate(., col = "Peakid", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
GRanges()
H3K36me3_set1_gr <- H3K36me3_set1 %>%
tidyr::separate(., col = ".", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
dplyr::rename("Peakid"=".") %>%
GRanges()
H3K36me3_set2_gr <- H3K36me3_set2 %>%
tidyr::separate(., col = ".", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
dplyr::rename("Peakid"=".") %>%
GRanges()
H3K36me3_list <- list("Set_1"=H3K36me3_set1_gr,"Set_2"=H3K36me3_set2_gr, "all_H3K36me3_regions"=all_H3K36me3_regions_gr)
# peakAnnoList_H3K36me3 <- lapply(H3K36me3_list, annotatePeak, tssRegion =c(-2000,2000), TxDb=txdb)
# #
# saveRDS(peakAnnoList_H3K36me3, "data/motif_lists/H3K36me3_annotated_peaks.RDS")
peakAnnoList_H3K36me3 <- readRDS("data/motif_lists/H3K36me3_annotated_peaks.RDS")

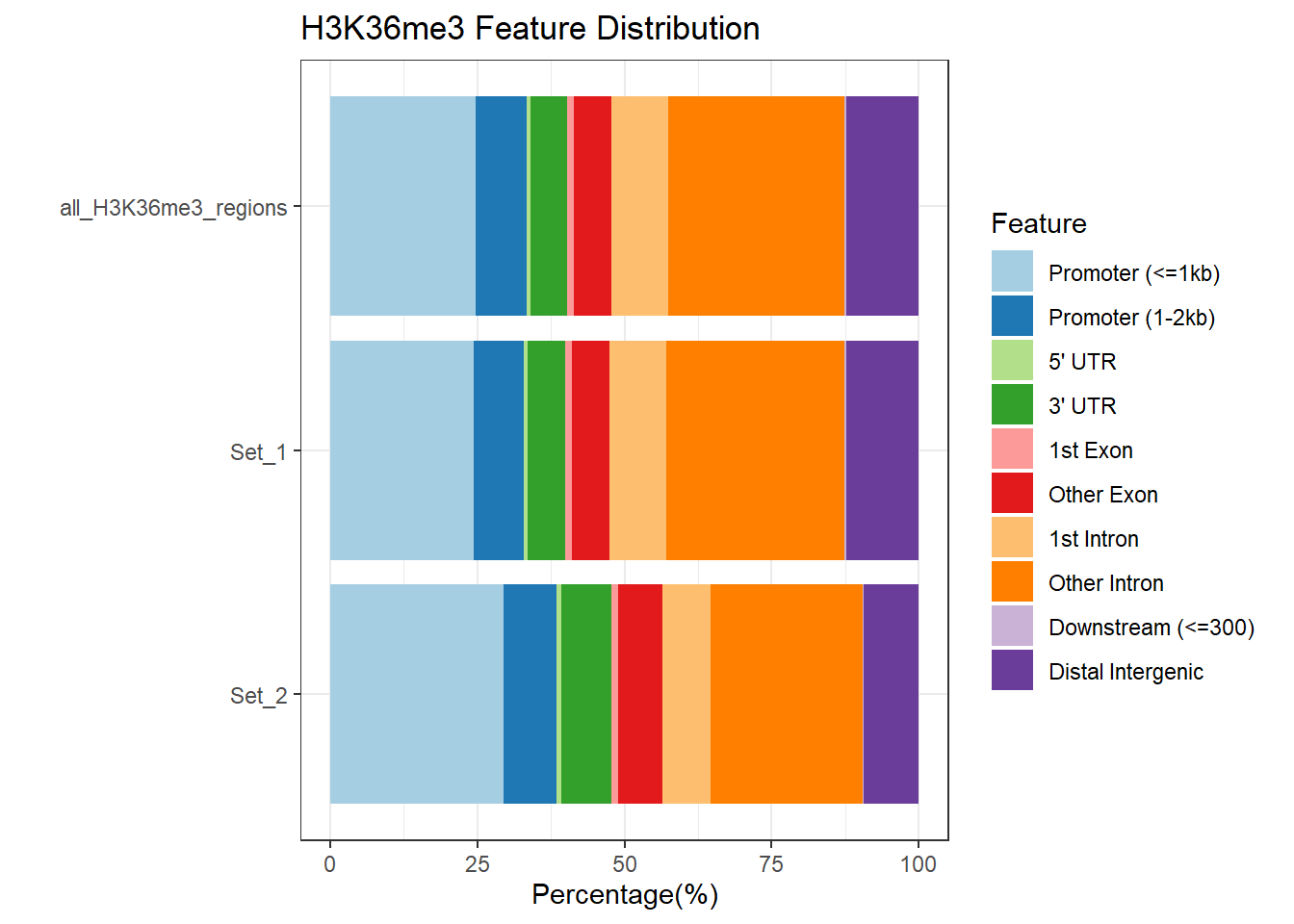

plotAnnoBar(peakAnnoList_H3K36me3[c(3,1,2)])+
ggtitle("H3K36me3 Feature Distribution")
# pie_plots_H3K36me3 <- map(peakAnnoList_H3K36me3, ~ plotAnnoPie(.x))

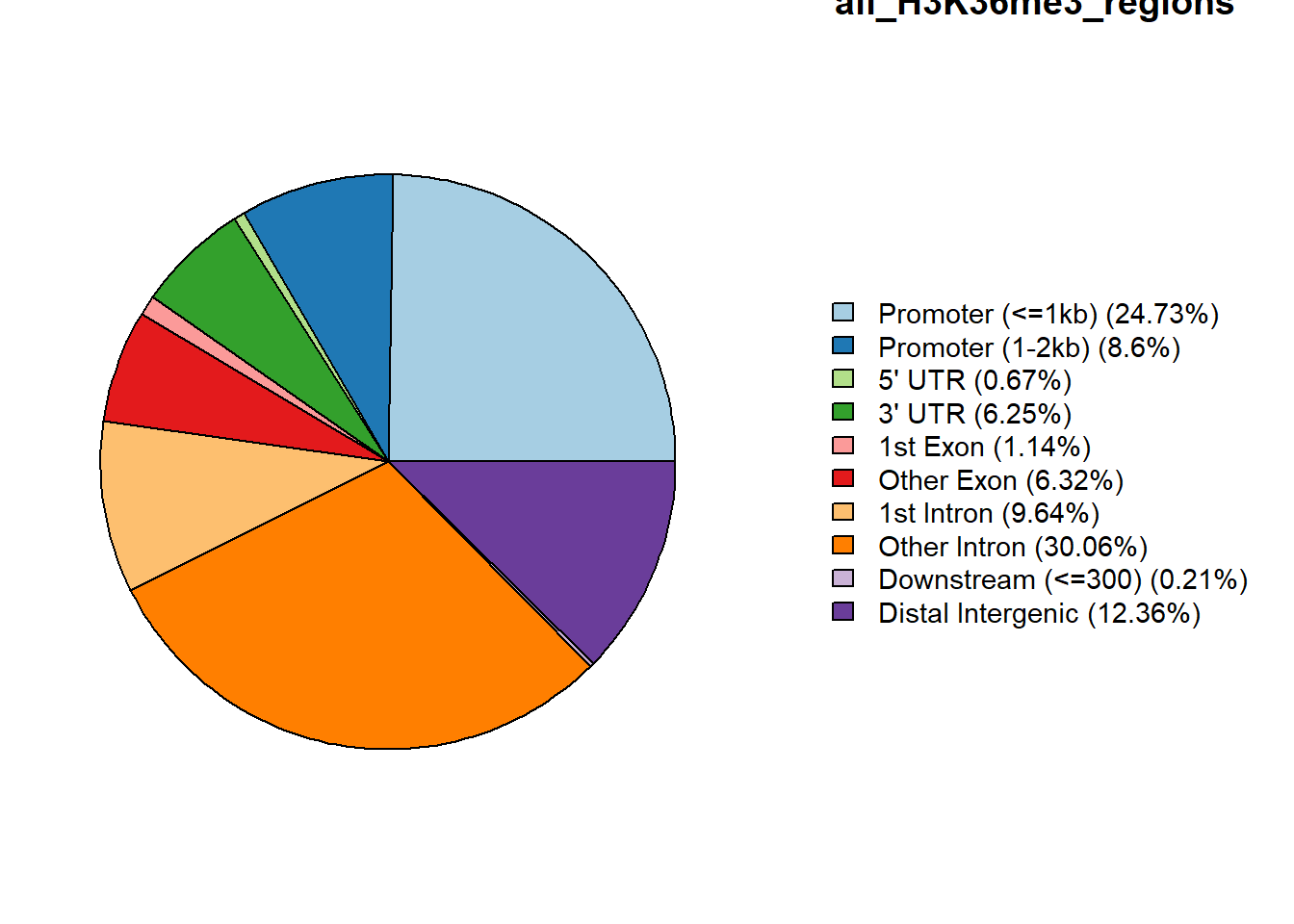

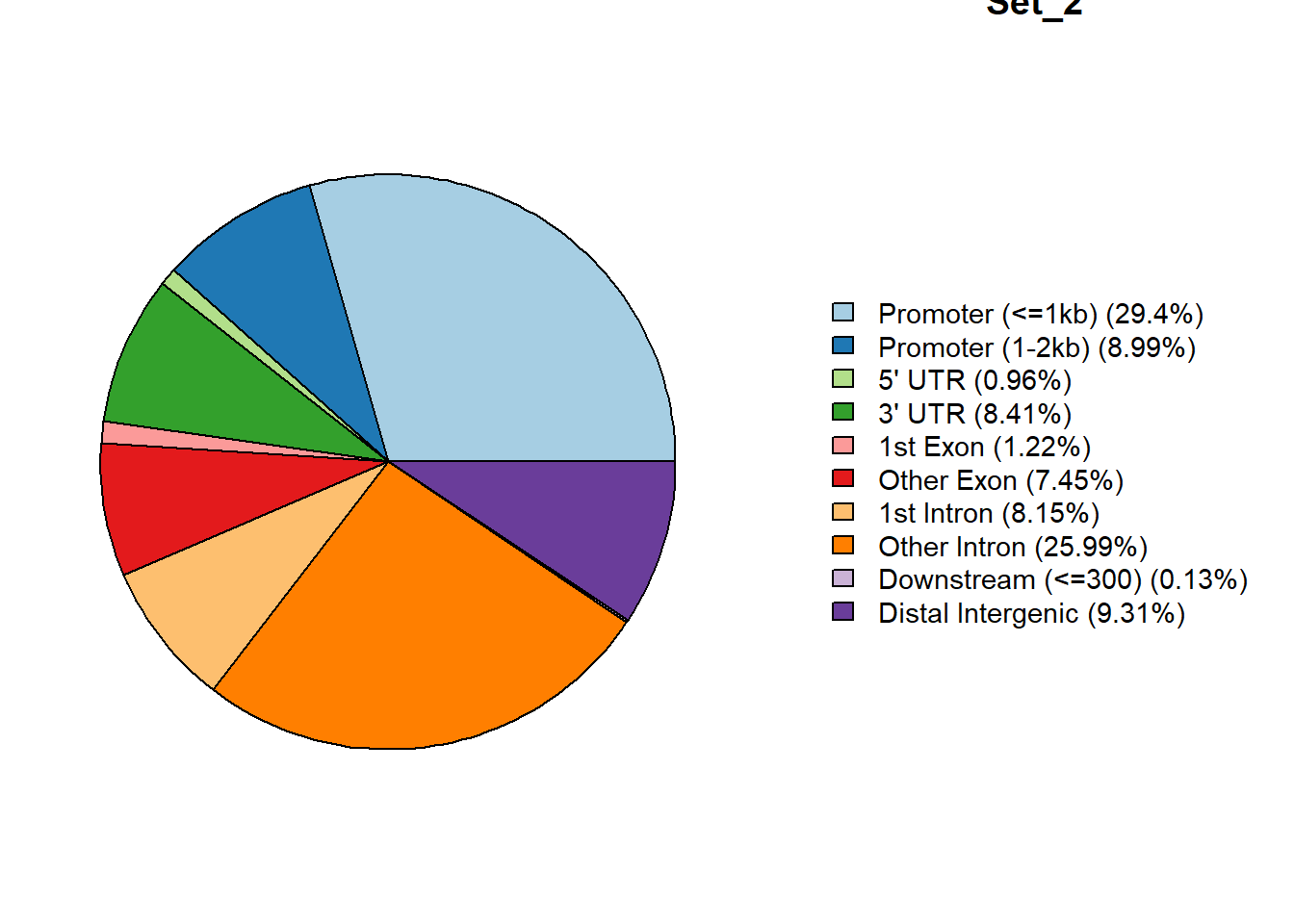

for(nm in names(peakAnnoList_H3K36me3)) {
plotAnnoPie(peakAnnoList_H3K36me3[[nm]])
title(main = nm) # base R title
}
LFC H3K36me3
Set1
# H3K36me3_toptable_list %>%
# dplyr::filter(genes %in% H3K36me3_set1$.) %>%
# dplyr::select(group,genes,logFC) %>%
# mutate(group=factor(group, levels = c("H3K36me3_24T","H3K36me3_24R","H3K36me3_144R"))) %>%
# ggplot(., aes(x=group, y=logFC))+
# geom_boxplot(aes(fill=group))+
# geom_signif(comparisons = list(c("H3K36me3_24T", "H3K36me3_144R"),
# c("H3K36me3_24T","H3K36me3_24R"),
# c("H3K36me3_24R", "H3K36me3_144R")),
# step_increase = 0.1,
# map_signif_level = FALSE,
# test = "wilcox.test")+
# theme_bw()+
# ggtitle("LFC across time for H3K36me3 set1")

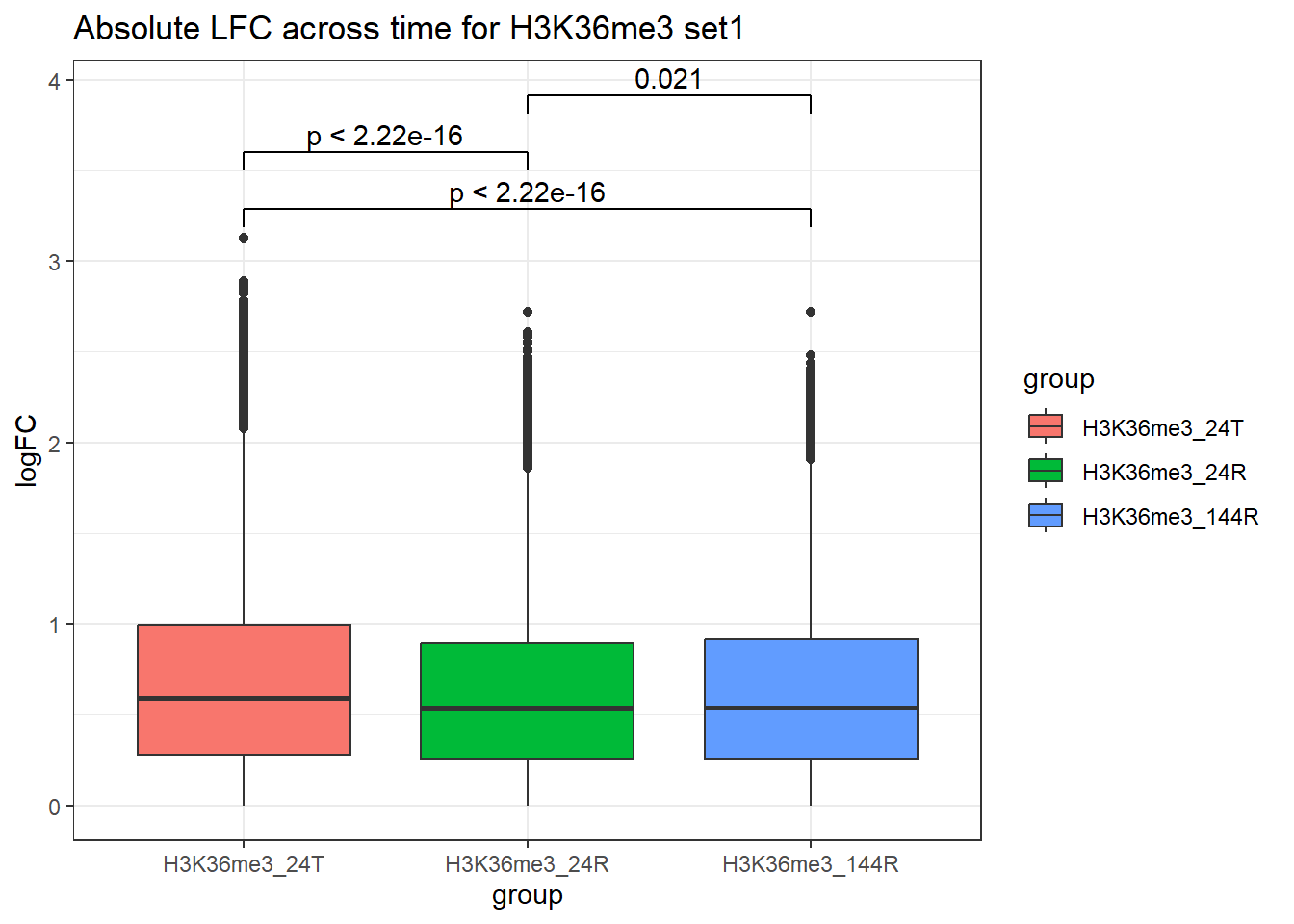

H3K36me3_toptable_list %>%
dplyr::filter(genes %in% H3K36me3_set1$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K36me3_24T","H3K36me3_24R","H3K36me3_144R")),
logFC=abs(logFC)) %>%
ggplot(., aes(x=group, y=logFC))+
geom_boxplot(aes(fill=group))+
geom_signif(comparisons = list(c("H3K36me3_24T", "H3K36me3_144R"),
c("H3K36me3_24T","H3K36me3_24R"),
c("H3K36me3_24R", "H3K36me3_144R")),
step_increase = 0.1,
map_signif_level = FALSE,
test = "wilcox.test")+
theme_bw()+
ggtitle("Absolute LFC across time for H3K36me3 set1")
set1_36me3 <- H3K36me3_toptable_list %>%
dplyr::filter(genes %in% H3K36me3_set1$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K36me3_24T","H3K36me3_24R","H3K36me3_144R")),
logFC=abs(logFC)) %>%
group_by(group) %>%
summarize(med_Set1=median(logFC),.groups="drop") set2
#
# H3K36me3_toptable_list %>%
# dplyr::filter(genes %in% H3K36me3_set2$.) %>%
# dplyr::select(group,genes,logFC) %>%
# mutate(group=factor(group, levels = c("H3K36me3_24T","H3K36me3_24R","H3K36me3_144R"))) %>%
# ggplot(., aes(x=group, y=logFC))+
# geom_boxplot(aes(fill=group))+
# geom_signif(comparisons = list(c("H3K36me3_24T", "H3K36me3_144R"),
# c("H3K36me3_24T","H3K36me3_24R"),
# c("H3K36me3_24R", "H3K36me3_144R")),
# step_increase = 0.1,
# map_signif_level = FALSE,
# test = "wilcox.test")+
# theme_bw()+
# ggtitle("LFC across time for H3K36me3 set2")

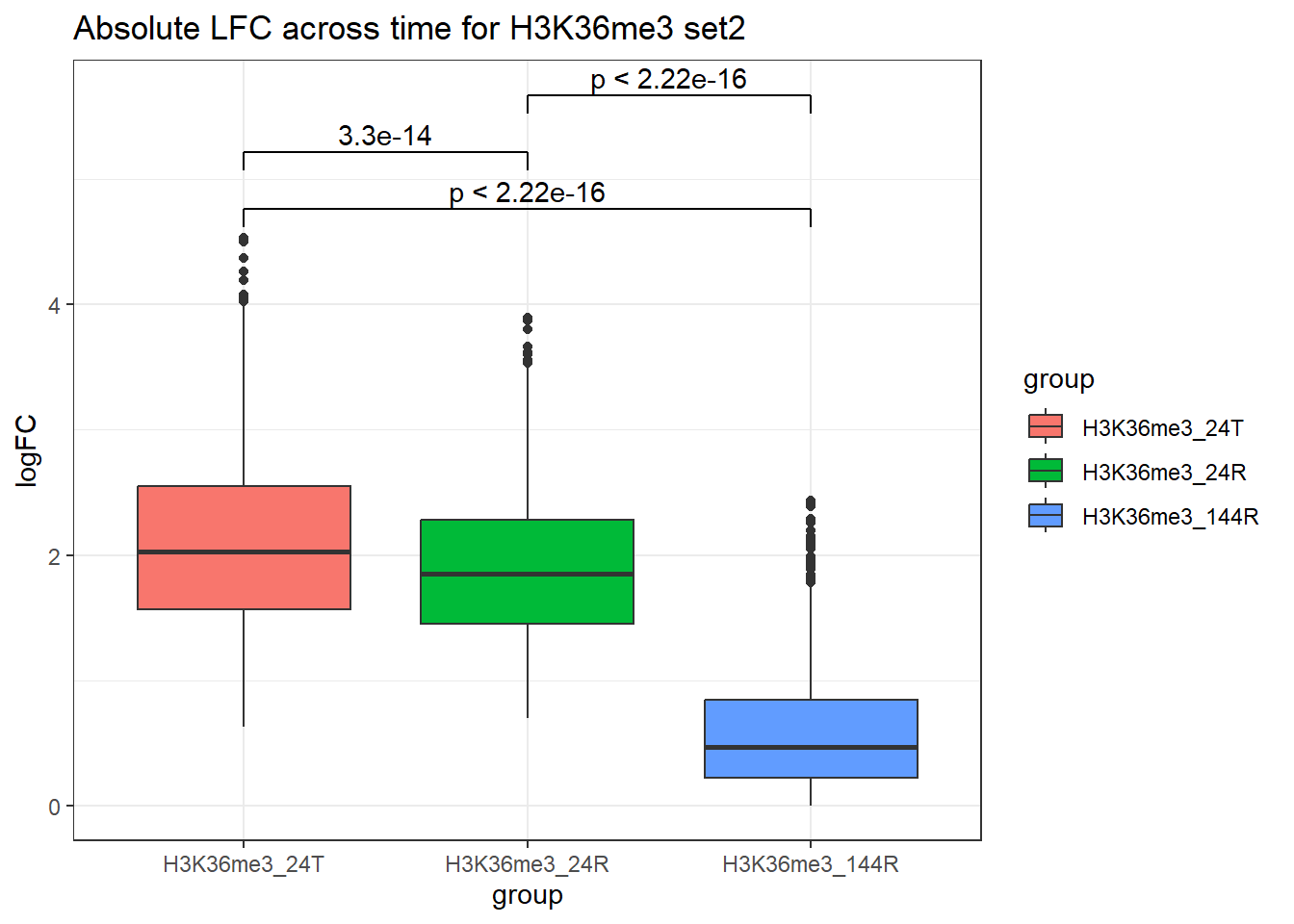

H3K36me3_toptable_list %>%
dplyr::filter(genes %in% H3K36me3_set2$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K36me3_24T","H3K36me3_24R","H3K36me3_144R")),
logFC=abs(logFC)) %>%
ggplot(., aes(x=group, y=logFC))+
geom_boxplot(aes(fill=group))+
geom_signif(comparisons = list(c("H3K36me3_24T", "H3K36me3_144R"),
c("H3K36me3_24T","H3K36me3_24R"),
c("H3K36me3_24R", "H3K36me3_144R")),
step_increase = 0.1,
map_signif_level = FALSE,
test = "wilcox.test")+
theme_bw()+
ggtitle("Absolute LFC across time for H3K36me3 set2")

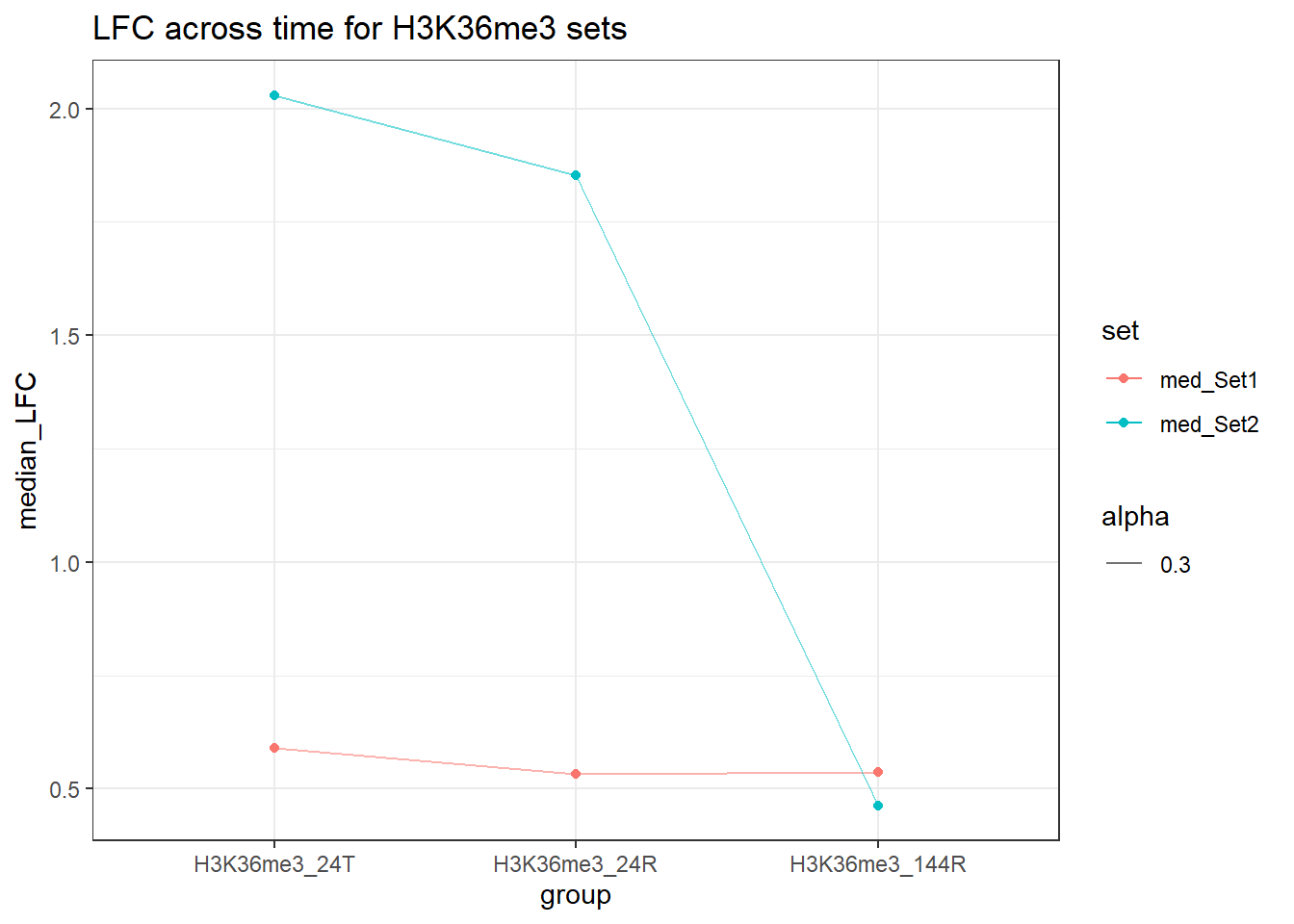

H3K36me3_toptable_list %>%
dplyr::filter(genes %in% H3K36me3_set2$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K36me3_24T","H3K36me3_24R","H3K36me3_144R")),
logFC=abs(logFC)) %>%
group_by(group) %>%
summarize(med_Set2=median(logFC),.groups="drop") %>%
left_join(set1_36me3,by = "group") %>%
pivot_longer(cols=!group, values_to = "median_LFC", names_to = "set") %>%
ggplot(., aes(x=group, y=median_LFC, group=set, color=set))+
geom_point()+
geom_line(aes(alpha = 0.3))+
theme_bw()+
ggtitle("LFC across time for H3K36me3 sets")
H3K9me3 motifs samples

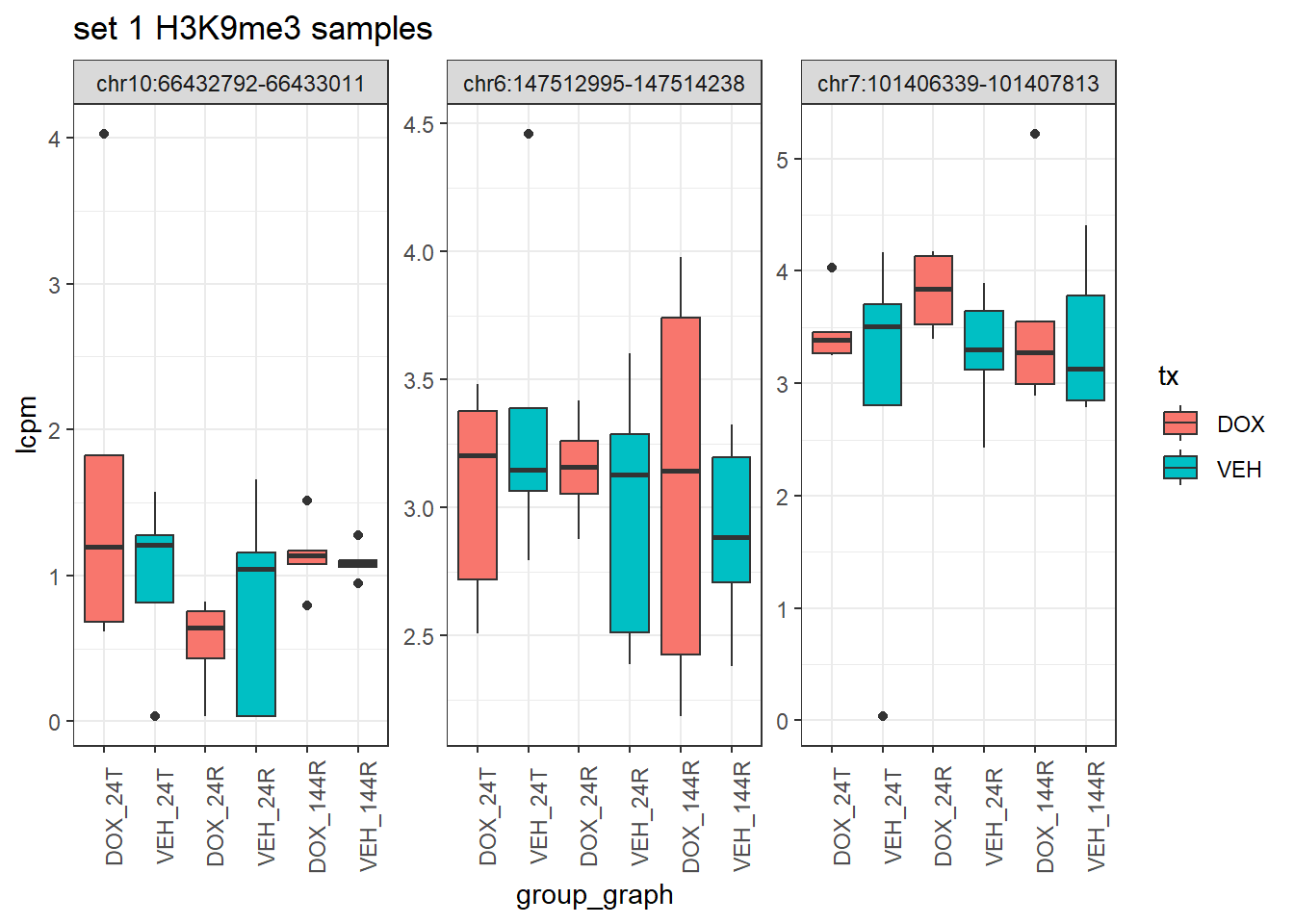

Set 1
# slice_sample(H3K9me3_set3,n = 3, replace=FALSE)
examp_H3K9me3_1 <-#slice_sample(H3K9me3_set1,n = 3, replace=FALSE)
c("chr7:101406339-101407813","chr6:147512995-147514238","chr10:66432792-66433011")
examp_H3K9me3_2 <-#slice_sample(H3K9me3_set2,n = 3, replace=FALSE)
c("chr2:120985518-120985865" , "chr7:926998-927207","chr12:108895126-108895841")
examp_H3K9me3_3 <- #slice_sample(H3K9me3_set3,n = 3, replace=FALSE)
c("chr6:44276324-44278629","chr7:906806-907939" ,"chr20:63682374-63682947")
H3K9me3_filt_lcpm %>%
as.data.frame() %>%
dplyr::filter(row.names(H3K9me3_filt_lcpm) %in% examp_H3K9me3_1) %>%
###pivot and add additional information from dataframe
rownames_to_column("Peakid") %>%
pivot_longer(., cols = !Peakid, names_to = "sample", values_to = "lcpm" ) %>%
separate_wider_delim(., cols=sample, delim="_", names=c("ind","tx","time")) %>%
mutate(ind=factor(ind, levels=c("Ind1", "Ind2", "Ind3", "Ind4","Ind5")),
tx=factor(tx,levels = c("DOX","VEH")),
time=factor(time, levels=c("24T","24R","144R")),
group_graph= paste0(tx, "_", time),
group=paste0("H3K9me3_",time),
group_graph = factor(group_graph, levels = c(
"DOX_24T", "VEH_24T",
"DOX_24R", "VEH_24R",
"DOX_144R", "VEH_144R"))) %>%
ggplot(., aes(x=group_graph, y=lcpm)) +
geom_boxplot(aes(fill=tx))+
facet_wrap(~Peakid, scales="free")+
theme_bw()+
theme(axis.text.x=element_text(angle = 90))+
ggtitle("set 1 H3K9me3 samples")

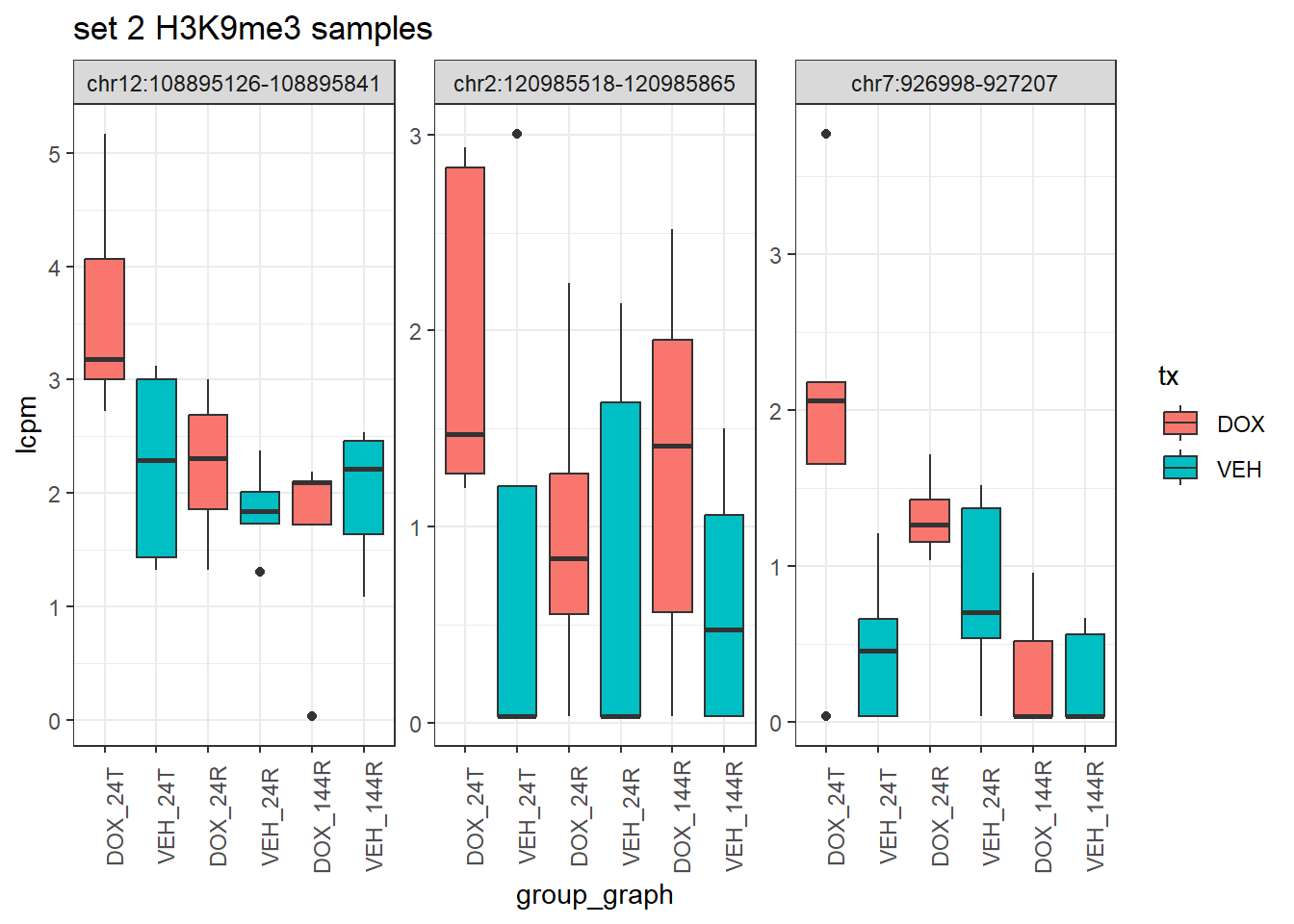

Set 2
H3K9me3_filt_lcpm %>%
as.data.frame() %>%
dplyr::filter(row.names(H3K9me3_filt_lcpm) %in% examp_H3K9me3_2) %>%
###pivot and add additional information from dataframe
rownames_to_column("Peakid") %>%
pivot_longer(., cols = !Peakid, names_to = "sample", values_to = "lcpm" ) %>%
separate_wider_delim(., cols=sample, delim="_", names=c("ind","tx","time")) %>%
mutate(ind=factor(ind, levels=c("Ind1", "Ind2", "Ind3", "Ind4","Ind5")),
tx=factor(tx,levels = c("DOX","VEH")),
time=factor(time, levels=c("24T","24R","144R")),
group_graph= paste0(tx, "_", time),
group=paste0("H3K9me3_",time),
group_graph = factor(group_graph, levels = c(
"DOX_24T", "VEH_24T",
"DOX_24R", "VEH_24R",
"DOX_144R", "VEH_144R"))) %>%
ggplot(., aes(x=group_graph, y=lcpm)) +
geom_boxplot(aes(fill=tx))+
facet_wrap(~Peakid, scales="free")+
theme_bw()+
theme(axis.text.x=element_text(angle = 90))+
ggtitle("set 2 H3K9me3 samples")

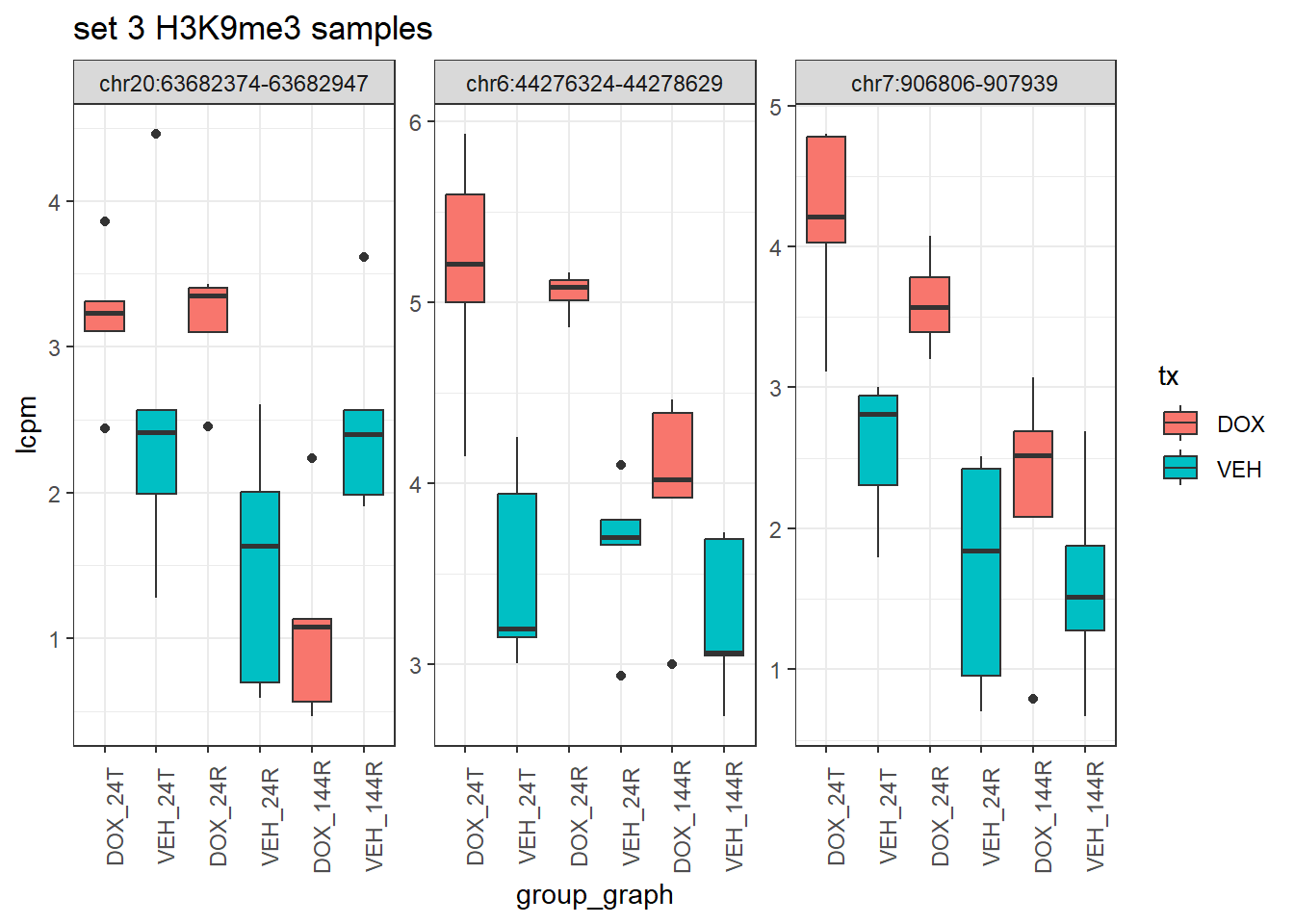

Set 3
H3K9me3_filt_lcpm %>%
as.data.frame() %>%
dplyr::filter(row.names(H3K9me3_filt_lcpm) %in% examp_H3K9me3_3) %>%
###pivot and add additional information from dataframe
rownames_to_column("Peakid") %>%
pivot_longer(., cols = !Peakid, names_to = "sample", values_to = "lcpm" ) %>%
separate_wider_delim(., cols=sample, delim="_", names=c("ind","tx","time")) %>%
mutate(ind=factor(ind, levels=c("Ind1", "Ind2", "Ind3", "Ind4","Ind5")),
tx=factor(tx,levels = c("DOX","VEH")),
time=factor(time, levels=c("24T","24R","144R")),
group_graph= paste0(tx, "_", time),
group=paste0("H3K9me3_",time),
group_graph = factor(group_graph, levels = c(
"DOX_24T", "VEH_24T",
"DOX_24R", "VEH_24R",
"DOX_144R", "VEH_144R"))) %>%
ggplot(., aes(x=group_graph, y=lcpm)) +
geom_boxplot(aes(fill=tx))+
facet_wrap(~Peakid, scales="free")+
theme_bw()+
theme(axis.text.x=element_text(angle = 90))+
ggtitle("set 3 H3K9me3 samples")
all_H3K9me3_regions_gr <- all_H3K9me3_regions %>%
tidyr::separate(., col = "Peakid", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
GRanges()
H3K9me3_set1_gr <- H3K9me3_set1 %>%
tidyr::separate(., col = ".", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
dplyr::rename("Peakid"=".") %>%
GRanges()
H3K9me3_set2_gr <- H3K9me3_set2 %>%
tidyr::separate(., col = ".", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
dplyr::rename("Peakid"=".") %>%
GRanges()
H3K9me3_set3_gr <- H3K9me3_set3 %>%
tidyr::separate(., col = ".", into=c("seqnames","range"), sep = ":", remove=FALSE) %>%
tidyr::separate(., col = "range", into=c("start","end"), sep = "-") %>%
dplyr::rename("Peakid"=".") %>%
GRanges()
H3K9me3_list <- list("Set_1"=H3K9me3_set1_gr,"Set_2"=H3K9me3_set2_gr,"Set_3"=H3K9me3_set3_gr,"all_H3K9me3_regions"=all_H3K9me3_regions_gr)
# peakAnnoList_H3K9me3 <- lapply(H3K9me3_list, annotatePeak, tssRegion =c(-2000,2000), TxDb=txdb)
# #
# saveRDS(peakAnnoList_H3K9me3, "data/motif_lists/H3K9me3_annotated_peaks.RDS")
peakAnnoList_H3K9me3 <- readRDS("data/motif_lists/H3K9me3_annotated_peaks.RDS")

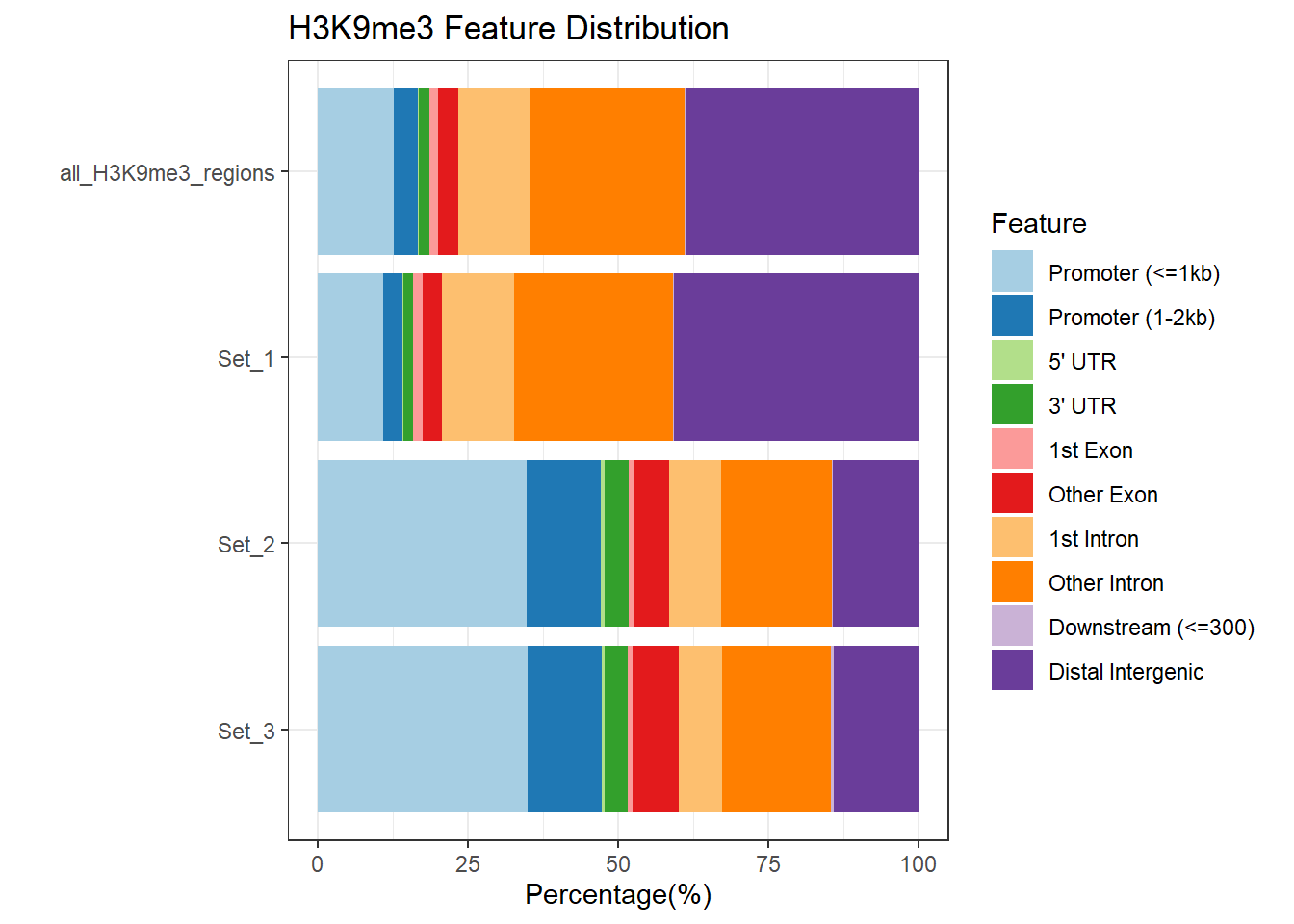

plotAnnoBar(peakAnnoList_H3K9me3[c(4,1,2,3)])+
ggtitle("H3K9me3 Feature Distribution")
# pie_plots_H3K9me3 <- map(peakAnnoList_H3K9me3, ~ plotAnnoPie(.x))

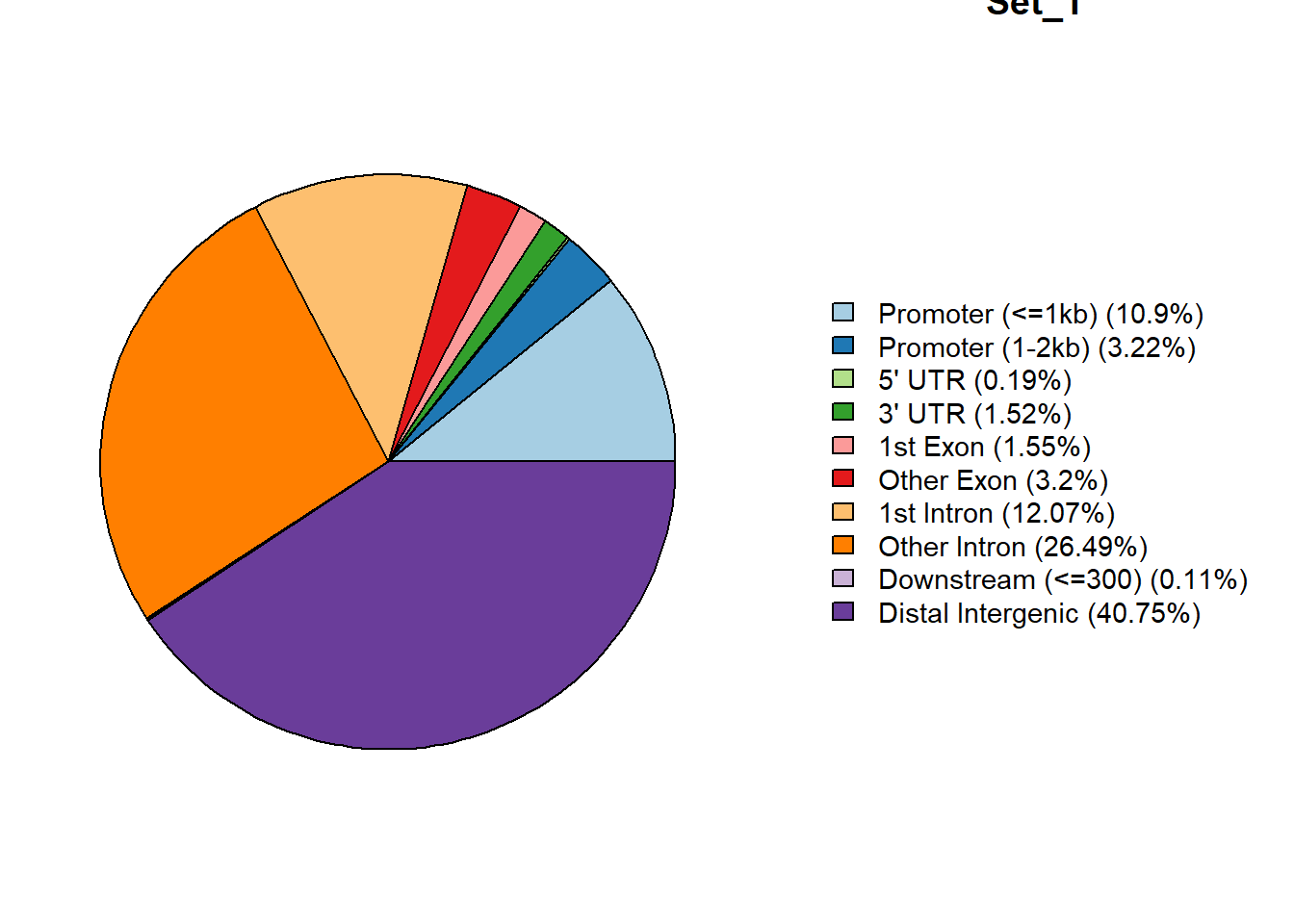

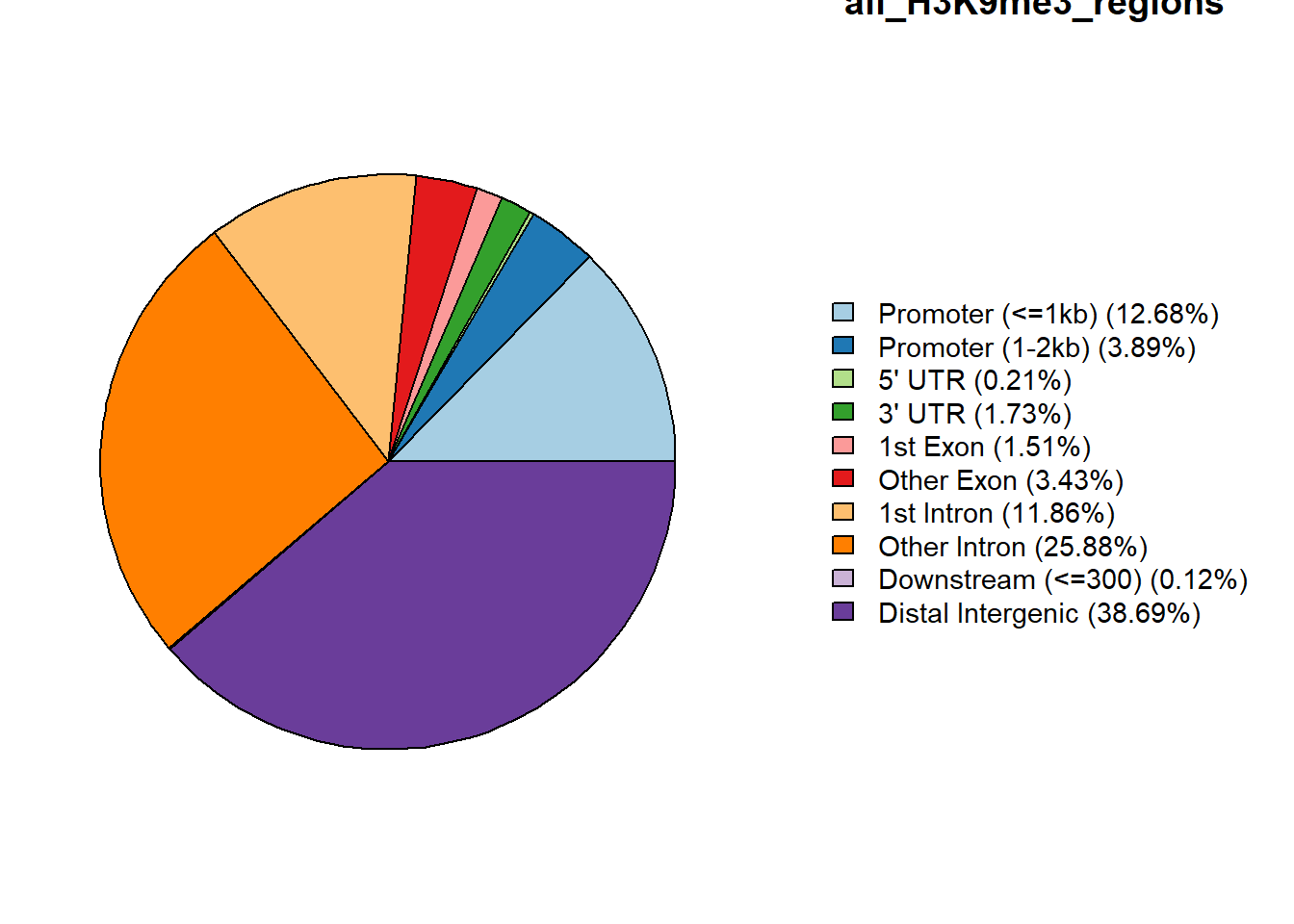

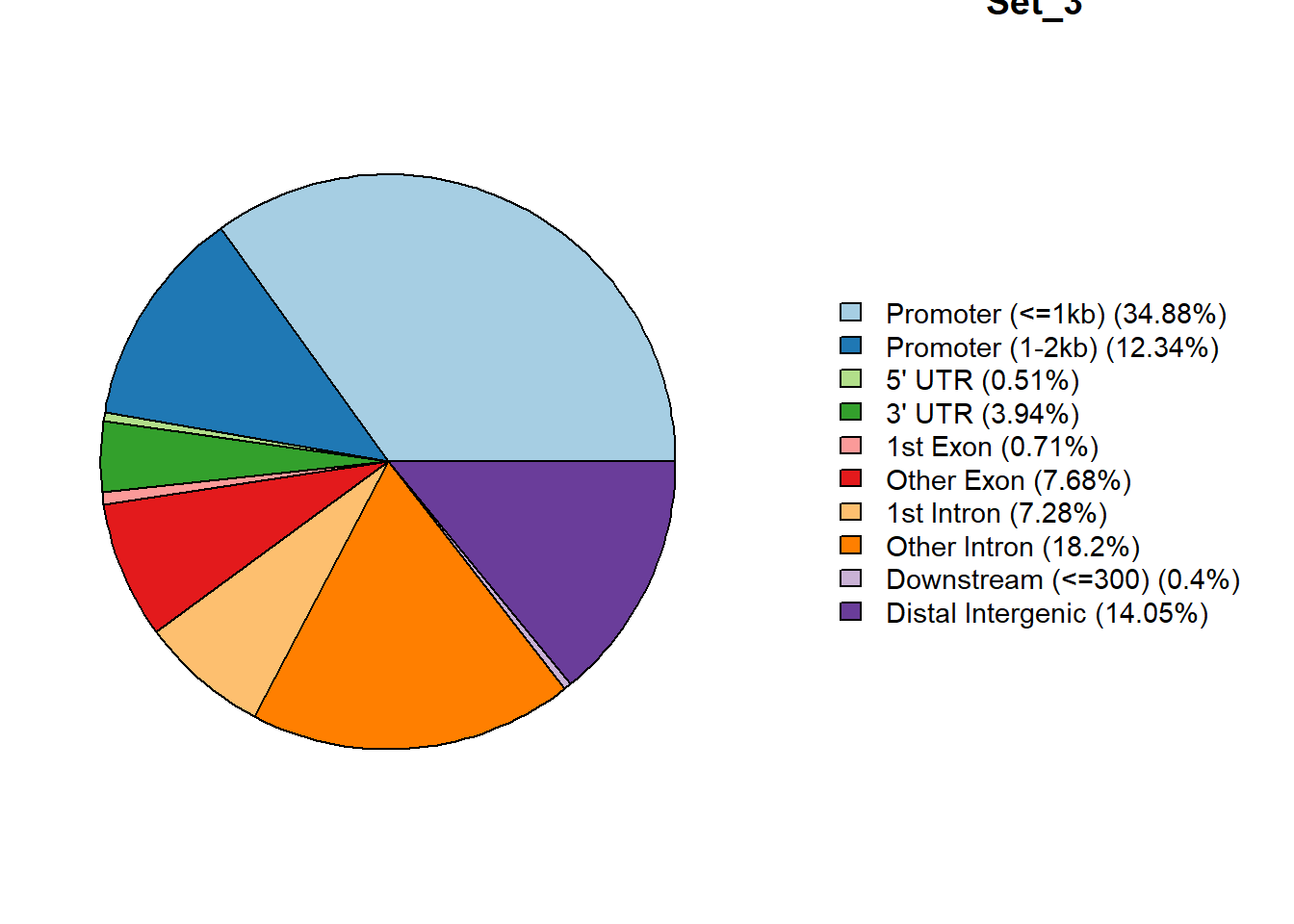

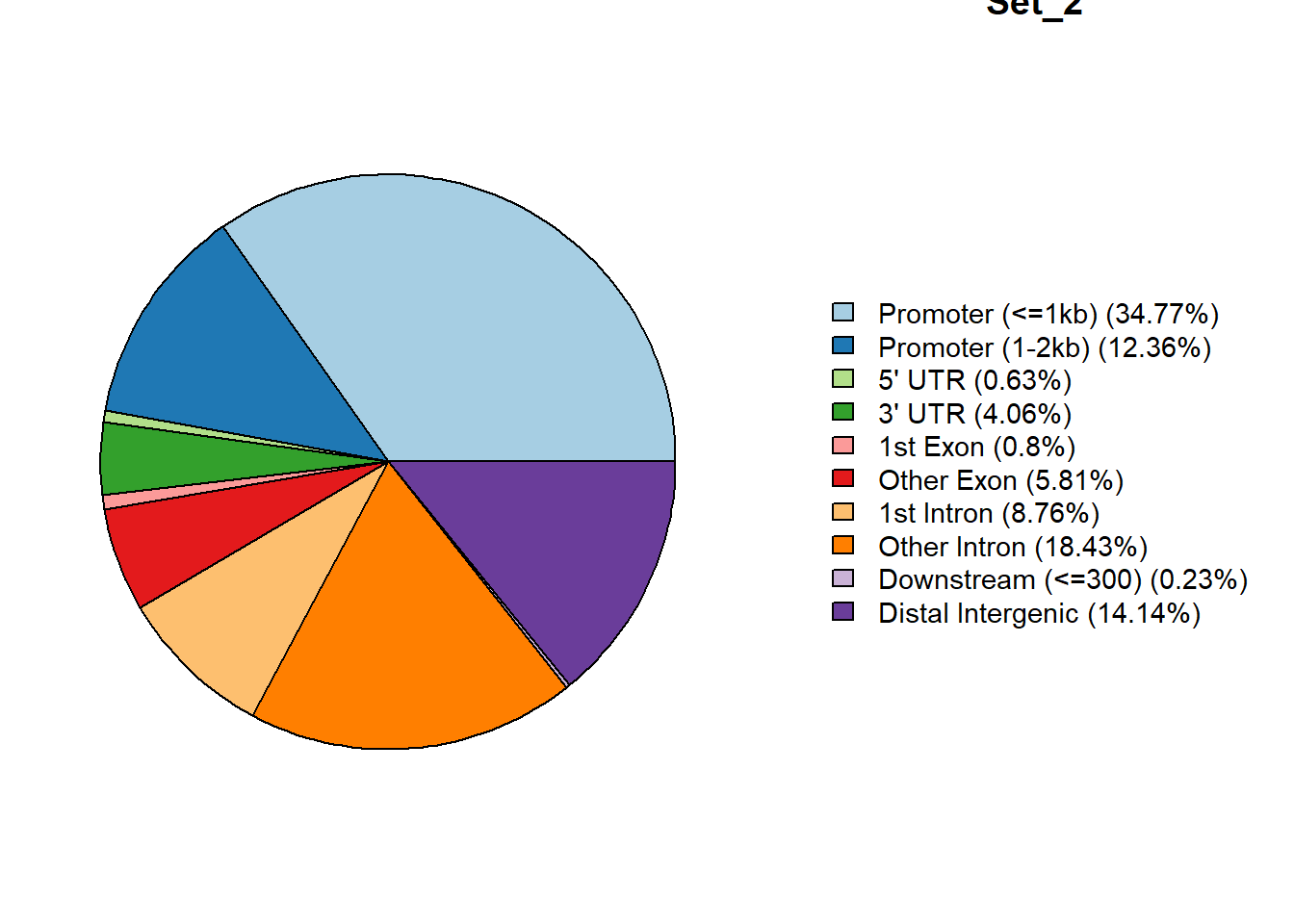

for(nm in names(peakAnnoList_H3K9me3)) {
plotAnnoPie(peakAnnoList_H3K9me3[[nm]])
title(main = nm) # base R title
}
LFC H3K9me3
Set1
# H3K9me3_toptable_list %>%
# dplyr::filter(genes %in% H3K9me3_set1$.) %>%
# dplyr::select(group,genes,logFC) %>%
# mutate(group=factor(group, levels = c("H3K9me3_24T","H3K9me3_24R","H3K9me3_144R"))) %>%
# ggplot(., aes(x=group, y=logFC))+
# geom_boxplot(aes(fill=group))+
# geom_signif(comparisons = list(c("H3K9me3_24T", "H3K9me3_144R"),
# c("H3K9me3_24T","H3K9me3_24R"),
# c("H3K9me3_24R", "H3K9me3_144R")),
# step_increase = 0.1,
# map_signif_level = FALSE,
# test = "wilcox.test")+
# theme_bw()+
# ggtitle("LFC across time for H3K9me3 set1")

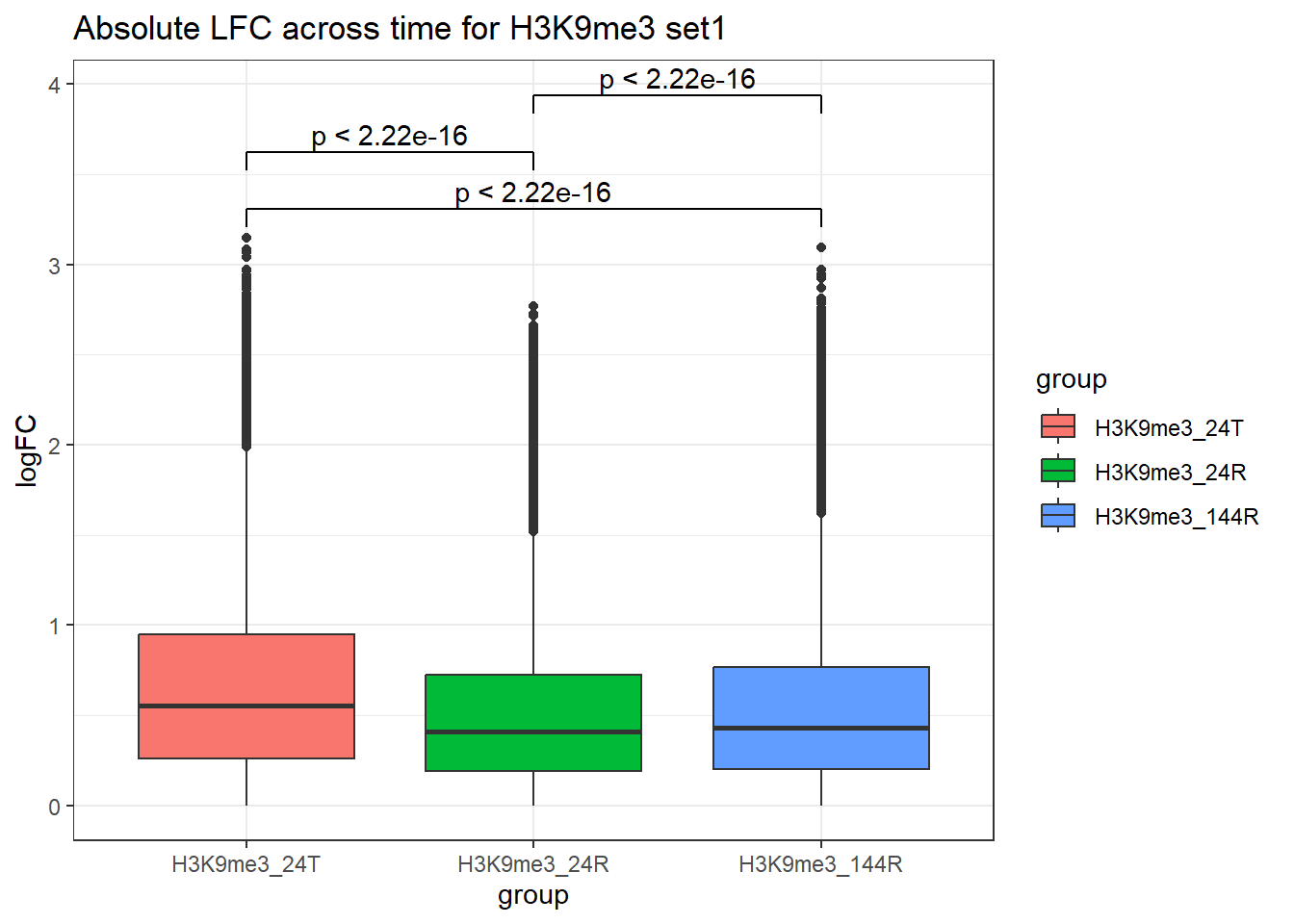

H3K9me3_toptable_list %>%
dplyr::filter(genes %in% H3K9me3_set1$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K9me3_24T","H3K9me3_24R","H3K9me3_144R")),
logFC=abs(logFC)) %>%
ggplot(., aes(x=group, y=logFC))+
geom_boxplot(aes(fill=group))+
geom_signif(comparisons = list(c("H3K9me3_24T", "H3K9me3_144R"),
c("H3K9me3_24T","H3K9me3_24R"),
c("H3K9me3_24R", "H3K9me3_144R")),
step_increase = 0.1,
map_signif_level = FALSE,
test = "wilcox.test")+
theme_bw()+
ggtitle("Absolute LFC across time for H3K9me3 set1")
set1_9me3 <- H3K9me3_toptable_list %>%
dplyr::filter(genes %in% H3K9me3_set1$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K9me3_24T","H3K9me3_24R","H3K9me3_144R")),
logFC=abs(logFC)) %>%
group_by(group) %>%
summarize(med_Set1=median(logFC),.groups="drop")set2
# H3K9me3_toptable_list %>%
# dplyr::filter(genes %in% H3K9me3_set2$.) %>%
# dplyr::select(group,genes,logFC) %>%
# mutate(group=factor(group, levels = c("H3K9me3_24T","H3K9me3_24R","H3K9me3_144R"))) %>%
# ggplot(., aes(x=group, y=logFC))+
# geom_boxplot(aes(fill=group))+
# geom_signif(comparisons = list(c("H3K9me3_24T", "H3K9me3_144R"),
# c("H3K9me3_24T","H3K9me3_24R"),
# c("H3K9me3_24R", "H3K9me3_144R")),
# step_increase = 0.1,
# map_signif_level = FALSE,
# test = "wilcox.test")+
# theme_bw()+
# ggtitle("LFC across time for H3K9me3 set2")

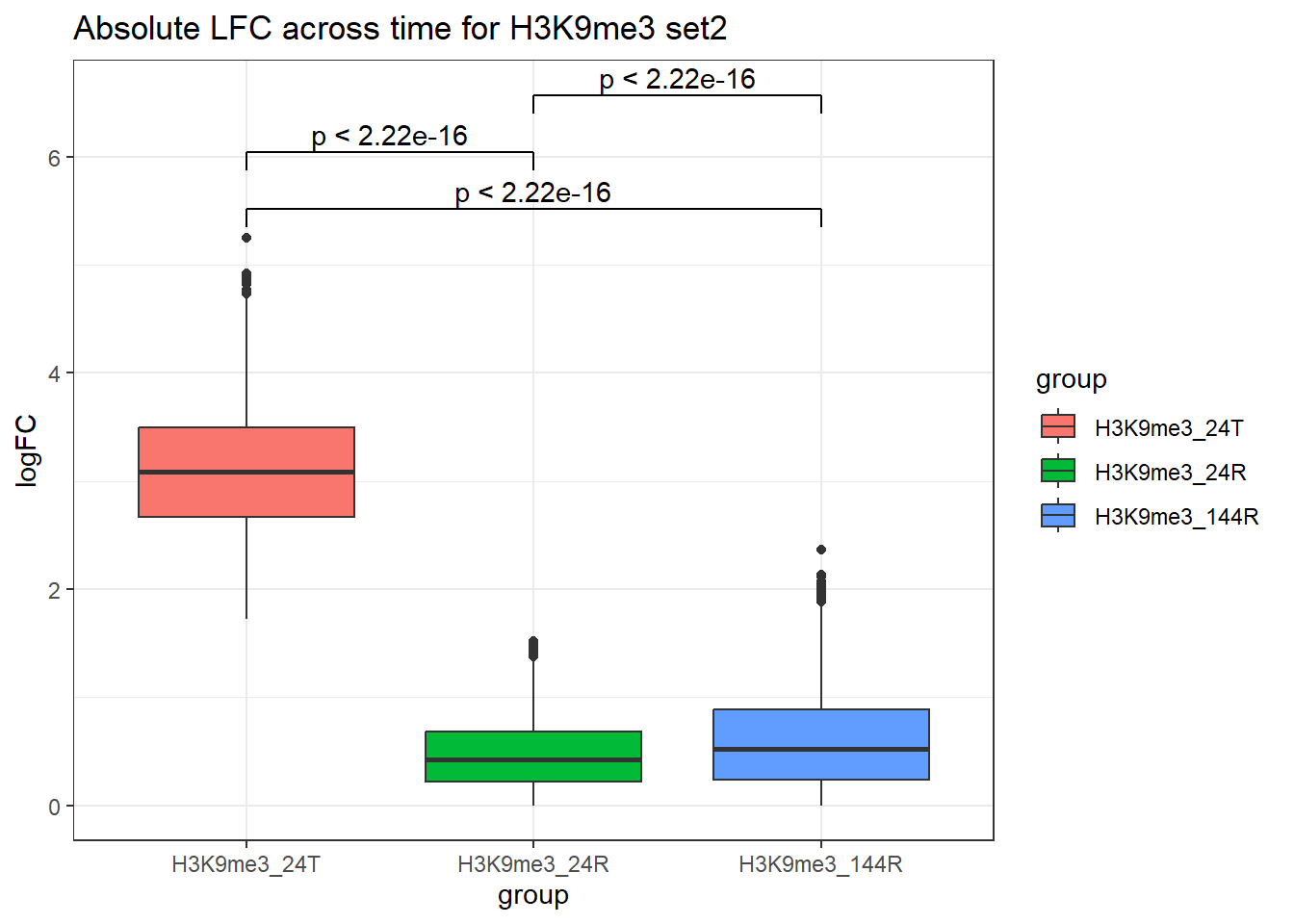

H3K9me3_toptable_list %>%
dplyr::filter(genes %in% H3K9me3_set2$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K9me3_24T","H3K9me3_24R","H3K9me3_144R")),
logFC=abs(logFC)) %>%
ggplot(., aes(x=group, y=logFC))+
geom_boxplot(aes(fill=group))+
geom_signif(comparisons = list(c("H3K9me3_24T", "H3K9me3_144R"),
c("H3K9me3_24T","H3K9me3_24R"),
c("H3K9me3_24R", "H3K9me3_144R")),
step_increase = 0.1,
map_signif_level = FALSE,
test = "wilcox.test")+
theme_bw()+
ggtitle("Absolute LFC across time for H3K9me3 set2")
set2_9me3 <- H3K9me3_toptable_list %>%
dplyr::filter(genes %in% H3K9me3_set2$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K9me3_24T","H3K9me3_24R","H3K9me3_144R")),
logFC=abs(logFC)) %>%
group_by(group) %>%
summarize(med_Set2=median(logFC),.groups="drop")set3
# H3K9me3_toptable_list %>%
# dplyr::filter(genes %in% H3K9me3_set3$.) %>%
# dplyr::select(group,genes,logFC) %>%
# mutate(group=factor(group, levels = c("H3K9me3_24T","H3K9me3_24R","H3K9me3_144R"))) %>%
# ggplot(., aes(x=group, y=logFC))+
# geom_boxplot(aes(fill=group))+
# geom_signif(comparisons = list(c("H3K9me3_24T", "H3K9me3_144R"),
# c("H3K9me3_24T","H3K9me3_24R"),
# c("H3K9me3_24R", "H3K9me3_144R")),
# step_increase = 0.1,
# map_signif_level = FALSE,
# test = "wilcox.test")+
# theme_bw()+
# ggtitle("LFC across time for H3K9me3 set3")

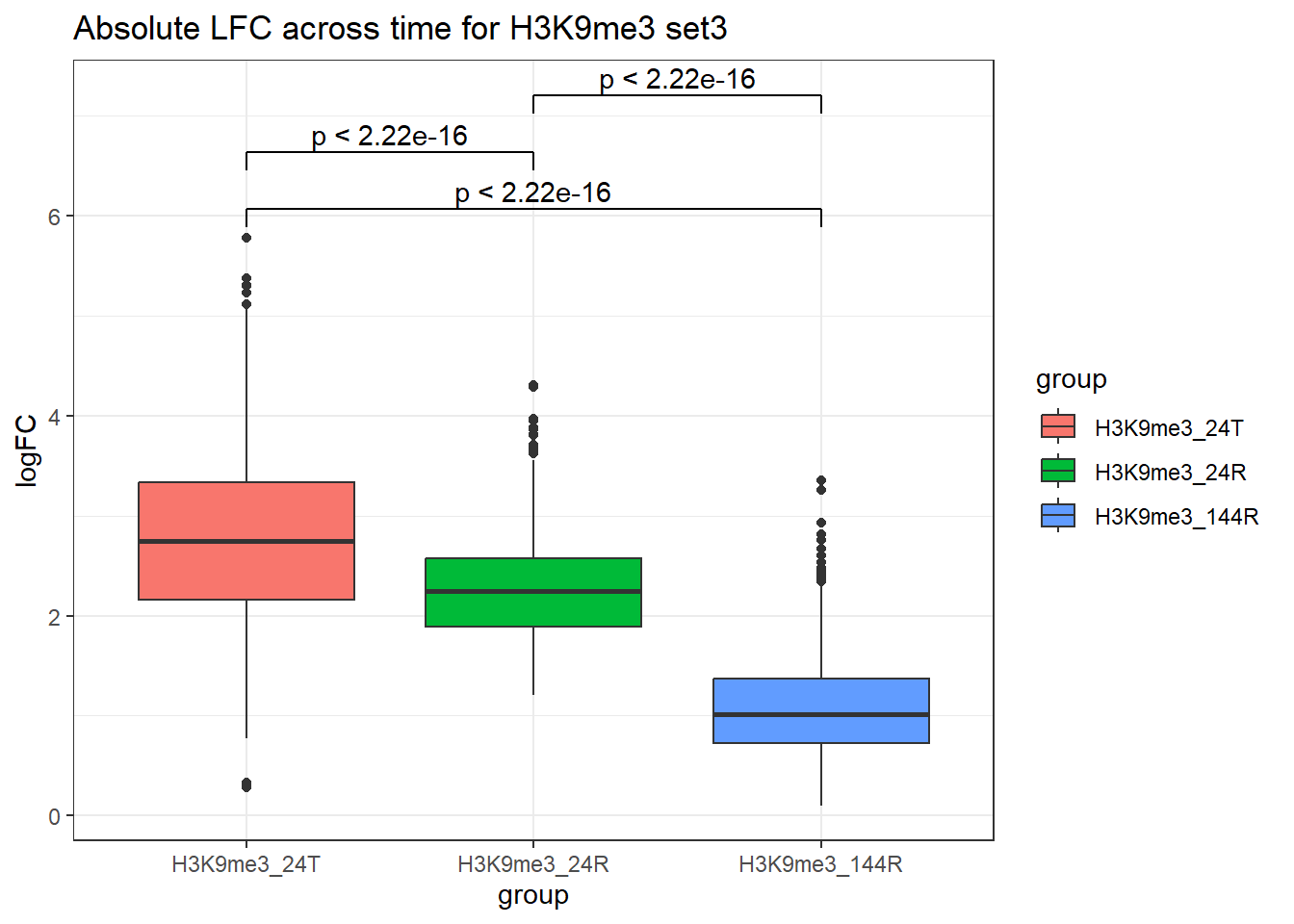

H3K9me3_toptable_list %>%
dplyr::filter(genes %in% H3K9me3_set3$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K9me3_24T","H3K9me3_24R","H3K9me3_144R")),
logFC=abs(logFC)) %>%
ggplot(., aes(x=group, y=logFC))+
geom_boxplot(aes(fill=group))+
geom_signif(comparisons = list(c("H3K9me3_24T", "H3K9me3_144R"),
c("H3K9me3_24T","H3K9me3_24R"),
c("H3K9me3_24R", "H3K9me3_144R")),
step_increase = 0.1,
map_signif_level = FALSE,
test = "wilcox.test")+
theme_bw()+
ggtitle("Absolute LFC across time for H3K9me3 set3")

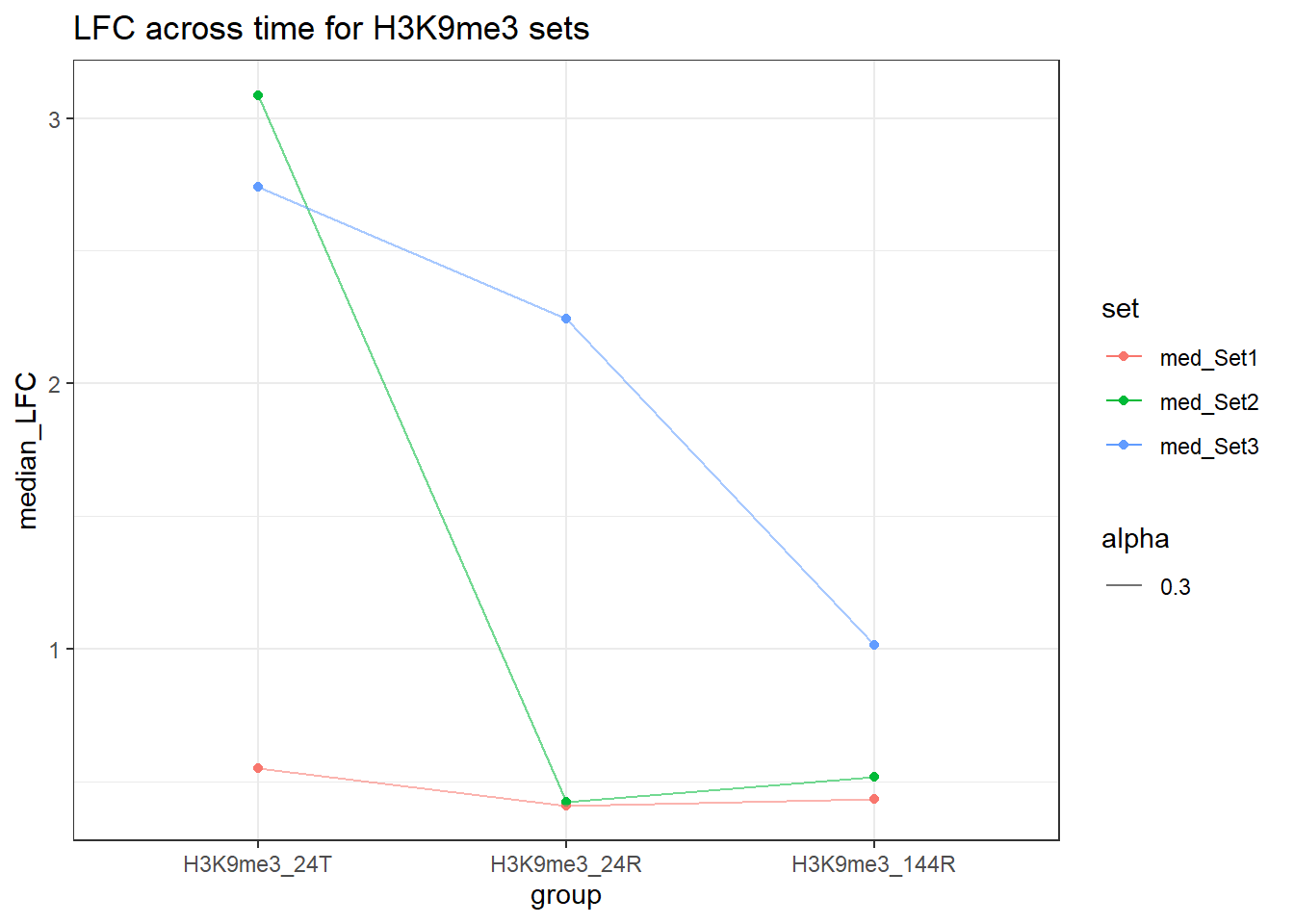

H3K9me3_toptable_list %>%
dplyr::filter(genes %in% H3K9me3_set3$.) %>%
dplyr::select(group,genes,logFC) %>%
mutate(group=factor(group, levels = c("H3K9me3_24T","H3K9me3_24R","H3K9me3_144R")),
logFC=abs(logFC)) %>%
group_by(group) %>%
summarize(med_Set3=median(logFC),.groups="drop") %>%
left_join(set1_9me3, by="group") %>%
left_join(set2_9me3, by="group") %>%
pivot_longer(cols=!group, values_to = "median_LFC", names_to = "set") %>%
ggplot(., aes(x=group, y=median_LFC, group=set, color=set))+
geom_point()+
geom_line(aes(alpha = 0.3))+
theme_bw()+
ggtitle("LFC across time for H3K9me3 sets")
sessionInfo()R version 4.4.2 (2024-10-31 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26100)
Matrix products: default
locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8
time zone: America/Chicago
tzcode source: internal
attached base packages:
[1] stats4 grid stats graphics grDevices utils datasets
[8] methods base
other attached packages:
[1] ChIPseeker_1.42.1
[2] TxDb.Hsapiens.UCSC.hg38.knownGene_3.20.0
[3] GenomicFeatures_1.58.0
[4] AnnotationDbi_1.68.0
[5] Biobase_2.66.0
[6] BiocParallel_1.40.2
[7] ggsignif_0.6.4
[8] ggVennDiagram_1.5.4
[9] smplot2_0.2.5
[10] cowplot_1.2.0
[11] ggrastr_1.0.2
[12] Rsubread_2.20.0
[13] gcplyr_1.12.0
[14] ggpmisc_0.6.2
[15] ggpp_0.5.9
[16] corrplot_0.95
[17] ggpubr_0.6.1
[18] GenomicRanges_1.58.0
[19] GenomeInfoDb_1.42.3
[20] IRanges_2.40.1
[21] S4Vectors_0.44.0
[22] BiocGenerics_0.52.0
[23] genomation_1.38.0
[24] kableExtra_1.4.0
[25] DT_0.33
[26] viridis_0.6.5
[27] viridisLite_0.4.2
[28] data.table_1.17.8
[29] ComplexHeatmap_2.22.0
[30] edgeR_4.4.2
[31] limma_3.62.2
[32] lubridate_1.9.4
[33] forcats_1.0.0
[34] stringr_1.5.1
[35] dplyr_1.1.4
[36] purrr_1.1.0
[37] readr_2.1.5
[38] tidyr_1.3.1
[39] tibble_3.3.0
[40] ggplot2_3.5.2
[41] tidyverse_2.0.0
[42] workflowr_1.7.1
loaded via a namespace (and not attached):
[1] fs_1.6.6
[2] matrixStats_1.5.0
[3] bitops_1.0-9
[4] enrichplot_1.26.6
[5] httr_1.4.7
[6] RColorBrewer_1.1-3
[7] doParallel_1.0.17
[8] tools_4.4.2
[9] backports_1.5.0
[10] R6_2.6.1
[11] lazyeval_0.2.2
[12] GetoptLong_1.0.5
[13] withr_3.0.2
[14] gridExtra_2.3
[15] quantreg_6.1
[16] cli_3.6.5
[17] textshaping_1.0.1
[18] labeling_0.4.3
[19] sass_0.4.10
[20] Rsamtools_2.22.0
[21] systemfonts_1.2.3
[22] yulab.utils_0.2.1
[23] foreign_0.8-90
[24] DOSE_4.0.1
[25] svglite_2.2.1
[26] R.utils_2.13.0
[27] dichromat_2.0-0.1
[28] plotrix_3.8-4
[29] BSgenome_1.74.0
[30] pwr_1.3-0
[31] rstudioapi_0.17.1
[32] impute_1.80.0
[33] RSQLite_2.4.3
[34] generics_0.1.4
[35] gridGraphics_0.5-1
[36] TxDb.Hsapiens.UCSC.hg19.knownGene_3.2.2
[37] shape_1.4.6.1
[38] BiocIO_1.16.0
[39] vroom_1.6.5
[40] gtools_3.9.5
[41] car_3.1-3
[42] GO.db_3.20.0
[43] Matrix_1.7-3
[44] ggbeeswarm_0.7.2
[45] abind_1.4-8
[46] R.methodsS3_1.8.2
[47] lifecycle_1.0.4
[48] whisker_0.4.1
[49] yaml_2.3.10
[50] carData_3.0-5
[51] SummarizedExperiment_1.36.0
[52] gplots_3.2.0
[53] qvalue_2.38.0
[54] SparseArray_1.6.2
[55] blob_1.2.4
[56] promises_1.3.3
[57] crayon_1.5.3
[58] ggtangle_0.0.7
[59] lattice_0.22-7
[60] KEGGREST_1.46.0
[61] pillar_1.11.0
[62] knitr_1.50
[63] fgsea_1.32.4
[64] rjson_0.2.23
[65] boot_1.3-31
[66] codetools_0.2-20
[67] fastmatch_1.1-6
[68] glue_1.8.0
[69] getPass_0.2-4
[70] ggfun_0.2.0
[71] treeio_1.30.0
[72] vctrs_0.6.5
[73] png_0.1-8
[74] gtable_0.3.6
[75] cachem_1.1.0
[76] xfun_0.52
[77] S4Arrays_1.6.0
[78] survival_3.8-3
[79] iterators_1.0.14
[80] statmod_1.5.0
[81] nlme_3.1-168
[82] ggtree_3.14.0
[83] bit64_4.6.0-1
[84] rprojroot_2.1.0
[85] bslib_0.9.0
[86] vipor_0.4.7
[87] KernSmooth_2.23-26
[88] rpart_4.1.24
[89] colorspace_2.1-1
[90] DBI_1.2.3
[91] Hmisc_5.2-3
[92] seqPattern_1.38.0
[93] nnet_7.3-20
[94] tidyselect_1.2.1
[95] processx_3.8.6
[96] bit_4.6.0
[97] compiler_4.4.2
[98] curl_7.0.0
[99] git2r_0.36.2
[100] htmlTable_2.4.3
[101] SparseM_1.84-2
[102] xml2_1.4.0
[103] DelayedArray_0.32.0
[104] rtracklayer_1.66.0
[105] caTools_1.18.3
[106] checkmate_2.3.3
[107] scales_1.4.0
[108] callr_3.7.6
[109] rappdirs_0.3.3
[110] digest_0.6.37
[111] rmarkdown_2.29
[112] XVector_0.46.0
[113] htmltools_0.5.8.1
[114] pkgconfig_2.0.3
[115] base64enc_0.1-3
[116] MatrixGenerics_1.18.1
[117] fastmap_1.2.0
[118] rlang_1.1.6
[119] GlobalOptions_0.1.2
[120] htmlwidgets_1.6.4
[121] UCSC.utils_1.2.0
[122] farver_2.1.2
[123] jquerylib_0.1.4
[124] zoo_1.8-14
[125] jsonlite_2.0.0
[126] GOSemSim_2.32.0
[127] R.oo_1.27.1
[128] RCurl_1.98-1.17
[129] magrittr_2.0.3
[130] polynom_1.4-1
[131] Formula_1.2-5
[132] GenomeInfoDbData_1.2.13
[133] ggplotify_0.1.2
[134] patchwork_1.3.1
[135] Rcpp_1.1.0
[136] ape_5.8-1
[137] stringi_1.8.7
[138] zlibbioc_1.52.0
[139] MASS_7.3-65
[140] plyr_1.8.9
[141] ggrepel_0.9.6
[142] parallel_4.4.2
[143] Biostrings_2.74.1
[144] splines_4.4.2
[145] hms_1.1.3
[146] circlize_0.4.16
[147] locfit_1.5-9.12
[148] ps_1.9.1
[149] igraph_2.1.4
[150] reshape2_1.4.4
[151] XML_3.99-0.18
[152] evaluate_1.0.4
[153] tzdb_0.5.0
[154] foreach_1.5.2
[155] httpuv_1.6.16
[156] MatrixModels_0.5-4
[157] clue_0.3-66
[158] gridBase_0.4-7
[159] broom_1.0.9
[160] restfulr_0.0.16
[161] tidytree_0.4.6
[162] rstatix_0.7.2
[163] later_1.4.2
[164] aplot_0.2.8
[165] memoise_2.0.1
[166] beeswarm_0.4.0
[167] GenomicAlignments_1.42.0
[168] cluster_2.1.8.1
[169] timechange_0.3.0
