Cut and Tag QC
Steven Yu
2025-07-01
Last updated: 2025-07-02
Checks: 7 0
Knit directory: WardLab/
This reproducible R Markdown analysis was created with workflowr (version 1.7.1). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20250701) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 2902c7e. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .Rhistory
Ignored: .Rproj.user/
Untracked files:
Untracked: data/multiqc_data_trim/
Untracked: data/sample_info.tsv
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown (analysis/multiQC_cut_tag.Rmd) and
HTML (docs/multiQC_cut_tag.html) files. If you’ve
configured a remote Git repository (see ?wflow_git_remote),
click on the hyperlinks in the table below to view the files as they
were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| html | 40eefb9 | infurnoheat | 2025-07-02 | Build site. |
| html | 88a419f | infurnoheat | 2025-07-02 | Build site. |
| Rmd | ca7a59c | infurnoheat | 2025-07-02 | wflow_publish("analysis/multiQC_cut_tag.Rmd") |
| html | 0644589 | infurnoheat | 2025-07-02 | Build site. |
| Rmd | 59eb78f | infurnoheat | 2025-07-02 | wflow_publish("analysis/multiQC_cut_tag.Rmd") |
Cut And Tag QC
Bioconductor
if (!require("BiocManager", quietly = TRUE))
install.packages("BiocManager")
BiocManager::install()Loading Packages
library(tidyverse)
library(readr)
library(kableExtra)
library(DT)
library(edgeR)
library(ComplexHeatmap)
library(data.table)
library(genomation)
library(GenomicRanges)Data Initialization
sampleinfo <- read_delim("data/sample_info.tsv", delim = "\t")
multiqc_gene_stats_trim <- read_delim("data/multiqc_data_trim/multiqc_general_stats.txt",delim = "\t")
multiqc_fastqc_trim <- read_delim("data/multiqc_data_trim/multiqc_fastqc.txt",delim = "\t")Functions
drug_pal <- c("#8B006D","#DF707E","#F1B72B", "#3386DD","#707031","#41B333")
pca_plot <-
function(df,
col_var = NULL,
shape_var = NULL,
title = "") {
ggplot(df) + geom_point(aes_string(
x = "PC1",
y = "PC2",
color = col_var,
shape = shape_var
),
size = 5) +
labs(title = title, x = "PC 1", y = "PC 2") +
scale_color_manual(values = c(
"#8B006D",
"#DF707E",
"#F1B72B",
"#3386DD",
"#707031",
"#41B333"
))
}
pca_var_plot <- function(pca) {
# x: class == prcomp
pca.var <- pca$sdev ^ 2
pca.prop <- pca.var / sum(pca.var)
var.plot <-
qplot(PC, prop, data = data.frame(PC = 1:length(pca.prop),
prop = pca.prop)) +
labs(title = 'Variance contributed by each PC',
x = 'PC', y = 'Proportion of variance')
plot(var.plot)
}
calc_pca <- function(x) {
# Performs principal components analysis with prcomp
# x: a sample-by-gene numeric matrix
prcomp(x, scale. = TRUE, retx = TRUE)
}
get_regr_pval <- function(mod) {
# Returns the p-value for the Fstatistic of a linear model
# mod: class lm
stopifnot(class(mod) == "lm")
fstat <- summary(mod)$fstatistic
pval <- 1 - pf(fstat[1], fstat[2], fstat[3])
return(pval)
}
plot_versus_pc <- function(df, pc_num, fac) {
# df: data.frame
# pc_num: numeric, specific PC for plotting
# fac: column name of df for plotting against PC
pc_char <- paste0("PC", pc_num)
# Calculate F-statistic p-value for linear model
pval <- get_regr_pval(lm(df[, pc_char] ~ df[, fac]))
if (is.numeric(df[, f])) {
ggplot(df, aes_string(x = f, y = pc_char)) + geom_point() +
geom_smooth(method = "lm") + labs(title = sprintf("p-val: %.2f", pval))
} else {
ggplot(df, aes_string(x = f, y = pc_char)) + geom_boxplot() +
labs(title = sprintf("p-val: %.2f", pval))
}
}
x_axis_labels = function(labels, every_nth = 1, ...) {
axis(side = 1,
at = seq_along(labels),
labels = F)
text(
x = (seq_along(labels))[seq_len(every_nth) == 1],
y = par("usr")[3] - 0.075 * (par("usr")[4] - par("usr")[3]),
labels = labels[seq_len(every_nth) == 1],
xpd = TRUE,
...
)
}Analysis
Data Processing
combo_trim_df <- multiqc_fastqc_trim %>%
extract(., Sample, into = c("prefix","read"), regex= "(.+)_R(\\d+)", remove=FALSE) %>%
mutate(read = paste0("R", read)) %>%
left_join(., sampleinfo, by =c("prefix"="Library ID")) %>%
left_join(., multiqc_gene_stats_trim, by = c("Sample" = "Sample")) %>%
mutate(ind=factor(Individual, levels = c("1","2","3","4","5"))) %>%
mutate(trt=factor(Treatment, levels = c("VEH","5FU","DOX"))) %>%
mutate(time=factor(Timepoint, levels=c("24T","24R","144R")))
combo_trim_df <- combo_trim_df[(!combo_trim_df$trt %in% "5FU"),]Data Visualization
combo_trim_df %>%
dplyr::filter(read=="R1") %>%
group_by(trt, time, Histone_Mark) %>%
tally() %>%
ggplot(., aes(x = time, y= n))+
geom_col(position="dodge",aes(fill=trt)) +
facet_wrap(~Histone_Mark)+
theme(axis.text.x=element_text(angle=90))+
ylab("number of samples")+

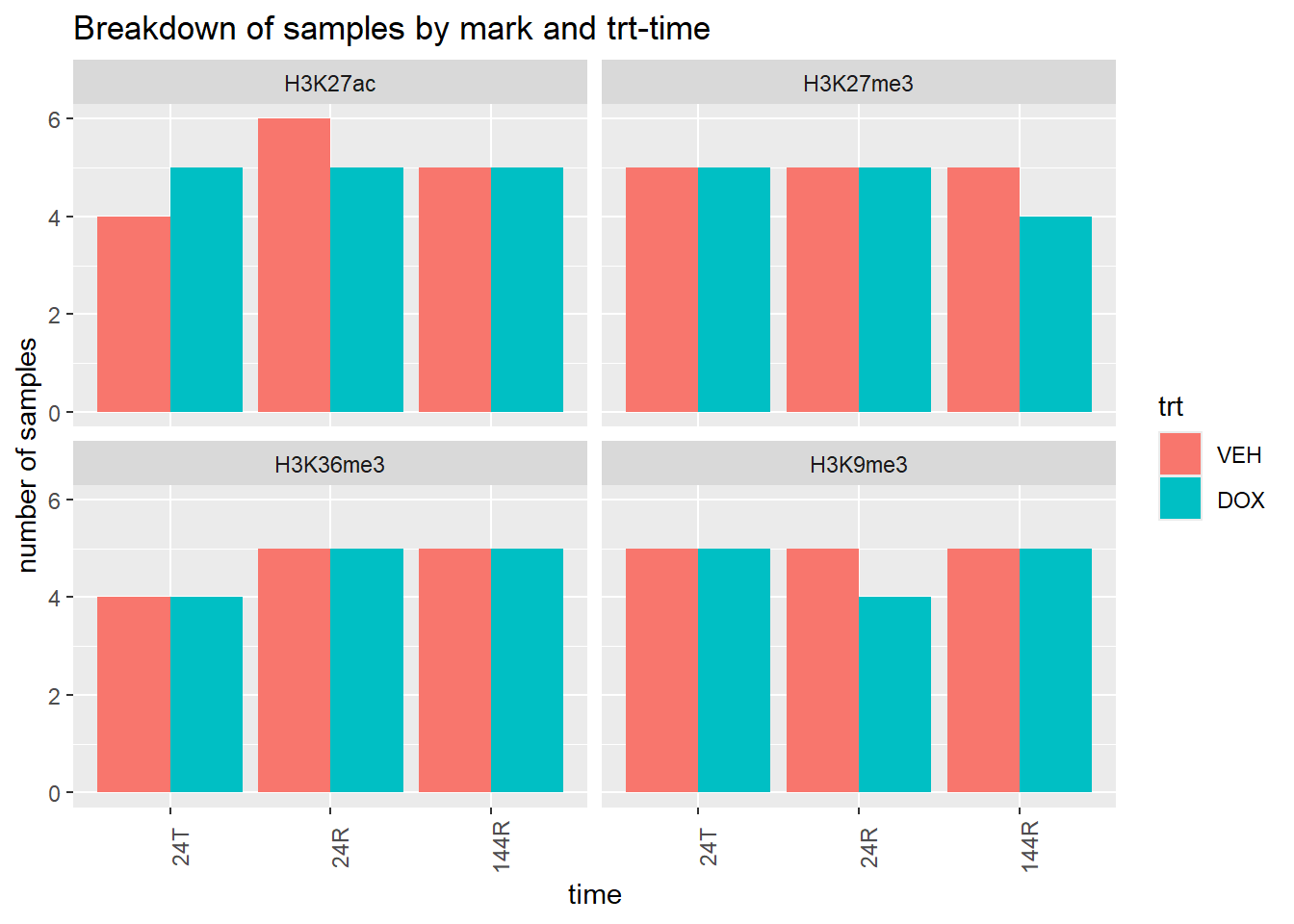

ggtitle("Breakdown of samples by mark and trt-time")
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
combo_trim_df %>%
dplyr::filter(read=="R1") %>%
group_by(trt,time,Histone_Mark) %>%
tally() %>%
pivot_wider(., id_cols=c(trt,time), names_from = Histone_Mark, values_from = n) %>%
kable(.,caption = ("Sample counts")) %>%
kable_paper("striped", full_width = FALSE) %>%
kable_styling(full_width = FALSE,font_size = 16) %>%
scroll_box(width = "100%", height = "500px")| trt | time | H3K27ac | H3K27me3 | H3K36me3 | H3K9me3 |
|---|---|---|---|---|---|
| VEH | 24T | 4 | 5 | 4 | 5 |
| VEH | 24R | 6 | 5 | 5 | 5 |
| VEH | 144R | 5 | 5 | 5 | 5 |
| DOX | 24T | 5 | 5 | 4 | 5 |
| DOX | 24R | 5 | 5 | 5 | 4 |
| DOX | 144R | 5 | 4 | 5 | 5 |
Visualization of Counts

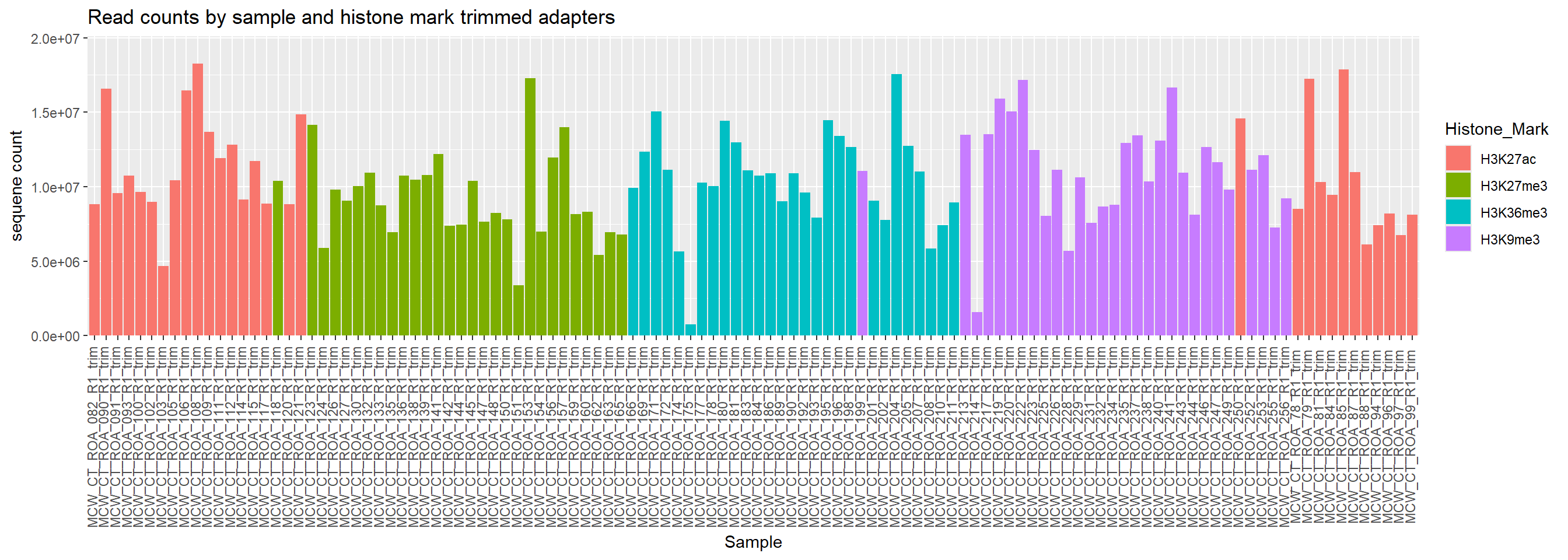

combo_trim_df %>%
dplyr::filter(read=="R1") %>%
ggplot(., aes(x = Sample, y= `Total Sequences`))+
geom_col(aes(fill=Histone_Mark)) +
theme(axis.text.x=element_text(vjust = .2,angle=90))+
ylab("sequene count")+
ggtitle("Read counts by sample and histone mark trimmed adapters")+
scale_y_continuous( expand = expansion(mult = c(0, .1)))
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
combo_trim_df %>%
dplyr::filter(read=="R1") %>%
ggplot(., aes(x = Histone_Mark, y= `Total Sequences`))+
geom_boxplot(aes(fill=Histone_Mark)) +
geom_point(aes(color=ind))+
facet_wrap(trt~time)+
ylab("count")+
theme(axis.text.x=element_text(vjust = .2,angle=90))+

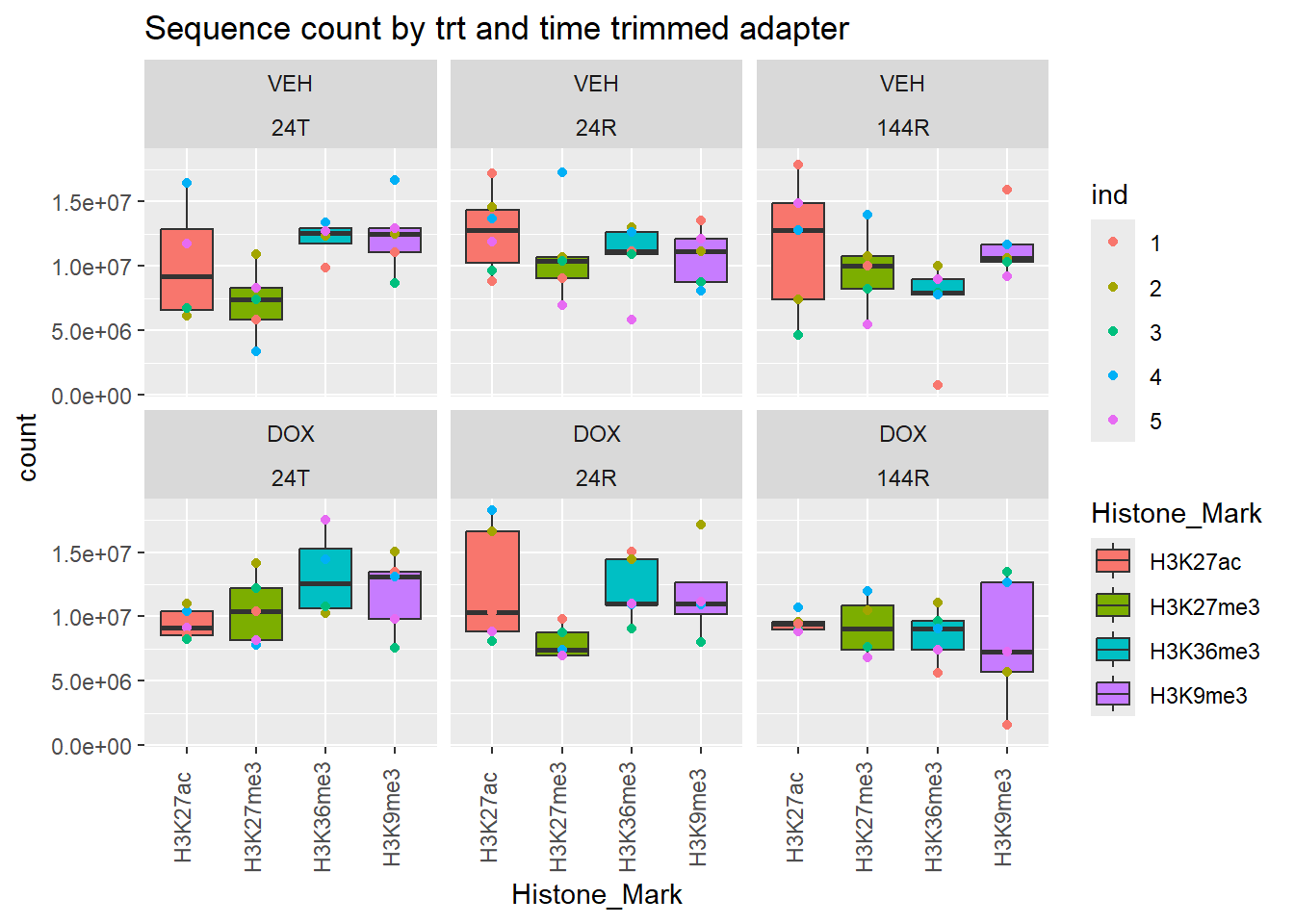

ggtitle("Sequence count by trt and time trimmed adapter")
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
Trim Info

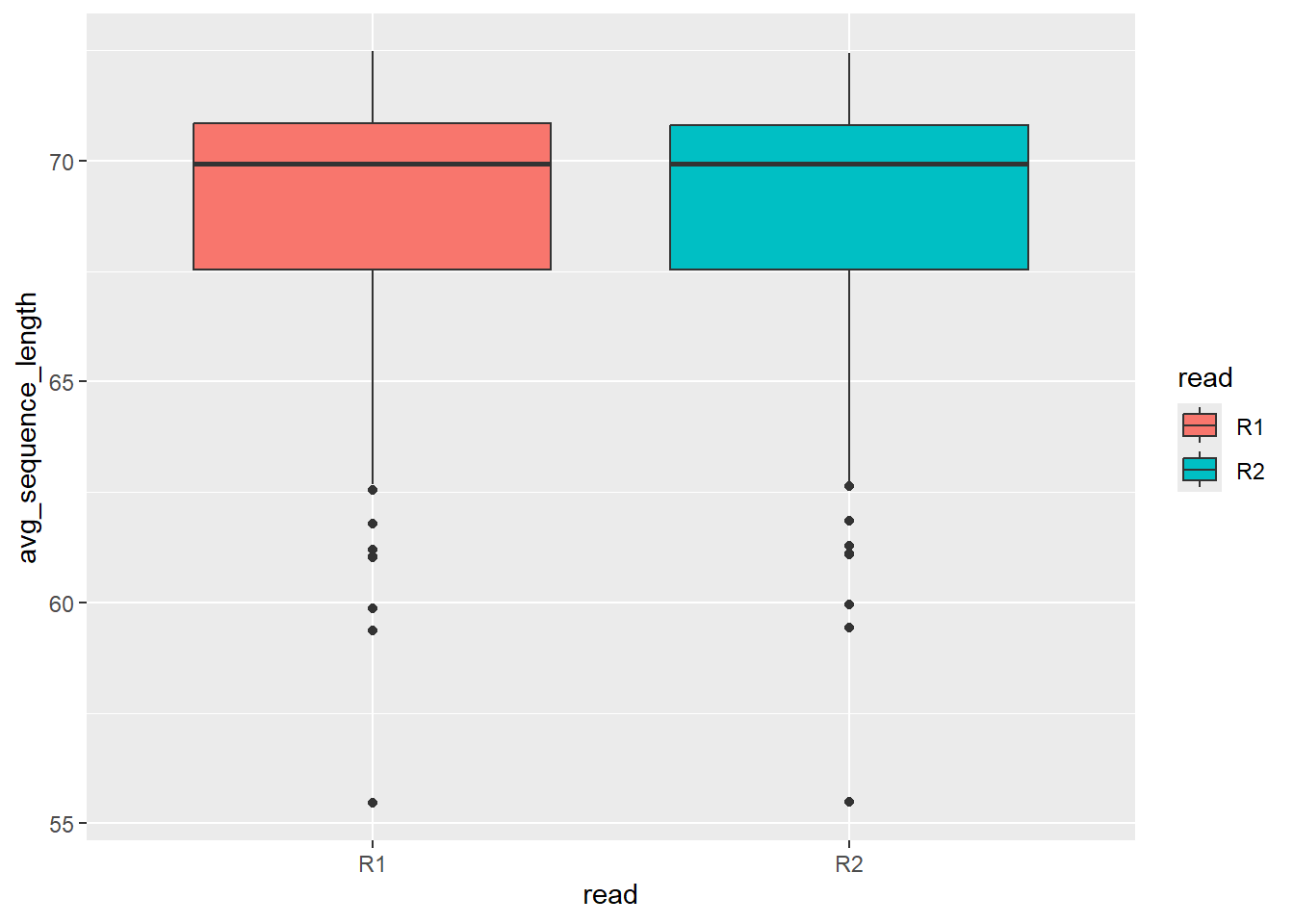

combo_trim_df %>%
ggplot(., aes(x = read, y= avg_sequence_length))+
geom_boxplot(aes(fill=read))
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
combo_trim_df %>%
ggplot(., aes(x = read, y= avg_sequence_length))+
geom_boxplot(aes(fill=Histone_Mark)) +

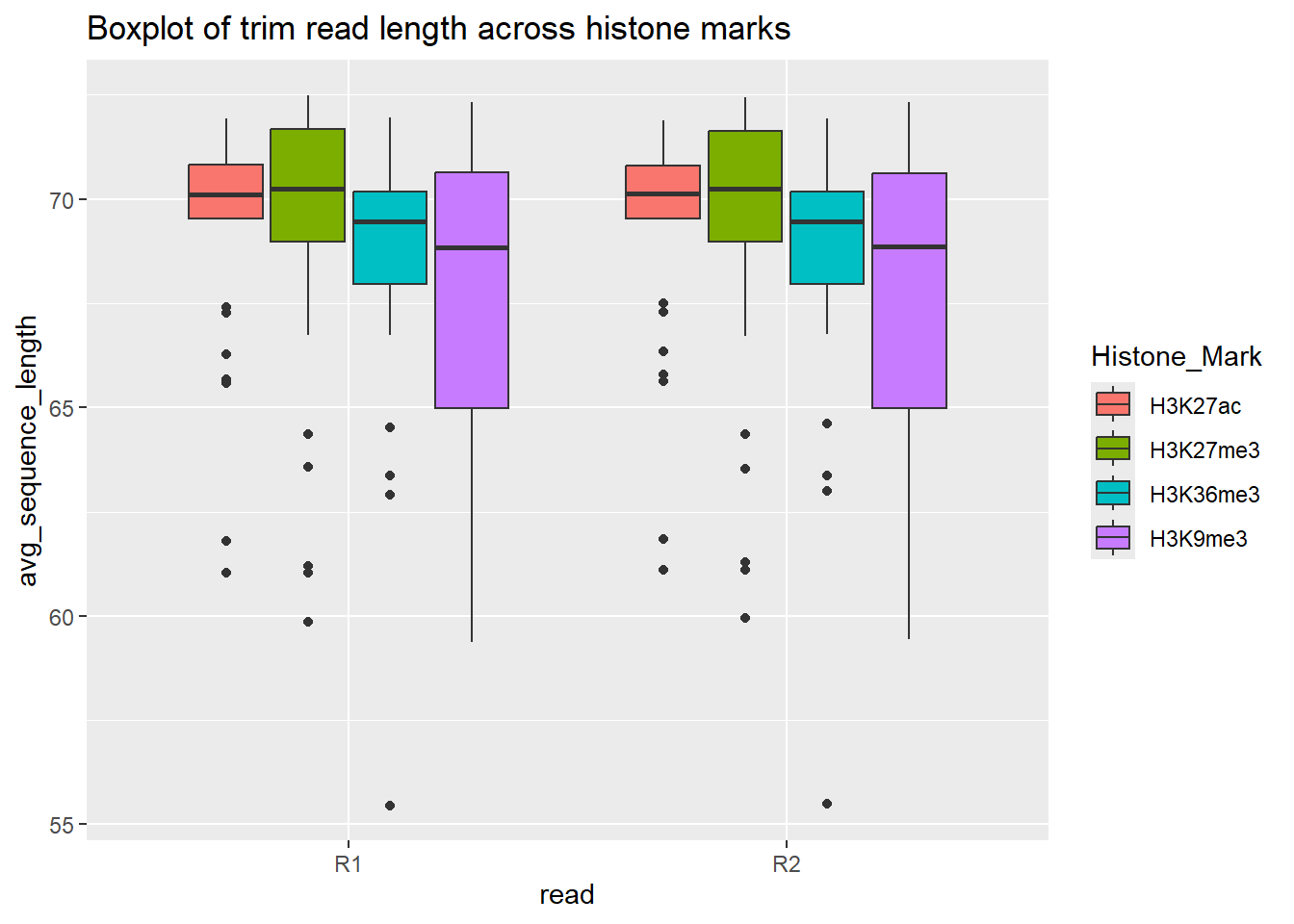

ggtitle("Boxplot of trim read length across histone marks")
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
combo_trim_df %>%
datatable(., options = list(scrollX = TRUE,
scrollY = "400px",
scrollCollapse = TRUE,
fixedColumns = list(leftColumns =2),
fixedHeader= TRUE),
extensions = c("FixedColumns","Scroller"),
class = "display")combo_trim_df %>%
dplyr::filter(read=="R1") %>%
ggplot(., aes(x = Sample, y= avg_sequence_length))+
geom_col(aes(fill=Histone_Mark)) +
geom_hline( yintercept = 75)+
theme_classic()+
ggtitle("Graph of average read length across R1 samples")+ theme(axis.text.x=element_text(vjust = .2,angle=90))+
scale_y_continuous( expand = expansion(mult = c(0, .1)))
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
combo_trim_df %>%
dplyr::filter(read=="R2") %>%
ggplot(., aes(x = Sample, y= avg_sequence_length))+
geom_col(aes(fill=Histone_Mark)) +
geom_hline( yintercept = 75)+
theme_classic()+

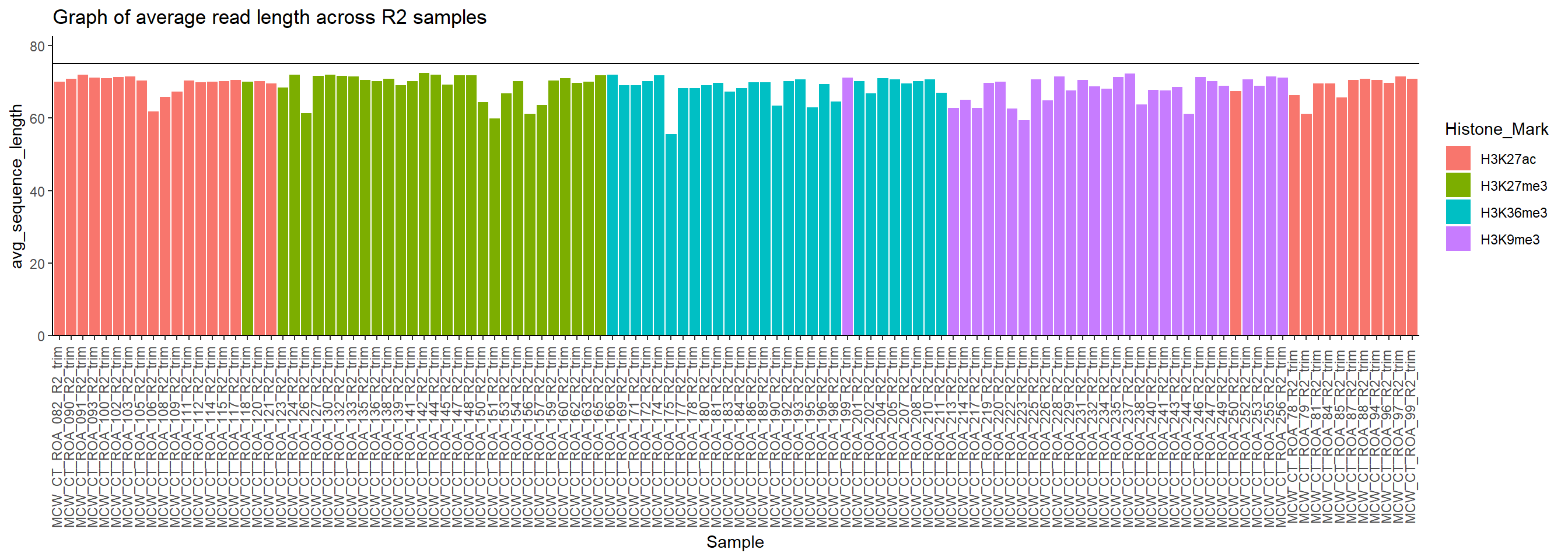

ggtitle("Graph of average read length across R2 samples")+ theme(axis.text.x=element_text(vjust = .2,angle=90))+
scale_y_continuous( expand = expansion(mult = c(0, .1)))
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
combo_trim_df %>%
dplyr::filter(read=="R1") %>%
ggplot(., aes(x = Sample, y= `%GC`))+
geom_col(aes(fill=Histone_Mark)) +
theme_classic()+

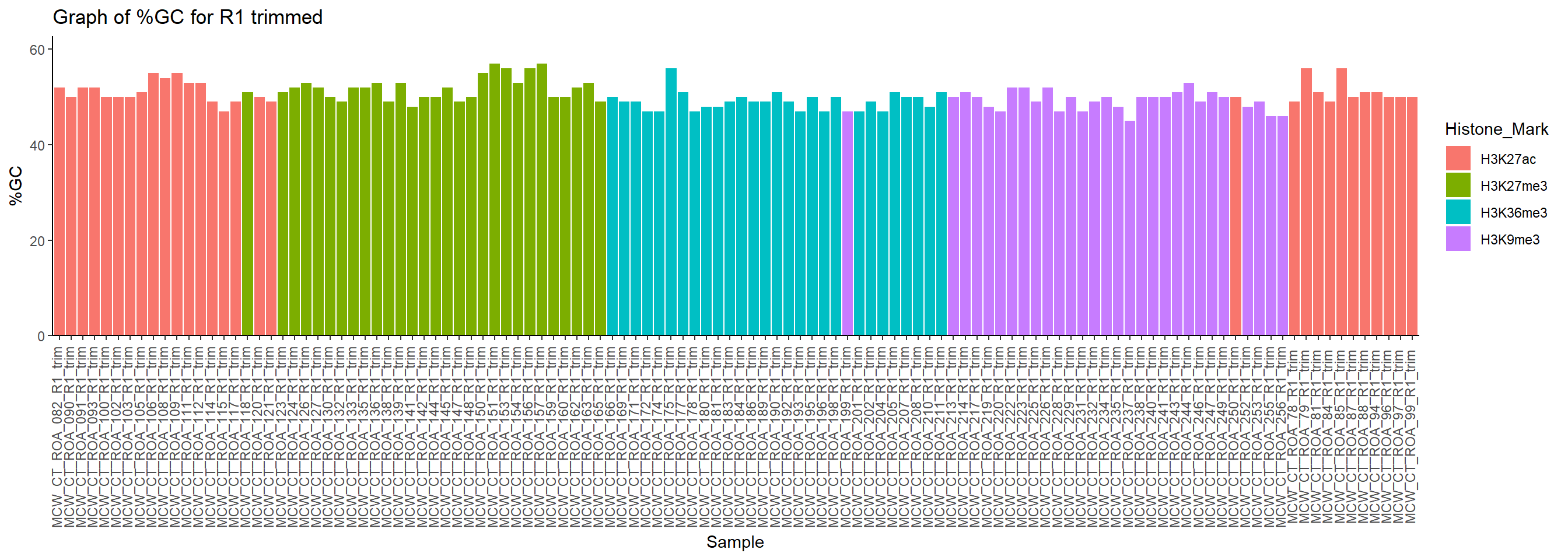

ggtitle("Graph of %GC for R1 trimmed")+
theme(axis.text.x=element_text(vjust = .2,angle=90))+
scale_y_continuous( expand = expansion(mult = c(0, .1)))
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
combo_trim_df %>%
dplyr::filter(read=="R2") %>%
ggplot(., aes(x = Sample, y= `%GC`))+
geom_col(aes(fill=Histone_Mark)) +
theme_classic()+
ggtitle("Graph of %GC for R2 trimmed")+
theme(axis.text.x=element_text(vjust = .2,angle=90))+
scale_y_continuous( expand = expansion(mult = c(0, .1)))
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
Duplication Info
combo_trim_df %>%
dplyr::filter(read=="R1") %>%
ggplot(., aes(x = Histone_Mark, y= `FastQC_mqc-generalstats-fastqc-percent_duplicates`))+
geom_boxplot(aes(fill=Histone_Mark)) +
geom_point(aes(color=ind))+
facet_wrap(trt~time)+
ylab("percent duplication")+
theme(axis.text.x=element_text(angle=90))+

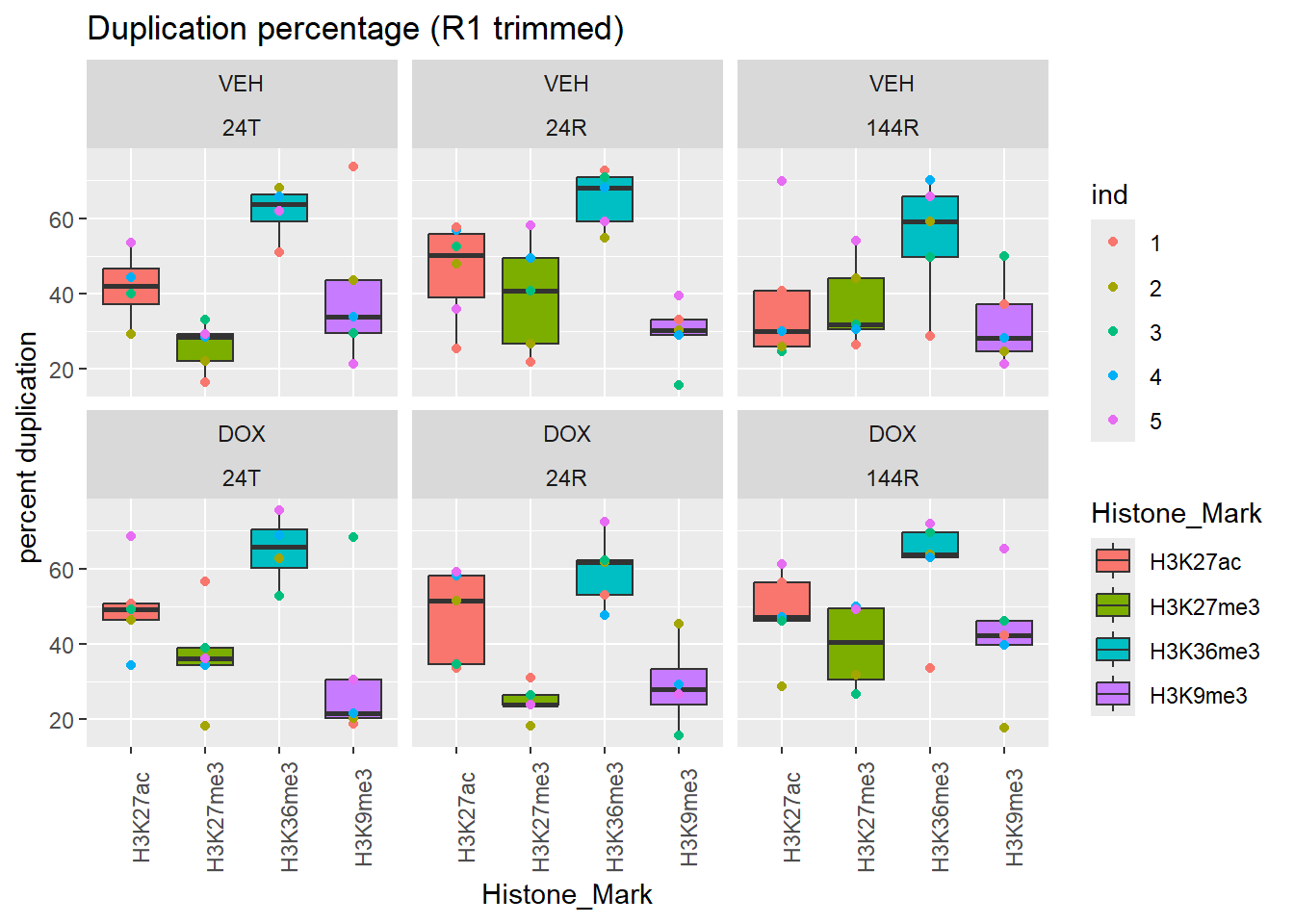

ggtitle("Duplication percentage (R1 trimmed)")
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |

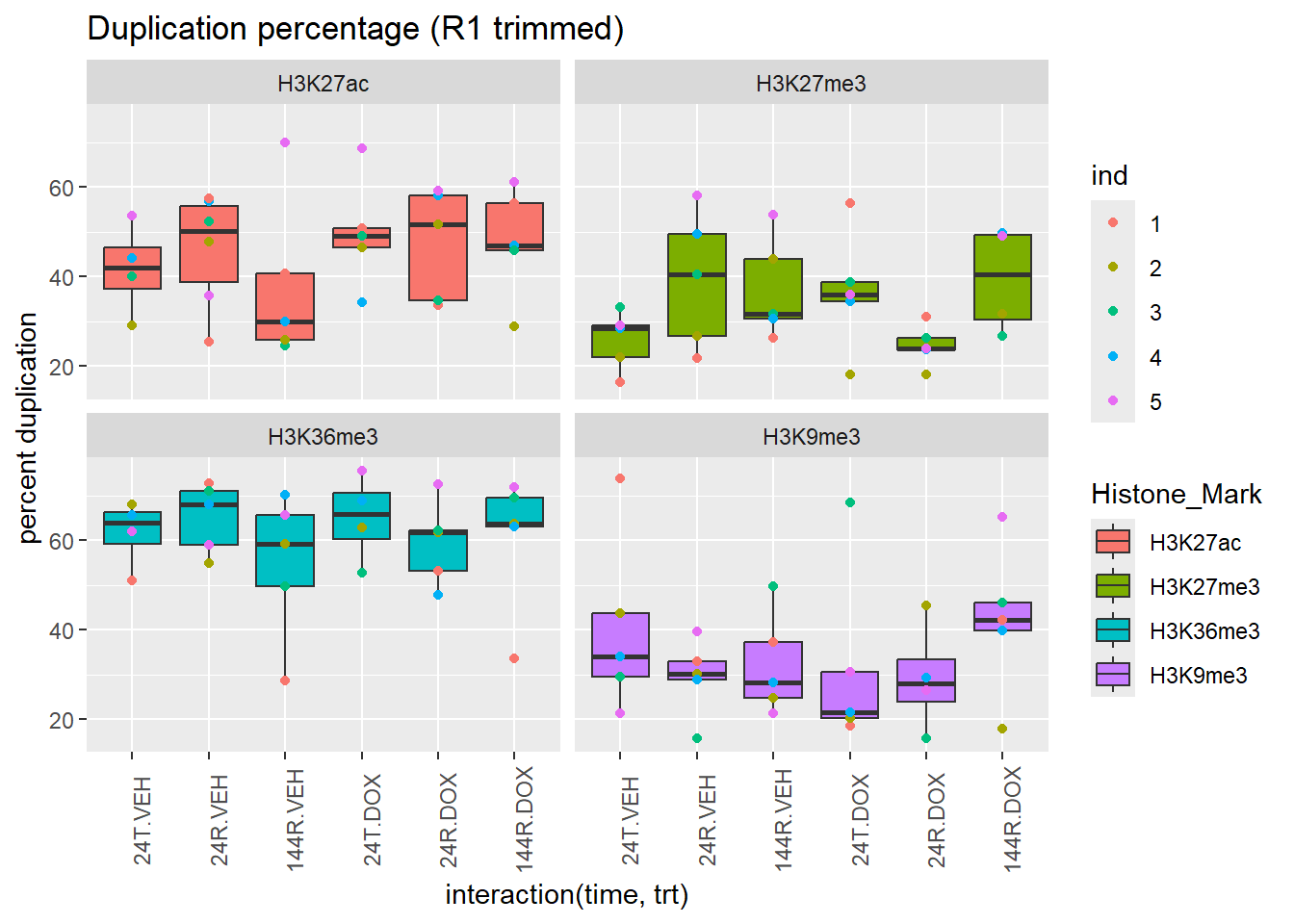

combo_trim_df %>%
dplyr::filter(read=="R1") %>%
ggplot(., aes(x = interaction(time,trt), y= `FastQC_mqc-generalstats-fastqc-percent_duplicates`))+
geom_boxplot(aes(fill=Histone_Mark)) +
geom_point(aes(color=ind))+
facet_wrap(~Histone_Mark)+
ylab("percent duplication")+
theme(axis.text.x=element_text(angle=90))+
ggtitle("Duplication percentage (R1 trimmed)")
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
combo_trim_df %>%
dplyr::filter(read=="R1") %>%
ggplot(., aes(x = Sample, y= `FastQC_mqc-generalstats-fastqc-percent_duplicates`))+
geom_col(aes(fill=Histone_Mark)) +
theme_classic()+

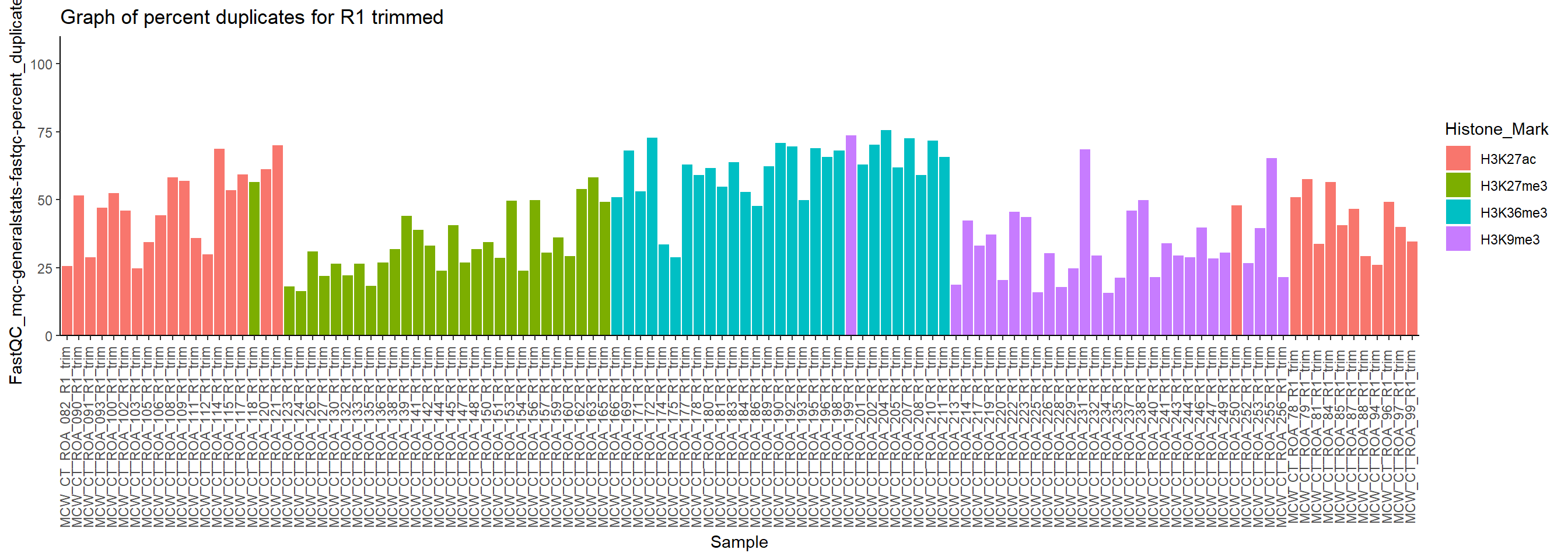

ggtitle("Graph of percent duplicates for R1 trimmed")+
theme(axis.text.x=element_text(vjust = .2,angle=90))+
scale_y_continuous( limits = c(0,100),expand = expansion(mult = c(0, .1)))
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |

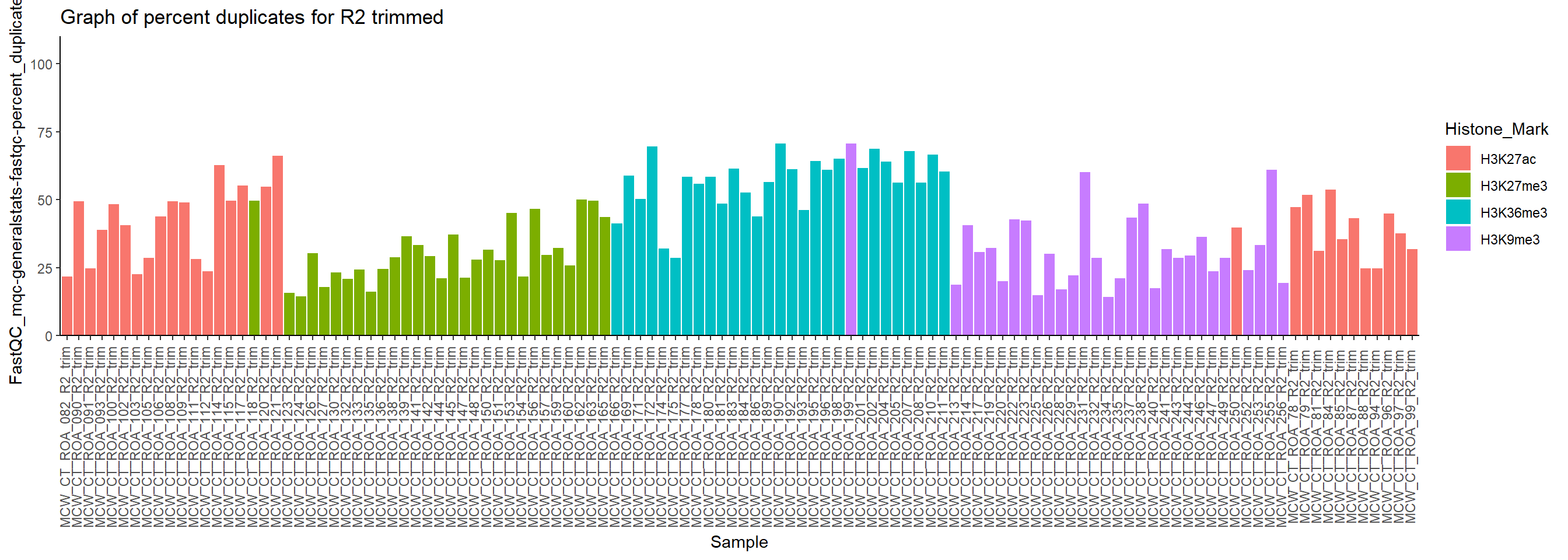

combo_trim_df %>%
dplyr::filter(read=="R2") %>%
ggplot(., aes(x = Sample, y= `FastQC_mqc-generalstats-fastqc-percent_duplicates`))+
geom_col(aes(fill=Histone_Mark)) +
theme_classic()+
ggtitle("Graph of percent duplicates for R2 trimmed")+
theme(axis.text.x=element_text(vjust = .2,angle=90))+
scale_y_continuous(limits = c(0,100), expand = expansion(mult = c(0, .1)))
| Version | Author | Date |
|---|---|---|
| 0644589 | infurnoheat | 2025-07-02 |
sessionInfo()R version 4.5.1 (2025-06-13 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26100)
Matrix products: default
LAPACK version 3.12.1
locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8
time zone: America/Chicago
tzcode source: internal
attached base packages:
[1] stats4 grid stats graphics grDevices utils datasets
[8] methods base
other attached packages:
[1] GenomicRanges_1.60.0 GenomeInfoDb_1.44.0 IRanges_2.42.0
[4] S4Vectors_0.46.0 BiocGenerics_0.54.0 generics_0.1.4
[7] genomation_1.40.1 data.table_1.17.6 ComplexHeatmap_2.24.1
[10] edgeR_4.6.2 limma_3.64.1 DT_0.33
[13] kableExtra_1.4.0 lubridate_1.9.4 forcats_1.0.0
[16] stringr_1.5.1 dplyr_1.1.4 purrr_1.0.4
[19] readr_2.1.5 tidyr_1.3.1 tibble_3.3.0
[22] ggplot2_3.5.2 tidyverse_2.0.0 BiocManager_1.30.26
[25] workflowr_1.7.1
loaded via a namespace (and not attached):
[1] bitops_1.0-9 rlang_1.1.6
[3] magrittr_2.0.3 gridBase_0.4-7
[5] clue_0.3-66 GetoptLong_1.0.5
[7] git2r_0.36.2 matrixStats_1.5.0
[9] compiler_4.5.1 getPass_0.2-4
[11] reshape2_1.4.4 png_0.1-8
[13] systemfonts_1.2.3 callr_3.7.6
[15] vctrs_0.6.5 pkgconfig_2.0.3
[17] shape_1.4.6.1 crayon_1.5.3
[19] fastmap_1.2.0 XVector_0.48.0
[21] labeling_0.4.3 Rsamtools_2.24.0
[23] promises_1.3.3 rmarkdown_2.29
[25] tzdb_0.5.0 UCSC.utils_1.4.0
[27] ps_1.9.1 bit_4.6.0
[29] xfun_0.52 cachem_1.1.0
[31] jsonlite_2.0.0 later_1.4.2
[33] DelayedArray_0.34.1 BiocParallel_1.42.1
[35] parallel_4.5.1 cluster_2.1.8.1
[37] R6_2.6.1 bslib_0.9.0
[39] stringi_1.8.7 RColorBrewer_1.1-3
[41] rtracklayer_1.68.0 jquerylib_0.1.4
[43] SummarizedExperiment_1.38.1 Rcpp_1.0.14
[45] iterators_1.0.14 knitr_1.50
[47] Matrix_1.7-3 httpuv_1.6.16
[49] timechange_0.3.0 tidyselect_1.2.1
[51] seqPattern_1.40.0 abind_1.4-8
[53] rstudioapi_0.17.1 yaml_2.3.10
[55] doParallel_1.0.17 codetools_0.2-20
[57] curl_6.4.0 processx_3.8.6
[59] plyr_1.8.9 lattice_0.22-7
[61] Biobase_2.68.0 withr_3.0.2
[63] evaluate_1.0.4 xml2_1.3.8
[65] circlize_0.4.16 Biostrings_2.76.0
[67] pillar_1.10.2 MatrixGenerics_1.20.0
[69] KernSmooth_2.23-26 whisker_0.4.1
[71] foreach_1.5.2 vroom_1.6.5
[73] RCurl_1.98-1.17 rprojroot_2.0.4
[75] hms_1.1.3 scales_1.4.0
[77] glue_1.8.0 tools_4.5.1
[79] BiocIO_1.18.0 GenomicAlignments_1.44.0
[81] BSgenome_1.76.0 locfit_1.5-9.12
[83] fs_1.6.6 XML_3.99-0.18
[85] plotrix_3.8-4 impute_1.82.0
[87] crosstalk_1.2.1 colorspace_2.1-1
[89] GenomeInfoDbData_1.2.14 restfulr_0.0.16
[91] cli_3.6.5 textshaping_1.0.1
[93] S4Arrays_1.8.1 viridisLite_0.4.2
[95] svglite_2.2.1 gtable_0.3.6
[97] sass_0.4.10 digest_0.6.37
[99] SparseArray_1.8.0 rjson_0.2.23
[101] htmlwidgets_1.6.4 farver_2.1.2
[103] htmltools_0.5.8.1 lifecycle_1.0.4
[105] httr_1.4.7 GlobalOptions_0.1.2
[107] statmod_1.5.0 bit64_4.6.0-1
