Note: If you would like to run this analysis on your computer, you will first need to download the fine-mapping outputs. They can be downloaded from here. Once you have downloaded the files, copy each file to the “data” or “outputs” subdirectory.

Load some packages and custom functions used in the code below:

library(data.table)
library(dplyr)
library(ggplot2)
library(cowplot)
source("../code/rosmap_functions_more.R")

Load the gene annotations used in some of the analyses below.

gene_file <-
  file.path("../data/genome_annotations",
    "Homo_sapiens.GRCh38.103.chr.reformatted.collapse_only.gene.gtf.gz")
genes <- get_gene_annotations(gene_file)

Load the allele frequencies computed by PLINK:

load("../data/afreq.RData")

Load the H3K27ac SNP results generated by SuSiE-topPC, fSuSiE and the SNP-peak association testing:

peak_assoc_file <- "../outputs/ROSMAP_haQTL_qtl_snp_qval0.05.tsv.gz"
snps_susie_file <- "../outputs/ROSMAP_haQTL_cs_snp_toppc1_annotation.tsv.gz"
snps_fsusie_file <- "../outputs/ROSMAP_haQTL_cs_snp_annotation.tsv.gz"
peak_assoc  <- read_enrichment_results(peak_assoc_file,n = 8)
snps_susie  <- read_enrichment_results(snps_susie_file,n = 6)
snps_fsusie <- read_enrichment_results(snps_fsusie_file,n = 7)
snps_susie  <- snps_susie[1:6]
snps_fsusie <- snps_fsusie[1:7]
snps_susie$region <-
  sapply(strsplit(snps_susie$cs,":",fixed = TRUE),"[[",2)
snps_susie  <- transform(snps_susie,
                         region = factor(region),
                         cs     = factor(cs),
                         pc     = factor(pc))
snps_fsusie <- transform(snps_fsusie,
                         cs     = factor(cs),
                         region = factor(region),
                         study  = factor(study))

Add the allele frequencies to the H3K27ac fine-mapping results:

ids  <- with(snps_susie,paste(chr,pos,sep = "_"))
rows <- match(ids,afreq$id)
snps_susie$maf <- afreq[rows,"maf"]
ids  <- with(snps_fsusie,paste(chr,pos,sep = "_"))
rows <- match(ids,afreq$id)
snps_fsusie$maf <- afreq[rows,"maf"]

Keep only CSs if the MAF of the sentinel SNP is >5%:

keep        <- tapply(snps_susie[c("pip","maf")],snps_susie$cs,
                      function (x) x[which.max(x$pip),"maf"] >= 0.05)
keep_cs     <- names(which(keep))
snps_susie  <- subset(snps_susie,is.element(cs,keep_cs))
snps_susie  <- transform(snps_susie,
                         region = factor(region),
                         cs     = factor(cs))
keep        <- tapply(snps_fsusie[c("pip","maf")],snps_fsusie$cs,
                      function (x) x[which.max(x$pip),"maf"] >= 0.05)
keep_cs     <- names(which(keep))
snps_fsusie <- subset(snps_fsusie,is.element(cs,keep_cs))
snps_fsusie <- transform(snps_fsusie,
                         region = factor(region),
                         cs     = factor(cs))

There is no need to look at the TAD sizes here because the same TADs were analyzed for both of the molecular traits (methylation and H3K27ac).

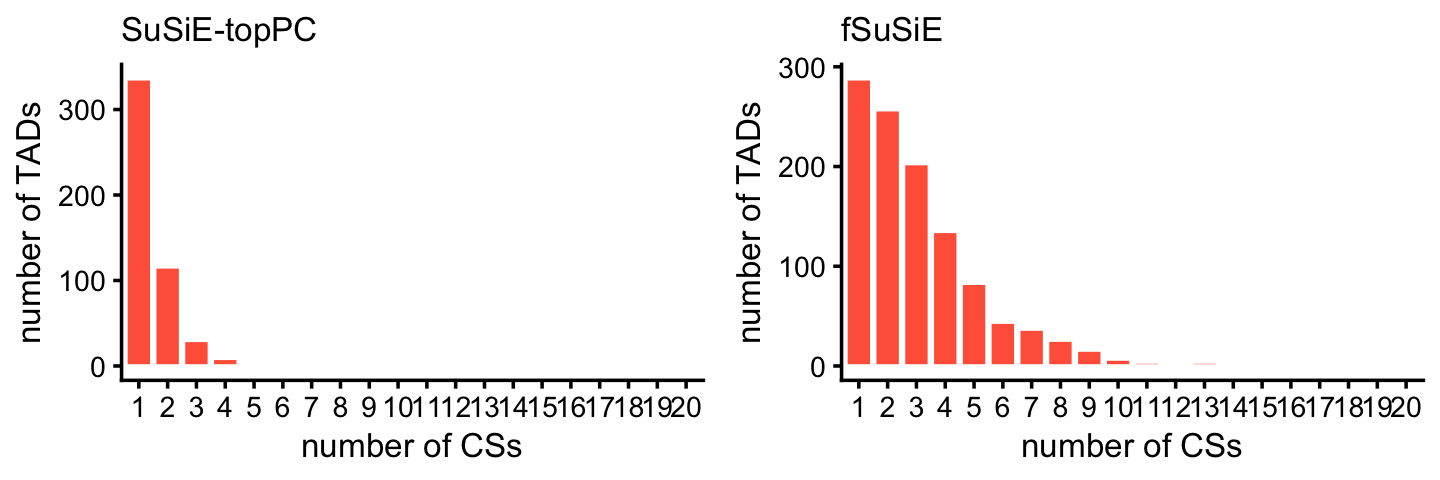

These histograms summarize the number of CSs per TAD:

pdat1 <- get_cs_vs_tad_size(snps_susie)
pdat2 <- get_cs_vs_tad_size(snps_fsusie)
pdat1 <- transform(pdat1,num_cs = factor(num_cs,1:20))
pdat2 <- transform(pdat2,num_cs = factor(num_cs,1:20))
p1 <- ggplot(pdat1,aes(x = num_cs)) +
  geom_histogram(stat = "count",color = "white",fill = "tomato") +
  scale_x_discrete(drop = FALSE) +
  labs(x = "number of CSs",y = "number of TADs",title = "SuSiE-topPC") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
p2 <- ggplot(pdat2,aes(x = num_cs)) +
  geom_histogram(stat = "count",color = "white",fill = "tomato") +
  scale_x_discrete(drop = FALSE) +
  labs(x = "number of CSs",y = "number of TADs",title = "fSuSiE") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
plot_grid(p1,p2,nrow = 1,ncol = 2)

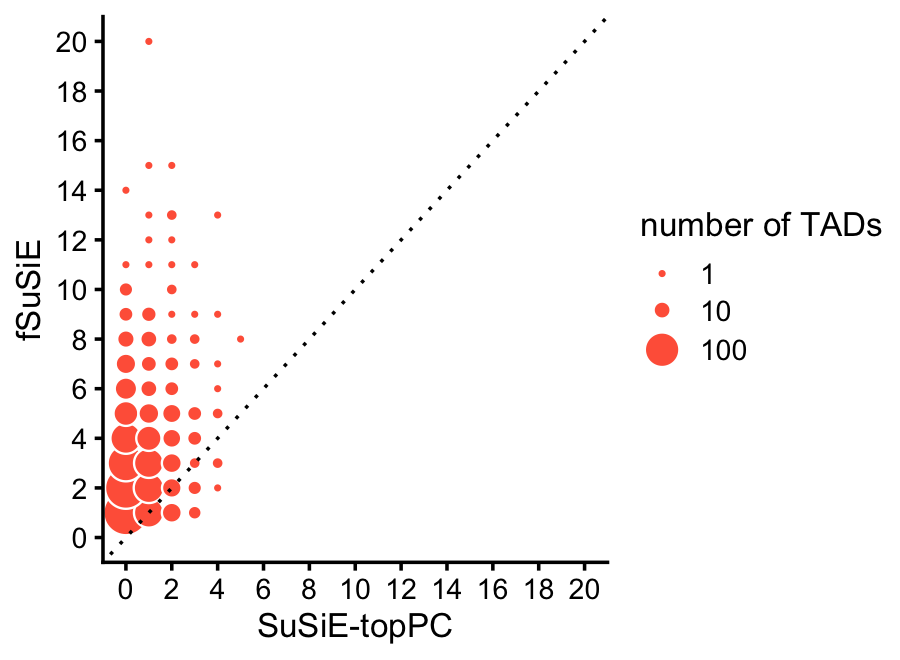

Compare discovery of causal SNPs (number of CSs) in the SuSiE-topPC and fSuSiE analyses:

dat1 <- get_cs_vs_tad_size(snps_susie)
dat2 <- get_cs_vs_tad_size(snps_fsusie)
dat1 <- dat1[c(1,3)]
dat2 <- dat2[c(1,3)]
names(dat1) <- c("tad","num_cs_susie")
names(dat2) <- c("tad","num_cs_fsusie")
dat <- merge(dat1,dat2,all = TRUE)
rows <- which(is.na(dat$num_cs_susie))
dat[rows,"num_cs_susie"] <- 0
pdat <- melt(with(dat,table(num_cs_susie,num_cs_fsusie)))
rows <- which(pdat$value == 0)
pdat[rows,"value"] <- NA
p <- ggplot(pdat,aes(x = num_cs_susie,y = num_cs_fsusie,size = value)) +
  geom_point(color = "white",fill = "tomato",shape = 21) +
  geom_abline(intercept = 0,slope = 1,color = "black",linetype = "dotted") +
  scale_x_continuous(breaks = seq(0,20,2),limits = c(0,20)) +
  scale_y_continuous(breaks = seq(0,20,2),limits = c(0,20)) +
  scale_size(breaks = c(1,10,100)) +
  labs(x = "SuSiE-topPC",y = "fSuSiE",size = "number of TADs") +
  theme_cowplot(font_size = 10)
print(p)

Flag and remove the “duplicate” CSs:

root_cs_susie  <- create_cs_maps(snps_susie)$root
root_cs_fsusie <- create_cs_maps(snps_fsusie)$root
snps_susie     <- subset(snps_susie,is.element(cs,root_cs_susie))
snps_fsusie    <- subset(snps_fsusie,is.element(cs,root_cs_fsusie))
snps_susie     <- transform(snps_susie,cs = factor(cs))
snps_fsusie    <- transform(snps_fsusie,cs = factor(cs))

Warning: The above code chunk cached its results, but it won’t be re-run if previous chunks it depends on are updated. If you need to use caching, it is highly recommended to also set knitr::opts_chunk$set(autodep = TRUE) at the top of the file (in a chunk that is not cached). Alternatively, you can customize the option dependson for each individual chunk that is cached. Using either autodep or dependson will remove this warning. See the knitr cache options for more details.

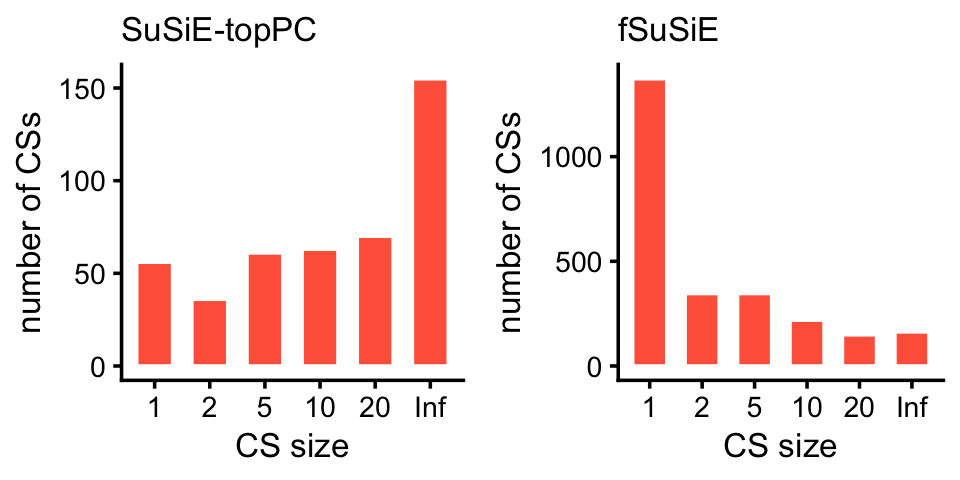

Compare the sizes of the CSs in the SuSiE-topPC and fSuSiE analyses:

bins <- c(0,1,2,5,10,20,Inf)
cs_size_susie  <- as.numeric(table(snps_susie$cs))
cs_size_fsusie <- as.numeric(table(snps_fsusie$cs))
cs_size_susie  <- cut(cs_size_susie,bins)
cs_size_fsusie <- cut(cs_size_fsusie,bins)
levels(cs_size_susie) <- bins[-1]
levels(cs_size_fsusie) <- bins[-1]
p1 <- ggplot(data.frame(cs_size = cs_size_susie),aes(x = cs_size)) +
  geom_histogram(stat = "count",color = "white",fill = "tomato",
                 width = 0.65) +
  labs(x = "CS size",y = "number of CSs",title = "SuSiE-topPC") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
p2 <- ggplot(data.frame(cs_size = cs_size_fsusie),aes(x = cs_size)) +
  geom_histogram(stat = "count",color = "white",fill = "tomato",
                 width = 0.65) +
  labs(x = "CS size",y = "number of CSs",title = "fSuSiE") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
plot_grid(p1,p2,nrow = 1,ncol = 2)

Here are the exact numbers:

table(cs_size_susie)
table(cs_size_fsusie)
# cs_size_susie
#   1   2   5  10  20 Inf
#  56  36  61  63  70 155
# cs_size_fsusie
#    1    2    5   10   20  Inf
# 1372  346  346  219  149  163

We expect that the vast majority of the causal SNPs will be very close to the TSS. Let’s verify this empirically.

First, add a “min_dist_to_TSS” column to each set of results:

snps_assoc  <- get_top_snp_per_location(peak_assoc)
snps_assoc  <- add_min_dist_to_tss(snps_assoc,genes)
snps_susie  <- add_min_dist_to_tss(snps_susie,genes)
snps_fsusie <- add_min_dist_to_tss(snps_fsusie,genes)

This next code chunk computes the histogram for the TSS plot:

bin_size <- 5e4
bins <- c(-Inf,seq(-5e5,5.5e5,bin_size),Inf)
bins <- bins - bin_size/2
counts_assoc <- as.numeric(table(cut(snps_assoc$min_dist_to_tss,bins)))
counts_susie <- tapply(snps_susie$pip,
                       cut(snps_susie$min_dist_to_tss,bins),
                       function (x) sum(x,na.rm = TRUE))
counts_fsusie <- tapply(snps_fsusie$pip,
                        cut(snps_fsusie$min_dist_to_tss,bins),
                        function (x) sum(x,na.rm = TRUE))

And now we can plot the result:

n <- length(bins)
i <- seq(2,n-2)
bin_centers   <- bins[i] + bin_size/2
counts_assoc  <- counts_assoc[i]
counts_susie  <- counts_susie[i]
counts_fsusie <- counts_fsusie[i]
counts_assoc  <- counts_assoc/sum(counts_assoc)
counts_susie  <- counts_susie/sum(counts_susie)
counts_fsusie <- counts_fsusie/sum(counts_fsusie)
pdat <- data.frame(method = rep(c("assoc","susie","fsusie"),
                                each = length(bin_centers)),
                   dist   = rep(bin_centers/1000,times = 3),
                   freq   = c(counts_assoc,counts_susie,counts_fsusie),
                   stringsAsFactors = TRUE)
p <- ggplot(pdat,aes(x = dist,y = freq,color = method)) +
  geom_line(linewidth = 0.5) +
  geom_point(size = 1) +
  scale_x_continuous(breaks = seq(-500,500,100),limits = c(-500,500)) +
  scale_y_continuous(breaks = seq(0,1,0.1)) +
  scale_color_manual(values = c("darkblue","darkorange","dodgerblue")) +
  labs(x = "distance to TSS (kb)",y = "proportion of SNPs") +
  theme_cowplot(font_size = 10)
print(p)


sessionInfo()
# R version 4.3.3 (2024-02-29)
# Platform: aarch64-apple-darwin20 (64-bit)
# Running under: macOS 15.4.1
#
# Matrix products: default
# BLAS:   /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRblas.0.dylib
# LAPACK: /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.11.0
#
# locale:
# [1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
#
# time zone: America/Chicago
# tzcode source: internal
#
# attached base packages:
# [1] stats     graphics  grDevices utils     datasets  methods   base
#
# other attached packages:
# [1] cowplot_1.1.3     ggplot2_3.5.0     dplyr_1.1.4       data.table_1.15.2
#
# loaded via a namespace (and not attached):
#  [1] sass_0.4.9        utf8_1.2.4        generics_0.1.3    stringi_1.8.3
#  [5] digest_0.6.34     magrittr_2.0.3    evaluate_1.0.3    grid_4.3.3
#  [9] fastmap_1.1.1     plyr_1.8.9        R.oo_1.26.0       rprojroot_2.0.4
# [13] workflowr_1.7.1   jsonlite_1.8.8    R.utils_2.12.3    whisker_0.4.1
# [17] promises_1.2.1    fansi_1.0.6       scales_1.3.0      textshaping_0.3.7
# [21] jquerylib_0.1.4   cli_3.6.4         rlang_1.1.5       R.methodsS3_1.8.2
# [25] munsell_0.5.0     withr_3.0.2       cachem_1.0.8      yaml_2.3.8
# [29] tools_4.3.3       reshape2_1.4.4    colorspace_2.1-0  httpuv_1.6.14
# [33] vctrs_0.6.5       R6_2.5.1          lifecycle_1.0.4   git2r_0.33.0
# [37] stringr_1.5.1     fs_1.6.5          ragg_1.2.7        pkgconfig_2.0.3
# [41] pillar_1.9.0      bslib_0.6.1       later_1.3.2       gtable_0.3.4
# [45] glue_1.8.0        Rcpp_1.0.12       systemfonts_1.0.6 xfun_0.42
# [49] tibble_3.2.1      tidyselect_1.2.1  highr_0.10        knitr_1.45
# [53] farver_2.1.1      htmltools_0.5.8.1 rmarkdown_2.26    labeling_0.4.3
# [57] compiler_4.3.3
