Here we take a close look at a selection of the susie and fsusie fine-mapping results for the ROSMAP data.

To build the workflowr page, I ran these commands on midway2:

sinteractive -c 4 --mem=24G --time=20:00:00 -p mstephens
module load R/4.1.0-no-openblas
module load pandoc/3.0.1
R
> .libPaths()[1]
# [1] "/home/pcarbo/R_libs_4_10_no_openblas"
> getwd()
# [1] "../analysis"
> workflowr::wflow_build("rosmap.Rmd",local=TRUE,view=FALSE,verbose=TRUE)

Load the packages as well as some additional custom functions used in the analysis below.

library(data.table)
library(ggplot2)
library(cowplot)
source("../code/rosmap_functions.R")
setDTthreads(1)

Load the susie fine-mapping results on the “Inh mega eQTL” RNA-seq data.

datadir <- file.path("/project2/mstephens/fungen_xqtl/ftp_fgc_xqtl",
                     "analysis_result/finemapping_twas/prepared_results")
load(file.path(datadir,"susie_Inh_mega_eQTL.RData"))
susie <- list(regions = regions,cs = cs,pips = pips)
rm(regions,cs,pips)

Load the fsusie fine-mapping results on the DLPFC methylation data.

load(file.path(datadir,"fsusie_ROSMAP_DLPFC_mQTL.RData"))
fsusie_mqtl <- list(regions = regions,cs = cs,pips = pips)
rm(regions,cs,pips)

Load the fsusie fine-mappign results on the DLPFC histone acetylation (H3K9ac ChIP-seq) data.

load(file.path(datadir,"fsusie_ROSMAP_DLPFC_haQTL.RData"))
fsusie_haqtl <- list(regions = regions,cs = cs,pips = pips)
rm(regions,cs,pips)

Load the gene annotations. Specifically I extract here only the annotated gene transcripts for protein-coding genes as defined in the Ensembl/Havana database.

gene_file <-
  file.path("../data/genome_annotations",
    "Homo_sapiens.GRCh38.103.chr.reformatted.collapse_only.gene.gtf.gz")
genes <- get_gene_annotations(gene_file)

SuSiE fine-mapping of RNA-seq

Region sizes in base-pairs and SNPs:

p1 <- region_sizes_histogram(susie$regions,susie$pips)
p2 <- num_snps_histogram(susie$regions)
plot_grid(p1,p2)

Version Author Date
ef4a009 Peter Carbonetto 2024-04-26

Number of CSs per region:

table(CSs = susie$regions$num_cs)
# CSs
#    0    1    2    3    4    5    6    7    8   12
# 4283 1333  294   68   28    5    1    1    3    1

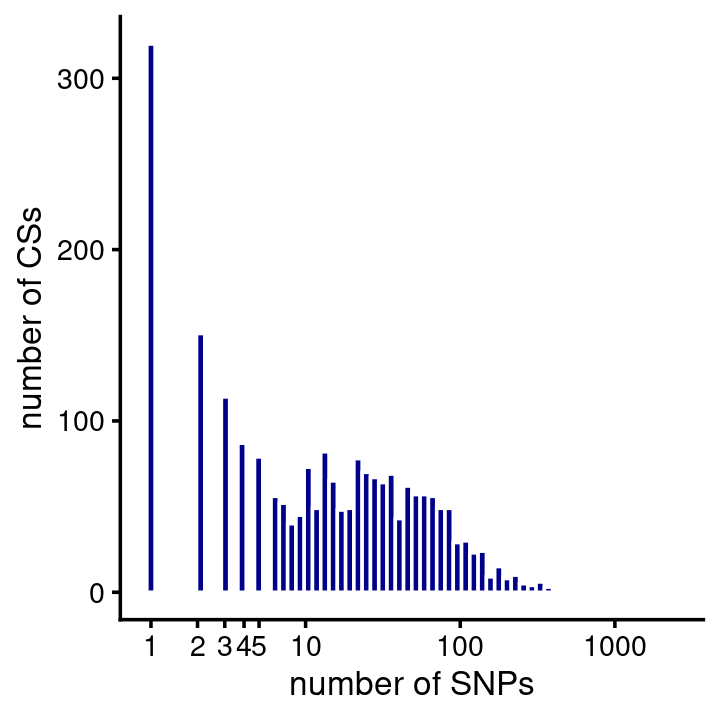

CS sizes:

susie_cs_sizes <- get_cs_sizes_by_region(susie$cs)
cs_sizes_histogram(susie_cs_sizes,x_breaks = c(1:5,10,100,1000))

Version Author Date
ef4a009 Peter Carbonetto 2024-04-26

NEXT: Create a plot showing the distance between the susie SNP and the gene’s TSS. First get the TSS for each gene/region. Note: this code is based on function “gtf_to_tss_bed” here.

region_names <- susie$regions$region_name
rownames(susie$regions) <- region_names
susie$regions$tss       <- as.numeric(NA)
susie$regions$strand    <- as.character(NA)
for (i in region_names) {
  j <- which(genes$ensembl == i)
  if (length(j) == 1) {
    susie$regions[i,"strand"] <- as.character(genes[j,"strand"])
    if (genes[j,"strand"] == "+")
      susie$regions[i,"tss"] <- genes[j,"start"]
    else
      susie$regions[i,"tss"] <- genes[j,"end"]
  }
}
susie$regions <- transform(susie$regions,strand = factor(strand))

Now compute the distance to the TSS weighted by the PIPs:

n      <- length(susie$pips)
bins   <- c(-Inf,seq(-1e6,1e6,5e4),Inf)
counts <- rep(0,length(bins) - 1)
for (i in 1:n) {
  if (!is.na(susie$regions[i,"tss"])) {
    pips <- susie$pips[[i]]
    dist_to_tss <- susie$regions[i,"tss"] - pips$pos
    if (susie$regions[i,"strand"] == "-")
      dist_to_tss <- -dist_to_tss
    dist_to_tss <- cut(dist_to_tss,bins)
    res <- tapply(pips$pip,dist_to_tss,sum)
    res[is.na(res)] <- 0
    counts <- counts + res
  }
}

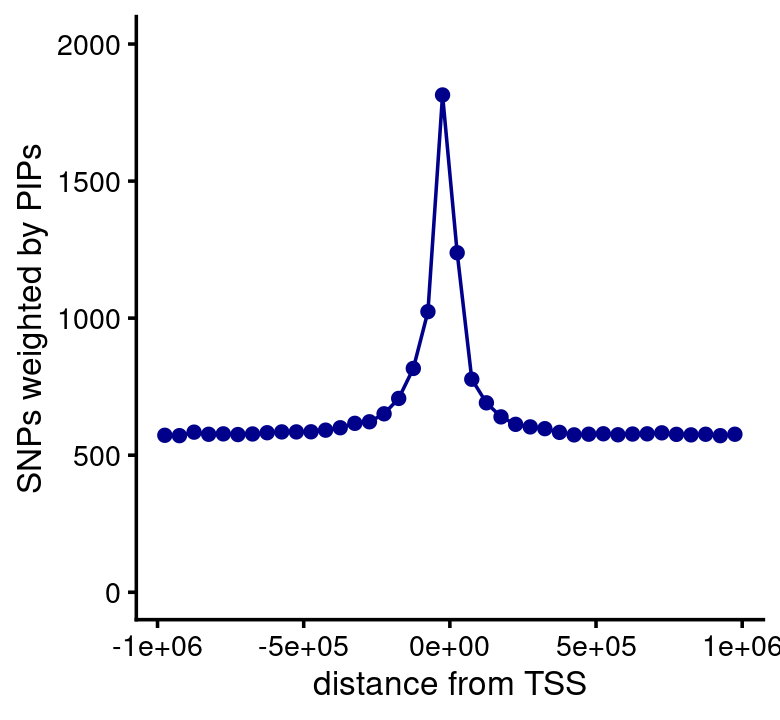

Plot the result:

n      <- length(counts)
bins   <- bins[seq(2,n-1)]
counts <- counts[seq(2,n-1)]
pdat <- data.frame(pos = bins + 2.5e4,count = counts)
ggplot(pdat,aes(x = pos,y = count)) +
  geom_point(color = "darkblue") +
  geom_line(color = "darkblue") +
  scale_y_continuous(limits = c(0,2000)) +
  labs(x = "distance from TSS",y = "SNPs weighted by PIPs") +
  theme_cowplot(font_size = 10)

Version Author Date
ef4a009 Peter Carbonetto 2024-04-26

fSuSiE fine-mapping of haQTLs and overlap with expression SNPs

Region sizes in base-pairs and SNPs:

p1 <- region_sizes_histogram(fsusie_haqtl$regions,fsusie_haqtl$pips)
p2 <- num_snps_histogram(fsusie_haqtl$regions)
plot_grid(p1,p2)

Number of CSs per region:

table(CSs = fsusie_haqtl$regions$num_cs)
# CSs
#   0   1   2   3   4   5   6   7   8   9  10  11  12  13  14  15  16  17  18  19
#  85 133 196 186 171 171  92  74  48  45  19  20   8  10   9   8   7   1   4   4
#  20
#  14

CS sizes:

fsusie_haqtl_cs_sizes <- get_cs_sizes_by_region(fsusie_haqtl$cs)
cs_sizes_histogram(fsusie_haqtl_cs_sizes,x_breaks = c(1:5,10,100,1000)) +
  scale_y_continuous(trans = "log10")

fSuSiE fine-mapping of mQTLs and overlap with expression SNPs

Region sizes in base-pairs and SNPs:

p1 <- region_sizes_histogram(fsusie_mqtl$regions,fsusie_mqtl$pips)
p2 <- num_snps_histogram(fsusie_mqtl$regions)
plot_grid(p1,p2)

Number of CSs per region:

table(CSs = fsusie_mqtl$regions$num_cs)
# CSs
#   4   5   6   7   8   9  10  11  12  13  14  15  16  17  18  19  20
#   3   6   2   5  10  19  10  13  16  15  26  23  54  12  45 163 871

CS sizes:

fsusie_mqtl_cs_sizes <- get_cs_sizes_by_region(fsusie_mqtl$cs)
cs_sizes_histogram(fsusie_mqtl_cs_sizes,x_breaks = c(1:5,10,100,1000)) +
  scale_y_continuous(trans = "log10")

Get CSs containing exactly 1 SNP in susie results:

n <- nlevels(susie$cs$region)
cs1snp_susie <- vector("list",n)
region_names <- levels(susie$cs$region)
names(cs1snp_susie) <- region_names
for (i in region_names) {
  dat <- subset(susie$cs,region == i)
  x <- table(dat$cs)
  x <- as.numeric(names(x)[x == 1])
  if (length(x) > 0)
   cs1snp_susie[[i]] <- subset(dat,is.element(cs,x))
}
cs1snp_susie <- do.call(rbind,cs1snp_susie)
rownames(cs1snp_susie) <- NULL

Get CSs containing exactly 1 SNP in fsusie mQTL results:

n <- nlevels(fsusie_mqtl$cs$region)
cs1snp_fsusie_mqtl <- vector("list",n)
region_names <- levels(fsusie_mqtl$cs$region)
names(cs1snp_fsusie_mqtl) <- region_names
for (i in region_names) {
  dat <- subset(fsusie_mqtl$cs,region == i)
  x <- table(dat$cs)
  x <- as.numeric(names(x)[x == 1])
  if (length(x) > 0)
   cs1snp_fsusie_mqtl[[i]] <- subset(dat,is.element(cs,x))
}
cs1snp_fsusie_mqtl <- do.call(rbind,cs1snp_fsusie_mqtl)
intersect(cs1snp_susie$id,cs1snp_fsusie_mqtl$id)
# [1] "chr17:63440644:T:C" "chr6:116280394:A:G" "chr1:185138897:G:C"
# [4] "chr1:75724352:C:G"  "chr22:36239710:G:A" "chr1:154155073:C:G"
# [7] "chr21:46167748:A:G" "chr19:52690616:G:A" "chr17:64966066:C:T"
