Here we will prepare the single-cell RNA-seq data from Stancill
et al 2021 for analysis with the topic model and other matrix
factorization methods. The data files were obtained by downloading and
the GSE156175_RAW.tar file from GEO
accession GSE156175. To run this script, download this file from GEO
and extract the contents into a folder called “GSE156175_RAW” in the
data directory.
Load the R packages used to perform the data processing and initial analyses:
library(Matrix)
library(tools)
library(readr)
library(cowplot)
library(fastTopics)
library(dplyr)
library(Seurat)Set the seed for reproducibility:
set.seed(1)Import the sample information:
barcodes1<-read_tsv("../data/GSE156175_RAW/GSM5842388_Rep1_S1_barcodes.tsv.gz",
col_names = "barcode")
barcodes2 <- read_tsv("../data/GSE156175_RAW/GSM4726017_S2_barcodes.tsv.gz",
col_names = "barcode")
barcodes3 <- read_tsv("../data/GSE156175_RAW/GSM4726018_S3_barcodes.tsv.gz",
col_names = "barcode")
barcodes4 <- read_tsv("../data/GSE156175_RAW/GSM4726019_S4_barcodes.tsv.gz",
col_names = "barcode")
barcodes1$barcode <- substr(barcodes1$barcode,1,nchar(barcodes1$barcode) - 2)
barcodes2$barcode <- substr(barcodes2$barcode,1,nchar(barcodes2$barcode) - 2)
barcodes3$barcode <- substr(barcodes3$barcode,1,nchar(barcodes3$barcode) - 2)
barcodes4$barcode <- substr(barcodes4$barcode,1,nchar(barcodes4$barcode) - 2)
barcodes1$condition <- "Untreated"
barcodes2$condition <- "IL-1B"
barcodes3$condition <- "IFNg"
barcodes4$condition <- "IL-1B_IFNg"
barcodes <- rbind(barcodes1, barcodes2, barcodes3, barcodes4)
barcodes$cell_bc <- paste0(barcodes$barcode, "_", barcodes$condition)
barcodes$condition <- factor(barcodes$condition)Import the gene information:
genes1 <- read_tsv("../data/GSE156175_RAW/GSM5842388_Rep1_S1_features.tsv.gz",
col_names = c("ensembl", "symbol", "type"))
genes2 <- read_tsv("../data/GSE156175_RAW/GSM4726017_S2_features.tsv.gz",
col_names = c("ensembl", "symbol", "type"))
genes3 <- read_tsv("../data/GSE156175_RAW/GSM4726018_S3_features.tsv.gz",
col_names = c("ensembl", "symbol", "type"))
genes4 <- read_tsv("../data/GSE156175_RAW/GSM4726019_S4_features.tsv.gz",
col_names = c("ensembl", "symbol", "type"))
genes <- genes1
genes$type <- factor(genes$type)Now import in the read counts:
counts1 <- t(readMM("../data/GSE156175_RAW/GSM5842388_Rep1_S1_matrix.mtx.gz"))
counts2 <- t(readMM("../data/GSE156175_RAW/GSM4726017_S2_matrix.mtx.gz"))
counts3 <- t(readMM("../data/GSE156175_RAW/GSM4726018_S3_matrix.mtx.gz"))
counts4 <- t(readMM("../data/GSE156175_RAW/GSM4726019_S4_matrix.mtx.gz"))
rownames(counts1) <- paste0(barcodes1$barcode, "_", barcodes1$condition)
rownames(counts2) <- paste0(barcodes2$barcode, "_", barcodes2$condition)
rownames(counts3) <- paste0(barcodes3$barcode, "_", barcodes3$condition)
rownames(counts4) <- paste0(barcodes4$barcode, "_", barcodes4$condition)
colnames(counts1) <- genes1$symbol
colnames(counts2) <- genes2$symbol
colnames(counts3) <- genes3$symbol
colnames(counts4) <- genes4$symbol
counts <- rbind(
as.matrix(counts1),
as.matrix(counts2),
as.matrix(counts3),
as.matrix(counts4)
)
counts <- as(counts, "CsparseMatrix")Remove genes that are not expressed in any cell:
x <- colSums(counts)
j <- which(x > 0)
genes <- genes[j,]
counts <- counts[,j]Remove cells in terms (i) total UMI count and (ii) very few expressed genes:
x <- rowSums(counts > 0)
i <- which(x > 2000)
barcodes <- barcodes[i,]
counts <- counts[i,]
x <- rowSums(counts)
i <- which(x <= 60000)
barcodes <- barcodes[i,]
counts <- counts[i,]PC: The filtering step x > 2000 seems a bit
aggressive. I think we could have retained some more cells.
Remove cells with high mitochondrial counts:
mito_genes <- which(substr(genes$symbol,1,2) == "mt")
s <- rowSums(counts)
s_mito <- rowSums(counts[,mito_genes])
prop_mito <- s_mito/s
i <- which(prop_mito < 0.1)
barcodes <- barcodes[i,]
counts <- counts[i,]PC: Again, the filtering step prop_mito < 0.1 seems a
bit aggressive.
Remove MALAT1, ribosomal genes, and mitochondrial genes:
j <- which(!(grepl("^mt-",genes$symbol) | grepl("^Rp[sl]",genes$symbol)))
genes <- genes[j,]
counts <- counts[,j]
j <- which(genes$symbol != "Malat1")
genes <- genes[j,]
counts <- counts[,j]Remove other genes that are expressed in only 1 or 2 cells:
x <- colSums(counts > 0)
j <- which(x > 2)
genes <- genes[j,]
counts <- counts[,j]Fit a topic model with \(K = 12\).
set.seed(1)
tm_fit <- fit_poisson_nmf(X = counts,k = 12,control = list(nc = 7),
verbose = "none")
Warning: The above code chunk cached its results, but
it won’t be re-run if previous chunks it depends on are updated. If you
need to use caching, it is highly recommended to also set
knitr::opts_chunk$set(autodep = TRUE) at the top of the
file (in a chunk that is not cached). Alternatively, you can customize
the option dependson for each individual chunk that is
cached. Using either autodep or dependson will
remove this warning. See the
knitr cache options for more details.

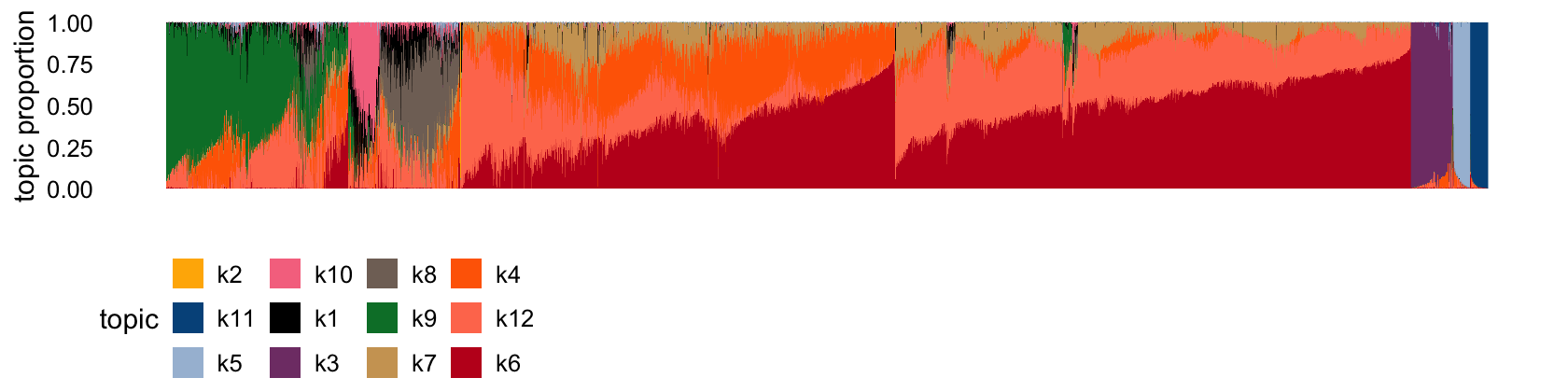

Here is the Structure plot:
set.seed(1)
structure_plot(tm_fit,n = Inf)
# Running tsne on 7606 x 12 matrix.
# Warning: `aes_string()` was deprecated in ggplot2 3.0.0.
# ℹ Please use tidy evaluation idioms with `aes()`.
# ℹ See also `vignette("ggplot2-in-packages")` for more information.
# ℹ The deprecated feature was likely used in the fastTopics package.
# Please report the issue at
# <https://github.com/stephenslab/fastTopics/issues>.
# This warning is displayed once every 8 hours.
# Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
# generated.
| Version | Author | Date |
|---|---|---|
| cb5c359 | Peter Carbonetto | 2025-07-11 |
Below is a heatmap annotation of the marker genes given in the Stancill paper:
scale_rows <- function (A)
A / apply(A,1,max)
marker_genes <- c("Ins1","Ins2","Gcg","Sst","Ppy","Krt17","Ccr5",
"Col1a1","Cd34","Cpa1")
F <- poisson2multinom(tm_fit)$F
F <- F[marker_genes,]
F <- scale_rows(F)
rownames(F) <- marker_genes
annotation_heatmap(F,select_features = "all",verbose = FALSE)
| Version | Author | Date |
|---|---|---|
| cb5c359 | Peter Carbonetto | 2025-07-11 |
Below are some comments relating my guesses about factor associations. Many of the beta associated factors are non-specific:
- k1: ?
- k2: acinar
- k3: endothelial/mesenchymal
- k4: ? (presumably beta)
- k5: ductal
- k6: deta
- k7: ? (presumably beta)
- k8: delta
- k9: alpha
- k10: gamma (PP)
- k11: macrophage
- k12: ? (presumably beta)
Now, I do celltype assignments. I assigned cells to the celltype corresponding to the factor it is most loaded on. Below is the structure plot with cells grouped by type.
L <- poisson2multinom(tm_fit)$L
L_df <- as.data.frame(L)
L_df <- L_df %>%
dplyr::select(
k2, k3, k5, k6, k7, k8, k9, k10, k11
)
cluster_map <- c(
k7 = "Beta",
k6 = "Beta",
k2 = "Acinar",
k3 = "Endothelial/Mesenchymal",
k5 = "Ductal",
k8 = "Delta",
k9 = "Alpha",
k10 = "Gamma",
k11 = "Macrophage"
)
L_df <- L_df %>%
rowwise() %>%
mutate(
# 1. Identify which column is maximal in this row
max_col = names(cluster_map)[which.max(c_across(all_of(names(cluster_map))))],
# 2. Map that column name to the cluster label
cluster = cluster_map[[max_col]]
) %>%
ungroup()
structure_plot(tm_fit, grouping = L_df$cluster, gap = 30, n = Inf)
# Running tsne on 989 x 12 matrix.
# Running tsne on 5475 x 12 matrix.
# Running tsne on 493 x 12 matrix.
# Running tsne on 111 x 12 matrix.
# Running tsne on 246 x 12 matrix.
# Running tsne on 176 x 12 matrix.
# Running tsne on 105 x 12 matrix.
| Version | Author | Date |
|---|---|---|
| cb5c359 | Peter Carbonetto | 2025-07-11 |
Overall, this clustering looks quite good.
Save the processed data to an RData file:
save(list = c("barcodes","genes","counts"),
file = "pancreas_cytokine_lsa.RData")
# resaveRdaFiles("pancreas_cytokine.RData")
sessionInfo()
# R version 4.5.2 (2025-10-31)
# Platform: aarch64-apple-darwin20
# Running under: macOS Ventura 13.5
#
# Matrix products: default
# BLAS: /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
# LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.1
#
# locale:
# [1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
#
# time zone: America/New_York
# tzcode source: internal
#
# attached base packages:
# [1] tools stats graphics grDevices utils datasets methods
# [8] base
#
# other attached packages:
# [1] Seurat_5.2.1 SeuratObject_5.3.0 sp_2.2-0 dplyr_1.1.4
# [5] fastTopics_0.7-30 cowplot_1.2.0 readr_2.1.6 Matrix_1.7-4
#
# loaded via a namespace (and not attached):
# [1] RColorBrewer_1.1-3 rstudioapi_0.17.1 jsonlite_2.0.0
# [4] magrittr_2.0.4 spatstat.utils_3.2-0 farver_2.1.2
# [7] rmarkdown_2.30 fs_1.6.6 vctrs_0.6.5
# [10] ROCR_1.0-11 spatstat.explore_3.6-0 SQUAREM_2021.1
# [13] mixsqp_0.3-54 htmltools_0.5.9 progress_1.2.3
# [16] truncnorm_1.0-9 sass_0.4.10 sctransform_0.4.2
# [19] parallelly_1.46.0 KernSmooth_2.23-26 bslib_0.9.0
# [22] htmlwidgets_1.6.4 ica_1.0-3 plyr_1.8.9
# [25] plotly_4.11.0 zoo_1.8-14 cachem_1.1.0
# [28] whisker_0.4.1 igraph_2.2.1 mime_0.13
# [31] lifecycle_1.0.4 pkgconfig_2.0.3 R6_2.6.1
# [34] fastmap_1.2.0 fitdistrplus_1.2-4 future_1.68.0
# [37] shiny_1.12.1 digest_0.6.39 patchwork_1.3.2
# [40] tensor_1.5.1 rprojroot_2.1.1 RSpectra_0.16-2
# [43] irlba_2.3.5.1 labeling_0.4.3 invgamma_1.2
# [46] progressr_0.18.0 spatstat.sparse_3.1-0 polyclip_1.10-7
# [49] abind_1.4-8 httr_1.4.7 compiler_4.5.2
# [52] withr_3.0.2 bit64_4.6.0-1 S7_0.2.1
# [55] fastDummies_1.7.5 MASS_7.3-65 gtools_3.9.5
# [58] lmtest_0.9-40 otel_0.2.0 httpuv_1.6.16
# [61] future.apply_1.20.1 goftest_1.2-3 glue_1.8.0
# [64] quadprog_1.5-8 nlme_3.1-168 promises_1.5.0
# [67] grid_4.5.2 Rtsne_0.17 cluster_2.1.8.1
# [70] reshape2_1.4.5 generics_0.1.4 spatstat.data_3.1-9
# [73] gtable_0.3.6 tzdb_0.5.0 tidyr_1.3.1
# [76] data.table_1.17.8 hms_1.1.4 spatstat.geom_3.6-1
# [79] RcppAnnoy_0.0.22 ggrepel_0.9.6 RANN_2.6.2
# [82] pillar_1.11.1 stringr_1.6.0 vroom_1.6.7
# [85] spam_2.11-1 RcppHNSW_0.6.0 later_1.4.4
# [88] splines_4.5.2 lattice_0.22-7 bit_4.6.0
# [91] deldir_2.0-4 survival_3.8-3 tidyselect_1.2.1
# [94] miniUI_0.1.2 pbapply_1.7-4 knitr_1.50
# [97] git2r_0.36.2 gridExtra_2.3 scattermore_1.2
# [100] RhpcBLASctl_0.23-42 xfun_0.54 matrixStats_1.5.0
# [103] stringi_1.8.7 workflowr_1.7.2 lazyeval_0.2.2
# [106] yaml_2.3.12 evaluate_1.0.5 codetools_0.2-20
# [109] tibble_3.3.0 cli_3.6.5 uwot_0.2.4
# [112] RcppParallel_5.1.11-1 xtable_1.8-4 reticulate_1.44.1
# [115] jquerylib_0.1.4 Rcpp_1.1.0 spatstat.random_3.4-3
# [118] globals_0.18.0 png_0.1-8 spatstat.univar_3.1-5
# [121] parallel_4.5.2 ggplot2_4.0.1 prettyunits_1.2.0
# [124] dotCall64_1.2 listenv_0.10.0 viridisLite_0.4.2
# [127] scales_1.4.0 ggridges_0.5.7 purrr_1.2.0
# [130] crayon_1.5.3 rlang_1.1.6 ashr_2.2-63
