Introduction
This uses k-means clustering and 30-year normal climate variables to divide the United States into distinct ecoregions.
Reading in climate raster files
These originate from the Prism Climate Group’s website in .bil format I was having issues with the rgdal package reading these or any other form, so had to read them and save as RDS files on Workstation (the only place where rgdal installs properly). SCP’d RDS files here, and these read in the individal environment variable rasters.
temp_raster =
readRDS(
here::here("data", "prism_climate_data", "temp_raster.RDS"))
precip_raster =
readRDS(
here::here("data", "prism_climate_data", "precip_raster.RDS"))
elev_raster =
readRDS(
here::here("data", "prism_climate_data", "elev_raster.RDS"))
dewpt_raster =
readRDS(
here::here("data", "prism_climate_data", "mean_dwpt_raster.RDS")
)
min_vap_raster =
readRDS(
here::here("data", "prism_climate_data", "min_vpd_raster.RDS"))
max_vap_raster =
readRDS(
here::here("data", "prism_climate_data", "max_vpd_raster.RDS"))
min_temp_raster =
readRDS(
here::here("data", "prism_climate_data", "min_temp_raster.RDS"))
max_temp_raster =
readRDS(
here::here("data", "prism_climate_data", "max_temp_raster.RDS"))stacked_raster =
stack(
temp_raster,
precip_raster,
elev_raster,
dewpt_raster,
max_temp_raster,
min_temp_raster,
max_vap_raster,
min_vap_raster
)
threevar_stacked_raster =
stack(
temp_raster,
precip_raster,
elev_raster
)Identifying best K for full- and three-variable datasets
Using fpc::pamk(), K between 3 and 10 This doesn’t run, but appears that based on the fviz_nbclust() function in that the appropriate
It appears that k=2 is optimal by these metrics, but for some reason this step exceeds memory necessary to add to website.
stacked_raster %>%
as.data.frame() %>%
na.omit() %>%
sample_n(20000) %>%
fviz_nbclust(FUNcluster = kmeans)+
ggtitle("Full Environmental Data")
#pamk(krange = 3:20, criterion="multiasw", usepam=FALSE, scaling=TRUE)
threevar_stacked_raster %>%
as.data.frame() %>%
na.omit() %>%
sample_n(20000) %>%
fviz_nbclust(FUNcluster = kmeans)+
ggtitle("Three Environmental Variables ")

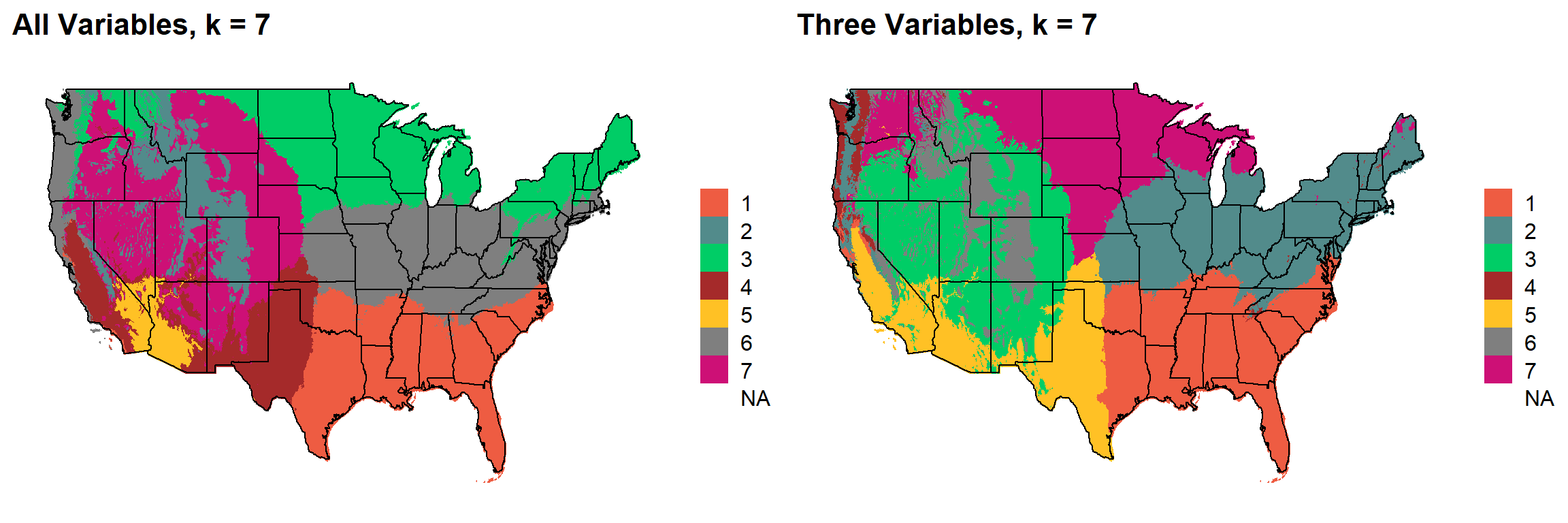

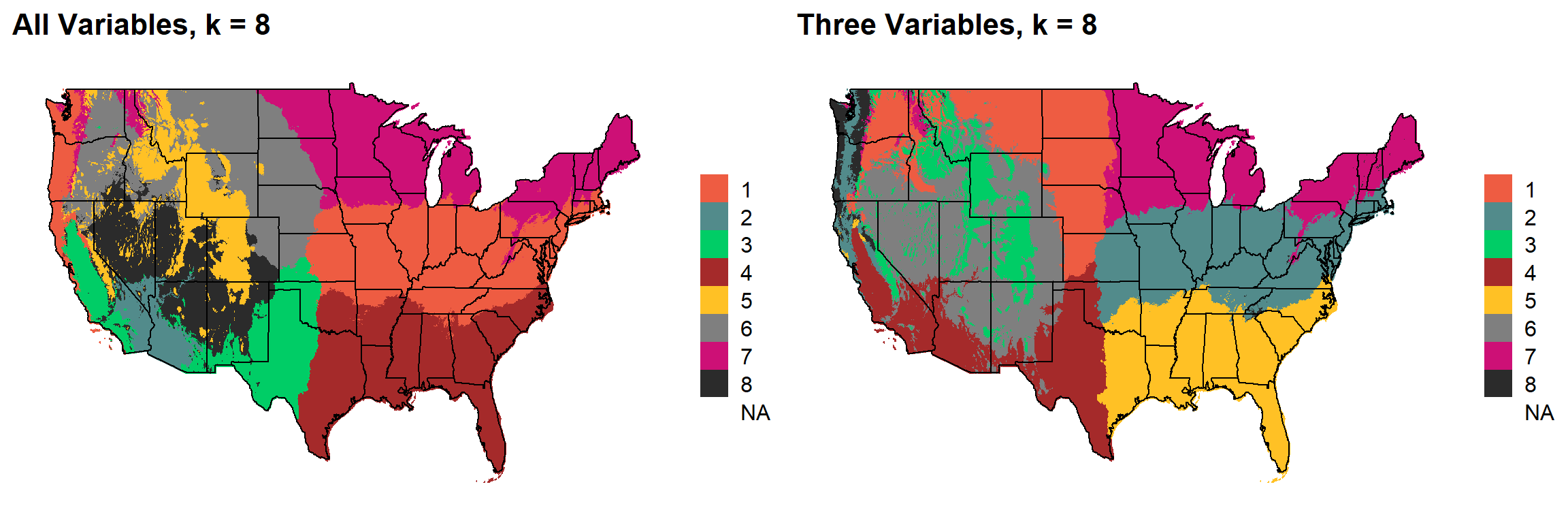

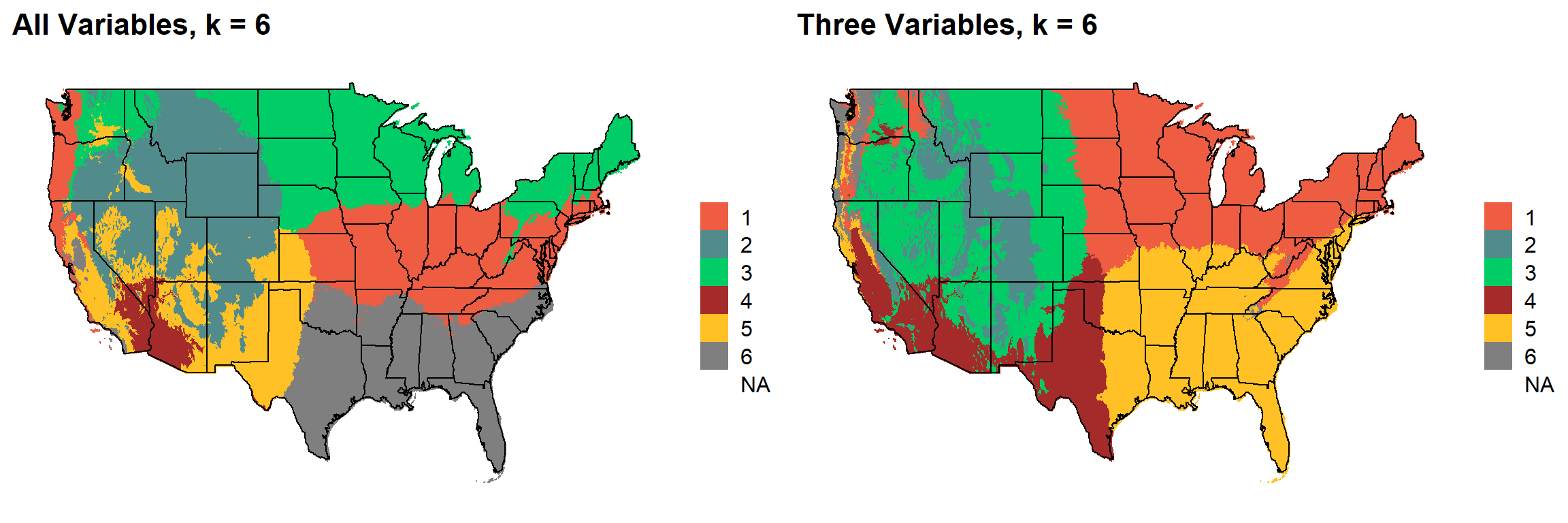

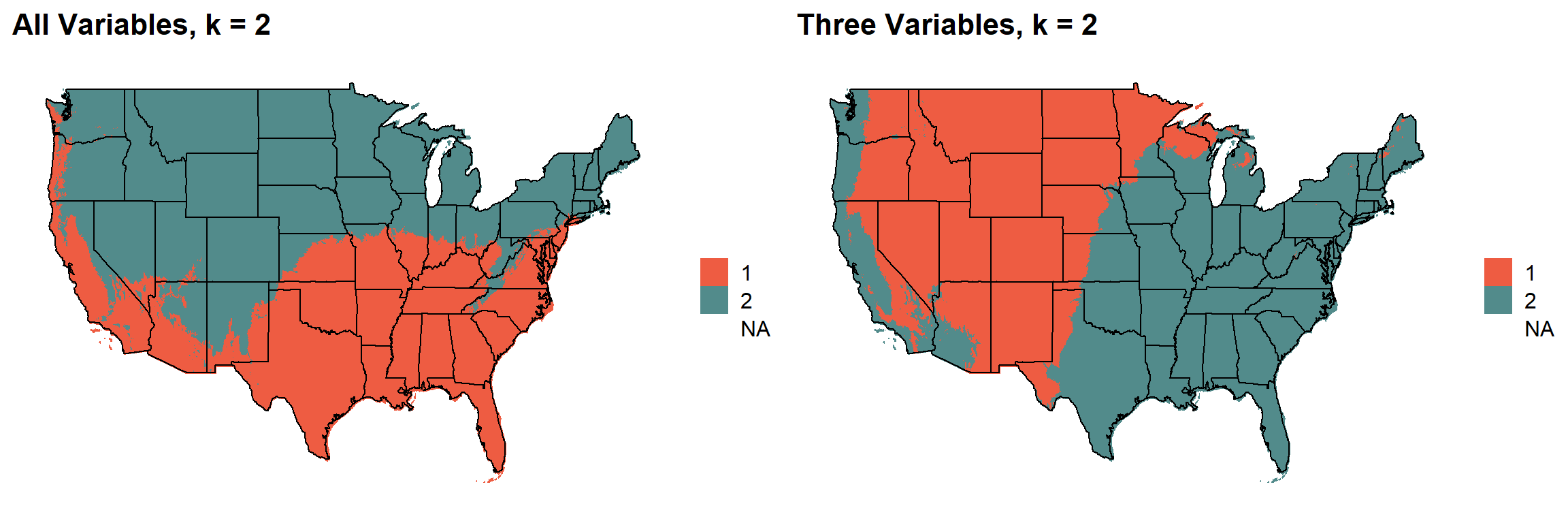

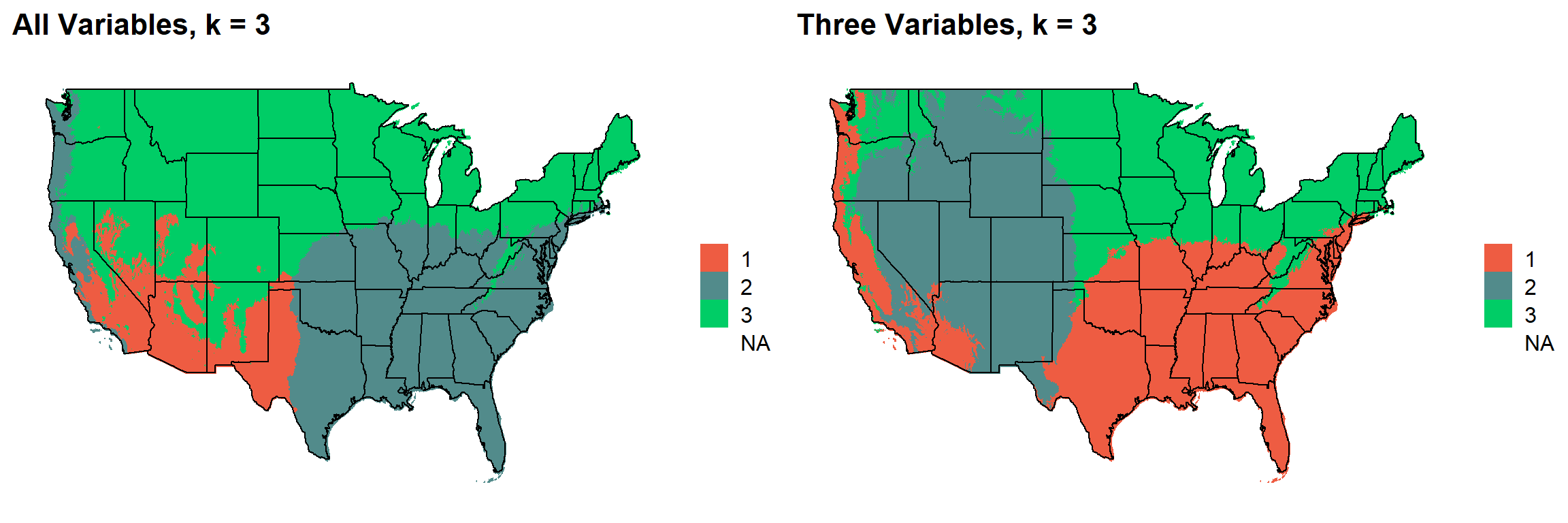

#pamk(krange = 3:20, criterion="multiasw", usepam=FALSE, scaling=TRUE)K-means clustering climate maps
# plotlist =
# seq(2,10) %>%
# purrr::map(
# ~plot_grid(
# unsuperClass(stacked_raster,
# nSamples=1000,
# nClasses = .x,
# norm=TRUE,
# nStarts=5,
# clusterMap=FALSE) %>%
# .$map %>%
# as.data.frame(xy=TRUE) %>%
# mutate(layer = as.factor(layer)) %>%
# kmeans_map()+
# ggtitle(paste("All Variables, k =", .x)),
# unsuperClass(threevar_stacked_raster,
# nSamples=1000,
# nClasses = .x,
# norm=TRUE,
# nStarts=5,
# clusterMap=FALSE) %>%
# .$map %>%
# as.data.frame(xy=TRUE) %>%
# mutate(layer = as.factor(layer)) %>%
# kmeans_map()+
# ggtitle(paste("Three Variables, k =", .x))
# )
# )
#
# saveRDS(plotlist, "../output/kmeans_plotlist.RDS")
plotlist = readRDS(here::here("output", "kmeans_plotlist.RDS"))
for (i in 1:length(plotlist)){
cat("####", i, " \n")
print(plotlist[[i]])
cat(' \n\n')
