Introduction
Validation Steps
(classification steps and validation possibilities)
Input Data
- Choice of satellite imagery (date, quality)
- Preprocessing steps (atmospheric, topographic, … correction)
- Image masking (clouds, cloud shadows, nodata)
Reference Data
- Choice of reference data (distribution)
- Label reference data
- Extraction of input data for reference areas
- Splitting in train and test data sets
Build Classification Model
- Choice of classification features
- Choice of model hyperparameters
Apply Classification Model
- Input data classification
- Class probability calculation
Postprocessing
- Apply filter (Minimal Mapping Unit, Focal filter)
- Integration of class probabilities
Accuracy Assessment
- Calculate accuracy metrics from validation data
Reference Data
The reference data was sampled in three project areas (Harz, Heide, Solling).Reference data sampling locations
Number of reference data polygons by tree species
| BA | n |
|---|---|
| 112 | 99 |
| 211 | 102 |
| 511 | 120 |
| 611 | 66 |
| 711 | 49 |
| 811 | 70 |
Number of reference data polygons by site
| site | n |
|---|---|
| Solling | 202 |
| Harz | 200 |
| Heide | 104 |
Number of reference data polygons by tree species and site
| BA | Solling | Harz | Heide |
|---|---|---|---|
| 112 | 58 | 28 | 13 |
| 211 | 35 | 57 | 10 |
| 511 | 40 | 54 | 26 |
| 611 | 32 | 19 | 15 |
| 711 | 13 | 8 | 28 |
| 811 | 24 | 34 | 12 |
Classification
Solling

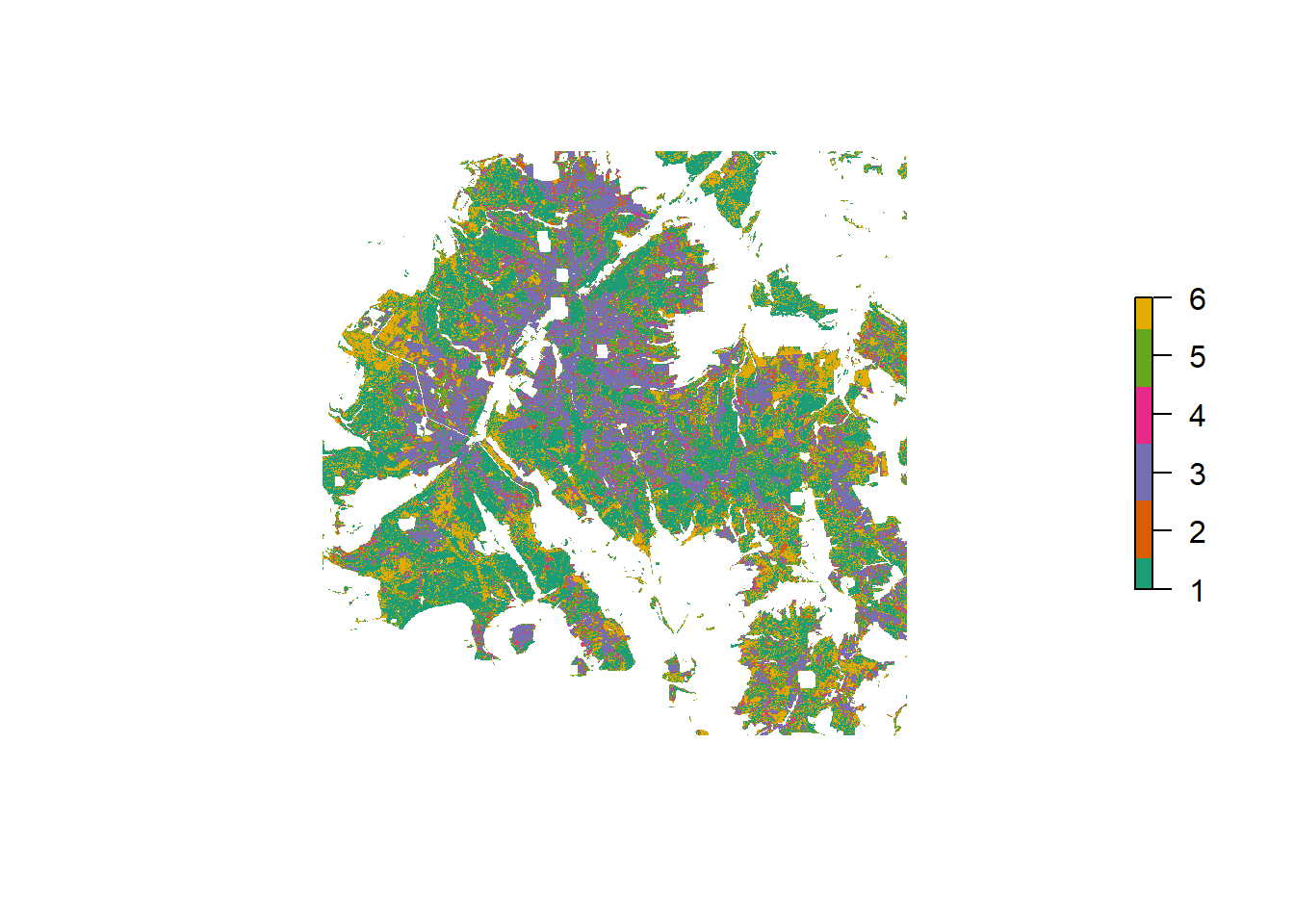

Tree species classification result for Solling
Harz

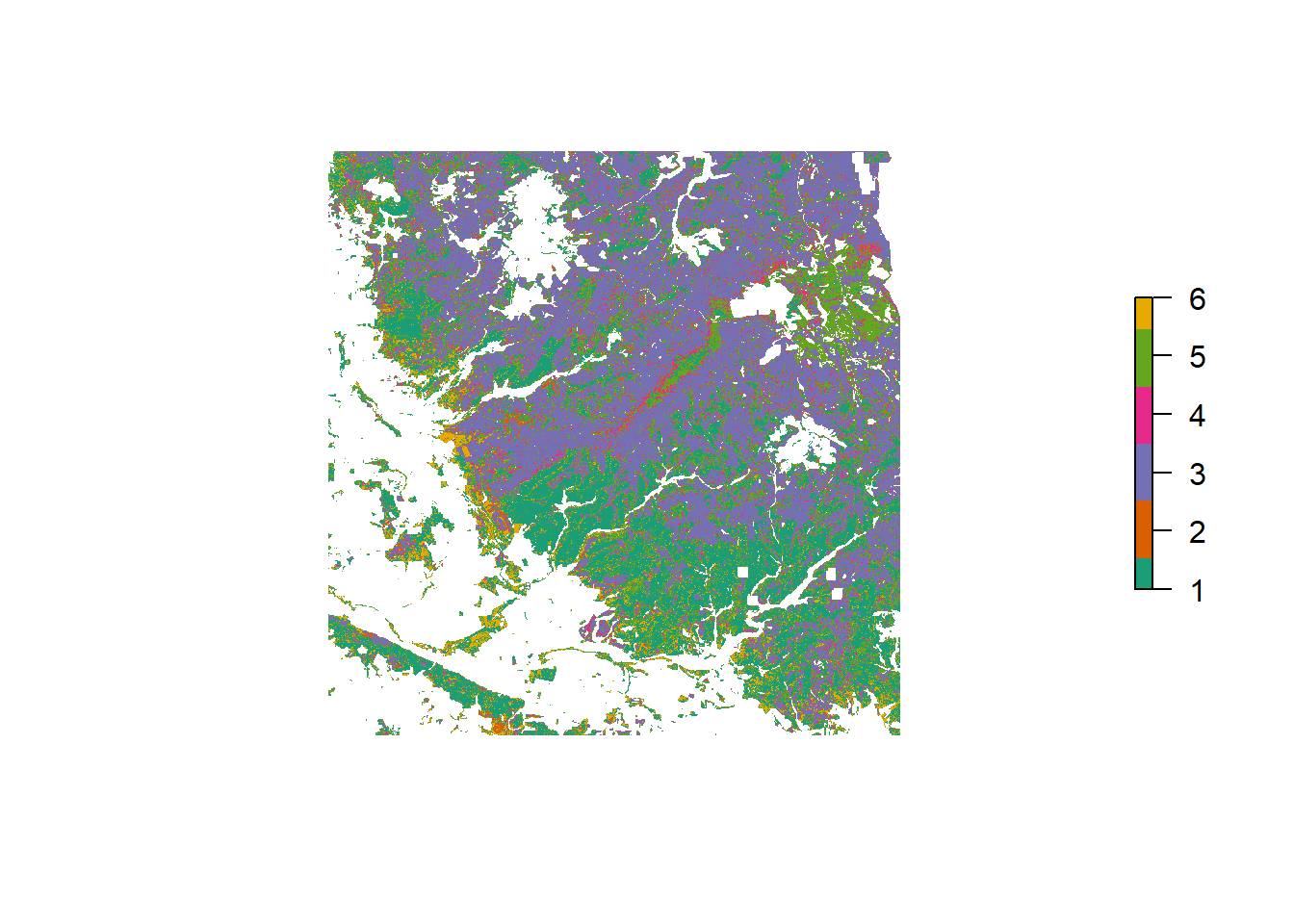

Tree species classification result for Harz
Heide

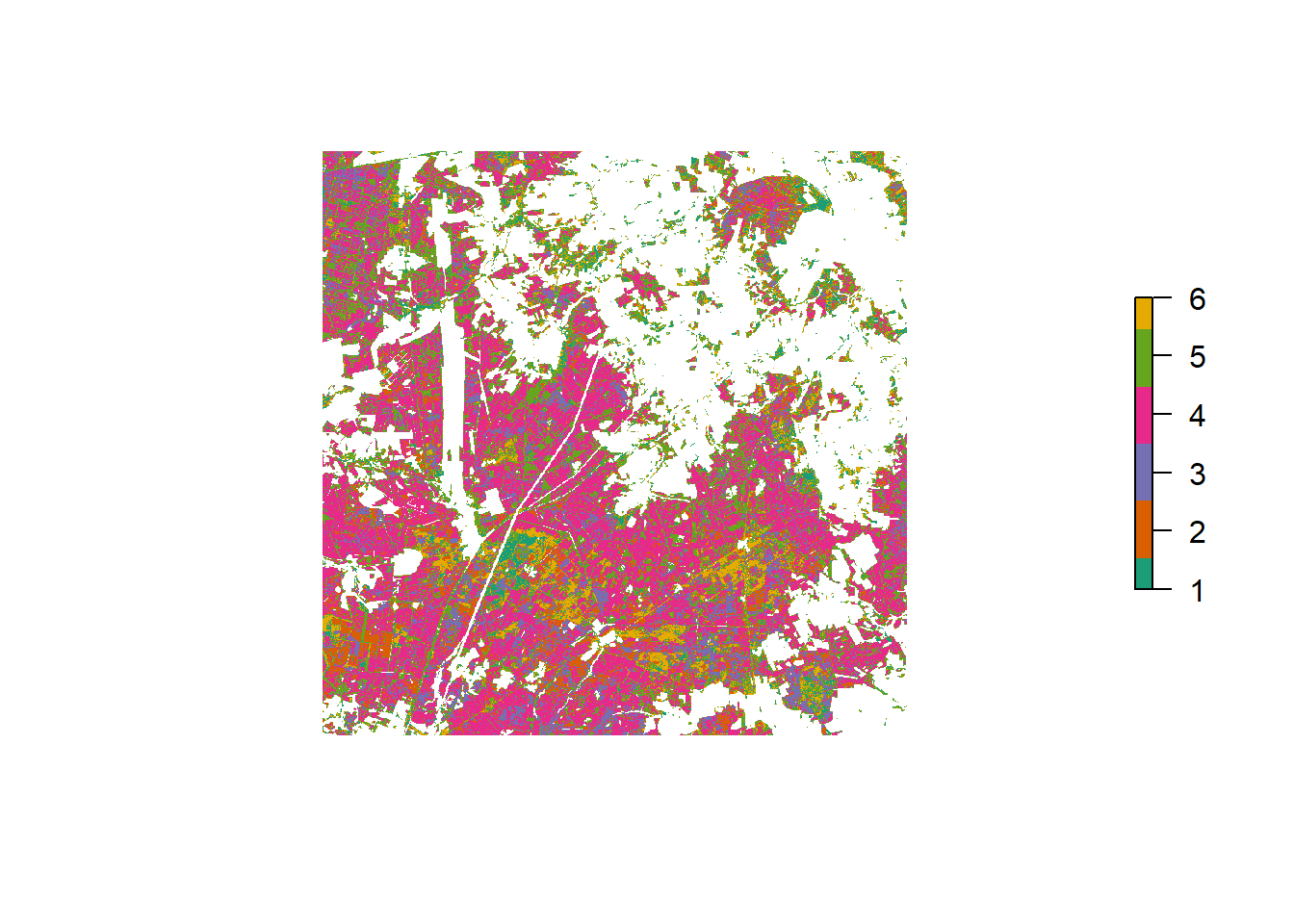

Tree species classification result for Heide
Probability
The Random Forest algorithm simply counts the fraction of trees in a forest that vote for a certain class to generate the predicted class. This class probability can be generated separately and provides insights in classification certainty.
Overview

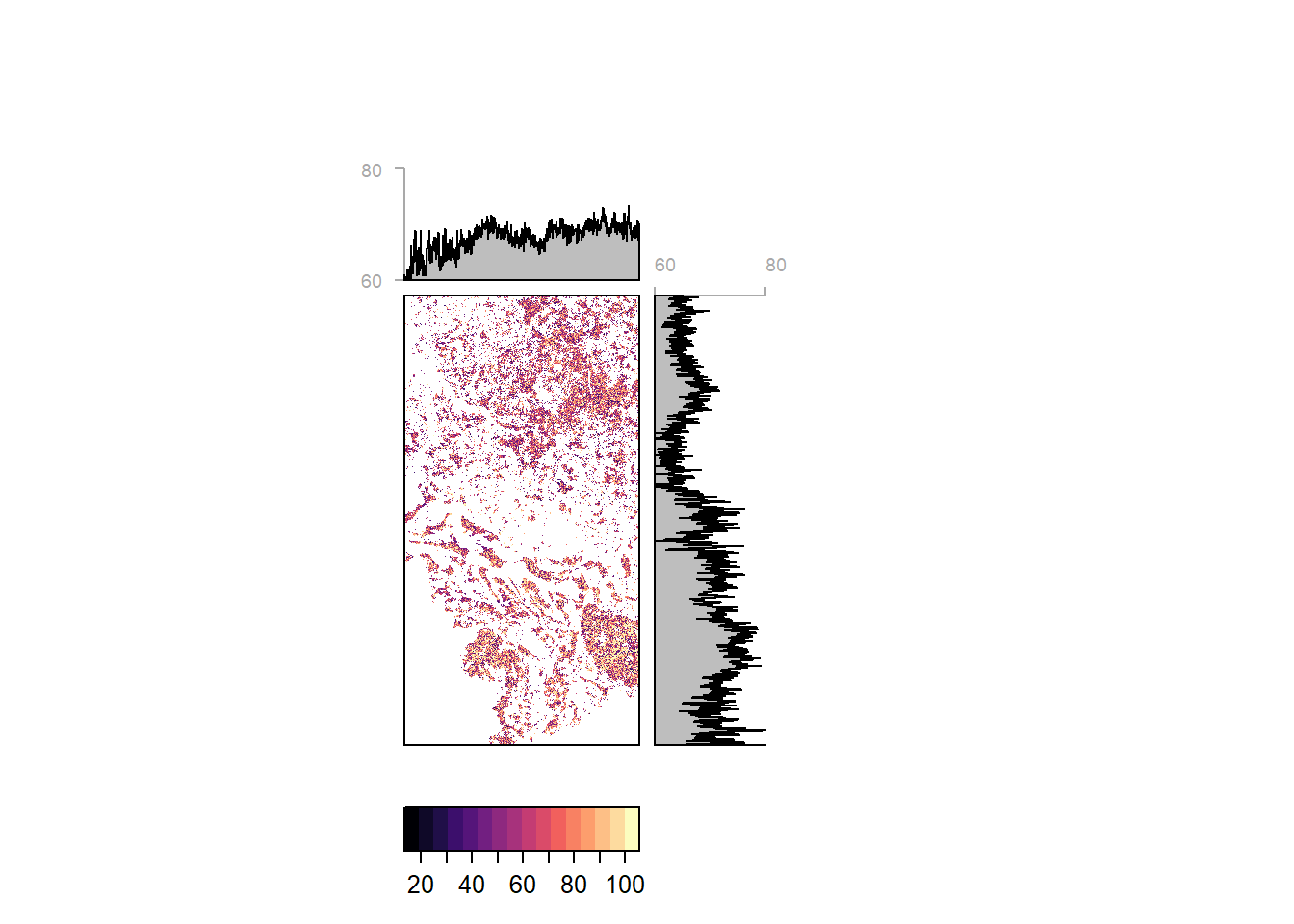

Pixelwise classification probability (and average by latitude and longitiude) for the entire study region
Solling

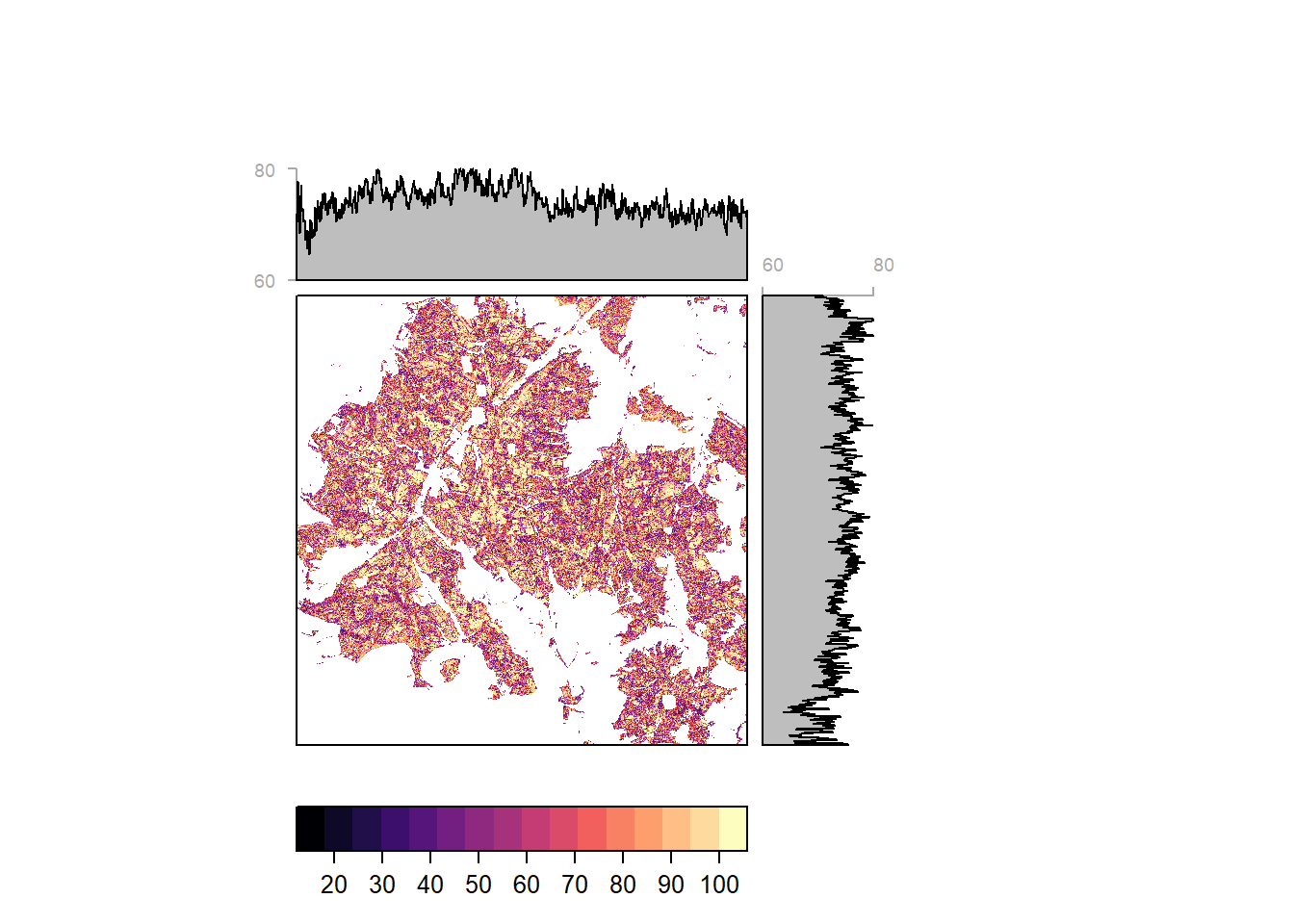

Pixelwise classification probability (and average by latitude and longitiude) for Solling
Harz

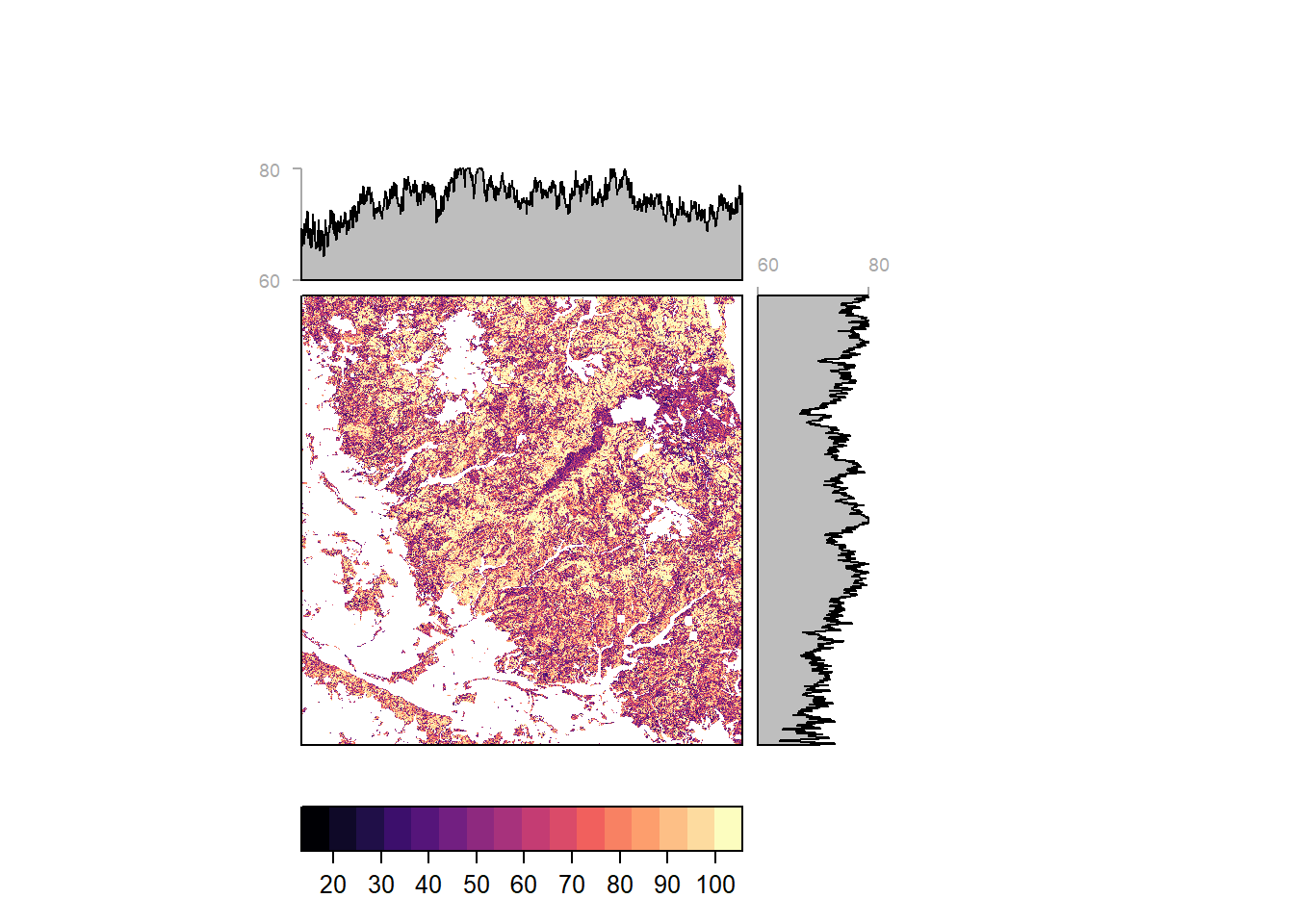

Pixelwise classification probability (and average by latitude and longitiude) for Harz
Heide

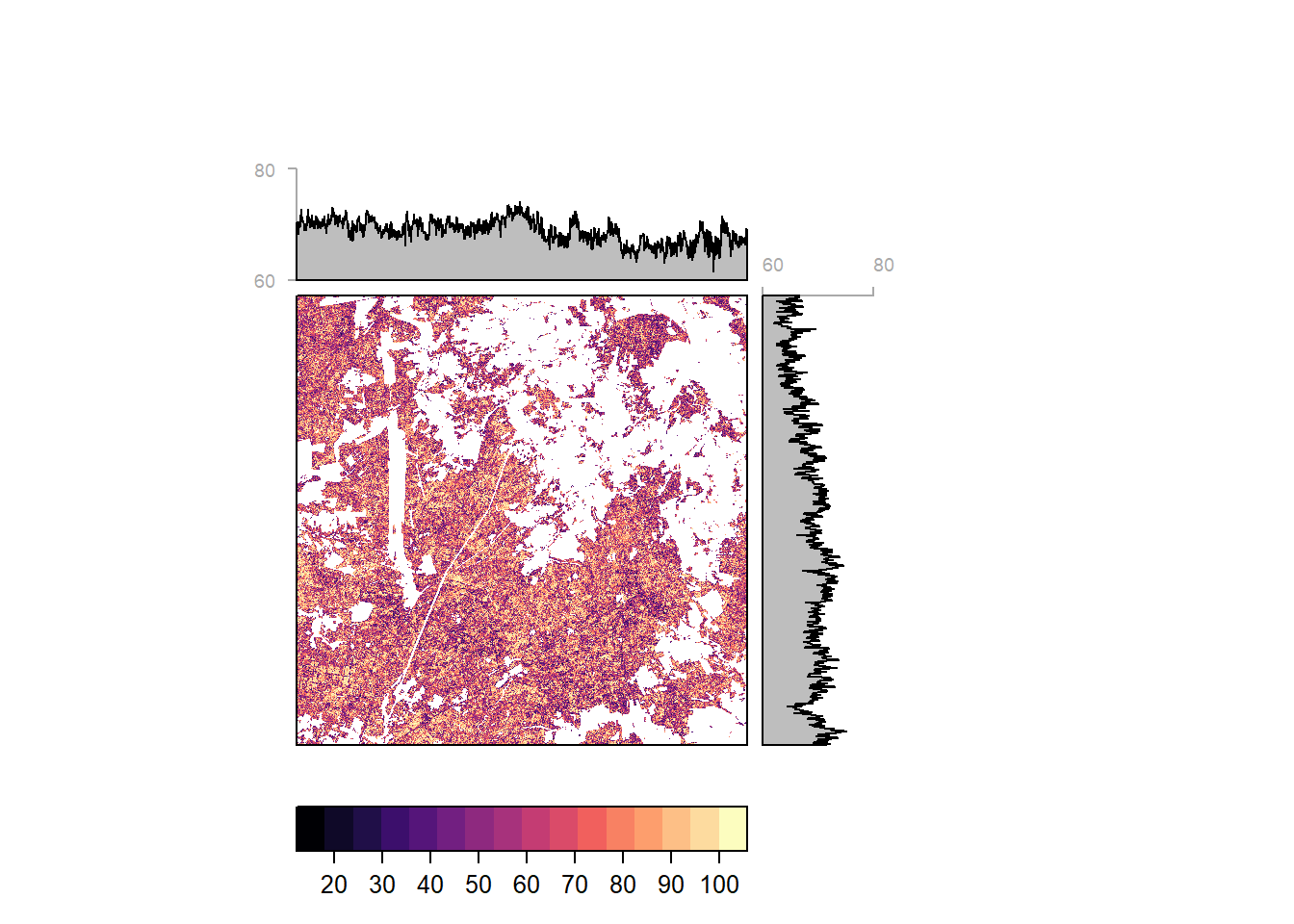

Pixelwise classification probability (and average by latitude and longitiude) for Heide
Reference Probability
Classification probabilities were extracted for each pixel inside reference polygons. The extracted values grant insight in classification certainty by tree species and reference site.
Classification probability by site and tree species for reference data locations
