Introduction

In this example, we test out symEBcovMF on tree-structured data.

Example

library(ebnm)
library(pheatmap)
library(ggplot2)

source('code/symebcovmf_functions.R')
source('code/visualization_functions.R')

Data Generation

sim_4pops <- function(args) {
  set.seed(args$seed)

  n <- sum(args$pop_sizes)
  p <- args$n_genes

  FF <- matrix(rnorm(7 * p, sd = rep(args$branch_sds, each = p)), ncol = 7)
  # if (args$constrain_F) {
  #   FF_svd <- svd(FF)
  #   FF <- FF_svd$u
  #   FF <- t(t(FF) * branch_sds * sqrt(p))
  # }

  LL <- matrix(0, nrow = n, ncol = 7)
  LL[, 1] <- 1
  LL[, 2] <- rep(c(1, 1, 0, 0), times = args$pop_sizes)
  LL[, 3] <- rep(c(0, 0, 1, 1), times = args$pop_sizes)
  LL[, 4] <- rep(c(1, 0, 0, 0), times = args$pop_sizes)
  LL[, 5] <- rep(c(0, 1, 0, 0), times = args$pop_sizes)
  LL[, 6] <- rep(c(0, 0, 1, 0), times = args$pop_sizes)
  LL[, 7] <- rep(c(0, 0, 0, 1), times = args$pop_sizes)

  E <- matrix(rnorm(n * p, sd = args$indiv_sd), nrow = n)
  Y <- LL %*% t(FF) + E
  YYt <- (1/p)*tcrossprod(Y)
  return(list(Y = Y, YYt = YYt, LL = LL, FF = FF, K = ncol(LL)))
}

sim_args = list(pop_sizes = rep(40, 4), n_genes = 1000, branch_sds = rep(2,7), indiv_sd = 1, seed = 1)
sim_data <- sim_4pops(sim_args)

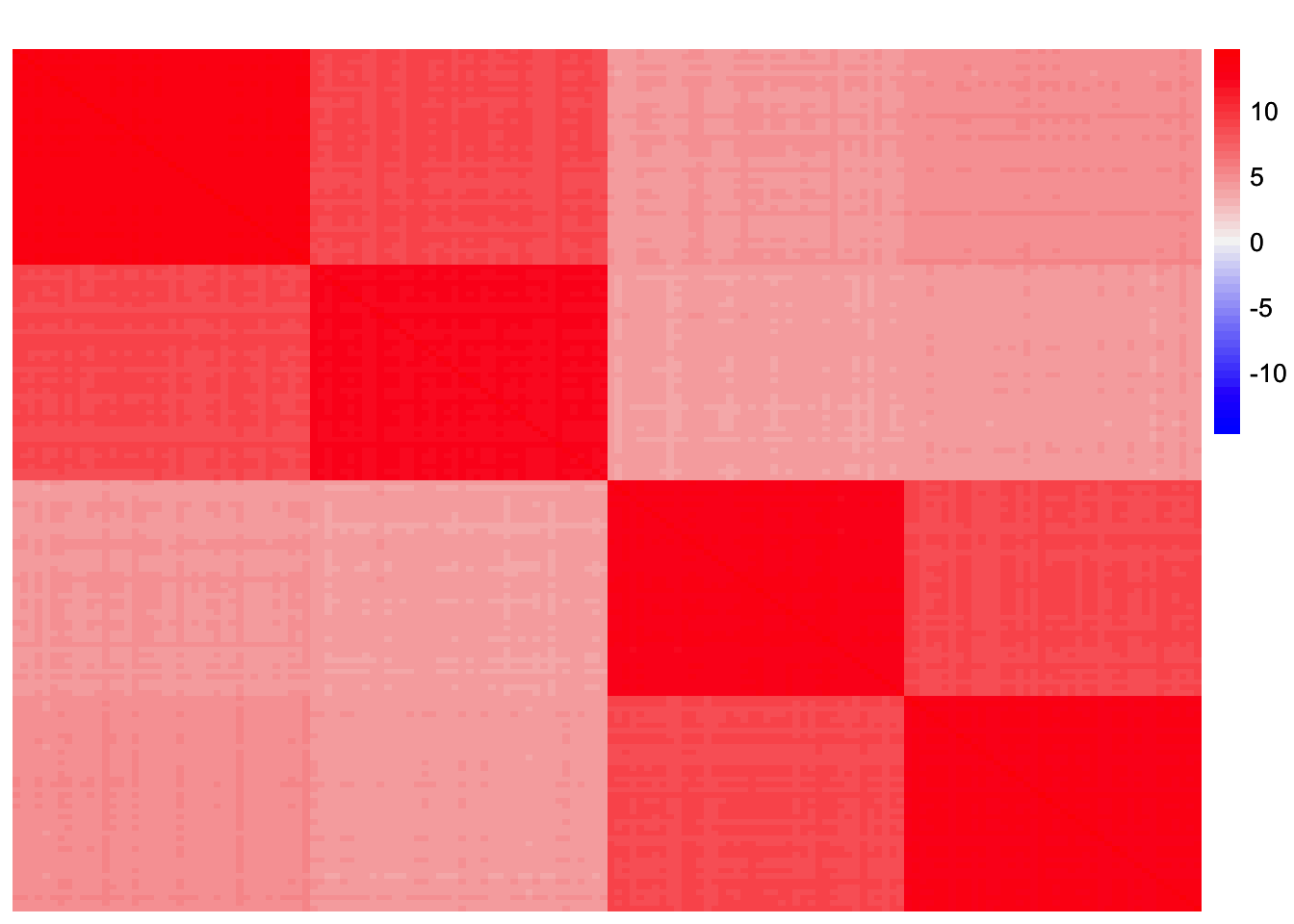

This is a heatmap of the scaled Gram matrix:

plot_heatmap(sim_data$YYt, colors_range = c('blue','gray96','red'), brks = seq(-max(abs(sim_data$YYt)), max(abs(sim_data$YYt)), length.out = 50))

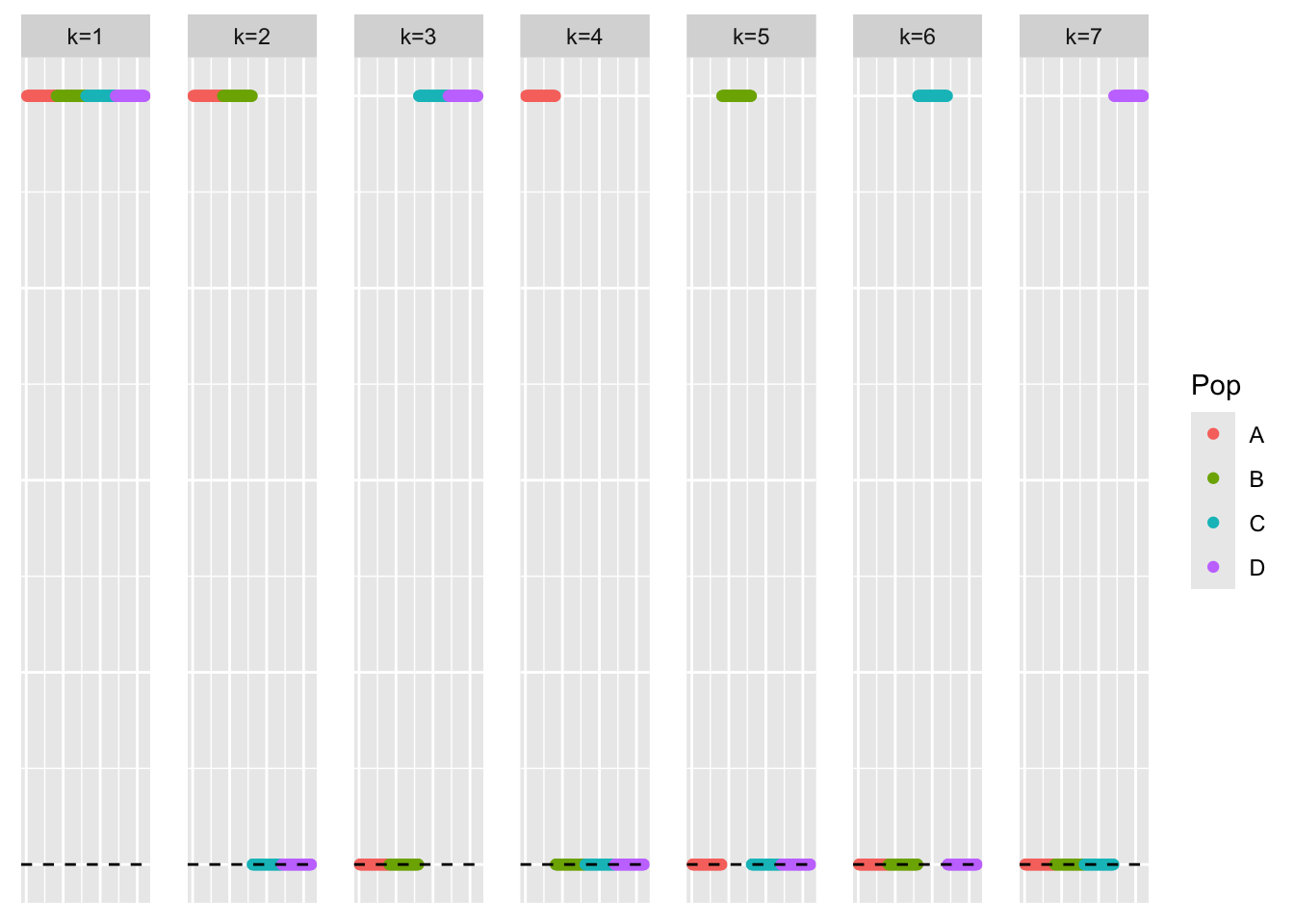

This is a scatter plot of the true loadings matrix:

pop_vec <- c(rep('A', 40), rep('B', 40), rep('C', 40), rep('D', 40))
plot_loadings(sim_data$LL, pop_vec)

symEBcovMF

symebcovmf_tree_fit <- sym_ebcovmf_fit(S = sim_data$YYt, ebnm_fn = ebnm_point_exponential, K = 7, maxiter = 100, rank_one_tol = 10^(-8), tol = 10^(-8))

[1] "Warning: scaling factor is zero"
[1] "Adding factor 4 does not improve the objective function"

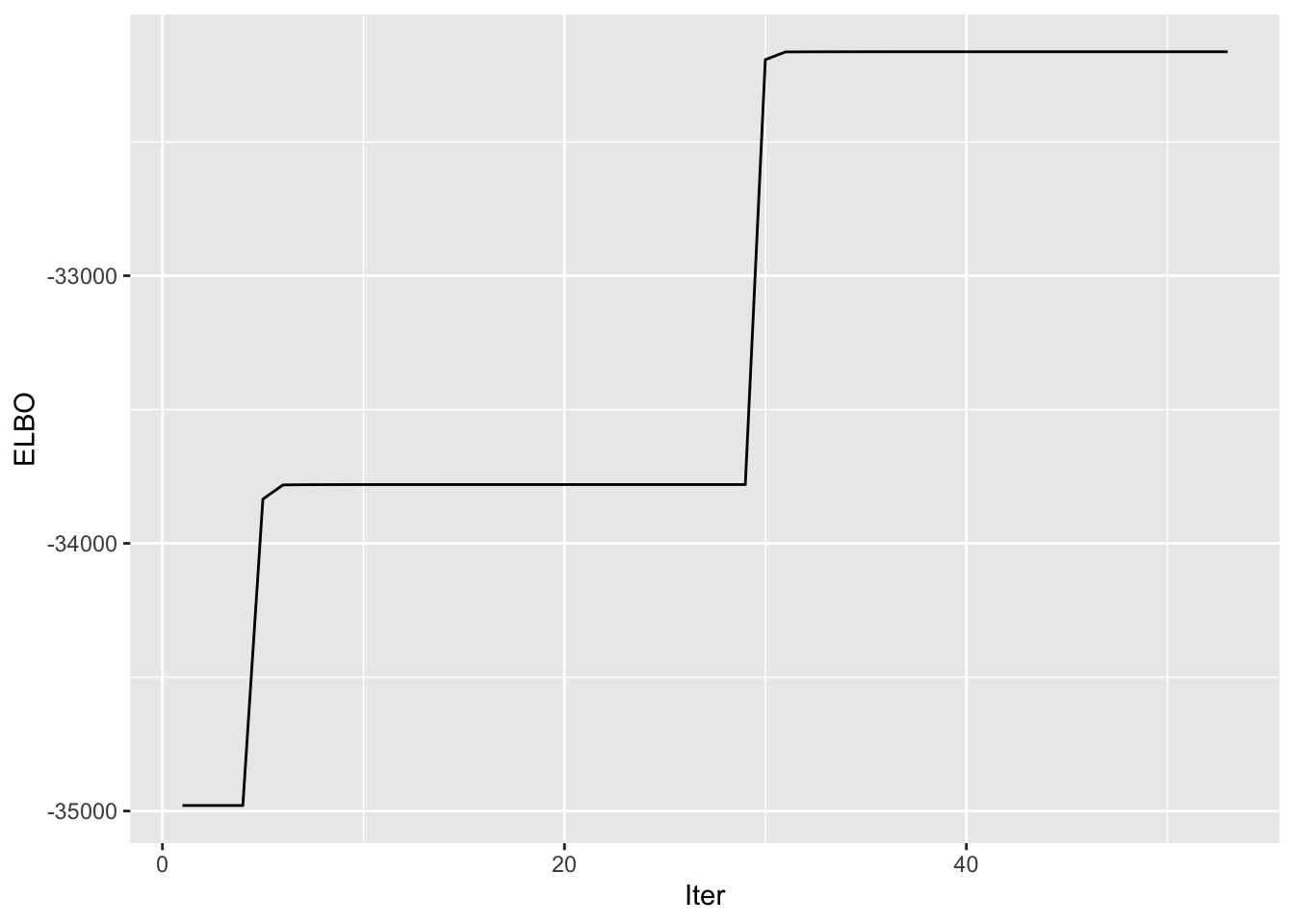

Progression of ELBO

symebcovmf_tree_full_elbo_vec <- symebcovmf_tree_fit$vec_elbo_full[!(symebcovmf_tree_fit$vec_elbo_full %in% c(1:length(symebcovmf_tree_fit$vec_elbo_K)))]
ggplot() + geom_line(data = NULL, aes(x = 1:length(symebcovmf_tree_full_elbo_vec), y = symebcovmf_tree_full_elbo_vec)) + xlab('Iter') + ylab('ELBO')

Visualization of Estimate

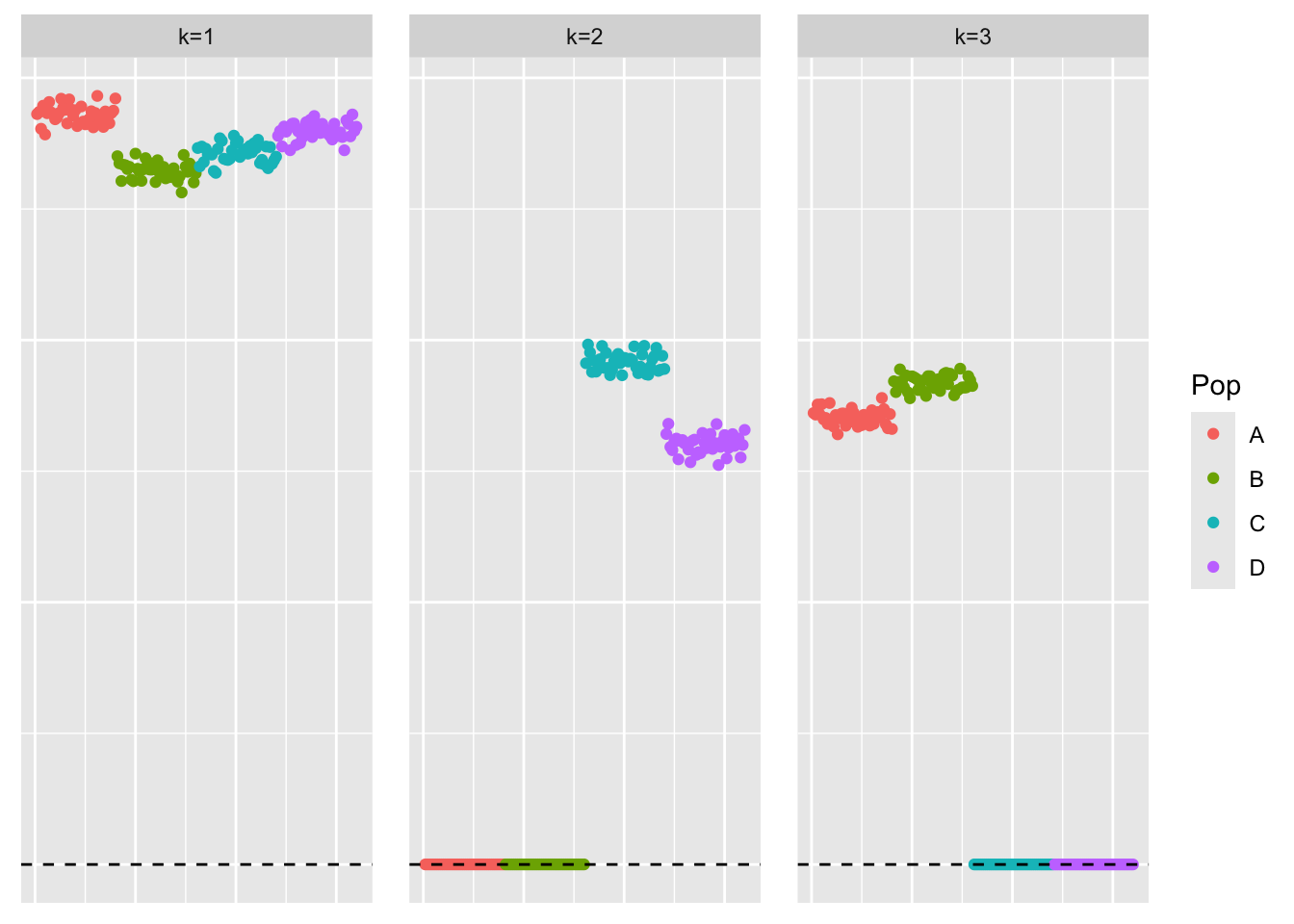

This is a scatter plot of \(\hat{L}\), the estimate from symEBcovMF:

bal_pops <- c(rep('A', 40), rep('B', 40), rep('C', 40), rep('D', 40))
plot_loadings(symebcovmf_tree_fit$L_pm %*% diag(sqrt(symebcovmf_tree_fit$lambda)), bal_pops)

This is the objective function value attained:

symebcovmf_tree_fit$elbo

[1] -32163.04

Visualization of Fit

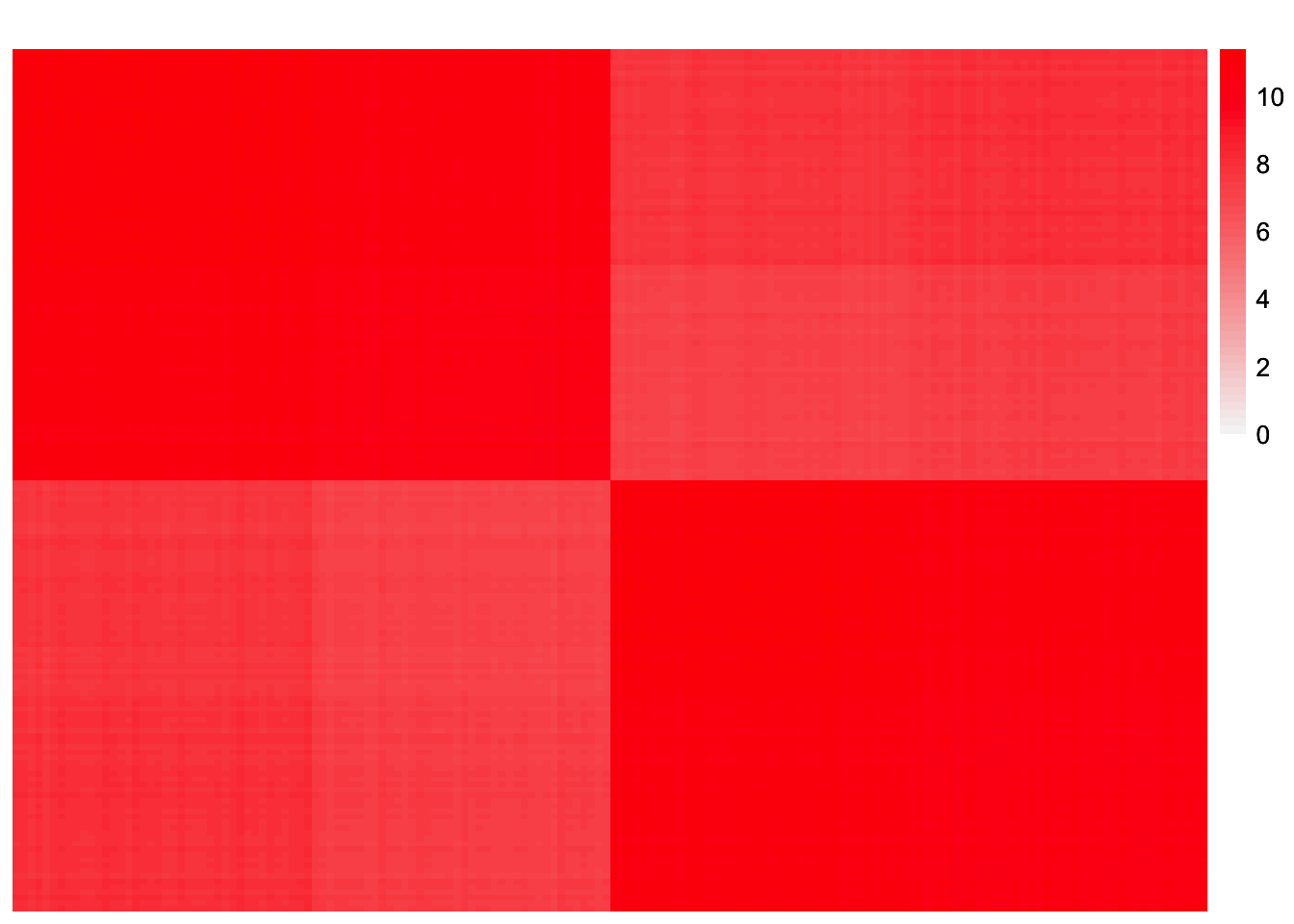

This is a heatmap of \(\hat{L}\hat{\Lambda}\hat{L}'\):

symebcovmf_tree_fitted_vals <- tcrossprod(symebcovmf_tree_fit$L_pm %*% diag(sqrt(symebcovmf_tree_fit$lambda)))
plot_heatmap(symebcovmf_tree_fitted_vals, brks = seq(0, max(symebcovmf_tree_fitted_vals), length.out = 50))

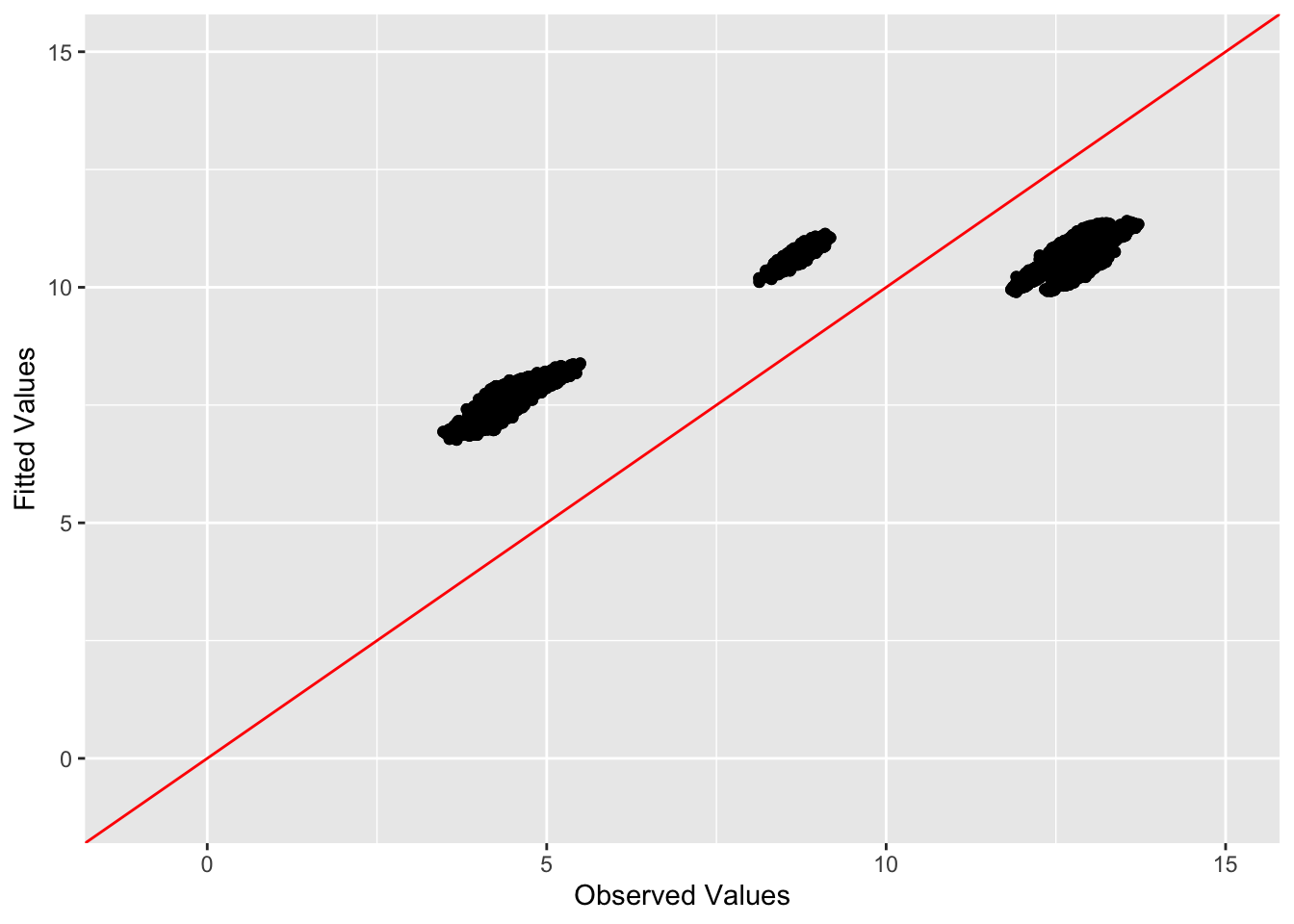

This is a scatter plot of fitted values vs. observed values for the off-diagonal entries:

diag_idx <- seq(1, prod(dim(sim_data$YYt)), length.out = ncol(sim_data$YYt))
off_diag_idx <- setdiff(c(1:prod(dim(sim_data$YYt))), diag_idx)

ggplot(data = NULL, aes(x = c(sim_data$YYt)[off_diag_idx], y = c(symebcovmf_tree_fitted_vals)[off_diag_idx])) + geom_point() + ylim(-1, 15) + xlim(-1,15) + xlab('Observed Values') + ylab('Fitted Values') + geom_abline(slope = 1, intercept = 0, color = 'red')

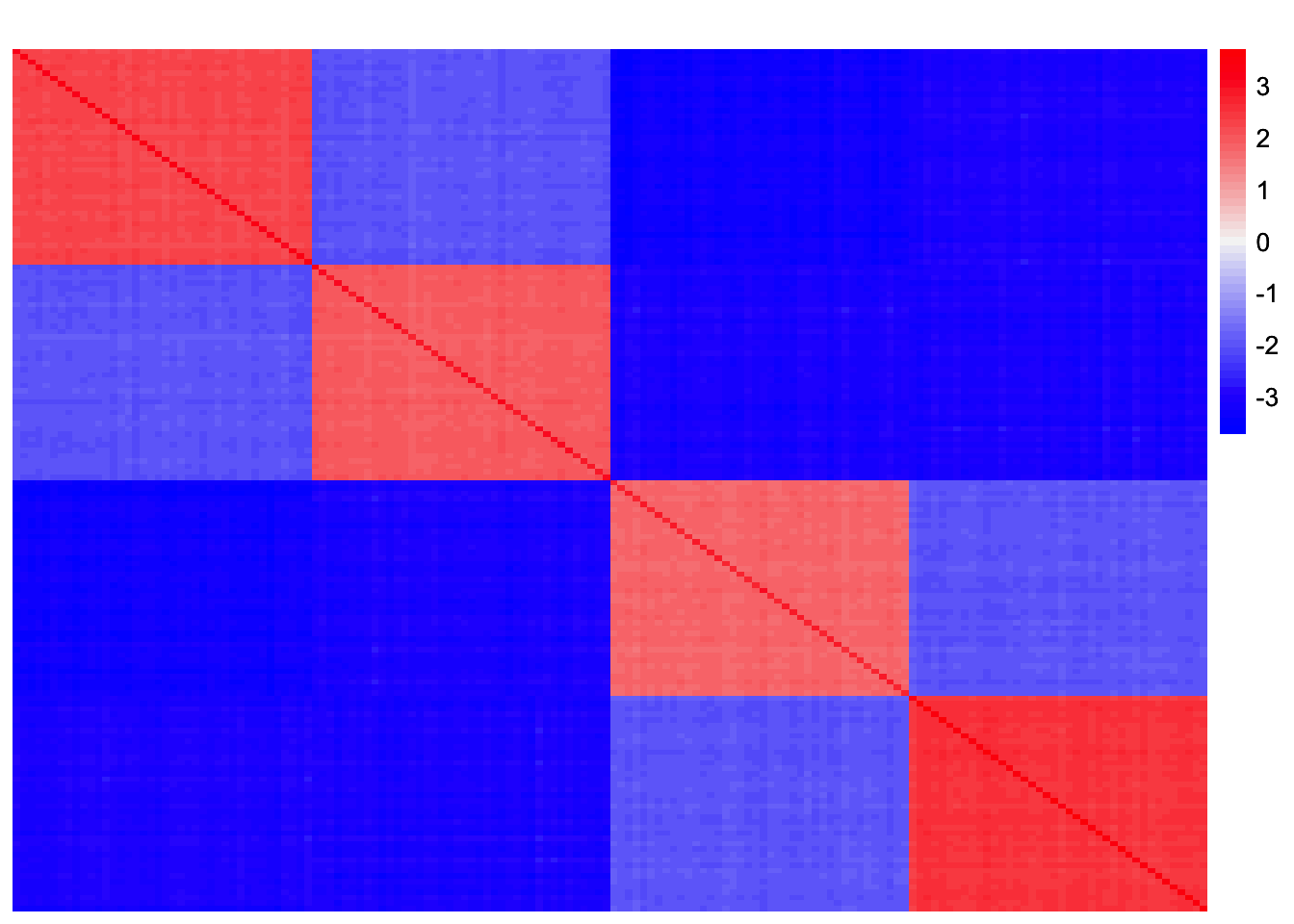

Visualization of Residual Matrix

symebcovmf_tree_resid <- sim_data$YYt - symebcovmf_tree_fitted_vals
plot_heatmap(symebcovmf_tree_resid, colors_range = c('blue','gray96','red'), brks = seq(-max(abs(symebcovmf_tree_resid)), max(abs(symebcovmf_tree_resid)), length.out = 50))

Observations

symEBcovMF struggles in the tree setting. Similar to EBMFcov, symEBcovMF only recovers three factors, one intercept factor and two subtype specific factors. I suspect symEBcovMF has similar issues to EBMFcov where the residual matrix has large chunks of negative entries that cause it to not add anymore factors.

symEBcovMF with refit step

symebcovmf_tree_refit_fit <- sym_ebcovmf_fit(S = sim_data$YYt, ebnm_fn = ebnm_point_exponential, K = 7, maxiter = 100, rank_one_tol = 10^(-8), tol = 10^(-8), refit_lam = TRUE)

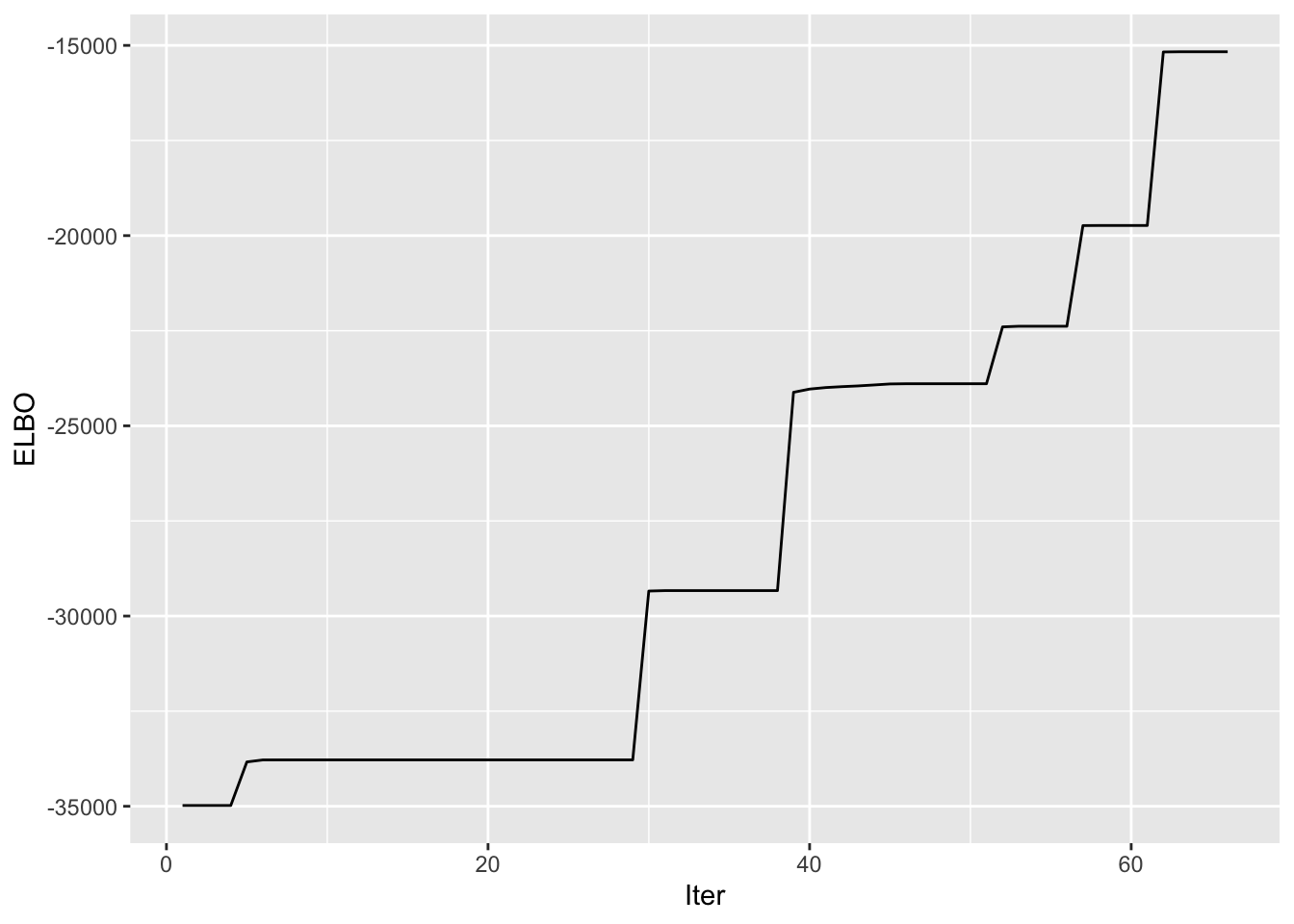

Progression of ELBO

symebcovmf_tree_refit_full_elbo_vec <- symebcovmf_tree_refit_fit$vec_elbo_full[!(symebcovmf_tree_refit_fit$vec_elbo_full %in% c(1:length(symebcovmf_tree_refit_fit$vec_elbo_K)))]
ggplot() + geom_line(data = NULL, aes(x = 1:length(symebcovmf_tree_refit_full_elbo_vec), y = symebcovmf_tree_refit_full_elbo_vec)) + xlab('Iter') + ylab('ELBO')

A note: I don’t think I save the ELBO value after the refitting step in vec_elbo_full. But the refitting does change this vector since it changes the residual matrix that is used when you add a new vector.

Visualization of Estimate

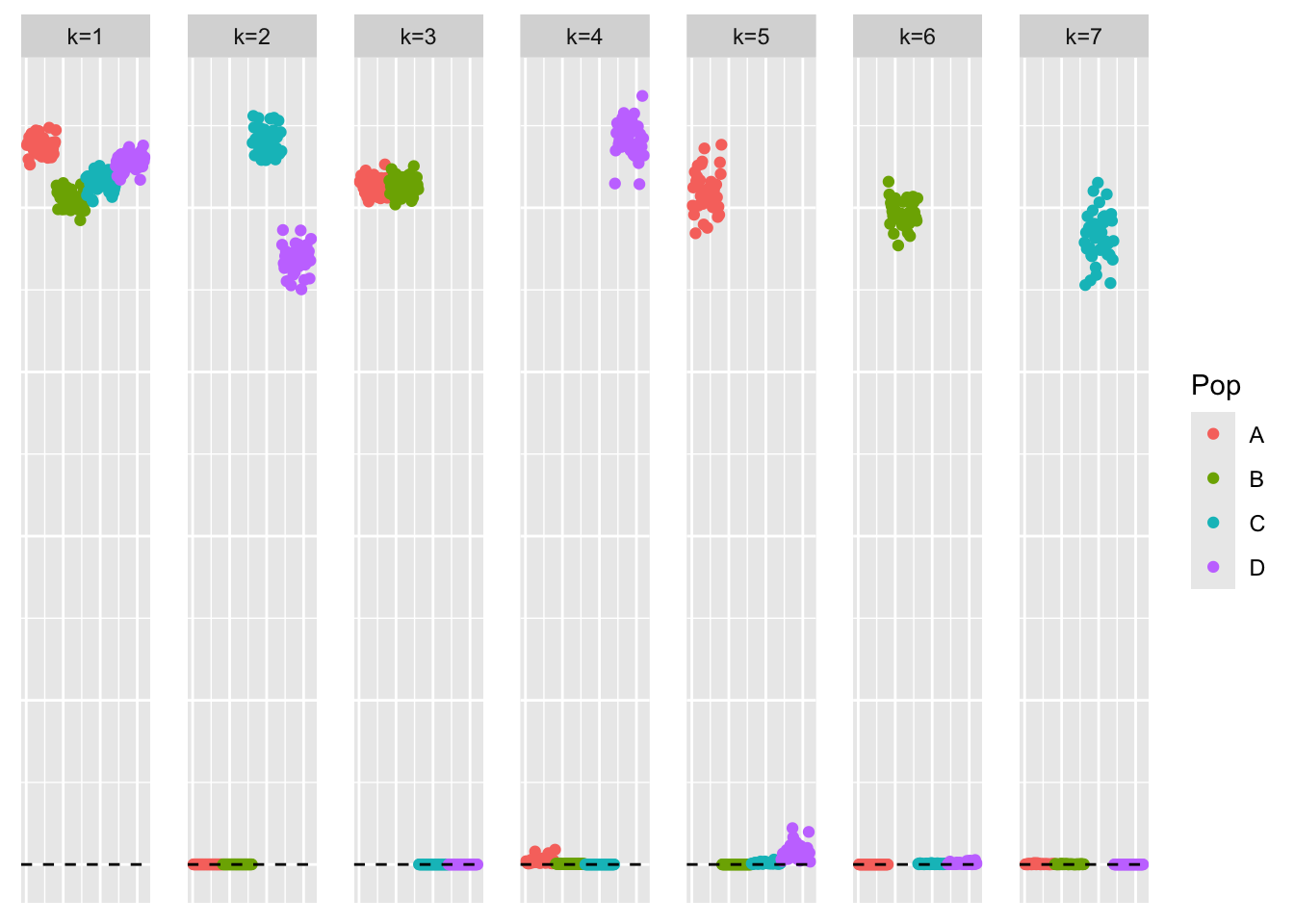

This is a scatter plot of \(\hat{L}_{refit}\), the estimate from symEBcovMF:

bal_pops <- c(rep('A', 40), rep('B', 40), rep('C', 40), rep('D', 40))
plot_loadings(symebcovmf_tree_refit_fit$L_pm %*% diag(sqrt(symebcovmf_tree_refit_fit$lambda)), bal_pops)

This is the objective function value attained:

symebcovmf_tree_refit_fit$elbo

[1] -11576.24

Visualization of Fit

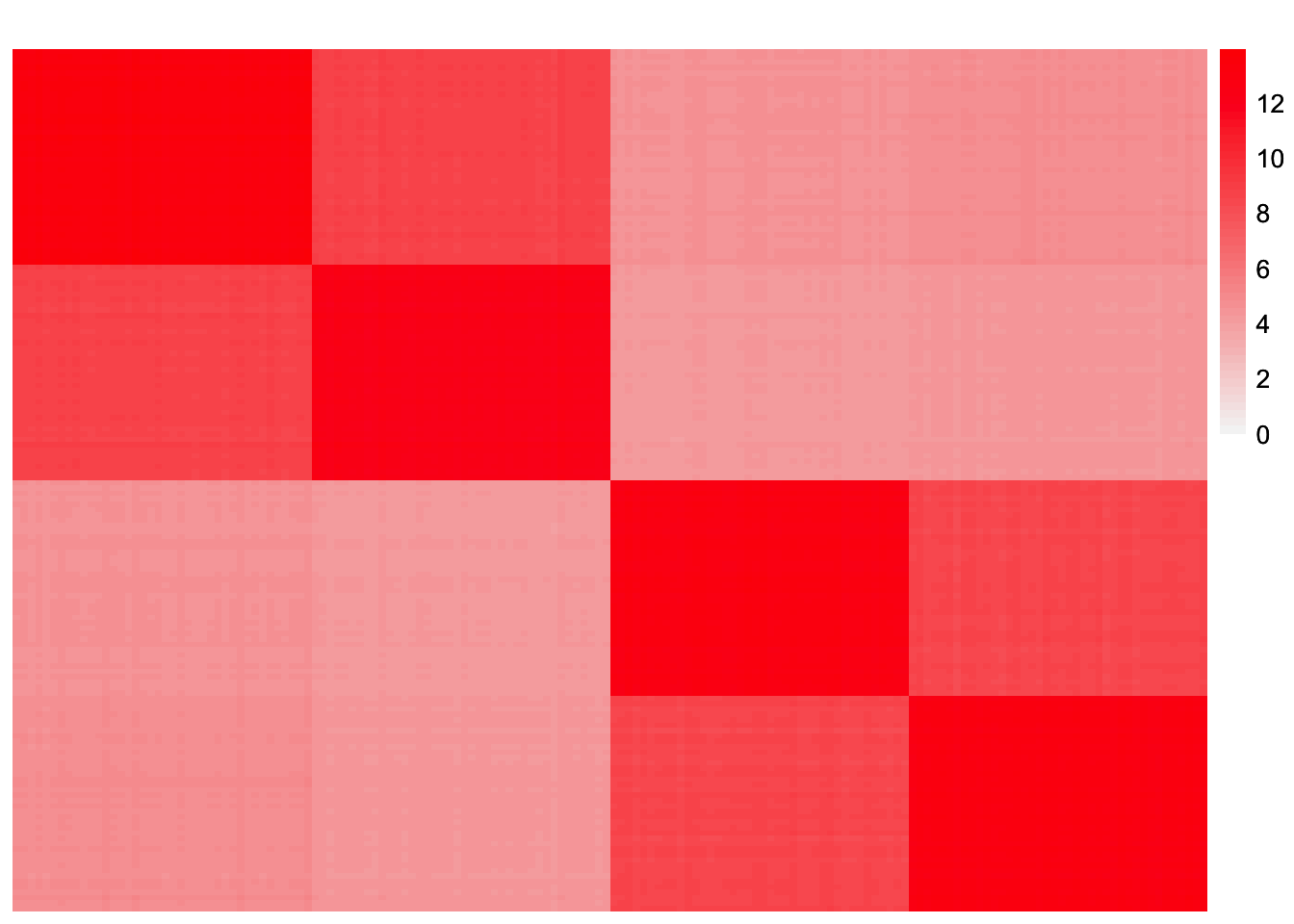

This is a heatmap of \(\hat{L}_{refit}\hat{\Lambda}_{refit}\hat{L}_{refit}'\):

symebcovmf_tree_refit_fitted_vals <- tcrossprod(symebcovmf_tree_refit_fit$L_pm %*% diag(sqrt(symebcovmf_tree_refit_fit$lambda)))
plot_heatmap(symebcovmf_tree_refit_fitted_vals, brks = seq(0, max(symebcovmf_tree_refit_fitted_vals), length.out = 50))

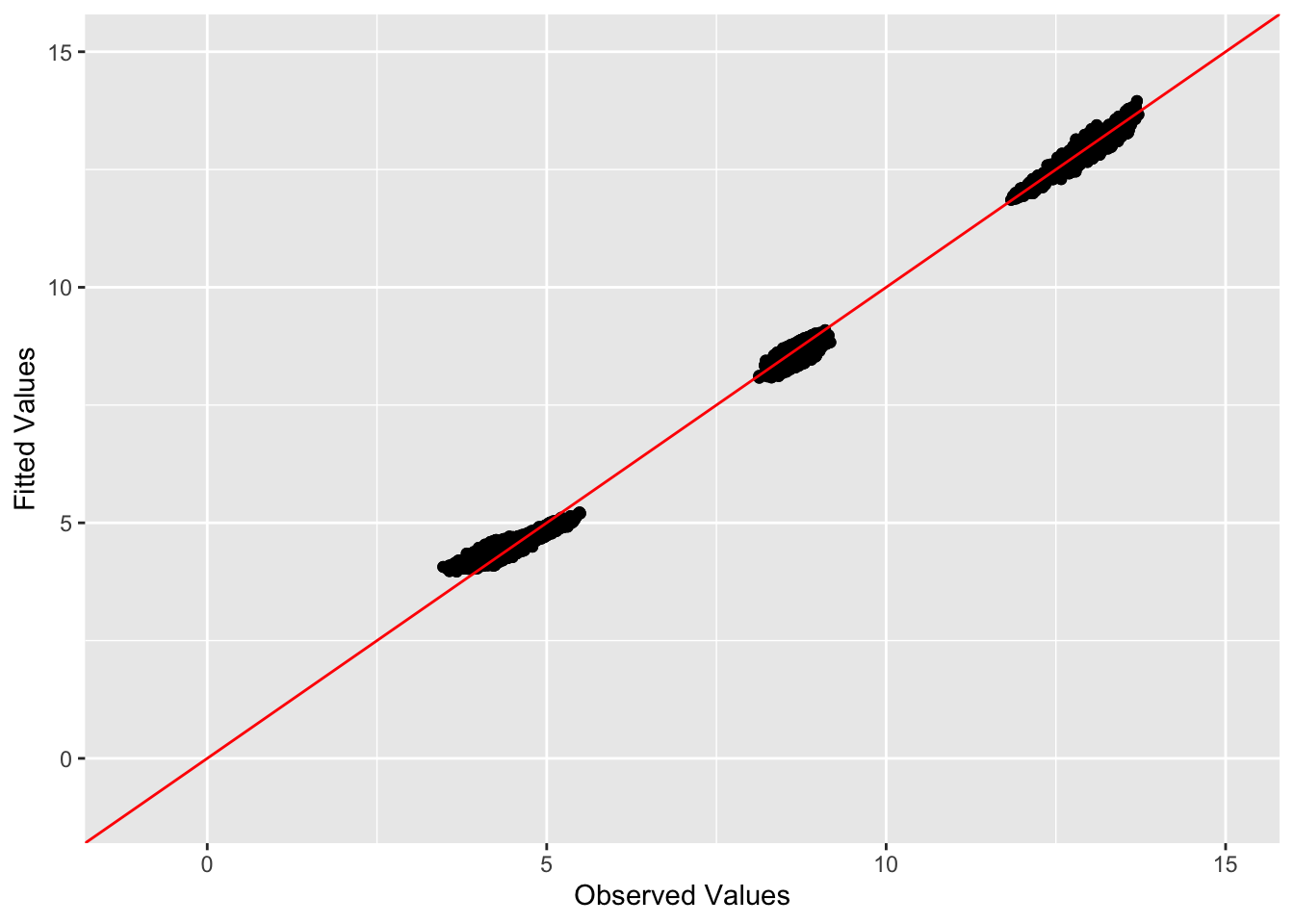

This is a scatter plot of fitted values vs. observed values for the off-diagonal entries:

diag_idx <- seq(1, prod(dim(sim_data$YYt)), length.out = ncol(sim_data$YYt))
off_diag_idx <- setdiff(c(1:prod(dim(sim_data$YYt))), diag_idx)

ggplot(data = NULL, aes(x = c(sim_data$YYt)[off_diag_idx], y = c(symebcovmf_tree_refit_fitted_vals)[off_diag_idx])) + geom_point() + ylim(-1, 15) + xlim(-1,15) + xlab('Observed Values') + ylab('Fitted Values') + geom_abline(slope = 1, intercept = 0, color = 'red')

Visualization of Residual Matrix

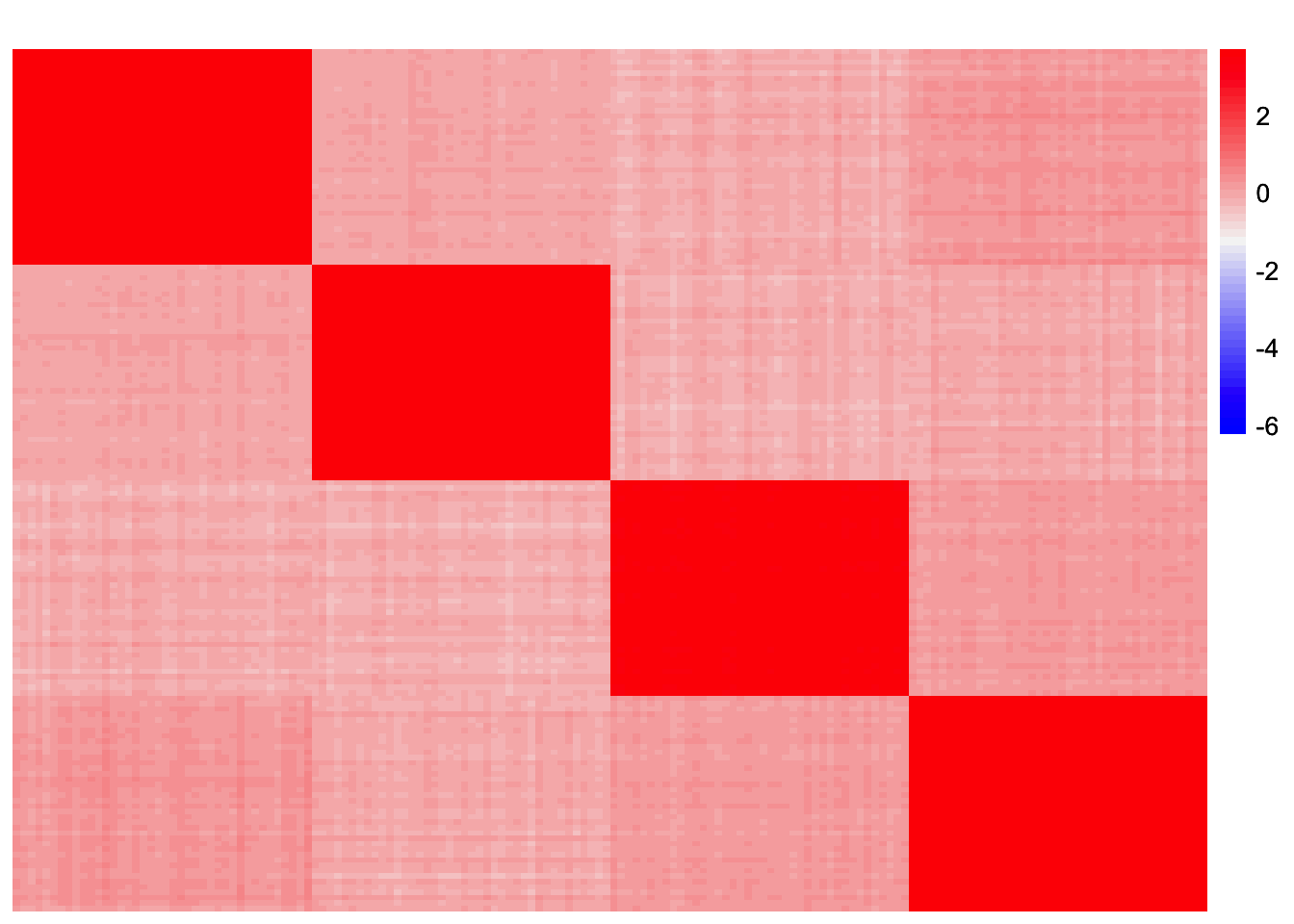

For comparison, I also plot a heatmap of \(S - \sum_{k=1}^{3} \hat{\lambda}_k \hat{\ell}_k \hat{\ell}_k\) where \(\hat{\lambda}_k\) and \(\hat{\ell}_k\) are estimates from symEBcovMF with the refitting step:

symebcovmf_tree_refit_resid <- sim_data$YYt - tcrossprod(symebcovmf_tree_refit_fit$L_pm[,c(1:3)] %*% diag(sqrt(symebcovmf_tree_refit_fit$lambda[1:3])))
plot_heatmap(symebcovmf_tree_refit_resid, colors_range = c('blue','gray96','red'), brks = seq(-max(abs(symebcovmf_tree_refit_resid)), max(abs(symebcovmf_tree_resid)), length.out = 50))

Observations

We see that symEBcovMF with the refitting step does a better job at recovering the hierarchical structure of the data. The loadings estimate does not look entirely binary, but this is to be expected since we used the point-exponential prior. One could imagine a procedure where you start with a fit using point-exponential prior, and then refine the estimates using the generalized binary prior.

I did try symEBcovMF with refitting with the generalized binary factor, and it yields a different representation. The first factor is an intercept like factor and the next two factors are subtype-effect factors. Factor 5 is a population effect factor. However, factors 4, 6, and 7 are not population effects. I think the method found a different representation for the four population effects (which is something I’ve seen in other examples). I’m not sure why the point-exponential prior and the generalized binary prior led to different representations. Perhaps the point-exponential prior is better at yielding sparser solutions? This would also motivate a procedure that uses point-exponential as an initialization and then uses generalized binary to make the loadings more binary.
