Setup
library(limma)
library(edgeR)
library(tidyverse)
library(magrittr)
library(pander)
library(ggrepel)
library(scales)
library(plyr)
library(ggraph)
library(tidygraph)
library(fgsea)
library(pathview)
library(msigdbr)
library(rWikiPathways)
theme_set(theme_bw())
panderOptions("big.mark", ",")
panderOptions("table.split.table", Inf)
panderOptions("table.style", "rmarkdown")
if (interactive()) setwd(here::here("analysis"))Data load
dgeList <- read_rds(here::here("data","dgeList.rds"))
entrezGenes <- dgeList$genes %>%
dplyr::filter(!is.na(entrez_gene)) %>%
unnest(entrez_gene) %>%
dplyr::rename(entrez_gene = entrez_gene)
topTable <- file.path(here::here("output", "topTable.csv")) %>%
read_csv()Gene ranks
ranks <- topTable %>%
mutate(stat = -sign(logFC) * log10(PValue)) %>%
dplyr::arrange(stat) %>%
with(structure(stat, names = ensembl_gene_id))Databases used for testing
Hallmark Gene Sets
hallmark <- msigdbr("Danio rerio", category = "H") %>%
left_join(entrezGenes) %>%
dplyr::filter(!is.na(ensembl_gene_id)) %>%
distinct(gs_name, ensembl_gene_id, .keep_all = TRUE)
hallmarkByGene <- hallmark %>%
split(f = .$ensembl_gene_id) %>%
lapply(extract2, "gs_name")
hallmarkByID <- hallmark %>%
split(f = .$gs_name) %>%
lapply(extract2, "ensembl_gene_id")KEGG gene sets
kegg <- msigdbr("Danio rerio", category = "C2", subcategory = "CP:KEGG") %>%
left_join(entrezGenes) %>%
dplyr::filter(!is.na(ensembl_gene_id)) %>%
distinct(gs_name, ensembl_gene_id, .keep_all = TRUE)
keggByGene <- kegg %>%
split(f = .$ensembl_gene_id) %>%
lapply(extract2, "gs_name")
keggByID <- kegg %>%
split(f = .$gs_name) %>%
lapply(extract2, "ensembl_gene_id")Wiki gene sets
wikidownload <- downloadPathwayArchive(organism = "Danio rerio", format = "gmt")
wiki <- gmtPathways(here::here("analysis", "wikipathways-20200210-gmt-Danio_rerio.gmt"))
wikilist <- names(wiki) %>%
lapply(function(x){
tibble(pathway = x, entrez_gene = wiki[[x]])
}) %>%
bind_rows() %>%
mutate(entrez_gene = as.numeric(entrez_gene)) %>%
left_join(entrezGenes) %>%
dplyr::filter(!is.na(ensembl_gene_id)) %>%
distinct(pathway, ensembl_gene_id, .keep_all = TRUE)
wikiByGene <- wikilist %>%
split(f = .$ensembl_gene_id) %>%
lapply(extract2, "pathway")
wikiByID <- wikilist %>%
split(f = .$pathway) %>%
lapply(extract2, "ensembl_gene_id")Gene Set Enrichment analysis (GSEA)
Hallmark pathways
set.seed(22)
# Run GSEA for hallmark
fgseaHallmark <- fgsea(hallmarkByID, ranks, nperm=1e5) %>%
as_tibble() %>%
dplyr::rename(FDR = padj) %>%
mutate(padj = p.adjust(pval, "bonferroni")) %>%
dplyr::arrange(pval)
fgseaHallmarkTop <- fgseaHallmark %>%
dplyr::filter(padj < 0.05)
fgseaHallmarkTop %>%
dplyr::select(-leadingEdge, -nMoreExtreme) %>%
pander(
style = "rmarkdown",
split.tables = Inf,
justify = "lrrrrrr",
caption = paste(
"The", nrow(.), "most significantly enriched Hallmark pathways.",
"This corresponds to an FDR of", percent(max(.$FDR)))
)| pathway | pval | FDR | ES | NES | size | padj |
|---|---|---|---|---|---|---|
| HALLMARK_OXIDATIVE_PHOSPHORYLATION | 1.22e-05 | 7.733e-05 | -0.5558 | -1.9 | 202 | 0.0006101 |
| HALLMARK_MTORC1_SIGNALING | 1.224e-05 | 7.733e-05 | -0.5328 | -1.818 | 198 | 0.0006118 |
| HALLMARK_XENOBIOTIC_METABOLISM | 1.229e-05 | 7.733e-05 | -0.524 | -1.783 | 193 | 0.0006143 |
| HALLMARK_GLYCOLYSIS | 1.231e-05 | 7.733e-05 | -0.5341 | -1.816 | 191 | 0.0006154 |
| HALLMARK_EPITHELIAL_MESENCHYMAL_TRANSITION | 1.234e-05 | 7.733e-05 | -0.5348 | -1.814 | 187 | 0.0006171 |
| HALLMARK_G2M_CHECKPOINT | 1.239e-05 | 7.733e-05 | -0.7154 | -2.42 | 182 | 0.0006197 |
| HALLMARK_E2F_TARGETS | 1.247e-05 | 7.733e-05 | -0.6879 | -2.317 | 174 | 0.0006236 |
| HALLMARK_FATTY_ACID_METABOLISM | 1.264e-05 | 7.733e-05 | -0.5648 | -1.883 | 157 | 0.0006319 |
| HALLMARK_CHOLESTEROL_HOMEOSTASIS | 1.392e-05 | 7.733e-05 | -0.6557 | -1.997 | 76 | 0.0006959 |
| HALLMARK_INTERFERON_GAMMA_RESPONSE | 8.888e-05 | 0.0004444 | -0.5242 | -1.741 | 152 | 0.004444 |
| HALLMARK_ESTROGEN_RESPONSE_LATE | 0.000184 | 0.0008364 | -0.4788 | -1.631 | 195 | 0.0092 |
| HALLMARK_COAGULATION | 0.0002102 | 0.0008759 | -0.543 | -1.75 | 117 | 0.01051 |
| HALLMARK_MYC_TARGETS_V1 | 0.0002328 | 0.0008952 | -0.4753 | -1.62 | 197 | 0.01164 |
| HALLMARK_MYOGENESIS | 0.0007132 | 0.002547 | -0.4647 | -1.58 | 192 | 0.03566 |

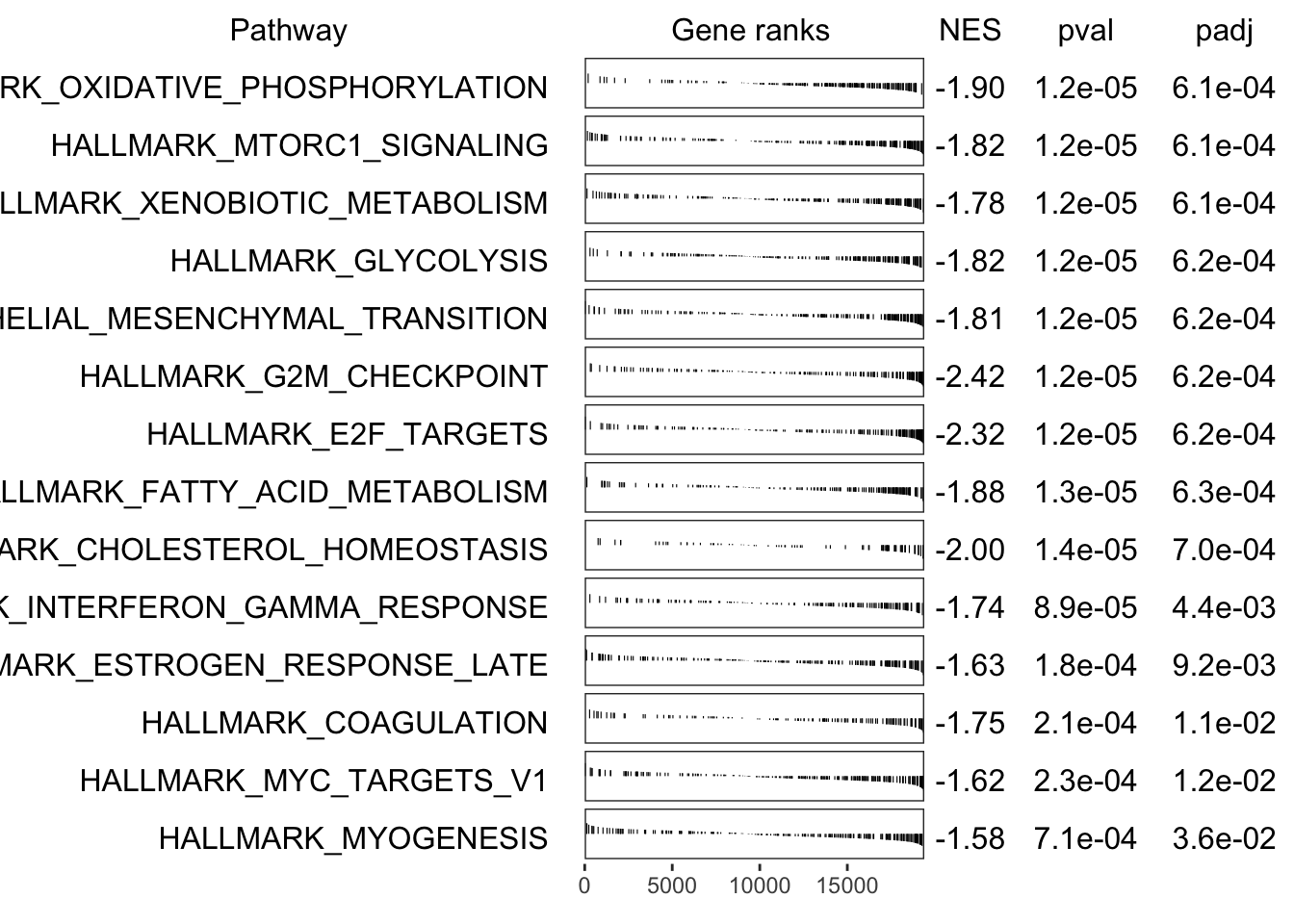

# Make a table plot of significant Hallmark pathways
if (interactive()) grid::grid.newpage()
plotGseaTable(
hallmarkByID[dplyr::filter(fgseaHallmark, padj < 0.05)$pathway], ranks, fgseaHallmark, gseaParam = 0.5
)
| Version | Author | Date |
|---|---|---|
| 3b63601 | yangdongau | 2020-02-27 |
KEGG pathways
# Set seed to enable reproducibility
set.seed(22)
# Run GSEA for KEGG
fgseaKEGG <- fgsea(keggByID, ranks, nperm=1e5) %>%
as_tibble() %>%
dplyr::rename(FDR = padj) %>%
mutate(padj = p.adjust(pval, "bonferroni")) %>%
dplyr::arrange(pval)
# Create an object of pathways with adjusted p-value < 0.05 for construction of network diagrams. This should be done differently next time, but too much work has been done to change it now.
fgseaKEGGTop <- fgseaKEGG %>%
dplyr::filter(padj < 0.05)
fgseaKEGGTop %>%
dplyr::select(-leadingEdge, -nMoreExtreme) %>%
pander(
style = "rmarkdown",
split.tables = Inf,
justify = "lrrrrrr",
caption = paste(
"The", nrow(.), "most significantly enriched KEGG pathways.",
"This corresponds to an FDR of", percent(max(.$FDR)))
)| pathway | pval | FDR | ES | NES | size | padj |
|---|---|---|---|---|---|---|
| KEGG_ECM_RECEPTOR_INTERACTION | 1.399e-05 | 0.0009883 | -0.6872 | -2.073 | 71 | 0.002602 |
| KEGG_FATTY_ACID_METABOLISM | 1.487e-05 | 0.0009883 | -0.7538 | -2.097 | 43 | 0.002767 |
| KEGG_BETA_ALANINE_METABOLISM | 1.594e-05 | 0.0009883 | -0.835 | -2.047 | 22 | 0.002965 |
| KEGG_GLUTATHIONE_METABOLISM | 2.985e-05 | 0.001388 | -0.7293 | -2.02 | 42 | 0.005552 |
| KEGG_CELL_CYCLE | 3.983e-05 | 0.001482 | -0.5819 | -1.861 | 109 | 0.007408 |
| KEGG_DNA_REPLICATION | 7.616e-05 | 0.002361 | -0.732 | -1.954 | 34 | 0.01417 |
| KEGG_PYRIMIDINE_METABOLISM | 0.0001228 | 0.00323 | -0.5835 | -1.816 | 89 | 0.02283 |
| KEGG_BUTANOATE_METABOLISM | 0.0001389 | 0.00323 | -0.7416 | -1.932 | 30 | 0.02584 |
| KEGG_FOCAL_ADHESION | 0.000173 | 0.003575 | -0.4842 | -1.643 | 186 | 0.03217 |
| KEGG_OXIDATIVE_PHOSPHORYLATION | 0.0001954 | 0.003634 | -0.5379 | -1.752 | 127 | 0.03634 |

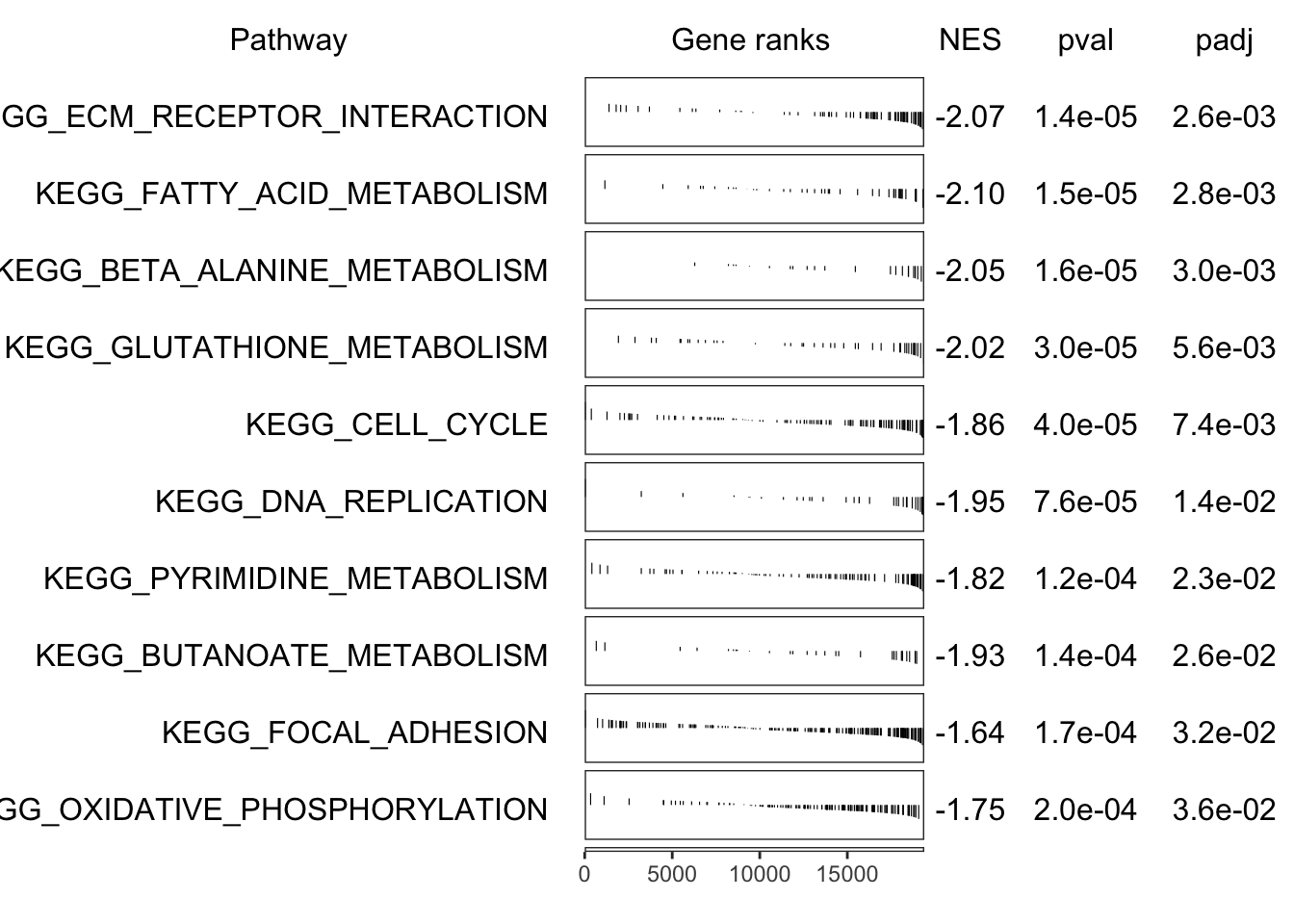

# Make a table plot of significant KEGG pathways
if (interactive()) grid::grid.newpage()
plotGseaTable(
keggByID[fgseaKEGGTop$pathway], ranks, fgseaKEGG, gseaParam = 0.5
)
| Version | Author | Date |
|---|---|---|
| 3b63601 | yangdongau | 2020-02-27 |
WikiPathways
# Set seed to enable reproducibility
set.seed(22)
# Run GSEA for WikiPathways
fgseaWiki <- fgsea(wikiByID, ranks, nperm=1e5) %>%
as_tibble() %>%
dplyr::rename(FDR = padj) %>%
mutate(padj = p.adjust(pval, "bonferroni")) %>%
dplyr::arrange(pval)
# Create an object of pathways with adjusted p-value < 0.05 for construction of network diagrams. This should be done differently next time, but too much work has been done to change it now.
fgseaWikiTop <- fgseaWiki %>%
dplyr::filter(padj < 0.05)
fgseaWikiTop %>%
dplyr::select(-leadingEdge, -nMoreExtreme) %>%
pander(
style = "rmarkdown",
split.tables = Inf,
justify = "lrrrrrr",
caption = paste(
"The", nrow(.), "most significantly enriched Wiki pathways.",
"This corresponds to an FDR of", percent(max(.$FDR)))
)| pathway | pval | FDR | ES | NES | size | padj |
|---|---|---|---|---|---|---|
| Cell cycle%WikiPathways_20200210%WP1393%Danio rerio | 1.401e-05 | 0.0004241 | -0.6997 | -2.109 | 71 | 0.001163 |
| G1 to S cell cycle control%WikiPathways_20200210%WP445%Danio rerio | 1.463e-05 | 0.0004241 | -0.7369 | -2.097 | 49 | 0.001214 |
| DNA Replication%WikiPathways_20200210%WP451%Danio rerio | 1.533e-05 | 0.0004241 | -0.807 | -2.117 | 31 | 0.001272 |
| Cholesterol Biosynthesis%WikiPathways_20200210%WP1387%Danio rerio | 0.0002464 | 0.005113 | -0.837 | -1.894 | 15 | 0.02045 |

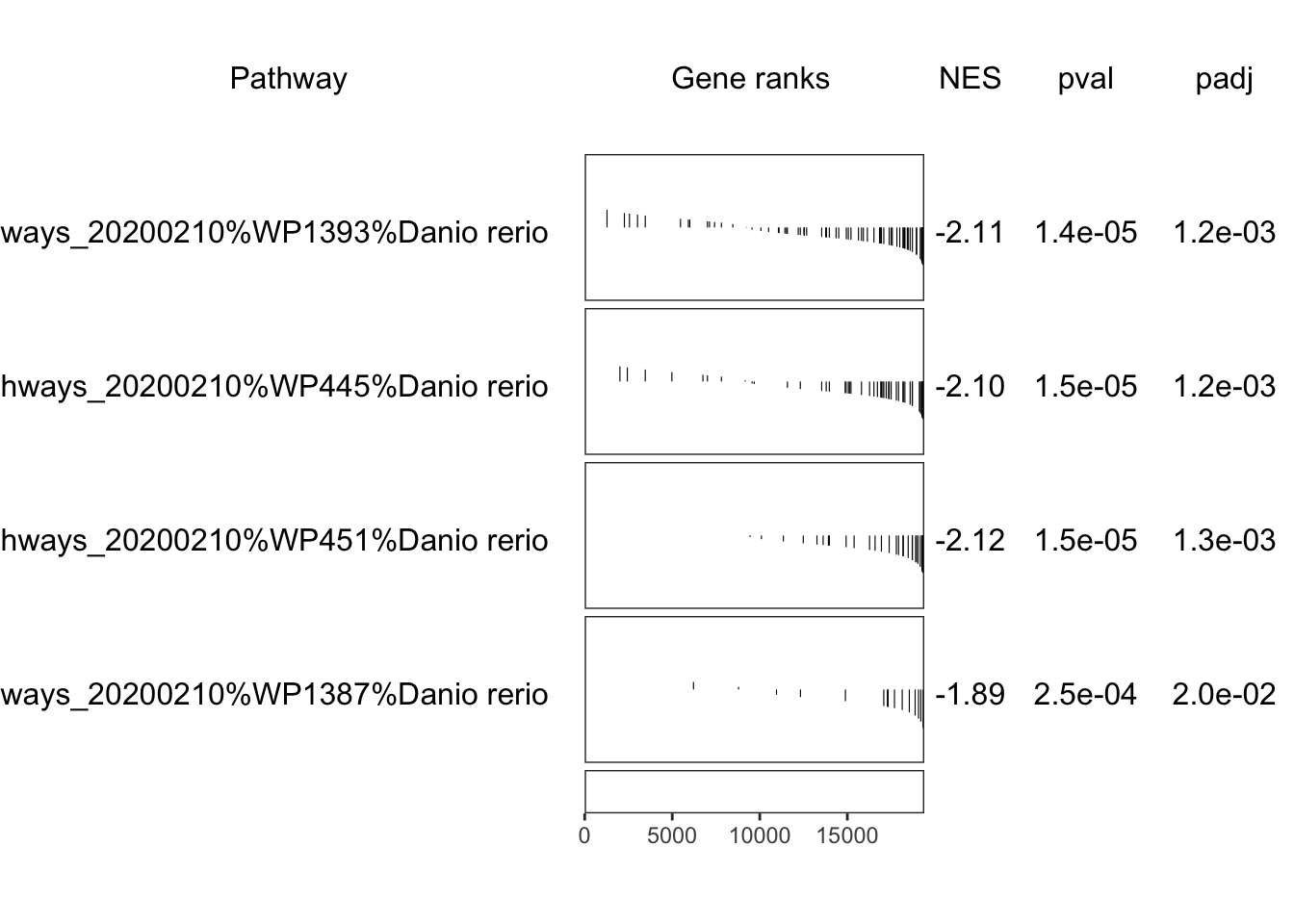

# Make a table plot of significant WikiPathways pathways
if (interactive()) grid::grid.newpage()
plotGseaTable(
wikiByID[fgseaWikiTop$pathway], ranks, fgseaWiki, gseaParam = 0.5
)
| Version | Author | Date |
|---|---|---|
| 3b63601 | yangdongau | 2020-02-27 |
Data export
GSEAresult <- bind_rows(
fgseaHallmark,
fgseaKEGG,
fgseaWiki
) %>%
dplyr::filter(padj < 0.05) %>%
dplyr::select(
pathway, ES, NES, size, padj
)
write_csv(GSEAresult,here::here("output","GSEA_resulst.csv"))setwd(here::here("keggdiagram"))
# ECM receptor interaction
pv.out <- pathview(gene.data = ranks,
pathway.id = "04512",
species = "Danio rerio",
gene.idtype = "ENSEMBL",
limit = list(gene=5, cpd=1))[1] "Note: 1192 of 19396 unique input IDs unmapped."# Fatty acid metabolism
pv.out <- pathview(gene.data = ranks,
pathway.id = "01212",
species = "Danio rerio",
gene.idtype = "ENSEMBL",
limit = list(gene=5, cpd=1))[1] "Note: 1192 of 19396 unique input IDs unmapped."# Beta-Alanine metabolism
pv.out <- pathview(gene.data = ranks,
pathway.id = "00410",
species = "Danio rerio",
gene.idtype = "ENSEMBL",
limit = list(gene=5, cpd=1))[1] "Note: 1192 of 19396 unique input IDs unmapped."# Glutathione metabolism
pv.out <- pathview(gene.data = ranks,
pathway.id = "00480",
species = "Danio rerio",
gene.idtype = "ENSEMBL",
limit = list(gene=5, cpd=1))[1] "Note: 1192 of 19396 unique input IDs unmapped."# Cell cycle
pv.out <- pathview(gene.data = ranks,
pathway.id = "04110",
species = "Danio rerio",
gene.idtype = "ENSEMBL",
limit = list(gene=5, cpd=1))[1] "Note: 1192 of 19396 unique input IDs unmapped."# DNA replication
pv.out <- pathview(gene.data = ranks,
pathway.id = "03030",
species = "Danio rerio",
gene.idtype = "ENSEMBL",
limit = list(gene=5, cpd=1))[1] "Note: 1192 of 19396 unique input IDs unmapped."# Pyrimidine metabolism
pv.out <- pathview(gene.data = ranks,
pathway.id = "00240",
species = "Danio rerio",
gene.idtype = "ENSEMBL",
limit = list(gene=5, cpd=1))[1] "Note: 1192 of 19396 unique input IDs unmapped."# Butanoate metabolism
pv.out <- pathview(gene.data = ranks,
pathway.id = "00650",
species = "Danio rerio",
gene.idtype = "ENSEMBL",
limit = list(gene=5, cpd=1))[1] "Note: 1192 of 19396 unique input IDs unmapped."# Focal adhesion
pv.out <- pathview(gene.data = ranks,
pathway.id = "04510",
species = "Danio rerio",
gene.idtype = "ENSEMBL",
limit = list(gene=5, cpd=1))[1] "Note: 1192 of 19396 unique input IDs unmapped."# Oxidative phosphorylation
pv.out <- pathview(gene.data = ranks,
pathway.id = "00190",
species = "Danio rerio",
gene.idtype = "ENSEMBL",
limit = list(gene=5, cpd=1))[1] "Note: 1192 of 19396 unique input IDs unmapped."
devtools::session_info()─ Session info ──────────────────────────────────────────────────────────
setting value
version R version 3.6.0 (2019-04-26)
os macOS Mojave 10.14.6
system x86_64, darwin15.6.0
ui X11
language (EN)
collate en_AU.UTF-8
ctype en_AU.UTF-8
tz Australia/Adelaide
date 2020-02-28
─ Packages ──────────────────────────────────────────────────────────────
package * version date lib source
AnnotationDbi * 1.46.1 2019-08-20 [1] Bioconductor
assertthat 0.2.1 2019-03-21 [1] CRAN (R 3.6.0)
backports 1.1.4 2019-04-10 [1] CRAN (R 3.6.0)
Biobase * 2.44.0 2019-05-02 [1] Bioconductor
BiocGenerics * 0.30.0 2019-05-02 [1] Bioconductor
BiocParallel 1.18.1 2019-08-06 [1] Bioconductor
Biostrings 2.52.0 2019-05-02 [1] Bioconductor
bit 1.1-14 2018-05-29 [1] CRAN (R 3.6.0)
bit64 0.9-7 2017-05-08 [1] CRAN (R 3.6.0)
bitops 1.0-6 2013-08-17 [1] CRAN (R 3.6.0)
blob 1.2.0 2019-07-09 [1] CRAN (R 3.6.0)
broom 0.5.2 2019-04-07 [1] CRAN (R 3.6.0)
callr 3.3.1 2019-07-18 [1] CRAN (R 3.6.0)
caTools 1.17.1.2 2019-03-06 [1] CRAN (R 3.6.0)
cellranger 1.1.0 2016-07-27 [1] CRAN (R 3.6.0)
cli 1.1.0 2019-03-19 [1] CRAN (R 3.6.0)
colorspace 1.4-1 2019-03-18 [1] CRAN (R 3.6.0)
crayon 1.3.4 2017-09-16 [1] CRAN (R 3.6.0)
curl 4.0 2019-07-22 [1] CRAN (R 3.6.0)
data.table 1.12.2 2019-04-07 [1] CRAN (R 3.6.0)
DBI 1.0.0 2018-05-02 [1] CRAN (R 3.6.0)
desc 1.2.0 2018-05-01 [1] CRAN (R 3.6.0)
devtools 2.2.2 2020-02-17 [1] CRAN (R 3.6.0)
digest 0.6.20 2019-07-04 [1] CRAN (R 3.6.0)
dplyr * 0.8.3 2019-07-04 [1] CRAN (R 3.6.0)
edgeR * 3.26.7 2019-08-13 [1] Bioconductor
ellipsis 0.3.0 2019-09-20 [1] CRAN (R 3.6.0)
evaluate 0.14 2019-05-28 [1] CRAN (R 3.6.0)
farver 1.1.0 2018-11-20 [1] CRAN (R 3.6.0)
fastmatch 1.1-0 2017-01-28 [1] CRAN (R 3.6.0)
fgsea * 1.10.1 2019-08-21 [1] Bioconductor
forcats * 0.4.0 2019-02-17 [1] CRAN (R 3.6.0)
fs 1.3.1 2019-05-06 [1] CRAN (R 3.6.0)
generics 0.0.2 2018-11-29 [1] CRAN (R 3.6.0)
ggforce 0.3.1 2019-08-20 [1] CRAN (R 3.6.0)
ggplot2 * 3.2.1 2019-08-10 [1] CRAN (R 3.6.0)
ggraph * 1.0.2 2018-07-07 [1] CRAN (R 3.6.0)
ggrepel * 0.8.1 2019-05-07 [1] CRAN (R 3.6.0)
git2r 0.26.1 2019-06-29 [1] CRAN (R 3.6.0)
glue 1.3.1 2019-03-12 [1] CRAN (R 3.6.0)
graph 1.62.0 2019-05-02 [1] Bioconductor
gridExtra 2.3 2017-09-09 [1] CRAN (R 3.6.0)
gtable 0.3.0 2019-03-25 [1] CRAN (R 3.6.0)
haven 2.1.1 2019-07-04 [1] CRAN (R 3.6.0)
here 0.1 2017-05-28 [1] CRAN (R 3.6.0)
hms 0.5.1 2019-08-23 [1] CRAN (R 3.6.0)
htmltools 0.3.6 2017-04-28 [1] CRAN (R 3.6.0)
httpuv 1.5.1 2019-04-05 [1] CRAN (R 3.6.0)
httr 1.4.1 2019-08-05 [1] CRAN (R 3.6.0)
igraph 1.2.4.1 2019-04-22 [1] CRAN (R 3.6.0)
IRanges * 2.18.2 2019-08-24 [1] Bioconductor
jsonlite 1.6 2018-12-07 [1] CRAN (R 3.6.0)
KEGGgraph 1.44.0 2019-05-02 [1] Bioconductor
KEGGREST 1.24.1 2019-10-08 [1] Bioconductor
knitr 1.24 2019-08-08 [1] CRAN (R 3.6.0)
labeling 0.3 2014-08-23 [1] CRAN (R 3.6.0)
later 0.8.0 2019-02-11 [1] CRAN (R 3.6.0)
lattice 0.20-38 2018-11-04 [1] CRAN (R 3.6.0)
lazyeval 0.2.2 2019-03-15 [1] CRAN (R 3.6.0)
limma * 3.40.6 2019-07-26 [1] Bioconductor
locfit 1.5-9.1 2013-04-20 [1] CRAN (R 3.6.0)
lubridate 1.7.4 2018-04-11 [1] CRAN (R 3.6.0)
magrittr * 1.5 2014-11-22 [1] CRAN (R 3.6.0)
MASS 7.3-51.4 2019-03-31 [1] CRAN (R 3.6.0)
Matrix 1.2-17 2019-03-22 [1] CRAN (R 3.6.0)
memoise 1.1.0 2017-04-21 [1] CRAN (R 3.6.0)
modelr 0.1.5 2019-08-08 [1] CRAN (R 3.6.0)
msigdbr * 7.0.1 2019-09-04 [1] CRAN (R 3.6.0)
munsell 0.5.0 2018-06-12 [1] CRAN (R 3.6.0)
nlme 3.1-141 2019-08-01 [1] CRAN (R 3.6.0)
org.Dr.eg.db 3.8.2 2019-11-20 [1] Bioconductor
org.Hs.eg.db * 3.8.2 2019-11-20 [1] Bioconductor
pander * 0.6.3 2018-11-06 [1] CRAN (R 3.6.0)
pathview * 1.24.0 2019-05-02 [1] Bioconductor
pillar 1.4.2 2019-06-29 [1] CRAN (R 3.6.0)
pkgbuild 1.0.6 2019-10-09 [1] CRAN (R 3.6.0)
pkgconfig 2.0.2 2018-08-16 [1] CRAN (R 3.6.0)
pkgload 1.0.2 2018-10-29 [1] CRAN (R 3.6.0)
plyr * 1.8.4 2016-06-08 [1] CRAN (R 3.6.0)
png 0.1-7 2013-12-03 [1] CRAN (R 3.6.0)
polyclip 1.10-0 2019-03-14 [1] CRAN (R 3.6.0)
prettyunits 1.0.2 2015-07-13 [1] CRAN (R 3.6.0)
processx 3.4.1 2019-07-18 [1] CRAN (R 3.6.0)
promises 1.0.1 2018-04-13 [1] CRAN (R 3.6.0)
ps 1.3.0 2018-12-21 [1] CRAN (R 3.6.0)
purrr * 0.3.3 2019-10-18 [1] CRAN (R 3.6.0)
R6 2.4.0 2019-02-14 [1] CRAN (R 3.6.0)
Rcpp * 1.0.2 2019-07-25 [1] CRAN (R 3.6.0)
RCurl 1.95-4.12 2019-03-04 [1] CRAN (R 3.6.0)
readr * 1.3.1 2018-12-21 [1] CRAN (R 3.6.0)
readxl 1.3.1 2019-03-13 [1] CRAN (R 3.6.0)
remotes 2.1.1 2020-02-15 [1] CRAN (R 3.6.0)
Rgraphviz 2.28.0 2019-05-02 [1] Bioconductor
RJSONIO 1.3-1.4 2020-01-15 [1] CRAN (R 3.6.0)
rlang 0.4.4 2020-01-28 [1] CRAN (R 3.6.0)
rmarkdown 1.15 2019-08-21 [1] CRAN (R 3.6.0)
rprojroot 1.3-2 2018-01-03 [1] CRAN (R 3.6.0)
RSQLite 2.1.2 2019-07-24 [1] CRAN (R 3.6.0)
rstudioapi 0.10 2019-03-19 [1] CRAN (R 3.6.0)
rvest 0.3.4 2019-05-15 [1] CRAN (R 3.6.0)
rWikiPathways * 1.4.1 2019-07-30 [1] Bioconductor
S4Vectors * 0.22.0 2019-05-02 [1] Bioconductor
scales * 1.0.0 2018-08-09 [1] CRAN (R 3.6.0)
sessioninfo 1.1.1 2018-11-05 [1] CRAN (R 3.6.0)
stringi 1.4.3 2019-03-12 [1] CRAN (R 3.6.0)
stringr * 1.4.0 2019-02-10 [1] CRAN (R 3.6.0)
testthat 2.3.1 2019-12-01 [1] CRAN (R 3.6.0)
tibble * 2.1.3 2019-06-06 [1] CRAN (R 3.6.0)
tidygraph * 1.1.2 2019-02-18 [1] CRAN (R 3.6.0)
tidyr * 0.8.3 2019-03-01 [1] CRAN (R 3.6.0)
tidyselect 0.2.5 2018-10-11 [1] CRAN (R 3.6.0)
tidyverse * 1.2.1 2017-11-14 [1] CRAN (R 3.6.0)
tweenr 1.0.1 2018-12-14 [1] CRAN (R 3.6.0)
usethis 1.5.1 2019-07-04 [1] CRAN (R 3.6.0)
vctrs 0.2.0 2019-07-05 [1] CRAN (R 3.6.0)
viridis 0.5.1 2018-03-29 [1] CRAN (R 3.6.0)
viridisLite 0.3.0 2018-02-01 [1] CRAN (R 3.6.0)
whisker 0.4 2019-08-28 [1] CRAN (R 3.6.0)
withr 2.1.2 2018-03-15 [1] CRAN (R 3.6.0)
workflowr 1.6.0 2019-12-19 [1] CRAN (R 3.6.0)
xfun 0.9 2019-08-21 [1] CRAN (R 3.6.0)
XML 3.98-1.20 2019-06-06 [1] CRAN (R 3.6.0)
xml2 1.2.2 2019-08-09 [1] CRAN (R 3.6.0)
XVector 0.24.0 2019-05-02 [1] Bioconductor
yaml 2.2.0 2018-07-25 [1] CRAN (R 3.6.0)
zeallot 0.1.0 2018-01-28 [1] CRAN (R 3.6.0)
zlibbioc 1.30.0 2019-05-02 [1] Bioconductor
[1] /Library/Frameworks/R.framework/Versions/3.6/Resources/library
