Last updated: 2019-04-16

workflowr checks: (Click a bullet for more information)

  • ✔ R Markdown file: up-to-date

    Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

  • ✔ Environment: empty

    Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

  • ✔ Seed: set.seed(20190115)

    The command set.seed(20190115) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

  • ✔ Session information: recorded

    Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

  • ✔ Repository version: daf0590

    Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.

    Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:

Ignored files:
    Ignored:    .DS_Store
    Ignored:    .Rhistory
    Ignored:    .Rproj.user/
    Ignored:    .sos/
    Ignored:    analysis/.DS_Store
    Ignored:    data/.DS_Store
    Ignored:    output/.DS_Store

Untracked files:
    Untracked:  data/random_data_31.rds
    Untracked:  data/random_data_31_sim_gaussian_35.rds
    Untracked:  data/random_data_31_sim_gaussian_35_get_sumstats_1.rds
    Untracked:  data/small_data_1.ld_in_file.in.ld
    Untracked:  data/small_data_1.ld_out_file.out.ld
    Untracked:  data/small_data_132.ld_in_file.in.ld
    Untracked:  data/small_data_132.ld_out_file.out.ld
    Untracked:  data/small_data_132_sim_gaussian_12.rds
    Untracked:  data/small_data_132_sim_gaussian_12_get_sumstats_1.rds
    Untracked:  data/small_data_1_sim_gaussian_2.rds
    Untracked:  data/small_data_1_sim_gaussian_2_get_sumstats_1.rds
    Untracked:  data/small_data_46.rds
    Untracked:  data/small_data_46_sim_gaussian_10.rds
    Untracked:  data/small_data_46_sim_gaussian_10_get_sumstats_2.rds
    Untracked:  data/small_data_69.ld_in_file.in.ld
    Untracked:  data/small_data_69.ld_out_file.out.ld
    Untracked:  data/small_data_69_sim_gaussian_3.rds
    Untracked:  data/small_data_69_sim_gaussian_3_get_sumstats_1.rds
    Untracked:  data/small_data_69_sim_gaussian_3_get_sumstats_1_susie_z_1.rds
    Untracked:  data/small_data_69_sim_gaussian_3_get_sumstats_1_susie_z_2.rds
    Untracked:  figure/
    Untracked:  output/dscoutProblem475.rds
    Untracked:  output/dscoutProblem75.rds
    Untracked:  output/finemap_compare_random_data_null_dscout.rds
    Untracked:  output/finemap_compare_random_data_signal_dscout.rds
    Untracked:  output/finemap_compare_small_data_signal_dscout.rds
    Untracked:  output/finemap_compare_small_data_signal_dscout_RE8.rds
    Untracked:  output/r_compare_FINEMAP_PIP_ROC.rds
    Untracked:  output/r_compare_dscout_susie_finemappip_tibble.rds
    Untracked:  output/r_compare_dscout_susie_finemappip_truth_tibble.rds
    Untracked:  output/r_compare_susieb_PIP_ROC.rds
    Untracked:  output/r_compare_susiepip_tibble.rds
    Untracked:  output/r_compare_susierss_PIP_ROC.rds
    Untracked:  output/random_data_100_sim_gaussian_null_1_get_sumstats_1_finemap_1.rds
    Untracked:  output/random_data_31_35_fit_em.rds
    Untracked:  output/random_data_76.rds
    Untracked:  output/random_data_76_sim_gaussian_8.rds
    Untracked:  output/random_data_76_sim_gaussian_8_get_sumstats_1.rds
    Untracked:  output/small_data_42_sim_gaussian_36_get_sumstats_2_susie_z_2.rds
    Untracked:  output/small_data_92_sim_gaussian_30_get_sumstats_2_susie_z_2.rds

Unstaged changes:
    Modified:   analysis/SuSiEDAP_Power_data31_35.Rmd
    Modified:   analysis/SusieZPerformance.Rmd
    Modified:   analysis/SusieZPerformanceRE3.Rmd
    Modified:   output/dsc_susie_z_v_output.rds
    Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
Expand here to see past versions:
    File Version Author Date Message
    Rmd daf0590 zouyuxin 2019-04-16 wflow_publish(“analysis/SuSiErssNotConverge.Rmd”)
    html 4c7b10d zouyuxin 2019-04-15 Build site.
    Rmd faf1bd5 zouyuxin 2019-04-15 wflow_publish(c(“analysis/SuSiErssNotConverge.Rmd”, “analysis/r_compare_susieb_problem.Rmd”))
    html 9267aac zouyuxin 2019-04-15 Build site.
    Rmd f22b0c3 zouyuxin 2019-04-15 wflow_publish(“analysis/SuSiErssNotConverge.Rmd”)

This data is simulated with PVE 0.6. There is only one signal.

library(susieR)
library(data.table)
Warning: package 'data.table' was built under R version 3.5.2
r.out = as.matrix(fread('data/small_data_69.ld_out_file.out.ld'))
r.in = as.matrix(fread('data/small_data_69.ld_in_file.in.ld'))
data = readRDS('data/small_data_69_sim_gaussian_3.rds')
ss = readRDS('data/small_data_69_sim_gaussian_3_get_sumstats_1.rds')
z = ss$sumstats$bhat/ss$sumstats$shat

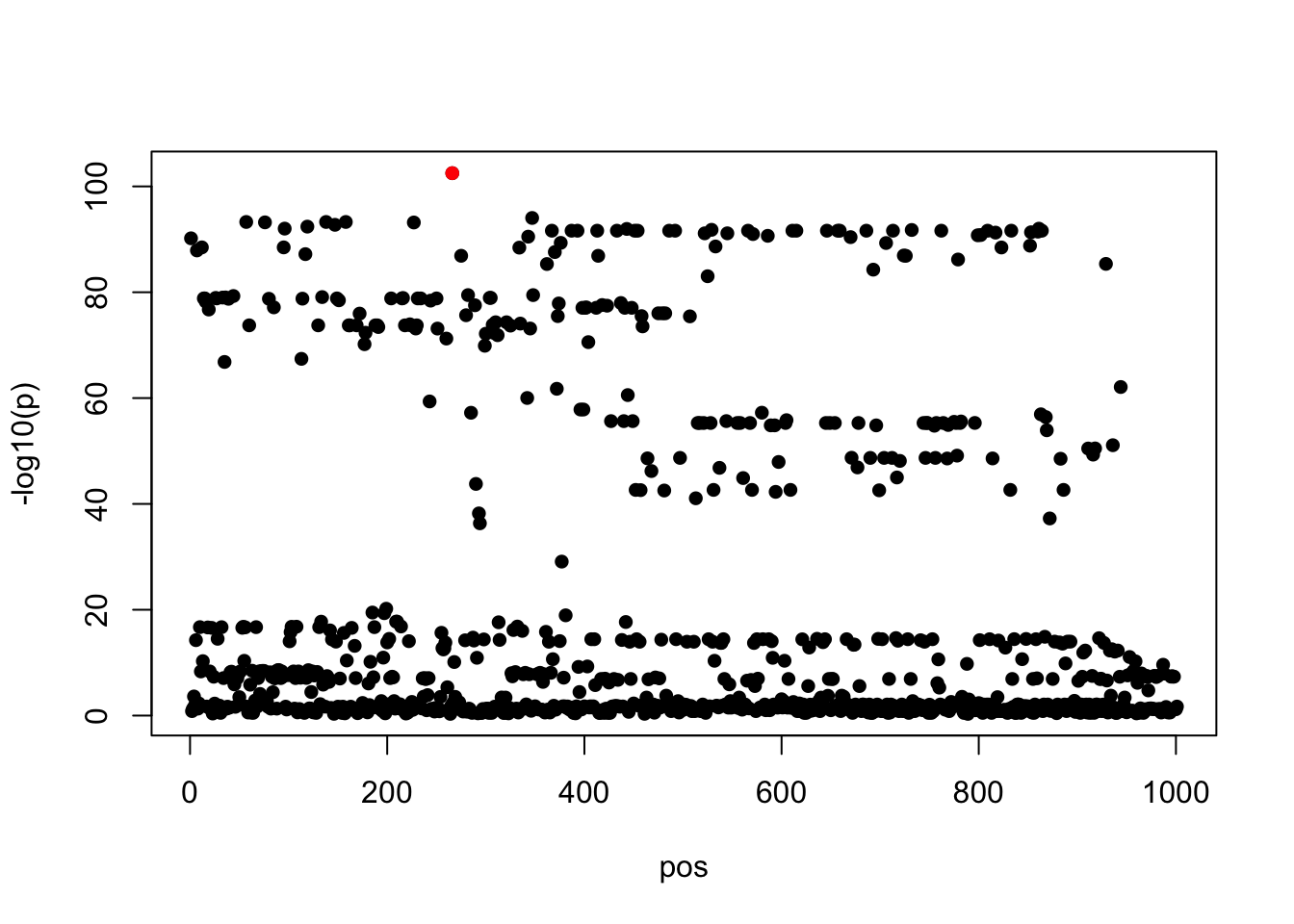

susie_plot(z, y = "z", b=data$meta$true_coef)

Expand here to see past versions of unnamed-chunk-2-1.png:
Version Author Date
9267aac zouyuxin 2019-04-15

This is the reuslt from susie_bhat:

fit_b = susie_bhat(ss$sumstats$bhat, ss$sumstats$shat, R = r.in, n=287, L=5, estimate_residual_variance=TRUE)

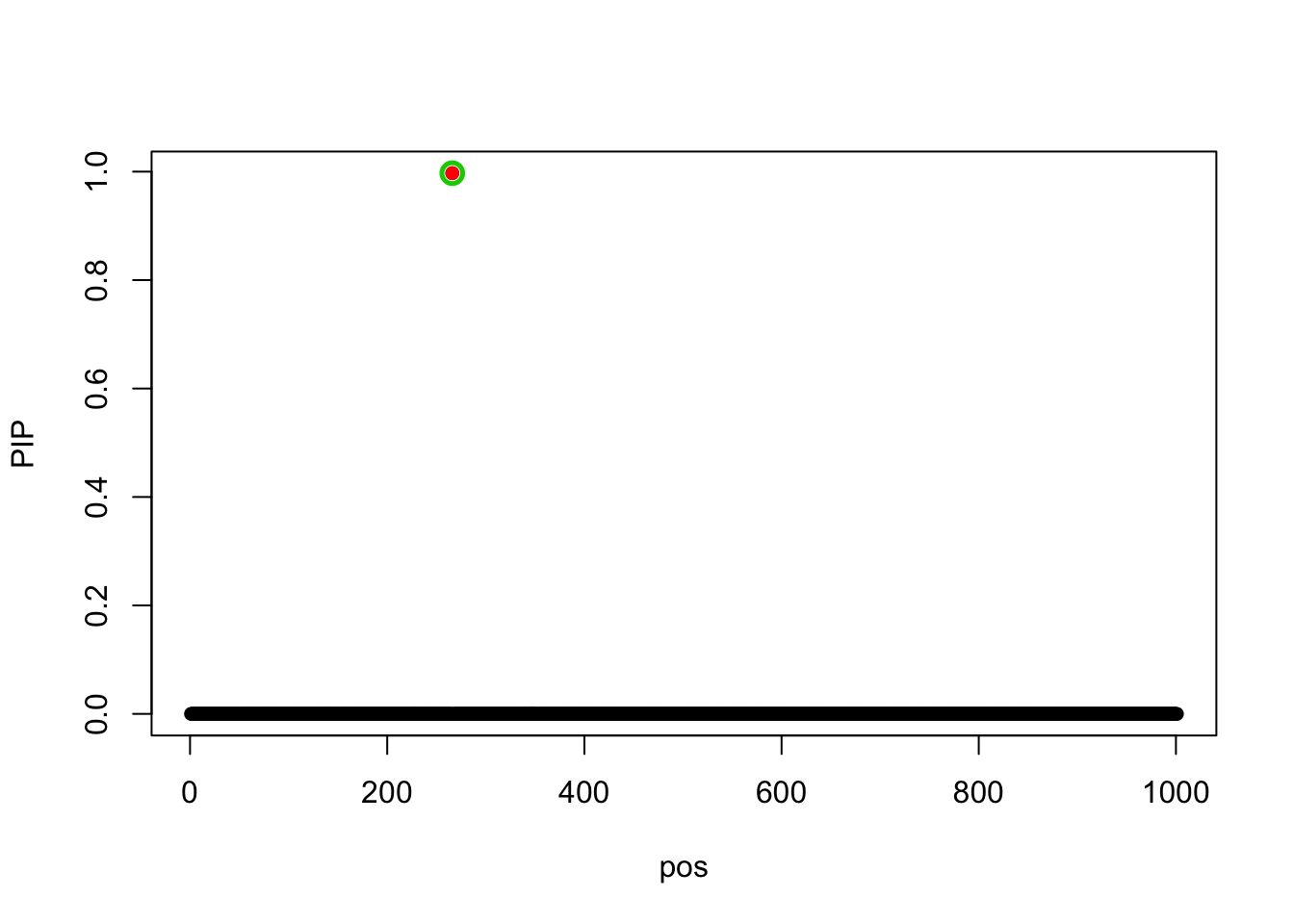

susie_plot(fit_b, y='PIP', b = data$meta$true_coef)

Expand here to see past versions of unnamed-chunk-3-1.png:
Version Author Date
9267aac zouyuxin 2019-04-15

susie_rss fails to converge with L = 5:

fit_rss = susie_rss(z, R = r.in, L=5, max_iter = 20)
Warning in susie_rss(z, R = r.in, L = 5, max_iter = 20): The maximum number
of non-zero effects is greater than 1, this feature is experimental.
Warning in susie_rss(z, R = r.in, L = 5, max_iter = 20): IBSS algorithm did
not converge in 20 iterations!

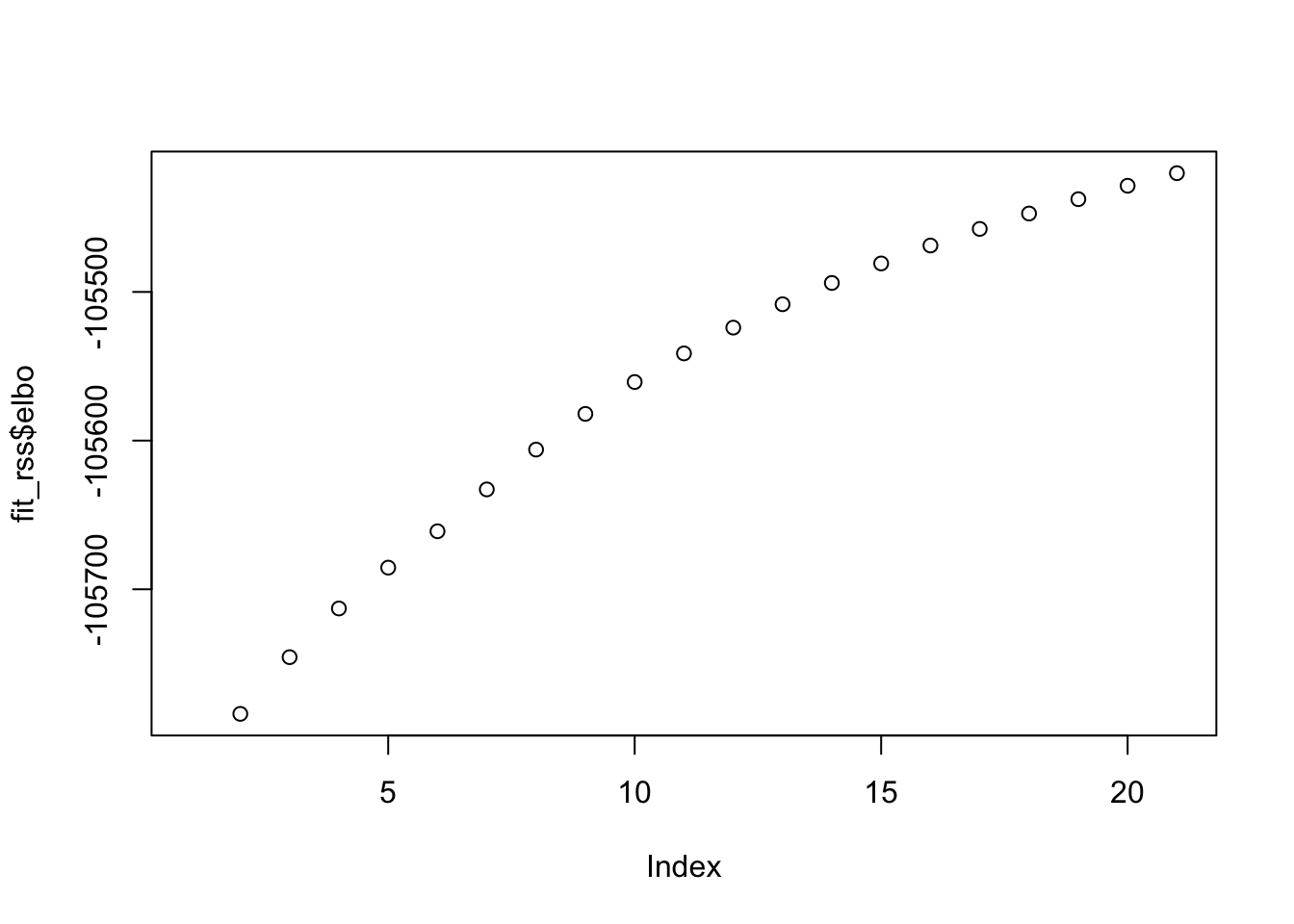

plot(fit_rss$elbo)

Expand here to see past versions of unnamed-chunk-4-1.png:
Version Author Date
9267aac zouyuxin 2019-04-15

Using L=1, it converges.

fit_rss_init = susie_rss(z, R=r.in, L=1)
susie_plot(fit_rss_init, y='PIP', b=data$meta$true_coef)

Expand here to see past versions of unnamed-chunk-5-1.png:
Version Author Date
9267aac zouyuxin 2019-04-15

If we relax the constraint on residual variance, it converges. There is no significant credible set, and the estimated residual variance is 740.

fit_rss_relax = susie_rss(z, R = r.in, L=5, max_iter = 20, restrict = FALSE)
Warning in susie_rss(z, R = r.in, L = 5, max_iter = 20, restrict = FALSE):
The maximum number of non-zero effects is greater than 1, this feature is
experimental.

This data is simulated with PVE 0.8. There are five signals.

r.out = as.matrix(fread('data/small_data_132.ld_out_file.out.ld'))
r.in = as.matrix(fread('data/small_data_132.ld_in_file.in.ld'))
data = readRDS('data/small_data_132_sim_gaussian_12.rds')
ss = readRDS('data/small_data_132_sim_gaussian_12_get_sumstats_1.rds')
z = ss$sumstats$bhat/ss$sumstats$shat

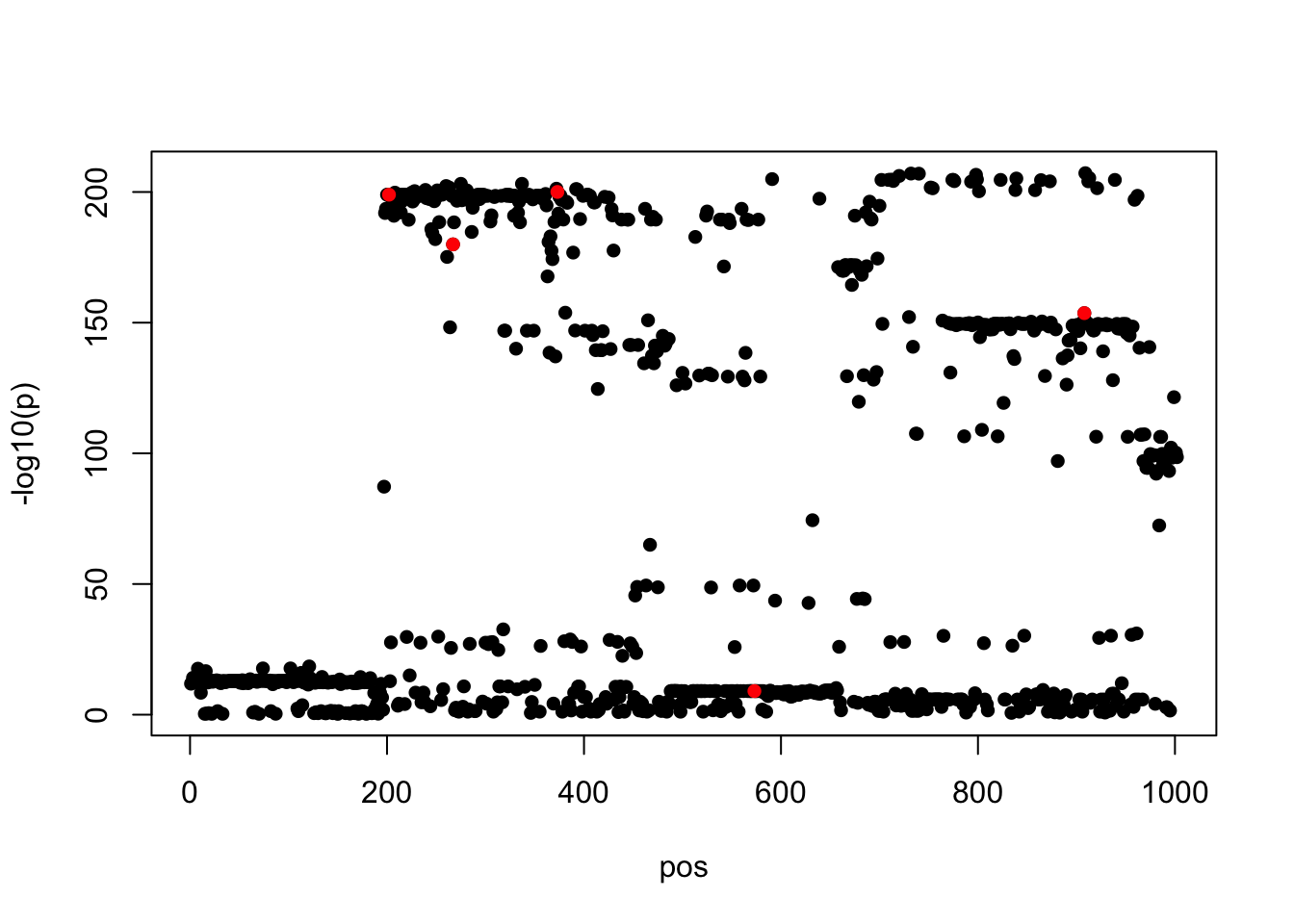

susie_plot(z, y = "z", b=data$meta$true_coef)

Expand here to see past versions of unnamed-chunk-8-1.png:
Version Author Date
9267aac zouyuxin 2019-04-15

This is the reuslt from susie_bhat:

fit_b = susie_bhat(ss$sumstats$bhat, ss$sumstats$shat, R = r.in, n=287, L=5, estimate_residual_variance=TRUE)

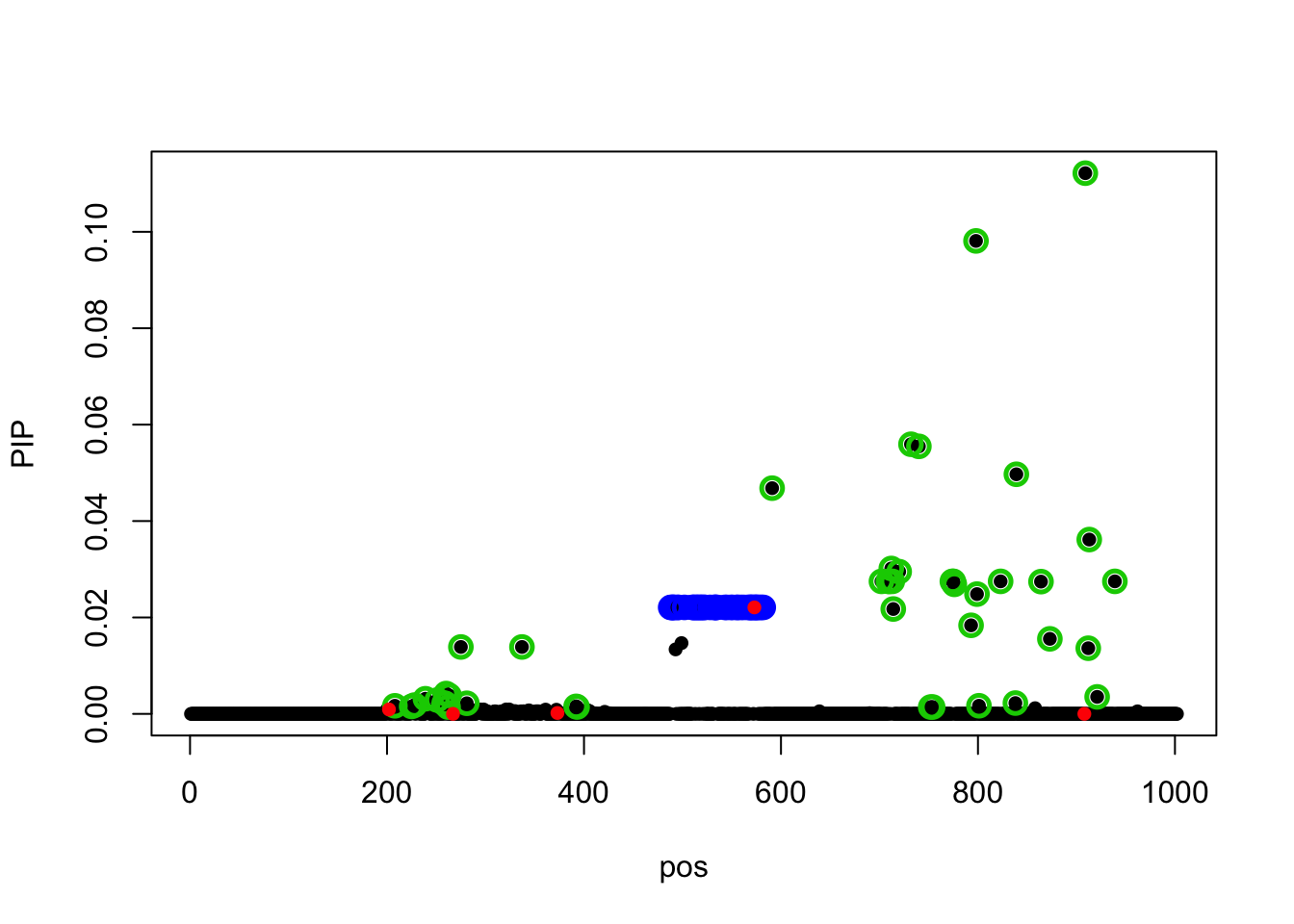

susie_plot(fit_b, y='PIP', b = data$meta$true_coef)

Expand here to see past versions of unnamed-chunk-9-1.png:
Version Author Date
9267aac zouyuxin 2019-04-15

susie_rss fails to converge with L = 5. Using L=1, it converges, but it picks up the wrong one.

fit_rss = susie_rss(z, R = r.in, L=1)

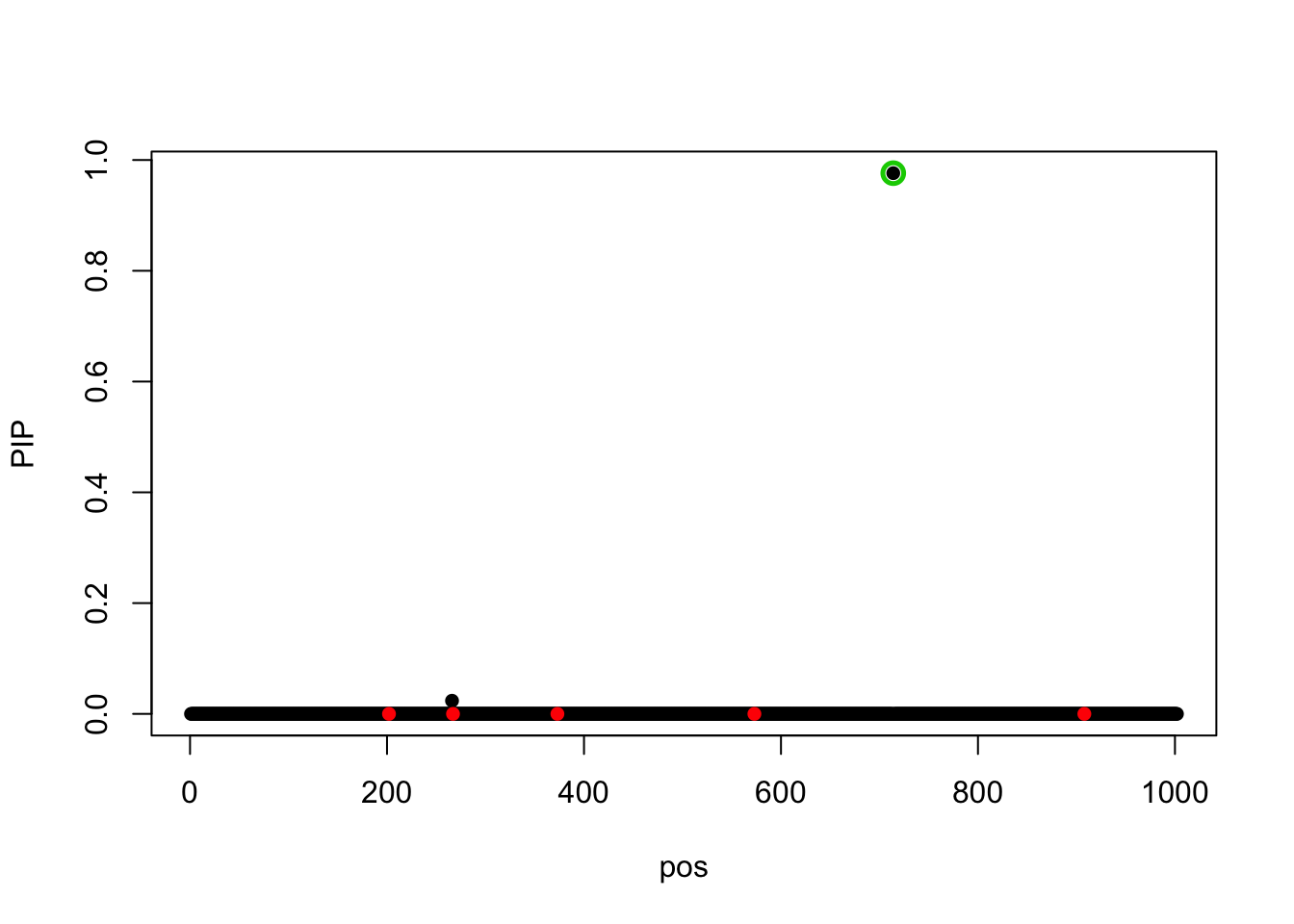

susie_plot(fit_rss, y='PIP', b = data$meta$true_coef)

If we relax the constraint on residual variance, it converges. There is no significant credible set, and the estimated residual variance is 9560.

fit_rss_relax = susie_rss(z, R = r.in, L=5, max_iter = 20, restrict = FALSE)
Warning in susie_rss(z, R = r.in, L = 5, max_iter = 20, restrict = FALSE):
The maximum number of non-zero effects is greater than 1, this feature is
experimental.

Session information

sessionInfo()
R version 3.5.1 (2018-07-02)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS  10.14.4

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] data.table_1.12.0 susieR_0.7.1.500

loaded via a namespace (and not attached):
 [1] workflowr_1.1.1   Rcpp_1.0.0        lattice_0.20-38
 [4] digest_0.6.18     rprojroot_1.3-2   R.methodsS3_1.7.1
 [7] grid_3.5.1        backports_1.1.3   git2r_0.24.0
[10] magrittr_1.5      evaluate_0.12     stringi_1.2.4
[13] whisker_0.3-2     R.oo_1.22.0       R.utils_2.7.0
[16] Matrix_1.2-15     rmarkdown_1.11    tools_3.5.1
[19] stringr_1.3.1     yaml_2.2.0        compiler_3.5.1
[22] htmltools_0.3.6   knitr_1.20

This reproducible R Markdown analysis was created with workflowr 1.1.1
