This single-panel figure is produced by script/FigureS6.R, which shares its CITE-seq setup and protein filters with Figure 6 and Extended Data Figure 7 via code/R/citeseq_shared_setup.R. The code below is shown for reference (not re-executed on this page, since the shared setup takes about a minute to load); the image is its pre-rendered output.

Setup

library(dplyr)
library(pheatmap)
library(Matrix) # protein matrices are dgCMatrix; must be attached for `[` to dispatch

data_path <- "data/"
figure_path <- "figures/final-selected/Figure S6/"
source("code/R/citeseq_shared_setup.R")

# Record when this run started, to assert at the end that the panel is newer.
run_started_at <- Sys.time()

Protein-program heatmap

# ============================================================
# s6: sparse protein-program heatmap, contamination GPs removed
# ============================================================
# The normalized protein matrix is derived here rather than in
# citeseq_shared_setup.R because this is its only consumer among the figures.
Protein_F_pm <- Protein_F_pm_raw[!rownames(Protein_F_pm_raw) %in% isotype_proteins, ]
Protein_F_pm <- Protein_F_pm[rownames(Protein_F_pm) %in% good_proteins, ]
Protein_F_pm <- Protein_F_pm[!rownames(Protein_F_pm) %in% exclude_proteins, ]
Protein_F_pm <- Protein_F_pm[!rownames(Protein_F_pm) %in% thy11_proteins, ]
D_lognorm <- diag(1 / apply(Protein_F_pm, 2, function(x) max(abs(x))))
Protein_F_pm <- Protein_F_pm %*% D_lognorm
colnames(Protein_F_pm) <- paste0("GP", 1:ncol(Protein_F_pm))
Protein_F_pm[is.na(Protein_F_pm)] <- 0

threshold_simplified <- 0
keep_rows_simplified <- apply(Protein_F_pm, 1, function(v) any(abs(v) > threshold_simplified, na.rm = TRUE))
Protein_F_pm_simplified <- Protein_F_pm[keep_rows_simplified, , drop = FALSE]
keep_cols_simplified <- apply(Protein_F_pm_simplified, 2, function(v) any(abs(v) > threshold_simplified, na.rm = TRUE))
Protein_F_pm_simplified <- Protein_F_pm_simplified[, keep_cols_simplified, drop = FALSE]

GP_contamination <- c("GP40", "GP50", "GP55", "GP188")
Protein_F_pm_simplified_no_contamination <- Protein_F_pm_simplified[, !colnames(Protein_F_pm_simplified) %in% GP_contamination, drop = FALSE]

sparse_cutoff <- 0.5
bk_sparse <- unique(c(seq(-1, -sparse_cutoff, length.out = 26), seq(-sparse_cutoff, sparse_cutoff, length.out = 51), seq(sparse_cutoff, 1, length.out = 26)))
cols_sparse <- c(colorRampPalette(c("#4575B4", "white"))(25), rep("white", 50), colorRampPalette(c("white", "#D73027"))(25))

# Display proteins as rows and GPs as columns. Order GP columns from most to
# fewest visible proteins. Order protein rows by their rightmost visible GP, so
# proteins extending into the sparse right side appear first and form a
# triangular boundary. Visible count and a rarity-weighted support score provide
# deterministic secondary ordering.
wide_matrix_s6 <- as.matrix(Protein_F_pm_simplified_no_contamination)
wide_visible_mask_s6 <- abs(wide_matrix_s6) >= sparse_cutoff
wide_gp_visible_count_s6 <- colSums(wide_visible_mask_s6)
wide_protein_visible_count_s6 <- rowSums(wide_visible_mask_s6)
wide_gp_number_s6 <- as.integer(sub("^GP", "", colnames(wide_matrix_s6)))

wide_gp_order_s6 <- order(-wide_gp_visible_count_s6, wide_gp_number_s6)
wide_mask_ordered_cols_s6 <- wide_visible_mask_s6[
  ,
  wide_gp_order_s6,
  drop = FALSE
]
wide_rightmost_visible_gp_s6 <- apply(
  wide_mask_ordered_cols_s6,
  1,
  function(values) max(which(values))
)
wide_rarity_weights_s6 <- seq_len(ncol(wide_mask_ordered_cols_s6))^2
wide_protein_rarity_score_s6 <- as.numeric(
  wide_mask_ordered_cols_s6 %*% wide_rarity_weights_s6
)
wide_protein_order_s6 <- order(
  -wide_rightmost_visible_gp_s6,
  -wide_protein_visible_count_s6,
  -wide_protein_rarity_score_s6,
  rownames(wide_matrix_s6)
)
wide_ordered_matrix_s6 <- wide_matrix_s6[
  wide_protein_order_s6,
  wide_gp_order_s6,
  drop = FALSE
]

pdf(paste0(figure_path, "s6.pdf"), width = 48, height = 14)
pheatmap::pheatmap(
  wide_ordered_matrix_s6,
  main = sprintf(
    paste0(
      "Protein programs - GP columns, triangular-first protein rows ",
      "(|score| >= %.1f; protein-row sparsity is not monotone)"
    ),
    sparse_cutoff
  ),
  color = cols_sparse,
  breaks = bk_sparse,
  cluster_rows = FALSE,
  cluster_cols = FALSE,
  border_color = "grey75",
  fontsize = 16,
  fontsize_row = 16,
  fontsize_col = 16,
  angle_col = 90,
  legend_breaks = c(-1, -sparse_cutoff, 0, sparse_cutoff, 1),
  legend_labels = c("-1", "-0.5", "0 (white)", "0.5", "1")
)
dev.off()

Version Author Date
19c977f Ziang Zhang 2026-09-02

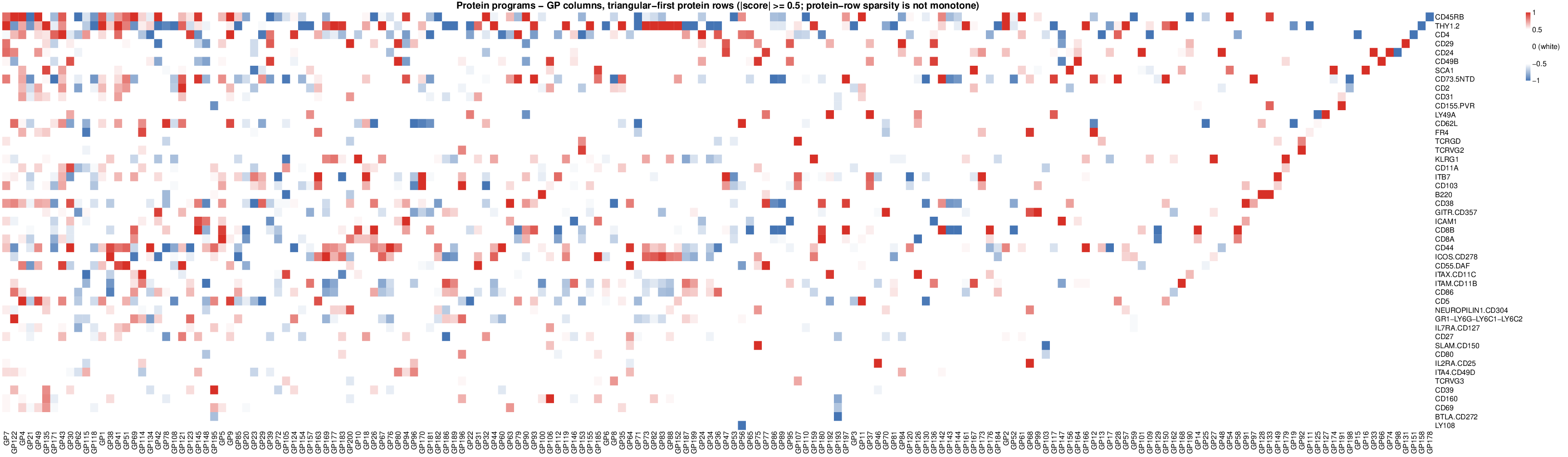

Extended Data Fig. 6. Heatmap of scaled protein scores for each GP. We focused on the 47 proteins that performed best in the immgenT CITE-seq dataset. Seventeen GPs lacked meaningful protein correlates and were omitted.
