Figure 6: Tissue-associated gene programs reflect both tissue adaptation and T cell subset composition
Ziang Zhang
Last updated: 2026-09-10
Checks: 7 0
Knit directory:
immgenT-GP-analysis/analysis/
This reproducible R Markdown analysis was created with workflowr (version 1.7.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(1) was run prior to running the
code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 7fc9cfa. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .claude/
Ignored: analysis/.DS_Store
Ignored: analysis/.Rhistory
Ignored: analysis/assets/.DS_Store
Ignored: captions/
Ignored: code/.DS_Store
Ignored: code/other/topic_flashier_20250212.R
Ignored: code/other/topic_wrapper_20250215_alldata_backfit.sh
Ignored: data
Ignored: experiments/
Ignored: figures/.DS_Store
Ignored: figures/final-selected/.DS_Store
Ignored: figures/final-selected/Figure 1/.DS_Store
Ignored: figures/final-selected/Figure 2/.DS_Store
Ignored: figures/final-selected/Figure 5/.DS_Store
Ignored: figures/final-selected/Figure S1/.DS_Store
Ignored: internal/
Ignored: log/
Ignored: output/.DS_Store
Ignored: output/Figure2/
Ignored: plan/
Ignored: tables/
Ignored: tmp/
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown (analysis/Figure6.Rmd) and HTML
(docs/Figure6.html) files. If you’ve configured a remote
Git repository (see ?wflow_git_remote), click on the
hyperlinks in the table below to view the files as they were in that
past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 7fc9cfa | Ziang Zhang | 2026-09-10 | Figure 6 rebuilt from the fig_n5 draft: two mean-loading heatmaps lead |
| html | 60125af | Ziang Zhang | 2026-09-10 | Build site: Figure 4b on the shared column colours |
| html | 88ee847 | Ziang Zhang | 2026-09-10 | Build site: Figure 4b without the miniverse clusters |
| html | 5874416 | Ziang Zhang | 2026-09-10 | Build site: main Figure 4 inserted, Extended Data back to 1-7 |
| Rmd | 4307b28 | Ziang Zhang | 2026-09-10 | New main Figure 4, and fold the cluster heatmap into Extended Data Figure 2 |
| html | bf4f612 | Ziang Zhang | 2026-09-09 | Build site: Extended Data back to 1-8 |
| Rmd | 6f01135 | Ziang Zhang | 2026-09-09 | Pull the tissue figure back out of Extended Data; ED is 1-8 again |
| html | a7a481f | Ziang Zhang | 2026-09-09 | Build site: the rebuilt Figure 1d and the Extended Data renumbering |
| Rmd | c233cd8 | Ziang Zhang | 2026-09-09 | Extended Data reorganisation: split the tissue/cluster figure, renumber 3-8 |
| html | 796eeba | Ziang Zhang | 2026-09-04 | Build site: the three corrected captions |
| Rmd | 2344a4a | Ziang Zhang | 2026-09-04 | Three captions corrected where the published text and the panel disagree |
| html | 1e88d7e | Ziang Zhang | 2026-09-04 | Build site: published captions and titles across all 24 pages |
| Rmd | 0267e5b | Ziang Zhang | 2026-09-04 | Captions from the published manuscript; trim editor notes off the page code |
| html | 19c977f | Ziang Zhang | 2026-09-02 | Build site: Extended Data 5-7 renumbered, Figure S5 page rebuilt |
| Rmd | 1e5721a | Ziang Zhang | 2026-09-02 | Extended Data 5-7 renumbered, and Figure S5 assembled as one stacked figure |
| html | ae03072 | Ziang Zhang | 2026-08-19 | Build site: six pages rebuilt after the prose cleanup |
| Rmd | adc2327 | Ziang Zhang | 2026-08-19 | Site prose: finish taking internal notes off the pages |
| html | eeca07b | Ziang Zhang | 2026-08-05 | Keep pre-refactor provenance in panel comments off the published pages |
| Rmd | 5651d0e | Ziang Zhang | 2026-08-05 | Extended Data tables: reorder to six, rebuild Table 1, drop internal notes |
| html | cbcec52 | Ziang Zhang | 2026-07-30 | Build site: Extended Data Figure naming |
| Rmd | 66aa029 | Ziang Zhang | 2026-07-30 | Name the Extended Data figures as published on the site |
| html | ac650a0 | Ziang Zhang | 2026-07-30 | Build site: Figure S5 (ex-S6a) and Figure S6 as a-f |
| Rmd | c9b020f | Ziang Zhang | 2026-07-30 | Split Figure S6’s protein-program heatmap out as Figure S5 |
| html | 732ac8d | Ziang Zhang | 2026-07-29 | Build site: caption alignment with captions_20260729_final.docx |
| Rmd | 8d73953 | Ziang Zhang | 2026-07-28 | Align captions with captions_20260729_final.docx |
| html | ae21d37 | Ziang Zhang | 2026-07-28 | Build site: republish after the reorder commits |
| html | d538aa2 | Ziang Zhang | 2026-07-28 | Build site: reordered Figures 6 / S6 / S3 and the new Figure 7b page |
| Rmd | 4c07670 | Ziang Zhang | 2026-07-28 | Reorder Figures 6, S6 and S3; make the ex-S5 figure Figure 7b |
| html | 029b0ae | Ziang Zhang | 2026-07-28 | Build site. |
| Rmd | 0f5b5da | Ziang Zhang | 2026-07-28 | Align all figure captions with captions_20260728_final.docx |
| html | 58eab27 | Ziang Zhang | 2026-07-28 | Build site: Fig. 6i-k caption on the curated CD69 GP subset |
| Rmd | 589a0ed | Ziang Zhang | 2026-07-28 | Fig. 6i-k: say the 10 CD69 GPs are curated, not the top 10 |
| html | 3fc3789 | Ziang Zhang | 2026-07-27 | Republish all 24 pages |
| html | 1390a03 | Ziang Zhang | 2026-07-27 | Republish all 24 pages |
| html | adaef21 | Ziang Zhang | 2026-07-27 | Build site: panel fixes and PDF-derived assets |
| html | 5b19858 | Ziang Zhang | 2026-07-27 | Build site. |
| Rmd | ffe285c | Ziang Zhang | 2026-07-27 | Reorganize figures/ and untrack local-only exploration notes |
| Rmd | 91ee059 | Ziang Zhang | 2026-07-26 | Select each panel’s code block by name, not by line number |
| html | 91ee059 | Ziang Zhang | 2026-07-26 | Select each panel’s code block by name, not by line number |
| Rmd | 06552b8 | Ziang Zhang | 2026-07-14 | Update Figure 6b heatmap layout |
| html | 06552b8 | Ziang Zhang | 2026-07-14 | Update Figure 6b heatmap layout |
| html | 92021bf | Ziang Zhang | 2026-07-02 | Build site. |
| Rmd | db7a5cd | Ziang Zhang | 2026-07-02 | Recover 3 data-provenance gaps into pipeline scripts |
| html | 827c89b | Ziang Zhang | 2026-07-02 | Build site. |
| Rmd | 8ac7f9f | Ziang Zhang | 2026-07-02 | Add data provenance notes to each script; remove conversational |
| Rmd | f9db962 | Ziang Zhang | 2026-07-02 | Simplify layout: drop old code/script folders, rename |
| html | c6e5086 | Ziang Zhang | 2026-07-02 | Build site. |
| html | 5a79883 | Ziang Zhang | 2026-07-02 | Build site. |
| Rmd | 2b0e445 | Ziang Zhang | 2026-07-02 | Fix GitHub source links to point at the new |
| html | cf1d0ac | Ziang Zhang | 2026-07-02 | Build site. |
| Rmd | 06b2461 | Ziang Zhang | 2026-07-02 | Initial commit: immgenT-GP-analysis |
| html | 06b2461 | Ziang Zhang | 2026-07-02 | Initial commit: immgenT-GP-analysis |
All panels are produced by script/Figure6.R.
The code below is shown for reference (not re-executed on this page);
the images are its pre-rendered output.
Setup
Data loading and the tissue-associated GP set, shared across the panels below.
# Figure 6. GPs and tissue.
#
# Panels produced:

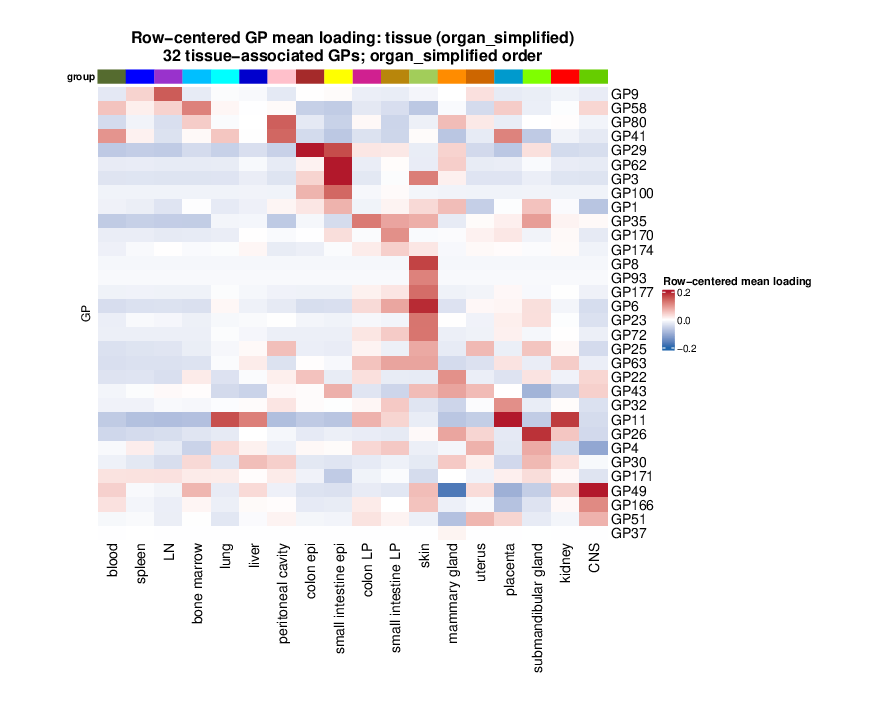

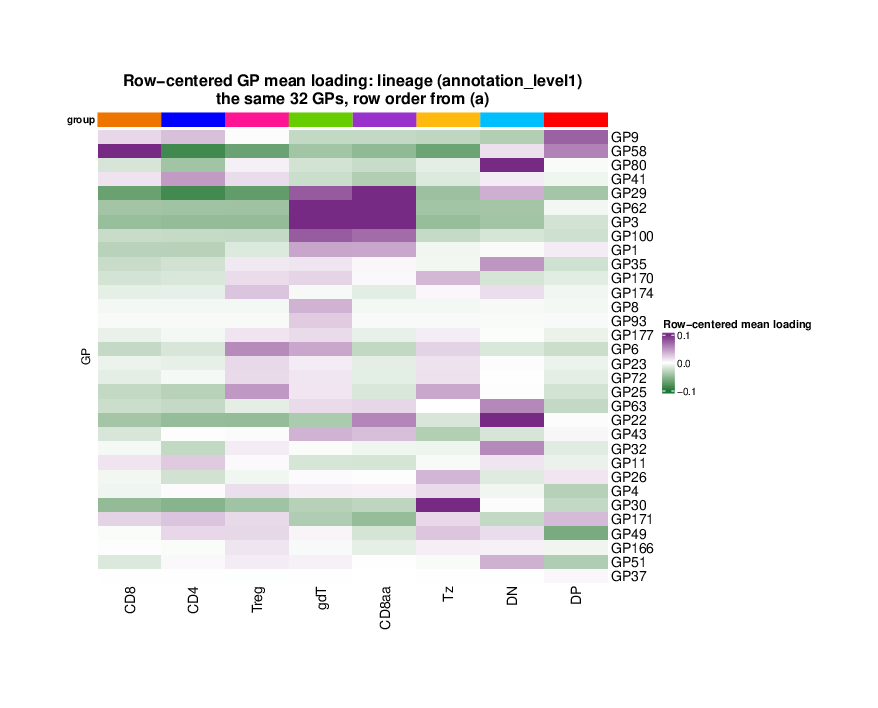

# 6a Row-centered mean GP activity across the 18 tissues, for the 32
# tissue-associated GPs, tissues in organ_simplified factor order.
# 6b The same 32 GPs and row order, across the 8 lineages.

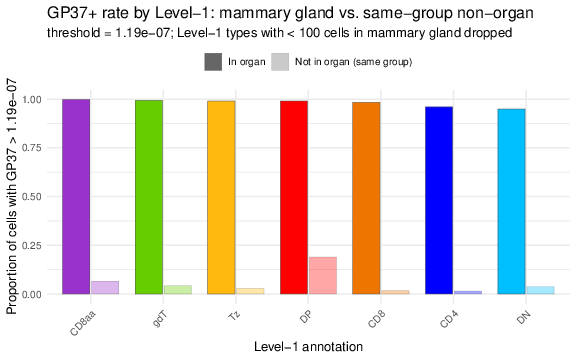

# 6c GP37+ rate by lineage, mammary gland vs. the same lineage elsewhere.

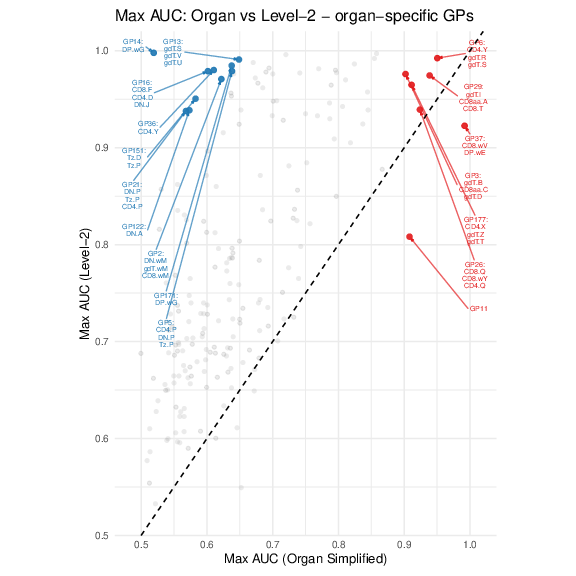

# 6d Organ AUC vs Level-2 (fine-grained sub-lineage/cluster) AUC, with the
# 7 organ-specific GPs (red) and a contrasting cluster-specific set
# (blue) highlighted.

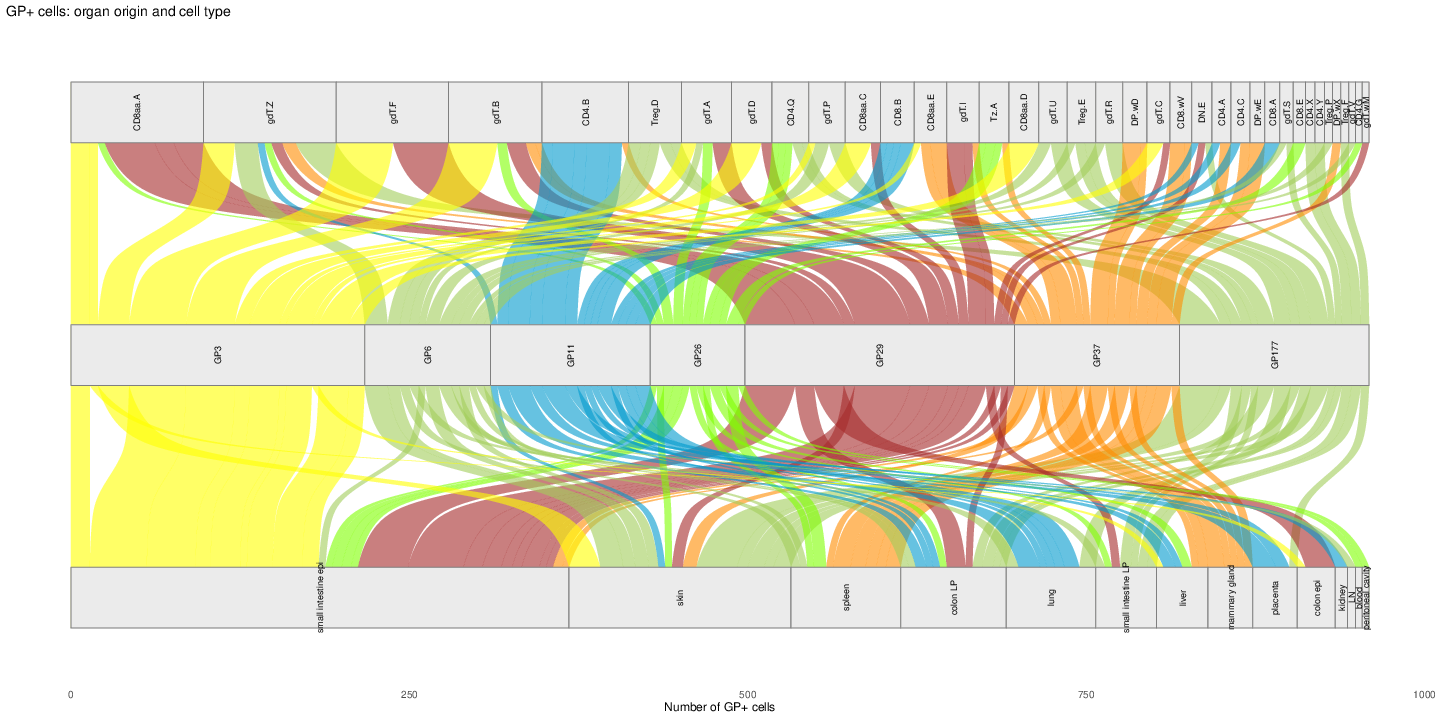

# 6e Alluvial diagram: organ of origin -> GP -> Level-2 cell type, for
# GP+ cells of the 7 organ-specific GPs.
#
# Required inputs (data/) -- see code/README.md's "Data provenance" table
# for the full picture:
# L_pm_filtered.rds [code/pipeline/01b_filter_cells.R]
# igt1_96_..._ADTonly.Rds [primary input Seurat object]
# level_2_AUC_list_figure_no_thymocytes_healthy.rds,
# organ_simplified_AUC_list_figure_no_thymocytes_healthy.rds
# [code/pipeline/02_compute_auc.R]
library(ggplot2)
library(ggrepel)
library(patchwork)
library(dplyr)
library(tidyr)
library(purrr)
library(tibble)
library(Matrix)
library(viridis)
library(cowplot)
library(ggalluvial)
suppressPackageStartupMessages({
library(ComplexHeatmap)
library(circlize)
library(grid)
library(ZemmourLib)
})
data_path <- "data/"
figure_path <- "figures/final-selected/Figure 6/"
run_started_at <- Sys.time()
# Group means, row centering, dominant-group ordering and the heatmap call for
# 6a/6b; shared with Extended Data Figure 2d, which draws the cluster version.
source("code/R/centered_mean_heatmap.R")
# ============================================================
# Load data (healthy, non-thymocyte reference)
# ============================================================
level_2_AUC_list <- readRDS(paste0(
data_path, "level_2_AUC_list_figure_no_thymocytes_healthy.rds"
))
organ_AUC_list <- readRDS(paste0(
data_path, "organ_simplified_AUC_list_figure_no_thymocytes_healthy.rds"
))
# Metadata is read from the Seurat object directly.
seurat_meta <- readRDS(paste0(
data_path, "igt1_96_withtotalvi20260206_clean_ADTonly.Rds"
))@meta.data
L_pm_filtered <- readRDS(paste0(data_path, "L_pm_filtered.rds"))
seurat_meta_filtered <- seurat_meta[rownames(L_pm_filtered), ]
# Rename K## to GP## for display consistency
colnames(L_pm_filtered) <- gsub("^K", "GP", colnames(L_pm_filtered))
colnames(level_2_AUC_list$auc) <- gsub("^K", "GP", colnames(level_2_AUC_list$auc))
colnames(level_2_AUC_list$threshold) <- gsub("^K", "GP", colnames(level_2_AUC_list$threshold))
colnames(organ_AUC_list$auc) <- gsub("^K", "GP", colnames(organ_AUC_list$auc))
colnames(organ_AUC_list$threshold) <- gsub("^K", "GP", colnames(organ_AUC_list$threshold))
# Restrict reference to healthy, non-thymocyte cells
seurat_meta_filtered_no_thymocytes_healthy <- seurat_meta_filtered %>%
filter(annotation_level1 != "thymocyte", condition_broad == "healthy")
# The 7 organ-specific GPs highlighted throughout this figure (caption 6d/6e)
gps_of_interest <- c("GP3", "GP6", "GP11", "GP26", "GP29", "GP37", "GP177")
# Column order for 6a/6b: levels(so_orig$organ_simplified) and the Figure 1
# lineage order. Organ levels with no healthy non-thymocyte cells drop out.
organ_display_levels <- c(
"blood", "spleen", "LN", "SLO", "bone marrow", "thymus",
"lung", "liver", "peritoneal cavity",
"colon epi", "small intestine epi", "colon LP", "small intestine LP",
"skin", "mammary gland", "uterus", "placenta", "prostate",
"submandibular gland", "kidney", "pancreas", "CNS", "synovial fluid"
)
level1_display_levels <- c("CD8", "CD4", "Treg", "gdT", "CD8aa", "Tz", "DN", "DP")
organ_color_limit <- 0.2
level1_color_limit <- 0.1
# Labels a highlighted point with its top categories above `threshold` AUC.
top_cats_label <- function(factor_name, auc_matrix, positive_mask, threshold = 0.85, n = 3) {
vals <- auc_matrix[, factor_name]
vals <- vals[positive_mask[, factor_name]]
vals <- sort(vals[vals > threshold], decreasing = TRUE)
cats <- names(vals)[seq_len(min(n, length(vals)))]
if (length(cats) == 0) return(factor_name)
paste0(factor_name, ":\n", paste(cats, collapse = "\n"))
}
# ============================================================
# Shared AUC setup: the organ AUC matrix and the healthy reference means
# ============================================================
# Organs with fewer than 100 healthy non-thymocyte cells are dropped, matching
# the filter every AUC panel in this figure uses.
organ_AUC <- organ_AUC_list$auc
organ_small_count <- table(seurat_meta_filtered_no_thymocytes_healthy$organ_simplified)
organ_small_count <- names(organ_small_count[organ_small_count < 100])
organ_AUC <- organ_AUC[!rownames(organ_AUC) %in% organ_small_count, ]
healthy_cells <- rownames(seurat_meta_filtered_no_thymocytes_healthy)
L_healthy <- L_pm_filtered[healthy_cells, ]
overall_mean <- colMeans(L_healthy, na.rm = TRUE)
stopifnot(nrow(L_healthy) == nrow(seurat_meta_filtered_no_thymocytes_healthy), !anyNA(L_healthy))The 32 tissue-associated GPs
Panels (a) and (b) show the union of the two criteria by which a GP is called tissue-associated: its raw mean loading reaches 0.1 in at least one of the 18 tissues (31 GPs), or its one-vs-rest tissue AUC exceeds 0.9 under the positivity mask (7 GPs, the organ-specific set highlighted in (d) and (e)). Six GPs satisfy both, so 32 are shown.
# ============================================================
# 6a/6b selection: the 32 tissue-associated GPs
# ============================================================
# The union of the two criteria the manuscript uses for "tissue-associated":
#
# A raw (uncentered) mean loading >= 0.1 in at least one of the 18 tissues
# -- 31 GPs, the "programs active across tissues";
# B one-vs-rest tissue AUC > 0.9 under the positivity mask (mean loading in
# the tissue above the GP's overall mean) -- 7 GPs, the organ-specific set
# this figure highlights in 6d and 6e.
#
# Six GPs satisfy both, so 32 are shown. GP37 is the only member of B alone:
# its mammary-gland AUC is 0.9918, but it is active in 2.5% of mammary gland
# cells, which dilutes its mean loading there to 0.011 -- an order of magnitude
# under A's cutoff. Its row is therefore near-white in 6a and 6b by
# construction, which is why it is parked on the last row rather than left as a
# hole inside the mammary gland block; 6c is the panel that shows what it does.
#
# Rule B is re-derived rather than reusing gps_of_interest, and then asserted
# equal to it, so the selection and the highlighting cannot drift apart.
raw_mean_cutoff <- 0.1
auc_cutoff <- 0.9
last_row_gp <- "GP37"
organ_raw <- mean_loading_by_group(L_healthy, seurat_meta_filtered_no_thymocytes_healthy$organ_simplified)$matrix
level1_raw <- mean_loading_by_group(L_healthy, seurat_meta_filtered_no_thymocytes_healthy$annotation_level1)$matrix
tissue_active <- rowSums(organ_raw >= raw_mean_cutoff) > 0L
organ_AUC_positive <- sweep(
t(sapply(rownames(organ_AUC), function(cat) {
colMeans(L_healthy[seurat_meta_filtered_no_thymocytes_healthy$organ_simplified == cat, , drop = FALSE], na.rm = TRUE)
})),
2, overall_mean, "-"
) > 0
tissue_specific <- rownames(organ_raw) %in%
colnames(organ_AUC)[colSums((organ_AUC > auc_cutoff) & organ_AUC_positive) > 0L]
selected <- tissue_active | tissue_specific
tissue_associated_gps <- rownames(organ_raw)[selected]
expected_gps <- paste0("GP", c(
1, 3, 4, 6, 8, 9, 11, 22, 23, 25, 26, 29, 30, 32, 35, 37, 41, 43, 49, 51, 58,
62, 63, 72, 80, 93, 100, 166, 170, 171, 174, 177
))
stopifnot(
setequal(rownames(organ_raw)[tissue_specific], gps_of_interest),
sum(tissue_active) == 31L,
sum(tissue_specific) == 7L,
identical(tissue_associated_gps, expected_gps),
last_row_gp %in% expected_gps
)
organ_selected_raw <- organ_raw[selected, , drop = FALSE]
level1_selected_raw <- level1_raw[selected, , drop = FALSE]
organ_centered <- center_by_gp_mean(organ_selected_raw)
level1_centered <- center_by_gp_mean(level1_selected_raw)
# Columns follow levels(so_orig$organ_simplified) and levels(annotation_level1)
# rather than a dominant-group ordering. Five organ levels (SLO, thymus,
# prostate, pancreas, synovial fluid) have no healthy non-thymocyte cells and
# drop out; the other 18 keep their relative order. Rows are dominant-group
# blocks computed against that fixed column order, with GP37 appended last.
observed_organs <- intersect(organ_display_levels, colnames(organ_centered))
if (!setequal(observed_organs, colnames(organ_centered))) {
stop("A tissue in the reference is missing from organ_display_levels: ",
paste(setdiff(colnames(organ_centered), organ_display_levels), collapse = ", "))
}
organ_column_order <- match(observed_organs, colnames(organ_centered))
block_rows <- setdiff(rownames(organ_selected_raw), last_row_gp)
block_order <- dominant_group_order(
organ_selected_raw[block_rows, observed_organs, drop = FALSE],
fixed_column_order = seq_along(observed_organs)
)
organ_row_order <- match(
c(block_rows[block_order$row_order], last_row_gp), rownames(organ_centered)
)
level1_column_order <- match(level1_display_levels, colnames(level1_centered))
level1_row_order <- match(rownames(organ_centered)[organ_row_order], rownames(level1_centered))
stopifnot(
nrow(organ_centered) == 32L, ncol(organ_centered) == 18L, ncol(level1_centered) == 8L,
identical(rownames(organ_centered), rownames(level1_centered)),
!anyNA(organ_column_order), !anyNA(level1_column_order), !anyNA(organ_row_order),
identical(rownames(organ_centered)[organ_row_order[32]], last_row_gp),
max(abs(rowMeans(organ_centered))) < 1e-12,
max(abs(rowMeans(level1_centered))) < 1e-12
)(a) Tissue mean loading
# ============================================================
# 6a: the 32 tissue-associated GPs across the 18 tissues
# ============================================================
render_centered_heatmap(
organ_centered,
palette_for_groups(colnames(organ_centered), ZemmourLib::immgent_colors$organ_simplified, "organ_simplified"),
"tissue (organ_simplified)",
paste0(figure_path, "6a.pdf"),
organ_row_order, organ_column_order, organ_color_limit,
"32 tissue-associated GPs; organ_simplified order",
palette = heatmap_palettes$blue_red
)
Fig. 6a. Row-centered mean GP activity across 18 tissues, for the 32 tissue-associated GPs. For each GP, its mean loading across tissues is subtracted from every tissue mean, so the color says where a program is more or less active than its own average. Mean GP activity computed in samples at baseline. GP37 is shown on the last row: it is strongly mammary-gland-specific but active in few cells, so its mean loading is small at every tissue (see (c)).
(b) Lineage mean loading
# ============================================================
# 6b: the same 32 GPs across the 8 lineages
# ============================================================
# Green-white-purple at +/-0.1 rather than blue-white-red at +/-0.2: spreading a
# program over 8 lineages instead of 18 tissues gives correspondingly smaller
# deviations, and 6a's scale renders this panel almost blank. Purple is the
# positive end.
render_centered_heatmap(
level1_centered,
palette_for_groups(colnames(level1_centered), ZemmourLib::immgent_colors$level1, "annotation_level1"),
"lineage (annotation_level1)",
paste0(figure_path, "6b.pdf"),
level1_row_order, level1_column_order, level1_color_limit,
"the same 32 GPs, row order from (a)",
palette = heatmap_palettes$green_purple
)
| Version | Author | Date |
|---|---|---|
| 7fc9cfa | Ziang Zhang | 2026-09-10 |
| 5874416 | Ziang Zhang | 2026-09-10 |
| d538aa2 | Ziang Zhang | 2026-07-28 |
| 7102598 | Ziang Zhang | 2026-07-27 |
| 6c1a613 | Ziang Zhang | 2026-07-27 |
| bf7afcf | Ziang Zhang | 2026-07-27 |
| ea3ecc2 | Ziang Zhang | 2026-07-27 |
| 06552b8 | Ziang Zhang | 2026-07-14 |
| 78e3bba | Ziang Zhang | 2026-07-03 |
| 06b2461 | Ziang Zhang | 2026-07-02 |
Fig. 6b. The same 32 GPs across the 8 T cell lineages, in the row order of (a). Mean GP activity computed in samples at baseline. Note the different color scale: green-purple rather than blue-red, and -0.1 to 0.1 rather than -0.2 to 0.2, since spreading a program over 8 lineages instead of 18 tissues gives correspondingly smaller deviations.
(c) GP37+ rate in mammary gland vs. elsewhere
# ============================================================
# 6c: GP37+ rate by lineage, mammary gland vs. elsewhere
# ============================================================
plot_gp_threshold_group_activation_rate <- function(
gp, organ, threshold, loading_mat, organ_info, group_info,
group_label = "Level-2", base_size = 13, min_in_organ = 10,
group_colors = ZemmourLib::immgent_colors$level2, fallback_group_color = "grey60",
reference = c("not_in_group", "not_in_organ")
) {
reference <- match.arg(reference)
if (!gp %in% colnames(loading_mat)) stop(sprintf("GP '%s' not found in loading matrix.", gp))
if (!organ %in% organ_info) stop(sprintf("Organ '%s' not found in organ_info.", organ))
loading <- loading_mat[, gp]
keep <- !(is.na(loading) | is.na(organ_info) | is.na(group_info))
loading <- loading[keep]
organ_info <- organ_info[keep]
group_info <- as.character(group_info[keep])
in_organ <- organ_info == organ
positive <- loading > threshold
group_levels <- sort(unique(group_info))
rate_df <- data.frame(
group = group_levels,
n_in_organ = vapply(group_levels, function(l) sum(group_info == l & in_organ), integer(1)),
n_pos_in_organ = vapply(group_levels, function(l) sum(group_info == l & in_organ & positive), integer(1))
)
if (reference == "not_in_group") {
rate_df$n_ref <- vapply(group_levels, function(l) sum(group_info != l & in_organ), integer(1))
rate_df$n_pos_ref <- vapply(group_levels, function(l) sum(group_info != l & in_organ & positive), integer(1))
ref_label <- "Not in group (same organ)"
title_vs <- sprintf("%s vs. same-organ non-group", organ)
} else {
rate_df$n_ref <- vapply(group_levels, function(l) sum(group_info == l & !in_organ), integer(1))
rate_df$n_pos_ref <- vapply(group_levels, function(l) sum(group_info == l & !in_organ & positive), integer(1))
ref_label <- "Not in organ (same group)"
title_vs <- sprintf("%s vs. same-group non-organ", organ)
}
rate_df$rate_in_organ <- rate_df$n_pos_in_organ / rate_df$n_in_organ
rate_df$rate_ref <- rate_df$n_pos_ref / rate_df$n_ref
rate_df <- rate_df[rate_df$n_in_organ >= min_in_organ, , drop = FALSE]
if (nrow(rate_df) == 0) stop(sprintf("No %s type has >= %d cells in '%s'.", group_label, min_in_organ, organ))
long_df <- data.frame(
group = rep(rate_df$group, 2),
type = factor(rep(c("In organ", ref_label), each = nrow(rate_df)), levels = c("In organ", ref_label)),
rate = c(rate_df$rate_in_organ, rate_df$rate_ref)
)
level_order <- rate_df$group[order(rate_df$rate_in_organ, decreasing = TRUE)]
long_df$group <- factor(long_df$group, levels = level_order)
fill_values <- group_colors[as.character(level_order)]
missing_colors <- is.na(fill_values)
if (any(missing_colors)) {
fill_values[missing_colors] <- fallback_group_color
warning(sprintf(
"%s annotations missing from group_colors and colored %s: %s",
group_label, fallback_group_color, paste(level_order[missing_colors], collapse = ", ")
))
}
alpha_vals <- c(1, 0.35)
names(alpha_vals) <- c("In organ", ref_label)
ggplot(long_df, aes(x = group, y = rate, fill = group, alpha = type)) +
geom_col(position = position_dodge(width = 0.8), width = 0.75, color = "grey35", linewidth = 0.15) +
scale_fill_manual(values = fill_values, guide = "none") +
scale_alpha_manual(values = alpha_vals, guide = guide_legend(override.aes = list(fill = "grey40"))) +
labs(
x = sprintf("%s annotation", group_label),
y = sprintf("Proportion of cells with %s > %.3g", gp, threshold),
alpha = NULL,
title = sprintf("%s+ rate by %s: %s", gp, group_label, title_vs),
subtitle = sprintf("threshold = %.3g; %s types with < %d cells in %s dropped", threshold, group_label, min_in_organ, organ)
) +
theme_minimal(base_size = base_size) +
theme(axis.text.x = element_text(angle = 45, hjust = 1), legend.position = "top")
}
p_6c <- plot_gp_threshold_group_activation_rate(
gp = "GP37",
organ = "mammary gland",
threshold = organ_AUC_list$threshold["mammary gland", "GP37"],
min_in_organ = 100,
loading_mat = L_pm_filtered[rownames(seurat_meta_filtered_no_thymocytes_healthy), ],
organ_info = seurat_meta_filtered_no_thymocytes_healthy$organ_simplified,
group_info = seurat_meta_filtered_no_thymocytes_healthy$annotation_level1,
group_label = "Level-1",
group_colors = ZemmourLib::immgent_colors$level1,
reference = "not_in_organ"
)
ggsave(filename = paste0(figure_path, "6c.pdf"), plot = p_6c, width = 8, height = 5, dpi = 300)
Fig. 6c. Proportion of GP37-active cells in each lineage in the mammary gland compared with all other organs (faded color bar).
(d) Max AUC: organ vs. cluster
# ============================================================
# 6d prep: Max AUC Organ vs Level-2
# ============================================================
level_2_AUC <- level_2_AUC_list$auc
level_2_small_count <- table(seurat_meta_filtered_no_thymocytes_healthy$annotation_level2)
level_2_small_count <- names(level_2_small_count[level_2_small_count < 100])
level_2_AUC <- level_2_AUC[!rownames(level_2_AUC) %in% level_2_small_count, ]
level_2_cat_mean <- t(sapply(rownames(level_2_AUC), function(cat) {
idx <- seurat_meta_filtered_no_thymocytes_healthy$annotation_level2 == cat
colMeans(L_healthy[idx, , drop = FALSE], na.rm = TRUE)
}))
level_2_AUC_positive <- sweep(level_2_cat_mean, 2, overall_mean, "-") > 0
# 6d/6e reuse `organ_AUC_max_name`, but recomputed against the Level-2
# category-count filter.
organ_AUC_masked_l2 <- organ_AUC
organ_AUC_positive_l2 <- sweep(
t(sapply(rownames(organ_AUC), function(cat) {
idx <- seurat_meta_filtered_no_thymocytes_healthy$organ_simplified == cat
colMeans(L_healthy[idx, , drop = FALSE], na.rm = TRUE)
})),
2, overall_mean, "-"
) > 0
organ_AUC_masked_l2[!organ_AUC_positive_l2] <- NA
organ_AUC_max <- apply(organ_AUC_masked_l2, 2, max, na.rm = TRUE)
organ_AUC_max_name <- apply(organ_AUC_masked_l2, 2, function(x) rownames(organ_AUC_masked_l2)[which.max(x)])
# 6d's own max-AUC table, over the Level-2 categories.
level_2_AUC_masked <- level_2_AUC
level_2_AUC_masked[!level_2_AUC_positive] <- NA
level_2_AUC_max <- apply(level_2_AUC_masked, 2, max, na.rm = TRUE)
level_2_AUC_max_name <- apply(level_2_AUC_masked, 2, function(x) {
rownames(level_2_AUC_masked)[which.max(x)]
})
o_l2 <- order(level_2_AUC_max, decreasing = TRUE)
table_level_2_AUC <- data.frame(
Factor = colnames(level_2_AUC)[o_l2],
Max_AUC = level_2_AUC_max[o_l2],
Annotation = level_2_AUC_max_name[o_l2]
)
df_l2 <- data.frame(
Factor = table_level_2_AUC$Factor,
annotation_Level2 = table_level_2_AUC$Annotation,
annotation_Organ = organ_AUC_max_name[match(table_level_2_AUC$Factor, names(organ_AUC_max))],
Max_AUC_Organ = organ_AUC_max[match(table_level_2_AUC$Factor, names(organ_AUC_max))],
Max_AUC_Level2 = table_level_2_AUC$Max_AUC
) %>%
mutate(residual = Max_AUC_Level2 - Max_AUC_Organ, abs_res = abs(residual))
# ============================================================
# 6d: Max AUC Organ vs Level-2, 7 organ-specific GPs (red) vs.
# contrasting cluster-specific GPs (blue) highlighted
# ============================================================
seven_gp_df <- df_l2 |>
dplyr::filter(Factor %in% gps_of_interest) |>
dplyr::mutate(label_text = sapply(Factor, top_cats_label, auc_matrix = level_2_AUC, positive_mask = level_2_AUC_positive, threshold = 0.9, n = 3))
top_left_gps <- c("GP14", "GP36", "GP16", "GP151", "GP21", "GP122", "GP2", "GP171", "GP5", "GP13")
top_left_df <- df_l2 |>
dplyr::filter(Factor %in% top_left_gps) |>
dplyr::mutate(label_text = sapply(Factor, top_cats_label, auc_matrix = level_2_AUC, positive_mask = level_2_AUC_positive, threshold = 0.9, n = 3))
p_6d <- ggplot(df_l2, aes(Max_AUC_Organ, Max_AUC_Level2)) +
geom_point(alpha = 0.2, size = 1.5, color = "grey60") +
geom_point(data = top_left_df, color = "#1f78b4", size = 2.2, alpha = 0.9) +
geom_text_repel(
seed = 42,
data = top_left_df, aes(label = label_text), color = "#1f78b4", lineheight = 0.85, size = 2.5,
direction = "y", nudge_x = -0.1, segment.color = "#1f78b4",
arrow = arrow(length = unit(0.008, "npc"), type = "closed", angle = 20),
force = 4, force_pull = 0.05, box.padding = 0.5, point.padding = 0.15,
max.time = 10, max.iter = 2e4, max.overlaps = 30, min.segment.length = 0.01, segment.alpha = 0.7
) +
geom_point(data = seven_gp_df, color = "#e31a1c", size = 2.2, alpha = 0.9) +
geom_text_repel(
seed = 42,
data = seven_gp_df, aes(label = label_text), color = "#e31a1c", size = 2.5, lineheight = 0.85,
direction = "y", nudge_x = 0.18, xlim = c(1.0, NA), segment.color = "#e31a1c",
arrow = arrow(length = unit(0.008, "npc"), type = "closed", angle = 20),
force = 6, force_pull = 0.02, box.padding = 0.6, point.padding = 0.15,
max.time = 10, max.iter = 2e4, max.overlaps = 30, min.segment.length = 0.01, segment.alpha = 0.7
) +
geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "black") +
coord_cartesian(xlim = c(0.46, 1.04), ylim = c(0.5, 1.02), expand = FALSE, clip = "off") +
labs(x = "Max AUC (Organ Simplified)", y = "Max AUC (Level-2)", title = "Max AUC: Organ vs Level-2 - organ-specific GPs") +
theme_minimal(base_size = 13) +
theme(plot.margin = margin(10, 80, 10, 80))
ggsave(filename = paste0(figure_path, "6d.pdf"), plot = p_6d, width = 8, height = 8, dpi = 300)
Fig. 6d. Scatterplot showing each GP’s prediction (AUC) of organ of origin (x-axis) versus level 2 cluster (y-axis). The seven organ-specific GPs are highlighted in red, and a contrasting set of cluster-specific GPs (high cluster AUC, low organ AUC) in blue.
(e) Organ, GP, and cluster alluvial diagram
# ============================================================
# 6e: alluvial, organ -> GP -> Level-2, for GP+ cells of the
# 7 organ-specific GPs
# ============================================================
best_organ_per_gp <- organ_AUC_max_name[gps_of_interest]
gp_thresholds <- mapply(function(gp, organ) organ_AUC_list$threshold[organ, gp], gps_of_interest, best_organ_per_gp)
names(gp_thresholds) <- gps_of_interest
n_cap_gp <- 300
set.seed(42)
alluvial_rows <- lapply(gps_of_interest, function(gp) {
positive_idx <- L_healthy[, gp] > gp_thresholds[gp]
meta_pos <- seurat_meta_filtered_no_thymocytes_healthy[positive_idx, ]
d <- data.frame(gp_program = gp, organ = meta_pos$organ_simplified, level2 = meta_pos$annotation_level2, stringsAsFactors = FALSE)
if (nrow(d) > n_cap_gp) d <- dplyr::slice_sample(d, n = n_cap_gp)
d
})
count_df <- do.call(rbind, alluvial_rows) |>
dplyr::count(organ, gp_program, level2, name = "n") |>
dplyr::filter(!is.na(organ), !is.na(level2), n >= 5)
organ_order <- count_df |> dplyr::summarise(total = sum(n), .by = organ) |> dplyr::arrange(dplyr::desc(total)) |> dplyr::pull(organ)
level2_order <- count_df |> dplyr::summarise(total = sum(n), .by = level2) |> dplyr::arrange(dplyr::desc(total)) |> dplyr::pull(level2)
count_df <- count_df |>
dplyr::mutate(
organ = factor(organ, levels = rev(organ_order)),
gp_program = factor(gp_program, levels = rev(gps_of_interest)),
level2 = factor(level2, levels = rev(level2_order))
)
gp_colors <- ZemmourLib::immgent_colors$organ_simplified[unname(best_organ_per_gp)]
gp_colors[is.na(gp_colors)] <- "grey60"
names(gp_colors) <- gps_of_interest
p_6e <- ggplot(count_df, aes(axis1 = organ, axis2 = gp_program, axis3 = level2, y = n)) +
ggalluvial::geom_alluvium(aes(fill = gp_program), width = 1 / 4, alpha = 0.6, knot.pos = 0.4) +
ggalluvial::geom_stratum(width = 1 / 4, fill = "grey92", color = "grey50", linewidth = 0.3) +
ggplot2::geom_text(stat = ggalluvial::StatStratum, aes(label = after_stat(stratum)), size = 3, angle = 90) +
scale_fill_manual(values = gp_colors, guide = "none") +
scale_x_discrete(limits = c("Organ", "GP", "Level-2"), expand = c(0.12, 0.12)) +
labs(y = "Number of GP+ cells", title = "GP+ cells: organ origin and cell type") +
theme_minimal(base_size = 12) +
theme(panel.grid = element_blank(), axis.text.y = element_blank(), axis.ticks = element_blank()) +
coord_flip()
ggsave(filename = paste0(figure_path, "6e.pdf"), plot = p_6e, width = 20, height = 10, dpi = 300)
Fig. 6e. Alluvial plot showing how tissue-specific GP activity is distributed across clusters. For each organ, GP-active cells are traced to their cluster annotation. Flows are colored by GP, and width is proportional to the number of cells.
sessionInfo()R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.6.1
Matrix products: default
BLAS: /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.1
locale:
[1] en_CA/en_CA/en_CA/C/en_CA/en_CA
time zone: America/Chicago
tzcode source: internal
attached base packages:
[1] stats graphics grDevices utils datasets methods base
loaded via a namespace (and not attached):
[1] vctrs_0.7.3 cli_3.6.6 knitr_1.50 rlang_1.2.0
[5] xfun_0.55 stringi_1.8.9 otel_0.2.0 promises_1.5.0
[9] jsonlite_2.0.0 workflowr_1.7.2 glue_1.8.1 rprojroot_2.1.1
[13] git2r_0.36.2 htmltools_0.5.9 httpuv_1.6.16 sass_0.4.10
[17] rmarkdown_2.30 evaluate_1.0.5 jquerylib_0.1.4 tibble_3.3.0
[21] fastmap_1.2.0 yaml_2.3.12 lifecycle_1.0.5 whisker_0.4.1
[25] stringr_1.6.0 compiler_4.5.1 fs_1.6.6 Rcpp_1.1.1-1.1
[29] pkgconfig_2.0.3 later_1.4.4 digest_0.6.39 R6_2.6.1
[33] pillar_1.11.1 magrittr_2.0.5 bslib_0.9.0 tools_4.5.1
[37] cachem_1.1.0
