Figure S4 is produced by script/FigureS4.R. The page provides raw, within-GP-normalized, and row-centered alternatives as clickable tabs for each panel; no display choice has been finalized. The code is shown for reference and is not re-executed on this page. All panels use healthy non-thymocyte cells (condition_broad == "healthy" and annotation_level1 != "thymocyte").

Setup, filtering, and ordering

# Figure S4. Healthy non-thymocyte GP mean-loading heatmaps.
#

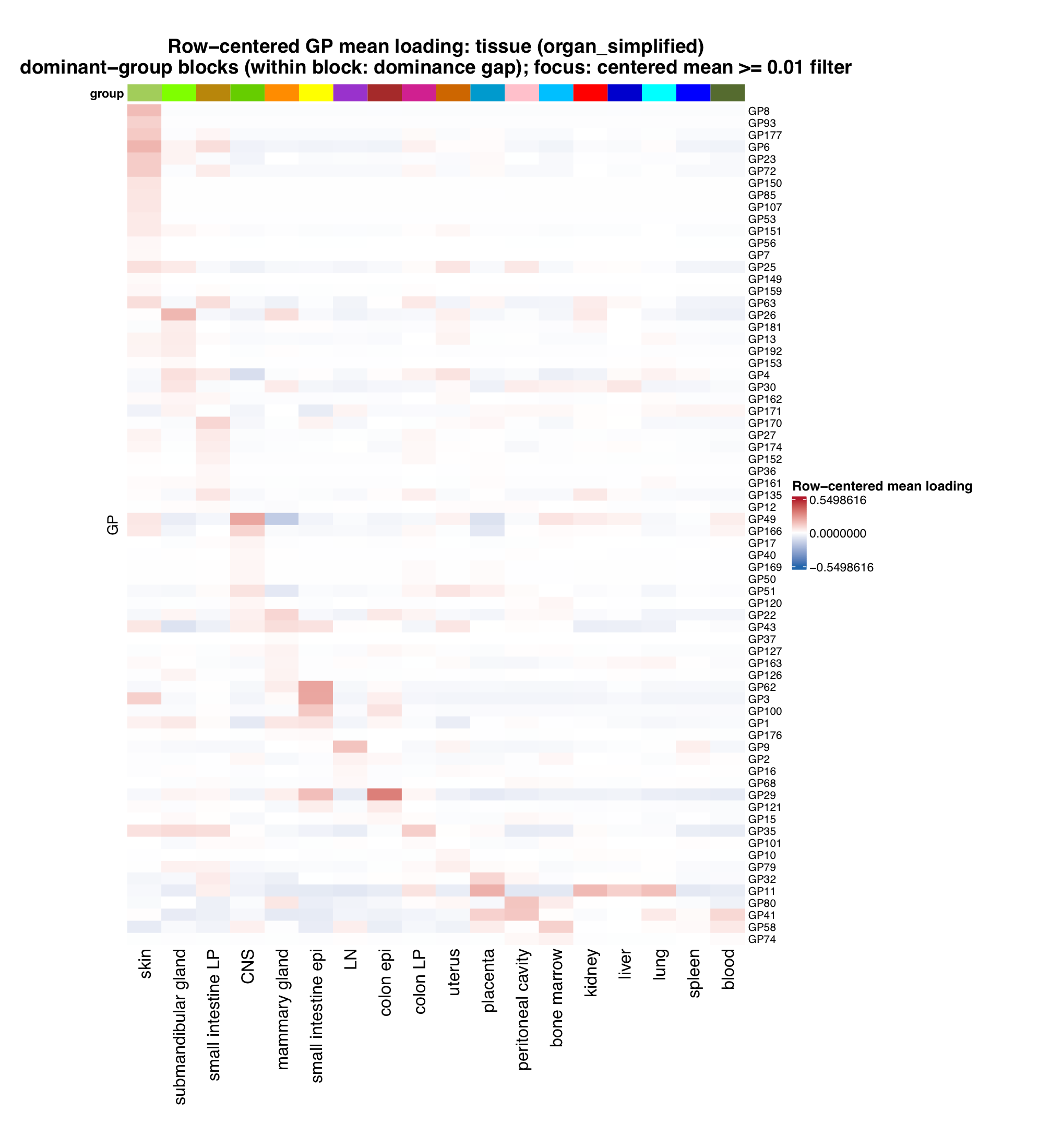

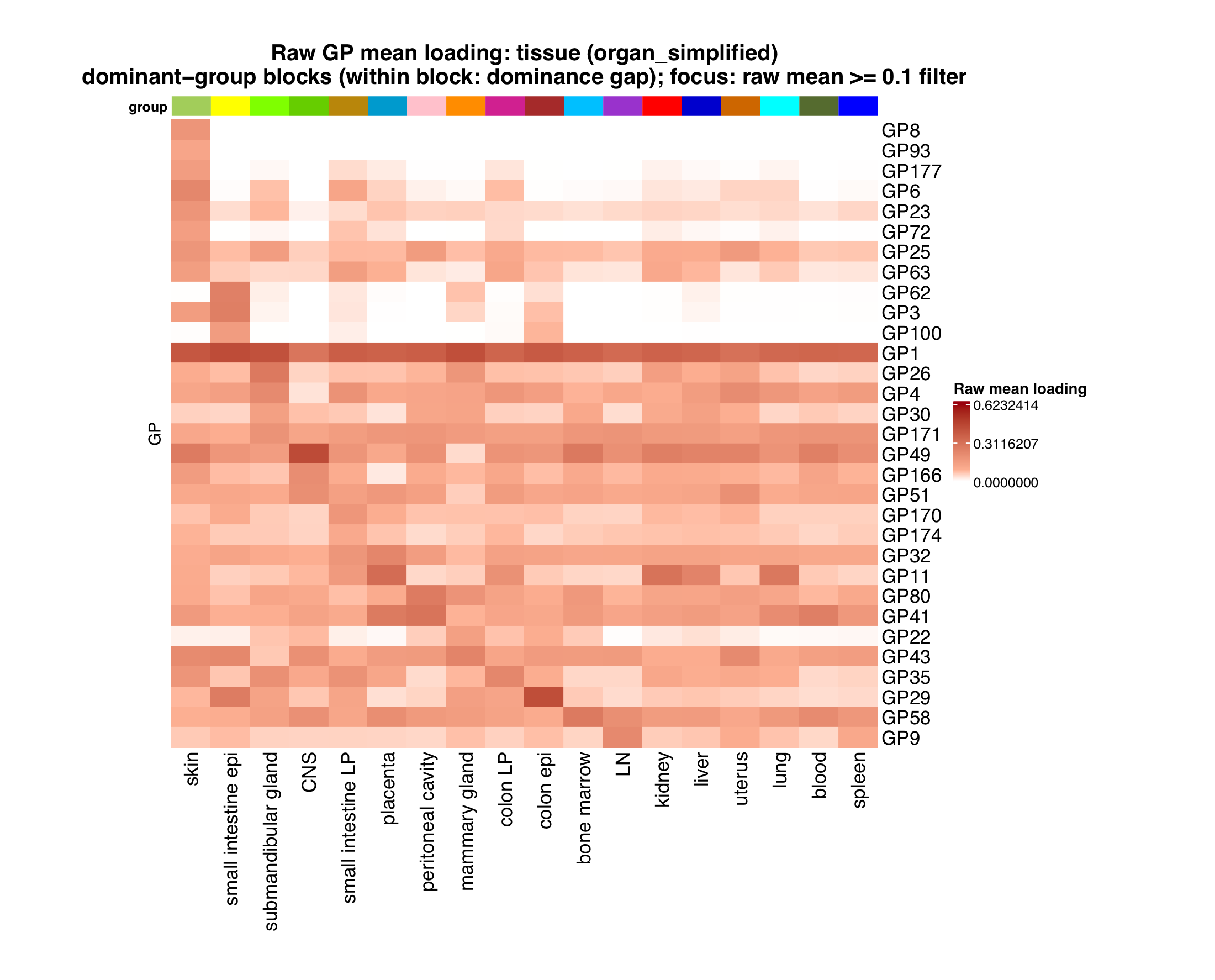

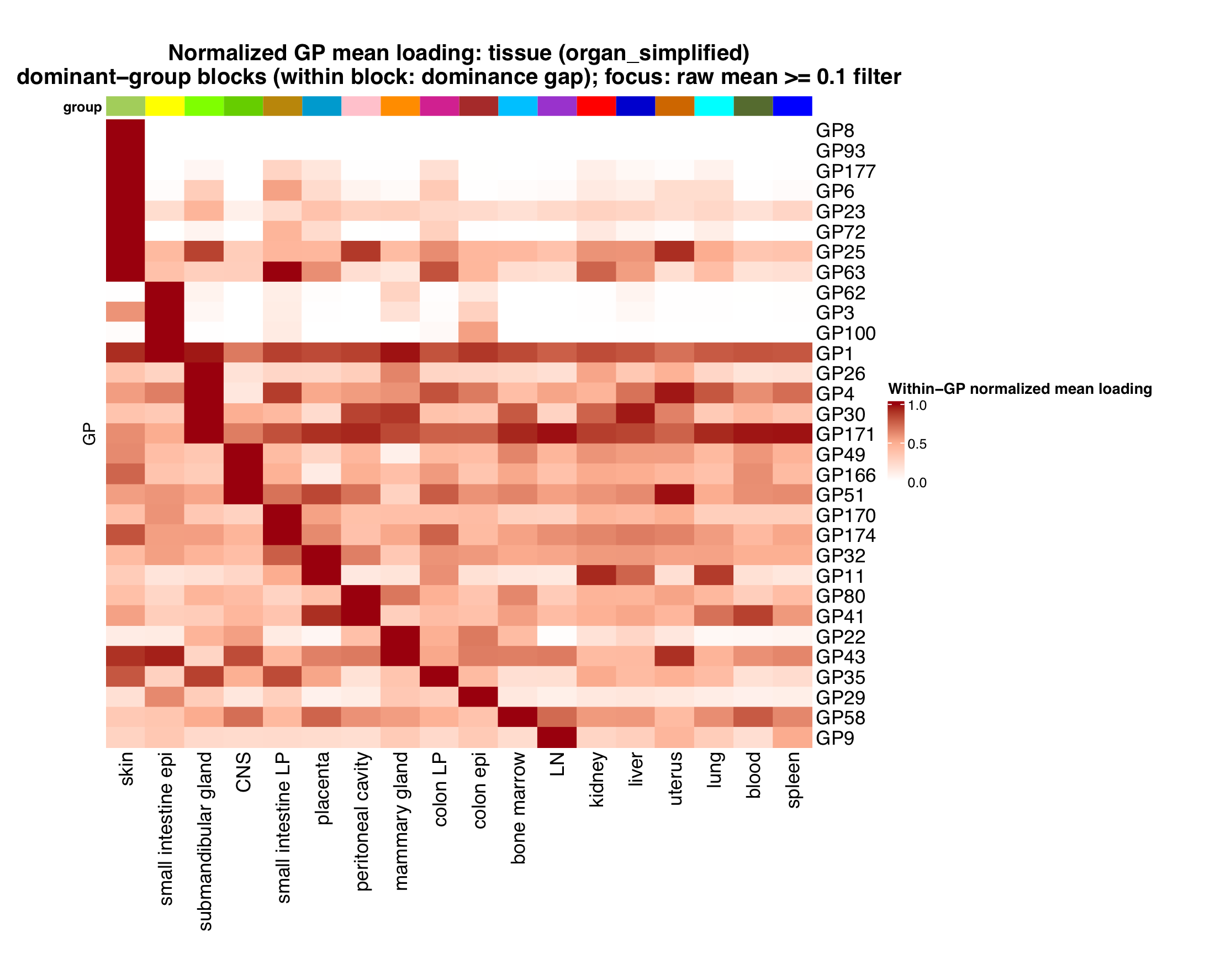

# Panel S4a: tissue (organ_simplified).

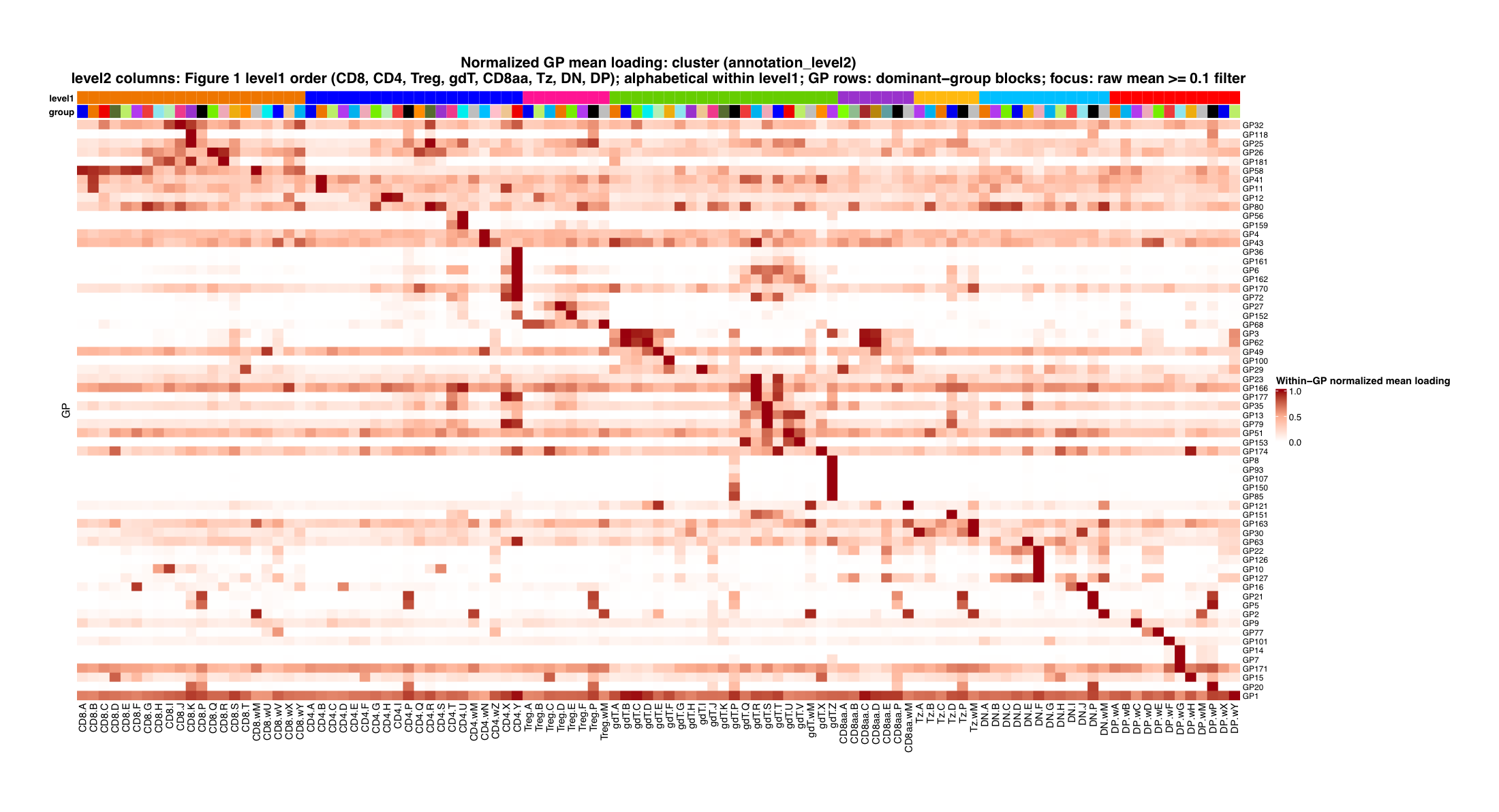

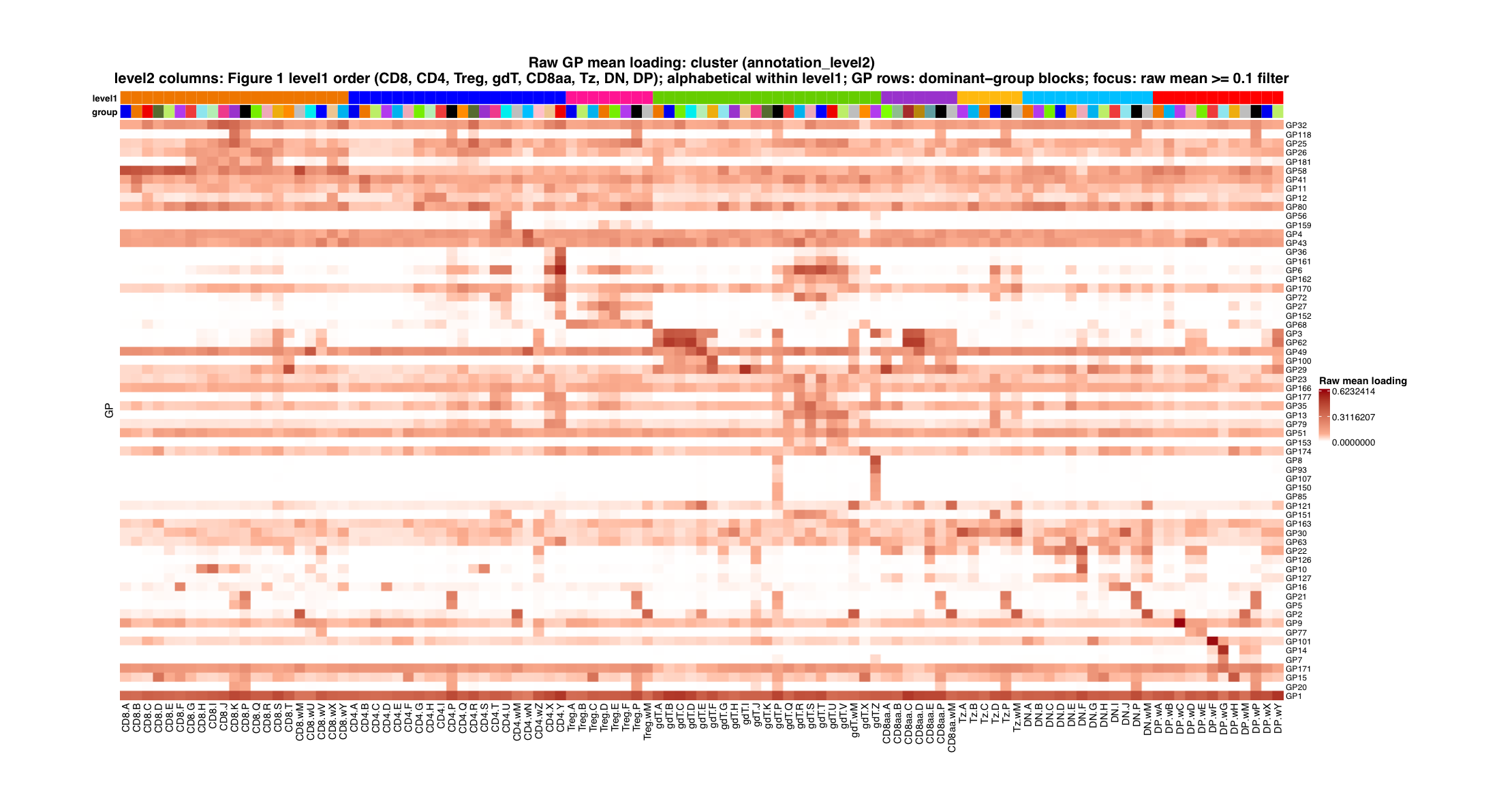

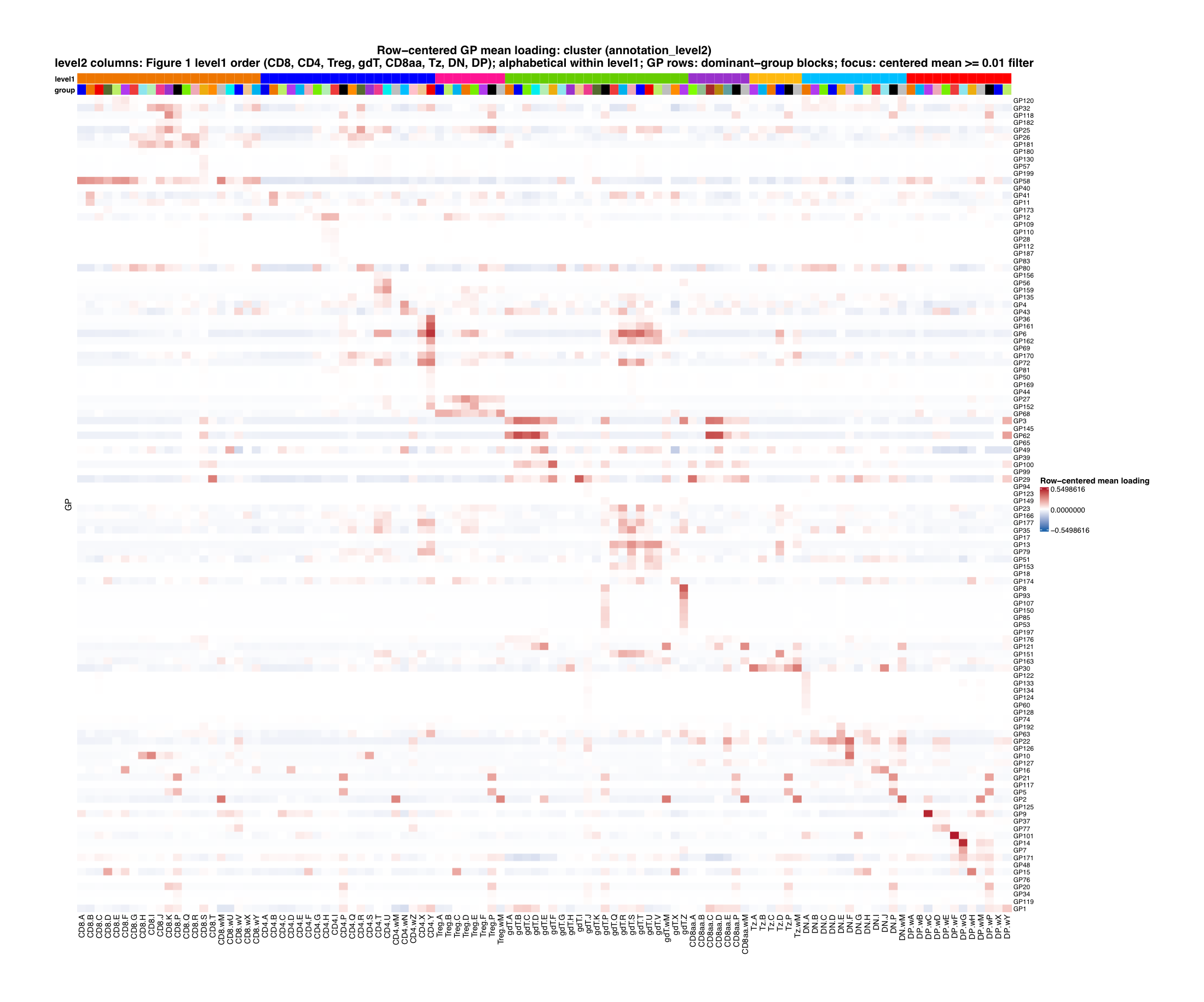

# Panel S4b: cluster (annotation_level2).
#
# Raw and within-GP normalized alternatives use the same raw-mean-filtered
# GP/group set. The row-centered alternatives are independently filtered from
# their full centered matrices using positive centered mean loading >= 0.01.
# Level2 columns follow Figure 1's level1 order, with level2 labels
# alphabetized within each level1 block.

suppressPackageStartupMessages({
  library(ComplexHeatmap)
  library(circlize)
  library(grid)
  library(ZemmourLib)
})

if (!file.exists("code/R/setup_data.R")) {
  stop("Run this script from the immgenT-GP-analysis repository root.")
}

source("code/R/setup_data.R")

figure_path <- "figures/generated/Figure S4"
dir.create(figure_path, recursive = TRUE, showWarnings = FALSE)

mean_loading_by_group <- function(L_mat, labels) {
  if (length(labels) != nrow(L_mat) || anyNA(labels) || any(labels == "")) {
    stop("Group labels must be present for every retained cell.")
  }

  labels <- droplevels(factor(as.character(labels)))
  group_sums <- rowsum(L_mat, group = labels, reorder = TRUE)
  group_counts <- as.integer(table(labels)[rownames(group_sums)])

  list(
    matrix = t(sweep(group_sums, 1L, group_counts, "/")),
    counts = data.frame(group = rownames(group_sums), n_cells = group_counts)
  )
}

normalize_by_gp_max <- function(mean_matrix) {
  row_max <- apply(mean_matrix, 1L, max)
  if (any(!is.finite(row_max)) || any(row_max <= 0)) {
    stop("Every GP must have a finite positive maximum mean loading.")
  }
  sweep(mean_matrix, 1L, row_max, "/")
}

center_by_gp_mean <- function(mean_matrix) {
  sweep(mean_matrix, 1L, rowMeans(mean_matrix), "-")
}

filter_raw_mean_matrix <- function(raw_matrix, raw_mean_cutoff) {
  keep_gp <- rowSums(raw_matrix >= raw_mean_cutoff) > 0L
  filtered_raw <- raw_matrix[keep_gp, , drop = FALSE]
  keep_group <- colSums(filtered_raw >= raw_mean_cutoff) > 0L
  filtered_raw <- filtered_raw[, keep_group, drop = FALSE]

  if (nrow(filtered_raw) == 0L || ncol(filtered_raw) < 2L) {
    stop("The raw-mean filter must retain at least one GP and two groups.")
  }
  filtered_raw
}

filter_centered_mean_matrix <- function(centered_matrix, centered_mean_cutoff) {
  supported_entries <- centered_matrix >= centered_mean_cutoff
  keep_gp <- rowSums(supported_entries) > 0L
  keep_group <- colSums(supported_entries[keep_gp, , drop = FALSE]) > 0L
  filtered_centered <- centered_matrix[keep_gp, keep_group, drop = FALSE]

  if (nrow(filtered_centered) == 0L || ncol(filtered_centered) < 2L) {
    stop("The centered-mean filter must retain at least one GP and two groups.")
  }
  filtered_centered
}

dominant_group_order <- function(raw_mean_matrix, fixed_column_order = NULL) {
  gp_number <- suppressWarnings(as.integer(sub("^GP", "", rownames(raw_mean_matrix))))
  if (ncol(raw_mean_matrix) < 2L || anyNA(gp_number)) {
    stop("Dominant-group ordering requires at least two groups and GP<number> row names.")
  }

  dominant_index <- max.col(raw_mean_matrix, ties.method = "first")
  dominant_mean <- raw_mean_matrix[cbind(seq_len(nrow(raw_mean_matrix)), dominant_index)]
  second_mean <- apply(raw_mean_matrix, 1L, function(values) sort(values, decreasing = TRUE)[2L])
  dominance_gap <- dominant_mean - second_mean

  if (is.null(fixed_column_order)) {
    dominant_gp_count <- tabulate(dominant_index, nbins = ncol(raw_mean_matrix))
    column_order <- order(-dominant_gp_count, -colMeans(raw_mean_matrix), colnames(raw_mean_matrix))
  } else {
    if (
      length(fixed_column_order) != ncol(raw_mean_matrix) ||
      !identical(sort(fixed_column_order), seq_len(ncol(raw_mean_matrix)))
    ) {
      stop("The fixed column order must be a complete permutation.")
    }
    column_order <- fixed_column_order
  }

  dominant_group_position <- match(dominant_index, column_order)
  row_order <- order(dominant_group_position, -dominance_gap, -dominant_mean, gp_number)

  if (any(diff(dominant_group_position[row_order]) < 0L)) {
    stop("Dominant-group blocks are not monotone after ordering.")
  }

  list(row_order = row_order, column_order = column_order)
}

level2_to_level1_map <- function(meta, groups, level1_order) {
  mapping <- unique(data.frame(
    group = as.character(meta$annotation_level2),
    level1 = as.character(meta$annotation_level1),
    stringsAsFactors = FALSE
  ))
  if (anyDuplicated(mapping$group)) {
    stop("Each annotation_level2 label must map to exactly one annotation_level1 label.")
  }

  group_level1 <- mapping$level1[match(groups, mapping$group)]
  names(group_level1) <- groups
  if (anyNA(group_level1) || any(!group_level1 %in% level1_order)) {
    stop("Every displayed level2 group must map to the Figure 1 level1 order.")
  }
  group_level1
}

level2_column_order <- function(groups, group_level1, level1_order) {
  order(match(group_level1[groups], level1_order), groups)
}

palette_for_groups <- function(groups, palette, label) {
  missing <- setdiff(groups, names(palette))
  if (length(missing) > 0L) {
    stop("The canonical ", label, " palette lacks: ", paste(missing, collapse = ", "))
  }
  palette[groups]
}

render_heatmap <- function(
    matrix,
    group_palette,
    group_label,
    scale_label,
    filename,
    row_order,
    column_order,
    raw_mean_cutoff,
    raw_limit = NULL,
    centered_limit = NULL,
    group_level1 = NULL,
    level1_palette = NULL,
    order_description = NULL
) {
  if (
    length(row_order) != nrow(matrix) || length(column_order) != ncol(matrix) ||
    !identical(sort(row_order), seq_len(nrow(matrix))) ||
    !identical(sort(column_order), seq_len(ncol(matrix)))
  ) {
    stop("Fixed row and column orders must be complete permutations.")
  }

  if (identical(scale_label, "Raw mean loading")) {
    color_fun <- circlize::colorRamp2(
      c(0, raw_limit * 0.15, raw_limit),
      c("#FFFFFF", "#FCAE91", "#99000D")
    )
    legend_at <- c(0, raw_limit / 2, raw_limit)
  } else if (identical(scale_label, "Within-GP normalized mean loading")) {
    color_fun <- circlize::colorRamp2(
      c(0, 0.5, 1),
      c("#FFFFFF", "#FCAE91", "#99000D")
    )
    legend_at <- c(0, 0.5, 1)
  } else if (identical(scale_label, "Row-centered mean loading")) {
    color_fun <- circlize::colorRamp2(
      c(-centered_limit, 0, centered_limit),
      c("#2166AC", "#FFFFFF", "#B2182B")
    )
    legend_at <- c(-centered_limit, 0, centered_limit)
  } else {
    stop("Unsupported scale label: ", scale_label)
  }

  heatmap_width_mm <- max(180, ncol(matrix) * 4.2)
  heatmap_height_mm <- max(160, nrow(matrix) * 3.5)
  pdf_width_in <- (heatmap_width_mm + 130) / 25.4
  pdf_height_in <- (heatmap_height_mm + 90) / 25.4
  cell_width_mm <- heatmap_width_mm / ncol(matrix)
  cell_height_mm <- heatmap_height_mm / nrow(matrix)
  row_label_fontsize <- min(14, max(9, floor(cell_height_mm * 2.8)))
  column_label_fontsize <- min(14, max(9, floor(cell_width_mm * 2.8)))
  if (is.null(order_description)) {
    order_description <- paste0(
      "dominant-group blocks (within block: dominance gap); focus: raw mean >= ",
      raw_mean_cutoff, " filter"
    )
  }

  if (is.null(group_level1)) {
    column_annotation <- ComplexHeatmap::HeatmapAnnotation(
      group = factor(colnames(matrix), levels = colnames(matrix)),
      col = list(group = group_palette),
      show_legend = FALSE,
      annotation_name_side = "left",
      annotation_name_gp = grid::gpar(fontsize = 10, fontface = "bold"),
      annotation_height = grid::unit(4, "mm")
    )
  } else {
    group_level1 <- group_level1[colnames(matrix)]
    if (anyNA(group_level1) || is.null(level1_palette)) {
      stop("Level2 heatmaps require complete level1 annotations and a palette.")
    }
    column_annotation <- ComplexHeatmap::HeatmapAnnotation(
      level1 = factor(group_level1, levels = names(level1_palette)),
      group = factor(colnames(matrix), levels = colnames(matrix)),
      col = list(level1 = level1_palette, group = group_palette),
      show_legend = FALSE,
      annotation_name_side = "left",
      annotation_name_gp = grid::gpar(fontsize = 10, fontface = "bold"),
      annotation_height = grid::unit(c(4, 4), "mm")
    )
  }

  short_scale_label <- switch(
    scale_label,
    "Raw mean loading" = "Raw GP mean loading",
    "Within-GP normalized mean loading" = "Normalized GP mean loading",
    "Row-centered mean loading" = "Row-centered GP mean loading"
  )

  heatmap <- ComplexHeatmap::Heatmap(
    matrix,
    name = scale_label,
    col = color_fun,
    cluster_rows = FALSE,
    cluster_columns = FALSE,
    row_order = row_order,
    column_order = column_order,
    top_annotation = column_annotation,
    column_title = paste0(short_scale_label, ": ", group_label, "\n", order_description),
    column_title_gp = grid::gpar(fontsize = 16, fontface = "bold"),
    row_title = "GP",
    row_title_gp = grid::gpar(fontsize = 12),
    row_names_gp = grid::gpar(fontsize = row_label_fontsize),
    column_names_gp = grid::gpar(fontsize = column_label_fontsize),
    column_names_rot = 90,
    heatmap_legend_param = list(
      title = scale_label,
      at = legend_at,
      labels = format(legend_at, trim = TRUE, scientific = FALSE),
      title_gp = grid::gpar(fontsize = 11, fontface = "bold"),
      labels_gp = grid::gpar(fontsize = 10)
    ),
    width = grid::unit(heatmap_width_mm, "mm"),
    height = grid::unit(heatmap_height_mm, "mm"),
    use_raster = TRUE,
    raster_quality = 2
  )

  grDevices::pdf(filename, width = pdf_width_in, height = pdf_height_in)
  ComplexHeatmap::draw(
    heatmap,
    heatmap_legend_side = "right",
    padding = grid::unit(c(8, 8, 8, 8), "mm")
  )
  grDevices::dev.off()
}

gp_data <- load_gp_data()
meta <- gp_data$seurat_meta_filtered
healthy_nonthymus <- meta$condition_broad == "healthy" & meta$annotation_level1 != "thymocyte"

if (anyNA(healthy_nonthymus)) {
  stop("Healthy non-thymocyte selection contains missing values.")
}

L_reference <- gp_data$L_pm_filtered[healthy_nonthymus, , drop = FALSE]
meta_reference <- meta[healthy_nonthymus, , drop = FALSE]
if (ncol(L_reference) != 200L || nrow(L_reference) != nrow(meta_reference) || anyNA(L_reference)) {
  stop("The healthy non-thymocyte loading matrix has unexpected dimensions or missing values.")
}

raw_mean_cutoff <- 0.1
centered_mean_cutoff <- 0.01
level1_order <- c("CD8", "CD4", "Treg", "gdT", "CD8aa", "Tz", "DN", "DP")
organ_result <- mean_loading_by_group(L_reference, meta_reference$organ_simplified)
level2_result <- mean_loading_by_group(L_reference, meta_reference$annotation_level2)
organ_raw <- organ_result$matrix
level2_raw <- level2_result$matrix
organ_normalized <- normalize_by_gp_max(organ_raw)
level2_normalized <- normalize_by_gp_max(level2_raw)
organ_centered <- center_by_gp_mean(organ_raw)
level2_centered <- center_by_gp_mean(level2_raw)
raw_limit <- max(c(organ_raw, level2_raw))
centered_limit <- max(abs(c(organ_centered, level2_centered)))

organ_raw_filtered <- filter_raw_mean_matrix(organ_raw, raw_mean_cutoff)
level2_raw_filtered <- filter_raw_mean_matrix(level2_raw, raw_mean_cutoff)
organ_normalized_filtered <- organ_normalized[
  rownames(organ_raw_filtered), colnames(organ_raw_filtered), drop = FALSE
]
level2_normalized_filtered <- level2_normalized[
  rownames(level2_raw_filtered), colnames(level2_raw_filtered), drop = FALSE
]
organ_centered_filtered <- filter_centered_mean_matrix(organ_centered, centered_mean_cutoff)
level2_centered_filtered <- filter_centered_mean_matrix(level2_centered, centered_mean_cutoff)

level2_group_level1 <- level2_to_level1_map(
  meta_reference, colnames(level2_raw), level1_order
)
organ_order <- dominant_group_order(organ_raw_filtered)
level2_order <- dominant_group_order(
  level2_raw_filtered,
  level2_column_order(
    colnames(level2_raw_filtered), level2_group_level1, level1_order
  )
)
organ_centered_order <- dominant_group_order(organ_centered_filtered)
level2_centered_order <- dominant_group_order(
  level2_centered_filtered,
  level2_column_order(
    colnames(level2_centered_filtered), level2_group_level1, level1_order
  )
)
level2_order_description <- paste0(
  "level2 columns: Figure 1 level1 order (CD8, CD4, Treg, gdT, CD8aa, Tz, DN, DP); ",
  "alphabetical within level1; GP rows: dominant-group blocks; focus: raw mean >= ",
  raw_mean_cutoff, " filter"
)
organ_centered_order_description <- paste0(
  "dominant-group blocks (within block: dominance gap); focus: centered mean >= ",
  centered_mean_cutoff, " filter"
)
level2_centered_order_description <- paste0(
  "level2 columns: Figure 1 level1 order (CD8, CD4, Treg, gdT, CD8aa, Tz, DN, DP); ",
  "alphabetical within level1; GP rows: dominant-group blocks; focus: centered mean >= ",
  centered_mean_cutoff, " filter"
)

organ_centered_supported <- organ_centered_filtered >= centered_mean_cutoff
level2_centered_supported <- level2_centered_filtered >= centered_mean_cutoff

stopifnot(
  identical(dimnames(organ_raw_filtered), dimnames(organ_normalized_filtered)),
  identical(dimnames(level2_raw_filtered), dimnames(level2_normalized_filtered)),
  all(apply(organ_raw_filtered, 1L, max) >= raw_mean_cutoff),
  all(apply(level2_raw_filtered, 1L, max) >= raw_mean_cutoff),
  all(rowSums(organ_centered_supported) > 0L),
  all(rowSums(level2_centered_supported) > 0L),
  all(colSums(organ_centered_supported) > 0L),
  all(colSums(level2_centered_supported) > 0L),
  "GP37" %in% rownames(organ_centered_filtered),
  "GP37" %in% rownames(level2_centered_filtered),
  max(abs(rowMeans(organ_centered))) < 1e-12,
  max(abs(rowMeans(level2_centered))) < 1e-12
)

organ_palette <- palette_for_groups(
  colnames(organ_raw_filtered),
  ZemmourLib::immgent_colors$organ_simplified,
  "organ_simplified"
)
level2_palette <- palette_for_groups(
  colnames(level2_raw_filtered),
  ZemmourLib::immgent_colors$level2,
  "annotation_level2"
)
organ_centered_palette <- palette_for_groups(
  colnames(organ_centered_filtered),
  ZemmourLib::immgent_colors$organ_simplified,
  "organ_simplified"
)
level2_centered_palette <- palette_for_groups(
  colnames(level2_centered_filtered),
  ZemmourLib::immgent_colors$level2,
  "annotation_level2"
)
level1_palette <- ZemmourLib::immgent_colors$level1[level1_order]

(a) Tissue mean loading

The raw and normalized alternatives retain the same 31 GPs and 18 organ_simplified tissues. They use raw mean loading >= 0.1 for filtering and a dominant-group order calculated on that filtered raw matrix. The centered alternative is filtered independently after row-centering: it retains 70 GPs and all 18 tissues. Rows and columns are kept when they contain at least one centered mean loading >= 0.01.

Raw mean loading

Version Author Date
db2469b Ziang Zhang 2026-07-14
c344aaa Ziang Zhang 2026-07-13

Fig. S4a, raw alternative. Mean GP loading across healthy non-thymocyte tissues. Rows and columns follow dominant-group blocks: each GP is assigned to the tissue with its largest raw mean loading; tissues are ordered by their number of dominant GPs, and GPs within a block by dominance gap.

Within-GP normalized mean loading

Version Author Date
db2469b Ziang Zhang 2026-07-14
c344aaa Ziang Zhang 2026-07-13

Fig. S4a, normalized alternative. The same retained GPs, tissues, and dominant-group order as the raw view, with each GP divided by its largest raw tissue mean before filtering. This view emphasizes relative tissue preference.

Row-centered mean loading

Version Author Date
db2469b Ziang Zhang 2026-07-14

Fig. S4a, centered alternative. For each GP, the mean loading across tissues is subtracted from every tissue mean. Rows and columns are retained independently when they contain at least one centered mean >= 0.01, then arranged by a new dominant-group order. This cutoff retains GP37 and its mammary-gland-specific signal.

(b) Level2 mean loading

The raw and normalized alternatives retain the same 64 GPs and 107 annotation_level2 clusters using raw mean loading >= 0.1. The centered alternative is filtered independently after row-centering, retaining 112 GPs and all 107 clusters. Rows and columns are kept when they contain at least one centered mean loading >= 0.01. For every level2 view, displayed columns are fixed to the Figure 1 level1 sequence (CD8, CD4, Treg, gdT, CD8aa, Tz, DN, then DP) and are alphabetized within each level1 block. GPs are arranged into dominant-level2 blocks using the corresponding view’s retained matrix. The colored top strips show level1 and level2 annotations.

Raw mean loading

Version Author Date
db2469b Ziang Zhang 2026-07-14
c344aaa Ziang Zhang 2026-07-13

Fig. S4b, raw alternative. Mean GP loading across healthy non-thymocyte level2 clusters, with level2 columns grouped by the Figure 1 level1 order.

Within-GP normalized mean loading

Version Author Date
db2469b Ziang Zhang 2026-07-14
c344aaa Ziang Zhang 2026-07-13

Fig. S4b, normalized alternative. The same retained GPs, level2 clusters, and Figure 1 level1-first order as the raw view, with within-GP normalization applied before filtering.

Row-centered mean loading

Version Author Date
db2469b Ziang Zhang 2026-07-14

Fig. S4b, centered alternative. For each GP, the mean loading across level2 clusters is subtracted from every cluster mean. Rows and columns are retained independently when they contain at least one centered mean >= 0.01; retained level2 columns keep the Figure 1 level1-first order.

Panel rendering

render_heatmap(
  organ_raw_filtered, organ_palette, "tissue (organ_simplified)", "Raw mean loading",
  file.path(figure_path, "S4a_raw_mean_loading.pdf"),
  organ_order$row_order, organ_order$column_order, raw_mean_cutoff, raw_limit = raw_limit
)
render_heatmap(
  organ_normalized_filtered, organ_palette, "tissue (organ_simplified)",
  "Within-GP normalized mean loading",
  file.path(figure_path, "S4a_normalized_mean_loading.pdf"),
  organ_order$row_order, organ_order$column_order, raw_mean_cutoff
)
render_heatmap(
  organ_centered_filtered, organ_centered_palette, "tissue (organ_simplified)",
  "Row-centered mean loading",
  file.path(figure_path, "S4a_centered_mean_loading.pdf"),
  organ_centered_order$row_order, organ_centered_order$column_order, centered_mean_cutoff,
  centered_limit = centered_limit, order_description = organ_centered_order_description
)
render_heatmap(
  level2_raw_filtered, level2_palette, "cluster (annotation_level2)", "Raw mean loading",
  file.path(figure_path, "S4b_raw_mean_loading.pdf"),
  level2_order$row_order, level2_order$column_order, raw_mean_cutoff,
  raw_limit = raw_limit, group_level1 = level2_group_level1, level1_palette = level1_palette,
  order_description = level2_order_description
)
render_heatmap(
  level2_normalized_filtered, level2_palette, "cluster (annotation_level2)",
  "Within-GP normalized mean loading",
  file.path(figure_path, "S4b_normalized_mean_loading.pdf"),
  level2_order$row_order, level2_order$column_order, raw_mean_cutoff,
  group_level1 = level2_group_level1, level1_palette = level1_palette,
  order_description = level2_order_description
)
render_heatmap(
  level2_centered_filtered, level2_centered_palette, "cluster (annotation_level2)",
  "Row-centered mean loading",
  file.path(figure_path, "S4b_centered_mean_loading.pdf"),
  level2_centered_order$row_order, level2_centered_order$column_order, centered_mean_cutoff,
  centered_limit = centered_limit, group_level1 = level2_group_level1,
  level1_palette = level1_palette, order_description = level2_centered_order_description
)

write.csv(
  data.frame(
    panel = c("S4a", "S4b", "S4a", "S4b"),
    grouping = c("organ_simplified", "annotation_level2", "organ_simplified", "annotation_level2"),
    view = c("raw_normalized", "raw_normalized", "centered", "centered"),
    filter_basis = c(
      "raw mean", "raw mean",
      "positive centered mean", "positive centered mean"
    ),
    filter_cutoff = c(raw_mean_cutoff, raw_mean_cutoff, centered_mean_cutoff, centered_mean_cutoff),
    centered_definition = "group mean minus mean across groups for each GP",
    full_gp_count = c(nrow(organ_raw), nrow(level2_raw), nrow(organ_raw), nrow(level2_raw)),
    retained_gp_count = c(
      nrow(organ_raw_filtered), nrow(level2_raw_filtered),
      nrow(organ_centered_filtered), nrow(level2_centered_filtered)
    ),
    full_group_count = c(ncol(organ_raw), ncol(level2_raw), ncol(organ_raw), ncol(level2_raw)),
    retained_group_count = c(
      ncol(organ_raw_filtered), ncol(level2_raw_filtered),
      ncol(organ_centered_filtered), ncol(level2_centered_filtered)
    )
  ),
  file.path(figure_path, "S4_filter_summary.csv"),
  row.names = FALSE,
  quote = FALSE
)

message("Wrote Figure S4 heatmaps to ", normalizePath(figure_path))

sessionInfo()
R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.6.1

Matrix products: default
BLAS:   /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.1

locale:
[1] C.UTF-8/C.UTF-8/C.UTF-8/C/C.UTF-8/C.UTF-8

time zone: Asia/Shanghai
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

loaded via a namespace (and not attached):
 [1] vctrs_0.7.3     cli_3.6.6       knitr_1.50      rlang_1.2.0
 [5] xfun_0.55       stringi_1.8.7   otel_0.2.0      promises_1.5.0
 [9] jsonlite_2.0.0  workflowr_1.7.2 glue_1.8.1      rprojroot_2.1.1
[13] git2r_0.36.2    htmltools_0.5.9 httpuv_1.6.16   sass_0.4.10
[17] rmarkdown_2.30  tibble_3.3.0    evaluate_1.0.5  jquerylib_0.1.4
[21] fastmap_1.2.0   yaml_2.3.12     lifecycle_1.0.5 whisker_0.4.1
[25] stringr_1.6.0   compiler_4.5.1  fs_1.6.6        pkgconfig_2.0.3
[29] Rcpp_1.1.1-1.1  later_1.4.4     digest_0.6.39   R6_2.6.1
[33] pillar_1.11.1   magrittr_2.0.5  bslib_0.9.0     tools_4.5.1
[37] cachem_1.1.0
