Both panels are produced by script/FigureS5.R.
They show the same 31 GPs – the programs active across tissues – first
across the 18 tissues and then across the 8 T cell lineages, so that a
program’s tissue distribution can be read against its lineage
distribution on the same rows. The analysis uses healthy non-thymocyte
cells (condition_broad == "healthy" and
annotation_level1 != "thymocyte"). For each GP, its mean
loading across the groups shown is subtracted from every group mean, so
a row says where a program is more or less active than its own average
rather than how large its loading is. It is the tissue counterpart of Extended Data Figure 3, which shows all 200 GPs
across the level-2 clusters, and it puts the 31 programs behind Figure 5’s AUC analysis on a single pair of
axes.
Setup and the 31 tissue-active GPs
A GP is taken to be active across tissues when its raw (uncentered) mean loading reaches 0.1 in at least one of the 18 tissues; 31 of the 200 GPs pass. This is a threshold on activity, not on differential activity – the panels then show how that activity is distributed. The expected set is written out in the script, so a change in the loadings, the cell filter or the cutoff fails the run rather than quietly redrawing a different figure:
# Figure S5. The tissue-associated GPs, across tissues and across lineages.
#
# Panels produced (see analysis/FigureS5.Rmd for the caption text):

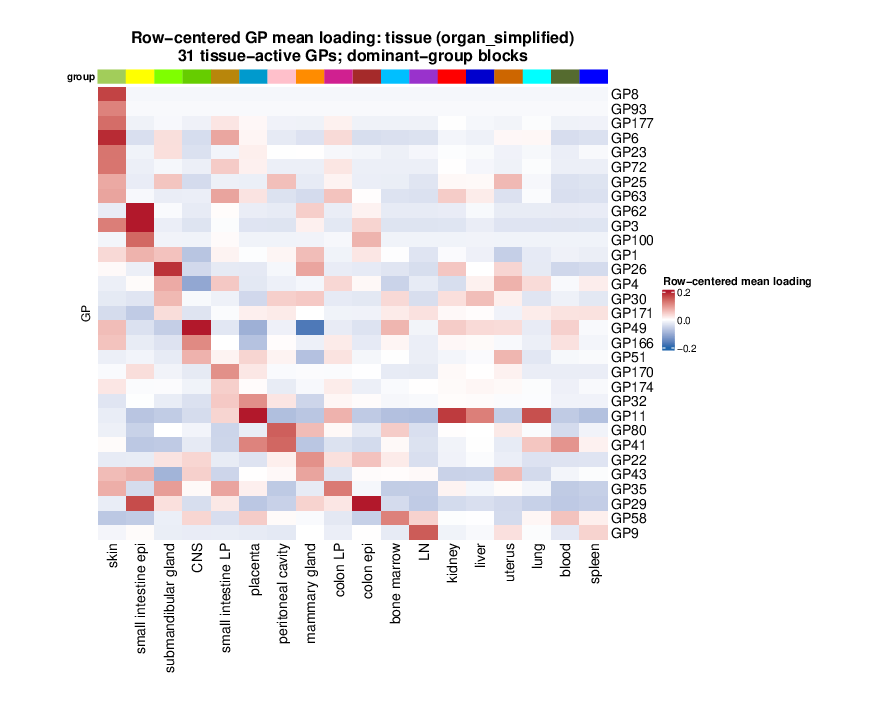

# s5a Row-centered mean GP activity across the 18 tissues, restricted to the
# 31 GPs that are active across tissues. Blue-white-red scale.

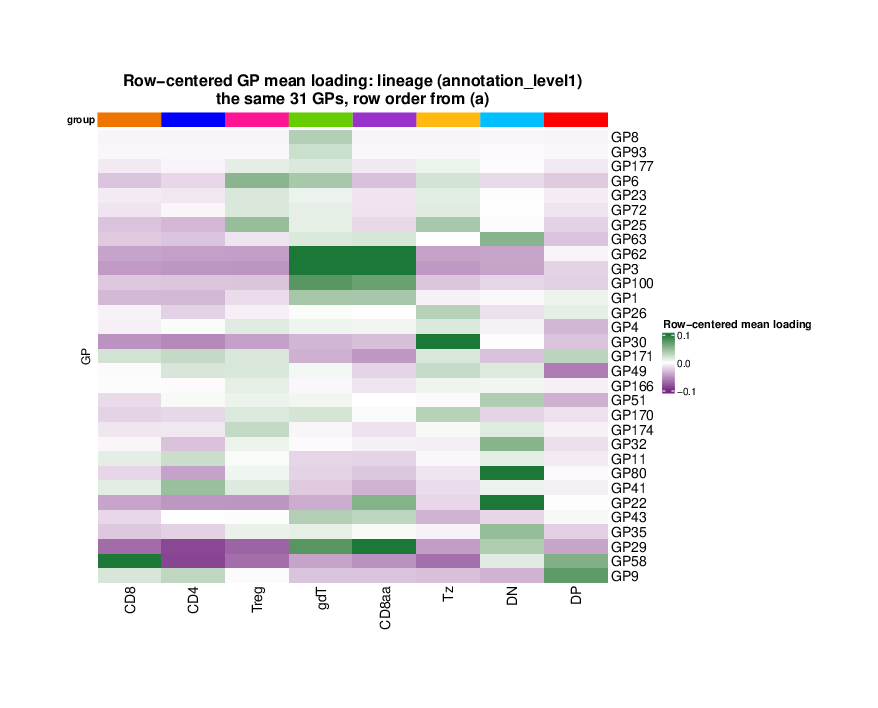

# s5b The same 31 GPs in the same row order, but across the 8 T cell
# lineages. Purple-white-green scale, so the two halves of the figure
# cannot be mistaken for each other.
#
#
# "Active across tissues" is the selection the manuscript's "31 programs active
# across tissues" refers to: a GP is kept when its *raw* (uncentered) mean
# loading reaches 0.1 in at least one of the 18 tissues. That is a threshold on
# activity, not on differential activity -- the panels then show, per GP, how
# that activity is distributed, by subtracting the GP's mean across the groups
# shown from every group mean. Each panel's centered color scale is fixed:
# [-0.2, 0.2] for (a), matching the retired 200-GP tissue heatmap it comes from,
# and the tighter [-0.1, 0.1] for (b), because spreading a program over eight
# lineages instead of eighteen tissues gives much smaller deviations and (a)'s
# scale renders the lineage panel almost blank. Values outside each range
# saturate at the endpoint colors: 0.9% of (a)'s cells and 3.6% of (b)'s.
#
# Required inputs (data/) -- see code/README.md's "Data provenance" table
# for the full picture:
# L_pm_filtered.rds [code/pipeline/01b_filter_cells.R]
# igt1_96_..._ADTonly.Rds [primary input Seurat object]
suppressPackageStartupMessages({
library(ComplexHeatmap)
library(circlize)
library(grid)
library(ZemmourLib)
})
if (!file.exists("code/R/setup_data.R")) {
stop("Run this script from the immgenT-GP-analysis repository root.")
}
source("code/R/setup_data.R")
source("code/R/centered_mean_heatmap.R")
figure_path <- "figures/final-selected/Figure S5"
dir.create(figure_path, recursive = TRUE, showWarnings = FALSE)
run_started_at <- Sys.time()
# ============================================================
# Setup: the healthy non-thymocyte tissue and lineage mean matrices
# ============================================================
gp_data <- load_gp_data()
reference <- healthy_nonthymocyte_reference(gp_data)
L_reference <- reference$L
meta_reference <- reference$meta
organ_color_limit <- 0.2
level1_color_limit <- 0.1
level1_order <- c("CD8", "CD4", "Treg", "gdT", "CD8aa", "Tz", "DN", "DP")
organ_raw <- mean_loading_by_group(L_reference, meta_reference$organ_simplified)$matrix
level1_raw <- mean_loading_by_group(L_reference, meta_reference$annotation_level1)$matrix
# ============================================================
# GP selection: the 31 GPs active across tissues
# ============================================================
# The same filter as experiments/healthy_nonthymus_mean_loading_heatmaps/: a GP
# is kept when at least one tissue's raw mean loading reaches the cutoff. The
# expected set is spelled out so that a change in the loadings, the cell
# filter or the cutoff fails here instead of quietly redrawing a different
# figure from the one the manuscript's "31 programs" sentence describes.
raw_mean_cutoff <- 0.1
tissue_active <- rowSums(organ_raw >= raw_mean_cutoff) > 0L
selected_gps <- rownames(organ_raw)[tissue_active]
expected_gps <- paste0("GP", c(
1, 3, 4, 6, 8, 9, 11, 22, 23, 25, 26, 29, 30, 32, 35, 41, 43, 49, 51, 58,
62, 63, 72, 80, 93, 100, 166, 170, 171, 174, 177
))
stopifnot(
length(expected_gps) == 31L,
identical(selected_gps, expected_gps)
)
organ_selected_raw <- organ_raw[tissue_active, , drop = FALSE]
level1_selected_raw <- level1_raw[tissue_active, , drop = FALSE]
organ_centered <- center_by_gp_mean(organ_selected_raw)
level1_centered <- center_by_gp_mean(level1_selected_raw)
# ============================================================
# Ordering: (a) sets the row order, (b) reuses it
# ============================================================
# Recomputing the dominant-group order on the 31-row submatrix (rather than
# inheriting the retired 200-GP order) is what makes the tissue columns reflect
# the GPs actually on display. Panel (b) then keeps (a)'s row order, so a GP sits
# on the same line in both halves and can be read across; its columns are
# Figure 1's lineage order rather than a dominant-group order.
organ_order <- dominant_group_order(organ_selected_raw)
level1_groups <- colnames(level1_centered)
if (!setequal(level1_groups, level1_order)) {
stop("The observed lineages do not match the Figure 1 level1 order.")
}
level1_column_order <- order(match(level1_groups, level1_order))
level1_row_order <- match(
rownames(organ_centered)[organ_order$row_order],
rownames(level1_centered)
)
stopifnot(
nrow(organ_centered) == 31L,
nrow(level1_centered) == 31L,
ncol(organ_centered) == 18L,
ncol(level1_centered) == 8L,
identical(rownames(organ_centered), rownames(level1_centered)),
max(abs(rowMeans(organ_centered))) < 1e-12,
max(abs(rowMeans(level1_centered))) < 1e-12
)
organ_palette <- palette_for_groups(
colnames(organ_centered),
ZemmourLib::immgent_colors$organ_simplified,
"organ_simplified"
)
level1_palette <- palette_for_groups(
colnames(level1_centered),
ZemmourLib::immgent_colors$level1,
"annotation_level1"
)(a) Tissue mean loading
# ============================================================
# s5a: the 31 tissue-active GPs across the 18 tissues
# ============================================================
render_centered_heatmap(
organ_centered,
organ_palette,
"tissue (organ_simplified)",
file.path(figure_path, "s5a.pdf"),
organ_order$row_order,
organ_order$column_order,
organ_color_limit,
"31 tissue-active GPs; dominant-group blocks",
palette = heatmap_palettes$blue_red
)
| Version | Author | Date |
|---|---|---|
| c233cd8 | Ziang Zhang | 2026-09-09 |
Extended Data Fig. 5a. Row-centered mean GP activity across 18 tissues, for the 31 GPs active across tissues. Mean GP activity computed in samples at baseline.
(b) Lineage mean loading
# ============================================================
# s5b: the same 31 GPs across the 8 lineages
# ============================================================
render_centered_heatmap(
level1_centered,
level1_palette,
"lineage (annotation_level1)",
file.path(figure_path, "s5b.pdf"),
level1_row_order,
level1_column_order,
level1_color_limit,
"the same 31 GPs, row order from (a)",
palette = heatmap_palettes$purple_green
)
| Version | Author | Date |
|---|---|---|
| c233cd8 | Ziang Zhang | 2026-09-09 |
Extended Data Fig. 5b. The same 31 GPs across the 8 T cell lineages, in the row order of (a). Mean GP activity computed in samples at baseline. Note the different color scale: purple-green rather than blue-red, and -0.1 to 0.1 rather than -0.2 to 0.2, since spreading a program over 8 lineages instead of 18 tissues gives correspondingly smaller deviations.
What the panels drew
The 31 GPs, their dominant tissue and lineage, and their row position are written out alongside the figure:
# ============================================================
# What the panels drew
# ============================================================
record_dir <- "output/FigureS5" # build intermediate (not a manuscript panel)
dir.create(record_dir, recursive = TRUE, showWarnings = FALSE)
write.csv(
data.frame(
GP = rownames(organ_centered),
max_raw_tissue_mean = as.numeric(apply(organ_selected_raw, 1L, max)),
dominant_tissue = colnames(organ_selected_raw)[max.col(organ_selected_raw, ties.method = "first")],
dominant_lineage = colnames(level1_selected_raw)[max.col(level1_selected_raw, ties.method = "first")],
row_in_panel = match(rownames(organ_centered), rownames(organ_centered)[organ_order$row_order])
),
file.path(record_dir, "s5_selected_gps.csv"),
row.names = FALSE,
quote = FALSE
)
write.csv(
data.frame(
panel = c("s5a", "s5b"),
grouping = c("organ_simplified", "annotation_level1"),
view = "row-centered mean loading of the 31 tissue-active GPs",
gp_count = c(nrow(organ_centered), nrow(level1_centered)),
group_count = c(ncol(organ_centered), ncol(level1_centered)),
selection = paste0("raw mean loading >= ", raw_mean_cutoff, " in >= 1 tissue"),
centered_definition = "group mean minus mean across groups for each GP",
palette = c("blue-white-red", "purple-white-green"),
color_min = c(-organ_color_limit, -level1_color_limit),
color_mid = 0,
color_max = c(organ_color_limit, level1_color_limit),
observed_min = c(min(organ_centered), min(level1_centered)),
observed_max = c(max(organ_centered), max(level1_centered)),
frac_saturated = c(mean(abs(organ_centered) > organ_color_limit),
mean(abs(level1_centered) > level1_color_limit))
),
file.path(record_dir, "S5_summary.csv"),
row.names = FALSE,
quote = FALSE
)
# A panel that fails to write leaves the previous PDF in place and the script
# still exits 0, so check the files rather than the exit code.
expected_panels <- file.path(figure_path, c("s5a.pdf", "s5b.pdf"))
stale <- expected_panels[!file.exists(expected_panels) |
file.mtime(expected_panels) < run_started_at |
file.size(expected_panels) == 0]
if (length(stale) > 0L) {
stop("These panels were not written by this run: ", paste(stale, collapse = ", "))
}
message("Wrote Figure S5 to ", normalizePath(figure_path))
sessionInfo()R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.6.1
Matrix products: default
BLAS: /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.1
locale:
[1] en_CA/en_CA/en_CA/C/en_CA/en_CA
time zone: America/Chicago
tzcode source: internal
attached base packages:
[1] stats graphics grDevices utils datasets methods base
loaded via a namespace (and not attached):
[1] vctrs_0.7.3 cli_3.6.6 knitr_1.50 rlang_1.2.0
[5] xfun_0.55 stringi_1.8.9 otel_0.2.0 promises_1.5.0
[9] jsonlite_2.0.0 workflowr_1.7.2 glue_1.8.1 rprojroot_2.1.1
[13] git2r_0.36.2 htmltools_0.5.9 httpuv_1.6.16 sass_0.4.10
[17] rmarkdown_2.30 evaluate_1.0.5 jquerylib_0.1.4 tibble_3.3.0
[21] fastmap_1.2.0 yaml_2.3.12 lifecycle_1.0.5 whisker_0.4.1
[25] stringr_1.6.0 compiler_4.5.1 fs_1.6.6 Rcpp_1.1.1-1.1
[29] pkgconfig_2.0.3 later_1.4.4 digest_0.6.39 R6_2.6.1
[33] pillar_1.11.1 magrittr_2.0.5 bslib_0.9.0 tools_4.5.1
[37] cachem_1.1.0
