This single-panel figure is produced by script/FigureS5.R, which shares its CITE-seq setup and protein filters with Figure 6 and Extended Data Figure 6 via code/R/citeseq_shared_setup.R. The code below is shown for reference (not re-executed on this page, since the shared setup takes about a minute to load); the image is its pre-rendered output.

This figure was split out of Extended Data Figure 6 on 2026-07-30. It was that figure’s first panel, and before 2026-07-28 the published Figure 6b. It now stands alone in the Extended Data Figure 5 slot that main Figure 7b vacated, and Extended Data Figure 6’s remaining panels each dropped one letter (its b-g are now a-f).

Setup

library(dplyr)
library(pheatmap)
library(Matrix) # protein matrices are dgCMatrix; must be attached for `[` to dispatch

data_path <- "data/"
figure_path <- "figures/final-selected/Figure S5/"
source("code/R/citeseq_shared_setup.R")

# A figure script here was once seen to exit 0 with a complete log and write
# nothing at all (see script/README.md, "A re-run can silently not write"), so
# record when this run started and assert at the end that the panel is newer.
run_started_at <- Sys.time()

Protein-program heatmap

# ============================================================
# s5: sparse protein-program heatmap, contamination GPs removed
# ============================================================
# The normalized protein matrix is derived here rather than in
# citeseq_shared_setup.R because this is its only consumer among the figures.
Protein_F_pm <- Protein_F_pm_raw[!rownames(Protein_F_pm_raw) %in% isotype_proteins, ]
Protein_F_pm <- Protein_F_pm[rownames(Protein_F_pm) %in% good_proteins, ]
Protein_F_pm <- Protein_F_pm[!rownames(Protein_F_pm) %in% exclude_proteins, ]
Protein_F_pm <- Protein_F_pm[!rownames(Protein_F_pm) %in% thy11_proteins, ]
D_lognorm <- diag(1 / apply(Protein_F_pm, 2, function(x) max(abs(x))))
Protein_F_pm <- Protein_F_pm %*% D_lognorm
colnames(Protein_F_pm) <- paste0("GP", 1:ncol(Protein_F_pm))
Protein_F_pm[is.na(Protein_F_pm)] <- 0

threshold_simplified <- 0
keep_rows_simplified <- apply(Protein_F_pm, 1, function(v) any(abs(v) > threshold_simplified, na.rm = TRUE))
Protein_F_pm_simplified <- Protein_F_pm[keep_rows_simplified, , drop = FALSE]
keep_cols_simplified <- apply(Protein_F_pm_simplified, 2, function(v) any(abs(v) > threshold_simplified, na.rm = TRUE))
Protein_F_pm_simplified <- Protein_F_pm_simplified[, keep_cols_simplified, drop = FALSE]

GP_contamination <- c("GP40", "GP50", "GP55", "GP188")
Protein_F_pm_simplified_no_contamination <- Protein_F_pm_simplified[, !colnames(Protein_F_pm_simplified) %in% GP_contamination, drop = FALSE]

sparse_cutoff <- 0.5
bk_sparse <- unique(c(seq(-1, -sparse_cutoff, length.out = 26), seq(-sparse_cutoff, sparse_cutoff, length.out = 51), seq(sparse_cutoff, 1, length.out = 26)))
cols_sparse <- c(colorRampPalette(c("#4575B4", "white"))(25), rep("white", 50), colorRampPalette(c("white", "#D73027"))(25))

# Display proteins as rows and GPs as columns. Order GP columns from most to
# fewest visible proteins. Order protein rows by their rightmost visible GP, so
# proteins extending into the sparse right side appear first and form a
# triangular boundary. Visible count and a rarity-weighted support score provide
# deterministic secondary ordering.
wide_matrix_s5 <- as.matrix(Protein_F_pm_simplified_no_contamination)
wide_visible_mask_s5 <- abs(wide_matrix_s5) >= sparse_cutoff
wide_gp_visible_count_s5 <- colSums(wide_visible_mask_s5)
wide_protein_visible_count_s5 <- rowSums(wide_visible_mask_s5)
wide_gp_number_s5 <- as.integer(sub("^GP", "", colnames(wide_matrix_s5)))

wide_gp_order_s5 <- order(-wide_gp_visible_count_s5, wide_gp_number_s5)
wide_mask_ordered_cols_s5 <- wide_visible_mask_s5[
  ,
  wide_gp_order_s5,
  drop = FALSE
]
wide_rightmost_visible_gp_s5 <- apply(
  wide_mask_ordered_cols_s5,
  1,
  function(values) max(which(values))
)
wide_rarity_weights_s5 <- seq_len(ncol(wide_mask_ordered_cols_s5))^2
wide_protein_rarity_score_s5 <- as.numeric(
  wide_mask_ordered_cols_s5 %*% wide_rarity_weights_s5
)
wide_protein_order_s5 <- order(
  -wide_rightmost_visible_gp_s5,
  -wide_protein_visible_count_s5,
  -wide_protein_rarity_score_s5,
  rownames(wide_matrix_s5)
)
wide_ordered_matrix_s5 <- wide_matrix_s5[
  wide_protein_order_s5,
  wide_gp_order_s5,
  drop = FALSE
]

pdf(paste0(figure_path, "s5.pdf"), width = 48, height = 14)
pheatmap::pheatmap(
  wide_ordered_matrix_s5,
  main = sprintf(
    paste0(
      "Protein programs - GP columns, triangular-first protein rows ",
      "(|score| >= %.1f; protein-row sparsity is not monotone)"
    ),
    sparse_cutoff
  ),
  color = cols_sparse,
  breaks = bk_sparse,
  cluster_rows = FALSE,
  cluster_cols = FALSE,
  border_color = "grey75",
  fontsize = 16,
  fontsize_row = 16,
  fontsize_col = 16,
  angle_col = 90,
  legend_breaks = c(-1, -sparse_cutoff, 0, sparse_cutoff, 1),
  legend_labels = c("-1", "-0.5", "0 (white)", "0.5", "1")
)
dev.off()

Version Author Date
ac650a0 Ziang Zhang 2026-07-30

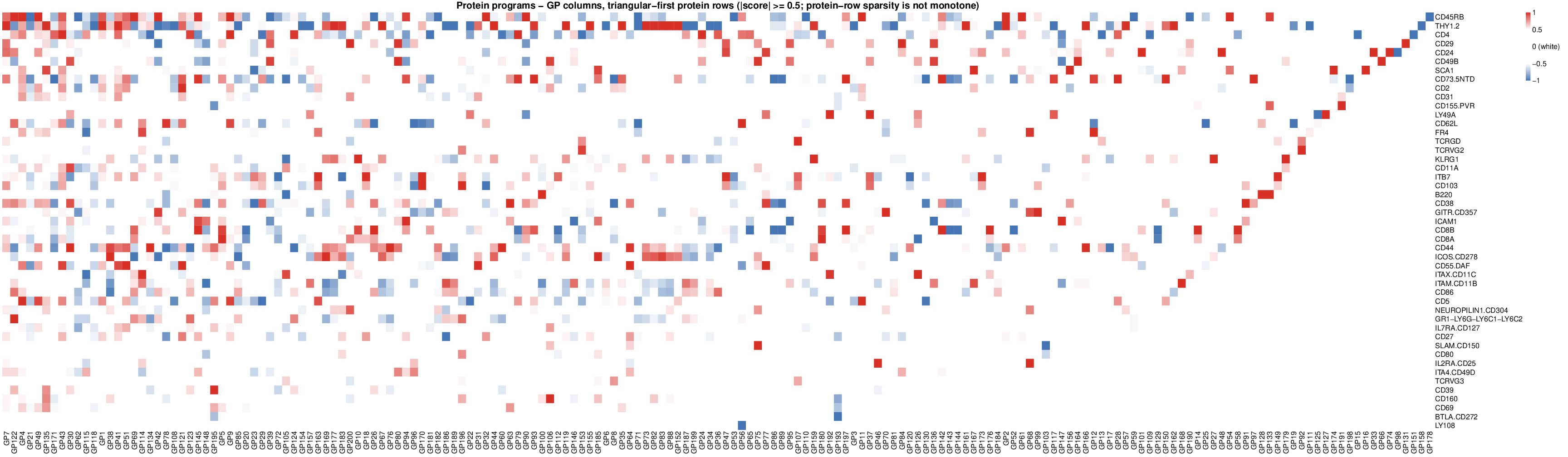

Extended Data Fig. 5. Heatmap of scaled protein scores for each GP (the re-estimated protein matrix U), with the protein scores in each GP scaled so its maximum |score| = 1. We focused on the 47 proteins that performed best in the immgenT CITE-seq dataset (isotype and low-quality proteins removed). Seventeen GPs lacked meaningful protein correlates – every protein score is exactly zero – and were omitted. Four putative contamination programs (GP40, GP50, GP55 and GP188) were also removed, leaving 179 GPs (200 - 17 - 4 = 179); 47 proteins (rows) x 179 GPs (columns). Entries with an absolute score below 0.5 are shown in white, with color running from blue (-1) through white to red (+1). GP columns are ordered from the most to the fewest visible proteins. Protein rows are ordered by the position of their rightmost visible GP, placing proteins that extend into the sparse right side first and exposing a triangular support boundary; visible count and a rarity-weighted support score break ties. This triangular-first row order is not monotone in per-protein sparsity. GP labels are vertical and sized to the available heatmap-cell width; protein labels are sized to the available row height.
