All panels are produced by script/FigureS1.R.
The code below is shown for reference (not re-executed on this page);
the images are its pre-rendered output. Panels A/B reuse a cached
per-IGT cosine-similarity score matrix
(data/igt_specific_cosine_scores.csv); see
code/pipeline/05_igt_validation.R for how that matrix
itself is produced (a much heavier, cluster-scale computation).
Setup
# Figure S1. GP reproducibility across IGTs.
#
# Panels produced:

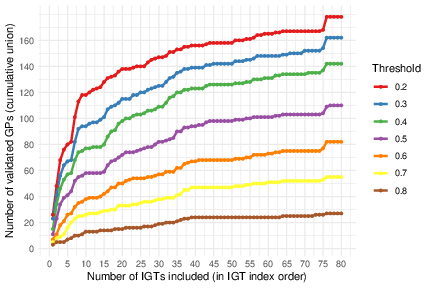

# S1A Cumulative number of GPs validated (cosine >= threshold, thresholds
# 0.2-0.8) as IGTs are added one at a time, in IGT index order.

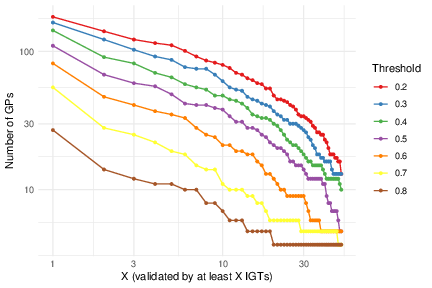

# S1B Number of GPs validated by at least X IGTs, vs X (log-log), for the
# same thresholds.

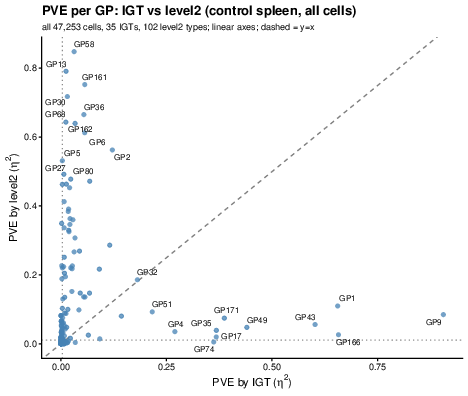

# S1C Per-GP proportion of loading variance explained by IGT (x) vs. by
# cell type / annotation_level2 (y), one-way ANOVA eta^2, over the
# standard-spleen cells.

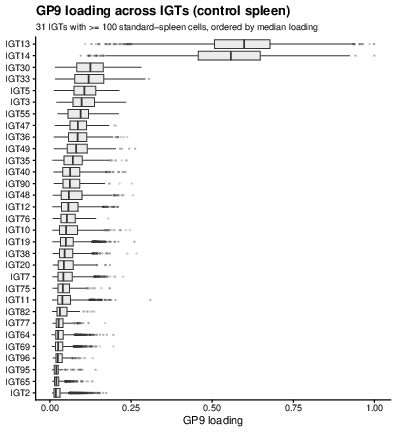

# S1D GP9 loading across IGTs (standard-spleen cells) -- the shape of the
# most extreme x-axis point in S1C.

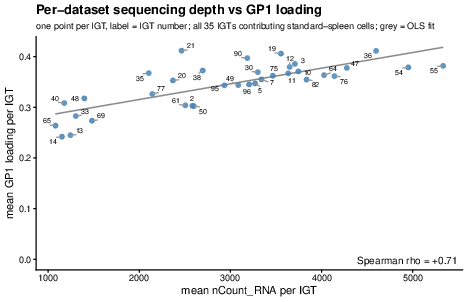

# S1E Per-IGT mean nCount_RNA (x) vs per-IGT mean GP1 loading (y), over the
# standard-spleen cells -- a GP whose loading tracks sequencing depth,
# as opposed to S1D's run-confined GP9.

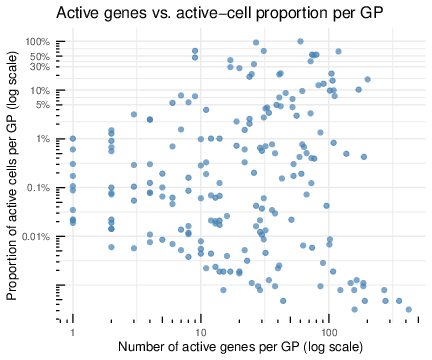

# S1F Scatter of the NUMBER of active genes (x) vs. proportion of active
# cells (y) per GP, using the same hard-threshold definitions as Figure 2
# (|normalized score| > 0.25 for genes; normalized loading > 0.1 for
# cells), over non-thymocyte cells -- not the EBMF sparsity prior. One
# dot per GP.
#
# S1A/S1B reuse the per-IGT cosine-matching score matrix
# (data/igt_specific_cosine_scores.csv) rather than recomputing it here --
# recomputing requires Hungarian-matching each of the ~80 per-IGT
# refactorizations in data/igt_specific/*.qs against the full model, which is
# the job of code/pipeline/05_igt_validation.R (run once upstream).
#
# Required inputs (data/) -- see code/README.md's "Data provenance" table
# for the full picture:
# igt_specific_cosine_scores.csv [code/pipeline/05_igt_validation.R]
# L_pm_filtered.rds [code/pipeline/01b_filter_cells.R]
# igt1_96_..._ADTonly.Rds [primary input Seurat object]
library(dplyr)
library(tidyr)
library(ggplot2)Panels A and B both use the cached per-IGT cosine score matrix:
data_path <- "data/"
figure_path <- "figures/final-selected/Figure S1/"
gp_label <- function(x) sub("^K(\\d+)$", "GP\\1", x)
# ============================================================
# S1A/S1B: load the cached per-IGT cosine score matrix
# (GPs x IGTs; produced by code/pipeline/05_igt_validation.R)
# ============================================================
score_mat <- as.matrix(read.csv(paste0(data_path, "igt_specific_cosine_scores.csv"), row.names = 1, check.names = FALSE))(A) Cumulative GPs validated as IGTs are added
# ============================================================
# S1A: cumulative number of GPs validated as IGTs are added, in IGT-index order
# ============================================================
igt_idx <- as.integer(gsub("^IGT", "", colnames(score_mat)))
o <- order(igt_idx)
score_mat_ord <- score_mat[, o, drop = FALSE]
cum_validated_counts <- function(score_mat_ord, threshold) {
validated <- score_mat_ord >= threshold
ever_validated <- t(apply(validated, 1, cummax)) # 200 x nIGT logical
colSums(ever_validated)
}
plot_df_a <- lapply(thresholds, function(t) {
y <- cum_validated_counts(score_mat_ord, t)
data.frame(n_IGTs_included = seq_along(y), validated_GPs = y, threshold = factor(t))
}) %>% bind_rows()
p_S1A <- ggplot(plot_df_a, aes(x = n_IGTs_included, y = validated_GPs, color = threshold)) +
geom_line(linewidth = 1) +
geom_point(size = 1) +
labs(x = "Number of IGTs included (in IGT index order)", y = "Number of validated GPs (cumulative union)", color = "Threshold") +
theme_minimal() +
scale_color_brewer(palette = "Set1") +
scale_x_continuous(breaks = seq(0, ncol(score_mat_ord), by = 5)) +
scale_y_continuous(breaks = seq(0, max(plot_df_a$validated_GPs), by = 20))
ggsave(paste0(figure_path, "S1A.pdf"), plot = p_S1A, width = 6, height = 4)
Extended Data Fig. 1A. Cumulative number of GPs, out of the 200 identified in the full immgenT solution, reproduced in at least one dataset (IGT). For each dataset an EBMF factorization was computed and its factors were matched to the 200 immgenT GPs by Hungarian assignment using the cosine similarity of gene-score vectors (restricted to shared genes, with columns scaled); a GP was considered reproduced in a dataset when this cosine similarity exceeded the threshold indicated for each curve. Adding IGTs one at a time in index order, the curves show the cumulative count for cosine-similarity thresholds of 0.2-0.8.
(B) GPs validated by at least X IGTs
# ============================================================
# S1B: number of GPs validated by at least X IGTs, vs X (log-log)
# ============================================================
thresholds <- seq(0.2, 0.8, by = 0.1)
X_grid <- 1:50
plot_df_b <- tidyr::crossing(threshold = thresholds, X = X_grid) %>%
mutate(n_GP = purrr::map2_int(threshold, X, \(t, x) {
rowSums(score_mat >= t, na.rm = TRUE) |> (\(v) sum(v >= x))()
}))
p_S1B <- ggplot(plot_df_b, aes(x = X, y = n_GP, group = factor(threshold))) +
geom_line() +
geom_point(size = 1) +
scale_y_log10() +
scale_x_log10() +
labs(x = "X (validated by at least X IGTs)", y = "Number of GPs", color = "Threshold") +
aes(color = factor(threshold)) +
theme_minimal() +
scale_color_brewer(palette = "Set1")
ggsave(paste0(figure_path, "S1B.pdf"), plot = p_S1B, width = 6, height = 4)
Extended Data Fig. 1B. Distribution of GP reproducibility across datasets. Using the same per-IGT cosine matching, the curves show the number of GPs reproduced in at least that many datasets, for cosine-similarity thresholds ranging from 0.2 to 0.8 (both axes log-scaled).
(C) Variance explained by dataset vs. by cell type
# ============================================================
# Load data for S1C/S1D/S1E
# ============================================================
L_pm_filtered <- readRDS(paste0(data_path, "L_pm_filtered.rds"))
seurat_meta <- readRDS(paste0(data_path, "igt1_96_withtotalvi20260206_clean_ADTonly.Rds"))@meta.data
seurat_meta_filtered <- seurat_meta[rownames(L_pm_filtered), ]
seurat_meta_filtered_spleen <- seurat_meta_filtered %>% filter(spleen_standard == TRUE)
# All three panels use the same cell set: every standard-spleen cell, with no
# per-group size filter. S1C needs all of them because the two groupings it
# compares have different numbers of groups and dropping small ones would drop
# them asymmetrically; S1D/S1E then show one GP over that same population.
spleen_cells <- intersect(rownames(L_pm_filtered), rownames(seurat_meta_filtered_spleen))
L_spleen <- L_pm_filtered[spleen_cells, , drop = FALSE]
igt_vec <- as.character(seurat_meta_filtered_spleen[spleen_cells, "IGT"])
lv2_vec <- as.character(seurat_meta_filtered_spleen[spleen_cells, "annotation_level2"])
n_spleen <- length(spleen_cells)# ============================================================
# S1C: proportion of loading variance explained by IGT vs. by cell type
# ============================================================
# One-way ANOVA eta^2 per GP for each grouping, on the same cells:
# eta^2 = SS_between / SS_total, SS_between = sum_g n_g (mean_g - mean)^2
# Note this is NOT var(group means) / var(loading): SS_between weights each
# group by its cell count and uses the cell-level grand mean, whereas the
# unweighted variance of group means carries a G/(G-1) inflation and ignores
# the 1-to-9320 spread in group sizes. On this data the unweighted ratio runs
# 0.44x-4.06x the true eta^2 (median 1.40x).
grand_mean <- colMeans(L_spleen)
ss_total <- apply(L_spleen, 2, var) * (n_spleen - 1)
eta2_by <- function(group) {
n_g <- as.numeric(table(group))
group_means <- rowsum(L_spleen, group) / n_g
colSums(n_g * sweep(group_means, 2, grand_mean)^2) / ss_total
}
eta2_igt <- eta2_by(igt_vec)
eta2_lv2 <- eta2_by(lv2_vec)
# eta^2 grows with the number of groups even with no signal: its null
# expectation is (G-1)/(N-1). The two dotted guides mark 5x that floor, which
# differs between the axes because level2 has ~3x as many groups as IGT.
floor_igt <- (length(unique(igt_vec)) - 1) / (n_spleen - 1)
floor_lv2 <- (length(unique(lv2_vec)) - 1) / (n_spleen - 1)
pve_df <- data.frame(GP = colnames(L_spleen), x = eta2_igt, y = eta2_lv2)
top_n <- 12 # label the strongest GPs on each axis
pve_df$label <- ifelse(
seq_len(nrow(pve_df)) %in% union(order(-pve_df$x)[1:top_n], order(-pve_df$y)[1:top_n]),
gp_label(as.character(pve_df$GP)), ""
)
p_S1C <- ggplot(pve_df, aes(x = x, y = y, label = label)) +
geom_abline(slope = 1, intercept = 0, linetype = 2, colour = "grey50") +
geom_vline(xintercept = 5 * floor_igt, linetype = 3, colour = "grey55") +
geom_hline(yintercept = 5 * floor_lv2, linetype = 3, colour = "grey55") +
geom_point(size = 1.6, alpha = 0.75, colour = "steelblue") +
ggrepel::geom_text_repel(seed = 42, size = 2.8, max.overlaps = Inf, segment.color = "grey60") +
cowplot::theme_cowplot(font_size = 11) +
labs(
title = "PVE per GP: IGT vs level2 (control spleen, all cells)",
subtitle = sprintf("all %s cells, %d IGTs, %d level2 types; linear axes; dashed = y=x",
format(n_spleen, big.mark = ","),
length(unique(igt_vec)), length(unique(lv2_vec))),
x = expression("PVE by IGT (" * eta^2 * ")"),
y = expression("PVE by level2 (" * eta^2 * ")")
)
ggsave(paste0(figure_path, "S1C.pdf"), plot = p_S1C, width = 6.5, height = 5.5, dpi = 300)
Extended Data Fig. 1C. Batch-effect evaluation using
the spleen standards spiked into each dataset (IGT). For each GP, the
proportion of loading variance explained by dataset (x-axis) is plotted
against the proportion explained by cell type
(annotation_level2, y-axis), both computed over the same
47,253 spleen-standard cells (35 datasets, 102 cell types) as the
one-way ANOVA \(\eta^2 =
\mathrm{SS_{between}}/\mathrm{SS_{total}}\), where each group’s
contribution is weighted by its cell count. Each point is one of the 200
GPs; the twelve highest on each axis are labeled. The dashed line is
\(y = x\); the two dotted guides mark
five times the null expectation \((G-1)/(N-1)\) of \(\eta^2\) under no group effect, which
differs between axes because the two groupings have different numbers of
groups. Most GPs sit near the origin, i.e. are explained by neither; the
GPs that separate do so along one axis or the other, with only GP32
close to \(y = x\).
(D) GP9 loading across datasets
# ============================================================
# S1D: GP9 loading across IGTs (standard spleen)
# ============================================================
# GP9 is the extreme point on S1C's x-axis (eta^2 = 0.91 by IGT vs 0.08 by
# level2). Drawn over the IGTs with >= 100 standard-spleen cells, so that no box
# summarises a handful of cells; ordered by median loading, which puts the two
# IGTs carrying the effect at the top rather than assuming where they land.
gp_focus <- "K9"
igt_keep <- names(table(igt_vec))[table(igt_vec) >= 100]
box_igt <- data.frame(igt = igt_vec, loading = L_spleen[, gp_focus]) %>%
filter(igt %in% igt_keep)
igt_order <- names(sort(tapply(box_igt$loading, box_igt$igt, median)))
box_igt$igt <- factor(box_igt$igt, levels = igt_order)
p_S1D <- ggplot(box_igt, aes(x = loading, y = igt)) +
geom_boxplot(outlier.size = 0.3, outlier.alpha = 0.25, fill = "grey92", linewidth = 0.35) +
cowplot::theme_cowplot(font_size = 11) +
labs(
title = paste0(gp_label(gp_focus), " loading across IGTs (control spleen)"),
subtitle = sprintf("%d IGTs with >= 100 standard-spleen cells, ordered by median loading",
length(igt_keep)),
x = paste0(gp_label(gp_focus), " loading"), y = NULL
)
ggsave(paste0(figure_path, "S1D.pdf"), plot = p_S1D, width = 5.5, height = 6, dpi = 300)
Extended Data Fig. 1D. The extreme point on (C)’s x-axis, shown directly: the distribution of GP9 loading in spleen-standard cells of each dataset, for the 31 datasets contributing at least 100 such cells, ordered by median loading. GP9 is elevated in IGT13 and IGT14 (medians 0.60 and 0.56) and uniformly low in every other dataset (medians 0.02-0.12), which is what a dataset-specific – rather than cell-type-specific – program looks like.
(E) Per-dataset sequencing depth vs GP1 loading
# ============================================================
# S1E: per-IGT mean sequencing depth vs per-IGT mean GP1 loading
# ============================================================
# The other kind of between-dataset structure: not a program confined to one run
# (S1D), but a GP whose loading tracks how deeply the dataset was sequenced. GP1
# is the most nCount_RNA-correlated GP of the 200 at every level of aggregation
# -- per cell (Spearman rho +0.78 over the standard-spleen cells), per IGT (this
# panel), and per sample (+0.81). It correlates more strongly with nFeature_RNA
# (+0.89) than with nCount_RNA and is unchanged by conditioning on
# annotation_level2 (+0.78), and its top genes are housekeeping, so it reads as
# a detection-rate axis that the library-size normalization upstream of the fit
# does not remove. GP171 is second on the same ranking; only GP1 is drawn here.
#
# Every one of the 35 IGTs is drawn identically -- same size, same colour, one
# fit over all of them. Dataset size is deliberately not encoded: the panel is
# about where a dataset sits on the two axes, and mapping n to area or colour
# makes the big IGTs read as the more important ones, which is not the claim.
# (35 is not a threshold either: the dataset has 80 IGTs, and the other 45
# contributed no standard-spleen cell at all.)
depth_gp <- "K1"
depth_vec <- seurat_meta_filtered_spleen[spleen_cells, "nCount_RNA"]
depth_df <- data.frame(IGT = igt_vec, nCount = depth_vec,
loading = L_spleen[, depth_gp]) %>%
group_by(IGT) %>%
summarise(n_cells = n(), mean_nCount = mean(nCount),
mean_loading = mean(loading), .groups = "drop")
n_igt_depth <- nrow(depth_df)
rho_depth <- cor(depth_df$mean_nCount, depth_df$mean_loading, method = "spearman")
p_S1E <- ggplot(depth_df, aes(x = mean_nCount, y = mean_loading)) +
geom_smooth(method = "lm", formula = y ~ x, se = FALSE, colour = "grey55",
linewidth = 0.6) +
geom_point(size = 1.9, alpha = 0.85, colour = "steelblue") +
ggrepel::geom_text_repel(aes(label = sub("^IGT", "", IGT)), size = 2.5, seed = 42,
max.overlaps = Inf, segment.color = "grey60",
min.segment.length = 0.2) +
annotate("text", x = Inf, y = -Inf, hjust = 1.05, vjust = -0.8, size = 3.4,
label = sprintf("Spearman rho = %+.2f", rho_depth)) +
expand_limits(y = 0) +
cowplot::theme_cowplot(font_size = 11) +
labs(
title = paste0("Per-dataset sequencing depth vs ", gp_label(depth_gp), " loading"),
subtitle = sprintf("one point per IGT, label = IGT number; all %d IGTs contributing standard-spleen cells; grey = OLS fit",
n_igt_depth),
x = "mean nCount_RNA per IGT",
y = paste0("mean ", gp_label(depth_gp), " loading per IGT")
)
# y is anchored at 0 so the reader can see that the between-dataset spread
# (0.24-0.41) is a large fraction of GP1's normalized [0, 1] loading scale, not a
# zoomed-in wiggle; the height is trimmed so that band does not dominate.
ggsave(paste0(figure_path, "S1E.pdf"), plot = p_S1E, width = 6.5, height = 4.2, dpi = 300)
| Version | Author | Date |
|---|---|---|
| 4d526e2 | Ziang Zhang | 2026-08-05 |
| df45005 | Ziang Zhang | 2026-08-04 |
| 2e75e8e | Ziang Zhang | 2026-07-31 |
| 8c2f7c9 | Ziang Zhang | 2026-07-30 |
| 7102598 | Ziang Zhang | 2026-07-27 |
| 6c1a613 | Ziang Zhang | 2026-07-27 |
| bf7afcf | Ziang Zhang | 2026-07-27 |
| ea3ecc2 | Ziang Zhang | 2026-07-27 |
| c655a83 | Ziang Zhang | 2026-07-16 |
| c2b3360 | Ziang Zhang | 2026-07-13 |
Extended Data Fig. 1E. A second kind of
between-dataset structure: not a program confined to one run, as in (D),
but a GP whose loading tracks how deeply the dataset was sequenced. Mean
nCount_RNA per dataset (x-axis) against mean GP1 loading
per dataset (y-axis), over the same spleen-standard cells used in (C)
and (D). Each point is one of the 35 datasets that contribute
spleen-standard cells (of 80 in total; the remaining 45 contribute
none), drawn at the same size and colour regardless of how many cells it
contributed; grey is an OLS fit. Spearman correlation across datasets is
+0.71. GP1 is the most depth-correlated of the 200 GPs at every level of
aggregation: per cell (rho +0.78, rank 1 of 200), per dataset (this
panel) and per sample (+0.81). It correlates more strongly with
nFeature_RNA (+0.89) than with nCount_RNA, is
unchanged by conditioning on cell type (+0.78 within
annotation_level2), and is dominated by housekeeping genes,
so it reads as a detection-rate axis that the library-size normalization
applied before the factorization does not remove. (Replaced, on
2026-08-04, a panel showing GP9 loading across the sixteen individual
samples of IGT13/IGT14.)
(F) Active-gene vs. active-cell proportion per GP
# ============================================================
# S1F: active-gene vs active-cell scatter per GP, using the SAME hard-threshold
# definitions as Figure 2 (per-GP-normalized): number of active genes = count of
# genes with |score| > 0.25 of the GP's max; proportion of active cells = fraction
# of cells with loading > 0.1 of the GP's max. Non-thymocyte cells, matching
# Figure 2. (Replaces the earlier EBMF-sparsity-prior version. Was S1E until
# 2026-07-30, when the new S1C-S1E pushed it back one letter; content unchanged.)
# ============================================================
non_thymo_s1f <- seurat_meta_filtered$cellID[seurat_meta_filtered$annotation_level1 != "thymocyte"]
L_s1f <- L_pm_filtered[non_thymo_s1f, ]
L_norm_s1f <- L_s1f / matrix(apply(L_s1f, 2, max), nrow = nrow(L_s1f), ncol = ncol(L_s1f), byrow = TRUE)
prop_cells <- colSums(L_norm_s1f > 0.1) / nrow(L_norm_s1f) # proportion of active cells per GP
F_s1f <- readRDS(paste0(data_path, "F_pm_filtered.rds"))
F_norm_s1f <- F_s1f / matrix(apply(F_s1f, 2, function(x) max(abs(x))), nrow = nrow(F_s1f), ncol = ncol(F_s1f), byrow = TRUE)
n_genes_act <- colSums(abs(F_norm_s1f) > 0.25) # number of active genes per GP
scatter_df_s1f <- data.frame(n_genes = n_genes_act, prop_cells = prop_cells)
pct_breaks <- c(0.0001, 0.001, 0.01, 0.05, 0.1, 0.3, 0.5, 1)
p_S1F <- ggplot(scatter_df_s1f, aes(x = n_genes, y = prop_cells)) +
geom_point(size = 2, alpha = 0.7, color = "steelblue") +
scale_x_log10(labels = scales::label_comma()) +
scale_y_log10(breaks = pct_breaks, labels = function(x) paste0(x * 100, "%")) +
annotation_logticks(sides = "bl") +
labs(
x = "Number of active genes per GP (log scale)",
y = "Proportion of active cells per GP (log scale)",
title = "Active genes vs. active-cell proportion per GP"
) +
theme_minimal(base_size = 13)
ggsave(paste0(figure_path, "S1F.pdf"), plot = p_S1F, width = 6, height = 5, dpi = 300)
| Version | Author | Date |
|---|---|---|
| 8c2f7c9 | Ziang Zhang | 2026-07-30 |
Extended Data Fig. 1F. For each GP, the number of active genes (x-axis) versus the fraction of active cells (y-axis), using the same thresholds as Figure 2: a gene is active in a GP if its per-GP-normalized score exceeds 0.25 in absolute value, and a cell is active if its per-GP-normalized loading exceeds 0.1; computed over non-thymocyte cells. Both axes on log scale; each dot is one of the 200 GPs. (Was panel E before 2026-07-30; content unchanged.)
sessionInfo()R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.6.1
Matrix products: default
BLAS: /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.1
locale:
[1] en_CA/en_CA/en_CA/C/en_CA/en_CA
time zone: America/Chicago
tzcode source: internal
attached base packages:
[1] stats graphics grDevices utils datasets methods base
loaded via a namespace (and not attached):
[1] vctrs_0.7.3 cli_3.6.6 knitr_1.50 rlang_1.2.0
[5] xfun_0.55 stringi_1.8.7 otel_0.2.0 promises_1.5.0
[9] jsonlite_2.0.0 workflowr_1.7.2 glue_1.8.1 rprojroot_2.1.1
[13] git2r_0.36.2 htmltools_0.5.9 httpuv_1.6.16 sass_0.4.10
[17] rmarkdown_2.30 evaluate_1.0.5 jquerylib_0.1.4 tibble_3.3.0
[21] fastmap_1.2.0 yaml_2.3.12 lifecycle_1.0.5 whisker_0.4.1
[25] stringr_1.6.0 compiler_4.5.1 fs_1.6.6 Rcpp_1.1.1-1.1
[29] pkgconfig_2.0.3 later_1.4.4 digest_0.6.39 R6_2.6.1
[33] pillar_1.11.1 magrittr_2.0.5 bslib_0.9.0 tools_4.5.1
[37] cachem_1.1.0
