Dose-Response Assay Compilation

workflowr

• Summary
• Checks
• Past versions

Last updated: 2021-03-14

Checks: 6 1

Knit directory: toxin_dose_responses/

This reproducible R Markdown analysis was created with workflowr (version 1.6.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.

---

R Markdown file: up-to-date

Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

Environment: empty

Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

Seed: set.seed(20210305)

The command set.seed(20210305) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

Session information: recorded

Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

Cache: none

Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.

File paths: absolute

Using absolute paths to the files within your workflowr project makes it difficult for you and others to run your code on a different machine. Change the absolute path(s) below to the suggested relative path(s) to make your code more reproducible.

absolute	relative
~/Documents/projects/toxin_dose_responses/	.

Repository version: 3f4a99b

Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.

The results in this page were generated with repository version 3f4a99b. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.

Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:

Ignored files:
    Ignored:    .DS_Store
    Ignored:    .Rhistory
    Ignored:    analysis/.DS_Store

Untracked files:
    Untracked:  data/drugclasses.csv
    Untracked:  output/Aldicarb_EC10.csv
    Untracked:  output/Aldicarb_EC50.csv
    Untracked:  output/Aldicarb_EC90.csv
    Untracked:  output/Arsenic trioxide_EC10.csv
    Untracked:  output/Atrazine_EC10.csv
    Untracked:  output/Atrazine_EC50.csv
    Untracked:  output/Cadmium dichloride_EC10.csv
    Untracked:  output/Cadmium dichloride_EC50.csv
    Untracked:  output/Cadmium dichloride_EC90.csv
    Untracked:  output/Carbaryl_EC10.csv
    Untracked:  output/Carbaryl_EC50.csv
    Untracked:  output/Carbaryl_EC90.csv
    Untracked:  output/Carboxin_EC10.csv
    Untracked:  output/Carboxin_EC50.csv
    Untracked:  output/Carboxin_EC90.csv
    Untracked:  output/Chlorfenapyr_EC10.csv
    Untracked:  output/Chlorfenapyr_EC50.csv
    Untracked:  output/Chlorfenapyr_EC90.csv
    Untracked:  output/Chlorpyrifos_EC10.csv
    Untracked:  output/Chlorpyrifos_EC50.csv
    Untracked:  output/Chlorpyrifos_EC90.csv
    Untracked:  output/Copper(II) chloride_EC10.csv
    Untracked:  output/Copper(II) chloride_EC50.csv
    Untracked:  output/Copper(II) chloride_EC90.csv
    Untracked:  output/H2.plot.20210306.png
    Untracked:  output/H2.plot.20210308.png
    Untracked:  output/Lead(II) nitrate_EC10.csv
    Untracked:  output/Methomyl_EC10.csv
    Untracked:  output/Methomyl_EC50.csv
    Untracked:  output/Methomyl_EC90.csv
    Untracked:  output/Methylmercury dichloride_EC10.csv
    Untracked:  output/Methylmercury dichloride_EC50.csv
    Untracked:  output/Methylmercury dichloride_EC90.csv
    Untracked:  output/Nickel dichloride_EC10.csv
    Untracked:  output/Nickel dichloride_EC50.csv
    Untracked:  output/Nickel dichloride_EC90.csv
    Untracked:  output/Paraquat_EC10.csv
    Untracked:  output/Paraquat_EC50.csv
    Untracked:  output/Paraquat_EC90.csv
    Untracked:  output/Pyraclostrobin_EC10.csv
    Untracked:  output/Pyraclostrobin_EC50.csv
    Untracked:  output/Pyraclostrobin_EC90.csv
    Untracked:  output/Silver nitrate_EC10.csv
    Untracked:  output/Silver nitrate_EC50.csv
    Untracked:  output/Triphenyl phosphate_EC10.csv
    Untracked:  output/Triphenyl phosphate_EC50.csv
    Untracked:  output/Triphenyl phosphate_EC90.csv
    Untracked:  output/Zinc dichloride_EC10.csv
    Untracked:  output/Zinc dichloride_EC50.csv
    Untracked:  output/Zinc dichloride_EC90.csv
    Untracked:  output/cv.control.wells.csv

Unstaged changes:
    Modified:   analysis/doseresponsemodels.Rmd

Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

---

These are the previous versions of the repository in which changes were made to the R Markdown (analysis/toxin8strains.Rmd) and HTML (docs/toxin8strains.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.

File	Version	Author	Date	Message
Rmd	3f4a99b	sam-widmayer	2021-03-14	integrate toxin22 results
html	212e0ae	sam-widmayer	2021-03-08	Build site.
html	cb6e132	sam-widmayer	2021-03-06	Build site.
Rmd	46c9647	sam-widmayer	2021-03-06	static working directory
Rmd	41bdaa0	sam-widmayer	2021-03-05	dynamic working directory
Rmd	0c9d312	sam-widmayer	2021-03-05	initiate toxin DRC analysis repo

---

Purpose:

• Compile past assay results.
• Provide dose-response curves for each toxin.

Analysis Date: March 14, 2021

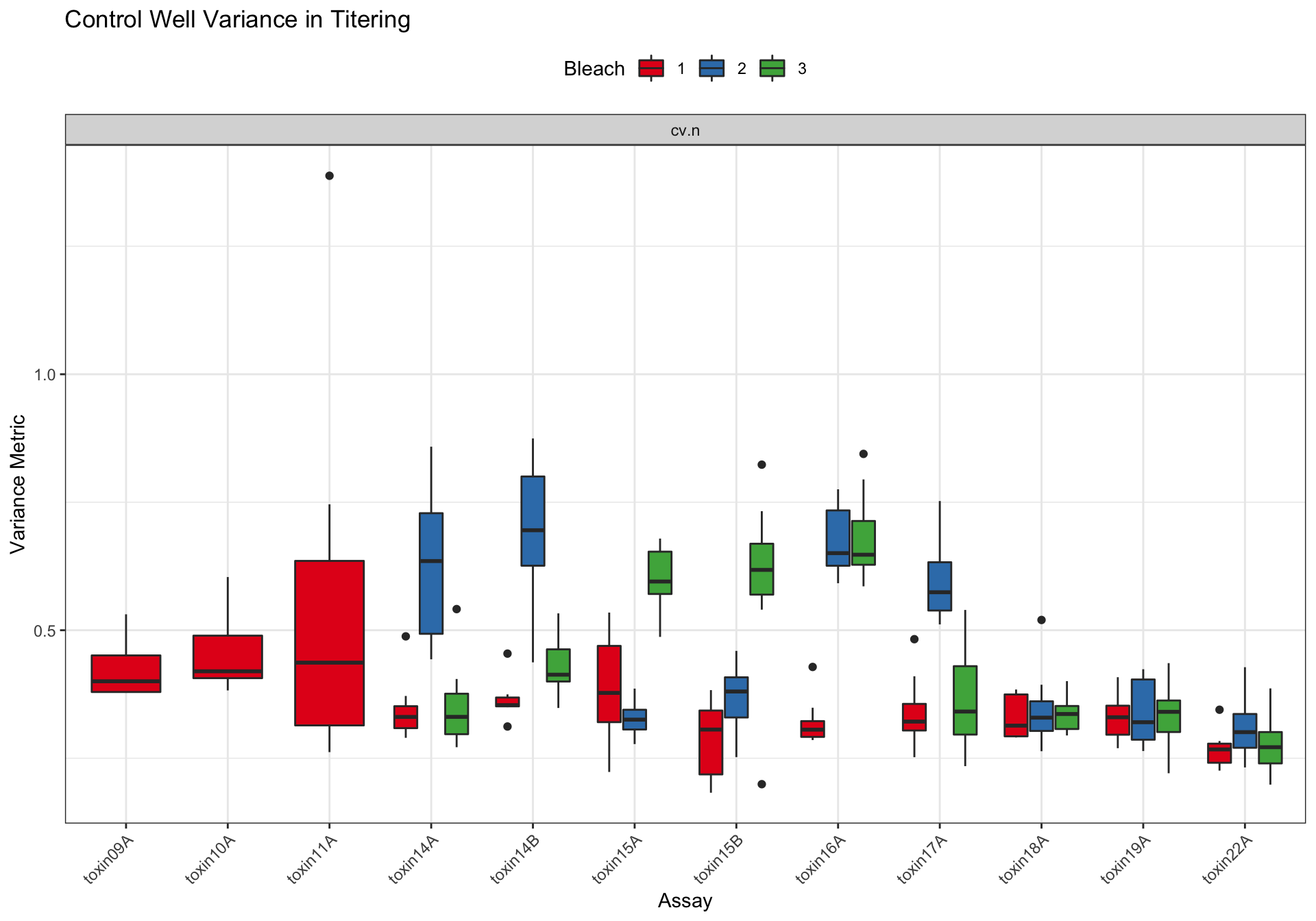

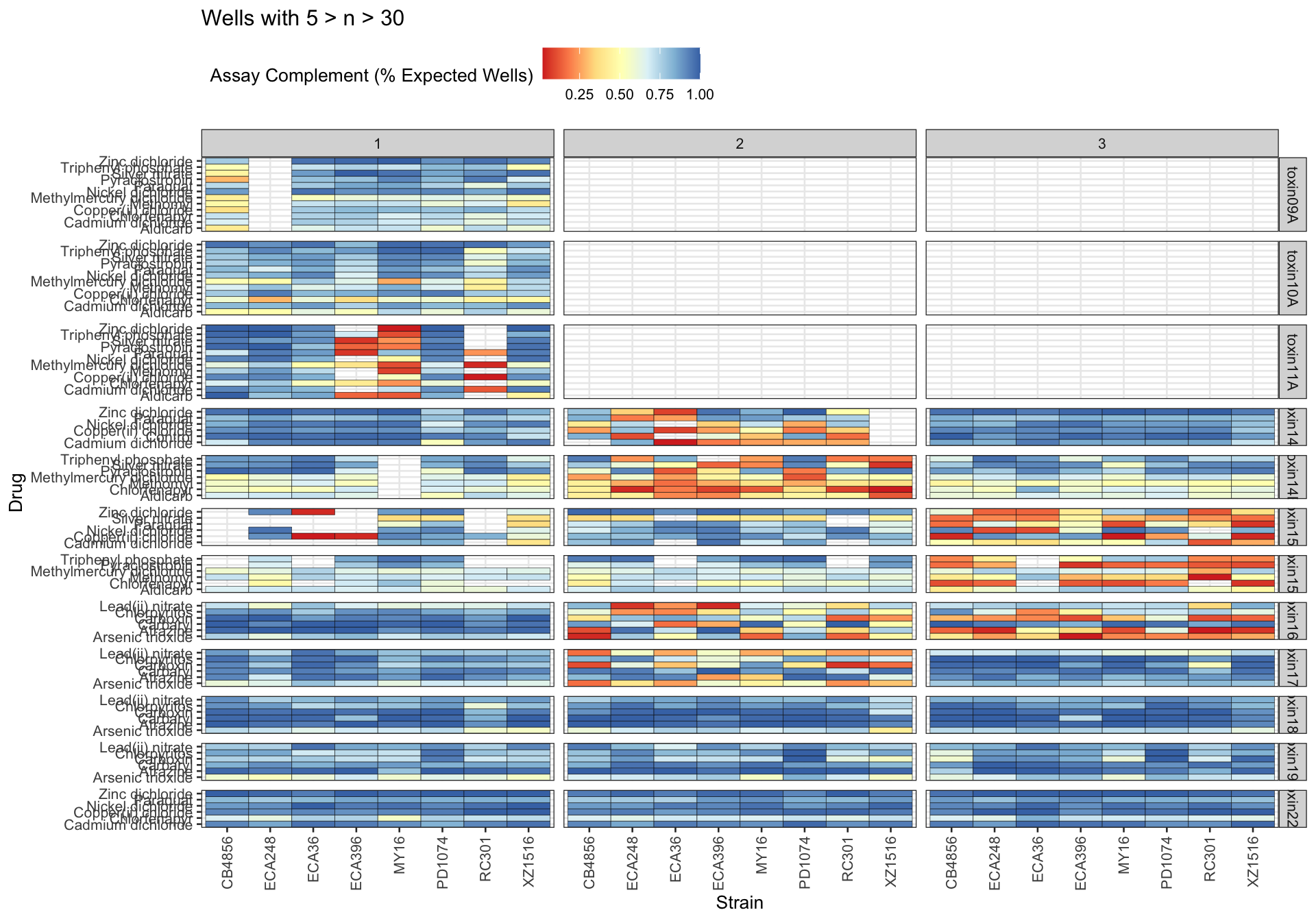

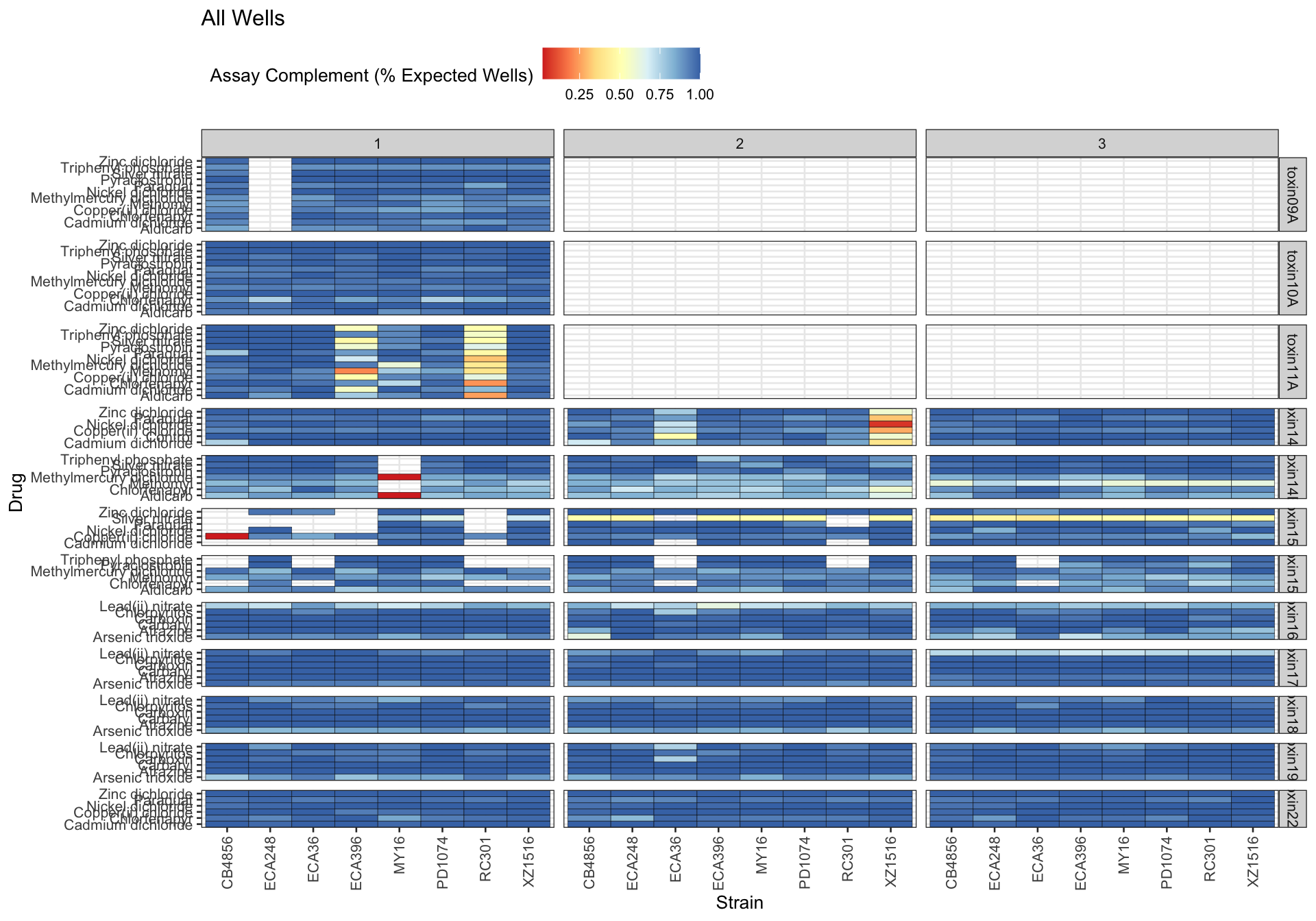

Assay Summary

Past versions of “Assay Diagnostics-1.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of “Assay Diagnostics-2.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of “Assay Diagnostics-3.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

   Metadata_Experiment bleach    median cv.censor
1             toxin09A      1 0.4002814         0
2             toxin10A      1 0.4197976         0
3             toxin11A      1 0.4367000         0
4             toxin14A      1 0.3306423         0
5             toxin14A      2 0.6350979         1
6             toxin14A      3 0.3307924         0
7             toxin14B      1 0.3537066         0
8             toxin14B      2 0.6953160         1
9             toxin14B      3 0.4131710         0
10            toxin15A      1 0.3776043         0
11            toxin15A      2 0.3253871         0
12            toxin15A      3 0.5951538         1
13            toxin15B      1 0.3060126         0
14            toxin15B      2 0.3803403         0
15            toxin15B      3 0.6178760         1
16            toxin16A      1 0.3058102         0
17            toxin16A      2 0.6505324         1
18            toxin16A      3 0.6474844         1
19            toxin17A      1 0.3215600         0
20            toxin17A      2 0.5741834         1
21            toxin17A      3 0.3411714         0
22            toxin18A      1 0.3136715         0
23            toxin18A      2 0.3292525         0
24            toxin18A      3 0.3363887         0
25            toxin19A      1 0.3300594         0
26            toxin19A      2 0.3203313         0
27            toxin19A      3 0.3406528         0
28            toxin22A      1 0.2672247         0
29            toxin22A      2 0.3009577         0
30            toxin22A      3 0.2715390         0

                         Df Sum Sq Mean Sq F value   Pr(>F)
assay                    11 1.6031  0.1457  12.902  < 2e-16 ***
as.factor(bleach)         2 0.8067  0.4033  35.708 5.49e-14 ***
strain                    7 0.1108  0.0158   1.401    0.207
assay:as.factor(bleach)  16 1.8032  0.1127   9.977  < 2e-16 ***
Residuals               200 2.2591  0.0113
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

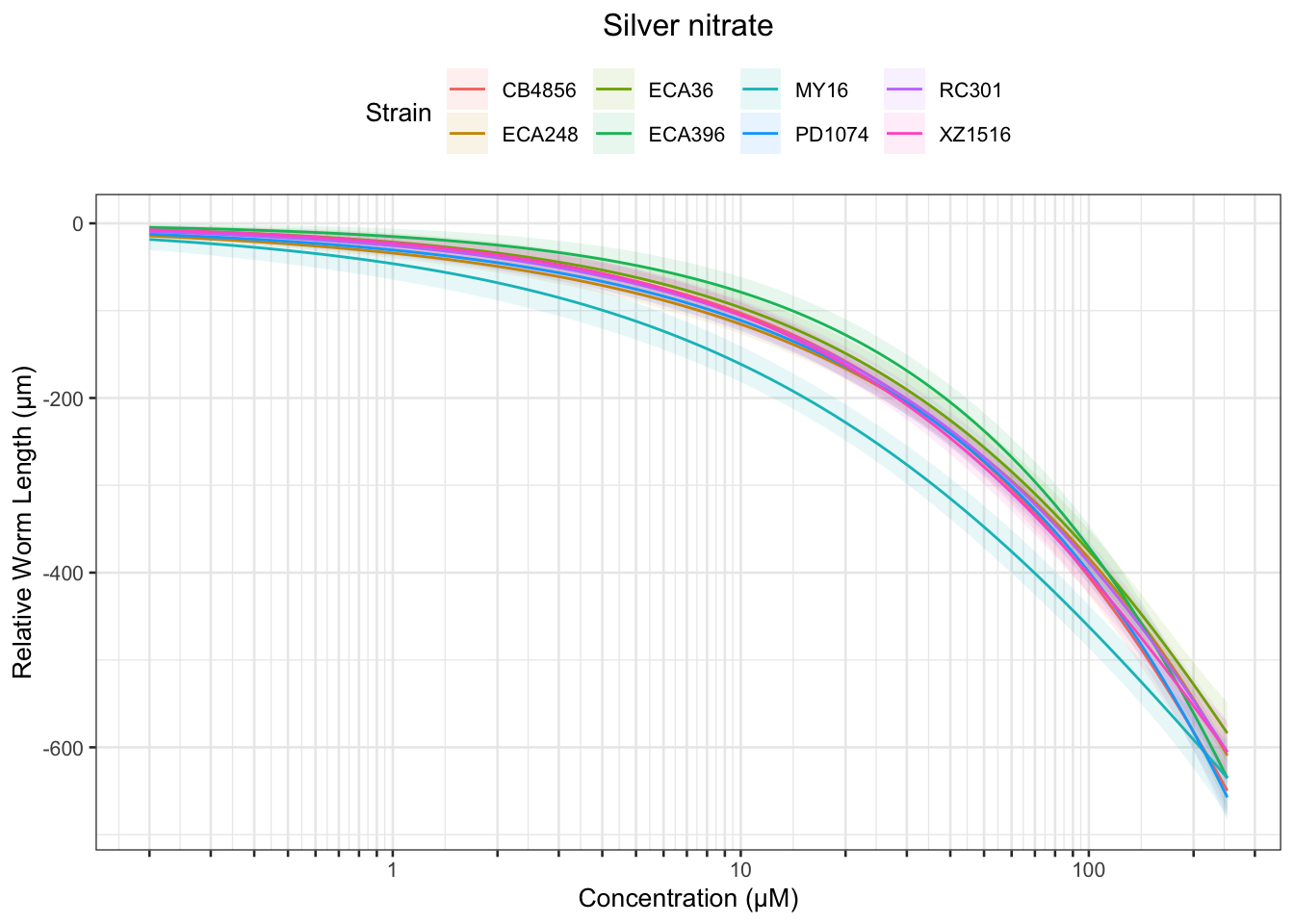

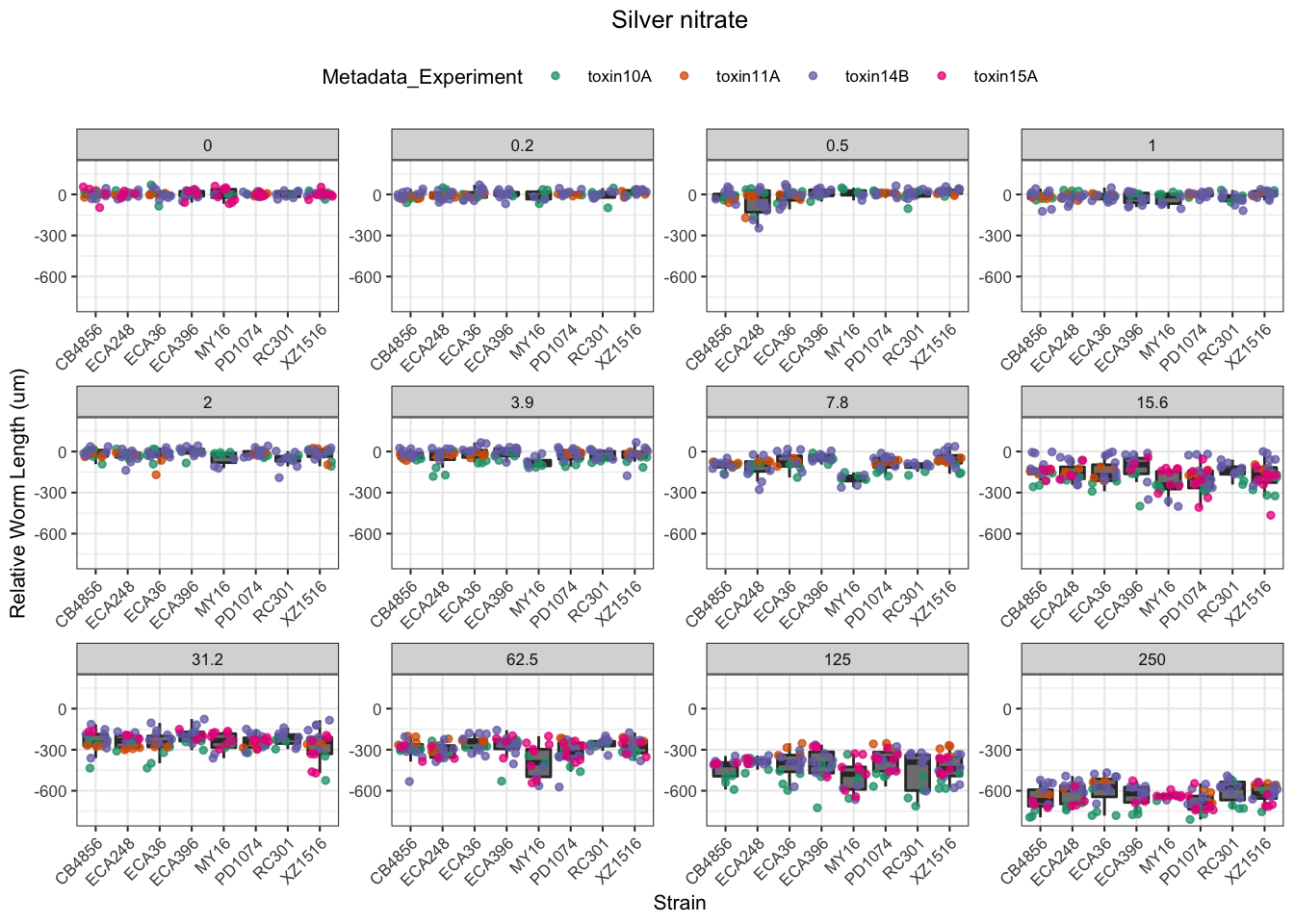

Silver

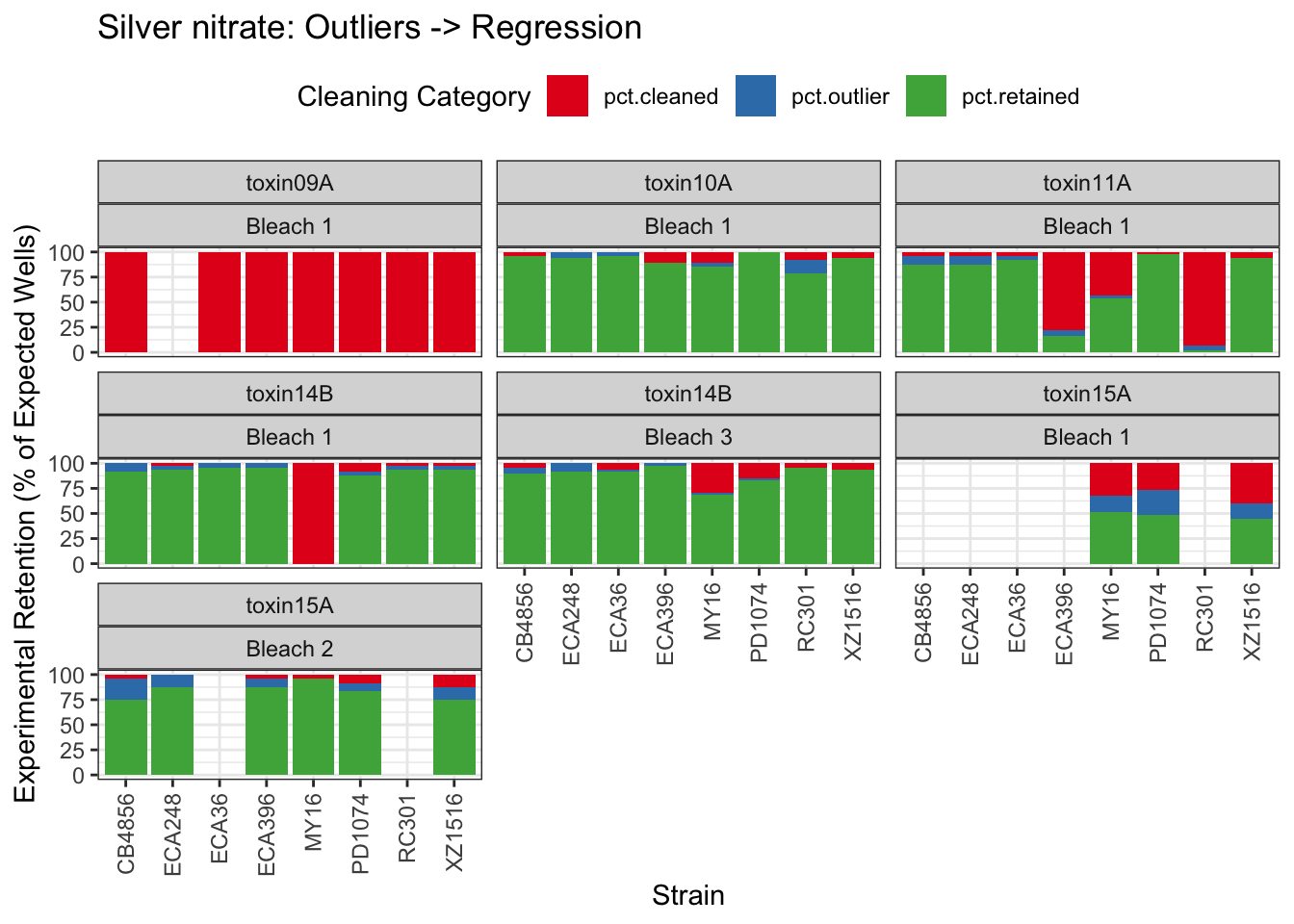

Past versions of Silver-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Silver-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Silver-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

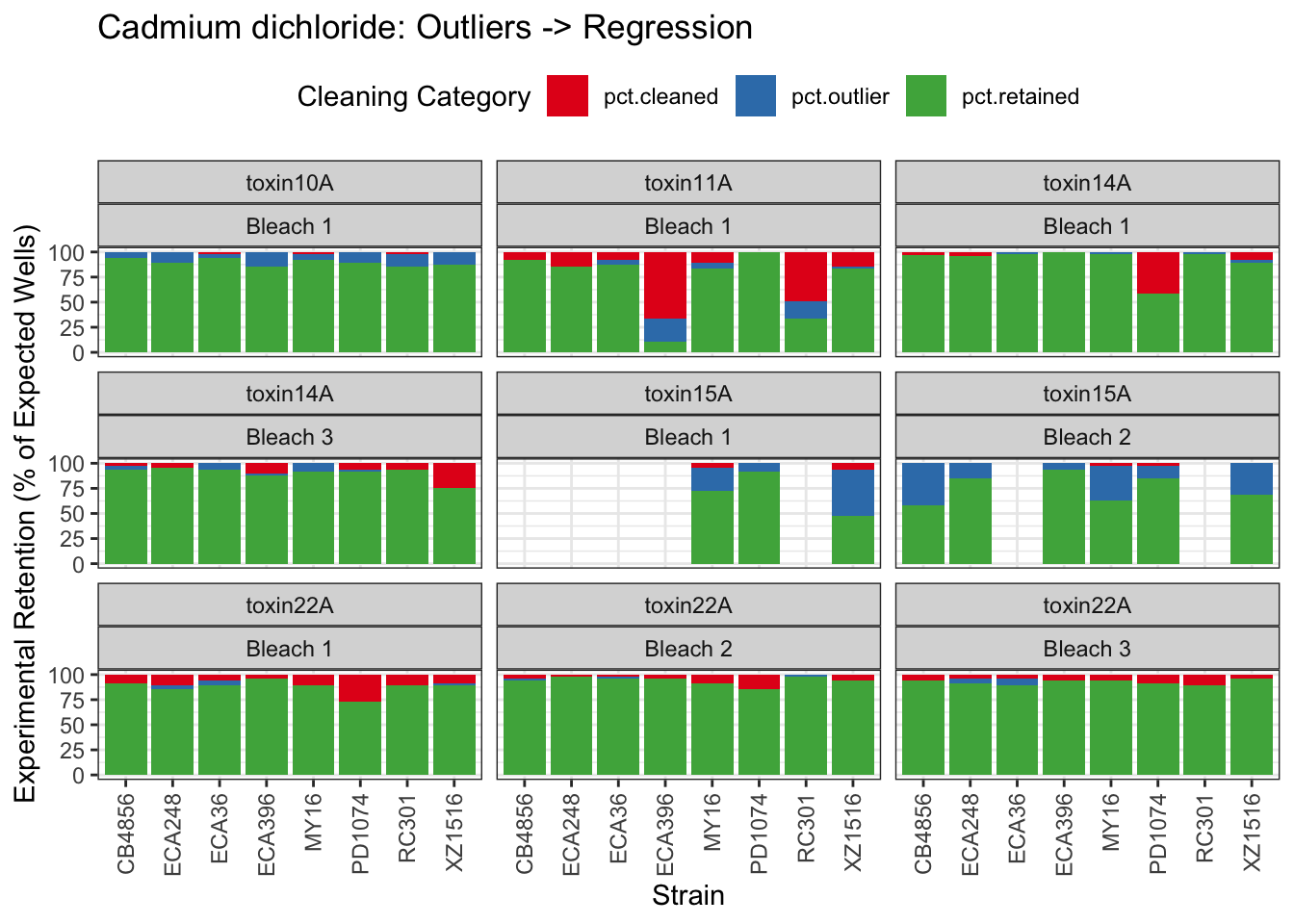

Cadmium

[1] "Excluding toxin09A: Inconsistent Response"

Past versions of Cadmium-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Cadmium-2.png

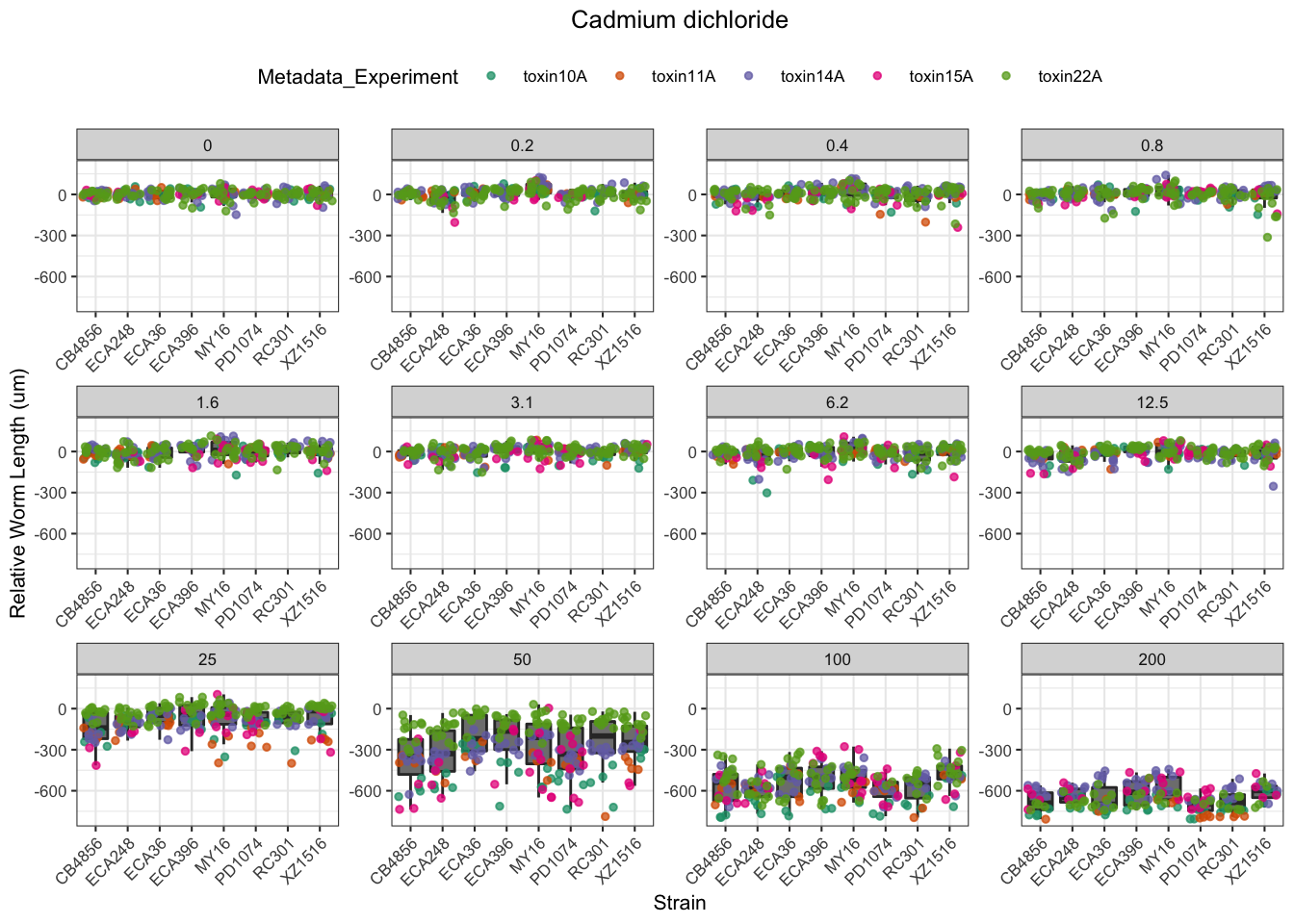

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

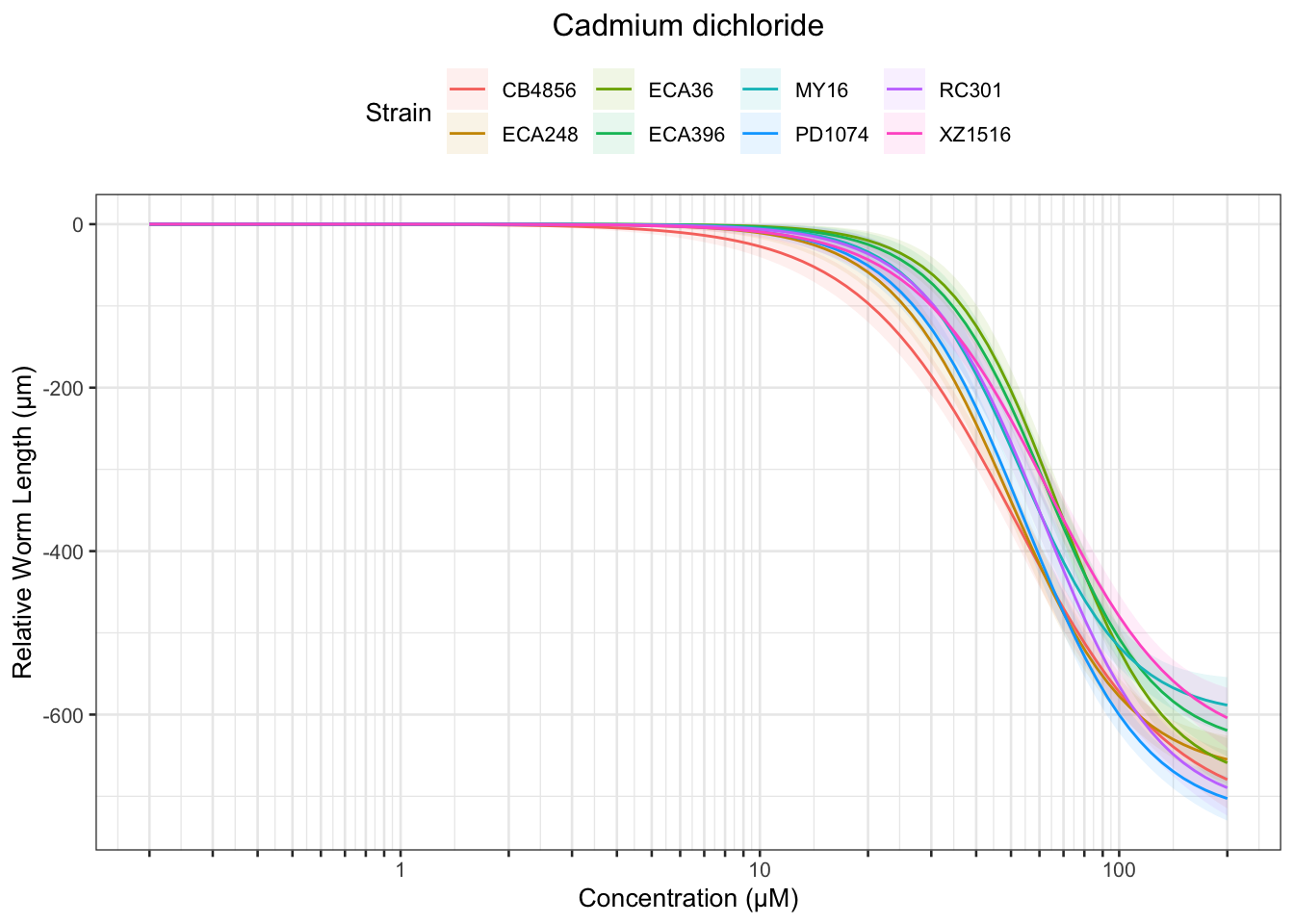

Past versions of Cadmium-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

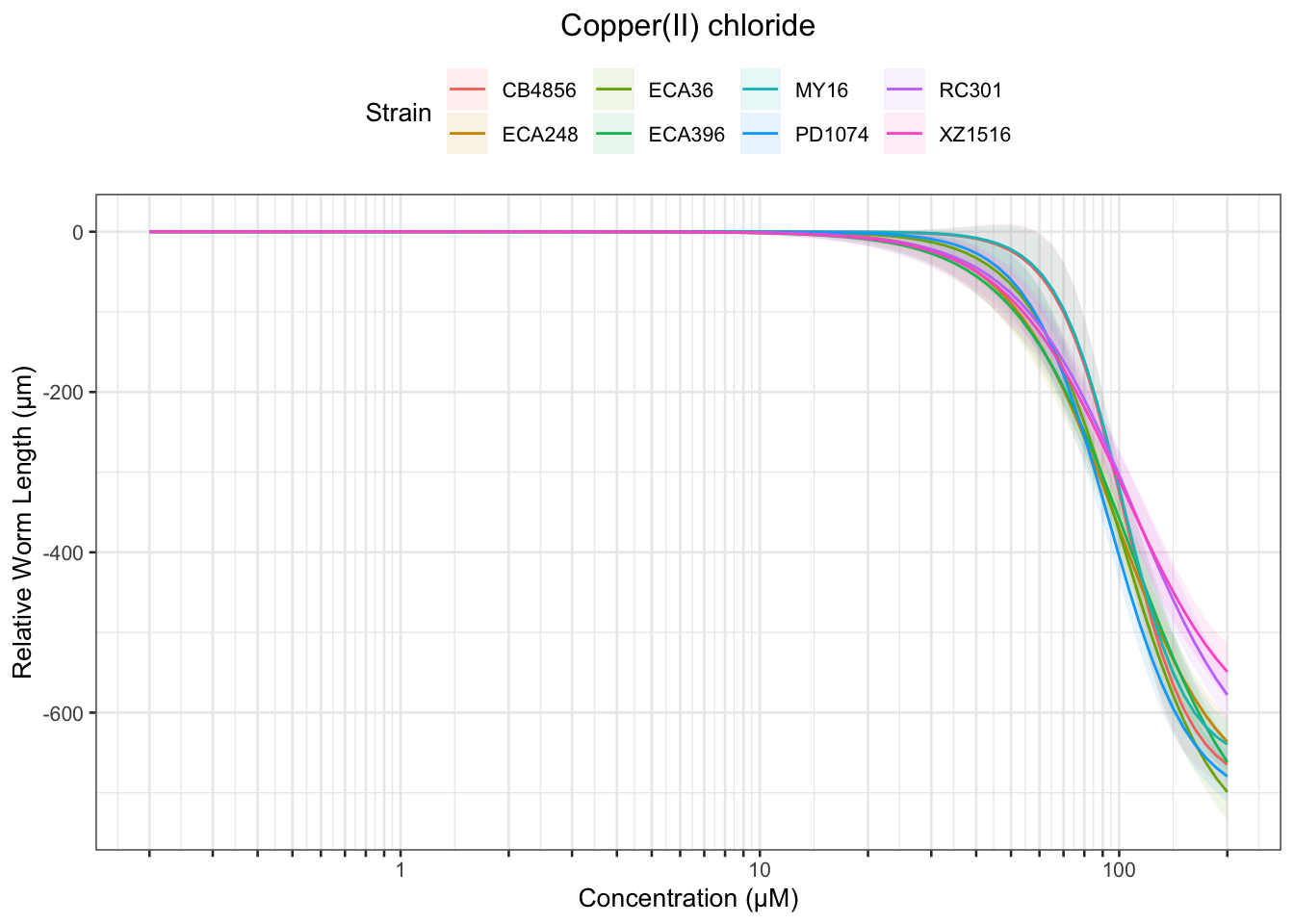

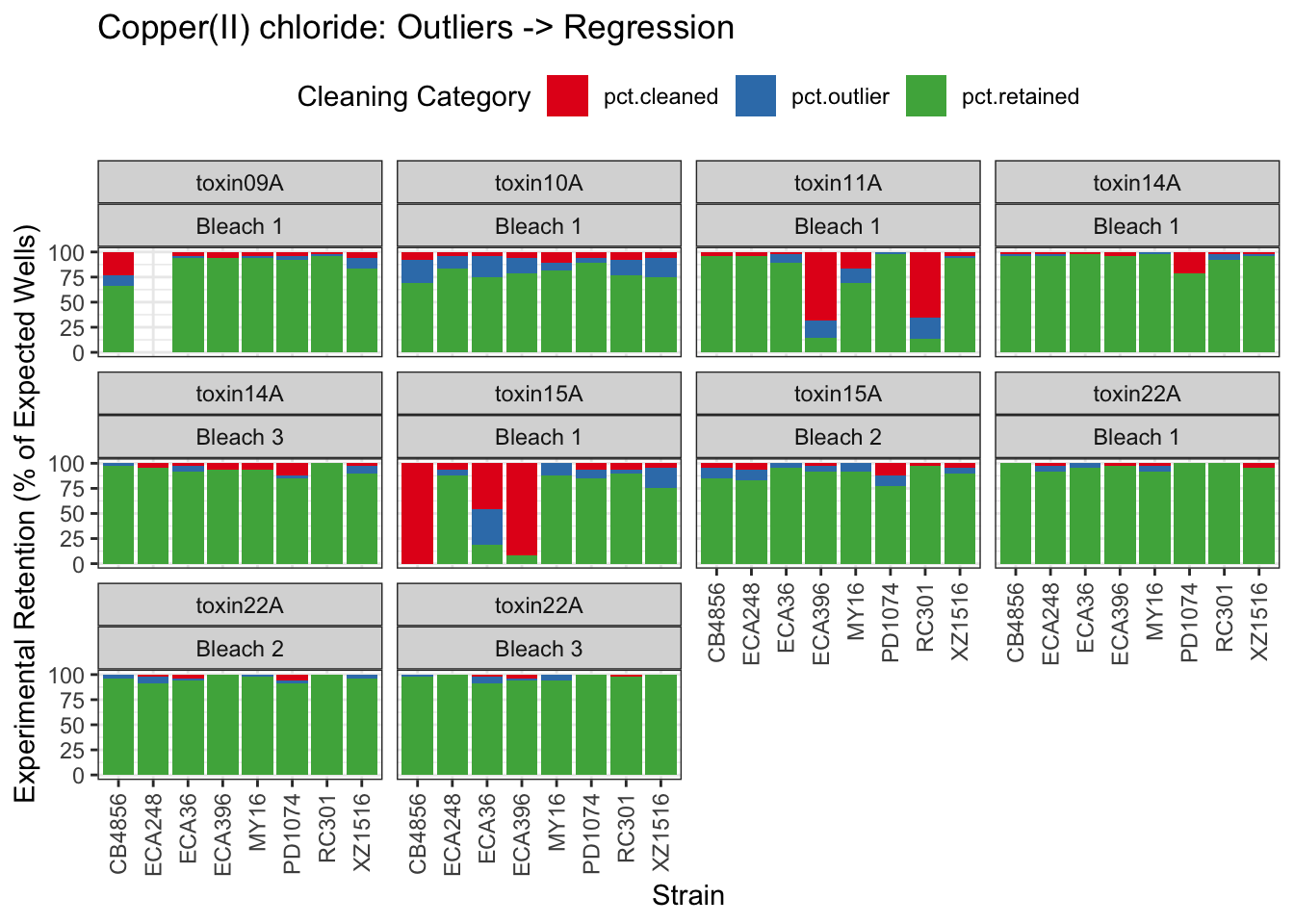

Copper

Past versions of Copper-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

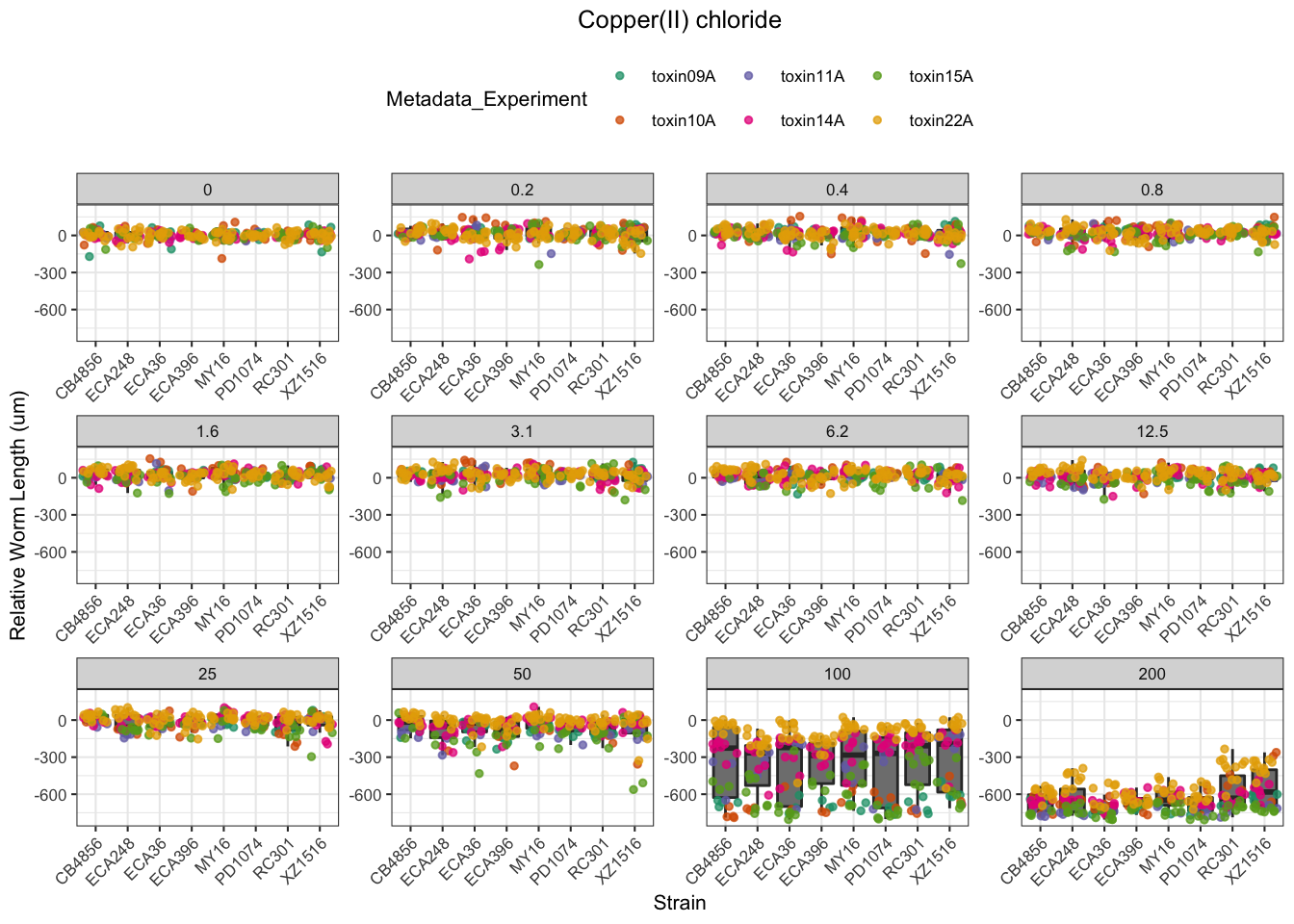

Past versions of Copper-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Copper-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

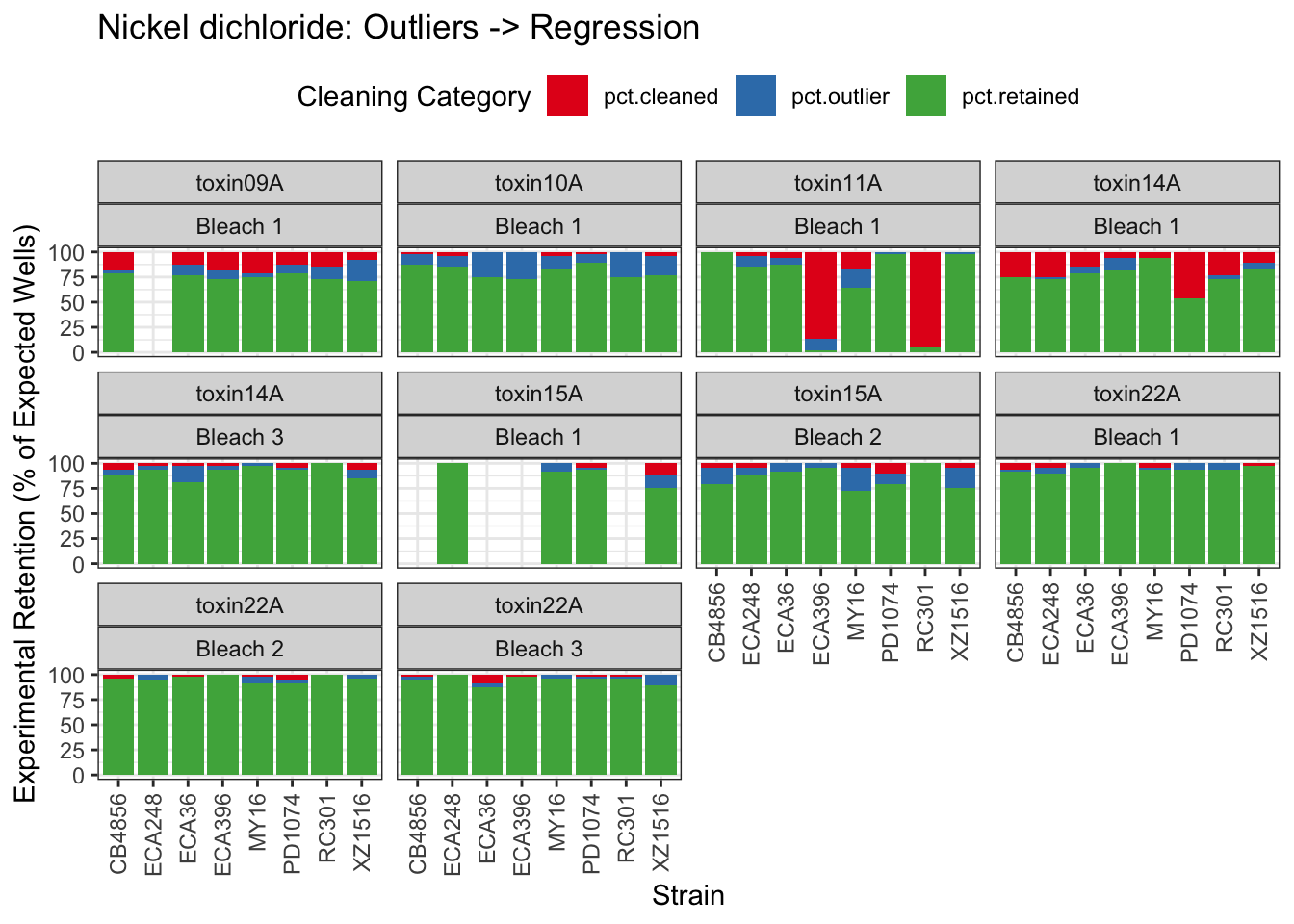

Nickel

Past versions of Nickel-1.png

Version	Author	Date

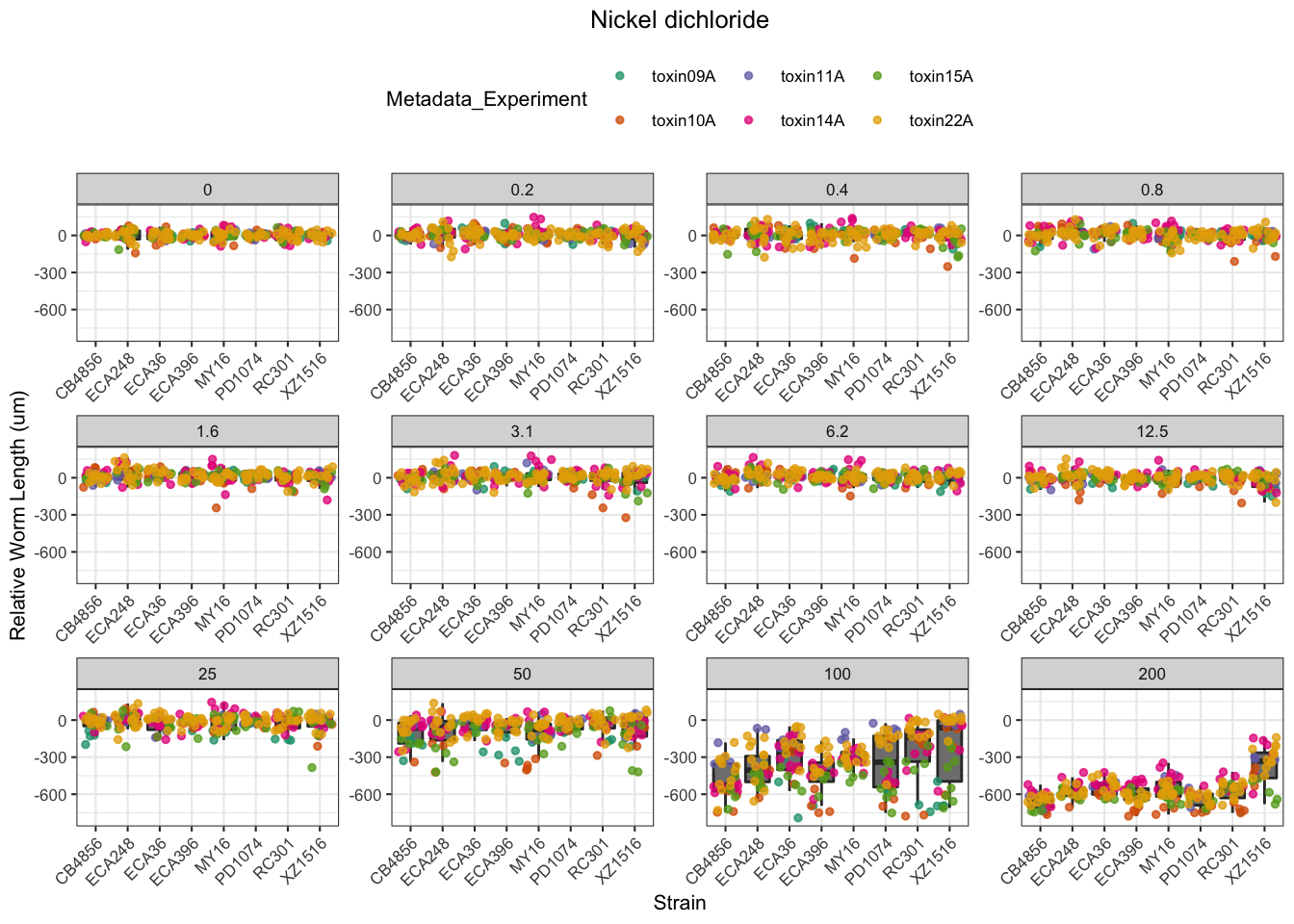

cb6e132	sam-widmayer	2021-03-06

Past versions of Nickel-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Nickel-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

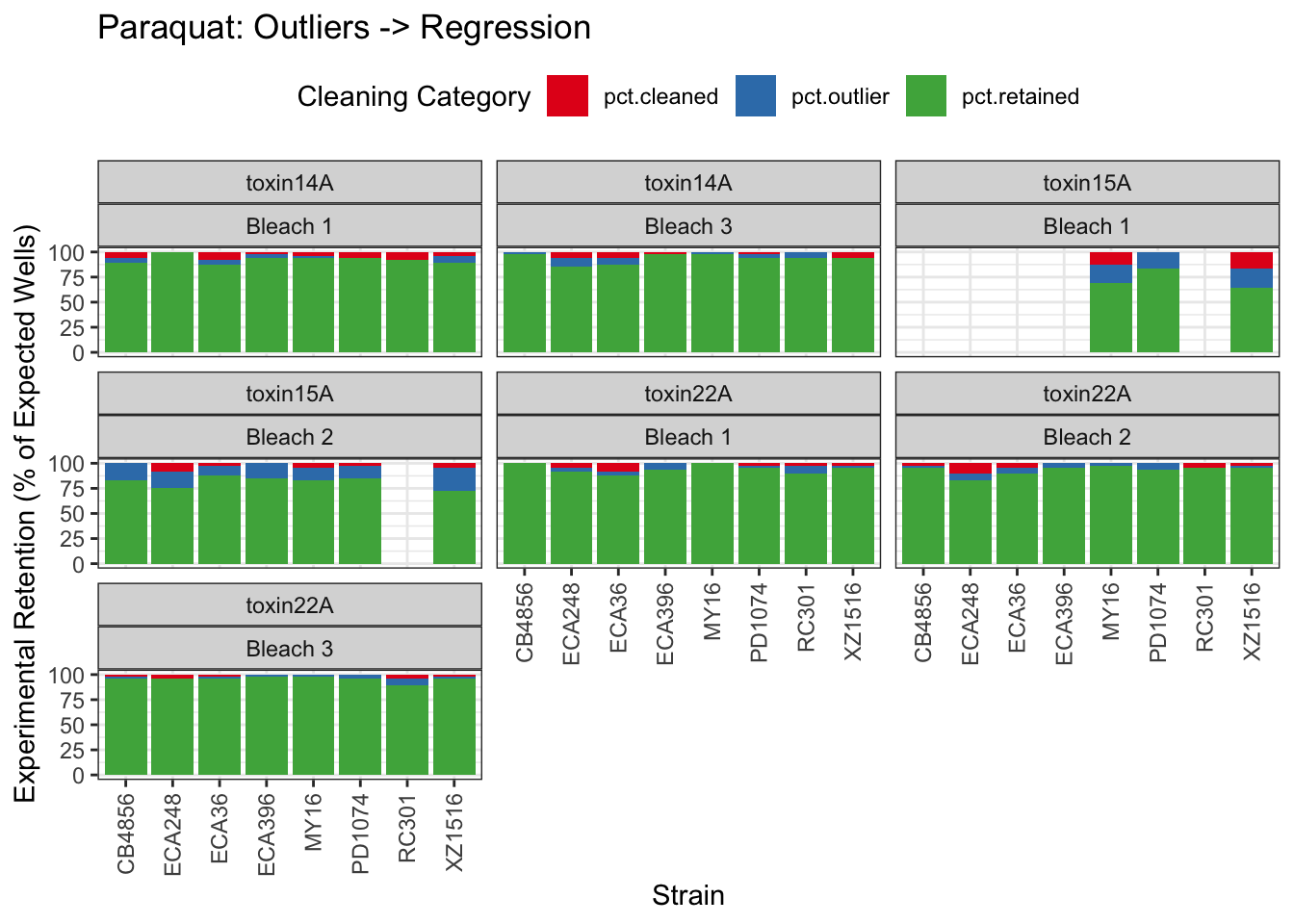

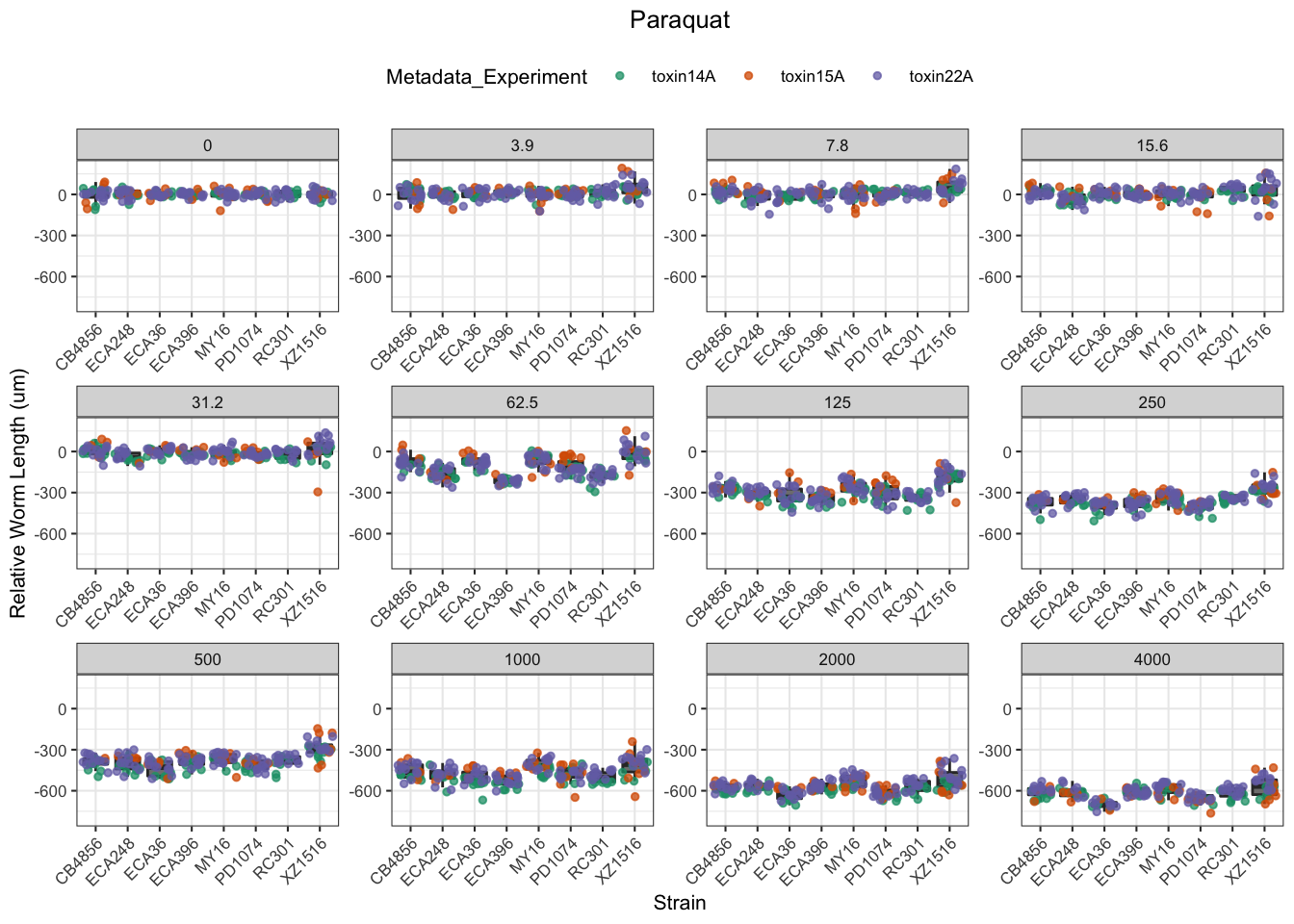

Paraquat

Past versions of Paraquat-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Paraquat-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

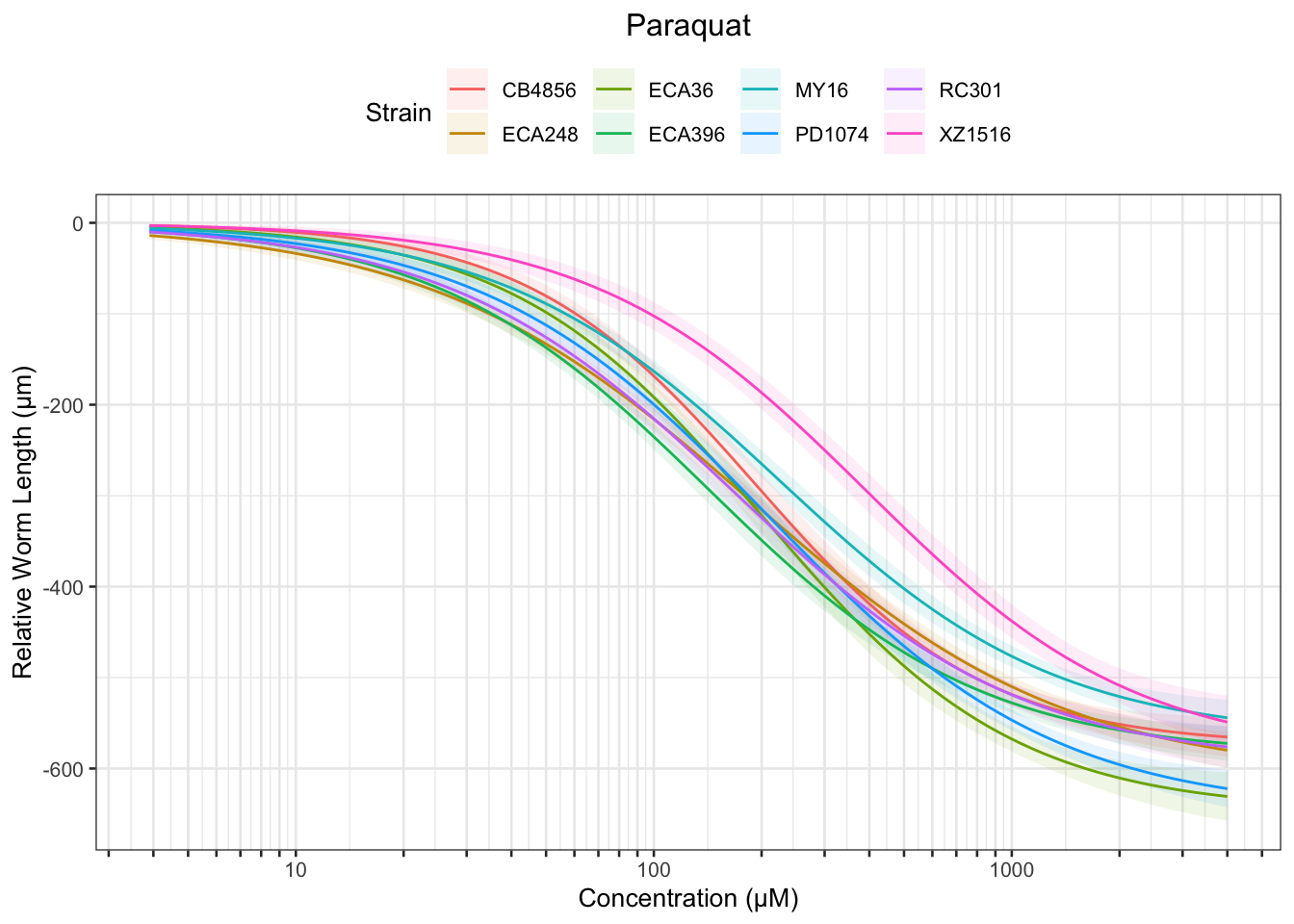

Past versions of Paraquat-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

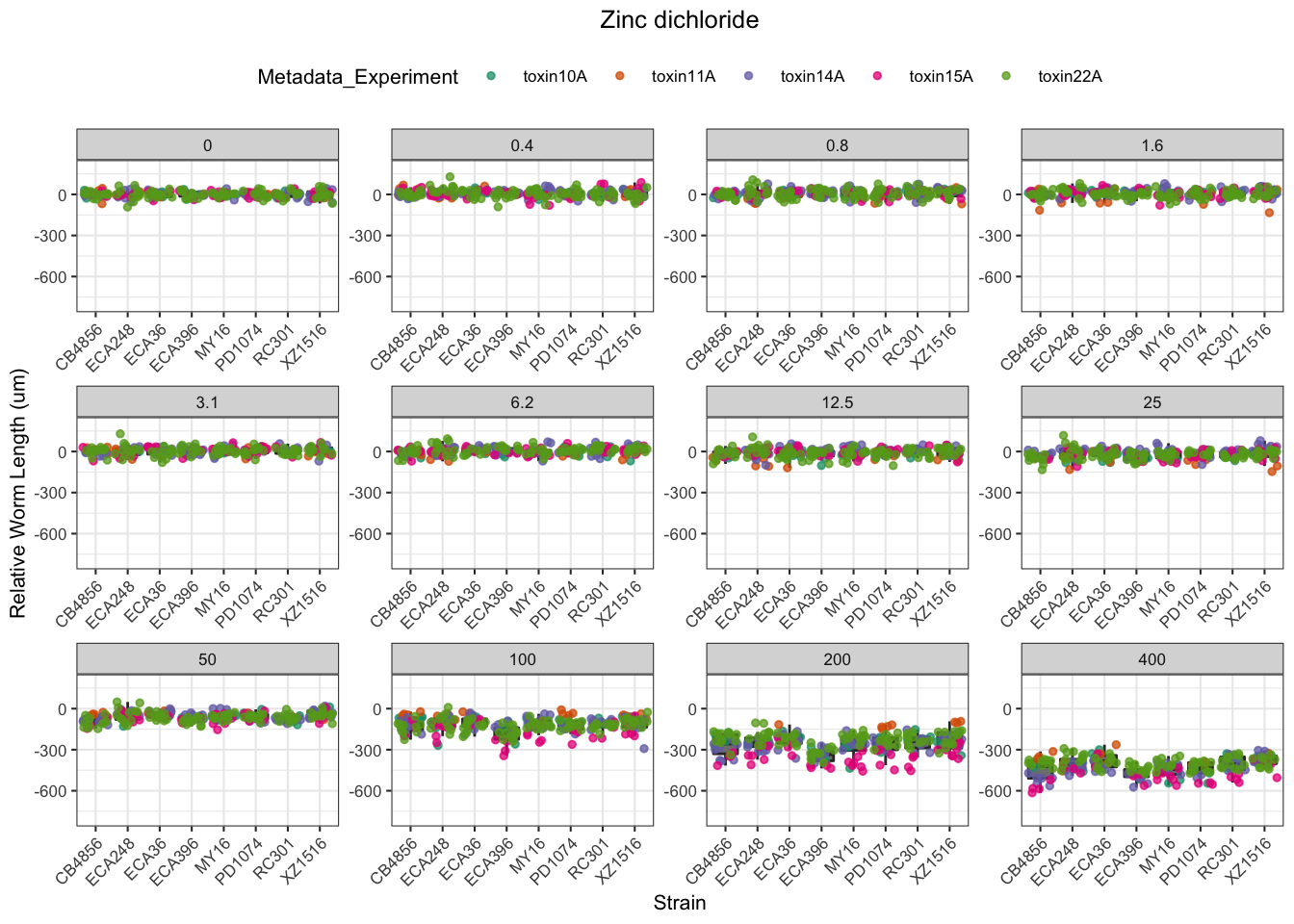

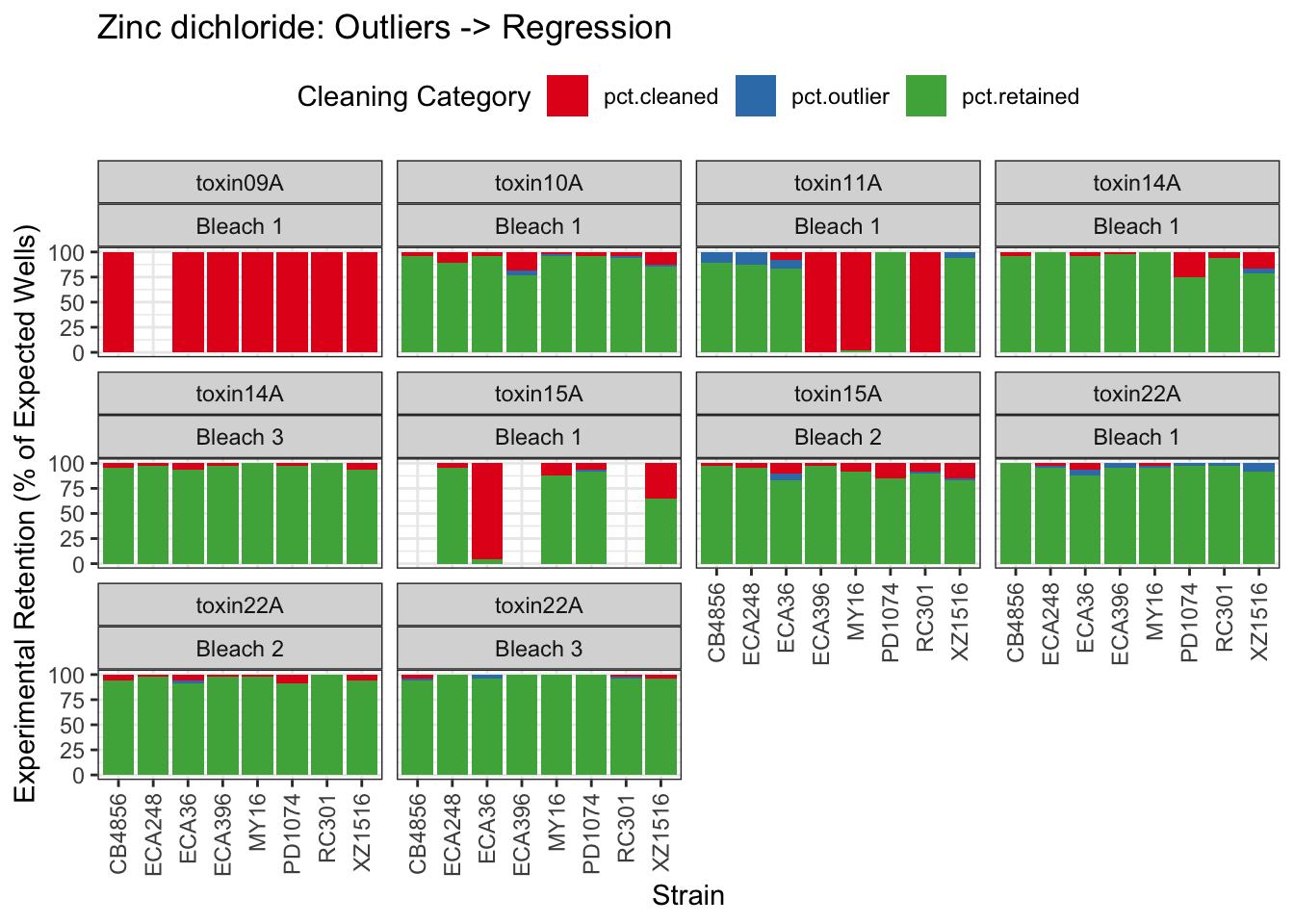

Zinc

Past versions of Zinc-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Zinc-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

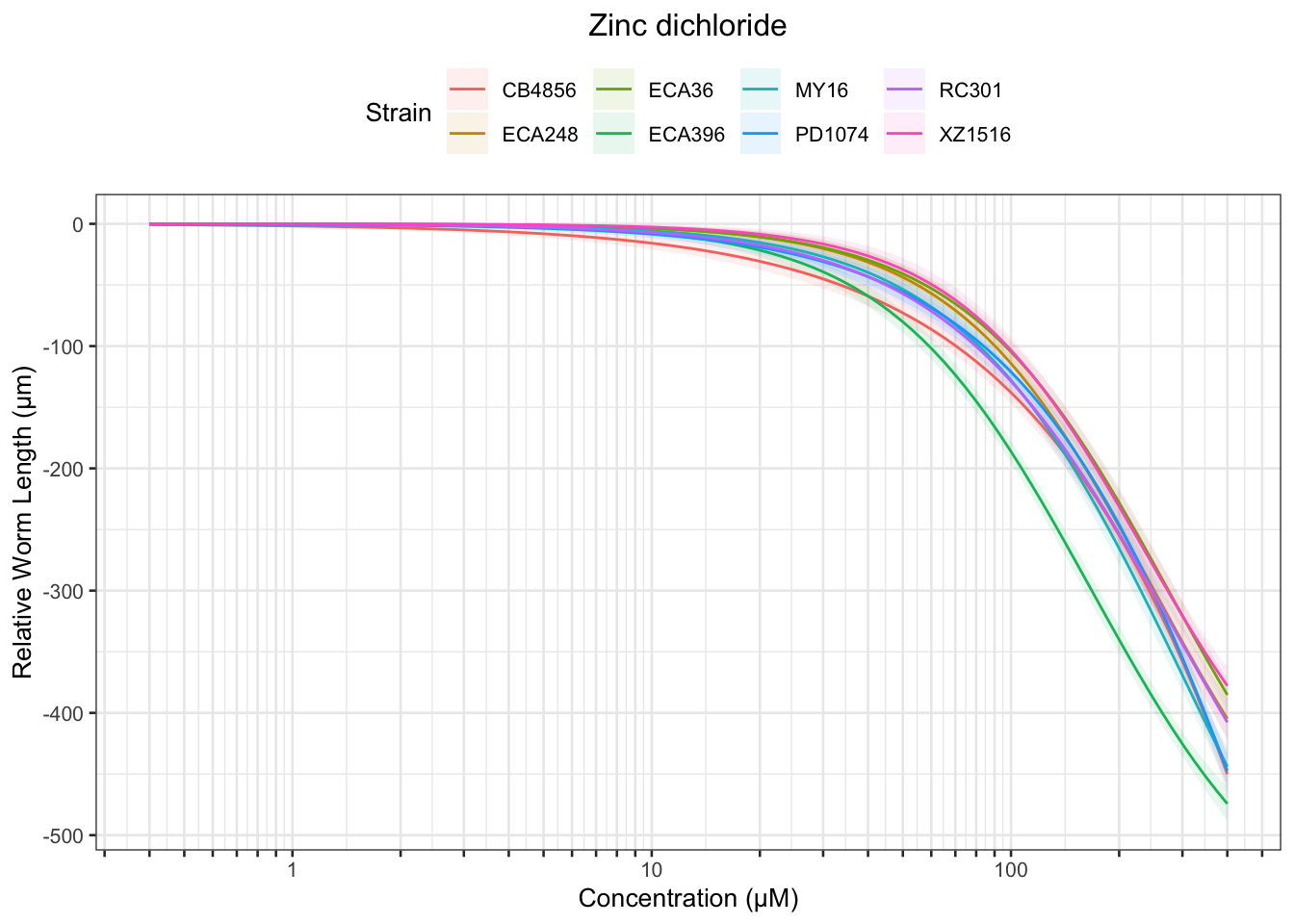

Past versions of Zinc-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

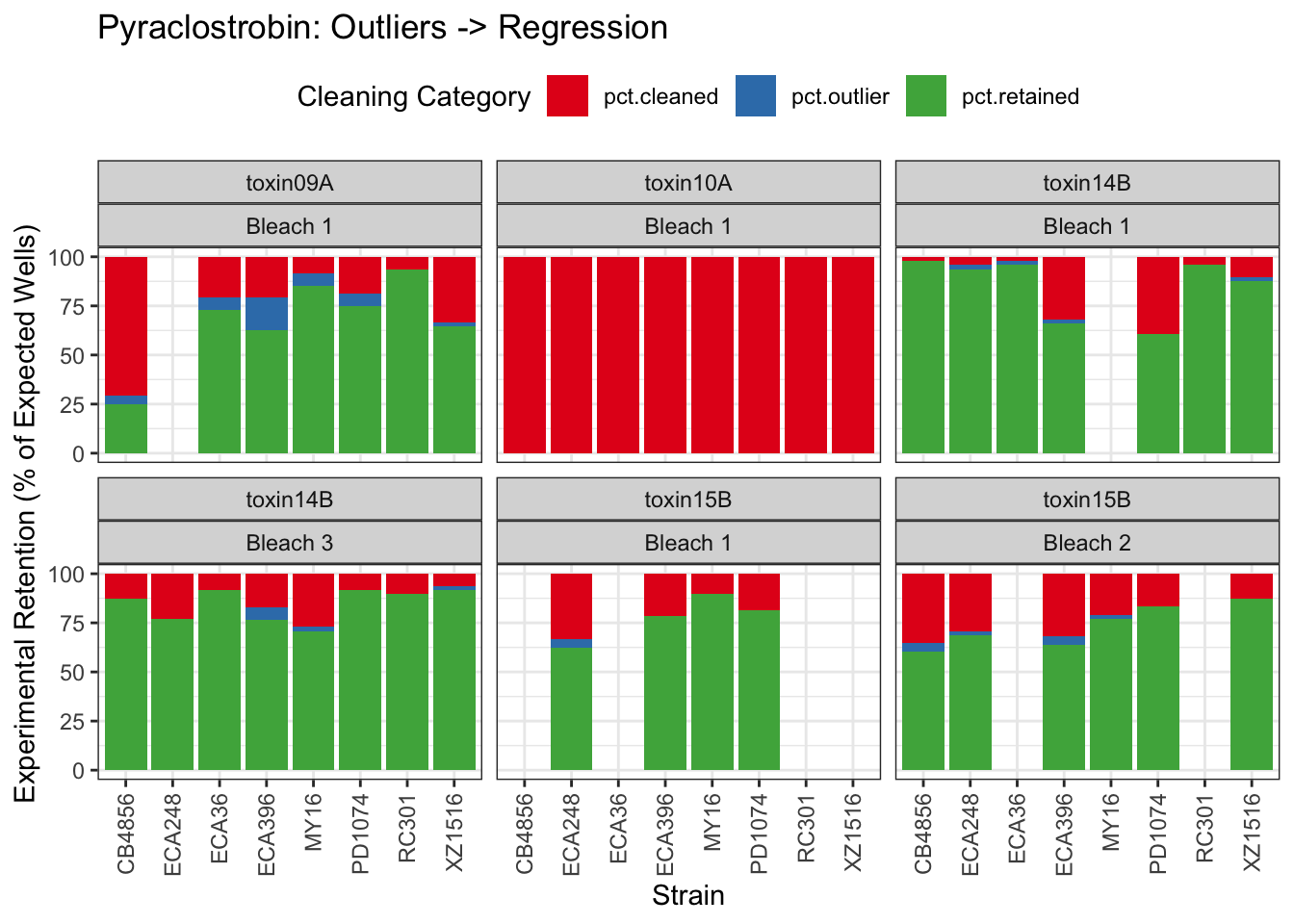

Pyraclostrobin

[1] "Excluding toxin11A: Inconsistent Response"

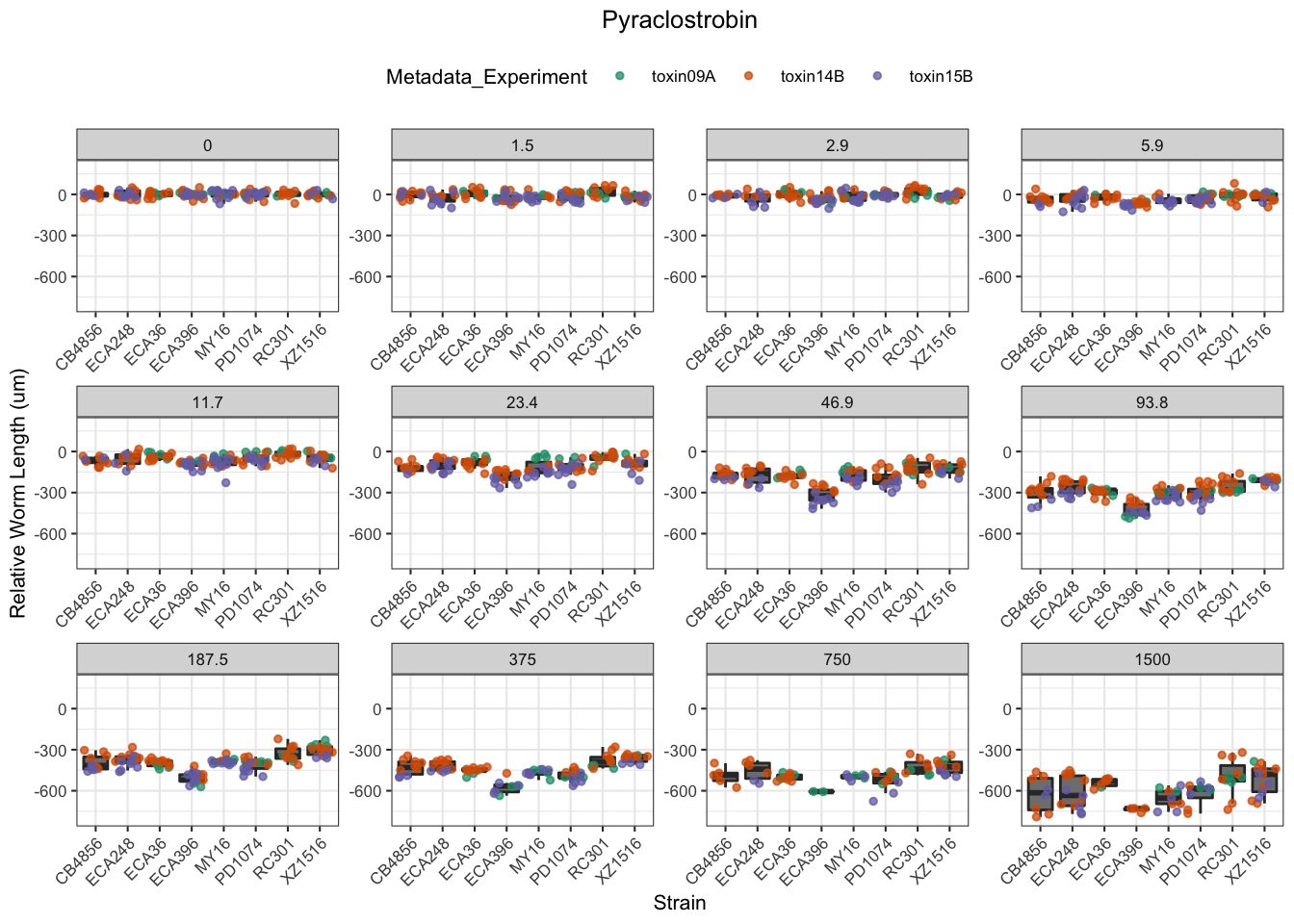

Past versions of Pyraclostrobin-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Pyraclostrobin-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

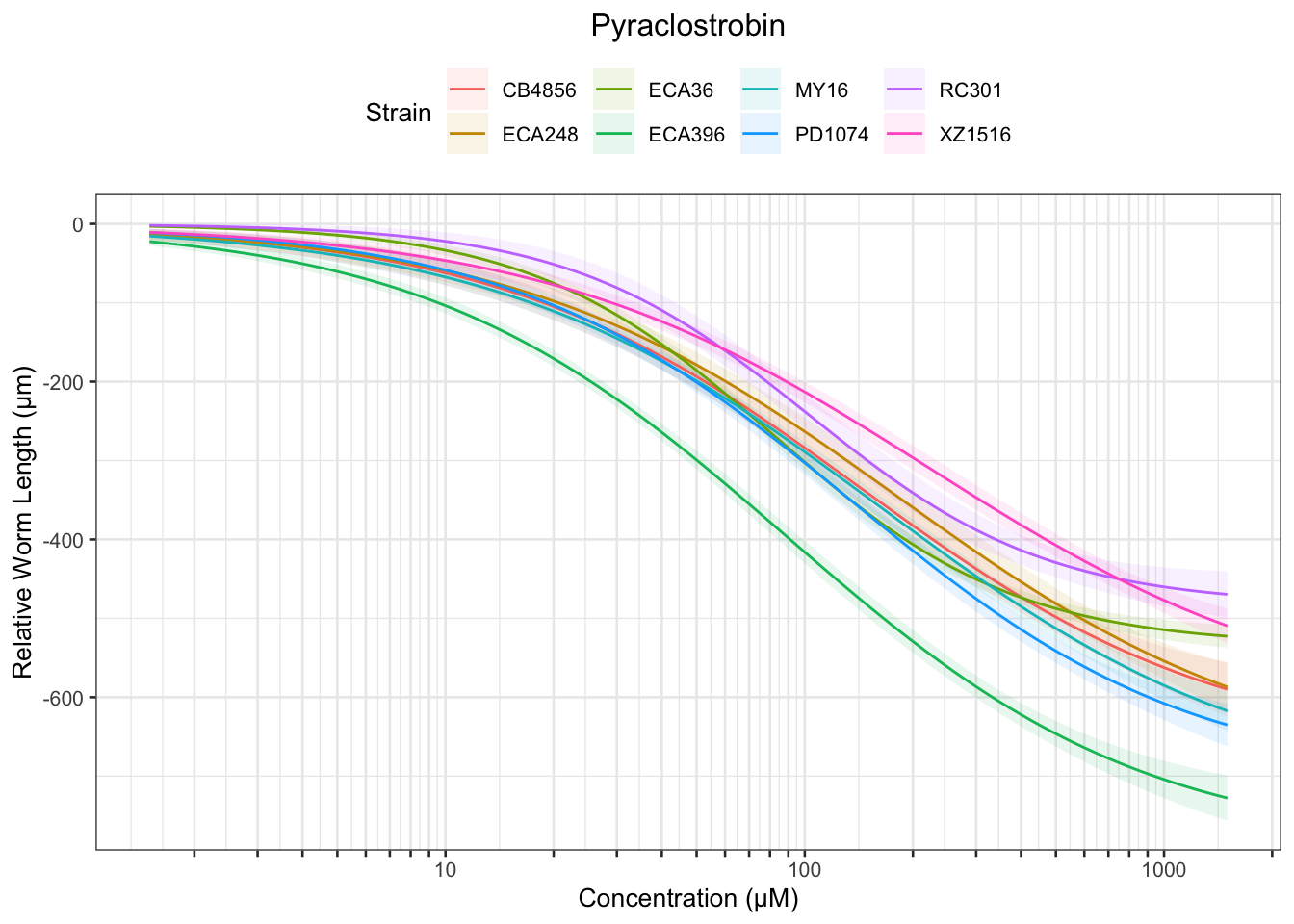

Past versions of Pyraclostrobin-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

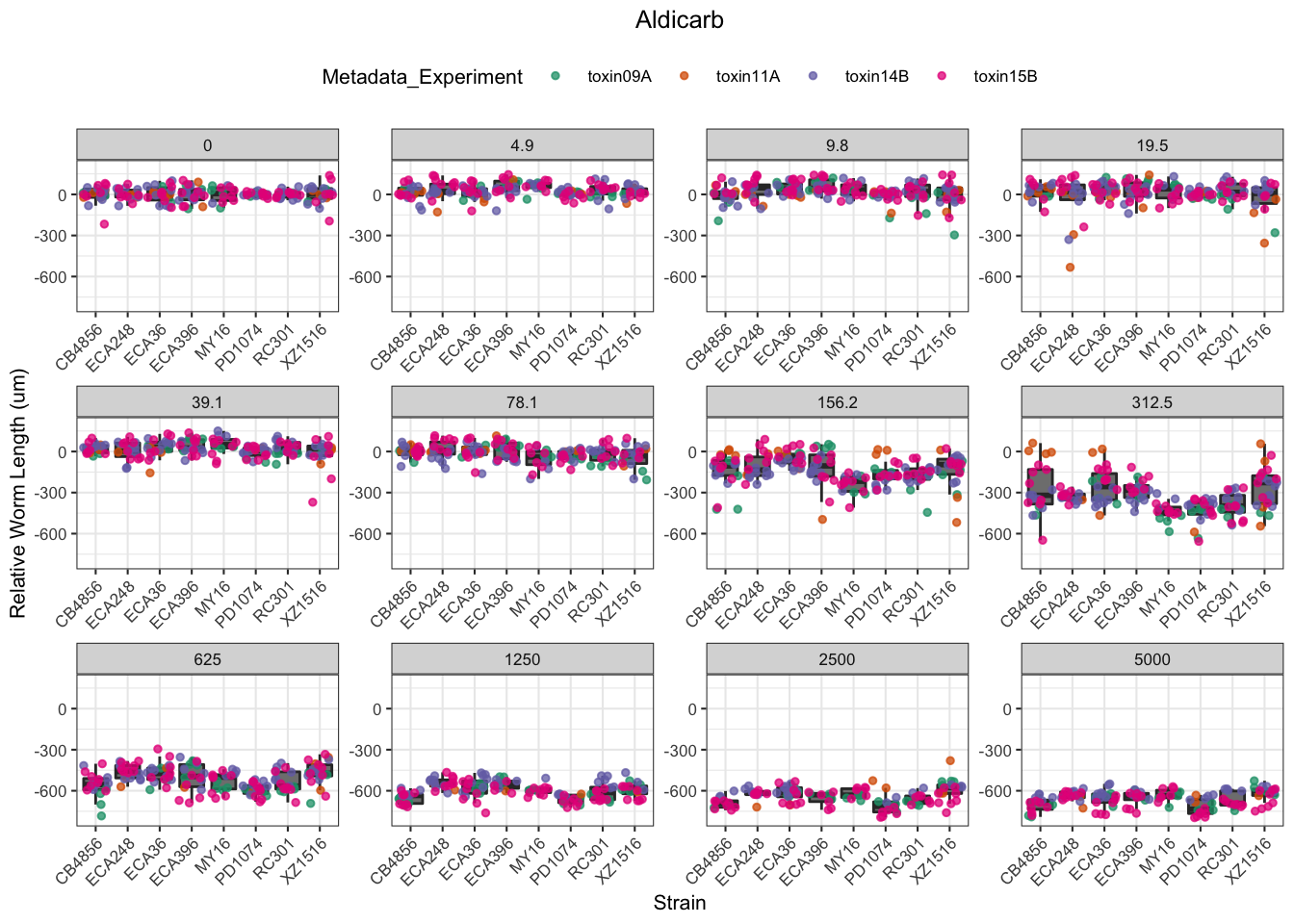

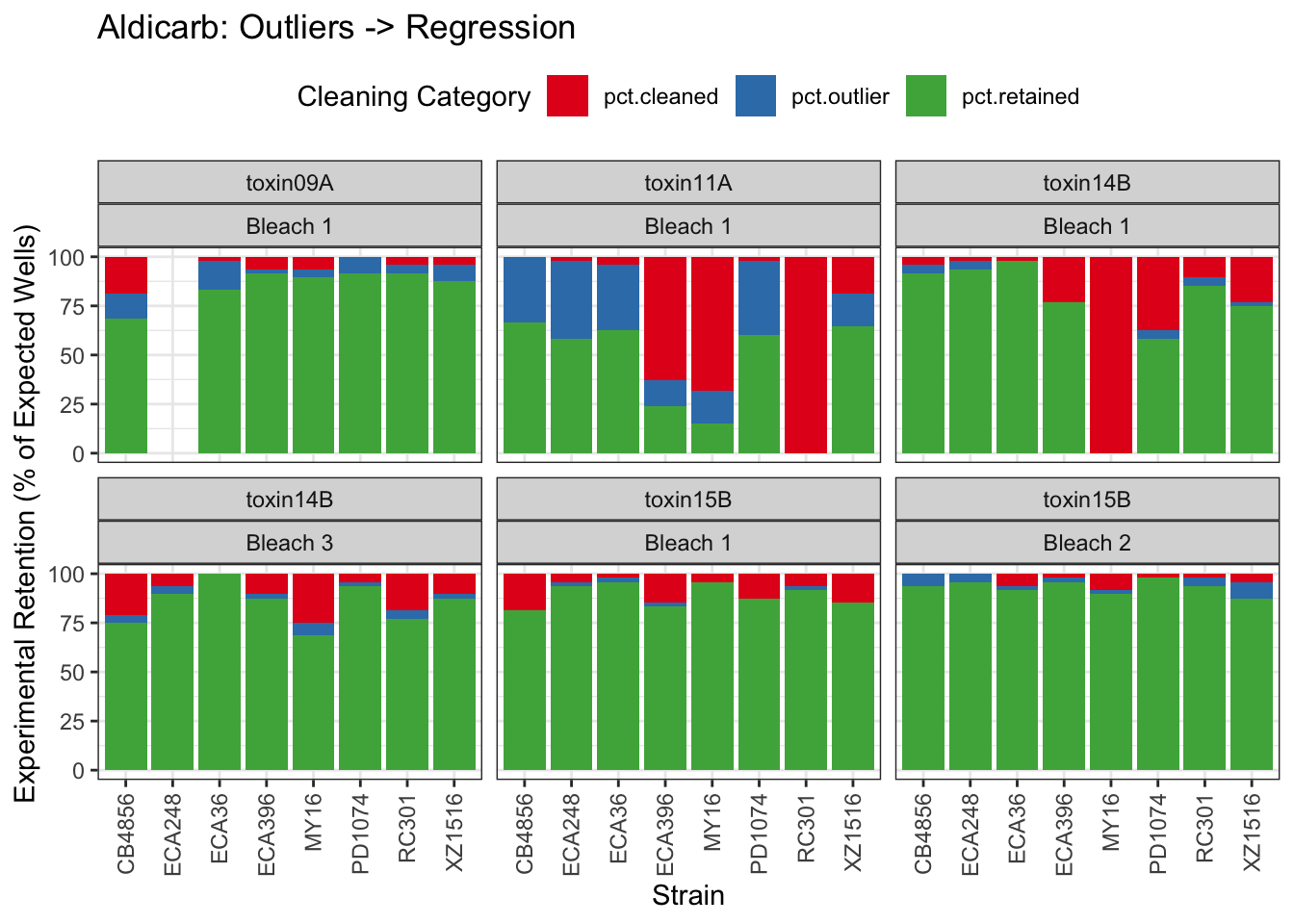

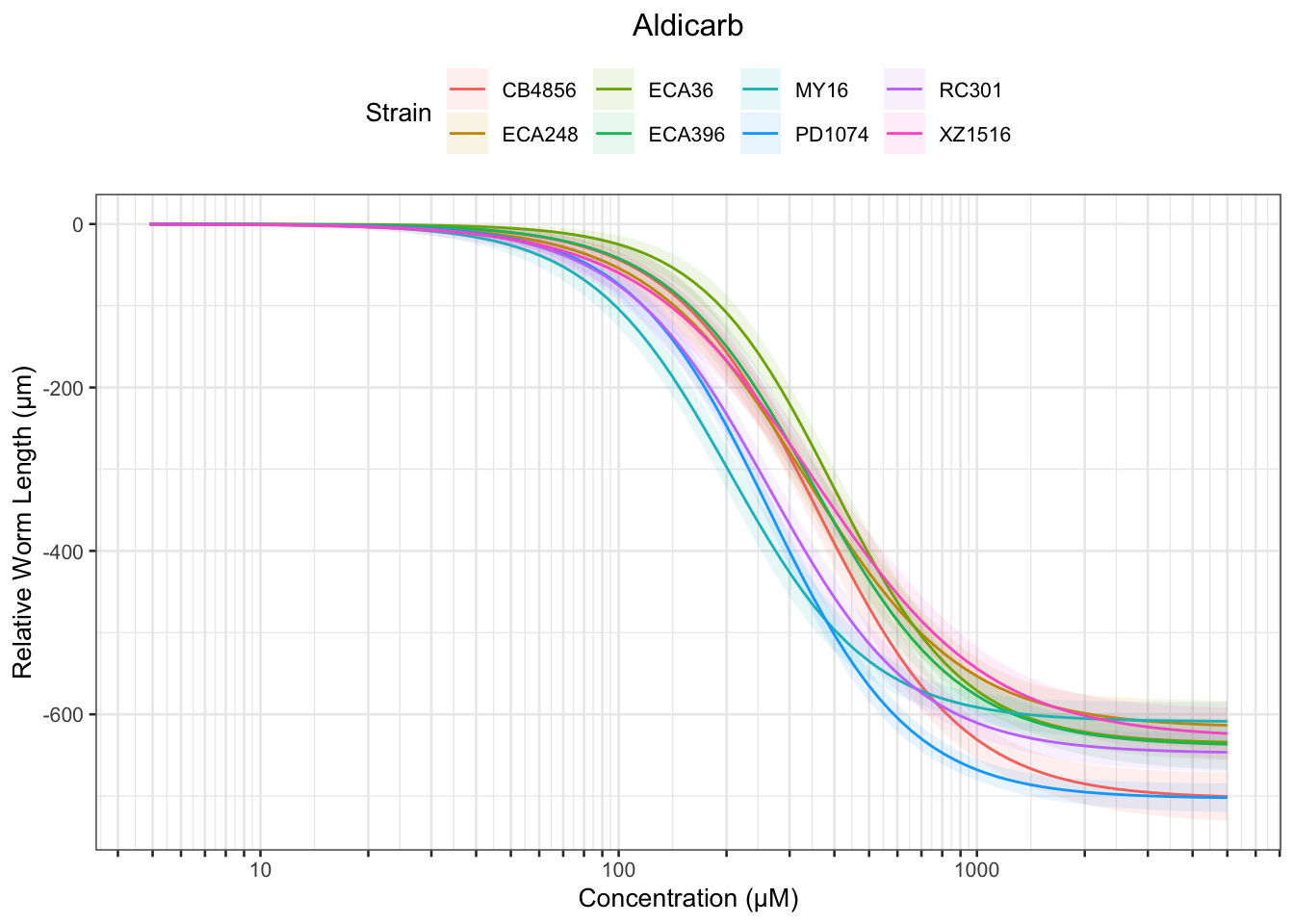

Aldicarb

Past versions of Aldicarb-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Aldicarb-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Aldicarb-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

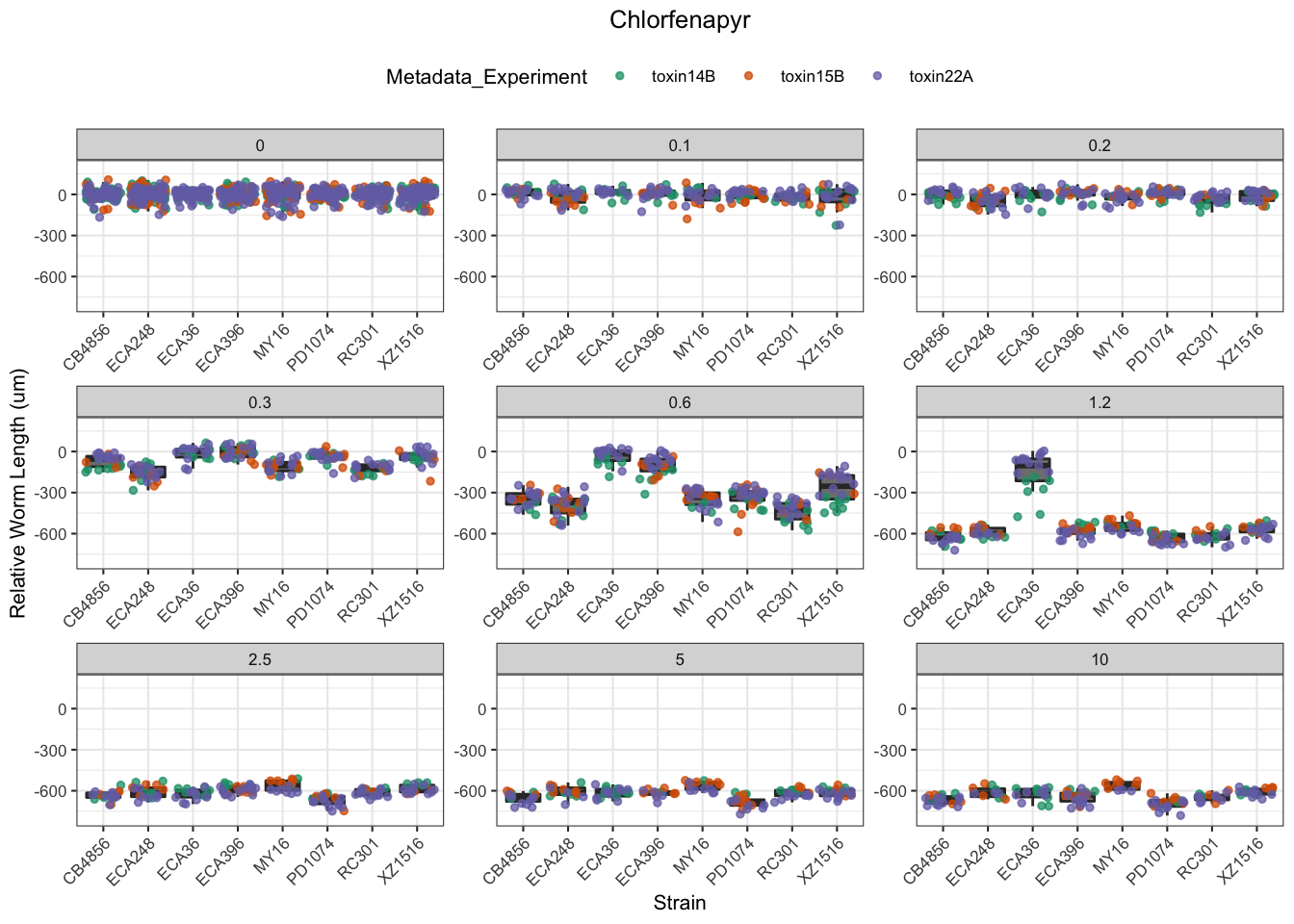

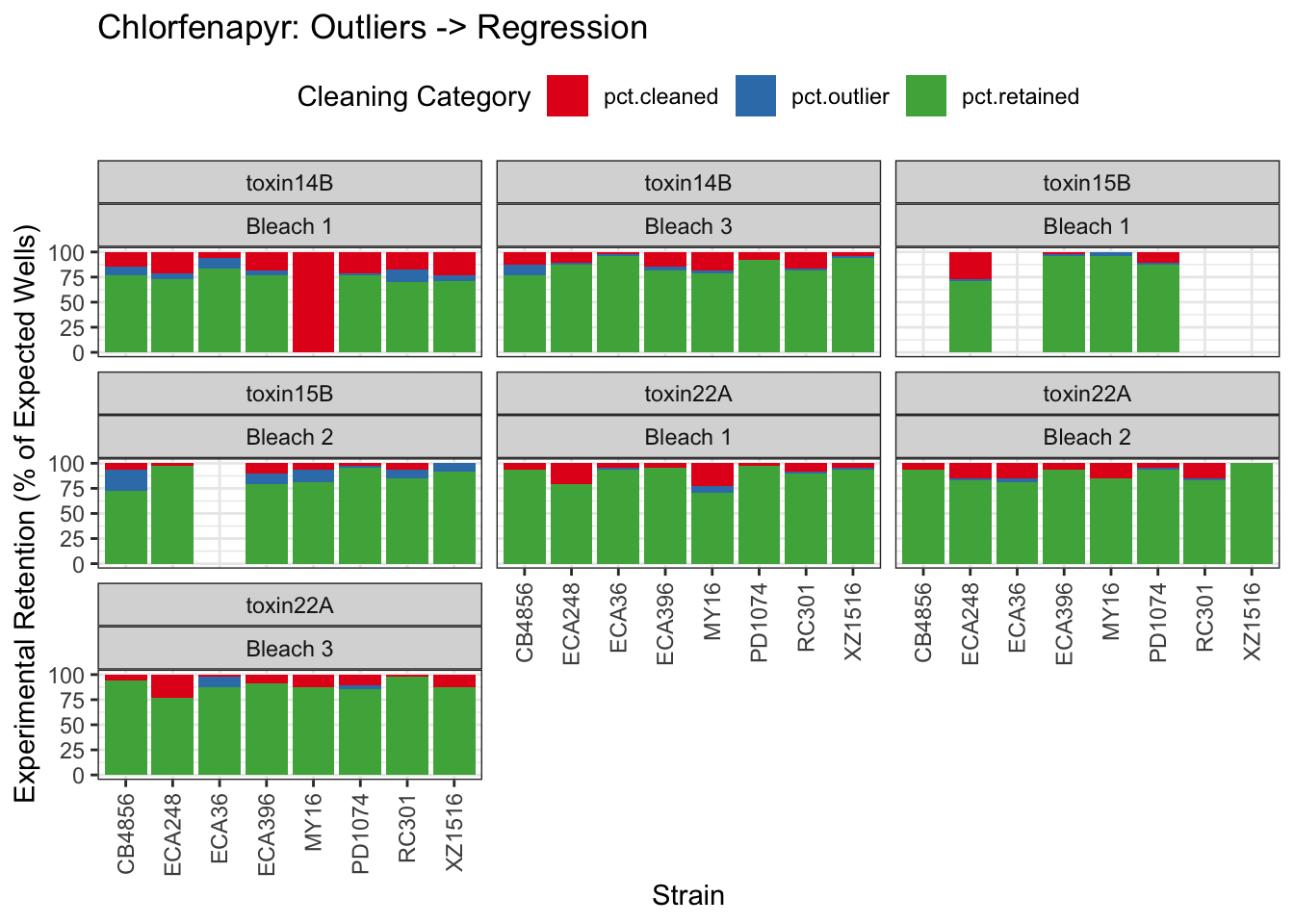

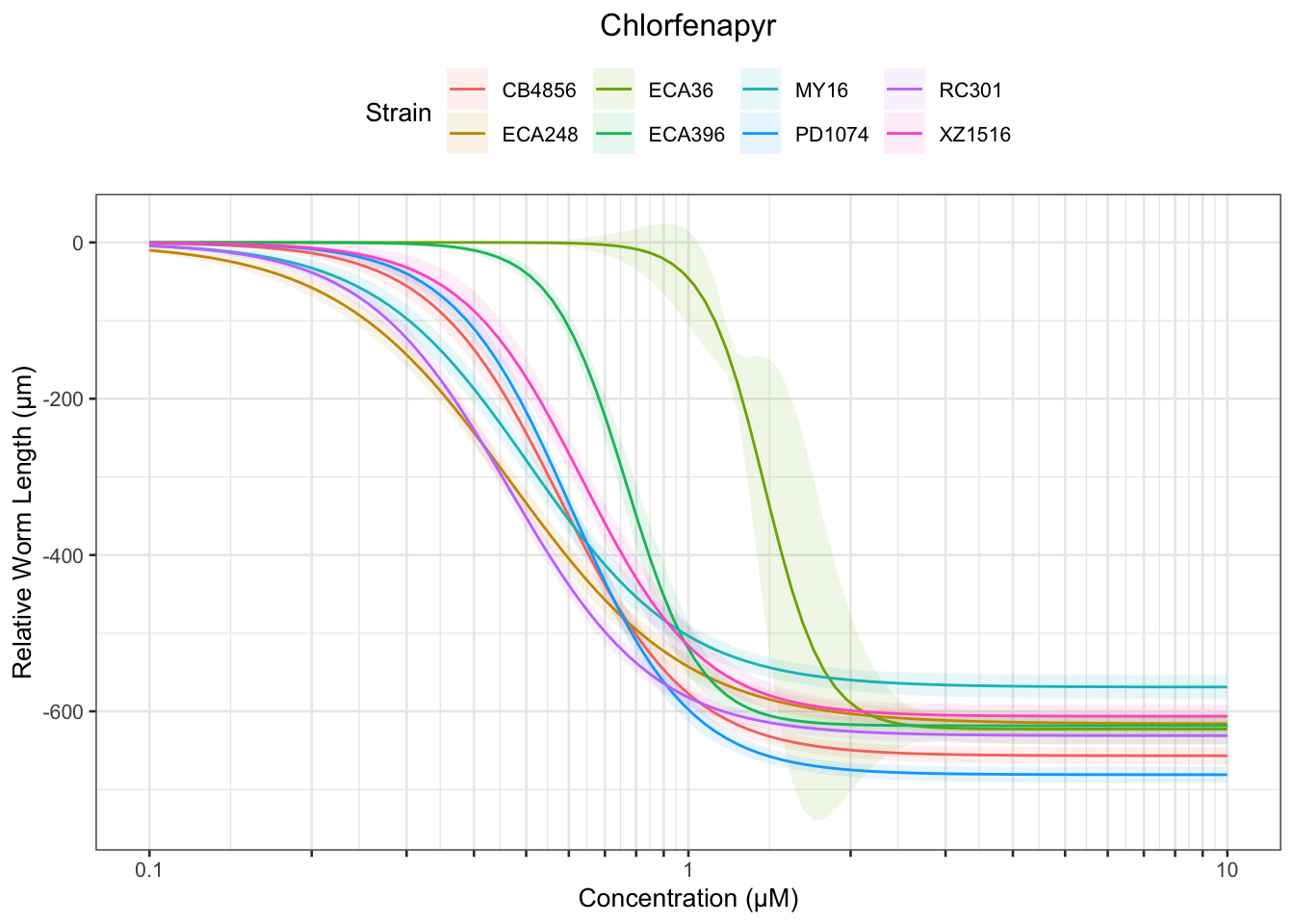

Chlorfenapyr

[1] "Excluding toxin09A, toxin10A, toxin11A, toxin12A: No Response/Variable Dilution"

Past versions of Chlorfenapyr-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Chlorfenapyr-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Chlorfenapyr-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

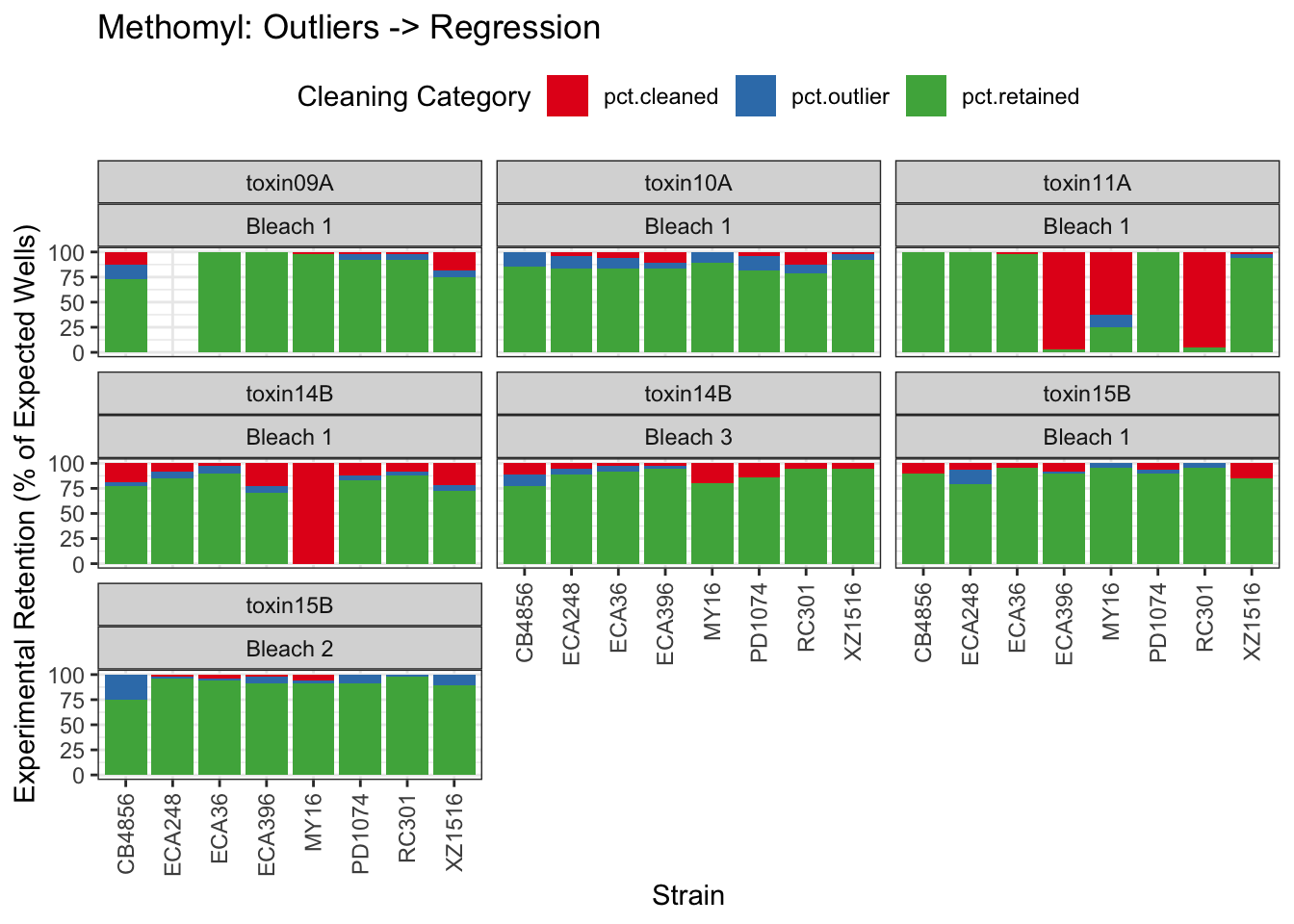

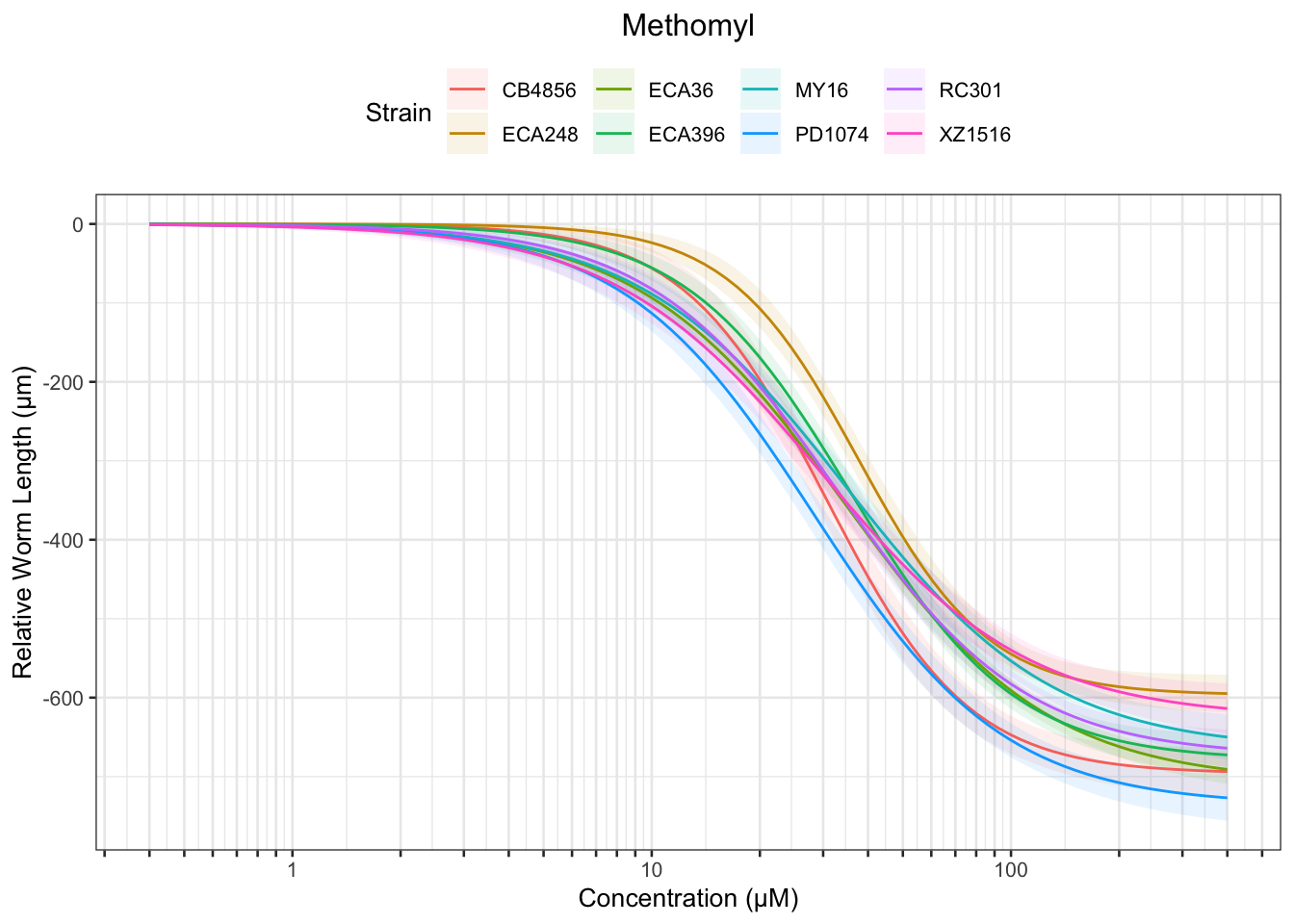

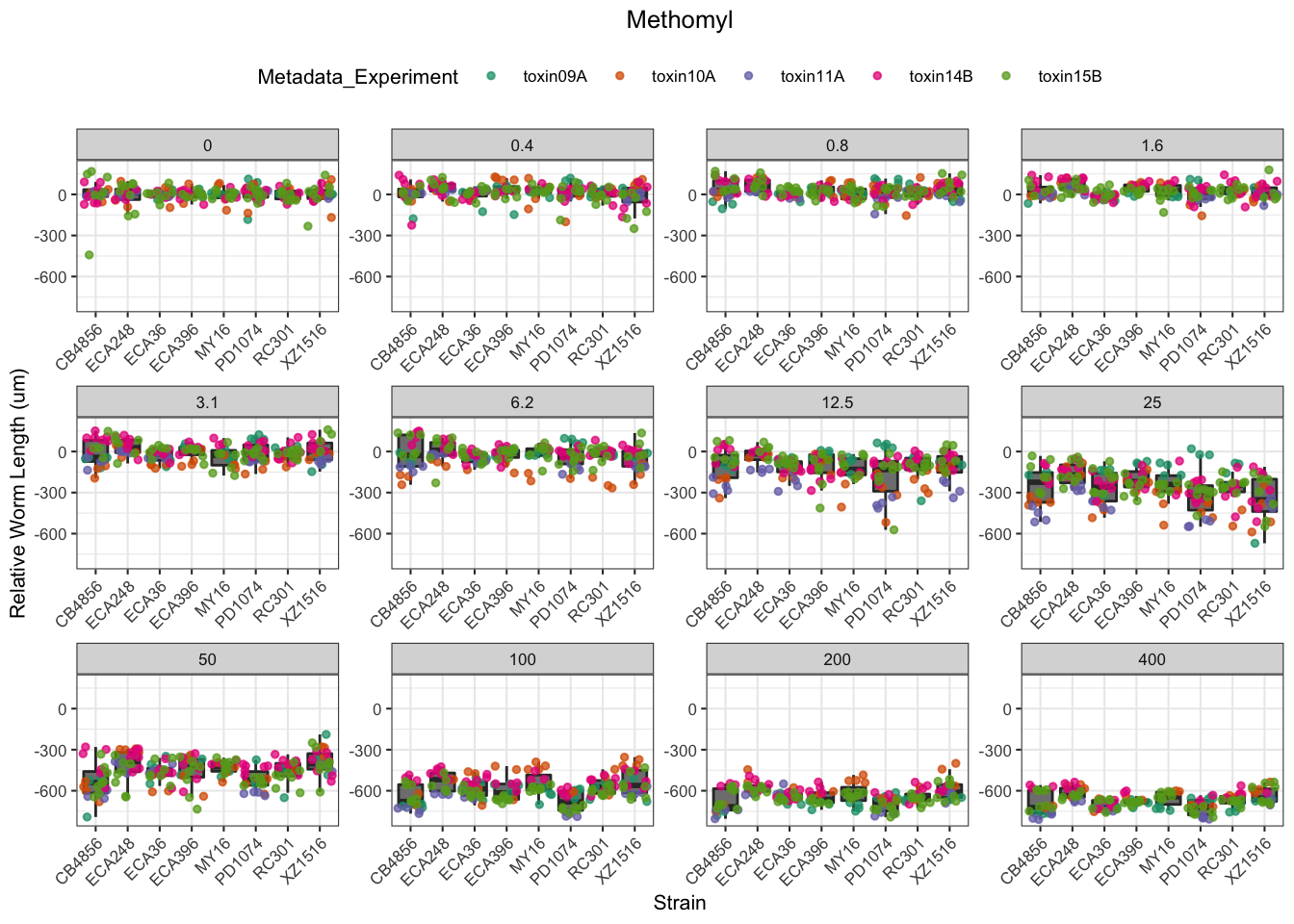

Methomyl

Past versions of Methomyl-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Methomyl-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Methomyl-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

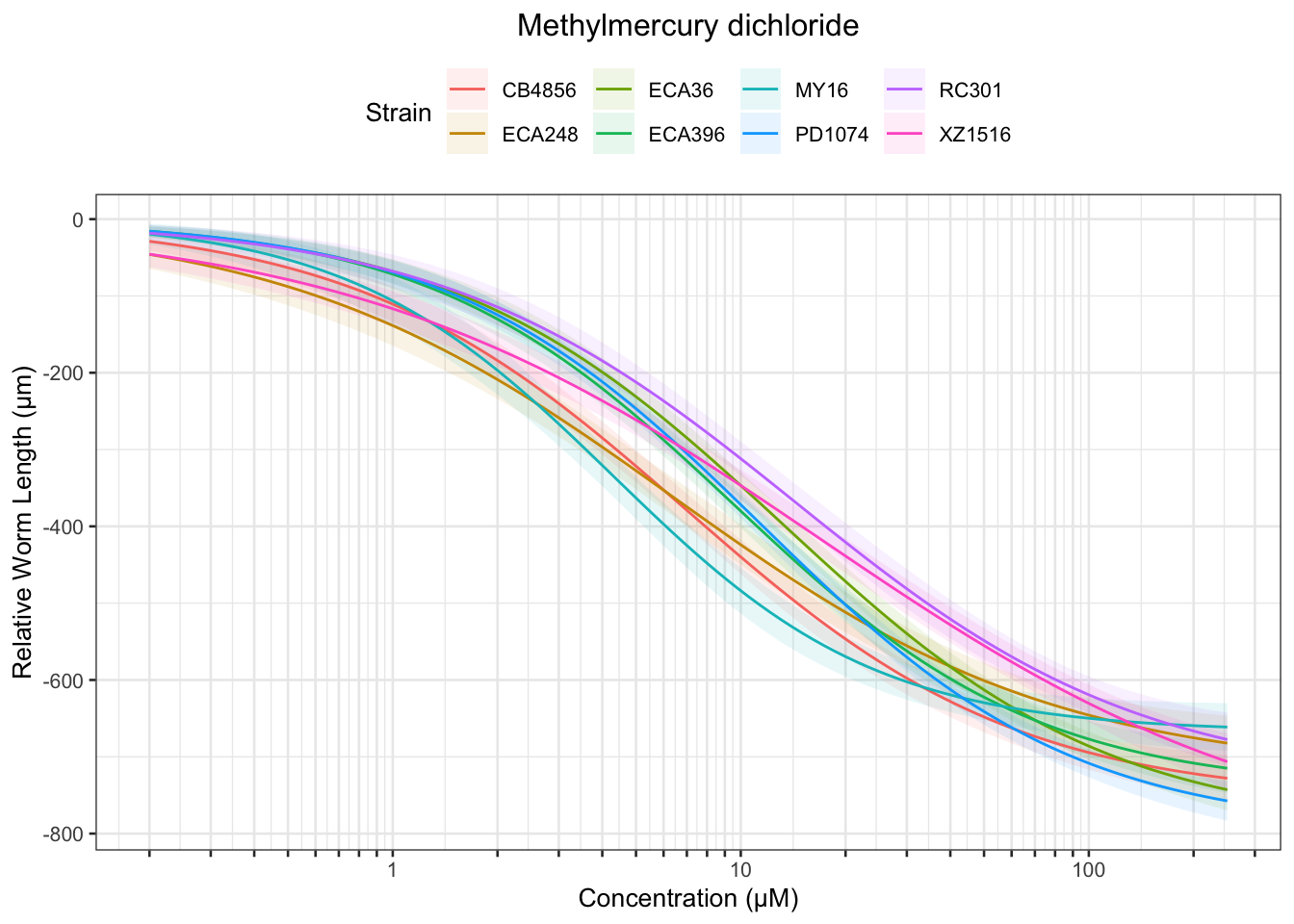

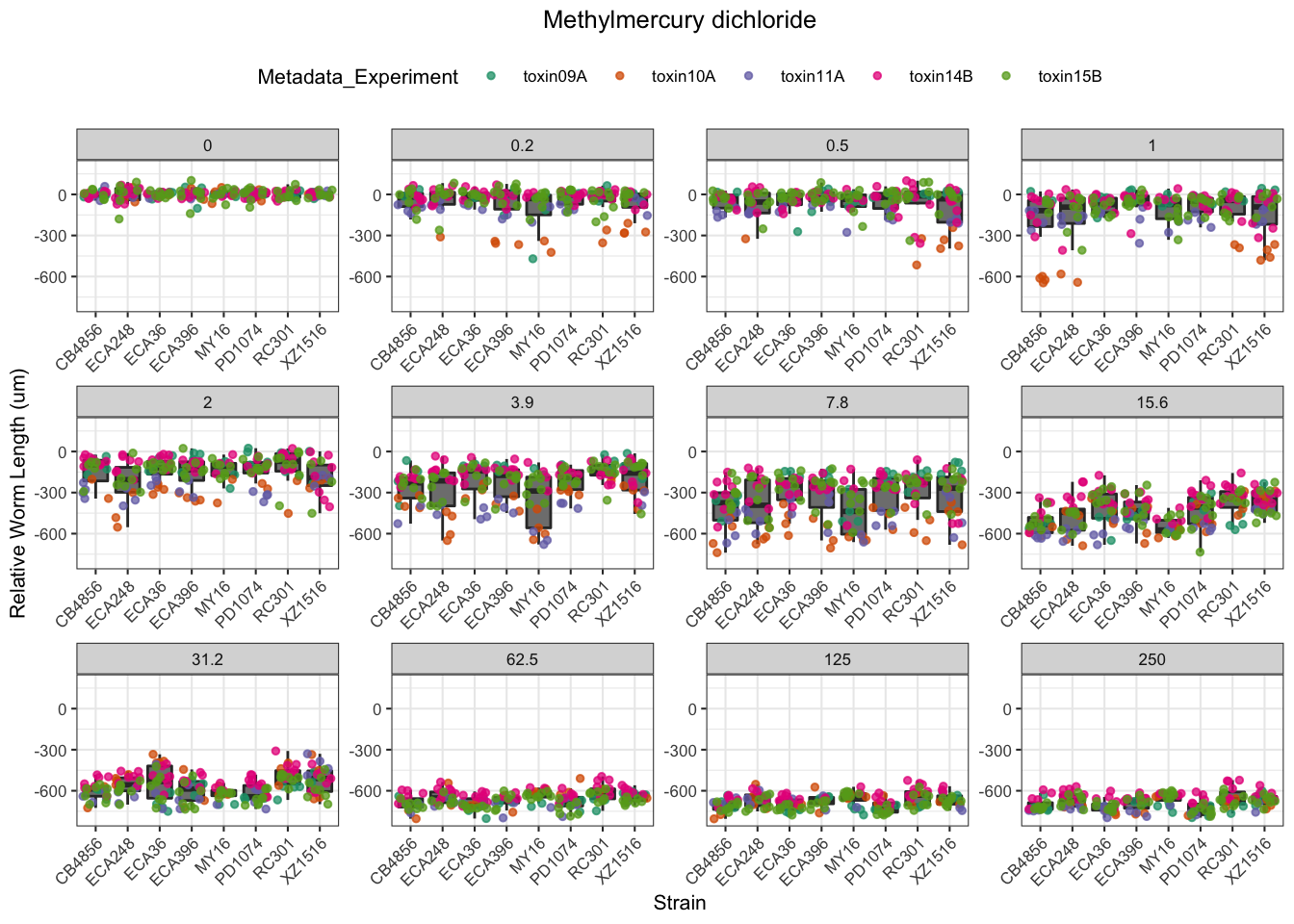

Methyl Mercury

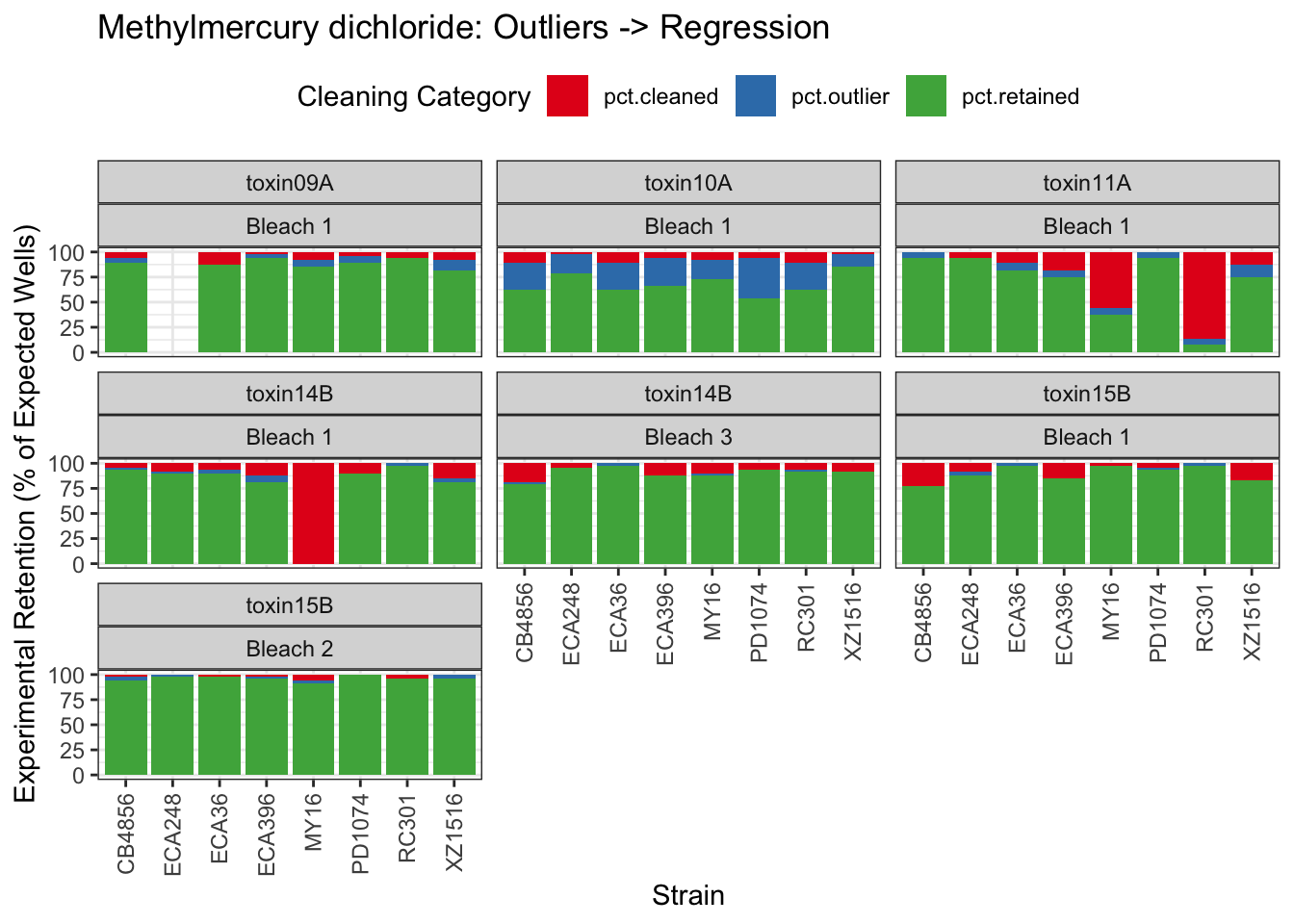

Past versions of “Methyl Mercury-1.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of “Methyl Mercury-2.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of “Methyl Mercury-3.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

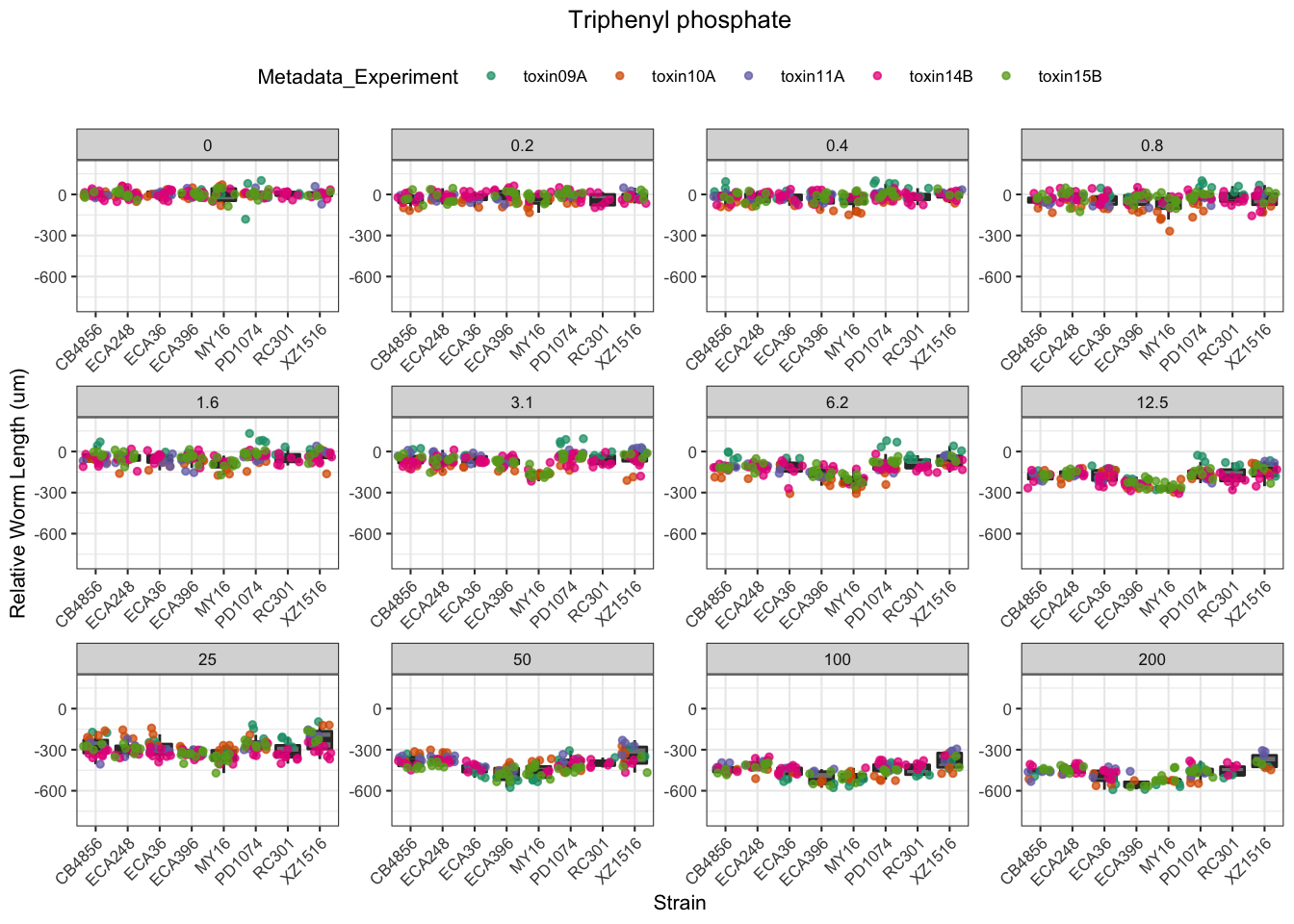

Triphenyl phosphate

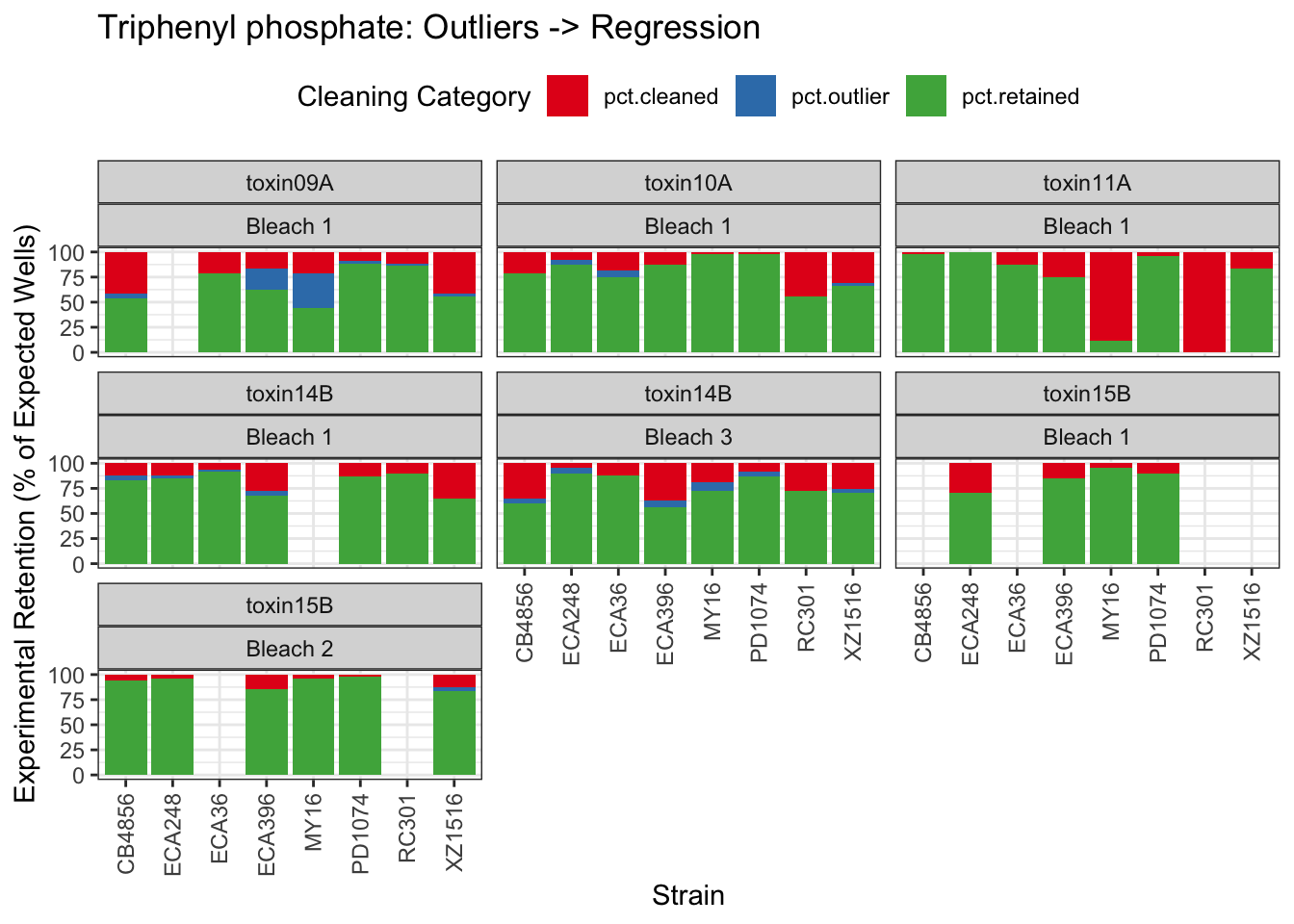

Past versions of “Triphenyl Phosphate-1.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of “Triphenyl Phosphate-2.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

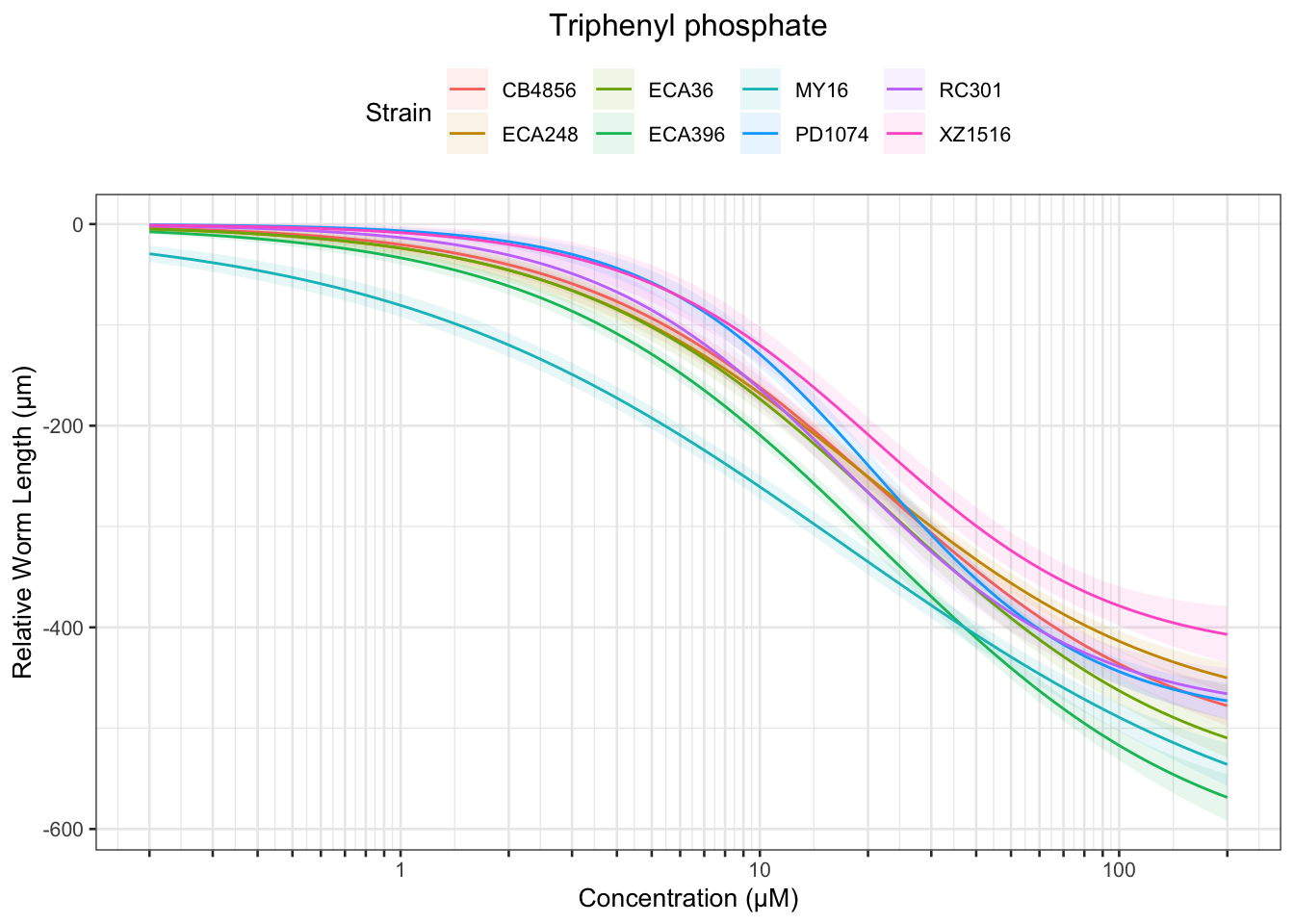

Past versions of “Triphenyl Phosphate-3.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

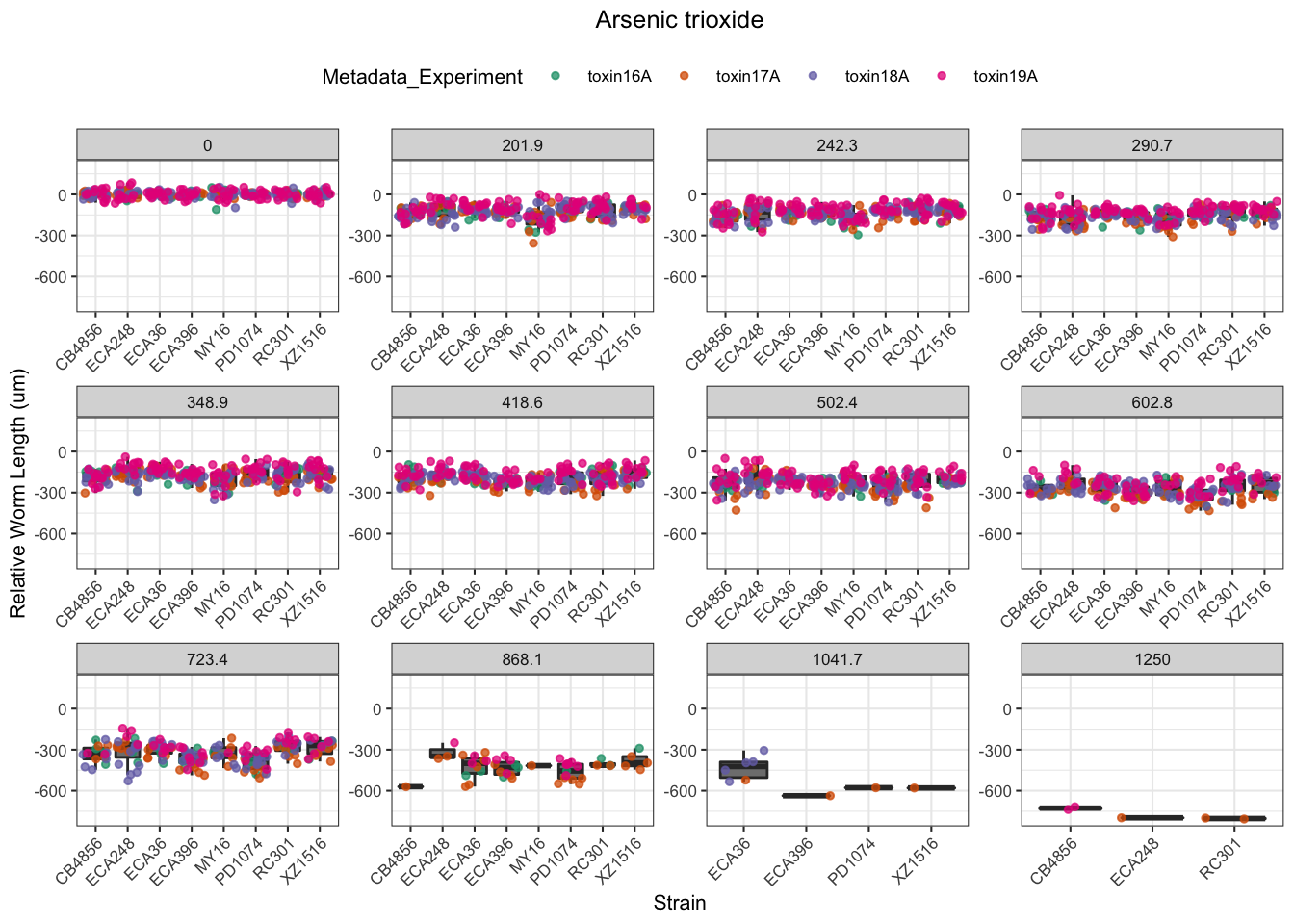

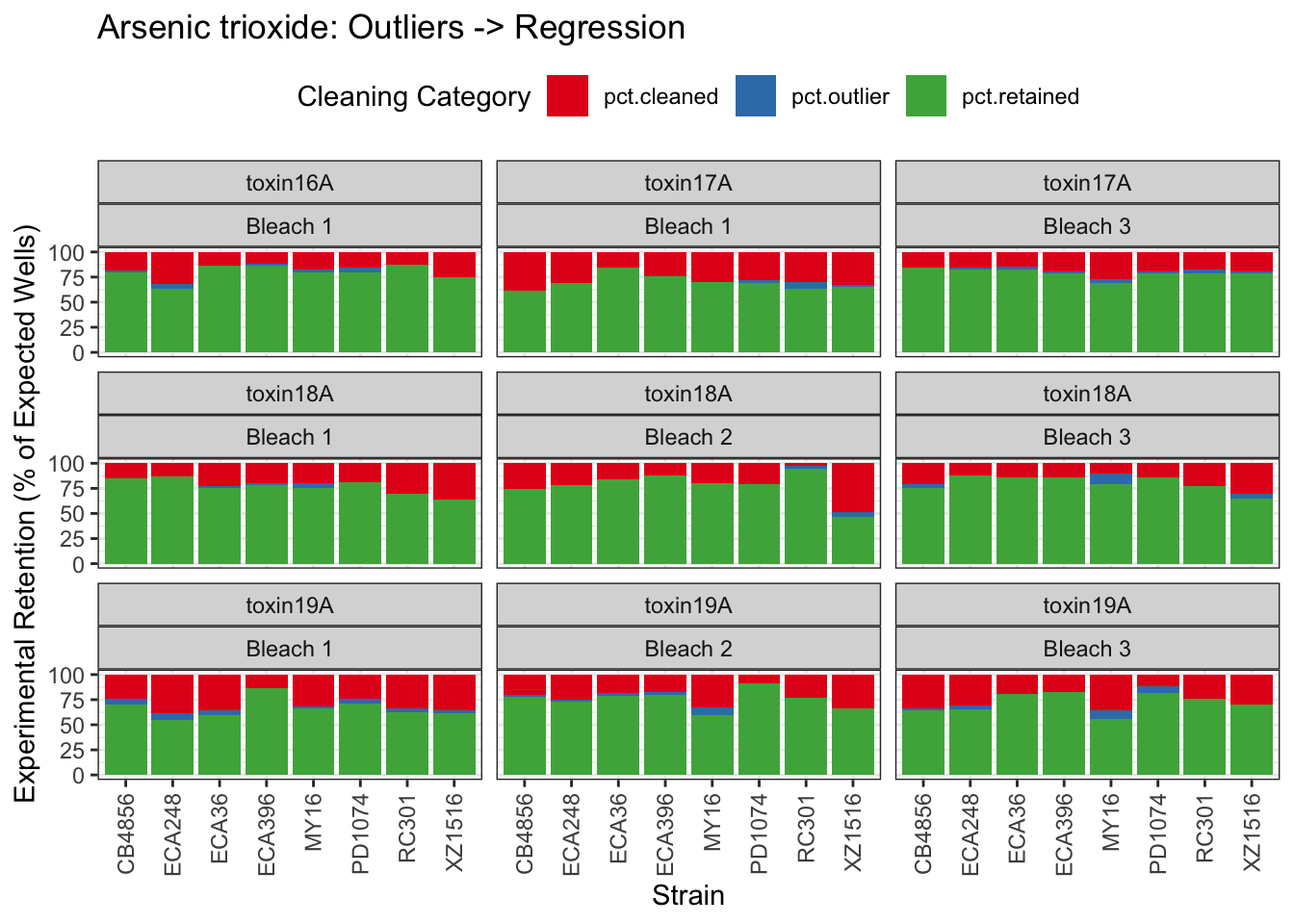

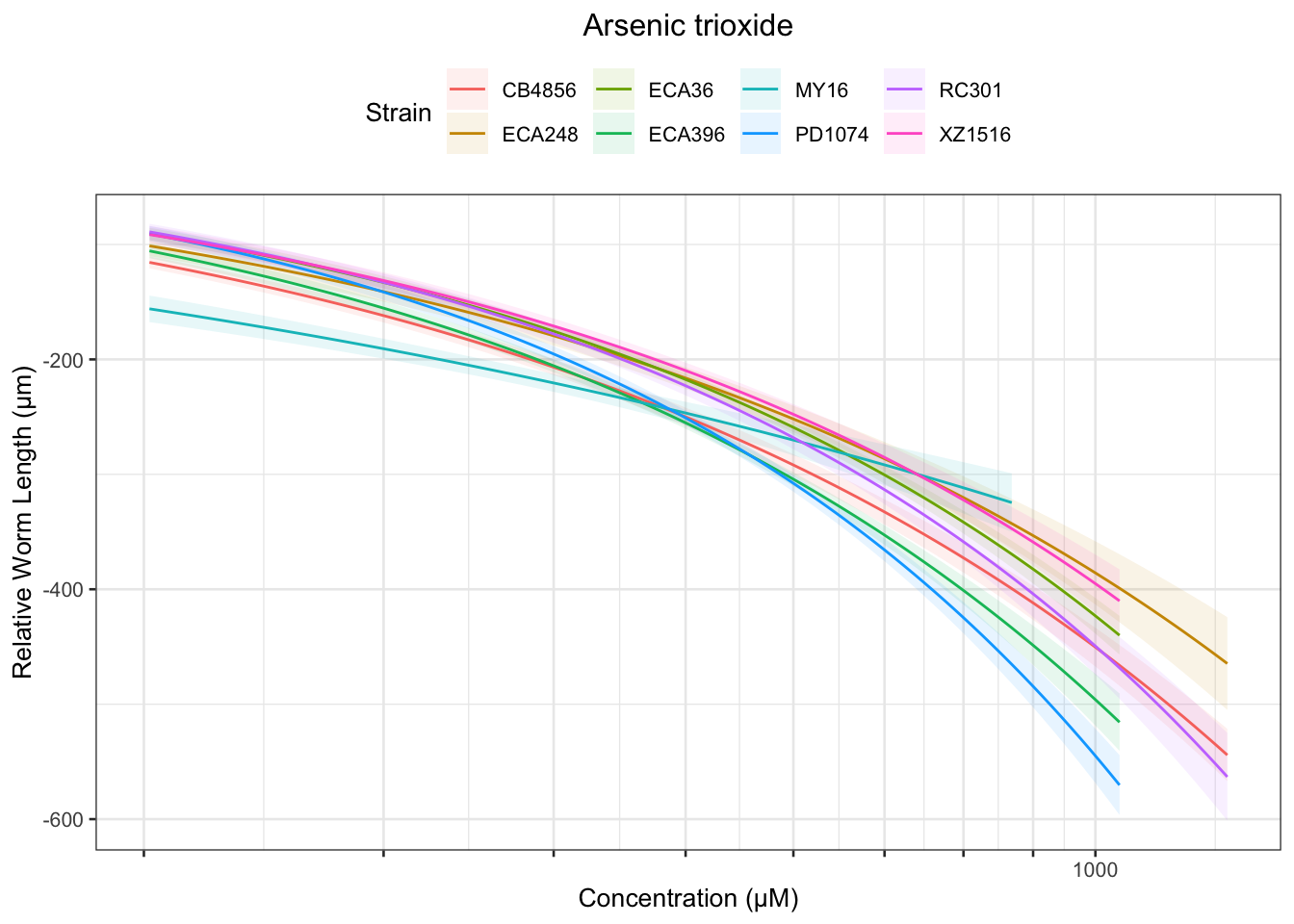

Arsenic trioxide

Past versions of “Arsenic trioxide-1.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of “Arsenic trioxide-2.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of “Arsenic trioxide-3.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

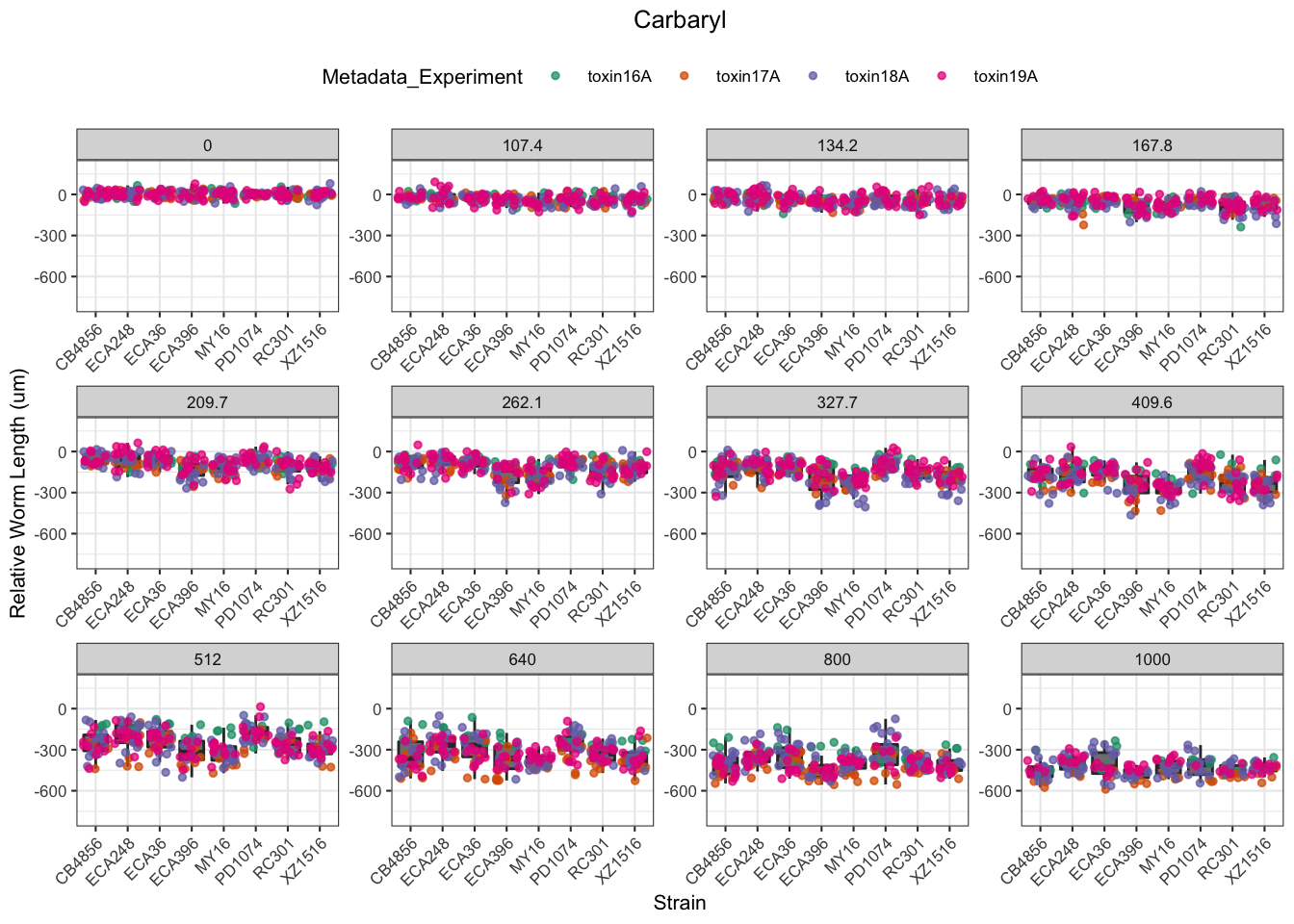

Carbaryl

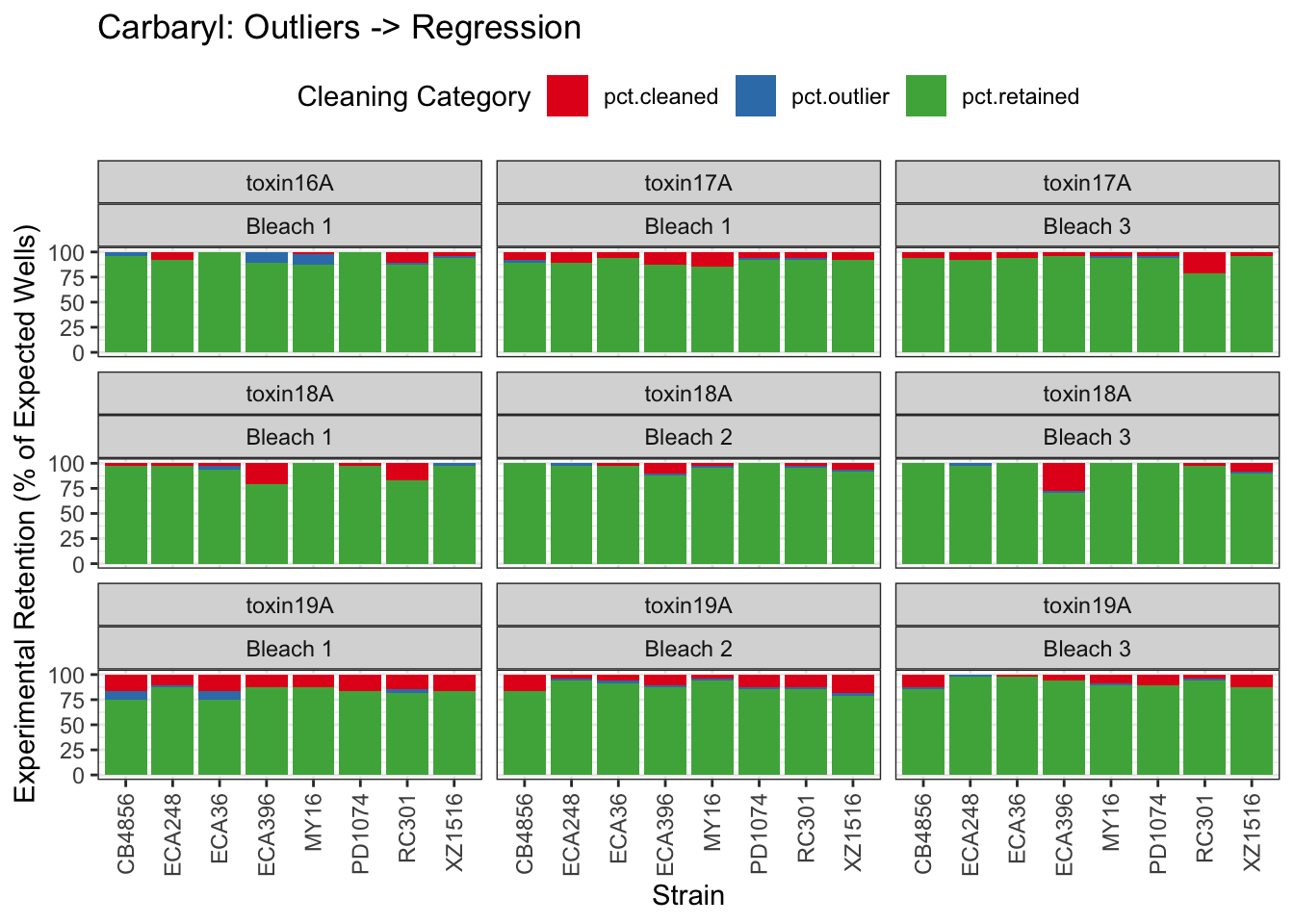

Past versions of Carbaryl-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Carbaryl-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

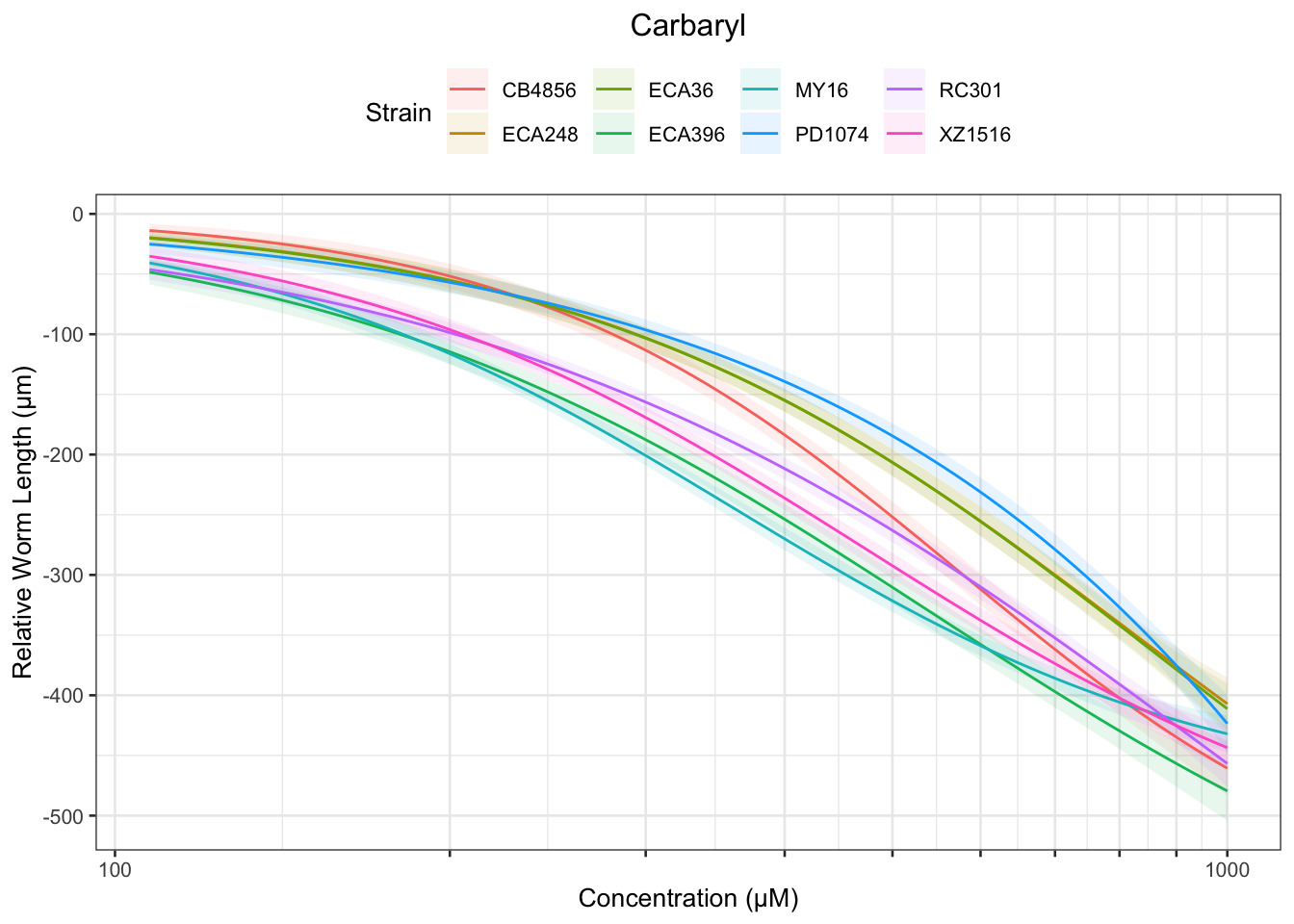

Past versions of Carbaryl-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

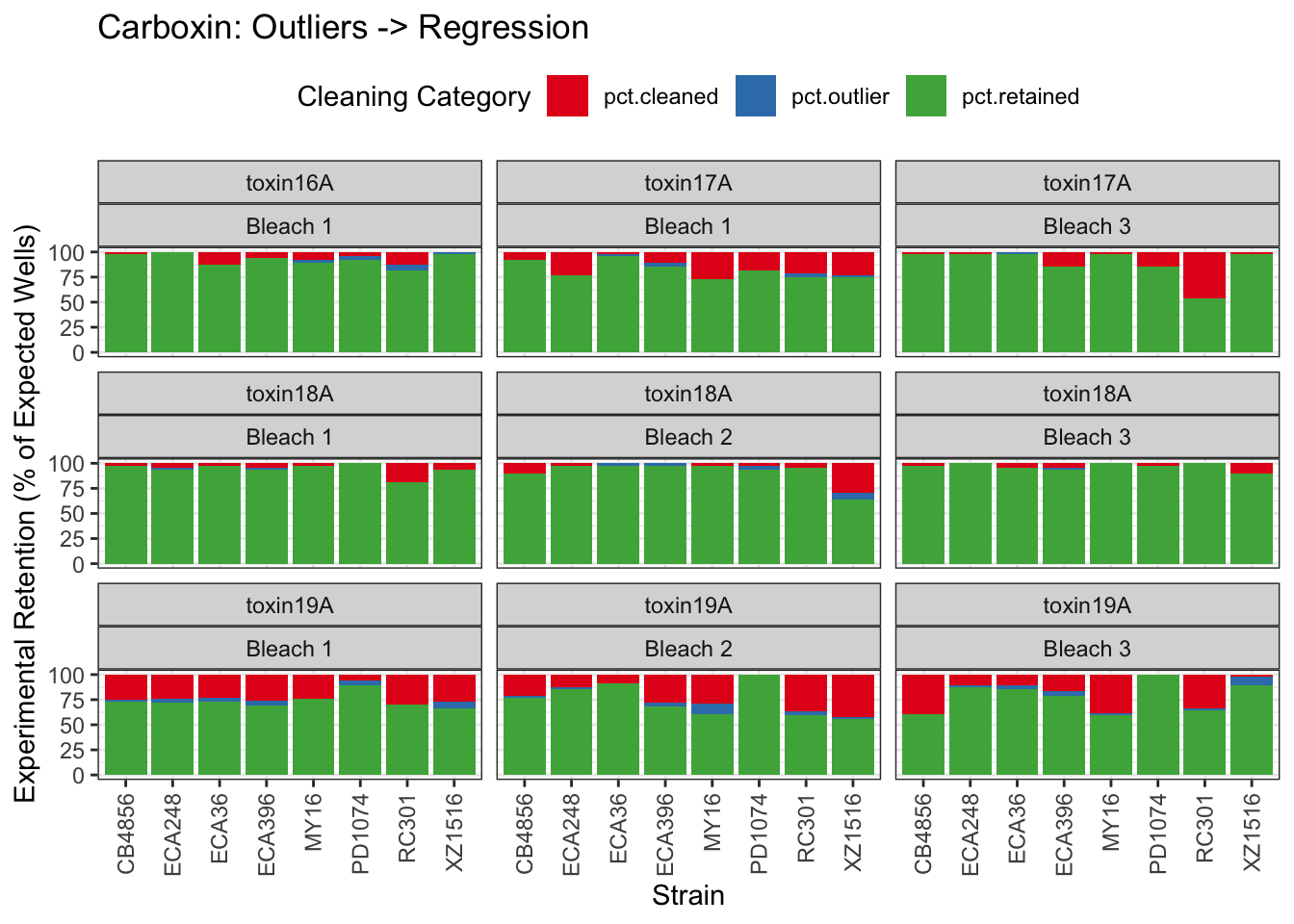

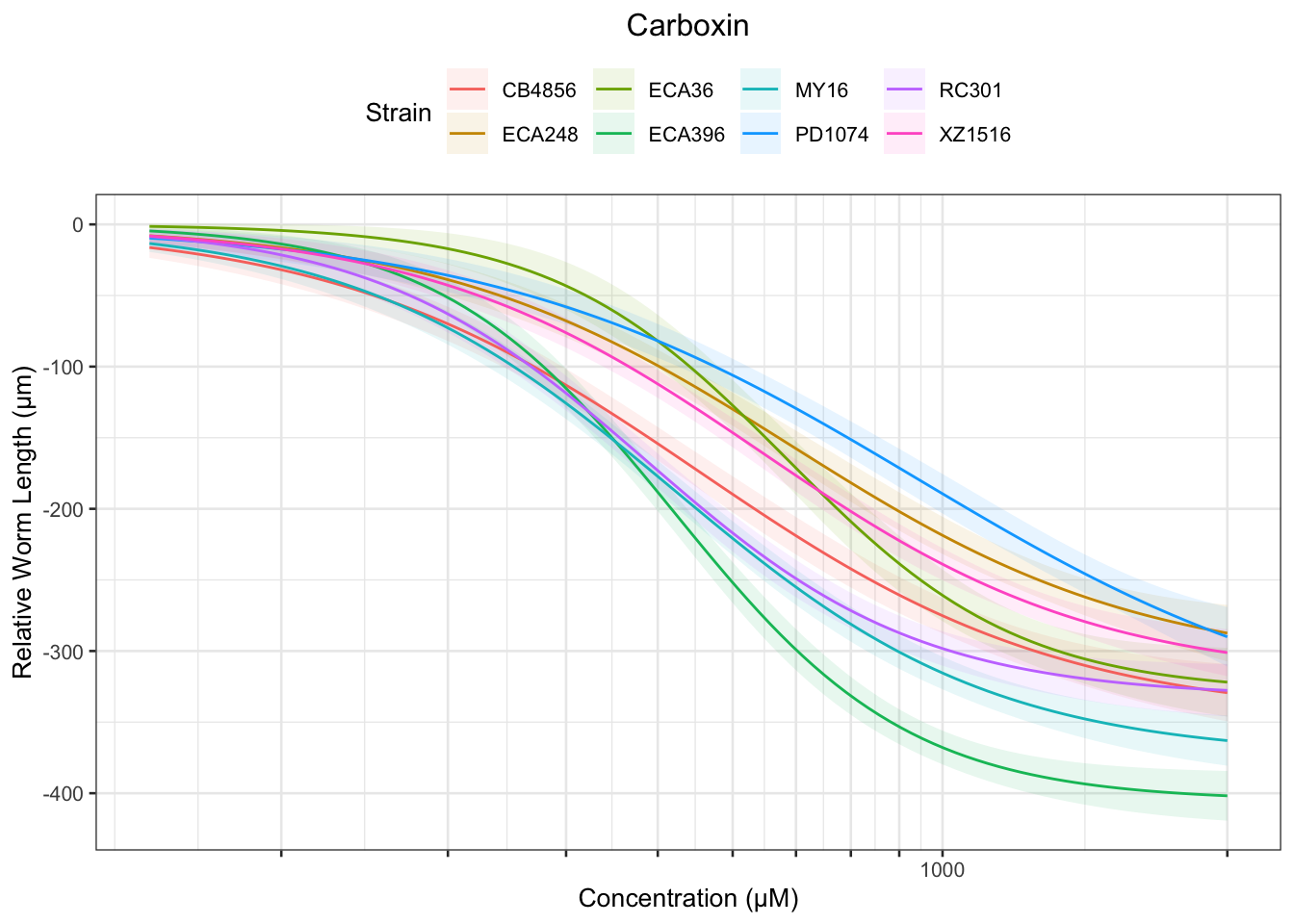

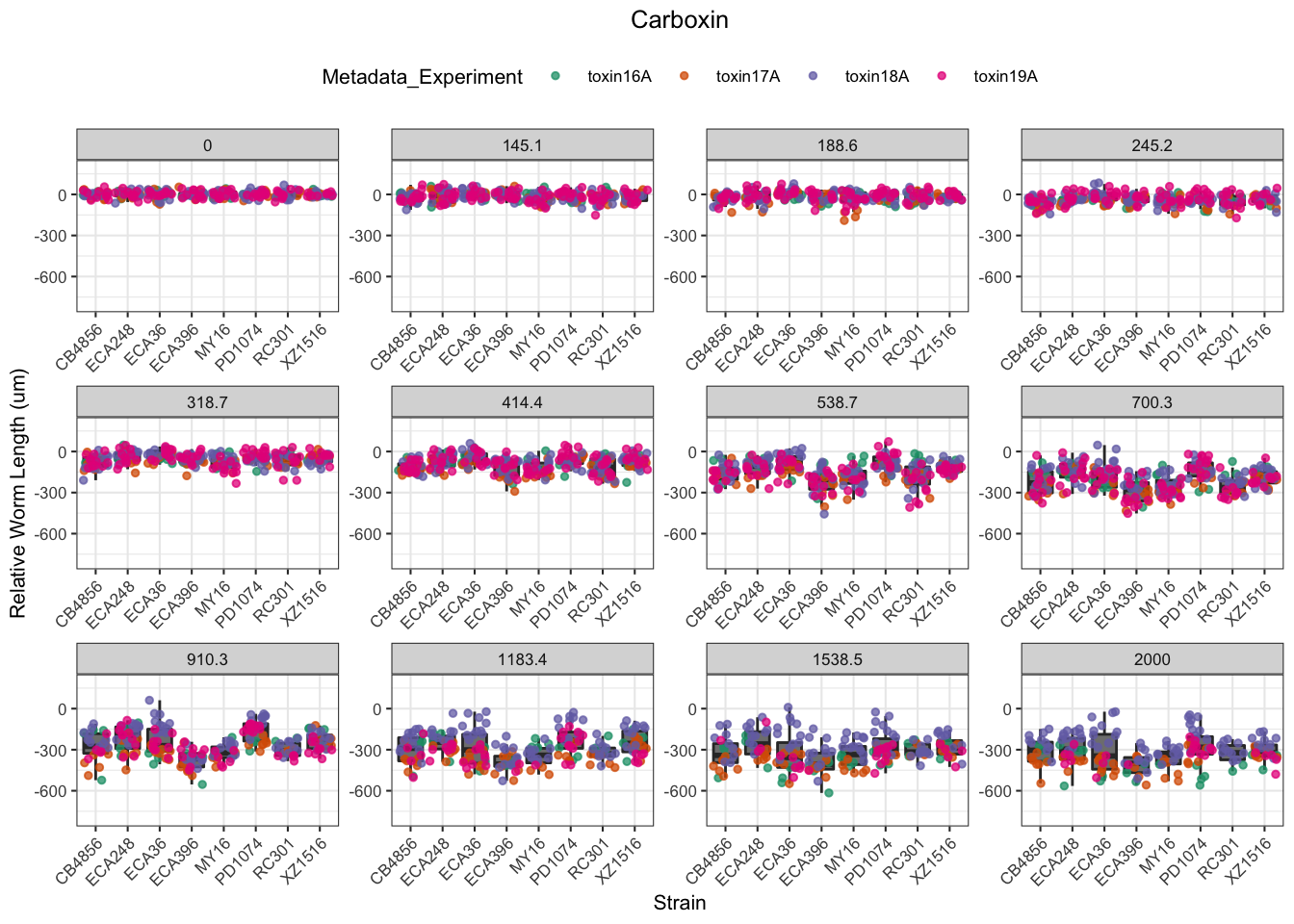

Carboxin

Past versions of Carboxin-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Carboxin-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Carboxin-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

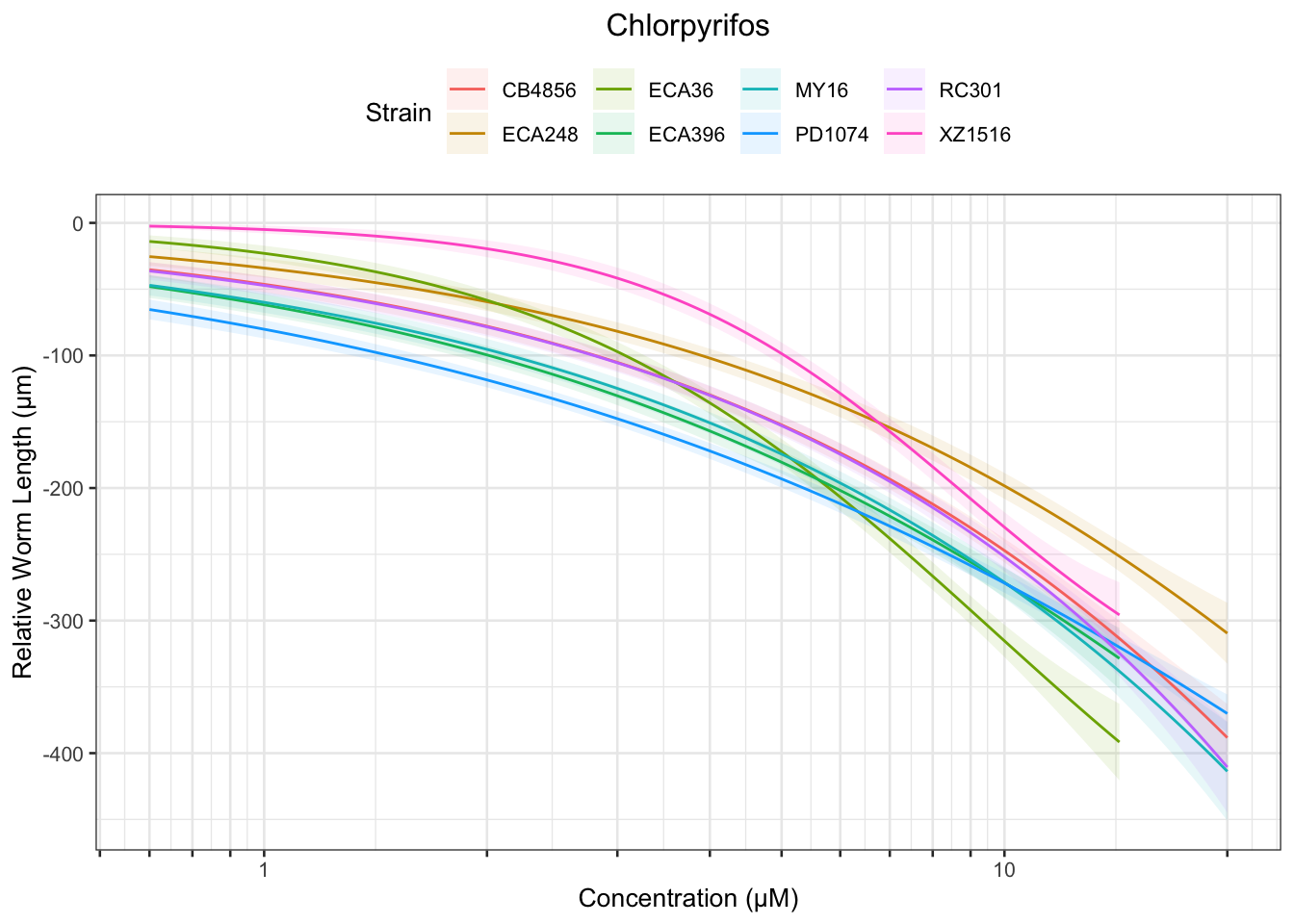

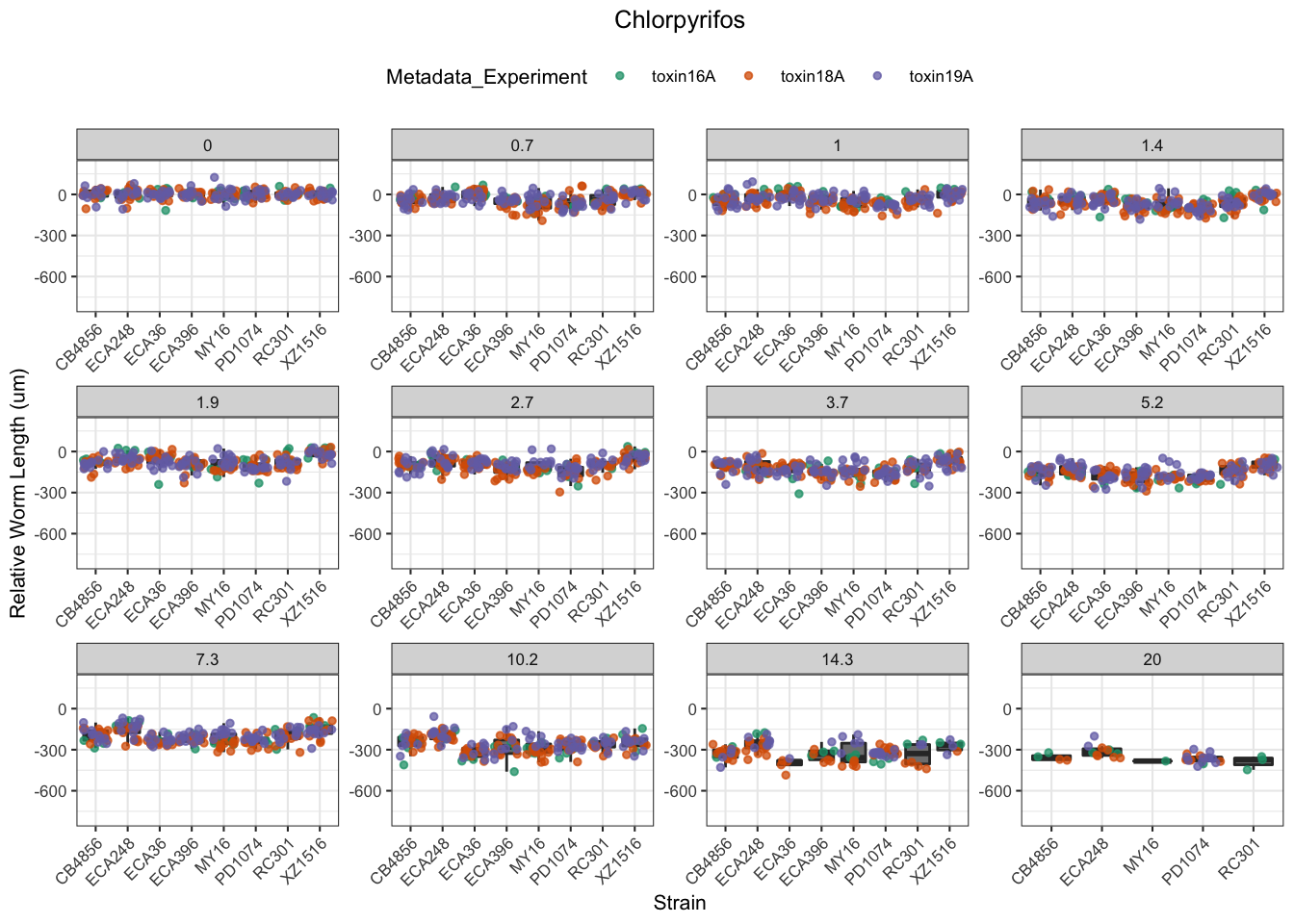

Chlorpyrifos

[1] "Excluding toxin17A: No Response"

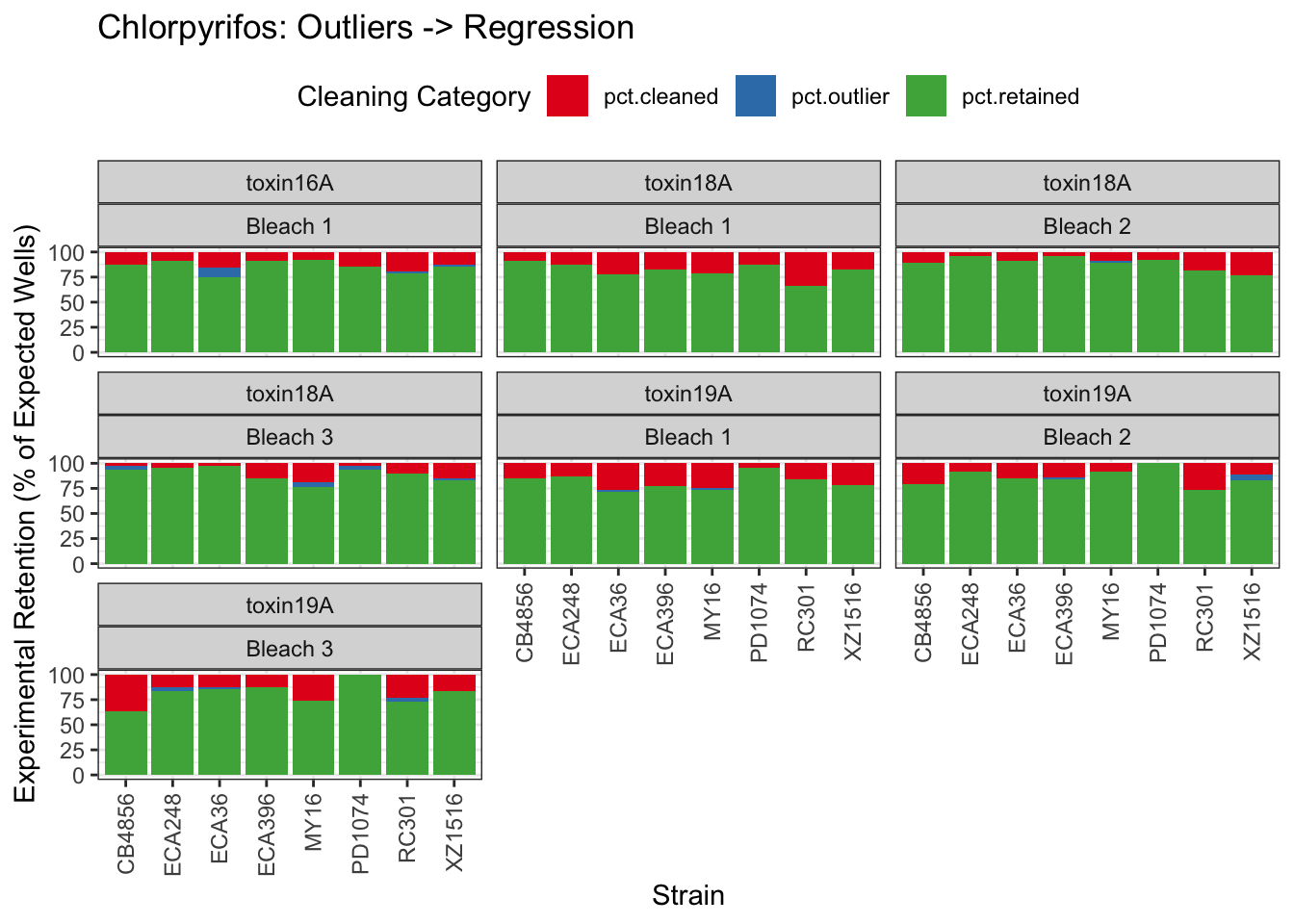

Past versions of Chlorpyrifos-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Chlorpyrifos-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of Chlorpyrifos-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Lead (II) nitrate

Past versions of “Lead (II) nitrate-1.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of “Lead (II) nitrate-2.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Past versions of “Lead (II) nitrate-3.png”

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Atrazine

[1] "Excluding toxin16A: Inaccurate Dilution Series"

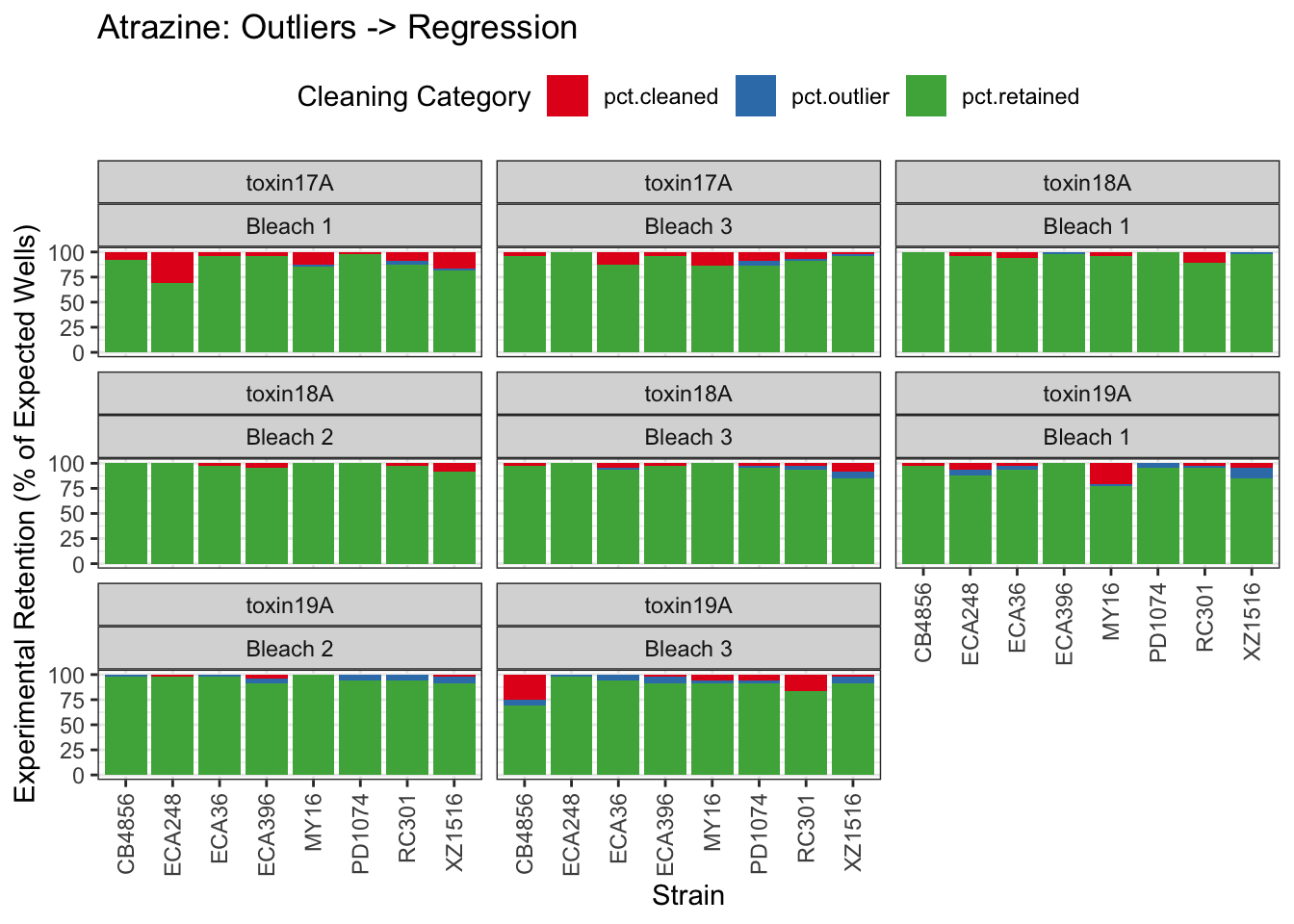

Past versions of Atrazine-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

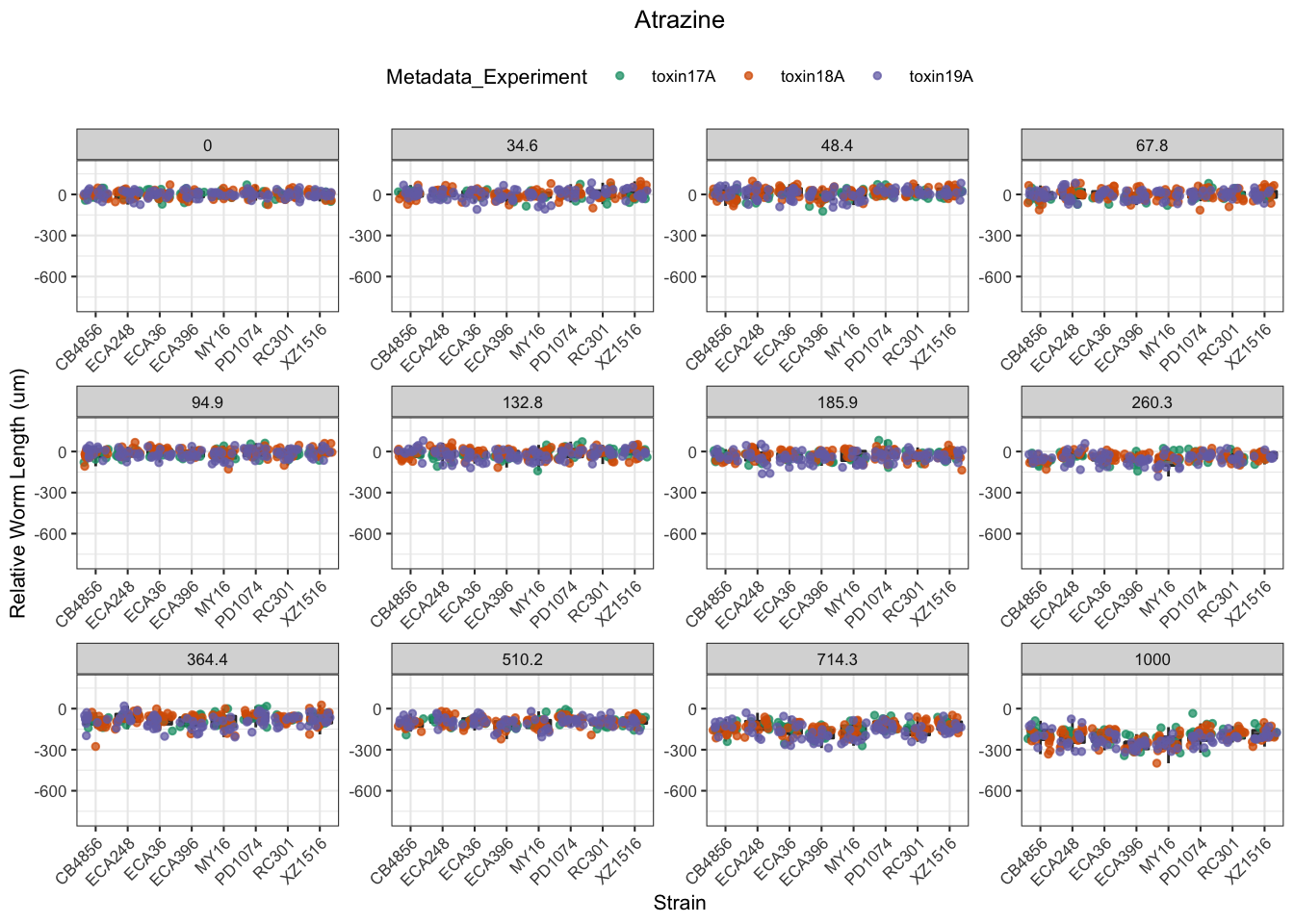

Past versions of Atrazine-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

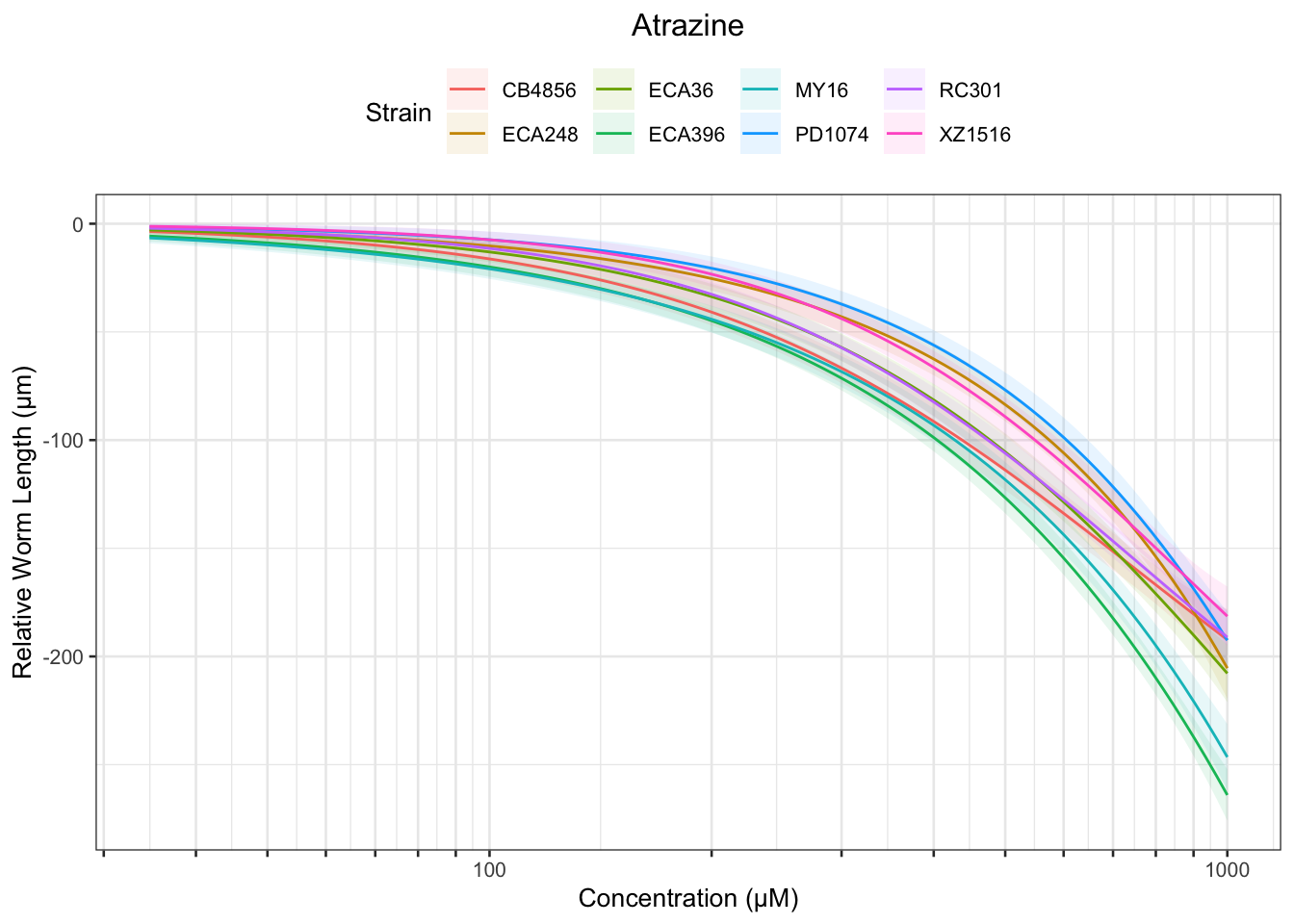

Past versions of Atrazine-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

EC Estimates

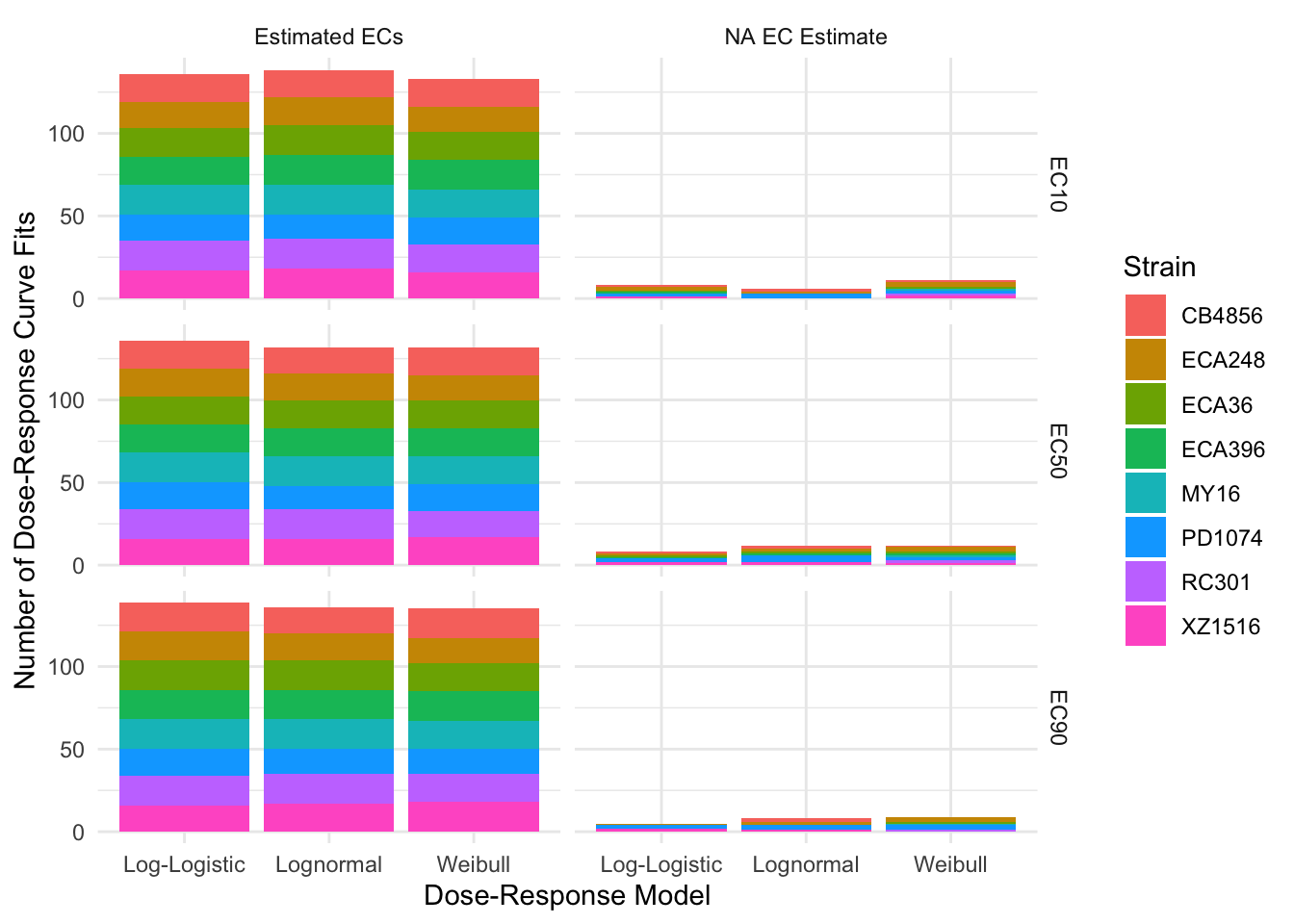

Past versions of unnamed-chunk-3-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

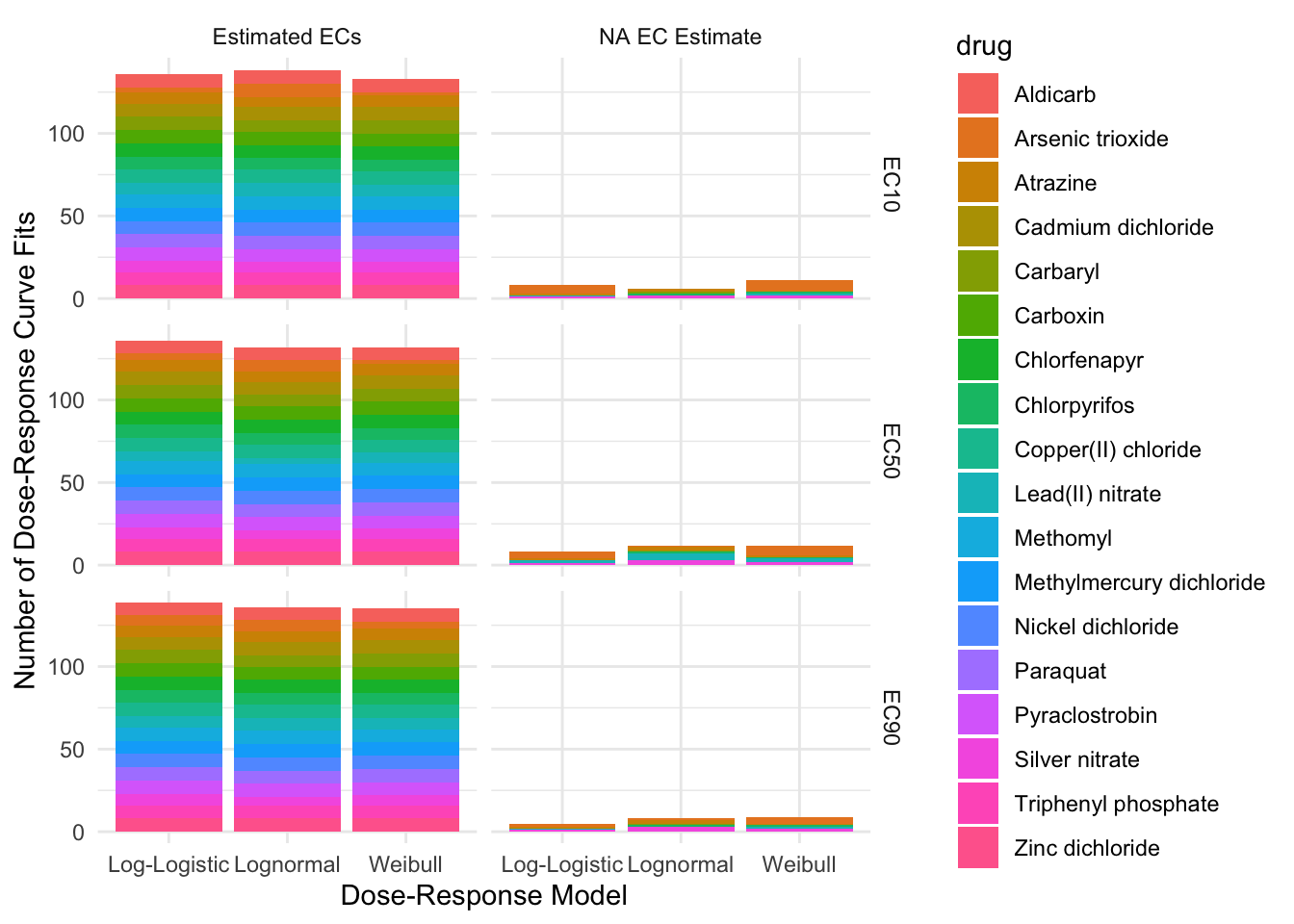

Past versions of unnamed-chunk-3-2.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

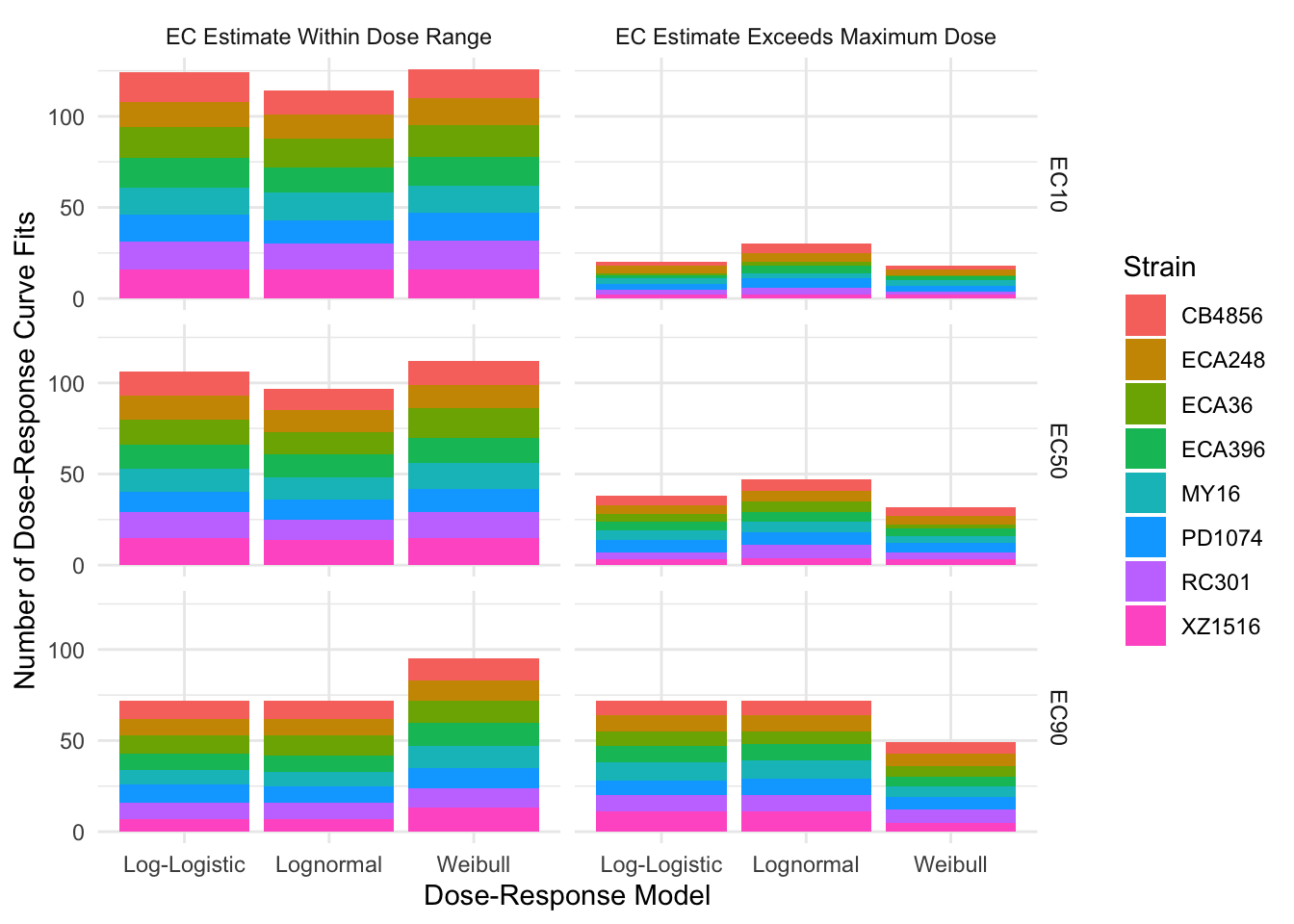

Past versions of unnamed-chunk-3-3.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

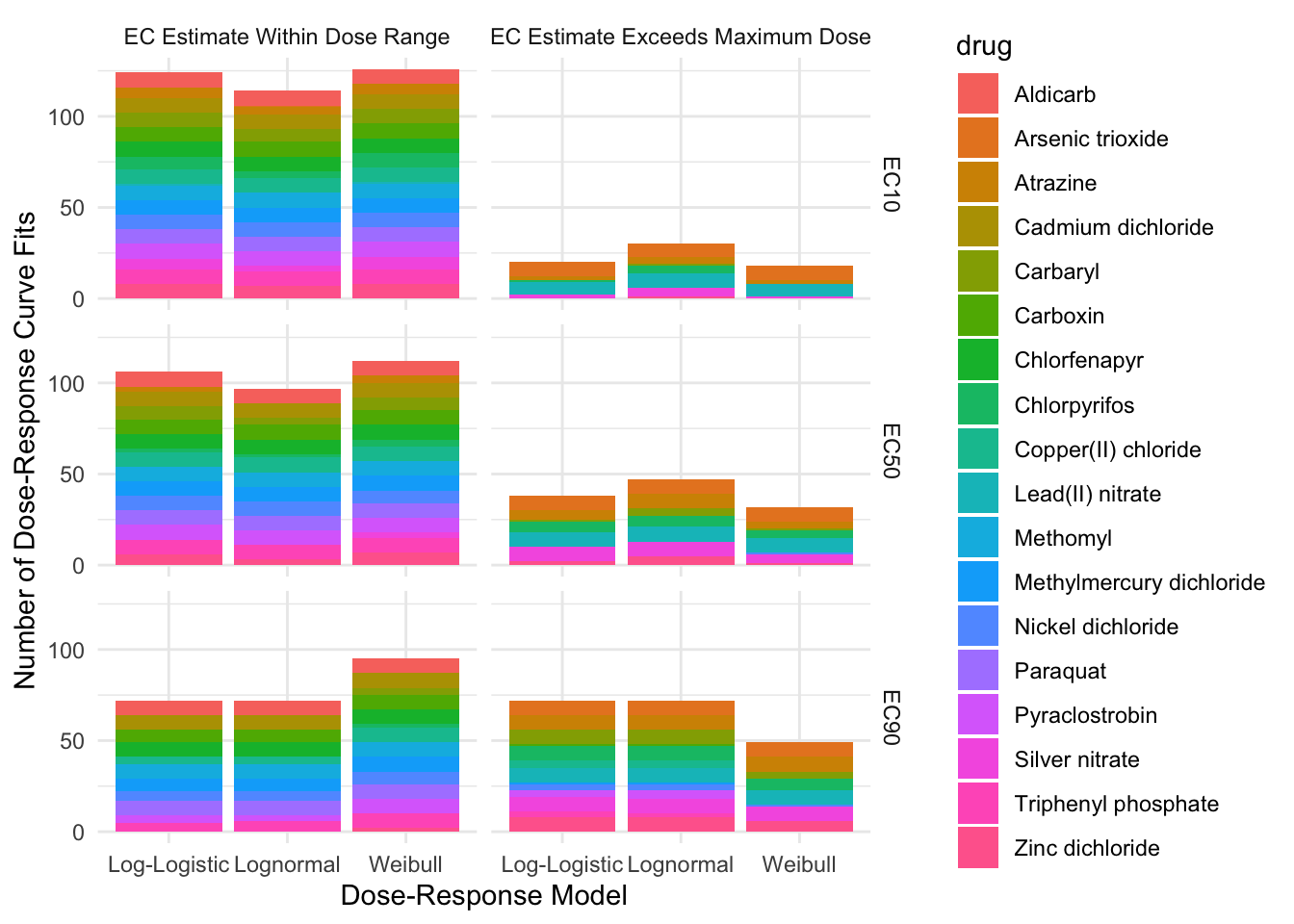

Past versions of unnamed-chunk-3-4.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

EC10

Past versions of unnamed-chunk-4-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

EC50

Past versions of unnamed-chunk-5-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

EC90

Past versions of unnamed-chunk-6-1.png

Version	Author	Date
cb6e132	sam-widmayer	2021-03-06

Summary Tables

Table: Aldicarb Estimates

Strain   Weibull        Log-Logistic   Lognormal
-------  -------------  -------------  -------------
ECA396   115.93±10.69   124±10.14      122.69±9.62
CB4856   117.03±10.86   127.8±10.62    127.06±9.99
ECA36    141.24±10.94   153.7±10.22    154.55±10.2
MY16     70.88±6.75     75.61±5.63     75.51±5.4
XZ1516   88.26±11.96    103.23±12.61   106.18±12.35
RC301    81.58±6.96     92.4±6.46      92.52±6.19
PD1074   84.01±5.4      97.64±4.96     98.86±4.84
ECA248   93.07±10.98    107.73±10.06   109.63±9.68


Table: Aldicarb Estimates

Strain   Weibull        Log-Logistic   Lognormal
-------  -------------  -------------  -------------
ECA396   353.62±18.18   348.91±19.81   349.02±20.1
CB4856   365.8±16.01    359.93±17.68   354.85±17.53
ECA36    402.54±15.34   393.69±16.57   393.51±16.42
MY16     207.83±9.88    204.35±10.2    205.21±10.2
XZ1516   357.4±21       353.31±23.63   345.71±22.67
RC301    270.2±12.53    263.54±11.81   263.67±11.86
PD1074   271.33±8.87    263.94±7.88    263.8±7.91
ECA248   341.91±22.28   330.47±22.2    332.64±21.88


Table: Aldicarb Estimates

Strain   Weibull        Log-Logistic     Lognormal
-------  -------------  ---------------  ---------------
ECA396   719.79±61.92   981.75±123.98    992.89±124.08
CB4856   756.27±56.41   1013.64±113.62   990.99±106.18
ECA36    784.67±52.68   1008.44±100.63   1001.92±97.57
MY16     412.5±36.73    552.32±62.14     557.72±61.07
XZ1516   871.45±90.87   1209.28±200.61   1125.56±172.51
RC301    579.61±50.43   751.61±77.97     751.39±75.86
PD1074   572.76±37.1    713.43±52.09     703.89±49.71
ECA248   783.49±96.35   1013.78±158.22   1009.31±148.09


Table: Arsenic trioxide Estimates

Strain   Weibull   Log-Logistic   Lognormal
-------  --------  -------------  --------------
MY16     NA        NA             160.67±145.55


Table: Atrazine Estimates

Strain   Weibull         Log-Logistic    Lognormal
-------  --------------  --------------  --------------
PD1074   466.22±485.95   662.6±714.11    NA
XZ1516   207.41±30.05    247.85±44.5     300.35±107.71
RC301    157.38±13.76    193.76±23.71    236.31±66.08
CB4856   133.06±17.69    164.9±28        200.37±69.55
ECA36    197.93±43.98    263.15±77.94    416.45±311.45
ECA396   413.79±447.78   679.03±670.12   NA


Table: Atrazine Estimates

Strain   Weibull         Log-Logistic    Lognormal
-------  --------------  --------------  ----------
XZ1516   676.67±158.64   882.92±285.38   NA
RC301    544.44±81.1     751.76±184.58   NA
CB4856   552.98±129.78   749.71±255.87   NA
ECA36    779.58±263.89   NA              NA


Table: Cadmium dichloride Estimates

Strain   Weibull      Log-Logistic   Lognormal
-------  -----------  -------------  -----------
MY16     21.9±1.71    24.79±1.81     24.72±1.69
XZ1516   21.42±1.67   24.18±1.69     24.62±1.67
PD1074   20.31±1.13   23.31±1.2      23.63±1.14
ECA36    28.58±1.84   31.54±1.83     32.19±1.88
ECA396   25.79±1.83   28.71±1.87     29.01±1.86
RC301    23.48±1.9    26.51±2.08     27.03±2.08
ECA248   18.32±1.34   21.2±1.43      21.92±1.37
CB4856   14.5±1.18    16.96±1.24     17.36±1.22


Table: Cadmium dichloride Estimates

Strain   Weibull      Log-Logistic   Lognormal
-------  -----------  -------------  -----------
MY16     53.58±2.73   53.24±2.59     53.02±2.6
XZ1516   61.76±3      63.13±4.42     62.57±4.52
PD1074   55.07±1.82   54.75±2.08     54.26±2.02
ECA36    67.83±2.16   67.45±2.81     66.43±2.62
ECA396   63.52±2.48   62.65±3.06     62.05±2.91
RC301    60.8±2.42    61.14±3.11     60.09±2.94
ECA248   49.4±1.85    49.74±2.05     48.73±1.93
CB4856   49.74±2.51   51.43±3.51     50.72±3.59


Table: Cadmium dichloride Estimates

Strain   Weibull       Log-Logistic   Lognormal
-------  ------------  -------------  -------------
MY16     94.77±8.81    114.32±13.69   113.7±12.58
XZ1516   121.27±9.49   164.8±25.99    159.01±25.41
PD1074   104.01±5.98   128.57±12.05   124.59±10.78
ECA36    117.65±5.62   144.26±14.26   137.09±12.78
ECA396   112.82±6.74   136.69±15.76   132.71±14.19
RC301    111.49±7.17   140.98±18.51   133.55±16.22
ECA248   92.94±6.55    116.7±12.33    108.34±10.16
CB4856   109.1±9.34    155.93±24.55   148.16±23.49


Table: Carbaryl Estimates

Strain   Weibull         Log-Logistic    Lognormal
-------  --------------  --------------  --------------
RC301    134.99±12.32    184.75±27.65    266.56±104.72
MY16     102.4±4.79      118.9±4.6       122.84±4.38
XZ1516   120.84±5.65     141.47±5.76     147.81±6.37
PD1074   405.97±331.53   712.34±810.51   NA
ECA248   187.18±12.14    232.29±23.89    293.36±79.54
CB4856   189.26±8.34     214.14±8.73     222.86±11.36
ECA396   109.72±6.31     133.78±8.44     144.31±12.7
ECA36    189.16±12.29    238.08±26       328.1±114.97


Table: Carbaryl Estimates

Strain   Weibull         Log-Logistic    Lognormal
-------  --------------  --------------  -------------
RC301    597.55±103.03   974.93±273.99   NA
MY16     323.94±10.35    359.89±19.57    358.81±22.63
XZ1516   395.35±19.16    474.18±41.95    500.52±62.33
ECA248   585.44±71.01    823.18±173.6    NA
CB4856   484.83±22.64    573.89±50.32    629.52±90.57
ECA396   418.18±37.57    542.91±85.82    613.2±151.12
ECA36    595.57±74.55    860.54±189.68   NA


Table: Carbaryl Estimates

Strain   Weibull         Log-Logistic   Lognormal
-------  --------------  -------------  ----------
MY16     674.84±39.18    NA             NA
XZ1516   841.45±68.19    NA             NA
CB4856   882.94±67.35    NA             NA
ECA396   981.02±136.95   NA             NA


Table: Carboxin Estimates

Strain   Weibull        Log-Logistic   Lognormal
-------  -------------  -------------  -------------
RC301    212.04±13.65   234.24±13.71   237.57±13.49
MY16     202.22±12.29   221.97±12.01   225.33±11.77
XZ1516   230.65±16.41   262.22±15.83   265.72±15.34
PD1074   265.57±24.78   299.98±23.62   308.24±24.92
ECA248   242.35±20.27   269.74±19.09   273.34±18.4
CB4856   186.33±14.42   208.58±14.07   212.31±13.49
ECA396   254.57±12.38   277.82±12.06   281.22±11.85
ECA36    333.38±25.47   366.64±25.28   369.6±24.67


Table: Carboxin Estimates

Strain   Weibull        Log-Logistic    Lognormal
-------  -------------  --------------  ---------------
RC301    483.34±14.87   486.29±18.06    479.67±17.59
MY16     507.04±15.07   521.11±20.94    512.18±20.92
XZ1516   613.62±25.4    642.59±36.46    642±40.32
PD1074   785.46±53.78   942.47±133.32   1011.57±224.12
ECA248   647.37±32.8    693.17±53.73    692.22±61.91
CB4856   526.86±22.53   552.68±34.07    542.01±34.73
ECA396   523.57±12.24   520.83±14.02    516.26±13.63
ECA36    686.68±28.61   683.94±33.76    678.16±32.9


Table: Carboxin Estimates

Strain   Weibull          Log-Logistic     Lognormal
-------  ---------------  ---------------  ---------------
RC301    817.13±44.34     1009.56±92.62    968.46±84.21
MY16     910.85±48.06     1223.38±118.83   1164.21±111.62
XZ1516   1144.75±91.47    1574.75±214.79   1551.13±224.94
PD1074   1567.63±186.59   NA               NA
ECA248   1210.86±111.8    1781.26±309.62   1753.05±340.02
CB4856   1021.81±76.81    1464.47±207.55   1383.69±196.76
ECA396   828.99±33.93     976.38±63.78     947.77±58.3
ECA36    1088.29±77.32    1275.82±148.06   1244.31±136.71


Table: Chlorfenapyr Estimates

Strain   Weibull     Log-Logistic   Lognormal
-------  ----------  -------------  ----------
ECA248   0.19±0.01   0.21±0.01      0.21±0.01
XZ1516   0.31±0.02   0.36±0.02      0.36±0.02
ECA36    0.9±0.04    1.04±0.07      1.03±0.04
CB4856   0.31±0.01   0.32±0.01      0.31±0.01
ECA396   0.52±0.01   0.54±0.01      0.55±0.01
PD1074   0.36±0.02   0.35±0.01      0.34±0.01
RC301    0.23±0.01   0.24±0.01      0.24±0.01
MY16     0.23±0.01   0.24±0.01      0.25±0.01


Table: Chlorfenapyr Estimates

Strain   Weibull     Log-Logistic   Lognormal
-------  ----------  -------------  ----------
ECA248   0.48±0.01   0.47±0.01      0.47±0.01
XZ1516   0.65±0.02   0.64±0.01      0.64±0.01
ECA36    1.53±0.05   1.38±0.1       1.43±0.05
CB4856   0.58±0.01   0.58±0.01      0.57±0.01
ECA396   0.83±0.01   0.77±0.02      0.77±0.01
PD1074   0.6±0.01    0.61±0.01      0.61±0.01
RC301    0.48±0.01   0.47±0.01      0.46±0.01
MY16     0.52±0.01   0.51±0.01      0.5±0.01


Table: Chlorfenapyr Estimates

Strain   Weibull     Log-Logistic   Lognormal
-------  ----------  -------------  ----------
ECA248   0.88±0.03   1.07±0.06      1.04±0.05
XZ1516   1.03±0.06   1.12±0.07      1.13±0.06
ECA36    2.13±0.14   1.83±0.38      2±0.19
CB4856   0.87±0.03   1.06±0.04      1.06±0.04
ECA396   1.13±0.03   1.09±0.05      1.1±0.04
PD1074   0.82±0.03   1.06±0.04      1.08±0.04
RC301    0.78±0.02   0.92±0.03      0.89±0.03
MY16     0.86±0.04   1.05±0.06      1.03±0.05


Table: Chlorpyrifos Estimates

Strain   Weibull       Log-Logistic   Lognormal
-------  ------------  -------------  ----------
RC301    15.65±69.09   NA             NA
XZ1516   2.55±0.16     2.96±0.21      3.21±0.41
PD1074   0.82±0.43     1.94±1.5       7.92±10.3
ECA248   2.35±1.85     4.2±3.8        NA
CB4856   4.55±8.28     7.2±7.15       NA
ECA396   1.16±1.01     2.2±2.14       7.53±13.2
ECA36    1.67±0.15     2.08±0.25      2.49±0.55
MY16     NA            10.98±21.5     NA


Table: Chlorpyrifos Estimates

Strain   Weibull       Log-Logistic   Lognormal
-------  ------------  -------------  -----------
XZ1516   6.9±0.54      8.79±1.3       10.87±3.21
PD1074   18.47±14.33   NA             NA
ECA396   15.67±18.38   NA             NA
ECA36    6.96±1.08     9.61±2.2       14.19±6.29


Table: Chlorpyrifos Estimates

Strain   Weibull      Log-Logistic   Lognormal
-------  -----------  -------------  ----------
XZ1516   13.01±1.53   NA             NA
ECA36    17.33±3.6    NA             NA


Table: Copper(II) chloride Estimates

Strain   Weibull      Log-Logistic   Lognormal
-------  -----------  -------------  -----------
ECA396   43.31±3.01   46.5±2.42      47.05±2.24
CB4856   64.26±6.9    63.94±5.99     61.77±4.85
ECA36    51.2±4.93    52.75±3.94     52.57±3.46
MY16     64.44±6.35   64.09±5.63     61.84±4.59
XZ1516   41.98±4.77   44.69±3.87     45.09±3.58
RC301    44.69±4.56   48.01±3.57     48.66±3.24
PD1074   52.12±4.37   52.63±3.67     52.23±3.25
ECA248   43.77±4.02   45.9±3.35      46.1±3.18


Table: Copper(II) chloride Estimates

Strain   Weibull       Log-Logistic   Lognormal
-------  ------------  -------------  -------------
ECA396   96.4±3.41     107.86±8.17    112.47±13.46
CB4856   100.72±1.91   102.83±3.58    103.76±4.8
ECA36    96.79±2.64    101.93±5.48    102.33±6.99
MY16     100.1±1.8     101.69±3.04    102.25±3.98
XZ1516   93.45±4.62    103.08±10.75   105.05±15.55
RC301    98.18±4.71    110.34±11.96   115.8±20.87
PD1074   92.21±2.11    93.37±3        92.3±3.27
ECA248   91.68±2.82    97.61±5.78     97.59±7.44


Table: Copper(II) chloride Estimates

Strain   Weibull        Log-Logistic   Lognormal
-------  -------------  -------------  -------------
ECA396   160.54±12.06   NA             NA
CB4856   134.12±10.06   165.37±23.55   174.3±25.66
ECA36    145.25±10.21   196.96±29.38   199.2±33.37
MY16     132.54±8.89    161.33±20.16   169.07±21.4
XZ1516   155.6±16.47    NA             NA
RC301    162.13±17.74   NA             NA
PD1074   132.66±6.26    165.63±15.39   163.13±15.03
ECA248   146.86±9.92    NA             NA


Table: Lead(II) nitrate Estimates

Strain   Weibull         Log-Logistic    Lognormal
-------  --------------  --------------  ----------
ECA36    226.93±128.54   495.47±448.34   NA


Table: Methomyl Estimates

Strain   Weibull      Log-Logistic   Lognormal
-------  -----------  -------------  -----------
ECA396   9.92±0.84    11.24±0.84     11.21±0.82
CB4856   9.99±1.09    11.16±1.07     11.22±1.05
ECA36    6.68±0.48    8.13±0.49      8.32±0.49
MY16     6.69±0.73    8.08±0.77      8.2±0.75
XZ1516   5.48±0.68    6.77±0.71      6.91±0.7
RC301    7.35±0.66    8.73±0.67      8.8±0.65
PD1074   6.38±0.63    7.42±0.65      7.57±0.63
ECA248   14.13±1.31   15.07±1.13     15.12±1.15


Table: Methomyl Estimates

Strain   Weibull      Log-Logistic   Lognormal
-------  -----------  -------------  -----------
ECA396   35.82±1.47   35.73±1.64     35.2±1.63
CB4856   31.29±1.48   30.59±1.6      30.2±1.57
ECA36    33.84±1.25   34.41±1.47     33.95±1.46
MY16     34.57±2.05   34.78±2.43     34.19±2.39
XZ1516   30.41±2.23   29.39±2.5      29.33±2.42
RC301    33.14±1.61   32.82±1.74     32.48±1.71
PD1074   28.79±1.44   28.29±1.65     27.71±1.58
ECA248   37.86±1.45   37.64±1.63     37.47±1.64


Table: Methomyl Estimates

Strain   Weibull       Log-Logistic   Lognormal
-------  ------------  -------------  -------------
ECA396   81.2±6.08     113.58±12.3    110.57±11.66
CB4856   64.81±5.25    83.83±10.22    81.28±9.39
ECA36    95.15±6.65    145.57±15.24   138.64±14.23
MY16     98.44±10.2    149.79±24.27   142.49±22.54
XZ1516   90.62±11.43   127.55±24.56   124.47±22.57
RC301    86.54±7.68    123.4±15.4     119.91±14.35
PD1074   75.22±6.48    107.94±14.59   101.47±12.92
ECA248   70.95±5.36    93.99±9.78     92.84±9.75


Table: Methylmercury dichloride Estimates

Strain   Weibull     Log-Logistic   Lognormal
-------  ----------  -------------  ----------
ECA396   0.8±0.12    1.04±0.14      1.1±0.14
CB4856   0.44±0.08   0.62±0.09      0.65±0.09
ECA36    0.92±0.12   1.2±0.14       1.26±0.14
MY16     0.43±0.09   0.63±0.12      0.67±0.12
XZ1516   0.39±0.09   0.55±0.1       0.59±0.1
RC301    0.84±0.16   1.11±0.19      1.16±0.19
PD1074   0.91±0.11   1.17±0.13      1.22±0.13
ECA248   0.25±0.06   0.38±0.08      0.41±0.08


Table: Methylmercury dichloride Estimates

Strain   Weibull      Log-Logistic   Lognormal
-------  -----------  -------------  -----------
ECA396   8.98±0.67    9.54±0.96      9.01±0.9
CB4856   6.51±0.53    6.96±0.74      6.61±0.7
ECA36    11.61±0.75   13.15±1.29     12.5±1.3
MY16     4.35±0.37    4.29±0.41      4.17±0.38
XZ1516   10.61±1.36   16.84±4.41     17.4±5.98
RC301    11.88±1.17   14.27±2.3      13.73±2.47
PD1074   10.46±0.62   11.48±0.96     10.9±0.94
ECA248   5.76±0.69    6.34±1.07      5.96±1


Table: Methylmercury dichloride Estimates

Strain   Weibull       Log-Logistic   Lognormal
-------  ------------  -------------  -------------
ECA396   41.8±5.29     87.51±20.86    73.47±16.79
CB4856   36.16±5.28    77.96±20.66    67.08±16.91
ECA36    58.33±6.56    144.01±33.12   124.26±29.32
MY16     18.96±3.03    29.34±7.43     26.08±6.05
XZ1516   87.01±20.22   NA             NA
RC301    64.44±11.37   183.44±70.16   161.97±67.41
PD1074   49.66±5.16    112.28±22.3    97.14±19.3
ECA248   42.44±9.09    106.98±42.97   86.84±33.28


Table: Nickel dichloride Estimates

Strain   Weibull         Log-Logistic   Lognormal
-------  --------------  -------------  ------------
ECA396   43.91±2.63      45.31±2.23     45.97±2.04
CB4856   41.28±2.11      43.07±1.79     43.91±1.67
ECA36    54.71±4.68      55.94±3.83     55.63±3.33
MY16     38.09±2.56      42.31±2.29     43.58±2.67
XZ1516   142.07±274.32   36.59±5.23     42.86±65.12
RC301    55.09±5.06      60.64±3.65     64.08±7.95
PD1074   57.94±4.61      58.29±3.84     57.29±3.25
ECA248   42.57±3.14      43.71±2.68     43.89±2.51


Table: Nickel dichloride Estimates

Strain   Weibull        Log-Logistic   Lognormal
-------  -------------  -------------  -------------
ECA396   81.75±1.89     80.3±2.32      79.05±2.18
CB4856   79.27±1.7      77.66±2.11     76.49±1.95
ECA36    97.84±2.16     101.35±4.08    101.27±4.88
MY16     96.63±5.16     113.6±12.18    124.17±22.71
RC301    114.83±11.33   134.1±27.95    158±66.08
PD1074   97.62±1.74     99.79±2.91     99.64±3.49
ECA248   84.16±2.56     84.53±3.7      83.11±3.75
XZ1516   NA             111.69±36.87   187.88±773.8


Table: Nickel dichloride Estimates

Strain   Weibull        Log-Logistic   Lognormal
-------  -------------  -------------  -------------
ECA396   121.48±3.92    142.28±8.7     135.92±7.57
CB4856   120.14±3.59    140.01±7.99    133.24±6.89
ECA36    141.72±8.55    183.6±22.36    184.36±23.4
MY16     174.89±17.38   NA             NA
RC301    183.37±36.27   NA             NA
PD1074   136.11±6.99    170.82±16.93   173.29±17.33
ECA248   129.93±6.08    163.45±15.62   157.39±15.39


Table: Paraquat Estimates

Strain   Weibull      Log-Logistic   Lognormal
-------  -----------  -------------  -----------
MY16     21.49±2.2    31.49±2.53     32.89±2.43
XZ1516   46.56±5.67   56.97±5.82     58.37±5.55
CB4856   27.94±2.8    37.66±2.74     38.24±2.54
RC301    15.73±1.83   22.08±1.92     23.33±1.84
PD1074   19.37±1.72   27.79±1.9      29.12±1.81
ECA248   13.46±1.33   19.33±1.5      20.46±1.46
ECA36    23.97±2.44   33.86±2.56     35.13±2.42
ECA396   14.16±1.45   20.47±1.56     21.4±1.48


Table: Paraquat Estimates

Strain   Weibull        Log-Logistic   Lognormal
-------  -------------  -------------  -------------
MY16     247.79±20.27   223.77±19.92   234.06±20.65
XZ1516   388.08±35.61   390.27±48.91   390.29±50.58
CB4856   219.28±18.97   192.21±14.64   203.73±14.96
RC301    190.82±16.68   169.31±16.64   174.07±15.94
PD1074   234.72±17.46   210.58±17.45   220.31±17.84
ECA248   190.84±14.44   185.4±16.94    188.51±17.08
ECA36    229.29±20.19   201.69±17.61   214.1±18.19
ECA396   163.12±11.88   141.94±11      147.09±10.57


Table: Paraquat Estimates

Strain   Weibull          Log-Logistic     Lognormal
-------  ---------------  ---------------  ---------------
MY16     1177.07±168.78   1590.36±321.63   1665.68±319.5
XZ1516   1499.05±216.62   2673.26±665.82   2609.49±663.48
CB4856   815.1±128.85     981.14±169.08    1085.4±170.95
RC301    936.14±139.24    1298.17±277.65   1298.95±249.99
PD1074   1150.8±145.49    1595.89±292.17   1667±286.11
ECA248   1034.35±133.48   1778.13±356.19   1737.21±334.18
ECA36    966.76±151.63    1201.27±236.27   1304.87±238.47
ECA396   774.48±97.75     984.14±171.96    1011.07±156.57


Table: Pyraclostrobin Estimates

Strain   Weibull      Log-Logistic   Lognormal
-------  -----------  -------------  -----------
ECA396   5.13±0.45    7.01±0.48      7.4±0.47
CB4856   7.72±1.18    10.95±1.4      11.59±1.39
ECA36    11.85±0.97   14.8±0.94      15.1±0.92
MY16     7.6±0.79     10.91±0.93     11.78±0.98
XZ1516   10.37±1.27   14.64±1.54     15.85±1.71
RC301    15.04±2.5    19.03±2.54     19.18±2.44
PD1074   9.09±0.97    12.46±1.09     13.08±1.07
ECA248   8.59±1.28    12.33±1.54     13.27±1.6


Table: Pyraclostrobin Estimates

Strain   Weibull        Log-Logistic   Lognormal
-------  -------------  -------------  -------------
ECA396   79.98±6.64     88.49±9.27     93.88±11.17
CB4856   121.28±17.04   142.59±28.54   156.05±38.93
ECA36    79.93±3.6      81.76±4.06     80.96±4.1
MY16     128.89±14.05   163.22±25.87   185.64±39
XZ1516   163.82±21.13   220.54±45.46   258.06±75.48
RC301    101.77±11      102.56±12.01   104.29±12.65
PD1074   118.27±11.33   136.07±17.63   144.43±22.57
ECA248   144.56±20.86   181.28±39.94   202.61±59.58


Table: Pyraclostrobin Estimates

Strain   Weibull         Log-Logistic    Lognormal
-------  --------------  --------------  --------------
ECA396   460.65±62.67    1116.4±236.96   1191.5±279.08
CB4856   701.75±165.3    NA              NA
ECA36    269.73±22.6     451.81±53.31    434.1±50.62
MY16     783.01±142.39   NA              NA
XZ1516   951.12±202.66   NA              NA
RC301    344.23±70.41    552.85±150.04   567.18±153.92
PD1074   606.82±99.42    1485.41±399.5   NA
ECA248   873.78±212.8    NA              NA


Table: Silver nitrate Estimates

Strain   Weibull       Log-Logistic   Lognormal
-------  ------------  -------------  ------------
MY16     3.6±1.72      7.15±4.63      17.08±30.22
XZ1516   9.35±4.15     15.53±8.26     28.99±30.86
ECA36    12.92±9.29    24.37±21.45    93.8±187.3
ECA396   29.26±34.8    56.67±71.55    NA
RC301    13.56±12.7    33.27±39.68    NA
CB4856   19.49±16.06   42.03±42.1     NA


Table: Silver nitrate Estimates

Strain   Weibull         Log-Logistic   Lognormal
-------  --------------  -------------  ----------
MY16     107.82±87.15    NA             NA
XZ1516   163.97±108.06   NA             NA
ECA36    234.34±231.94   NA             NA


Table: Triphenyl phosphate Estimates

Strain   Weibull     Log-Logistic   Lognormal
-------  ----------  -------------  ----------
ECA396   1.63±0.13   2.09±0.15      2.16±0.15
CB4856   2.1±0.22    2.64±0.25      2.77±0.26
ECA36    2.06±0.25   2.53±0.27      2.6±0.28
MY16     0.47±0.06   0.68±0.08      0.73±0.08
XZ1516   3.15±0.51   3.77±0.57      3.92±0.61
RC301    2.42±0.37   2.98±0.41      3.11±0.42
PD1074   3.78±0.35   4.39±0.36      4.49±0.36
ECA248   1.72±0.17   2.17±0.19      2.24±0.19


Table: Triphenyl phosphate Estimates

Strain   Weibull      Log-Logistic   Lognormal
-------  -----------  -------------  -----------
ECA396   16.43±0.96   21.34±2.16     22.07±2.93
CB4856   18.33±1.14   21.69±2.26     20.97±2.5
ECA36    18.31±1.12   22.62±2.53     22.5±3.18
MY16     11.34±1.15   17.19±3.3      18.03±4.53
XZ1516   18.96±1.53   20.88±2.51     19.97±2.51
RC301    15.93±1.14   17.27±1.76     16.66±1.78
PD1074   19.83±0.92   20.82±1.32     20.1±1.3
ECA248   16.21±0.89   19.33±1.76     19±2.06


Table: Triphenyl phosphate Estimates

Strain   Weibull       Log-Logistic   Lognormal
-------  ------------  -------------  -------------
ECA396   71.51±6.99    NA             NA
CB4856   72.9±7.86     178.23±41.57   158.68±41.76
ECA36    73.66±8.5     NA             194.94±62.58
MY16     86.48±15.06   NA             NA
XZ1516   59.49±8.4     115.63±33.75   101.68±31.01
RC301    52.93±7.17    99.95±25.83    89.41±23.5
PD1074   57.01±4.6     98.74±14.63    90.02±13.34
ECA248   67.61±6.66    172.04±35.78   161.52±38.98


Table: Zinc dichloride Estimates

Strain   Weibull       Log-Logistic    Lognormal
-------  ------------  --------------  --------------
MY16     49.97±2.99    64.15±5.85      86.83±25.16
XZ1516   53.15±3.33    62.9±3.86       68.77±7.46
PD1074   66.11±12.42   99.93±26.76     394.91±407.23
ECA36    53.45±2.91    66.27±4.86      81.66±16.27
ECA396   34.27±1.76    40.29±1.78      41.84±1.96
RC301    44.21±2.85    57.02±5.31      75.49±19.46
ECA248   51.07±3.11    61.77±4.16      71.18±11.2
CB4856   95.8±73.07    179.04±147.83   NA


Table: Zinc dichloride Estimates

Strain   Weibull        Log-Logistic   Lognormal
-------  -------------  -------------  --------------
MY16     200.37±22.5    301.04±62.22   NA
XZ1516   180.45±13.29   233.29±32.84   297.56±86.78
PD1074   327.1±95.31    NA             NA
ECA36    197.2±18.25    278.34±46.86   NA
ECA396   136.22±5.76    166.62±13.56   185.5±24.6
RC301    192.15±22.05   289.38±58.28   NA
ECA248   181.68±15.06   246.68±40.07   354.12±135.93


Table: Zinc dichloride Estimates

Strain   Weibull        Log-Logistic   Lognormal
-------  -------------  -------------  ----------
XZ1516   393.24±48.17   NA             NA
ECA396   328.27±23.63   NA             NA

[[1]]
NULL

[[2]]
NULL

[[3]]
NULL

[[4]]
NULL

[[5]]
NULL

[[6]]
NULL

[[7]]
NULL

[[8]]
NULL

[[9]]
NULL

[[10]]
NULL

[[11]]
NULL

[[12]]
NULL

[[13]]
NULL

[[14]]
NULL

[[15]]
NULL

[[16]]
NULL

[[17]]
NULL

[[18]]
NULL

[[19]]
NULL

[[20]]
NULL

[[21]]
NULL

[[22]]
NULL

[[23]]
NULL

[[24]]
NULL

[[25]]
NULL

[[26]]
NULL

[[27]]
NULL

[[28]]
NULL

[[29]]
NULL

[[30]]
NULL

[[31]]
NULL

[[32]]
NULL

[[33]]
NULL

[[34]]
NULL

[[35]]
NULL

[[36]]
NULL

[[37]]
NULL

[[38]]
NULL

[[39]]
NULL

[[40]]
NULL

[[41]]
NULL

[[42]]
NULL

[[43]]
NULL

[[44]]
NULL

[[45]]
NULL

[[46]]
NULL

[[47]]
NULL

[[48]]
NULL

Session information

sessionInfo()

R version 4.0.4 (2021-02-15)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Catalina 10.15.7

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.0/Resources/lib/libRblas.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.0/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] RColorBrewer_1.1-2 RCurl_1.98-1.2     ddpcr_1.15         kableExtra_1.3.4
 [5] knitr_1.31         drc_3.0-1          MASS_7.3-53        easyXpress_0.1.0
 [9] forcats_0.5.1      stringr_1.4.0      dplyr_1.0.4        purrr_0.3.4
[13] readr_1.4.0        tidyr_1.1.2        tibble_3.1.0       ggplot2_3.3.3
[17] tidyverse_1.3.0    workflowr_1.6.2

loaded via a namespace (and not attached):
  [1] TH.data_1.0-10        colorspace_2.0-0      ellipsis_0.3.1
  [4] rio_0.5.16            rprojroot_2.0.2       fs_1.5.0
  [7] rstudioapi_0.13       farver_2.0.3          fansi_0.4.2
 [10] mvtnorm_1.1-1         lubridate_1.7.9.2     xml2_1.3.2
 [13] codetools_0.2-18      splines_4.0.4         readbitmap_0.1.5
 [16] jsonlite_1.7.2        broom_0.7.5           dbplyr_2.1.0
 [19] png_0.1-7             compiler_4.0.4        httr_1.4.2
 [22] backports_1.2.1       assertthat_0.2.1      bmp_0.3
 [25] Matrix_1.3-2          cli_2.3.1             later_1.1.0.1
 [28] htmltools_0.5.1.1     tools_4.0.4           igraph_1.2.6
 [31] gtable_0.3.0          glue_1.4.2            rebus.base_0.0-3
 [34] Rcpp_1.0.6            carData_3.0-4         cellranger_1.1.0
 [37] jquerylib_0.1.3       vctrs_0.3.6           svglite_2.0.0
 [40] xfun_0.21             rebus.datetimes_0.0-1 openxlsx_4.2.3
 [43] rvest_0.3.6           lifecycle_1.0.0       rebus.numbers_0.0-1
 [46] gtools_3.8.2          zoo_1.8-8             scales_1.1.1
 [49] hms_1.0.0             promises_1.2.0.1      sandwich_3.0-0
 [52] yaml_2.2.1            curl_4.3              sass_0.3.1
 [55] stringi_1.5.3         imager_0.42.7         highr_0.8
 [58] plotrix_3.8-1         tiff_0.1-6            zip_2.1.1
 [61] bitops_1.0-6          rlang_0.4.10          pkgconfig_2.0.3
 [64] systemfonts_1.0.1     evaluate_0.14         lattice_0.20-41
 [67] labeling_0.4.2        cowplot_1.1.1         tidyselect_1.1.0
 [70] magrittr_2.0.1        R6_2.5.0              generics_0.1.0
 [73] multcomp_1.4-16       DBI_1.1.1             pillar_1.5.0
 [76] haven_2.3.1           whisker_0.4           foreign_0.8-81
 [79] withr_2.4.1           rebus_0.1-3           survival_3.2-7
 [82] abind_1.4-5           rebus.unicode_0.0-2   modelr_0.1.8
 [85] crayon_1.4.1          car_3.0-10            utf8_1.1.4
 [88] rmarkdown_2.7         jpeg_0.1-8.1          grid_4.0.4
 [91] readxl_1.3.1          data.table_1.14.0     git2r_0.28.0
 [94] reprex_1.0.0          digest_0.6.27         webshot_0.5.2
 [97] httpuv_1.5.5          munsell_0.5.0         viridisLite_0.3.0
[100] bslib_0.2.4
