Last updated: 2022-11-01

Checks: 7 0

Knit directory: locust-phase-transition-RNAseq/

This reproducible R Markdown analysis was created with workflowr (version 1.7.0). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.

R Markdown file: up-to-date

Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

Environment: empty

Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

Seed: set.seed(20221025)

The command set.seed(20221025) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

Session information: recorded

Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

Cache: none

Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.

File paths: relative

Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.

Repository version: 7ccccbd

Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.

The results in this page were generated with repository version 7ccccbd. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.

Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:


Ignored files:
    Ignored:    .DS_Store
    Ignored:    analysis/.DS_Store
    Ignored:    data/.DS_Store
    Ignored:    data/americana/.DS_Store
    Ignored:    data/americana/STAR_counts_4thcol/.DS_Store
    Ignored:    data/cancellata/.DS_Store
    Ignored:    data/cancellata/STAR_counts_4thcol/.DS_Store
    Ignored:    data/cubense/.DS_Store
    Ignored:    data/cubense/STAR_counts_4thcol/.DS_Store
    Ignored:    data/gregaria/.DS_Store
    Ignored:    data/gregaria/STAR_counts_4thcol/.DS_Store
    Ignored:    data/gregaria/list/.DS_Store
    Ignored:    data/metadata/.DS_Store
    Ignored:    data/nitens/.DS_Store
    Ignored:    data/nitens/STAR_counts_4thcol/.DS_Store
    Ignored:    data/piceifrons/.DS_Store
    Ignored:    data/piceifrons/STAR_counts_4thcol/.DS_Store
    Ignored:    data/piceifrons/list/.DS_Store

Untracked files:
    Untracked:  analysis/deseq2-workflow.Rmd
    Untracked:  data/piceifrons/DEseq2_SPICE_HEAD/
    Untracked:  data/piceifrons/edgeR_SPICE_HEAD/
    Untracked:  figures/
    Untracked:  tables/

Unstaged changes:
    Deleted:    analysis/deg-workflow.Rmd
    Deleted:    data/piceifrons/piceifrons_DE.csv

Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

These are the previous versions of the repository in which changes were made to the R Markdown (analysis/workenvs-prep.Rmd) and HTML (docs/workenvs-prep.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.

File	Version	Author	Date	Message
html	834088c	MaevaTecher	2022-10-31	Build site.
html	8481823	MaevaTecher	2022-10-31	Build site.
html	ea70380	MaevaTecher	2022-10-31	Build site.
Rmd	de64b6b	MaevaTecher	2022-10-31	wflow_publish(c("analysis/_site.yml", "analysis/map-refseq.Rmd",
html	8b34f19	MaevaTecher	2022-10-30	Build site.
Rmd	0c89c5d	MaevaTecher	2022-10-30	wflow_publish(c("analysis/workenvs-prep.Rmd"), republish = TRUE)
html	bd04bb5	MaevaTecher	2022-10-30	Build site.
html	61f4b75	MaevaTecher	2022-10-30	Build site.
Rmd	f65c630	MaevaTecher	2022-10-30	wflow_publish(c("analysis/_site.yml", "analysis/gene-quant.Rmd",

Work environment

Environment

Grace Cluster at Texas A&M University, College Station, Texas, USA
Local Mac: macOS Monterey Version 12.6
R version 4.2.1

Directories

Path	Purpose
`/scratch/user/XXXX/locust-phase`	Working repository
`/scratch/user/XXXX/locust-phase/workflow`	Location of the Snakemake pipeline
`/scratch/user/XXXX/refgenomes/locust-complete`	Reference genome, annotation and index
`/scratch/user/XXXX/locust-phase/data/reads`	Raw FASTQ.GZ files
`/scratch/user/XXXX/locust-phase/data/kaiju`	Kaiju database and output
`/scratch/user/XXXX/locust-phase/data/trimming`	Trimmed FASTQ files
`/scratch/user/XXXX/locust-phase/data/alignment/STAR`	Output from STAR
`/scratch/user/XXXX/locust-phase/data/alignment/STAR_SALMON`	Output from STAR-Salmon
`/scratch/user/XXXX/locust-phase/data/alignment/STAR_RSEM`	Output from STAR-Salmon
`/scratch/user/XXXX/locust-phase/data/analysis`	R analysis (DGE)

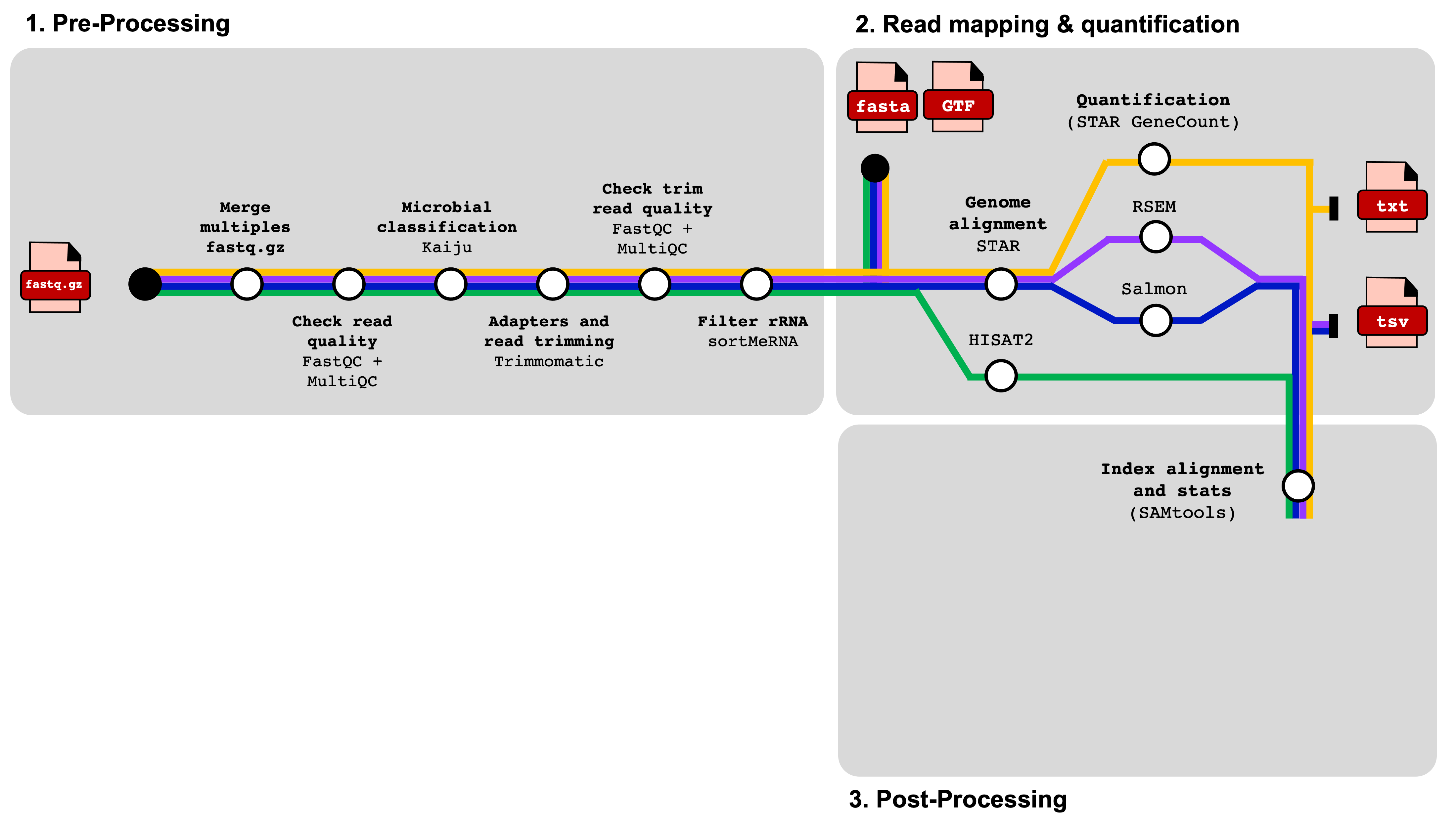

Snakemake pipeline

We use a Snakemake pipeline for each species. Therefore, it is essential to verify that each software is installed 1) locally or via a conda environment or 2) as a module or cloned via Github on the Grace cluster at Texas A&M University is essential.

We built our Snakemake pipeline by launching small individual jobs to tailor each cluster parameter for the best memory and time efficiency.

To ease the indexing of our file and folder, we generate some shared parameters which will be helpful in the future: 1) reference genome directory path REFdir, 2) output directory path OUTdir and 3) a list LOCUSTS containing sample base name referred as locust.

### SET DIRECTORY PATHS FOR REFERENCE AND OUTPUT DATA

REFdir = "/scratch/user/maeva-techer/refgenomes"
OUTdir = "/scratch/user/maeva-techer/locust-rna/data"

### SAMPLES LIST AND OTHER PARAMETERS

LOCUSTS, = glob_wildcards(OUTdir + "/reads/{locust}_1.fastq.gz")
print(LOCUSTS)

Softwares and database

Links to each software to add in the future

Use a conda environment

add what to install on the Macpro tower e.g., we install a conda environment called rna-seq

Use modules on Grace cluster

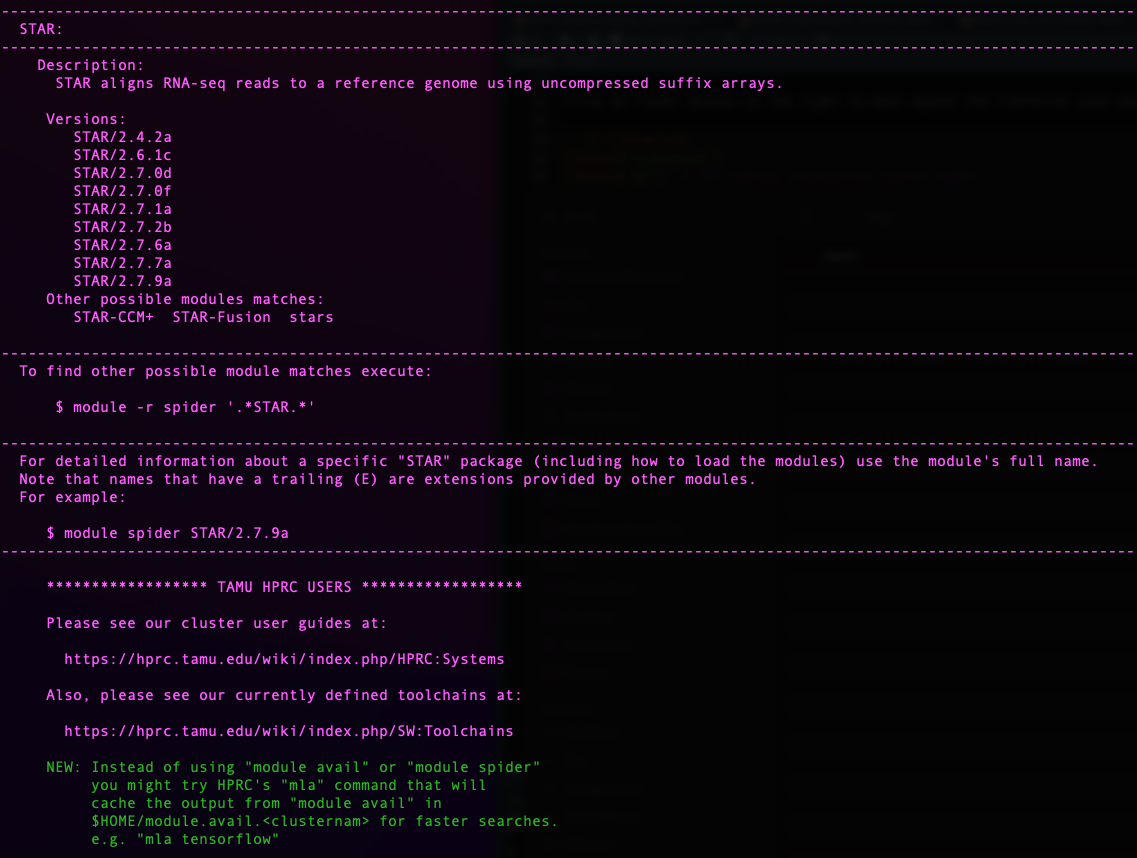

On Grace, each module may requires some dependencies, which is why we need to ensure they will be loaded together. For this we use the function module spider [targeted software] w/o the version.

Today we will need the following software:

to launch the Snakemake pipeline

module load GCC/11.2.0 OpenMPI/4.1.1 snakemake/6.10.0 Biopython/1.79

to perform adapter trimming and QC

module load Trimmomatic/0.39-Java-11
module load FastQC/0.11.9-Java-11

to perform short read mapping

module load GCC/11.2.0 STAR/2.7.9a

R packages neccessary

List of R packages used

CRAN
data.table: https://cran.r-project.org/package=data.table
dplyr: https://cran.r-project.org/package=dplyr
reshape2: https://cran.r-project.org/package=reshape2
ggplot2: https://cran.r-project.org/package=ggplot2
ggrepel: https://cran.r-project.org/package=ggrepel

Bioconductor
DESeq2: https://bioconductor.org/packages/DESeq2/
apeglm: https://bioconductor.org/packages/apeglm/
EnhancedVolcano: https://bioconductor.org/packages/EnhancedVolcano/
edgeR: https://www.bioconductor.org/packages/edgeR/

sessionInfo()

R version 4.2.1 (2022-06-23)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Big Sur ... 10.16

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] workflowr_1.7.0

loaded via a namespace (and not attached):
 [1] Rcpp_1.0.9       compiler_4.2.1   pillar_1.8.1     bslib_0.4.0
 [5] later_1.3.0      git2r_0.30.1     jquerylib_0.1.4  tools_4.2.1
 [9] getPass_0.2-2    digest_0.6.30    jsonlite_1.8.3   evaluate_0.17
[13] tibble_3.1.8     lifecycle_1.0.3  pkgconfig_2.0.3  rlang_1.0.6
[17] cli_3.4.1        rstudioapi_0.14  yaml_2.3.6       xfun_0.34
[21] fastmap_1.1.0    httr_1.4.4       stringr_1.4.1    knitr_1.40
[25] fs_1.5.2         vctrs_0.5.0      sass_0.4.2       rprojroot_2.0.3
[29] glue_1.6.2       R6_2.5.1         processx_3.7.0   fansi_1.0.3
[33] rmarkdown_2.17   callr_3.7.2      magrittr_2.0.3   whisker_0.4
[37] ps_1.7.1         promises_1.2.0.1 htmltools_0.5.3  httpuv_1.6.6
[41] utf8_1.2.2       stringi_1.7.8    cachem_1.0.6

Preparations needed for launching the analysis

Maeva Techer

2022-11-01
