Comparative genomics and ortholog genes with OrthoFinder
We wanted to compare the six genomes of Schistocerca to get insights on gene evolution and relationships regarding their numbers, content, function and location. In order to achieve this, we need to identify groups of orthologous genes among our species of interest, considering at least one outgroup.
Orthologs are genes from different species that originated from a single ancestral gene and evolved through speciation events. However since genes can be lost or duplicated during evolution, some genes may not have exactly one orthologue in the genome of another species. Here we will separate the 1:1 orthologs to the the concept of orthogroups. Orthogroups can contain 1:1 orthologs but also several several orthologs from different species, including paralogs and one-to-many orthologs. Paralogs are genes within the same species that have originated from a shared ancestral genes but have diverged over time following gene duplication events.
IMPORTANT
We used OrthoFinder to identify the orthogroups
using amino acid sequences from the longest isoform of each gene. For
this part, refers to the AMAZINGLY WELL CURATED
pipeline FormicidaeMolecularEvolution
by Megan Barkdull
(PhD Student at Cornell University). We describe below the modifications
made and mostly copied the workflow from her Github.
1. Downloading data
We created the file “input-XXX.txt” as described to automatically download the coding sequence, protein sequence, GFF annotation data for each of our six Schistocerca species and annotated outgroups. The outgroups were choosen as close phylogenetic species with a RefSeq genome showing 1) a chromosome length, 2) associated with an annotation, 3) large size and 4) hybrid techniques used for assembly (last NCBI search: 28 April 2024).
Our target species for this study:
* The desert locust Schistocerca
gregaria
* The South American locust Schistocerca
cancellata
* The Central American locust Schistocerca
piceifrons
* The American grasshopper Schistocerca
americana
* The bird grasshopper Schistocerca
serialis cubense
* The vagrant locust Schistocerca
nitens
Our outgroup species:
* The European stick insect Bacillus
rossius redtenbacheri. Reason: Closest relative
available with chromosome length.
* The drywood termite Cryptotermes
secundus. Reason: Eusocial insect with caste
determination phenotypic plasticity.
* The Western honey bee Apis
mellifera. Reason: Eusocial insect with caste
determination phenotypic plasticity.
* The red fire ant Solenopsis
invicta. Reason: Eusocial insect with caste
determination phenotypic plasticity.
* The pea aphid Acyrthosiphon
pisum. Reason: Insect with wing phenotypic plasticity in
response to density and environment.
* The fruit fly Drosophila
melanogaster. Reason: Model organism.

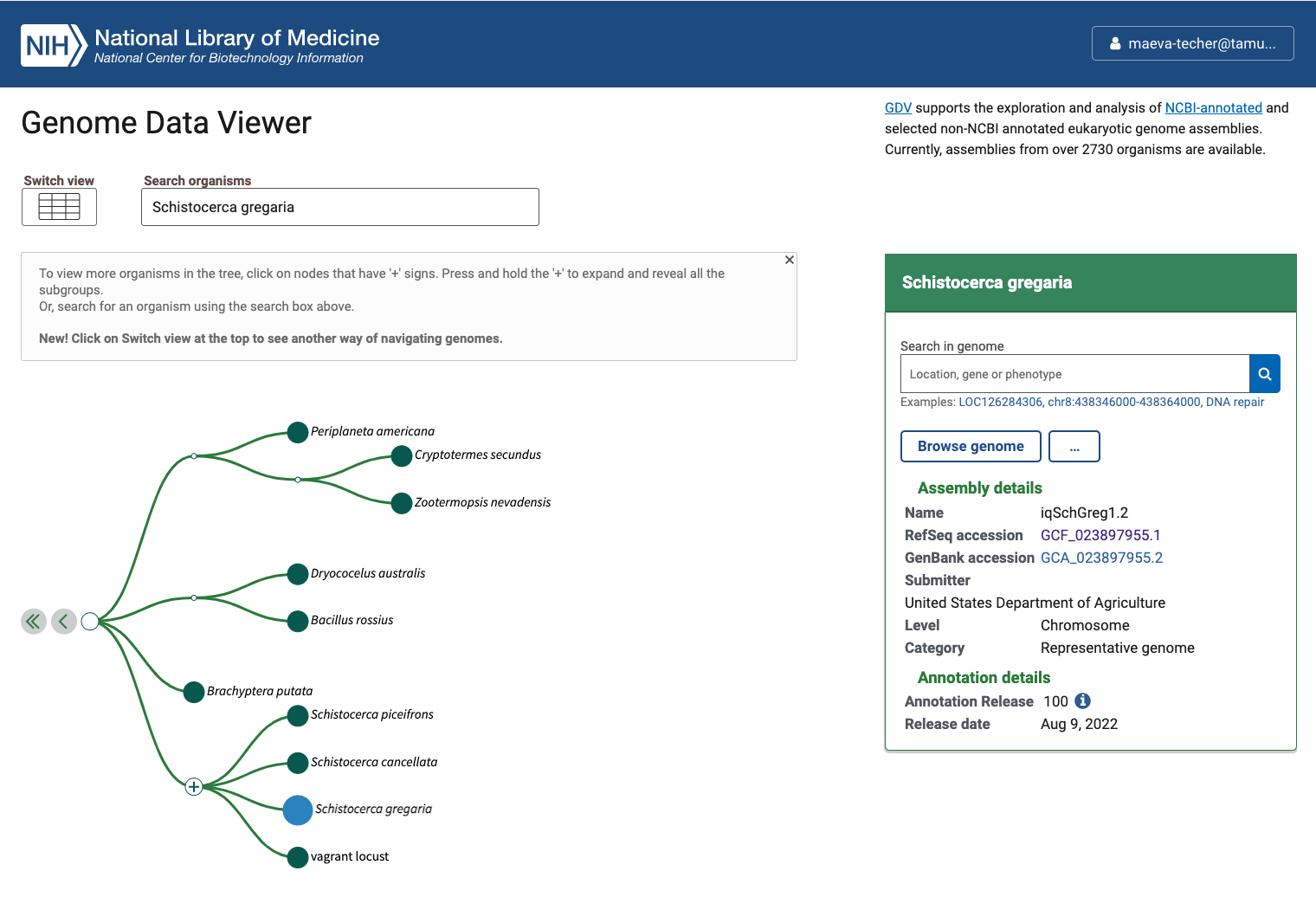

Status of Genome Data Viewer on NCBI for selecting our
outgroups
NB: During our search, we identified very valuable genomes but for which no annotation was available (e.g., CAU_Lmig_1.0 for Locusta migratoria , iqMecThal1.2 Meconema thalassinum). However upon request to NCBI team, we were informed that the Locusta genome has not been annotated because of the presence of large bacterial contamination and Meconema does not possess RNA SRAs to help with the annotation.
Using the FTP NCBI link associated with each RefSeq, we created the input file.
./scripts/DataDownload ./scripts/inputurls_May2024.txtOn the TAMU Grace cluster, when you download do not run it on a node
as it does not work. Run it from the login node or transfer the files
already preloaded. This will creates a folder ./1_RawData
with 3 files for each species.
In summary, below are the details of each RefSeq annotation that we will be using as input for OrthoFinder. It will be important to check that after steps 2-4, the number of protein coding genes OrthoFinder is similar to the initial input.
| Species | Order | Status | Genome_Size | Annotated_Genes | Protein_Coding |
|---|---|---|---|---|---|
| Schistocerca gregaria | Orthoptera | Locust | 8.7 Gb | 99467 | 19799 |
| Schistocerca cancellata | Orthoptera | Locust | 8.5 Gb | 103533 | 16907 |
| Schistocerca piceifrons | Orthoptera | Locust | 8.7 Gb | 96806 | 17490 |
| Schistocerca americana | Orthoptera | Grasshopper | 9.0 Gb | 81274 | 17662 |
| Schistocerca serialis cubense | Orthoptera | Grasshopper | 9.1 Gb | 75810 | 17237 |
| Schistocerca nitens | Orthoptera | Grasshopper | 8.8 Gb | 72560 | 17500 |
| Bacillus rossius redtenbacheri | Phasmatodea | Outgroup | 1.6 Gb | 19298 | 14448 |
| Cryptotermes secundus | Blattodea | Outgroup | 1.0 Gb | 15413 | 13170 |
| Apis mellifera | Hymenoptera | Outgroup | 225.2 Mb | 12398 | 9935 |
| Solenopsis invicta | Hymenoptera | Outgroup | 378.1 Mb | 16996 | 14790 |
| Acyrthosiphon pisum | Hemiptera | Outgroup | 533.6 Mb | 20307 | 17681 |
| Drosophila melanogaster | Diptera | Outgroup | 143.7 Mb | 17872 | 13962 |
2. Selecting longest isoforms
Here again, we will follow the pipeline except that to run it on Grace cluster we will make small modifications. The idea is that we will use only the single longest isoform of each gene to ease the orthology analysis. While this might not always be the principal isoform of said gene, we will apply the same bias to all genes the same way.
First, to run R without bothering other users, we will claim one interactive node to make sure we can proactively update the package if there are some issues:
srun --ntasks 1 --cpus-per-task 4 --mem 10G --time 01:00:00 --pty bashThen we will use any package preloaded on the cluster before needed to install our own on our user library if needed. We will need Pandoc for loading orthologr
ml GCC/12.2.0 OpenMPI/4.1.4 R_tamu/4.3.1
export R_LIBS=$SCRATCH/R_LIBS_USER/
ml Pandoc/2.13We now simply run the script as indicated on the pipeline page:
./scripts/GeneRetrieval.R ./scripts/inputurls_May2024.txt

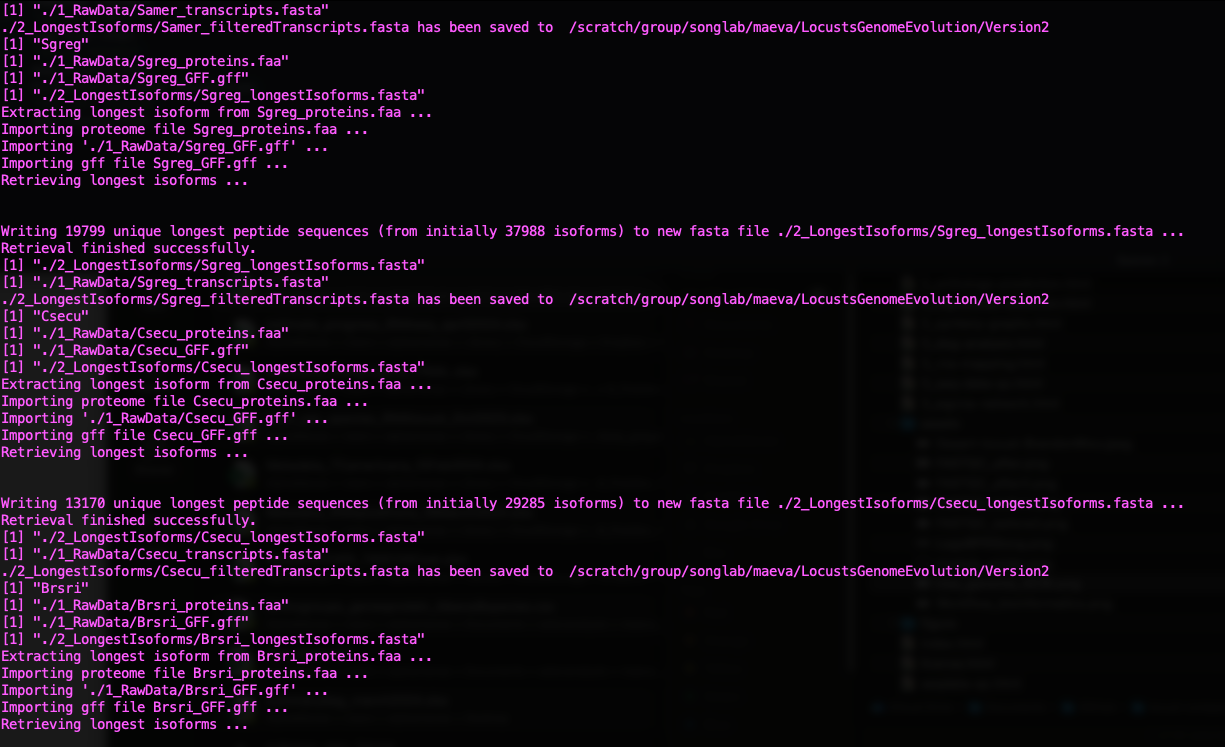

Status of Gene Retrieval script when successful
Initially we wanted to also include the genome of Dryococelus
australis (3.4Gb). However this will not be possible as the
user submitted annotation does not match the need for
orthologr here. There are some missing columns in the
transcripts regarding “gene”.
3. Cleaning the raw data
For the cleaning step of the mbarkdull’s pipeline we simply followed the command line with no modifications.
./scripts/DataCleaning ./scripts/inputurls_May2024.txt

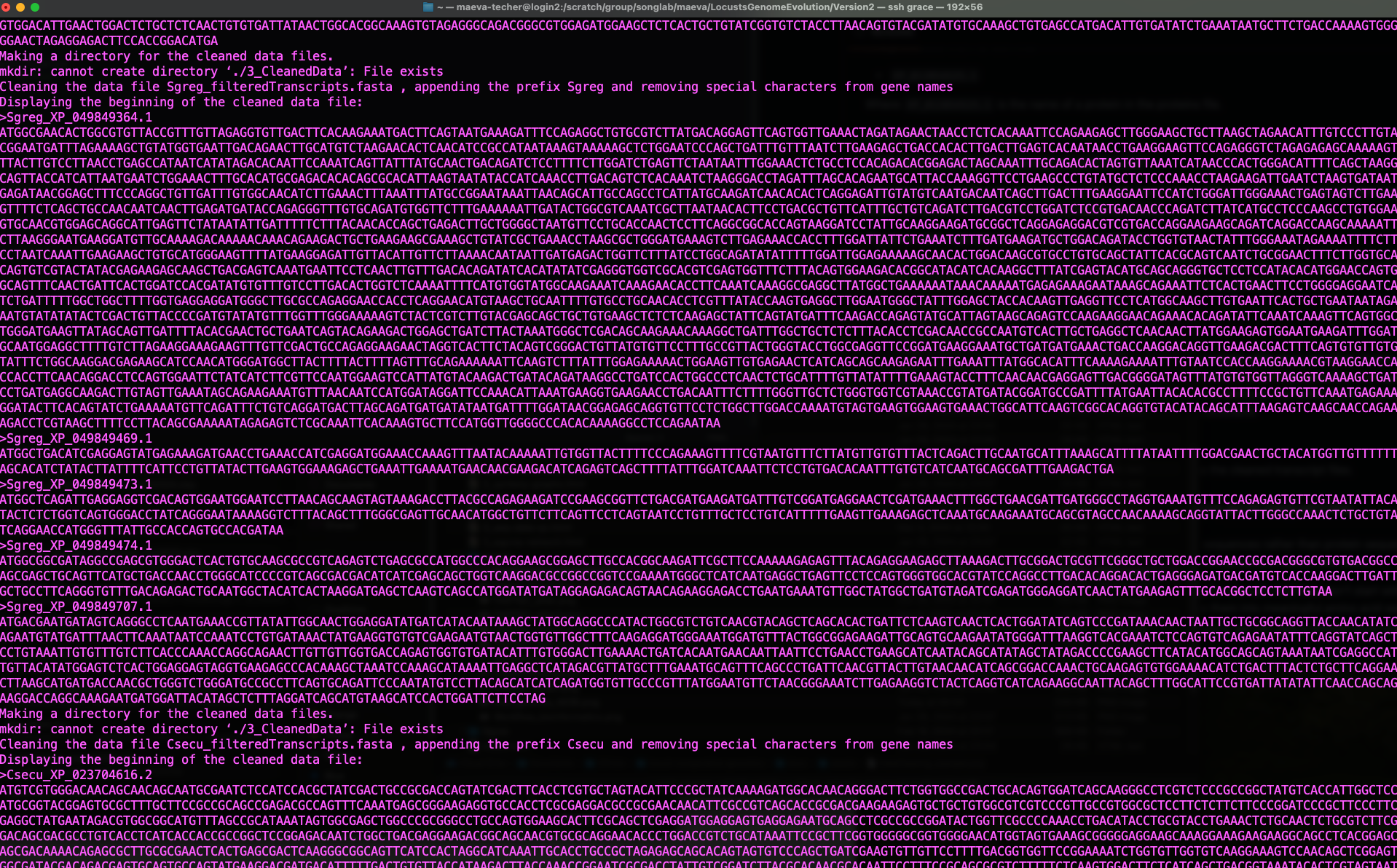

Status of Data Cleaning script when successful
4. Translating nucleotide sequences to amino acid sequences
As mentioned in the pipeline page, we will mostly need to use amino
acid sequences rather than protein and we need to translate the data we
downloaded. We will be using the Python script from mbarkdull
./scripts/TranscriptFilesTranslateScript.py but before that
we will modify our input file to only include only the 12 essential
species.
We changed the script in head lines and lines 25-27, to call the module directly from the cluster as follow:
#!/bin/bash
##NECESSARY JOB SPECIFICATIONS
#SBATCH --job-name=Transdecoder #Set the job name to "JobExample4"
#SBATCH --time=02:00:00 #Set the wall clock limit to 1hr and 30min
#SBATCH --ntasks=2 #Request 2 task
#SBATCH --cpus-per-task=4 #Request 8 task
#SBATCH --mem=20G #Request 50GB per node
ml GCC/10.2.0 OpenMPI/4.0.5 TransDecoder/5.5.0 Biopython/1.78 # Now we can run Transdecoder on the cleaned file:
echo "First, attempting TransDecoder run on $cleanName"
ml GCC/10.2.0 OpenMPI/4.0.5 TransDecoder/5.5.0
TransDecoder.LongOrfs -t $cleanName
TransDecoder.Predict -t $cleanName --single_best_onlyand then we launched the script by changing the top lines to put in sbatch:
sbatch ./scripts/DataTranslating_modif ./scripts/inputurls_May2024.txt5. Running Orthofinder
Now we will finally run Orthofinder to identify groups of orthologous genones in our translated amino acid sequences. We will also use MAFFT to produce multiple sequence alignment across our six species of Schistocerca and the outgroups.
Instead of using the ./scripts/DataOrthofinder from the
pipeline, we will be running our own command line here. Before doing so,
we did manually the creating of folders and moving of fasta files as
follow:
mkdir /LocustsGenomeEvolution/tmp
mkdir ./5_OrthoFinder/fasta
cp ./4_1_TranslatedData/OutputFiles/translated* ./5_OrthoFinder/fasta
cd ./5_OrthoFinder/fasta
rename translated '' translated*
cd ../To run orthofinder onto our Grace cluster, I checked the
compatibility of the modules required and these are the versions
acceptable to run in sbatchorthofinder.sh:
#!/bin/bash
##NECESSARY JOB SPECIFICATIONS
#SBATCH --job-name=orthofinder1 #Set the job name to "JobExample4"
#SBATCH --time=06:00:00 #Set the wall clock limit to 1hr and 30min
#SBATCH --ntasks=2 #Request 1 task
#SBATCH --cpus-per-task=4 #Request 1 task
#SBATCH --mem=30G #Request 100GB per node
ml iccifort/2019.5.281 impi/2018.5.288 OrthoFinder/2.3.11-Python-3.7.4
ml IQ-TREE/1.6.12 FastTree/2.1.11
ml MAFFT/7.453-with-extensions
orthofinder -S diamond -T iqtree -A mafft -I 5 -t 32 -a 4 -M msa -f /scratch/group/songlab/maeva/LocustsGenomeEvolution/Version2/5_OrthoFinder/fasta -p /scratch/group/songlab/maeva/LocustsGenomeEvolution/tmpHere we use:
-S diamond DIAMOND as a sequence search program
-T iqtree IQTREE as a tree inference program
-A mafft MAFFT as the multiple sequence alignment (MSA)
program
-I 5 MCL inflation parameter (default from the
pipeline)
-t 32 number of threads
We want to run also orthofinder using BLAST as it can give -2% accuracy increase over DIAMOND but will be computationally more heavy. For this we will only change:
ml BLAST+/2.9.0
orthofinder -S blastand we will run the script with the blast, iqtree and mafft options:
sbatch scripts/orthofinder_blast.shNow we are all done, we can explore the results and go on for the next steps.
6. Orthogroups to GeneID
At the end we obtain several folders, for which the content is extremely well explain by the software developer David Emms here.
Briefly, one of the important output in the folder
Orthogroups is the actual Orthogroups.txt
file. Although other files there are also important as we can use
Orthogroups.GeneCount.tsv for CAFE5 later on,
for example.
One of the issue with the pipeline we use is that, there will be some suffix in front of our protein coding, so we will remove that by using the following python code:
import re
# Define the input and output file names
input_file = 'Orthogroups.txt'
output_file = 'Orthogroups_reprocessed.txt'
# Read the input file
with open(input_file, 'r') as file:
data = file.read()
# Remove all prefixes before any occurrence of "_XP", "_NP", and "_YP"
result = re.sub(r'\b\w+_(XP|NP|YP)', r'\1', data)
# Write the result to the output file
with open(output_file, 'w') as file:
file.write(result)
print(f"Processed data has been written to {output_file}")We used the python script protein2geneid_loop.py written
by David to extract the protein_id from each gene_id and make a full
table with all species. For this we need to run the script in the folder
1_RawData.
import os
import re
# Get the current working directory
gff_directory = os.getcwd()
# Create a directory to store the output files
output_directory = os.path.join(gff_directory, "output_files")
os.makedirs(output_directory, exist_ok=True)
# List GFF files with "_GFF.gff" extension
species_list = [filename for filename in os.listdir(gff_directory) if filename.endswith("_GFF.gff")]
# Process each species' GFF file
for species_filename in species_list:
# Extract the species name from the file name
species_name = re.sub(r"_GFF\.gff$", "", species_filename)
# Construct input and output file paths
input_path = os.path.join(gff_directory, species_filename)
output_filename = f"xp{species_name}.gff" # Remove the dot before species_name
output_path = os.path.join(output_directory, output_filename)
# Use 'grep' to filter lines containing "XP" and save to the output file
grep_command = f'grep "XP" "{input_path}" > "{output_path}"'
os.system(grep_command)
# Print a message indicating the filtering process
print(f"Filtered {species_filename} to {output_filename}")
# Construct the output TSV file path
tsv_output_filename = f'gffKey{species_name}.tsv' # Remove the dot before species_name
tsv_output_path = os.path.join(output_directory, tsv_output_filename)
lol = {}
# Read and process the contents of the GFF file
with open(output_path) as gffFile:
for line in gffFile:
if re.search(r"product=[^;]+", line):
gene_match = re.search(r"gene=[^;=]+", line)
product_match = re.search(r"product=[^;]+", line)
proteinID_match = re.search(r"protein_id=(.+)", line)
if gene_match and product_match and proteinID_match:
gene = gene_match.group(0)
if gene.endswith('product'):
gene = gene[5:-7]
else:
gene = gene[5:]
product = product_match.group(0)
product = product.replace("product=", "")
product = product.rstrip()
proteinID = proteinID_match.group(1)
if proteinID not in lol.keys():
lol[proteinID] = [gene, product, species_name] # Add species name
# Write the processed data to the output TSV file
with open(tsv_output_path, 'w') as output:
for proID, lis in lol.items():
output.writelines(proID + '\t' + lis[0] + '\t' + lis[1] + '\t' + lis[2] + '\n') # Include species name
# Print a message indicating the processing of the GFF file
print(f"Processed {output_filename} to {tsv_output_filename}")
# Concatenate all final files into a single file
final_output_filename = "allspecies_protein2geneid.tsv"
final_output_path = os.path.join(output_directory, final_output_filename)
with open(final_output_path, 'w') as final_output:
for species_filename in species_list:
species_name = re.sub(r"_GFF\.gff$", "", species_filename)
tsv_output_filename = f'gffKey{species_name}.tsv' # Remove the dot before species_name
tsv_output_path = os.path.join(output_directory, tsv_output_filename)
with open(tsv_output_path, 'r') as species_output:
final_output.write(species_output.read())
print(f"Concatenated all species files into {final_output_filename}")
Launch the script as python protein2geneid_loop.py.
Once we have obtained both files, we can join them with R and we will have a correspondence among orthogroups_id, protein_id, gene_id, gene description and species.
NB: I noticed there are still some small issues with teh file
allspecies_protein2geneid.tsv so I fixed it by hand
afterwards.
library(readr)
library(tidyverse)
orthogroup <- read_table("data/orthologs/Orthogroups_reprocessed.txt", col_names = FALSE)
# We reshape the table so that we have one orthogroup line associated with one protein id
transformed_orthogroup <- orthogroup %>%
pivot_longer(cols = -X1, names_to = "Protein_Column", values_to = "protein_id") %>%
replace_na(list(X1 = "N/A")) %>%
select(orthogroup = X1, protein_id) %>%
filter(!is.na(protein_id))
# Export the table to tab-separated text file (you can change the delimiter if needed)
write.table(transformed_orthogroup, file = "data/orthologs/Orthogroups_11species_May2024.txt", sep = "\t", quote = FALSE, row.names = FALSE)
proteingeneid <- read_tsv("data/orthologs/allspecies_protein2geneid.tsv", col_names = TRUE )
final_orthotable <- left_join(transformed_orthogroup, proteingeneid, by = "protein_id")
write.table(final_orthotable, file = "data/orthologs/Orthogroups_genesprotein_11species_May2024.csv", sep = ",", quote = FALSE, row.names = FALSE)There we have it, the final table with all the corresponding IDs.
library(readr)
library(tidyverse)
fulltable <- read_csv("data/orthologs/Orthogroups_genesprotein_11species_May2024.csv", col_names = TRUE)
view(fulltable)References
If you use this script, and orthologr please cite:
Drost et al. 2015. Evidence for Active Maintenance of Phylotranscriptomic Hourglass Patterns in Animal and Plant Embryogenesis. Mol. Biol. Evol. 32 (5): 1221-1231. doi:10.1093/molbev/msv012
If you use Transdecoder, please cite it as:
Haas, B., and A. Papanicolaou. “TransDecoder.” (2017).
If you use Orthofinder, please cite it:
OrthoFinder’s orthogroup and ortholog inference are described here:
Emms, D.M., Kelly, S. OrthoFinder: solving fundamental biases in whole genome comparisons dramatically improves orthogroup inference accuracy. Genome Biol 16, 157 (2015).
Emms, D.M., Kelly, S. OrthoFinder: phylogenetic orthology inference for comparative genomics. Genome Biol 20, 238 (2019).
If you use the OrthoFinder species tree then also cite:
Emms D.M. & Kelly S. STRIDE: Species Tree Root Inference from Gene Duplication Events (2017), Mol Biol Evol 34(12): 3267-3278.
Emms D.M. & Kelly S. STAG: Species Tree Inference from All Genes (2018), bioRxiv https://doi.org/10.1101/267914.
Please also cite MAFFT:
K. Katoh, K. Misawa, K. Kuma, and T. Miyata. 2002. MAFFT: a novel method for rapid multiple sequence alignment based on fast Fourier transform. Nucleic Acids Res. 30(14): 3059-3066.
sessionInfo()R version 4.3.1 (2023-06-16)
Platform: x86_64-apple-darwin20 (64-bit)
Running under: macOS Sonoma 14.4.1
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.3-x86_64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.3-x86_64/Resources/lib/libRlapack.dylib; LAPACK version 3.11.0
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: America/Chicago
tzcode source: internal
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] kableExtra_1.4.0 knitr_1.45
loaded via a namespace (and not attached):
[1] jsonlite_1.8.8 highr_0.10 compiler_4.3.1 promises_1.3.0
[5] Rcpp_1.0.12 xml2_1.3.6 stringr_1.5.1 git2r_0.33.0
[9] later_1.3.2 jquerylib_0.1.4 systemfonts_1.0.6 scales_1.3.0
[13] yaml_2.3.8 fastmap_1.2.0 R6_2.5.1 workflowr_1.7.1
[17] tibble_3.2.1 munsell_0.5.1 rprojroot_2.0.4 svglite_2.1.3
[21] bslib_0.7.0 pillar_1.9.0 rlang_1.1.3 utf8_1.2.4
[25] cachem_1.1.0 stringi_1.8.4 httpuv_1.6.15 xfun_0.44
[29] fs_1.6.4 sass_0.4.9 viridisLite_0.4.2 cli_3.6.2
[33] magrittr_2.0.3 digest_0.6.35 rstudioapi_0.16.0 lifecycle_1.0.4
[37] vctrs_0.6.5 evaluate_0.23 glue_1.7.0 whisker_0.4.1
[41] fansi_1.0.6 colorspace_2.1-0 rmarkdown_2.27 tools_4.3.1
[45] pkgconfig_2.0.3 htmltools_0.5.8.1
