Load package
if (!require("pacman")) install.packages("pacman")Loading required package: pacmanWarning: package 'pacman' was built under R version 3.6.1pacman::p_load(tidyverse,
qgraph,
stats,
bootnet,
igraph,
plotrix,
mgm,
NetworkComparisonTest,
rio,
furrr,
cowplot,
doParallel,
huge,
EGAnet)Report network without group as variable
ODI labels
# ODI custom figure
nodeLabels <- c("Pain Intensity", "Personal Care", "Lifting", "Walking", "Sitting",
"Standing", "Sleeping", "Social life", "Travelling", "Work/Housework")
ques <- paste0("Q", 1:10)
node_df <- data.frame("Item" = ques,
"Variable" = nodeLabels)Load models
# Model with missing data as input
res <- readRDS("output/raw.RDS")
# Model with complete imputed data as input
#res <- readRDS("output/com.RDS")Plot network

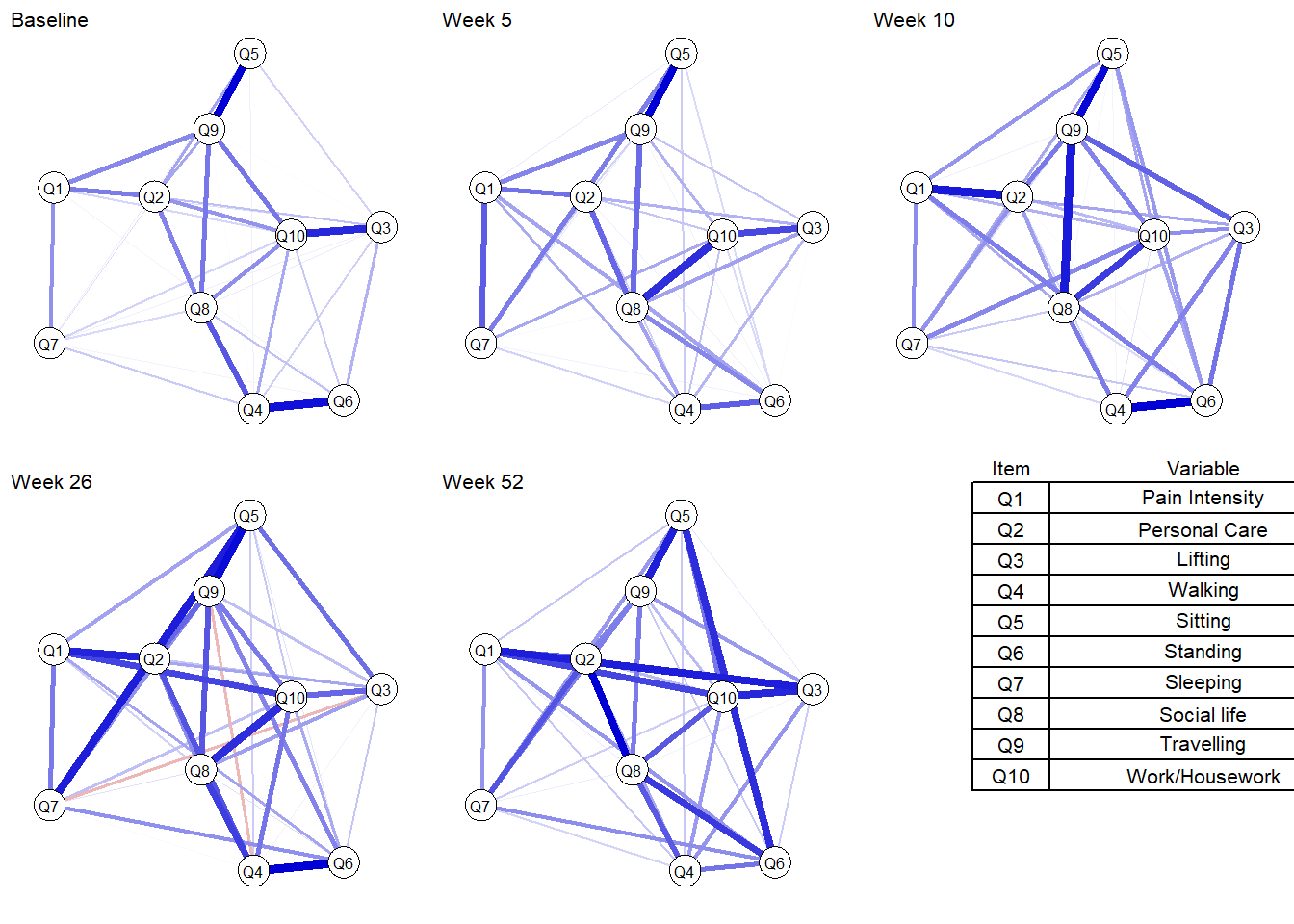

Blue edges - positive correlation
Red edges - negative correlation
The thickness of the edges indicate the magnitude of correlation.
#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_network.tiff")
par (mfrow = c(2,3))
p1 <- plot (res$nw[[1]], title = "Baseline", label.cex = 1.5, vsize = 10)
plot (res$nw[[2]], title = "Week 5", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[3]], title = "Week 10", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[4]], title = "Week 26", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[5]], title = "Week 52", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot.new()
addtable2plot(0,0,node_df,
xpad=1, ypad=1,
bty='o',
display.rownames = FALSE,
hlines = TRUE,
vlines = TRUE)

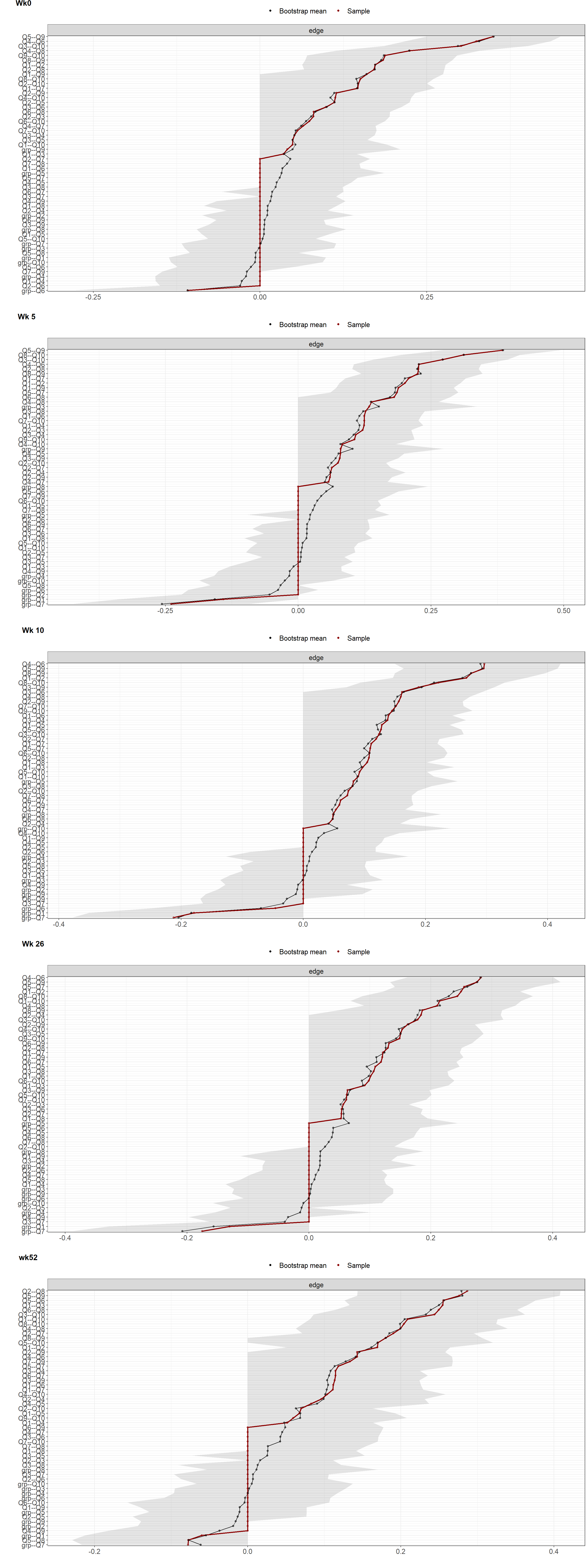

#dev.off()Plot edge weights stability

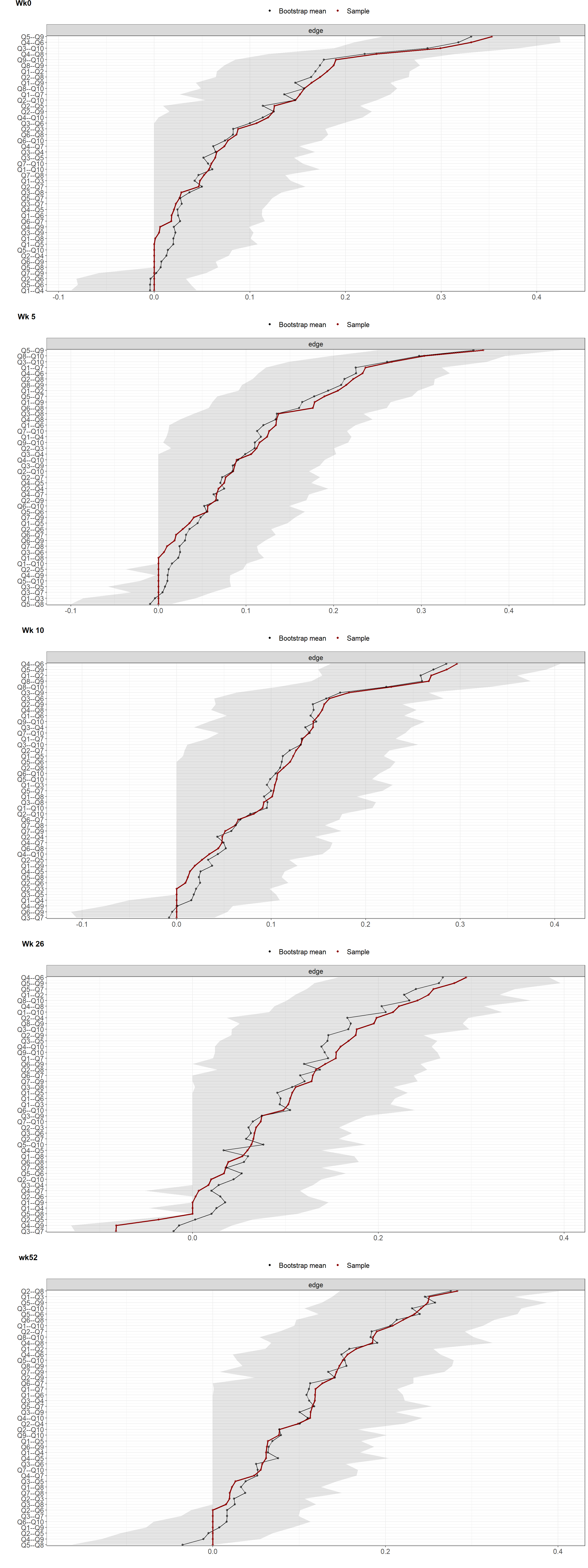

Confidence interval
See which edges differ from each other in size significantly (to answer the question is edge A significantly larger than edge B).
w_fig <- map (res$edgewts, plot, order = "sample")
w_fig <- map (w_fig, ~.x +
theme(text = element_text(size = 16)),
include = "all", print = FALSE, scale = "relative")
cowplot::plot_grid(plotlist = w_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = -1, ncol = 1)

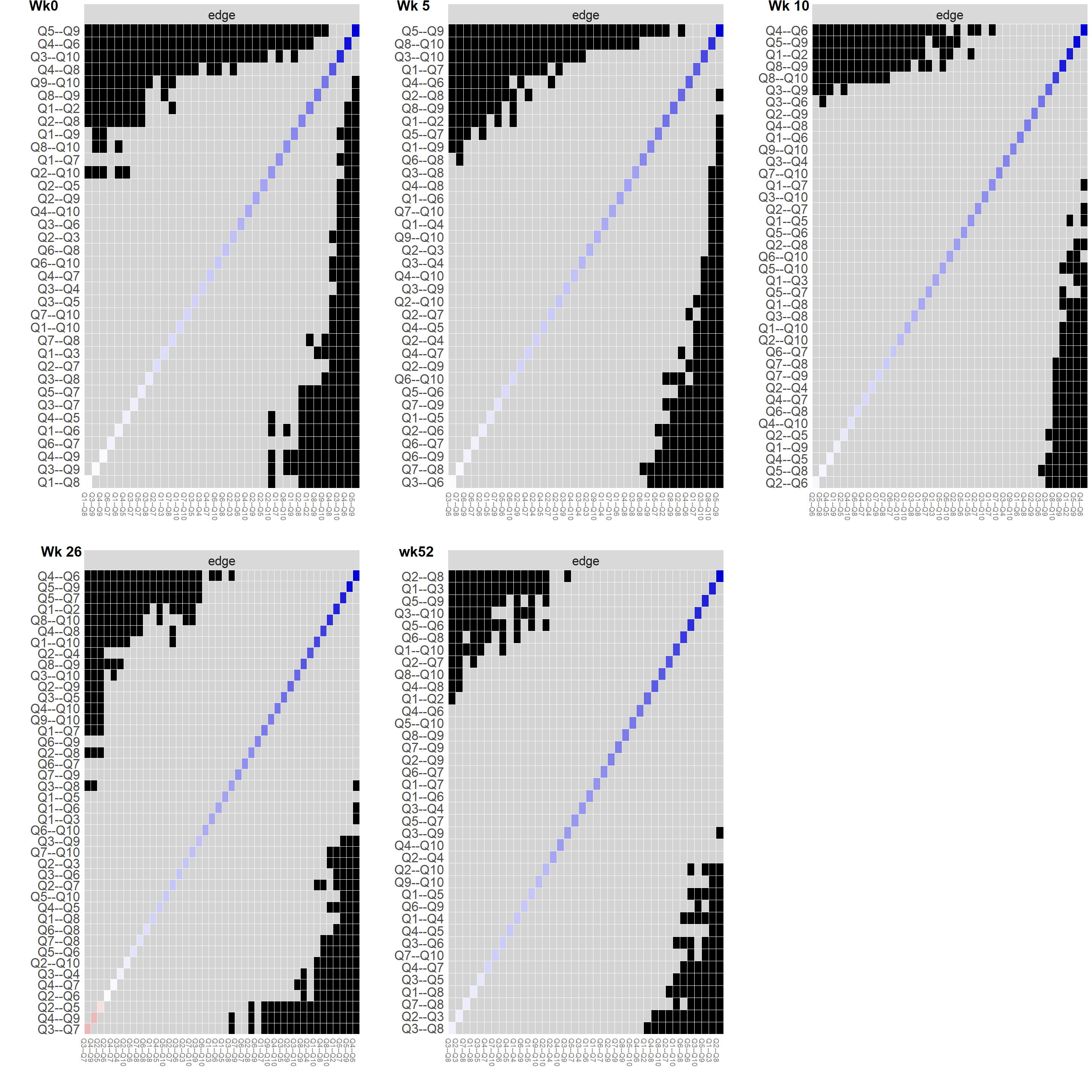

Hypothesis testing
wp_fig <- map (res$edgewts, plot, plot = "difference",
satistics = "edge", order = "sample", onlyNonZero = TRUE)
wp_fig <- map (wp_fig, ~.x +
theme(text = element_text(size = 16)),
include = "all", print = FALSE, scale = "relative")
cowplot::plot_grid(plotlist = wp_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = -1, ncol = 3)

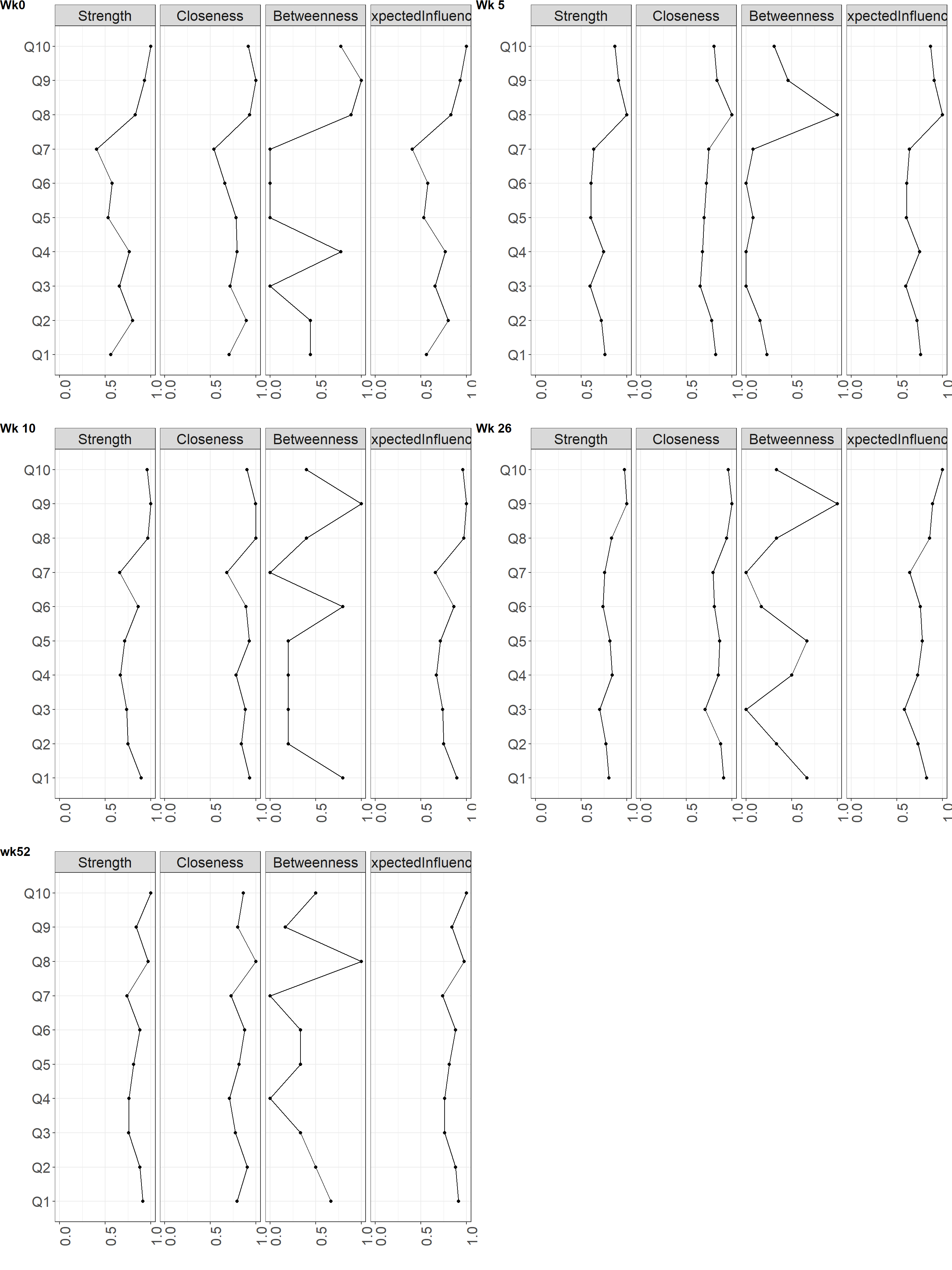

Plot centrality
High centrality nodes have strong connections to many other nodes, and act as hubs that connect otherwise disparate nodes to one another.
Low centrality nodes exist on the periphery of the network, with fewer and weaker connections to other nodes of the network.
Strength is the sum of the absolute value of its connections with other nodes in the network.
Degree can be straightforwardly generalized to weighted networks by considering the sum of the weights of the connections (in absolute value), instead of their number. This generalization is called strength.
Closeness centrality is defined as the inverse of the sum of the distances of the focal node from all the other nodes in the network. Closeness is the average shortest path between a given node and the remaining nodes in the network. Nodes with higher closeness are more proximally connected to the rest of the network.
Betweenness is the number of times in which a given node lies on the shortest path between two other nodes.
Expected influence is the sum of a node’s connections and represents the relative importance of a node in a network (Robinaugh et al., 2016) –relative because even in weakly connected networks (with overall low edge weights), there will always be a node with a high expected influence in case of standardized results.
The greater the value of centrality indices to one, the more important the variable.
# Plot centrality
c_fig <- map (res$nw, centralityPlot, include = "all", print = FALSE, scale = "relative")
c_fig <- map (c_fig, ~.x +
scale_x_continuous(breaks= c(0, 0.5, 1), lim = c(0, 1)) +
theme(text = element_text(size = 20),
axis.text.x = element_text(angle = 90, hjust = 1)),
include = "all", print = FALSE, scale = "relative")
#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_strength.tiff")
cowplot::plot_grid(plotlist = c_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = 0, ncol = 2)
#dev.off()Plot centrality stability

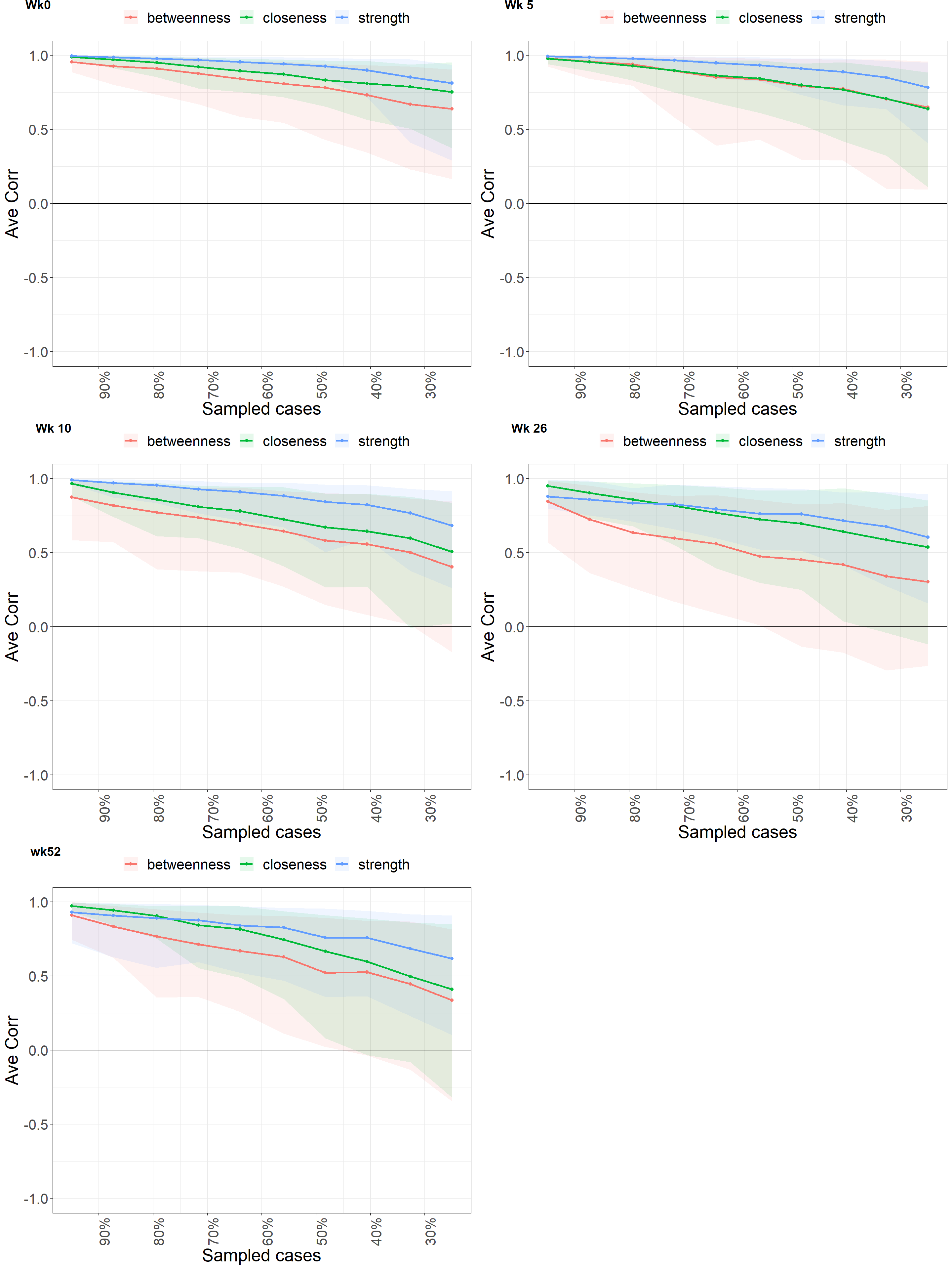

Is the centrality order stable?
# Plot centrality stability
s_fig <- map (res$centr_stb, plot, statistics = c("closeness", "strength", "betweenness"))
s_fig <- map (s_fig, ~.x +
ylab ("Ave Corr") +
theme(text = element_text(size = 20),
axis.text.x = element_text(angle = 90, hjust = 1)),
include = "all", print = FALSE, scale = "relative")
#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_stability.tiff")
cowplot::plot_grid(plotlist = s_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = -1, ncol = 2)
#dev.off()Get CS coefficient
The stability of centrality estimation, and results in a centrality-stability coefficient (CS-coefficient) that should not be lower than 0.25 and preferably above 0.5
cs_coef <- res %>%
select (time, cor_stb) %>%
unnest () %>%
ungroup() %>%
mutate (measure = rep (c("betweenness", "closeness", "edge", "expectedInfluence", "strength"), 5)) %>%
mutate (cor_stb = round (cor_stb, 2))
cs_coef %>%
knitr::kable (caption = "Stability of centrality indices")| time | cor_stb | measure |
|---|---|---|
| 0 | 0.28 | betweenness |
| 0 | 0.44 | closeness |
| 0 | 0.59 | edge |
| 0 | 0.59 | expectedInfluence |
| 0 | 0.59 | strength |
| 5 | 0.21 | betweenness |
| 5 | 0.36 | closeness |
| 5 | 0.59 | edge |
| 5 | 0.67 | expectedInfluence |
| 5 | 0.59 | strength |
| 10 | 0.00 | betweenness |
| 10 | 0.13 | closeness |
| 10 | 0.52 | edge |
| 10 | 0.59 | expectedInfluence |
| 10 | 0.44 | strength |
| 26 | 0.00 | betweenness |
| 26 | 0.21 | closeness |
| 26 | 0.44 | edge |
| 26 | 0.67 | expectedInfluence |
| 26 | 0.21 | strength |
| 52 | 0.05 | betweenness |
| 52 | 0.21 | closeness |
| 52 | 0.44 | edge |
| 52 | 0.44 | expectedInfluence |
| 52 | 0.13 | strength |
Report network with group as variable
Load models
Individualised PT coded as 1.
Advise coded as 0.
# Model with missing data as input
res <- readRDS("output/mgm_raw.RDS")
# Model with complete imputed data as input
#res <- readRDS("output/com.RDS")
nodes <- colnames (res$data[[1]])Plot network

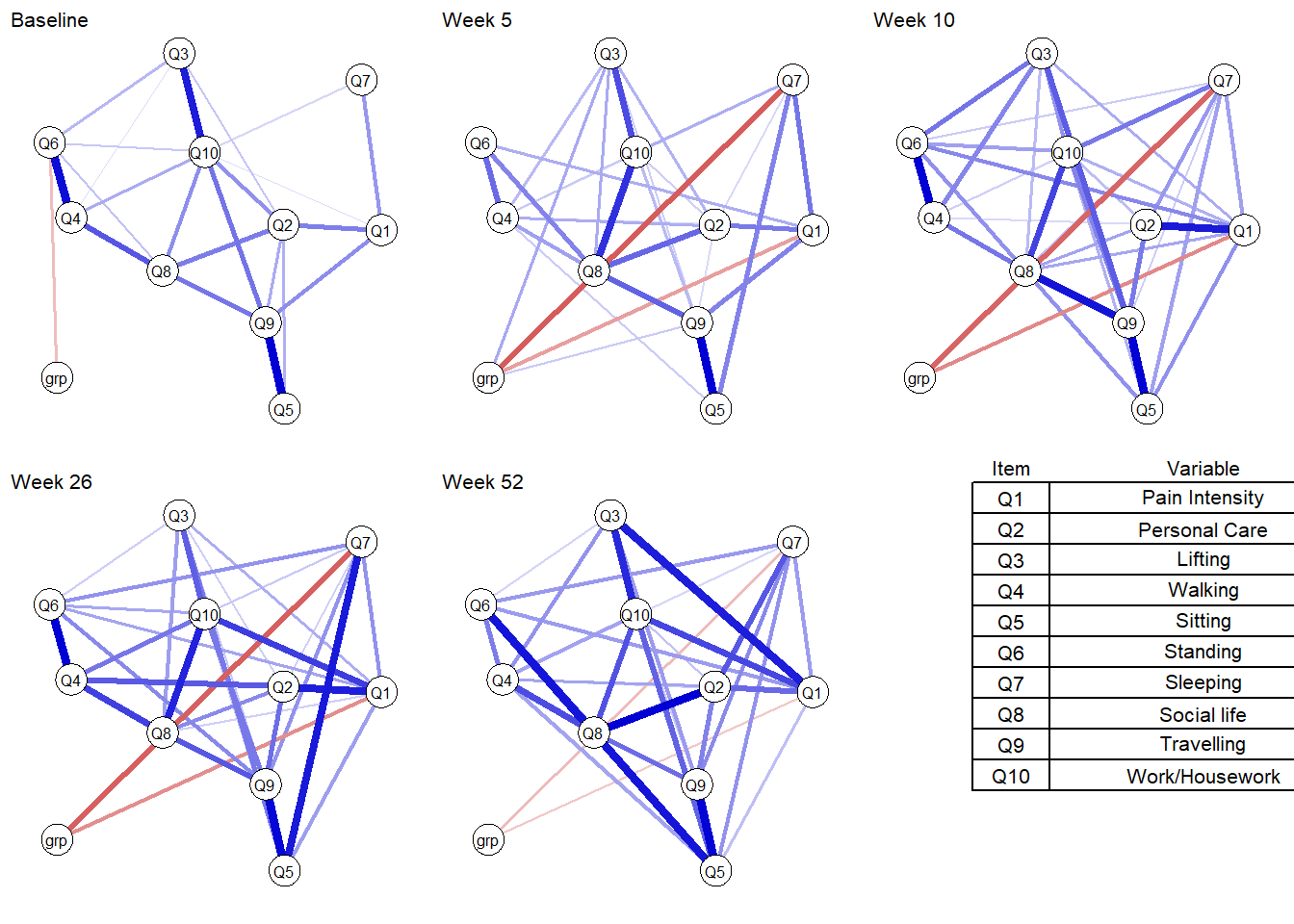

Blue edges - positive correlation
Red edges - negative correlation
The thickness of the edges indicate the magnitude of correlation.
#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_network.tiff")
par (mfrow = c(2,3))
p1 <- plot (res$nw[[1]], title = "Baseline", label.cex = 1.5, vsize = 10)
plot (res$nw[[2]], title = "Week 5", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[3]], title = "Week 10", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[4]], title = "Week 26", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot (res$nw[[5]], title = "Week 52", layout = p1$layout, label.cex = 1.5, vsize = 10)
plot.new()
addtable2plot(0,0,node_df,
xpad=1, ypad=1,
bty='o',
display.rownames = FALSE,
hlines = TRUE,
vlines = TRUE)
#dev.off()Plot edge weights stability
Confidence interval
See which edges differ from each other in size significantly (to answer the question is edge A significantly larger than edge B).
w_fig <- map (res$edgewts, plot, order = "sample")
w_fig <- map (w_fig, ~.x +
theme(text = element_text(size = 16)),
include = "all", print = FALSE, scale = "relative")
cowplot::plot_grid(plotlist = w_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = -1, ncol = 1)

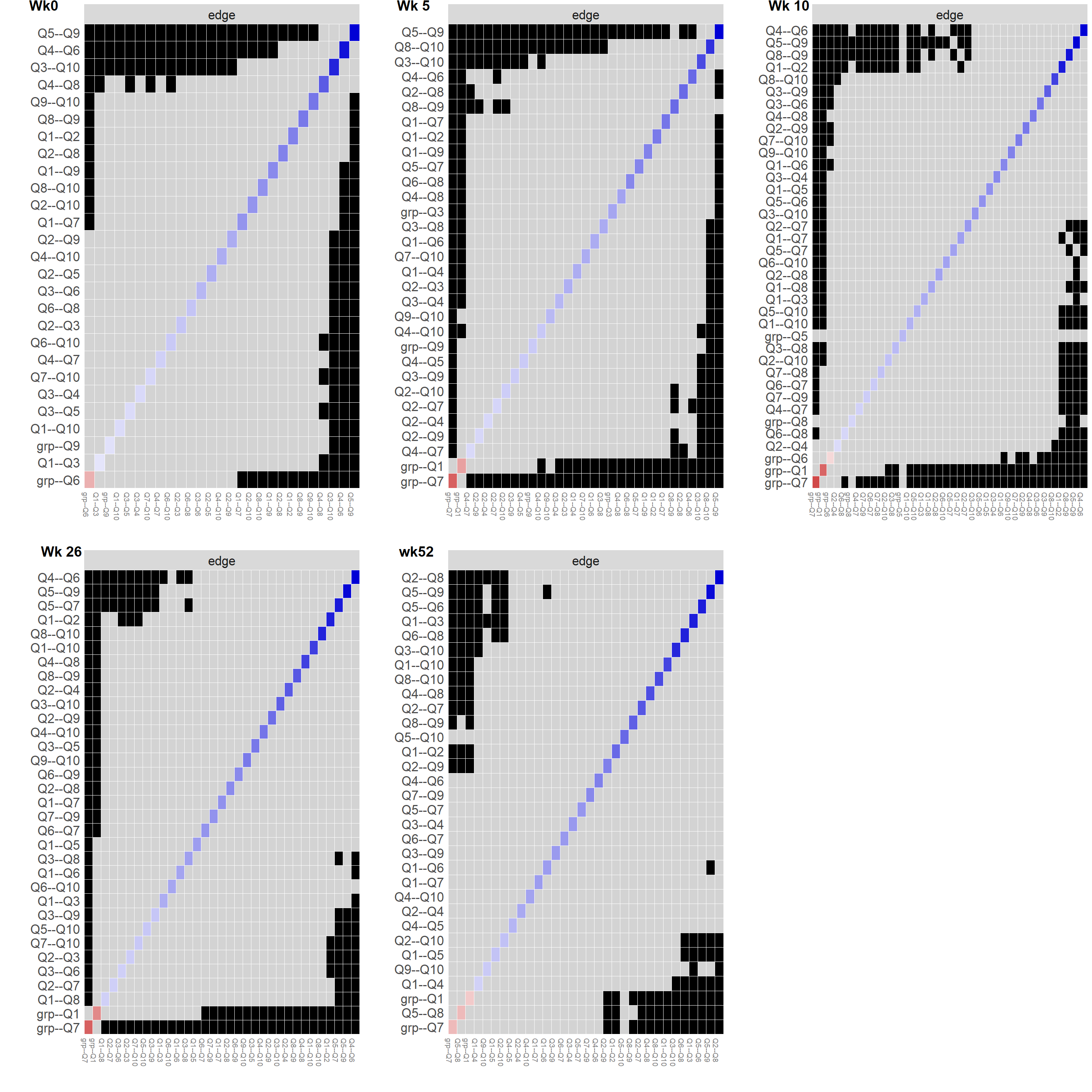

Hypothesis testing
wp_fig <- map (res$edgewts, plot, plot = "difference",
satistics = "edge", order = "sample", onlyNonZero = TRUE)
wp_fig <- map (wp_fig, ~.x +
theme(text = element_text(size = 16)),
include = "all", print = FALSE, scale = "relative")
cowplot::plot_grid(plotlist = wp_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = -1, ncol = 3)
Plot centrality
High centrality nodes have strong connections to many other nodes, and act as hubs that connect otherwise disparate nodes to one another.
Low centrality nodes exist on the periphery of the network, with fewer and weaker connections to other nodes of the network.
Strength is the sum of the absolute value of its connections with other nodes in the network.
Degree can be straightforwardly generalized to weighted networks by considering the sum of the weights of the connections (in absolute value), instead of their number. This generalization is called strength.
Closeness centrality is defined as the inverse of the sum of the distances of the focal node from all the other nodes in the network. Closeness is the average shortest path between a given node and the remaining nodes in the network. Nodes with higher closeness are more proximally connected to the rest of the network.
Betweenness is the number of times in which a given node lies on the shortest path between two other nodes.
Expected influence is the sum of a node’s connections and represents the relative importance of a node in a network (Robinaugh et al., 2016) –relative because even in weakly connected networks (with overall low edge weights), there will always be a node with a high expected influence in case of standardized results.
The greater the value of centrality indices to one, the more important the variable.
# Plot centrality
c_fig <- map (res$nw, centralityPlot, include = "all",
print = FALSE, scale = "relative", labels = nodes) %>%
map (~.x +
scale_x_continuous(breaks= c(0, 0.5, 1), lim = c(0, 1)) +
theme(text = element_text(size = 20),
axis.text.x = element_text(angle = 90, hjust = 1)),
include = "all", print = FALSE, scale = "relative")
#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_strength.tiff")
cowplot::plot_grid(plotlist = c_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = 0, ncol = 2)
#dev.off()Plot centrality stability

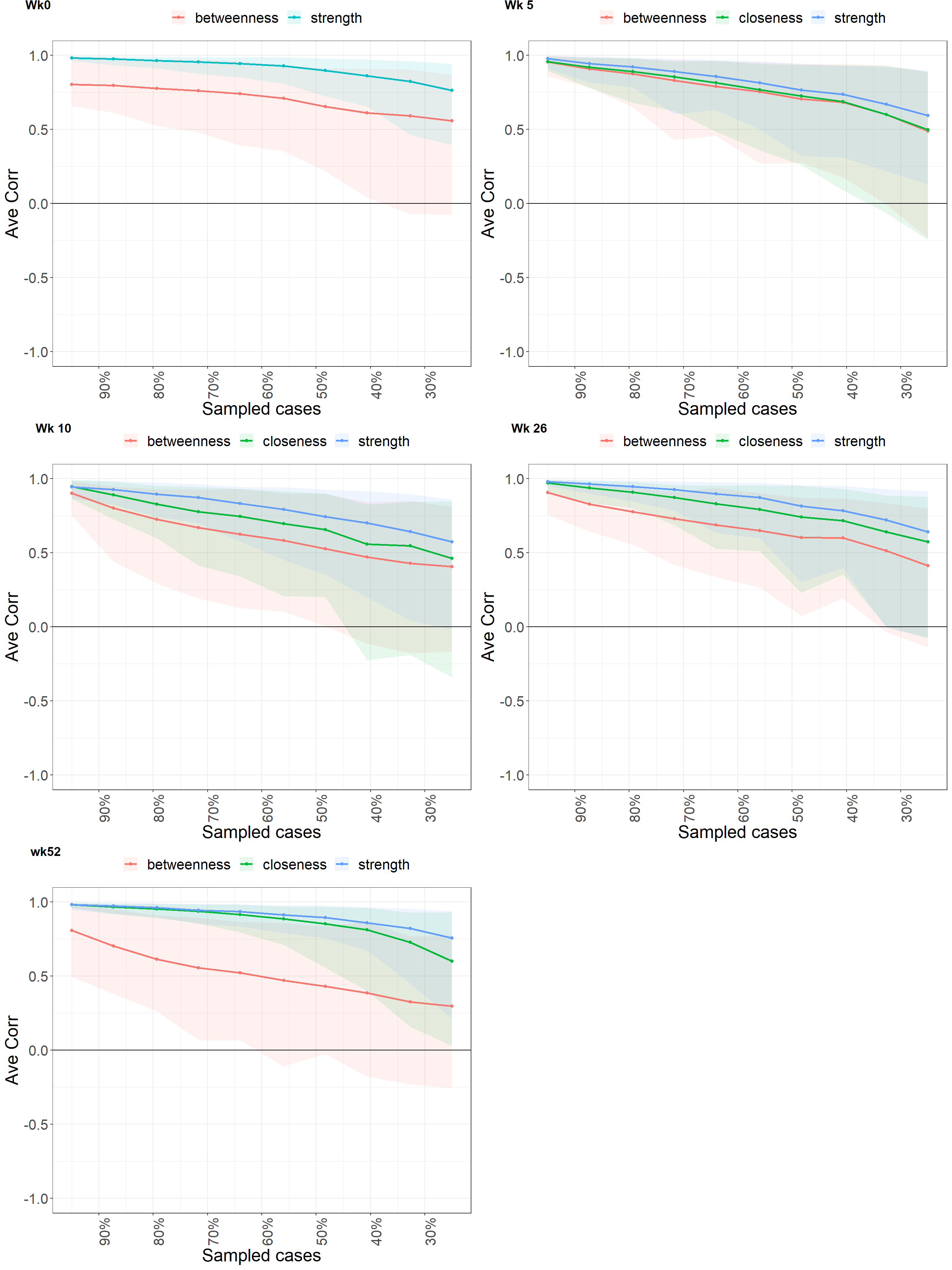

Is the centrality order stable?
# Plot centrality stability
s_fig <- map (res$centr_stb, plot, statistics = c("closeness", "strength", "betweenness"))
s_fig <- map (s_fig, ~.x +
ylab ("Ave Corr") +
theme(text = element_text(size = 20),
axis.text.x = element_text(angle = 90, hjust = 1)),
include = "all", print = FALSE, scale = "relative")
#tiff(width = 15, height = 15, units = "in", res = 100, file = "output/odi_stability.tiff")
cowplot::plot_grid(plotlist = s_fig, labels = c("Wk0","Wk 5", "Wk 10", "Wk 26", "wk52" ), vjust = 1, hjust = -1, ncol = 2)
#dev.off()Get CS coefficient
The stability of centrality estimation, and results in a centrality-stability coefficient (CS-coefficient) that should not be lower than 0.25 and preferably above 0.5
cs_coef <- res %>%
select (time, cor_stb) %>%
unnest () %>%
ungroup() %>%
mutate (measure = rep (c("betweenness", "closeness", "edge", "expectedInfluence", "strength"), 5)) %>%
mutate (cor_stb = round (cor_stb, 2))
cs_coef %>%
knitr::kable (caption = "Stability of centrality indices")| time | cor_stb | measure |
|---|---|---|
| 0 | 0.00 | betweenness |
| 0 | 0.00 | closeness |
| 0 | 0.59 | edge |
| 0 | 0.67 | expectedInfluence |
| 0 | 0.59 | strength |
| 5 | 0.21 | betweenness |
| 5 | 0.21 | closeness |
| 5 | 0.59 | edge |
| 5 | 0.67 | expectedInfluence |
| 5 | 0.28 | strength |
| 10 | 0.05 | betweenness |
| 10 | 0.13 | closeness |
| 10 | 0.52 | edge |
| 10 | 0.75 | expectedInfluence |
| 10 | 0.28 | strength |
| 26 | 0.05 | betweenness |
| 26 | 0.28 | closeness |
| 26 | 0.52 | edge |
| 26 | 0.75 | expectedInfluence |
| 26 | 0.44 | strength |
| 52 | 0.00 | betweenness |
| 52 | 0.00 | closeness |
| 52 | 0.52 | edge |
| 52 | 0.75 | expectedInfluence |
| 52 | 0.59 | strength |
sessionInfo()R version 3.6.0 (2019-04-26)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 18363)
Matrix products: default
locale:
[1] LC_COLLATE=English_United Kingdom.1252
[2] LC_CTYPE=English_United Kingdom.1252
[3] LC_MONETARY=English_United Kingdom.1252
[4] LC_NUMERIC=C
[5] LC_TIME=English_United Kingdom.1252
attached base packages:
[1] parallel stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] EGAnet_0.9.6 huge_1.3.4.1
[3] doParallel_1.0.16 iterators_1.0.13
[5] foreach_1.5.1 cowplot_1.1.0
[7] furrr_0.2.1 future_1.20.1
[9] rio_0.5.16 NetworkComparisonTest_2.2.1
[11] mgm_1.2-10 plotrix_3.7-8
[13] igraph_1.2.6 bootnet_1.4.3
[15] qgraph_1.6.5 forcats_0.5.0
[17] stringr_1.4.0 dplyr_1.0.2
[19] purrr_0.3.4 readr_1.4.0
[21] tidyr_1.1.2 tibble_3.0.4
[23] ggplot2_3.3.2 tidyverse_1.3.0
[25] pacman_0.5.1
loaded via a namespace (and not attached):
[1] R.utils_2.10.1 tidyselect_1.1.0 htmlwidgets_1.5.2
[4] grid_3.6.0 munsell_0.5.0 codetools_0.2-18
[7] withr_2.3.0 colorspace_2.0-0 NetworkToolbox_1.4.0
[10] highr_0.8 knitr_1.30 rstudioapi_0.13
[13] stats4_3.6.0 listenv_0.8.0 labeling_0.4.2
[16] git2r_0.27.1 mnormt_2.0.2 farver_2.0.3
[19] rprojroot_2.0.2 parallelly_1.21.0 vctrs_0.3.5
[22] generics_0.1.0 xfun_0.19 R6_2.5.0
[25] smacof_2.1-1 assertthat_0.2.1 promises_1.1.1
[28] scales_1.1.1 nnet_7.3-14 gtable_0.3.0
[31] globals_0.14.0 weights_1.0.1 workflowr_1.6.2
[34] rlang_0.4.8 splines_3.6.0 wordcloud_2.6
[37] broom_0.7.2 checkmate_2.0.0 yaml_2.2.1
[40] reshape2_1.4.4 abind_1.4-5 modelr_0.1.8
[43] d3Network_0.5.2.1 backports_1.2.0 httpuv_1.5.4
[46] Hmisc_4.4-1 tools_3.6.0 psych_2.0.9
[49] lavaan_0.6-7 ellipsis_0.3.1 RColorBrewer_1.1-2
[52] polynom_1.4-0 Rcpp_1.0.5 plyr_1.8.6
[55] base64enc_0.1-3 rpart_4.1-15 pbapply_1.4-3
[58] haven_2.3.1 cluster_2.1.0 fs_1.5.0
[61] survey_4.0 magrittr_2.0.1 data.table_1.13.2
[64] openxlsx_4.2.3 reprex_0.3.0 tmvnsim_1.0-2
[67] mvtnorm_1.1-1 matrixcalc_1.0-3 whisker_0.4
[70] hms_0.5.3 evaluate_0.14 jpeg_0.1-8.1
[73] readxl_1.3.1 gridExtra_2.3 shape_1.4.5
[76] compiler_3.6.0 ellipse_0.4.2 mice_3.12.0
[79] crayon_1.3.4 R.oo_1.24.0 htmltools_0.5.0
[82] corpcor_1.6.9 later_1.1.0.1 Formula_1.2-4
[85] lubridate_1.7.9.2 DBI_1.1.0 relaimpo_2.2-3
[88] dbplyr_2.0.0 MASS_7.3-53 boot_1.3-25
[91] IsingSampler_0.2.1 Matrix_1.2-18 IsingFit_0.3.1
[94] car_3.0-10 cli_2.2.0 heplots_1.3-7
[97] mitools_2.4 R.methodsS3_1.8.1 gdata_2.18.0
[100] BDgraph_2.63 pkgconfig_2.0.3 foreign_0.8-71
[103] xml2_1.3.2 pbivnorm_0.6.0 rvest_0.3.6
[106] digest_0.6.27 rmarkdown_2.5 cellranger_1.1.0
[109] htmlTable_2.1.0 curl_4.3 gtools_3.8.2
[112] rjson_0.2.20 lifecycle_0.2.0 nlme_3.1-150
[115] glasso_1.11 jsonlite_1.7.1 carData_3.0-4
[118] fansi_0.4.1 pillar_1.4.7 lattice_0.20-41
[121] httr_1.4.2 survival_3.2-7 glue_1.4.2
[124] networktools_1.2.3 zip_2.1.1 fdrtool_1.2.15
[127] png_0.1-7 candisc_0.8-3 glmnet_4.0-2
[130] class_7.3-17 stringi_1.4.6 nnls_1.4
[133] latticeExtra_0.6-29 eigenmodel_1.11 e1071_1.7-4
