Pairwise fitting

—Special considerations: this portion is highly parallelizable—

Here, we describe how to execute the first step of CLIMB: pairwise fitting (a composite likelihood method).

First, load the package and the simulated dataset. This toy dataset has $n=1500$ observations across $D=3$ conditions (that is, dimensions). Thus, we need to fit $\binom{D}{2}=3$ pairwise models.

# load that package
library(CLIMB)

# load the toy data
data("sim")

The fitting of each pairwise model can be done in parallel, which saves a lot of computing time when the dimension is larger. This can be done simply (in parallel, or linearly) with the function get_pairwise_fits(). Note that the input data should be $z$-scores (or data arising from some other scoring mechanism, transformed appropriately to $z$-scores).

get_pairwise_fits() runs the pairwise analysis at the default settings used in the CLIMB manuscript. The user can select a few settings with this functions:

1. nlambda: how many tuning parameters to try (defaults to 10)

2. parallel: logical indicating whether or not to do the analysis in parallel

3. ncores: if in parallel, how many cores to use (defaults to 10)

4. bound: is there a lower bound on the estimated non-null mean? (defaults to zero, and must be non-negative)

5. flex_mu: should we loosen restrictions on the mean in the pairwise fitting (defaults to FALSE, best used in conjunction with bound)?

With all of this in place, one can obtain the pairwise fits as follows:

fits <- get_pairwise_fits(z = sim$data, parallel = FALSE)

Calling names(fits) tells us which pair of dimensions each fit belongs to.

names(fits)

[1] "1_2" "1_3" "2_3"

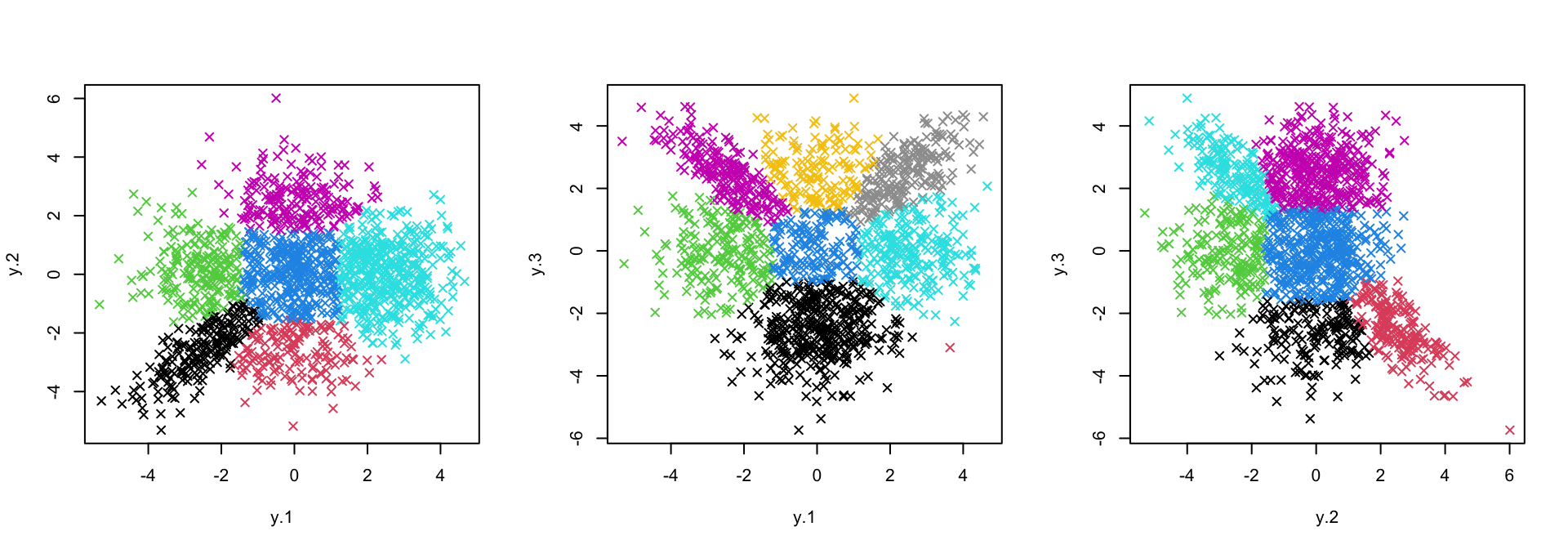

It is advisable to take a look at the pairwise fitting output before proceeding, just to make sure things have gone ok so far.

axis_names <- names(fits) %>% stringr::str_split("_")
par(mfrow = c(1,3))
purrr::map2(.x = fits, .y = axis_names,
     ~ plot(sim$data[, as.numeric(.y)], col = .x$cluster, pch = 4))

Past versions of unnamed-chunk-5-1.png

The default settings of get_pairwise_fits() are generally sufficient for analysis. However, it makes some modeling assumptions which can be relaxed. Namely, if one wants a slightly more flexible model based on estimation of cluster means, one could instead run the following:

# bound = qnorm(0.9) says that the magnitude of the estimated cluster means
#   (for clusters whose mean is non-zero) must be at least the 90% quantile
#   of a standard normal distribution
flexible_fits <-
  get_pairwise_fits(
  z = sim$data,
  parallel = FALSE,
  flex_mu = TRUE,
  bound = qnorm(0.9)
  )

This change is sometimes desirable in cases where the data are highly skewed. It is recommended to set some positive bound when flex_mu=TRUE. If not, one is likely to underestimate the true number of clusters. We can see that, in this case, classification appears similar to the previous version with flex_mu=FALSE and bound=0.

axis_names <- names(flexible_fits) %>% stringr::str_split("_")
par(mfrow = c(1,3))
purrr::map2(.x = flexible_fits, .y = axis_names,
     ~ plot(sim$data[, as.numeric(.y)], col = .x$cluster, pch = 4))

Past versions of unnamed-chunk-7-1.png

Each fit contains additional information, including the length-2 association patterns estimated to be in the given pairwise fit, the posterior probability of each observation belonging to each of these classes, and their corresponding estimated means and covariances.

Finally, save this output, as it is necessary for many parts of the downstream analyses, before moving on to the next step.

save(fits, file = "pwfits.Rdata")
